Establishment and Application of the Spatial Decomposition Method (SDM) for Tunnels Passing Through Large Karst Caves

Abstract

Karst tunnels commonly pass through large karst caves during their construction and operation. Although treatment technologies are relatively mature, a systematic treatment method to guide the selection of treatment technologies is lacking. To solve this problem, a spatial decomposition method (SDM) of large karst caves is proposed that is based on analyzing the spatial relationship between tunnels and karst caves and summarizing the relevant treatment techniques. In this method, the space between the tunnel and the cavern is divided into eight parts using a space dividing line (SDL), which makes the spatial position relationship between the tunnel and cavern more intuitive. A geometric model of the SDM is established, and the numerical values of each geometric parameter are determined by field surveys and drawings. Constructing a three-dimensional spatial diagram by applying relevant parameters to the geometric model provides a reference for selecting a treatment technology. The SDM of the arch top, arch bottom, and two wings matching the treatment technology is proposed. Seven principles of technical selection—namely, safety, convenience, scientificity, sustainability, economy, feasibility, and openness—are mentioned in order to overcome the difficulty of technology selection due to such factors as technological diversity, materials, equipment, and environment. Finally, the SDM is used to solve the problem of the Shangyuan tunnel passing through a large karst cave. The implementation of the SDM in tunnel construction would represent a significant breakthrough and has important engineering value in solving the problem of tunnel passes through large karst caves.

1. Introduction

Karst is widely distributed around the world, and it causes great inconvenience to the achievement of engineering construction projects. Regions in the southwest of China, such as Yunnan and Guizhou, as well as other regions of China, are typified by steep hills and plenty of Karst terrain [1,2,3,4]. With the continuous improvement of China’s “western development” strategy, the prevalence of karst tunnel construction is increasing rapidly, and various technical problems of karst tunnels are constantly appearing [5,6]. Passing through a large karst cave can be considered as one of the main difficulties in tunnel construction that will impose higher theoretical and technological requirements on karst cave treatment. The study aims to identify and analyze a powerful new method for the implementation of karst tunnels.

In this regard, there are many relevant studies and engineering applications carried out by scholars that deal with large karst caves revealed during tunnel construction, the main aspects of which are exemplified as follows: Li et al. [7] treated a karst cave in a tunnel floor using the beam and plate method, and also used backfilling to treat the revealed karst cave. Cui et al. [8] introduced the requirements of karst tunnel treatment, grouting materials, construction procedures, and effect detection. Shi et al. [9] and Wang et al. [10] studied the application of alkali-resistant fiberglass grouting material in karst cave treatment. Fan et al. [11] found that the methods of pile foundation treatment at the bottom of the tunnel, strengthening the surrounding rock of the tunnel by full-section grouting, and supporting the top of the karst tunnel with an anchor net and shotcrete are effective. Chen et al. [12] focused on the Naqiu tunnel hall karst cave project, and used the pile-bearing platform-retaining wall method to control the karst cave. Garasic et al. [13] designed a 58 m bridge through a large karst cave. Yang et al. [14] proposed a new controlled grouting method and grouting material for the pre-reinforcement of the underwater karst area of a shield tunnel. Li et al. [15] showed that the treatment technology of an ultralarge karst cave in the Yawan tunnel, which is treated at the bottom of the tunnel by a continuous composite beam bridge, and the wall of the karst cave is treated by the combined support of an anchor net and spray. Zhang et al. [16] reported the treatment of large karst caves encountered during the construction of the Limushan tunnel by backfilling. Yuan et al. [17] treated a large karst cave in the Shangjiawan tunnel with plugging and crossing methods. Tan [18] analyzed the advantages and disadvantages of longitudinal retaining walls, pile foundation-bearing platforms, and backfilling in tunneling through large karst caves from the perspectives of cost, safety, convenience, and time limitations. He [19] used a roundabout method to turn a revealed large cave into a side hidden cave. Tian [20] and Wang [21] analyzed the safety problems of limestone during mining.

Based on the results of the above scholars, in view of the treatment technology of large karst caves revealed by tunnels, researchers have combined the practical projects and summarized the rich experience in treatment technology. In general, various technologies can be adopted to treat large karst caves. However, these existing technologies are lacking in commonality because they are based on specific engineering characteristics. There is a lack of a systematic method to guide the selection of one or more treatment technologies. To guarantee that the tunnels through large karst caves can achieve the purposes of convenience, high efficiency, safety, and systematicity, it is necessary to construct a complete set of technologies in order to achieve the comprehensive treatment of tunnels through large karst caves.

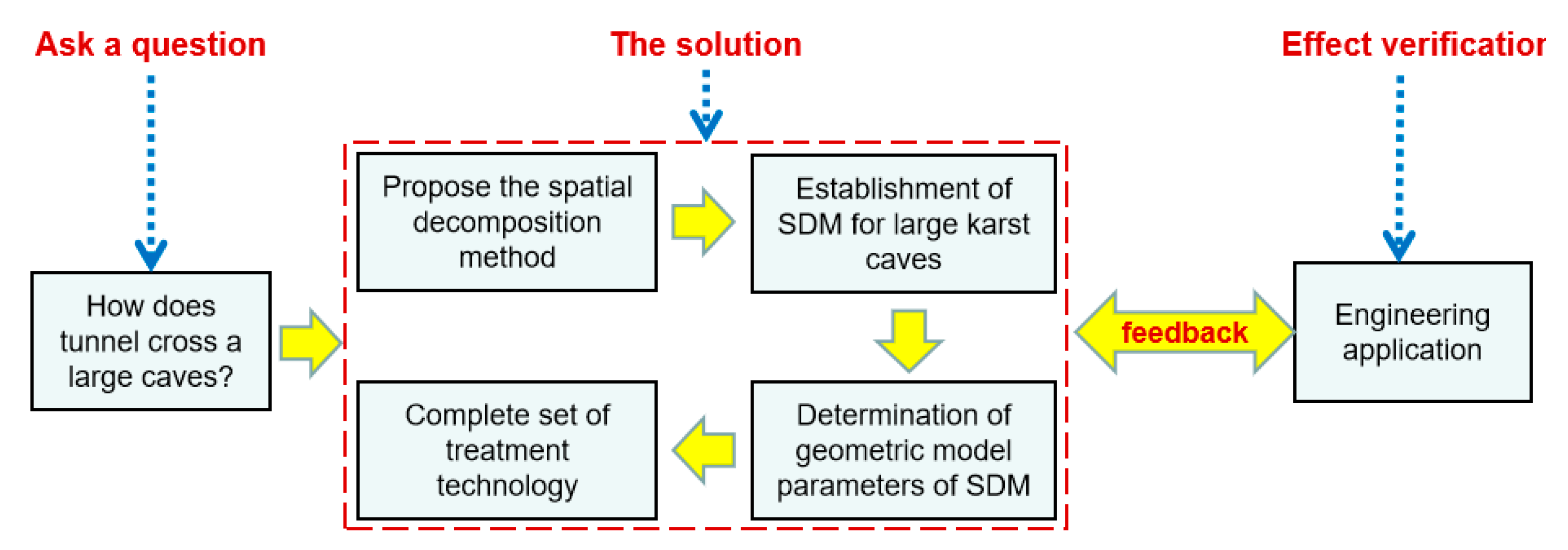

To overcome the abovementioned challenges, this paper describes a guiding method for tunnels through large karst caves and a complete set of technical measures. In order to achieve this goal, the following steps will be taken: (1) propose a spatial decomposition method (SDM); (2) establish a geometric model of SDM; (3) determine the numerical value of each parameter of the geometric model through field survey (surveying, drilling, mapping); (4) analyze the complete set of treatment technologies; (5) combined with the practical engineering of karst cave in the Shangyuan tunnel, SDM and its treatment technology are applied systematically. The research design of this paper is illustrated in Figure 1.

2. Establishment of SDM for Large Karst Caves

2.1. General Situation

When large karst caves are found in tunnel construction, the spatial location relationship between the tunnels and karst caves should be determined, and then a specific construction scheme must be formulated. The spatial relationship cannot provide detailed evidence of the preparation of construction technology, because we also need to satisfy certain necessary conditions such as karst cave filling, water content, and surrounding rock stability. Then, the SDM is proposed by taking into account the treatment process and technology of the bottom, top, and two sides of the cavern through the tunnel. The SDM divides the cave space into different spatial parts when a tunnel passes through a large karst cave, which provides technical solutions for subsequent cavern management.

2.2. Establishment of SDM

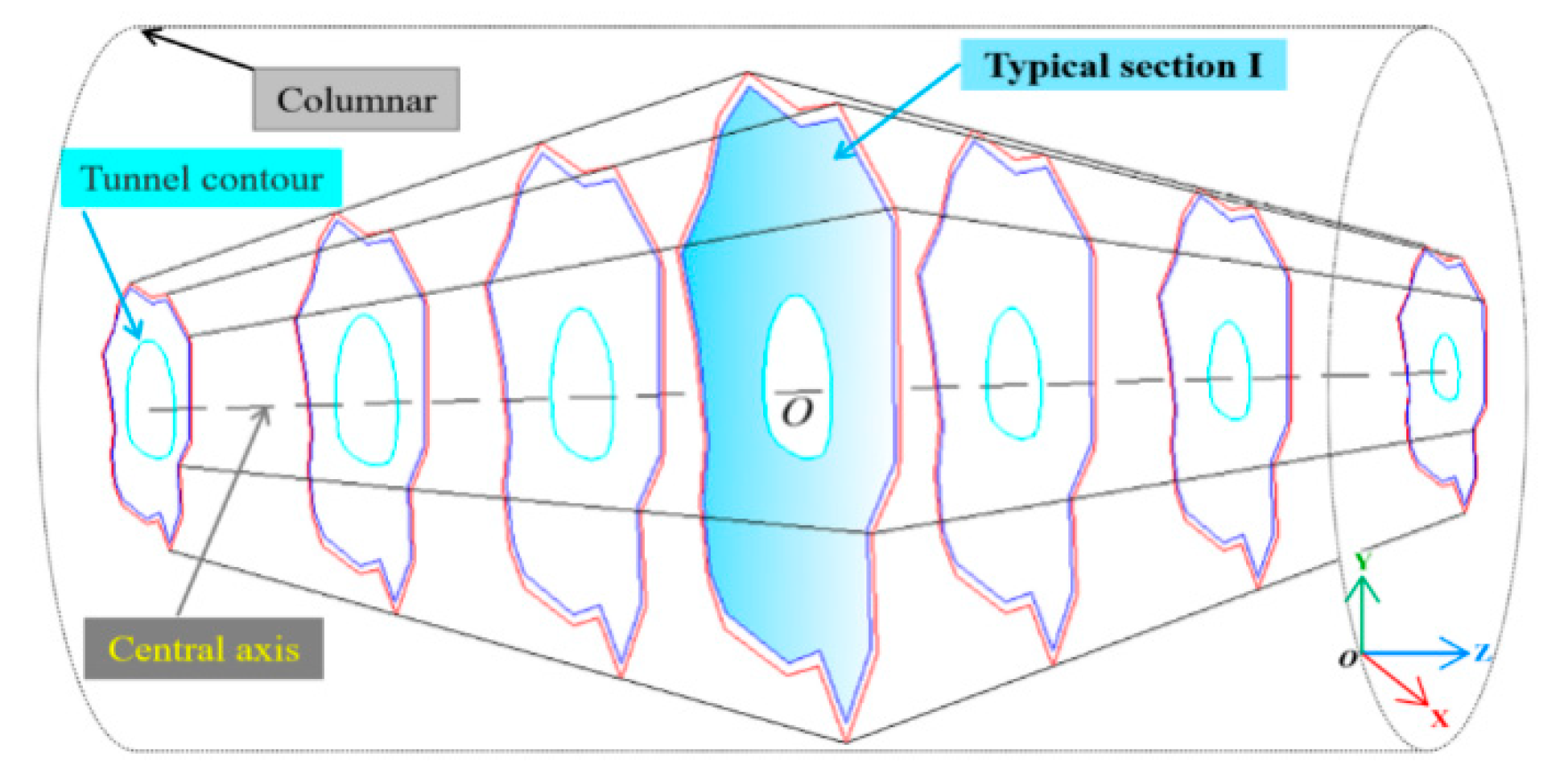

Owing to the diversity and complexity of cave development, the edges of caves are irregular. We assume an irregular karst cave as shown in Figure 2, and take as the analysis object one of the typical sections, labeled typical section I, as shown in Figure 3.

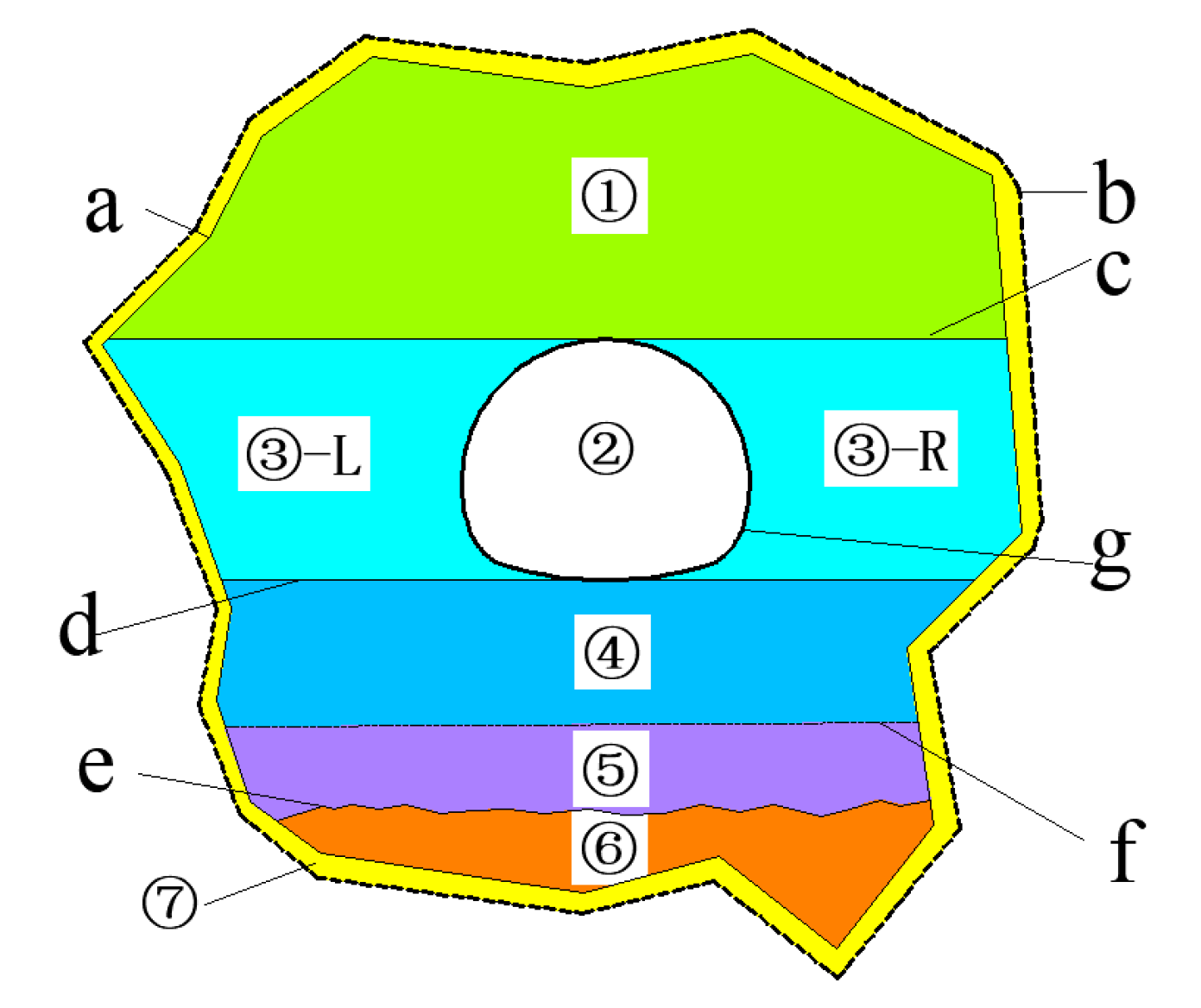

According to Figure 2 and Figure 3, the surrounding wall of the karst cave space is the cave outline. In fact, it is a three-dimensional (3D) closed surface of the cave contour. Here, typical section I (Figure 2) is selected, such that the cave contour line is a closed curve, as shown in the middle line in Figure 3. Owing to the erosion of the surrounding rocks in the process of karst development, a certain thickness of an unstable structure layer could be formed in the surrounding rock of the karst cave. The tunnel outline (line g) is the shape of the outermost protective layer in the design. At the top of the tunnel profile, we draw an artificial tangent called the tunnel top line (line c), while at the bottom of the tunnel contour we draw a tangent called the tunnel bottom line (line d). There is typically a certain thickness of fillings in karst caves, which may be gravel, clay, sand, etc., and the treatment of fillings is also an important part of karst treatment; therefore, the filling line (line e) should be drawn. Water is the most common filling material in karst and has a significant impact on tunnel construction, which is represented by the water level (line f). Lines a–g are collectively referred to as spatial decomposition lines (SDLs). SDLs are continuous surfaces rather than closed curves or line segments. For example, the water level (line f) represents the water surface in the project.

Using SDLs, the cave space can be divided into eight space parts: the upper space of the cave (①), the tunnel cavity space (②), the karst cave space on the two wings of the tunnel (③), the arch bottom cave space (④), the water space (⑤), the filling space (⑥), and the unstable surrounding rock space (⑦). The karst cave space on the two wings of the tunnel can be divided into the left and right space parts, respectively, ③-L and ③-R. The specific space numbers are shown in Figure 3 ①–⑦.

2.3. Geometric Model of SDM

To facilitate the application of SDM, the geometric model of SDM should be established. Because the section of the tunnel and the karst cave along the direction of tunnel excavation are in a closed ring, a cylindrical coordinate system is chosen for the mathematical model, as shown in Figure 2 and Figure 4. The central axis of the tunnel is taken as the Z-axis, and the intersection of the tunnel entrance and the karst cave is set as the origin Z = 0. Additionally, a cartesian coordinate system is set up. The reason for setting up two coordinate systems is that lines a, b, and g in Figure 3 are circular closed curves, which are more conveniently represented in a cylindrical coordinate system, whereas lines c and d and other straight lines are more conveniently represented in a cartesian coordinate system. The two established coordinate systems are shown in Figure 5.

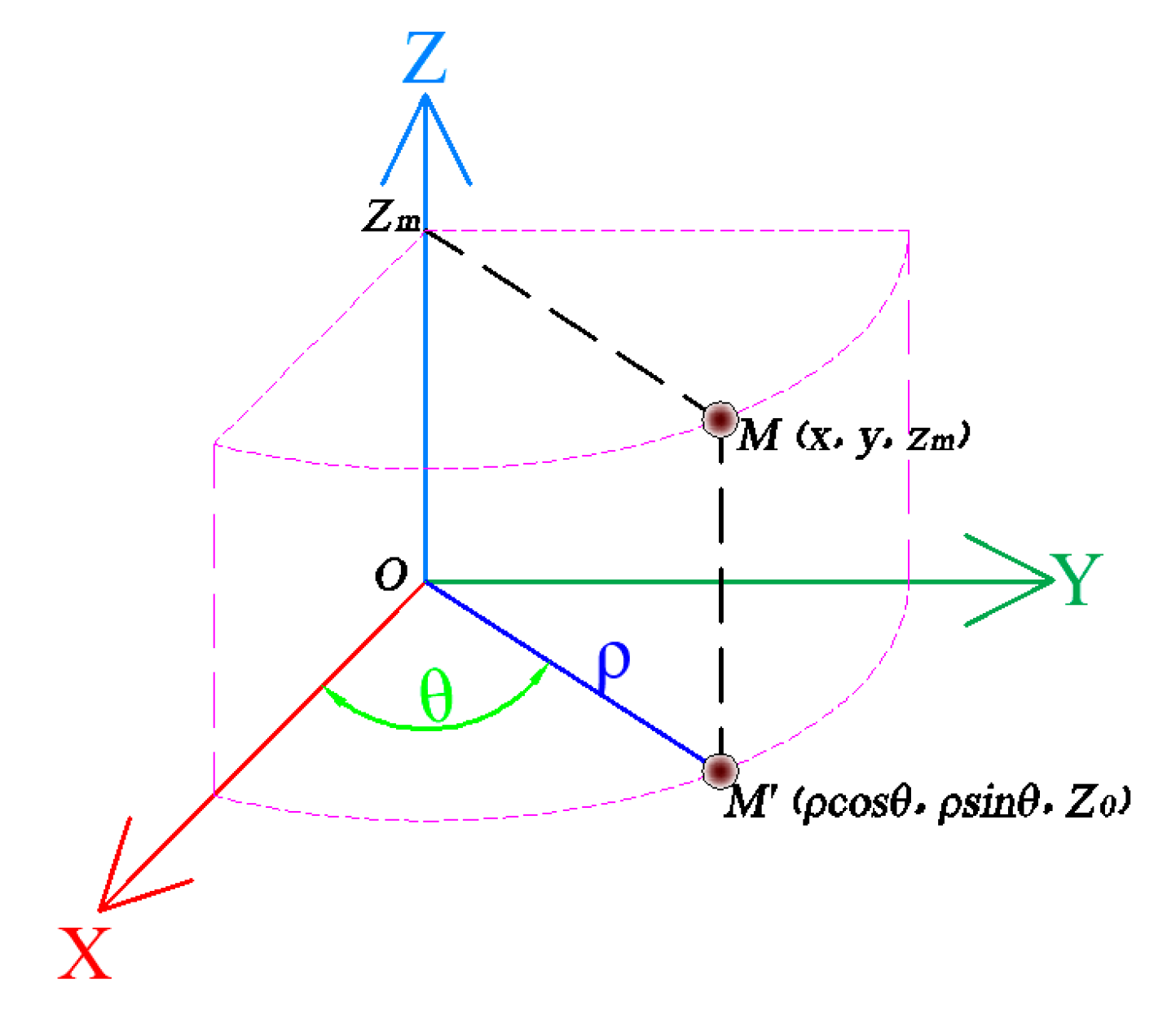

Let M = (x, y, z_m) be any point in the surrounding rock of the karst cave, and convert it into a cylindrical coordinate system, which can be expressed as follows [22]:

$$\{\begin{array}{l}x=\rho \cos \theta \\ y=\rho \sin \theta \\ z=z_m\end{array},$$

(1)

where the geometric meaning of ρ is polar diameter, which is the length of OM’, but, in practice, the cave is not a regular cylinder, such that the value of ρ changes. The geometric meaning of θ is the polar angle, which is the angle between OM’ and the positive X -axis. The geometric meaning of Z is the plane parallel to plane XOY.

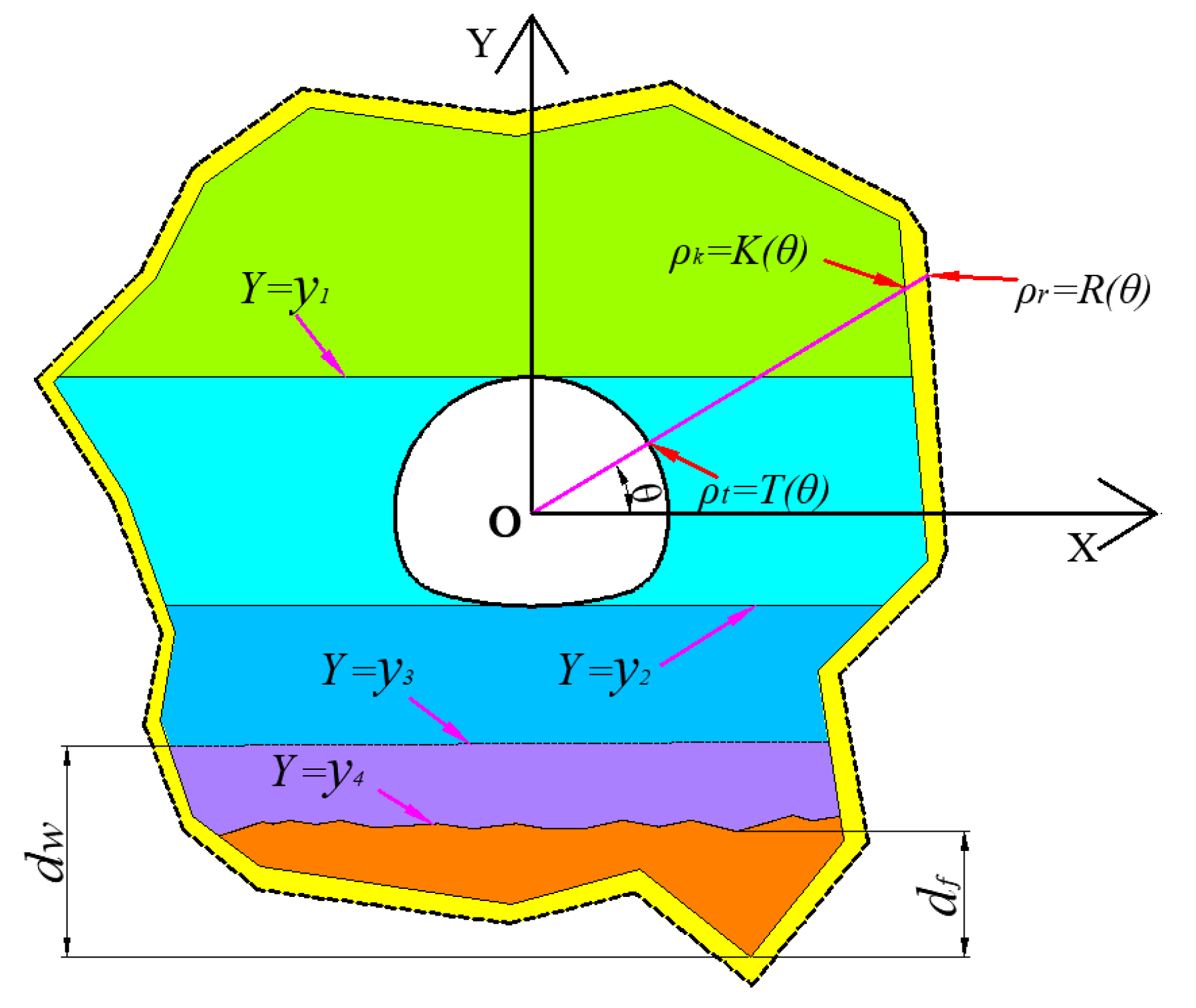

The SDL (line a–g) in Figure 3 is converted into a polar coordinate system, as shown in Figure 5. The following formulae are obtained:

$${\rho }_k=K(\theta ),$$

(2)

$${\rho }_r=R(\theta ),$$

(3)

$${\rho }_t=T(\theta ).$$

(4)

ρ_k is the geometric expression of the cave contour (line a), ρ_r is the geometric expression of the surrounding rock stability edge line (line b), ρ_t is the geometric expression of the tunnel contour line (line g), and θ is the angle between the counterclockwise direction of the polar coordinate axis ρ and the X-axis.

According to the cartesian coordinate system:

$$Y=y_1,$$

(5)

$$Y=y_2,$$

(6)

$$Y=y_3,$$

(7)

$$Y=y_4,$$

(8)

where y₁ is the geometric expression of the tunnel top line (line c), y₂ is the geometric expression of tunnel bottom line (line d), y₃ is the geometric expression of the water level line (line f), and y₄ is the geometric expression of the filling line (line e).

3. Determination of the Geometric Model Parameters of SDM

After the geometric model of SDM is established, many parameters are involved in the model, such as the cave contour (ρ_k), the surrounding rock stability edge line (ρ_r), the tunnel contour line (ρ_t), and the tunnel top line (y₁). These parameters can be obtained by field investigations and measurements, and then input to the geometric model to draw a 3D spatial diagram of the karst cave and tunnel. The figure can also describe the comprehensive development of the surrounding rock crushing, water-bearing, and filling space of the tunnel, thereby providing a spatial reference for the selection of subsequent treatment methods.

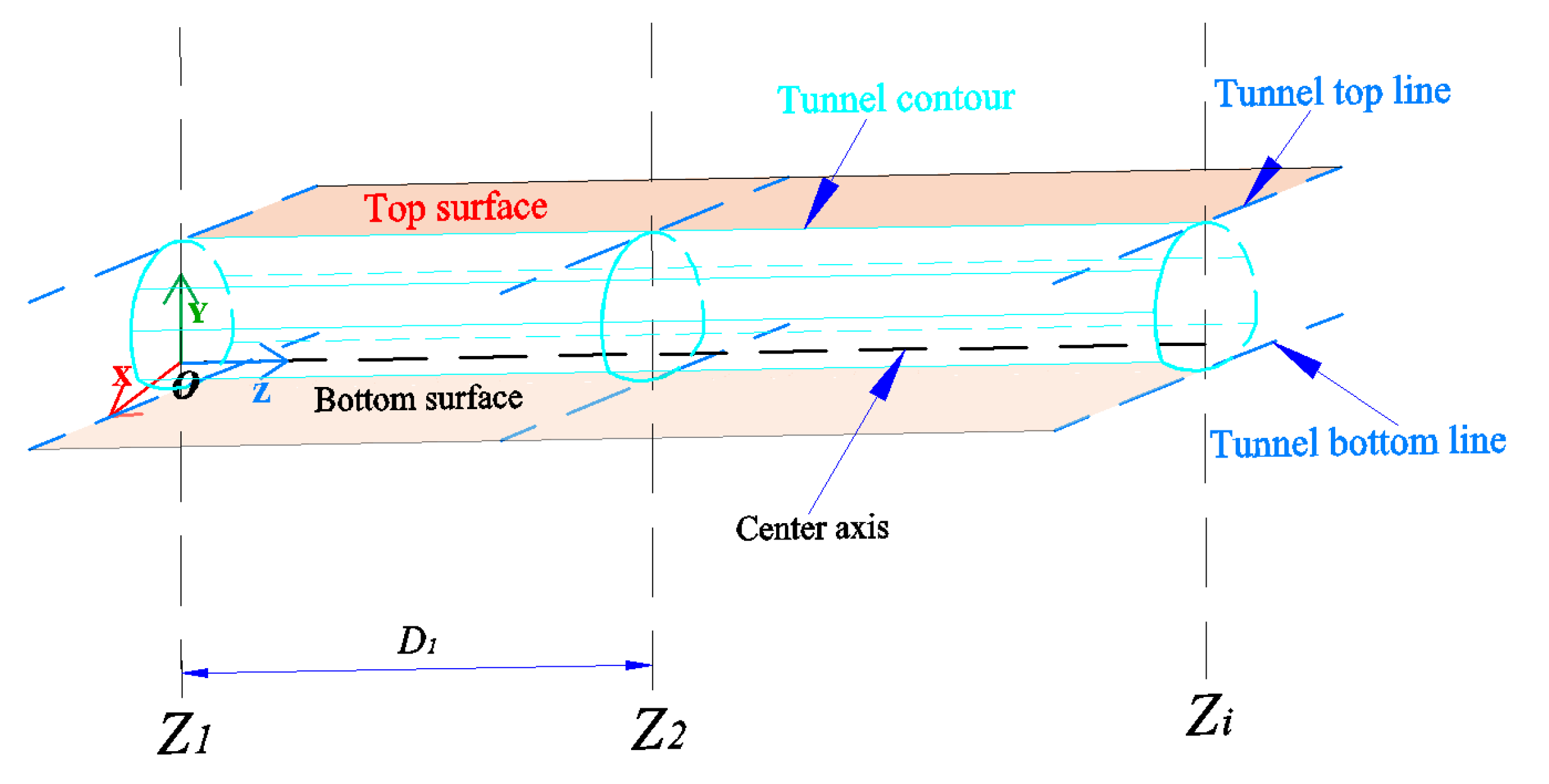

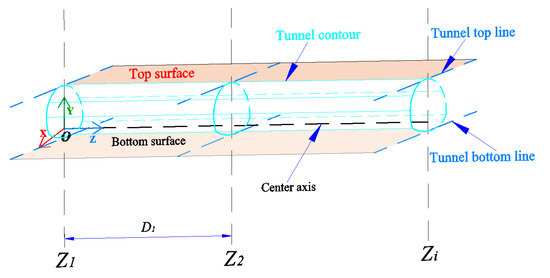

(1) Determination of the tunnel central axis, contour line, tunnel top, and bottom line.

The tunnel central axis is the reference line of the geometric model for the SDM. The central axis and the outline of the tunnel can be determined by the method of backward intersection. Starting from the tunnel entrance, measured sections are acquired at intervals of D₁, as shown in Figure 6, with Z₁ − Z_i, where D₁ ≤ 5 m and the total of the cave is not less than five measured sections. The tunnel top line (line c) and the tunnel bottom line (line d) were determined by the engineering survey method. Finally, each line (line c) could be connected to the top surface and each line (line d) to the bottom surface.

(2) Determination of the cave contour line (line a).

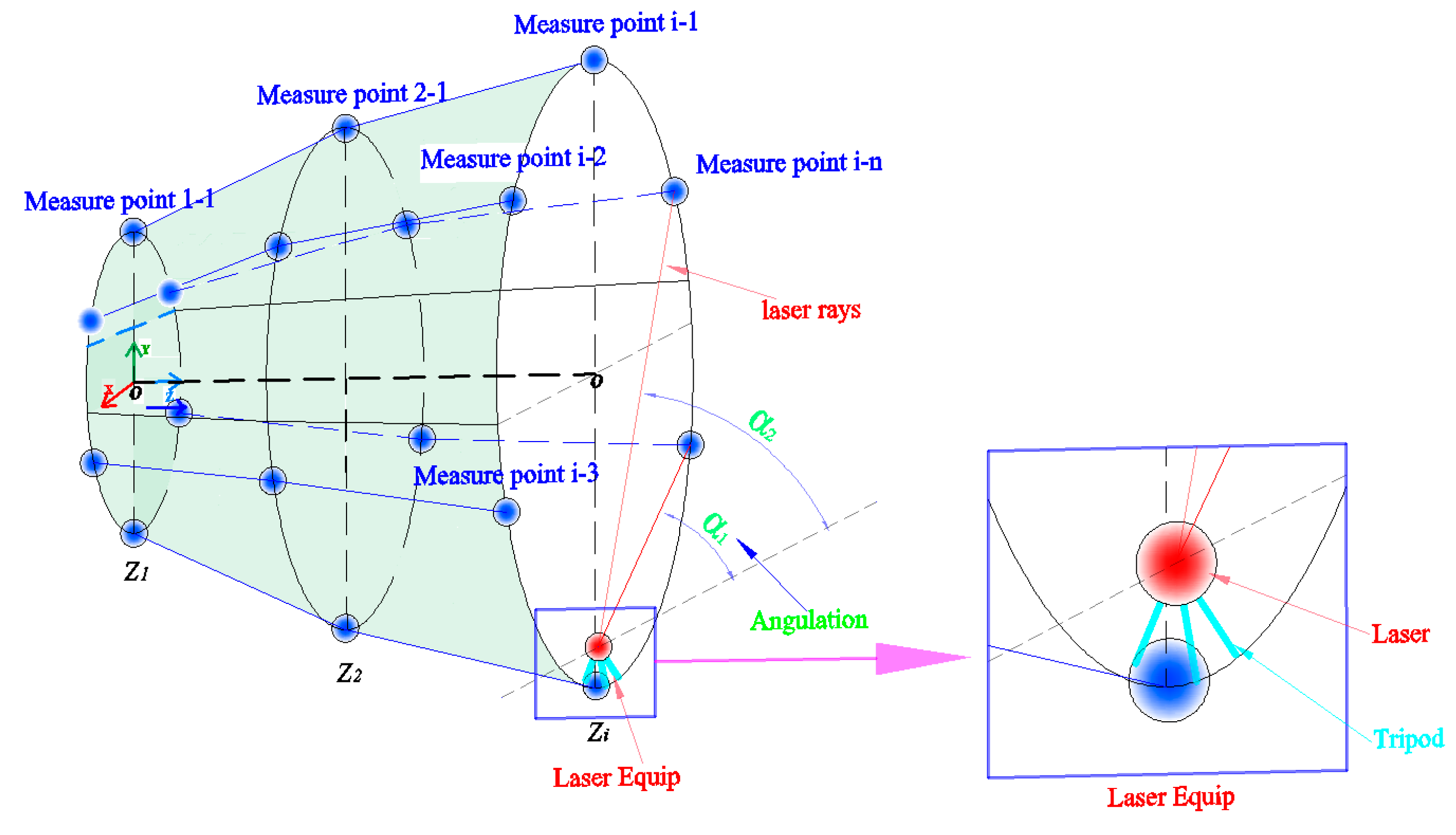

A cavity formed in a rock mass is also called a cave. There are many ways to measure the space of the cave development, such as 3D laser scanning technology [23,24,25,26] and laser ranging. In this project, an angle-laser rangefinder was used which can display both the angle and distance. As shown in Figure 7, when laser ranging is performed on each monitoring point of section Z_i, the laser ranging equipment cannot be conveniently installed at the corresponding O point of the central axis of the tunnel, and thus a tripod is used to set the laser equipment at the bottom of the cave, directly below point O. By adjusting the laser measuring angle, the circular distance measuring point density can be adjusted, and the value of the angle can be adjusted based on the size of the cave to ensure that each section has at least 12 points.

Finally, the measurement points of the Z₁–Z_i section are plotted in a cylindrical coordinate system, and the points of the same section are joined to form rings. The measurement points (i-1)–(i-n) of section Z_i are shown in Figure 7. The measurement points of different sections are connected by linear segments, as shown in Figure 7. The measurement points (1–2)–(i-2), where “i” is the section number, form the 3D structure of the karst cave.

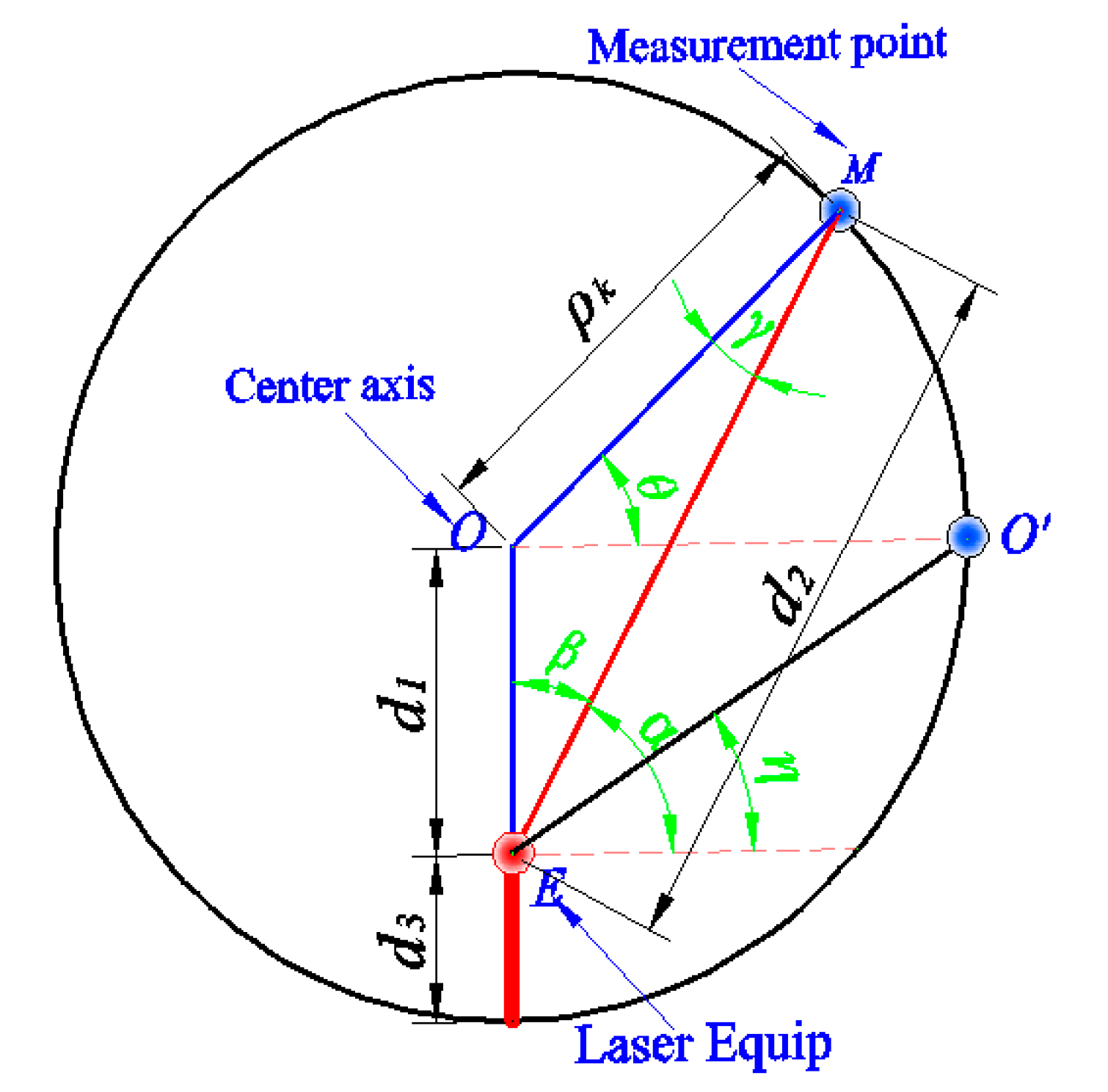

When laser ranging is carried out in section Z_i, the parameters θ and ρ_k of the geometric model cannot be directly measured unless a geometric calculation is employed. Therefore, the geometric relationship is established, as shown in Figure 8. Laser ranging equipment can read the distance (d₂) between the laser (point E) and the proposed measurement point (point M) directly. The measurement angle can be read (α). d₃ is the height of the laser equipment tripod, which can be directly measured in the field.

d₁ is the vertical distance from the laser equipment to the central axis. The process for determining the value of d₁ consists of three processes. First, the total station is used to set a point O’ on the wall of the karst cave with an equal elevation to that of the central axis. Second, the distance between points E and O’ and the measuring angle η are measured using the laser equipment. Third, trigonometric formulae are used to obtain the value of d₁.

According to the cosine formula, the geometric expression of the cave contour (line a) ρ_k is as follows:

$${\rho }_k=\sqrt{{d_1}^2+{d_2}^2-2d_1{d}_2\cos \beta }.$$

(9)

As can be seen from the sine formula:

$$\gamma =\arcsin \frac{d_1\sin \beta }{{\rho }_k},$$

(10)

where $\beta =\frac{\pi }{2}-\alpha$; Formula (10) can be further derived as follows:

$${\rho }_k=\sqrt{{d_1}^2+{d_2}^2-2d_1{d}_2\sin \alpha }.$$

(11)

Similarly, Formula (11) can be further derived as follows:

$$\gamma =\arcsin \frac{d_1\cos \alpha }{{\rho }_k}.$$

(12)

Substituting $\theta =\alpha -\gamma$ yields the following:

$$\theta =\alpha -\arcsin \frac{d_1\cos \alpha }{{\rho }_k}.$$

(13)

Therefore, Formula (2) ${\rho }_k=K(\theta )$ can be derived as follows:

$${\rho }_k=K\left(\alpha -\arcsin \frac{d_1\cos \alpha }{{\rho }_k}\right)=\sqrt{{d_1}^2+{d_2}^2-2d_1{d}_2\sin \alpha }.$$

(14)

Finally, the measurement points of section Z_i are plotted in a 3D diagram to form the cave contour (line a).

(3) Determination of the surrounding rock stability edge line (line b).

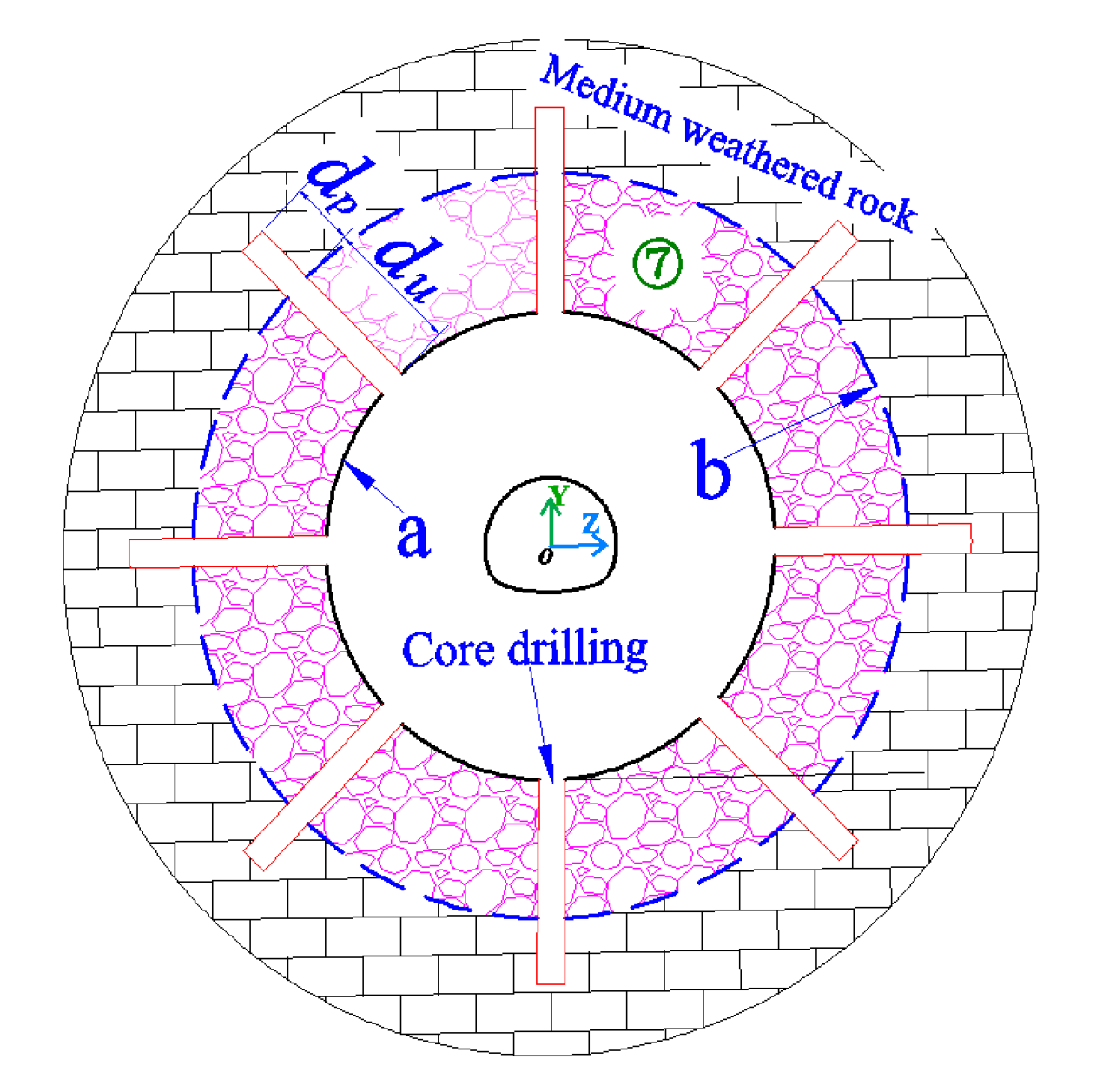

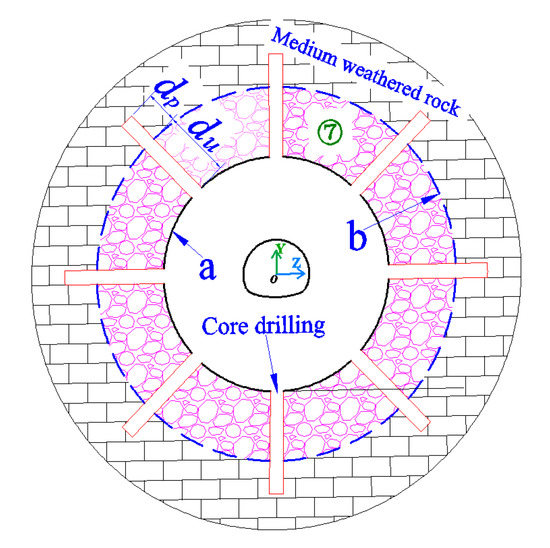

Section Z_i in Figure 7 is selected to display the surrounding rock stability edge line (line b), as shown in Figure 9. Line b is located inside the rock mass and is not visible; thus, it cannot be measured directly. In order to accurately estimate the thickness of the unstable surrounding rock, a coring survey method is adopted [27,28,29,30,31]. The same section is selected for the coring survey and laser ranging, but it is more difficult and time-consuming to acquire high-density coring survey points compared to performing laser ranging, and the detection accuracy is limited. Therefore, the core points can be adjusted according to the size of the cave, with no fewer than six core points for each section. Each core point should be drilled into the medium-weathered rock mass to a depth of no less than 2 m [32]; that is, d_p ≥ 2 m. d_u is the coring depth of the unstable surrounding rock. The d_u depths of each core point are connected to draw a closed stable line b, as shown in Figure 9. Then, line b can be expressed as:

$${\rho }_r=d_u.$$

(15)

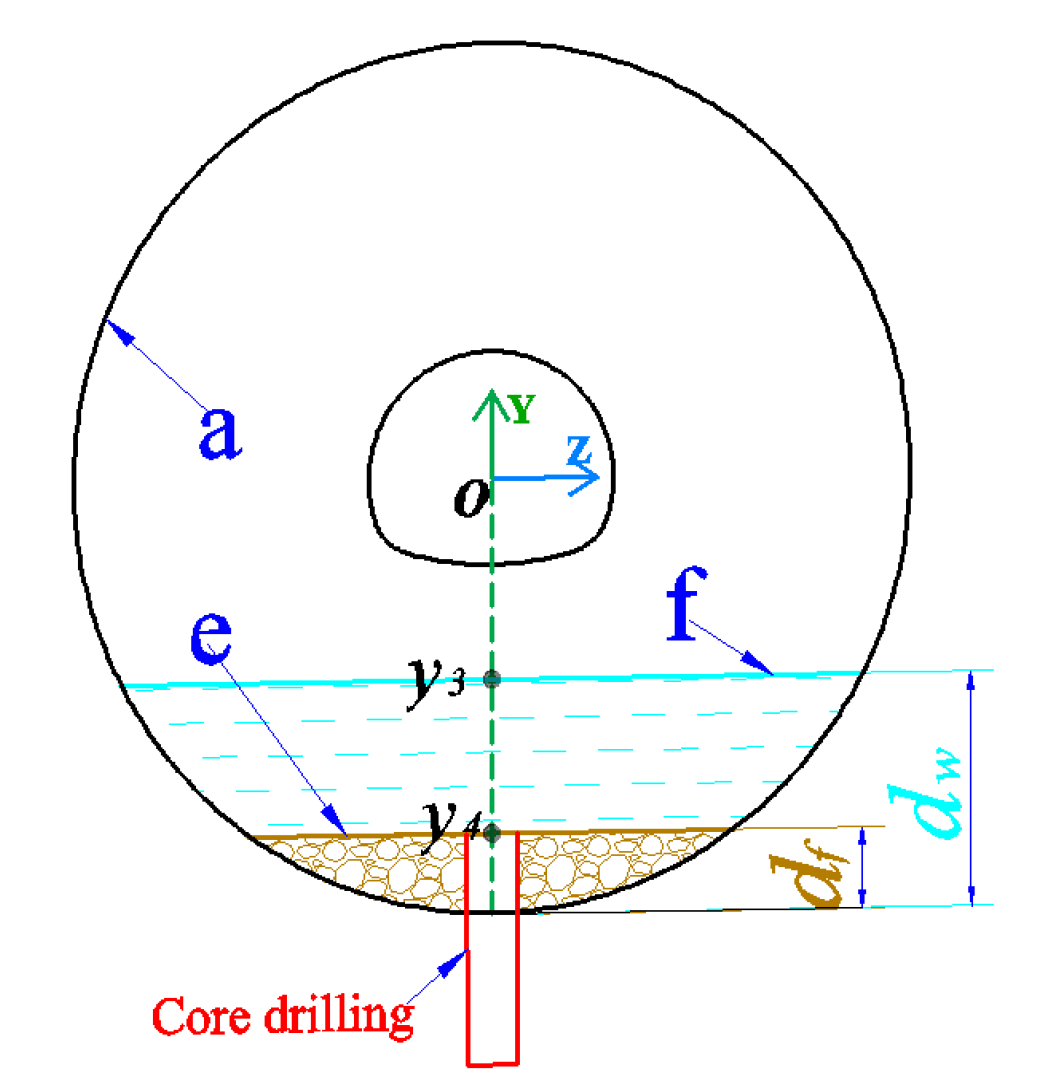

(4) Determination of the filling line (line e).

The filling line (line e) of sediments such as gravel, sand, and silt in the cave was measured by the engineering measurement method, which is to measure the distance between the filling surface and the tunnel center point O with a total station. This distance was set to y₄, and the value of y₄ in Formula (9) was determined. Because d_f may be below or above the point O, d_f satisfies Formula (16). Line e adopts the cartesian coordinate system with the central axis of the tunnel as the origin. It should be noted that, when determining the coring survey of line b, the thickness d_f of the filling material can be determined simultaneously, as shown in Figure 10. Then, line e can be expressed as follows:

$$y_4=d_f-K(-\frac{\pi }{2}).$$

(16)

(5) Determination of the water level (line f).

The water level (line f) of the cave is spatiotemporally dependent, such that the water level should be a change interval. The variation range of the water level is obtained by observing the historical trace of the water level on the karst cave wall. The value of y₃ is the maximum over the years, and the water depth is set as d_w, as shown in Figure 10. Again, because d_w may below or above point O, d_w satisfies Formula (18). Then, the water level line can be expressed as follows:

$$y_3=d_w-K(-\frac{\pi }{2}).$$

(17)

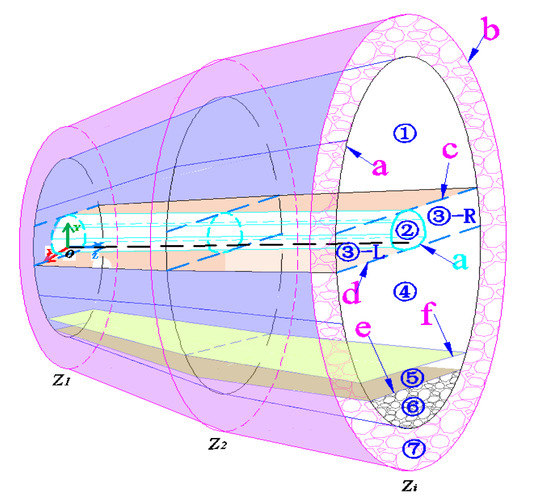

(6) Geometric drawing of SDM.

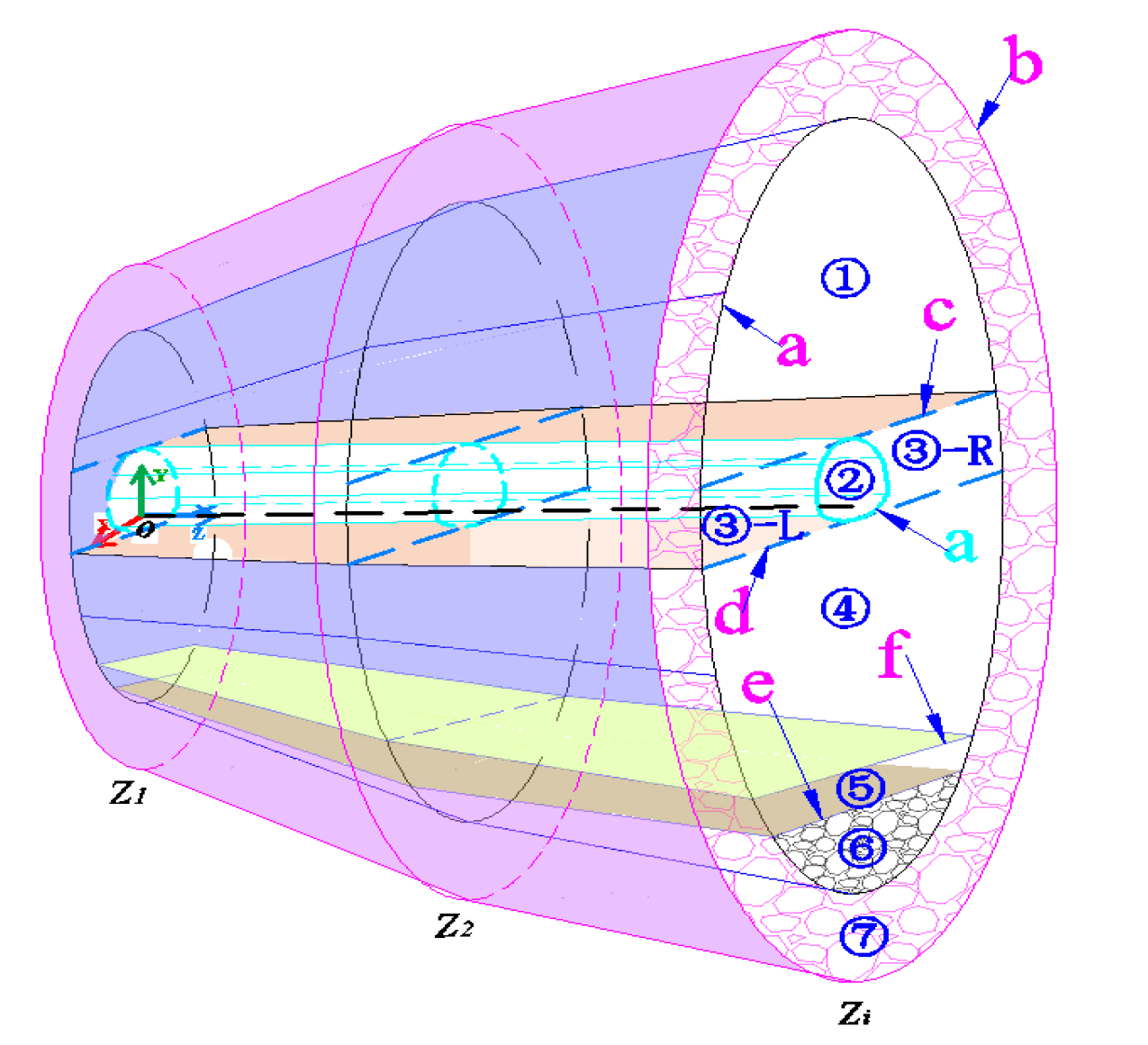

After the geometric parameters of the SDL are determined, the spatial and structural diagram of the karst cave and tunnel can be drawn, as illustrated in Figure 11. From this structural diagram, the spatial position relation between the cave and the tunnel is immediately clear, thus realizing the realistic transformation of the SDM.

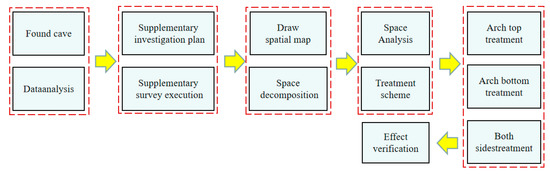

4. Complete Set Technology of SDM

4.1. General Situation

After the establishment of the SDM, it is necessary to take corresponding technical measures to deal with the difficult problem of tunneling through a large karst cave. According to the SDM, the tunnel and the karst cave are divided into different spatial parts, and corresponding measures are taken to treat the different karst spaces. In order to ensure safety, the SDM is managed in the sequence of the cave spaces at the top, bottom, and two wings of the tunnel.

4.2. Treatment Technology of Karst Cave Space at the Top of Tunnel

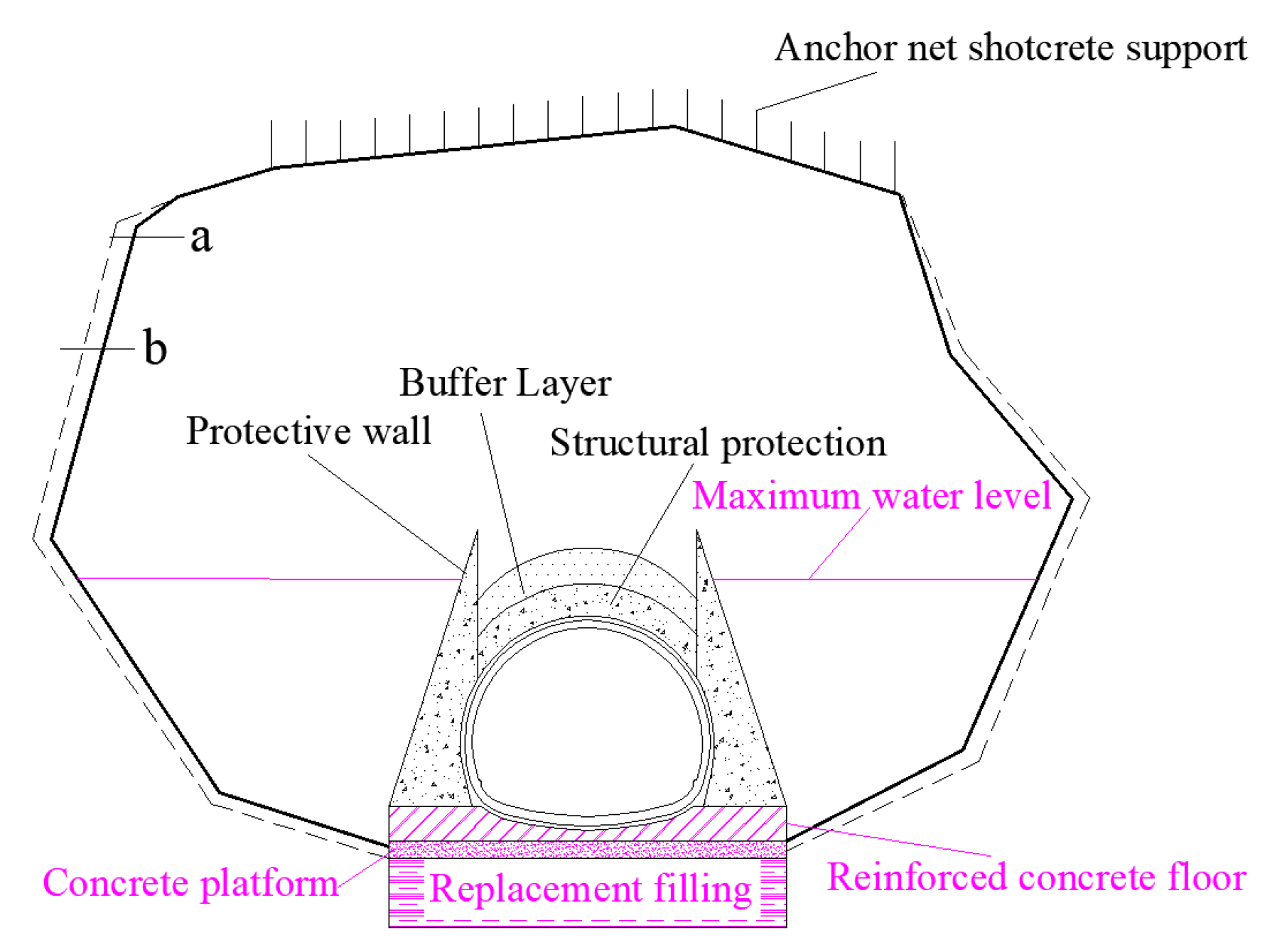

In order to ensure the safety of the upper space during the tunnel construction, the upper space of the cave should be treated first.

The cavern space at the top of the tunnel contains the upper space of the cave (①) and the unstable surrounding rock space (②), as shown in the Figure 3. According to the height of the upper space of the cave and the stability of the broken surrounding rock mass of the unstable surrounding rock space, methods such as supporting column reinforcement, increasing parapet reinforcement, and anchor net shotcrete support are generally adopted.

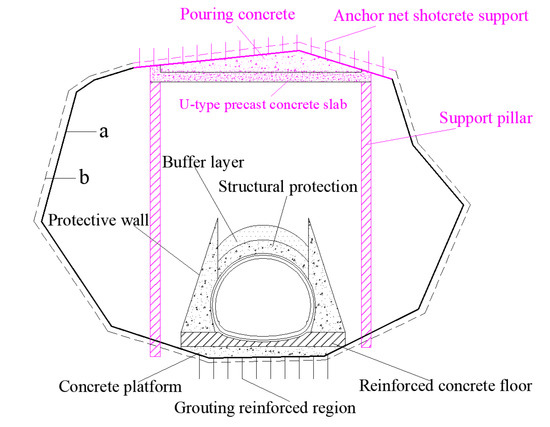

(1) When the surrounding rock stability of the karst cave is poor, and the spatial height of the upper space of the cave is large:

Generally, the unstable rock space has weak stability at the top of the tunnel, and rubble may fall or even collapse during the construction and operation of the tunnel. Moreover, the damage to the tunnel body increases in accordance with the increased height in the upper space of the cave, with higher gravitational potential energy and greater converted kinetic energy. Therefore, the unstable surrounding rock should be cleaned, after which the rock surface should be supported with an anchor net to eliminate the danger posed by the unstable surrounding rock space.

Second, the supporting column reinforcement method is adopted; the bottom of the supporting column goes deep into the complete surrounding rock, the supporting column top is installed with a prefabricated “U”-type concrete slab, and the “U”-type groove is filled with low-grade concrete to stop the top of the karst cave and prevent the roof of the karst cave from sagging, as shown in Figure 12.

(2) When the surrounding rock stability of the karst cave is good, and the spatial height of the upper space of the cave is large:

When the surrounding rock of the karst cave is relatively stable, the surrounding rock cannot be treated. Instead, the anchor net shotcrete support is directly adopted to reinforce the surrounding rock at the top directly, as shown in Figure 13. For example, reference [15] a takes a similar approach.

(3) When the distance between the tunnel vault and the cave wall above is short:

In this condition, the height of the parapet is generally increased to make the parapet directly contact with or even go deep into the complete rock at the top of the cave wall, and lower-grade concrete is poured into the upper space above the structural protection, as shown in Figure 14. For example, reference [12] takes a similar approach.

4.3. Treatment Teachnology of the Karst Cave at the Bottom of the Tunnel

According to the SDM, there are four spatial parts in the karst cave space at the bottom of the tunnel: the arch bottom cave space (④), the water space (⑤), the filling space (⑥), and the unstable surrounding rock space (⑦). First, the water in the water space (⑤) should be removed, the backfill such as silt and gravel in the backfill space should be removed, and then the following construction judgment should be made.

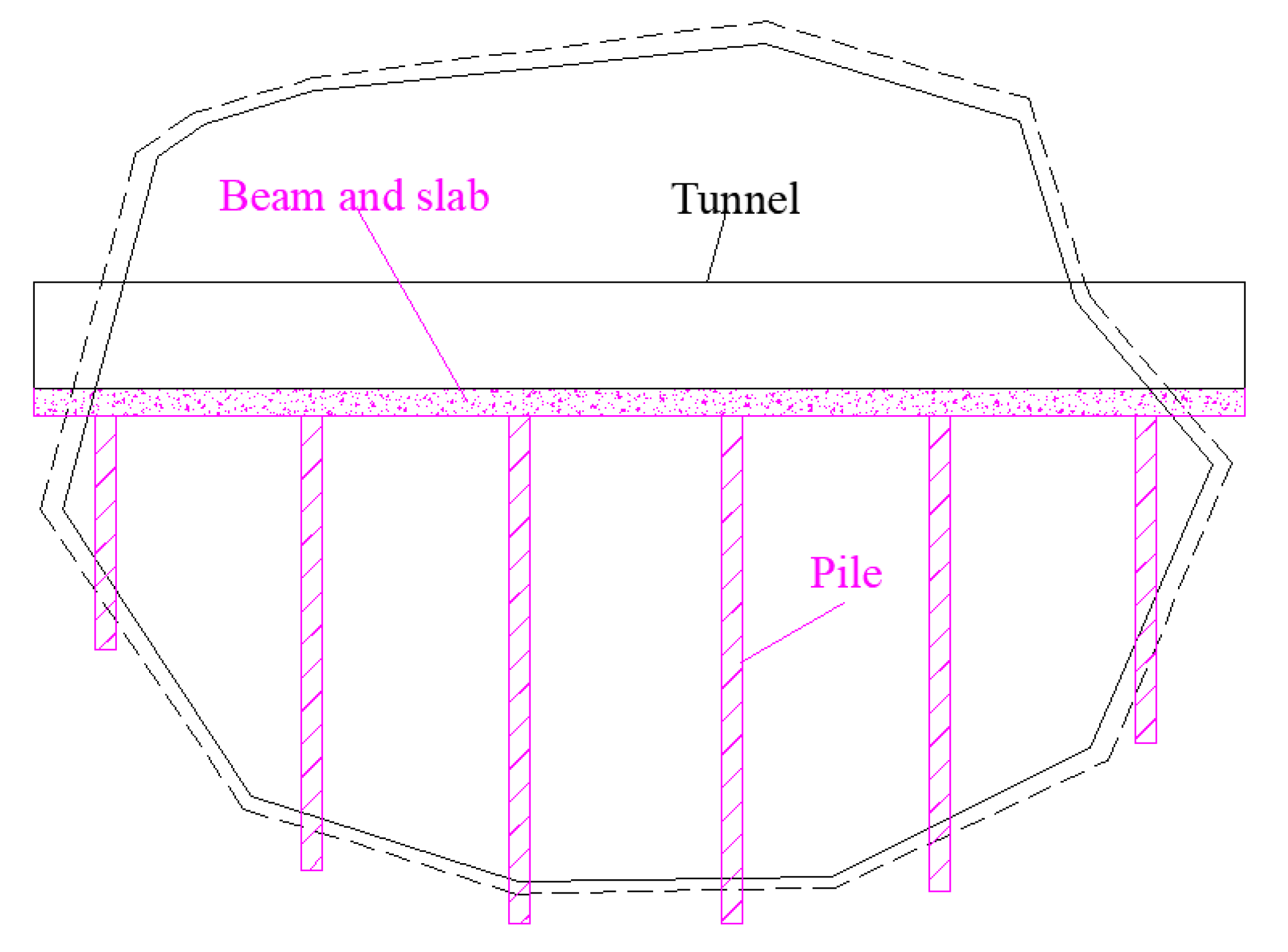

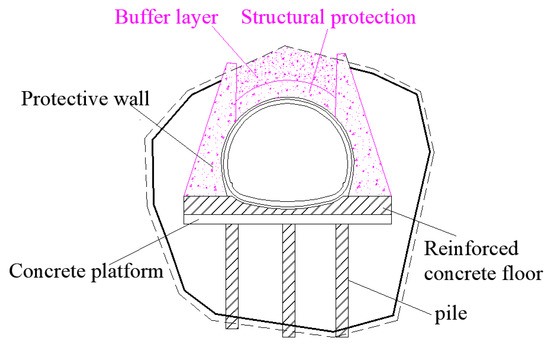

(1) When the height of the karst cave at the bottom of the tunnel is large:

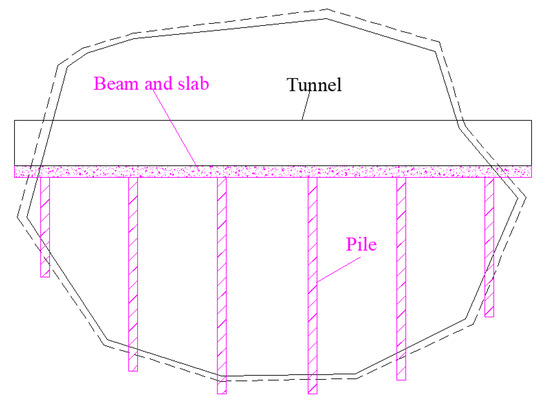

When the cavern space at the bottom of the tunnel is relatively high and the cave is water-rich, generally, a beam or arch is adopted to cross the cave space, which can also protect the karst water, as shown in Figure 15. For example, references [13,15] take a similar approach.

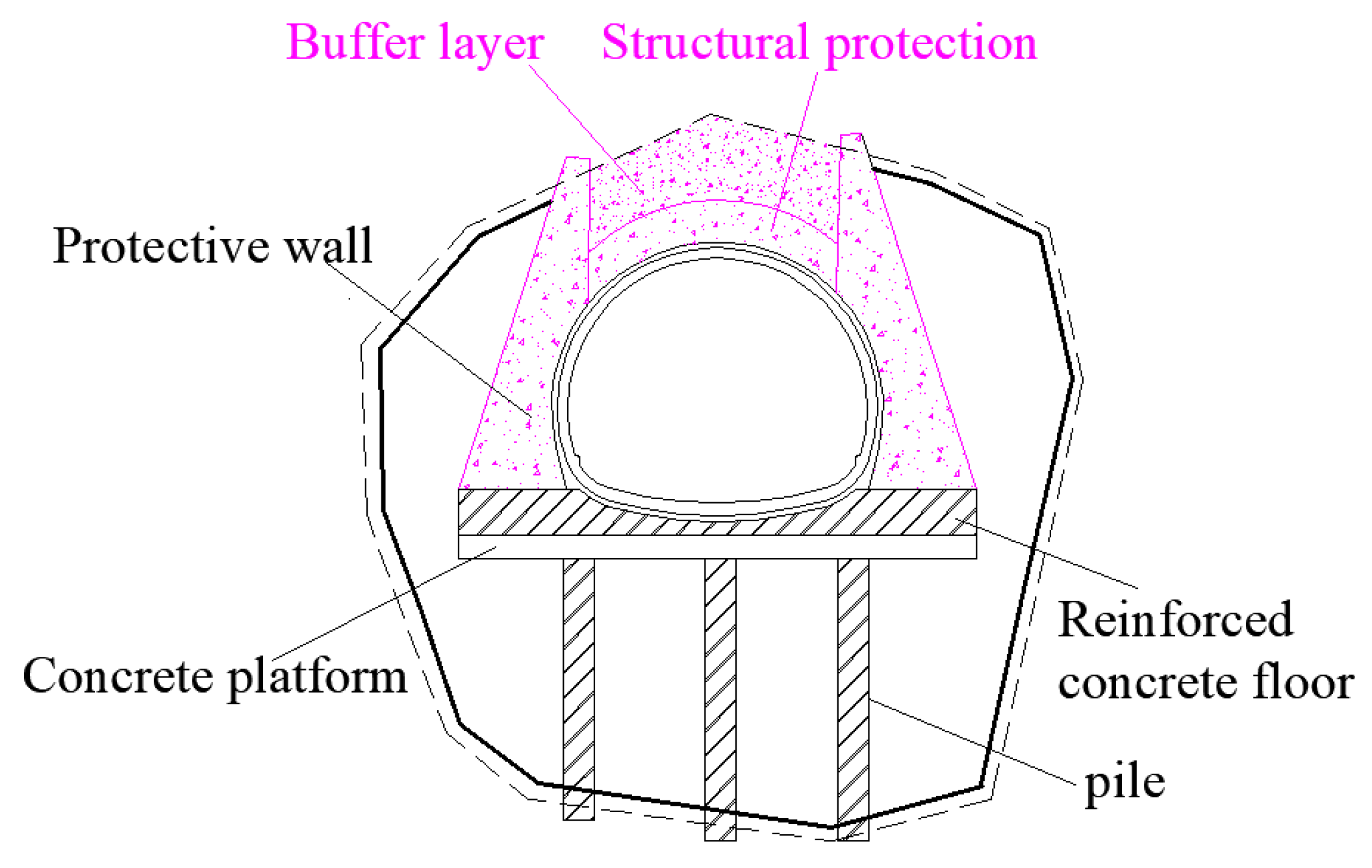

(2) When the height of the karst cave at the bottom of the tunnel is small:

When the height of the karst cave space at the bottom of the tunnel is small, grouting reinforcement and foundation replacement can be adopted, as shown in Figure 16. It is important to note that the height of the protective wall should be greater than that of the maximum water level, and the excess height should be no less than 2 m to prevent karst water from infiltrating above the tunnel. For example, reference [7] takes a similar approach.

4.4. Treatment Technology of Karst Cave Space on Two Wings of Tunnel

According to the SDM, the two wings of the tunnel include three spaces and two space parts: the karst cave space on two wings of tunnel (③) and the unstable surrounding rock space (⑦). For the treatment of the two wings of the tunnel, the distance between the tunnel and the wall of the cave should be considered, and the supporting method should be adopted accordingly.

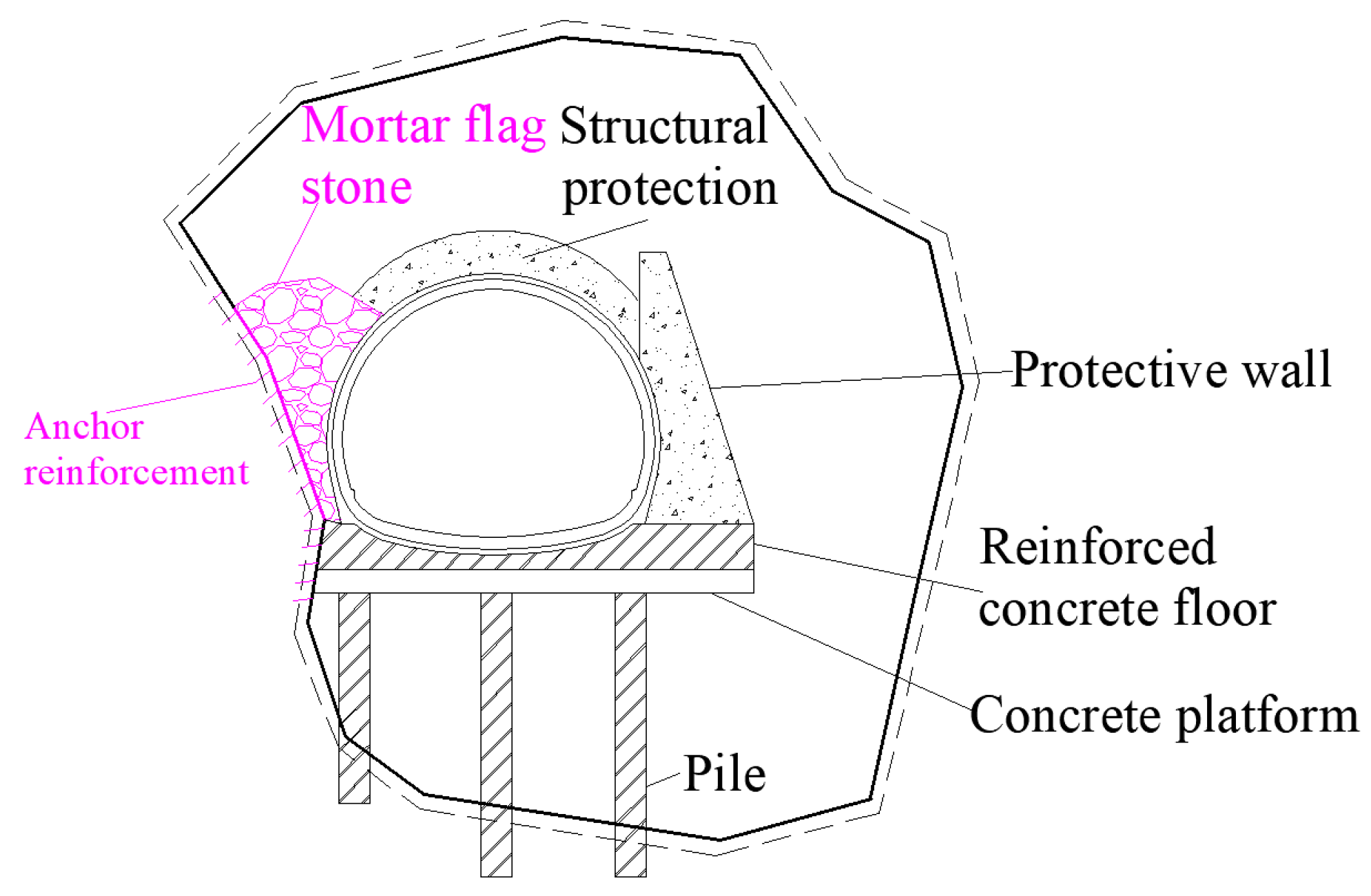

(1) When one side of the tunnel is close to the cave wall:

If the distance between one side of the tunnel and the wall of the karst cave is relatively short, which is generally less than the maximum design thickness of the protective wall, the partial anchor should be applied to strengthen the wall of the karst cave, and then the side should be backfilled with slurry slates or pumped concrete, as shown in Figure 17. When the two wings of the cave space are less than the thickness of the parapet, slurry slates or concrete backfill can be applied to the two wings. For example, reference [18] takes a similar approach.

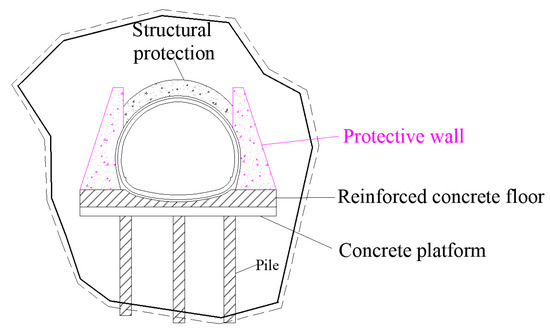

(2) When the distance between the two wings of the tunnel and the wall of the cave is large:

When the space of the two wings of the cave is large, it generally exceeds the maximum thickness of the parapet. It is unnecessary to consider the support of the unstable surrounding rock of the two wings, and the protective wall is used to protect the two sides directly, as shown in Figure 18. It must be emphasized that if the surrounding rock of the karst cave wall is relatively poor, the thickness and height of the protective wall should be appropriately increased to improve the protection of the tunnel body.

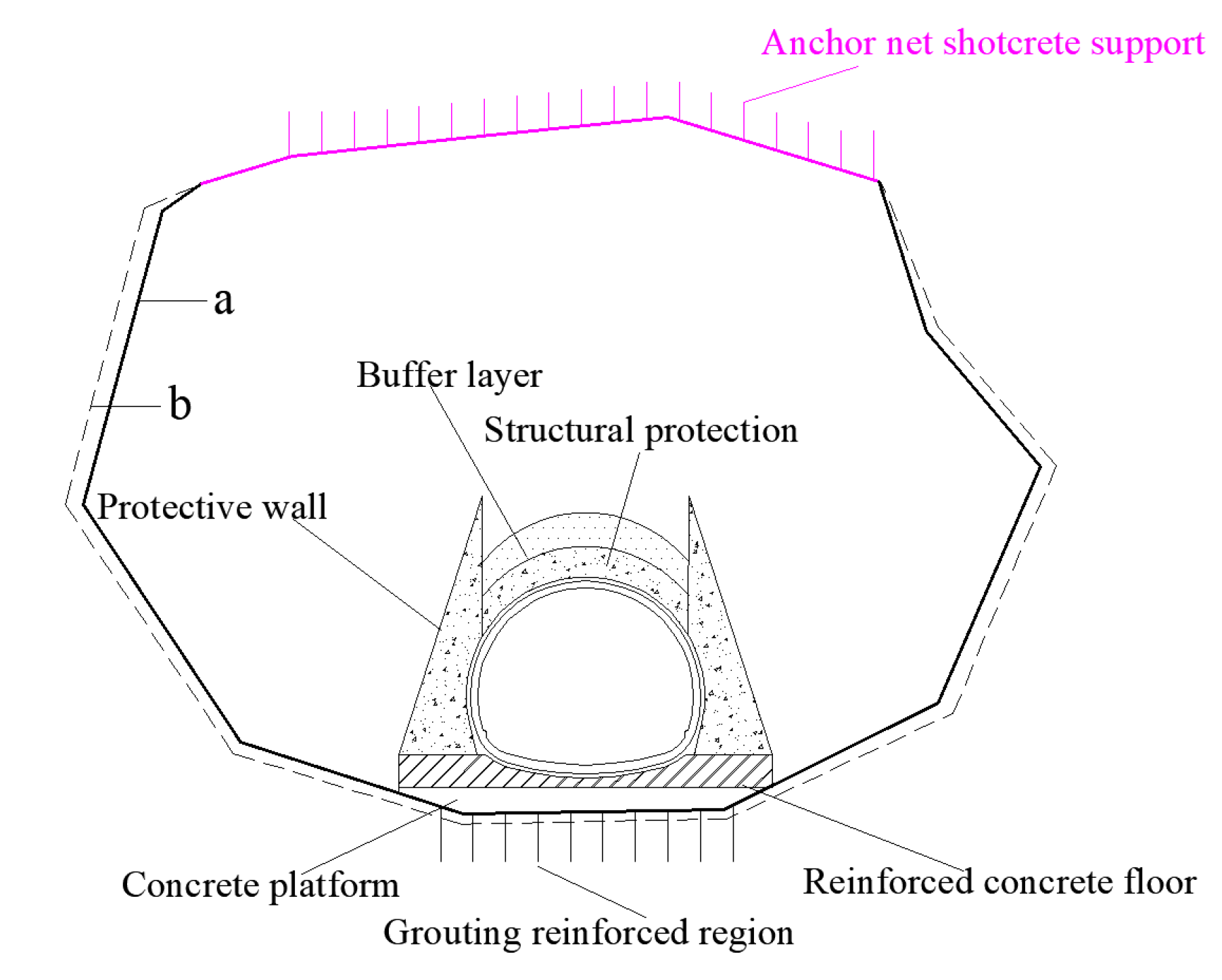

The above treatment techniques have solved the problem of karst spaces in the upper, lower, and two wings of the tunnel. However, in practical applications, the above technologies should be analyzed, improved, supplemented, and updated according to the specific situation to make them more consistent with the field practice. At the same time, the complete set technologies for the karst cave at the top, bottom, and two wings of the tunnel are not independent from each other, but rather are interrelated systems, and the relations among the three should be considered comprehensively. In order to achieve the purposes of safety, scientific soundness, systematicity, and economy of SDM, its application should follow the following principles:

(1)

High safety. The safety principle is the most basic principle of construction; the activities can proceed smoothly and orderly if safety and security are ensured.

(2)

Good flexibility. Although there are fixed construction sets and methods for the treatment of karst, specific treatment measures should be formulated according to the relationship between the actual karst state and the rock mass’s physical, mechanical, geotechnical, engineering geological, hydrogeological characteristics, among others.

(3)

Rationality and scientificity. In short, the treatment of karst should not only comply with various laws and regulations but also consider the feasibility of treatment methods and whether they can achieve practical effects.

(4)

Sustainability. The treatment of karst should not only be aimed to achieve successful treatment but also take into account the smooth conversion of construction techniques and procedures before and after the treatment, the continuity of the operation before and after the treatment, and the long-term safety and reliability of the tunnel operation.

(5)

Economy. Under the premise of ensuring construction safety and project quality as well as sustainability, every effort should be made to save costs and reduce input.

(6)

Realization of technology. A perfect construction plan may be designed, but it could be restricted by subjective and objective conditions such as advanced equipment, materials, and construction conditions, such that the perfect plan cannot be implemented. Therefore, the formulation of the scheme should also consider its feasibility.

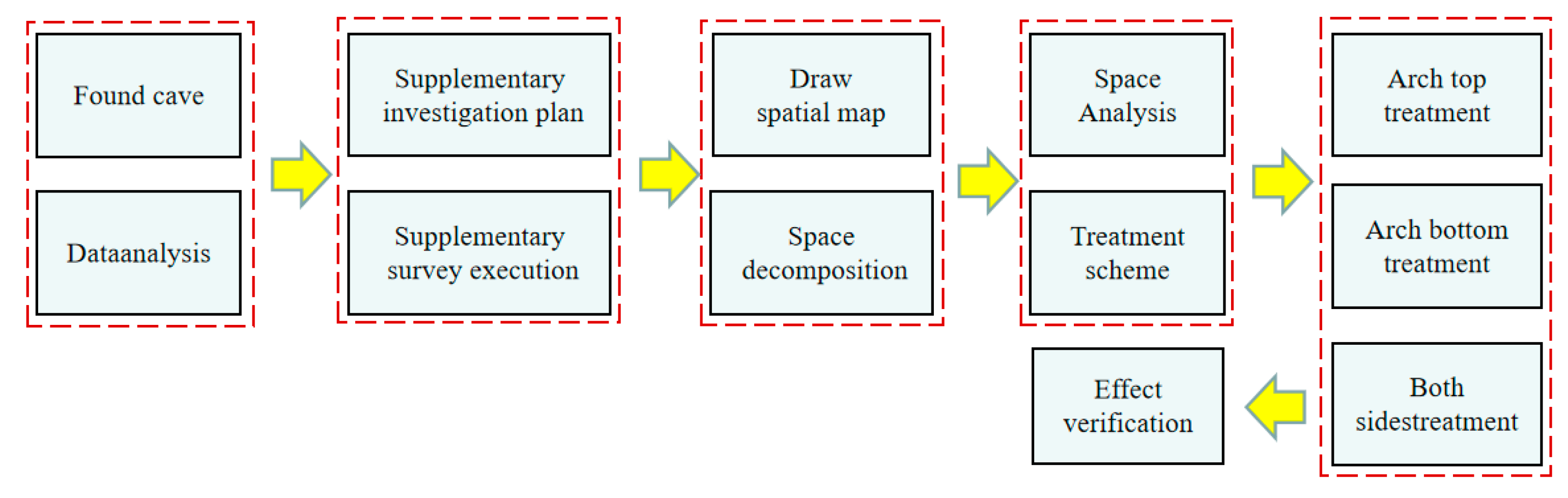

5. Engineering Application

5.1. General Situation

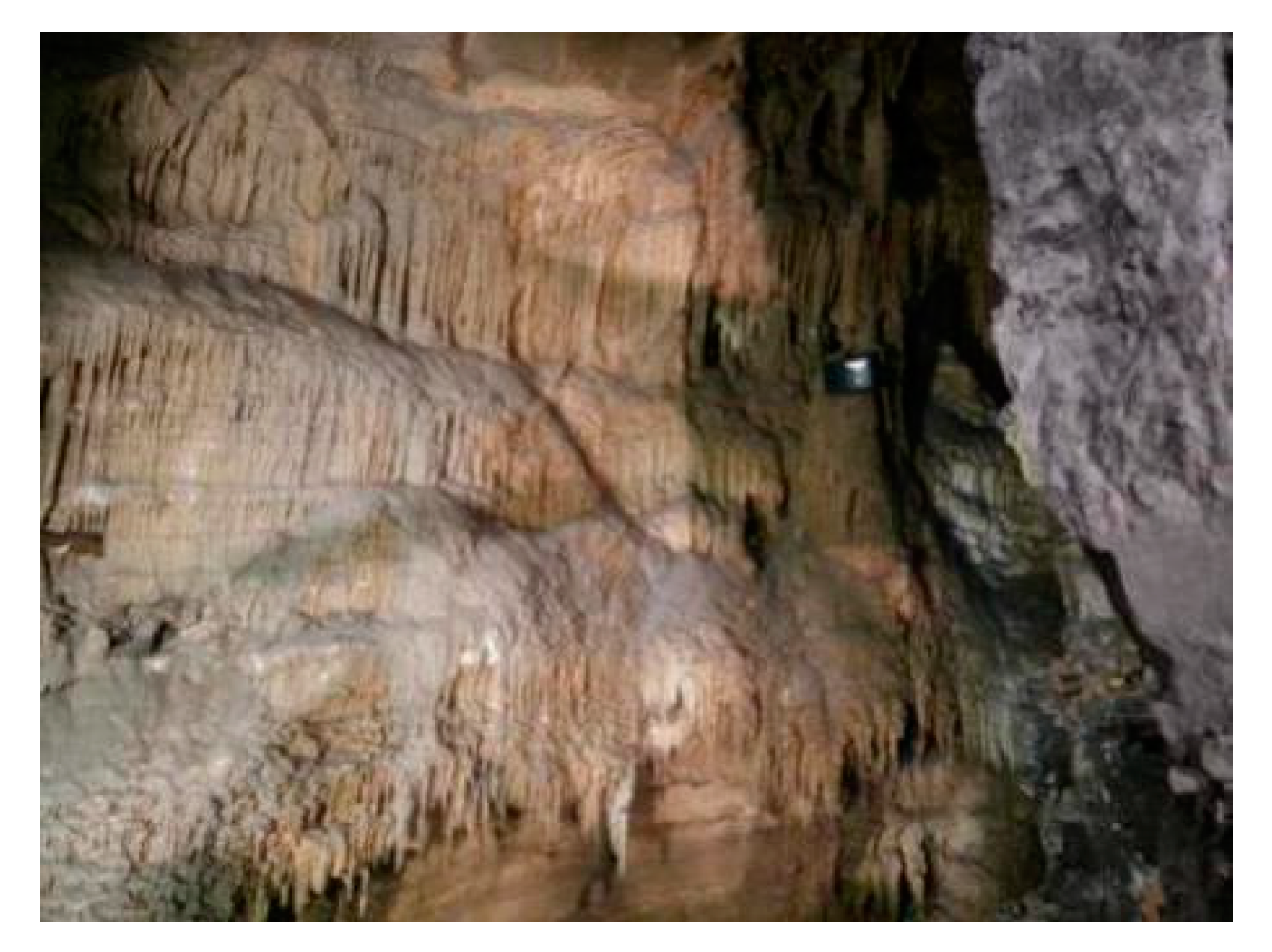

When the construction of the Shangyuan tunnel in the Guizhou section of the Shanghai–Kunming high-speed railway reached D1K760 + 965, a large filling-type karst cave was discovered. The filling material was soft and plastic-like clay, and there was a small amount of water in the cave. Through the analysis of the geological prediction results in advance, no other karst caves developed around the cave. Figure 19 shows the initial state of the karst cave discovery. This project adopted the SDM to treat the karst cave. The main application process of the SDM is shown in Figure 20.

5.2. Supplementary Geological Survey

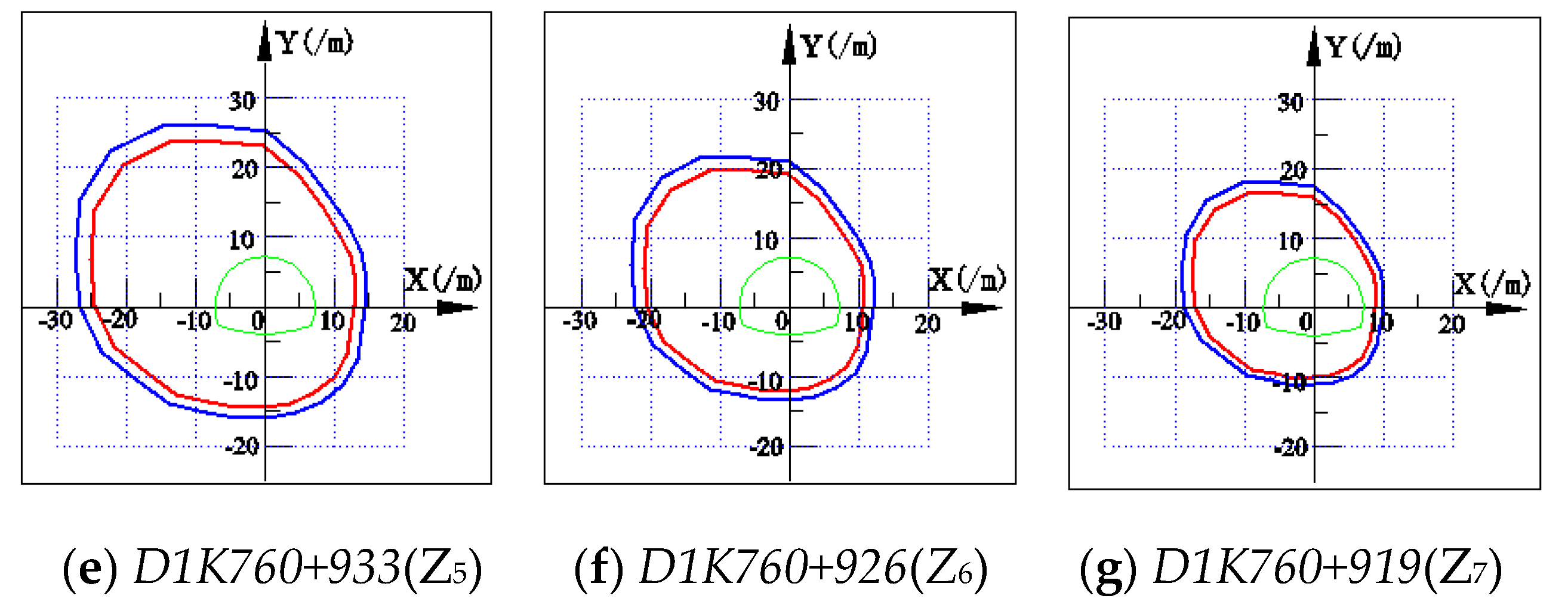

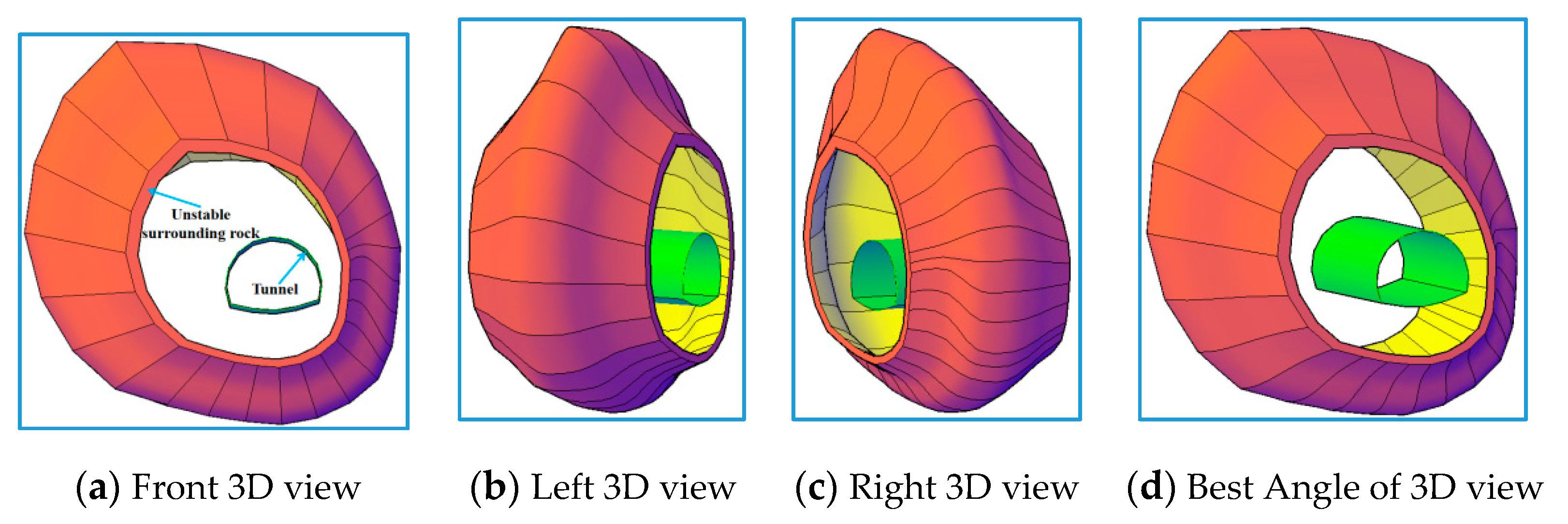

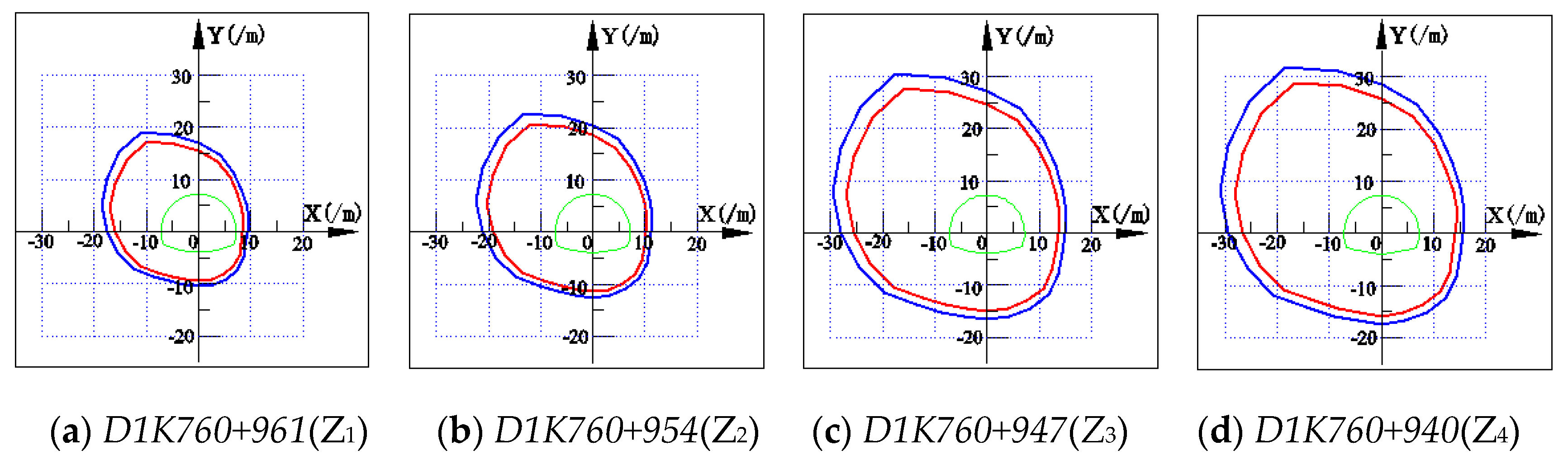

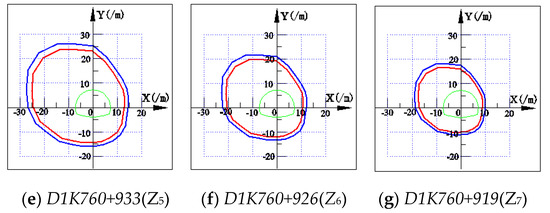

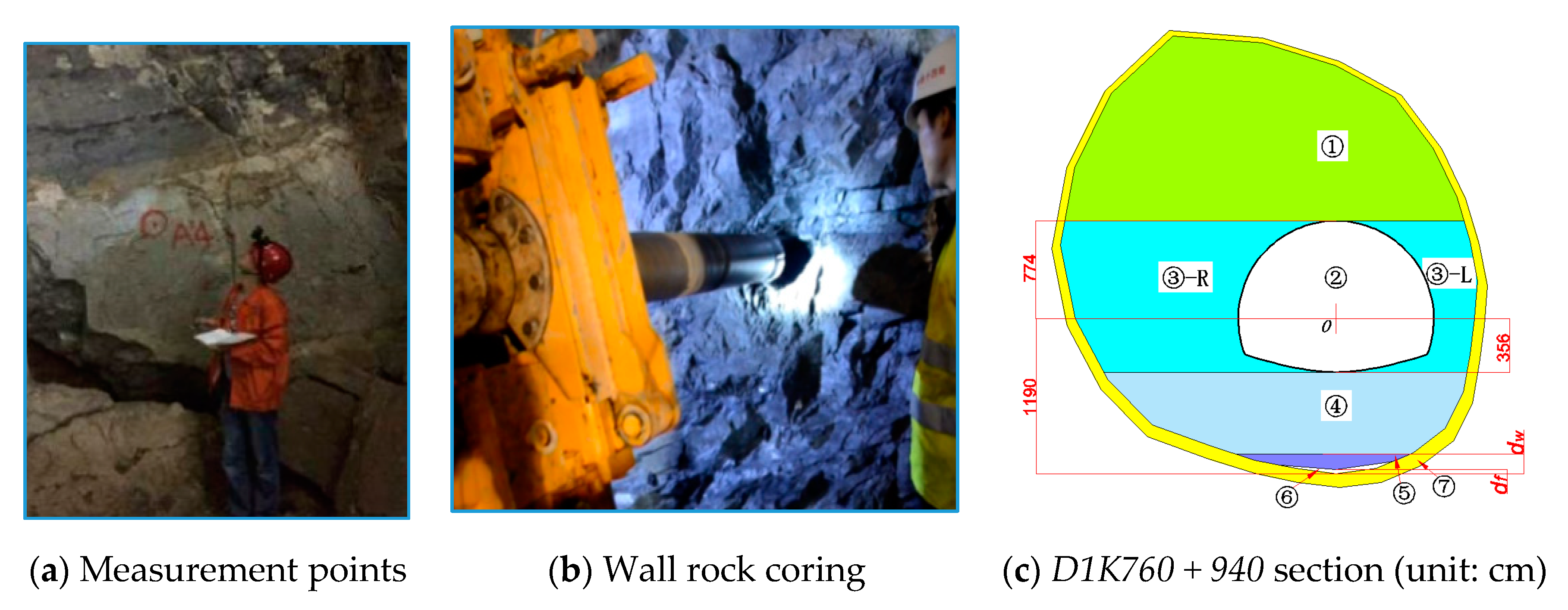

According to the geometric model parameter determination method of the SDM, the central axis of the tunnel is located by means of the engineering measurement method. The longitudinal development length of the karst cave is approximately 51 m along the tunnel direction, and survey sections are set up every 7–8 m along the central axis, such that seven survey sections are constructed—namely, Z₁–Z₇ in Figure 21a–g. The distance of the measurement point on the wall of the cave is measured by a laser rangefinder. A core investigation is carried out on the surrounding rock of the karst cave, as shown in Figure 22a,b. Section Z₄ is taken as an example, as shown in Figure 22c. y₁ = −774 cm and y₂ = −356 cm can be obtained by surveying the filling and karst water in the karst cave. From the measurement, the distance between the measured point O and the filling line is 1190 cm (ρ_k). There is a small amount of blocks and silt in the cave, and the sediment thickness is approximately 30–50 cm ($d_f$), i.e., y₄ = −(1220–1240) cm. The maximum water flow is approximately 1 L/s, the water level is essentially zero, and the highest historical water level is approximately 2.4 m (d_w)—i.e., y₃ = −950 cm. According to the coring survey, the crushing depth of the bottom surrounding rock is approximately 70 cm (d_u), and we also obtain ρ_k = 1260. Here, we determine the spatial relationship of section Z₄. According to the field survey results of each section, spatial diagrams of sections Z₁–Z₇ were drawn, as shown in Figure 21. Then, each section is drawn into a continuous 3D spatial diagram to realize the modeling of geometric parameters and directly reflect the spatial relationship, as shown in Figure 23.

5.3. Treatment Measures of Karst Cave

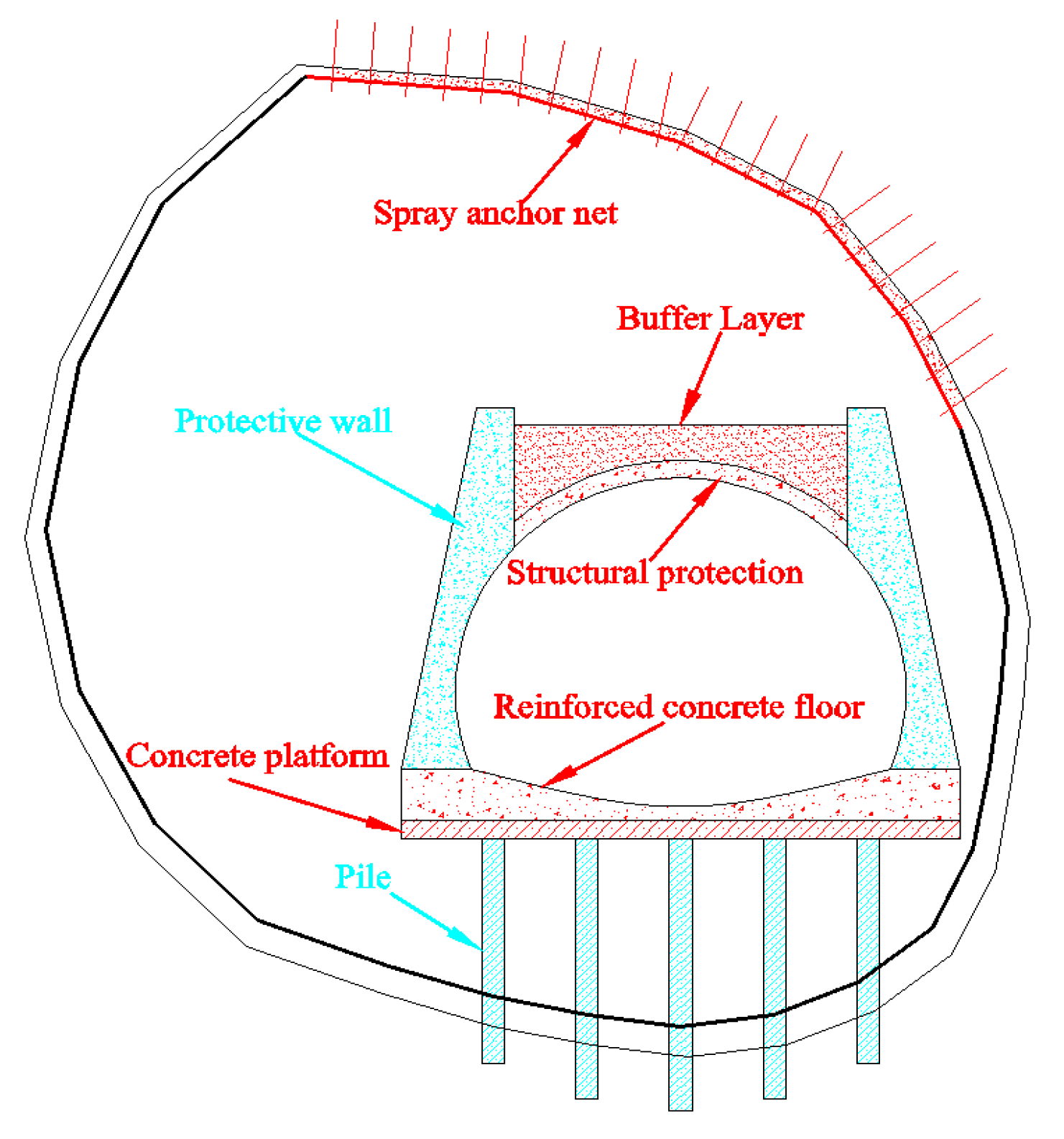

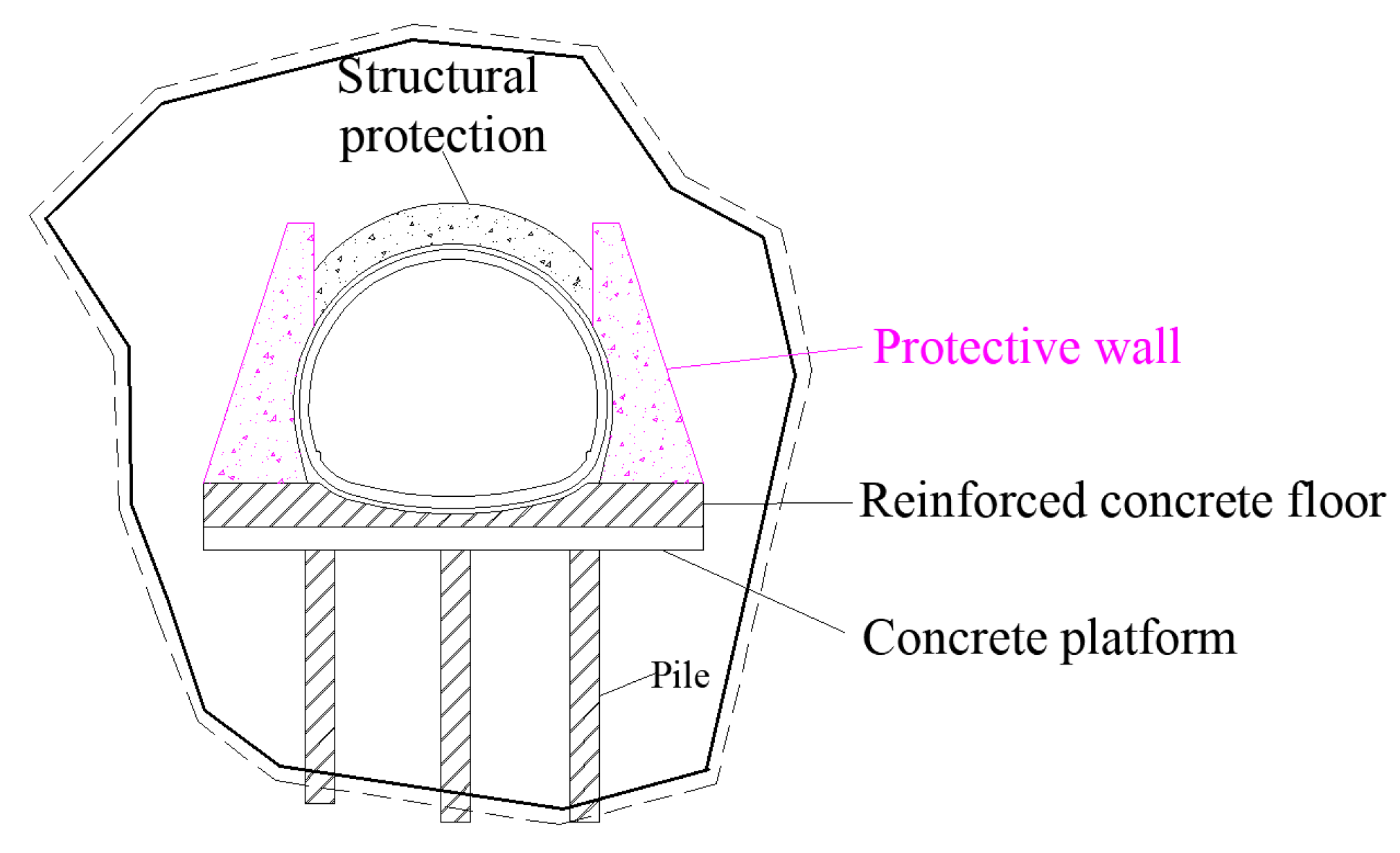

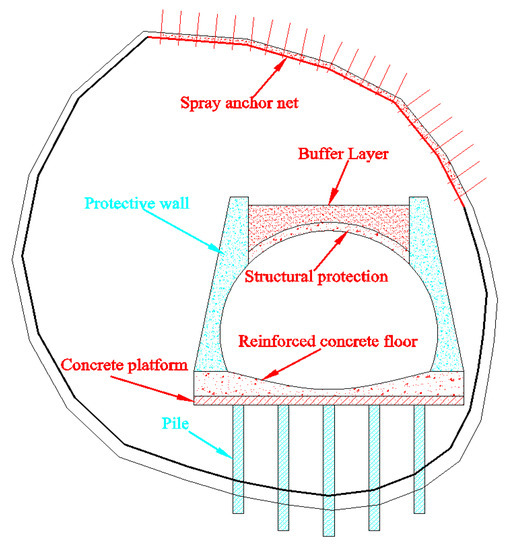

According to the treatment technology of SDM discussed in Section 4 of this paper, the comprehensive treatment method is formulated based on the site situation of this project:

(1)

The arch bottom cave space (④) treatment: manually clean the tunnel bottom gravel, using a 120 cm reinforced concrete pile reinforcement treatment, with pile transverse spacing of 5.0 m, vertical spacing of 8.0 m, pile bottom depth bedrock no less than 3.0 m, pile upper section set to a 1 m thick C35 reinforced concrete cap, and a cap bearing platform for the C30 concrete floor.

(2)

Protective wall: C35 concrete is adopted for the protective wall. The thickness of the protective wall is not less than 2 m and the slope rate of the outer wall is 1:0.2.

(3)

The upper space of the cave (①).

The unstable surrounding rock is cleared from the vault and cleaned up, and the anchor net shotcrete support is used in the cleaning area. The body of the tunnel is pumped with C30 concrete to a thickness of 1 m as the structural protection layer and sand to a thickness of 2 m as the buffer layer above the structural protection layer, as shown in Figure 24.

5.4. Effect Analysis by Monitoring Measurement

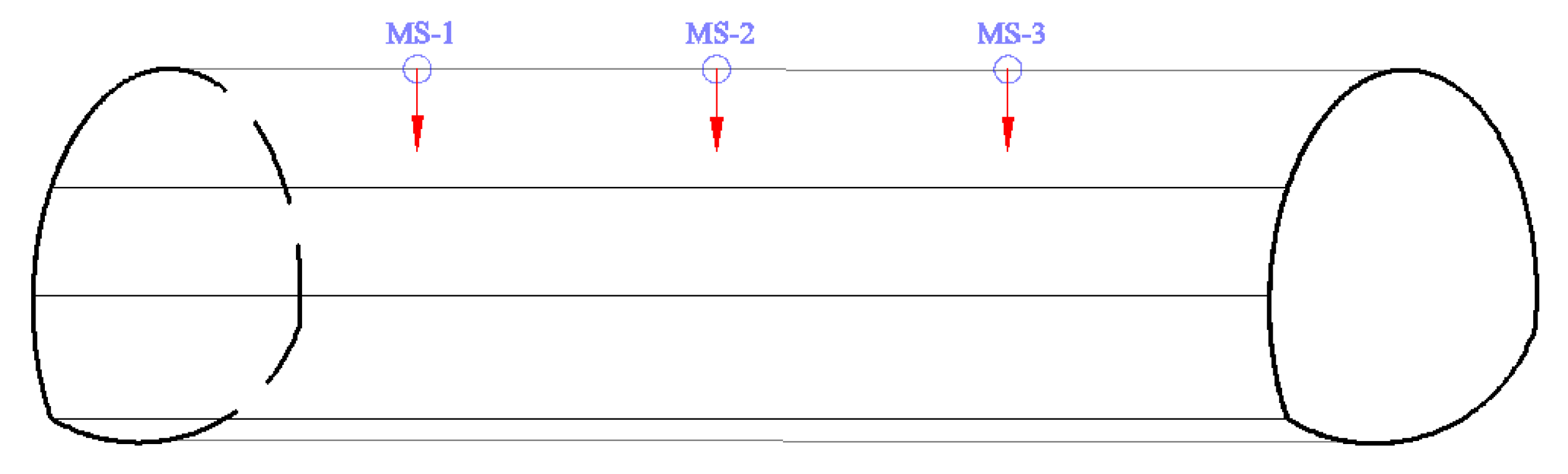

To evaluate the treatment effects, the tunnel stability is an important factor, which includes arch settlement, clearance convergence, floor vertical displacement, surrounding rock pressure, initial support structure stress, and secondary lining stress. Because the tunnel body is not in contact with the surrounding rock, its stability is mainly reflected in the settlement of the tunnel body caused by pile settlement. Therefore, only settlement monitoring is needed for the tunnel. Three monitoring points (MS-1 to MS-3) were arranged at D1K760+955, D1K760+940, and D1K760+925, as shown in Figure 25.

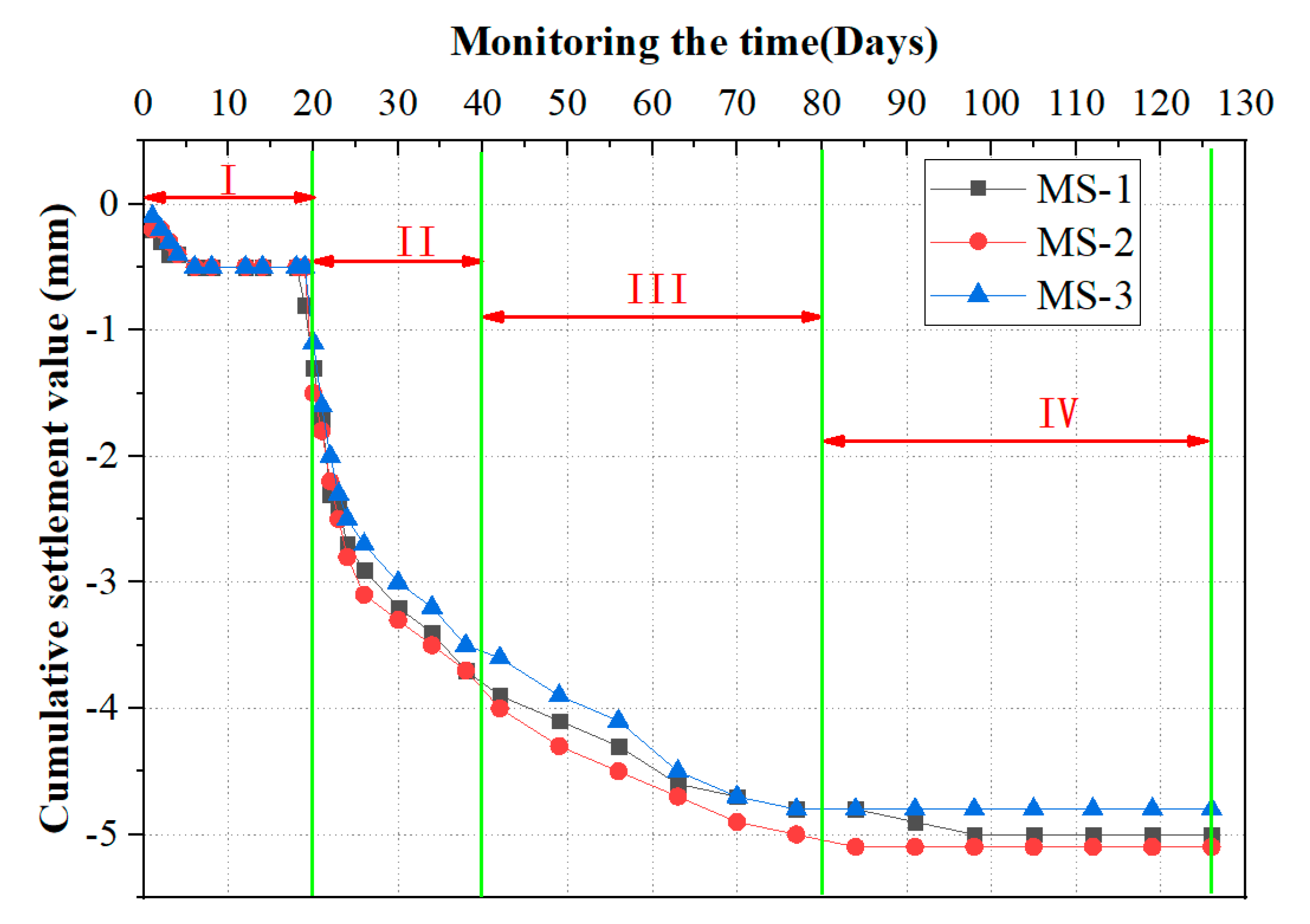

The monitoring data are shown in Figure 26. The settlement of the vault is accelerated in three stages and finally reaches a stable settlement state. According to the change rule of the accumulated settlement value of the vault, the settlement trend can be divided into stages I–IV. Stage I is the settlement in the later stage of lining. In this stage, monitoring activities are initiated after completing the lining construction (after the stripping). The collected data do not include the settlement during the lining construction and before the stripping. Stage II is the settlement of the structural protection layer, which is due to the increased load caused by the concrete structure protection layer on the main body of the tunnel, resulting in the acceleration of the settlement. The third stage is the construction settlement of the buffer layer. In this stage, the settlement acceleration changes owing to the increased termination caused by filling the upper part of the protection layer of the concrete structure with coarse sand. Stage IV is a stable stage. After the completion of all processes, the cumulative settlement value remains within a stable range.

6. Discussion

Although important discoveries have been revealed by these studies, there are certain limitations. The results show that the SDM is mainly used for the tunnel crossing or partial crossing of large karst caves, without considering special water environmental conditions such as underground rivers and high-pressure dynamic water. When such working conditions are encountered, the SDM may not be applicable or may need to be improved for specific working conditions. At the same time, karst development is complex and variable, and the treatment techniques for karst caves are flexible and varied, as well as the supporting techniques for the SDM. As a result, builders should follow the principles of safety, science, flexibility, and sustainability during practical applications. Furthermore, the treatment technology lacks technical economic consideration based on the SDM. In general, the technical economy should be compared with other technical schemes, and the safer scheme with the lower cost should be implemented in the project.

7. Conclusions

In this study, the application and geometric model of the SDM are proposed, regarding the construction and operation of tunnels passing through large karst caves. The geometric parameter determination method and supporting treatment technology would provide assurance to select the karst tunnel implementation. The following conclusions are drawn from the results of this work:

(1)

The SDM is proposed. The SDL is used to divide the space of the large karst cave into eight parts. Compared with traditional construction methods, this present method provides a means to conduct a spatial analysis which is more straightforward and clear for tunnels through large karst caves.

(2)

The geometric model of the SDM is established. Cartesian and cylindrical coordinate systems are used to describe the geometric parameters of the SDL. A method for the site investigation of tunnels and large karst caves is proposed. The geometric parameters of the SDL are determined to realize the spatial geometric description of the SDM.

(3)

According to the SDM, spatial treatment technologies for the top, bottom, and two wings of the tunnel are proposed. It is emphasized that the overall technology application should follow the principles of safety, flexibility, science, sustainability, and economy.
