Sericin for Tissue Engineering

Abstract

Sericin is a 10-to-400 kDa hydrophilic protein with high serine content and is a silk constituent together with fibroin. It is produced in the middle silk gland of the silkworm and encoded by four sericin genes. The molecular weight of sericin and its biological activity vary depending on the extraction method employed. Its chemical structure, in terms of random coil and β-sheet conformations, also differs with the extraction method, thereby extending its applications in various fields. Sericin, which was discarded in the textile industry in the past, is being applied and developed in the biomedical field, owing to its biological properties. In particular, many studies are underway in the field of tissue engineering, evaluating its applicability in burn dressing, drug delivery, bone regeneration, cartilage regeneration, and nerve regeneration.

1. Introduction

Raw silk produced by Bombyx mori is a natural protein fiber comprising hydrophobic fibroin and hydrophilic sericin [1,2,3]. Fibroin is a core filament that provides stiffness and strength and makes up more than 70% of the cocoon. Sericin makes up 20–30% of the cocoon and is a glue-like protein that binds fibroin fibers together [4,5,6].

For a long time, silk sericin was discarded in the silk industry through a degumming process to improve the value of silk as a textile fiber and simply regarded as waste [1,2]. Fibroin exhibits low inflammatory activity, excellent biocompatibility and mechanical properties, and controllable degradability; hence, many studies have been conducted on its non-textile applications, especially medical applications [7,8,9,10], and it has been widely used in membranes for guided bone regeneration [6,11,12], scaffolds for tissue engineering [13,14,15,16,17], wound dressing [18,19,20], cornea tissue engineering [21], artificial eardrums [22], vascular grafts [23,24], nerve guidance conduits [25], and drug delivery carriers [26].

Only recent reports on new functions of sericin have demonstrated its beneficial properties such as biocompatibility [27], biodegradability, collagen production, and anti-oxidative, anti-tyrosinase, anti-inflammatory, anticoagulatory, antitumor, anti-aging, and anti-wrinkle effects [5,10,28,29,30,31]. Therefore, sericin has been applied in wound dressing [32,33,34,35,36], corneal abrasion treatment [37,38], cell culture media [39,40,41,42,43], anticancer drugs [32], and cosmetics for skin, nails and hair [44,45].

The purpose of this paper is to report the recently updated information on sericin genes and their influence on the molecular weight and biological activities of sericin depending on the degumming method, as well as to review the application of sericin in tissue engineering.

2. Sericin as a Degumming Product

2.1. Sericin Gene

Sericin proteins are synthesized by alternative splicing of sericin genes, which are regulated as per different phases of larval development [32]. Sericin proteins are synthesized in the middle silk gland (MSG) of the silkworm, B. mori [46]. Until now, four sericin genes have been reported, namely, sericin1, sericin2, sericin3, and sericin4, all of which are located on chromosome 11 [47].

The first discovered gene was that encoding sericin 1, which is approximately 24 kb long and contains nine axons [48,49]. This gene can be alternatively spliced as four mRNAs (10.5, 9.0, 4.0, and 2.8 kb) [50,51,52]. The sericin2 gene is approximately 16.2 kb long and comprises 13 exons [50,51]. It can be alternatively spliced as two mRNAs (3.1 and 5.0–6.4 kb) [51]. The organization of sericin2 is similar to that of sericin1 in that the first two exons are similar in size and encode the signal peptide [53]. Takasu et al. discovered sericin3 with a size of 6.6 kb and a transcript of 4.9 kb containing 3 exons [54]. The most recently discovered gene, sericin4, is approximately 40 kb in size and contains 34 exons. It was identified to have six alternatively spliced transcripts [47].

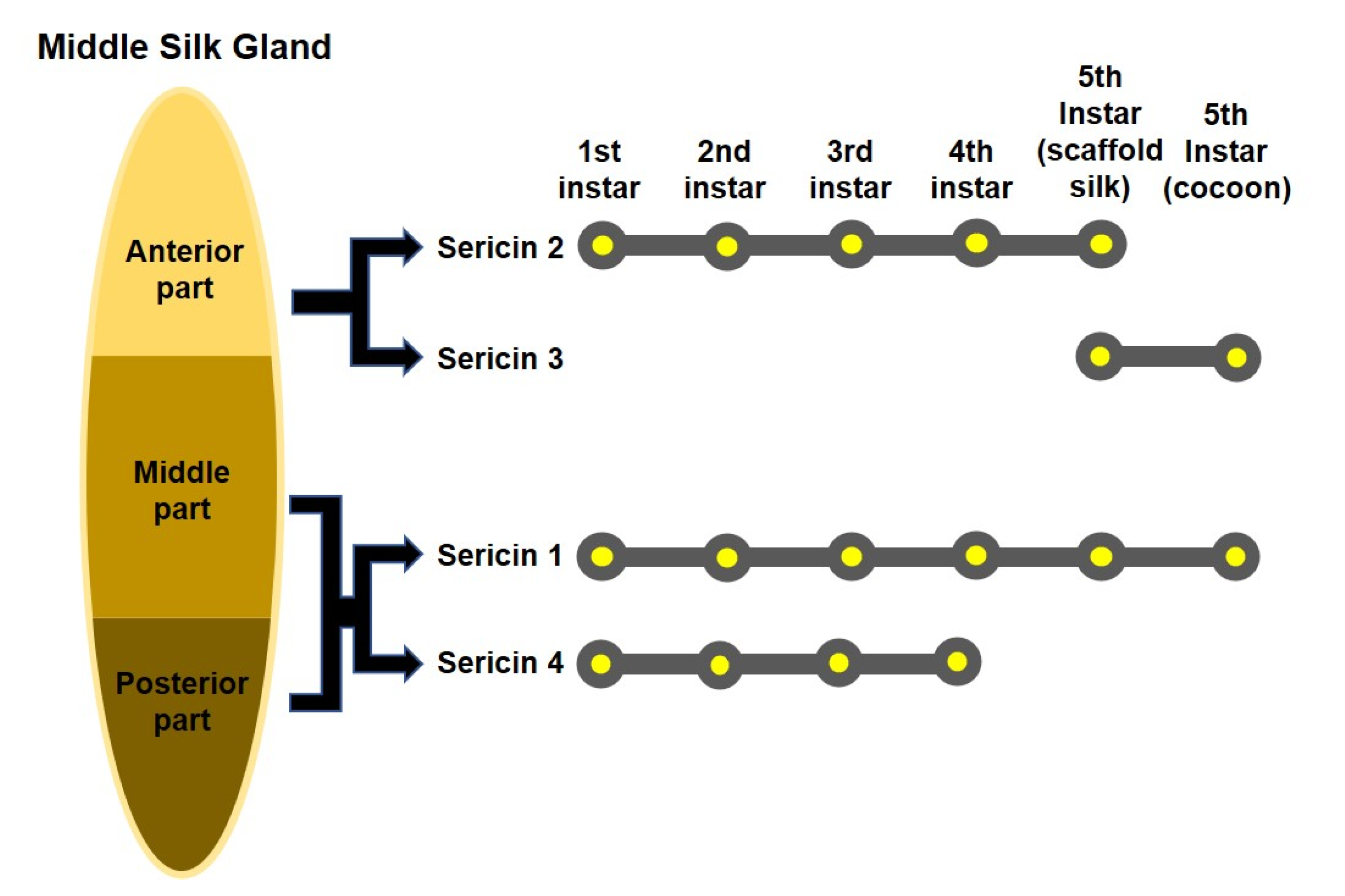

Sericin 1 and 4 proteins are synthesized in the middle and posterior part of the MSG; however, sericin 2 and 3 proteins are synthesized in the anterior part of the MSG (Figure 1) [47,54,55,56]. Sericin 1 is synthesized from the first to the fifth instar, while sericin 2 is synthesized from the first instar to the fifth day of the fifth instar [55,57]. Sericin 3 is synthesized only after the fifth day of the fifth instar, while sericin 4 is synthesized from the first instar to the fourth instar [47,57].

Silkworms produce two types of silk: cocoon silk and non-cocoon silk. As the synthesis locations of proteins in the silk gland determine their position in silk, the innermost and outmost sericin layers in cocoon silk comprise of sericin 1 and 3, respectively, whereas the outer and inner sericin layers in non-cocoon silk consist of sericin 2 and 4, respectively [32,47,55]. Non-cocoon silk with sericin 2 and 4 may exhibit better adhesion than cocoon silk with sericin 1 and 3, because sericin 2 and 4 have a higher percentage of charged amino acids than others [47,53]. In addition, sericin 2 and 4 contain fewer serine residues than sericin 1 and 3, suggesting that sericin proteins in non-cocoon silk form fewer β-sheet structures than those in cocoon silk [47,52,54,55]. The structural differences in sericin consistent with the distribution of sericin proteins in these two types of silk are also reflected in functional differences [47]. Sericin 1 and 3, the main components of the cocoon shell, have a rather rigid structure that forms the cocoon. In contrast, sericin 2 and 4 have adhesive properties, necessary to anchor the larval body to the surrounding material, such as a tree branch, without the need to form a rigid structure [47,53,55].

2.2. Sericin Molecular Weight and Degumming Process

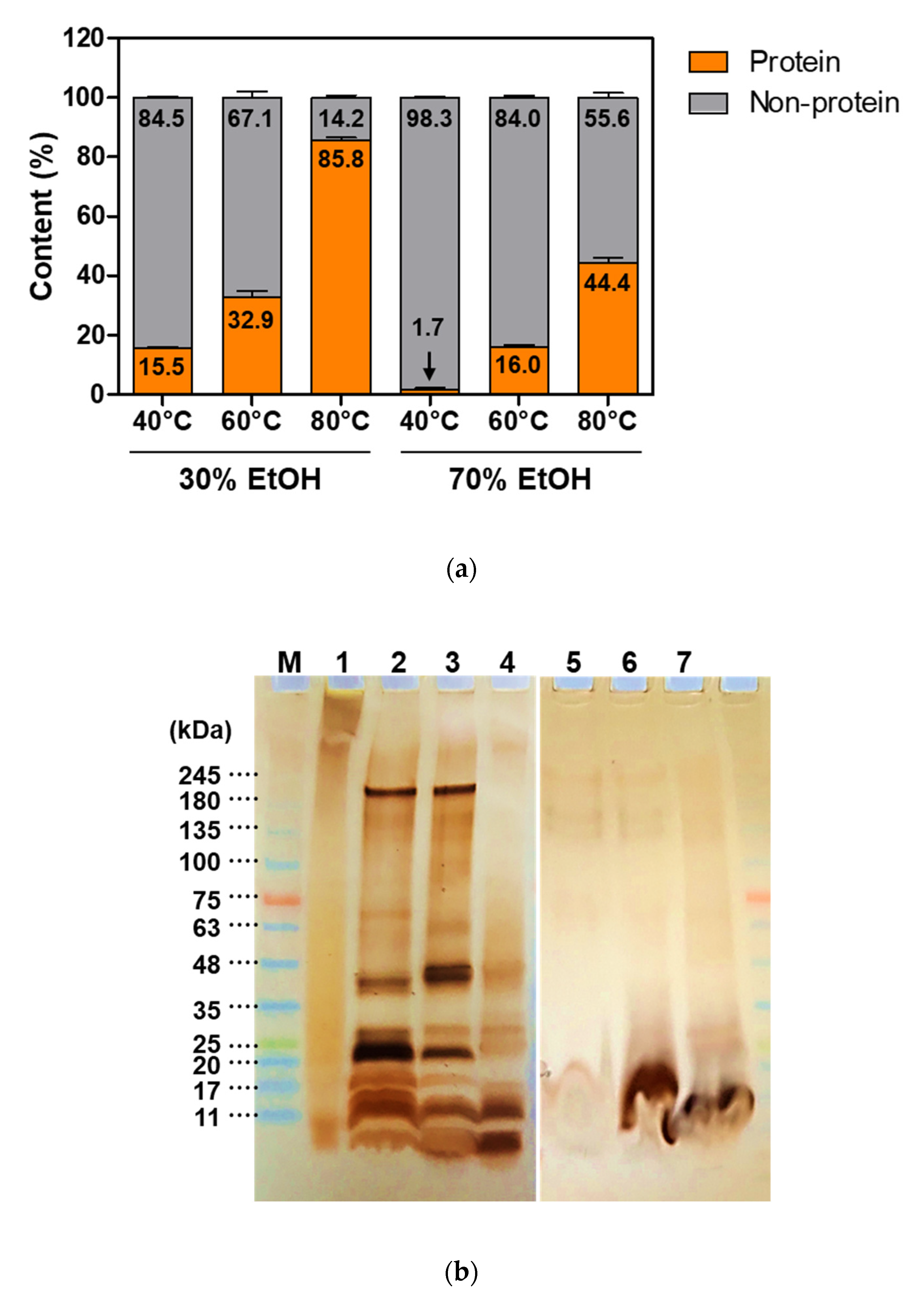

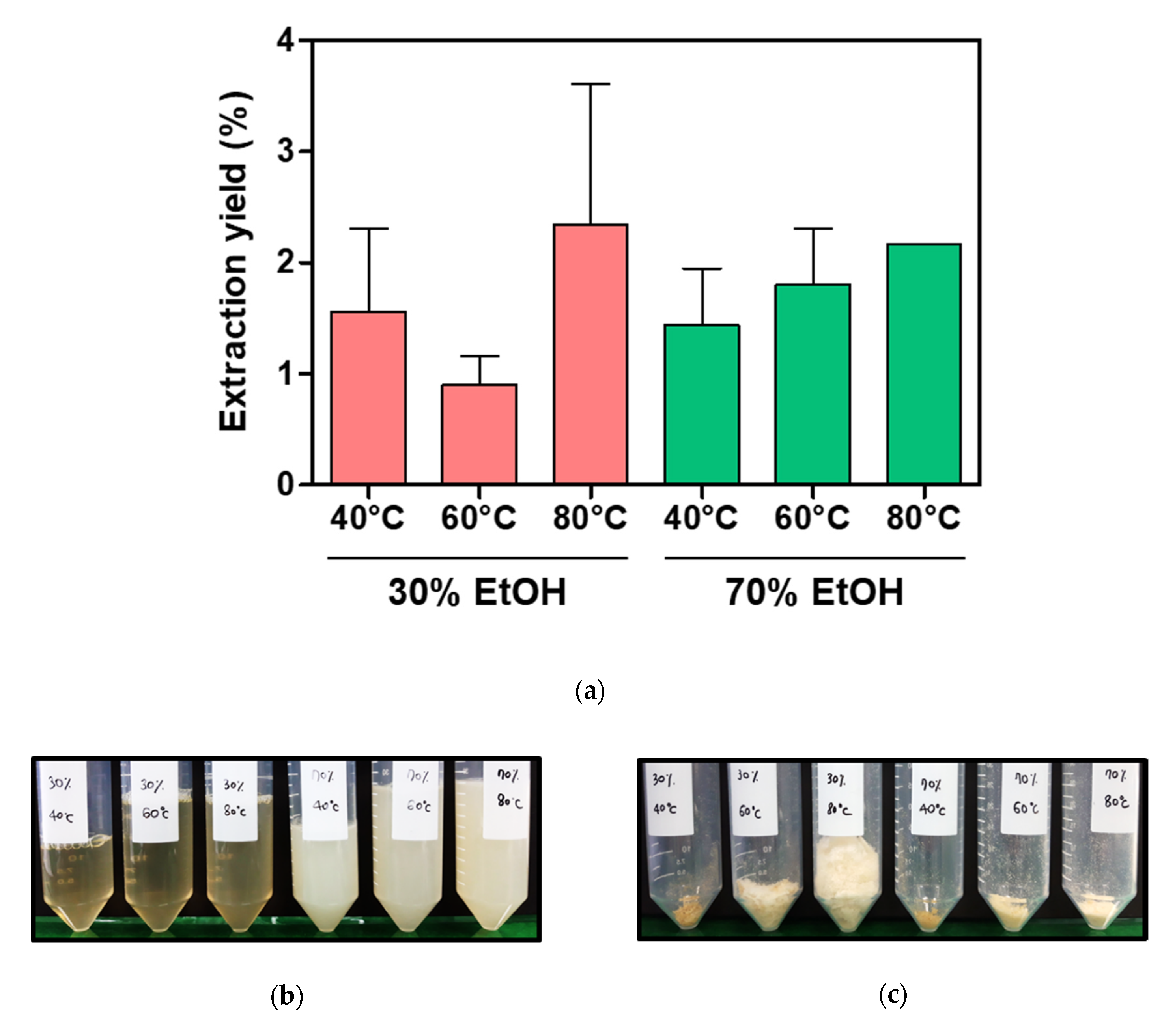

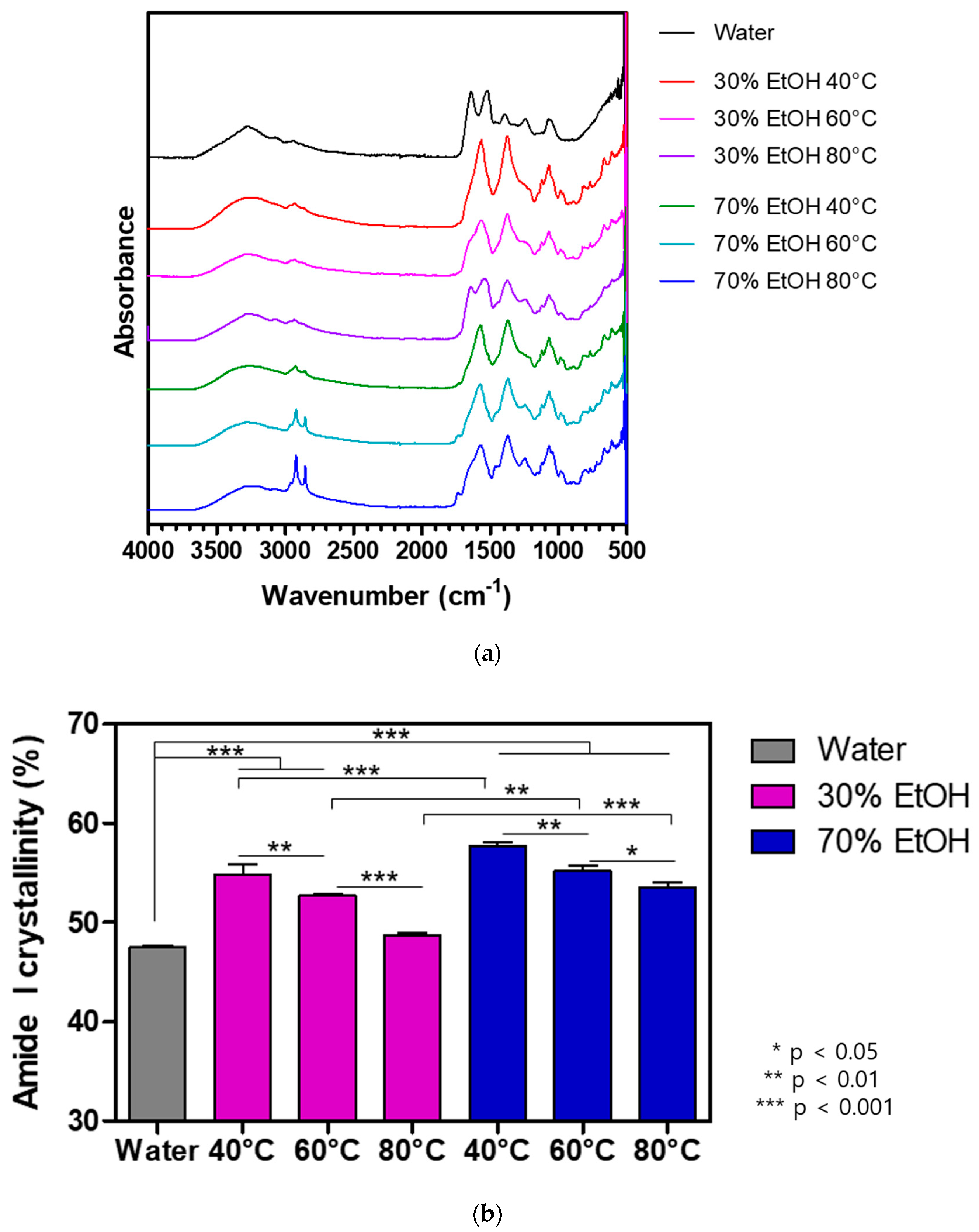

Sericin, composed of 18 amino acids, is a water-soluble globular protein with molecular weights ranging from 10 to 400 kDa [29,30,32,58]. Its molecular weight varies depending on the extraction method employed [58,59]. Several strategies have been used for the extraction of sericin from the cocoon of B. mori, including extraction using high temperature, with or without high pressure, acids, alkalis, urea, and enzymes [32,58,60]. Degumming conditions such as temperature, time, chemical additives, and solution concentrations can be modified to achieve better efficacy [32]. The extraction yield and the morphology of cocoon extracts vary depending on the degumming conditions such as solvent and temperature (Figure 2). In addition, protein content and molecular weight vary depending on the degumming conditions (Figure 3). The chemical structure of cocoon extracts changes as per these conditions (Figure 4). The higher the concentration of ethanol (EtOH) and the lower the temperature, the higher is the crystallinity. The random coil and β-sheet conformations of cocoon extracts also change based on the degumming conditions (Figure 5 and

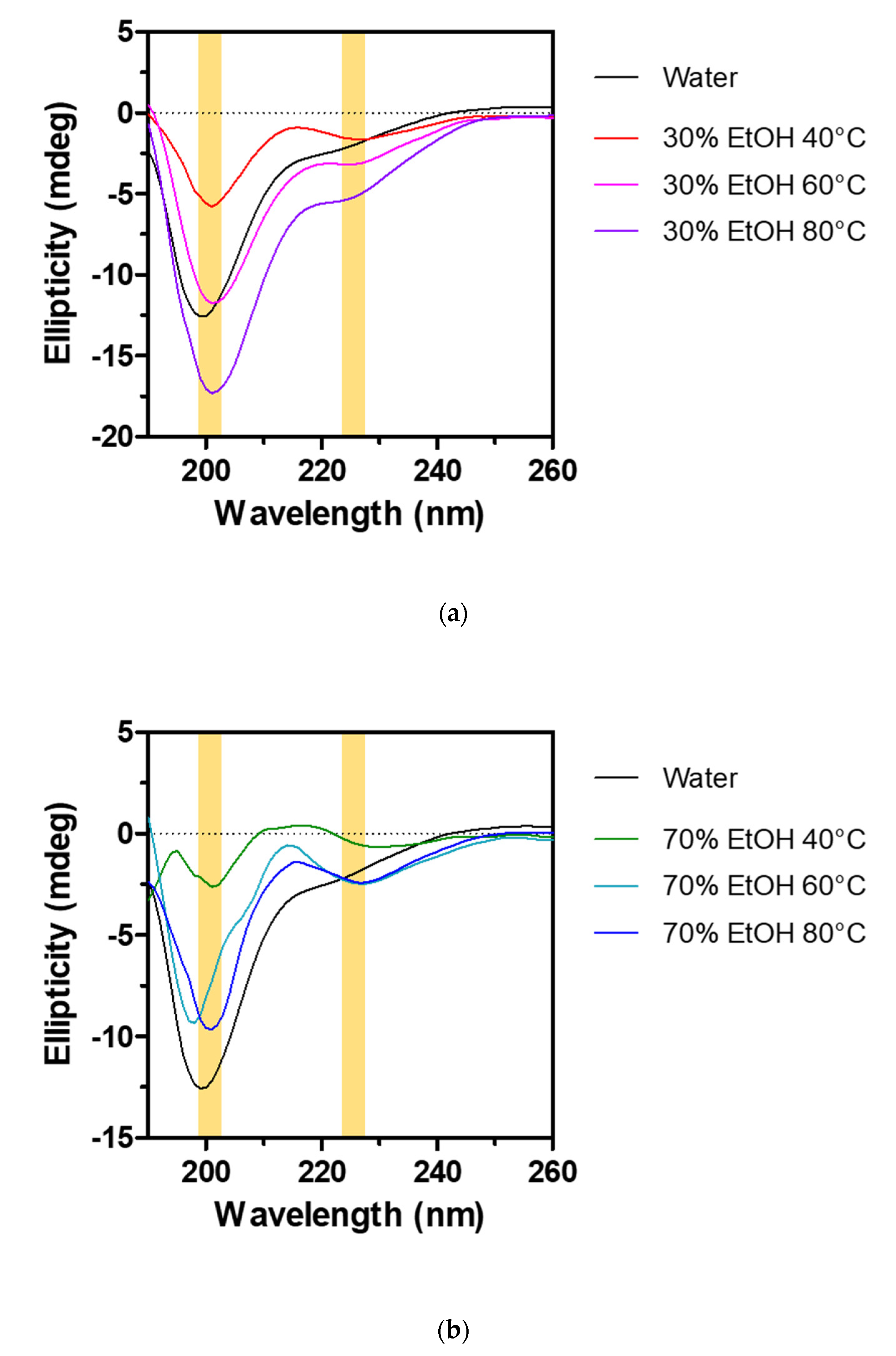

Table 1. Calculated conformations of various cocoon extracts prepared by using different solvents at different temperatures.

Sample		Helix	Sheet	Turn	Others
Hot water extracts		3.40%	34.40%	14.20%	48.00%
30% EtOH extracts	40 °C	2.30%	39.50%	13.90%	44.30%
	60 °C	4.30%	37.10%	14.10%	44.50%
	80 °C	6.90%	33.90%	14.90%	44.30%
70% EtOH extracts	40 °C	0.60%	41.90%	13.40%	44.10%
	60 °C	0.60%	41.40%	13.60%	44.40%
	80 °C	1.70%	40.10%	13.80%	44.40%

).

Sericin extracted by the conventional method of boiling have a molecular weight of 10 to 220 kDa [61], while those extracted by the high-temperature and high-pressure degumming technique (autoclaving) have molecular weights ranging from 20 to 400 kDa [62]. Sericin extracted by the acid-degradation method has a molecular weight in the range of 35–150 kDa, while that extracted by the alkali-degradation method has a molecular weight in the range of 15–75 kDa [63]. Sericin extracted with a urea solution was found to have a molecular weight in the range of 10 to >225 kDa [64].

2.3. Cellular Response to Sericin and Influence of the Degumming Method on Sericin Biological Activity

Sericin is a fundamental insect protein produced by the silkworm. There is no doubt that it is a foreign protein and hence immunogenic to humans. While some studies stated sericin to be a biocompatible and non-immunogenic protein, this should be accepted as a relative statement in comparison with highly immunogenic foreign proteins. Even human proteins may be immunogenic upon denaturation. As mentioned, different degumming processes produce different yield ratios and protein structures. Considering that protein structure is the main determinant of its biological response, the degumming process may influence sericin activity. The effects of the degumming process on the macrophage response and β-sheet content of silk fibroin have been documented [65]. As the silkworm cocoon protects the larva from the outer environment, sericin is assumed to have antibacterial properties. However, a recent paper proved that sericin lacks antibacterial properties [66].

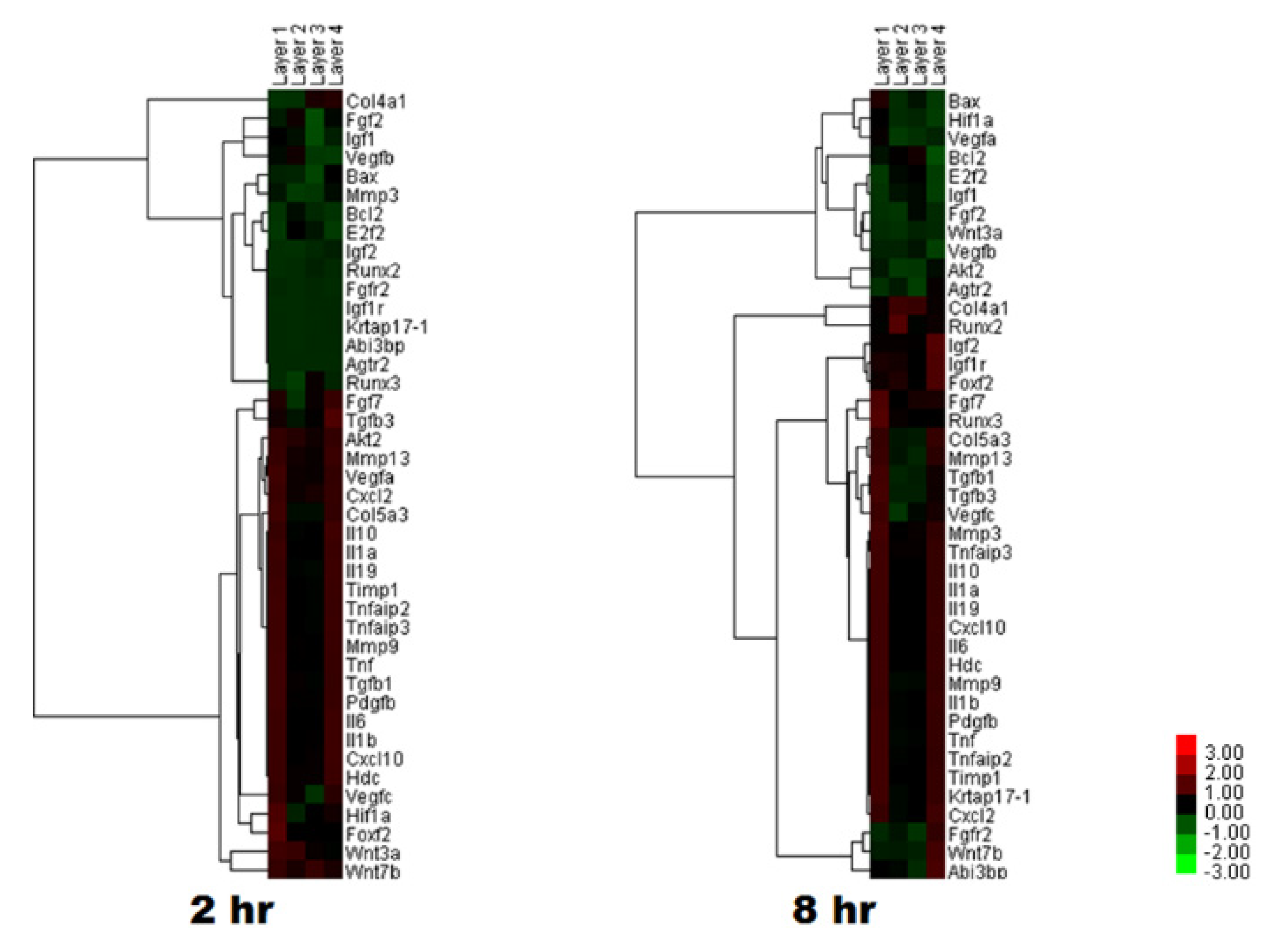

Sericin may be an allergen for some people [67]. Immunogenic responses to sericin have been studied in RAW264.7 cells. Insoluble fibroin particles, but not soluble sericin, significantly increased tumor necrosis factor-α (TNFα) levels [27]. When sericin was administered to mouse monocytes and alveolar macrophages, the levels of TNFα and interleukin-1β (IL1β) increased in a dose-dependent manner [68]. Interestingly, these elevated levels of TNFα and IL1β, following sericin administration, did not result in delayed wound healing in animal models [68]. Similarly, sericin increased the TNFα level in RAW264.7 cells, but a silk mat with sericin enhanced new bone formation in the rat calvarial defect model [69]. Sericin also activated the nuclear factor kappa B (NF-κB) pathway, which is implicated in the inflammation of retinal pigment epithelial cells [70]. Sericin increased vascular endothelial growth factor (VEGF) in RAW264.7 cells through elevation of hypoxia inducible factor (HIF) expression [71]. The administration of sericin increased VEGF expression in human umbilical vein cells [72]. A silk mat produced by cutting and peeling off B. mori cocoons was tested for bone regeneration in the extraction socket of humans [73]. The soluble proteins (mainly sericin) released from these silk mats increased the expression of the genes associated with angiogenesis such as VEGF and inflammation (IL1β and TNFα) (Figure 6) [74]. Sericin was shown to elevate the expression levels of IL1β, TNFα, and VEGF [68,69,71]. When sericin was fractioned according to its molecular weight, the fraction with higher molecular weight increased TNFα expression in RAW264.7 cells more than that with lower molecular weight [75].

Unlike most publications, some studies have reported the anti-inflammatory potential of sericin. Topical application of sericin (80 µg/mL) could significantly lower cyclooxygenase (COX)-2 levels as compared to water application in a carrageenan-induced inflammation model [76]. While sericin alone could not reduce lipopolysaccharide-induced serum TNFα expression, naringenin-loaded sericin reduced this effect [77]. The amelioration of TNFα levels in the naringenin-loaded sericin group was stronger than that observed in the naringenin group [77]. Sericin exhibited a protective effect similar to that of metformin in the kidneys of rats with diabetic nephropathy through the suppression of the transforming growth factor (TGF)-β1/Smad3 pathway [78]. Sericin may also exert antioxidant activities, which highly vary depending on the species that produced it [31]. Sericin extracted from Antheraea mylitta cocoon was applied to AH927 cells and was found to reduce the oxidative stress induced by hydrogen peroxide [79]. Sericin inhibited lipid peroxidation and tyrosinase activity [44] and accelerated the attachment of human dermal fibroblasts in culture [80]. Sericin from B. mori stimulated cellular migration via the c-Jun mediated pathway [81] and increased the expression of osteocalcin and alkaline phosphatase in osteoblasts cultured on sericin-coated titanium surface [82].

The thermal stability of sericin varies depending on the chemicals used for its extraction [63]. Further, the biological activity of sericin also varies owing to differences in its molecular weight and amino acid composition, depending on the extraction method [29,32]. The biological response to sericin is highly dependent on the extraction method used. Sericin extracted by urea is highly toxic to cells, but heat-degraded sericin is relatively non-toxic [64]. In terms of anti-tyrosinase activity, sericin extracted using urea exhibits higher activity than alkali-degraded sericin [63]. Tyrosinases are copper-containing enzymes that catalyze the conversion of monophenol to ortho-quinone [83]. Sericin plays the role of an antioxidant and inhibits tyrosinase activity [84]. It may be useful for the treatment and prevention of reactive oxygen species (ROS)-related diseases, including cancer, neurodegenerative diseases, diabetes, and cardiovascular dysfunction [85,86]. The comparison of the antioxidant activities of sericin proteins extracted by different methods showed that sericin extracted by the alkali method had the best activity, followed by that prepared by autoclaving and the conventional method [29]. During degumming, sericin undergoes fragmentation, and hence, has different molecular weights. The molecular weight of sericin has a marginal effect on cellular toxicity [1]. However, the crystallization and mechanical properties of sericin improve with an increase in its molecular weight [1]. Therefore, the in vivo response to sericin may also differ based on its molecular weight. The various biological activities associated with each degumming method are summarized in

Table 2. Molecular weight and biological activity of sericin according to the degumming method used.

Extraction Technique	Molecular Weight	Biological Activity	Reference
Autoclaving at 120 °C for 60 min	25–150 kDa	Sericin extracted using urea exhibited the highest cell toxicity and the lowest induction of collagen production, while sericin extracted by the autoclaving method showed the lowest cell toxicity and the highest induction of collagen production.	[64]
1.25% citric acid solution heated for 30 min	50–150 kDa
0.5% Na2CO3 solution heated for 30 min	15–75 kDa
8 M urea for 30 min followed by heating at 85 °C for 30 min	from 10 to >225 kDa
Autoclaving at 120 °C for 60 min	35–150 kDa	Compared to other extraction methods, sericin extracted using urea exhibited the highest antityrosinase activity.	[63]
1.25% citric acid solution heated for 30 min	35–150 kDa
0.5% Na2CO3 solution heated for 30 min	15–75 kDa
8 M urea for 30 min followed by heating at 85 °C for 30 min	from 10 to >225 kDa
Autoclaving at 120 °C for 20 min	smear	Sericin extracted by the alkali-degradation method showed higher efficacy in antioxidant potential than conventional or autoclaving methods.	[29]
1.25% citric acid solution heated for 30 min	smear
0.5% Na2CO3 solution heated for 30 min	smear with a clear band at 75 kDa
8 M urea for 30 min followed by heating at 85 °C for 30 min	10–120 kDa
0.02 M Na2CO3 solution heated for 30 min	smear

.

Conflicting results from cellular experiments using sericin may be attributed to the following reasons. First, many papers did not describe sufficiently the extraction method of sericin that was employed. Considering the biological effect of the extraction method, the discrepancy in the biological response to sericin may be attributed to the differences in the extraction methods. Second, the biological response to sericin may be different depending on the species it was obtained from. Most studies tested sericin proteins from B. mori or A. mylitta; their species-dependent activities have already been well demonstrated [31]. Third, the biological response to sericin may be also different depending on sericin molecular weight; however, there have been few papers about this. If high-molecular-weight sericin is more effective than low-molecular-weight sericin, sericin fragments can be separated as fractions based on their molecular weights, after extraction from cocoons. Considering that sericin is a protein, most cellular responses may be mediated via cell surface receptors. As human cell receptors corresponding to sericin have rarely been studied, cellular responses specific to sericin have not been elucidated in detail.

3. Sericin and Tissue Engineering

3.1. Sericin for Burn Dressing

Wound healing is a dynamic and complex process involving a highly organized and coordinated series of events [30,87]. Theses complex events occur in four overlapping phases: hemostasis, inflammation, proliferation, and remodeling [30,87,88,89]. Chronic wounds such as burns, diabetic wounds, and ulcers result in tissue injury, which becomes irreparable within a typical time period due to disturbance by various factors that prolong one or more of the four normal healing phases [87,90].

A burn is a tissue lesion characterized by changes varying from local erythema to complete destruction of the affected structure [91]. Burns are associated with significant mortality and disability, multiple surgeries, longer period of hospitalization and rehabilitation, and high medical costs [92]. The purpose of managing and treating burns is to induce epithelialization as quickly as possible for prevention of infection and reduction of functional and aesthetic sequelae [91]. Burns often lead to sepsis; hence, topical antimicrobial agents are always prophylactically administered to prevent the complications of infections [92].

Silk sericin has been directly used in regenerative medicine to maintain the proliferation of keratinocytes and fibroblasts during the wound healing process [93]. It can induce fibroblast proliferation and collagen production without the activation of pro-inflammatory cytokines [64,68,94,95]. Further, it can be formulated and used as a wound dressing or cream to control wound infection [30] and employed to treat burns, reduce scarring, and prevent infection [91]. The antioxidant activity of silk sericin may help in the scavenging of ROS generated in chronic wounds. Therefore, sericin-containing substances may prevent the prolonged inflammation of chronic wounds and help in rapid healing by turning the wound healing process into a proliferative phase [96,97].

Both a sericin cream and a cream combining sericin with silver sulfadiazine promoted healing of full-thickness burn wounds in rats [95]. In addition, clinical studies have shown that a cream containing silk sericin in combination with silver sulfadiazine is safe and beneficial for treating burns [93]. Another study found that chitosan-sericin-silver nanocomposite films accelerated the process of burn wound healing through fibroblasts differentiation, angiogenesis, and collagen reorganization in animal models [90].

3.2. Sericin for Oral Gargling

Sericin inhibits tyrosinase activity and tyrosinase has close relation with skin pigmentation [84]. Accordingly, sericin has been used in cosmetics [59]. When a sericin gel is applied to the skin, the hydration level is increased [98]. Sericin treated skin shows a higher level of hydroxylproline than skin treated with distilled water [98]. Many elderly people suffer from xerostomia. Increased hydration by sericin used for oral gargling will be beneficial for those people. In addition, sericin accelerates wound healing [93]. Though the antimicrobial effect of sericin is controversial, increasing hydration and wound healing are enough to support the use of sericin as an oral gargling ingredient. Mulberry leaves are eaten by silkworm, and approximately 70% of mulberry proteins are used to produce silkworm cocoons [99]. Mulberry leaves have been used for oral gargle [100].

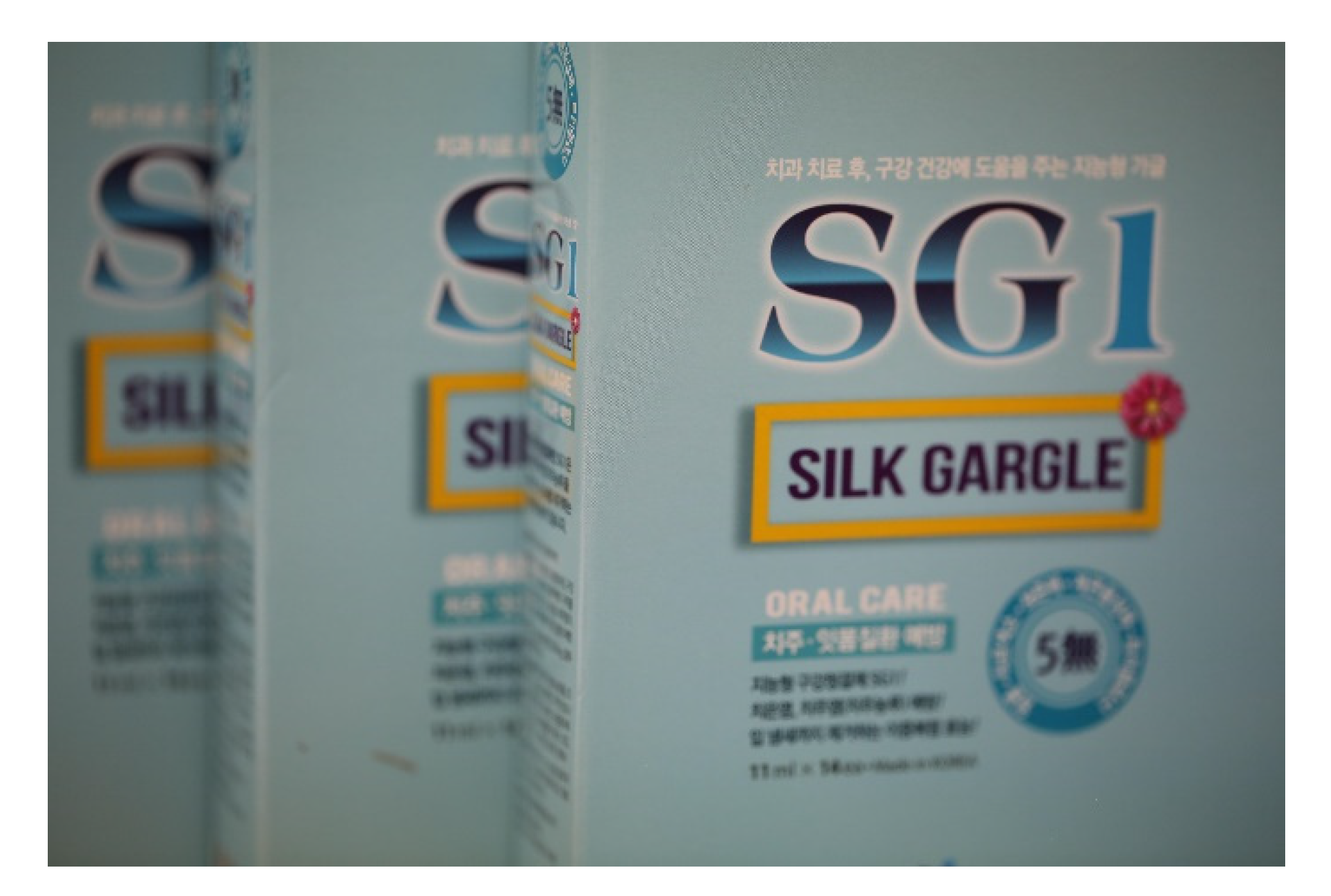

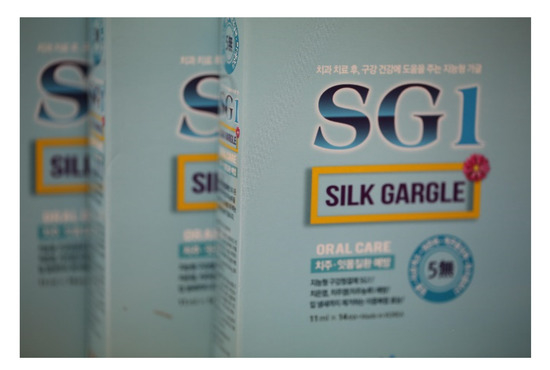

There have been few papers on sericin use for oral gargle. Only a single paper was found in Google scholar database. The effect on halitosis of a sericin gargle was compared with that of a commercial product [101]. The sericin gargle showed a lower level of hydrogen sulphide compared to the commercial product [101]. Currently, only one oral gargle containing silk protein is available in the market (Figure 7). Considering the beneficial effects of sericin on wound healing, the production of oral gargles containing sericin will probably increase in the near future.

3.3. Sericin for Drug Delivery

Drug delivery systems are used to improve the effectiveness of therapeutic agents through efficient targeting, modulated release, or stabilization of the molecular state of drugs [60]. An optimal effect of the drug is achieved with a reliable and controlled release profile, which is particularly important when the drug exerts undesirable side-effects. Silk proteins can be used as drug carriers, owing to their biocompatibility and adjustable morphology [102]. Sericin can be potentially applicable to drug delivery because of its chemical activity and pH responsiveness [60].

Wang et al. reported a fabricated covalently crosslinked 3D pure sericin hydrogel that is injectable and exhibits several physical and chemical properties that promote a sustained drug release [103]. This hydrogel could serve as an efficient drug delivery system. Nishida et al. used sericin of different molecular sizes, concentrations, and forms, and evaluated the in vitro release and in vivo biodegradation of a charged protein, fluorescein isothiocyanate-albumin [104]. The higher the concentration of sericin, the longer was the release of the charged protein. In a rat model, this sericin preparation gradually decreased in size and weight, and the charged drug protein remained for 3 to 6 weeks or longer [104]. Therefore, sericin can be used as a drug delivery biomaterial. Zhang et al. reported that a sericin-alginate interpenetrating network hydrogel maintained controlled drug release at an adjustable rate [105]. This hydrogel adhered to cells and supported their proliferation, long-term survival, and migration and could be used as a versatile platform for drug delivery. Parisi et al. reported the use of sericin/poly(ethyl cyanoacrylate) nanospheres as a delivery system for fenofibrate, a lipophilic drug used as lipid-regulation agent [106]. This system increased the absorbable amount of fenofibrate by 70%, improved plasma lipid levels, and decreased lipid storage in the liver, demonstrating its suitability for poorly water-soluble drugs.

3.4. Sericin for Bone Regeneration

Self-healing in severe bone defects is rare, necessitating treatment with artificial bone substitutes [107]. Sericin extracted from silk cocoons has been used in soft tissue engineering, for example, for epithelial and connective tissue repair [32]. The mechanical properties of sericin are suitable for soft tissue repair; however, the lack of mechanical strength makes sericin less applicable for bone regeneration [60,107]. Nevertheless, sericin can be used as an artificial bone substitute for severe bone defects if it is modified to improve its mechanical and bone-inducing properties [107].

Pure sericin is not used as a scaffold for bone tissue engineering because of its poor mechanical properties [60]. The nucleation of hydroxyapatite (HA) crystals is caused by anionic side chains that bind Ca2+, which means that the amount of acidic amino acids in sericin may affect the nucleation of hydroxyapatite crystals [108]. Zhang et al. reported that HA/sericin composite films could maintain the viability of human osteosarcoma MG-63 cells, owing to the deposition of HA and its three-dimensional structure; hence, these films could be applied for bone tissue engineering [109]. Veiga et al. reported the non-toxicity of HA/sericin nanocomposites, which increased cell viability [110]. Qi et al. fabricated a sericin methacyloyl/graphene oxide hydrogel with tunable mechanical strength and osteoinductive ability as a scaffold for the functional repair of bone tissue [107]. This scaffold had good biocompatibility, cell adhesion properties, cell proliferation and migration abilities, and osteogenic induction properties [107]. After implantation into a rat model of calvarial defect, this scaffold effectively promoted new bone regeneration and induced autologous bone marrow-derived mesenchymal stem cell differentiation, thereby achieving structural and functional repair within 12 weeks [107]. Therefore, sericin-based biomaterials can be used in bone tissue engineering.

3.5. Sericin for Other Tissues

In addition to the aforementioned tissue engineering applications, sericin has been used for cartilage or nerve regeneration. Dinescu et al. reported that a collagen-sericin scaffold improved with hyaluronic acid and chondroitin sulfate could be used as a temporary physical support for human adipose-derived stem cells for cartilage tissue engineering [111]. Hyaluronic acid and chondroitin sulfate are the most beneficial prochondrogenic factors used in the design of new biomaterials for cartilage tissue engineering, and adipose-derived stem cells have been demonstrated to exhibit high chondrogenic potential [111]. Qi et al. reported that artificial cartilages were effectively formed 8 weeks after injection of chondrocyte-laden sericin methacryloyl hydrogel in a rat model [112]. This artificial cartilage showed histological, molecular, and mechanical similarities to natural cartilage.

Xie et al. reported for the first time the use of a pure sericin conduit for peripheral nerve regeneration in a rat nerve injury model [113]. This sericin/silicone nerve guidance conduit can be used as an alternative to autologous nerve grafts to repair damaged peripheral nerves, as it induced functional recovery similar to that of an autologous nerve graft. Li et al. reported on nerve regeneration using a carbon nanotube/sericin nerve conduit in a rat nerve injury model [114]. This conduit can effectively promote the structural and functional recovery of nerves comparable to an autograft.

4. Conclusions

Sericin has different beneficial properties such as suitable chemical structure and biological activity, which vary depending on the extraction method employed. Many studies have been conducted on the biomedical applications of sericin, and recent studies on sericin for tissue engineering have received special attention. It is necessary to select an extraction method that can efficiently provide the necessary structure and impart the appropriate biological activity to sericin, according to the desired applications. This may encourage the commercialization of sericin for biomedical applications. In the future, more comparative studies on sericin biological activity depending on the extraction methods are needed.
