Creep Assessment of the Cement Matrix of Self-Compacting Concrete Modified with the Addition of Nanoparticles Using the Indentation Method

Abstract

In recent years, there has been an increased interest in the modification of cement composites with finer materials, including nanoparticles. Multi-scale studies are needed to fully assess the effect of nanoparticles and provide a complete overview of their impact on both the structure of an obtained material and its important mechanical parameters, such as creep. Therefore, the purpose of this paper is to fill the knowledge gap in the literature concerning the assessment of the creep of a cement matrix of self-compacting concrete modified with the addition of SiO₂, TiO₂, and Al₂O₃ nanoparticles using the indentation method. Depending on the type of used nanoparticles, we found an increase or decrease of the creep coefficient C_IT in comparison to the reference series. The obtained results were scrupulously analyzed in terms of statistics, which enabled the conclusion that the addition of nanoparticles does not significantly affect the creep of the cement matrix of self-compacting concrete. The methodology used in this paper allowed us to shorten the time needed to assess the creep phenomenon compared to traditional methods and fill the corresponding knowledge gap in the literature.

1. Introduction

In recent years, there has been a growing interest in the possibility of using nanometric materials as a potential additive for the production of cement composites [1]. This is mainly due to the unique properties of nanoparticles, such as their large specific surface area and chemical activity [2]. Until now, attempts have been made to determine the effect of some nanoparticles on the selected physical and mechanical properties of cement composites obtained with their use. Research included the influence of nanoparticles on the following concrete parameters: porosity [3], water absorption [4], compressive strength [5], bending strength [6], and the destruction process [7]. In the literature, however, in the case of concretes made with the addition of nanoparticles, there is no research concerning mechanical parameters related to rheology, such as creep.

Knowledge of the creep effect and of the possibility of its conscious control is important with regard to the durability and maintenance of objects made of concrete [8]. As a rule, when assessing the creep of concrete at the macro-scale, this material is treated as homogeneous, consisting mainly of aggregates. The standard methods that are used for such materials to determine concrete creep are time- and labor-consuming [9]. However, it has been proved that the effective mechanical parameters of concrete are significantly affected by the properties of the structure of the cement matrix observed at micro and nano levels [10], which should be assessed using appropriate techniques. One such technique is the indentation method.

Indentation is a method for measuring the mechanical properties of a material. This method is based on pressing a hard indenter in the form of, e.g., a diamond pyramid (Berkovich indenter) into a sample. Indentation research can be carried out at several levels of observation, from macro, to micro and to nano. The value of force applied to the surface of the sample being tested and the corresponding size of the obtained imprint, are directly related to the volume of the material subjected to the test. In the process of indentation, three stages can be distinguished: loading—the indenter is pressed into the material at a given speed until reaching the assumed force, which depends on the type of material; retaining the indenter in the material for a specified period of time; and unloading—usually at the same speed at which the indenter was pressed. The possibility of continuous monitoring of the indentation process enables the following material parameters to be determined: hardness µH, observed at micro-scale, and the indentation module µE [11]. It also allows rheological parameters such as creep [12] or relaxation [13] to be calculated.

When determining the creep of a cement matrix using the indentation method, which is a form of microstructural analysis, it is necessary to take into account several factors that affect the obtained results [14]. They include the preparation of the samples, the oxidation of the tested surface, the friction and adhesion of the indenter tip, the roughness of the tested surface, the surface of the imprint, and also the development of displacements. Particular attention should also be paid to the time of loading and unloading increase, the time of constant loading, and the number of loading and unloading cycles [14]. It is also worth noting that the assessment of creep using the method of indentation correlates well with the macroscopic assessment and also significantly accelerates the time of the study [15].

So far, many studies have concerned the subject of creep in ordinary, high-performance and self-compacting concrete (SCC). In a paper [16], it was proved that creep is greatly reduced by the use of ultrafine ground granulated blast-furnace slag (GGBS) and silica fume (SF). In addition, a reduction of creep by even more than 50% can be expected when the fly ash replacement level is increased from 35% to 60% [17]. Short-term tensile creep was investigated in concrete with the addition of steel fibers in a study [18], where it was demonstrated that incorporation of short steel fibers decreased the tensile creep coefficient and the specific creep in 14 days. The cement type has a significant influence on creep, as described in a study [19]. In turn, Persson [20] demonstrated that creep and shrinkage of self-compacting concrete did not differ significantly compared to those of ordinary concrete. Nevertheless, there is less research concerning the influence of nanoparticles on creep in self-compacting concrete.

Considering the above, the purpose of the paper was the filling of a knowledge gap in the literature, concerning the assessment of the creep of a self-compacting concrete cement matrix modified with the addition of nanoparticles, using the indentation method.

2. Materials and Methods

The following components were used to make the self-compacting concrete mixes for testing: Portland cement CEM I 52.5R with a density of 3.10 g/cm³, which meets the requirements of PN-EN 197-1 [21] and has the chemical and phase composition shown in

Table 1. Chemical and phase composition of Portland cement CEM I 52.5R.

Component	[wt. %]	Phase	[wt.%]
CaO	65.0	C3S	56.3
SiO2	22.0	C2S	20.8
Al2O3	5.4	C3A	8.7
Fe2O3	3.3	C4AF	10.0
MgO	3.2
Cl-	≤0.08
Loss of ignition	3.0

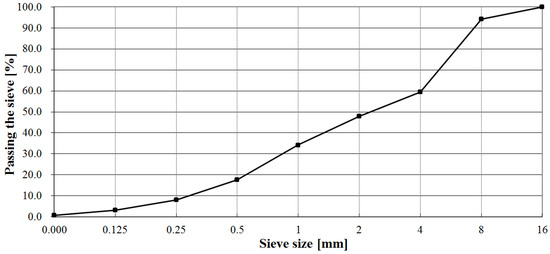

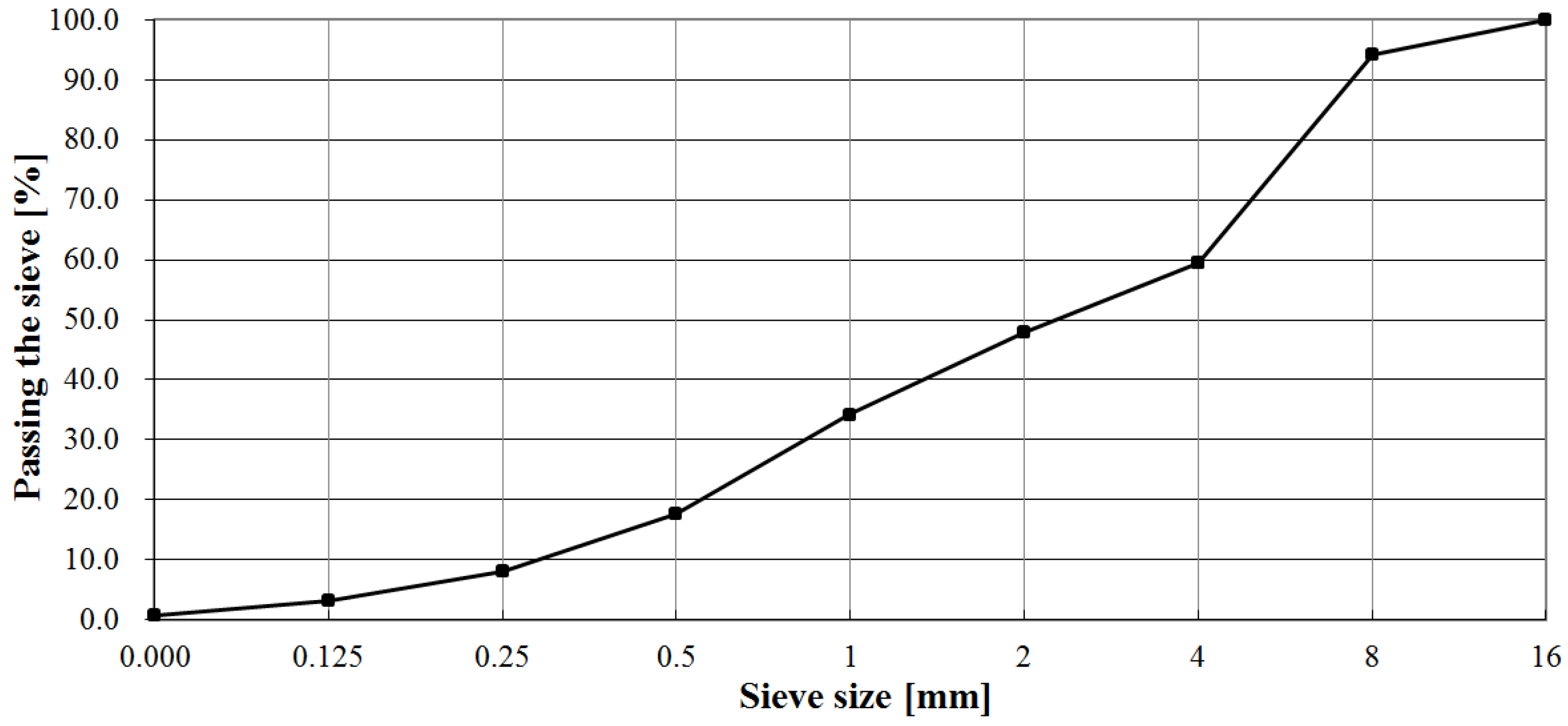

; an innovative third-generation superplasticizer (SP) Glenium Sky 600 produced by BASF, based on polycarboxylic ether (PCE) polymers, with a density of 1.08 g/cm³, used in a quantity equal to 4.0% of the cement weight; potable tap water; a granite aggregate with an average density of 2.61 g/cm³, supplied by Tampereen Kovakivi Oy, which had fractions of 10–5, 5–2, 2–1, 1.2–0.5, 0.6–0.1 mm, and one fraction with a grain size <0.1 mm acting as a fine filler. The fine aggregate, with a fraction of up to 2 mm, constituted 48% of the total aggregate. The particle size distribution curve of the granite aggregate that was used for testing is shown in Figure 1. For the designed concrete mixes, the water to cement W/C ratio was equal to 0.42.

The composition of the concrete mix was modified with the following nanoparticles in the form of dry powder in the amount of 4.0% of the cement weight: SiO₂ (Figure 2a) with particle size <20 nm, density of 2.4 g/mL at 25 °C, purity of 99.5%, and specific surface area equal to 450 m²/g; TiO₂ (Figure 2b), with particle size <25 nm, density of 3.9 g/mL at 25 °C, purity of 99.7%, and specific surface area equal to 50 m²/g; Al₂O₃ (Figure 2c), with particle size <50 nm and specific surface area of 40 m²/g. The authors decided to use the highest content of nanoparticles (4.0%) used in previous studies [22] to see if a significant modification of SCC composition with the addition of nanoparticles has an impact on the properties of the hardened cement matrix. Generally speaking, using a lower content of nanoparticles (0.5% and 2.0%) resulted in slightly visible effects in previous tests [22], while using more than 4.0% of nanoparticles required a bigger amount of superplasticizer (>4.0%, which is not reasonable) to obtain the proper characteristics of a self-compacting concrete mix (slump flow > 550 mm). The nanoparticles used in the tests were provided by Sigma Aldrich.

Four self-compacting concrete mixes were designed and made with the above ingredients, one of which was prepared without the addition of nanoparticles, as a control. The compositions of all the designed mixes per 1 m³ are presented in

Table 2. Composition of the designed mixes.

Concrete Mix	Nanoparticles and their Amount [%]	Cement [kg/m3]	Aggregate [kg/m3]	Water [kg/m3]	Nanoparticles [kg/m3]	SP [kg/m3]
S0	-	460.0	1640.0	193.2	-	18.4
S1	SiO2—4.0%	441.6	1640.0	193.2	18.4	18.4
S2	TiO2—4.0%	441.6	1640.0	193.2	18.4	18.4
S3	Al2O3—4.0%	441.6	1640.0	193.2	18.4	18.4

.

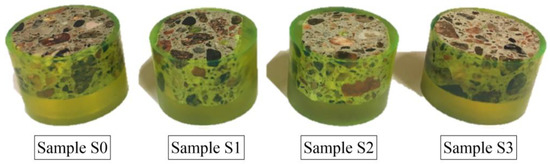

From each mix, with the designation and composition given in Table 2, a series of 12 cuboid specimens with dimensions of 40 × 40 × 160 mm were made. They were then matured in a climatic chamber at an air temperature of 20 °C (± 1 °C) and a relative humidity of 95% (± 5%). These series were marked identically as mixes S0, S1, S2, and S3. After one year, cylindrical samples of 25 mm in diameter and 20 mm in height were cut from the previously prepared cuboid specimens. The samples were cut from the centre of the specimens to avoid the boundary effect. In order to properly prepare the surface for the creep tests using the indentation method, the cylindrical samples were first immersed in epoxy resin in a vacuum machine that had an inside pressure of 0.07 bar, and their surfaces were then ground using 320 grit sandpaper and a 9, 3, and 1 μm graded diamond slurry until a smooth surface was obtained. The samples for the creep tests using the indentation method are shown in Figure 3.

Due to the large diversity of the tested material, a large number of measurements was necessary for the results to be statistically well interpreted [23]. Therefore, each sample was subjected to a minimum of 80 creep measurements in a vast area of the cement matrix, while at the same time maintaining an imprint spacing of a minimum of 20 μm. For the measurements, a Poisson’s ratio value of 0.3 was adopted for the tested concretes.

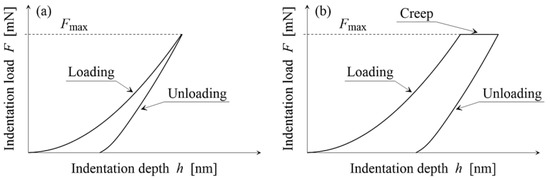

The TTX-NHT nanoindenter with a Berkovich indenter was used during the creep tests. According to the definition of creep, the test involved the introduction of an additional period of time during the standard process of indentation. During this time, the maximum load value was maintained, and the depth increase was measured, which is schematically shown in Figure 4.

During the test, the samples were loaded at a speed of 400 mN/min until the maximum load of 200 mN was obtained. Afterwards, at the creep stage, the maximum load value was maintained for a period of 300 s. Such a period of time enabled the deformation due to creep to be reduced to 5.0% [14]. The last stage involved unloading at a speed of 400 mN/min. The applied load range resulted in imprints up to 6 μm deep. The creep qualitative difference in the tested cement matrixes of the self-compacting concretes was measured using the creep coefficient C_IT, which is expressed as:

$$C_{IT}=\frac{h_2-h_1}{h_1}\cdot 100[\%],$$

(1)

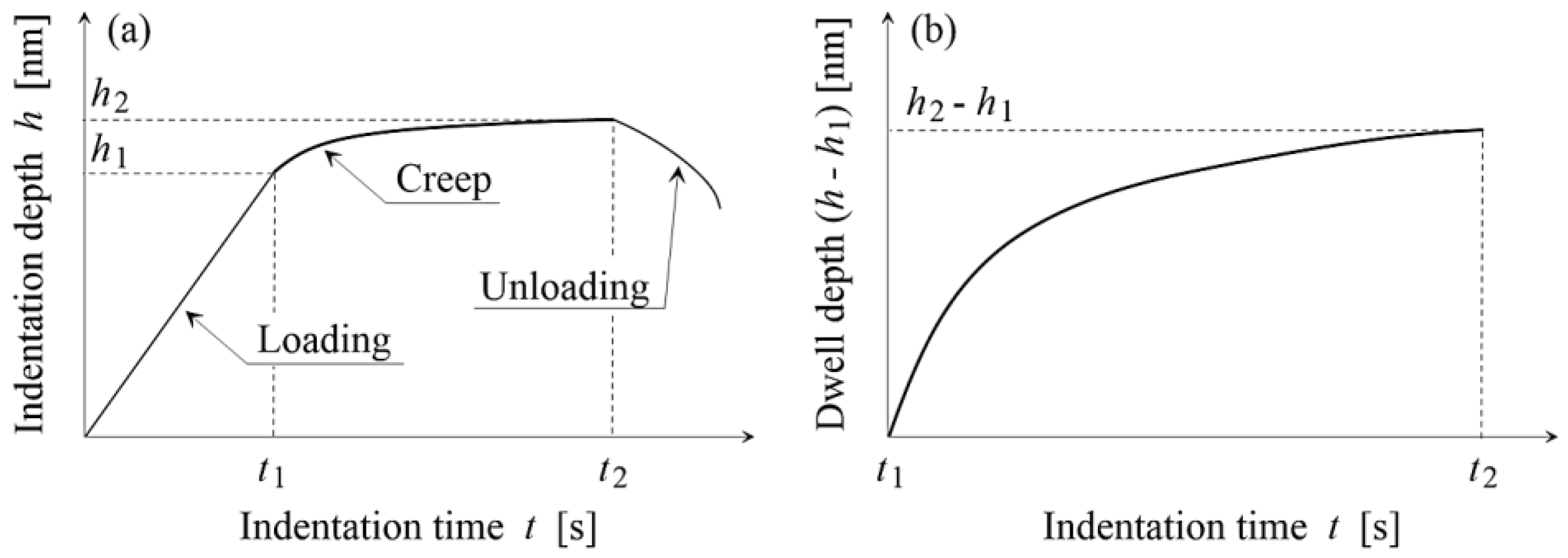

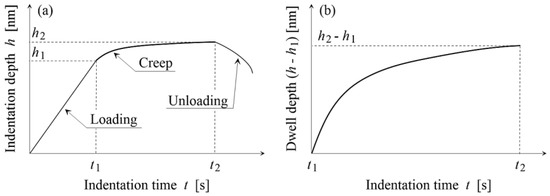

where h₁ is the depth reached by the indenterover time t₁ (immersion), and thus when obtaining the maximum load F_max, and h₂ is the indenter immersion between the creep phase and the beginning of the unloading phase t₂ (see Figure 5).

It should be noted that the lower the value of the creep coefficient C_IT, the greater the resistance of the cement matrix to long-term loading, and this is a positive phenomenon.

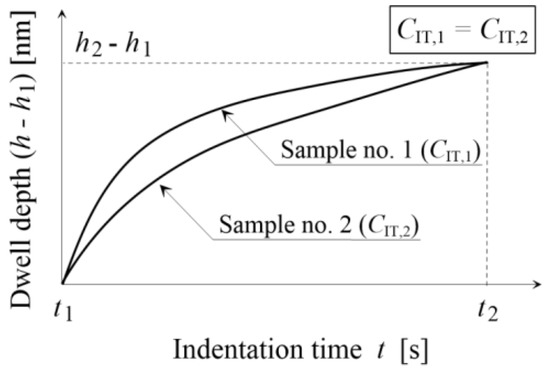

We analyzed not only the C_IT coefficient but also the course of the creep phase curves. This is because two different samples may have the same C_IT coefficient for a given creep time, but different rheological behaviour is nature (see Figure 6). This could occur if the time for the creep phase was not chosen correctly (in particular, if the creep time was too short).

During indentation, continuous monitoring can reveal that some results are inconsistent, e.g., due to the occurrence of discontinuities in the matrix structure under the examined point [10]. Therefore, the curves that were inconsistent during the measurements were rejected and not further analyzed. As a result, approximately 5%–8% of the measurements—depending on the analysed sample—were rejected.

To better describe the tested series of self-compacting concretes, basic rheological, physical, and mechanical properties are shown in

Table 3. Rheological properties of self-compacting concrete mixes (based on [22]).

Concrete Mix	Nanoparticles and their Amount [%]	Time of Reaching a Slump with a Diameter of 500 mm T500 [s]	Slump Diameter D [mm]
S0	-	2.9	760
S1	SiO2—4.0%	-	370
S2	TiO2—4.0%	2.6	735
S3	Al2O3—4.0%	5.5	510

,

Table 4. Physical properties of self-compacting concrete mixes (based on [22]).

Concrete Mix	Nanoparticles and their Amount [%]	Total Air Content A [%]
S0	-	1.29
S1	SiO2—4.0%	2.39
S2	TiO2—4.0%	1.37
S3	Al2O3—4.0%	1.75

and

Table 5. Mechanical properties of self-compacting concrete mixes (based on [22]).

Concrete Mix	Nanoparticles and their Amount [%]	Compressive Strength fcm after 28 Days [MPa]	Bending Tensile Strength fctm,fl after 28 Days [MPa]
S0	-	67.2	8.9
S1	SiO2—4.0%	72.4	9.0
S2	TiO2—4.0%	66.7	8.4
S3	Al2O3—4.0%	64.1	8.5

(a full description of the tests is available in a previous paper [23]). Selected characteristics included the time of reaching a slump with a diameter of 500 mm, the maximum slump diameter, the total air content, the compressive and bending tensile strengths after 28 days of probes maturing.

3. Results

Figure 7 shows examples of indentation prints for all the tested series of self-compacting concrete.

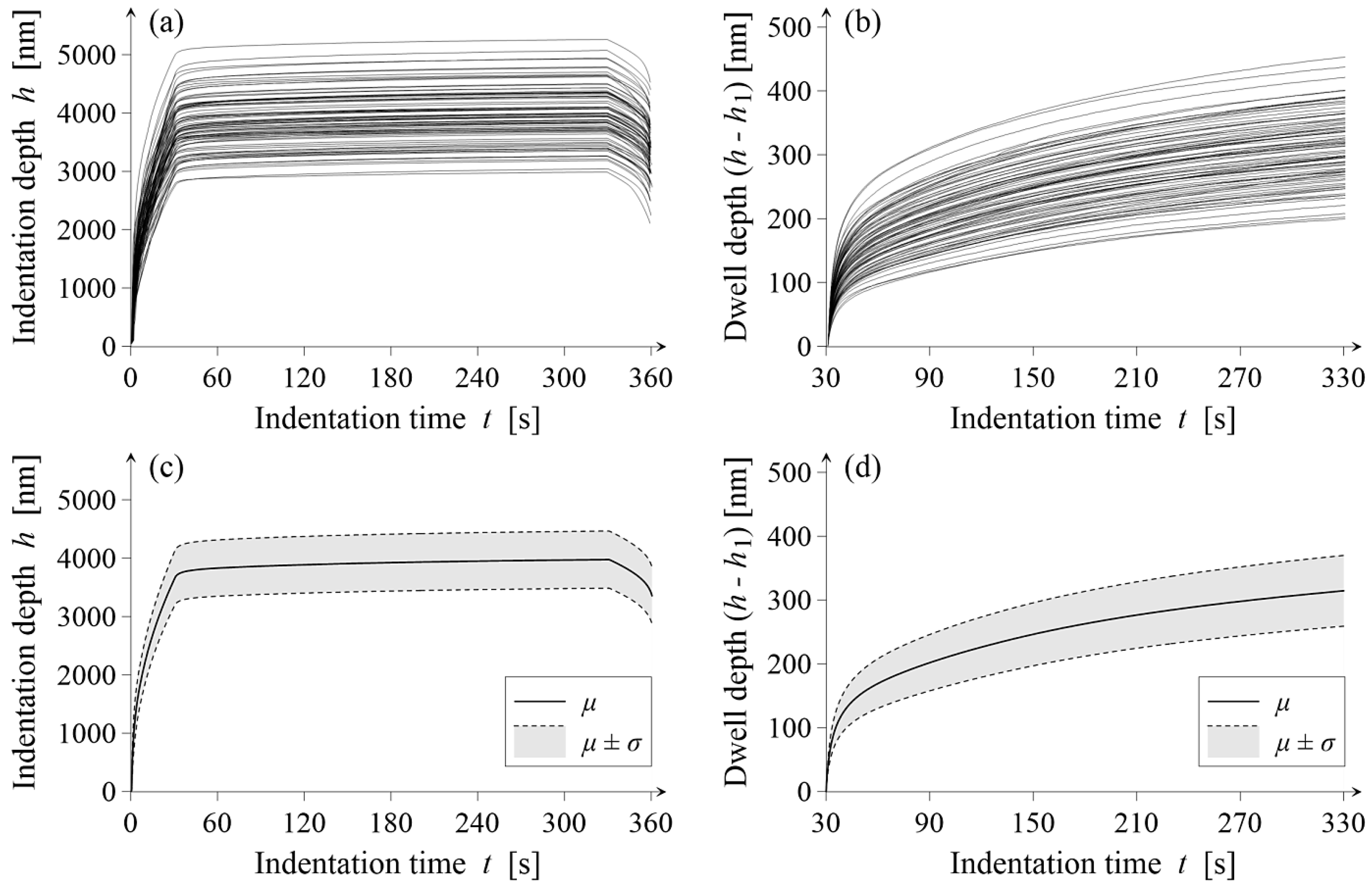

To accurately track and visualize the test results, we obtained a set of indenter immersion curves, in particular for the creep phase, as well as the averaged outline of the above-mentioned curves and the standard deviation for the reference sample S0 (without the addition of nanoparticles), as shown in Figure 8.

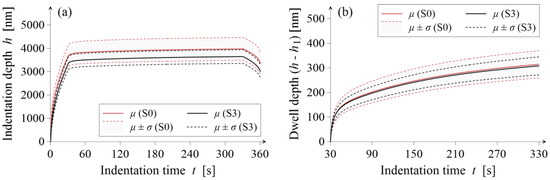

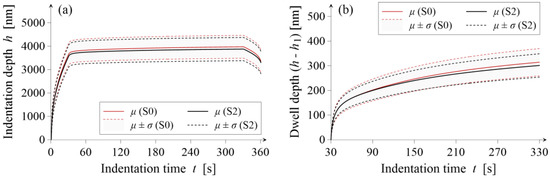

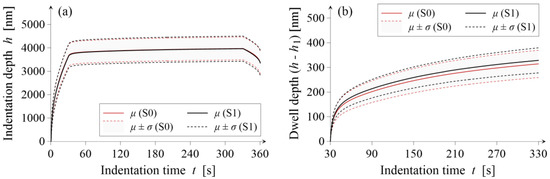

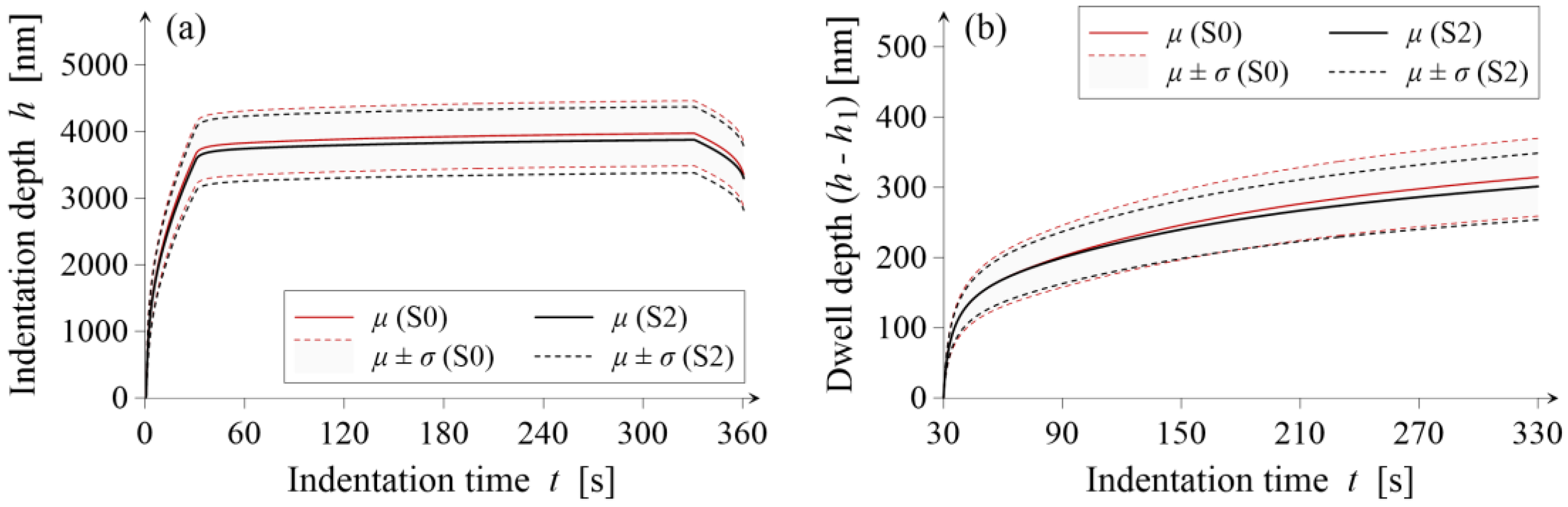

In turn, Figure 9, Figure 10 and Figure 11 show a comparison of the average indenter immersion during all the indentation phases as well as in the creep phase only for series S0 and S1, S0 and S2, and S0 and S3, respectively.

To compare the obtained results,

Table 6. Mean values (μ), standard deviations (σ), and the creep coefficient (C_IT).

Concrete Series	S0	S1	S2	S3
μCIT [%]	8.49	8.96	8.32	9.06
σCIT [%]	1.46	1.36	1.26	1.03
σCIT / μCIT	0.172	0.152	0.151	0.114

presents the average values μ and standard deviations σ of the creep coefficient C_IT for all the tested series of self-compacting cement matrices.

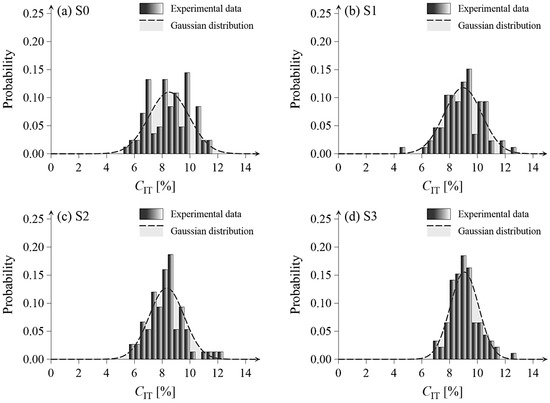

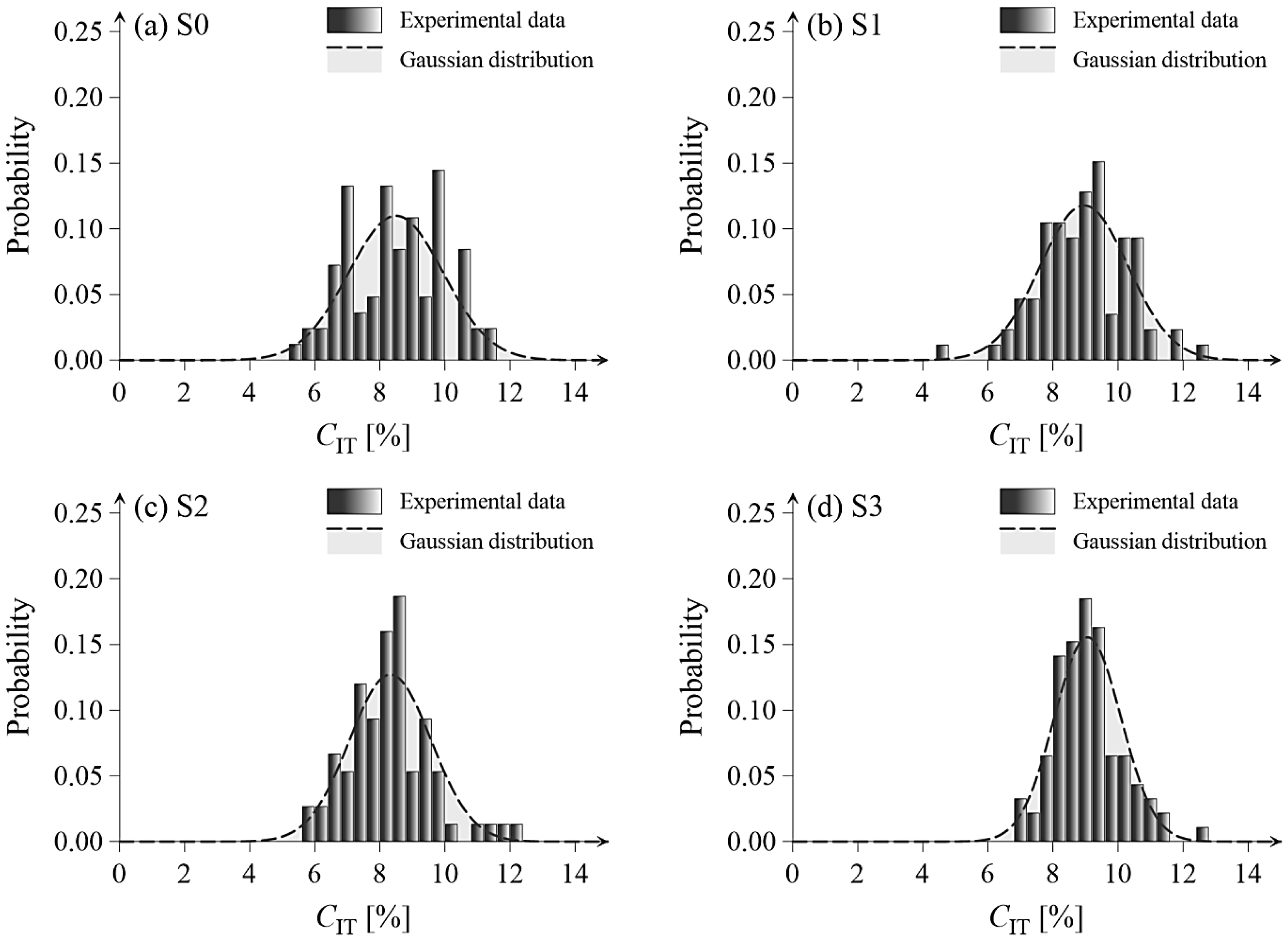

In turn, to illustrate the statistical distribution of the obtained results, Figure 12 presents the histograms of the creep coefficient (C_IT) for the S0, S1, S2, and S3 series samples.

Based on Figure 12, it can be concluded that the results of the creep coefficient C_IT obtained for all the tested series fit well into the Gaussian distribution (except for series S0). This proves that the number of measurements adopted for testing each series (except S0) was sufficient for statistical inference.

4. Discussion

Based on the obtained results (Figure 9, Figure 10 and Figure 11), it can be concluded that the addition of SiO₂ (S1 series) and Al₂O₃ (S3 series) nanoparticles increased the creep coefficient C_IT and the addition of TiO₂ nanoparticles (S2 series) reduced the creep coefficient C_IT in comparisonto the reference series S0, which did not contain nanoparticles. It should be noted, however, that the obtained average values of the creep coefficient µc_IT for the series S1, S2, and S3 were in each case within the range of the standard deviation σc_IT that was obtained for the series S0.

Moreover, the difference between the mean values of the creep coefficient µ_CIT for the tested series was not more than 6.7%. Therefore, it can be said that the addition of nanoparticles did not significantly affect the creep of the cement matrix of self-compacting concretes. This is a surprising result with regard to the hardness test results that were obtained for the same series of concrete by Niewiadomski et al. [22]. In this paper, the authors stated that the addition of nanoparticles caused an increase in the hardness of a cement matrix, which was measured at the micro-scale. However, it should be noted that the two tests performed in that sudy were focused on two non-identical properties of hardened cement matrix (creep and hardness), and the parameters of the tests differed qualitatively.

When considering the above research results, it can be said that the impact of nanoparticles on the rheological parameters of a cement matrix is insignificant. In addition, when assuming that nanoparticles do not significantly affect the interfacial transition zone ITZ between the cement matrix and the aggregate (the analysis of the ITZ of the composite was conducted in [24]), it can be concluded that nanoparticles also have a slight effect on the rheological parameters of hardened composites based on a cement matrix, such as self-compacting concrete.

Nevertheless, it is worth emphasizing that the results provided in this article improve the state of knowledge concerning the impact of nanoparticles on the physical and mechanical properties of both hardened self-compacting concrete and its cement matrix.

It is worth considering further directions of research regarding the impact of nanoparticles on the properties of cement matrices. Interference at the micro, or even nano level, in the structure of cement composites can be an important issue that allows concrete to be modified for a specific purpose.

5. Conclusions

This paper evaluates, using the indentation method, the creep of the cement matrix of self-compacting concrete, which is modified by the addition of SiO₂, TiO₂, and Al₂O₃ nanoparticles. It thus expands our knowledge concerning this subject. It turned out that the addition of SiO₂ and Al₂O₃ nanoparticles in an amount of 4.0% of the cement weight increased the creep coefficient C_IT of the cement matrix when compared to the reference series, which is an adverse phenomenon. In turn, the use of TiO₂ nanoparticles in an amount of 4.0% of the cement weight resulted in a decrease of the value of the creep coefficient C_IT,which can be considered beneficial. It is worth emphasizing, however, that the analysis of the obtained results with regard to statistical purposes indicated that the addition of nanoparticles did not significantly affect the creep of the cement matrix of self-compacting concrete. Nevertheless, the methodology used in this study allowed shortening the time needed to evaluate the cement matrix creep phenomenon in comparison to traditional methods.
