Enhancement of Convection Heat Transfer in Air Using Ultrasound

Featured Application

This research concerns the improvement of heat transfer inside the dryer due to the use of ultrasound. The results can be used in all processes where convective heat exchange occurs in the gas.

Abstract

The use of ultrasound is a new method to enhance convection drying. However, there is little information in the literature on the improvement of convective heat transfer caused by ultrasound. Therefore, the heat transport during ultrasound-assisted convective heating of small samples in a hybrid dryer was experimentally examined. A small Biot number regime of heat transfer was considered. The results confirmed a great enhancement of heat transfer due to the application of ultrasound. Due to the use of ultrasound, the convective heat exchange coefficient increased from 45% to almost 250%. The enhancement is a linear function of applied ultrasound power. It was shown that the energy absorption of ultrasound existed, but the thermal effect of this absorption was very small.

1. Introduction

Almost every food product is dried during its processing. Drying extends storage life and facilitates handling as well as transportation. Drying also influences the quality of a final product. It changes the colour, flavour, and nutritional value of food. Due to the quality of the product, low-temperature drying is recommended. Unfortunately, low-temperature convective drying is energetically inefficient. Therefore, new methods to improve the process without raising the temperature are sought. One of these methods is the use of high-intensity ultrasound (US) [1]. Reviews of the use of ultrasound to enhance drying could be found in [2,3,4].

According to the literature [5,6,7,8,9,10], ultrasound enhances the capacity for moisture transport inside the material to be dried in addition to enhancing heat and moisture transfer between the material surface and the surrounding drying medium. Muralidhara et al. [5] considered sonic and ultrasonic dewatering. They presented the possible effects of acoustic waves during the process. The use of ultrasounds improved the kinetics of persimmon [6], apples [7,8,10], carrots [8], eggplant [8], and grape stalk [9] drying. An increase in the mass transfer coefficient due to the application of ultrasonic in drying is widely reported [6,11,12,13,14,15,16,17]. Cárcel et al. reported an increase of between 12% and 34% during persimmon drying [6], 10% and 47% during carrot drying [11], 47% during strawberries drying [16], 79% during green pepper drying [17], 96% during raspberries drying [15], 107% during orange peel drying [12], and even 229% during eggplant drying [13]. Rodríguez et al. [14] studied the influence of drying temperature on the ultrasound enhancement of thyme drying. They did not obtain an increase in the moisture transfer coefficient in high temperature drying (80 °C); they did obtain a 65% increase in low temperature (40 °C), however. Only a few authors determined the heat transfer coefficient based on drying kinetics. Rodríguez et al. [14] obtained an increase of between 12% and 47% of the heat transfer coefficient during thyme drying. Aversa et al. [18] reported an increase of between 12% and 44% during carrot drying. Musielak et al. [19] received a 31% increase in the case of apple drying and 83–94% in the case of carrot drying. Taking into account the literature devoted to drying, only Bantle and Hanssler [20] carried out the experiments in which they directly studied the influence of ultrasound on the heat transfer coefficient. They performed heating and cooling of an aluminum plate under the same conditions as used in drying experiments. They found out that ultrasound caused an increase in this coefficient (27.9%) in the case of heating, and a small decrease during cooling. It is also obvious that ultrasound energy could be absorbed by the dried material. Kowalski [21] described the phenomenon on the basis of irreversible thermodynamics; however, he did not present any numerical results in his work. The increase in material temperature due to ultrasound absorption in the range of 5 K is reported in [22] for the drying of apples. Similar values of the temperature increase were obtained by Musielak et al. [19]. The authors modelled the drying kinetics and they obtained ultrasound energy absorption in the range of 1–4.5 per mille. This thermal effect is minor or even not observed, and is usually neglected [11,23,24,25,26].

On the other hand, the phenomenon of heat transfer augmentation through the use of ultrasound is widely reported [27,28,29,30,31,32,33,34,35,36,37,38,39,40,41]. In most cases, the heat transfer in water [27,28,32,33,36,37,38,39] and other liquids (methanol [27,28], liquid FC-72 [30], ethylene glycol-water mixture [34], and LiBr solution [40]) was studied. In most cases, free convection in liquids and boiling was considered [28,30,35,39]. Only a few works were dedicated to forced convection [32,33,40], which is typical of the drying processes. Mannot et al. [32] reported an increase in the heat transfer coefficient between the coil and water in the range of 22–104%. Dhanalakshmi et al. [33] obtained an improvement in the heat transfer coefficient between water flowing through tubes in the range of 10–40%. Zheng et al. [40] examined the forced flow of LiBR solution outside tubes. They received an increase in the heat transfer coefficient in the range of 10–45%. In these publications [32,33,40], the phenomena that cause the improvement of heat transfer have not been investigated. In other publications, an enhancement of heat transfer due to cavitation [30,32,33,38] and acoustic streaming [33,36,37,38,39] was observed. Generally, an enhancement of heat transfer in liquids from 22% to 390% has been reported [32,37,39]. There are a lack of studies on the influence of ultrasound on the convective heat transfer coefficient in the gas phase—achieved through utlising an airborne ultrasound. This is because the generation of power ultrasound in liquids is easier and much more efficient than in gases [42]. In the case of heat transfer in air, the enhancement of free convection (cooling) was studied [29,31,41]. The authors of these works did not provide numerical values of the obtained enhancement of heat exchange. However, attention was paid to the importance of the relative location of the source of ultrasound to the source of heat [29]. The same problem of the effect of ultrasound transducer placement on heat transfer in liquids was analysed in [28,36]. It was stated that the placement of the ultrasound source plays an important role in the enhancement of heat transfer.

The aim of this work is to study the influence of ultrasound on both the convective heat transfer as well as the ultrasound absorption (US thermal effect) during convective heating of material in a dryer.

2. Materials and Methods

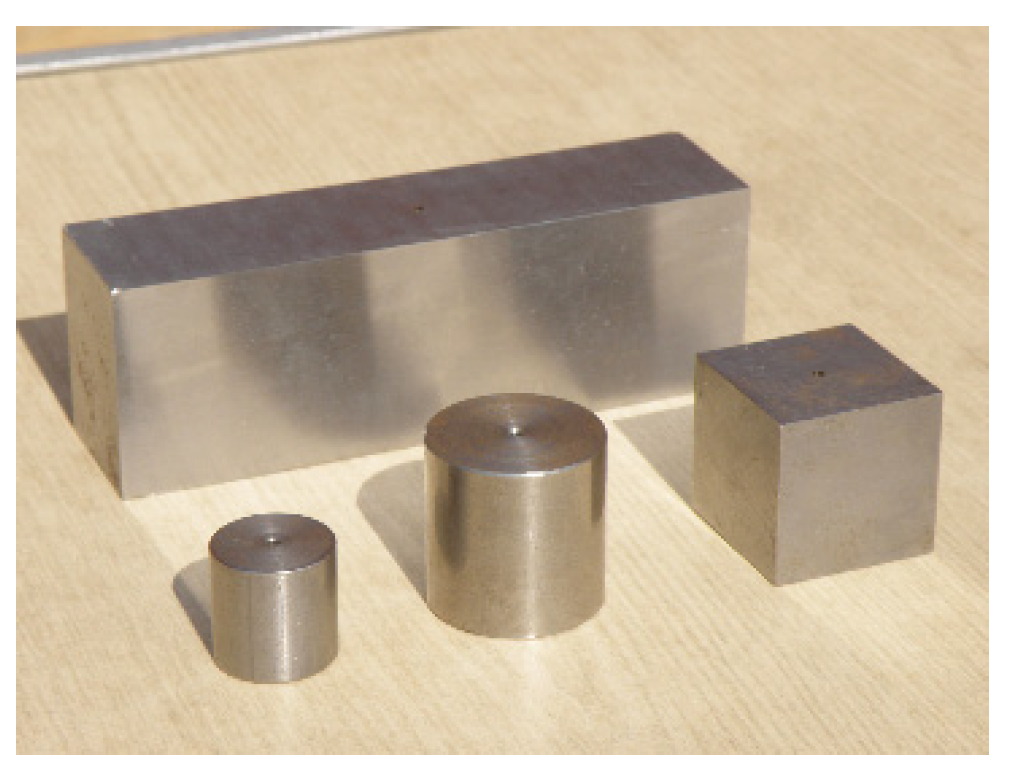

The aim of the presented work is to examine only the thermal effects. Mass transfer is not studied. That is why all tested samples are made of carbon steel (density ρ = 7820 kg/m³, specific heat c = 473.3 J/kg·K, and thermal conductivity λ = 42.9 W/m·K). Four samples were used: a small cylinder, a cylinder, a cube, and a cuboid (Figure 1). Sample dimensions are given in

Table 1. Sample dimensions.

Sample	Diameter (mm)	Height (mm)	Sample	Length (mm)	Width (mm)	Height (mm)
Small cylinder	20	20	Cube	30	30	30
Cylinder	30	30	Cuboid	120	20	30

. In order to measure the temperature, holes with a diameter of 2.5 mm to a depth of 10 mm were drilled into the geometric centre of the samples. During the test, the measuring probe of the temperature recorder was placed in these holes.

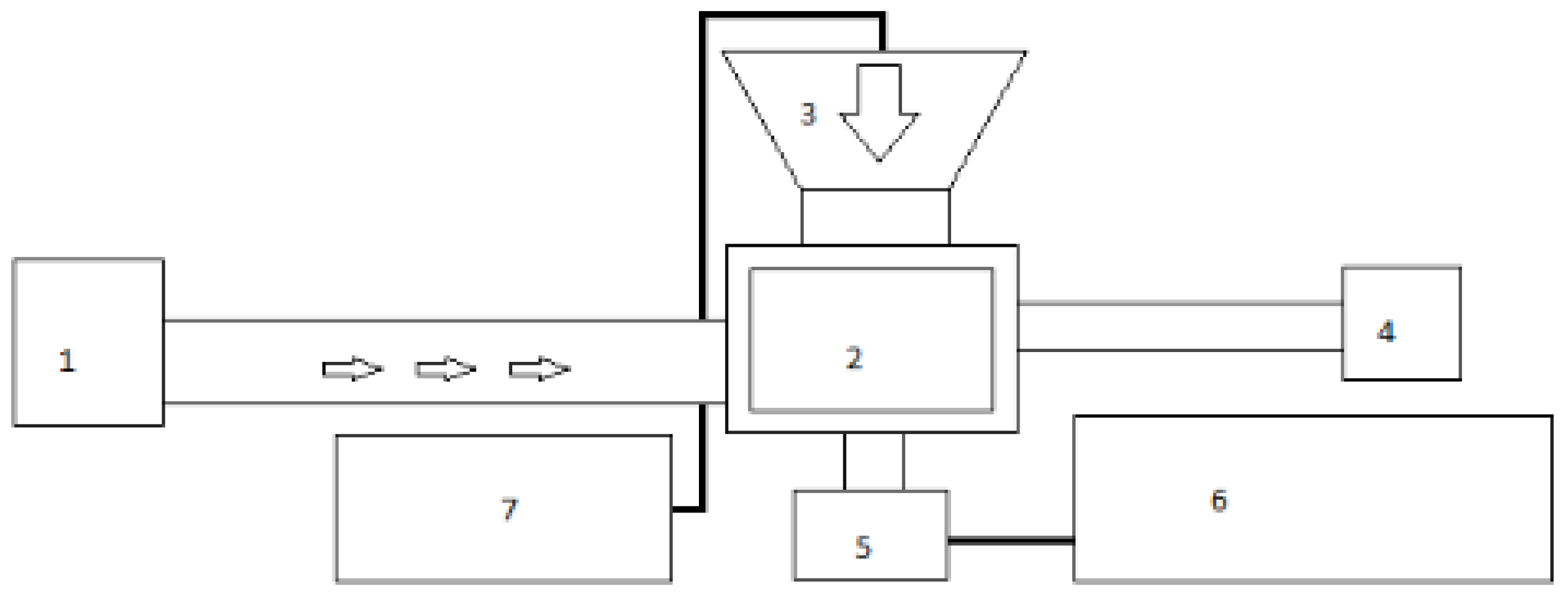

The samples were heated convectively inside a hybrid dryer (Figure 2) equipped with the Airborne Ultrasound System—AUS (Pusonics, Madrid, Spain), which allows generation of a low-frequency (26 kHz), high-power ultrasound (maximal power 200 W). The AUS works with a focalized acoustic field, which means that the intensity of the waves converges with increasing distance from the transducer, and at about 420 mm from the radiator it attains its maximum at 160–170 dB. The distance between the emitter and the sample was fixed at 415 mm to ensure that the sample stayed within the focusing area during the drying process.

For each sample, eight measurement series were made. The measurements were performed for two different air temperatures and four ultrasound powers. The process parameters are shown in

Table 2. Processes parameters.

Parameter	Series I	Series II
Air velocity (m/s)	0.40 ± 0.11
Air temperature (°C)	40 ± 0.3	60 ± 0.3
Ultrasound power P (W)	0	0
	50	50
	100	100
	200	200

. The temperature and flow velocity of the air were measured continuously during the experiment with the HD26371TC1.5 transmitter (DeltaOHM, Caselle di Selvazzano, Italy). According to the device spec sheet, the accuracy for velocity is ±0.1 + 3% and for temperature 0.3 °C. Experimental conditions ensured a small Biot number regime of heat transfer (the conduction resistance is negligible).

During the experiments, the temperature inside the test samples was measured every 30 s, with the use of a type-K thermocouple and recorded with a CENTER 309 datalogger (New Taipei City, Taiwan) with an accuracy of ±1 °C + 0.3%. Each experiment was conducted until three equal temperature readings were obtained.

Obtained experimental data were processed with the use of OriginPro 2021b (OriginLab Corporation, Northampton, MA, USA). Data presented are mean ± standard deviation. Additionally, a one-way ANOVA and Tukey posthoc mean comparison were performed. Statistically significant differences at the level of p ≤ 0.05 are marked with different letters. All calculations were performed using Statistica ver. 12 software produced by StatSoft (StatSoft, Tulsa, OK, USA).

3. Mathematical Model

A simple energy balance shows that energy accumulation in sample dU is equal to delivered heat dQ:

$$dU=dQ$$

(1)

If the sample mass m and its heat capacity c are constant and the Biot number is small, then inner energy U is the linear function of internal temperature T:

$$dU=mcdT=\rho cVdT$$

(2)

where ρ is the sample’s density and V is its volume. Heat transfer to the sample consists of two parts:

$$dQ=\left[hA\left(T_a-T\right)+{\dot{Q}}_{abs}\right]dt$$

(3)

convective heat flux proportional to the difference of surrounding air temperature T_a and the sample temperature T, and ultrasound absorption ${\dot{Q}}_{abs}$. Based on irreversible thermodynamics, Kowalski [21] introduced the volumetric heat absorption term in the form:

$${\dot{Q}}_{abs}=a_u{\eta }_u{P}_u$$

(4)

where a_u is the absorption coefficient of ultrasonic energy, η_u is the working efficiency of the ultrasonic transducer, and P_u is the ultrasound power per unit volume, dependent on bed height. If the absorption coefficient is constant and the bed height is not optimal, then the thermal effect is also constant [15,16,17,19]. In Equation (4), h is the heat transfer coefficient and A is the sample surface. Rearranging of Equations (1)–(3) gives:

$$\frac{dT}{dt}=\frac{hA}{\rho cV}\left(T_a-T+\frac{{\dot{Q}}_{abs}}{hA}\right)=\frac{hA}{\rho cV}\left(T_f-T\right)$$

(5)

where

$$T_f=T_a+\frac{{\dot{Q}}_{abs}}{hA}$$

(6)

is the final temperature of the heated sample. The solution of Equation (5) has a form:

$$\ln \vartheta =\ln \frac{T-T_f}{T_0-T_f}=-\frac{hA}{\rho cV}t=at$$

(7)

where T₀ is initial temperature, ϑ is dimensionless temperature, and a is the slope of the line. The knowledge of the slope allows the heat transfer coefficient h to be calculated:

$$h=-\frac{\rho cVa}{A}$$

(8)

and then, based on Equation (5), the ultrasound absorption ${\dot{Q}}_{abs}$ can be calculated:

$${\dot{Q}}_{abs}=hA\left(T_f-T_a\right)$$

(9)

Equation (9) is the energy balance at the end of the process. It means that all the energy absorbed by the sample is transferred by convection to the surrounding air (thermodynamic equilibrium).

4. Results and Discussion

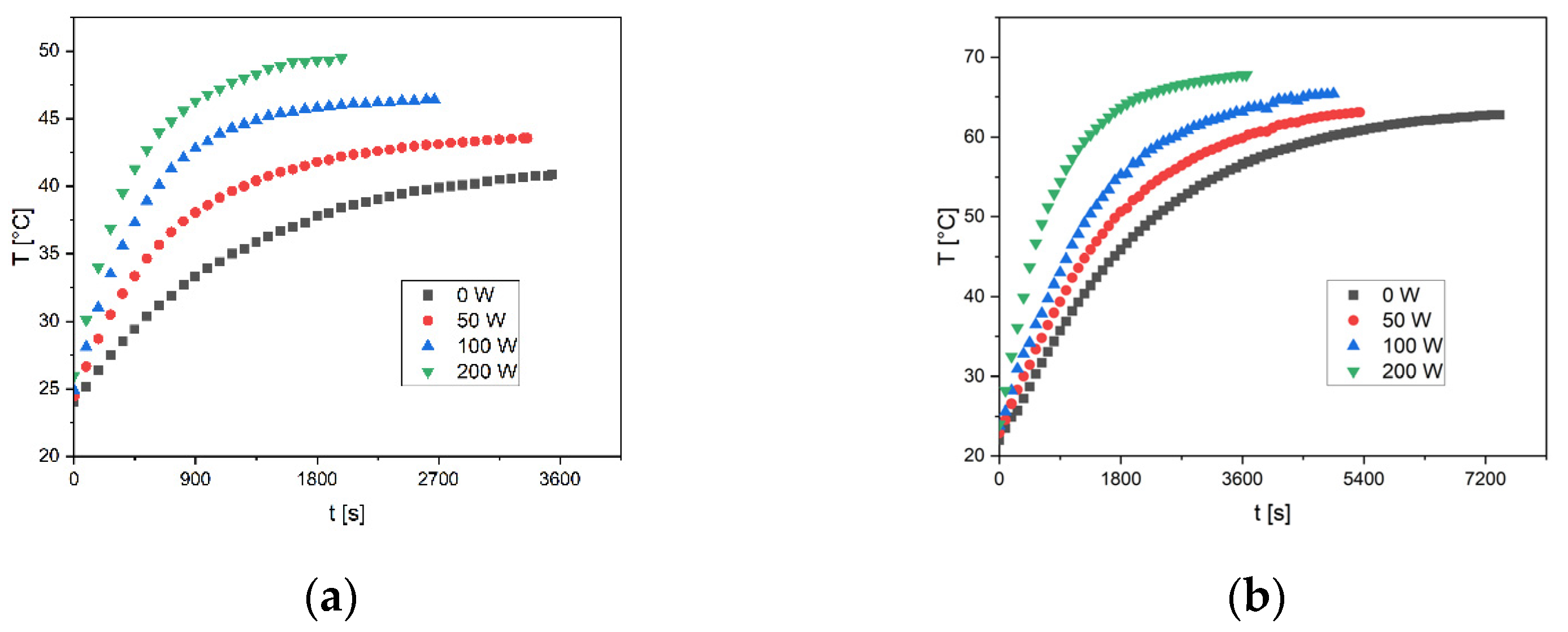

Exemplary results of the temperature evolution of the cubic sample are presented in Figure 3 (applied US power: 0, 50, 100, 200 W). The results confirmed both the acceleration of heat transfer and US energy absorption. The enhancement of heat transfer results in an increase of the curve’s slope and the energy absorption causes an increase in final sample temperature.

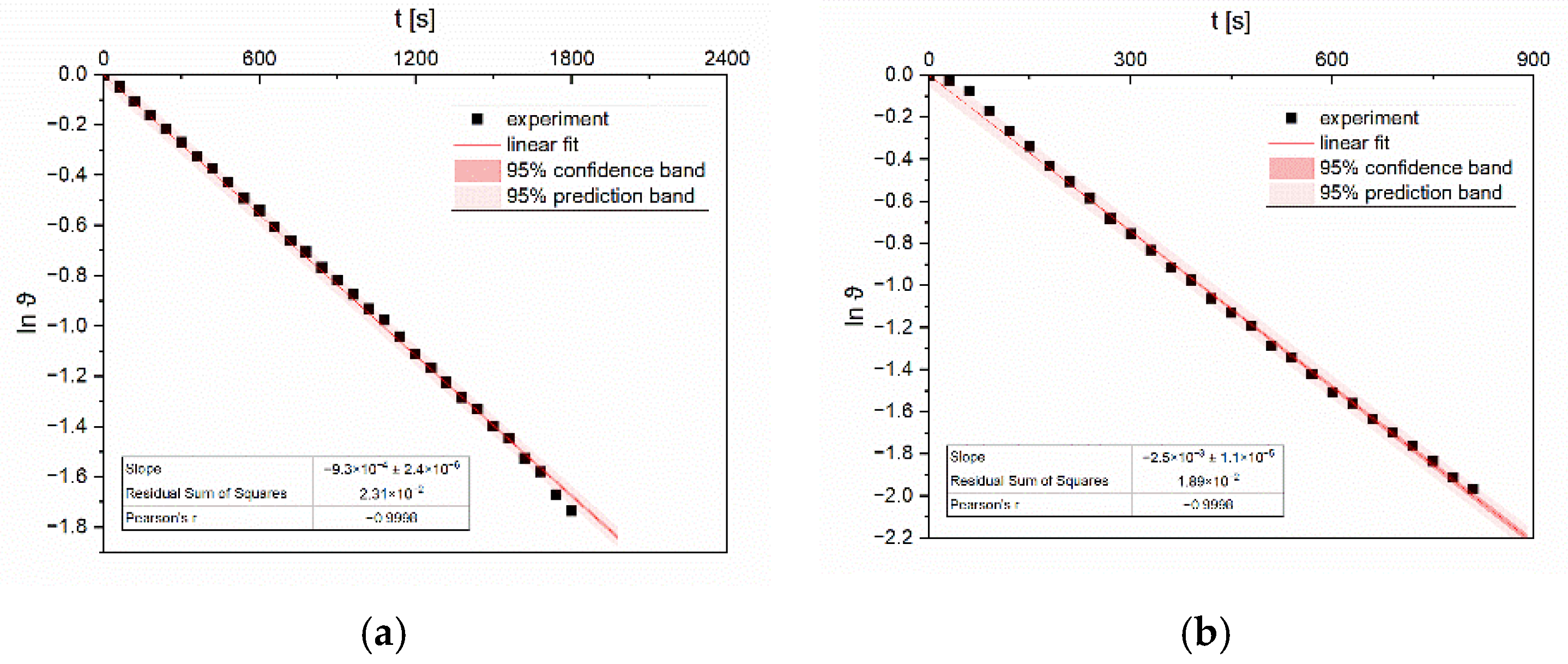

On the base of temperature evolution curves, the final temperature T_f was established and then the time evolution of the logarithm of dimensionless temperature ϑ was calculated (exemplary results are shown in Figure 4).

Next, the slopes a of all lines were established and both the heat transfer coefficient h (Equation (8)) and the ultrasound absorption ${\dot{Q}}_{abs}$ (Equation (9)) were calculated. The results are presented in

Table 3. Results of heating in temperature 40 °C.

Applied US Power	0 W		50 W
	h(W/K·m2)	${\dot{\mathit{Q}}}_{\mathit{a}\mathit{b}\mathit{s}} \left(\mathbf{W}\right)$	h(W/K·m2)	${\dot{\mathit{Q}}}_{\mathit{a}\mathit{b}\mathit{s}} \left(\mathbf{W}\right)$
Small cylinder	19.68 ± 0.10	-	21.93 ± 0.08	0.14 ± 0.09
Cylinder	18.81 ± 0.17	-	22.43 ± 0.10	0.07 ± 0.04
Cube	17.72 ± 0.09	-	24.97 ± 0.68	0.17 ± 0.03
Cuboid	14.35 ± 0.08	-	15.43 ± 0.08	0.06 ± 0.02
Applied US Power	100 W		200 W
	h(W/K·m2)	${\dot{\mathit{Q}}}_{\mathit{a}\mathit{b}\mathit{s}}$(W)	h(W/K·m2)	${\dot{\mathit{Q}}}_{\mathit{a}\mathit{b}\mathit{s}}$(W)
Small cylinder	24.60 ± 0.15	0.26 ± 0.12	28.65 ± 0.14	0.46 ± 0.02
Cylinder	30.40 ± 0.16	0.46 ± 0.06	44.55 ± 0.34	0.96 ± 0.10
Cube	39.21 ± 0.25	0.75 ± 0.16	57.12 ± 0.46	1.85 ± 0.09
Cuboid	19.26 ± 0.04	0.75 ± 0.02	20.92 ± 0.42	1.67 ± 0.05

and

Table 4. Results of heating in temperature 60 °C.

Applied US Power	0 W		50 W
	h(W/K·m2)	${\dot{\mathit{Q}}}_{\mathit{a}\mathit{b}\mathit{s}} \left(\mathbf{W}\right)$	h(W/K·m2)	${\dot{\mathit{Q}}}_{\mathit{a}\mathit{b}\mathit{s}} \left(\mathbf{W}\right)$
Small cylinder	20.78 ± 0.24	-	31.58 ± 0.63	0.061 ± 0.04
Cylinder	17.73 ± 0.05	-	22.87 ± 0.72	0.039 ± 0.011
Cube	16.17 ± 0.20	-	26.39 ± 0.65	0.037 ± 0.009
Cuboid	10.68 ± 0.27	-	11.27 ± 0.58	0.16 ± 0.03
Applied US Power	100 W		200 W
	h(W/K·m2)	${\dot{\mathit{Q}}}_{\mathit{a}\mathit{b}\mathit{s}}$(W)	h(W/K·m2)	${\dot{\mathit{Q}}}_{\mathit{a}\mathit{b}\mathit{s}}$(W)
Small cylinder	34.34 ± 0.53	0.11 ± 0.05	54.44 ± 0.93	0.33 ± 0.09
Cylinder	34.60 ± 0.55	0.05 ± 0.01	54.28 ± 0.12	0.78 ± 0.17
Cube	34.96 ± 0.75	0.08 ± 0.01	56.32 ± 0.63	1.12 ± 0.25
Cuboid	14.71 ± 0.51	0.23 ± 0.03	17.61 ± 0.55	0.92 ± 0.04

.

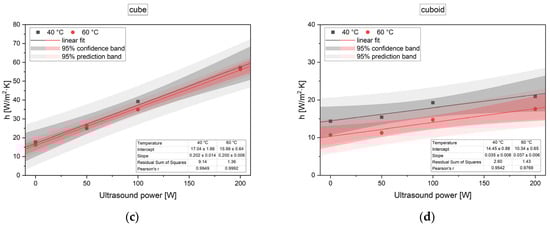

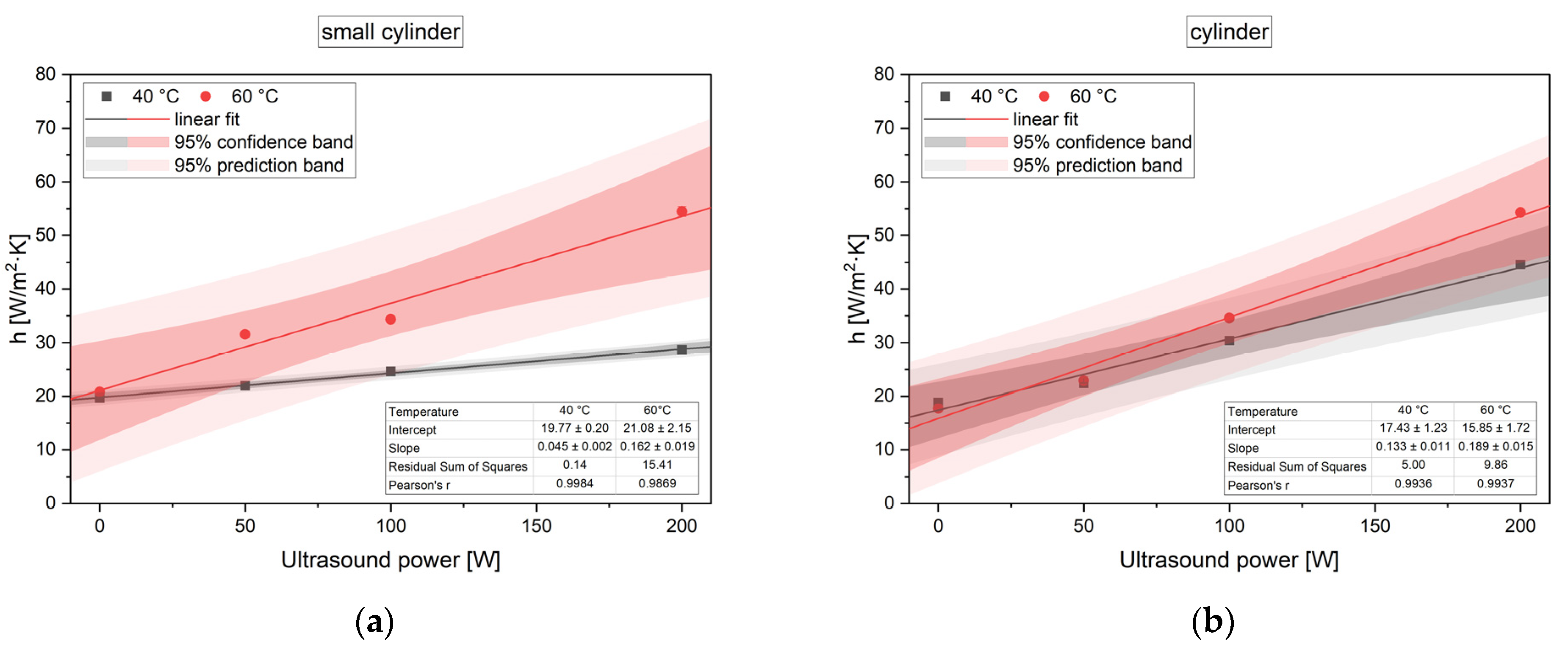

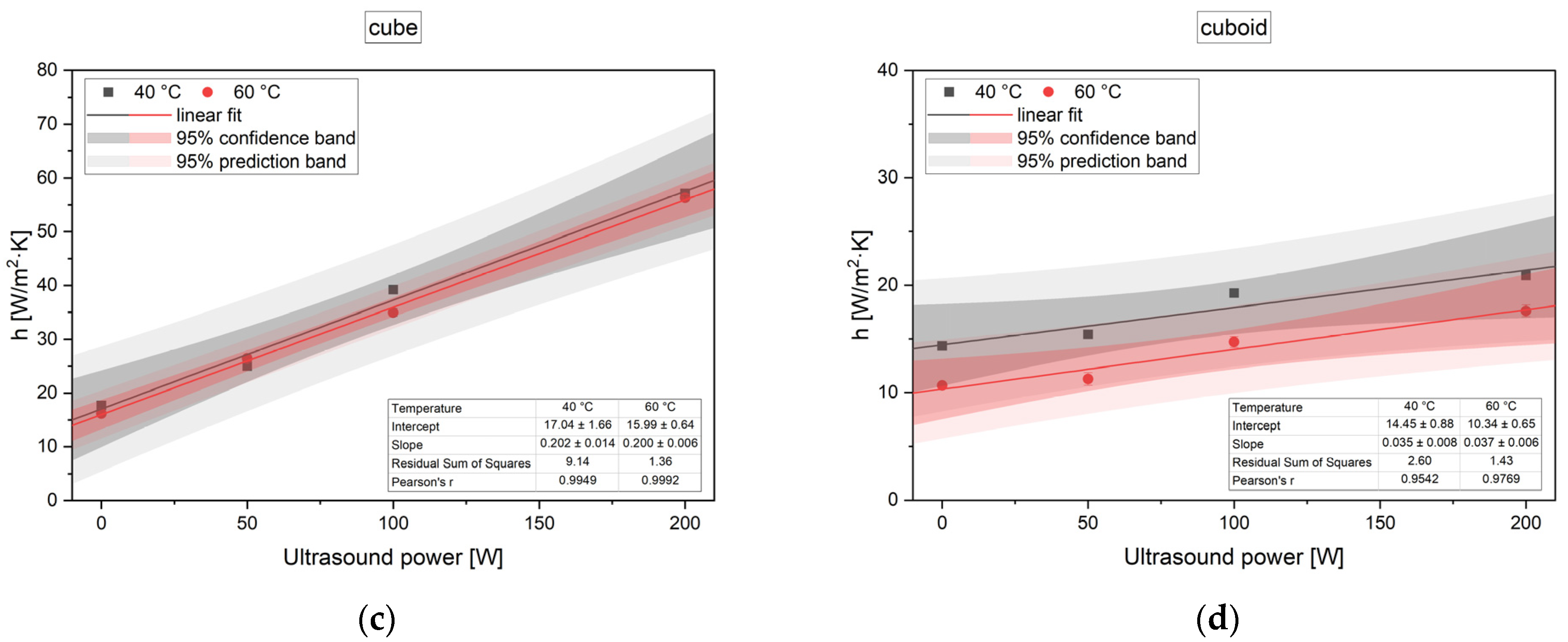

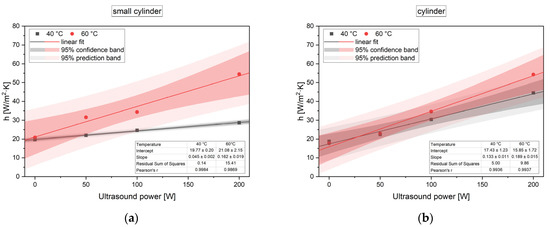

Dependencies of the heat transfer coefficient h on the applied ultrasound power are shown in Figure 5.

The results show that, for all the samples, an enhancement of heat transfer due to ultrasound was obtained. This enhancement is a linear function of the applied ultrasound power. The heat transfer enhancement ratio η is defined as [30,39]:

$$\eta =\frac{h_{US}-h_0}{h_0}·100\%$$

(10)

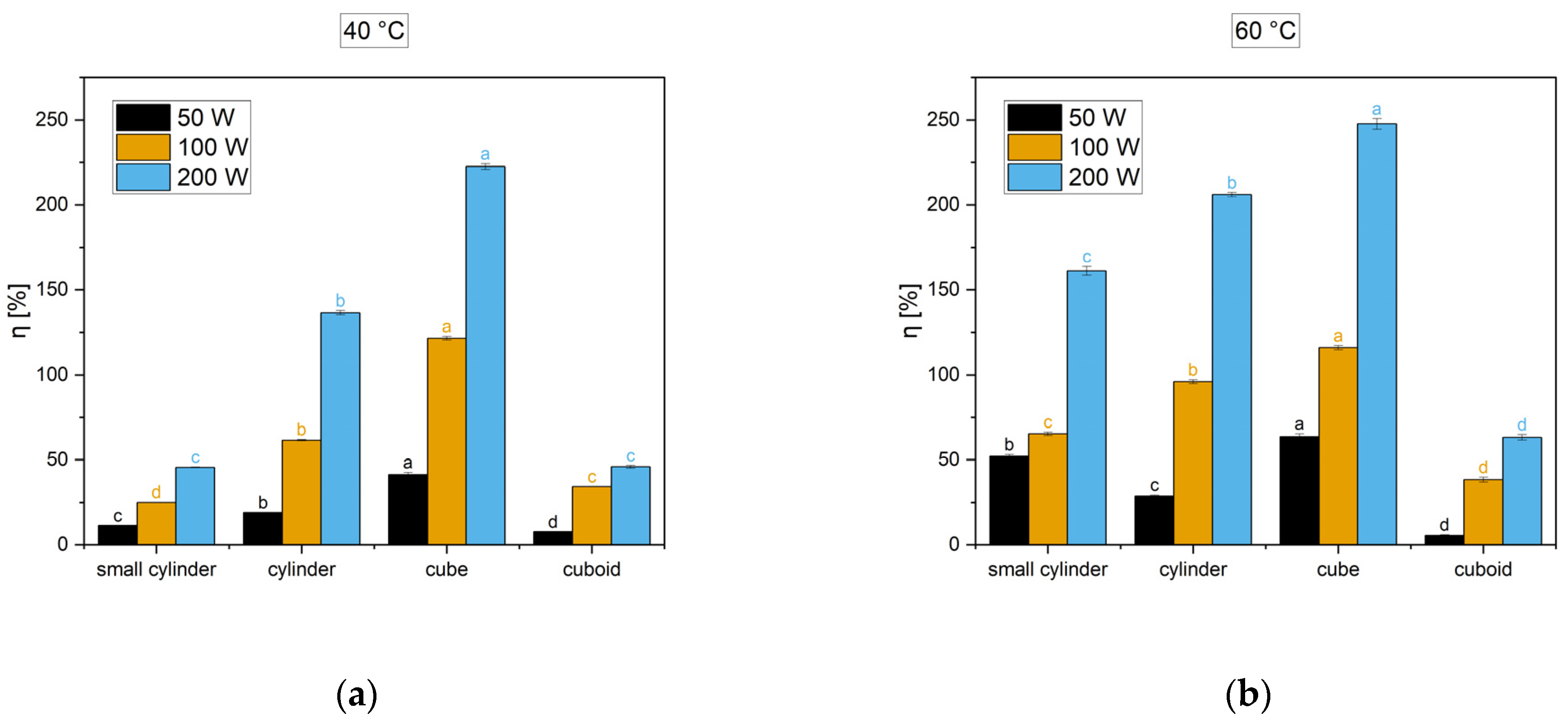

where h_US represents the heat transfer coefficient with ultrasound, while h₀ represents the heat transfer coefficient without ultrasound. The obtained heat transfer enhancement ratios η are presented in Figure 6.

The results confirmed that the greater the power of the ultrasound, the greater the improvement in heat transfer. In the investigated range of applied ultrasound power, the heat transfer coefficient is a linear function of the applied power (see Figure 5). It can be observed that the heat exchange enhancement strongly depends on the size of the samples. Due to the use of ultrasound, the convective heat exchange coefficient increased from 45% to almost 250%. There are few results in the literature describing the increase in the heat transfer coefficient due to the use of ultrasound. Aversa et al. [18] found a 12–44% increase in this coefficient and Kroehnke et al. [43] obtained a 34% increase, both in the case of carrot drying, while García-Pérez et al. [9] obtained a 65% increase in grape stalk drying. Heat transfer enhancement for both small (small cylinder) and large (cuboid) samples was smaller than the improvement in heat transfer for medium samples (cylinder and cube). In the latter case, an increase in growth of almost 250% of the heat transfer coefficients was achieved. The obtained results show that, in the studied temperature range, a higher air temperature is associated with a greater heat exchange improvement. This is contrary to the results presented by Garcia-Peres et al. [9] and Rodrigues et al. [14], who ascertained that an increase in temperature causes a decrease in the enhancement of heat transfer. This inconsistency may result from the difference in the construction of the dryers, particularly in the way the ultrasound is brought.

The enhancement of heat transfer can be caused by various mechanisms. For instance, pressure pulsations could increase the turbulence inside the boundary layer and reduce the layer thickness. It is worth noticing that the heat transfer through a boundary layer is done by the slowest mechanism, i.e., conduction. If the thickness of the boundary layer is reduced, the heat transfer proceeds more effectively. Moreover, alternating compression and rarefaction could improve heat transfer through the boundary layer. Fluctuations of pressure close to the material surface could also promote circulation flows of air and enhance the heat transfer. A number of additional mechanisms may be considered, e.g., acoustic streaming.

The thermal effect was also observed in our experiments. The maximum temperature increase due to absorption of the ultrasound energy by the samples was in the range of 5–8 degrees. These results confirmed a slight absorption of the ultrasound energy. The value of absorbed energy did not exceed one percent of the energy supplied (see Table 3 and Table 4).

Finally, the Biot number values were calculated according to the equation:

$$\mathrm{Bi}=\frac{hV}{\lambda A}$$

(11)

These values ranged from 0.0015 to 0.0066. This means that assuming a small Biot number is correct.

5. Conclusions

The results showed a great enhancement of heat transfer due to the application of ultrasound. The use of ultrasound resulted in the increase of the heat transfer coefficient h from 45% to over 200%. The heat transfer coefficient highly depends on the shape of the examined samples. The increase in air temperature causes a small increase in heat transfer enhancement. The obtained heat transfer enhancement is a linear function of the applied US power. The US energy absorption existed, but it was slight and the thermal effect of this absorption was small. All the obtained results suggest that the application of ultrasound plays an important role during drying, and both heat and mass transfer in a particular dryer should be studied with special attention.

Due to the lack of detailed studies on the mechanisms leading to the improvement of convective heat exchange during forced convection between flowing gas and a solid, it is necessary to pay attention to these issues in future research.
