Article

Thermophysical Properties of Inorganic Phase-Change Materials Based on MnCl2·4H2O

by
Kyung-Eun Min
1,
Jae-Won Jang
1,
Jun-Ki Kim
2,
Chien Wern
1 and
Sung Yi
1,*
1
Department of Mechanical and Material Engineering, Portland State University, Portland, OR 97201, USA
2
Welding and Joining R&D Group, Korea Institute of Industrial Technology, 156, Getbeol-ro, Yeonsu-gu, Incheon 21999, Korea
*
Author to whom correspondence should be addressed.
Appl. Sci. 2022, 12(13), 6338; https://doi.org/10.3390/app12136338
Submission received: 11 May 2022 / Revised: 13 June 2022 / Accepted: 16 June 2022 / Published: 22 June 2022
(This article belongs to the Section Materials Science and Engineering)
Browse Figures
Review Reports Versions Notes

Abstract

:
Manganese (II) chloride tetrahydrate, classified as an inorganic phase-change material (PCM), can be used as a thermal energy storage material, saving and releasing thermal energy during its phase transitions. In this study, thermophysical properties, such as phase change temperatures, latent heat, and thermal conductivities, of four types of MnCl2·4H2O PCMs were investigated under single and dual phases (liquid-, solid-, and dual-phase PCMs) using differential scanning calorimetry (DSC) and a heat flow meter. PCMs with a liquid or dual phases exhibited superheating issues, and their melting temperatures were 7 to 10 °C higher than the reference melting temperatures. The PCMs had latent heats between 146 and 176 J/g in the temperature range of 23 to 45 °C under the endothermic process. Severe supercooling during the exothermic process was observed in all as-received specimens, but was mitigated in the homogenization-treated specimen, which sustained an increase in solidification temperature of about 15 °C compared with the as-received and treated PCMs. The diffusivities of PCMs were between 9.76 × 10−6 and 2.35 × 10−5 mm2/s. The diffusivities of the PCMs in the solid phase were higher than those in the liquid phase. During the initial holding time of the endothermic process, the PCM in the liquid phase could not be fully solidified due to an insufficient initial holding time and very low diffusivity, which caused superheating during the DSC measurement. Moreover, in the exothermic process, a fast cooling rate of 5 °C/min and low thermal diffusivity caused supercooling. In particular, the diffusivity of the liquid PCM was lower than those of the solid PCM and other PCMs, which caused extremely high supercooling during the DSC measurement. This paper provides the thermophysical properties of MnCl2·4H2O PCMs, which are not available in the literature. The homogeneity of PCMs in their initial states and their heating/cooling rates were identified, and constitute important factors for accurately measuring the thermophysical properties of PCMs.

1. Introduction

According to a report from the U.S. Energy Information Administration, in 2021, 38% of worldwide energy was consumed in residential buildings. Specifically, 58% of residential energy consumption was used for heating and cooling buildings [1]. A thermal energy storage (TES) system is considered an ideal solution to reduce energy consumption in heating or cooling buildings. TES systems hold thermal energy in the form of hot or cold materials for later utilization [2].
TES systems can be classified by how energy is stored: sensible heat, latent heat, and chemical TES systems [2,3,4]. Latent heat TES systems can store 5–14 times more energy than sensible heat TES systems [5].
Phase-change materials (PCMs) are well-known TES materials, utilizing both sensible and latent heat to store energy. PCMs are classified according to raw materials: inorganic, organic, and eutectic PCMs. Inorganic PCMs are formed from salt hydrates and metallic alloys [6,7].
Salt hydrate PCMs have a formula of AB·nH2O, where AB is a working agent, and its material behavior can be determined from the binary phase diagram of the working agents AB and H2O. Additionally, LiClO3, KF, Mn(NO3)2, LiNO3, Zn(NO3)2, and CaCl2 are representative working agents for salt hydrates. The melting temperature of salt hydrate PCMs is increased by increasing the composition of the working agent in the hypereutectic region. Compared with organic and eutectic PCMs, low-cost inorganic PCMs have a high latent heat of fusion, high thermal conductivity, small volume change, and narrow phase-change temperature range. However, supercooling is one of the drawbacks of inorganic PCMs, leading to operating temperature delay and phase separation [5,7,8,9,10].
Accurate measurement of thermophysical properties is a prerequisite for the development and application of PCM-based TES systems because operating temperature and latent heat determine the performance of TES systems. In most studies, differential scanning calorimetry (DSC) methods under heating and cooling rates of 5–10 °C/min have been employed to measure thermal properties of PCMs, such as melting temperature, solidification temperature, and latent heat [11,12,13,14,15,16,17].
Many researchers have proposed the thermophysical properties of single-phase PCMs via DSC measurement. Prakash et al. [14] measured the thermophysical properties of a mixture of inorganic PCMs composed of Mg(NO3)2·6H2O and Na2SO3·5H2O. The properties were compared for three different weight ratios (70:30, 80:20, and 90:10) of Mg(NO3)2·6H2O and Na2SO3·5H2O, and the TES capacity increased with an increase in Mg(NO3)2·6H2O composition. Wang et al. [15] evaluated the thermal performance of n-octadecane micro-encapsulated PCMs using DSC. The latent heat and melting temperature were 160 kJ/kg and 26.5 °C, respectively. The PCMs exhibited appropriate thermal energy storage capability over a temperature range between 5 and 45 °C at heating/cooling rates of 2–10 K/min. Drissi et al. [12] investigated the influence of damage on PCMs’ thermodynamic properties. The highlighted result was that the damaged PCMs suffered a loss of latent heat of about 12% compared with the nondamaged PCMs. Until now, many researchers have investigated properties of various PCM composites, including graphene, graphite, core shell, and nanocomposites, by DSC [18,19,20,21,22,23,24,25,26,27].
Supercooling and phase segregation are common issues in inorganic PCMs. They can cause loss of energy storage capacity and delay in phase-change temperature. Therefore, many researchers have studied how to solve these drawbacks. Atul Sharma et al. [5] suggested adding a nucleating agent, such as nucleion, which can easily initiate crystal formation. Sutjahja et al. [28] studied the effects of chemical nucleator additives such as SrCl2·6H2O, BaCO3, and K2CO3 on the supercooling behavior of CaCl2·6H2O PCM. Among the additives, SrCL2·6H2O showed the best performance in preventing supercooling. Palittin [10] adopted sonocrystallization by using ultrasound radiation to crystallize CaCl2·6H2O. In order to minimize phase segregation, thickener agents have been used. Absorbent polymer [29], polyethylene glycol [30], silicon rubber [31], cellulose derivatives [27,29,32], and polyvinyl alcohol [29] have been added as thickening agents to inhibit or minimize phase segregation.
An inorganic PCM, MnCl2·4H2O, was confirmed to increase latent heat and decrease supercooling when it was used as an additive in Mn(NO3)2·6H2O PCM [33]. However, there have been no previous studies regarding the properties of MnCl2·4H2O as a PCM rather than an additive. The objective of this study was to measure and investigate the thermophysical properties of inorganic MnCl2·4H2O PCMs. The specimens were delivered in liquid, solid, and dual phases. The scope of investigation comprised (1) superheating and supercooling analyses of the thermophysical properties (melting/solidification temperatures and latent heats) of single-phase PCMs under endo/exothermic processes using DSC; (2) in particular, analyzing the supercooling behavior of PCMs, which were treated to a homogeneous condition; and (3) determining thermal conductivities and thermal diffusivities analyses of single-phase PCMs.

2. Materials and Methods

2.1. Specimen Materials

Four macro-encapsulated inorganic PCMs based on MnCl2·4H2O were evaluated in this study. Specimens 1 to 4 were based on MnCl2·4H2O compositions, and an additive was added and modulated to control the melting temperatures. Table 1 lists the reference melting temperatures provided by the supplier and phases of the as-received and treated PCMs.
The spectra of the PCMs were collected using Fourier transform infrared spectroscopy (FTIR) and compared with the spectrum of pure MnCl2·4H2O on the Willey spectral DB [34] (Figure 1). The base PCM, MnCl2·4H2O, was confirmed by the molecular formula and spectrum data [35,36]. As shown in Figure 1, the modulations of MnCl2·4H2O compositions were between 3600 and 3100 cm−1 and between 1700 and 1600 cm−1. The modulations of additives were between 1100 and 900 cm−1. The specimens were delivered in different phases. As-received specimen 1 had fluidity, so it was marked as a liquid phase. Some parts of specimen 2 had a solid phase, while other parts had a dual solid and liquid phase. As-received specimens 3 and 4 had a solid phase. Specimen 2, with a dual phase, was homogenized through reheating in an oven at 50 °C for 15 min just before measurement.

2.2. Measurement

In this study, DSC measurements were conducted with a DSC Q 200 from TA Instruments (New Castle, DE, USA) with a temperature accuracy of 0.1 °C and an enthalpy precision of 0.1% [37,38]. The samples with weights between 6 and 7 mg were sealed in aluminum pans and lids, and were measured in a chamber purged with nitrogen. The temperature profile for DSC temperature is given in Figure 2.
The first step was a holding stage in which the sample was held for 1 min at 15 °C to stabilize the test chamber temperature. The second step was a heating stage in which the sample was heated from 15 to 105 °C with a heating rate of 5 °C/min. The third step was a holding stage in which the sample was held for 1 min at 105 °C to stabilize the chamber temperature. The last step was a cooling stage in which the sample was cooled from 105 to −40 °C with a cooling rate of 5 °C/min. The thermophysical properties of the PCMs were measured three times per condition. The phase change of PCMs occurs within a temperature range, but the peak temperature in a DSC thermogram was defined as the melting temperature under the endothermic process, or the solidification temperature under the exothermic process in this study.
The thermal conductivity of a PCM is an important factor in assessing the thermal performance of PCMs in the solid-state or liquid state [39]. In this study, a heat flow meter FOX 314 from TA Instruments was used to measure the thermal conductivities of the PCMs. The heat flow meter was designed to conform to the ASTM C 518-04 [40].
The thermal conductivities of PCMs having only single phase (either liquid or solid phase) were measured under the conditions in Table 2. The temperature of the lower plate was higher than that of the upper plate, and high sensitivity heat flow transducers and thermocouples were attached to both plates. Moreover, the heat flow equipment can measure thermal conductivity with a resolution of 0.6 µV and the thickness of the sample with an accuracy of 0.025 mm.
Thermal diffusivity indicates the ability of a material to transfer thermal energy. Accurate measurement of thermal diffusivity is necessary to make applications and control thermal energy for materials which have conduction, insulation, or have withstood temperature change.
The thermal diffusivity is given by
α = k ρ C p
where α is the thermal diffusivity, k is the thermal conductivity, ρ is the density, and C p is the specific heat capacity.

3. Results and Discussion

3.1. Thermal Property of As-Received PCMs

The DSC results provided the onset temperature (To), peak temperature (TP) as the melting temperature (Tm), end temperature (Te), and latent heat (ΔH) of the PCMs. Figure 3 shows thermograms of single-phase as-received PCMs using the test thermo-profile in Figure 2, and the measured thermophysical properties are summarized in Table 3.
During the endothermic process of liquid -phase specimen 1 and solid-phase specimen 2, hills with two peaks were observed: the first peak at the melting temperature and the second peak resulting from superheating. The observation of multiple peaks indicated the test material had a crystalline structure or was multiphase. Although specimens 1 and 2 were marked as liquid and solid phases, they would have dual phases in which the second phase was assumed to have only a small portion. Inferring by comparing the magnitude of the second peak, the proportion of the second phase in specimen 2 was smaller than that in specimen 1.
The observation of multiple peaks coincides well with Liu and Chung’s results [41], where DSC thermograms with multiple peaks were found under endothermic reaction. The reason was that the PCM had multiphases because additives were partially unmelted during heating. On the other hand, specimens 3 and 4 showed a single peak under the endothermic process, which was evidence of a single phase.
The reference phase change temperatures were 21, 23, 27, and 30 °C for specimens 1 to 4, respectively. However, as shown in Figure 3 and Table 3, the measured melting temperatures of the PCMs were 31.3, 31.1, 28.9, and 33.8 °C for specimens 1 to 4, respectively. Multiphase specimens 1 and 2 had melting temperatures of 7 to 10 °C higher than the reference melting temperatures, whereas single-phase specimens 3 and 4 showed relatively small differences between measured and reference melting temperatures. In the literature, the difference has been explained by phase segregation [42,43,44] and superheating due to slurry or multiple phases [45]. Pronk et al. [46] demonstrated that the degree of superheating reduced as the composition of the major phase increased.
All single-phase PCMs showed extreme supercooling under the exothermic process. Specimens 1 and 3 showed two connected peaks, whereas specimen 2 showed one peak, and specimen 4 showed two separated peaks, which occurred as a small eutectic impurity peak during the exothermic process and as a main peak for the supercooling issue [47]. In Kuznik and Virgone’s study on paraffin-based organic PCMs [48], the supercooling was only about −5 °C. However, their measured solidification temperatures were lower by 30–40 °C than their measured melting temperatures (Table 3).
In inorganic PCMs based on salt hydrates, supercooling is related to a slow rate of nucleation or nuclei growth [9,45]. In addition, DSC has a cooling rate much higher than field applications. A sufficiently slow cooling rate should be selected considering supercooling. Drissi [12] demonstrated that a much slower cooling rate, rather than a typical cooling rate between 5 and 10 K/min, was suitable for low-thermal-conductivity PCMs to avoid supercooling. However, low cooling rates can reduce the signal-to-noise ratio, which reduces the accuracy of measurement.
The latent heats of specimens 1 to 4 under the endothermic process were 157.3, 176.8, 146.0, and 161.0 J/g, respectively, at temperature ranges of 23 to 44 °C. The latent heats of fusion for specimens 1 to 4 under the exothermic process were 135.4, 152.5, 131.0, and 157.2 J/g, respectively. The latent heats of PCMs under the endothermic process were similar or higher values compared with the commercial products, having latent heats of 120 to 180 J/g at similar operating temperatures of 20 to 50 °C [49,50,51,52].

3.2. Thermal Property of Treated PCM

Dual-phase specimen 2 was homogenized into a liquid phase and evaluated by DSC. From the results in the previous section, single-phase specimen 2, marked as solid phase, contained a small amount of liquid phase.
The thermogram of treated specimen 2 (Figure 4) showed clear differences from that of the as-received-single-phase specimen 2 (Figure 3b) under endothermic and exothermic processes.
During the endothermic process, treated specimen 2 exhibited a distinct single peak, whereas as-received solid specimen 2 had two peaks (Figure 3b). The measured onset temperature, melting temperature, and latent heat were 26.9 °C, 31.9 °C, and 149.8 J/g, respectively, which were similar to the measured properties of as-received specimen 2 under the endothermic process.
A similar degree of superheating was observed compared to the reference melting temperature. This implies that the degree of superheating is related to the state of the specimen at the first stage of DSC. Relatively high superheating was found in the following three specimens: specimen 1, which had a melting temperature lower than room temperature and was marked as liquid phase; as-received single-phase specimen 2, which was marked as solid phase and presumably had a small portion liquid; treated specimen 2, which had a homogeneous liquid phase. A liquid phase at the beginning could not be fully solidified in the first step of the DSC thermoprofile, as shown in Figure 2, which caused phase inhomogeneity during the endothermic process. This phenomenon is also related to the thermal diffusivity of the liquid phase, which is explained in the next section.
During the exothermic process, treated specimen 2 showed two exothermic peaks of onset temperatures of 15.8 and −9.5 °C, solidification temperatures of 13.5 and −10.7 °C, and latent heats of 36.6 and 12.6 J/g. The supercooling was mitigated via homogenization, but not fully prevented. The exothermic peak temperatures of treated specimen 2 were very similar to those of specimen 4, which had a melting temperature distinguishable from the room temperature.
Supercooling during the exothermic process can be caused by incongruent solidification behavior caused by phase segregation, low rate of nucleation, or the fast cooling rate of the DSC test. The multiple peaks that occurred under the exothermic process were also discussed by Vigo et al. [53]. They reported the thermophysical properties of fiber-containing PCM based on salt hydrates. The specimen was maintained at least 24 h at 293 K/45% relative humidity (RH) under full liquid phase prior to the DSC test at heating/cooling rates of 10 K/min. A single peak was observed under the endothermic process, but one major peak and two minor peaks were observed under the exothermic process. The incongruent solidification behavior of the materials based on salt hydrates was considered to be the cause of supercooling.
In some studies, supercooling was dependent on the cooling rate rather than the initial homogeneity. Nagano et al. [54] reported supercooling issues of PCMs (under solid phases) at a cooling rate of 5 °C/min. Even though additive materials were adopted to reduce supercooling, supercooling still occurred at 0 to −20 °C, while the melting temperature was 25 °C. A solution using a low cooling rate was verified by Kosny et al. [55]. They studied the thermophysical properties of an energy-storing building material under solid phase using DSC measurements with a heating/cooling rate of 0.3 °C/min, and the difference in melting and solidification temperatures was only 5 °C.
In this study, the solidification temperature of treated specimen 2 shifted toward a higher temperature compared with as-received specimen 2. From the results, we found that the homogenization treatment can affect nuclear distribution of the PCM under the exothermic process. Consequently, the measured solidification temperature increased, and the supercooling issue decreased. However, a slower cooling rate is preferable for accurate measurement of solidification temperature.

3.3. Thermal Conductivity and Thermal Diffusivity

The thermal conductivity and thermal diffusivity of a PCM are important factors in assessing the thermal performance of a PCM in the solid and liquid states [56]. Improving thermal performance is crucial to decreasing the energy consumption for heating and cooling. The thermal conductivities of the PCMs were evaluated under fully frozen conditions (in the solid state before the onset temperature) and fully melted conditions (in the liquid state after the melting temperature). The thermal conductivities were measured ten times per specimen. The thermal diffusivities under endothermic processes were investigated due to supercooling issues under exothermic processes.
Figure 5 shows the thermal conductivities of specimens 1 to 4. Specimens 1 to 4 under solid phases had thermal conductivities of 81, 79, 112, and 113 mW/mK, respectively. The specimens under liquid phases had thermal conductivities of 77, 75, 104, and 108 mW/mK, respectively. As shown in Figure 5, the thermal conductivities of the PCMs in the solid state were higher than those in the liquid state. This phenomenon occurs because of the effect of the microstructure changing from an orderly solid structure in the solid state to a disorderly liquid structure in the liquid state [57].
The thermal diffusivities of the PCMs were obtained using Equation (1). The calculated thermal diffusivities are listed in Table 4. The diffusivities are about one order of magnitude lower than those of the commercial product or those reported in other studies [3,42,49,50,51,52]. During the endothermic process, the PCMs under the solid phase showed less superheating due to the relatively high thermal diffusivity. On the other hand, the low thermal diffusivity in the liquid phase accelerated supercooling during the exothermic process. Low diffusivity in the liquid phase can cause nonuniform solidification and, resultantly, phase segregation and supercooling.
In order to analyze the thermal behavior of the PCMs used in this study, the Fourier numbers, which denote the ratio of diffusive or conductive transport rate to the quantity storage rate, were compared with those of the references. In the DSC measurement for an organic PCM with a similar melting temperature [58,59], the Fourier number was 103.5 at a heating rate of 0.5 °C/min. In the DSC for an inorganic PCM with a similar melting temperature [42,60], the Fourier number was 0.11 at a heating rate of 5 °C/min, which is much lower than that of the organic PCM in references [58,59]. However, the Fourier numbers of the PCMs used in this study were between 0.0036 and 0.0063 for the solid phase and between 0.0026 and 0.0043 for the liquid phase, which are much lower than the inorganic PCM in references [42,60]. In the DSC measurement, a large enough Fourier number is necessary for uniform phase change, and the heating/cooling rate should be designed by considering the diffusivity and Fourier number.

4. Conclusions

We investigated the thermophysical properties of MnCl2·4H2O PCMs with various initial phases by using DSC and a heat flow meter, and the following conclusions were derived:
  • The melting/solidification temperature, latent heat, and thermal diffusivity were measured for MnCl2·4H2O PCMs, and the properties were provided. The melting temperatures of the PCMs under single phase were about 28 to 33 °C. Specimens 1 and 2, having a dual or slurry phase, led to superheating issues. The latent heat of the PCMs under the endothermic process was 146 to 176 J/g with a temperature range of 23 to 45 °C. The latent heats of as-received PCMs under the endothermic process were similar or higher than those of the commercial products with operating temperatures of 20 to 50 °C.
  • In the endothermic process, the PCMs with a liquid or dual phase exhibited superheating because of the insufficient holding time in the initial stage until the PCMs were fully solidified. Another cause of this was the low thermal diffusivity of the PCMs based on the thermal diffusivity measurement in this study.
  • In the exothermic process, more severe supercooling was observed in the DSC measurement. The high cooling rate and low thermal diffusivity of the PCMs used in this study caused inhomogeneous solidification, phase segregation, and, consequently, supercooling. Homogenization treatment prior to DSC could mitigate the supercooling issue, such as an increase in solidification temperature of about 15 °C compared with what was used for the as-received and treated PCMs. However, the treatment could not fully eliminate the supercooling issue.
  • The diffusivities of PCMs were measured as between 9.76 × 10−6 and 2.35 × 10−5 mm2/s. The diffusivities of PCMs in the solid phase were higher than those in the liquid phase. The Fourier numbers of the PCMs were much lower than those in the references. The insufficient time for heat transfer resulted in high heating and cooling rates, and a very low level of thermal diffusivity was responsible for supercooling. Specimen 3 was the best PCM due to its high conductivity and high thermal diffusivity.
Accurate measurements of the thermophysical properties of PCMs were necessary prior to the design and application of PCMs. DSC was extensively used in the measurements, but homogeneity in the initial state, and proper heating and cooling rates considering diffusivity, were ensured to avoid superheating and supercooling.

Author Contributions

Conceptualization, K.-E.M., J.-W.J., J.-K.K., C.W. and S.Y.; methodology, K.-E.M., J.-W.J., J.-K.K., C.W. and S.Y.; investigation, K.-E.M., J.-W.J., J.-K.K., C.W. and S.Y.; writing—original draft preparation, K.-E.M.; writing—review and editing, C.W. and S.Y.; project administration, K.-E.M.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

Nomenclature
C p Specific heat capacity, J/g °C
TTemperature, °C
Acronym
Phase change materialPCM
Differential scanning calorimetryDSC
Thermal energy storageTES
Greek Symbols
αThermal diffusivity, mm2/s
kThermal conductivity, mW/mK
ρ Density

References

  1. US Energy Information Administrations. Washington, DC, USA. 2021. Available online: https://www.eia.gov/consumption/ (accessed on 15 June 2022).
  2. Abedin, A.H.; Rosen, M.A. A critical review of thermochemical energy storage systems. Open Renew. Energy J. 2011, 4, 42–46. [Google Scholar] [CrossRef] [Green Version]
  3. Zalba, B.; Marın, J.M.; Cabeza, L.F.; Mehling, H. Review on thermal energy storage with phase change: Materials, heat transfer analysis and applications. Appl. Therm. Eng. 2003, 23, 251–283. [Google Scholar] [CrossRef]
  4. Pielichowska, K.; Pielichowski, K. Phase change materials for thermal energy storage. Prog. Mater. Sci. 2014, 65, 67–123. [Google Scholar] [CrossRef]
  5. Sharma, A.; Tyagi, V.V.; Chen, C.R.; Buddhi, D. Review on thermal energy storage with phase change materials and applications. Renew. Sustain. Energy Rev. 2009, 13, 318–345. [Google Scholar] [CrossRef]
  6. Banu, D.; Feldman, D.; Haghighat, F.; Paris, J.; Hawes, D. Energy-storing wallboard: Flammability tests. J. Mater. Civ. Eng. 1998, 10, 98–105. [Google Scholar] [CrossRef]
  7. Tyagi, V.V.; Buddhi, D. PCM thermal storage in buildings: A state of art. Renew. Sustain. Energy Rev. 2007, 11, 1146–1166. [Google Scholar] [CrossRef]
  8. Furbo, S. Heat Storage Units Using a Salt Hydrate as Storage Medium Based on the Extra Water Principle; Commission of the European Communities: Luxembourg, 1983.
  9. Xie, N.; Huang, Z.; Luo, Z.; Gao, X.; Fang, Y.; Zhang, Z. Inorganic Salt Hydrate for Thermal Energy Storage. Appl. Sci. 2017, 7, 1317. [Google Scholar] [CrossRef] [Green Version]
  10. Palittin, I.D.; Kurniati, N.; Sutjahja, I.; Kurnia, D. Sonocrystallization Technique to Optimizing the Crystallization Process of PCM CaCl2. 6H2O. In Advanced Materials Research; Trans Tech Publications Ltd.: Freienbach, Switzerland, 2015; pp. 559–562. [Google Scholar]
  11. Jin, X.; Xu, X.; Zhang, X.; Yin, Y. Determination of the PCM melting temperature range using DSC. Thermochim. Acta 2014, 595, 17–21. [Google Scholar] [CrossRef]
  12. Drissi, S.; Eddhahak, A.; Caré, S.; Neji, J. Thermal analysis by DSC of Phase Change Materials, study of the damage effect. J. Build. Eng. 2015, 1, 13–19. [Google Scholar] [CrossRef] [Green Version]
  13. Castellón, C.; Günther, E.; Mehling, H.; Hiebler, S.; Cabeza, L.F. Determination of the enthalpy of PCM as a function of temperature using a heat-flux DSC-A study of different measurement procedures and their accuracy. Int. J. Energy Res. 2008, 32, 1258–1265. [Google Scholar] [CrossRef]
  14. Prakash, R.; Meenakshipriya, B.; Kumaravelan, R.; Vijayan, S. Preparation and study on thermophysical properties of inorganic salt hydrate as energy storage materials. Mater. Today Proc. 2021, 42, 450–456. [Google Scholar] [CrossRef]
  15. Wang, Y.; Liu, Z.; Niu, X.; Ling, X. Preparation, characterization, and thermal properties of microencapsulated phase change material for low-temperature thermal energy storage. Energy Fuels 2019, 33, 1631–1636. [Google Scholar] [CrossRef]
  16. Gschwander, S.; Haussmann, T.; Hagelstein, G.; Barreneche, C.; Ferrer, G.; Cabeza, L.; Hennemann, P. Standardization of PCM characterization via DSC. In Proceedings of the SHC 2015 International Conference on Solar Heating and Cooling for Buildings and Industry, Istanbul, Turkey, 2–4 December 2015; pp. 2–4. [Google Scholar]
  17. Morîntale, E.; Harabor, A.; Constantinescu, C.; Rotaru, P. Use of heat flows from DSC curve for calculation of specific heat of the solid materials. Phys. AUC 2013, 23, 89–94. [Google Scholar]
  18. Liu, L.; Zhang, X.; Xu, X.; Lin, X.; Zhao, Y.; Zou, L.; Wu, Y.; Zheng, H. Development of low-temperature eutectic phase change material with expanded graphite for vaccine cold chain logistics. Renew. Energy 2021, 179, 2348–2358. [Google Scholar] [CrossRef]
  19. Paneliya, S.; Khanna, S.; Utsav; Singh, A.P.; Patel, Y.K.; Vanpariya, A.; Makani, N.H.; Banerjee, R.; Mukhopadhyay, I. Core shell paraffin/silica nanocomposite: A promising phase change material for thermal energy storage. Renew. Energy 2021, 167, 591–599. [Google Scholar] [CrossRef]
  20. Bao, J.; Zou, D.; Zhu, S.; Ma, Q.; Wang, Y.; Hu, Y. A medium-temperature, metal-based, microencapsulated phase change material with a void for thermal expansion. Chem. Eng. J. 2021, 415, 128965. [Google Scholar] [CrossRef]
  21. Wen, R.; Liu, Y.; Yang, C.; Zhu, X.; Huang, Z.; Zhang, X.; Gao, W. Enhanced thermal properties of stearic acid/carbonized maize straw composite phase change material for thermal energy storage in buildings. J. Energy Storage 2021, 36, 102420. [Google Scholar] [CrossRef]
  22. Jin, X.; Xiao, Q.; Xu, T.; Huang, G.; Wu, H.; Wang, D.; Liu, Y.; Zhang, H.; Lai, A.C.K. Thermal conductivity enhancement of a sodium acetate trihydrate–potassium chloride–urea/expanded graphite composite phase–change material for latent heat thermal energy storage. Energy Build. 2021, 231, 110615. [Google Scholar] [CrossRef]
  23. Atinafu, D.G.; Yun, B.Y.; Kang, Y.; Wi, S.; Kim, S. Three-dimensional hybrid carbon nanocomposite-based intelligent composite phase change material with leakage resistance, low electrical resistivity, and high latent heat. J. Ind. Eng. Chem. 2021, 98, 435–443. [Google Scholar] [CrossRef]
  24. Jin, W.; Jiang, L.; Chen, L.; Gu, Y.; Guo, M.; Han, L.; Ben, X.; Yuan, H.; Lin, Z. Preparation and characterization of capric-stearic acid/montmorillonite/graphene composite phase change material for thermal energy storage in buildings. Constr. Build. Mater. 2021, 301, 124102. [Google Scholar] [CrossRef]
  25. Atinafu, D.G.; Wi, S.; Yun, B.Y.; Kim, S. Engineering biochar with multiwalled carbon nanotube for efficient phase change material encapsulation and thermal energy storage. Energy 2021, 216, 119294. [Google Scholar] [CrossRef]
  26. Chi, B.; Yao, Y.; Cui, S.; Jin, X. Preparation of graphene oxide coated tetradecanol/expanded graphite composite phase change material for thermal energy storage. Mater. Lett. 2021, 282, 128666. [Google Scholar] [CrossRef]
  27. Shin, H.K.; Park, M.; Kim, H.-Y.; Park, S.-J. Thermal property and latent heat energy storage behavior of sodium acetate trihydrate composites containing expanded graphite and carboxymethyl cellulose for phase change materials. Appl. Therm. Eng. 2015, 75, 978–983. [Google Scholar] [CrossRef]
  28. Sutjahja, I.M.; AU, S.R.; Kurniati, N.; Pallitine, I.D.; Kurnia, D. The role of chemical additives to the phase change process of CaCl2.6H2O to optimize its performance as latent heat energy storage system. J. Phys. Conf. Ser. 2016, 739, 012064. [Google Scholar] [CrossRef]
  29. Ryu, H.W.; Woo, S.W.; Shin, B.C.; Kim, S.D. Prevention of supercooling and stabilization of inorganic salt hydrates as latent heat storage materials. Sol. Energy Mater. Sol. Cells 1992, 27, 161–172. [Google Scholar] [CrossRef]
  30. Gutierrez, A.; Ushak, S.; Galleguillos, H.; Fernandez, A.; Cabeza, L.F.; Grágeda, M. Use of polyethylene glycol for the improvement of the cycling stability of bischofite as thermal energy storage material. Appl. Energy 2015, 154, 616–621. [Google Scholar] [CrossRef]
  31. Kazemi, Z.; Mortazavi, S.M. A new method of application of hydrated salts on textiles to achieve thermoregulating properties. Thermochim. Acta 2014, 589, 56–62. [Google Scholar] [CrossRef]
  32. Ramirez, B.G.; Glorieux, C.; Martinez, E.S.M.; Cuautle, J.F. Tuning of thermal properties of sodium acetate trihydrate by blending with polymer and silver nanoparticles. Appl. Therm. Eng. 2014, 62, 838–844. [Google Scholar] [CrossRef]
  33. Hawes, D.; Feldman, D.; Banu, D. Latent heat storage in building materials. Energy Build. 1993, 20, 77–86. [Google Scholar] [CrossRef]
  34. SpectraBase. Available online: https://spectrabase.com/spectrum/ (accessed on 9 March 2022).
  35. Tang, Y.; Chen, T.; Yu, S.; Qiao, Y.; Mu, S.; Hu, J.; Gao, F. Synthesis of graphene oxide anchored porous manganese sulfide nanocrystals via the nanoscale Kirkendall effect for supercapacitors. J. Mater. Chem. A 2015, 3, 12913–12919. [Google Scholar] [CrossRef]
  36. Bahtiar, S.; Taufiq, A.; Sunaryono; Hidayat, A.; Hidayat, N.; Diantoro, M.; Mufti, N.; Mujamilah. Synthesis, Investigation on Structural and Magnetic Behaviors of Spinel M-Ferrite [M = Fe; Zn; Mn] Nanoparticles from Iron Sand. IOP Conf. Ser. Mater. Sci. Eng. 2017, 202, 012052. [Google Scholar] [CrossRef] [Green Version]
  37. Min, K.-E.; Lee, J.-S.; Yoo, S.-H.; Kim, M.-S.; Kim, J.-K. Effects of Catalysts on the adhesive properties for flip chip bonding. Korean J. Mater. Res. 2010, 20, 681–685. [Google Scholar] [CrossRef] [Green Version]
  38. Min, K.-E.; Kim, H.-Y.; Bang, J.-H.; Kim, J.-H.; Kim, J.-K. Effects of Hardeners and Catalysts on the Reliability of Copper to Copper Adhesive Joint. Korean J. Mater. Res. 2011, 21, 283–287. [Google Scholar] [CrossRef] [Green Version]
  39. Mehrali, M.; Latibari, S.T.; Mehrali, M.; Metselaar, H.S.C.; Silakhori, M. Shape-stabilized phase change materials with high thermal conductivity based on paraffin/graphene oxide composite. Energy Convers. Manag. 2013, 67, 275–282. [Google Scholar] [CrossRef]
  40. Testing, A.S.f. Materials. In Standard Test Method for Steady-state Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus; ASTM International: West Conshohocken, PA, USA, 2017. [Google Scholar]
  41. Liu, Z.; Chung, D. Calorimetric evaluation of phase change materials for use as thermal interface materials. Thermochim. Acta 2001, 366, 135–147. [Google Scholar] [CrossRef]
  42. Cabeza, L.F.; Castell, A.; Barreneche, C.; de Gracia, A.; Fernández, A.I. Materials used as PCM in thermal energy storage in buildings: A review. Renew. Sustain. Energy Rev. 2011, 15, 1675–1695. [Google Scholar] [CrossRef]
  43. Bland, A.; Khzouz, M.; Statheros, T.; Gkanas, E. PCMs for Residential Building Applications: A Short Review Focused on Disadvantages and Proposals for Future Development. Buildings 2017, 7, 78. [Google Scholar] [CrossRef] [Green Version]
  44. Koláček, M.; Charvátová, H.; Sehnálek, S. Experimental and Numerical Research of the Thermal Properties of a PCM Window Panel. Sustainability 2017, 9, 1222. [Google Scholar] [CrossRef] [Green Version]
  45. Dincer, I.; Rosen, M.A. Thermal Energy Storage Systems and Applications; John Wiley & Sons: New York, NY, USA, 2021. [Google Scholar]
  46. Pronk, P.; Infante Ferreira, C.A.; Witkamp, G.J. Superheating of ice slurry in melting heat exchangers. Int. J. Refrig. 2008, 31, 911–920. [Google Scholar] [CrossRef]
  47. Tip, T. Interpreting DSC Curves Part 1: Dynamic Measurements. Available online: https://www.eng.uc.edu/~beaucag/Classes/Characterization/DSCParts/Artifacts%20in%20DSC%20Usercom_11.pdf (accessed on 10 June 2022).
  48. Kuznik, F.; Virgone, J. Experimental assessment of a phase change material for wall building use. Appl. Energy 2009, 86, 2038–2046. [Google Scholar] [CrossRef] [Green Version]
  49. Climator. Available online: www.Climator.com (accessed on 9 March 2022).
  50. Insolcorp. Available online: www.insolcorp.com (accessed on 9 March 2022).
  51. PCM Manufacturers. Available online: www.teappcm.com (accessed on 9 March 2022).
  52. PLUSS. Available online: https://pluss.co.in (accessed on 9 March 2022).
  53. Vigo, T.L.; Frost, C. Temperature-sensitive hollow fibers containing phase change salts. Text. Res. J. 1982, 52, 633–637. [Google Scholar] [CrossRef]
  54. Nagano, K.; Mochida, T.; Takeda, S.; Domański, R.; Rebow, M. Thermal characteristics of manganese (II) nitrate hexahydrate as a phase change material for cooling systems. Appl. Therm. Eng. 2003, 23, 229–241. [Google Scholar] [CrossRef]
  55. Kośny, J.; Biswas, K.; Miller, W.; Kriner, S. Field thermal performance of naturally ventilated solar roof with PCM heat sink. Sol. Energy 2012, 86, 2504–2514. [Google Scholar] [CrossRef]
  56. Yüksel, N. The Review of Some Commonly Used Methods and Techniques to Measure the Thermal Conductivity of Insulation Materials. In Insulation Materials in Context of Sustainability; IntechOpen: London, UK, 2016. [Google Scholar]
  57. Wang, J.; Xie, H.; Xin, Z.; Li, Y.; Chen, L. Enhancing thermal conductivity of palmitic acid based phase change materials with carbon nanotubes as fillers. Sol. Energy 2010, 84, 339–344. [Google Scholar] [CrossRef]
  58. Saeed, R.M.R. Thermal Characterization of Phase Change Materials for Thermal Energy Storage; Missouri University of Science and Technology: Rolla, MI, USA, 2016. [Google Scholar]
  59. Sarı, A.; Kaygusuz, K. Thermal and heat transfer characteristics in a latent heat storage system using lauric acid. Energy Convers. Manag. 2002, 43, 2493–2507. [Google Scholar] [CrossRef]
  60. Charles, J.M. Performance and Stability of CaCl2·6H2O-Based Phase Change Materials. Ph.D. Thesis, Lehigh University, Bethlehem, PA, USA, 2019. [Google Scholar]
Applsci 12 06338 g001 550

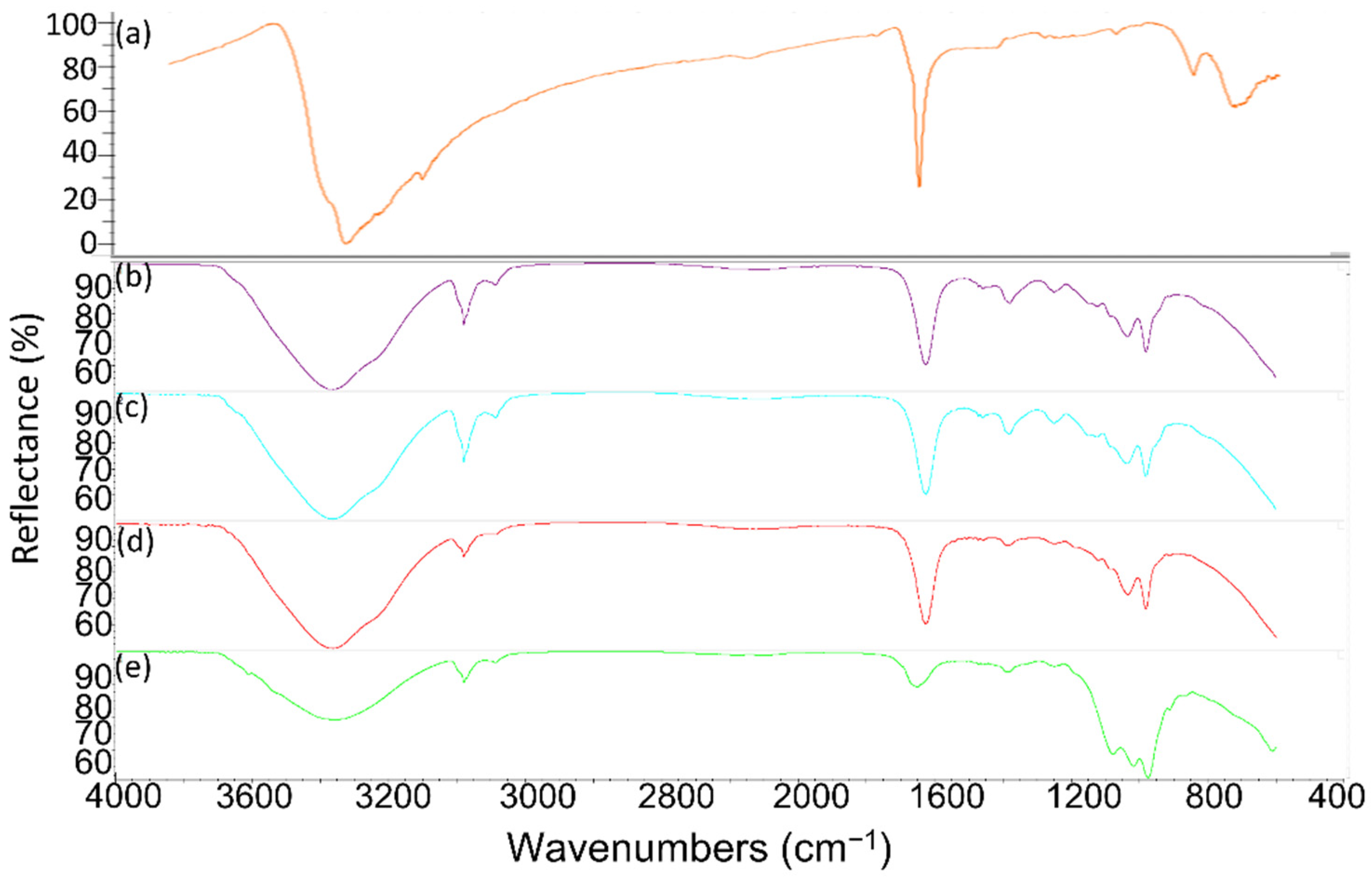

Figure 1. FTIR spectra of the PCMs: (a) reference MnCl2, (b) specimen 1, (c) specimen 2, (d) specimen 3, and (e) specimen 4.
Figure 1. FTIR spectra of the PCMs: (a) reference MnCl2, (b) specimen 1, (c) specimen 2, (d) specimen 3, and (e) specimen 4.
Applsci 12 06338 g001
Applsci 12 06338 g002 550

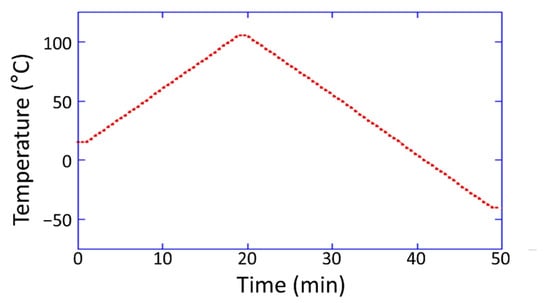

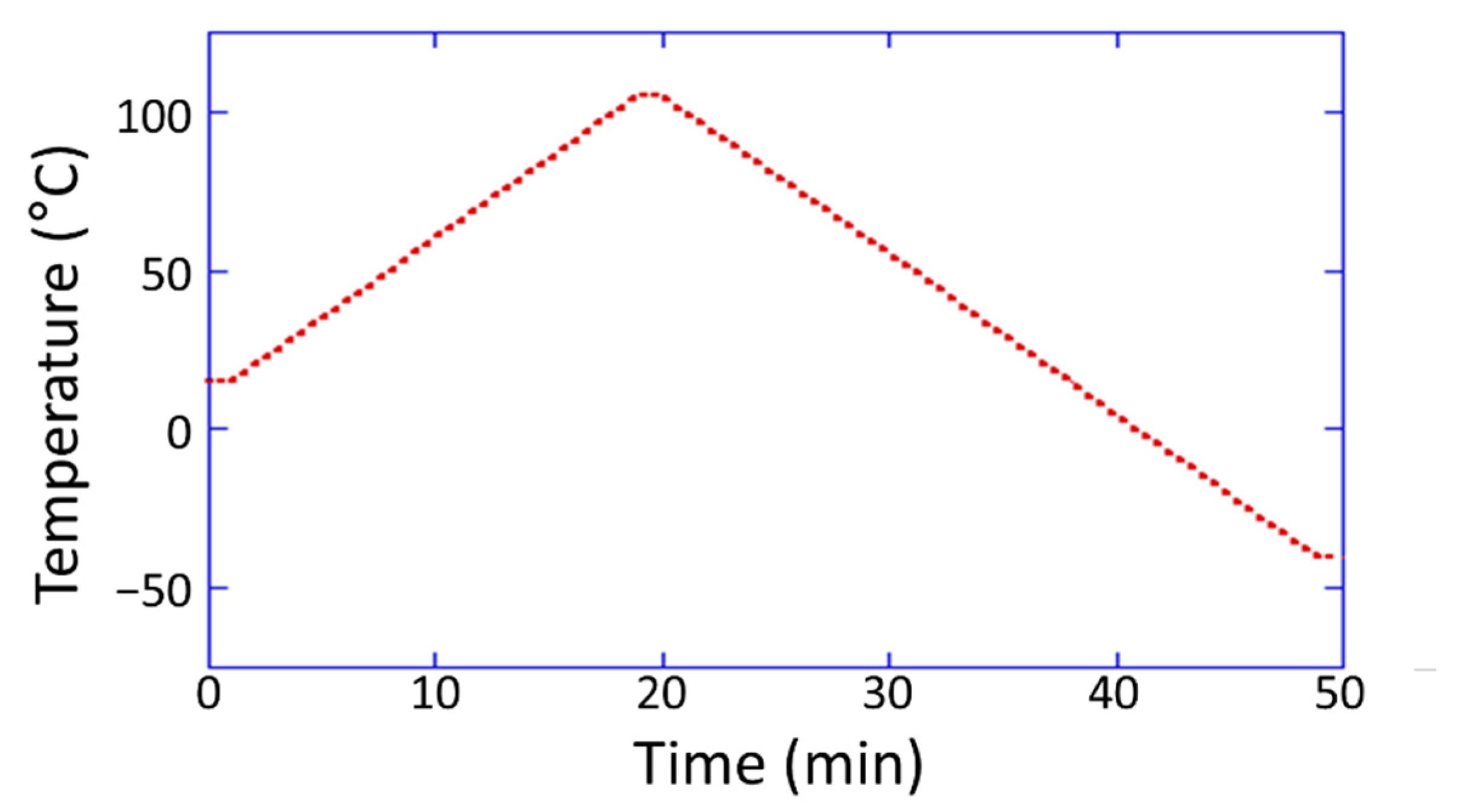

Figure 2. Dynamic DSC testing temperature profile.
Figure 2. Dynamic DSC testing temperature profile.
Applsci 12 06338 g002
Applsci 12 06338 g003 550

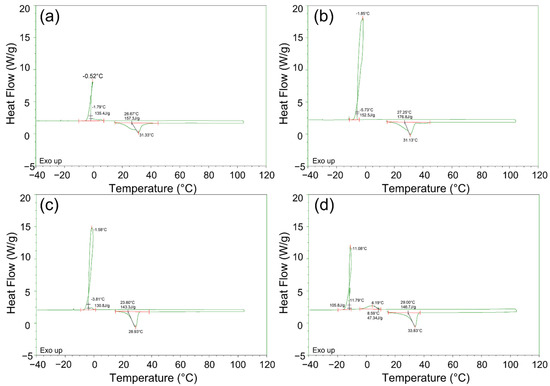

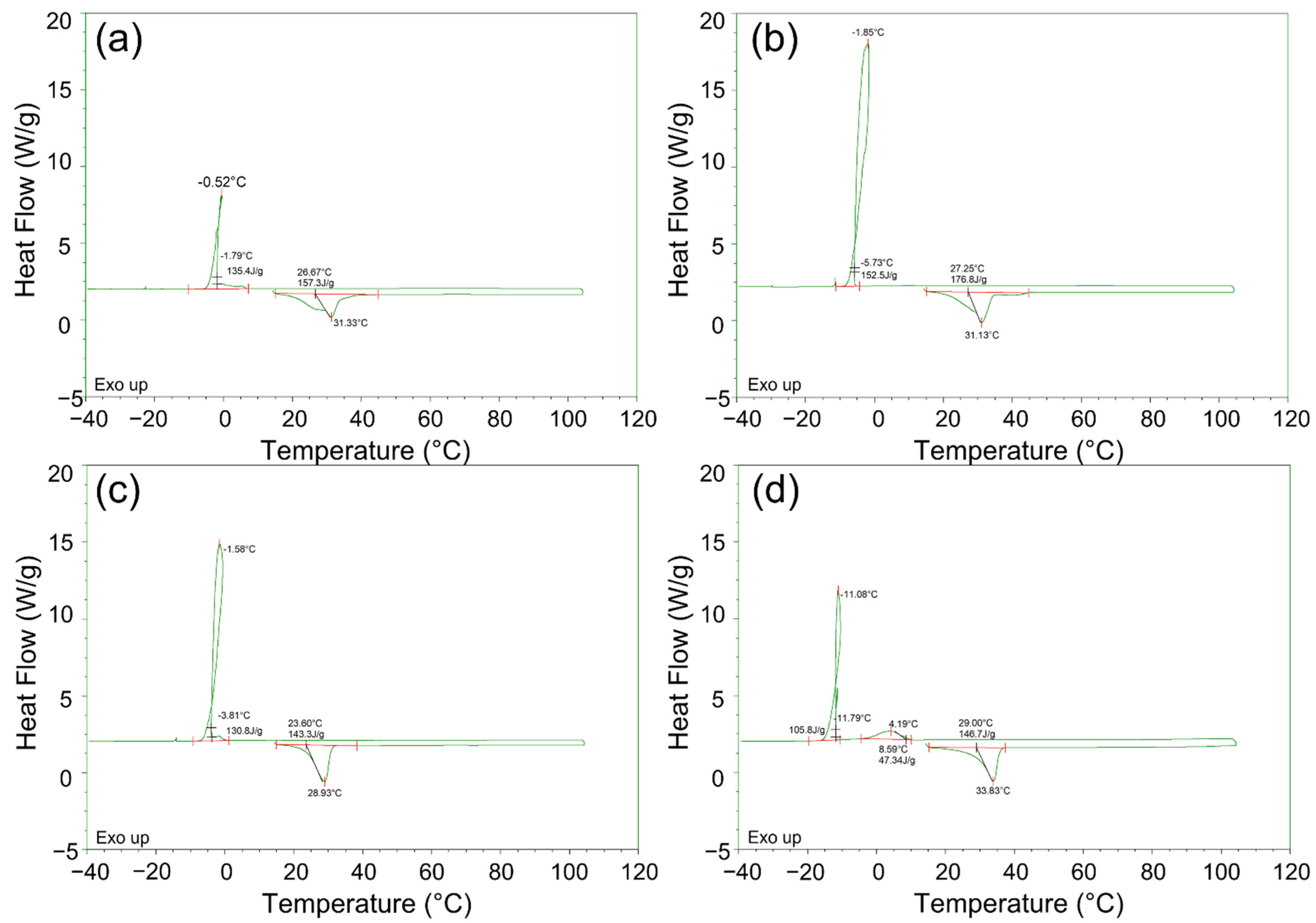

Figure 3. Dynamic DSC curve of single-phase PCMs: specimens (a) 1, (b) 2, (c) 3, and (d) 4.
Figure 3. Dynamic DSC curve of single-phase PCMs: specimens (a) 1, (b) 2, (c) 3, and (d) 4.
Applsci 12 06338 g003
Applsci 12 06338 g004 550

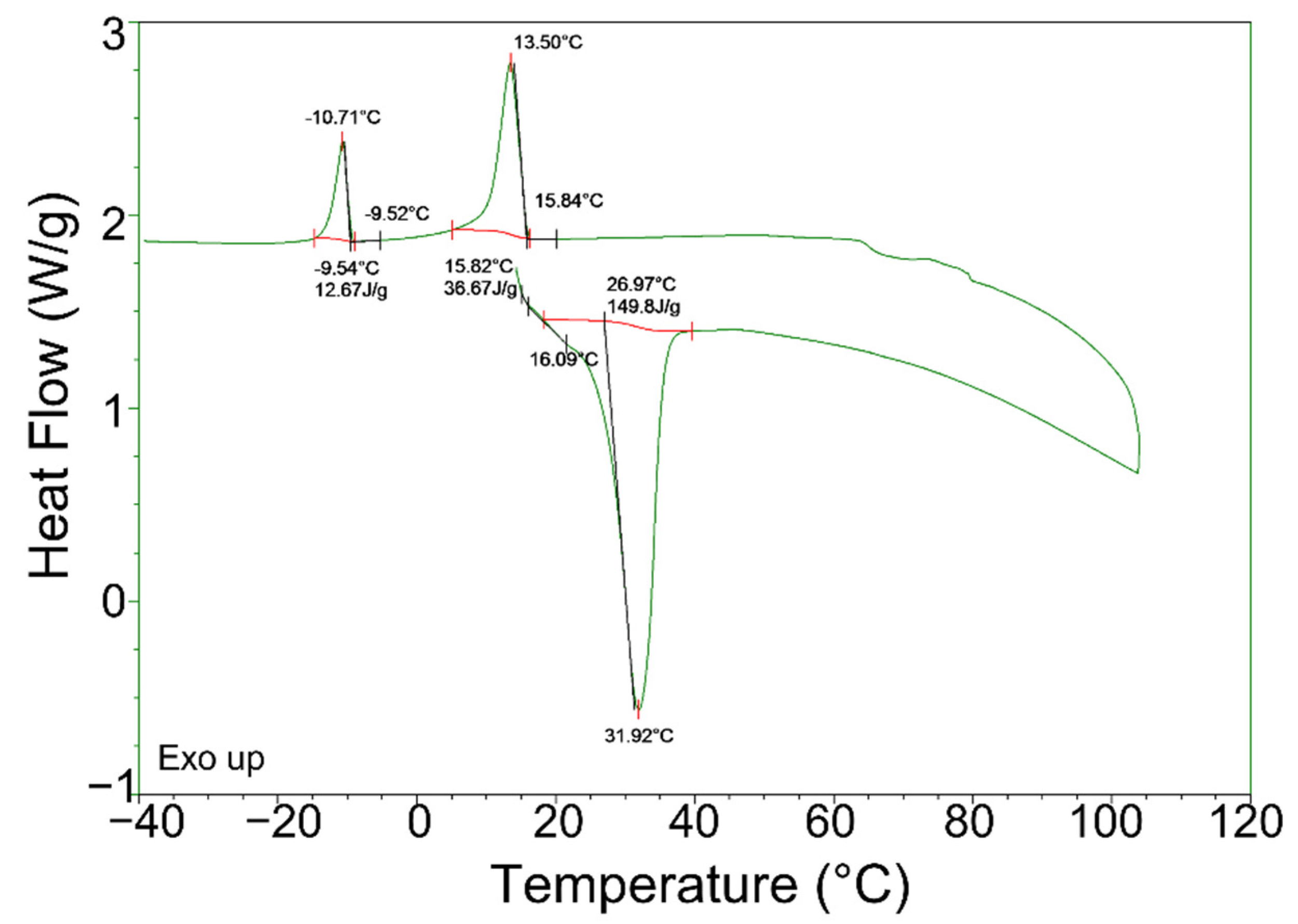

Figure 4. Dynamic DSC curve of treated specimen 2 in the liquid phase.
Figure 4. Dynamic DSC curve of treated specimen 2 in the liquid phase.
Applsci 12 06338 g004
Applsci 12 06338 g005 550

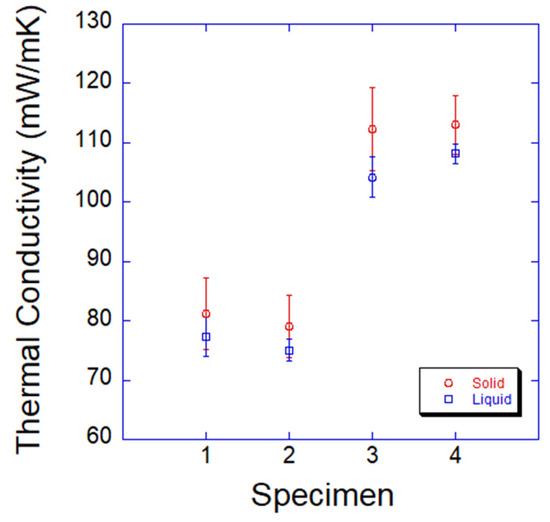

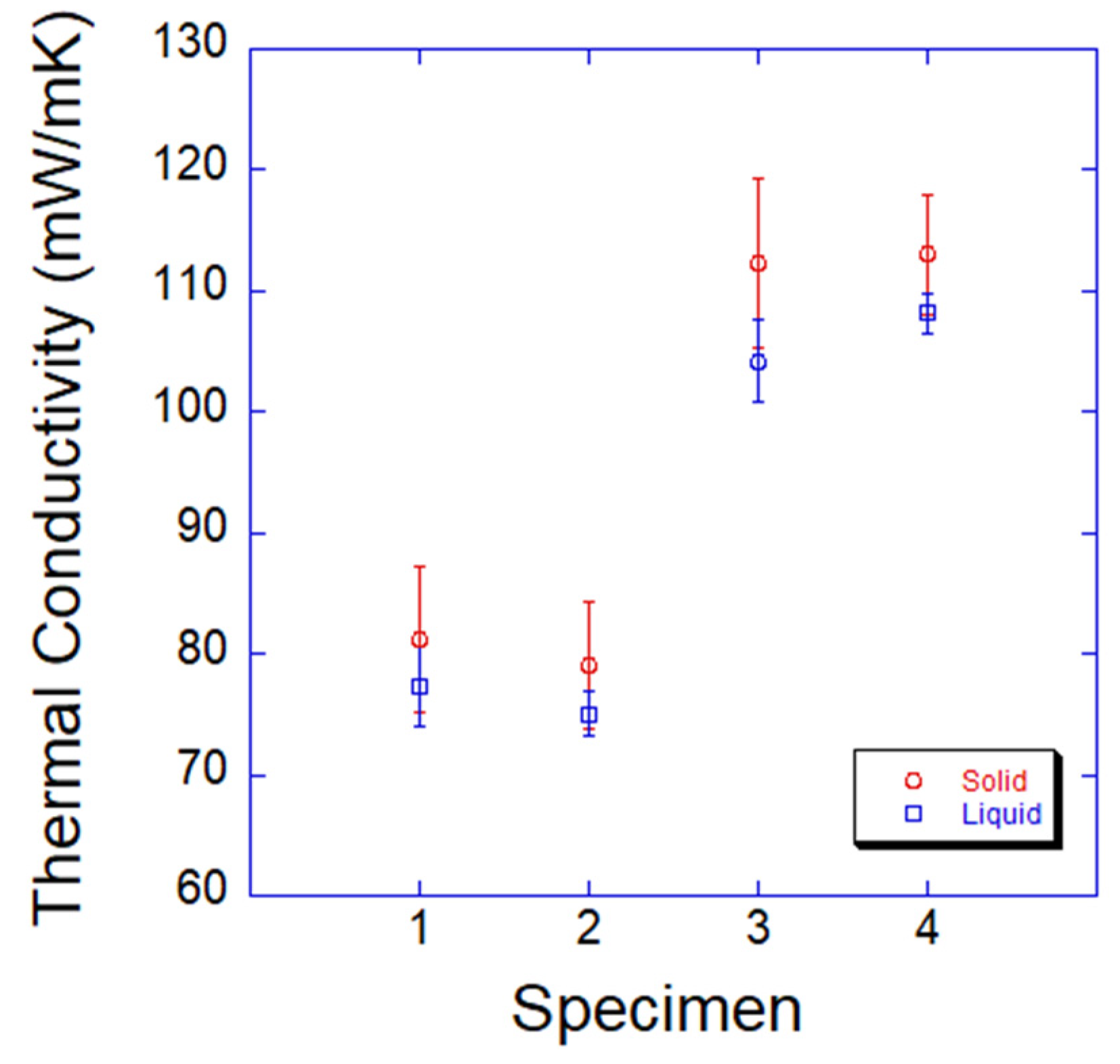

Figure 5. Thermal conductivities of the PCMs.
Figure 5. Thermal conductivities of the PCMs.
Applsci 12 06338 g005
Table
Table 1. Phase of specimens at room temperature.
Table 1. Phase of specimens at room temperature.
PCMReference Melting TemperaturePhase
As-ReceivedTreated
Specimen 121 °CLiquid-
Specimen 223 °CSolid-
Solid/LiquidLiquid
Specimen 326 °CSolid-
Specimen 430 °CSolid-
Table
Table 2. Temperature conditions for measuring thermal conductivities.
Table 2. Temperature conditions for measuring thermal conductivities.
PCMsTemperature for Liquid Phase Conductivity (°C)Temperature for Solid Phase Conductivity (°C)
Upper PlateLower PlateUpper PlateLower Plate
Specimen 121351426
Specimen 221351426
Specimen 333432131
Specimen 439493141
Table
Table 3. Thermophysical properties of PCMs under endothermic and exothermic processes.
Table 3. Thermophysical properties of PCMs under endothermic and exothermic processes.
PCMsProcessOnset Temp.
(°C)		Peak Temp.
(°C)		End Temp.
(°C)		Latent Heat (J/g)
Specimen 1Endothermic26.631.343157.3
Specimen 227.231.143176.8
Specimen 323.628.944146.0
Specimen 428.933.845161.0
Specimen 1Exothermic−1.8−0.5−7.6135.4
Specimen 2−5.7−1.8−10.3152.5
Specimen 3−4.0−1.6−9.5131.0
Specimen 48.63.7−6.450.7
−11.7−11.0−20106.5
Table
Table 4. Thermal diffusivities of the PCMs.
Table 4. Thermal diffusivities of the PCMs.
PCMαsolid (mm2/s)αliquid (mm2/s)
Specimen 11.34 × 10−51.22 × 10−5
Specimen 21.40 × 10−59.76 × 10−6
Specimen 32.35 × 10−51.60 × 10−5
Specimen 41.56 × 10−51.07 × 10−5
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Min, K.-E.; Jang, J.-W.; Kim, J.-K.; Wern, C.; Yi, S. Thermophysical Properties of Inorganic Phase-Change Materials Based on MnCl2·4H2O. Appl. Sci. 2022, 12, 6338. https://doi.org/10.3390/app12136338

AMA Style

Min K-E, Jang J-W, Kim J-K, Wern C, Yi S. Thermophysical Properties of Inorganic Phase-Change Materials Based on MnCl2·4H2O. Applied Sciences. 2022; 12(13):6338. https://doi.org/10.3390/app12136338

Chicago/Turabian Style

Min, Kyung-Eun, Jae-Won Jang, Jun-Ki Kim, Chien Wern, and Sung Yi. 2022. "Thermophysical Properties of Inorganic Phase-Change Materials Based on MnCl2·4H2O" Applied Sciences 12, no. 13: 6338. https://doi.org/10.3390/app12136338

APA Style

Min, K.-E., Jang, J.-W., Kim, J.-K., Wern, C., & Yi, S. (2022). Thermophysical Properties of Inorganic Phase-Change Materials Based on MnCl2·4H2O. Applied Sciences, 12(13), 6338. https://doi.org/10.3390/app12136338

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
