Verification of Convolutional Neural Network Cephalometric Landmark Identification

Abstract

Introduction: The mass-harvesting of digitized medical data has prompted their use as a clinical and research tool. The purpose of this study was to compare the accuracy and reliability of artificial intelligence derived cephalometric landmark identification with that of human observers. Methods: Ten pre-treatment digital lateral cephalometric radiographs were randomly selected from a university post-graduate clinic. The x- and y-coordinates of 21 (i.e., 42 points) hard and soft tissue landmarks were identified by 6 specialists, 19 residents, 4 imaging technicians, and a commercially available convolutional neural network artificial intelligence platform (CephX, Orca Dental, Hertzylia, Israel). Wilcoxon, Spearman and Bartlett tests were performed to compare agreement of human and AI landmark identification. Results: Six x- or y-coordinates (14.28%) were found to be statistically different, with only one being outside the 2 mm range of acceptable error, and with 97.6% of coordinates found to be within this range. Conclusions: The use of convolutional neural network artificial intelligence as a tool for cephalometric landmark identification was found to be highly accurate and can serve as an aid in orthodontic diagnosis.

1. Introduction

The delineation and representation of human facial form has found expression throughout human existence. Ancient Egyptian and Greek cultures developed methods mathematical and otherwise, such as anthropometrics, for this purpose [1]. Until Roentgen’s first report of X-rays in 1895 [2], which also were first used in dentistry in the same year [3], these can be summarized as attempts to quantify faces and bodies according to externally visualized cues and proportions. X-rays now allowed for visualization, albeit two-dimensional, of the internal hard tissues which support and provide the form outwardly seen. Broadbent, Wingate and Hofrath codified its place in orthodontics when they independently developed cranium orienting cephalostats and methods to standardize cephalometric radiology, in 1931 [4,5]. Brodie with Downs [6,7] initiated the emergence of a plethora of cephalometric analyses which continue to be used as diagnostic tools to quantify craniofacial characteristics [8,9,10,11,12,13,14,15,16,17].

Proficiency in radiographic anatomic landmark identification has facilitated patient diagnosis and treatment evaluation and a significant researcher tool. However, the expanded use of this method also revealed its inherent limitations as initially described by Graber [18], and ensued with descriptions of these according to errors due to superimposition of intervening structures, magnification of structures closer to the X-ray source and poor observer landmark identification reliability, all of which limit the effectiveness of this tool [19,20,21,22].

The advent of computed tomography (CT) in 1973, provided a one-to-one 3D radiographic image resolving the aforementioned shortcomings [23]; however, this method was appropriate for structures larger than teeth or jaws and required much higher doses of radiation than conventional clinical radiology. The introduction of the cone beam CT (CBCT) in 2001, enabled its use in dentistry. This technology now allows orthodontists to receive highly accurate representations of cranial structures, including 3D renderings, within a single diagnostic record while exposing the patient to less radiation than a conventional panoramic radiograph [24,25].

Digitization of cephalometrics has occurred together with other medical diagnostic measures. Initially, traditional radiographs were used directly or scanned into software from which an operator could manually plot the necessary points [26,27,28,29,30]. This approach was only feasible within an institutional setting where staff could be directed and were available to do so, until technological advances bypassed this function [31]. In addition, automatic landmark recognition from the now digitally acquired image has also been evolving [32,33,34,35,36,37]. The availability of the needed volume of pertinent digital data has catalyzed the development of various modes of machine learning and artificial intelligence (AI), which are being applied to perform autonomous landmark recognition [38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53].

The most commonly used machine learning method of image recognition and classification are neural networks. These are currently applied in identification of objects, faces, traffic signs and to generate vision in self-driving cars, etc. [54]. Convolutional neural networks (CNNs), like neural networks, are made up of “neurons” with learnable weights and biases. Each neuron receives several inputs, takes a weighted sum over them, passes it through an activation function and responds with an output [55]. In this manner, CNNs are an attempt to mimic the decision-making tasks performed by our own central nervous system [56].

The objective of the present study is to evaluate the accuracy and reliability of automatic computer-generated lateral cephalometric landmark recognition by the Algoceph^® convolutional neural network (CNN) AI system (Orca Dental, Hertzliya, Israel). Agreement between human operator manual lateral cephalometric landmark identification with those automatically derived will be compared to access this. The working hypothesis of the present study is that there will be no significant difference between trained human and a taught dedicated automated artificial intelligence tool (Algoceph^®) in identifying common lateral cephalometric anatomic landmarks.

2. Material and Methods

Ten digital lateral cephalometric radiographs of subjects submitting for treatment in a university post-graduate orthodontic clinic, without congenital craniofacial/dental anomalies, history of facial trauma and a fully erupted permanent dentition, excluding third molars, were randomly selected. The digital radiograph picture size was of a magnification of 1.08–1.13, resolution (digital) max 5.7 lp/mm, image field (digital) 24/27 × 18/30 cm and image pixel size 48 µm.

All digital radiographs were reviewed and data points selected manually by 30 operators (7 experienced orthodontic faculty members, 9 third year and 10 first year orthodontic residents, and 4 imaging center technicians), and automatically using Algoceph^® point detection AI (Orca Dental, Hertzliya, Israel). A total of 21 commonly referenced soft and hard tissue lateral cephalometric points were selected (Figure 1), as defined by Jacobson and Jacobson (

Table 1. Description of hard and soft tissue cranial landmarks used for comparative evaluation of human and AI detection.

	Landmark	Definition
1	Sella	Midpoint of sella turcica
2	Nasion	Most anterior point on frontonasal suture
3	Upper incisor tip (UI)	Tip of most prominent upper central incisor
4	Lower incisor tip (LI)	Tip of most prominent lower central incisor
5	B point	Deepest bony point on mandibular symphysis between pogonion and infradentale
6	Pogonion (Pog)	Most anterior point of mandibular symphysis
7	Menton	Lowest point on mandibular symphysis
8	Articulare	Junction between inferior surface of the cranial base and the posterior border of the ascending ramus of the mandible
9	A point	deepest point of premaxilla concavity bellow ANS
10	ANS	Tip of anterior nasal spine
11	PNS	Posterior limit of bony palate
12	Soft pogonion (Softpog)	Most anterior soft tissue point of soft chin
13	Soft B	The deepest soft tissue point between chin and subnasale
14	Lower lip	The most anterior point of lower lip
15	Upper lip	The most anterior point of upper lip
16	Subnasale	The junction where base of the columella of the nose meets the upper lip
17	Softnose	Most anterior point of nose tip
18	Orbitale	Most inferior point on the orbital margin
19	PTM	The intersection of the inferior border of the foramen rotundum with the posterior wall of the pterygomaxillary fissure
20	Porion	Most superior point of outline of external auditory meatus
21	Basale	The most inferior point on the anterior border of the foramen magnum in the midsagittal plane

) [57].

A training algorithm for AI recognition of these points was performed to imprint the CNN according to Anuse and Vyas (Figure 2) [58]. Values underwent forward and backward passes according to Glorot and Bengio until target accuracy is equivalent to or decreasing slowly from ground truth [59]. Subsequent to training, algorithm detection is performed and mapped point coordinates (x, y) are superimposed onto the original image with x and y-coordinates for each point being recorded given a defined 2 mm circumscribed precision range, according to Wang CW [60]. Each point was plotted 5 times using the AI method for which no differences in point detection were found, therefore, each point was noted as a single location. Manual landmark plotting was undertaken once by each observer.

Statistical analyses were carried out using SPSS version 23 (IBM Corp, Armonk, New York, NY, USA). Non-parametric tests were required since descriptive statistics and the Kolmogorov–Smirnov tests for normality revealed that the data was not normally distributed at a level of significance where p < 0.05. Associations between AI and manual landmark detection were assessed using Wilcoxon Rank Sum Test (to compare AI to operator group), Spearman’s Correlation (to compare findings at each delineated landmark), and Bartlett’s Test (to test differences between variances of both AI and operators).

Signed informed consent for use of medical records for teaching and research purposes was obtained for each subject prior to inclusion and as a standard procedure in agreeing to undergo treatment in the university postgraduate orthodontic clinic. Ethics committee approval was sought but deemed unnecessary.

3. Results

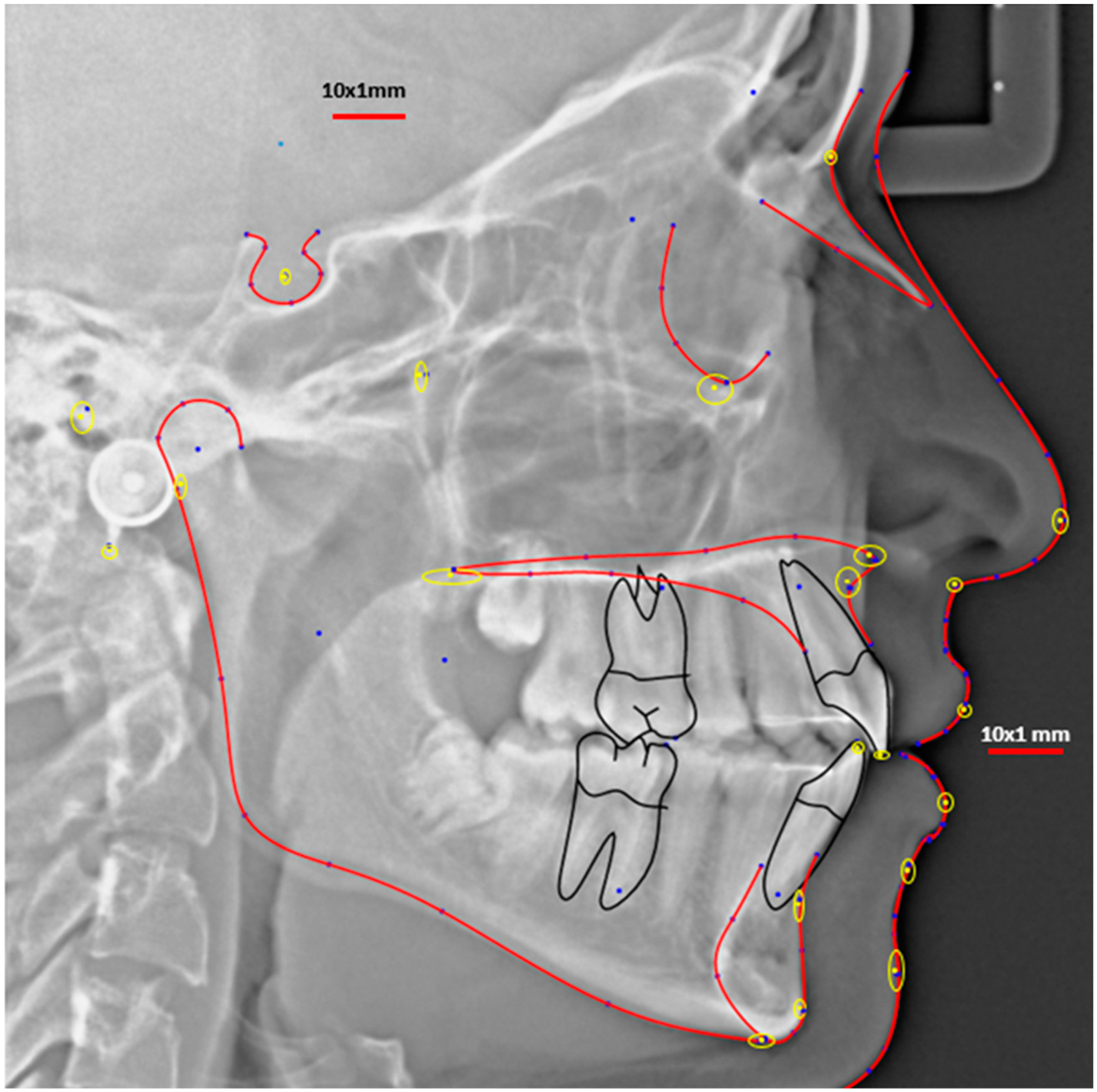

A customized (human) operator in situ scattergram showing the envelope of detection around each evaluated anatomical landmark depicted as yellow ovals surrounding each “averaged” landmark is shown in Figure 3. Since Algoceph^® was “taught” until target accuracy matched ground truth, the 5 trials performed for each landmark resulted in repeated single point localization (Figure 4).

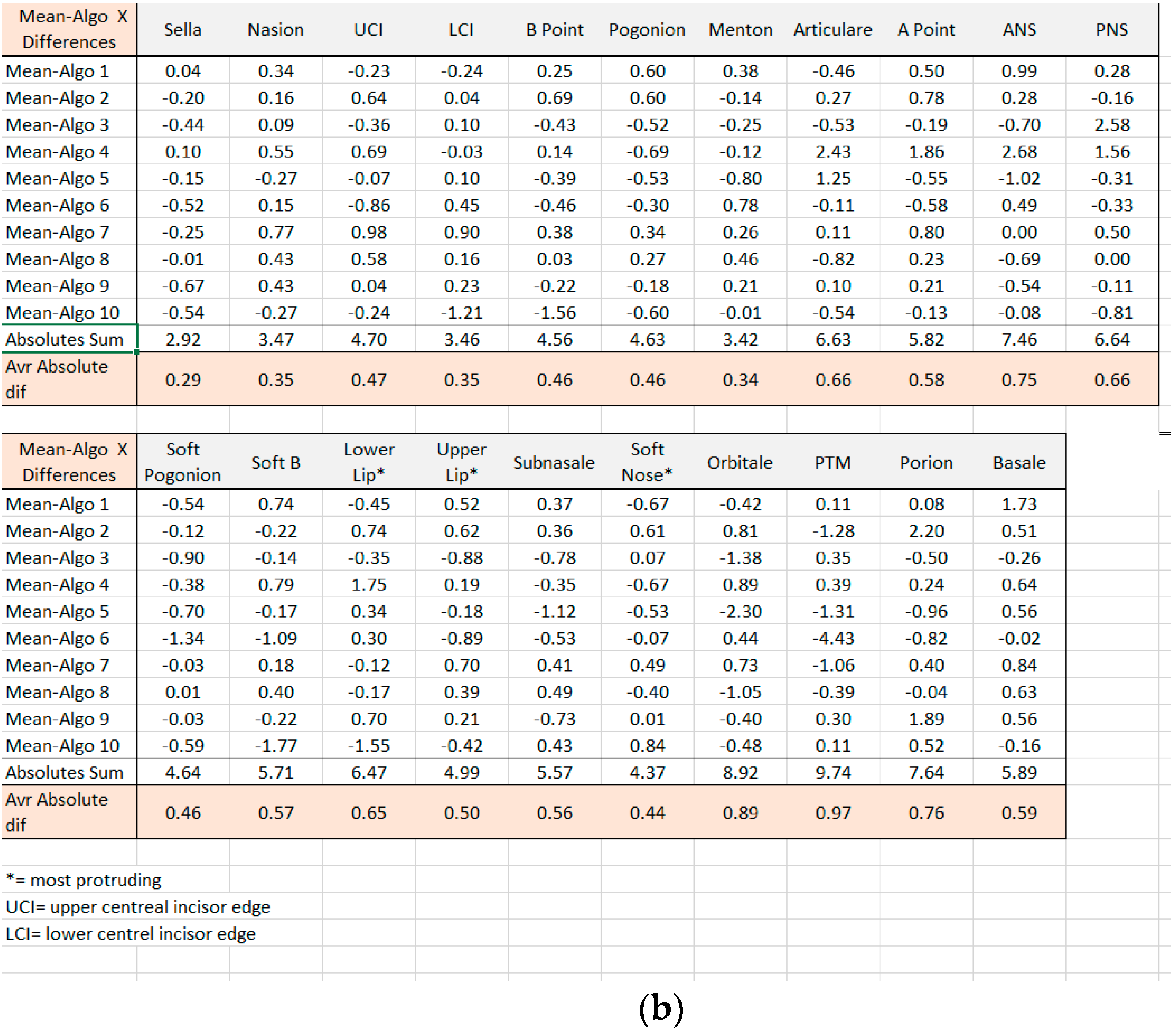

Comparison between operator (avgX, avgY) and automatic (algoX, algoY) landmark detection are shown in

Table 2. Differences and correlations between Algoceph (algoX and algoY) and the operators’ average (avgX and avgY). Note: significant differences are marked in bold, p < 0.01. ** significant Spearmen correlations. r > 0.729, p < 0.01.

Landmark X/Y Coordinate		Differences between Measurement Scores			Spearman Correlation	Mean Recognition Error
		Mean	Std. Deviation	p		Mean (mm) ± SD
1	Sella avgX	54.67	3.73	0.114	0.988 **	0.14 ± 0.39
	Sella algoX	54.81	3.74
2	Sella avgY	139.04	6.61	0.959	0.903 **	0.05 ± 1.28
	Sella algoY	138.99	6.51
3	Nasion avgX	119.94	5.75	0.285	0.952 **	0.17 ± 1.23
	Nasion algoX	119.78	6.58
4	Nasion avY	150.26	7.08	0.878	0.976 **	0.21 ± 1.27
	Nasion algoY	150.05	6.30
5	Ui avgX	125.41	4.39	0.799	0.912 **	0.17 ± 1.04
	Ui algoX	125.58	4.44
6	Ui avgY	73.52	6.92	0.721	0.988 **	0.25 ± 1.02
	Ui algoY	73.26	6.33
7	Li avgX	122.10	4.38	0.445	0.927 **	0.19 ± 1.05
	Li algoX	121.91	4.30
8	Li avgY	75.68	6.34	0.114	0.998 **	0.39 ± 0.77
	Li algoY	76.07	5.81
9	B point avgX	115.18	6.03	0.878	0.964 **	0.04 ± 1.13
	B point algoX	115.22	5.77
10	B point avgY	56.65	6.23	0.921	0.988 **	0.01 ± 0.65
	B point algoY	56.65	5.91
11	Pog avgX	116.02	7.16	0.721	0.915 **	0.11 ± 1.00
	Pog algoX	115.91	7.01
12	Pog avgY	43.80	7.38	0.657	0.988 **	1.18 ± 0.90
	Pog algoY	42.61	7.32
13	Menton avgX	109.56	7.03	0.891	0.976 **	0.07 ± 0.86
	Menton algoX	109.49	6.78
14	Menton avgY	37.95	7.75	0.721	0.998 **	0.12 ± 0.71
	Menton algoY	37.83	7.42
15	Articulare avgX	42.62	2.62	0.959	0.879 **	0.08 ± 1.11
	Articulare algoX	42.54	2.84
16	Articulare avgY	108.06	5.97	0.799	0.915 **	0.08 ± 2.29
	Articulare algoY	108.14	4.50
17	A point avgX	121.51	4.55	0.444	0.903 **	0.15 ± 1.03
	A point algoX	121.35	4.58
18	A point avgY	95.44	6.24	0.721	0.964 **	0.18 ± 1.16
	A point algoY	95.26	5.22
19	ANS avgX	125.92	4.27	0.872	0.915 **	0.88 ± 1.25
	ANS algoX	125.03	4.12
20	ANS avgY	100.68	6.58	0.884	0.988 **	0.43 ± 1.29
	ANS algoY	100.25	5.61
21	PNS avgX	75.83	4.27	0.782	0.867 **	0.13 ± 1.40
	PNS agoX	75.70	3.82
22	PNS avgY	98.51	5.29	0.918	0.976 **	0.23 ± 1.46
	PNS algoY	98.75	4.15
23	Soft pog avgX	126.92	6.66	0.086	0.964 **	0.48 ± 1.67
	Soft pog algoX	127.40	5.88
24	Soft pog avgy	44.06	6.83	0.022	0.842 **	2.67 ± 2.55
	Soft pog algoy	46.74	5.83
25	Soft b avgX	126.20	5.16	0.878	0.988 **	0.05 ± 1.25
	Soft b algoX	126.15	4.68
26	Soft b avgY	57.78	6.76	0.203	0.988 **	0.45 ± 0.98
	Soft b algoY	58.24	5.99
27	Lower lip avgX	134.90	4.40	0.959	0.891 **	0.04 ± 1.05
	Lower lip algoX	134.95	4.42
28	Lower lip avgY	68.75	7.41	0.721	0.998 **	0.03 ± 0.88
	Lower lip algoY	68.79	6.64
29	Upper lip avgX	137.73	4.58	0.169	0.939 **	0.31 ± 0.96
	Upper lip algoX	137.41	4.83
30	Upper lip avgY	82.05	7.28	0.017	0.964 **	1.11 ± 1.16
	Upper lip algoY	83.17	6.53
31	Subnasale avgX	136.32	4.44	0.541	0.915 **	0.10 ± 1.33
	Subnasale algoX	136.43	4.75
32	Subnasale avgY	96.84	7.21	0.386	0.964 **	0.35 ± 1.42
	Subnasale algoY	96.48	6.05
33	Soft nose avgX	150.25	5.35	0.381	0.976 **	0.30 ± 1.27
	Soft nose algoX	150.55	5.96
34	Soft nose avgY	108.63	8.31	0.918	0.975 **	0.01 ± 0.75
	Soft nose algoY	108.63	7.65
35	Orbitale avgX	105.67	3.90	0.037	0.976 **	1.07 ± 1.29
	Orbitale algoX	106.74	4.56
36	Orbitale avgY	123.12	6.63	0.878	0.915 **	0.16 ± 1.09
	Orbitale algoY	122.96	6.10
37	PTM avgX	70.19	4.03	0.028	0.939 **	0.99 ± 0.98
	PTM algoX	71.19	4.38
38	PTM avgY	123.11	6.27	0.241	0.927 **	0.98 ± 1.95
	PTM algoY	124.10	5.00
39	Porion avgX	32.75	2.57	0.285	0.729 **	0.64 ± 1.49
	Porion algoX	32.11	3.25
40	Porion avgY	120.08	4.38	0.036	0.830 **	1.14 ± 1.41
	Porion algoY	121.23	4.27
41	Basale avgX	35.89	3.15	0.005	0.903 **	1.03 ± 0.90
	Basale algoX	34.86	3.36
42	Basale avgY	100.71	5.18	0.959	0.976 **	0.02 ± 1.20
	Basale algoY	100.74	4.83

. All landmark identification points were found to be statistically similar except; SoftpogY, UpperlipY, OrbitaleX, PTMX, PorionY and BasaleX. For SoftpogY the difference was found to be 2.67 mm ± 2.55 mm, whereas for the remaining landmarks the mean recognition error was less than 1.5 mm. Furthermore, comparison of agreement between AI landmark detection and the x and y coordinates of each landmark as selected by the human operators found that 36 out of 42 (85.72%) of these coordinates were found to be highly correlated (r > 0.90). The aforementioned outliers were found to be moderately correlated (r = 0.729–0.891) (Table 2).

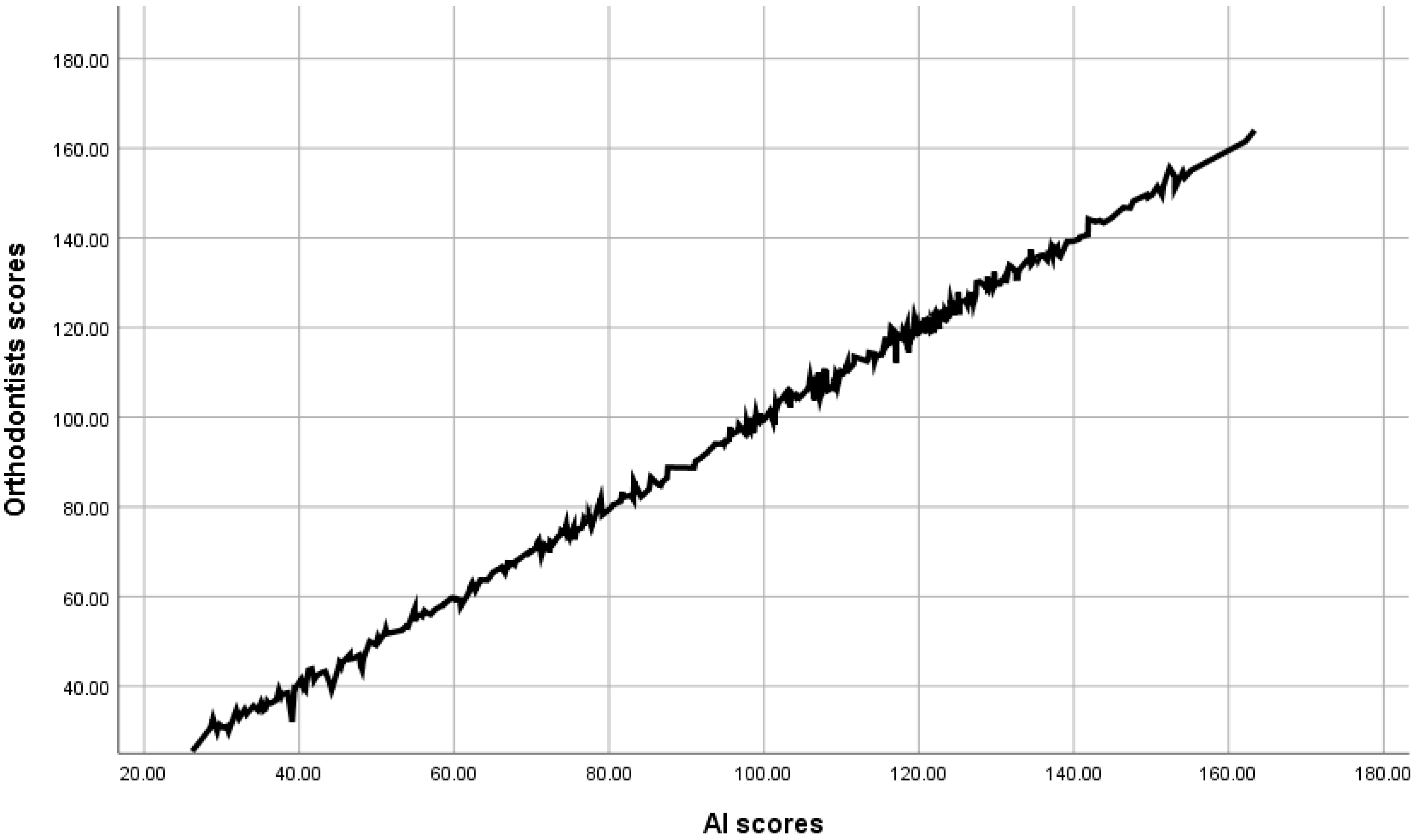

Computer aggregated correlation between AI and human observations are shown in Figure 5. It can be seen that absolute overlap between scores was found (r = 0.99, p < 0.001) (Figure 5). Bartlett’s Test to show differences in variances between AI and observers showed this to be small for both AI (χ² = 2.98, p = 0.98), and operators (χ² = 2.72, p = 0.96). These results indicate that disparity between scores for each point is similar without regard to landmark chosen or method of location (AI or operator) (Figure 6a,b).

When the 4 sub-categories of observers were compared using a Repeated Measures Analysis of Variance no significant differences in agreement in landmark localization existed for nearly all points (p ranged between 0.063 and 0.913) (Table 2). The only exceptions were found to be PNSX and SoftnoseY. When the location of these points was examined with regard to their x,y-coordinates, it was found that differences for PNSX were F(1,9) = 10.44, p = 0.01, and that first-year residents (M = 76.33, SD = 3.63) and third-year residents (M = 76.89, SD = 4.19) differed more (higher) in the vertical axes compared to specialists (M = 74.93, SD = 4.19) and technicians (M = 75.00, SD = 3.80). For Softnose Y, F(1,9) = 9.80, p = 0.01, it was found that third-year residents (M = 44.32, SD = 7.03), specialists (M = 44.52, SD = 6.56) and imaging technicians (M = 44.71, SD = 6.12) differed on the y axes (lower) compared to first-year residents (M = 42.92, SD = 6.88).

4. Discussion

The use of AI as a management tool has already found an application in orthodontic patient selection/referral within public health care systems [61]. The use of deep learning in AI as a diagnostic tool to perform cephalometric landmark identification can potentially eliminate intra/inter-observer variation as well as vastly reduce the time invested and decreased efficiency in performing this task manually [62]. In order to do so, there have been several methods of application of deep learning in landmark detection [63]. The method used in the present study is regression-based deep learning as described by Noothout et al. [64].

Yue et.al. proposed as correct/acceptable a ±2 mm differential in human versus computerized lateral cephalometric landmark identification, where if more than 20% of the total localizations were unacceptable equated as a failed comparison [43]. Based on this definition of “correct”, the purpose of the present study was to compare the identification of lateral cephalometric landmark accuracy by the latest generation of artificial intelligence to that of human observers with varied amounts of aggregated clinical experience. The amount of error in landmark identification was the difference between that produced by experienced observers and by AI.

Twenty-one cranial landmarks (Table 1) were registered according to automatic point detection (Algoceph^®). Human observer identification was plotted as an envelope surrounding the former which was taken as an origin (0,0), with each such point delineated into its x,y coordinates. It was found that in 36 out of 42 (85.7%) coordinates no statistically significant differences were found between AI and all human observers (Table 2 and Figure 6a,b).

It was found that coordinates of six anatomic landmarks showed statistically significant differences between human and automatic identification; SoftpogY, whose measurement error was clinically insignificant (2.67 mm ± 2.55), UpperlipY which was clinically acceptable (1.11 mm ± 1.16), as were OrbitaleX (1.07 mm ± 1.29), PTMX (0.99 mm ± 0.98), PorionY (1.14 mm ± 1.41), and BasaleX (1.03 mm ± 0.90). These landmarks were also previously described as highly prone to erroneous identification by Baumrind [19,20], however, the differences found in the present study were small enough to deem them diagnostically relevant (Table 2).

Adoption of digital technologies in orthodontics were initially applied to data storage and automated clear aligner production. Current efforts are to “teach” these tools to perform diagnostics and treatment planning [65]. Doing so stipulates the understanding that the reliability of any measurement derived from radiographic analysis depends on the reproducibility in the identification of defined landmarks. Factors such as the quality of the radiographs (contrast, scaling, etc.), and operator reliability have been shown to influence the magnitude of identification error. Earlier studies of the performance of AI to identify (fewer) cephalometric landmarks reported far lower levels of accuracy than those found in the present study using the CephX Algo method (

Table 3. Mean measurement error (mm) of human vs. AI from early studies.

Landmark	Liu et al. [19]	Hutton et al. [8]	Saad et al. [20]	Tanikawa et al. [21]	Rudolph et al. [7]	CephX Algo
Sella	0.94	5.5	3.24	2.1	5.06	0.148
Nasion	2.32	5.6	2.95	1.7	2.57	0.27
Orbitale	5.28	5.5	3.4	2.24	2.46	1.08
Porion	2.43	7.3	3.48	3.63	5.67	1.3
ANS	2.9	3.8	2.7	2.32	2.64	0.97
Point A	4.29	3.3	2.54	2.13	2.33	0.23
Point B	3.96	2.6	2.22	3.12	1.85	0.04
Pogonion	2.53	2.7	3.65	1.91	1.85	1.18
Menton	1.9	2.7	4.4	1.59	3.09	0.12
UI	2.36	2.9	3.65	1.78	NAD	0.3
LI	2.86	NAD	3.14	1.81	NAD	0.35

) [36,37,44,45,46]. A more recent report by Kunz et al. described findings in agreement with those of the present study [66]. Taken together; these suggest that the CephX Algo method has reduced the above sources of measurement error to the extent that its output can be accepted as diagnostically accurate.

5. Conclusions

The convolutional neural network artificial intelligence method for determining lateral cephalometric landmark identification was found to be significantly correlated to human identification of 21 lateral cephalometric radiographic anatomic landmarks. This implies that this application of AI can be used to reduce the time expenditure and human error involved in performing this task manually.
