Towards Improved Quality Control of In Situ Sea Surface Temperatures from Drifting and Moored Buoys in the NOAA iQuam System

Abstract

The NOAA in situ Sea Surface Temperature (SST) Quality Monitor (iQuam) online system collects in situ SSTs from various sources, performs quality control (QC), and provides QC’ed data to users. Like many other in situ QCs, the iQuam QC employs comparisons with Level 4 SST analysis. However, the current daily L4 analyses do not capture the diurnal cycle, nor do they resolve the fine structure of SST in dynamic areas. As a result, high-quality in situ SSTs significantly deviating from the L4 SST may be rejected. This paper discusses the new Diurnal Reference Check (DRC), which addresses overscreening for buoys whose sampling frequency is sufficient for resolving the diurnal cycle. The DRC separates records from individual buoys into 24-h segments and characterizes each segment with the median nighttime (MNT) SST and the amplitude of the diurnal signal (ADS). The segment is rejected if the ADS is unrealistically large or if the difference between the MNT and L4 SST exceeds a geographically dependent threshold. The outliers are further screened out by comparison of individual in situ SSTs with the MNT. All thresholds are determined from the analysis of matchups with reprocessed NOAA SSTs from multiple low-orbiting satellites. The satellite matchups are also used to validate the QC results. The DRC minimizes the overscreening, increases the number of high-quality in situ data by ~5%, and reduces the QC reliance on the L4 analysis. In addition, a new retrospective satellite-based quality check is introduced to identify matchups, which are most useful for training SST algorithms and validation of reprocessed satellite data.

1. Introduction

In situ sea surface temperatures (SST; see Abbreviations) measured by drifting and tropical moored (DTM) buoys are widely used in satellite remote sensing for training SST retrieval algorithms, validation of satellite retrievals, and their de-biasing before assimilation into higher-level models and analyses. In order to facilitate the use of in situ SSTs, T_IS, NOAA has established the in situ SST Quality Monitor (iQuam) system [1,2,3]. The iQuam collects in situ data from various external sources, performs quality control (QC), monitors QC’ed data online, and provides them for NOAA applications and all interested external users. Since its establishment in 2009, the iQuam has been in demand as a reliable source of quality in situ data. The iQuam QC identifies degraded SST measurements (e.g., obtained from malfunctioning sensors, corrupted during transmission to satellite and back to the ground, erroneously time stamped or geo-positioned, etc.). A common way to identify low-quality T_IS’s is to compare them with SSTs obtained from alternative sources, such as L4 analyses ‘or climatologies’ [2,4,5,6] or satellite retrievals [3,5,7,8]. In this study, we explore enhancements to the current iQuam QC aimed at improved utilization of the available reference SST information.

All current L4 analyses are daily gap-free products. They provide continuous coverage of the world ocean with a ‘reference SST’, T_L4, which allows examining deviations ΔT_L4 = T_IS − T_L4 at any location. The Reference Check (RC) is a critical part of the current iQuam QC, which identifies most low-quality T_IS’s [2,9]. The current RC in the latest iQuam v2.10 employs a Bayesian approach [10] to transform the ΔT_L4 into posterior probability of ‘gross error’ (PGE), under certain assumptions on prior distributions of ΔT_L4 and noise in T_IS. The quality level (QL) is downgraded for a specific T_IS if its PGE exceeds the predefined threshold [2]. It was recognized, however, that the efficiency of the current RC is limited due to intrinsic features of the available L4 SST analyses [5,9], which often represent the so-called ‘foundation’ SST (i.e., corresponding to depths of ~10 m, at which the diurnal warming cycle is absent [11]). Such analyses do not capture the diurnal warming at the depths of drifting (~0.2 m) and moored (~1 m) buoys, which causes overscreening in the presence of significant diurnal signal (DS) in T_IS. Intensive diurnal SST variations were observed under conditions of prolonged insolation and suppressed mixing in the ocean upper layer (typically associated with clear skies and low winds) in both satellite [12,13,14,15] and in situ [15,16,17] SSTs in various oceanic regions, from the Tropics all the way to high latitudes. Furthermore, the gridded daily L4 analyses often fail to track fine-scale spatial and rapid temporal SST variations [9], also causing overscreening, mainly in the dynamic oceanic areas, such as the Gulf Stream, Kuroshio and Agulhas currents, upwellings, downwellings, etc. In this study, we explore the new Diurnal Reference Check (DRC), which largely mitigates the overscreening problems related to both diurnal warming in T_IS and inaccurate T_L4 in the dynamic areas.

We also explore using the satellite SSTs, T_SAT, as an additional source of reference information. The advantage of satellite SSTs is that they are timelier and often more accurate than T_L4. However, the comparisons with T_SAT are only possible for T_IS measured at times and locations of satellite overpasses and under clear-sky conditions (for T_SAT obtained from IR radiometer measurements). Ideally, the QC should take advantage of comparisons with both T_L4 and T_SAT. In [3], the iQuam data were compared with satellite SSTs from NOAA-17 AVHRR and ENVISAT AATSR. However, the current iQuam QC does not use satellite SSTs routinely. During recent years, the full missions of multiple low Earth orbiting (LEO) satellite IR radiometers have been reprocessed with the NOAA Advanced Clear Sky Processor for Ocean (ACSPO) enterprise SST system [18,19,20], and multi-year data sets of satellite SSTs (ACSPO RANs) and the corresponding matchup data sets (MDS) have been accumulated for a period from September 1981–present. In this study, we explore their potential use for adjusting the DRC thresholds, validation of the QC results, and retrospective evaluation of the iQuam data.

2. Data

2.1. In Situ Data

The iQuam collects in situ SSTs from multiple types of platforms, including conventional and scientific ships, drifting buoys, tropical and coastal moored buoys, and Argo floats available from various data sources, such as ICOADS, FNMOC, CMEMS, AOML, GDACs, and IMOS. Detailed descriptions of types of platforms and sources of in situ information can be found in [2,9]. The full set of in situ data from September 1981 –present, with iQuam QLs appended, is available at [1]. The iQuam QC employs five binary checks, including the Duplicate Removal (DR), the Plausibility/Geolocation check (GC), the platform Track Check (TC), the SST Spike Check (SC), and the platform ID Check (IC) [2,9]. Two other checks, the RC and the Buddy Check (BC), employ the Bayesian method [10]. The highest iQuam QL = 5 is set when all seven checks pass. If the T_IS fails at least one of these checks, then QL = 3 or 4 are assigned. Note that the iQuam does not exclude low-quality T_IS’s from records but rather assigns those lower QLs, so users have access to these data and may explore them. This study focuses on QC’ing T_IS’s from drifters and tropical moored (DTM) buoys, which sample T_IS with frequencies sufficient for resolving the diurnal signal. Figure 1 shows that the number of DTM measurements from September 1981–December 2021 had increased by more than two orders of magnitude and, today, represents the major source of in situ data for satellite Cal/Val.

2.2. Matchups with Satellite SSTs

The matchups of T_IS (with all iQuam QLs) with clear-sky T_SAT have been accumulated during ACSPO reprocessings (RANs) of multiple LEO satellites [18,19,20].

Table 1. Satellites and instruments represented in each MDS and local equator crossing times.

Satellite, Instrument	Covered Period (DD.MM.YYYY)	Orbit
NOAA-07 AVHRR/2 (GAC)	09.01.1981–02.02.1985	Variable, p.m.
NOAA-09 AVHRR/2 (GAC)	01.31.1985–11.07.1988	Variable, p.m.
NOAA-11 AVHRR/2 (GAC)	11.08.1988–09.13.1994	Variable, p.m.
NOAA-12 AVHRR/2 (GAC)	09.16.1991–12.14.1998	Variable, p.m.
NOAA-14 AVHRR/2 (GAC)	01.19.1995–10.19.2001	Variable, a.m.
NOAA-15 AVHRR/3 (GAC)	11.01.1998–present	Variable, a.m./p.m.
NOAA-16 AVHRR/3 (GAC)	10.26.2000–09.17.2007	Variable, p.m.
NOAA-17 AVHRR/3 (GAC)	07.10.2002–03.08.2010	Variable, a.m.
NOAA-18 AVHRR/3 (GAC)	06.06.2005–present	Variable, p.m./a.m.
NOAA-19 AVHRR/3 (GAC)	02.22.2009–present	Variable, p.m./a.m.
Terra MODIS	02.25.2000–present	Stable, 10:30 a.m.
Aqua MODIS	07.04.2002–present	Stable, 1:30 p.m.
Metop-A AVHRR/3 (FRAC)	12.01.2006–11.25.2021	Stable, 9:30 a.m.
Metop-B AVHRR/3 (FRAC)	10.19.2012–present	Stable, 9:30 a.m.
Metop-C AVHRR/3 (FRAC)	12.04.2018–present	Stable, 9:30 a.m.
S-NPP VIIRS	12.01.2012–present	Stable, 1:30 p.m.
NOAA-20 VIIRS	01.05.2018–present	Stable, 1:30 p.m.

shows the periods covered by each MDS and the types of the satellites’ orbits. Altogether, these MDSs cover 42 yr+ period since September 1981. The orbits of the heritage NOAA satellites from NOAA-07 to NOAA-19 have been drifting during their missions, and their LEXT varied within wide ranges [21].

The ACSPO data files and corresponding matchups report two satellite SSTs: ‘Subskin’, produced with a global regression and highly sensitive to the temperature of the upper ~10 µm ‘skin’ layer of the ocean, and ‘Depth’, produced with a piecewise regression and representing a closer proxy of the T_IS [22]. In this study, we use matchups with the ‘Subskin’ SST, due to its higher sensitivity to the diurnal signal. (Note, however, that one should not expect full consistency between the ‘Subskin’ T_SAT and ‘bulk’ T_IS.) As discussed in Section 4, the availability of multiple MDSs, especially in the two recent decades, greatly facilitates the validation of in situ QC algorithms. Moreover, the data of multiple satellites with different LEXTs allow validation of the diurnal signal in the T_IS’s.

Note that the ACSPO MDSs report ‘one-to-many’ matchups, i.e., each T_IS is matched with all clear-sky T_SAT’s found in its neighborhood, individually. In order to reduce the number of matchups to a manageable size, we created a single matchup for each T_IS by averaging all clear-sky L2P ‘Subskin’ SSTs within ±0.5 h and ±10 km of each T_IS. Figure 1a shows the time series of monthly numbers of DTM T_IS’s (with all QLs) and monthly numbers of T_IS’s matched with T_SAT’s in at least one MDS. Figure 1b demonstrates a close consistency between the fraction of matched T_IS’s in the total monthly numbers of T_IS measurements (curve 1) and the number of satellites’ MDSs available for each month (curve 2). The fraction of matched T_IS’s increased from ~3% in the 1990s to ~27% in the 2020s due to the increased number of available satellites (from 1 to ~10) and their corresponding MDSs.

2.3. L4 Analyses

The current iQuam QC employs two T_L4’s. From September 1981–present, the NOAA Optimal Interpolation SST (OISST) [23,24] is used. Since 1 Sep 1991, the second T_L4 is obtained from the Canadian Meteorological Center (CMC) SST (the 0.2° version [25] before 1 January 2016 and the 0.1° version [26] after this date). The iQuam RC evaluates T_IS’s using a single OISST PGE before 1 September 1991 and has the option to use OISST or CMC PGEs, or their combination, after this date. In this study, we use the CMC SST as a reference since 1 September 1991. Our prior analyses suggest that it is the optimal choice for this period (note that the CMC is also employed as the first guess in ACSPO during this period [18,19,20]). Additional analyses were performed in this study to select the reference L4 SST before September 1991 from three global products currently available: OISST [23,24], Ocean SST and Sea Ice Reprocessed (OSTIA-RAN) [27,28] and the Climate Change Initiative (CCI) [29,30].

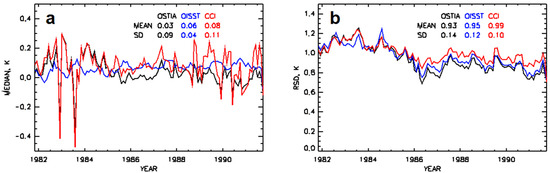

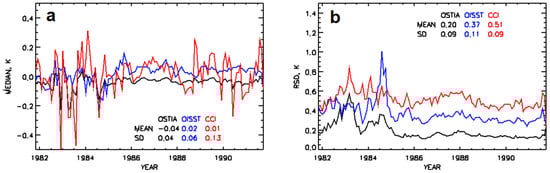

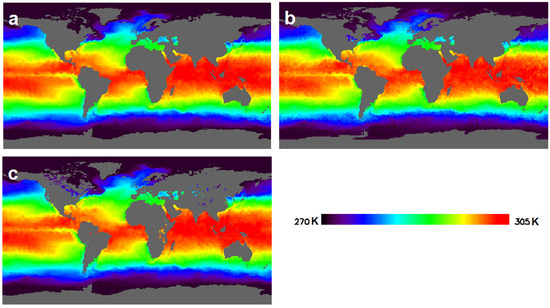

Figure 2 shows time series of monthly medians of ΔT_L4, M(ΔT_L4), and corresponding robust standard deviations (RSD), S(ΔT_L4) = 1.4826 × M(|ΔT_L4 − M(ΔT_L4)|), for the T_L4’s obtained from the three analyses.

The statistics are for the nighttime T_IS’s measured between 11 p.m. and 6 a.m. local solar time, without applying any QC. The deviations from CCI exhibit the smallest on average, but most variable in time medians, and the largest RSDs. The medians with respect to OSTIA are larger but more stable in time, with the smallest and least variable RSDs. Note that during this early period, comparisons of DTM T_IS’s with T_SAT’s are based on a small number of matchups, which is oftentimes insufficient for reliable training of the satellite SST algorithms. More efficient training requires adding less accurate but much more numerous matchups with ship SSTs (at least, for the NOAA-07/09) [19]. Figure 3 re-plots time series from Figure 2 but using T_IS’s from both ships and DTMs. As in Figure 2, the deviations from OSTIA appear lowest in terms of both average median and average RSD, and most stable and consistent in time.

Another factor in selecting L4 for use in iQuam QC is users’ interest in in situ SSTs over lakes and in coastal areas. The availability of the OISST, OSTIA, and CCI analyses in these two domains is illustrated in Figure 4 using a representative example of May 1985.

The CCI does not report temperatures over lakes. The OISST reports only Great Lakes and its coastal SSTs exhibit significantly fewer details compared with OSTIA (likely due to the 0.25° OISST vs. 0.05° OSTIA resolution).

Summarizing analyses in this section, OSTIA-RAN SST was selected as a reference for the period from September 1981–August 1991.

3. The Diurnal Reference Check (DRC)

3.1. Methodology

We formulate the DRC and adjust its thresholds using matchups with T_SAT from 2012–2018 data.

Table 2. Total number of matchups of DTM in situ with satellite ‘Subskin’ SSTs and LEXT for eight satellites in 2012–2018. The LEXT bounds for the NOAA-15/18/19 were determined from the NOAA Sensor Stability for SST (3S) system [21].

Satellite Instrument	Number of Matchups	Local Equator Crossing Time
Metop-A AVHRR FRAC	2.47 × 106	9:30 a.m.
Metop-B AVHRR FRAC	2.47 × 106	9:30 a.m.
Terra MODIS	2.46 × 106	10:30 a.m.
Aqua MODIS	2.46 × 106	1:30 p.m.
S-NPP VIIRS	2.48 × 106	1:30 p.m.
NOAA-15 AVHRR GAC	2.45 × 106	4:30–6:50 p.m.
NOAA-18 AVHRR GAC	2.45 × 106	2:30–8:20 p.m.
NOAA-19 AVHRR GAC	2.45 × 106	1:30–4:30 p.m.

lists eight MDSs available for this period, along with the number of accumulated matchups in each MDS and LEXTs for each satellite. The orbits of the satellites listed in Table 2 are different. The Metop-A/B and Terra fly mid-morning ‘am’ orbits, whereas the S-NPP, NOAA-20, and Aqua are in the afternoon ‘pm’ orbits and observe the ocean close to the peak of the SST diurnal cycle, usually occurring around 3 p.m. LST [12,17]. These five satellites are maintained in stable orbits. The orbits of the three NOAA satellites (15/18/19) drift. In 2012–2018, the NOAA-19 was close to the peak of the DC, whereas the NOAA-15/18 overpassed at times when the SST was already decreasing.

The goal of this study is to revisit the iQuam QC and improve its performance in the presence of significant DS in T_IS’s. This requires quantitative characterization of the DS in the T_IS records from individual buoys. We introduce the corresponding metrics as follows. The T_IS record from each buoy is subdivided into 24-h segments in terms of LST. Each segment is further subdivided into nighttime subsegment, which includes T_IS’s sampled between 11 p.m. and 7 a.m. LST, and daytime subsegment, with T_IS’s sampled between 8 a.m. and 8 p.m. LST. The segments in which either nighttime or daytime subsegment includes less than three T_IS samples are excluded from the analysis. In order to minimize the potential distortion of the metrics by outliers, each subset is filtered by excluding T_IS’s satisfying the condition |T_IS − M(T_IS)| > 4 × S(T_IS), where M(T_IS) is median, and S(T_IS) = 1.4826 × M(|T_IS − M(T_IS)|) is the corresponding RSD, both calculated over a given subset. After that, the following metrics are calculated:

-

Maximum SST in the daytime subsegment, T_MAX.

-

Minimum SST in the nighttime subsegment, T_MIN.

-

Median SST in the nighttime subsegment, T_NIGHT.

-

Amplitude of the DS (ADS), D = T_MAX − T_MIN if T_MAX > T_MIN; otherwise, D = 0.

The above metrics characterize each segment as a whole rather than individual T_IS counts. This allows for implementing separate checks for filtering the entire low-quality 24-h segments and individual T_IS outliers within the segments.

3.2. Setting Maximum Amplitude of the Diurnal Signal

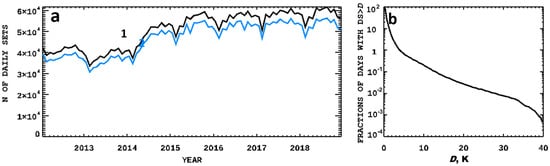

Figure 5a shows the time series of the total monthly number of 24-h segments in the T_IS records, and the total number of those segments in which the DS was identified as described above. The typical monthly fraction of segments with identifiable diurnal signal is (90 ± 3)%. Figure 5b shows the fraction of segments with ADS exceeding a given threshold, D. This fraction quickly decreases with increasing D. In rare extreme cases, the ADS may reach 40 K. In addition to the sensor’s malfunctioning, another possible source of unrealistically large ADS is direct solar heating of buoys’ hulls [31,32]. We establish the threshold for ‘realistic’ ADS, beyond which the DS is likely caused by extraneous factors other than variations in the water temperature, from the analysis of statistics of T_SAT vs. T_IS within the MDSs listed in Table 2.

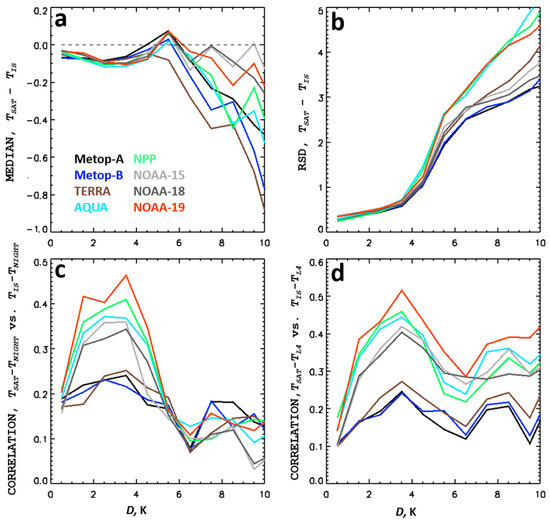

Figure 6a shows the median M(T_SAT − T_IS) computed over segments with ADS corresponding to the D ± 0.5 K bins as a function of D. For all satellites, the M(T_SAT − T_IS) is close to 0 K in the first D bin centered at 0.5 K, because the regression coefficients of the ACSPO SST equations were trained against T_IS with iQuam QL = 5, which rejects those T_IS counts that are significantly affected by the diurnal warming. Within a range of 0.5 K < D < 5.5 K, the medians vary from −0.05 K to 0.15 K, and then at D > 5.5 K, they drop to essentially negative values due to increased fractions of segments with the ADSs caused by the extraneous factors.

Figure 6b shows the RSDs, S(T_SAT − T_IS), as a function of D. The RSDs are consistent across all satellites for Ds < ~3.5 K, gradually increasing to ~0.6 K. At D > 3.5 K, the RSDs grow at a faster rate. The largest RSDs correspond to the ‘pm’ satellites (S-NPP, Aqua, and NOAA-19), which observe the ocean at times close to the peak of the SST diurnal cycle, whereas the ‘am’ satellites (Metop-A/B) exhibit the lowest RSDs.

Figure 6c shows the correlation coefficients C_NIGHT of T_SAT − T_NIGHT versus T_IS − T_NIGHT, calculated within the same D bins. The C_NIGHT for Aqua, NPP, and NOAA-15/18/19 satellites show pronounced maxima at D = 3.5 K, followed by a sharp decline at D = 5.5 K. For the ‘am’ satellites Metop-A/B and Terra, the C_NIGHTs are relatively small and do not show distinct maxima. This is because significant ‘realistic’ ADSs, with D < 5.5 K, most often occur near the peak of the diurnal cycle, whereas in the morning or evening, such ADSs are mostly caused by factors other than variations in the water temperature.

Considering that at D > ~5.5 K, the medians M(T_SAT − T_IS) in Figure 6a start decreasing, and the correlations C_NIGHT in Figure 6c converge for all satellites, we adopt 5 K as the upper threshold for realistic ADSs for the water temperature at the buoys’ depth. Figure 5b shows that this threshold rejects approximately 0.7% of all segments with identifiable DS.

Figure 6d shows the correlations C_L4 of T_SAT − T_L4 and T_IS − T_L4. For S-NPP, Aqua, and NOAA-15/18/19 at D > 2.5 K, they are higher than the corresponding C_NIGHTs in Figure 6c and remain relatively high at D > 5.5 K because the deviations of T_SAT − T_L4 and T_IS − T_L4 are both affected by the same variations in T_L4. This raises a question of the quality of the reference SST in the presence of significant DS in the buoys’ records. Remember that the ‘foundation’ L4 analyses are not intended to reproduce the diurnal warming cycle. In particular, the CMC does not assimilate SSTs sampled during the day under wind speeds < 6 m/s between 25° S and 25° N or elsewhere within 45 days of the summer solstice [25,26]. It is instructive, therefore, to explore the quality of the T_IS − T_L4 statistics in the presence of diurnal SST variations.

3.3. Quality of the L4 SST in the Presence of Diurnal SST Variations

Figure 7 shows the statistics of T_NIGHT − T_L4, T_MAX − T_L4, and T_MIN − T_L4, averaged over the daily segments with ADS falling within D ± 0.25 K bins in 2012–2018, as a function of D. Figure 7b,c show the corresponding statistics for T_MAX − T_NIGHT and T_MIN − T_NIGHT.

In Figure 7a, the median, M(T_NIGHT − T_L4), is as small as 0.01 K, and the RSD, S(T_NIGHT − T_L4) = 0.2 K within the range 0 K ≤ D ≤ 0.5 K. This indicates a close consistency between the T_NIGHT and T_L4, when the diurnal warming is limited. However, when D grows, the M(T_NIGHT − T_L4) decreases and the S(T_NIGHT − T_L4) increases. One concludes that in the presence of the DS, the CMC SST becomes less consistent with the nighttime SSTs and less stable, likely due to residual diurnal variations in the assimilated daytime SSTs.

In Figure 7b, the two medians, M(T_MIN − T_NIGHT) and, more so, M(T_MIN − T_L4), are both negative and decrease when D increases. This suggests a direct link between larger ADS and more intensive nighttime cooling of the ocean at the buoys’ depth. The deviations of T_MAX and T_MIN from T_L4 are colder than the corresponding deviations from T_NIGHT, consistent with curve 1 in Figure 7a. In Figure 7c, all four RSDs, S(T_MAX − T_L4), S(T_MIN − T_L4), S(T_MAX − T_NIGHT), and S(T_MIN − T_NIGHT), increase with D. However, the S(T_MAX − T_NIGHT) and S(T_MIN − T_NIGHT) are much smaller than the S(T_MAX − T_L4) and S(T_MIN − T_L4). Considering that variations of T_IS − T_NIGHT are less dependent on the ADS compared to T_IS − T_L4, we conclude that the comparison of T_IS with T_NIGHT provides a more stable screening of individual T_IS outliers than the comparison of T_IS with T_L4.

3.4. Checking Daily Segments for Systematic Errors

To check daily segments for systematic errors, we compare T_NIGHT with T_L4. This is a more adequate use of the ‘foundation’ T_L4 than comparing each individual T_IS with T_L4 (as it is done e.g. in the current iQuam QC). The threshold for this comparison accounts for the geographical variability of the T_L4 uncertainty. Specifically, this threshold is set to be proportional to the spatial standard deviation (SD) of the analysis SST within the 5° × 5° neighborhood of each grid node over each month. The estimates of the T_L4 uncertainty, S_L4, are obtained for any location by interpolating the gridded monthly SDs.

The condition for comparing T_NIGHT versus T_L4 takes the following form:

γ₁S_L4 < T_NIGHT − d(D) − T_L4 < γ₂S_L4

(1)

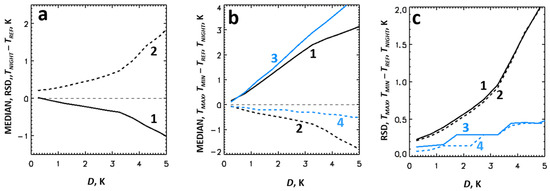

The function d(D) accounts for the dependency of M(T_NIGHT − T_L4) on D_, corresponding to curve 1 in Figure 7, and the S_L4 is a function of geographical coordinates. The coefficients γ₁ and γ₂ are selected based on the analysis of T_SAT − T_IS statistics over 2012–2018 and all matchups, both nighttime and daytime, from the MDS listed in Table 2. Figure 8 shows these statistics as a function of γ:

γ = (T_NIGHT − d(D) − T_L4)/S_L4

(2)

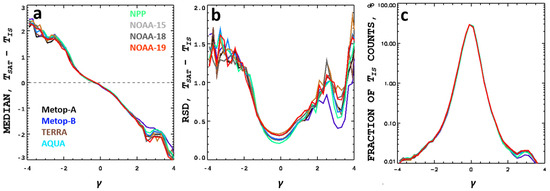

In Figure 8a, the medians M(T_SAT − T_IS) depend on γ, and their shapes are similar for all satellites. This confirms a direct link between the γ and systematic errors in T_IS. Based on the dependencies in Figure 8a, we select γ₁ = −1.7 and γ₂ = 1.5, which corresponds to the ±1 K limits for M(T_SAT − T_IS). Figure 8b shows the RSDs, S(T_SAT − T_IS) as functions of γ. The selected values of γ₁ and γ₂ correspond to the RSDs of ~ 1 K at γ₁ = −1.7 and ~0.6 K at γ₂ = 1.5. Figure 8c shows the fractions of T_IS’s in all daily segments as a function of γ. The above selection of γ₁ and γ₂ results in rejecting ~0.25% of T_IS’s belonging to the segments with γ < γ₁ and ~0.2% of T_IS’s in the segments with γ > γ₂.

3.5. Formulation of the DRC

In summary, the Diurnal Reference Check is formulated as follows.

Each daily segment is checked with the following conditions:

D < 5 K

(3)

T_L4 − 1.7S_L4 < T_NIGHT − d(D) < T_L4 + 1.5S_L4

(4)

If at least one of the two conditions (3) or (4) is not met, the whole segment is rejected. If conditions (3) and (4) are both satisfied, then individual T_IS’s within a given segment are checked for outliers with the following condition:

a(D) − αb(D) < T_IS − T_NIGHT < f(D) + αc(D)

(5)

In (5), a(D) and f(D) are functions of D corresponding to curves 4 and 3 in Figure 7b; b(D) and c(D) are functions of D corresponding to curves 4 and 3 in Figure 7c; and α = 2 is an empirical coefficient. The T_IS is rejected if the condition (5) is not met.

4. Results

This section validates the newly proposed DRC check.

4.1. Examples of Filtering Data of Individual Buoys

We reprocessed iQuam data from DTM buoys for 1981–2021 with the experimental set of QC checks (EXP QC). In addition to the DRC, the EXP QC retained the five current binary iQuam checks (DR, GC, TC, SC, and IC). The Buddy Check was not included in the EXP QC because its effect was found to be insignificant. The highest QL = 5 was assigned in EXP QC to T_IS’s that pass all six checks. Figure 9, Figure 10, Figure 11 and Figure 12 compare the results of processing selected drifters’ records with the current iQuam v2.10 QC and the EXP QC. The matching T_SAT were selected from the MDS listed in Table 2. If matchups for the specific T_IS are found in more than one MDS, then the median of all matching T_SAT is taken as a single matchup.

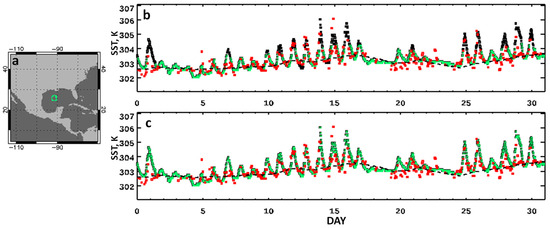

Figure 9 shows the results of QC’ed T_IS for the drifter 4201591 in the Gulf of Mexico in July 2018. Significant ADSs up to 5 K were observed over 19 days, and consistent diurnal variations are seen in T_SAT. The current QC cuts off the peak values of daytime T_IS’s (cf. Figure 9b), whereas the EXP QC preserves the full DS (Figure 9c).

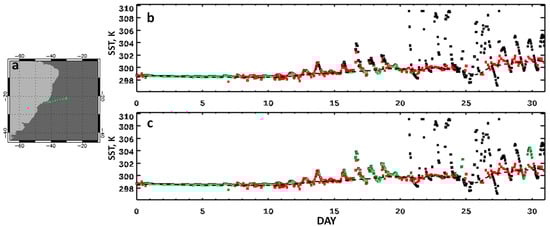

Figure 10 shows the SST record for the drifter 1500607 in the Atlantic Ocean near Brazil in December 2018. During the second decade of the month, the T_IS showed ADSs from 1–5 K and consistent diurnal variations in T_SAT. In the third decade, the ADSs increased to ~10 K, but the T_SAT did not show such diurnal variations. This suggests that these large ADSs in T_IS were caused by extraneous factors rather than variations in the water temperature. In Figure 10b, the current iQuam RC rejects all significant deviations from T_L4 after December 10. In Figure 10c, the EXP QC preserves the diurnal T_IS variations from 10–20 December, consistent with T_SAT, but rejects the daily segments with unrealistic ADSs from 20–30 December. Note, however, that the EXP QC also preserves the DS on 29 December, when its amplitude is less than 5 K, despite its inconsistency with T_SAT. This may suggest the need for a more conservative threshold for the ADS in the coastal zones. Such refinements will be explored in the future.

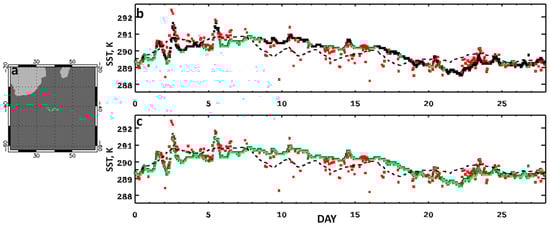

Figure 11 shows T_IS from buoy 3300688 in the Agulhas current in February 2017. The current QC rejects a significant number of T_IS’s (which note are reasonably consistent with T_SAT; Figure 11b). Significant deviations of T_IS from T_L4 are due to the diurnal warming (on days 2, 3, 6, 14, 20, and 24) and inaccurate T_L4 (typical for a dynamic zone). In contrast, the EXP QC preserves the whole record (cf. Figure 11c), thanks to the ADS-dependent thresholds for T_IS − T_NIGHT and adequately liberal thresholds for T_NIGHT − T_L4.

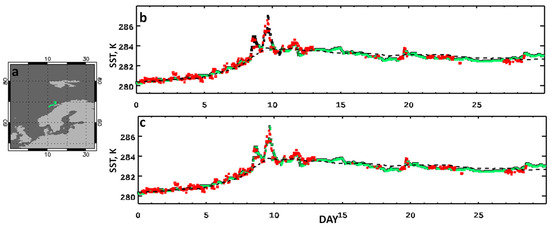

Lastly, Figure 12 shows the T_IS for buoy 6500599 near the Norwegian coast in June 2017. Significant diurnal variations in T_IS, consistent with T_SAT, occurred on 8–9 June. The possibility of large diurnal SST variations in the high latitudes was discussed in [14,15]. The current RC rejects daytime T_IS due to significant deviations from T_L4 (Figure 12b), whereas the EXP QC fully preserves the DS in T_IS (Figure 12c).

4.2. The Impact of the QC on Temporal and Spatial Variability of In Situ SST

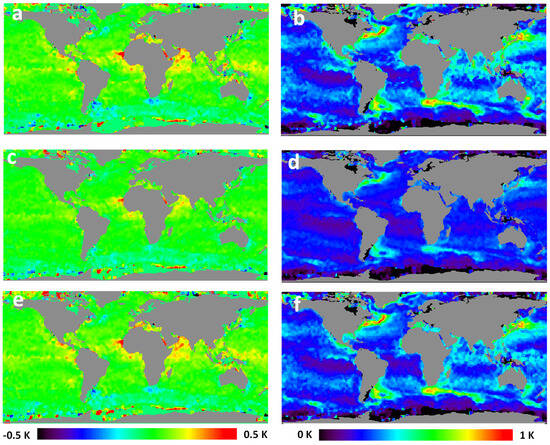

Figure 13 illustrates the impact of the QC on spatial and temporal variability of high-quality ΔT_L4. Figure 13a,b show the composite maps of bias and SD of ΔT_L4 produced from DTM T_IS counts sampled between 8 a.m. and 8 p.m. LST and averaged over 2012–2018 without preliminary QC. Figure 13c,d show the same statistics produced from T_IS of QL = 5 by the iQuam QC.

The current iQuam QC suppresses the original spatial and temporal variability of ΔT_L4. Figure 13e,f show the maps of similar statistics for ΔT_IS of QL = 5 processed with the QC EXP. These maps are much closer to those shown in Figure 13a,b. We conclude that the QC EXP better preserves the original variability of ΔT_L4.

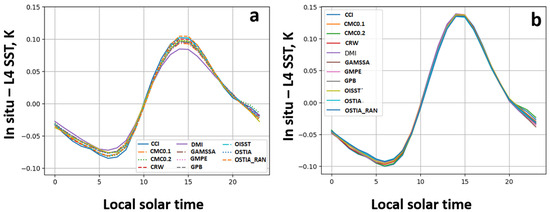

As shown in Figure 7a, the negative difference T_NIGHT − T_L4 increases and becomes less stable with increased ADS. Recall the CMC SST is largely produced from nighttime SSTs, with a small fraction of those daytime data deemed least affected by the diurnal warming. Given that the criteria for assimilating in situ and satellite SSTs are different in different L4 analyses, it is instructive to estimate the global diurnal cycle in ΔT_L4’s produced by subtracting different analyses from T_IS’s. Figure 14a shows such global mean diurnal cycles produced from T_IS with QL = 5 determined by the current iQuam QC for eleven L4 analyses listed in

Table 3. The L4 SST products used in comparison of diurnal signals and periods of their averaging. All links accessed on 22 August 2023.

L4 Analysis	Access	Period of Averaging (DD.MM.YYYY)
CCI	https://catalogue.ceda.ac.uk/uuid/aced40d7cb964f23a0fd3e85772f2d48	01.09.1981–31.12.2016
CMC0.2	https://podaac.jpl.nasa.gov/dataset/CMC0.2deg−CMC-L4-GLOB-v2.0	01.09.1991–31.12.2015
CMC0.1	https://podaac.jpl.nasa.gov/dataset/CMC0.1deg-CMC-L4-GLOB-v3.0	01.01.2016–31.12.2021
CRW	https://coralreefwatch.noaa.gov/product/5km/index.php#data_access	01.01.1985–31.12.2021
DMI	https://podaac.jpl.nasa.gov/dataset/DMI_OI-DMI-L4-GLOB-v1.0	30.04.2013–31.12.2021
GAMSSA	https://doi.org/10.5067/GHGAM-4FA1A	23.07.2008–31.12.2021
GMPE	http://ghrsst-pp.metoffice.gov.uk/ostia-website/gmpe-monitoring.html	17.09.2009–31.12.2021
GPB	https://coastwatch.noaa.gov/cwn/products/noaa-geo-polar-blended-global-sea-surface-temperature-analysis-level-4.html	02.06.2014–31.12.2021
OISST	https://psl.noaa.gov/data/gridded/data.noaa.oisst.v2.highres.html	01.09.1981–31.12.2021
OSTIA	https://podaac.jpl.nasa.gov/dataset/OSTIA-UKMO-L4-GLOB-v2.0	31.12.2006–31.12.2021
OSTIA-RAN	https://doi.org/10.48670/moi-00168	01.10.1981–31.12.2021

. The averaging periods for each ΔT_L4 are listed in the right column. Note that all curves are normalized at zero (i.e., L4-specific global biases subtracted from all curves to center them all at 0 K). The mean ADS in ΔT_L4 is ~0.17 K, with maxima and minima varying within ~0.03 K between different L4s. Figure 14b re-plots the same diurnal cycle but now produced from T_IS with the EXP QL = 5. The EXP QC increases global mean ADSs to ~0.23 K, ~35% larger than with the current iQuam QC, and mitigates the differences between various L4 analyses. One concludes that the EXP QC better preserves the diurnal variability in the T_IS, mitigates the excessive forcing of QL = 5 T_IS’s to the specific L4 analysis, and reconciles the DSs produced with different L4 analyses.

4.3. Time Series of Statistics of T_IS vs. T_SAT and Satellite-Based Retrospective QC

This section compares the statistics of T_IS with QL = 5 vs. T_SAT for 1981–2021 produced with the current iQuam and the EXP QCs. The T_SAT’s are obtained from all MDSs available for each period. As mentioned in Section 3.1, if matchups for a given T_IS are found in several MDSs, then the median of all matching T_SAT is taken as a single matchup. We also explore the potential of introducing an additional satellite-based QL (SAT QC), which is assigned to T_IS counts of QL = 5 by EXP QC, matching T_SAT and satisfying the following condition:

|(T_IS − T_SAT − µ)| < 3σ

(6)

Here, µ and σ are the mean and SD of T_IS − T_SAT averaged over a full monthly set of matchups with QL = 5 as determined by the EXP QC. The fractions of matchups satisfying condition (6) in the monthly sets of matchups range from 98.7% to 99%. The time series of monthly statistics of T_IS vs. T_SAT for 1981–2021 are shown in Figure 15.

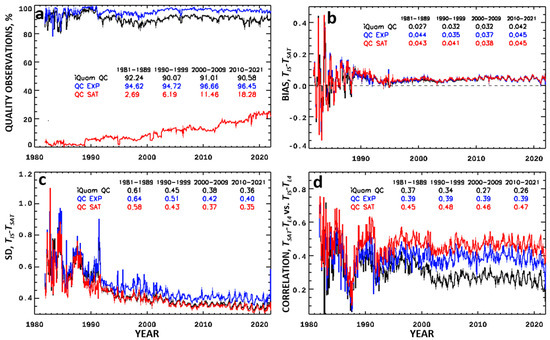

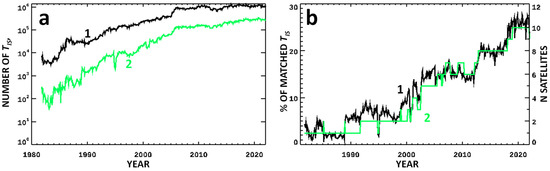

Figure 15a shows a time series of fractions of QL = 5 T_IS identified by the current iQuam QC, EXP QC, and SAT QC. The EXP QC performs more liberal screening than the current QC, producing 2.5% more quality T_IS’s counts in 1981–1989 and 6–7% more counts in the later years. The fraction of matchups passing the SAT QC increases over the years consistently with the numbers of available satellite MDSs (cf. time series of monthly fractions of matched T_IS before the QC and the numbers of available MDSs in Figure 1b), reaching ~18–20% in 2010–2021 and ~25% in 2020–2021.

In Figure 15b, the time series of ΔT_SAT = T_IS − T_SAT produced by current, EXP, and SAT QCs are very similar. However, the biases for the EXP QC are somewhat warmer, due to better preserving the daytime T_IS’s affected by the diurnal warming.

Figure 15c shows the time series of SDs of ΔT_SAT for the three QCs. The EXP QC produces larger SDs than the current QC. The SAT QC reduces SDs below the current QC levels by rejecting a small number of outliers in ΔT_SAT. Note that the removal of outliers by SAT QC does not suppress the DS in the T_IS, as attested by the fact that in 1990–2021, the SAT QC produced biases comparable with or warmer than those produced by the EXP QC (cf. Figure 15b). Note that the SAT QC eliminated the artificial peak in SDs in 1991 due to inaccurate T_IS’s that survive both current iQuam and EXP QCs.

Large variations in biases and SDs in the 1980s are mainly due to a relatively small number of matchups (several hundred per month, according to Figure 1a). Degraded quality T_SAT caused by instrumental problems of the AVHRR/2 radiometers on the early NOAA-07/09/11 satellites also contributes, as well as training SST equations for NOAA-07/09 against the combinations of DTM and ship SSTs [19].

Figure 15d shows time series of monthly correlations between T_IS − T_L4 and T_SAT − T_L4 with T_L4 produced from the OISST [23,24]. The EXP QC increases correlation coefficients compared to the current iQuam QC due to improved preservation of the daytime T_IS’s affected by the diurnal warming and consistent with T_SAT. Rejecting additional outliers by the SAT QC increases the correlation even further.

Although the numbers of T_IS’s identified by the SAT QC are relatively small, these are the very matchups used in the Cal/Val of the satellite products listed in Table 1. Filtering outliers in the MDS with the condition (5) will facilitate the Cal/Val during subsequent reprocessings of the satellite data.

5. Conclusions

The iQuam QC, as well as other in situ QC systems, relies on comparing individual in situ SST measurements with reference SST obtained from L4 analyses. The challenge with such comparisons is that true significant deviations from reference SST, caused by diurnal warming or degraded feature resolution of the reference SST in the dynamic zones of the World Ocean, can be screened out. The Diurnal Reference Check (DRC), proposed in this study, mitigates the overscreening problem for drifting and tropical moored buoys, whose sampling frequency is sufficient for identifying and estimating the diurnal signal.

To optimize the DRC performance in the presence of a significant diurnal signal in in situ SSTs, the SST records from individual buoys were subdivided into 24-h daily segments, and each segment was characterized by the median nighttime SST and the amplitude of a diurnal signal. This allowed separate optimization of filtering individual SST outliers from filtering daily segments affected by significant systematic errors or extraneous factors, such as the overheating of the buoys’ hulls.

The main DRC features and thresholds have been determined from the analyses of the statistics of deviations of in situ SSTs from reference (L4) SST, median nighttime SSTs, and satellite ‘Subskin’ SSTs averaged over the period 2012–2018. The matchups with satellite ‘Subskin’ SST, used in this analysis, came from long-term full-mission historical reprocessings (RANs) of the data of satellite radiometers AVHRR GAC onboard NOAA-15/18/19, AVHRR FRAC onboard Metop-A/B/C, VIIRS onboard S-NPP/NOAA-20, and MODIS onboard the Terra/Aqua satellites with the NOAA ACSPO system.

Based on the analysis of the statistics of in situ SST versus ‘Subskin’ SST, the upper threshold for the amplitude of the diurnal signal in the water temperature was set at 5 K. The diurnal segments, in which the amplitudes of the diurnal signals exceed the threshold, are rejected, assuming that these unrealistic amplitudes are mainly caused by extraneous factors.

It was found that in the presence of significant diurnal signals, the statistics of deviations of in situ SST from reference SST are less stable than the corresponding statistics of deviations from median nighttime SST. Therefore, the individual in situ SSTs are checked for outliers by comparison with the median nighttime SSTs rather than reference SSTs. This stabilizes the results of screening the individual outliers.

The reference L4 SST is used in the DRC only to identify the daily sets affected by significant systematic errors (calibration trends, ‘gross’ errors, etc.) by comparison with median nighttime SST. The thresholds used in this comparison are geographically dependent, being set proportional to the local spatial/temporal variability of the reference SST estimated on a monthly basis. The coefficient of proportionality was derived from the matchups with ‘Subskin’ SST such that to limit the maximum systematic error at ±1 K.

The previous studies [5,9] suggested that the overscreening caused by comparing in situ SST with reference SST during diurnal warming events can be mitigated using models or reference SST data sets that capture the diurnal warming cycle. The DRC does not require such information because the reference SST is used only for comparison with the median nighttime SST, which, in turn, is used as a reference in filtering individual in situ SST outliers. The DRC would rather benefit from the availability of the L4 analysis derived solely from nighttime data because assimilation of daytime SSTs, even after excluding those most affected by the diurnal warming, introduces additional ‘noise’ in the deviations between the median nighttime and reference SSTs.

We compared the results of the experimental QC, which includes the DRC along with a number of the heritage iQuam QC checks, with the ones of the current iQuam QC. We further validated both QCs against satellite SSTs from available data sets of matchups for September 1981–December 2021 from several ACSPO RANs, including AVHRR GAC RAN2 from NOAA-07/09/11/12/14/15/16/17/18/19; AVHRR FRAC RAN1 from Metop-A/B/C; VIIRS RAN3 from S-NPP/NOAA-20; and MODIS RAN1 from Terra/Aqua. The simultaneous use of matchups from satellites flying in different orbits allows for validating the diurnal signals observed in in situ SSTs, as well as discriminating the ‘real’ diurnal variations in the water temperature from ‘false’ diurnal signals caused by the extraneous factors.

Compared with the current iQuam QC, the DRC better preserves true diurnal variations in in situ SST, as well as its deviations from reference SST in the dynamic zones. At the same time, it efficiently rejects unrealistically large deviations from the reference SST. As a result, the DRC minimizes suppression of spatial and temporal variability in in situ SST and reduces the dependency of the QC results on the specific L4 analysis. In particular, the DRC reconciles the estimates of the mean global diurnal cycle derived from deviations of in situ SST from different L4 analyses, and increases their amplitudes. Overall, the DRC increases the monthly numbers of quality in situ SST measurements by 4–6% and improves the correlation between deviations of satellite and in situ SSTs from reference SST at the expense of increased SDs of deviations of in situ from satellite SST.

We also explored the potential of introducing the additional, satellite-based quality level for in situ SSTs based on matching them with satellite SSTs. The exclusion of ~1% of outliers from the matchups reduces the standard deviations of in situ SSTs minus satellite SSTs below the levels typical for the current iQuam QC and significantly increases the correlation between T_IS − T_L4 and T_SAT − T_L4. The fraction of in situ measurements to which this new QL can be assigned, is relatively small in the earlier years, ranging from ~2.6% in the 1980s and increasing to 18–25% in the 2010s. However, these are the very same matchups used in Cal/Val of satellite retrievals. It is expected, therefore, that the elimination of these outliers will improve the satellite Cal/Val.

Work is underway to implement the DRC in the official future releases of the iQuam. Future work will also aim at the development of advanced QC procedures for the platforms with a relatively low temporal sampling rate (ships, Argo floats), evaluation of the effects of the new QC on the training and validation of satellite SST retrievals, and further refining the DRC parameters as needed.
