Side-Channel Power Analysis Based on SA-SVM

Abstract

Support vector machines (SVMs) have been widely used in side-channel power analysis. The selection of the penalty factor and kernel parameter heavily influences how well support vector machines work. Setting reasonable SVM hyperparameters is a key issue in side-channel power analysis. The novel side-channel power analysis method SA-SVM, which combines simulated annealing (SA) and support vector machines (SVMs) to analyze the power traces and crack the key, is proposed in this paper as a solution to this issue. This method differs from other approaches in that it integrates SA and SVMs, enabling us to more effectively explore the search space and produce superior results. In this paper, we conducted experiments on SA-SVM and SVM models from three different aspects: the selection of kernel functions, the number of parameters, and the number of eigenvalues. To compare our results with previous research, we performed experimental evaluations on open datasets. The results indicate that, compared with the SVM model, the SA-SVM model improved the accuracy by 0.25% to 3.25% and reduced the required time by 39.96% to 98.02% when the point of interest was 53, recovering the key using only three power traces. The SA-SVM model outperforms existing methods in terms of accuracy and computation time.

1. Introduction

When cryptographic algorithms are performed on electrical devices, the hardware circuit will leak out relevant physical information such as time [1], electromagnetic radiation [2], power consumption, optics [3], acoustics [4], etc. Unlike traditional cryptanalysis, side-channel analysis (SCA) avoids analyzing the cryptographic algorithm itself. SCA usually splits the master key into several subkeys, and the leaked physical information of these subkeys can be captured by the attacker. The attacker combines the relevant knowledge to recover the subkeys and eventually the master key.

Kocher et al. [5] suggested a power consumption attack for the first time in the late 1990s. It is a branch of side-channel attacks that targets devices by measuring power consumption. Kocher proposed that the classic differential power analysis (DPA) had successfully cracked the DES algorithm key. They found that there was a correlation between power consumption and data when the device was being encrypted. Additionally, the relation contains encrypted device key data that can be used to crack the key. By analyzing the power consumption of a device during encryption or decryption, it is possible to deduce the key used. In order to carry out this type of attack, a computer uses an encryption device and inputs a set of known plaintexts into the device for encryption. As the device performs encryption, an oscilloscope measures power consumption, thus obtaining power traces. Following this approach, more power analysis attack methods were developed, which can be broadly classified as profiling attacks and nonprofiling attacks. Nonprofiling attacks include mutual information analysis (MIA) [6] and collision attacks (CAs) [7], in addition to the commonly used DPA and correlation power analysis (CPA) [8]. Profiling attacks include template attacks (TAs) [9] and machine-learning-based SCA (MLSCA), such as multilayer perceptron (MLP) [10], random forests (RFs) [11,12], k-nearest neighbors (KNNs) [13], convolutional neural networks (CNNs) [14,15], and support vector machines (SVMs) [16,17,18,19,20]. Nonprofiling attacks are simple but vulnerable to environmental interference. In contrast, profiling attack techniques are more resilient to environmental noise because they require full control of a device that is identical to the target device. The attacker uses the owned device to create a side-channel leakage model based on a large number of samples, which allows for easier key cracking on the target device using this attack. Hospodar et al. [16] applied the LS-SVM model to power consumption analysis attacks for the first time. The findings demonstrated that the parameter selection of machine learning technology has a substantial effect on categorization performance. Heuser and Zohner et al. [17] extended the bit model to a Hamming weight (HW) model by assuming intermediate values to classify power consumption profiles and decreased spatial complexity, demonstrating that SVM-based attacks beat conventional template attacks in high-noise situations. HOU et al. [18] used an SVM based on wavelet kernels to recover the offset values and keys of a masked AES algorithm, showing that wavelet kernel vector machines beat Gaussian kernel vector machines. Picek and Heuser et al. [19] used the SMOTE algorithm to address the problem of unbalanced data during SVM training caused by the HW model. For feature extraction and selection of power traces, Tran et al. [20] combined variational mode decomposition with the Gram–Schmidt method to select eigenvalues. The method is capable of extracting features that retain the most important information from the power trace while reducing noise, which are then used for SVM classification. The above contributions show that SVMs outperform other MLSCA methods. However, the problem of parameter selection in SVMs still remains unsolved by their methods.

Heuristic algorithms are widely used in optimization problems. Several researchers have used heuristic algorithms for feature extraction. Wang et al. [21] proposed a framework of GA-CPA, which combined genetic algorithms (GAs) and CPA. This framework utilizes genetic algorithms to extract characteristic values, followed by a CPA attack. Wang et al. [22] described an intelligent neural network algorithm, which leverages particle swarm optimization (PSO) to detect hardware trojans. The experimental results indicate that the detection accuracy of the PSO neural network method surpasses that of conventional BP neural network methods. Several researchers have used heuristic algorithms for parameter optimization, which differs from traditional exact-solving methods in prioritizing search in the approximate solution space. Several heuristic algorithms have been studied to optimize SVM parameters, such as genetic algorithms (GAs) [23], particle swarm optimization (PSO) [24], ant colony optimization (ACO) [25], and simulated annealing (SA) [26,27]. These studies have shown improved classification accuracy compared with other methods such as grid search. The GA algorithm is close to the best solution, but it is difficult to encode the problem and then decode the solution. The PSO algorithm has fewer variables to tweak and a straightforward principle, but it has poor local search capability and insufficient search precision. The ACO method converges slowly and tends to fall into the local optimal. Moreover, ACO cannot handle continuous space optimization issues and is only suitable for discrete problems. Simulated annealing (SA) enables the discovery of maximum or minimum values by allowing for random selection of suboptimal solutions, making it easier to escape local optima.

In this study, SA and SVM methods were combined to establish an SA-SVM model, which was established and applied to the side-channel power analysis. The experiment was performed on the DPA Contest v4.1 public dataset. First, the Pearson coefficient was used to select the eigenvalues of the dataset of power traces. Then, the HW model was used as a label for the SA-SVM model. The SA-SVM model uses a certain probability of accepting negative increments to jump out of local optima and find optimal parameters more easily. We evaluated the performance of the parameters in terms of accuracy and guessing entropy. The results of the experiments show that, when compared with the grid search method, through simulated annealing, global optimization can be improved by jumping out of the local optimum.

2. Materials and Methods

2.1. Data Preprocessing

DPA Contest is a globally recognized standard competition in the field of cryptographic security, and the latest version is DPA Contest v4 [28]. Since complete encryption was not used in this experiment, DPA Contest v4.1 was selected as the dataset. We chose 1000 power traces from the DPA Contest v4.1 (DPAv4.1), with 435,000 feature values in each sample. Because the mask recovery phase was not considered in this study, we converted the dataset to an unprotected scheme with known masks. We decided to only target $H\left(k^{*}\right)$, the HW output of the first mask S-box of the first round.

$$H\left(k^{*}\right)=HW\left(Sbox\left(P_1 \oplus k^{*} \right)\oplus M_{known mask}\right)$$

(1)

where $H\in \left\{c_1,c_2,\dots ,c_C\right\},C$ is the number of classifications required. $P_1$ is the first plaintext byte and $k^{*}$ is the real subkey.

Not all power traces and encrypted data are correlated. Usually, the Pearson correlation coefficient is used to select those features that are related to encrypted data.

$$\mathrm{Pearson}\left(x,y\right)=\frac{{\sum }_{i=1}^N\left(\left(x_i-\overline{x}\right)\left(y_i-\overline{y}\right)\right)}{\sqrt{{\sum }_{i=1}^N{\left(x_i-\overline{x}\right)}^2}\sqrt{{\sum }_{i=1}^N{\left(y_i-\overline{y}\right)}^2}}$$

(2)

We computed the absolute Pearson correlation between power traces sampling points and $H\left(k^{*}\right)$. The correlation coefficient’s absolute value shows the degree of correlation, and the results are shown in Figure 1.

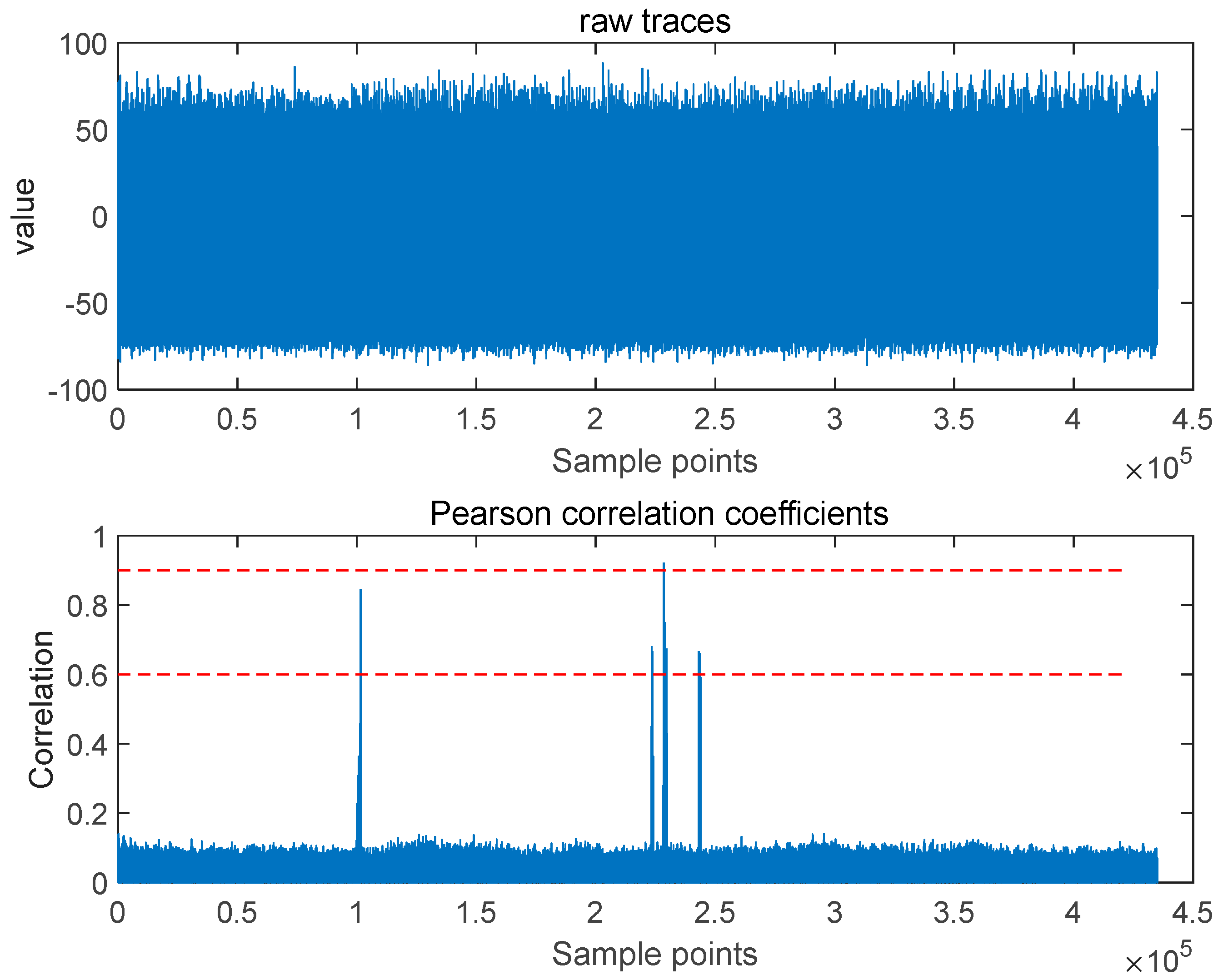

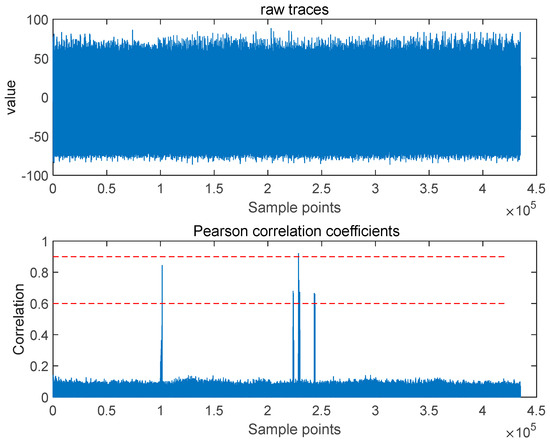

Figure 1 shows notable peaks that span from around 100,000 to between 200,000, and peaks observed at approximately 250,000 points. The points corresponding to the spikes are highly correlated with intermediate $H\left(k^{*}\right)$. Power traces of DPAv4.1 have an extremely high correlation coefficient. The peak points shown in Figure 1 are listed in

Table 1. The absolute values of correlation and their number of POIs.

Correlation (Absolute Value)	R ≥ 0.90	R ≥ 0.85	R ≥ 0.80	R ≥ 0.75	R ≥ 0.70	R ≥ 0.65	R ≥ 0.60
POIs	4	14	20	29	53	84	117

. There are 192 points of interest with absolute values of correlation coefficient larger than 0.5, and 4 points of interest with absolute values greater than 0.9. Having a fewer number of interest points (POIs) is not necessarily better. Although reducing the number of POIs speeds up computation and decreases information redundancy, it also results in the loss of useful information. Choosing the appropriate number can help us to crack the key more effectively.

2.2. Research Method

2.2.1. SVM Classifier

Vapnik et al. (1995) [29] proposed an SVM based on the VC dimensionality theory of statistical learning theory and the structural risk minimization (SRM) principle. SVM, a supervised learning machine learning method used to handle regression analysis and classification issues, sets the dataset as follows:

$$D_M=\left\{\left(X_i,y_i\right)\mid X_i\in R^n,y_i\in \left\{-1,+1\right\},i=\right.1,2,\dots ,M\}$$

(3)

where $X_i$ denotes the input sample, $n$ is the dimensionality of the input sample, and $y_i$ denotes the corresponding label of the sample. SVM’s fundamental model is a linear classifier for binary categorization issues. The idea is to map the input sample into higher-dimensional space. The distance between the two characteristics of the input sample is then optimized by establishing a maximum interval hyperplane in high-dimensional space. The larger the distance, the more effective the classification. The hyperplane is defined as follows:

$$f\left(\mathit{X}\right)={\omega }^T\Phi \left(X\right)+b$$

(4)

where $\Phi \left(X\right)$ is the nonlinear mapping function, $\omega$ denotes the weight vector, and $b$ denotes the offset vector.

$$\begin{array}{c}\underset{\omega ,b,\xi }{\min }\left(\frac{1}{2}\parallel \omega {\parallel }^2+C{\displaystyle \sum _{i=1}^n}{\xi }_i\right),\\ \mathrm{s}. \mathrm{t}. y_i\left({\omega }^T\Phi \left(X_{\mathit{i}}\right)+b\right)\ge 1-{\xi }_i,{\xi }_i\ge 0,i=1,2,3,\dots ,M\end{array}$$

(5)

where $C>0$ is a regularization parameter, also known as the penalty factor. It is used to control the degree of sample penalty. If C is too high, it will cause overlearning and affect the classifier’s generalization ability. ${\xi }_i$ denotes the relaxation factor. The Lagrange multiplier is introduced to transform the constrained problem of Equation (5) into a pairwise problem for a better solution, and the resulting equation is as follows:

$$\begin{array}{c}\hfill \underset{\alpha }{\min }\frac{1}{2}{\displaystyle \sum _{i=1}^n}{\displaystyle \sum _{j=1}^n}{\lambda }_i{\lambda }_j{y}_i{y}_j\mathit{K}\left(X_i\cdot X_j\right)-{\displaystyle \sum _{i=1}^n}{\alpha }_i,\hfill \\ \hfill \mathrm{s}.\mathrm{t}. {\displaystyle \sum _{i=1}^n}{\lambda }_i{y}_i=0,0\le {\lambda }_i\le C,i=1,2,\dots ,M\hfill \end{array}$$

(6)

where ${\lambda }_i$ is the Lagrange multiplier. $K\left(X_i,X_j\right)=\Phi {\left(X_i\right)}^{\mathrm{T}}\Phi \left(X_j\right)$ is the kernel function. Using the above formula, we can calculate $\omega ,b$ as follows:

$${\omega }^{*}={\displaystyle \sum }_{i=1}^M{\lambda }_i{y}_i\varphi \left(X_i\right)$$

(7)

$$b^{*}=y_j-\sum _{i=1}^M{\lambda }_i y_{i}K\left(X_i,X_j\right)$$

(8)

According to Equations (7) and (8), the final SVM classification decision function is obtained as follows:

$$f\left(X\right)=\mathrm{sign}\left(\sum _{i=1}^M{\lambda }_i{y}_{i}K\left(X_i,X\right)+b^{*}\right)$$

(9)

The kernel function’s purpose in training classification models for SVMs is to convert the incoming nonlinear data into high-dimensional kernel space. The kernel function, in essence, precomputes the input data in the lower dimension of this display and shows the classification impact in the upper dimension of this display. SVMs can avoid the issue of processing data in high-dimensional space by introducing suitable kernel functions.

Five kernel functions were chosen for this article, among which the Morlet–RBF kernel was applied to side-channel power analysis for the first time. The Morlet–RBF kernel creates a mixed kernel function by combining the Morlet and RBF methods. It has a good performance in the field of image processing [30]. The five proposed kernels are as follows:

The linear kernel function (linear kernel):

$$K\left(x,x^{\prime }\right)=⟨x,x^{\prime }⟩$$

(10)

The radial basis function (RBF kernel) [31]:

$$K\left(x,x^{\prime }\right)=\exp \left(-\frac{{\left|x-x^{\prime }\right|}^2}{2{\sigma }^2}\right)$$

(11)

The Morlet wavelet kernel function [32]:

$$K\left(x,x^{\prime }\right)={\displaystyle \prod }_{i=1}^{N}h\left(\frac{x_i-x_i^{\prime }}{\sigma }\right)={\displaystyle \prod }_{i=1}^N\left(\cos \left({\omega }_0\frac{x_i-x_i^{\prime }}{\sigma }\right)\exp \left(-\frac{\parallel x_i-x_i^{\prime }\parallel {}^2}{2{\sigma }^2}\right)\right)$$

(12)

The Mexican hat wavelet kernel function [33]:

$$K\left(x,x^{\prime }\right)={{\displaystyle \prod }}_{i=1}^N\left(\frac{2}{\sqrt{3}}{\pi }^{\frac{1}{4}}\left(1-\frac{{\left|x-x^{\prime }\right|}^2}{{\sigma }^2}\right)\exp \left(-\frac{{\left|x-x^{\prime }\right|}^2}{2{\sigma }^2}\right)\right)$$

(13)

The mixed kernel function of Morlet and RBF (Morlet–RBF kernel):

$$K\left(x,x^{\prime }\right)=\exp \left(-\gamma \left(2-2\left(K_{\mathrm{Morlet} }\right)\right)\right.$$

(14)

2.2.2. Simulated Annealing Algorithm

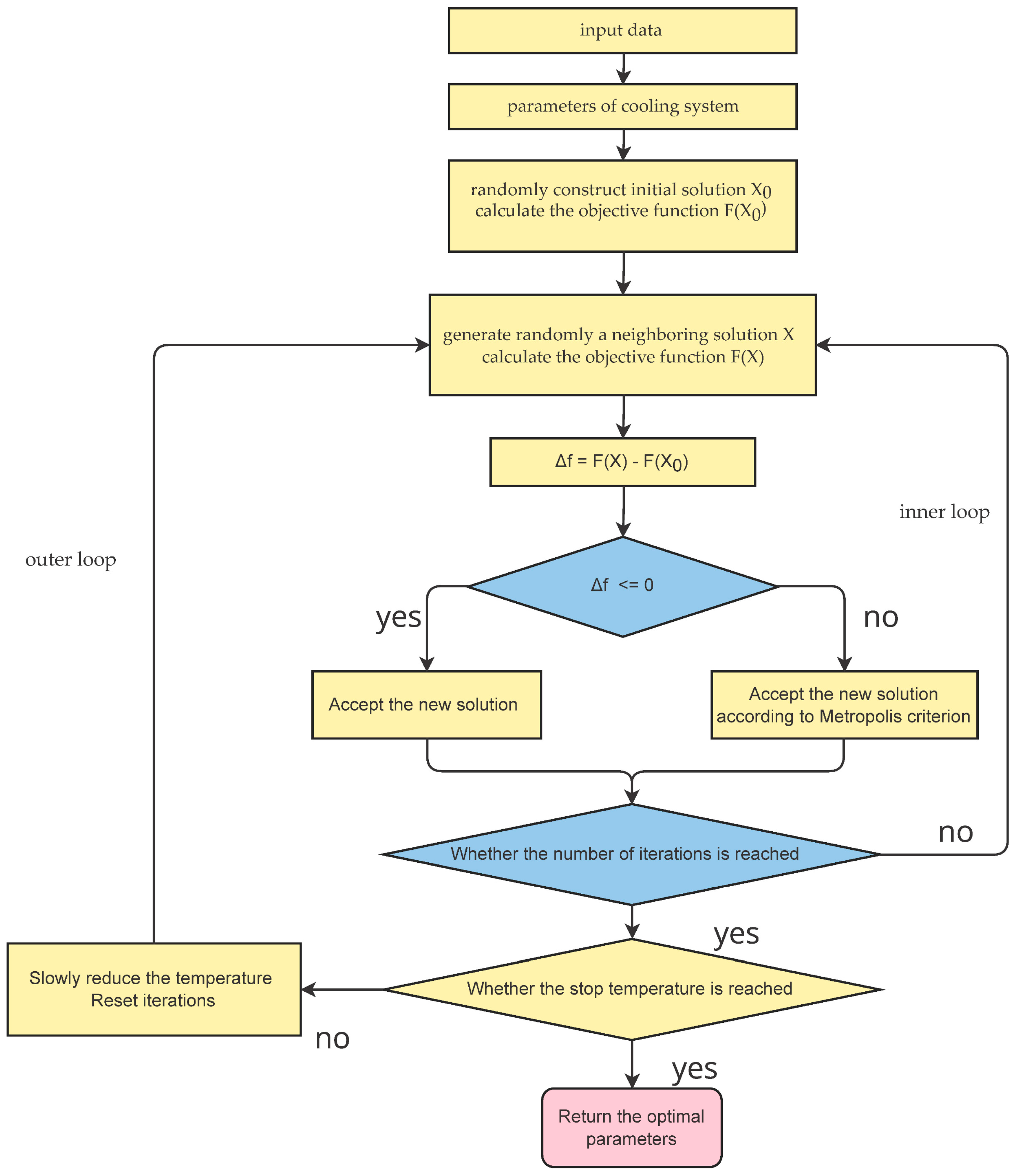

SA is a heuristic algorithm for problem solving in optimization. It enables the simulation of the annealing process in the solid by first increasing the temperature of the solid to a sufficiently high temperature and then slowly cooling it, causing the system to reach equilibrium at each temperature. This process is controlled by the parameters of the cooling system. The search process of simulated annealing introduces a random factor. As the temperature decreases, the algorithm takes on a worse solution than the current solution with a certain probability based on the Metropolis criterion, and the solution is obtained at random across the neighborhood. These probabilistic movements eventually cause the system to jump out of the local optimum and eventually converge to the global optimum, thus effectively avoiding solutions with local minima.

SA can be divided into two cycles: inner loop and outer loop. The inner loop is used to simulate multiple state transfers at the same temperature. For a temperature $T_i$, $E$ is the internal energy at that temperature, $x_{old}$ is the current state, and $x_{new}$ is the new state, which is sampled multiple times in the neighborhood. After several state transfers, the steady state at this temperature is reached. The condition for receiving new states—the Metropolis criterion—is stated as follows:

$$P\left(x_{old}\to x_{new}\right)=\left\{\begin{array}{ll}1\hfill & E\left(x_{old}\right)-E\left(x_{new}\right)>0\hfill \\ {\mathrm{e}}^{-\frac{E(\left.x_{new})-E(x_{old}\right)}{T_i}}\hfill & E\left(x_{old}\right)-E\left(x_{new}\right)⩽0\hfill \end{array}\right.$$

(15)

The outer loop is used as the algorithm termination criterion. Temperature $T_i$ is reduced using the annealing algorithm, obtaining $T_{i+1}$ < $T_i$ and $T_{i+1}$. The above process is repeated until some stopping criterion is reached. The flowchart of SA is shown in Figure 2.

2.3. Model Evaluation

The accuracy and guessing entropy [34] of the model were used in this study to evaluate its performance.

Accuracy (Acc) is the proportion of properly classified predicted results to the total samples. The probability vector is the probability of the SVM output categorization. We describe the probability vector of power traces Q as $pro{b}_i=\left[{\mathrm{p}}_{i,c_1},{\mathrm{p}}_{i,c_2},\dots ,{\mathrm{p}}_{i,c_c}\right], i=1,2,\dots ,Q$. $\widehat{H\left(k^{*}\right)}$, which is the predicted classification and is given by

$$\widehat{ H\left(k^{*}\right)}=\underset{\left\{c_1,\dots ,c_C\right\}}{\arg max} pro{b}_i$$

(16)

Accuracy is defined as follows:

$$Acc=\frac{1}{\mathrm{Q}}{\displaystyle \sum }_{i=1}^{\mathrm{Q}}\left\{\begin{array}{cc}\hfill 0& \widehat{H\left(k^{*}\right)}\ne H\left(k^{*}\right)\hfill \\ \hfill 1& \widehat{H\left(k^{*}\right)}=H\left(k^{*}\right)\hfill \end{array}\right.$$

(17)

Guessing entropy (GE) is used to determine how many power traces are required to decrypt the key. We define the vector of each guessing key $k$ as follows:

$$g_{\mathit{k}}=\log {\displaystyle \prod }_{i=1}^{N_k}\underset{\left\{c_1,\dots ,c_C\right\}}{\underbrace{ pro{b}_i}}={\displaystyle \sum }_{i=1}^{N_k}\log \underset{\left\{c_1,\dots ,c_C\right\}}{\underbrace{ pro{b}_i}}$$

(18)

where $k=1, 2, \dots , K$, $K$ denotes the key space size, and $N_k$ is the number of power traces corresponding to the guessing key. $g_{\mathit{k}}$ is used in descending order to obtain $G=\left[g\left[1\right],g\left[2\right],\cdots ,g\left[K\right]\right]$. $g\left[1\right]$ is the candidate key with the greatest probability, and $g\left[K\right]$ is the candidate key with the lowest probability. When the candidate key of $g\left[1\right]$ is the real key, the guessing entropy is considered to be zero. The fewer the necessary power traces for the recovery of a single key byte, the better the model’s performance.

3. SVM Classifier Based on SA

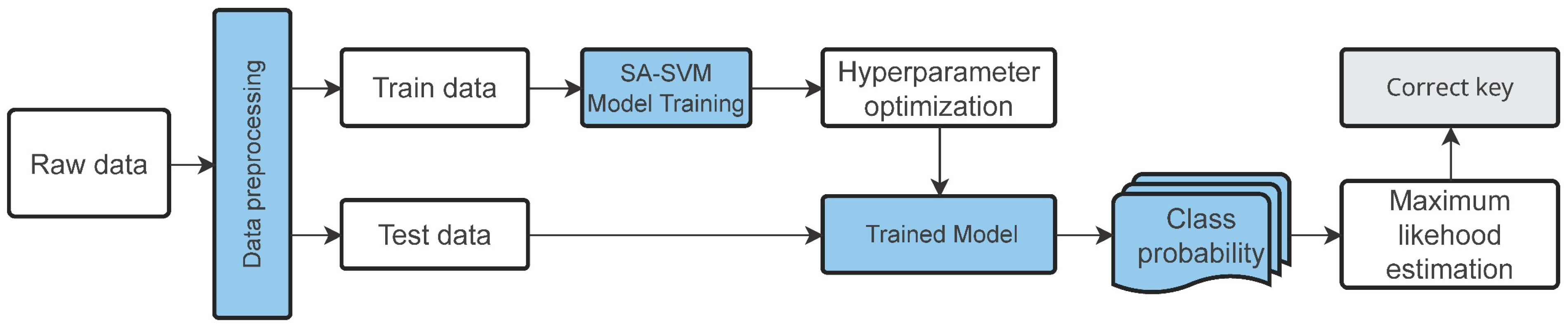

Figure 3 depicts the side-channel power attack method based on SA-SVM. DPA Contest is a globally recognized standard competition in the field of cryptographic security, and the latest version is DPA Contest v4. Since complete encryption was not used in this experiment, DPA Contest v4.1 was selected as the dataset. In the profiling phase, the original dataset is preprocessed, including labeling, feature extraction, and selection. Data processing is explained in Section 2.1. The following kernel functions were chosen for training the SVM classifier: the linear kernel, the RBF kernel, the Morlet wavelet kernel, the Mexican hat wavelet kernel, and the Morlet–RBF kernel. The SA-SVM algorithm optimizes the penalty factor and kernel parameter. The SA-SVM model is trained using the preprocessed training data in the end stage of the profiled phase to model the power consumption of attacker-owned devices. In the attack phase, the trained SVM model determines the probability of the traces for classes $c_0, \dots ,c_8$ based on the test set. Finally, for each hypothetical value, its log-likelihood is summed up, and the key is predicted.

In addition to the Morlet–RBF kernel, SA-SVM defines a set of states for the kernel, where each state includes the penalty factor $c1, c2$ and the kernel parameter $sigma1$, $sigma2$. For the Morlet–RBF kernel, a set of states includes the penalty factor $c1, c2$, and the kernel parameter $sigma1$ $sigma2,gamma1 gamma2$. The state-generating function of SA-SVM generates a set of neighbors in the search range. The discrepancy between the initial parameter value and the parameter value of its adjacent state is large at first, but it decreases as the algorithm iterates. At a certain temperature, each iteration will choose a neighbor state at random. If the selected adjacent state outperforms the current state, the state is adopted, and its parameter values ($c$ and $sigma$) are replaced with new parameter values. Otherwise, the adjacent state is adopted with a probability. (Algorithm 1 requires 12–13 lines of code.)

The user needs to customize the parameters of the cooling system, including the length of the Markov chain $L$, the attenuation coefficient $\mathsf{ɑ}$, the initial temperature, and the termination temperature ${\mathrm{T}}_0$, ${\mathrm{T}}_{end}$. The relevant settings are as follows:

(1)

Set the initial temperature ${\mathrm{T}}_0$: ${\mathrm{T}}_0$ influences the global search capability. A higher ${\mathrm{T}}_0$ results in a more powerful, albeit more time-consuming, global search ability;

(2)

Set the length of the Markov chain $L$ (internal loop): the more iterations there are at $T_i$, the more time-consuming the process becomes;

(3)

Set the temperature attenuation coefficient $\mathsf{ɑ}$ (external circulation):

• Exponential attenuation method: $T_{i+1}=\mathsf{ɑ}{T}_i$;
• Classical annealing method: $T_{i+1}=T_i/\ln \left(1+T_i\right)$;
• Fast annealing method:$T_{i+1}=T_i/\left(1+\mathsf{ɑ}{T}_i\right)$.

(4)

Set the search range for the set of states: the initial solution has no effect on the final result, and it can be chosen at random in the solution set. The solution’s search range should be reasonable in relation to the actual issue;

(5)

Set the termination condition: when the number of iterations $L$ is achieved, the inner loop is terminated. If the optimal solution obtained by consecutively cooling several times remains unchanged, or ${\mathrm{T}}_i$ drops to ${\mathrm{T}}_{end}$, the external circulation stops. The specific process of the proposed SA-SVM is presented in Algorithm 1.

Algorithm 1: Pseudocode for SA-SVM

Input: parameters of cooling system $L$,$\mathsf{ɑ}$, ${\mathrm{T}}_0$, ${\mathrm{T}}_{end}$

Input:  $c=\left[c1, c2\right]$, $sigma=\left[sigma1, sigma2\right], dataset$, $label$

Input:  $range=c2-c1, range2=sigma2-sigma1$

Output:  $c_{\mathrm{best} }$, $sigma{ }_{\mathrm{best} }$, $Ac{c}_{\mathrm{best} }$

1: $c\leftarrow {\mathrm{c}}_0=rand\left(size\left(1,1\right)\right).\ast range+c2$

2: $sigma \leftarrow sigm{a}_{0 }=rand\left(size\left(1,1\right)\right).\ast range+sigma2$

3: $Acc=SASVM \left(dataset, label,c_0,sigm{a}_0\right)$

4: $Acc \leftarrow Ac{c}_{\mathrm{best} }$

5: while ${\mathrm{T}}_i>{\mathrm{T}}_{end}$ do

6:  for $\mathrm{iteration}=1$ to $\mathrm{L}$ do

7:  //generate randomly a neighboring solution

8:   $c_{new}=c+0.1.\ast range1.\ast (rand\left(size\left(1,1\right)-0.5\right)$

9:   $sigm{a}_{new}=sigma+0.1.\ast range2.\ast (rand\left(size\left(1,1\right)-0.5\right)$

10:   $AccNew=SASVM \left(dataset, label, c_{new},sigm{a}_{new}\right)$

11:   $\mathsf{\Delta }\mathrm{f} \leftarrow \left(1-\mathrm{AccN}ew\right)-\left(1-\mathrm{Acc}\right)$ //Error as objective function

12:     if $\mathsf{\Delta }\mathrm{f}\le 0$ or random $\left(0,1\right)<\exp \left(-\frac{\mathsf{\Delta }\mathrm{f}}{\mathrm{KT}}\right)$ then

13:      $c\leftarrow {\mathrm{c}}_{\mathrm{new}}, \mathrm{s}igma \leftarrow sigm{a}_{new} ,Acc\leftarrow AccNew$

14:      $c_{\mathrm{best} }\leftarrow \mathrm{c}$, $sigma{ }_{\mathrm{best} }\leftarrow sigma$

15:      $\mathrm{iteration} \leftarrow \mathrm{iteration} +1$

16:     end if

17:    end for

18:     ${\mathrm{T}}_{i+1} \leftarrow$ ${\mathrm{T}}_i/\left(1+\mathsf{ɑ}{\mathrm{T}}_i\right)$

19: end while

20: return $c_{\mathrm{best} }$, $sigma{ }_{\mathrm{best} }$, $Ac{c}_{\mathrm{best} }$

4. Results and Analysis

In this work, the framework for conducting our attacks was supported by LIBSVM Library for SVM [35]. We ran the experiment on a laptop with Inter(R) Core (TM) i5-11320H CPU @ 3.20 GHz, 16 GB (Windows 11 x64). We implemented the experiments with Matlab2019b.

In this section, we compare the performance of the different kernel functions under the SVM model and the SA-SVM model. The SVM model uses a grid search method to find the optimal parameters. We chose 1000 power traces from DPAv4.1 for our experimental dataset. Two-thirds of them were used as the learning set, and the remaining one-third was used for the testing set. The learning set was partitioned into three equal subsets via three-fold cross-validation. We trained the model using two subsets at a time and used the remaining subset for validation, repeating this process until three subsets were used for validation. This process generated three models, and we chose the parameters of the model with the highest accuracy and evaluated its effectiveness on the testing set. The subkey at this point was 108. In addition, 4 to 117 points of interest related to leakage were used in our experiments. The proposed SA-SVM approach’s parameter values were as follows: $L$ = 100; $T_0$ = 100, $T_{\mathrm{end}}$ = 1; $c$ = [0.01,128], $sigma$ = [0.001,5], $gamma$ = [0.001,5]. Because simulated annealing is a stochastic algorithm, the solution will oscillate with each training. The SA-SVM model was used to perform five calculations on the dataset, and the best-performing one was chosen as the final result. To explore the impact of kernel functions and eigenvalues on model performance, we used accuracy, guessing entropy, and the time required as evaluation criteria.

The data in

Table 2. Testing results (accuracy) of SVM.

Kernel	Accuracy (%) of Different POIs
	4	14	20	29	53	84	117
Linear	77.00	83.75	87.00	84.75	91.25	90.00	91.00
RBF	76.50	84.00	87.25	88.50	91.00	91.75	92.00
Morlet wavelet	76.75	84.75	88.50	89.25	91.25	91.50	92.25
Mexican hat wavelet	75.75	83.75	87.75	87.75	91.75	90.25	91.25
Morlet–RBF wavelet	77.00	85.25	87.00	88.50	92.00	91.50	91.25

and

Table 3. Testing results (accuracy) of SA-SVM.

Kernel	Accuracy * (%) of Different POIs
	4	14	20	29	53	84	117
Linear	77.75	84.00	87.75	87.25	91.00	91.00	91.75
RBF	78.50	86.75	88.50	90. 05	93.75	92.00	92.75
Morlet wavelet	78.00	86.75	88.50	91.00	94.50	91.75	92.25
Mexican hat wavelet	78.00	85.25	88.25	89.25	92.75	91.25	91.25
Morlet–RBF wavelet	79.50	87.25	89.00	91.00	93.25	91.25	92.25

* The highest classification accuracy rate on SA-SVM. The total time spent includes the time for kernel processing data, training model parameters, and test set in model training. Comparing the Morlet–RBF kernel and the RBF kernel in SA-SVM, the former spends more time processing data than the latter, but the total time is less, indicating that the Morlet–RBF kernel is quicker in optimizing parameters than the RBF kernel.

range from 4 to 117 POIs for the various kernel functions. First, we can observe that all kernel functions performed well in terms of accuracy. Table 2 lists the results of the SVM model, which indicate that the greater the number of POIs, the higher the accuracy of SVM. However, after exceeding 53 POIs, the increase in accuracy slowed down. When there were 53 POIs, the Morlet–RBF kernel performed best with 92% accuracy, followed by the Mexican hat wavelet kernel with 91.75%. There was little difference in accuracy between kernel functions. Table 3 lists the results of the SA-SVM model, which indicate that the number of POIs reached its peak at 53, and accuracy began to decline after that. The Morlet wavelet had the highest accuracy at peak, 94.5%, which was 3.5% higher than when using the SVM model. The accuracy of the Morlet–RBF kernel was 1.5–2% higher than other Morlet kernels when POI was less than 29. The comparison of Table 2 and Table 3 shows that, under the same kernel, the SA-SVM model had more significant advantages in classification than the SVM model, and the accuracy increased by 0.25–3.25%. Furthermore, the wavelet kernel outperformed the ordinary RBF kernel and linear function in terms of classification accuracy.

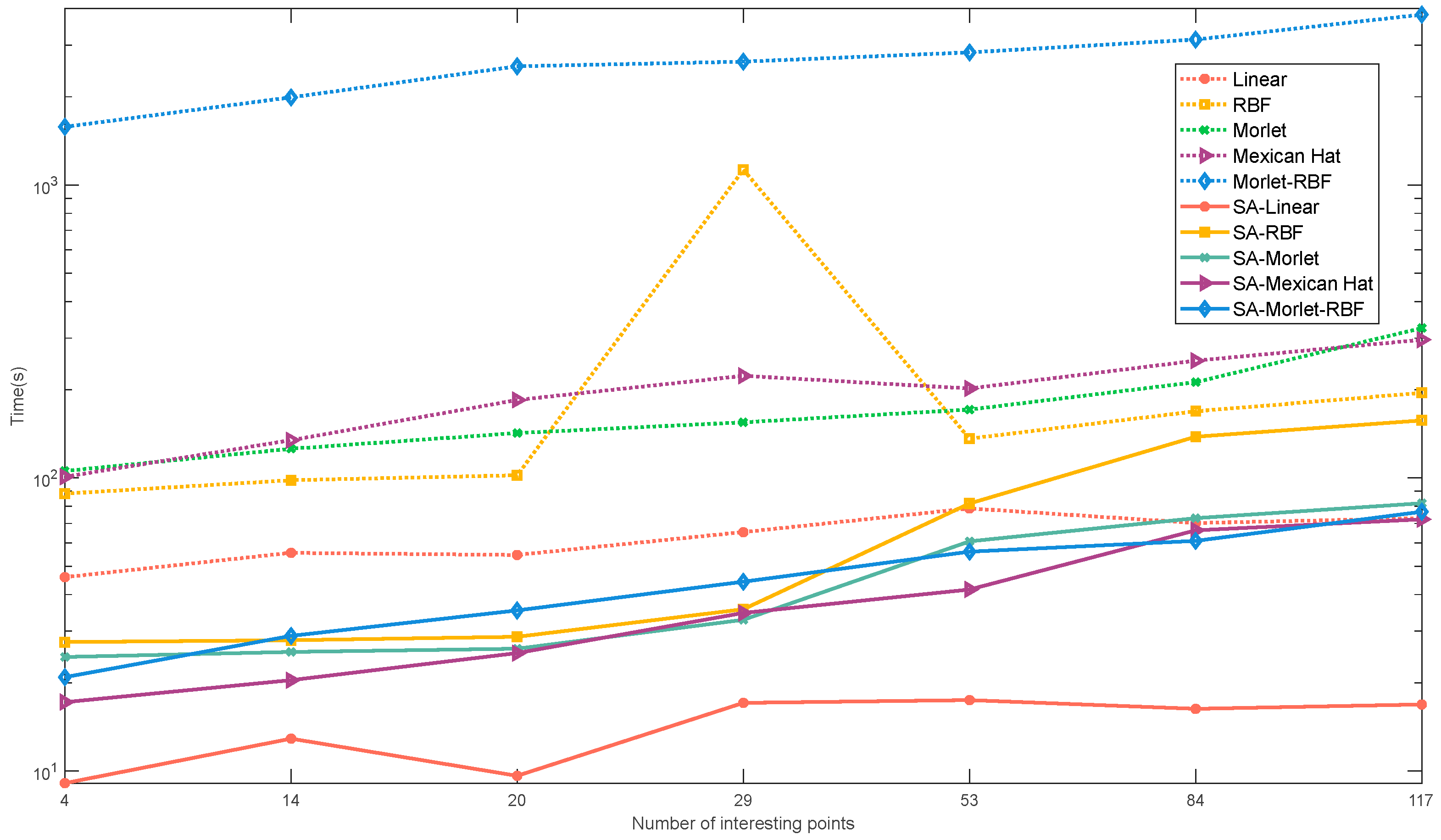

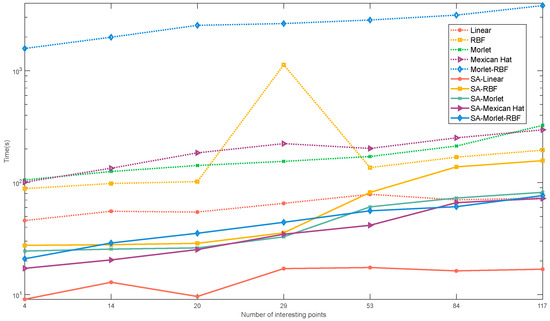

Figure 4 depicts the time taken to conduct the experiments mentioned above. The results show that as the number of POIs increased, the total time for each algorithm increased. When the number of POIs increased from 4 to 117, the time of SVM increased by 159–309%, whereas the time of SA-SVM increased by 170–862% times. When the number of POIs was fixed, for example, at 53 POIs, the least time-consuming was the linear kernel, which took 17.44 s, and the most time-consuming was RBF, which took 81.77 s for SA-SVM. For SVM, the fastest was the linear kernel with 78.69 s, while the slowest was the Morlet–RBF kernel, which took 2836.91 s. The running time of SA-SVM was 39.96–98.02% less than that of the SVM model. Additionally, the time spent by the different kernels in SA-SVM was not significantly different, whereas the time spent by the different kernels in SVM increased with the complexity of the core. This means that, while the number of POIs affects SA-SVM, the parameter search time is significantly reduced when compared to SVM.

The total time spent included the time it takes for the kernel to process data, the time it takes to train the parameters of the model, and the time it takes to test the trained model. A comparison of the Morlet–RBF kernel and the RBF kernel in SA-SVM revealed that the Morlet–RBF wavelet spent more time processing data than the RBF kernel, but the total time was less. This indicates that the Morlet–RBF kernel is faster in parameter optimization than the RBF kernel.

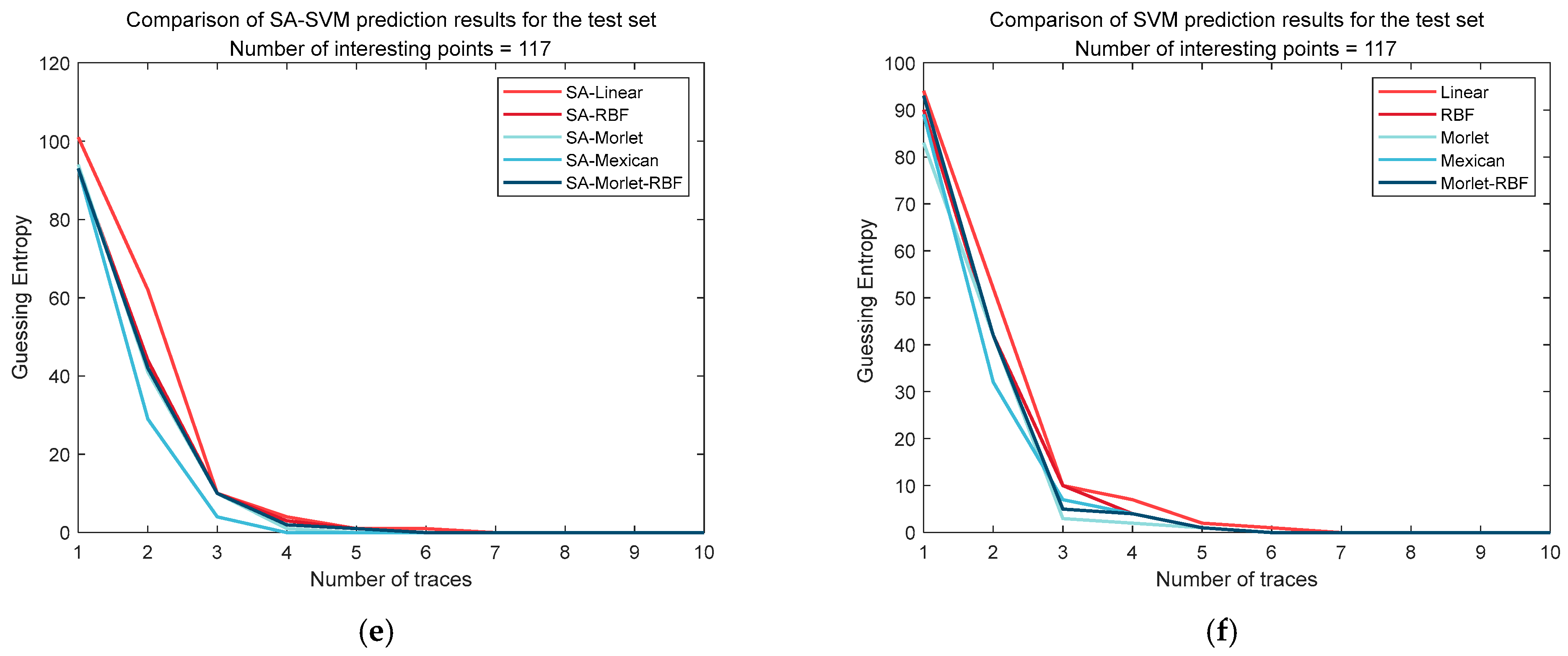

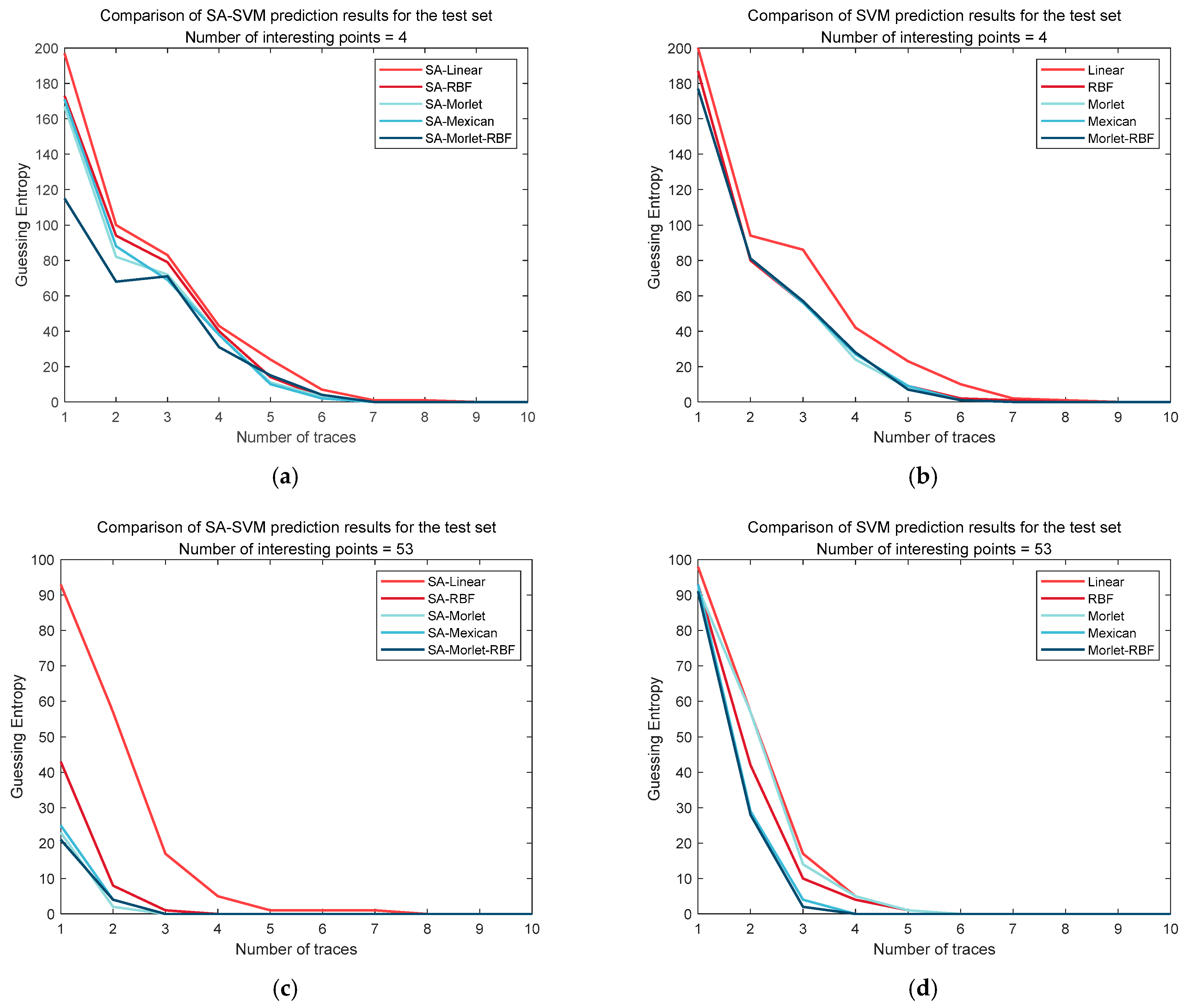

Figure 5a–f illustrate the guessing entropy results for POIs of 4, 53, and 117 when using 1000 traces in total. When there were four POIs, the kernel function required seven traces to recover the keys under SA-SVM and only six under SVM, in addition to the linear kernel. When there were 53 POIs, the wavelet kernel in the SA-SVM model only required 3 traces to recover the key, whereas the Morlet–RBF wavelet and Mexican hat wavelet kernels in the SVM model required 4 traces. The number of traces to recover the keys increased when there were 117 POIs. Under the SA-SVM model, the kernel function required at least five keys to recover, whereas it needed more than six keys to recover under the SVM model. These results show that SA-SVM slightly improved the unmasked AES algorithm’s key recovery ability. In addition, the performance of the wavelet kernel was better than that of the RBF kernel, and the performance of the linear kernel was the worst.

5. Discussion

It can be observed from Table 2 and Table 3 that the accuracy decreased when the number of interest points surpassed a certain threshold. The reason is that when the number of POIs is too large, redundant features increase data error, resulting in an ill-conditioning matrix. It is very difficult to solve the equations with an ill-conditioned matrix. For many machine learning models, the complexity sharply increases with the increase in the number of features, resulting in an increase in time and cost. In the application of these models, selecting the appropriate feature points can effectively reduce the extent of model training while increasing the classifier’s generalizability.

HOU et al. [18] compared the performance of an SVM model using an RBF kernel, a Fourier kernel, and a wavelet kernel under the same penalty factor. Although they used an SVM-based technique with a wavelet kernel for the first time in SCA, they did not compare the performance of the SVM that was based on these kernels with a model using optimal parameters. This paper provides additional evidence that the wavelet kernel indeed outperforms other kernels when SVMs are used in SCA. A question that arises is why does the Morel–RBF kernel work well with a small number of POIs? We believe that although mapping is performed twice to readily separate data in high dimensions, its effect is limited.

Table 4. Machine learning, DPAv4.1.

Ref.	MLSCA	No. of Traces	No. of POIs	Acc (%)
[14]	NB	1000	50	37.6
[14]	MLP	1000	50	44.8
[14]	XGBoost	1000	50	52.0
[14]	RF	1000	50	49.2
[14]	CNN	1000	50	60.4
[12]	RF_SMOTE	2000	-	93.0
This study	SA-SVM	1000	53	94.5

outlines the results of a comparison of the accuracy of machine learning algorithms used in the DPAv4.1 dataset. Picek et al. [15] presented the results for the DPAv4.1 dataset when considering 50 of the most important features. It can be seen that Naive Bayes, MLP, XGBoost, RF, and CNN algorithms have poor accuracy in small datasets. Duan X et al. [12] used the SMOTE algorithm to solve data imbalance issues, improving the accuracy of the RF algorithm. Table 4 shows that when the number of datasets and POIs is comparatively small, the SA-SVM model outperforms other machine learning algorithms.

As shown in Figure 3, the Morlet–RBF wavelet kernel, which required the optimization of three parameters, took significantly longer in the SVM model than in the SA-SVM model. This is because grid search is essentially a violent search. Grid search will iterate through various parameter combinations to find the best set based on the set scoring mechanism. When the number of hyperparameters increases, its computational complexity will increase exponentially. This also proves that SA-SVM has better performance in optimizing more than two parameters.

However, our method also has the following shortcomings: in this study, we only carried out experiments on a single bypass power analysis dataset, and these experiments were not extended to other datasets.

6. Conclusions

This paper presents an SA-SVM model for side-channel power analysis. The approach seeks continuous decision variables and optimizes SVM parameter values to achieve superior classification results. Experiments were conducted on DPAv4.1, testing the model under various POIs and kernel functions. Compared with the SVM grid search method, SA-SVM improved accuracy by approximately 0.25–3.25% while reducing the running time by up to 98.02%. We compared the linear, RBF, and three kinds of wavelet kernels, and it was revealed that the wavelet kernels had higher accuracy than RBF while requiring only three traces to recover the key. The combination of SA and SVM provides a new method for addressing the parameter selection challenge in side-channel power analysis.
