Uncertainty in Automated Ontology Matching: Lessons from an Empirical Evaluation

Abstract

Data integration is considered a classic research field and a pressing need within the information science community. Ontologies play a critical role in such processes by providing well-consolidated support to link and semantically integrate datasets via interoperability. This paper approaches data integration from an application perspective by looking at ontology matching techniques. As the manual matching of different sources of information becomes unrealistic once the system scales up, the automation of the matching process becomes a compelling need. Therefore, we have conducted experiments on actual non-semantically enriched relational data with the support of existing tools (pre-LLM technology) for automatic ontology matching from the scientific community. Even considering a relatively simple case study—i.e., the spatio–temporal alignment of macro indicators—outcomes clearly show significant uncertainty resulting from errors and inaccuracies along the automated matching process. More concretely, this paper aims to test on real-world data a bottom-up knowledge-building approach, discuss the lessons learned from the experimental results of the case study, and draw conclusions about uncertainty and uncertainty management in an automated ontology matching process. While the most common evaluation metrics clearly demonstrate the unreliability of fully automated matching solutions, properly designed semi-supervised approaches seem to be mature for more generalized application.

1. Introduction

Data integration, defined as “the problem of combining data residing at different sources and providing the user with a unified view of these data” [1], can be considered a well-covered research field, as the many contributions in the literature clearly confirms. Its relevance is determined by the practical implications in the different application domains, and it is well-recognized within the information science community [2]. We remark that many modern systems work at a semantic level [3], where data integration may be understood at different levels (e.g., concept [4] or multi-media [5]).

Semantic technology has been largely adopted in data integration [1], as it is definitely central to implement a more holistic approach, where data integration is considered a part of a more complex knowledge-building process. The proper adoption of semantic technology is extremely effective in supporting data integration and reuse via interoperability [6].

More in general, associating formal semantics with data is a key step in the fields of artificial intelligence and database management [2]. In addition, the analysis of semantic data can underpin sophisticated data mining techniques [7,8].

In the context of this work, knowledge building is seen as the process of combining relational data in order to create rich data spaces in which semantics are formally defined [1]. While data integration aims at establishing a common, unified view of data from different sources, the specification of formal semantics enables a further level of complexity, as the “meaning” of data is also represented in a fully machine-interpretable context.

Ontology is a classic philosophical concept that is related to the study of “the nature of being”. It has become an active part of the computer world [9], where it is a rich data model aimed at the formal specification of semantics. It supports the representation and processing of knowledge in a machine-readable format according to a model close to the human one. The adoption of ontologies allows effective solutions for knowledge building, since semantic data are enabled in the Semantic Web [10,11] and are modeled according to an advanced interoperability model, which is commonly referred to as semantic interoperability [12].

We fully rely on an ontology-based approach to support the data integration process. The benefits of ontology in different application domains are well-known and have been extensively discussed from different perspectives by several contributions [2].

An ad hoc approach to knowledge building is time-consuming, error-prone, and, in general, very expensive. Looking at the increasing complexity and scale of systems, automated and semi-automated data integration processes are becoming more and more relevant to assure effectiveness and performance on a large scale. The automation of the knowledge-building process becomes required once the target system scales up.

Ontology matching is a crucial step in the knowledge-building process. It reconciles the differences between ontologies and resolves their heterogeneity problem. A seamless and systematic knowledge-building process may only be considered adequate by assuming manual matching of concepts from the different sources of information. However, since manual matching is far from being scalable, automation becomes a compelling need. Automated ontology matching systems use a similarity computation algorithm to find similarities between ontologies to be integrated. However, as extensively discussed in the rest of this paper, such automation leads to a situation of uncertainty since correctness and accuracy cannot be guaranteed in general terms. In this paper, we focus on uncertainty and uncertainty management in the automated process of ontology matching.

We approach the knowledge-building process from a practical perspective. Indeed, we apply a real-world case study dealing with the spatio–temporal alignment of macro indicators. We propose several experiments on non-semantically enriched data by adopting existing tools for dataset conversion and ontology matching. We first adopt a previously developed conversion tool that enables the systematic translation from raw data (relational tables) to semantic data (ontologies) [2]. We note that such a conversion process does not include any semantic enrichment of the original datasets. Then, available ontology matching tools from the community are applied to find similarities among the resulting ontologies (i.e., converted datasets). We have measured the uncertainty resulting from the process according to common evaluation metrics. Experimental results clearly show that, regardless of the performance of the automated ontology matching process, a lack of semantics inevitably introduces errors and inaccuracies, resulting in significant uncertainty. On the other side, even when considering non-semantically enriched data, the experiment has demonstrated a certain degree of reliability. Such results, in general terms, point to properly designed semi-supervised integration approaches in a continuously evolving context in which technology is becoming higher and higher performing (e.g., by adopting large language models (LLMs)).

Structure of the Paper

Section 2 proposes an overview of a reference model for the knowledge-building process, while Section 3 addresses the intrinsically related uncertainty, and Section 4 deals with evaluation metrics. The conducted experiment and its discussion are reported in Section 5 and Section 6, respectively.

2. Knowledge-Building Process

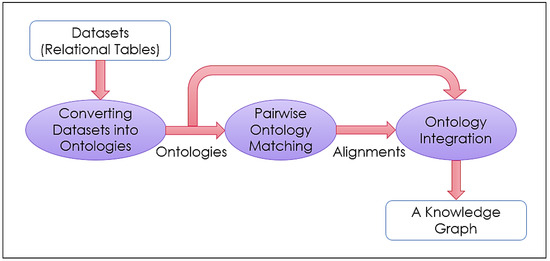

From a theoretical perspective, the knowledge-building process as understood in this paper is not limited to data integration, as it also includes semantic enrichment and annotations [2]. Different ontology-based solutions have been proposed to integrate data within a range of scientific and business contexts [13,14,15] as well as to support integration among systems [16].

However, the reference model for the empirical evaluation does not assume a semantically enriched context. Indeed, the process is not based on pre-developed ontologies but, rather, on a conversion of relational data into an ontological format. A process of semantic enrichment in this specific context would be domain/application specific and, therefore, not fully systematic.

Overall, the process can be centralized, meaning that a global schema can be adopted to provide integrated access to information [13]. Knowledge building through data integration is understood as the process of semantically integrating raw data [1]. Ontologies can be used to define rich data spaces (knowledge) in which semantics are formally specified. In this work, the knowledge-building process takes as input heterogeneous raw datasets (assumed to be a relational database) and returns as output an integrated semantic data space represented by a knowledge graph. As shown in Figure 1, the process is composed of the following three main steps: (i) conversion of datasets into ontologies, (ii) ontology matching, and (iii) ontology integration/merging.

2.1. Dataset Conversion

Data spaces supported by Semantic Web technology assume data are available in a semantic format However, such a conversion of data into a semantic format is not always an obvious step, especially for non-technical users. In fact, the Virtual Table model [2] can be adopted in general terms to intuitively implement the conversion step. Along with RDF (Resource Description Framework) [12], OWL (Ontology Web Language) [17,18] is the most widely used language for representing and defining structured knowledge in the Semantic Web [10,11].

In this specific case, we believe that the conversion technique itself is not especially critical from a conceptual perspective, as it simply aims to preserve the original structure/logic as well as the original terminology. On the other side, as previously explained, the lack of semantic enrichment from relational data is a theoretical and practical limitation for the experiment. As rich semantics are not included in the input dataset, a process of enrichment based on contextual factors will be unreliable, even if manually performed. Indeed, associated metadata and related articles/documentation in the considered case study do not necessarily provide a comprehensive explanation to support the specification of formal semantics.

2.2. Ontology Matching

Also known as ontology alignment, ontology matching [19,20,21,22,23,24,25,26,27] is the process of finding semantic correspondences (mainly similarities) among entities from different ontologies. Each type of entity (classes, object properties, datatype properties, and instances) is normally matched in isolation, so class-to-property, class-to-individual, or property-to-individual correspondences are not addressed. Entity pairs that have the same name and meaning or have different names but the same meaning should be matched. Ontology matching is a critical step for ontology integration. Current ontology matching tools have become proficient in identifying equivalence correspondences between two ontologies. Ontology matching systems may use different matching algorithms.

2.3. Ontology Integration

Simple approaches for ontology integration include, among others, Simple Union [28]/Simple Merge [29,30]. This consists of aggregating the input ontologies by adding bridging axioms that translate the alignments. The semantic correspondences of each alignment (resulting from the matching step) are transformed into bridging axioms in order to link the overlapping parts of the input ontologies [31,32].

3. Uncertainty Management

Automation naturally generates uncertainty, which is related to the accuracy of the mechanism. Such uncertainty becomes critical for the reliability of applications.

Focusing specifically on the process, uncertainty is mainly associated with the ontology matching phase and is commonly caused by two independent factors: the domain semantics and the strategy underlying the matcher.

Concerning the semantics, even manual approaches may lead to errors due to potential ambiguities. Indeed, people may not sufficiently understand the domain vocabulary and, therefore, may provide imprecise and incorrect correspondences. Additionally, certain domains can be intrinsically critical and naturally error-prone, as the intended correspondences maybe be unclear.

For example, concepts can have ambiguous semantics when they are closely related but not completely synonymous [33,34,35]. In this case, matching systems become uncertain [36]. Additional issues are related to the “Open World Assumption”, where concepts are supposed to overlap and share a certain amount of common information (even if it is not yet specified) [36], as well as to different representations within the same domain or closely related domains [37].

As previously mentioned, significant uncertainty is introduced by matchers, regardless of their strategy (e.g., structural-, semantic-, or instance-based [38]).

Uncertainty management plays a crucial role in real-world applications, and it has been widely recognized as one of the key issues in data integration [39]. The actual challenge to manage uncertainty in such a context is to be able to maximize the reliability of the generated correspondences [40]. Techniques to reduce uncertainty (and, consequently, increase the quality of the output) may be manual or may assume a certain degree of automation.

One example from the latter class of solutions is alignment trimming [41], which aims to trim the alignment with a given contextual threshold in order to ensure that only the best correspondences are maintained in the alignment. Alternatively, different disambiguation techniques may be applied.

4. Evaluation Metrics

Several evaluation metrics have been defined and are commonly adopted within the research community to quantitatively assess the accuracy of alignments resulting from an automatic ontology matching system. Evaluation normally assumes a reference alignment, which is understood as the expected, intended, or “correct” alignment [42].

In practice, an alignment $\mathcal{A}$ returned by a given ontology matching tool can be compared to the reference alignment $\mathcal{R}$ by measuring the overlap between the two sets of correspondences [43]. The most common evaluation metrics for ontology alignment are adaptations of classical metrics from information retrieval.

In this section, we provide an overview of basic and advanced metrics as well as metrics to assess ambiguity.

4.1. Basic Evaluation Metrics

Basic metrics are characterized by their simplicity and are often combined to produce more sophisticated metrics. They are defined as follows [20]:

• True positives are correspondences that have been correctly found by an automatic ontology matching tool.

  True Positives (TP)$=\mathcal{A}\cap \mathcal{R}$

• False positives are correspondences that have been falsely found by an automatic ontology matching tool.

  False Positives (FP)$=\mathcal{A}-\mathcal{R}$

• False negatives are correct correspondences that have not been found by an automatic ontology matching tool.

  False Negatives (FN)$=\mathcal{R}-\mathcal{A}$

• True negatives are false correspondences that have been correctly discarded by an automatic matching tool.

  True Negatives (TN)$=(E\times E^{\prime })-(\mathcal{A}\cup \mathcal{R})$

  E and $E^{\prime }$ = number of entities in the input ontologies ${\mathcal{O}}_1$ and ${\mathcal{O}}_2$.

  $(E\times E^{\prime })$ = set of all possible correspondences between ${\mathcal{O}}_1$ and ${\mathcal{O}}_2$.

Based on such definitions, the set of automatically identified correspondences comprises true positives and false positives ($\mathcal{A}=TP+FP$), and the set of expected correspondences is composed of true positives and true negatives ($\mathcal{R}=TP+TN$). Evidently, false positives and false negatives reduce the matching accuracy. Therefore, an efficient ontology matching system aims to minimize both of them.

4.2. Advanced Evaluation Metrics

Advanced evaluation metrics assume the following definitions [20,27,43,44]:

• Precision measures the “correctness” of an alignment. It reflects the share of correct correspondences among all the ones found. It is defined as the ratio of the number of correctly found correspondences (TP) over the total number of found correspondences (TP + FP). Given a reference alignment $\mathcal{R}$, the Precision of an alignment $\mathcal{A}$ is a function $P:\wedge \times \wedge \to [0,1]$ such that:

  $$Precision=P(\mathcal{A},\mathcal{R})=\frac{|\mathcal{A}\cap \mathcal{R}|}{\left|\mathcal{A}\right|}=\frac{\left|TP\right|}{\left|TP\right|+\left|FP\right|}$$
• Recall measures the “completeness” of an alignment. It reflects the share of correct correspondences among all the expected correspondences. It is the ratio of the number of correctly found correspondences (TP) over the total number of expected correspondences to be found (TP + TN). Given a reference alignment $\mathcal{R}$, the Recall of an alignment $\mathcal{A}$ is a function $R:\wedge \times \wedge \to [0,1]$ such that:

  $$Recall=R(\mathcal{A},\mathcal{R})=\frac{|\mathcal{A}\cap \mathcal{R}|}{\left|\mathcal{R}\right|}=\frac{\left|TP\right|}{\left|TP\right|+\left|TN\right|}$$
  In the ideal case, Precision and Recall reach their highest value of $1.0$.
• Noise and Silence are the complement measures of Precision and Recall. Given a reference alignment $\mathcal{R}$, the Noise and the Silence of an alignment $\mathcal{A}$ are, respectively, functions N and $S:\wedge \times \wedge \to [0,1]$ such that:

  $$Noise=N(\mathcal{A},\mathcal{R})=1-Precision$$

  $$Silence=S(\mathcal{A},\mathcal{R})=1-Recall$$
• F-measure combines Precision and Recall, as they cannot accurately assess the matching quality alone. Indeed, the ontology matching tool can have a high Precision and a low Recall and vice versa. F-measure is a combined metric that attaches different importance to Precision and Recall. Given a reference alignment $\mathcal{R}$ and a number $\alpha$ between 0 and 1 ($0⩽\alpha ⩽1$), the F-measure of an alignment $\mathcal{A}$ is a function $F_{\alpha }:\wedge \times \wedge \to [0,1]$ such that:

  $$F-measure\left(\alpha \right)=F_{\alpha }(\mathcal{A},\mathcal{R})=\frac{Precision\times Recall}{(1-\alpha )\times Precision+\alpha \times Recall}$$
  The $\alpha$ parameter defines the relative balance between Precision and Recall, as higher $\alpha$ values give more importance to Precision with respect to Recall. When $\alpha =1$, F-measure is equal to Precision, and when $\alpha =0$, F-measure is equal to Recall. A value of $\alpha =0.5$ defines the equal importance of both core metrics. Therefore, when $\alpha =0.5$, F-measure becomes the harmonic mean of Precision and Recall as follows:

  $$F1=F-measure\left(0.5\right)=F_{0.5}(\mathcal{A},\mathcal{R})=2\times \frac{Precision\times Recall}{Precision+Recall}$$
  $F-measure\left(0.5\right)$, also called $F1$, is the most commonly used variant of $F-measure\left(\alpha \right)$ in IR since it balances the importance of Precision and Recall so that neither is compensated by the other.
  Matching tools may need parameter tuning. In this case, F-measure is adopted as a driving factor to perform parameter tuning because values that maximize F-measure are considered the optimal ones. Hence, this metric is not only helpful in evaluating the quality of alignments but also in selecting input parameters for matching systems, such as the confidence threshold that returns the best F-measure value.
• Overall (or matching accuracy [45]) is explicitly developed for schema matching purposes, unlike the previously mentioned metrics. It measures the manual error correction effort. That is, it reflects the post-matching effort needed to fix the alignment by adding missing correspondences (FN) and removing false correspondences (FP). It is the ratio of the number of errors (FP + FN) over the total number of expected correspondences (TP + TN). Given a reference alignment $\mathcal{R}$, the Overall of an alignment $\mathcal{A}$ is a function $O:\wedge \times \wedge \to [-\infty ,1]$ such that:

  $$Overall=O(\mathcal{A},\mathcal{R})=Recall\times \left(2-\frac{1}{Precision}\right)$$

  $$=1-\frac{|\mathcal{A}-\mathcal{R}|+|\mathcal{R}-\mathcal{A}|}{\left|\mathcal{R}\right|}=1-\frac{\left|FP\right|+\left|FN\right|}{\left|TP\right|+\left|TN\right|}$$
  An Overall value ranges between $[-\infty ,1]$, where negative values are associated with “bad” matching performances. If an alignment $\mathcal{A}$ has a number of false positives higher than the number of true positives ($Precision<0.5$), its Overall will have a negative value, which means that the alignment $\mathcal{A}$ is not worth the repair effort. Indeed, if more than half of the correspondences of $\mathcal{A}$ are false, the user would make less effort to manually match the ontologies from scratch than to manually modify the alignment of $\mathcal{A}$.
  In the ideal case, when $Precision=Recall=1$, F-measure and Overall reach their highest values of $1.0$. It should be noted that Overall values are always lower than F-measure values [20].

4.3. Ambiguity Evaluation Metric

Ambiguity Degree [20] measures the "ambiguity” of an alignment. It is the proportion of ambiguous correspondences—i.e., entities that are matched to several entities. More formally, it is the proportion of entities from ${\mathcal{O}}_1$ that are matched to at least two entities from ${\mathcal{O}}_2$ and vice versa. The number of ambiguous correspondences in an alignment ($\#Amb$) is considered an absolute metric that varies according to the size of the alignment. Therefore, it is preferred to use a relative metric (%) reflecting the percentage of ambiguous correspondences in an alignment (regardless of the size of the alignment). The Ambiguity Degree of an alignment $\mathcal{A}$ is a function $Ambiguity:\wedge \times \wedge \to [0\%,100\%]$ such that:

$$Ambiguitydegree=Ambiguity\left(\mathcal{A}\right)=\frac{\left(|\#Amb(\mathcal{A}\left)\right|\times 100\right)}{\left|\mathcal{A}\right|}=\frac{\left(|\#Amb(\mathcal{A}\left)\right|\times 100\right)}{\left|TP\right|+\left|FP\right|}$$

A null value of the ambiguity degree ($0\%$) is associated with no ambiguity in the alignment.

5. Case Study: Spatio–Temporal Alignment of Indicators

The experiment conducted addresses a case study of practical relevance that aims to integrate several independent indicators into a unique semantic data space. Successful integration is expected to provide a consistent view of the different indicators along the time and the spatial dimensions. Therefore, all semantically equivalent domain concepts should be matched.

In this section, we first provide a concise description of the experiment, with a focus on data sources, then, we address the tools adopted, and finally, we overview the results.

5.1. Experiment Description

The case study proposed in this paper has been inspired by the famous portal Our World in Data [46], which publishes and discusses heterogeneous indicators. In the portal, different datasets are published as independent csv files. For the most part, the terminology in the different files is supposed to be uniform.

The experiment assumes as an input the raw data as originally provided by the respective sources. It aims to achieve automatic integration. Details are reported in

Table 1. Experiment overview.

Experiment ID	Input Dataset 1	Input Dataset 2
Exp. 1	Countries of the World [47]	Country Profile Variables [48]
Exp. 2	Food Security Indicators (V_2.6) [49]	Prevalence of Undernourishment [50]
Exp. 3	Food Security Indicators (I_2.3) [51]	Prevalence of Undernourishment [50]
Exp. 4	Food Security Indicators (I_2.4) [51]	Prevalence of Undernourishment [50]
Exp. 5	Macroeconomic Data (GDP) [52]	GDP (current USD) [53]
Exp. 6	WDI Country [54]	WUP2018 Largest Cities [55]
Exp. 7	Total Life Expectancy—Historical [56]	Life Expectancy at Birth [57]
Exp. 8	Historical Gas Emissions [58]	List of Electoral Democracies [59]
Exp. 9	List of Electoral Democracies [59]	Sexual Violence in Childhood [60]
Exp. 10	Historical Gas Emissions [58]	Sexual Violence in Childhood [60]

. As shown, each experiment involves a pair of input datasets.

The considered pairs can involve datasets belonging to the same domain as well as datasets from different domains.

Regardless of the meaning of the data, the original tables report the values of given indicators for different countries in different years. The actual structure may vary from case to case, but in most cases, it proposes typical patterns used to organize spatio–temporal data. For tables describing a particular indicator, rows represent the names of countries and columns represent years (or intervals of years) or vice versa. In some other cases, tables report the values of more than one indicator for different countries in a single year (or in a single interval of years): rows represent the names of countries, and columns represent indicators. More rarely, tables report the values of multiple indicators for different countries in different years: rows represent ID numbers (enumerated numbers/indexes), and columns contain a year or interval column, a country column, and indicator columns.

Overall, the test bed proposed cannot be considered critical, neither in terms of size nor complexity. It is, rather, characterized by a small scale and relatively low complexity. Input datasets are characterized by a number of columns that vary from 2 to 63 and rows in a range [46–540].

The experiment adopts available tools for alignment, as described later on in the paper.

After converting and matching the input dataset pairs, we will get the output alignments. First, we will evaluate the quality of the output alignments. Then, we will trim and/or disambiguate these alignments and evaluate them again. We aim to see how the alignment trimming and disambiguation processes can affect the quality and uncertainty of the output alignments.

For alignment trimming, we will use the Alignment API (https://moex.gitlabpages.inria.fr/alignapi/ (accessed on 20 October 2020)) [61,62]. That is a Java programming interface that facilitates the manipulation and evaluation of ontology alignments in RDF format. Given an alignment and a threshold value as an input, the Alignment API automatically trims the input alignment using the predefined method cut() and returns a new trimmed alignment. The trimmed output alignment will only contain correspondences that have a confidence measure greater than or equal to the chosen threshold value.

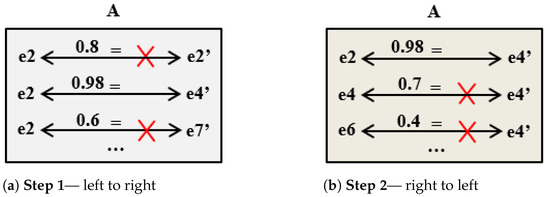

For alignment disambiguation, we apply an approach based on two major steps (Figure 2). First, we go through all the correspondences in the alignment, and we disambiguate each set of ambiguous correspondences having a source entity in common, as shown in Figure 2a; then, we go through all the correspondences again, and we disambiguate each set of ambiguous correspondences having a target entity in common (coming from ${\mathcal{O}}_2$), as shown in Figure 2b. In each step, disambiguation consists of keeping the strongest correspondence (i.e., the one with the highest similarity score) from the set of ambiguous correspondences and deleting the rest. If two ambiguous correspondences have exactly the same similarity score, we keep both of them.

Finally, a reference alignment is manually provided by the authors for each target experiment for assessment purposes.

Given an alignment to be evaluated and a reference alignment as input, the Alignment API [62] automatically returns the scores of the basic evaluation metrics (TP, TN, FP, and FN) as well as the scores of the advanced evaluation metrics (Precision, Recall, F-measure, Overall, Noise, and Silence), which reflect the quality of the input alignment.

As for the ambiguity evaluation metric, we create a simple algorithm in Java that takes as input an alignment and returns the score of the ambiguity degree metric, reflecting the ambiguity degree of that input alignment.

Many applications that require the combination of multiple indicators are unlikely to be error-tolerant, meaning that the resulting alignment is expected to be entirely correct. Despite its relative simplicity, the case study proposed is relevant in different practical contexts and application domains. More concretely, the target case study is characterized by the need to compose indicators dynamically, and the resulting integration is expected to be precise and accurate. Practical examples may be identified, among others, in the areas of urban planning (e.g., [64]) and global sustainable development (e.g., [65]). Further requirements may characterize specific systems, such as real-time environments for disaster management [66].

5.2. Tools

The experiment relied on different research tools that allowed the implementation of the intended process. The focus is on data conversion and ontology matching.

5.2.1. Dataset Conversion

The data conversion tool [2] supports the conversion of a given relational table into an OWL ontology. It applies a virtual table approach to facilitate such a process, assuming a supervised environment. The user interface allows users to straightforwardly import a relational table through simple copy and paste functions. The tool requires a relatively simple user input, which is considered to be realistic for the scale and complexity characterizing this concrete case study.

5.2.2. Ontology Matching

Ontology matching tools take as an input a pair of ontologies in OWL and return alignments in RDF. The Ontology Alignment Evaluation Initiative (http://oaei.ontologymatching.org/ (accessed on 20 October 2020)) (OAEI) is probably the most known international initiative for the enhancement and evaluation of ontology matching tools. Outstanding results from the OAEI community are presented yearly in the Ontology Matching Workshop (OM), which is co-located with the prestigious International Semantic Web Conference (ISWC).

We adopted two of the most popular tools within the OAEI community:

• LogMap (https://github.com/ernestojimenezruiz/logmap-matcher (accessed on 20 October 2020)) [67] is a highly scalable ontology matching tool. It performs an iterative process based on structural matching. To achieve scalability, LogMap relies on lexical and structural indexes of the input ontologies.
• AML (https://github.com/AgreementMakerLight/AML-Project (accessed on 20 October 2020)) [41] also approaches ontology matching looking at scalability and, additionally, provides a comprehensive user interface. AML combines different individual matchers to optimize the process.

We adopted more than one tool in the experiment to highlight the possible impact of tools on the final outcome. More concretely, we adopted the online web interface versions of LogMap (http://krrwebtools.cs.ox.ac.uk/logmap/ (accessed on 20 October 2020)) and AML v3.1 (https://github.com/AgreementMakerLight/AML-Project/releases (accessed on 20 October 2020)), which also include graphical user interfaces.

It is critical to highlight the constant evolution of the underlying technology. Indeed, in line with more generic trends, recent advances are based on (or include) large language models (LLMs), such as in [68]. While expectations are significant, we consider that such a technological trend is still at an early stage. Therefore, we have focused on the more consolidated technological landscape (pre-LLM).

5.3. Experimental Results

Results are summarized in

Table 2. Initial results overview (pre-disambiguation).

Exp.	Tool	$\mathcal{R}$ †	$\mathcal{A}$ ‡	$\mathit{Amb}$ §	$\mathit{Precision}$	$\mathit{Recall}$	$\mathit{F}-\mathit{Measure}$	$\mathit{Overall}$	$\mathit{Ambiguity}$
Exp. 1	LogMap	267	212	2	$0.995$	$0.79$	$0.881$	$0.786$	$0.94\%$
	AML		270	186	$0.255$	$0.258$	$0.256$	$-0.49$	$68.88\%$
Exp. 2	LogMap	446	200	0	$1.0$	$0.448$	$0.619$	$0.448$	$0\%$
	AML		227	15	$0.929$	$0.473$	$0.627$	$0.437$	$6.6\%$
Exp. 3	LogMap	434	194	0	$0.984$	$0.44$	$0.6$	$0.433$	$0\%$
	AML		227	25	$0.903$	$0.472$	$0.62$	$0.421$	$11\%$
Exp. 4	LogMap	55	61	0	$0.426$	$0.472$	$0.448$	$-0.163$	$0\%$
	AML		331	317	$0.033$	$0.2$	$0.056$	$-5.61$	$95.77\%$
Exp. 5	LogMap	137	3	0	$1.0$	$0.021$	$0.042$	$0.021$	$0\%$
	AML		3	0	$1.0$	$0.021$	$0.042$	$0.021$	$0\%$
Exp. 6	LogMap	102	31	0	$1.0$	$0.3$	$0.466$	$0.3$	$0\%$
	AML		158	129	$0.177$	$0.274$	$0.215$	$-1.0$	$81.64\%$
Exp. 7	LogMap	521	290	0	$0.996$	$0.554$	$0.712$	$0.552$	$0\%$
	AML		3680	3628	$0.013$	$0.095$	$0.023$	$-6.871$	$98.58\%$
Exp. 8	LogMap	195	190	0	$1.0$	$0.974$	$0.987$	$0.974$	$0\%$
	AML		190	2	$0.989$	$0.964$	$0.976$	$0.953$	$1\%$
Exp. 9	LogMap	196	177	0	$1.0$	$0.9$	$0.949$	$0.9$	$0\%$
	AML		192	2	$0.973$	$0.954$	$0.963$	$0.928$	$1.04\%$
Exp. 10	LogMap	197	179	0	$1.0$	$0.91$	$0.952$	$0.91$	$0\%$
	AML		187	0	$0.994$	$0.944$	$0.968$	$0.939$	$0\%$

^† $\mathcal{R}$: number of correspondences in the reference alignment $\mathcal{R}$ = number of expected correspondences $=TP+TN$. ^‡ $\mathcal{A}$: number of correspondences in the output alignment $\mathcal{A}$ = number of detected correspondences $=TP+FP$. ^§ $Amb$: number of ambiguous correspondences in the output alignment $\mathcal{A}$.

, which summarizes the quality of ontology alignments resulting from each experiment. Such results may be considered initial results, as the reported values refer to the process before dis-disambiguation. The table reports evaluation scores as previously described.

In Table 2, we highlight the differences in terms of advanced metrics—i.e., Precision, Recall, F-measure, and Overall—for the two adopted tools.

More concretely, for the Precision metric, both tools provide a significantly different result in Experiments 1, 4, 6, and 7 and minor differences in the remaining experiments. The Recall metric presents remarkable differences in Experiments 1, 4, and 7. F-measure values are quite different in Experiments 1, 4, and 7, while a pointless difference also shows up in Experiment 6. Finally, Overall returns strongly different values in Experiments 1 and 7 and a more limited divergence in Experiments 4 and 6. In terms of performance, the ontology matching process, on average, results in high values for Precision, with some evident exceptions (Experiment 4, especially), while Recall, F-measure, and overall values associated with the different experiments present important differences.

It is also worth mentioning that the last three experiments present a clear cross-domain focus. They are associated with higher performance in terms of both Precision and Recall. Intuitively, integrating ontologies from different domains is relatively easier than integrating ontologies within the same domain (or contiguous domains). Indeed, the latter case is often characterized by fine-grained terminology and heterogeneity.

5.3.1. Disambiguation

Table 3. Results after alignment disambiguation.

Exp.	Tool	$\mathcal{R}$ †	$\mathcal{A}$ ‡	$\mathit{Amb}$ §	$\mathit{Precision}$	$\mathit{Recall}$	$\mathit{F}\mathit{\text{-}}\mathit{Measure}$	$\mathit{Overall}$	$\mathit{Ambiguity}$
Exp. 1	LogMap	267	211	0	$1.0$	$0.79$	$0.882$	$0.79$	0%
	AML		118	0	$0.559$	$0.247$	$0.342$	$0.052$	0%
Exp. 2	LogMap	446	200	0	$1.0$	$0.448$	$0.619$	$0.448$	0%
	AML		218	0	$0.958$	$0.468$	$0.629$	$0.448$	0%
Exp. 3	LogMap	434	194	0	$0.984$	$0.44$	$0.6$	$0.433$	0%
	AML		210	0	$0.952$	$0.46$	$0.621$	$0.437$	0%
Exp. 4	LogMap	55	61	0	$0.426$	$0.472$	$0.448$	$-0.163$	0%
	AML		26	0	$0.346$	$0.163$	$0.222$	$-0.145$	0%
Exp. 5	LogMap	137	3	0	$1.0$	$0.021$	$0.042$	$0.021$	0%
	AML		3	0	$1.0$	$0.021$	$0.042$	$0.021$	0%
Exp. 6	LogMap	102	31	0	$1.0$	$0.3$	$0.466$	$0.3$	0%
	AML		40	0	$0.7$	$0.274$	$0.394$	$0.156$	0%
Exp. 7	LogMap	521	290	0	$0.996$	$0.554$	$0.712$	$0.552$	0%
	AML		171	0	$0.292$	$0.095$	$0.144$	$-0.136$	0%
Exp. 8	LogMap	195	190	0	$1.0$	$0.974$	$0.987$	$0.974$	0%
	AML		189	0	$0.994$	$0.964$	$0.979$	$0.958$	0%
Exp. 9	LogMap	196	177	0	$1.0$	$0.9$	$0.949$	$0.9$	0%
	AML		191	0	$0.979$	$0.954$	$0.966$	$0.933$	0%
Exp. 10	LogMap	197	179	0	$1.0$	$0.91$	$0.952$	$0.91$	0%
	AML		187	0	$0.994$	$0.944$	$0.968$	$0.939$	0%

^† $\mathcal{R}$: expected correspondences. ^‡ $\mathcal{A}$: detected correspondences. ^§ $Amb$: ambiguous correspondences in $\mathcal{A}$.

and

Table 4. Results after alignment trimming.

Exp.	Tool	Threshold	$\mathcal{R}$ †	$\mathcal{A}$ ‡	$\mathit{Amb}$ §	$\mathit{Precision}$	$\mathit{Recall}$	$\mathit{F}\mathit{\text{-}}\mathit{Measure}$	$\mathit{Overall}$	$\mathit{Ambiguity}$
Exp. 1	LogMap	–	267	212	2	$0.995$	$0.79$	$0.881$	$0.786$	$0.94\%$
	AML	$0.77$		209	138	$0.32$	$0.25$	$0.281$	$-0.28$	$66\%$
Exp. 2	LogMap	–	446	200	0	$1.0$	$0.448$	$0.619$	$0.448$	$0\%$
	AML	–		227	15	$0.929$	$0.473$	$0.627$	$0.437$	$6.6\%$
Exp. 3	LogMap	–	434	194	0	$0.984$	$0.44$	$0.6$	$0.433$	$0\%$
	AML	–		227	25	$0.903$	$0.472$	$0.62$	$0.421$	$11\%$
Exp. 4	LogMap	–	55	61	0	$0.426$	$0.472$	$0.448$	$-0.163$	$0\%$
	AML	$0.49$		36	23	$0.3$	$0.2$	$0.241$	$-0.254$	$63.88\%$
Exp. 5	LogMap	–	137	3	0	$1.0$	$0.021$	$0.042$	$0.021$	$0\%$
	AML	–		3	0	$1.0$	$0.021$	$0.042$	$0.021$	$0\%$
Exp. 6	LogMap	–	102	31	0	$1.0$	$0.3$	$0.466$	$0.3$	$0\%$
	AML	$0.46$		36	8	$0.777$	$0.274$	$0.4$	$0.196$	$22.22\%$
Exp. 7	LogMap	–	521	290	0	$0.996$	$0.554$	$0.712$	$0.552$	$0\%$
	AML	$0.51$		50	0	$0.98$	$0.094$	$0.171$	$0.092$	$0\%$
Exp. 8	LogMap	–	195	190	0	$1.0$	$0.974$	$0.987$	$0.974$	$0\%$
	AML	–		190	2	$0.989$	$0.964$	$0.976$	$0.953$	$1\%$
Exp. 9	LogMap	–	196	177	0	$1.0$	$0.9$	$0.949$	$0.9$	$0\%$
	AML	–		192	2	$0.973$	$0.954$	$0.963$	$0.928$	$1\%$
Exp. 10	LogMap	–	197	179	0	$1.0$	$0.91$	$0.952$	$0.91$	$0\%$
	AML	–		187	0	$0.994$	$0.944$	$0.968$	$0.939$	$0\%$

^† $\mathcal{R}$: expected correspondences. ^‡ $\mathcal{A}$: detected correspondences. ^§ $Amb$: ambiguous correspondences in $\mathcal{A}$.

present resulting disambiguated alignments and trimmed alignments, respectively. Additionally, in

Table 5. Results after alignment trimming and disambiguation.

Exp.	Tool	Threshold	$\mathcal{R}$ †	$\mathcal{A}$ ‡	$\mathit{Amb}$ §	$\mathit{Precision}$	$\mathit{Recall}$	$\mathit{F}\mathit{\text{-}}\mathit{Measure}$	$\mathit{Overall}$	$\mathit{Ambiguity}$
Exp. 1	LogMap	–	267	211	0	$1.0$	$0.79$	$0.882$	$0.79$	0%
	AML	$0.77$		90	0	$0.722$	$0.243$	$0.364$	$0.149$	0%
Exp. 2	LogMap	–	446	200	0	$1.0$	$0.448$	$0.619$	$0.448$	0%
	AML	–		218	0	$0.958$	$0.468$	$0.629$	$0.448$	0%
Exp. 3	LogMap	–	434	194	0	$0.984$	$0.44$	$0.6$	$0.433$	0%
	AML	–		210	0	$0.952$	$0.46$	$0.621$	$0.437$	0%
Exp. 4	LogMap	–	55	61	0	$0.426$	$0.472$	$0.448$	$-0.163$	0%
	AML	$0.49$		20	0	$0.45$	$0.163$	$0.24$	$-0.03$	0%
Exp. 5	LogMap	–	137	3	0	$1.0$	$0.021$	$0.042$	$0.021$	0%
	AML	–		3	0	$1.0$	$0.021$	$0.042$	$0.021$	0%
Exp. 6	LogMap	–	102	31	0	$1.0$	$0.3$	$0.466$	$0.3$	0%
	AML	$0.46$		29	0	$0.965$	$0.274$	$0.427$	$0.264$	0%
Exp. 7	LogMap	–	521	290	0	$0.996$	$0.554$	$0.712$	$0.552$	0%
	AML	$0.51$		50	0	$0.98$	$0.094$	$0.171$	$0.092$	0%
Exp. 8	LogMap	–	195	190	0	$1.0$	$0.974$	$0.987$	$0.974$	0%
	AML	–		189	0	$0.994$	$0.964$	$0.979$	$0.958$	0%
Exp. 9	LogMap	–	196	177	0	$1.0$	$0.9$	$0.949$	$0.9$	0%
	AML	–		191	0	$0.979$	$0.954$	$0.966$	$0.933$	0%
Exp. 10	LogMap	–	197	179	0	$1.0$	$0.91$	$0.952$	$0.91$	0%
	AML	–		187	0	$0.994$	$0.944$	$0.968$	$0.939$	0%

^† $\mathcal{R}$: expected correspondences. ^‡ $\mathcal{A}$: detected correspondences. ^§ $Amb$: ambiguous correspondences in $\mathcal{A}$.

, we report the resulting trimmed and disambiguated alignments.

In Table 3 and Table 5, the output no longer contains ambiguous correspondences. Therefore, the scores for the ambiguity degree are null. In Table 4 and Table 5, we report the trimming threshold values considered in the different experiments. Thresholds were manually tuned to optimize the output.

5.3.2. Metric Analysis

Table 6. Precision analysis.

Exp.	Tool	Initial Alignment 1	Disambiguation 2	Trimming 3	Dis. and Trim. 4
Exp. 1	LogMap	$0.995$	$\mathbf{1}\mathbf{.}\mathbf{0}$	$0.995$	$\mathbf{1}\mathbf{.}\mathbf{0}$
	AML	$0.255$	$0.559$	$0.32$	$\mathbf{0}\mathbf{.}\mathbf{722}$
Exp. 2	LogMap	$1.0$	$1.0$	$1.0$	$1.0$
	AML	$0.929$	$\mathbf{0}\mathbf{.}\mathbf{958}$	$0.929$	$\mathbf{0}\mathbf{.}\mathbf{958}$
Exp. 3	LogMap	$0.984$	$0.984$	$0.984$	$0.984$
	AML	$0.903$	$\mathbf{0}\mathbf{.}\mathbf{952}$	$0.903$	$\mathbf{0}\mathbf{.}\mathbf{952}$
Exp. 4	LogMap	$0.426$	$0.426$	$0.426$	$0.426$
	AML	$0.033$	$0.346$	$0.3$	$\mathbf{0}\mathbf{.}\mathbf{45}$
Exp. 5	LogMap	$1.0$	$1.0$	$1.0$	$1.0$
	AML	$1.0$	$1.0$	$1.0$	$1.0$
Exp. 6	LogMap	$1.0$	$1.0$	$1.0$	$1.0$
	AML	$0.177$	$0.7$	$0.777$	$\mathbf{0}\mathbf{.}\mathbf{965}$
Exp. 7	LogMap	$0.996$	$0.996$	$0.996$	$0.996$
	AML	$0.013$	$0.292$	$\mathbf{0}\mathbf{.}\mathbf{98}$	$\mathbf{0}\mathbf{.}\mathbf{98}$
Exp. 8	LogMap	$1.0$	$1.0$	$1.0$	$1.0$
	AML	$0.989$	$\mathbf{0}\mathbf{.}\mathbf{994}$	$0.989$	$\mathbf{0}\mathbf{.}\mathbf{994}$
Exp. 9	LogMap	$1.0$	$1.0$	$1.0$	$1.0$
	AML	$0.973$	$\mathbf{0}\mathbf{.}\mathbf{979}$	$0.973$	$\mathbf{0}\mathbf{.}\mathbf{979}$
Exp. 10	LogMap	$1.0$	$1.0$	$1.0$	$1.0$
	AML	$0.994$	$0.994$	$0.994$	$0.994$

¹ Table 2. ² Table 3. ³ Table 4. ⁴ Table 5.

,

Table 7. Recall analysis.

Exp.	Tool	Initial Alignment 1	Disambiguation 2	Trimming 3	Dis. and Trim. 4
Exp. 1	LogMap	$0.79$	$0.79$	$0.79$	$0.79$
	AML	$\mathbf{0}\mathbf{.}\mathbf{258}$	$0.247$	$0.25$	$0.243$
Exp. 2	LogMap	$0.448$	$0.448$	$0.448$	$0.448$
	AML	$\mathbf{0}\mathbf{.}\mathbf{473}$	$0.468$	$\mathbf{0}\mathbf{.}\mathbf{473}$	$0.468$
Exp. 3	LogMap	$0.44$	$0.44$	$0.44$	$0.44$
	AML	$\mathbf{0}\mathbf{.}\mathbf{472}$	$0.46$	$\mathbf{0}\mathbf{.}\mathbf{472}$	$0.46$
Exp. 4	LogMap	$0.472$	$0.472$	$0.472$	$0.472$
	AML	$\mathbf{0}\mathbf{.}\mathbf{2}$	$0.163$	$\mathbf{0}\mathbf{.}\mathbf{2}$	$0.163$
Exp. 5	LogMap	$0.021$	$0.021$	$0.021$	$0.021$
	AML	$0.021$	$0.021$	$0.021$	$0.021$
Exp. 6	LogMap	$0.3$	$0.3$	$0.3$	$0.3$
	AML	$0.274$	$0.274$	$0.274$	$0.274$
Exp. 7	LogMap	$0.554$	$0.554$	$0.554$	$0.554$
	AML	$\mathbf{0}\mathbf{.}\mathbf{095}$	$\mathbf{0}\mathbf{.}\mathbf{095}$	$0.094$	$0.094$
Exp. 8	LogMap	$0.974$	$0.974$	$0.974$	$0.974$
	AML	$0.964$	$0.964$	$0.964$	$0.964$
Exp. 9	LogMap	$0.9$	$0.9$	$0.9$	$0.9$
	AML	$0.954$	$0.954$	$0.954$	$0.954$
Exp. 10	LogMap	$0.91$	$0.91$	$0.91$	$0.91$
	AML	$0.944$	$0.944$	$0.944$	$0.944$

¹ Table 2. ² Table 3. ³ Table 4. ⁴ Table 5.

,

Table 8. F-measure analysis.

Exp.	Tool	Initial Alignment 1	Disambiguation 2	Trimming 3	Dis. and Trim. 4
Exp. 1	LogMap	$0.881$	$\mathbf{0}\mathbf{.}\mathbf{882}$	$0.881$	$\mathbf{0}\mathbf{.}\mathbf{882}$
	AML	$0.256$	$0.342$	$0.281$	$\mathbf{0}\mathbf{.}\mathbf{364}$
Exp. 2	LogMap	$0.619$	$0.619$	$0.619$	$0.619$
	AML	$0.627$	$\mathbf{0}\mathbf{.}\mathbf{629}$	$0.627$	$\mathbf{0}\mathbf{.}\mathbf{629}$
Exp. 3	LogMap	$0.6$	$0.6$	$0.6$	$0.6$
	AML	$0.62$	$\mathbf{0}\mathbf{.}\mathbf{621}$	$0.62$	$\mathbf{0}\mathbf{.}\mathbf{621}$
Exp. 4	LogMap	$0.448$	$0.448$	$0.448$	$0.448$
	AML	$0.056$	$0.222$	$\mathbf{0}\mathbf{.}\mathbf{241}$	$0.24$
Exp. 5	LogMap	$0.042$	$0.042$	$0.042$	$0.042$
	AML	$0.042$	$0.042$	$0.042$	$0.042$
Exp. 6	LogMap	$0.466$	$0.466$	$0.466$	$0.466$
	AML	$0.215$	$0.394$	$0.4$	$\mathbf{0}\mathbf{.}\mathbf{427}$
Exp. 7	LogMap	$0.712$	$0.712$	$0.712$	$0.712$
	AML	$0.023$	$0.144$	$\mathbf{0}\mathbf{.}\mathbf{171}$	$\mathbf{0}\mathbf{.}\mathbf{171}$
Exp. 8	LogMap	$0.987$	$0.987$	$0.987$	$0.987$
	AML	$0.976$	$\mathbf{0}\mathbf{.}\mathbf{979}$	$0.976$	$\mathbf{0}\mathbf{.}\mathbf{979}$
Exp. 9	LogMap	$0.949$	$0.949$	$0.949$	$0.949$
	AML	$0.963$	$\mathbf{0}\mathbf{.}\mathbf{966}$	$0.963$	$\mathbf{0}\mathbf{.}\mathbf{966}$
Exp. 10	LogMap	$0.952$	$0.952$	$0.952$	$0.952$
	AML	$0.968$	$0.968$	$0.968$	$0.968$

¹ Table 2. ² Table 3. ³ Table 4. ⁴ Table 5.

,

Table 9. Overall analysis.

Exp.	Tool	Initial Alignment 1	Disambiguation 2	Trimming 3	Dis. and Trim. 4
Exp. 1	LogMap	$0.786$	$\mathbf{0}\mathbf{.}\mathbf{79}$	$0.786$	$\mathbf{0}\mathbf{.}\mathbf{79}$
	AML	$-0.49$	$0.052$	$-0.28$	$\mathbf{0}\mathbf{.}\mathbf{149}$
Exp. 2	LogMap	$0.448$	$0.448$	$0.448$	$0.448$
	AML	$0.437$	$\mathbf{0}\mathbf{.}\mathbf{448}$	$0.437$	$\mathbf{0}\mathbf{.}\mathbf{448}$
Exp. 3	LogMap	$0.433$	$0.433$	$0.433$	$0.433$
	AML	$0.421$	$\mathbf{0}\mathbf{.}\mathbf{437}$	$0.421$	$\mathbf{0}\mathbf{.}\mathbf{437}$
Exp. 4	LogMap	$-0.163$	$-0.163$	$-0.163$	$-0.163$
	AML	$-5.61$	$-0.145$	$-0.254$	$-\mathbf{0}\mathbf{.}\mathbf{03}$
Exp. 5	LogMap	$0.021$	$0.021$	$0.021$	$0.021$
	AML	$0.021$	$0.021$	$0.021$	$0.021$
Exp. 6	LogMap	$0.303$	$0.303$	$0.303$	$0.303$
	AML	$-1.0$	$0.156$	$0.196$	$\mathbf{0}\mathbf{.}\mathbf{264}$
Exp. 7	LogMap	$0.552$	$0.552$	$0.552$	$0.552$
	AML	$-6.871$	$-0.136$	$\mathbf{0}\mathbf{.}\mathbf{092}$	$\mathbf{0}\mathbf{.}\mathbf{092}$
Exp. 8	LogMap	$0.974$	$0.974$	$0.974$	$0.974$
	AML	$0.953$	$\mathbf{0}\mathbf{.}\mathbf{958}$	$0.953$	$\mathbf{0}\mathbf{.}\mathbf{958}$
Exp. 9	LogMap	$0.9$	$0.9$	$0.9$	$0.9$
	AML	$0.928$	$\mathbf{0}\mathbf{.}\mathbf{933}$	$0.928$	$\mathbf{0}\mathbf{.}\mathbf{933}$
Exp. 10	LogMap	$0.91$	$0.91$	$0.91$	$0.91$
	AML	$0.939$	$0.939$	$0.939$	$0.939$

¹ Table 2. ² Table 3. ³ Table 4. ⁴ Table 5.

and

Table 10. Ambiguity analysis.

Exp.	Tool	Initial Alignment 1	Disambiguation 2	Trimming 3	Dis. and Trim. 4
Exp. 1	LogMap	$0.94\%$		$0.94\%$
	AML	$68.88\%$	0%	$66\%$	0%
Exp. 2	LogMap	$0\%$		$0\%$
	AML	$6.6\%$	0%	$6.6\%$	0%
Exp. 3	LogMap	$0\%$		$0\%$
	AML	$11\%$	0%	$11\%$	0%
Exp. 4	LogMap	$0\%$		$0\%$
	AML	$95.77\%$	0%	$63.88\%$	0%
Exp. 5	LogMap	$0\%$		$0\%$
	AML	$0\%$	0%	$0\%$	0%
Exp. 6	LogMap	$0\%$		$0\%$
	AML	$81.64\%$	0%	$22.22\%$	0%
Exp. 7	LogMap	$0\%$		$0\%$
	AML	$98.58\%$	0%	$0\%$	0%
Exp. 8	LogMap	$0\%$		$0\%$
	AML	$1\%$	0%	$1\%$	0%
Exp. 9	LogMap	$0\%$		$0\%$
	AML	$1\%$	0%	$1\%$	0%
Exp. 10	LogMap	0%		0%
	AML	0%	0%	0%	0%

¹ Table 2. ² Table 3. ³ Table 4. ⁴ Table 5.

provide a contextual analysis by metric looking at the mainstream process. In these tables, the highest score is highlighted in bold for each experiment/tool.

Regardless of the more or less relevant numerical variations, the experiment points out the high and holistic value of trimming and disambiguating for performance. Indeed, by excluding untrustworthy correspondences and minimizing the number of false positives, the alignment quality significantly increases.

At the same time, the experiment highlights a significant number of missing correspondences as well as a more contained number of false positives. Hence, the resulting alignment still presents relevant uncertainty, which may be considered absolutely critical in many applications and is an object of discussion in the next section.

6. Discussion

In qualitative terms, the uncertainty characterizing the experiments may be related to different factors, which are briefly discussed in this section. In general terms, the critical analysis should be considered in context: namely, looking at the techniques adopted as well as at the reference process and the associated underlining assumptions.

We remark on role of the limited semantics characterizing relational data that, without proper semantic enrichments, are likely to introduce intrinsic ambiguities. Moreover, the uncertainty generated across the knowledge building process is going to be propagated at an application level and affects the whole system engineering process (e.g., ontological modeling [69] and ontology-driven analysis [70]).

6.1. Granularity

First of all, the different granularity characterizing the raw datasets definitely plays a role, as the performance of the current ontology matching tools generally decrease when dealing with ontologies addressing a different level of abstraction/detail.

An example is reported in

Table 11. Examples of uncertainty resulting from different granularity.

Ontology ${\mathcal{O}}_1$	Ontology ${\mathcal{O}}_2$
• Sudan	• Sudan • South_Sudan
• Gaza_Strip • West_Bank	• State_of_Palestine
• Netherlands_Antilles	• Sint_Maarten_(Dutch_part) • Bonaire,_Sint Eustatius_and_Saba
• Jersey • Guernsey	• Channel_Islands
• Agriculture	• Economy_Agriculture • Employment_Agriculture

, where country names (e.g., Sudan) and parts of countries (e.g., South Sudan) coexist. In the first example in the table, “Sudan” in ${\mathcal{O}}_1$ is considered equivalent to “Sudan” in ${\mathcal{O}}_2$, which is false in this case; indeed, Sudan in ${\mathcal{O}}_2$ is actually North Sudan, and Sudan in ${\mathcal{O}}_1$ is the former Sudan that is composed of both the northern and southern parts. The entities “Sudan” and “South Sudan” from ${\mathcal{O}}_2$ should rather be sub-entities of “Sudan” from ${\mathcal{O}}_1$ (using a subsumption relation, not an equivalence relation). Ontology matching tools cannot identify such subsumption correspondences between entities.

Similar errors may be hard to predict, as ${\mathcal{O}}_1$ and ${\mathcal{O}}_2$ do not present different granularity in general terms. A more appropriate level of data semantics may contribute to mitigate uncertainty by enabling ontology matching tools to work on a more extensive and accurate knowledge-base.

6.2. Complexity

Similar considerations apply to the time dimension, despite its apparent simplicity. For instance, in Experiment 3, ${\mathcal{O}}_1$, the time format assumes “year-year” intervals (e.g., “97-1999”), while ${\mathcal{O}}_2$ adopts a separate year format (e.g., “1997”, “1998”, “1999”).

The complexity of the notation can be significant in ontologies. Some examples from the experiment are reported in

Table 12. Examples of complexity in the notation.

Ontology ${\mathcal{O}}_1$	Ontology ${\mathcal{O}}_2$
• Near_East • Asia_(EX._Near_East)★	• WesternAsia • CentralAsia • EasternAsia • SouthernAsia • South-easternAsia
• Northern_Africa • Sub−Saharan_Africa	• NorthernAfrica • MiddleAfrica • EasternAfrica • WesternAfrica • SouthernAfrica
• Northern_America • Latin_Amer._and_Carib	• NorthernAmerica • CentralAmerica • SouthAmerica • Caribbean

^★ EX. = Except.

. For example, the entity “Near_East” from ${\mathcal{O}}_1$ should be matched to the entity “WesternAsia” from ${\mathcal{O}}_2$. While the entity “Asia_(EX._Near_East)’’ should be matched to the union of the entities “CentralAsia”, “EasternAsia”, “SouthernAsia”, and “South-easternAsia”. While certain entities, for instance, “Northern_Africa” and “NorthernAfrica”, were correctly matched, in general, the underling complexity of the notation is not correctly addressed.

As per previous considerations, enhanced data semantics would be extremely valuable in this case also to address complexity by progressively generating a potential semantically inter-operable data space.

6.3. Domain and Ontology Design

There is no prescriptive or universally accepted approach to develop an ontological representation of a given domain. Therefore, ontologies may be designed according to different strategies and may present different patterns that reflect design choices. However, the tools adopted in the experiment do not address heterogeneous matching among entities. For instance, this means that a class can be matched with another class but not with an instance, an object property, or a data property. This can be considered to be an intrinsic limitation looking at the technological framework of the experiment.

Another potential factor is the inherent complexity of domain modeling. Some concrete examples from the experiments are reported in

Table 13. Domain complexity.

Ontology ${\mathcal{O}}_1$	Ontology ${\mathcal{O}}_2$
• Small_island_developing_states • Caribbean	• Small_states • Pacific_island_small_states • Caribbean_small_states • Other_small_states

, where the concept “small” is intrinsically ambiguous and leads to significant uncertainty.

7. Conclusions

This paper deals with the empirical evaluation of a knowledge-building process based on automatic ontology matching systems. The focus is on the resulting uncertainty and its practical implications. More concretely, the case study aims to provide an integrated semantic data space from heterogeneous non-semantically enriched relational datasets by leveraging automatic matching tools (pre-LLM technology).

The results clearly show the significant uncertainty resulting from a lack of data semantics that reduces the accuracy of automatic ontology matching methods, even considering a relatively simple case study. Indeed, regardless of the adopted matching tool, experiments behold a significant number of detected false positives and false negatives, due mostly to the intrinsic ambiguity of non-semantically enriched data. This uncertainty is always propagated at an application level. However, such uncertainty needs to be considered in the context of a constant technological evolution and of applications, which may be characterized by a different degree of error tolerance.

Looking at the technology adopted in this concrete study and at the reference knowledge building process, realistically, we believe that a further consolidation of current knowledge engineering practices to enhance data semantics would be a determinant to significantly reduce uncertainty and to improve data integration system performance accordingly. Last but not least, more consistent data semantics would fully exploit the potentiality of AI-powered solutions.

Future work will aim to manage uncertainty in practice by inferring potential relationships between the characteristics of the raw data to be integrated and the resulting integrated data space. Such an extended process that assumes semantically enriched data can fully exploit the advanced capabilities provided by large language models. Further, we are exploring more holistic alignment-based approaches.
