Wearable Voice Dosimetry System

Abstract

The objective quantification of voice acoustic parameters is used for the diagnosis, monitoring, and treatment of voice disorders. Such assessments are carried out with specialised equipment within the doctor’s office. The controlled conditions employed are usually not those of the real environment of the patient. The results, although very informative, are specific to those measurement conditions and to the time when they were performed. A wearable voice monitoring system, based on an accelerometer to ensure the message, can overcome these limitations. We present a miniaturised, low-power, and low-cost wearable system to estimate and record voice fundamental frequency (F0), intensity and phonation time for long intervals in the everyday environment of the patient. It was tested on two subjects for up to two weeks of recording time. It was possible to identify distinct periods in vocal activity, such as normal, professional, demanding or hyperfunctional. It provided information on the workload that the vocal cords needed to cope with over time and when and to what extent that workload was concentrated. The proposed voice dosimetry system enables the extraction and recording of voice parameters for long periods of time in the everyday environment of the patient, allowing the objectification of vocal risk situations and personalised treatment and monitoring.

1. Introduction

The quantitative assessment of vocal parameters is an essential practice performed by laryngologists and voice researchers for diagnosing and managing phonatory disorders. This process includes measuring aspects like the fundamental frequency (F0 in Hz), intensity (I in decibels Sound Pressure Level, dBSPL), and the acoustic spectrogram among other relevant variables. Typically conducted in specialised voice laboratories within laryngology departments and voice research centres, these analyses are pivotal for identifying risk patterns linked to voice disorders and assessing treatment efficacy. Although these evaluations provide highly specific data, they are confined to particular times and settings that do not necessarily reflect the patient’s everyday environment. The emerging field of personalised medicine emphasises the need for individualised diagnostic and therapeutic approaches, which significantly enhance outcomes in terms of diagnostic precision, therapeutic effectiveness, and overall quality of life. Advances in technology now facilitate continuous, real-time health monitoring—including voice parameters—via increasingly sophisticated yet affordable devices. However, the capability of monitoring vocal parameters over extended periods, particularly for medical and therapeutic applications, remains relatively underdeveloped, despite the prevalence of voice disorders, which affect approximately 6.6% of the working-age population in the United States alone [1,2]. The three primary vocal parameters, fundamental frequency, intensity, and phonation time, are crucial for understanding the health of the vocal apparatus:

-

The variability in F0 is often indicative of an increased vocal load, which occurs when the vocal effort intensifies, potentially leading to organic lesions if not managed with proper technique [3,4,5,6,7,8,9,10];

-

Similarly, an increase in intensity can reflect a prolonged vocal load [3,4,8,9], measurable using sound level meters or accelerometer vibrations [11,12,13];

-

Phonation time, defined as the duration the vocal cords are in motion, is an important metric, particularly in distinguishing between healthy individuals and those with vocal issues [14,15,16].

This paper introduces a novel wearable device designed to monitor these parameters continuously without external hardware, promoting non-invasive, long-term health monitoring in daily settings. The device features onboard signal processing, a compact size for minimal interference, low power consumption suitable for up to 14 days of continuous use, data storage on removable microSD cards, and affordability. Our aim is to provide healthcare professionals and patients with objective data on voice usage for enhanced diagnostic and therapeutic outcomes.

2. Related Work

2.1. Voice Dosimetry Devices

Voice dosimetry devices fall into two main categories: monitoring devices, which record parameters for later analysis, and feedback devices, which analyse signals in real time and provide alerts if certain thresholds are exceeded. Historically, these devices have predominantly used microphones for signal capture, with recent innovations incorporating accelerometers [17,18]. Positioned either in front of the mouth or attached to the skin beneath the larynx, these devices measure fundamental frequency, intensity, and phonation time, among other parameters [19]. A chronological review of these devices reveals (

Table 1. Comparison of the principal characteristics of voice dosimetry devices. The following abbreviations have been used: M—Monitoring, F—Feedback.

Author	Year	Device Name	Monitor Feedback	Sensor Type	Parameters Measured	Rec. Time	Sampling Rate (Hz)	Analysis Interval (Subinterval)	Dimensions (cm)	Weight (g)	Price
Holbrook et al. [24]	1974	VIC	F	Contact Mic	A, tphon				12 × 6 × 4
Zicker et al. [25]	1980		F	Mic	A		200	0.5 s	15 × 10 × 8	1000
Ryu et al. [26]	1983	M		Contact Mic	A, tphon	12 h		60 s [17]	9 × 6 × 3	150
Ohlsson et al. [27]	1989	RALOF01	M	Contact Piezoel. Mic	F0, tphon	12 h	1200–1800	6 s (200 ms)	19 × 11 × 5	475
Masuda et al. [14]	1993		M	Contact Mic	A, tphon	12 h		0.1 s	13 × 9 × 3	400
McGillivray et al. [28]	1994		F	Mic	A
Rantala et al. [29]	1994		M	Mic	F0, A	1.5 h	5000	70–250 ms (2.5–10 ms)
Buekers et al. [30]	1995		M	Mic	A, tphon	12 h	1	1 s	15 × 9 × 4	600
Airo et al. [31]	2000		M	2 Mics	A, tphon	8 h	100	2 s (10 ms)		120
Szabo et al. [32]	2001	VACLF1	M	Contact Mic	F0, tphon	Aprox. 12 h		1–10 s (50, 100, 200, 500 ms)	14 × 7 × 3	250
Cheyne et al. [17]	2003	PVA or APM	M, F	Acc	F0, A, tphon	12 h	11,025	125 ms (25 ms)	12 × 8.5 × 2	200	$5000
Popolo et al. [33]	2005	NCBS	M	Acc	F0, A, tphon	2–3 h		30 ms	13 × 8 × 1.6
Virebrand [34]	2011	VoxLog	M, F	Acc. Mic	F0, A, tphon	2–14 (h) 1		5–60 s (100–1000 ms) 1	12 × 2.5 × 2.5 [29]
Lindstrom et al. [35]	2011		M	Acc, Mic	F0, A, tphon		48,000	30 ms
Mehta et al. [36]	2012	VHM	M, F [32]	Acc	F0, A, tphon	18 h	11,025	50 ms (25 ms)		175 1
Carullo et al. [37,38]	2013	Voice-Care	M	Contact Mic	F0, A, tphon	5 h 2, 11 h	19,230 (M) 38,460 (calbi.)	30 ms	15 × 10 × 5		400 € 900 € 3 1800 € 4
Griffin Laboratories, Temecula, USA (Van Stan et al. [20]; Hilman, Mehta [39]; Hunter [40]; Bottalico et al. [41]; Vocalog [42])	2014	Vocalog	M, F	Contact Mic	A, tphon	3 weeks 5		1 s	7 × 5.5 × 1.5		$999
	2016	Vocalog2	M, F	Contact Mic	A, tphon	3 days [39]		1 s			$394
Mehta et al. [43]; Chwalek et al. [44]	2017		M	Acc Mic	F0, A, tphon	24 h	44,100	50 ms	68 × 14 × 5 5	14 6

¹ Dimensions: those of Nexus S, weight: 139 g (Nexus S) − 9 g (Nexus S original battery) + 45 g (Mugen 3900 mAh XL extended battery). ² Memory storage capacity. Battery life not mentioned. ³ Vocal Report Holter Med—Prototype 1.1.1, provided by PR.O.VOICE S.r.l., Italy. (VAT not included). ⁴ Vocal Report Holter Med—Prototype 2.0.0, provided by PR.O.VOICE S.r.l., Italy. (VAT not included). ⁵ Dimensions of the emitter placed on the skin. The receiver size is 59 × 25 × 10 mm. ⁶ Weight of the emitter placed on the skin. The receiver weighs 47.5 g excluding the battery. Battery life not mentioned.

) that only a few, such as the “Ambulatory Phonation Monitor” (KayPENTAX, Lincoln Park, NJ, USA), VoxLog (Sonvox AB, Umea, Sweden), VocaLog (Griffin Laboratories, Temecula, CA, USA), and Voice-Care (PR.O. VOICE, Turin, Italy), remain on the market. Despite their potential, their use has been largely restricted to research due to high costs ranging from USD 500 to USD 5000 and practical challenges such as size, weight, and sensor attachment [19,20,21,22,23]. These devices measure the basic parameters, and some, like the Ambulatory Phonation Monitor, also calculate additional metrics such as the number of vocal cycles or the travel distance of the vocal cords [20]. The built-in features in devices like VoxLog include ambient noise measurement and intensity self-calibration, aiding in the comprehensive assessment of vocal health and preventing the misuse of the vocal apparatus [21,22,23]. As shown in

Table 2. Comparison of commercial devices [20,38].

Voice Parameter	APM	VoxLog	VocalLog	Voice-Care
Intensity (dBspl)	X	X	X	X
Intensity warning	X	X	X
Fundamental frequency (Hz)	X	X		X
Frequency warning	X	X
Phonation time (hh:mm:ss)	X	X	X	X
Ambient noise (dBSPL)		X
Number of Cycles	X
Distance travelled by the vocal folds (meters)	X
Intensity calibration	Daily	Not necessary	Once	Once

, three of the devices that have been commercialised for voice dosimetry measure the three basic parameters.

2.2. Voice Dosimetry Studies

Voice dosimetry studies predominantly focus on professions where vocal demands are significant, such as teaching. These studies help understand the vocal strain associated with these professions and explore potential mitigations.

• Teachers and Vocal Load: Rantala and Vilkman noted that teachers with frequent vocal fatigue complaints exhibited a higher fundamental frequency (F0) and intensity (I) at the day’s end and week’s end, indicating significant vocal strain [7]. In contrast, Hunter and Titze found that teachers’ vocal usage during work was substantially higher in duration, intensity, and pitch compared to non-working periods. They documented that speaking constituted 29.9% of work hours compared to 12% during rest, with a higher pitch and intensity of about 2.5 dBSPL [45,46];
• Mitigation Strategies: The use of audio amplification systems has been shown to effectively reduce the vocal load by lowering the need for vocal intensity [8,47,48]. Additionally, classroom acoustics play a crucial role; poor acoustics often lead teachers to increase their voice intensity, further straining their voices [49]. Similarly, a noisy environment forces an increase in voice intensity [50,51];
• Voice Monitoring and Feedback Systems: McGillivray et al. successfully used a voice response/feedback system in children to achieve and maintain lower intensity levels during speech activities [28]. However, Van Stan et al. noted that without the continuous use of such devices, the learned behaviours were not maintained, indicating the need for regular use [52]. These systems have also been applied to study vocal pauses and their effects on vocal health [53,54];
• Clinical Applications: Holbrook et al. reported the use of a voice response dosimetry system that helped avoid surgeries by aiding in the recovery of vocal fold pathologies, such as polyps and nodules, through regular monitoring [24]. Similarly, Horii and Fuller observed that short-term orotracheal intubation increased shimmer and jitter in sustained vowels, affecting vocal quality [55];
• Post-Surgery Voice Rest Monitoring: After laryngeal surgeries, voice rest is crucial. Misono et al. demonstrated that voice dosimetry devices could effectively monitor and enforce voice rest, showing significant reductions in phonation time and intensity [56];
• Innovative Measurement Techniques: Apart from acoustic signal analysis, other methods like using accelerometers to measure skin vibrations at the larynx provide a non-invasive and privacy-respecting way to assess vocal cord activity during phonation. These measurements can be crucial for diagnosing and prognosticating voice disorders [55,57].

These studies underscore the importance of monitoring and managing vocal load, particularly in vocally demanding professions, to prevent long-term damage and improve vocal health outcomes.

3. Materials and Methods

3.1. System Design

The proposed system consists of an accelerometer and microcontroller-based signal acquisition, processing, and storage, as shown in Figure 1. The microcontroller board is powered through the micro USB port by an external 5 V 2000 mAh battery (Adafruit Industries, LLC, New Yor, NY, USA). The general structure of the signal processing flow is shown in Figure 2. The accelerometer signal is processed on a frame-by-frame basis with no overlap between frames. The relative intensity is calculated directly from the time-domain signal, while F₀ is estimated in the frequency domain. When phonation is detected, F₀ is computed using a novel method that combines the magnitude spectrum and the autocorrelation of its smoothed version which works very well for a wide range of values of F₀ and voicing characteristics. The computed voice parameters are stored on a removable non-volatile memory, part of the device.

3.1.1. Accelerometer

The motivation behind the choice of using an accelerometer over a microphone has been two-fold. First, unlike the microphone, which picks up signals from its surroundings that are not the object of measurement (including the voice of other persons), the accelerometer is not affected by other signals than the vibrations of the skin, providing a high signal-to-noise ratio [58]. Second, there is the question of privacy. A person is less willing to wear a system that is recording their voice. Similarly, other people who are around or talk with the user may not be willing for a device to record their voices even if it is not the goal of the device. We used the BU-27135-0000 accelerometer from Knowles Electronics because of its small form factor (7.92 mm × 5.59 mm × 2.24 mm), and unidirectional and flat frequency response between 20 and 2000 Hz. The small size, the key to achieving a wearable device, allows correct positioning between the upper part of the sternum and the lower part of the larynx. It is important that it is in this area as it is the closest to the vocal cords without being directly over the larynx, which translates into good reception of the vibrations generated by the vocal cords. The small size will also provide greater comfort for the patient. For the measurement of relative intensity, it is essential that the response of the device be linear in the range of measured frequencies. This allows the same amplitude to be correlated with the same relative intensity independent of the frequency.

3.1.2. Microcontroller

We used the Texas Instruments ultra-low power MSP430FR5994 microcontroller which features a low consumption math coprocessor (LEA—Low Energy Accelerator) that is capable of performing Fast Fourier Transform (FFT) and linear filtering. These are essential in our design, have low base energy consumption, and additional low consumption modes in which different parts of the microcontroller are turned off when not in use, and incorporate an Analog to Digital Converter (ADC), thus combining all the required functionality in one integrated circuit. It also provides an internal real-time clock (RTC), SD card controller and direct memory access (DMA).

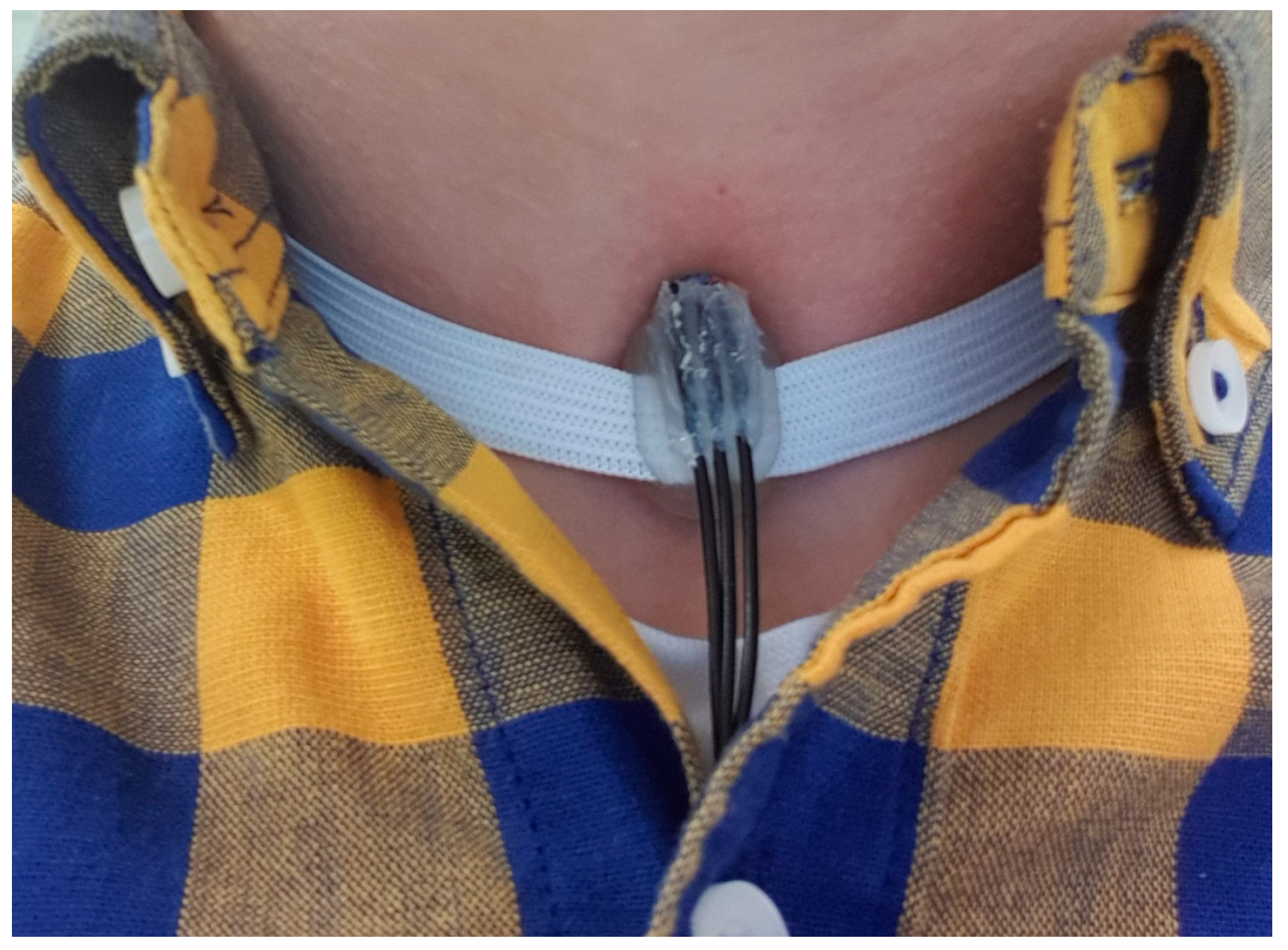

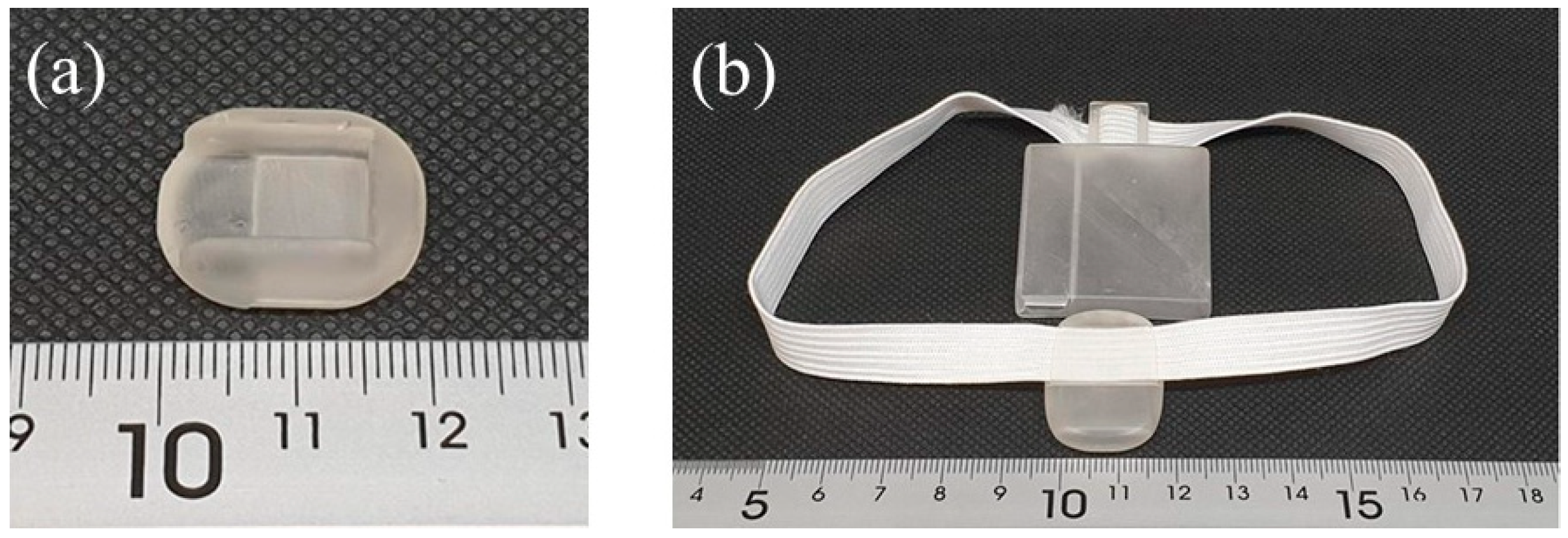

3.1.3. Accelerometer Placement

The sensor should rest on the skin with the same pressure throughout the measurement so that the data collected over a number of days can be comparable. Other works used double-sided adhesive tape to fix the sensor to the skin, but the tape is frequently annoying to the user or ends up peeling off [33,59]. We used a custom-designed support on which the sensor is positioned and also has an anchoring system for an elastic band that passes around the neck and keeps the sensor in a fixed position as shown in Figure 3a. The band tension was adjustable. The support was 3D printed in Clear resin. The accelerometer was hot glued to the support and an elastic tape was attached. The three cables that were visible are connected to the microcontroller board.

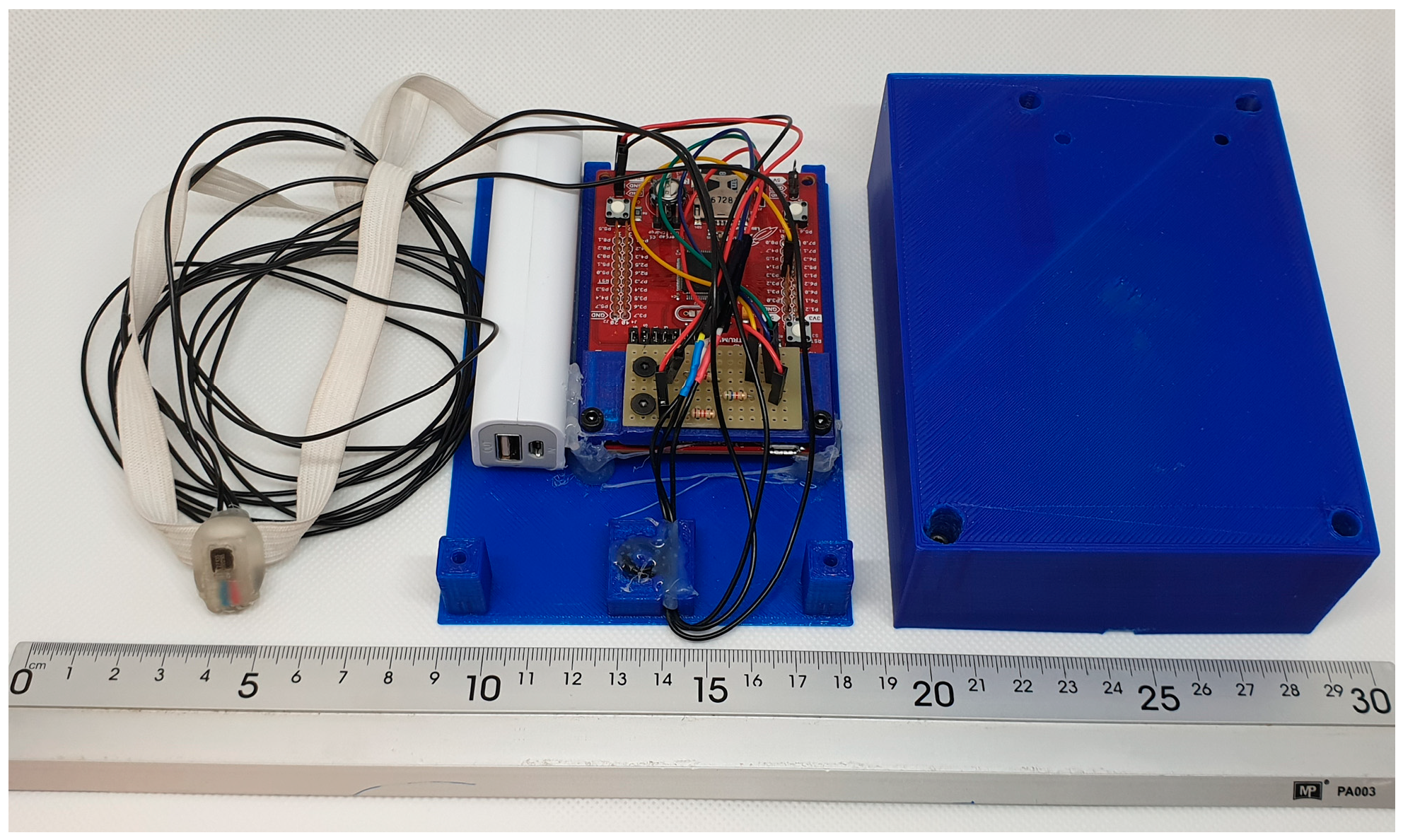

3.1.4. Final Device Version

We used an off-the-shelf development microcontroller board, while the final version of the proposed system will use a custom Printed Circuit Board (PCB) to hold only those components that are necessary. In that way, the size of the entire system could be drastically reduced. Figure 3b shows what would be the final size of the entire device including the battery. It could be worn on the neck without any extra components to be stored in the pockets or in the vicinity of the patient. The necessary components are shown in

Table 3. Components of the wearable voice dosimetry system.

Component	Dimensions (mm)	Weight (g)	Price (€)
Microcontroller MSP430FR5994	16 × 16 × 1.5	0.462	7.18
Accelerometer BU-27135-000	7.92 × 5.59 × 2.28	0.28	41.25
Molex 504077-1891 micro SD slot	11.32 × 15.4 × 2.3	0.188	1.77
Motherboard + SMD components	20 × 16 × 2	<1	<2.00
400 mAh battery	37 × 25 × 5.2	13	4.44
Circuit for battery charging	37 × 10 × 2.5	<5	<10.00
Total	55 × 36 × 6.5	<20	<67

together with their volume, weight, and price. The selected battery capacity allows for 7 days of uninterrupted recording.

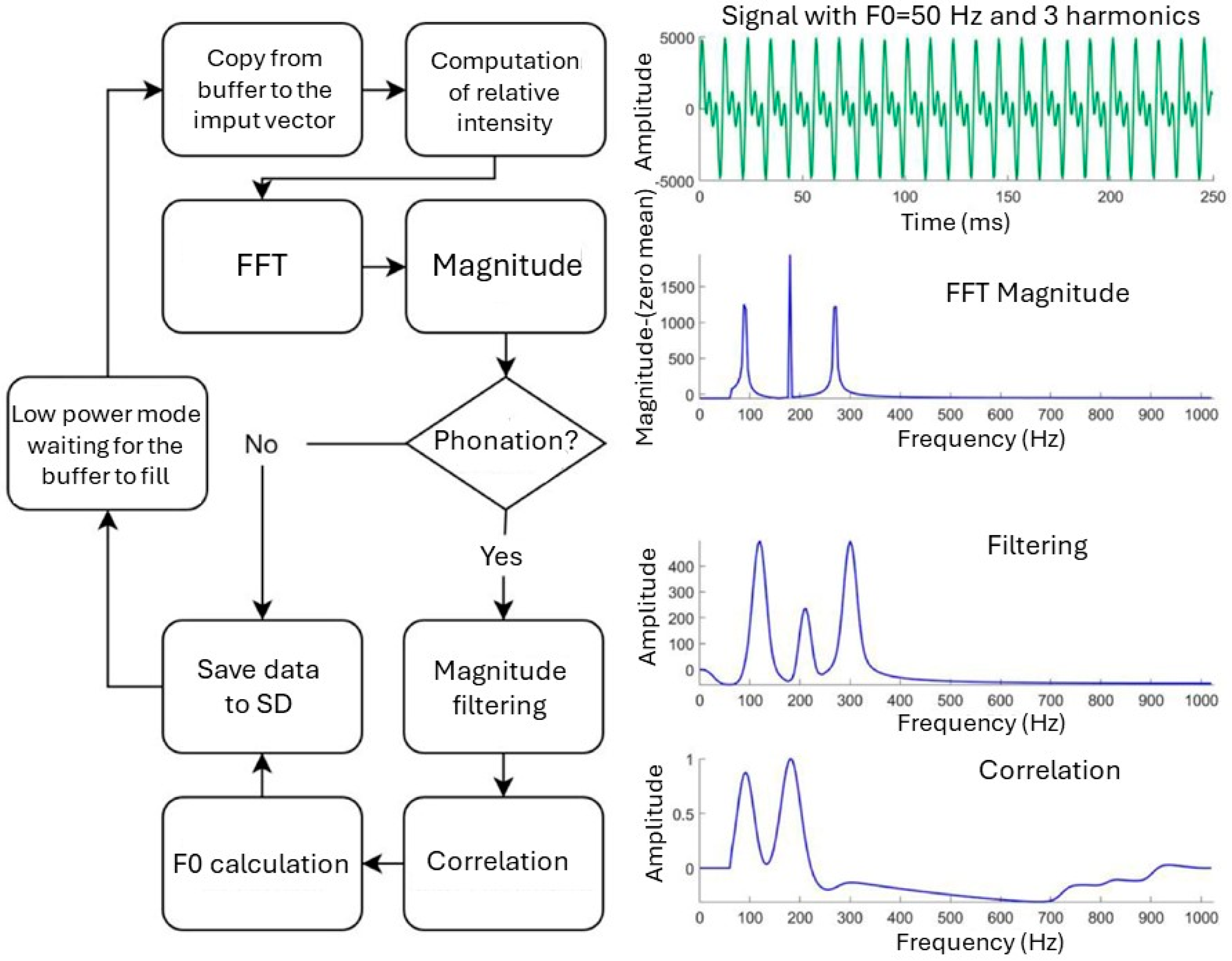

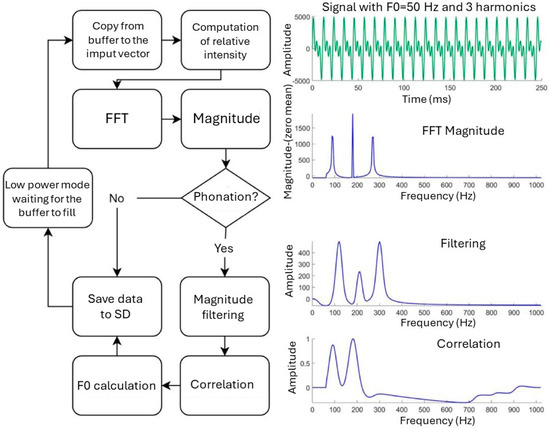

3.2. Signal Processing

For the algorithm design, we assumed F₀ was in the range of 100–250 Hz. As the F₀ estimation algorithm will also use up to the third harmonic information, the minimum sampling rate that is an integer power of two is 2048 Hz. The preferred length of the frame, or analysis interval, was set to 2048 samples so that the frequency resolution could be 1 Hz. However, this was incompatible with the use of the Low Energy Accelerator (LEA), which is a key component to achieve low power consumption. Because of memory allocation and alignment requirements imposed by the hardware, the maximum possible FFT order that would make the necessary variables fit inside the memory segment available to that LEA is 512. With that, the frame duration is 250 ms and the spectral resolution is 4 Hz.

3.2.1. Signal Acquisition

The accelerometer signal is captured directly by the microcontroller through its ADC. The samples are copied to the memory using Direct Memory Access (DMA), Texas Instruments, Dallas, TX, USA) to save Central Processing Unit (CPU) cycles and reduce power consumption. Double buffering is used so that the incoming samples are stored in one buffer while the samples from the other buffer are being processed.

3.2.2. Relative Intensity

The duration of the analysis interval has been chosen taking into account the estimation of the fundamental frequency and providing a small temporal resolution. We divided the analysis interval into eight subintervals to circumvent it. With this additional step, the temporal resolution is increased to 31.25 ms. The second advantage of using subintervals is that the phonation time resolution will be improved accordingly. The relative intensity for each subinterval is computed where k is the subinterval number, and N and L are the duration in the samples of the analysis interval and analysis subinterval, respectively.

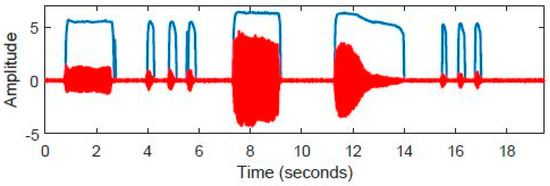

3.2.3. Voiced Activity Detection

We used a simple voiced activity detection based on thresholding the amplitude of the magnitude spectrum at F₀ as shown in Figure 4. The threshold value of 45 units was determined experimentally from several data sets. If the threshold is exceeded, the analysis interval is considered to contain voiced activity and F₀ estimation is performed. Otherwise, F₀ = 0 Hz is assigned to the interval and, consequently, to each of its subintervals. The value of F₀ is stored together with the relative intensity in the nonvolatile memory, and the processor is placed into the power-saving mode until a new signal frame is acquired. As most of the time there is no voice activity (approximately 20–50% of the analysis time during reading or conversation corresponds to pauses [60]) the energy consumption of the device is considerably reduced and its recording time extended.

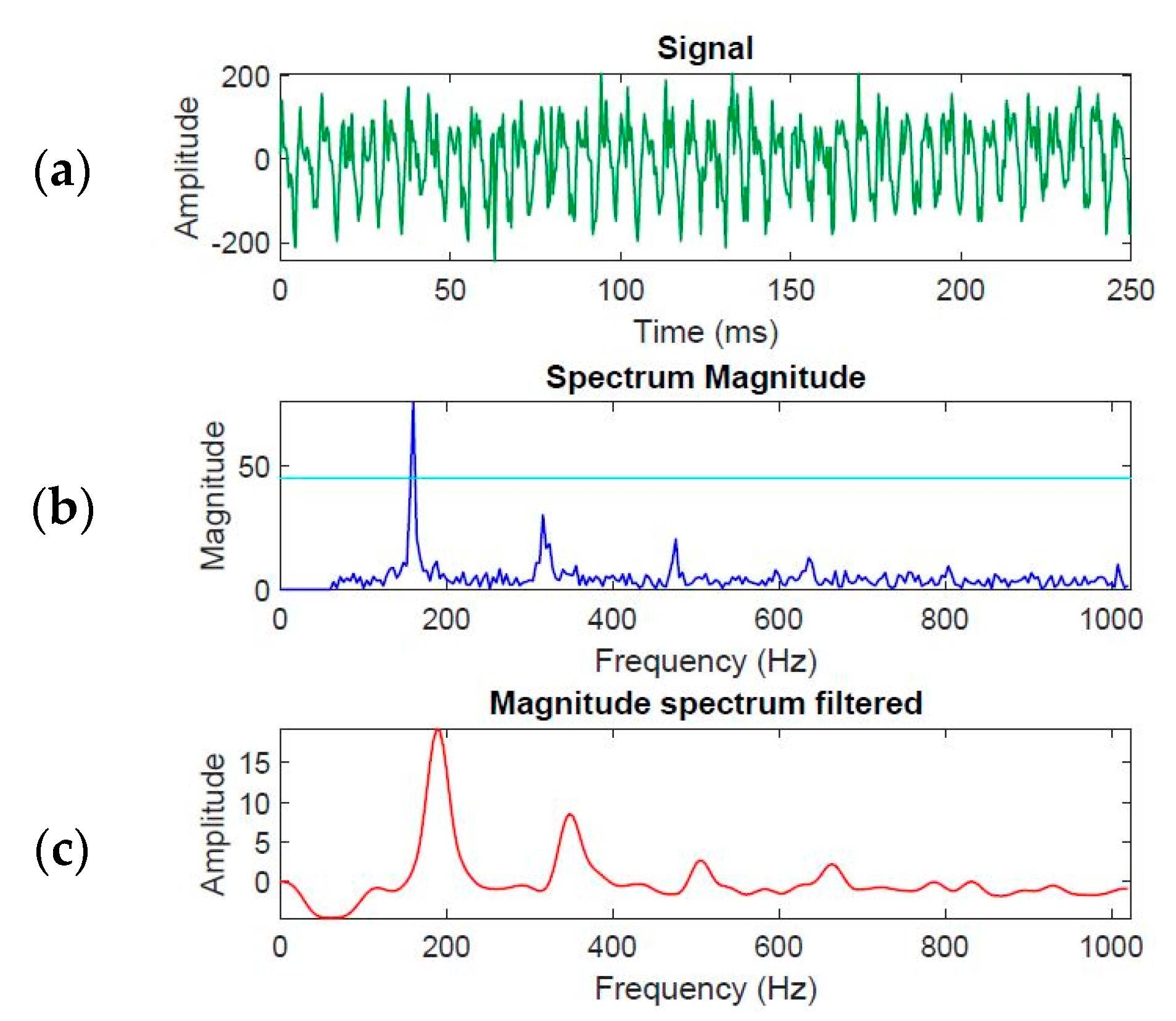

3.2.4. Magnitude Spectrum

If voiced activity is detected in a frame, the algorithm will estimate F₀ from the magnitude spectrum. Computing the magnitude spectrum on the chosen hardware platform is the most computationally expensive part of the algorithm as LEA cannot be employed. It takes 300 ms and exceeds the duration of the analysis interval making the entire system incapable of real-time operation. As a solution, we approximated the magnitude of a complex number z = a + ib as |z| = |a| + |b|. The committed error is (|a| + |b|)² − |z|² = 2|a||b|. It is always positive, and monotonic in a and b, so it neither changes the position of the peaks corresponding to F₀ and its harmonics, nor their relative amplitudes. In the following, we will call |z| = |a| + |b| the magnitude. With this modification, the time saving is ten-fold, allowing for real-time processing. We also assume a lowest F₀ of 72 Hz and spectral components for frequencies lower than this value are removed by setting the corresponding magnitude spectrum samples to zero. The mean of the magnitude is removed to avoid numerical overflow errors in the subsequent processing steps.

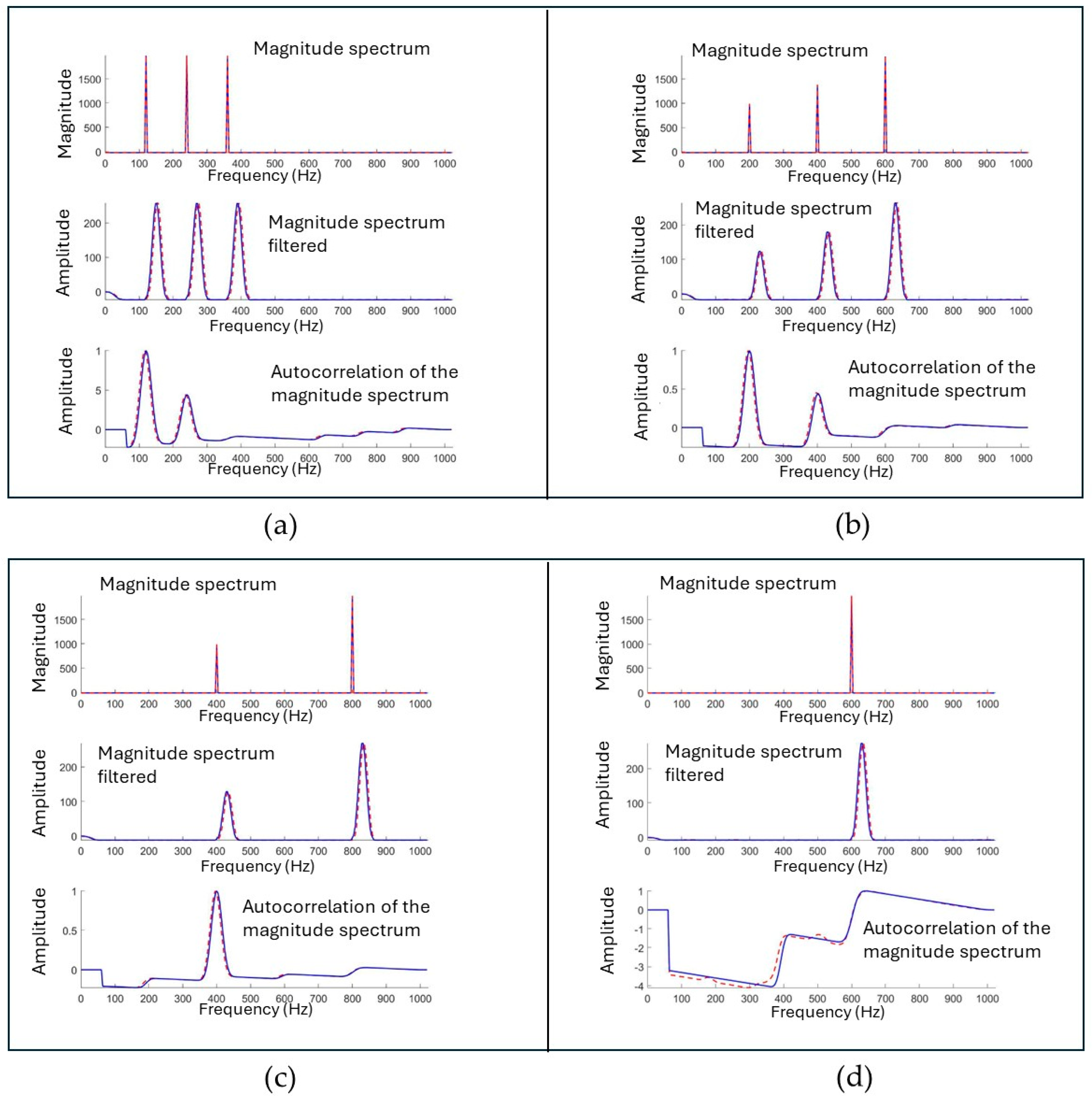

3.2.5. F₀ Estimation

Existing devices estimate F₀ using either the magnitude of the short-time spectrum or its autocorrelation [41]. In the first method, the spectral peaks are found that correspond to F₀ and its harmonics. In the second method, the autocorrelation of the magnitude spectrum is computed and the first peak corresponds to F₀. Both methods have their limitations. The magnitude spectrum approach fails when the voice signal intensity and F₀ are low, as the spectral peak of any of the harmonics can be easily confused with spectral peaks due to noise. In the case of the autocorrelation method, at least two harmonics (F₀ counts as a harmonic) must fall within the frequency range analysed, that is 0–F_s/2, where F_s is the sampling rate. If the F₀ > F_s/6 (340 Hz in our case), only two harmonics will be present in the signal spectrum, and if F₀ > F_s/4 (512 Hz in our case), there will be only one, which is when the method will fail as shown in Figure 5. Merging the two methods allows us to combine the strengths of both while avoiding the pitfalls of either. The strategy is to use the autocorrelation of the magnitude spectrum for F₀ estimation whenever possible and only if that fails, resort to F₀ estimation from the magnitude spectrum. Autocorrelation is more robust at low frequencies (F₀ < 480 Hz) and for analysis intervals that contain signals with more than one F₀ (for example the ending of one vowel, a pause, and the beginning of another vowel).

• F₀ estimation from magnitude spectrum:

The speech signal of voiced phonemes is assumed to be quasi-periodic and, consequently, the F₀ and its harmonics are equidistant in frequency. Intuitively, we expect that the frequency corresponding to the highest peak of the magnitude spectrum is F₀ (up to the frequency resolution, which is 4 Hz in our case). Although in many cases this is true, it may also happen that the F₀ peak is not the one with the highest magnitude and, consequently, this fact must be determined for every analysis interval. We have observed experimentally that, if there is any harmonic peak prior to the one with the highest magnitude, its magnitude is always greater than 1/3 of the maximum of the magnitude spectrum vector, which we will denote by v_FFT. We will consider two cases: the highest peak corresponds to the second harmonic, or the highest peak corresponds to the third harmonic. In the first case, we denote the sample position of the second harmonic peak by p_FFT. Consequently, there must be another peak corresponding to the first harmonic at the sample position p_FFT/2. As the peak positions can only be integer numbers, we extend the search to round (p_FFT/2) – 1 … round(p_FFT/2) + 1. Out of the three, the position that has the maximum magnitude is selected and if that magnitude is greater than 1/3 v_FFT, that position is declared the F₀ (in samples). In the second case, we test if the maximum corresponds to the third harmonic: we repeat the above procedure, except that the p_FFT is divided by three. The value of frequency F₀ is stored in p_FFT and the corresponding magnitude is in v_FFT. See Algorithm A1 in Appendix A for a formal description;

2.

F₀ estimation from magnitude spectrum autocorrelation:

Given the F₀ and its harmonics are approximately equidistant in frequency for voiced phonemes, the first peak of the autocorrelation of the magnitude spectrum corresponds to F₀. Clearly the higher the number of harmonics present in the spectrum and the smaller the noise, the more accurate the identification of the peak. Noise causes spurious peaks in autocorrelation that can be mistaken for the F₀ peak. To improve robustness, the magnitude spectrum is low-pass filtered first to “smooth” it and to make the harmonic peaks “stand out” from the noise. This, in turn, produces a very “smooth” autocorrelation in which the F₀ peak can be identified with a much smaller chance of error. The filtering delay does not need to be compensated as only the distance between harmonics is being measured. The F₀ peak is detected as the first positive peak (recall that the magnitude is zero-mean) in the autocorrelation. Figure 5d shows a spurious peak that has been avoided by requiring the positive magnitude of the peak. The position of the peak is stored in p_acorr and the position of the maximum of the autocorrelation is stored in $p_{\mathrm{a}\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{r}}^{\left(max\right)}$. The autocorrelation has been implemented using LEA and linear filtering. As LEA uses fixed-point arithmetic, proper pre-scaling has been applied to avoid numerical overflows;

3.

Final value of F₀:

Lastly, the p_FFT, v_FFT, p_acorr, and $p_{\mathrm{a}\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{r}}^{\left(max\right)}$ are combined to produce the final F₀ estimate. For that, two conditions are evaluated. First, we examine if p_acorr equals $p_{\mathrm{a}\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{r}}^{\left(max\right)}$ and if p_acorr ≤ p_FFT + $p_{\mathrm{F}\mathrm{F}\mathrm{T}}^{\left(offset\right)}$, where $p_{\mathrm{F}\mathrm{F}\mathrm{T}}^{\left(offset\right)}$ = 10 (determined experimentally). Second, if p_FFT > $p_{\mathrm{F}\mathrm{F}\mathrm{T}}^{\left(min\right)}$ and if v_FFT > $v_{\mathrm{F}\mathrm{F}\mathrm{T}}^{\left(min\right)}$, then the value of $p_{\mathrm{F}\mathrm{F}\mathrm{T}}^{\left(min\right)}$ = 120, corresponding to 480 Hz and $v_{\mathrm{F}\mathrm{F}\mathrm{T}}^{\left(min\right)}$ = 100, determined experimentally by analysing hundreds of intervals for F₀ in the range of 80 Hz to 500 Hz and for I in the range that could be produced by a human. If only the first condition is fulfilled, the autocorrelation result is chosen and F₀ = 4p_acorr Hz (because 4 Hz/sample is the frequency resolution). Otherwise, it is likely that there are not enough harmonics to obtain F₀ from the autocorrelation or that we are dealing with a signal whose fundamental frequency exceeds 480 Hz. In those cases, the algorithm falls back to F₀ estimation from the magnitude spectrum and sets F₀ = 4p_FFT Hz.

3.2.6. Data Storage

For each analysis interval, consisting of 8 subintervals, 16 values are computed: one value of F₀ repeated 8 times and 8 values of relative intensity. They are stored in the FRAM memory region of the microcontroller and transferred every 2 min to the microSD memory. It was not possible to directly store data in the microSD as accelerometer signal acquisition and the SPI communication with the microSD memory could not be performed simultaneously due to hardware limitations (writing to microSD card switches off and interrupts). Also, the communication with the microSD is time and energy-consuming, making it more efficient (in time and energy consumption) to transfer data in sets instead of individually. However, the more data sent during the transfer, the longer the device is not acquiring the signal. For this reason, 2 min of recording with a transfer pause of approximately 5 s was chosen as a balance between recording and non-recording time.

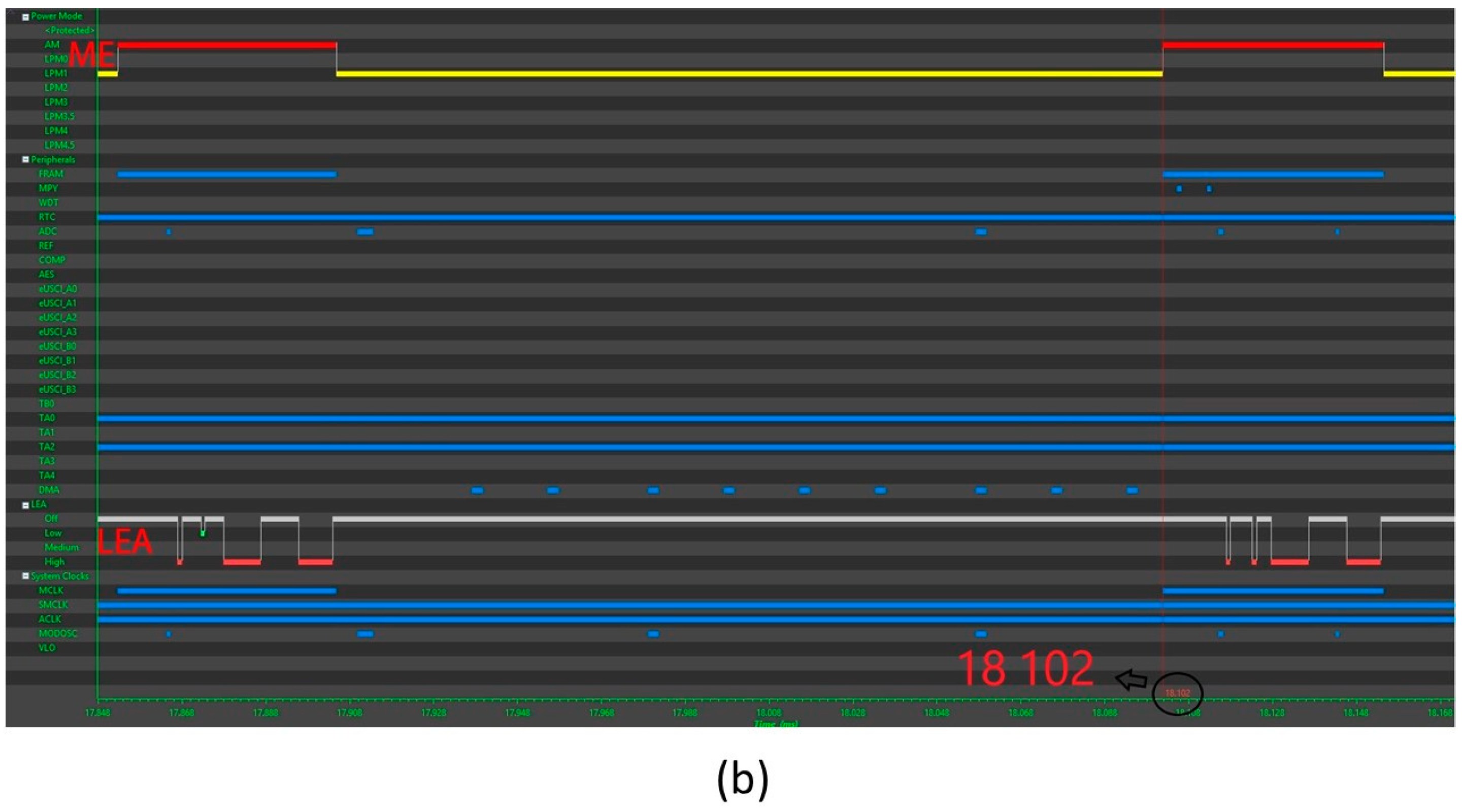

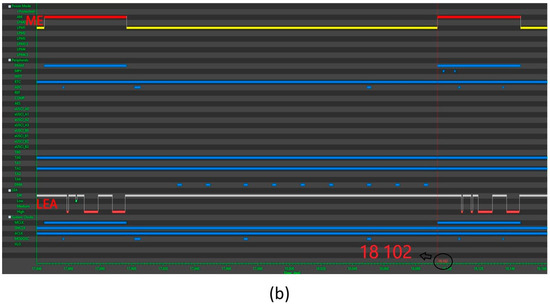

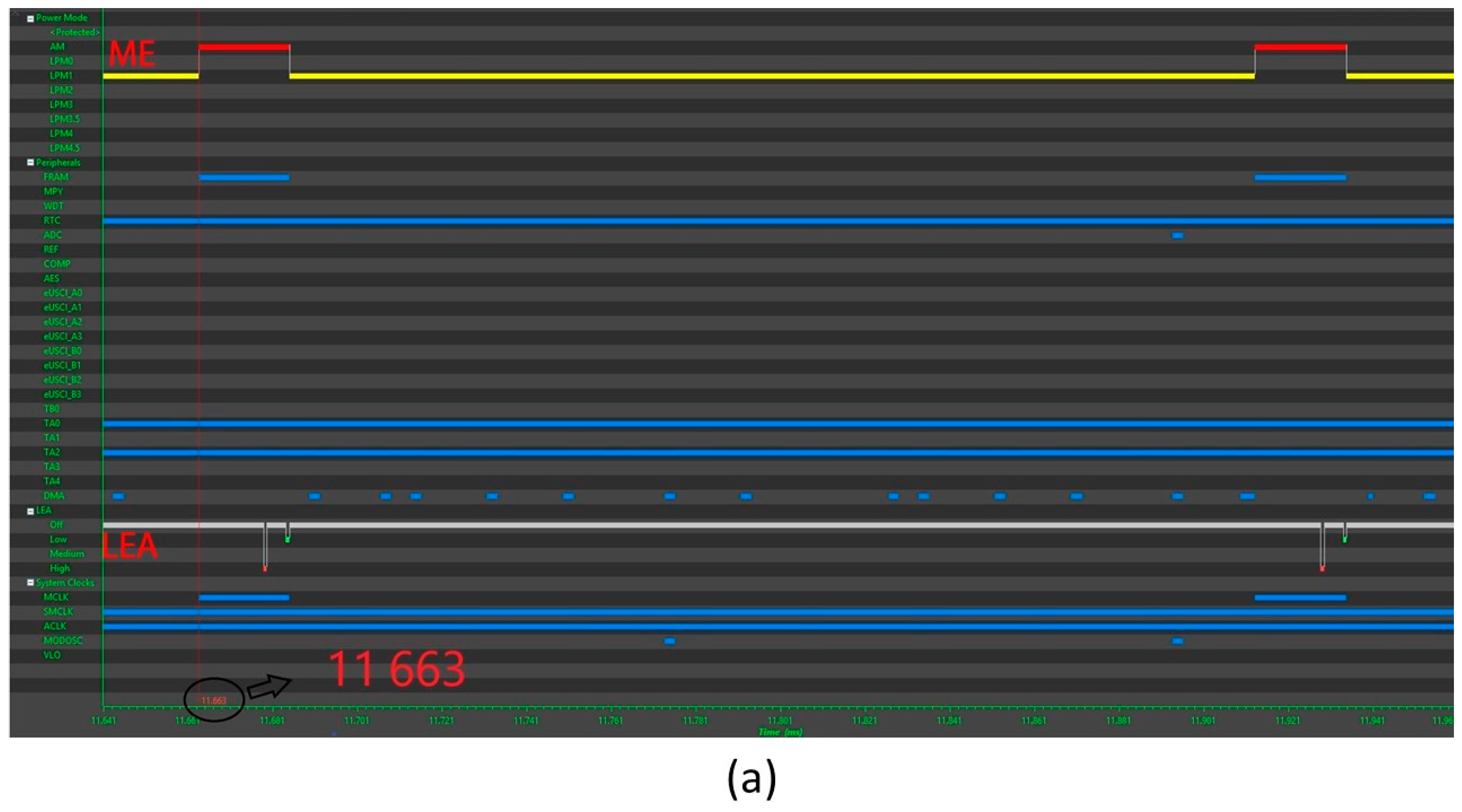

3.3. Power Consumption

In the case no voiced activity is detected, the processing time is approximately 21 ms and when it is, the processing takes 53 ms (per 250 ms interval). Thus, the microcontroller is in low power mode 79% and 91% of the time, respectively. If the data recording periods are also taken into account, the microcontroller is in low power mode 73% of the time. Figure 6 shows microcontroller activity in typical scenarios. The average current consumption is 2.44 mA. With two rechargeable AAA batteries (1150 mAh) the device could operate continuously for more than 19 days without recharging. This excellent result is achieved by structuring the algorithm in such a way that LEA can be used for most operations.

3.4. System Validation

3.4.1. Microcontroller and Algorithm Validation

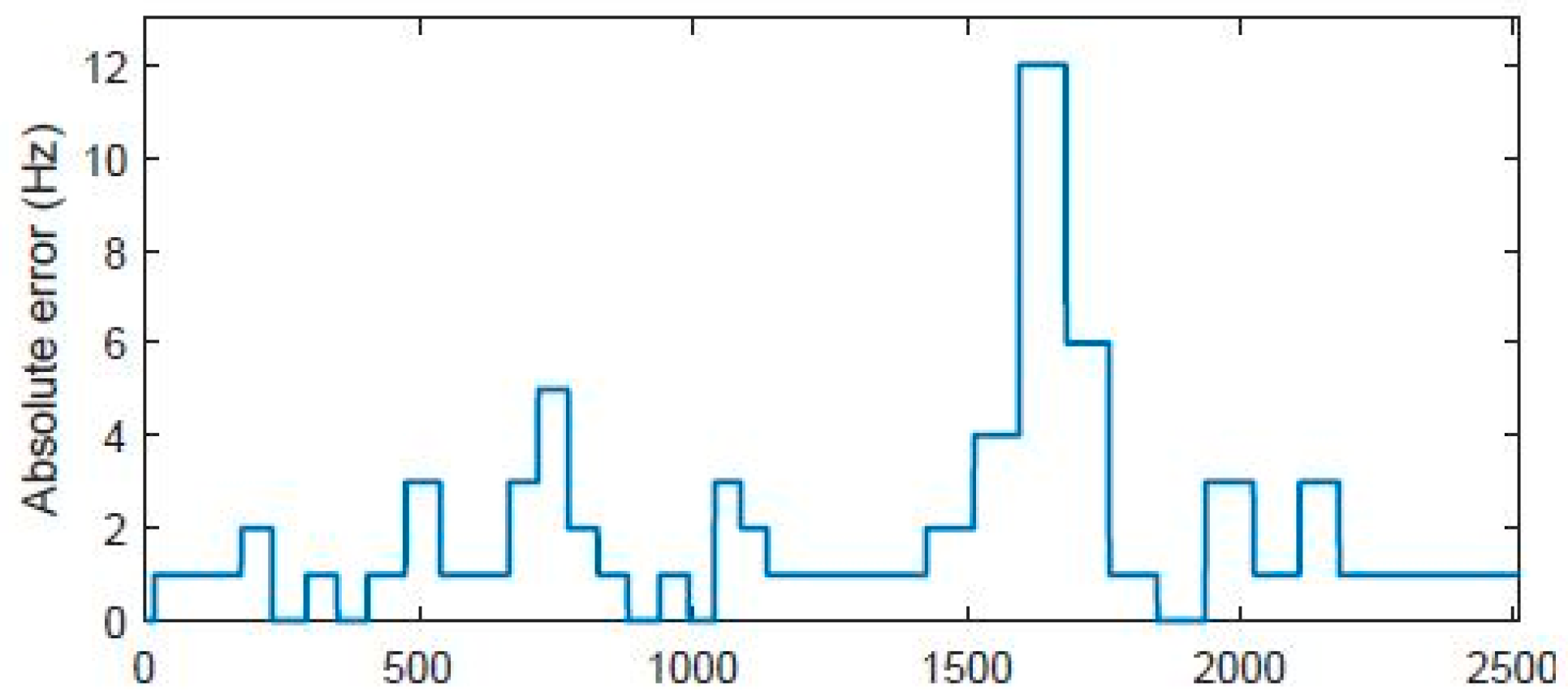

The implementation of the algorithm in the microcontroller has been verified using Matlab (Matlab R2018b, Mathworks Inc., Natic, MA, USA) implementation as a reference. For this purpose, several test signals with known characteristics, whose magnitude spectra are shown in Figure 2 and in Figure 5 cases (a)–(d). These specific signals exemplify the various scenarios that may arise with real signals. Case (a) illustrates the reason why exclusively using the autocorrelation method is not sufficient and how the algorithm uses the information of the magnitude of the FFT to correctly calculate the F₀ when the first harmonic is not the one that contributes the most energy (the spectral peak corresponding to F₀ is not the highest one), and, when in the autocorrelation function, the highest peak is not the first peak. Therefore, the algorithm searches for the highest peak in the magnitude spectrum. That peak is further examined as to whether it is the first harmonic or not. In this case, it is not, and another harmonic is found before it. The position of this earlier harmonic is used to set the p_FFT variable and, consequently, to calculate F₀. In case (b), the maximum of the magnitude spectrum is at the first harmonic, and, in the autocorrelation, the maximum coincides with the first peak. Since the maximum of the autocorrelation coincides with the first peak of the magnitude of the FFT, the position of this peak, p_acorr, is used to compute F₀. In case (c), the maximum of the magnitude spectrum is in the third harmonic. This is discovered by finding another peak at 1/3 of the position of the third harmonic. Since, in the autocorrelation, the maximum coincides with the first peak, the algorithm uses p_acorr to calculate F₀. Case (d) is similar to case (c), except that the maximum of the magnitude spectrum occurs at the second harmonic. Again, this is detected by finding another peak at 1/2 of the position of the second harmonic. Similarly, since, in the autocorrelation, the maximum coincides with the first peak, the algorithm uses the p_acorr to calculate F₀. Cases (b)–(d) differ in the way the FFT magnitude peak corresponding to F₀ is being detected but in all of them, the autocorrelation method was sufficient to calculate F₀. In case (e), the algorithm does not use the autocorrelation results since the frequency corresponding to the maximum of the magnitude spectrum is greater than 480 Hz and only one harmonic is present. As no prior peak to the highest one is found in the magnitude, its position p_FFT corresponds to F₀. In all cases, the results obtained in Matlab and in the device were the same. In case (a), however, both the Matlab code and the device produced an F₀ estimate of 88 Hz. This is because the true F₀ of 90 Hz was purposely not a multiple integer of 4 Hz, the spectral resolution of the system. There is no such problem in cases (b)–(e) and the results obtained in Matlab and in the device were equal to the true value of F₀ in the test signals.

3.4.2. Validation of the Parameters of Interest in the Human Voice

To validate the results obtained by the device regarding the parameters of the voice we are studying (F₀, relative intensity, and phonation time), the device was placed on three subjects (two men and one woman) and recordings were made with the device and, simultaneously, with the audio recording and sound level measurement equipment at the Voice Laboratory of the Clínica Universidad de Navarra.

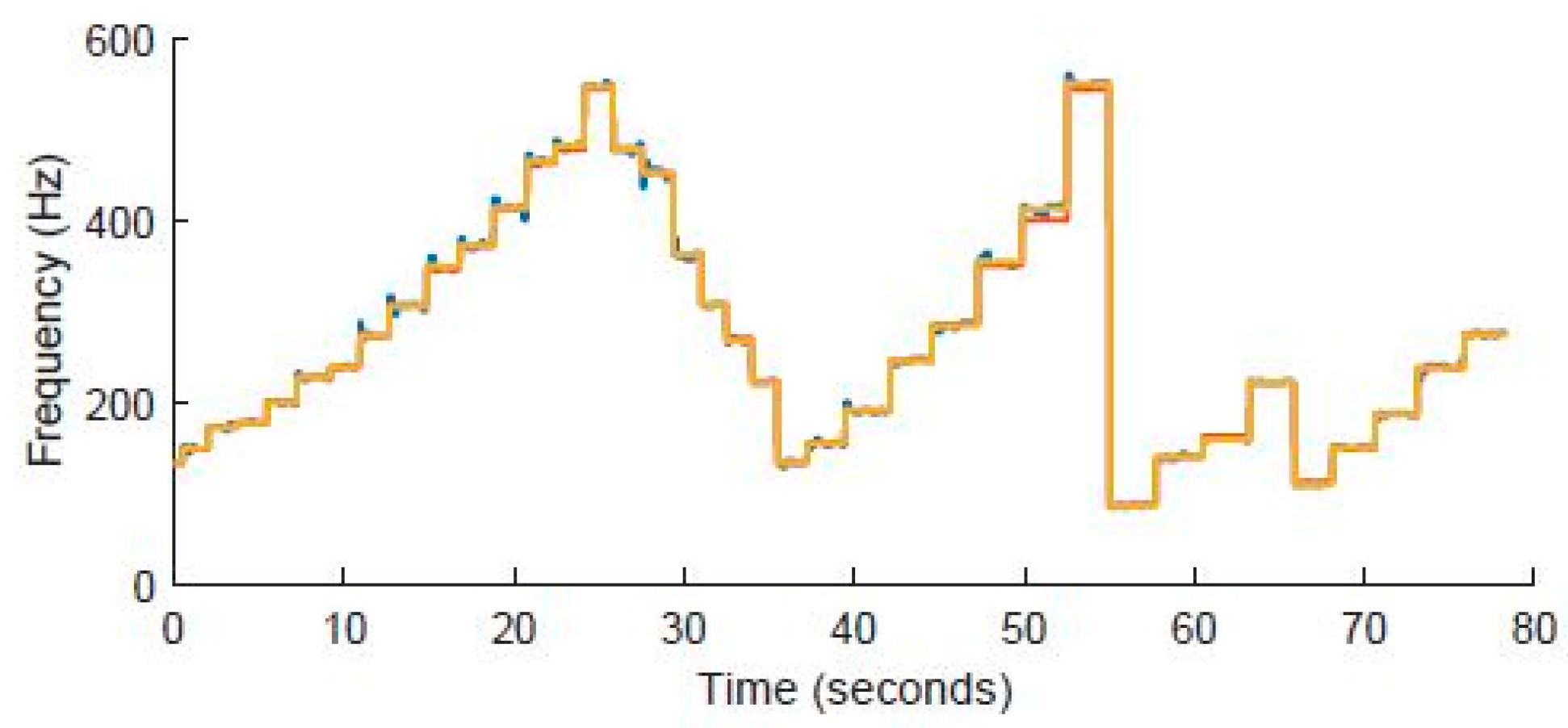

• Validation of F₀ estimation:

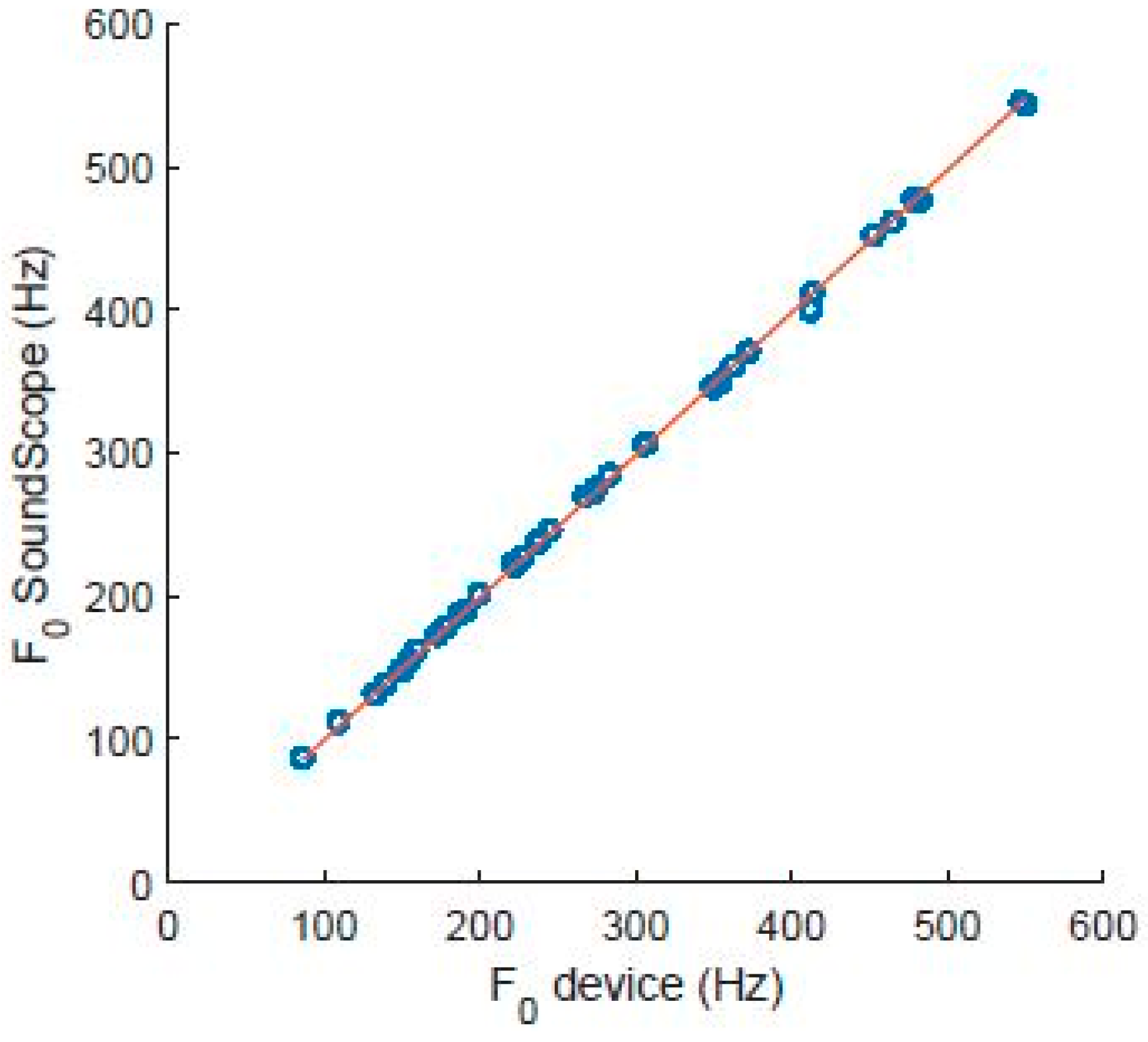

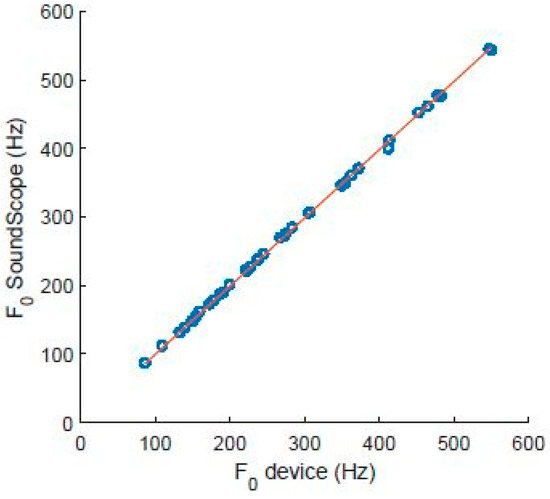

For the validation of the F₀ measurement, the device was placed on each of the subjects. Those subjects generated a tone scale, each within their comfortable range and without predetermining the frequency of each of the tone steps. Each of the tones, produced as a vowel, was kept constant for 1 to 3 s with a brief silence in between. The F₀ measurement was performed using the proposed system and a microphone connected to a PC through the A/D SoundScope/16 card and analysed with SoundScope 1.2 software. For each tonal step, the result obtained from SoundScope measurements is a frequency value that corresponds to the mean F₀ measured by the program during that step. Subsequently, both recordings were analysed using the correlation statistic to determine the absolute error of the measurements performed by the device with SoundScope measurements as the reference. Figure 7 shows the 2508 data collected by the device in the 38 tonal steps. The first 29 steps correspond to subject 1 and were taken in 2 measurements of 21 and 8 tonal steps, respectively. The next four tonal steps correspond to subject 2 and the last five to subject 3. The SoundScope measurements have the form of steps with a constant value of F₀ during the tonal step. This is because SoundScope only produces one frequency value for each F₀ step that corresponds to the average frequency of the F₀ during that step. The results provided by the device are consistent with those provided by SoundScope. The temporal resolution of the proposed device offers the advantage of the possibility of observing how the fundamental frequency is slightly higher during the attack phase (when starting a tone) and subsequently stabilises. For the comparison, the mean fundamental frequency for each tonal step was calculated from data obtained by the device to mimic the behaviour of SoundScope. Figure 8 shows the correlation between the fundamental frequency values obtained using the SoundScope and the fundamental frequency values obtained with the device. The correlation is R = 0.9998. Finally, the absolute device error, taking the SoundScope value as a reference, is shown in Figure 9. The mean absolute error is 1.94 Hz with a standard deviation of 2.32 Hz.

2.

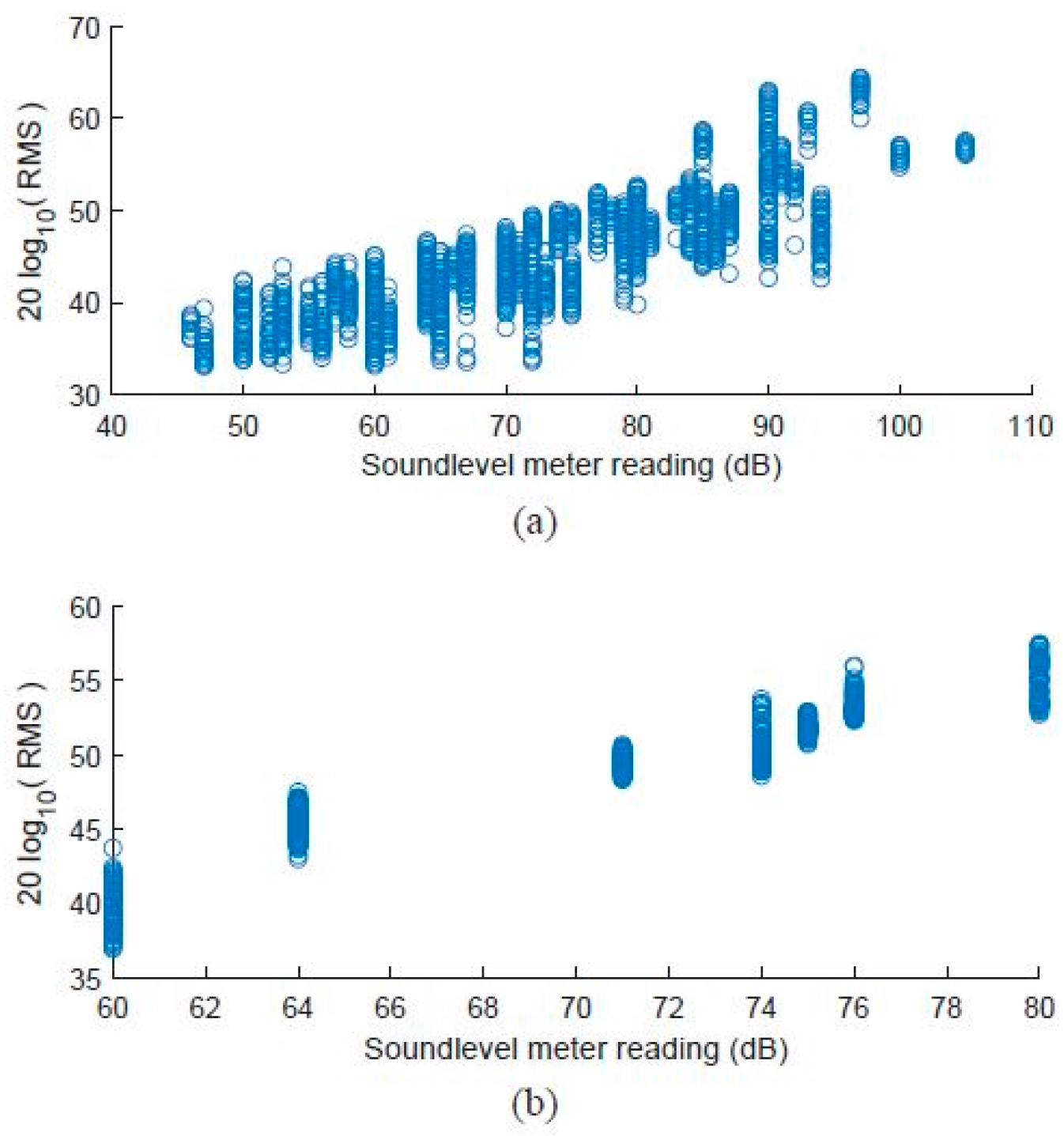

Relative intensity validation:

The relative intensity measurements from the device were compared with the intensity measurements recorded by the sound level meters: ISO-TECH SLM-1352A, (RS Integrated Supply, Birchwood, Warrington WA2 6UT, UK) and LingWAVES SPL (WEVOSYS medical technology GmbH, Bamberg 96052, Germany) meter. Again, the three subjects produced tones of increasing intensity within their range of comfort. Each of the tones was kept at constant intensity for 1 to 3 s with a brief silence in between. Subsequently, the statistical comparison of the obtained data was performed. For the validation of the relative intensity, measurements of constant intensity of subject 1 were taken. During the recording, the sound level meter produced 77 values, while the device produced 5190 values. In the case of subject 2, these were 8 and 646 measurements, respectively. The measurements for subject 3 were discarded because she did not perform the vocal exercise correctly, i.e., vowels were not kept at constant intensity. The results are shown in Figure 10. A very high linear correlation is observed for both subjects. These results show the robustness of the device as the measurements with subject 1 were made over several days, including taking off and putting on the device, with the possible small variation in pendant tension.

3.

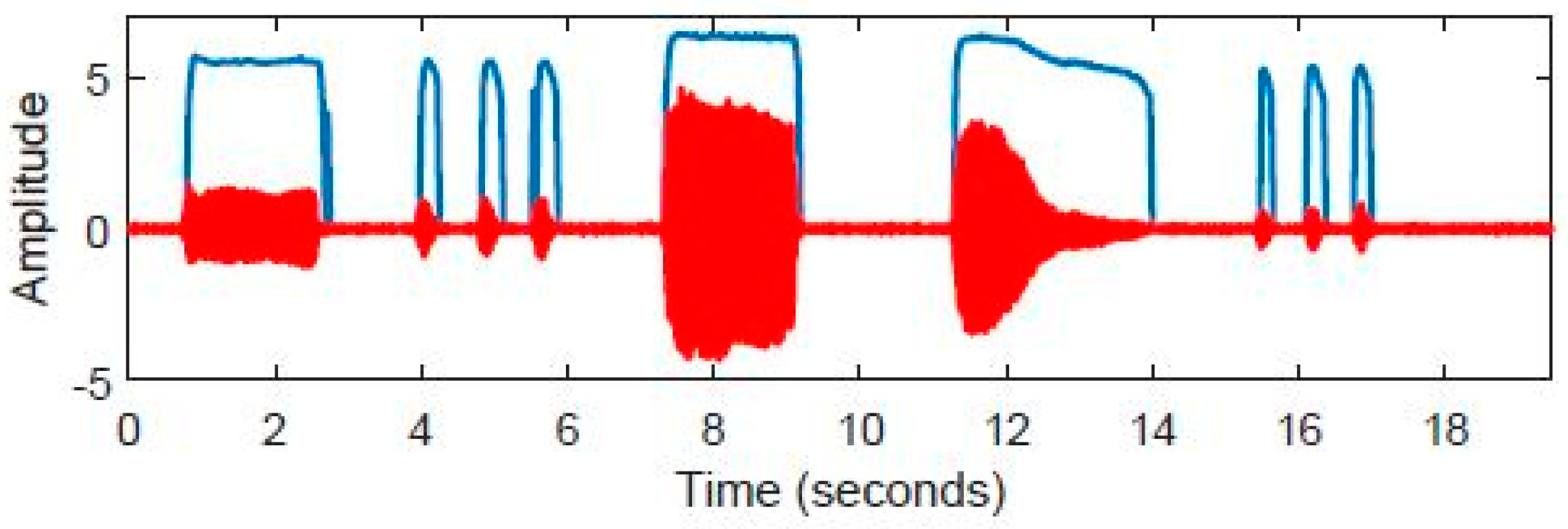

Phonation time validation:

The phonation time measured by the device was compared with that recorded using the YETI PRO microphone and the Sound Forge 10.0 software. During the experiment, each of the three subjects performed a monologue for 2–3 min. The microphone recording was analysed using Audacity 2.3.1 software. Since the device stores data in microSD memory every 120 s, the first 100 s of the monologue were used for comparison. All pauses in the audio recording were eliminated. The duration of the remaining recording is the phonation time. With this, an audio signal is obtained that concatenates all the voice fragments recorded by the microphone. The number of subsegments in the device recording that show a non-zero F₀ during the first 100 s of the recording is multiplied by the segment duration (31.25 ms) to obtain the total time that has been considered phonation speech. The results of the recordings are shown in

Table 4. Comparison of the calculation or measurement of phonation times with different systems: Audacity and the proposed device.

Recording	Audacity (s)	Device (s)	Ratio (%)
Subject 1	81	35	43
Subject 2	74	60	81
Subject 3	75	69	92
Vocals	7.7	7.9	103

. In the case of subject 1, the total phonation time differs by more than 80% between using a microphone and Audacity, and the time recorded by the device. This happens because, obviously, not all speech needs to be voiced. If only vowels are produced, the values calculated by the device coincide with those obtained from the acoustic recording, as shown in Figure 11.

3.5. Subjects

Three subjects were studied, a 46-year-old female, a 57-year-old male and a 26-year-old male who used the device for several 9 days.

All three subjects were asked to use their voice normally in a communicative setting with family and friends while wearing the device (comfortable fundamental phonatory frequency and loudness). On one of the days, they were asked to make, in addition to normal voice use, professional use of their voice by performing their usual job in which the voice is a relevant work tool that puts a phonatory strain on them. On another day they were asked to make intensive use of their voice by singing for a prolonged period of time.

In addition to the speech utterance, they should utter the sound of sustained vowels in order to study the correspondence with the usual microphone analysis systems, in this case, Audacity.

For each of these days, F0, amplitude, and phonation time were analysed.

4. Results

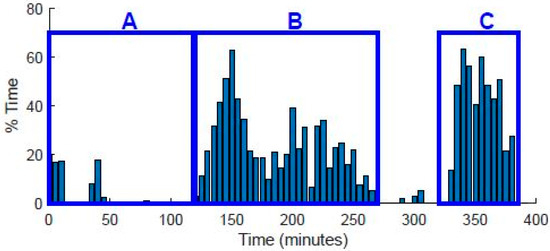

Several recordings were made for long periods of time with a number of subjects, each using the device for approximately two weeks. The microcontroller board and a 2000 mAh external battery were placed in a small box. The accelerometer was connected to the box with approx. 1 m of wired cable. The subjects would keep the box in the pocket of their lab coats and the pendant was placed as shown in Figure 12. Subjects were asked to make normal use of their voices except for one day when they should simulate a hyperfunctional pattern consisting of using frequencies or intensities, or both, outside the usual range and outside the working environment. Here we present the results for subject 1. For subject 1 the recording time ranged between 4.5 and 7.1 h per day and the percentage of voiced speech between 4.5 and 20%, as shown in

Table 5. Long-term recordings of subject 1.

Day	Recording Time (h)	% Phonation
1	5.50	0.18
2	5.85	0.10
3	6.37	0.15
4	6.19	0.13
5	4.52	0.11
6	5.27	0.10
7	6.48	0.16
8	7.17	0.11
9	6.19	0.12
10	4.75	0.20
11	5.67	0.06
12	5.62	0.08
13	5.79	0.11
14	2.27	0.05

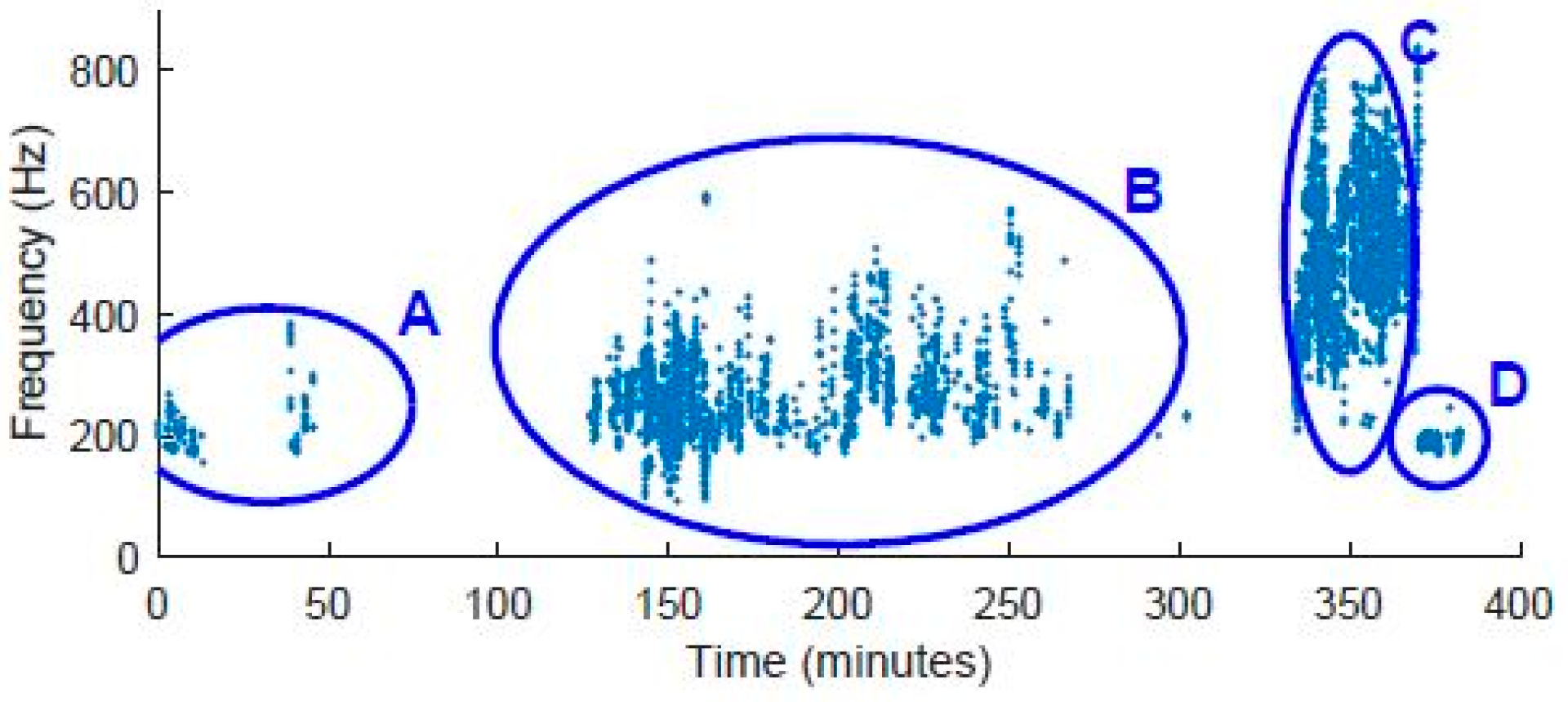

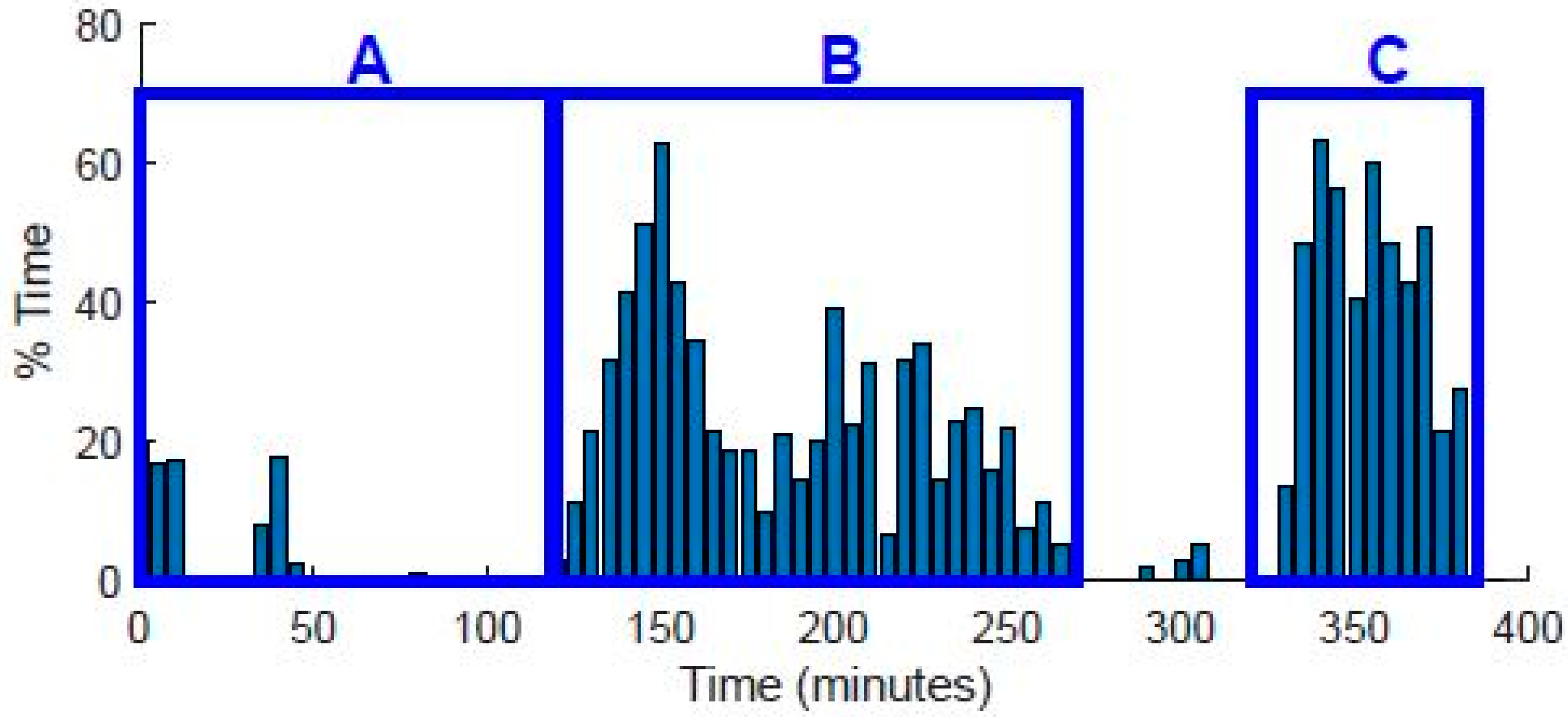

. Figure 13 shows the evolution of the F₀ throughout the recording of day 7 of subject 1. Four distinct phases were noticeable. In phase (A), the frequency range was moderate and the phonation time was short. This indicated a normal phonatory activity. In phase (B), the frequency range was considerable and also the phonation was extended over a much longer period of time and was continuous. This indicated professional phonatory activity. Phase (C) entailed a very wide frequency range and maximum frequency values observed over the recording period. This was a singing exercise, a demanding phonatory activity. In phase (D), the subject returned to the “normal phonatory” activity with a small frequency range and normal fundamental frequency values for everyday conversation. Figure 14 shows the percentage of the phonation time of the subject. It provides very valuable information on the workload that the vocal cords need to cope with over time and how and when that workload or use of the voice is concentrated. Three different intervals of the subject’s professional activity with different workloads on the vocal cords are prominent. In the first part of recording (A), from the beginning until approximately minute 120, the subject used their voice for very few moments and for short intervals of time. During that time the subject was setting up the recording equipment in the lab. In the second part (B), from minute 120 to minute 260, the subject spoke continuously including prolonged intervals (30–60%) of speech activity. During that time the subject was having a conversation, giving instructions, and showing phonatory exercises to the patients who were being evaluated in the laboratory. In the last part (C), the subject used their voice continuously and during prolonged intervals that corresponded to the singing performed by the subject during that time.

5. Discussion and Conclusions

It is very important to assess how the fundamental frequency and its variability are distributed over periods of intensive and lower phonatory activity in order to make precise clinical decisions and propose a personal treatment. With this approach, it is possible to objectify risk situations in persons who use their voice as a work tool to justify treatments that entail reviewing work schedules in some aspects, e.g., teaching for three or four hours continuously, answering the phone for hours without a break, situations of prolonged speech activity with high fundamental frequency or intensity, concentration of vocal activity (classes, public service, rehearsals, etc.) in certain days of the week, etc. It is also possible to evaluate how well the patient follows the treatment indications of the speech therapist in relation to the “placement of the frequency” or the intensity in the different phonation areas and therefore assess the prognosis and the possible efficacy of the treatment aimed at the correction of an altered phonatory pattern. The proposed miniaturised, extremely low-power, lightweight, and low-cost wearable voice dosimetry device enables continuous monitoring of the F₀, voice intensity, and phonation time in the everyday environment of the patient for up to 14 days. It uses an accelerometer for low-noise measurements and avoids privacy concerns. The proposed algorithm for F₀ estimation is very robust and works across a wide range of frequencies. The signal processing is performed onboard, mostly by a Low Energy Accelerator that is part of the microprocessor, and the results are stored on an SD card. The data that this device records enables the diagnosis and explanation of the different altered phonatory patterns, tiredness or vocal fatigue, the compensation mechanisms that the patient may have developed, and the establishment of risk indicators regarding the chronification of some disorders of the voice or the appearance of organic lesions. With that information, the speech therapist can develop a personalised treatment and can monitor the vocal quality and phonatory efficiency and thus evaluate the treatment progress.
