Machine Learning Model Trained with Finite Element Modeling Can Predict the Risk of Osteoarthritis: Data from the Osteoarthritis Initiative

by
Mika E. Mononen
1,*,
Mimmi K. Liukkonen
2 and
Mikael J. Turunen
1,3
1
Department of Technical Physics, University of Eastern Finland, 70211 Kuopio, Finland
2
Department of Clinical Radiology, Kuopio University Hospital, The Wellbeing Services County of North Savo, 70200 Kuopio, Finland
3
Science Service Center, Kuopio University Hospital, The Wellbeing Services County of North Savo, 70200 Kuopio, Finland
*
Author to whom correspondence should be addressed.
Appl. Sci. 2024, 14(20), 9538; https://doi.org/10.3390/app14209538
Submission received: 11 September 2024 / Revised: 11 October 2024 / Accepted: 14 October 2024 / Published: 18 October 2024
(This article belongs to the Section Biomedical Engineering)
Browse Figures
Versions Notes

Abstract

:
Objective: Despite long simulation times, recently developed finite element analysis (FEA) models of knee joints have demonstrated their suitability for predicting individual risk of onset and progression of knee osteoarthritis. Therefore, the objective of this study was to assess the feasibility of machine learning (ML) to replicate outcomes obtained from FEA when simulating mechanical responses and predicting cartilage degeneration within the knee joint. Design: Two ML models based on the Gaussian Process Regression (GPR) algorithms were developed. The first model (GPR1) utilized age, weight, and anatomical joint dimensions as predictor variables to predict tissue mechanical responses and cartilage degeneration based on FEA data. The second model (GPR2) utilized age, weight, height, and gender to predict anatomical joint dimensions, which were then used as inputs in the GPR1 model. Finally, the GPR1 and combined GPR1+GPR2 models were used to investigate the importance of clinical imaging when making personalized predictions for knees from healthy subjects with no history of knee injuries. Results: In the GPR1 model, R2 of 0.9 was exceeded for most of the predicted mechanical parameters. The GPR2 model was able to predict knee shape with R2 of 0.67–0.9. Both GPR1 and combined GPR1+GPR2 models offered equally good performances (AUC = 0.73–0.74) in classifying patients at high risk for the onset and development of knee osteoarthritis. Conclusions: In the future, real-time and easy-to-use GPR models may provide a rapid technology to evaluate mechanical responses within the knee for researchers or clinicians who have no former knowledge of FEA.

1. Introduction

Knee osteoarthritis (KOA) is a common joint disease, and it is estimated that the prevalence of KOA among adults aged 45 years and over is around 19% [1]. KOA is a whole joint disease involving all joint tissues (cartilage and meniscal degeneration, subchondral bone remodeling, inflammation, and fibrosis of both the infrapatellar fat pad and the synovial membrane) [2,3]. The disease usually progresses slowly with aging [4,5]. Therefore, the first symptoms, such as joint pain and tenderness, are ignored until they alter normal gait or decrease quality of life [6,7,8]. Other risk factors in addition to aging include gender, heredity, joint injuries, and joint misalignment [2]. Usually, the cause of the pain is not clinically confirmed until the pain is unbearable. For this reason, patients often seek medical attention too late, and the only treatment available is pain relief. This usually only prolongs the decision to have joint replacement surgery, which, in many cases, is unavoidable due to excessive joint pain. Since joint replacement surgery due to KOA has a significant social cost of billions of euros each year [9], new and novel preventative methods for KOA management are needed.
Although some modifiable risk factors are well known, such as weight or lifestyle (active vs. inactive) [2,10], few people are willing to make lifestyle changes to reduce their risk factors. One explanation is that there are no clinically validated methods to quantify the impact of a change on the future condition of the joint, e.g., risk for development of KOA. Current research on the prevention of osteoarthritis mainly focuses on developing quantitative methods and models to classify patients between healthy and osteoarthritic patients [11,12,13]. They are mainly based on machine learning (ML) and/or deep learning (DL) algorithms, where the models are trained to classify radiographically healthy patients into different degrees of KOA over a given time period with different prognostic variables. However, the major problem is that although ML/DL models may outperform other approaches such as FEA, the trained models have not been tested or validated against independent data from different sources [14]. Furthermore, many classifiers need inputs from various predictor variables that are either difficult, time consuming, or too unpractical to collect from patients (e.g., a certain MRI sequence, or blood or urine samples). This raises the question of the rationality and accuracy of trained ML/DL models.
Finite element analysis (FEA) can be used to estimate internal forces within the knee joint tissues during certain physical activities [15,16]. Thus, these models are capable of offering personalized information from stresses and strains inside cartilage and/or bone and the effect of alterations in subject weight or gait [17,18]. Recent studies on KOA prediction using FEA workflow [19,20] have shown promising results, which could be translated into a future tool to assess the future risk of KOA, and further, how different interventions would reduce the risk. The FEA workflow has some important limitations that cannot be tolerated in a clinical tool. First, model generation in FEA usually takes days per subject, which can be considered a bottleneck for subject-specific predictions in clinical use. However, this can be avoided by using an atlas-based FEA workflow, where the existing atlas FEA model is scaled to the anatomical dimensions of the knee [21]. Second, the computational time needed to generate a quantitative output from FEA can take several hours. This is unfeasible when simulating the effects of different interventions when every modification of the model input and rerun takes several hours. A final limitation associated with both the ML/DL models and the FEA method is the need for a clinical image [16]. The clinical image typically reveals structural changes associated with KOA or damage inflicted by an injury that explains pain in the joint [8]. However, optimally the prediction should be provided before any significant advance of or symptoms of KOA, but asymptomatic, painless knees are rarely imaged. This means that clinical examination and imaging are usually performed too late for a KOA prediction to be beneficial. Therefore, a clinical method not requiring samples or clinical imaging would be a great asset, for example, in screening and identifying the KOA risk of the population.
FEA simulation of a knee requires extensive knowledge of the knee anatomy, tissue properties, biomechanics, and computational modeling. While many researchers are experts in some of these fields, mastering this combination usually requires working on the topic for many years. Many researchers may be interested in estimating the tissue mechanical responses of the knee joints as part of their research, e.g., to complement their results or test their hypotheses. However, currently, this requires either becoming well acquainted with the listed fields or collaboration with FEA experts. In many cases, the outcome would be or is expected to be unworthy of the required effort. In contrast, a simple tool that would provide even rough estimations of the tissue’s mechanical responses based on simple inputs could be of interest to many researchers.
There are two aims in this study. The first aim was to translate the subject-specific atlas-based FEA workflow into real-time ML-based analysis using the Gaussian Process Regression (GPR) algorithm. We hypothesized that a GPR model can be trained to generate simulated cartilage degeneration and tissue mechanical responses of cartilage during gait loading similar to the atlas-based FEA workflow when using age, weight, and anatomical joint dimensions as a set of predictor variables. The second aim was to generalize the model by removing the requirement of a clinical image by estimating the anatomical joint dimensions using another ML-based analysis using also the GPR algorithm. We hypothesized that an ML model can be trained to generate realistic joint dimensions by using age, weight, height, and gender as a set of predictor variables. If the hypotheses can be fully confirmed, it may lead to a method in the future that can easily identify individuals at high risk of developing KOA and target preventive measures for this population. As existing research evidence [22] suggests that visual data on the effects of interventions help to improve patients’ adherence to preventive treatment (e.g., weight loss), this novel method based on the GPR models can be seen as a major leap forward in KOA management. Moreover, tools based on the developed method could be used for research purposes by practically anyone without extensive prior knowledge of FEA to complement studies with estimated tissue mechanical responses.

2. Materials and Methods

2.1. Workflow

Two types of ML models were trained using the exponential kernel-based GPR algorithm (Figure 1):
  • GPR1—to predict atlas-based FEA method [19] outcomes: contact area, contact pressure, tensile stress, tensile strain, shear stress, shear strain, and pore pressure (peaks and averages over the tibiofemoral contact area), as well as simulated cartilage degeneration using age, weight, and anatomical knee joint dimensions: lateral joint space (JSLAT-MRI), medial joint space (JSMED-MRI), maximum lateral anterior–posterior dimension (APLAT-MRI), maximum medial anterior–posterior dimensions (APMED-MRI), and condyle distance (CDMRI), as a set of predictor variables.
  • GPR2—to predict anatomical knee joint dimensions: lateral joint space (JSLAT-XRAY), medial joint space (JSMED-XRAY), and full medial–lateral width of the distal femur (WXRAY) using age, weight, height, and gender as a set of predictor variables.
For the first aim of this study, in the GPR1 models (trained separately for each output variable), knee joint dimensions were measured from MRI images of the knees. The trained GPR1 models were validated against the atlas-based FEA method using knee joint dimensions measured from X-Ray images as a test set. It should be noted that different knee shapes (knee dimensions) in atlas-based FEA produce different simulation outcomes. In previous studies [19,23], it was shown that JS dimensions and other dimensions measured from X-Ray and MRI images are not correlated, and thus the division between training and testing data can be considered feasible despite the overlap of the subjects in training and validating data (Figure 2 (top)). It must therefore be taken into account that this approach produces completely different shapes of knees for training and test data, which is crucial to avoid overfitting in ML model training.
For the second aim of this study, the knee joint dimensions were predicted using the GPR2 models (trained separately for each output variable), and these outcomes were used in the GPR1 models providing a less subject-specific outcome suitable for population screening and general KOA risk estimation without clinical (image) data (GPR1+GPR2). For GPR2 models, ~80% and ~20% of the data from eligible subjects were utilized as training and testing data (Figure 2 (top)), respectively. Measurements for different anatomical knee dimensions (MRI and X-Ray) are presented in detail in Section 2.4. All knee dimension measurements were conducted using in-house Matlab scripts (v. R2022b, MathWorks Inc., Natick, Massachusetts, USA).

2.2. Data

Separate sets of exclusion criteria (Figure 2 (top)) for MRI and X-Ray images were applied to the Osteoarthritis Initiative (OAI) database (https://nda.nih.gov/oai/, accessed on 1 January 2023) to obtain age, height, weight, gender, and knee MRI and X-Ray images at baselin and the Kellgren–Lawrence (KL) grades [24] at the 8-year follow-up timepoint of eligible subjects (Table 1). Ethical approval for collecting subject information was granted by the OAI. Knee MRI scans were carried out in accordance with FDA guidelines, while knee radiographs (X-Rays) were acquired by typical guidelines for annual and total radiation dosage to research subjects. Written consent was obtained from all subjects prior to each clinic visit. The OAI study was approved by the Institutional Review Board (IRB) for the University of California, San Francisco (UCSF) and its affiliates. IRB approval was also obtained from all four clinical sites located at Brown University in Rhode Island, Ohio State University in Columbus, Ohio, University of Maryland/Johns Hopkins University joint center in Baltimore, Maryland, and at the University of Pittsburgh in Pennsylvania. Further details about the OAI data are accessible on the OAI website (https://nda.nih.gov/oai/, accessed on 1 January 2023).

2.3. Training Data in GPR1 and GPR2 Models

The GPR1 models were trained against atlas-based FEA-based simulations of cartilage degeneration and cartilage mechanical response (see Section 2.1. Workflow). Regarding the cartilage degeneration of each subject, the training data included multiple sets of predictor values varying the baseline age to 75 years of age while similarly changing the target variable (degeneration) and keeping other predictor values constant. Due to different loading conditions between medial and lateral compartments (different load transfers through the medial and lateral meniscus) [21], training data were composed separately for medial and lateral compartments of tibial and femoral cartilage. This produced four different GPR1 models (medial tibial, medial femoral, lateral tibial, and lateral medial) with 40,259 different sets of predictor–target variable pairs.
For the cartilage mechanical responses of each subject, the training data included multiple sets of predictor values varying the discrete gait time points (FEA converged solutions) while similarly altering the target variable (mechanical response parameters, see Section 2.1. Workflow) and keeping other predictor values constant. The average and peak mechanical responses on the tibial cartilage surface through the tibiofemoral joint were simulated (medial and lateral compartments considered separately due to differences in loading conditions), which produced a set of four different GPR1 models (medial mean, medial peak, lateral mean, and lateral peak) with 48,136 different sets of predictor–target variable pairs.
The GPR2 models were trained against the subject characteristics (see Section 2.1. Workflow). Based on the exclusion criteria (Figure 2 (top)), to ensure covering the whole span of predictions, a stratified selection of 33% of subjects (based on KL grade) from eligible subjects used for the validation of the GPR1 model was performed (N = 355, ~18%). This also ensured similar prediction accuracies across the KL groups for the training data (N = 2024 − 355 = 1669, ~78%). This produced three GPR2 models with 1669 different sets of predictor–target variable pairs when training GPR2 models to predict different anatomical knee dimensions (Figure 1).

2.4. Atlas-Based FEA Method

The atlas-based FEA workflow utilized has been described in detail in previous studies [19,21,25]. Here, we present a summary of the main points in the workflow. Subject-specific knee joint geometries for FEA models were generated using an atlas-based workflow for all eligible knees using MRI and X-Ray data (N = 2092 MRI-based models + 1117 X-Ray-based models = 3209 FEA models). To scale the existing atlas model based on the MRI image data, the following anatomical dimensions of the knee were measured (Figure 2 (bottom)):
  • The tibiofemoral joint spaces (total cartilage thickness) at the medial compartment (JSMED-MRI).
  • The tibiofemoral joint spaces (total cartilage thickness) at the lateral compartment (JSLAT-MRI).
  • The maximum anterior–posterior dimensions at medial femoral condyles (APMED-MRI).
  • The maximum anterior–posterior dimensions at lateral femoral condyles (APLAT-MRI).
  • The medial–lateral condyle distance measured as the distance between the medial and lateral contact area (CDMRI).
Similarly, the following anatomical dimensions were measured from the X-Ray images (Figure 2 (bottom)):
  • The tibiofemoral joint spaces in the medial compartment (JSMED-Xray).
  • The tibiofemoral joint spaces in the lateral compartment (JSLAT-Xray).
  • The full medial–lateral width of the distal femur (WXray).
Based on the measured anatomical dimensions, 3D subject-specific knee FEA geometries for medial and lateral compartments were generated and simulated under gait loading conditions. See the Supplementary Material for a more detailed description of the template scaling and the material model used.

2.5. Simulation of Cartilage Degeneration

The algorithm for cartilage degeneration was based on a previous study. See the Supplementary Material for more details.

2.6. Statistical Analysis

The relationship between the GPR1 model and FEA outputs, as well as between GPR2 model outputs and measured anatomical dimensions, were evaluated using Pearson correlation. The goodness of the correlations was assessed in terms of the coefficient of determination R2 and root mean square error (RMSE). For a comparison of cartilage degeneration volumes based on OA severity and between the different approaches, the knees were divided into groups based on the KL-grading at the 8-year follow-up: KL0 and KL1 (healthy), KL2 (doubtful OA), and combined KL3 and KL4 (severe OA). The use of KL is based on its use in clinical assessment to evaluate the severity of osteoarthritis. The non-parametric Mann–Whitney U-test (two independent samples) was used to evaluate KL group-wise differences in the predicted degenerations based on the GPR1 and GPR1+GPR2 models and atlas-based FEA workflows. To evaluate differences within each KL group between GPR1 and FEA workflows and GPR1+GPR2 and FEA workflows, a non-parametric Wilcoxon signed rank test (two related samples) was used. For all statistical tests, p < 0.05 was considered the level of significance.
To evaluate the suitability of the GPR1 and GPR1+GPR2 models in simulating the progression of KOA, ROC (receiver operating characteristic) curves and the AUC (area under ROC curve) were calculated. Instead of presenting confusion matrices between atlas-based FEA and GPR models for the accuracies of the classifiers, ROC curves are reported since they allow the evaluation of the performance of the classifier at all possible classification thresholds [26]. In the ROC analysis, we focused only on demonstrating classification power against those KL groups that were statistically different from the severe OA KL34 group. Therefore, KL0 and KL1 groups, which can be considered healthy, were merged (KL01) in the ROC analysis.

3. Results

The trained GPR1-based predictions of mechanical responses and cartilage degeneration were highly correlated with the outputs based on the FEA workflow (p < 0.001, Table 2). The Pearson correlation coefficients of determination (R2) for mechanical responses over the tibiofemoral contact area varied between 0.89 and 1 for the training data, whereas for the testing data, they varied between 0.66 and 0.98, except for predicted cartilage degeneration (R2 = 1.0). The correlations were stronger in the medial compartment (R2 = 0.86–0.98) compared to the lateral compartment (R2 = 0.66–0.89) when predicting the mechanical responses of cartilage. The trained GPR2-based predictions of knee joint dimensions were correlated with the dimensions measured manually from the X-Ray images (p < 0.001, Table 3). The Pearson correlation coefficients of determination (R2) in the training and validation data were in a similar range. The strongest correlation was found in the full medial–lateral width of the distal femur.
There were no differences in the simulated volumetric cartilage degenerations between the atlas-based FEA workflow and GPR1-based predictions in any KL groups (Figure 3 (left)). Both atlas-based FEA workflow and GPR1-based predictions showed significantly larger simulated cartilage degeneration in the KL34 group compared to the KL0 and KL1 groups (p < 0.001). Additionally, simulated cartilage degeneration significantly increased with advancing KL grade. When comparing GPR1+GPR2-based predictions with the atlas-based FEA workflow-based predictions, the simulated degeneration was significantly higher in the KL34 group compared to the KL0 and KL1 groups (p < 0.001 and p < 0.01, Figure 3 (right)). In contrast to GPR1-based predictions, GPR1+GPR2-based predictions failed to show statistically significant differences between consecutive KL groups. Furthermore, in the KL2 group, the atlas-based FEA workflow and GPR2-based predictions differed (p < 0.05). Based on the ROC curves for classification between the KL01 and KL34 groups, predictions for the onset and progression of KOA were very similar between the atlas-based FEA workflow and both GPR-based models (AUC = 0.73–0.74, Figure 4).

4. Discussion

In this study, atlas-based FEA workflow-based GPR models were extensively evaluated to determine their capabilities of simulating/predicting the FEA outputs and anatomical dimensions from knee X-Rays. The first set of ML models (GPR1) was trained to estimate cartilage mechanical responses and cartilage degeneration against the atlas-based FEA-based workflow, based on age, weight, and anatomical knee joint dimensions. The second set of ML models (GPR2) was trained to predict personalized knee joint geometries based on age, weight, height, and gender. The GPR models had good (GPR2) to excellent (GPR1) prediction accuracies. Moreover, to investigate a more generalized approach to predicting cartilage degeneration, i.e., the development of OA, at a population level, GPR1 and GPR2 models were combined. Surprisingly, the combined model, which did not include any clinical image data, was also able to classify osteoarthritic and healthy knees.
In recent years, a trend of developing ML/DL-based models to predict the onset and progression of KOA has emerged [11,12,13]. In these studies, various sets of predictor variables have been tested, providing different capabilities to offer predictions for cartilage degeneration. The superiority of the models is assessed by AUC values, but AUC value comparison is insufficient for judging whether one model is better than another since the target variables and time periods for prediction may differ a lot in those models. For example, in one study [27], progressive OA is defined when cartilage thickness is decreased by more than 0.7 mm, whereas other studies usually define progressive/severe OA as an increase in KL grade to 2–4 [11,12,13]. Therefore, it is extremely crucial to adjust the data properly to avoid uncertainty when interpreting the usefulness of the developed models. For example, a 1 mm reduction in cartilage thickness in patients with initially thick cartilage (JS > 1 cm) would likely be diagnosed as healthy. Cartilage thinning or joint space narrowing is natural during aging, and it may be faster during certain ages [28,29]. It would therefore be preferable to use threshold values that are somehow linked to the severity of KOA, like KL grades. This is precisely why, in this study, the KL grades were used as the target variable to classify the severity of KOA.
The prediction accuracy of the GPR2 models for knee shape was surprisingly high. The results indicate that in addition to knee size, cartilage thickness (in a healthy knee) can be estimated with high accuracy based on only age, weight, height, and gender. Similar findings have been presented in earlier studies [28,30]. This further underlines that instead of predicting cartilage thinning, a more appropriate approach would be to predict different levels of OA severity based on commonly agreed criteria because cartilage thinning occurs naturally during aging and, therefore, possesses no need for computational methods to predict it. Instead of cartilage thinning, the ability to predict the necessity of joint replacement surgery would be of higher importance. This would help in targeting preventative conservative treatment options to those who would actually benefit from them. It has been shown that subjects with KL grade 3 or 4 have an increased risk of knee joint replacements and a decrease in quality of life compared to those with KL grades 0, 1, or 2 [6,31]. Thus, future studies should prioritize the ability to predict individuals at high risk of developing KL3 or 4 knees.
Prediction accuracies for the KOA progression for atlas-based FEA workflow, GPR1, and GPR1+GPR2 models were very similar with AUC values varying between 0.73 and 0.74 for each. This can be considered puzzling especially as the GPR1+GPR2 model provides such comparative prediction accuracy without the need for any clinical image data input parameters from subjects, whereas FEA and GPR1 require that subject-specific information. The reason for this can be found in the inclusion criteria for selecting suitable subjects for this study. In the current study, knee dimensions were collected from radiographically healthy knees without visually detectable signs of KOA. As the results of the GPR2 model have already shown, the joint geometry and cartilage thickness can be predicted with reasonable accuracy from this patient population. This led to surprisingly good results in predicting the risk of osteoarthritis onset with GPR1+GPR2 models.
As AUC values of 0.7–0.8 can be considered an acceptable discrimination accuracy, this study emphasizes that FEA is not necessarily needed to offer personalized predictions for the onset and progression of KOA, as it can be replaced by well-trained ML models using GPR algorithms. However, it should be considered that when developing an ML-based classifier based only on those inputs (predictor variables) needed in the GPR1+GPR2 model, the output is a binary classifier (KL01 vs. KL34) that is not capable of showing the effect of different interventions (such as weight loss) on the predicted risk for the onset and progression of KOA. Therefore, a switch from regression-based ML models to ML classifications is not recommended. In GPR1- and GPR1+GPR2-based approaches, the influence of the change in the input parameters (weight) on the prediction can be quantified. In terms of patient engagement with conservative interventions, e.g., weight loss, it is important to show how individual lifestyle changes may make a difference in disease progression [22]. Because the GPR models in this study were trained on a large patient dataset including healthy knees with a variety of subject characteristics, they will perform reasonably well for a wide range of patients in terms of age, height, weight, and gender. However, it must be considered that the cartilage in the tibiofemoral joint must be intact without signs of excessive thinning or cartilage injuries.
The best thing about the GPR models developed in this study is that they work in real time. This is a great asset, as the atlas-based FEA workflow utilized in this study requires approximately two hours of simulation time per knee joint. The trained ML models based on the GPR algorithms will provide a novel technology to evaluate mechanical responses within the knee for researchers or clinicians who have no former knowledge of FEA (Figure 5). Furthermore, the introduced GPR models will enable the development of new types of exploitable technologies. In the current approaches, the gait loading in the atlas-based FEA workflow that was used for training (GPR1) was based on the generic loading conditions based on the body weight of the subject [21,25]. In the future, generic loading conditions could be replaced with personalized knee joint loading data based on IMU sensors or video data, e.g., from smartphones [32,33]. This would then allow new conservative non-clinical interventions for the prevention of osteoarthritis. For instance, such technology could be used for selecting a shoe or an insole for optimized joint health or gait re-training.
Comorbidities or significant anatomical abnormalities were not included in our model. It is really difficult to estimate how much they would affect the presented results. Before this could be investigated with the help of our model, we would need to understand how these variables affect the FEA model variables (e.g., joint movement and load) that are needed to generate training data. If these would have no effect, then the results would remain the same for these subjects. On the other hand, if they would have a large effect, then the simulated and predicted KOA levels would be different, but the same between the FEA and the trained GPR models. Whether these results would be any more accurate cannot be determined until this is further investigated.
The presented results suggest that trained GPR models can be considered a viable alternative or even replacement for FEA when making predictions of mechanical responses or future joint conditions (Figure 5), specifically KOA, when predictions are offered for individuals who have no history of a severe knee injury. The GPR models provide a quick and easy tool to assess the risk of onset and progression of osteoarthritis without previous knowledge of FEA methods. Real-time GPR models (with a simulation time of less than a second compared to the several hours needed in FEA approaches) provide a rapid tool for planning preventive care and the technology to engage patients in preventive interventions.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/app14209538/s1, Table S1: Material parameters of the HTIPE material model for the femoral and tibial cartilages. References from Supplementary file are cited [19,21,23,25,34,35,36,37].

Author Contributions

M.E.M.: conceptualization, methodology, software, validation, formal analysis, investigation, writing—review and editing, visualization, project administration, funding acquisition. M.K.L.: methodology, software, validation, investigation, formal analysis, writing—review and editing. M.J.T.: methodology, software, validation, investigation, formal analysis, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

The research leading to these results received funding from the Research Council of Finland (grants 324994, 328920, 352666), the Research Committee of the Kuopio University Hospital Catchment Area for the State Research Funding (Grant Number: 5654242, 50TP006), and the Sigrid Juselius Foundation (Grant Number: 230123). The funding sources had no role in the study design, collection, analysis, or interpretation of data; in the writing of the manuscript; or in the decision to submit the manuscript for publication.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data created and analyzed during the current study are available from the corresponding author upon reasonable request.

Acknowledgments

The authors wish to thank the patients and staff of all the hospitals who have contributed data to the Osteoarthritis Initiative. The OAI is a public–private partnership comprised of five contracts (N01-AR-2-2258; N01-AR-2-2259; N01- AR-2-2260; N01-AR-2-2261; and N01-AR-2-2262) funded by the National Institutes of Health, a branch of the Department of Health and Human Services, and conducted by the OAI Study Investigators. Private funding partners include Merck Research Laboratories; Novartis Pharmaceuticals Corporation, GlaxoSmithKline; and Pfizer, Inc. Private sector funding for the OAI is managed by the Foundation for the National Institutes of Health. This manuscript was prepared using an OAI public-use dataset and does not reflect the opinions or views of the OAI investigators, the NIH, or the private funding partners.

Conflicts of Interest

Mika E. Mononen and Mikael J. Turunen own shares in Aikoa Technologies Oy.

References

  1. Lawrence, R.C.; Felson, D.T.; Helmick, C.G.; Arnold, L.M.; Choi, H.; Deyo, R.A.; Gabriel, S.; Hirsch, R.; Hochberg, M.C.; Hunder, G.G.; et al. Estimates of the prevalence of arthritis and other rheumatic conditions in the United States: Part II. Arthritis Rheum. 2008, 58, 26–35. [Google Scholar] [CrossRef] [PubMed]
  2. Musumeci, G.; Aiello, F.C.; Szychlinska, M.A.; Di Rosa, M.; Castrogiovanni, P.; Mobasheri, A. Osteoarthritis in the XXIst Century: Risk Factors and Behaviours that Influence Disease Onset and Progression. Int. J. Mol. Sci. 2015, 16, 6093–6112. [Google Scholar] [CrossRef] [PubMed]
  3. Belluzzi, E.; Stocco, E.; Pozzuoli, A.; Granzotto, M.; Porzionato, A.; Vettor, R.; De Caro, R.; Ruggieri, P.; Ramonda, R.; Rossato, M.; et al. Contribution of Infrapatellar Fat Pad and Synovial Membrane to Knee Osteoarthritis Pain. BioMed Res. Int. 2019, 2019, 6390182. [Google Scholar] [CrossRef] [PubMed]
  4. Anderson, A.S.; Loeser, R.F. Why is osteoarthritis an age-related disease? Best Pr. Res. Clin. Rheumatol. 2010, 24, 15–26. [Google Scholar] [CrossRef]
  5. Theis, K.A.; Murphy, L.B.; Guglielmo, D.; Boring, M.A.; Okoro, C.A.; Duca, L.M.; Helmick, C.G. Prevalence of Arthritis and Arthritis-Attributable Activity Limitation—United States, 2016–2018. Mmwr. Morb. Mortal. Wkly. Rep. 2021, 70, 1401–1407. [Google Scholar] [CrossRef]
  6. Törmälehto, S.; Mononen, M.E.; Aarnio, E.; Arokoski, J.P.A.; Korhonen, R.K.; Martikainen, J. Health-related quality of life in relation to symptomatic and radiographic definitions of knee osteoarthritis: Data from Osteoarthritis Initiative (OAI) 4-year follow-up study. Heal. Qual. Life Outcomes 2018, 16, 154. [Google Scholar] [CrossRef]
  7. Duffell, L.D.; Southgate, D.F.; Gulati, V.; McGregor, A.H. Balance and gait adaptations in patients with early knee osteoarthritis. Gait Posture 2014, 39, 1057–1061. [Google Scholar] [CrossRef]
  8. Felson, D.T.; Hodgson, R. Identifying and Treating Preclinical and Early Osteoarthritis. Rheum. Dis. Clin. N. Am. 2014, 40, 699–710. [Google Scholar] [CrossRef]
  9. Murphy, L.B.; Cisternas, M.G.; Pasta, D.J.; Helmick, C.G.; Yelin, E.H. Medical Expenditures and Earnings Losses Among US Adults With Arthritis in 2013. Arthritis Care Res. 2018, 70, 869–876. [Google Scholar] [CrossRef]
  10. Bliddal, H.; Leeds, A.R.; Christensen, R. Osteoarthritis, obesity and weight loss: Evidence, hypotheses and horizons—A scoping review. Obes. Rev. 2014, 15, 578–586. [Google Scholar] [CrossRef]
  11. Hirvasniemi, J.; Runhaar, J.; van der Heijden, R.; Zokaeinikoo, M.; Yang, M.; Li, X.; Tan, J.; Rajamohan, H.; Zhou, Y.; Deniz, C.; et al. The KNee OsteoArthritis Prediction (KNOAP2020) challenge: An image analysis challenge to predict incident symptomatic radiographic knee osteoarthritis from MRI and X-Ray images. Osteoarthr. Cartil. 2023, 31, 115–125. [Google Scholar] [CrossRef] [PubMed]
  12. Ramazanian, T.; Fu, S.; Sohn, S.; Taunton, M.J.; Kremers, H.M. Prediction Models for Knee Osteoarthritis: Review of Current Models and Future Directions. Arch Bone Jt Surg. 2023, 11, 1–10. [Google Scholar] [CrossRef] [PubMed]
  13. Appleyard, T.; Thomas, M.J.; Antcliff, D.; Peat, G. Prediction Models to Estimate the Future Risk of Osteoarthritis in the General Population: A Systematic Review. Arthritis Care Res. 2023, 75, 1481–1493. [Google Scholar] [CrossRef] [PubMed]
  14. Mononen, M.E.; Turunen, M.J.; Stenroth, L.; Saarakkala, S.; Boesen, M. Biomechanical modeling and imaging for knee osteoarthritis—is there a role for AI? Osteoarthr. Imaging 2024, 4, 100182. [Google Scholar] [CrossRef]
  15. Cooper, R.J.; Wilcox, R.K.; Jones, A.C. Finite element models of the tibiofemoral joint: A review of validation approaches and modelling challenges. Med. Eng. Phys. 2019, 74, 1–12. [Google Scholar] [CrossRef] [PubMed]
  16. Paz, A.; Orozco, G.A.; Korhonen, R.K.; García, J.J.; Mononen, M.E. Expediting Finite Element Analyses for Subject-Specific Studies of Knee Osteoarthritis: A Literature Review. Appl. Sci. 2021, 11, 11440. [Google Scholar] [CrossRef]
  17. Halonen, K.S.; Dzialo, C.M.; Mannisi, M.; Venäläinen, M.S.; de Zee, M.; Andersen, M.S. Workflow assessing the effect of gait alterations on stresses in the medial tibial cartilage-combined musculoskeletal modelling and finite element analysis. Sci. Rep. 2017, 7, 17396. [Google Scholar] [CrossRef]
  18. Liukkonen, M.K.; Mononen, M.E.; Vartiainen, P.; Kaukinen, P.; Bragge, T.; Suomalainen, J.-S.; Malo, M.K.H.; Venesmaa, S.; Käkelä, P.; Pihlajamäki, J.; et al. Evaluation of the Effect of Bariatric Surgery-Induced Weight Loss on Knee Gait and Cartilage Degeneration. J. Biomech. Eng. 2018, 140, 041008. [Google Scholar] [CrossRef]
  19. Mononen, M.E.; Liukkonen, M.K.; Turunen, M.J. X-Ray with finite element analysis is a viable alternative for MRI to predict knee osteoarthritis: Data from the Osteoarthritis Initiative. J. Orthop. Res. 2024, 42, 1964–1973. [Google Scholar] [CrossRef]
  20. Paz, A.; García, J.J.; Korhonen, R.K.; Mononen, M.E. Towards a Transferable Modeling Method of the Knee to Distinguish Between Future Healthy Joints from Osteoarthritic Joints: Data from the Osteoarthritis Initiative. Ann. Biomed. Eng. 2023, 51, 2192–2203. [Google Scholar] [CrossRef]
  21. Mononen, M.E.; Liukkonen, M.K.; Korhonen, R.K. Utilizing Atlas-Based Modeling to Predict Knee Joint Cartilage Degeneration: Data from the Osteoarthritis Initiative. Ann. Biomed. Eng. 2019, 47, 813–825. [Google Scholar] [CrossRef] [PubMed]
  22. Widén, E.; Junna, N.; Ruotsalainen, S.; Surakka, I.; Mars, N.; Ripatti, P.; Partanen, J.J.; Aro, J.; Mustonen, P.; Tuomi, T.; et al. How Communicating Polygenic and Clinical Risk for Atherosclerotic Cardiovascular Disease Impacts Health Behavior: An Observational Follow-up Study. Circ. Genom. Precis. Med. 2022, 15, 91–99. [Google Scholar] [CrossRef] [PubMed]
  23. Mortensen, J.F.; Mongelard, K.B.G.; Radev, D.I.; Kappel, A.; Rasmussen, L.E.; Østgaard, S.E.; Odgaard, A. MRi of the knee compared to specialized radiography for measurements of articular cartilage height in knees with osteoarthritis. J. Orthop. 2021, 25, 191–198. [Google Scholar] [CrossRef]
  24. Kellgren, J.H.; Lawrence, J.S. Radiological Assessment of Osteo-Arthrosis. Ann. Rheum. Dis. 1957, 16, 494–502. [Google Scholar] [CrossRef] [PubMed]
  25. Mononen, M.E.; Paz, A.; Liukkonen, M.K.; Turunen, M.J. Atlas-based finite element analyses with simpler constitutive models predict personalized progression of knee osteoarthritis: Data from the osteoarthritis initiative. Sci. Rep. 2023, 13, 8888. [Google Scholar] [CrossRef] [PubMed]
  26. Martínez-Camblor, P.; Pérez-Fernández, S.; Díaz-Coto, S. The area under the generalized receiver-operating characteristic curve. Int. J. Biostat. 2021, 18, 293–306. [Google Scholar] [CrossRef]
  27. Chan, L.; Li, H.; Chan, P.; Wen, C. A machine learning-based approach to decipher multi-etiology of knee osteoarthritis onset and deterioration. Osteoarthr. Cartil. Open 2021, 3, 100135. [Google Scholar] [CrossRef]
  28. Cai, G.; Jiang, M.; Cicuttini, F.; Jones, G. Association of age, sex and BMI with the rate of change in tibial cartilage volume: A 10.7-year longitudinal cohort study. Arthritis Res. Ther. 2019, 21, 273. [Google Scholar] [CrossRef]
  29. Si, L.; Xuan, K.; Zhong, J.; Huo, J.; Xing, Y.; Geng, J.; Hu, Y.; Zhang, H.; Wang, Q.; Yao, W. Knee Cartilage Thickness Differs Alongside Ages: A 3-T Magnetic Resonance Research Upon 2481 Subjects via Deep Learning. Front. Med. 2021, 7, 600049. [Google Scholar] [CrossRef]
  30. Karvonen, R.L.; Negendank, W.G.; A Teitge, R.; Reed, A.H.; Miller, P.R.; Fernandez-Madrid, F. Factors affecting articular cartilage thickness in osteoarthritis and aging. J. Rheumatol. 1994, 21, 1310–1318. [Google Scholar]
  31. Gwynne-Jones, J.H.; Wilson, R.A.; Wong, J.M.; Abbott, J.H.; Gwynne-Jones, D.P. The Outcomes of Nonoperative Management of Patients With Hip and Knee Osteoarthritis Triaged to a Physiotherapy-Led Clinic at Minimum 5-Year Follow-Up and Factors Associated With Progression to Surgery. J. Arthroplast. 2020, 35, 1497–1503. [Google Scholar] [CrossRef] [PubMed]
  32. Pagnon, D.; Domalain, M.; Reveret, L. Pose2Sim: An End-to-End Workflow for 3D Markerless Sports Kinematics—Part 1: Robustness. Sensors 2021, 21, 6530. [Google Scholar] [CrossRef] [PubMed]
  33. Di Raimondo, G.; Willems, M.; Killen, B.A.; Havashinezhadian, S.; Turcot, K.; Vanwanseele, B.; Jonkers, I. Peak Tibiofemoral Contact Forces Estimated Using IMU-Based Approaches Are Not Significantly Different from Motion Capture-Based Estimations in Patients with Knee Osteoarthritis. Sensors 2023, 23, 4484. [Google Scholar] [CrossRef] [PubMed]
  34. Mohammadi, A.; Myller, K.A.; Tanska, P.; Hirvasniemi, J.; Saarakkala, S.; Töyräs, J.; Korhonen, R.K.; Mononen, M.E. Rapid CT-based Estimation of Articular Cartilage Biomechanics in the Knee Joint Without Cartilage Segmentation. Ann. Biomed. Eng. 2020, 48, 2965–2975. [Google Scholar] [CrossRef] [PubMed]
  35. Kempson, G.E. Relationship between the tensile properties of articular cartilage from the human knee and age. Ann. Rheum. Dis. 1982, 41, 508–511. [Google Scholar] [CrossRef]
  36. Tiulpin, A.; Saarakkala, S. Automatic Grading of Individual Knee Osteoarthritis Features in Plain Radiographs Using Deep Convolutional Neural Networks. Diagnostics 2020, 10, 932. [Google Scholar] [CrossRef]
  37. Kohn, M.D.; Sassoon, A.A.; Fernando, N.D. Classifications in Brief: Kellgren-Lawrence Classification of Osteoarthritis. Clin. Orthop. Relat. Res. 2016, 474, 1886–1893. [Google Scholar] [CrossRef]
Applsci 14 09538 g001

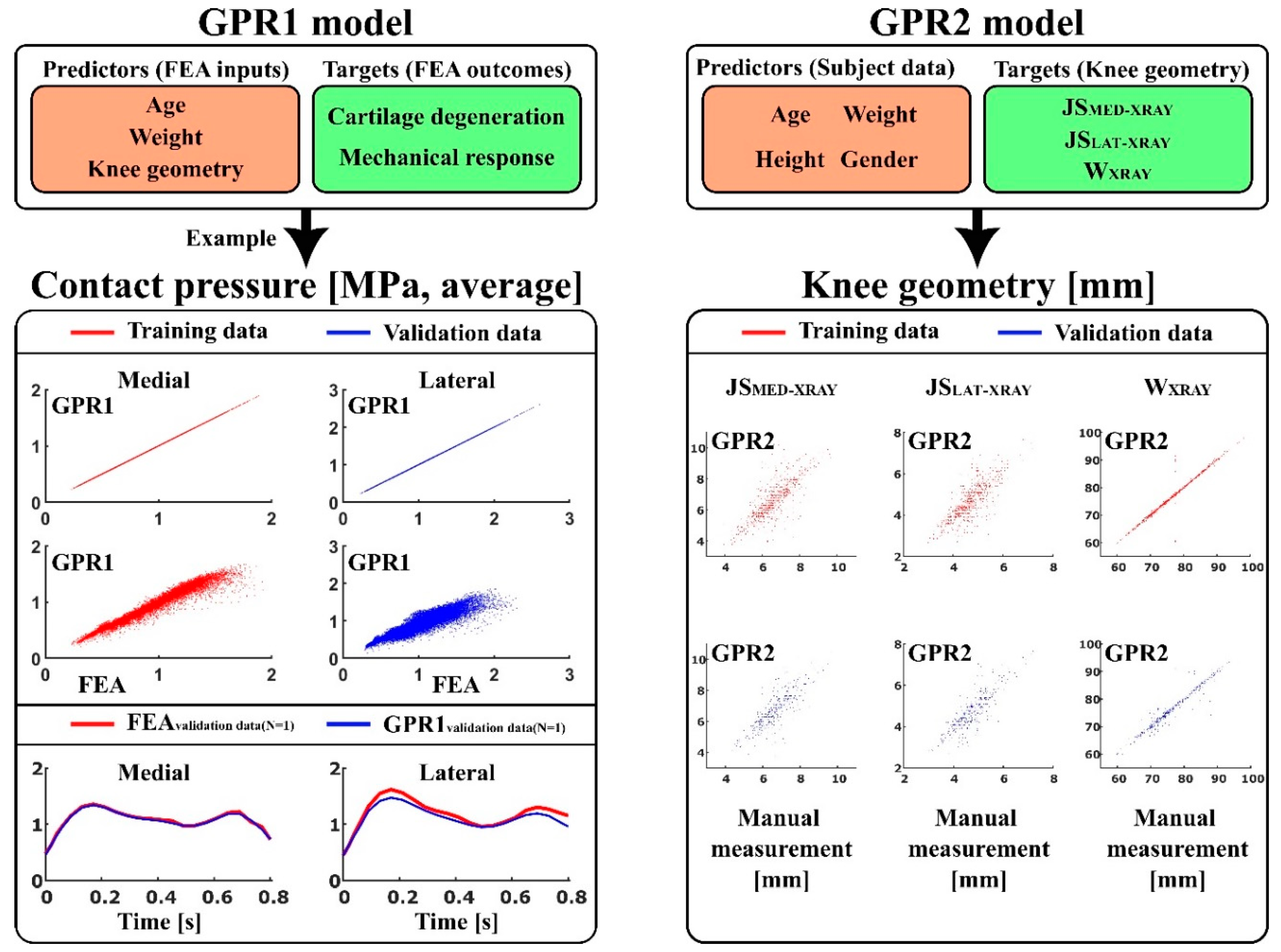

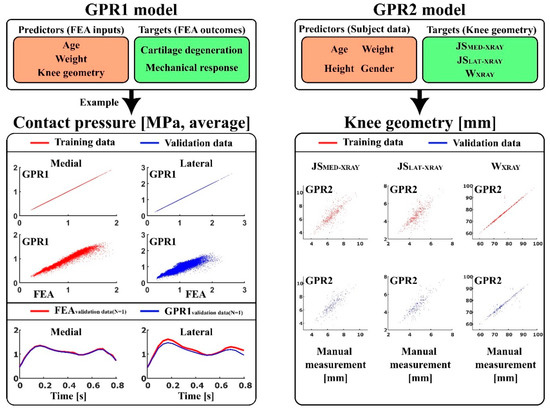

Figure 1. Overview of the training GPR1 and GPR2 models with predictor and target variables. In the GPR2 model, the target variables were joint space in the medial compartment (JSMED-Xray), joint space in the lateral compartment (JSLAT-Xray), and knee width measured from the distal femur (WXray). The left bottom sub-figure shows an example of the accuracy of the GPR1 model in predicting average contact pressures in medial and lateral compartments with the training and validation data. In addition, examples of the predicted (GPR1) and simulated (FEA) average contact pressures during a single subject’s stance phase are also visualized to help understand how the data produced by the GPR1 model can be utilized.
Figure 1. Overview of the training GPR1 and GPR2 models with predictor and target variables. In the GPR2 model, the target variables were joint space in the medial compartment (JSMED-Xray), joint space in the lateral compartment (JSLAT-Xray), and knee width measured from the distal femur (WXray). The left bottom sub-figure shows an example of the accuracy of the GPR1 model in predicting average contact pressures in medial and lateral compartments with the training and validation data. In addition, examples of the predicted (GPR1) and simulated (FEA) average contact pressures during a single subject’s stance phase are also visualized to help understand how the data produced by the GPR1 model can be utilized.
Applsci 14 09538 g001
Applsci 14 09538 g002

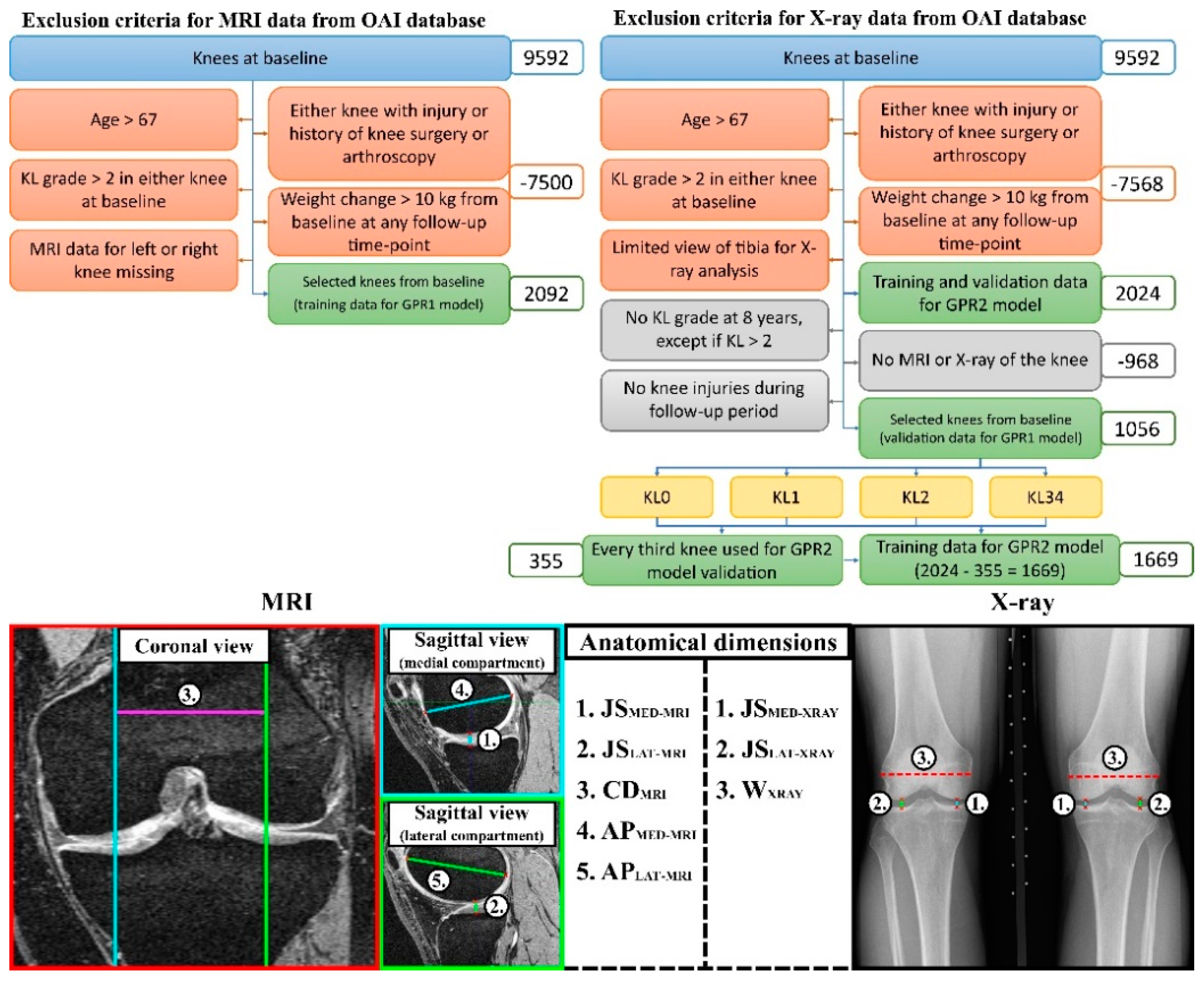

Figure 2. Exclusion criteria for the knee MRI and X-Ray data selection from the OAI database (top). The detailed variation of subject characteristics used to train and validate the GPR1 and GPR2 models is shown in Table 1. Clinal images (bottom) present anatomical dimension measurements for MRI and X-Ray images used to scale the existing template model (both measurements were performed for the template model data).
Figure 2. Exclusion criteria for the knee MRI and X-Ray data selection from the OAI database (top). The detailed variation of subject characteristics used to train and validate the GPR1 and GPR2 models is shown in Table 1. Clinal images (bottom) present anatomical dimension measurements for MRI and X-Ray images used to scale the existing template model (both measurements were performed for the template model data).
Applsci 14 09538 g002
Applsci 14 09538 g003

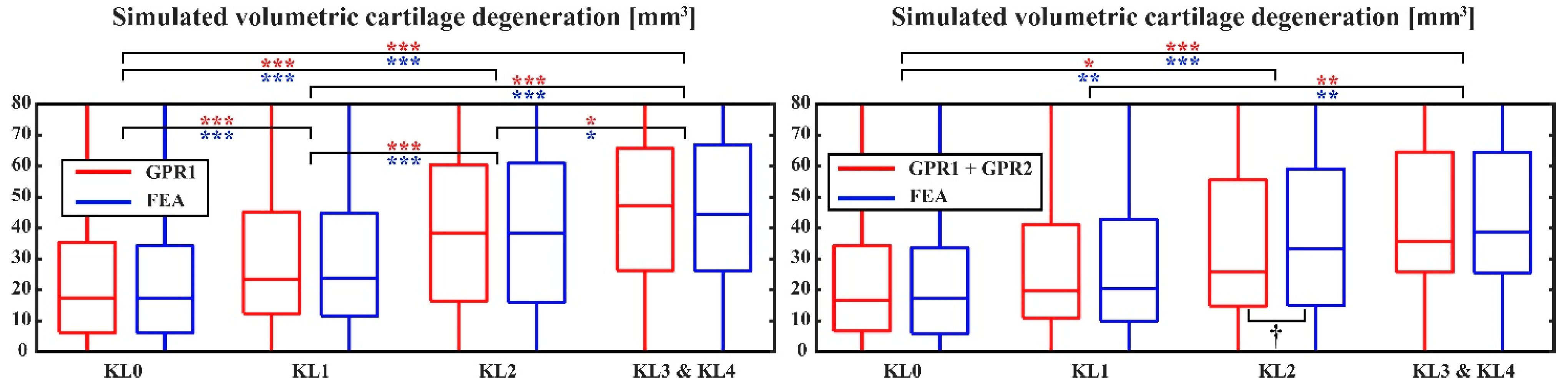

Figure 3. Left figure presents a comparison of simulated volumetric cartilage degenerations using atlas-based FEA workflow (blue) and GPR1 model (red) in different KL groups (based on the KL value after the 8-year follow-up period). Identical data were used between atlas-based FEA workflow and GPR1 model, validation data (N = 1056, see Figure 2 (top)). Mann–Whitney U-test to compare the different KL groups (*** p < 0.001, * p < 0.05). Wilcoxon signed ranks test between FEA and GPR1 within each KL grade (no significant differences). Right figure presents a comparison of simulated volumetric cartilage degenerations using atlas-based FEA workflow (blue) and GPR1+GPR2 model (red) in different KL groups (based on the KL value after the 8-year follow-up period). Identical data were used between atlas-based FEA workflow and GPR1+GPR2 model, validation data (N = 355, see Figure 2 (top)). Mann–Whitney U-test to compare the different KL groups (*** p < 0.001, ** p < 0.01, * p < 0.05). Wilcoxon signed ranks test between FEA and GPR1+GPR2 within each KL grade († p < 0.05).
Figure 3. Left figure presents a comparison of simulated volumetric cartilage degenerations using atlas-based FEA workflow (blue) and GPR1 model (red) in different KL groups (based on the KL value after the 8-year follow-up period). Identical data were used between atlas-based FEA workflow and GPR1 model, validation data (N = 1056, see Figure 2 (top)). Mann–Whitney U-test to compare the different KL groups (*** p < 0.001, * p < 0.05). Wilcoxon signed ranks test between FEA and GPR1 within each KL grade (no significant differences). Right figure presents a comparison of simulated volumetric cartilage degenerations using atlas-based FEA workflow (blue) and GPR1+GPR2 model (red) in different KL groups (based on the KL value after the 8-year follow-up period). Identical data were used between atlas-based FEA workflow and GPR1+GPR2 model, validation data (N = 355, see Figure 2 (top)). Mann–Whitney U-test to compare the different KL groups (*** p < 0.001, ** p < 0.01, * p < 0.05). Wilcoxon signed ranks test between FEA and GPR1+GPR2 within each KL grade († p < 0.05).
Applsci 14 09538 g003
Applsci 14 09538 g004

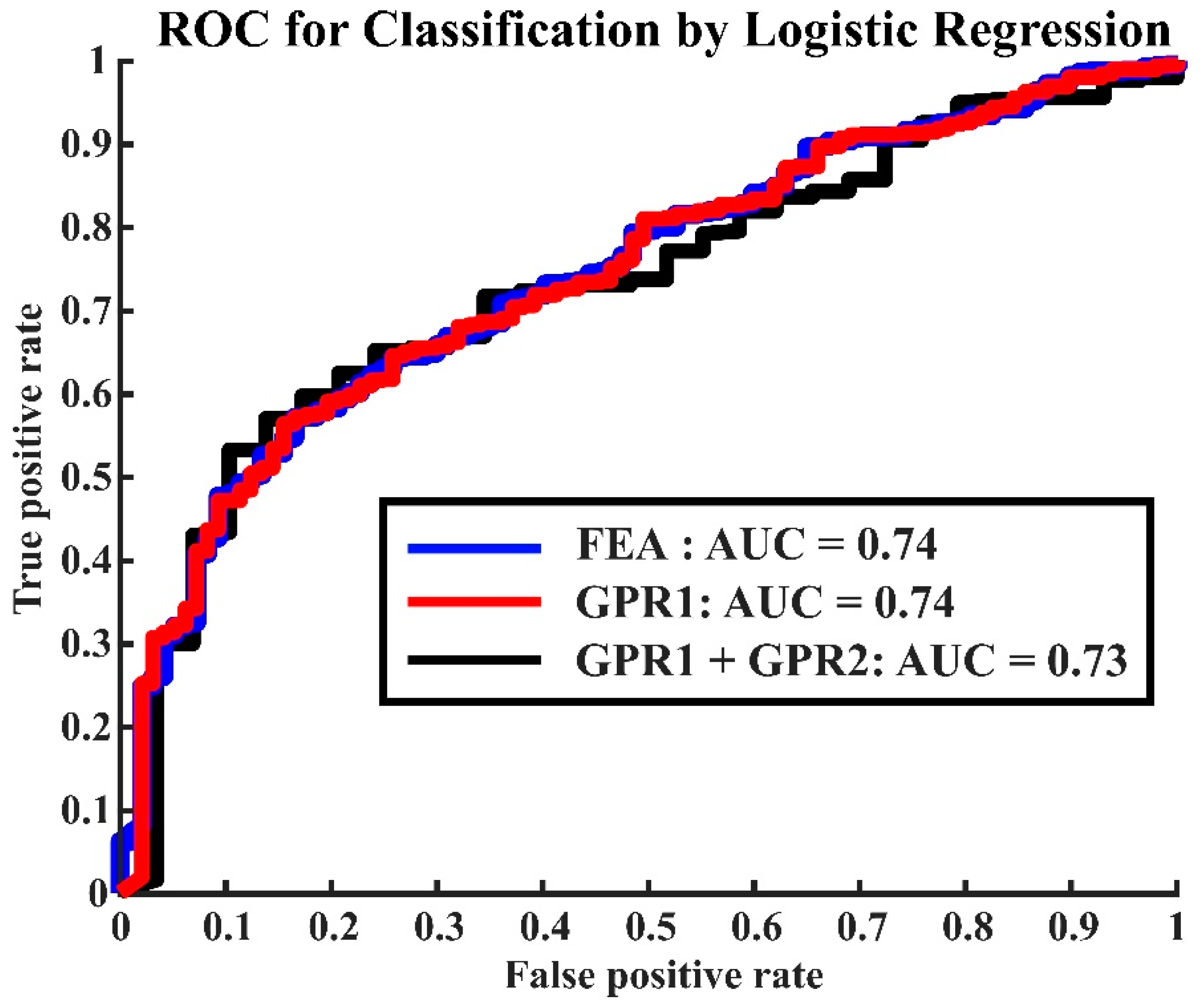

Figure 4. ROC (receiver operating characteristic) curves with AUC (area under the ROC curve) values for discrimination between KL01 and KL34 groups for atlas-based FEA and GPR-based predictions. The KL0 and KL1 groups were merged into the KL01 group. This was justified by the significant differences between KL0 and KL34 groups and KL1 and KL34 groups (Figure 3 and Figure 4).
Figure 4. ROC (receiver operating characteristic) curves with AUC (area under the ROC curve) values for discrimination between KL01 and KL34 groups for atlas-based FEA and GPR-based predictions. The KL0 and KL1 groups were merged into the KL01 group. This was justified by the significant differences between KL0 and KL34 groups and KL1 and KL34 groups (Figure 3 and Figure 4).
Applsci 14 09538 g004
Applsci 14 09538 g005

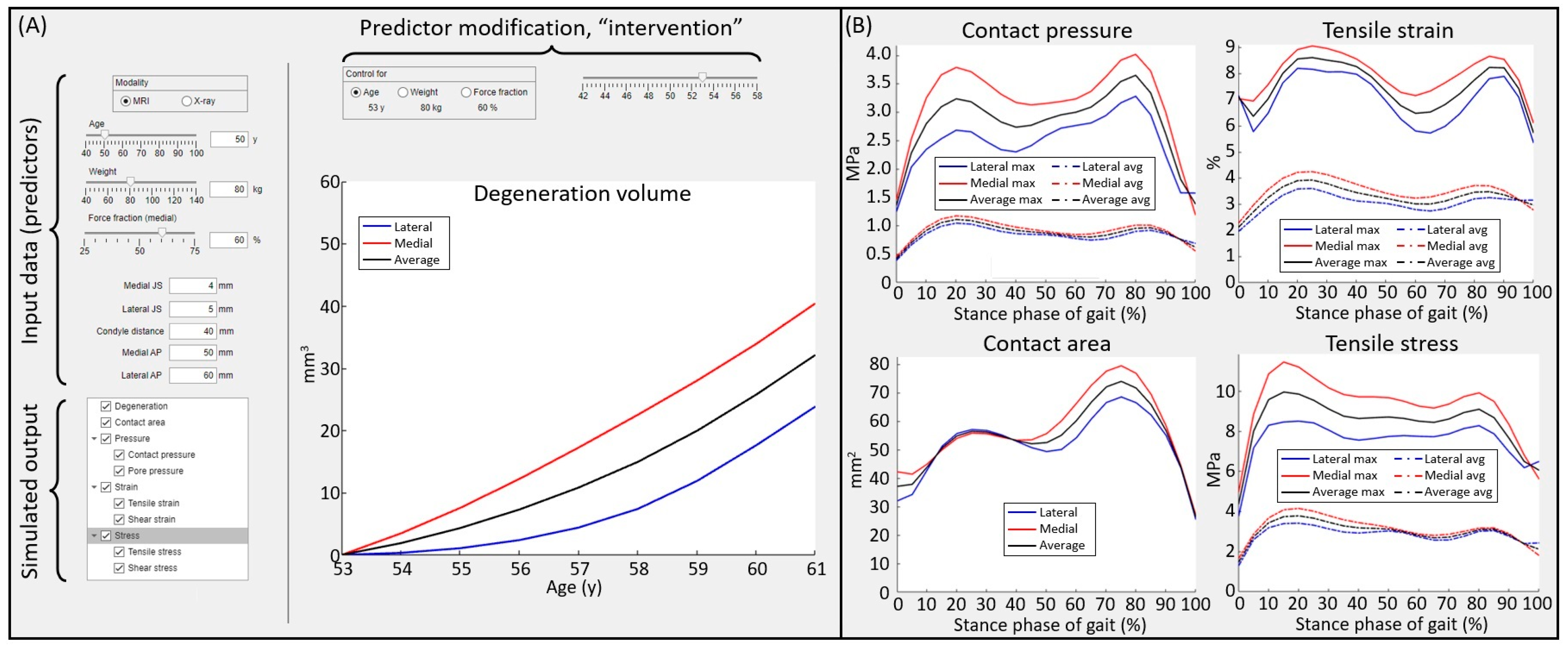

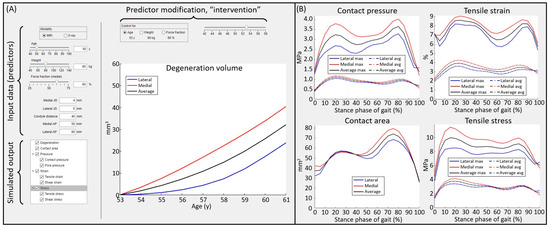

Figure 5. A UI example from the software for real-time evaluation of mechanical responses within knees for researchers or clinicians who have no former knowledge of FEA (A). The user may select between imaging modalities and add subject details and anatomical dimension measurements (input data). Based on this info, the user may ask to have different mechanical output parameters based on trained GPR models (output data). The trained GPR models also enable one to conduct “virtual interventions” by allowing one to make changes in input parameters (age, weight, and loading). Furthermore, different mechanical responses can be analyzed simultaneously in medial and lateral compartments of knee (B).

Figure 5. A UI example from the software for real-time evaluation of mechanical responses within knees for researchers or clinicians who have no former knowledge of FEA (A). The user may select between imaging modalities and add subject details and anatomical dimension measurements (input data). Based on this info, the user may ask to have different mechanical output parameters based on trained GPR models (output data). The trained GPR models also enable one to conduct “virtual interventions” by allowing one to make changes in input parameters (age, weight, and loading). Furthermore, different mechanical responses can be analyzed simultaneously in medial and lateral compartments of knee (B).
Applsci 14 09538 g005
Table 1. Variation in subject characteristics (based on the baseline time) for training and validation data for GPR1 and GPR2 models (mean ± sd). The different KL groups in validation data are based on the KL grade at the 8-year follow-up.
Table 1. Variation in subject characteristics (based on the baseline time) for training and validation data for GPR1 and GPR2 models (mean ± sd). The different KL groups in validation data are based on the KL grade at the 8-year follow-up.
Training Data for GPR1AGE [years]BMI [kg/m2]JSMED-MRI [mm]JSLAT-MRI [mm]
N = 209256.8 ± 6.127.6 ± 4.75.0 ± 1.06.0 ± 1.0
Validation Data for GPR1AGE [years]BMI [kg/m2]JSMED-XRAY [mm]JSLAT-XRAY [mm]
KL01
N = 845		56.3 ± 6.326.4 ± 4.44.7 ± 0.86.7 ± 1.1
KL2
N = 114		57.8 ± 5.129.3 ± 4.84.6 ± 0.86.5 ± 1.2
KL34
N = 97		59.3 ± 5.628.3 ± 3.94.6 ± 1.06.5 ± 1.4
Training Data for GPR2AGE [years]BMI [kg/m2]JSMED-XRAY [mm]JSLAT-XRAY [mm]
N = 166956.8 ± 6.127.8 ± 4.84.7 ± 0.96.7 ± 1.2
Validation Data for GPR2AGE [years]BMI [kg/m2]JSMED-XRAY [mm]JSLAT-XRAY [mm]
KL01
N = 303		56.1 ± 6.326.1 ± 4.24.7 ± 0.86.7 ± 1.1
KL2
N = 39		56.9 ± 5.529.4 ± 4.64.7 ± 0.86.5 ± 1.1
KL34
N = 33		58.5 ± 5.928.6 ± 4.24.6 ± 1.26.6 ± 1.4
Table 2. Accuracy of the trained GPR1 models with training and validation data for different target variables. Statistics were performed with the Pearson correlation (R2) and the Root Mean Squared Error (RMSE) between outcomes from GPR1 model and FEA outputs; p < 0.001 in all cases.
Table 2. Accuracy of the trained GPR1 models with training and validation data for different target variables. Statistics were performed with the Pearson correlation (R2) and the Root Mean Squared Error (RMSE) between outcomes from GPR1 model and FEA outputs; p < 0.001 in all cases.
GPR1 Model (Training Data)
Target VariableMedialLateral
R2RMSER2RMSE
Contact area [mm2]1.000.0451.000.046
Contact pressure [MPa, peak]1.000.00201.000.018
Contact pressure [MPa, average]1.000.000771.000.00072
Tensile stress [MPa, peak]1.000.00300.990.12
Tensile stress [MPa, average]1.000.00151.000.00083
Tensile strain [-, peak]0.970.00220.920.0035
Tensile strain [-, average]0.980.000660.980.00076
Shear stress [MPa, peak]1.000.00151.000.040
Shear stress [MPa, average]1.000.000821.000.00067
Shear strain [-, peak]0.980.00290.890.0049
Shear strain [-, average]0.990.000640.990.00073
Pore pressure [MPa, peak]1.000.00431.000.055
Pore pressure [MPa, average]1.000.00211.000.0013
Degeneration [mm3]1.000.0311.000.070
GPR1 Model (Validation Data)
Target VariableMedialLateral
R2RMSER2RMSE
Contact area [mm2]0.982.670.8016.46
Contact pressure [MPa, peak]0.950.190.880.30
Contact pressure [MPa, average]0.970.0400.850.14
Tensile stress [MPa, peak]0.920.440.820.67
Tensile stress [MPa, average]0.940.140.830.33
Tensile strain [-, peak]0.860.00460.660.0068
Tensile strain [-, average]0.940.00120.880.0025
Shear stress [MPa, peak]0.920.170.830.27
Shear stress [MPa, average]0.950.0580.850.13
Shear strain [-, peak]0.880.00530.680.0084
Shear strain [-, average]0.960.00150.890.0033
Pore pressure [MPa, peak]0.940.490.790.86
Pore pressure [MPa, average]0.960.190.860.36
Degeneration [mm3]1.001.741.002.61
Table 3. Accuracy of the trained GPR2 models with training and validation data for different target variables (knee geometry). Statistics were performed with the Pearson correlation (R2) and the Root Mean Squared Error (RMSE) between outcomes from GPR2 model and manually measured knee joint dimensions; p < 0.001 in all cases.
Table 3. Accuracy of the trained GPR2 models with training and validation data for different target variables (knee geometry). Statistics were performed with the Pearson correlation (R2) and the Root Mean Squared Error (RMSE) between outcomes from GPR2 model and manually measured knee joint dimensions; p < 0.001 in all cases.
GPR2 Model (Training Data)
Target VariableR2RMSE
JSMED-Xray [mm]0.620.73
JSLAT-Xray [mm]0.650.50
WXray [mm]0.961.35
GPR2 Model (Validation Data)
Target VariableR2RMSE
JSMED-Xray [mm]0.670.67
JSLAT-Xray [mm]0.720.47
WXray [mm]0.902.26
JSMED-Xray = joint space in medial compartment, JSLAT-Xray = joint space in lateral compartment, and WXray = knee width measured from distal femur.
