Effect of Amphiphilic Polymer/Nano-Silica Composite on Shale Stability for Water-Based Muds

by
Zhengsong Qiu
1,*,
Jiangen Xu
1,*,
Peng Yang
2,
Xin Zhao
1,
Tingbo Mou
1,
Hanyi Zhong
1 and
Weian Huang
1
1
School of Petroleum Engineering, China University of Petroleum (East China), Qingdao 266580, China
2
Engineering Research Institute, CNPC Great Wall Drilling Engineering Company Limited, Panjin 124010, China
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2018, 8(10), 1839; https://doi.org/10.3390/app8101839
Submission received: 20 September 2018 / Revised: 1 October 2018 / Accepted: 2 October 2018 / Published: 7 October 2018
(This article belongs to the Special Issue Nanotech for Oil and Gas)
Browse Figures
Versions Notes

Abstract

:
Research on using nanotechnology to solve shale instability problems in drilling engineering has been increasing. The combination of amphiphilic polymer and silica nanoparticles may be a new way to improve shale stability. Herein, an amphiphilic polymer/nano-silica composite (poly(styrene-methyl methacrylate-acrylamide)/nano-SiO2) was introduced as a novel shale stabilizer SMA/SiO2 for water-based muds, which possessed the advantages of both physical plugging and chemical inhibition during the drilling operations. The SMA/SiO2 was prepared and characterized by Fourier transform infrared spectra (FT-IR), nuclear magnetic resonance (1H-NMR), transmission electron microscope (TEM), particle size distribution (PSD) and thermogravimetric analysis (TGA) experiments, which confirmed that SMA/SiO2 was regularly spherical with nano-scale and showed good high-temperature resistance. To evaluate the plugging capacity of SMA/SiO2, the pressure transmission test and BET analysis were applied. The results indicated SMA/SiO2 was capable of effectively plugging the pores and fractures in shale. To evaluate the hydration inhibition capacity of SMA/SiO2, the rolling dispersion experiment and contact angle test were adopted. The results demonstrated that SMA/SiO2 could reduce the tendency of shale hydration, which was better than potassium chloride (KCl) and polymeric alcohol (JHC). In addition, SMA/SiO2 only created slight variations on the rheological parameters of the water-based muds (WBMs) and showed a significant filtration control performance. Due to the outstanding performance of physical plugging and chemical inhibition, SMA/SiO2 was expected to be a novel shale stabilizer to solve shale instability problems.

1. Introduction

Drilling fluids are considered as circulating fluids in the drilling operations, which provide multiple functions. Their major functions consist of suspending/transporting drill cuttings, cooling and lubricating the drilling bits, maintaining borehole stability and reducing the formation damage [1,2,3]. Drilling fluids are usually grouped into three types: water-based muds (WBMs), oil-based muds, and synthetic-based muds. Due to their lower cost and lesser impact on environment, WBMs have become the most widely used drilling fluids in the world [4,5].
In recent years, the development of shale gas as an unconventional oil and gas resource has gained an increase in attention [6,7,8,9,10,11,12]. The technology of drilling fluids for the long well section of a horizontal well is one of the key technologies used to drill shale gas formations. Since the shale formations develop nano-scale pores and fractures and have a strong water-sensitivity characteristic, shale instability in the drilling process is prone to occur. This restricts the process of shale gas exploration and development [13,14]. Figure 1 shows the general sketch of the shale instability problems caused by WBMs. Due to a large number of nano-scale pores and fractures developed in the shale formations, they are characterized by extremely low permeability and low porosity [15,16,17]. In the drilling operations, pressure transmission in WBMs will result in an increase in the pore pressure of shale formations, and thus cause wellbore instability. The best approach for solving this problem is to plug the nano-scale pores and fractures developed in the shale formations [18,19,20]. However, conventional agents for WBMs are too large to play an effective role of plugging. Therefore, seeking for plugging agents with a suitable size to achieve better plugging capacity is essential.
In the last few years, the interest in using nanotechnology in the oil and gas industry has been increasing [21,22,23]. Various kinds of nanomaterials have been introduced into WBMs as promising shale stabilizers [24,25,26]. The inorganic nanoparticles such as unmodified nanosilica were first introduced into WBMs as plugging agents. It was found that nanosilica could seal the shale pores and improve the filtration loss performance of WBMs [27,28]. Graphene oxide has also been investigated as another form of rigid nanoparticles, and it showed good plugging performance in WBMs [29]. However, inorganic nanoparticles are prone to aggregation, and thus the plugging ability can be weakened. Polymeric nanoparticles (such as polymer latex) possessing better dispersing performance in WBMs have also been introduced as plugging agents. The studies showed that the polymeric nanoparticles could decrease shale permeability and effectively retard pressure transmission [30,31]. However, polymer latex is usually preserved in the emulsion state and sensitive to the environmental change, which restrict its application to oilfields. Recently, polymer-inorganic nanocomposites have attracted more and more attention in the drilling fluids industry [32,33,34,35]. The benefits of nanocomposites to be applied in WBMs include excellent dispersing performance, decrease in filtration volume, and improvement of rheological properties [36,37]. Therefore, the polymer-inorganic nanocomposites may be an effective way to solve shale instability problems.
Polyacrylamide-grafted-polyethylene glycol/silica nanocomposite was reported as a potential additive for WBMs, which demonstrated good shale hydration inhibition performance [28]. But the plugging capacity was not considered in their work. Poly(AM-AMPS)/nano-SiO2 composite was introduced into WBMs as a fluid loss agent [26]. Research showed that the composite could plug the nanopores of shale, but the shale hydration inhibition performance was not further evaluated. Since shales mainly consist of clay minerals, shale hydration becomes another important factor causing borehole instability that cannot be ignored [38,39,40]. Amphiphilic polymer has been reported to be able to inhibit shale hydration [41]. The combination of amphiphilic polymer and silica nanoparticles may have the advantages of both physical plugging and chemical inhibition. In this study, a novel shale stabilizer poly(St-MMA-AM)/nano-SiO2 composite (SMA/SiO2) was synthesized. Poly(St-MMA-AM) was used as an amphiphilic polymer where St and MMA provided the hydrophobic segments and AM provided the hydrophilic segments.
First, materials and methods were presented. Then, the novel shale stabilizer SMA/SiO2 was prepared and characterized. To investigate the plugging ability of SMA/SiO2, the pressure transmission experiment and BET analysis were conducted. To evaluate the shale hydration inhibition capacity of SMA/SiO2, the rolling dispersion experiment and contact angle test were carried out. Finally, the compatible test was conducted to evaluate the effect of SMA/SiO2 on the rheological and filtration control properties of the WBMs.

2. Materials and Methods

2.1. Materials

Styrene (St, 99%), methyl methacrylate (MMA, 98%), acrylamide (AM, 98%), potassium chloride (KCl, 99.5%), ethanol (99.7%), sodium dodecyl sulfate (SDS), 3-methacryloxypropyltrimethoxysilane (KH570, 98%), ethylic acid (99.5%) and potassium persulfate (KPS, 99%) were obtained from Sinopharm Chemical Reagent Co., Ltd., Shanghai, China and used without further purification. KH570 was mainly used to improve the bonding properties of organic and inorganic materials. Nano-silica particles (99.8%, 7–42 nm) and octylphenol polyoxyethylene ether (OP-10, 99%) were purchased from Aladdin Reagent Co., Ltd., Shanghai, China and used as received. The TEM (JEM-2100UHR, JEOL Ltd., Akishima, Tokyo, Japan) image and the particle size distribution (PSD) curve of nano-silica particles was shown in Figure 2. The particle size of nano-silica particles was mainly distributed in the range of 7–18 nm. Due to a few nanoparticles agglomerated, the larger particles were found in 32–42 nm. Polymeric alcohol (JHC) was provided by China Oilfield Services (Sanhe, China). Sodium bentonite was provided by Weifang Huawei Bentonite Group Co., Ltd., Weifang, China. Xanthan gum and low-viscosity polyanionic celluloses were obtained from Shida Chuangxin Technology Co., Ltd., Dongying, China. Furthermore, deionized water was used during the experiments. The shale samples used in this work were provided by Turpan Hami Basin, China and the X-ray diffraction analysis results were shown in Table 1.

2.2. Preparation of SMA/SiO2

The novel shale stabilizer SMA/SiO2 was prepared based on the following two stages. The first stage was to prepare KH570/SiO2 nanoparticles. Firstly, nano-silica particles (4 g) were dispersed into ethanol (60 mL) at 25 °C under ultrasonic conditions. Then, KH570 (0.8 g) was dissolved in ethanol/H2O dispersion and the dispersion was adjusted to pH = 4 with ethylic acid. Secondly, the above dispersions were mixed in the reactor and stirred at 75 °C for 4 h. Thirdly, the obtained KH570/SiO2 nanoparticles were purified several times by centrifugation and washing treatment using ethanol. Figure 3 shows the schematic representation on the silane functionalization of SiO2.
The second stage was to prepare the novel shale stabilizer SMA/SiO2 with St, MMA, AM and KH570/SiO2 nanoparticles through emulsion polymerization [42]. Firstly, KH570/SiO2 nanoparticles (0.4 g) were added to the monomer mixture containing St (12 g), MMA (6 g) and AM (2 g), and the mixture was ultrasonically treated for 3 h. Then, the aqueous solutions consisting of deionized water (60 mL), SDS (0.1 g), and OP-10 (0.1 g) were added to the mixture, and pre-emulsified under vigorous stirring. Secondly, the pre-emulsion was transferred in a 250 mL flask and the temperature was maintained at 75 °C for 30 min. Thirdly, the aqueous solutions containing of KPS (0.12 g) was poured to the flask for inducing polymerization and the polymerization was left for 3 h. The solid product was obtained by centrifugation and washing treatment using ethanol/H2O, and dried at 60 °C under vacuum condition for further use.

2.3. Characterization of SMA/SiO2

Fourier transform infrared spectra (FT-IR) of SiO2, KH570/SiO2 and SMA/SiO2 were obtained by a FT-IR spectrometer (Nicolet 6700, Thermo Scientific, Waltham, MA, USA.). The nuclear magnetic resonance (1H-NMR) spectrum of SMA/SiO2 was determined by an NMR spectrometer (Bruker AV500, BRUKER OPTICS, Karlsruhe, Germany), and the sample was dissolved in CDCl3. The particle size distribution (PSD) of SMA/SiO2 in aqueous solution was measured with a particle size analyzer (NanoBrook Omni, Brookhaven Instruments Corporation, Holtsville, NY, USA.). The morphology of SMA/SiO2 in aqueous solution was recorded by a transmission electron microscope (TEM, JEM-2100UHR, JEOL Ltd., Akishima, Tokyo, Japan). The thermogravimetric analysis (TGA) of SMA/SiO2 was carried out on a TGA/DTA thermogravimetric analyzer (NETZSCH 209F3, Netzsch Group, Selb, Germany). During the experiment, the heating rate was set at 10 °C/min under a N2 atmosphere, while the heating range was set at 25–600 °C.

2.4. Pressure Transmission Test

The pressure transmission technology provides a scientific and effective method to evaluate the plugging performance of different fluids. A shale hydra-mechanics coupling simulation test device developed by China University of Petroleum (East China) was used for the pressure transmission experiment [43]. In this test, the shale samples were cut into cylindrical cores (diameter: 2.54 cm; length: 0.75 cm). Base fluid for the test was prepared by dispersing 4 g sodium bentonite into 100 mL distilled water. Firstly, the shale core was placed into the core holder, and the axial and confining pressure were set at 5 MPa during the experiment. Then, the test fluids were pumped into the upstream entrance to contact with the shale core, while the upstream pressure was maintained at 2 MPa and the downstream’s initial pressure was set at 1 MPa. The pressure transmission curve was recorded through monitoring the downstream pressure change. Furthermore, the permeability of shale cores before and after being plugged with SMA/SiO2 could be calculated by the Equation (1) [44].
K = μ β V L A ln ( P m − P o P m − P ( L , t 2 ) ) − ln ( P m − P o P m − P ( L , t 1 ) ) t 2 − t 1
The equation describes the shale permeability (K) as a function of viscosity (μ), static compression ratio (β), enclosed volume (V), length (L), cross-sectional area (A), experimental time (t), upstream pressure (Pm), initial downstream pressure (Po) and real-time downstream pressure (P(L, t)).
In addition, the morphology of the shale cores before and after being plugged with SMA/SiO2 were observed by scanning electron microscopy (SEM) to investigate the plugging mechanism.

2.5. Pore Structure Characterization of Shale

BET analysis is a widely applied method to characterize pore structure characteristics of shale [45,46]. Shale cuttings were screened and crumbled between 40 mesh and 60 mesh. Then, the shale samples were soaked in deionized water and 1% SMA/SiO2 solutions respectively for 6 h at room temperature. After that they were removed from the solutions and dried in the air. Finally, nitrogen adsorption experiments were carried out on Quadrasorb SI equipment (Quantachrome Company, Boynton Beach, FL, USA). The surface area and pore volume of shale samples could be determined by analyzing the nitrogen adsorption data through BET analysis.

2.6. Rolling Dispersion Experiment

Rolling dispersion experiment was adopted to evaluate the hydration inhibition performance of SMA/SiO2. In this test, shale cuttings were screened and crumbled into sizes in the range of 2.00–3.35 mm, which were dried at 105 °C for 4 h. Then, 50 g of dried shale cuttings and 350 mL of inhibitor solutions were transferred to the aging tank. The aging tanks were put into the roller furnace and hot-rolled at the temperature of 77 °C for 16 h. After cooling, shale cuttings were washed with distilled water and filtrated by a 40-mesh sieve. Finally, the recovered shale cuttings were dried and weighed to calculate the shale recovery rate.

2.7. Contact Angle Test

The contact angle test was carried out to evaluate the effect of SMA/SiO2 on the wettability of the shale surface. In brief, the shale surface was polished using sandpaper to make it smooth. Then, the shale samples were soaked in the SMA/SiO2 solutions at different concentrations for 6 h. After that they were removed from the solutions and dried in the air. Finally, a syringe was used to put a drop of water onto the shale surface and the images were recorded by the camera. The contact angle could be calculated by analyzing the images using built-in software. The contact angle measurement was conducted on the JC2000D5M contact angle meter (Zhongchen Company, Shanghai, China) at room temperature.

2.8. Compatible Test

The compatible test was conducted to evaluate the effect of SMA/SiO2 on the rheological and filtration control properties of the WBMs. The WBMs were prepared by mixing 4% pre-hydrated sodium bentonite muds, 1% low-viscosity polyanionic celluloses, 0.2% xanthan gum and 3% potassium chloride under high-speed (8000 rpm) stirring conditions for 20 min. Then, the WBMs were transferred into an ageing oven (Haitongda Company, Qingdao, China) and hot-rolled at the temperature of 120 °C for 16 h. After being hot-rolled, the rheological and filtration control properties of the WBMs were measured. The compatibility of SMA/SiO2 in WBMs was evaluated by comparing the rheological and filtration control performance of WBMs with or without SMA/SiO2.
The rheological parameters such as apparent viscosity (AV), plastic viscosity (PV), and yield point (YP) were measured based on the API-recommended standard procedure by ZNN-D6 rotating viscometers (Haitongda Company, Qingdao, China). The Equations (2)–(4) were used to calculate the rheological parameters according to the readings from the high rotational speeds (300 and 600 rpm). The fluid loss (FLAPI) of the WBMs was tested on ZNS-2A filtration apparatus (Haitongda Company, Qingdao, China).
Apparent Viscosity (AV) = Φ600/2 (mPa·s)
Plastic Viscosity (PV) = Φ600 − Φ300 (mPa·s)
Yield Point (YP) = (Φ300 − PV)/2 (Pa)

3. Results and Discussion

3.1. Characterization of the SMA/SiO2

Figure 4 depicts FT-IR spectra of SiO2, KH570/SiO2 and SMA/SiO2, and the characteristic peaks were observed. As shown in Figure 4a, the stretching band of O–H (3419 cm−1) in SiO2 was significantly weakened after the surface modification of SiO2. The new peaks at 2928 cm−1 and 2844 cm−1 were for the stretching vibrations of the methyl and methylene from KH570. Thus, KH570 was successfully grafted onto SiO2. Figure 4b shows the FT-IR spectrum of SMA/SiO2. The peaks at 3061 cm−1 and 3026 cm−1 were for the C–H in the benzene ring from St. The peaks at 1603 cm−1, 1495 cm−1 and 1452 cm−1 were for the vibrations of the benzene skeleton from St. The peak at 1730 cm−1 was for the stretching vibrations of C=O, while 1200 cm−1 represented the stretching vibrations of C–O–C from MMA. The peak at 3429 cm−1 represented the stretching vibrations of N–H from AM. In addition, the stretching vibrations of Si–O and Si–O–Si were located at 1117 cm−1 and 1076 cm−1 respectively. Therefore, the FT-IR spectra show that SMA/SiO2 was successfully prepared.
In order to further characterize the chemical structure of SMA/SiO2, the 1H-NMR spectra of SMA/SiO2 is presented in Figure 5. The peaks corresponding to the protons in the copolymer were labeled. It can be concluded that St, MMA and AM were grafted onto KH570/SiO2. Thus, the chemical structure of SMA/SiO2 was further confirmed.
The dispersion morphology of SMA/SiO2 in aqueous solution was observed, and the TEM image is shown in Figure 6. The spherical nanoparticles exhibited good dispersivity in the aqueous solution. In addition, the average particle size of SMA/SiO2 was about 75 nm, and the particle size distribution was mainly in the range of 50-90 nm.
Figure 7 presents the PSD curves of SMA/SiO2. The test results showed that the average particle size of SMA/SiO2 was 72 nm, while the particle size was mainly distributed in the range of 43–122 nm. Due to a few nanoparticles in SMA/SiO2 agglomerated, the larger particles were found in the PSD test results. Overall, the PSD test results corresponded with the TEM characterization results. The nanoscale diameter of SMA/SiO2 was further confirmed. It could be inferred that SMA/SiO2 was able to plug the shale pores and cracks in nano-scale.
Figure 8 shows the thermogravimetric curves of SMA/SiO2. The weight loss was less than 0.3% for SMA/SiO2 below the temperature of 120 °C due to the solvent evaporation. No significant weight loss was observed before the temperature reached 390 °C. Thermal stability is essential for plugging agents since WBMs withstand high-temperature stratum conditions. Through the results of TGA analysis, good high-temperature resistance of SMA/SiO2 was confirmed.

3.2. Pressure Transmission Test

Figure 9 presents the downstream pressure change with time when the shale cores interacted with different test fluids. As shown in Figure 9, the pressure transmission rate of the shale cores was so fast that the downstream and upstream pressures were basically the same after 40 min. For the base fluid, a lower growth rate of the downstream pressure was observed, and it took about 128 min to achieve the equilibrium for the downstream and upstream pressures. For the base fluid containing 1% SiO2, it took about 183 min to achieve the equilibrium for the downstream and upstream pressures. For the base fluid containing 1% SMA/SiO2, it took about 255 min to achieve the equilibrium, which was significantly longer than the penetration times of the shale cores and the base fluid containing 1% SiO2. Thus, SMA/SiO2 played a notable role in slowing down the shale pressure transmission rate. The plugging capacity of SMA/SiO2 was further evaluated through analyzing the shale permeability change. The permeability of the shale cores before being plugged was 1.68 × 10−6 μm2. After being treated by the base fluid and the base fluid containing 1% SiO2, the permeability was decreased to 1.09 × 10−7 μm2 and 8.00 × 10−8 μm2 respectively. Most noteworthy, after being plugged by the base fluid containing 1% SMA/SiO2, the permeability was significantly reduced to 6.45 × 10−8 μm2. Therefore, SMA/SiO2 possessed the capacity to seal the nano-scale pores and fractures, and a lower pressure transmission rate and shale permeability were observed after interact with SMA/SiO2.
The SEM images of the shale cores after the pressure transmission experiments are shown in Figure 10. As shown in Figure 10a, a lot of pores and fractures developed in the shale cores and it can be inferred that the diameter of shale pores and the width of shale fractures were mainly distributed between 50–500 nm. These pores and fractures were effectively plugged after interaction with SMA/SiO2 in the base fluid (Figure 10b). After being plugged, the core surface changed to be smooth and dense, and an isolation layer was formed on it. As a result, the shale permeability was significantly reduced and the plugging capacity of SMA/SiO2 was excellent.

3.3. Pore Structure Characterization of Shale

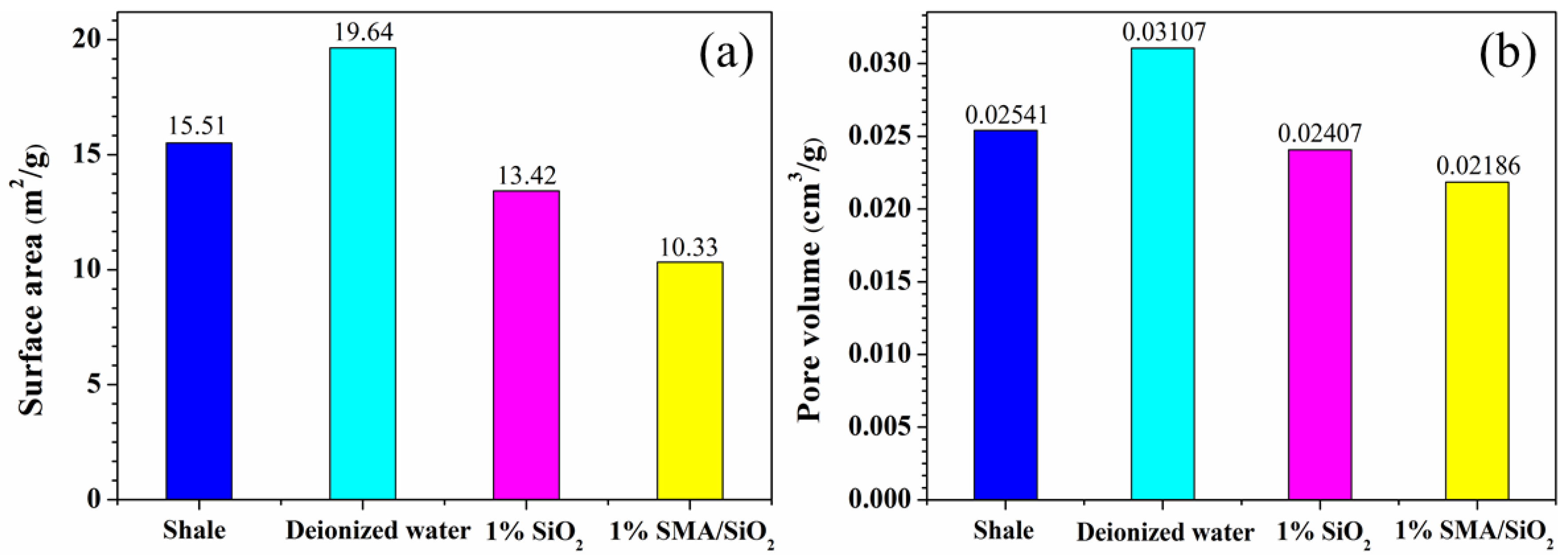

The plugging capacity of SMA/SiO2 was further determined through BET analysis, and the surface area and pore volume of shale samples were used as evaluation parameters. As presented in Figure 11, the surface area of original shale without treatment was 15.51 m2/g, with a pore volume of 0.02541 cm3/g. After being soaked in deionized water, the surface area and pore volume of shale were increased to 19.64 m2/g and 0.03107 cm3/g respectively. The large increase in the surface area and pore volume indicated that water strongly interacted with shale, resulting in bigger pores and fractures in shale samples. The hydration and capillary effect are essential factors leading to the pores and fractures propagation in shale samples [47]. However, after being soaked in 1.0% SiO2 solutions, the surface area and pore volume of shale were decreased to 13.42 m2/g and 0.02407 cm3/g respectively. In especial, a significant decrease was observed after being soaked in 1.0% SMA/SiO2 solutions, and the surface area and pore volume were reduced to 10.33 m2/g and 0.02186 cm3/g respectively. Results indicated that SMA/SiO2 was able to effectively plug the shale pores and fractures, and thus prevent water invading into shale samples.

3.4. Rolling Dispersion Experiment

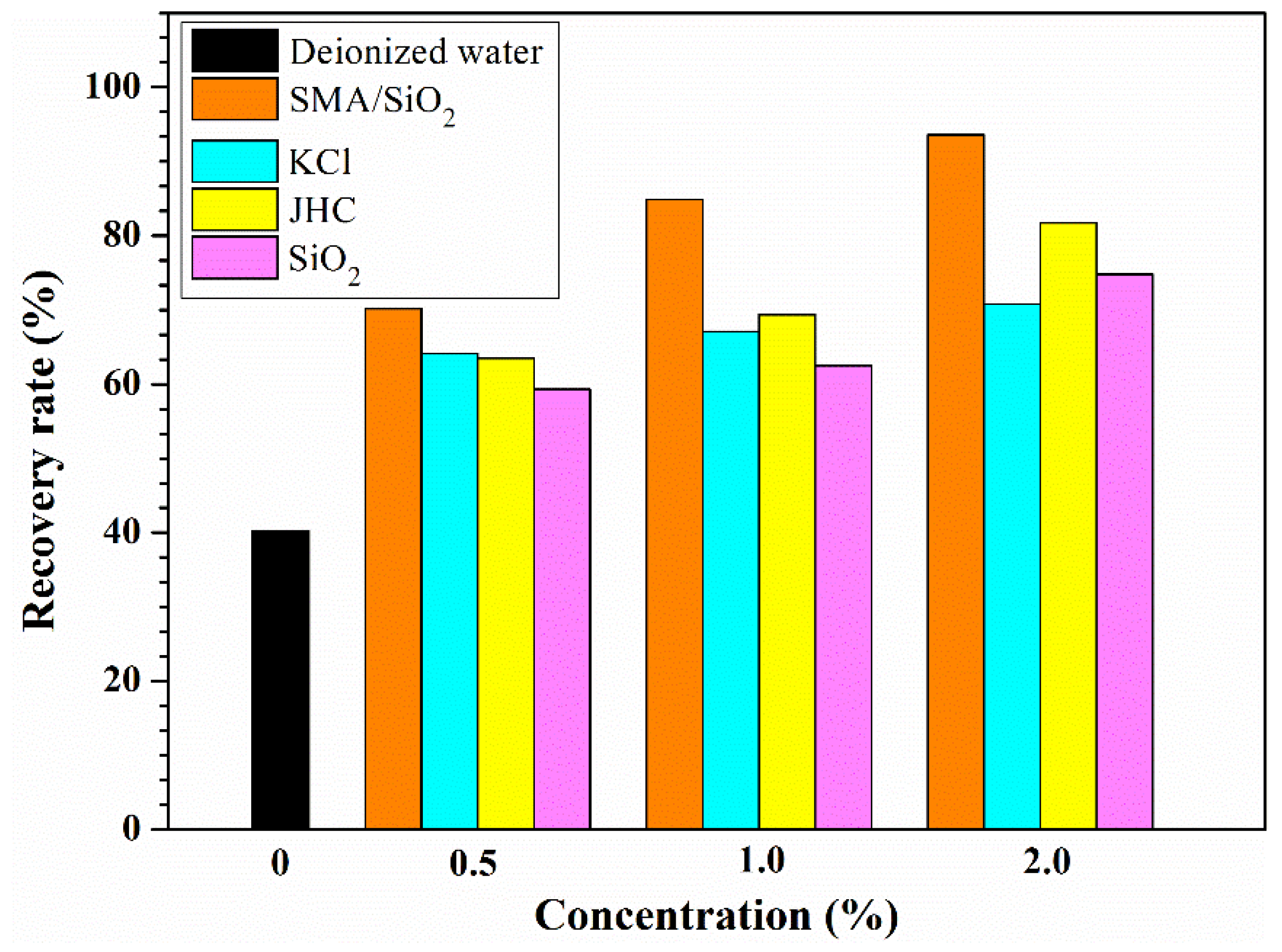

In order to evaluate the hydration inhibition property of SMA/SiO2, KCl and JHC as good shale inhibitors were used for comparison. The results of the rolling dispersion experiment were presented in Figure 12. The rolling recovery rate of shale in deionized water was 40.2%, demonstrating that the shale samples possessed strong hydration dispersion ability. This could be attributed to the high content of smectite in shale samples. With the increase in SMA/SiO2 dosage, the recovery rate was enhanced significantly. When the concentration of SMA/SiO2 was 2.0%, the shale recovery rate was up to 93.6%. In addition, compared with KCl, JHC and SiO2, the higher recovery rates were observed in SMA/SiO2 solutions at various concentrations. Therefore, SMA/SiO2 was able to reduce the tendency of shale dispersion and exhibited strong hydration inhibition. The results can be explained by the shale hydration inhibition mechanism of amphiphilic polymer [41]. The hydrophilic segments in SMA/SiO2 were capable of enhancing the adsorption between SMA/SiO2 and the shale, because shale is hydrophilic. Thus, SMA/SiO2 could occupy the adsorption sites in shale instead of water. As a result, the hydrophobic segments provided by St and MMA in the amphiphilic polymer could greatly change the wettability of shale. The shale surface became more hydrophobic after adsorbed by SMA/SiO2, which was in favor of preventing the water invading into the shale. Therefore, the excellent hydration inhibition of SMA/SiO2 was achieved.

3.5. Contact Angle Test Results

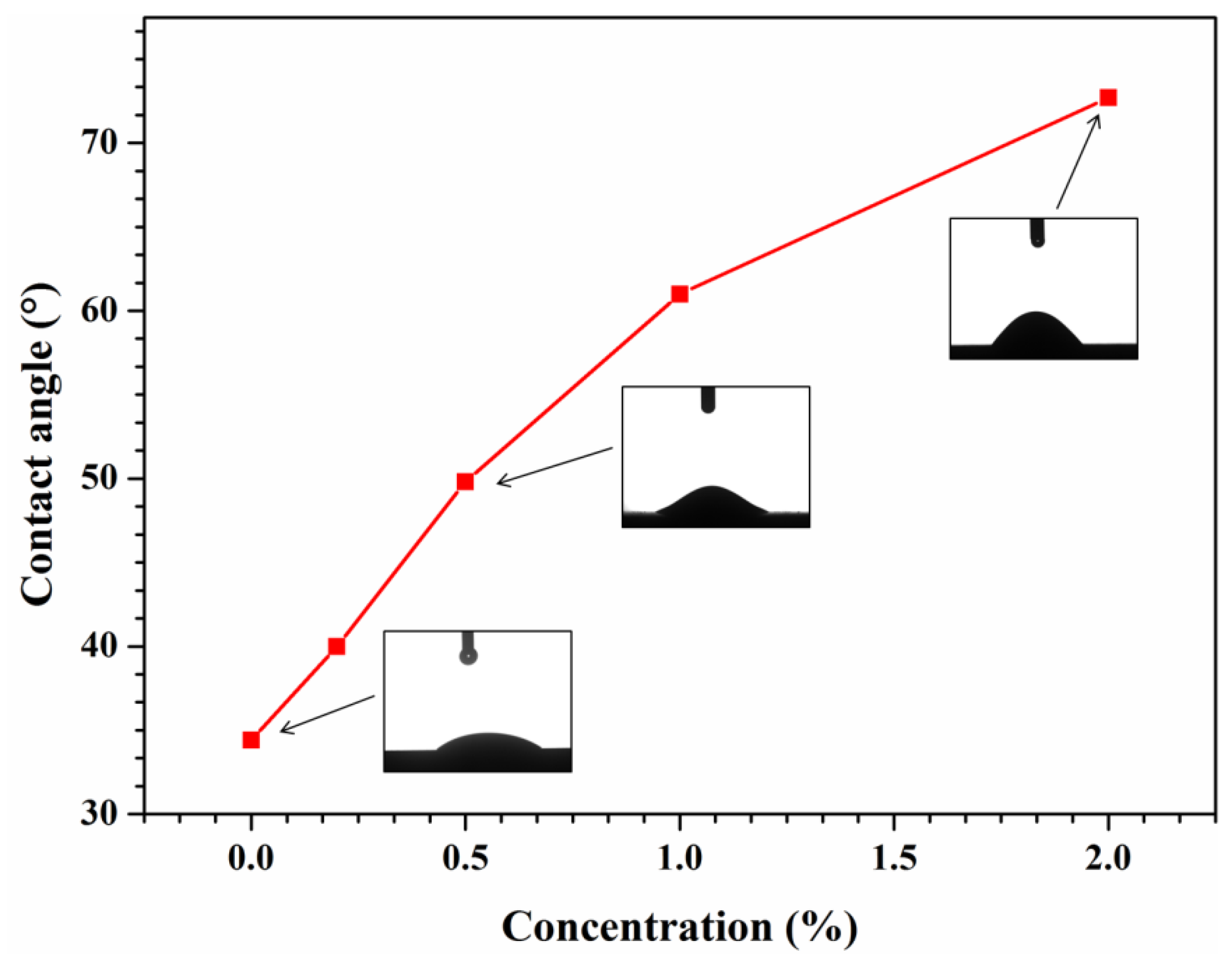

The influence of SMA/SiO2 on the wettability of the shale surface was measured, and the test results were shown in Figure 13. The original shale was strongly hydrophilic with a contact angle of 34.4°. With the increase of SMA/SiO2 concentration, the contact angle was gradually enlarged. After treatment with 2.0% SMA/SiO2 solutions, the contact angle was increased to 72.7°. Thus, a more hydrophobic shale surface would be formed after treatment with SMA/SiO2. Less water intrusion into the shale due to the hydrophobic surface was more conducive to the shale stability [48].

3.6. Probable Shale Stabilization Mechanism

A possible shale stabilization mechanism of SMA/SiO2 could be summarized in view of the research findings from this work and some previous researches. Under the drilling pressure differential, the nanoparticles in SMA/SiO2 are pressed into the nanopores and cracks in the shale. A plugging layer is formed on the shale, resulting in a lower pressure transmission rate and shale permeability. Thus, the excellent plugging performance of SMA/SiO2 is achieved. In addition, the hydrophilic segments in SMA/SiO2 can enhance the adsorption between SMA/SiO2 and the shale. After being adsorbed by SMA/SiO2, a more hydrophobic shale surface will be obtained due to the hydrophobic segments in SMA/SiO2, which can further prevent the water invading into the shale. As a result, SMA/SiO2 exhibits good hydration inhibition. Overall, the novel shale stabilizer SMA/SiO2 has the advantages of both physical plugging and chemical inhibition.
In addition, in order to further optimize the molecular structure of SMA/SiO2 and explore its shale stabilization mechanism, more detailed statistical analysis and refined structural characterization will be carried out in our future work [49,50].

3.7. Compatible Test

Table 2 presents the effect of SMA/SiO2 on the rheological and filtration control properties of the WBMs. After being hot-rolled at 120 °C for 16 h, SMA/SiO2 only created slight variations on the rheological parameters of the WBMs. In addition, the fluid loss of the WBMs with 2.0% SMA/SiO2 was decreased from 8.2 to 6.4 mL, indicating a significant filtration control performance of SMA/SiO2.

4. Conclusions

The following conclusions can be drawn from the current work:
(1) An amphiphilic polymer/nano-silica composite (SMA/SiO2) was prepared and characterized as a novel shale stabilizer for water-based muds. The novel shale stabilizer SMA/SiO2 with spherical structure mainly distributed in the range of 43–122 nm and exhibited good high-temperature resistance.
(2) SMA/SiO2 could effectively plug the shale pores and cracks, and slow down the pressure transmission rate. After being plugged by SMA/SiO2, the core surface changed to be smooth and dense, and an isolation layer was formed on it. In addition, a significant decrease of the shale surface area and pore volume were observed after treatment by SMA/SiO2.
(3) SMA/SiO2 also showed good hydration inhibition, which was better than KCl and JHC. The hydrophilic segments in SMA/SiO2 could enhance the adsorption between SMA/SiO2 and the shale, and thus the hydrophobic segments could change the shale surface to become more hydrophobic after being adsorbed by SMA/SiO2, which was in favor of further preventing the water invading into the shale.
(4) The excellent performance of physical plugging and chemical inhibition were achieved, and SMA/SiO2 was expected to be a novel shale stabilizer to solve shale instability problems.

Author Contributions

Z.Q. and J.X. conceived and designed the experiments; J.X. and X.Z. synthesized the amphiphilic polymer/nano-silica composite; P.Y. and T.M. performed the evaluation experiments; X.Z., H.Z. and W.H. analyzed the data; and Z.Q. and J.X. wrote the paper.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (U1562101), the National Science and Technology Major Project of China (2016ZX05020-004), Shandong Provincial Natural Science Foundation (ZR2017BEE036) and the Fundamental Research Funds for the Central Universities (16CX06034A).

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

WBMswater-based muds
Ststyrene
MMAmethyl methacrylate
AMacrylamide
SMApoly(St-MMA-AM)
KH5703-methacryloxypropyltrimethoxysilane
SDSsodium dodecyl sulfate
OP-10octylphenol polyoxyethylene ether
SMA/SiO2poly(St-MMA-AM)/nano-SiO2 composite
JHCpolymeric alcohol
FT-IRFourier transform infrared spectra
NMRnuclear magnetic resonance
PSDparticle size distribution
TEMtransmission electron microscope
SEMscanning electron microscopy
TGAthermogravimetric analysis
AVapparent Viscosity
PVplastic viscosity
YPyield Point
APIAmerican Petroleum Institute
FLAPIfluid loss
Kshale permeability
μviscosity of fluids
βstatic compression ratio of fluids
Venclosed volume
Llength of shale core
Across-sectional area of shale core
texperimental time
Pmupstream pressure
Poinitial downstream pressure
P(L, t)realtime downstream pressure

References

  1. Razali, S.Z.; Yunus, R.; Rashid, S.A.; Lim, H.N.; Jan, B.M. Review of biodegradable synthetic-based drilling fluid: progression, performance and future prospect. Renew. Sustain. Energy Rev. 2018, 90, 171–186. [Google Scholar] [CrossRef]
  2. Zhao, X.; Qiu, Z.; Huang, W.; Wang, M. Mechanism and method for controlling low-temperature rheology of water-based drilling fluids in deepwater drilling. J. Pet. Sci. Eng. 2017, 154, 405–416. [Google Scholar] [CrossRef]
  3. Xu, J.; Qiu, Z.; Zhao, X.; Mou, T.; Zhong, H.; Huang, W. A polymer microsphere emulsion as a high-performance shale stabilizer for water-based drilling fluids. RSC Adv. 2018, 8, 20852–20861. [Google Scholar] [CrossRef]
  4. Xie, B.; Liu, X. Thermo-thickening behavior of LCST-based copolymer viscosifier for water-based drilling fluids. J. Pet. Sci. Eng. 2017, 154, 244–251. [Google Scholar] [CrossRef]
  5. Song, K.; Wu, Q.; Li, M.; Ren, S.; Dong, L.; Zhang, X.; Kojima, Y. Water-based bentonite drilling fluids modified by novel biopolymer for minimizing fluid loss and formation damage. Colloids Surf. A 2016, 507, 58–66. [Google Scholar] [CrossRef]
  6. Wang, L.L.; Zhang, G.Q.; Hallais, S.; Tanguy, A.; Yang, D.S. Swelling of shales: A multiscale experimental investigation. Energy Fuels 2017, 31, 10442–10451. [Google Scholar] [CrossRef]
  7. Dehghanpour, H.; Zubair, H.A.; Chhabra, A.; Ullah, A. Liquid intake of organic shales. Energy Fuels 2012, 26, 5750–5758. [Google Scholar] [CrossRef]
  8. Chamkalani, A.; Zendehboudi, S.; Amani, M.; Chamkalani, R.; James, L.; Dusseault, M. Pattern recognition insight into drilling optimization of shaly formations. J. Pet. Sci. Eng. 2017, 156, 322–339. [Google Scholar] [CrossRef]
  9. Zhao, H.; Firoozabadi, A. Sorption Hysteresis of Light Hydrocarbons and Carbon Dioxide in Shale and Kerogen. Sci. Rep. 2017, 7, 16209. [Google Scholar] [CrossRef] [PubMed]
  10. Zhang, L.; Kou, Z.; Wang, H.; Zhao, Y.; Dejam, M.; Guo, J.; Du, J. Performance analysis for a model of a multi-wing hydraulically fractured vertical well in a coalbed methane gas reservoir. J. Pet. Sci. Eng. 2018, 166, 104–120. [Google Scholar] [CrossRef]
  11. Jin, Z.; Firoozabadi, A. Phase Behavior and Flow in Shale Nanopores from Molecular Simulations. Fluid Phase Equilib. 2016, 430, 156–168. [Google Scholar] [CrossRef]
  12. Dejam, M.; Hassanzadeh, H.; Chen, Z. Semi-analytical solution for pressure transient analysis of a hydraulically fractured vertical well in a bounded dual-porosity reservoir. J. Hydrol. 2018, 565, 289–301. [Google Scholar] [CrossRef]
  13. Liu, K.; Ostadhassan, M. Microstructural and geomechanical analysis of Bakken shale at nanoscale. J. Pet. Sci. Eng. 2017, 153, 133–144. [Google Scholar] [CrossRef]
  14. Ma, F.; Pu, X.; Wang, B.; Li, J.; Cao, C. Preparation and evaluation of polyampholyte inhibitor DAM. RSC Adv. 2017, 7, 49320–49328. [Google Scholar] [CrossRef] [Green Version]
  15. Zhang, S.; Sheng, J.J.; Shen, Z. Effect of hydration on fractures and permeabilities in Mancos, Eagleford, Barnette and Marcellus shale cores under compressive stress conditions. J. Pet. Sci. Eng. 2017, 156, 917–926. [Google Scholar] [CrossRef]
  16. Sun, Z.; Shi, J.; Wu, K.; Xu, B.; Zhang, T.; Chang, Y.; Li, X. Transport capacity of gas confined in nanoporous ultra-tight gas reservoirs with real gas effect and water storage mechanisms coupling. Int. J. Heat Mass Transf. 2018, 126, 1007–1018. [Google Scholar] [CrossRef]
  17. Dejam, M.; Hassanzadeh, H.; Chen, Z. Pre-Darcy flow in porous media. Water Resour. Res. 2017, 53, 8187–8210. [Google Scholar] [CrossRef]
  18. An, Y.; Jiang, G.; Qi, Y.; Huang, X.; He, S. High-performance shale plugging agent based on chemically modified grapheme. J. Nat. Gas Sci. Eng. 2016, 32, 347–355. [Google Scholar]
  19. Xu, J.; Qiu, Z.; Huang, W.; Zhao, X. Preparation and performance properties of polymer latex SDNL in water-based drilling fluids for drilling troublesome shale formations. J. Nat. Gas Sci. Eng. 2017, 37, 462–470. [Google Scholar] [CrossRef]
  20. Steiger, R.P.; Leung, P.K. Quantitative determination of the mechanical properties of shales. SPE Drill. Complet. 1992, 7, 181–185. [Google Scholar] [CrossRef]
  21. Hassani, S.S.; Amrollahi, A.; Rashidi, A.; Soleymani, M.; Rayatdoost, S. The effect of nanoparticles on the heat transfer properties of drilling fluids. J. Pet. Sci. Eng. 2016, 146, 183–190. [Google Scholar] [CrossRef]
  22. Lau, H.C.; Yu, M.; Nguyen, Q.P. Nanotechnology for oilfield applications: Challenges and impact. J. Pet. Sci. Eng. 2017, 157, 1160–1169. [Google Scholar] [CrossRef]
  23. Li, Y.; Dai, C.; Zhou, H.; Wang, X.; Lv, W.; Wu, Y. A novel nanofluid based on fluorescent carbon nanoparticles for enhanced oil recovery. Ind. Eng. Chem. Res. 2017, 56, 12464–12470. [Google Scholar] [CrossRef]
  24. Zoveidavianpoor, M.; Samsuri, A. The use of nano-sized tapioca starch as a natural water-soluble polymer for filtration control in water-based drilling muds. J. Nat. Gas Sci. Eng. 2016, 34, 832–840. [Google Scholar] [CrossRef]
  25. William, J.K.; Ponmani, M.S.; Samuel, R.; Nagarajan, R.; Sangwai, J.S. Effect of CuO and ZnO nanofluids in xanthan gum on thermal, electrical and high pressure rheology of water-based drilling fluids. J. Pet. Sci. Eng. 2014, 117, 15–27. [Google Scholar] [CrossRef]
  26. An, Y.; Jiang, G.; Qi, Y.; Ge, Q.; Zhang, L.; Ren, Y. Synthesis of nano-plugging agent based on AM/AMPS/NVP terpolymer. J. Pet. Sci. Eng. 2015, 135, 505–514. [Google Scholar] [CrossRef]
  27. Cai, J.; Chenevert, M.E.; Sharma, M.M.; Friedheim, J.E. Decreasing water invasion into atoka shale using nonmodified silica nanoparticles. SPE Drill. Complet. 2012, 27, 103–112. [Google Scholar] [CrossRef]
  28. Jain, R.; Mahto, V.; Sharma, V.P. Evaluation of polyacrylamide-grafted-polyethylene glycol/silica nanocomposite as potential additive in water based drilling mud for reactive shale formation. J. Nat. Gas Sci. Eng. 2015, 26, 526–537. [Google Scholar] [CrossRef]
  29. Kosynkin, D.V.; Ceriotti, G.; Wilson, K.C.; Lomeda, J.R.; Scorsone, J.T.; Patel, A.D. Graphene oxide as a high-performance fluid-loss-control additive in water-based drilling fluids. ACS Appl. Mater. Interfaces 2012, 4, 222–227. [Google Scholar] [CrossRef] [PubMed]
  30. Xu, J.; Qiu, Z.; Zhao, X.; Zhang, Y.; Li, G.; Huang, W. Application of nano-polymer emulsion for inhibiting shale self-imbibition in water-based drilling fluids. J. Surfactants Deterg. 2018, 21, 155–164. [Google Scholar] [CrossRef]
  31. Liu, J.; Qiu, Z.; Huang, W. Novel latex particles and aluminum complexes as potential shale stabilizers in water-based drilling fluids. J. Pet. Sci. Eng. 2015, 135, 433–441. [Google Scholar] [CrossRef]
  32. Seright, R.S. How Much Polymer Should Be Injected During a Polymer Flood? Review of Previous and Current Practices. Soc. Pet. Eng. J. 2018, 22, 1–18. [Google Scholar]
  33. Amirian, E.; Dejam, M.; Chen, Z. Performance forecasting for polymer flooding in heavy oil reservoirs. Fuel 2018, 216, 83–100. [Google Scholar] [CrossRef]
  34. Saboorian-Jooybari, H.; Dejam, M.; Chen, Z. Heavy oil polymer flooding from laboratory core floods to pilot tests and field applications: Half-century studies. J. Pet. Sci. Eng. 2016, 142, 85–100. [Google Scholar] [CrossRef]
  35. Mashayekhizadeh, V.; Kord, S.; Dejam, M. EOR potential within Iran. Spec. Top. Rev. Porous Media 2014, 5, 325–354. [Google Scholar] [CrossRef]
  36. Mao, H.; Qiu, Z.; Shen, Z.; Huang, W. Hydrophobic associated polymer based silica nano particles composite with core–shell structure as a filtrate reducer for drilling fluid at utra-high temperature. J. Pet. Sci. Eng. 2015, 129, 1–14. [Google Scholar] [CrossRef]
  37. Xu, J.; Qiu, Z.; Zhao, X.; Zhong, H.; Li, G.; Huang, W. Synthesis and characterization of shale stabilizer based on polyethylene glycol grafted nano-silica composite in water-based drilling fluids. J. Pet. Sci. Eng. 2018, 163, 371–377. [Google Scholar] [CrossRef]
  38. Ferreira, C.C.; Teixeira, G.T.; Lachter, E.R.; Nascimento, R.S.V. Partially hydrophobized hyperbranched polyglycerols as non-ionic reactive shale inhibitors for water-based drilling fluids. Appl. Clay Sci. 2016, 132, 122–132. [Google Scholar] [CrossRef]
  39. Barati, P.; Keshtkar, S.; Aghajafari, A.; Shahbazi, K.; Momeni, A. Inhibition performance and mechanism of horsetail extract as shale stabilizer. Pet. Explor. Dev. 2016, 43, 522–527. [Google Scholar] [CrossRef]
  40. Zhong, H.; Qiu, Z.; Sun, D.; Zhang, D.; Huang, W. Inhibitive properties comparison of different polyetheramines in water-based drilling fluid. J. Nat. Gas Sci. Eng. 2015, 26, 99–107. [Google Scholar] [CrossRef]
  41. Zhang, X.; Jiang, G.; Dong, T.; Wang, L.; Li, X.; Wang, G. An amphoteric polymer as a shale borehole stabilizer in water-based drilling fluids. J. Pet. Sci. Eng. 2018, 170, 112–120. [Google Scholar] [CrossRef]
  42. Xu, J.; Qiu, Z.; Zhao, X.; Huang, W. Hydrophobic modified polymer based silica nanocomposite for improving shale stability in water-based drilling fluids. J. Pet. Sci. Eng. 2017, 153, 325–330. [Google Scholar] [CrossRef]
  43. Xu, J.F.; Qiu, Z.S.; Lyu, K.H. Pressure transmission testing technology and simulation equipment for hydramechanics coupling of shale. Acta Pet. Sin. 2005, 27, 26–27. [Google Scholar]
  44. Xu, J.F.; Qiu, Z.S. Simulation test equipment of coupled hydra-mechanics of shales. J. China Univ. Pet. (Ed. Nat. Sci.) 2006, 30, 63–66. [Google Scholar]
  45. Zhang, P.; Lu, S.; Li, J.; Xue, H.; Li, W.; Zhang, P. Characterization of shale pore system: A case study of Paleogene Xin’gouzui Formation in the Jianghan basin, China. Mar. Pet. Geol. 2017, 79, 321–334. [Google Scholar] [CrossRef]
  46. Liu, K.; Ostadhassan, M.; Kong, L. Multifractal characteristics of Longmaxi Shale pore structures by N2 adsorption: A model comparison. J. Pet. Sci. Eng. 2018, 168, 330–341. [Google Scholar] [CrossRef]
  47. Liang, L.; Xiong, J.; Liu, X. Experimental study on crack propagation in shale formations considering hydration and wettability. J. Nat. Gas Sci. Eng. 2015, 23, 492–499. [Google Scholar] [CrossRef]
  48. Huang, W.; Li, X.; Qiu, Z.; Jia, J.; Wang, Y.; Li, X. Inhibiting the surface hydration of shale formation using preferred surfactant compound of polyamine and twelve alkyl two hydroxyethyl amine oxide for drilling. J. Pet. Sci. Eng. 2017, 159, 791–798. [Google Scholar] [CrossRef]
  49. Hamdia, K.M.; Silani, M.; Zhuang, X.; He, P.; Rabczuk, T. Stochastic analysis of the fracture toughness of polymeric nanoparticle composites using polynomial chaos expansions. Int. J. Fract. 2017, 206, 215–227. [Google Scholar] [CrossRef]
  50. Vu-Bac, N.; Lahmer, T.; Zhuang, X.; Nguyen-Thoi, T.; Rabczuk, T. A software framework for probabilistic sensitivity analysis for computationally expensive models. Adv. Eng. Softw. 2016, 100, 19–31. [Google Scholar] [CrossRef]
Applsci 08 01839 g001 550
Figure 1. General sketch of the shale instability problems caused by WBMs (water-based muds).
Figure 1. General sketch of the shale instability problems caused by WBMs (water-based muds).
Applsci 08 01839 g001
Applsci 08 01839 g002 550
Figure 2. (a) TEM (transmission electron microscope) image and (b) PSD (particle size distribution) curve of nano-silica particles.
Figure 2. (a) TEM (transmission electron microscope) image and (b) PSD (particle size distribution) curve of nano-silica particles.
Applsci 08 01839 g002
Applsci 08 01839 g003 550

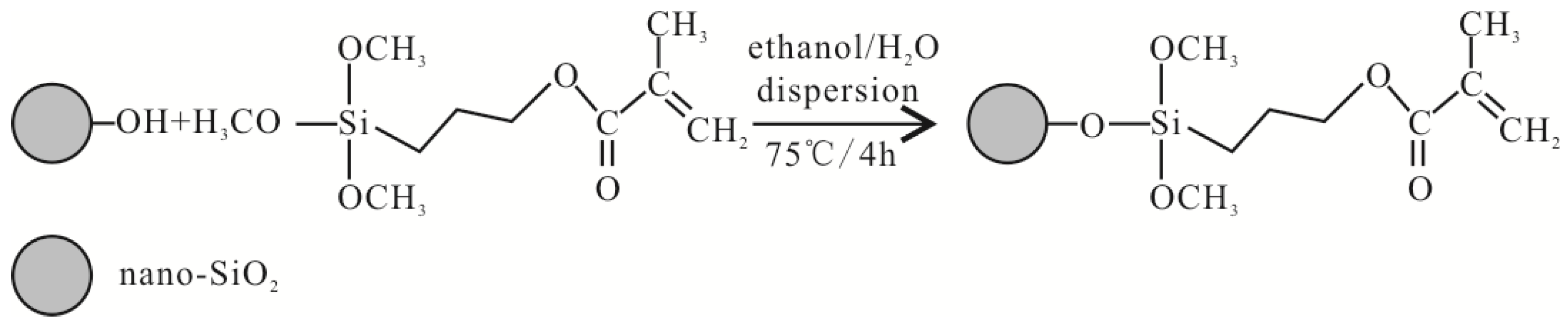

Figure 3. Schematic representation on the silane functionalization of SiO2.
Figure 3. Schematic representation on the silane functionalization of SiO2.
Applsci 08 01839 g003
Applsci 08 01839 g004 550

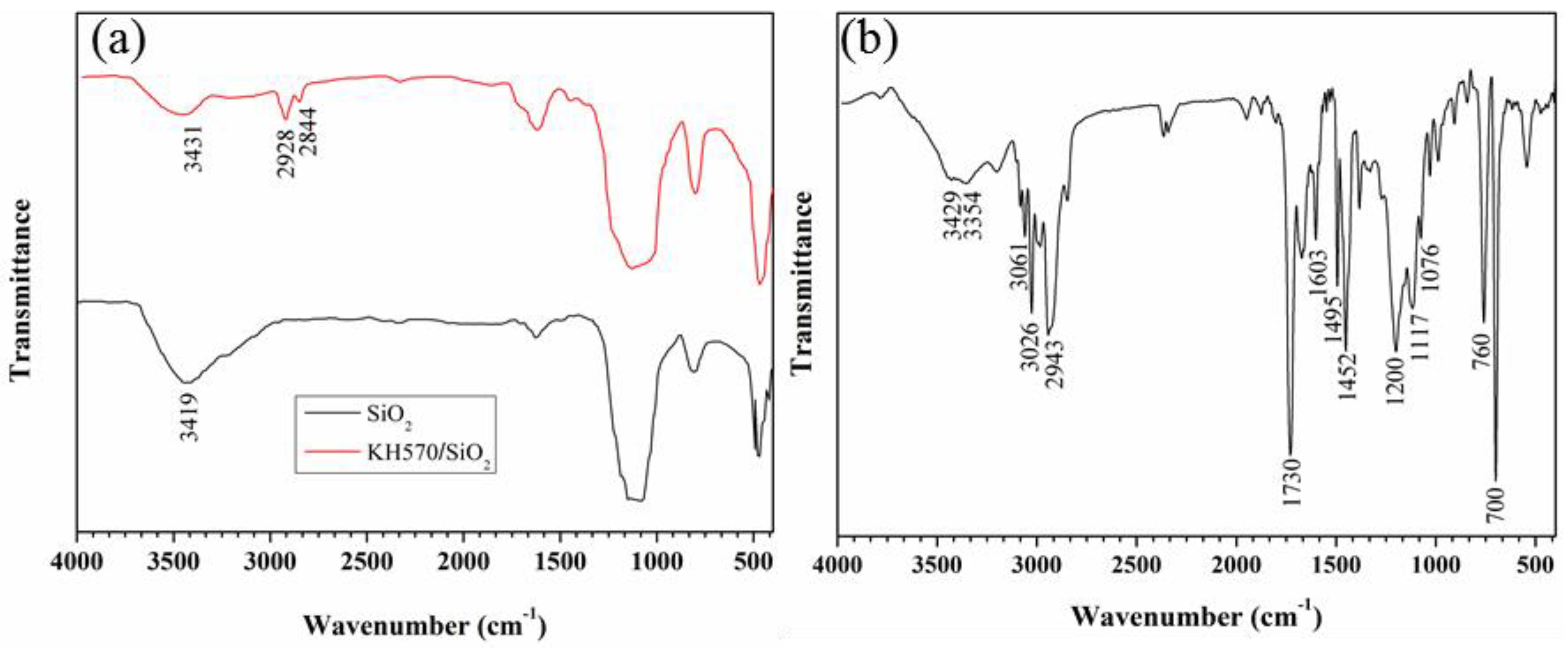

Figure 4. FT-IR spectra of (a) SiO2, KH570/SiO2 and (b) SMA/SiO2.
Figure 4. FT-IR spectra of (a) SiO2, KH570/SiO2 and (b) SMA/SiO2.
Applsci 08 01839 g004
Applsci 08 01839 g005 550
Figure 5. 1H-NMR spectra of SMA/SiO2.
Figure 5. 1H-NMR spectra of SMA/SiO2.
Applsci 08 01839 g005
Applsci 08 01839 g006 550
Figure 6. TEM image of SMA/SiO2.
Figure 6. TEM image of SMA/SiO2.
Applsci 08 01839 g006
Applsci 08 01839 g007 550

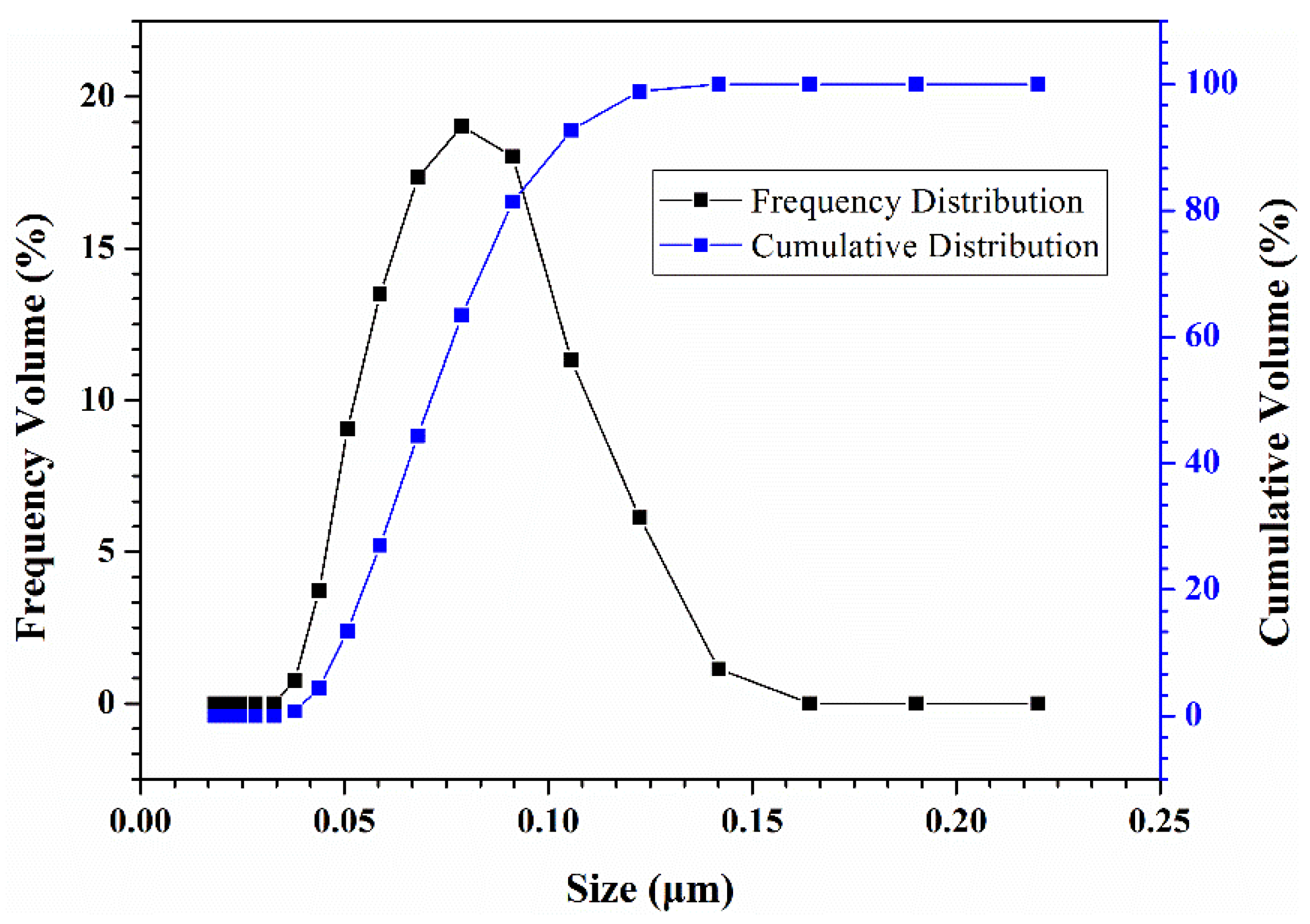

Figure 7. PSD curves of SMA/SiO2.
Figure 7. PSD curves of SMA/SiO2.
Applsci 08 01839 g007
Applsci 08 01839 g008 550

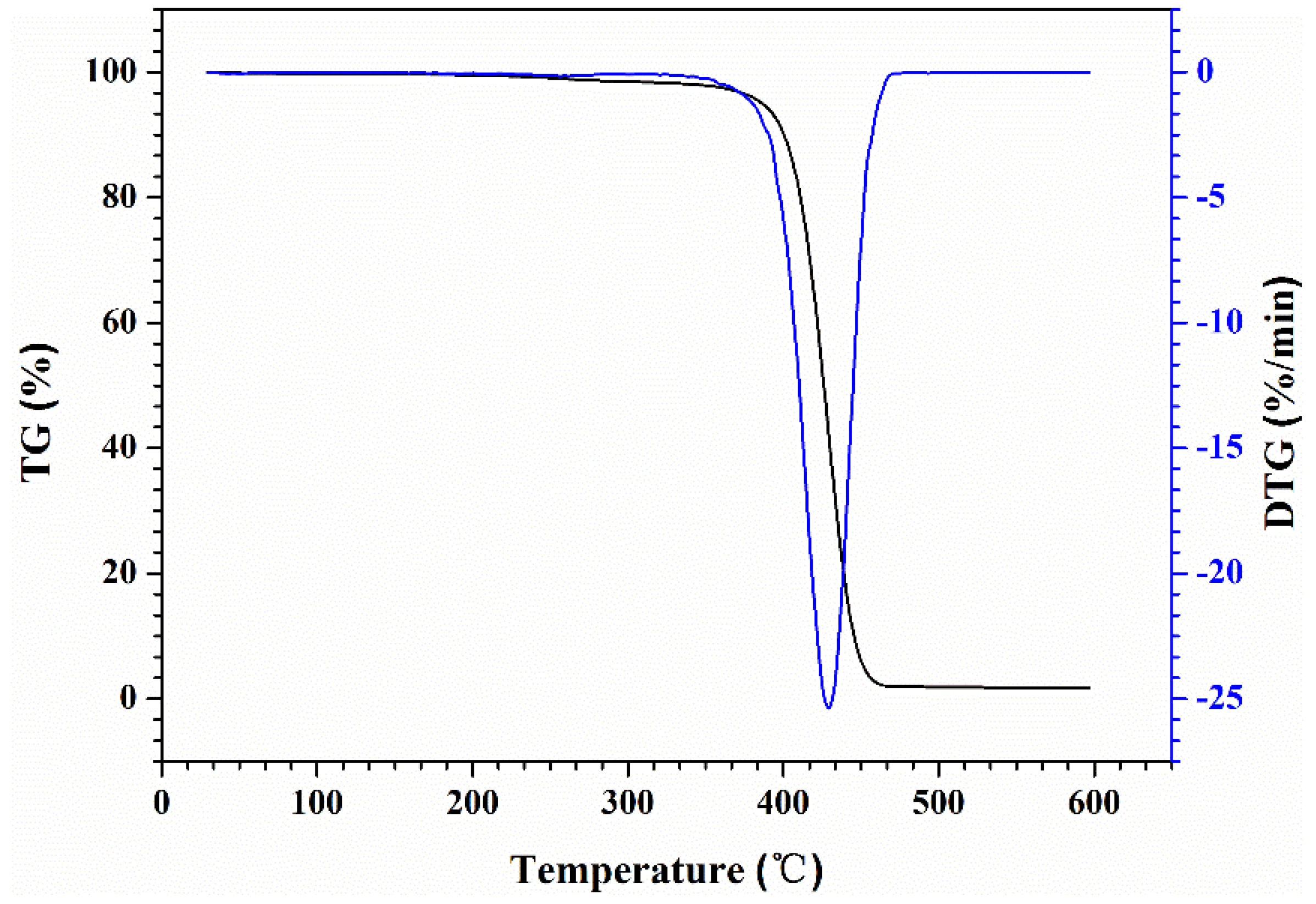

Figure 8. TGA (thermogravimetric analysis) curves of SMA/SiO2.
Figure 8. TGA (thermogravimetric analysis) curves of SMA/SiO2.
Applsci 08 01839 g008
Applsci 08 01839 g009 550

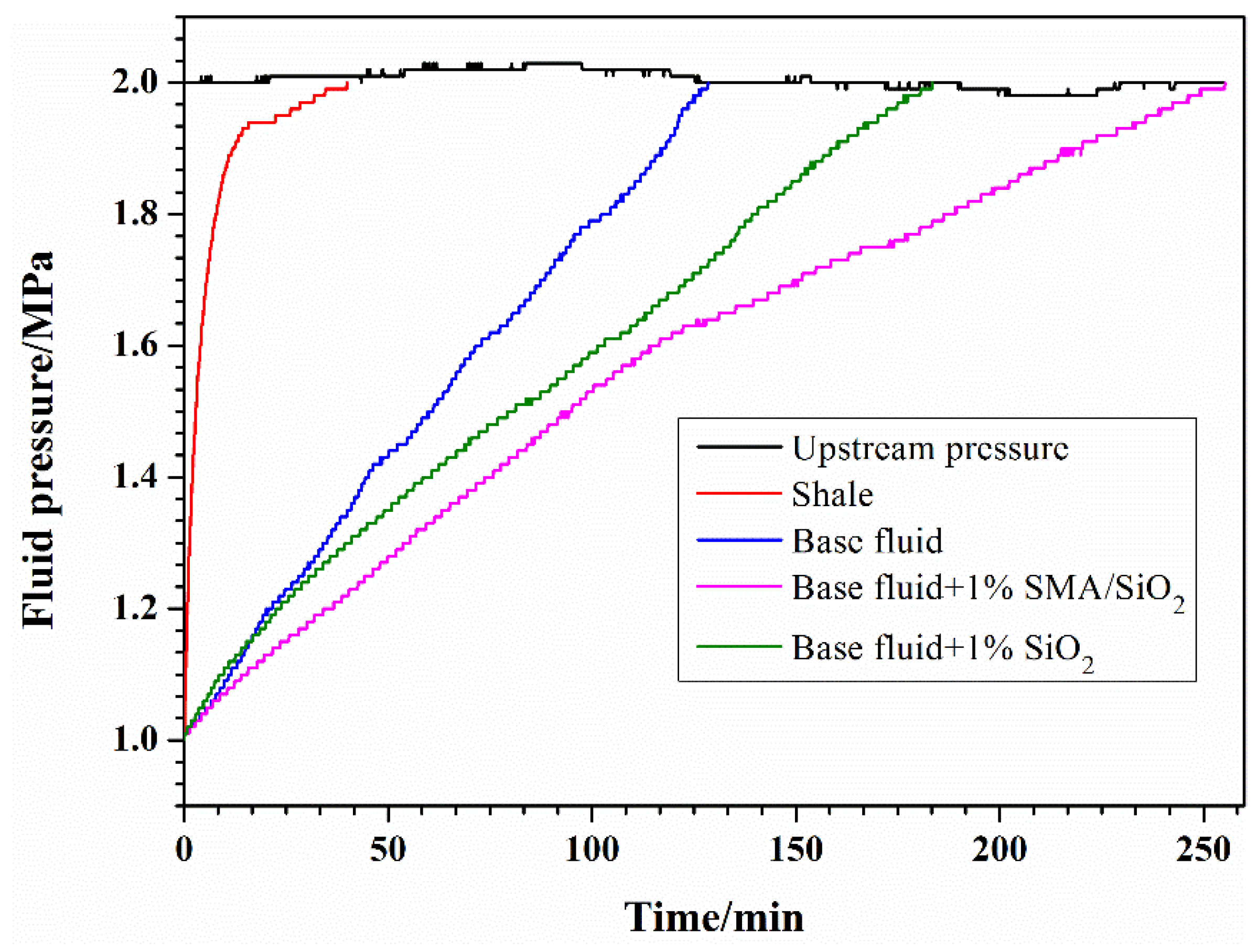

Figure 9. Pressure transmission experiment curves.
Figure 9. Pressure transmission experiment curves.
Applsci 08 01839 g009
Applsci 08 01839 g010 550
Figure 10. SEM images of the shale cores (a) before interaction and (b) after interaction with the base fluid containing 1% SMA/SiO2.
Figure 10. SEM images of the shale cores (a) before interaction and (b) after interaction with the base fluid containing 1% SMA/SiO2.
Applsci 08 01839 g010
Applsci 08 01839 g011 550
Figure 11. (a) The surface area and (b) pore volume of shale cores after soaked in different fluids.
Figure 11. (a) The surface area and (b) pore volume of shale cores after soaked in different fluids.
Applsci 08 01839 g011
Applsci 08 01839 g012 550
Figure 12. The results of rolling dispersion experiment.
Figure 12. The results of rolling dispersion experiment.
Applsci 08 01839 g012
Applsci 08 01839 g013 550
Figure 13. The results of contact angle test.
Figure 13. The results of contact angle test.
Applsci 08 01839 g013
Table
Table 1. Mineral content of the shale samples.
Table 1. Mineral content of the shale samples.
ComponentContent (wt%)Component of Clay MineralContent (wt%)
Quartz20Illite12
Calcite28Chlorite3
Plagioclase29Kaolinite3
Iron dolomite2Illite/smectite mixed layer82
Potassium feldspar6
Clay mineral15
Table
Table 2. Effect of SMA/SiO2 on the rheological and filtration control properties of the WBMs (water-based muds).
Table 2. Effect of SMA/SiO2 on the rheological and filtration control properties of the WBMs (water-based muds).
ParameterBefore adding SMA/SiO2After adding 2.0% SMA/SiO2
θ at 600 rpm (lbf/100 ft2)7074
θ at 300 rpm (lbf/100 ft2)4446
AV (mPa.s)3537
PV (mPa.s)2628
YP (Pa)99
YP/PV0.350.32
FLAPI (mL)8.26.4

Share and Cite

MDPI and ACS Style

Qiu, Z.; Xu, J.; Yang, P.; Zhao, X.; Mou, T.; Zhong, H.; Huang, W. Effect of Amphiphilic Polymer/Nano-Silica Composite on Shale Stability for Water-Based Muds. Appl. Sci. 2018, 8, 1839. https://doi.org/10.3390/app8101839

AMA Style

Qiu Z, Xu J, Yang P, Zhao X, Mou T, Zhong H, Huang W. Effect of Amphiphilic Polymer/Nano-Silica Composite on Shale Stability for Water-Based Muds. Applied Sciences. 2018; 8(10):1839. https://doi.org/10.3390/app8101839

Chicago/Turabian Style

Qiu, Zhengsong, Jiangen Xu, Peng Yang, Xin Zhao, Tingbo Mou, Hanyi Zhong, and Weian Huang. 2018. "Effect of Amphiphilic Polymer/Nano-Silica Composite on Shale Stability for Water-Based Muds" Applied Sciences 8, no. 10: 1839. https://doi.org/10.3390/app8101839

APA Style

Qiu, Z., Xu, J., Yang, P., Zhao, X., Mou, T., Zhong, H., & Huang, W. (2018). Effect of Amphiphilic Polymer/Nano-Silica Composite on Shale Stability for Water-Based Muds. Applied Sciences, 8(10), 1839. https://doi.org/10.3390/app8101839

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
