Anti-Tubercular Properties of 4-Amino-5-(4-Fluoro-3- Phenoxyphenyl)-4H-1,2,4-Triazole-3-Thiol and Its Schiff Bases: Computational Input and Molecular Dynamics

by
Katharigatta N. Venugopala
1,2,*,
Mahmoud Kandeel
3,4,
Melendhran Pillay
5,
Pran Kishore Deb
6,
Hassan H. Abdallah
7,
Mohamad Fawzi Mahomoodally
8,9 and
Deepak Chopra
10
1
Department of Pharmaceutical Sciences, College of Clinical Pharmacy, King Faisal University, Al-Ahsa 31982, Saudi Arabia
2
Department of Biotechnology and Food Technology, Durban University of Technology, Durban 4001, South Africa
3
Department of Biomedical Sciences, College of Veterinary Medicine, King Faisal University, Al-Ahsa 31982, Saudi Arabia
4
Department of Pharmacology, Faculty of Veterinary Medicine, Kafrelsheikh University, Kafrelsheikh 33516, Egypt
5
Department of Microbiology, National Health Laboratory Services, KZN Academic Complex, Inkosi Albert Luthuli Central Hospital, Durban 4001, South Africa
6
Department of Pharmaceutical Sciences, Faculty of Pharmacy, Philadelphia University, P.O. Box 1, Amman 19392, Jordan
7
Chemistry Department, College of Education, Salahaddin University, Erbil 44001, Iraq
8
Institute of Research and Development, Duy Tan University, Da Nang 550000, Vietnam
9
Department of Health Sciences, Faculty of Science, University of Mauritius, Réduit 80835, Mauritius
10
Department of Chemistry, Indian Institute of Science Education and Research Bhopal, Bhopal By-Pass Road, Bhauri, Bhopal 462 066, Madhya Pradesh, India
*
Author to whom correspondence should be addressed.
Antibiotics 2020, 9(9), 559; https://doi.org/10.3390/antibiotics9090559
Submission received: 3 August 2020 / Revised: 26 August 2020 / Accepted: 29 August 2020 / Published: 31 August 2020
(This article belongs to the Special Issue Novel Targets and Mechanisms in Antimicrobial Drug Discovery)
Browse Figures
Versions Notes

Abstract

:
In the present investigation, the parent compound 4-amino-5-(4-fluoro-3-phenoxyphenyl)-4H-1,2,4-triazole-3-thiol (1) and its Schiff bases 2, 3, and 4 were subjected to whole-cell anti-TB against H37Rv and multi-drug-resistant (MDR) strains of Mycobacterium tuberculosis (MTB) by resazurin microtiter assay (REMA) plate method. Test compound 1 exhibited promising anti-TB activity against H37Rv and MDR strains of MTB at 5.5 µg/mL and 11 µg/mL, respectively. An attempt to identify the suitable molecular target for compound 1 was performed using a set of triazole thiol cellular targets, including β-ketoacyl carrier protein synthase III (FABH), β-ketoacyl ACP synthase I (KasA), CYP121, dihydrofolate reductase, enoyl-acyl carrier protein reductase, and N-acetylglucosamine-1-phosphate uridyltransferase. MTB β-ketoacyl ACP synthase I (KasA) was identified as the cellular target for the promising anti-TB parent compound 1 via docking and molecular dynamics simulation. MM(GB/PB)SA binding free energy calculation revealed stronger binding of compound 1 compared with KasA standard inhibitor thiolactomycin (TLM). The inhibitory mechanism of test compound 1 involves the formation of hydrogen bonding with the catalytic histidine residues, and it also impedes access of fatty-acid substrates to the active site through interference with α5–α6 helix movement. Test compound 1-specific structural changes at the ALA274–ALA281 loop might be the contributing factor underlying the stronger anti-TB effect of compound 1 when compared with TLM, as it tends to adopt a closed conformation for the access of malonyl substrate to its binding site.

1. Introduction

Mycobacterium tuberculosis (MTB) is the bacterial species underlying tuberculosis (TB) infection. TB is one of the top10 causes of death globally. In 2018, TB was implicated in ~1.5 million and 251,000 deaths among HIV-negative and HIV-positive people, respectively [1]. The increasing prevalence of TB in the form of multi-drug-resistant (MDR)-TB [2] and extensively drug-resistant (XDR)-TB [3] has triggered the necessity for more effective therapeutic regimens with fewer side effects. Treating and managing MDR-TB and XDR-TB has proven to be more challenging, as second-line drugs have largely become less effective [4]. This problem has been made worse by the emergence of totally drug-resistant (TDR) strains of MTB [5], which do not respond to anti-TB drug treatments. Based on the last 40 years of academic and pharmaceutical industry inventions, only bedaquiline was the first novel anti-TB drug permitted by the United States Food and Drug Administration (US FDA) authority in December 2012, for the treatment of MDR-TB, [6] while delamanid was the second anti-TB agent to be approved by the European Medicines Agency in late 2013 [7] and pretomanid was the third drug to be approved by the US FDA in August 2019 [8,9] (Figure 1).
Triazole pharmacophore with various functional groups/substitutions has been reported for its promising anti-TB [10,11,12,13,14,15,16,17,18,19,20,21], antiviral [22], antibacterial [23,24], antifungal [25,26], antioxidant [27,28,29,30], and antiglycation properties [31]. In addition, it also serves as an opener of Ca(2+)-activated potassium (maxi-K) channels [32] and demonstrates molluscicidal [33], hypoglycemic [34], antihypertensive and blood platelet aggregation inhibition [35] activities. Schiff bases of triazole compounds are also reported for their potential anti-TB agents [36]. Based on the above observations, and in continuation to our anti-TB drug discovery program, it was envisaged that the triazole parent compound 4-amino-5-(4-fluoro-3-phenoxyphenyl)-4H-1,2,4-triazole-3-thiol (1) and its Schiff bases 2, 3 and 4 be tested for their whole-cell anti-TB activity against H37Rv and MDR strains of M. tuberculosis, which is resistant to treatment with rifampicin and isoniazid (1 and 0.2 µg/mL, respectively), as determined by resazurin microtiter assay (REMA) plate method.
Due to the urgent call for novel scaffolds as anti-TB agents, we have recently launched a medicinal chemistry program aimed at developing novel, natural [37], cyclic depsipeptides [38] and heterocyclic scaffolds as potential anti-TB agents [39,40,41,42,43,44,45,46,47]. A new scaffold of triazole thiols produced antibacterial effects by targeting folate synthesis via bacterial dihydrofolate reductase [48]. Furthermore, 5-(pyrazin-2-yl)-4H-1,2,4-triazole-3-thiol derivatives showed considerable antibacterial activity by targeting bacterial β-ketoacyl-acyl carrier protein synthase III (FabH) [49]. Additionally, β-ketoacyl ACP synthase I (KasA) constitutes an important drug target against MTB. Several triazole derivatives showed a significant correlation between anti-TB activity and the binding potency with KasA [36,50] Triazole derivatives have been associated with strong anti-TB activity [10,11,12,13,14,15,16,17,18,19,20,21]. Previous reports indicated that several molecular targets could be modulated by triazole-based compounds [51]; the 3-aryl-5-(alkyl-thio)-1H-1,2,4-triazole derivative produced anti-TB effects at a concentration of 0.03 µg/mL [16]. A significant correlation was estimated between anti-TB efficacy and binding score with MTB CYP121 [16,52]. A new triazole thiol derivative was able to inhibit the growth of MTB in the low micromolar range. Computational studies revealed strong binding with enoyl-acyl carrier protein reductase [53]. Heterocyclic hybrids of triazole inhibited MTB after binding with enoyl reductase (inhA) [54]. A virtual screening study against Mycobacterium N-acetylglucosamine -1-phosphate uridyltransferase discovered several compounds with a triazole nucleus and produced 20–60% inhibition of the enzymatic activity [55]. The previously mentioned targets were used in computational studies to discover the potential target of our synthetic test compounds. In the present investigation, we intended to explore the impact of the functionalization on the triazole nucleus, particularly as related to anti-TB activity against H37Rv and MDR strains of MTB (Figure 2). A whole-cell anti-TB screening process will help to identify the key substituent responsible for the activity, thereby uncovering potential molecular target(s) through a computational docking study.

2. Results and Discussion

2.1. Anti-Tubercular Activity

The concentrations of the test compounds being considered for anti-TB screening were 0.2–32 μg/mL against H37Rv and MDR strains of MTB. The MDR isolates were resistant to first-line treatments, including rifampicin at 1 µg/mL and isoniazid at 0.2 µg/mL. Of the four compounds examined for their anti-TB activity, the most promising was parent compound 1 at 5.5 and 11 µg/mL, respectively, against H37Rv and MDR strains of MTB. Test compounds 2, 3, and 4 were active only against H37Rv; however, they failed to show anti-TB activity against MDR strains up to concentrations of 32 µg/mL. Compounds 2 and 4 revealed similar anti-TB activities at concentrations of 2 µg/mL against H37Rv strains of MTB. In vitro whole-cell anti-TB results of title compound 1 and its Schiff bases 2, 3, and 4 against H37Rv and MDR strains of MTB are tabulated in Table 1.

2.2. Toxicity Studies

The anti-TB compounds from Table 2 were evaluated for safety studies via MTT assay. Overall, compound 1 exhibited no toxicity up to 450 µg/mL across peripheral blood mononuclear (PBM) cell lines.

2.3. Computational Studies

Molecular docking followed by MD simulation was used to identify the potential target of the detected anti-TB activity of test compound 1. For this purpose, compound 1 was docked into several structures with confirmed interactions with triazole derivatives. These targets included various metabolic pathways and carrier proteins, including fatty-acid metabolism, cytochrome enzyme, and cell-wall biosynthesis. By using template construction followed by docking, 10 poses were generated for compound 1 with the protein structures shown in Table 3. The poses were ranked by their lowest docking score and root mean square deviation (RMSD). The best pose was selected based on its lowest docking score and RMSD as compared with the bound substrate. Then, the relative docking score was calculated according to Equation (1). Based on the relative docking score, KasA was predicted as the most important target for compound 1 due to the highest relative docking score. For the MD simulation experiment, the MTB KasA structure bound with test compound 1 was generated from the docking study. During the MD experiment, the changes in MTB KasA-compound 1 were compared with ApoKasA and KasA bound with its co-crystal inhibitor ligand TLM.

2.4. The Binding Interactions of TLM and the Most Promising Test Compound 1 (4-Amino-5-(4-Fluoro-3-Phenoxyphenyl)-4H-1,2,4-Triazole-3-Thiol)

Both TLM and test compound 1 showed conserved interactions with the two catalytic histidine residues HIS311 and HIS345 (yellow arrows). The C10 of TLM corresponds to SH in compound 1, which fills a hydrophobic cavity formed by PHE237 and THR313 (red arrows; Figure 3). The isoprene chain of TLM engages in hydrophobic interactions with ALA279 and PRO280 (green arrows). At a similar position, the benzene ring of compound 1 is bulkier than the isoprene chain and makes further hydrophobic contact with the flexible loop ALA274–ALA281. This might be an additional stabilizing factor for compound 1 when compared with TLM (Figure 4).
To elaborate the conformational stability, the deviations and fluctuations of KasA structure either alone (blue) or in complex with TLM (orange) or compound 1 (grey) were traced by recording all atoms Cα-RMSD. At equilibrium, the observed root mean square deviation (RMSD) for ApoKasA was at 3.4 Å, while it was 2.2 Å for both TLM and compound 1 complexes. However, the compound 1 complex showed lower divergence. In addition, the KasA-compound 1 complex was almost stable and sowing gradual increase in RMSD during the first 80 ns, while KasA-TLM complex showed an increase in RMSD in the first 100 ns. The TLM complex showed fluctuations and variations of RMSD values that are higher than the compound 1 complex. This highlights the improved stability of the KasA complex with compound 1 over TLM. The RMSD of the α-carbon atom of both KasA-TLM and KasA-compound 1 showed lower values when compared with ApoKasA. This indicates that both TLM and compound 1 complexes produced low conformational changes in the protein backbone as compared with the ApoKasA. Binding of both TLM and parent compound 1 significantly stabilized MTB KasA by showing lower RMSD values throughout the simulation time, as compared with ApoKasA. TLM and compound 1 showed almost similar profiles, although KasA-compound 1 showed rapid stability and lower RMSD at the start of the simulation. The generalized lower average of RMSD for KasA-compound 1 indicates greater stability of KasA when bound with compound 1, as compared with TLM. The average simulation RMSD was 2.97 ± 0.39, 2.41 ± 0.27, and 2.11 + 0.26 for ApoKasA, KasATLM, and KasA-compound 1, respectively. This indicates the improved complex stability of compound 1 over TLM.
Per-residue root mean square fluctuation (RMSF) was recorded to assess the fluctuations of the residues during KasA free form or in complex with TLM or compound 1. RMSF values revealed two major sites of differences among the checked structures. The first is the α5–α6 helix (residues 115–147), which showed the highest RMSF value in ApoKasA (Figure 5B and Figure 6). The changes in the RMSF of the α5–α6 helix did not show significant differences between KasA-TLM and KasA-compound 1. However, it was at least 2 Å lower than ApoKasA. It was found that α5–α6 helix flexibility is important for KasA activity and controls the access of the growing lipid substrates to the active site [59]. The binding of either TLM or compound 1 resulted in a lower RMSD of the α5–α6 helix. This might be the major contributing factor to their inhibitory properties against KasA. The lower flexibility of α5–α6 will provide steric hindrance for large-sized fatty-acid substrates and will inhibit enzyme activity.

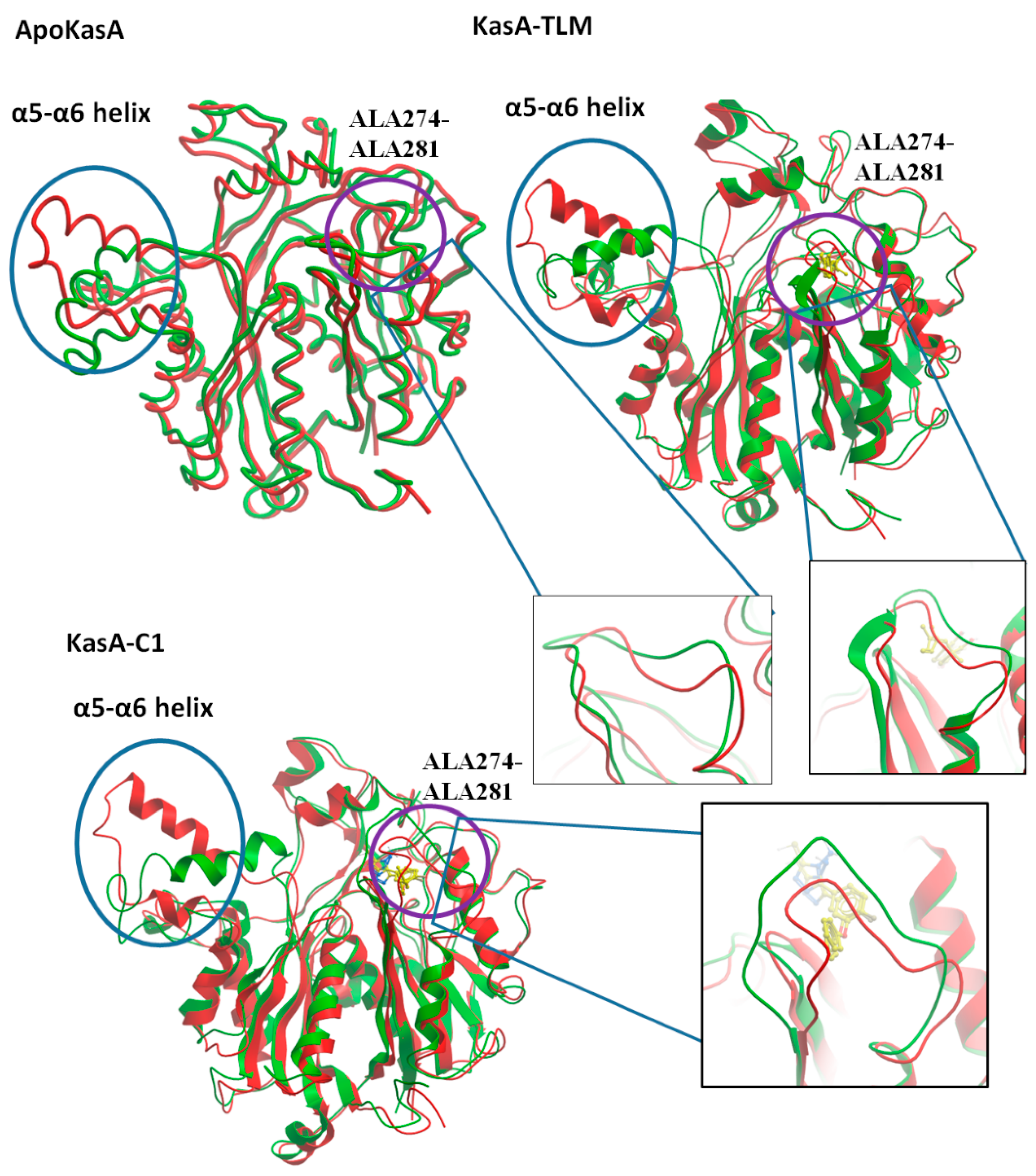

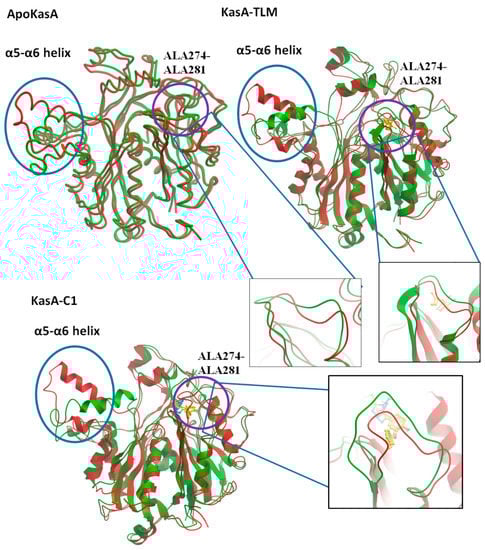

The second site that exhibited important changes in RMSD was the flexible loop ALA274–ALA281 (Figure 6), which bore specific changes with the binding of compound 1 only. There were little differences between ApoKasA and KasA-TLM at this position (Figure 5B and Figure 6). In contrast, KasA-compound 1 showed a high RMSD and marked the reorientation of this loop toward the active site. A 15 ns MD simulation of MTB KasA showed marked flexibility of the ALA274–ALA281 loop, which constituted part of the entrance to the malonyl binding site [64]. The initially resolved conformation of this loop in the crystal structure adopted closed conformation, and after MD simulation, it adopted open conformation by moving away from the binding site to permit the entrance of the malonyl substrate [64]. In this study, compound 1 induced significant changes in the ALA274–ALA281 loop by adopting a closer position to the malonyl-binding site. Thus, compound 1 may interfere with malonyl binding by closing its site via inward movement of the ALA274–ALA281 loop.

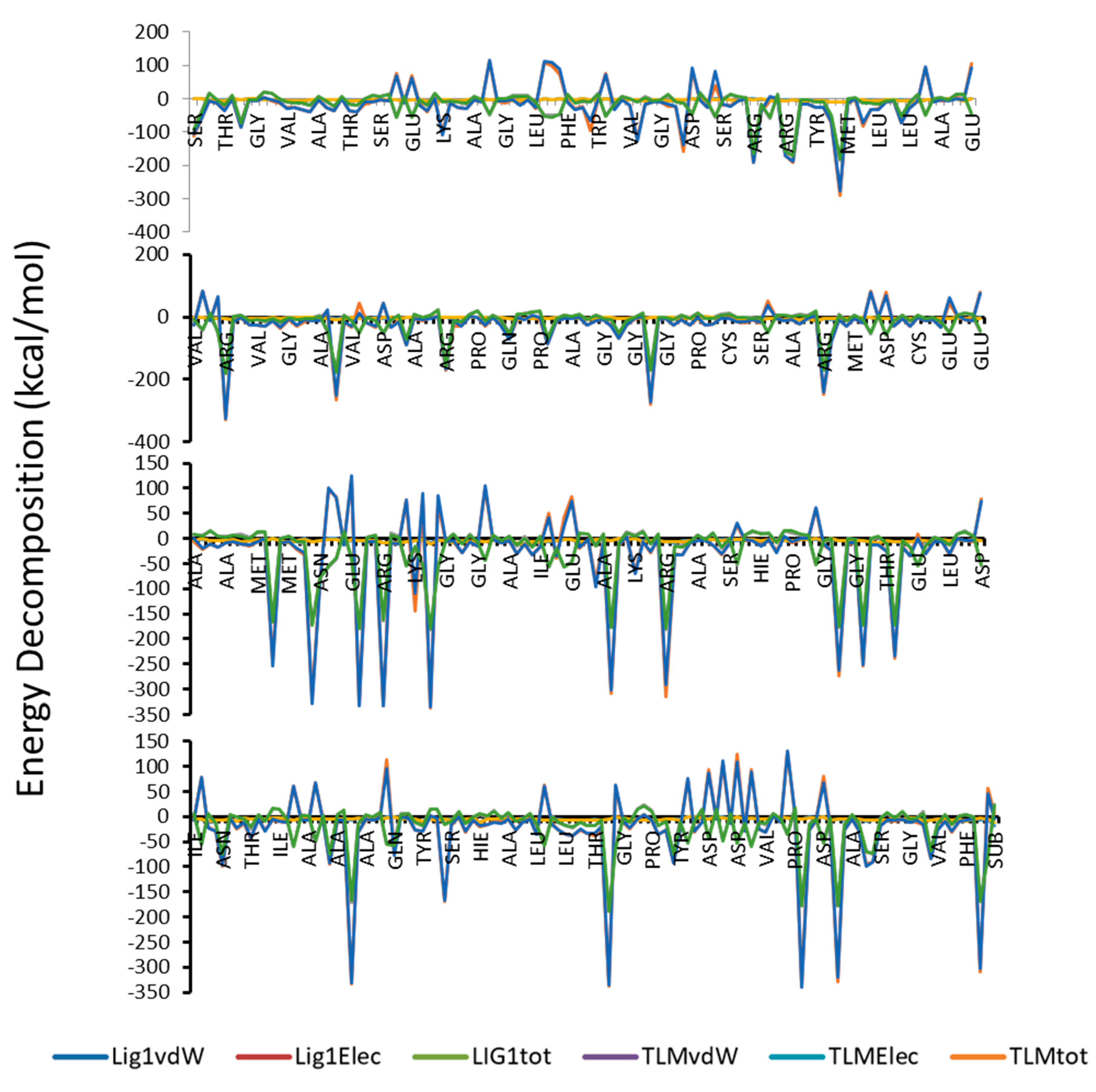

MM(GB/PB)SA was used to calculate the binding free energy (Table 4). The results suggest that compound 1 has lower free energy as compared with TLM. The calculated free energy and the observed molecular dynamic changes suggest strong binding of compound 1 with mycobacterial CasA.
The cell wall of MTB is rich in long-chain lipids, which render it resistant to treatment. KasA is an important enzyme in bacterial type II fatty-acid synthesis pathways (FASII), which are required for fatty-acid elongation of up to 56 carbons and can aid in the formation of mycolic acids [59]. TLM is a natural product from Nocardia spp. Moreover, it showed strong anti-TB activity against saprophytic and virulent strains of MTB [65,66]. Complete inhibitory action against the growth of M. smegmatis mc2155 and MTB Erdman was detected at 75 µg/mL and 25 µg/mL, respectively [65]. In our study, compound 1 showed a stronger anti-TB effect that was 2–7-fold higher than TLM. Test compound 1 inhibited the growth of MTB H37Rv and MDR MTB at 5.5 µg/mL and 11 µg/mL, respectively. The improved anti-TB activity of test compound 1 over TLM was expected to be implemented by its associated MD changes in KasA structure, where the conserved interaction with the catalytic histidines, and the lowered flexibility of α5–α6 helix suggests the anti-TB effects of both of TLM and compound 1. Additional changes in the ALA274–ALA281 loop might contribute to the superiority of compound 1 in terms of its anti-TB properties.
In the efforts of finding new inhibitors against MDR-MTB, several studies were implemented worldwide. A high throughput screening study comprising 45,000 compounds discovered a set of disubstituted oxazole with potent activity against MDR-MTB with potencies of 4–64 µg/mL [67]. Two rifabutin analogs were recently introduced as potential hopeful anti-MDR-MTB agents owing to their inhibitory effect on MDR-MTB in the range of 6–8 µg/mL [68]. The potent fluoroquinolone anti-TB ciprofloxacin showed MIC value >64 µg/mL in MDR-MTB strains. Further modifications of ciprofloxacin by several 1,2,3-triazole-isatin hybrids improved the parent compound efficiency to be 16 µg/mL [69]. An interesting feature of compound 1 in this study is its effect on MDR-MTB with high potency against rifampin and isoniazid multidrug-resistant MTB strain. The experimental and computational competency of this compound renders it as a good lead for future drug discovery studies.
It is well known that, MM(GB/PB)SA program is producing more accurate binding energy in comparison with other scoring programs like docking. As shown in Table 4 and Figure 7, compound 1 has higher binding free energy as compared to the TLM, and that was supported by the calculated values of entropy. In addition, van der Waals forces represent the favorable component and the dominant forces amongst the other forces.

3. Materials and Methods

3.1. Chemistry

The synthesis and structural elucidation of the title compounds 1, 2, 3, and 4 were previously reported by our group, following a synthetic protocol [56,57]. The chemical structure of the parent compound 4-amino-5-(4-fluoro-3-phenoxyphenyl)-4H-1,2,4-triazole-3-thiol (1) and its Schiff bases 2, 3, and 4 are listed in Figure 2. The partition coefficient and IUPAC nomenclature of test compounds 1–4 are tabulated in Table 2.

3.2. Anti-Tubercular Activity

3.2.1. Resazurin Microplate Assay (REMA)

Anti-TB screening of test compounds 1–3 and 4 (Figure 2) was performed using the colorimetric REMA plate approach [41,70].

3.2.2. Determination of the Minimum Inhibitory Concentration (MIC)

All test compounds (1–3 and 4) were assessed using the agar incorporation approach, which was performed three times, and targeted in H37Rv and MDR-TB strains (isoniazid, 0.2 µg/mL; rifampicin, >1.0 µg/mL). MIC determination was then carried out with some modifications [71]. A Level II Biosafety Laboratory was used to carry out this experiment. MTB reference strain H37Rv (American Type Culture Collection [ATCC], Manassas, VA, USA: 25177) and MDR-TB were cultured in Middlebrook 7H11 medium for a total of 3 weeks [72]. The strain was supplemented with OADC (0.005%, v/v, oleic acid; 0.2%, w/v, glucose; 0.085%, w/v, NaCl; 0.02%, v/v, catalase; and 0.5%, 171 w/v, bovine serum albumin [BSA]), and incubated at a temperature of 37 °C. Fresh cultures were used to prepare a standardized inoculum in a sterile tube (5 mm in diameter) containing 0.05% Tween 80 and 4.5 mL of phosphate buffer for vortexing. The bacterial supernatant was then standardized to McFarland Number 1 with water, resulting in a bacterial concentration ~1 × 107 cfu/mL. The bacterial suspension was then diluted with water, after which a total of 100 µL of the dilution was placed onto Middlebrook 7H10 agar plates with drug doses ranging from 8–0.125 µg/mL (to begin, 8 µg/mL of the drug was dissolved in distilled water and diluted twofold to achieve the desired concentration prior to being added to the agar medium). The MICs of the drugs (i.e., the concentration that inhibited >1% of the organism’s growth when compared with controls) were obtained 3 weeks following incubation. Table 2 presents the anti-TB results when compared with H37Rv (ATCC: 25177), MDR-MTB, and XDR-MTB.

3.2.3. Safety Studies

Title compound 1, which exhibited anti-TB activity against H37Rv and MDR strains of MTB, underwent safety studies by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay. The MTT cytotoxicity assay evaluated the cytotoxic effects of compound 1, according to the described protocol [73].

3.3. Computational Studies

3.3.1. Dataset Construction

Triazole thiol derivatives are associated with strong antibacterial and anti-TB actions [41,49,65,74]. In order to identify the potential target of our newly synthesized parent compound 1 and its Schiff bases 2, 3, and 4, a dataset was constructed comprising the most common molecular targets for triazole derivatives from the previously published literature [58,59,60,61,62,63]. The 3D-Crystal structures of target proteins and their co-crystal structures (Figure 3) were procured from the Protein Data Bank (PDB) as shown in Table 3.

3.3.2. Preparation of Structures, Compound Files, and Molecular Docking

As described in Table 3, the 3D crystal structures for each molecular target were retrieved from PDB (www.rcsb.org). Each structure was checked for errors and optimized, and any errors were corrected. Side-chain errors and missing atoms were corrected. Water and all other non-relevant co-factors were removed from the binding space; then, charges and non-polar hydrogens were added. The substrates of each target were kept in the structure, followed by energy minimization. Docking was carried out by Molegro Virtual Docker 5.5 software using the MolDock scoring system. At first, the docking template was constructed using the template docking option in the Molegro software. The substrate for each molecular target was used to set up and conclude the molecular template interactions. Template docking was followed by a docking run to generate 10 poses showing the highest binding scores. Validity of the docking protocol was confirmed by redocking the co-crystalized ligands. The results showed a low root-mean-square deviation (RMSD) and accurate docking conformations. Compounds were ranked according to their docking score, and the relative docking score was calculated according to the following equation:
Relative   docking   score = Docking   score   of   compound Docking   score   of   the   co − crystalized   compound

3.3.3. Molecular Dynamic (MD) Simulation

Although docking is a gold standard in understanding the drug–receptor binding interactions, there could be some limitations depending on docking alone to conclude the molecular forces associated with ligands binding. MD simulation is a powerful technique to analyze the receptor binding patterns, the contribution of solvent, and the dynamical aspects associated with ligands recognition. A combination of both docking and MD simulation can give a full molecular analysis in the drug discovery and optimization process. For this purpose, after molecular docking, we ran an expensive MD simulation of 200 ns to obtain a comprehensive insight into compounds-receptor complexes stability, the substructural changes in the mycobacterial protein in response to ligands binding as well as the predicted binding energy and its contributing forces.
MD simulation was used to elucidate the stability and sub-structural changes associated with the binding of test compound 1 with MTB KasA and to compare these properties with ApoKasA (PDB ID 2WGD) and KasA bound with a standard inhibitor (TLM, PDB ID 2WGE; Figure 3). The structure of KasA with the lowest energy pose of compound 1 was used in the MD studies [75]. An AMBER14 force field was implemented in YASARA (version 14.12.2). A particle-mesh Ewald algorithm was set for periodic boundary conditions and to calculate the long-range electrostatic force [76]. The simulation was run under isothermal and isobaric conditions (NPT ensemble). The protein was immersed in a simulation box filled with water at a density of 0.997 g/mL with a size of 10Å around the protein. The temperature was set to 298 K. Then, sodium chloride was added to replace the water to yield a total sodium chloride concentration of 0.9%. Initial energy minimization was carried out using the steepest descent method. The distance between the protein and the cell wall was set to 10Å. The time step was set to 2 fs; following this, simulation snapshots were collected every 100 ps. The average energy-minimized structure was used to compare the interactions of TLM (Figure 3) and test compound 1 (Figure 2) with M. tuberculosis KasA. Molecular dynamics was run by a predefined macro implemented in YASARA software (MD_runfast.mcr). Trajectories were recorded and analyzed by MD_analyse.mcr.

3.3.4. MM(GB/PB)SA Calculation

MM(GB/PB)SA [77] was used to calculate the binding free energy, entropy, and full energy decomposition for the complexes of compound 1 and the control ligand TLM. Two hundred snapshots from the last 2 ns of the MD simulation were used to calculate the binding free energy and entropy.

4. Conclusions

The title compound 4-amino-5-(4-fluoro-3-phenoxyphenyl)-4H-1,2,4-triazole-3-thiol (1) has emerged as a promising anti-TB agent against H37Rv and MDR strains of MTB at concentrations of 5.5 and 11 µg/mL, respectively. This study has established preliminary data that could be considered when preparing various derivatives to achieve better triazolyl anti-TB agents, as this compound exhibited no toxicity up to 450 µg/mL. By performing computational studies, it was confirmed that compound 1 is expected to inhibit KasA and interfere with the synthesis of long-chain fatty acids, which comprise the cell wall in Mycobacterium tuberculosis. A comparison of compound 1 with TLM, a strong KasA inhibitor, revealed conserved interactions at the binding site and structural rearrangements during MD simulation that favored the stronger antimycobacterial actions of compound 1.

Author Contributions

Conceptualization, K.N.V. and M.K.; methodology, K.N.V., M.K., M.P., P.K.D., H.H.A. and M.F.M.; software, K.N.V., M.K., H.H.A. and D.C.; validation, K.N.V., M.K. and H.H.A.; formal analysis, K.N.V., M.K., M.P., P.K.D., H.H.A., M.F.M. and D.C.; investigation, K.N.V., M.K., M.P., H.H.A., M.F.M. and D.C.; resources, K.N.V., M.P., M.F.M. and D.C.; data curation, K.N.V., M.K. and H.H.A.; writing—original draft preparation, K.N.V., M.K., M.P., P.K.D., H.H.A., M.F.M. and D.C.; writing—review and editing, K.N.V., M.K., M.P., P.K.D., H.H.A., M.F.M. and D.C.; visualization, K.N.V. and M.K.; supervision, K.N.V.; project administration, K.N.V.; funding acquisition, K.N.V. All authors have read and agreed to the published version of the manuscript.

Funding

The authors extend their appreciation to the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia for funding this research work through the project number IFT20070.

Acknowledgments

The authors acknowledge the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia for financial support through the project number IFT20070 and Deanship of Scientific Research at King Faisal University, Kingdom of Saudi Arabia for their support and encouragement. DC acknowledges IISER Bhopal for research facilities and infrastructure.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. World Health Organization. Global Tuberculosis Report 2019 (Executive Summary). Available online: https://www.who.int/tb/publications/global_report/tb19_Exec_Sum_12Nov2019.pdf?ua=1 (accessed on 9 June 2020).
  2. Marcos, A.E. The global situation of MDR-TB. Tuberculosis 2003, 83, 44–51. [Google Scholar] [CrossRef]
  3. Caminero, J.A.; Sotgiu, G.; Zumla, A.; Migliori, G.B. Best drug treatment for multidrug-resistant and extensively drug-resistant tuberculosis. Lancet Infect. Dis. 2010, 10, 621–629. [Google Scholar] [CrossRef]
  4. Hu, Y.; Xu, L.; He, Y.L.; Pang, Y.; Lu, N.; Liu, J.; Shen, J.; Zhu, D.M.; Feng, X.; Wang, Y.W.; et al. Prevalence and molecular characterization of second-line drugs resistance among multidrug-resistant Mycobacterium tuberculosis isolates in Southwest of China. BioMed Res. Int. 2017, 2017, 4563826. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Parida, S.K.; Axelsson-Robertson, R.; Rao, M.V.; Singh, N.; Master, I.; Lutckii, A.; Keshavjee, S.; Andersson, J.; Zumla, A.; Maeurer, M. Totally drug-resistant tuberculosis and adjunct therapies. J. Intern. Med. 2015, 277, 388–405. [Google Scholar] [CrossRef]
  6. Cox, E.; Laessig, K. FDA Approval of Bedaquiline—The benefit–risk balance for drug-resistant Tuberculosis. N. Engl. J. Med. 2014, 371, 689–691. [Google Scholar] [CrossRef] [Green Version]
  7. Barry Iii, C.E. Timing is everything for compassionate use of delamanid. Nat. Med. 2015, 21, 211. [Google Scholar] [CrossRef]
  8. Keam, S.J. Pretomanid: First Approval. Drugs 2019, 79, 1797–1803. [Google Scholar] [CrossRef]
  9. U.S. Food and Drug Administration. FDA Approves New Drug for Treatment-Resistant Forms of Tuberculosis that Affects the Lungs; U.S. Food and Drug Administration: Rockville, MD, USA, 2019. Available online: https://www.fda.gov/news-events/press-announcements/fda-approves-new-drug-treatment-resistant-forms-tuberculosis-affects-lungs (accessed on 30 July 2020).
  10. Reddyrajula, R.; Dalimba, U.; Madan Kumar, S. Molecular hybridization approach for phenothiazine incorporated 1,2,3-triazole hybrids as promising antimicrobial agents: Design, synthesis, molecular docking and in silico ADME studies. Eur. J. Med. Chem. 2019, 168, 263–282. [Google Scholar] [CrossRef]
  11. Xu, Y.; Dang, R.; Guan, J.; Xu, Z.; Zhao, S.; Hu, Y. Isatin-(thio)semicarbazide/oxime-1H-1,2,3-triazole-coumarin Hybrids: Design, Synthesis, and in vitro Anti-mycobacterial Evaluation. J. Heterocycl. Chem. 2018, 55, 1069–1073. [Google Scholar] [CrossRef]
  12. Xu, Z.; Zhang, S.; Song, X.; Qiang, M.; Lv, Z. Design, synthesis and in vitro anti-mycobacterial evaluation of gatifloxacin-1H-1,2,3-triazole-isatin hybrids. Bioorg. Med. Chem. Lett. 2017, 27, 3643–3646. [Google Scholar] [CrossRef]
  13. Huang, G.-C.; Xu, Y.; Xu, Z.; Lv, Z.-S.; Zhang, J.; Guo, H.-Y.; Hu, Y.-Q.; Liu, M.-L.; Guan, J.-G.; Lu, Y. Propylene-1H-1,2,3-triazole-4-methylene-tethered Isatin-coumarin Hybrids: Design, Synthesis, and In Vitro Anti-tubercular Evaluation. J. Heterocycl. Chem. 2018, 55, 830–835. [Google Scholar] [CrossRef]
  14. Xu, Z.; Qiang, M.; Song, X.-F.; Hu, Y.-Q.; Lv, Z.-S. Azide-alkyne cycloaddition towards 1H-1,2,3-triazole-tethered gatifloxacin and isatin conjugates: Design, synthesis and in vitro anti-mycobacterial evaluation. Eur. J. Med. Chem. 2017, 138, 66–71. [Google Scholar] [CrossRef] [PubMed]
  15. Singh, A.; Viljoen, A.; Kremer, L.; Kumar, V. Azide-alkyne cycloaddition en route to 4-aminoquinoline-ferrocenylchalcone conjugates: Synthesis and anti-TB evaluation. Future Med. Chem. 2017, 9, 1701–1708. [Google Scholar] [CrossRef] [PubMed]
  16. Rode, N.D.; Sonawane, A.D.; Joshi, R.A.; Likhite, A.P.; Joshi, R.R.; Nawale, L.; Khedkar, V.M.; Sarkar, D. Synthesis, biological evaluation, and molecular docking studies of novel 3-aryl-5-(alkyl-thio)-1H-1,2,4-triazoles derivatives targeting Mycobacterium tuberculosis. Chem. Biol. Drug Des. 2017, 90, 1206–1214. [Google Scholar] [CrossRef] [PubMed]
  17. Jin, X.; Xu, Y.; Guan, J.; Yang, X.; Chen, X.; Wu, M.; Feng, L. Design, synthesis and in vitro anti-microbial evaluation of ethylene/ propylene-1H-1,2,3-Triazole-4-methylene-tethered isatin-coumarin hybrids. Curr. Top. Med. Chem. 2017, 17, 3213–3218. [Google Scholar] [CrossRef]
  18. Dixit, P.P.; Dixit, P.P.; Thore, S.N. Hybrid triazoles: Design and synthesis as potential dual inhibitor of growth and efflux inhibition in tuberculosis. Eur. J. Med. Chem. 2016, 107, 38–47. [Google Scholar] [CrossRef]
  19. Devi, B.B.; Muthusaravanan, S.; Choon, T.S.; Ashraf, A.M.; Perumal, S. Sequential synthesis of amino-1,4-naphthoquinone-appended triazoles and triazole-chromene hybrids and their antimycobacterial evaluation. Eur. J. Med. Chem. 2014, 85, 737–746. [Google Scholar] [CrossRef]
  20. Upadhayaya, R.S.; Kulkarni, G.M.; Vasireddy, N.R.; Vandavasi, J.K.; Dixit, S.S.; Sharma, V.; Chattopadhyaya, J. Design, synthesis and biological evaluation of novel triazole, urea and thiourea derivatives of quinoline against Mycobacterium tuberculosis. Bioorg. Med. Chem. 2009, 17, 4681–4692. [Google Scholar] [CrossRef]
  21. Yempalla, K.R.; Munagala, G.; Singh, S.; Sharma, S.; Khan, I.A.; Vishwakarma, R.A.; Singh, P.P. Substituted 1,2,3-triazol-1-yl-methyl-2,3-dihydro-2-methyl-6-nitroimidazo[2,1-b]oxazoles as Anti-Mycobacterial Agents and a Process for the Preparation Thereof. U.S. Patent 9,822,126, 21 November 2017. WO2016063298A1. [Google Scholar]
  22. Paeshuyse, J.; Dallmeier, K.; Neyts, J. Ribavirin for the treatment of chronic hepatitis C virus infection: A review of the proposed mechanisms of action. Curr. Opin. Virol. 2011, 1, 590–598. [Google Scholar] [CrossRef]
  23. Jayashree, B.S.; Sahu, A.R.; Murthy, M.S.; Venugopala, K.N. Synthesis, determination of partition coefficient and antimicrobial activity of triazolo thiadiazinyl bromocoumarin derivatives. Mat. Sci. Res. India 2005, 3, 187–190. [Google Scholar] [CrossRef]
  24. Jayashree, B.S.; Sahu, A.R.; Srinivasa, M.M.; Venugopala, K.N. Synthesis, characterization and determination of partition coefficient of some triazole derivatives of coumarins for their anti-microbial activity. Asian J. Chem. 2007, 19, 73–78. [Google Scholar]
  25. Venugopala, K.N.; Khedr, M.A.; Girish, Y.R.; Bhandary, S.; Chopra, D.; Morsy, M.A.; Aldhubiab, B.E.; Deb, P.K.; Attimarad, M.; Nair, A.B. Crystallography, in silico studies, and In vitro antifungal studies of 2, 4, 5 trisubstituted 1, 2, 3-triazole analogues. Antibiotics 2020, 9, 350. [Google Scholar] [CrossRef] [PubMed]
  26. Bhandary, S.; Girish, Y.R.; Venugopala, K.N.; Chopra, D. Crystal structure analysis of [5-(4-methoxyphenyl)-2-methyl-2H-1, 2, 3-triazol-4-yl](thiophen-2-yl) methanone. Acta Cryst. E 2018, 74, 1178–1181. [Google Scholar] [CrossRef] [Green Version]
  27. Yan, W.; Wang, X.; Li, K.; Li, T.-X.; Wang, J.-J.; Yao, K.-C.; Cao, L.-L.; Zhao, S.-S.; Ye, Y.-H. Design, synthesis, and antifungal activity of carboxamide derivatives possessing 1,2,3-triazole as potential succinate dehydrogenase inhibitors. Pestic. Biochem. Physiol. 2019, 156, 160–169. [Google Scholar] [CrossRef] [PubMed]
  28. Singh, G.; Arora, A.; Kalra, P.; Maurya, I.K.; Ruizc, C.E.; Estebanc, M.A.; Sinha, S.; Goyal, K.; Sehgal, R. A strategic approach to the synthesis of ferrocene appended chalcone linked triazole allied organosilatranes: Antibacterial, antifungal, antiparasitic and antioxidant studies. Bioorg. Med. Chem. 2019, 27, 188–195. [Google Scholar] [CrossRef] [PubMed]
  29. Subhashini, N.J.P.; Praveen Kumar, E.; Gurrapu, N.; Yerragunta, V. Design and synthesis of imidazolo-1, 2,3-triazoles hybrid compounds by microwave-assisted method: Evaluation as an antioxidant and antimicrobial agents and molecular docking studies. J. Mol. Struct. 2019, 1180, 618–628. [Google Scholar] [CrossRef]
  30. Saadaoui, I.; Krichen, F.; Ben Salah, B.; Ben Mansour, R.; Miled, N.; Bougatef, A.; Kossentini, M. Design, synthesis and biological evaluation of Schiff bases of 4-amino-1,2,4-triazole derivatives as potent angiotensin converting enzyme inhibitors and antioxidant activities. J. Mol. Struct. 2019, 1180, 344–354. [Google Scholar] [CrossRef]
  31. Shaikh, M.; Zafar, H.; Subzwari, F.; Imad, R.; Choudhary, M.I.; Siddiqui, S.; Naqeeb, U.; Khan, K.M. Antiglycation activity of triazole Schiff’s bases against fructose-mediated glycation: In vitro and in silico study. Med. Chem. 2020, 16, 575–591. [Google Scholar] [CrossRef]
  32. Romine, J.L.; Martin, S.W.; Gribkoff, V.K.; Boissard, C.G.; Dworetzky, S.I.; Natale, J.; Li, Y.; Gao, Q.; Meanwell, N.A.; Starrett, J.E., Jr. 4,5-diphenyltriazol-3-ones: Openers of large-conductance Ca(2+)-activated potassium (maxi-K) channels. J. Med. Chem. 2002, 45, 2942–2952. [Google Scholar] [CrossRef]
  33. Radwan, M.A.; El-Zemity, S.R. Synthesis and molluscicidal structure–activity relationships of some novel 1,2,4-triazole N-methyl carbamates. Pest Manag. Sci. 2001, 57, 707–712. [Google Scholar] [CrossRef]
  34. Mhasalkar, M.Y.; Shah, M.H.; Nikam, S.T.; Anantanarayanan, K.G.; Deliwala, C.V. 4-Alkyl-5-aryl-4H-1,2,4-triazole-3-thiols as hypoglycemic agents. J. Med. Chem. 1970, 13, 672–674. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, J.; Liu, Q.; Yang, X.; Xu, S.; Zhang, H.; Bai, R.; Yao, H.; Jiang, J.; Shen, M.; Wu, X.; et al. Design, synthesis, and biological evaluation of 1,2,4-triazole bearing 5-substituted biphenyl-2-sulfonamide derivatives as potential antihypertensive candidates. Bioorg. Med. Chem. 2013, 21, 7742–7751. [Google Scholar] [CrossRef] [PubMed]
  36. Sager, A.A.; Mohamed, S.B.; Erhuma, M.; Gbaj, A.M.; Sager, A.A.; Bensaber, S.M.; Al-Sadawe, I.A.; Mrema, I.A.; Gbaj, A.M.; Abood, Z.S.; et al. Design, synthesis and biological evaluation of some triazole schiff’s base derivatives as potential antitubercular agents. Open Med. Chem. J. 2018, 12, 48–59. [Google Scholar] [CrossRef]
  37. Alveera, S.; Venugopala, K.N.; Khedr, M.A.; Pillay, M.; Nwaeze, K.U.; Coovadia, Y.; Shode, F.; Odhav, B. Antimycobacterial, docking and molecular dynamic studies of pentacyclic triterpenes from Buddleja saligna leaves. J. Biomol. Struct. Dyn. 2017, 35, 2654–2664. [Google Scholar] [CrossRef]
  38. Venugopala, K.N.; Albericio, F.; Coovadia, Y.M.; Kruger, H.G.; Maguire, G.E.M.; Pillay, M.; Govender, T. Total synthesis of a depsidomycin analogue by convergent solid-phase peptide synthesis and macrolactonization strategy for antitubercular activity. J. Pept. Sci. 2011, 17, 683–689. [Google Scholar] [CrossRef]
  39. Salgado-Moran, G.; Ramirez-Tagle, R.; Glossman-Mitnik, D.; Ruiz-Nieto, S.; Kishore-Deb, P.; Bunster, M.; Lobos-Gonzalez, F. Docking studies of binding of ethambutol to the C-Terminal domain of the arabinosyltransferase from Mycobacterium tuberculosis. J. Chem. 2013, 2013, 601270. [Google Scholar] [CrossRef] [Green Version]
  40. Venugopala, K.N.; Nayak, S.K.; Pillay, M.; Prasanna, R.; Coovadia, Y.M.; Odhav, B. Synthesis and antitubercular activity of 2-(substituted phenyl/benzyl-amino)-6-(4-chlorophenyl)-5-(methoxy carbonyl)-4-methyl-3,6-dihydropyrimidin-1-ium chlorides. Chem. Biol. Drug Des. 2013, 81, 219–227. [Google Scholar] [CrossRef]
  41. Venugopala, K.N.; Dharma Rao, G.B.; Bhandary, S.; Pillay, M.; Chopra, D.; Aldhubiab, B.E.; Attimarad, M.; Alwassil, O.I.; Harsha, S.; Mlisana, K. Design, synthesis, and characterization of (1-(4-aryl)- 1H-1,2,3-triazol-4-yl)methyl, substituted phenyl-6-methyl-2-oxo-1,2,3,4-tetrahydropyrimidine-5-carboxylates against Mycobacterium tuberculosis. Drug Des. Dev. Ther. 2016, 10, 2681–2690. [Google Scholar] [CrossRef] [Green Version]
  42. Venugopala, K.N.; Chandrashekharappa, S.; Pillay, M.; Bhandary, S.; Kandeel, M.; Mahomoodally, F.M.; Morsy, M.A.; Chopra, D.; Aldhubiab, B.E.; Attimarad, M.; et al. Synthesis and structural elucidation of novel benzothiazole derivatives as anti-tubercular agents: In-silico screening for possible target identification. Med. Chem. 2019, 15, 311–326. [Google Scholar] [CrossRef]
  43. Venugopala, K.N.; Chandrashekharappa, S.; Pillay, M.; Abdallah, H.H.; Mahomoodally, F.M.; Bhandary, S.; Chopra, D.; Attimarad, M.; Aldhubiab, B.E.; Nair, A.B.; et al. Computational, crystallographic studies, cytotoxicity and anti-tubercular activity of substituted 7-methoxy-indolizine analogues. PLoS ONE 2019, 14, e0217270. [Google Scholar] [CrossRef] [Green Version]
  44. Venugopala, K.N.; Tratrat, C.; Pillay, M.; Mahomoodally, F.M.; Bhandary, S.; Chopra, D.; Morsy, M.A.; Haroun, M.; Aldhubiab, B.E.; Attimarad, M.; et al. Anti-tubercular activity of substituted 7-methyl and 7-formylindolizines and in silico study for prospective molecular target identification. Antibiotics 2019, 8, 247. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Khedr, M.A.; Pillay, M.; Chandrashekharappa, S.; Chopra, D.; Aldhubiab, B.E.; Attimarad, M.; Alwassil, O.I.; Mlisana, K.; Odhav, B.; Venugopala, K.N. Molecular modeling studies and anti-TB activity of trisubstituted indolizine analogues; molecular docking and dynamic inputs. J. Biomol. Struct. Dyn. 2018, 36, 2163–2178. [Google Scholar] [CrossRef] [PubMed]
  46. Venugopala, K.N.; Tratrat, C.; Pillay, M.; Chandrashekharappa, S.; Al-Attraqchi, O.H.A.; Aldhubiab, B.E.; Attimarad, M.; Alwassil, O.I.; Nair, A.B.; Sreeharsha, N. In silico design and synthesis of tetrahydropyrimidinones and tetrahydropyrimidinethiones as potential thymidylate kinase inhibitors exerting anti-TB activity against Mycobacterium tuberculosis. Drug Des. Dev. Ther. 2020, 14, 1027–1039. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Venugopala, K.N.; Uppar, V.; Sandeep, C.; Abdallah, H.H.; Pillay, M.; Deb, P.K.; Morsy, M.A.; Aldhubiab, B.E.; Attimarad, M.; Nair, A.B.; et al. Cytotoxicity and antimycobacterial properties of pyrrolo[1,2-a]quinoline derivatives: Molecular target identification and molecular docking studies. Antibiotics 2020, 9, 233. [Google Scholar] [CrossRef]
  48. Hassan, G.S.; El-Messery, S.M.; Al-Omary, F.A.; Al-Rashood, S.T.; Shabayek, M.I.; Abulfadl, Y.S.; Habib el, S.E.; El-Hallouty, S.M.; Fayad, W.; Mohamed, K.M.; et al. Nonclassical antifolates, part 4. 5-(2-aminothiazol-4-yl)-4-phenyl-4H-1,2,4-triazole-3-thiols as a new class of DHFR inhibitors: Synthesis, biological evaluation and molecular modeling study. Eur. J. Med. Chem. 2013, 66, 135–145. [Google Scholar] [CrossRef]
  49. Zhang, F.; Wen, Q.; Wang, S.F.; Shahla Karim, B.; Yang, Y.S.; Liu, J.J.; Zhang, W.M.; Zhu, H.L. Design, synthesis and antibacterial activities of 5-(pyrazin-2-yl)-4H-1,2,4-triazole-3-thiol derivatives containing Schiff base formation as FabH inhibitory. Bioorg. Med. Chem. Lett. 2014, 24, 90–95. [Google Scholar] [CrossRef]
  50. Abrahams, K.A.; Chung, C.-W.; Ghidelli-Disse, S.; Rullas, J.; Rebollo-López, M.J.; Gurcha, S.S.; Cox, J.A.G.; Mendoza, A.; Jiménez-Navarro, E.; Martínez-Martínez, M.S.; et al. Identification of KasA as the cellular target of an anti-tubercular scaffold. Nat. Commun. 2016, 7, 12581. [Google Scholar] [CrossRef] [Green Version]
  51. Rani, S.; Cherian, D.; Thomas, S.; Praveenraj, R.; Bhanumathy, L.; Manju, S.L. In silico modeling, design, synthesis and screening for antitubercular activity of some novel 1,2,4-triazole derivatives. J. Ind. Chem. Soc. 2015, 92, 879–882. [Google Scholar]
  52. McLean, K.J.; Carroll, P.; Lewis, D.G.; Dunford, A.J.; Seward, H.E.; Neeli, R.; Cheesman, M.R.; Marsollier, L.; Douglas, P.; Smith, W.E.; et al. Characterization of active site structure in CYP121. A cytochrome P450 essential for viability of Mycobacterium tuberculosis H37Rv. J. Biol. Chem. 2008, 283, 33406–33416. [Google Scholar] [CrossRef] [Green Version]
  53. Patel, V.M.; Patel, N.B.; Chan-Bacab, M.J.; Rivera, G. Synthesis, biological evaluation and molecular dynamics studies of 1,2,4-triazole clubbed Mannich bases. Comput. Biol. Chem. 2018, 76, 264–274. [Google Scholar] [CrossRef]
  54. Suresh, A.; Srinivasarao, S.; Agnieszka, N.; Ewa, A.K.; Alvala, M.; Lherbet, C.; Chandra Sekhar, K.V.G. Design and synthesis of 9H-fluorenone based 1,2,3-triazole analogues as Mycobacterium tuberculosis InhA inhibitors. Chem. Biol. Drug Des. 2018, 91, 1078–1086. [Google Scholar] [CrossRef]
  55. Soni, V.; Suryadevara, P.; Sriram, D.; Consortium, O.; Kumar, S.; Nandicoori, V.K.; Yogeeswari, P. Structure-based design of diverse inhibitors of Mycobacterium tuberculosis N-acetylglucosamine-1-phosphate uridyltransferase: Combined molecular docking, dynamic simulation, and biological activity. J. Mol. Model. 2015, 21, 174. [Google Scholar] [CrossRef]
  56. Dey, D.; Mohan, T.P.; Vishalakshi, B.; Chopra, D. Computational Study of the Formation of Short Centrosymmetric N–H···S Supramolecular Synthon and Related Weak Interactions in Crystalline 1,2,4-Triazoles. Cryst. Growth Des. 2014, 14, 5881–5896. [Google Scholar] [CrossRef]
  57. Shukla, R.; Mohan, T.P.; Vishalakshi, B.; Chopra, D. Experimental and theoretical analysis of lp⋯π intermolecular interactions in derivatives of 1,2,4-triazoles. CrystEngComm 2014, 16, 1702–1713. [Google Scholar] [CrossRef]
  58. Sachdeva, S.; Musayev, F.; Alhamadsheh, M.M.; Neel Scarsdale, J.; Tonie Wright, H.; Reynolds, K.A. Probing reactivity and substrate specificity of both subunits of the dimeric Mycobacterium tuberculosis FabH using alkyl-CoA disulfide inhibitors and acyl-CoA substrates. Bioorg. Chem. 2008, 36, 85–90. [Google Scholar] [CrossRef] [Green Version]
  59. Luckner, S.R.; Machutta, C.A.; Tonge, P.J.; Kisker, C. Crystal structures of Mycobacterium tuberculosis KasA show mode of action within cell wall biosynthesis and its inhibition by thiolactomycin. Structure 2009, 17, 1004–1013. [Google Scholar] [CrossRef] [Green Version]
  60. Fielding, A.J.; Dornevil, K.; Ma, L.; Davis, I.; Liu, A. Probing Ligand Exchange in the P450 Enzyme CYP121 from Mycobacterium tuberculosis: Dynamic Equilibrium of the Distal Heme Ligand as a Function of pH and Temperature. J. Am. Chem. Soc. 2017, 139, 17484–17499. [Google Scholar] [CrossRef] [Green Version]
  61. Li, R.; Sirawaraporn, R.; Chitnumsub, P.; Sirawaraporn, W.; Wooden, J.; Athappilly, F.; Turley, S.; Hol, W.G. Three-dimensional structure of M. tuberculosis dihydrofolate reductase reveals opportunities for the design of novel tuberculosis drugs. J. Mol. Biol. 2000, 295, 307–323. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Encinas, L.; O’Keefe, H.; Neu, M.; Remuinan, M.J.; Patel, A.M.; Guardia, A.; Davie, C.P.; Perez-Macias, N.; Yang, H.; Convery, M.A.; et al. Encoded library technology as a source of hits for the discovery and lead optimization of a potent and selective class of bactericidal direct inhibitors of Mycobacterium tuberculosis InhA. J. Med. Chem. 2014, 57, 1276–1288. [Google Scholar] [CrossRef] [Green Version]
  63. Zhang, Z.; Bulloch, E.M.; Bunker, R.D.; Baker, E.N.; Squire, C.J. Structure and function of GlmU from Mycobacterium tuberculosis. Acta Crystallogr. D Biol. Crystallogr. 2009, 65, 275–283. [Google Scholar] [CrossRef] [Green Version]
  64. Schaefer, B.; Kisker, C.; Sotriffer, C.A. Molecular dynamics of Mycobacterium tuberculosis KasA: Implications for inhibitor and substrate binding and consequences for drug design. J. Comput. Aided Mol. Des. 2011, 25, 1053–1069. [Google Scholar] [CrossRef] [PubMed]
  65. Slayden, R.A.; Lee, R.E.; Armour, J.W.; Cooper, A.M.; Orme, I.M.; Brennan, P.J.; Besra, G.S. Antimycobacterial action of thiolactomycin: An inhibitor of fatty acid and mycolic acid synthesis. Antimicrob. Agents Chemother. 1996, 40, 2813–2819. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Bommineni, G.R.; Kapilashrami, K.; Cummings, J.E.; Lu, Y.; Knudson, S.E.; Gu, C.; Walker, S.G.; Slayden, R.A.; Tonge, P.J. Thiolactomycin-Based Inhibitors of Bacterial beta-Ketoacyl-ACP Synthases with in Vivo Activity. J. Med. Chem. 2016, 59, 5377–5390. [Google Scholar] [CrossRef] [Green Version]
  67. Li, D.; Gao, N.; Zhu, N.; Lin, Y.; Li, Y.; Chen, M.; You, X.; Lu, Y.; Wan, K.; Jiang, J.-D. Discovery of the disubstituted oxazole analogues as a novel class anti-tuberculotic agents against MDR-and XDR-MTB. Bioorg. Med. Chem. Lett. 2015, 25, 5178–5181. [Google Scholar] [CrossRef] [PubMed]
  68. Figueiredo, R.; Moiteiro, C.; Medeiros, M.A.; da Silva, P.A.; Ramos, D.; Spies, F.; Ribeiro, M.; Lourenço, M.C.S.; Junior, I.; Gaspar, M.M. Synthesis and evaluation of rifabutin analogs against Mycobacterium avium and H37Rv, MDR and NRP Mycobacterium tuberculosis. Bioorg. Med. Chem. 2009, 17, 503–511. [Google Scholar] [CrossRef] [PubMed]
  69. Chen, R.; Zhang, H.; Ma, T.; Xue, H.; Miao, Z.; Chen, L.; Shi, X. Ciprofloxacin-1, 2, 3-triazole-isatin hybrids tethered via amide: Design, synthesis, and in vitro anti-mycobacterial activity evaluation. Bioorg. Med. Chem. Lett. 2019, 29, 2635–2637. [Google Scholar] [CrossRef] [PubMed]
  70. Martin, A.; Morcillo, N.; Lemus, D.; Montoro, E.; Telles, M.A.; Simboli, N.; Pontino, M.; Porras, T.; Leon, C.; Velasco, M.; et al. Multicenter study of MTT and resazurin assays for testing susceptibility to first-line anti-tuberculosis drugs. Int. J. Tuberc. Lung Dis. 2005, 9, 901–906. [Google Scholar]
  71. Yoshikuni, O.; Mayumi, T.; Kenichi, S. Inhibitory activity of quinolones against DNA gyrase of Mycobacterium tuberculosis. J. Antimicrob. Chemother. 2001, 47, 447–450. [Google Scholar] [CrossRef] [Green Version]
  72. Middlebrook, G.; Reggiards, Z.; Tigertt, W.D. Automable radiometric detection of growth of Mycobacterium tuberculosis in selective media. Am. Rev. Respir. Dis. 1977, 115, 1067–1069. [Google Scholar]
  73. Mossman, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  74. Zhang, S.; Xu, Z.; Gao, C.; Ren, Q.-C.; Chang, L.; Lv, Z.-S.; Feng, L.-S. Triazole derivatives and their anti-tubercular activity. Eur. J. Med. Chem. 2017, 138, 501–513. [Google Scholar] [CrossRef] [PubMed]
  75. Deb, P.K.; Al-Attraqchi, O.; Mohammed, N.A.-Q.; Raghuprasad, M.; Tekade, R.K. Chapter-19: Applications of computers in pharmaceutical product formulation. In Dosage form Design Considerations: Advances in Pharmaceutical Product Development and Research Series, Volume II; Tekade, R.K., Ed.; Academic Press (Elsevier): Cambridge, MA, USA, 2018; pp. 665–703. [Google Scholar]
  76. Krieger, E.; Vriend, G. New ways to boost molecular dynamics simulations. J. Comput. Chem. 2015, 36, 996–1007. [Google Scholar] [CrossRef] [PubMed]
  77. Miller, B.R.; McGee, T.D.; Swails, J.M.; Homeyer, N.; Gohlke, H.; Roitberg, A.E. MMPBSA.py: An Efficient Program for End-State Free Energy Calculations. J. Chem. Theory Comput. 2012, 8, 3314–3321. [Google Scholar] [CrossRef] [PubMed]
Antibiotics 09 00559 g001 550

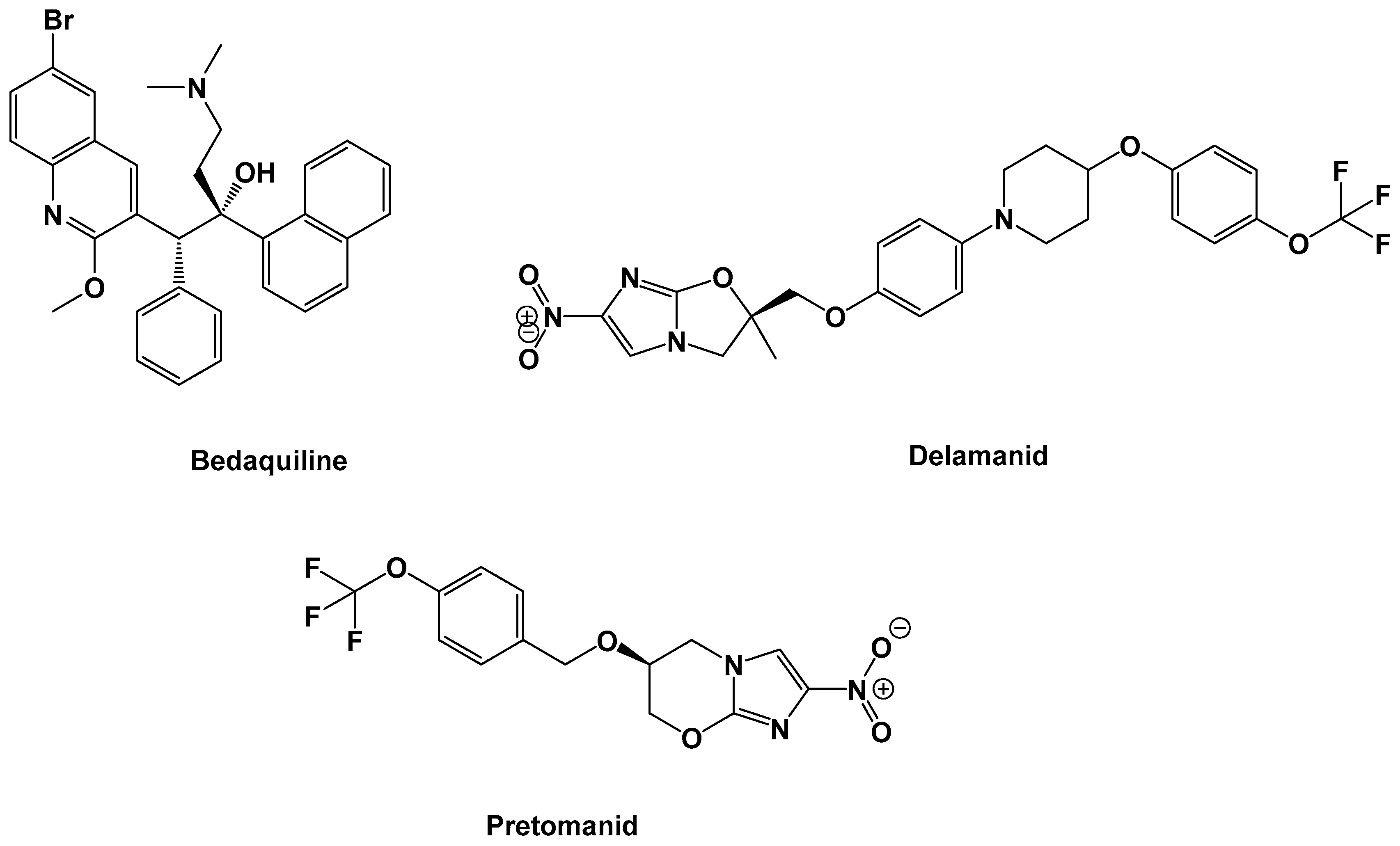

Figure 1. Chemical structure of recently clinically approved anti-tuberculosis (TB) drugs.
Figure 1. Chemical structure of recently clinically approved anti-tuberculosis (TB) drugs.
Antibiotics 09 00559 g001
Antibiotics 09 00559 g002 550

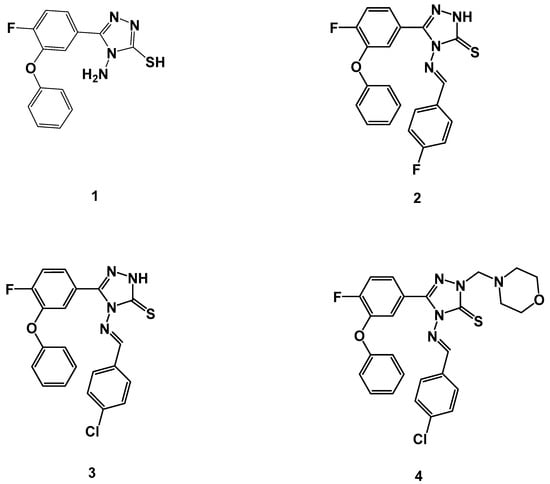

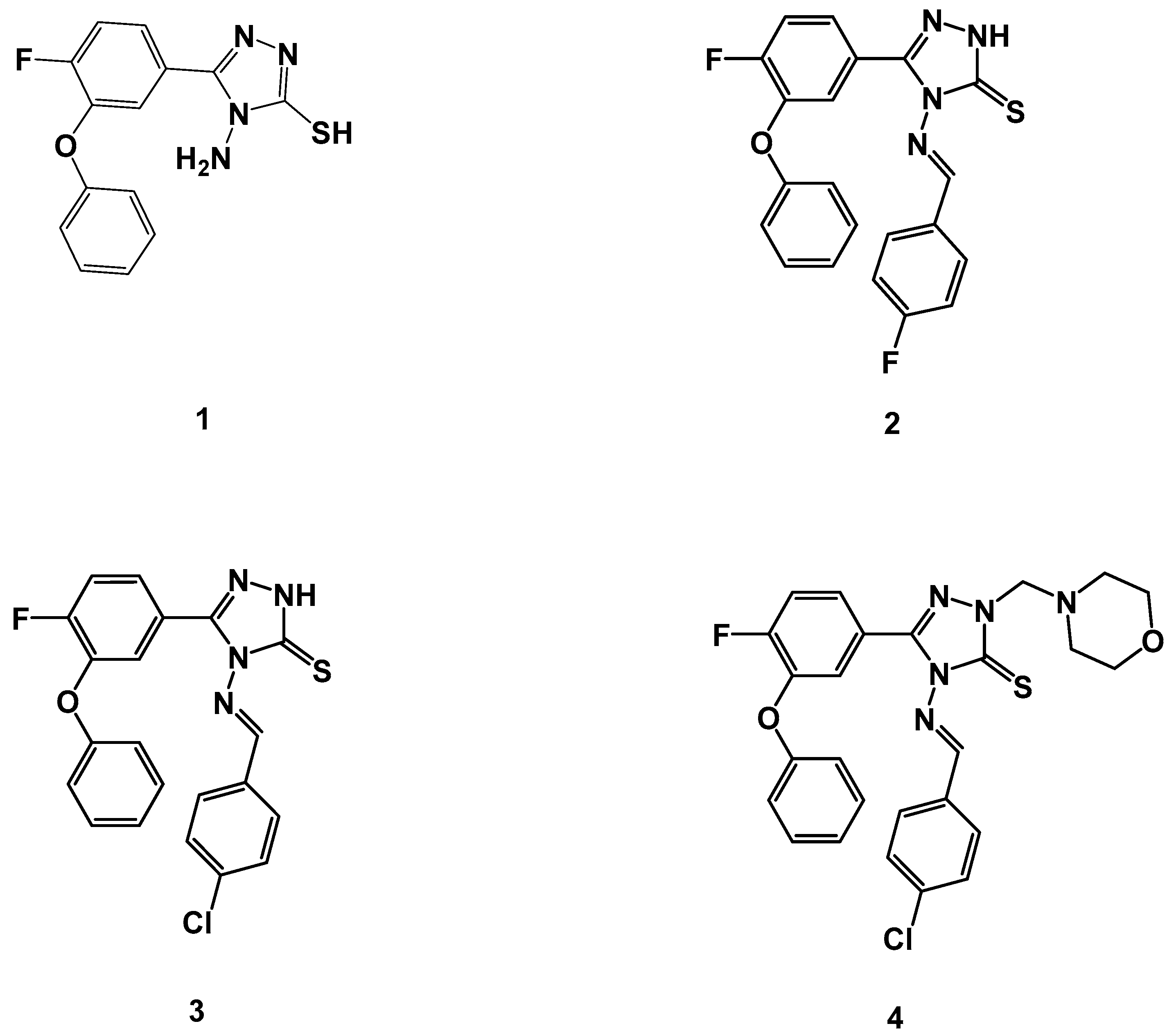

Figure 2. Molecular structures of triazole parent compound 1, and its Schiff bases 2, 3, and 4 were tested for their in vitro anti-TB activity against H37Rv and multi-drug-resistant (MDR) strains of Mycobacterium tuberculosis (MTB).
Figure 2. Molecular structures of triazole parent compound 1, and its Schiff bases 2, 3, and 4 were tested for their in vitro anti-TB activity against H37Rv and multi-drug-resistant (MDR) strains of Mycobacterium tuberculosis (MTB).
Antibiotics 09 00559 g002
Antibiotics 09 00559 g003 550

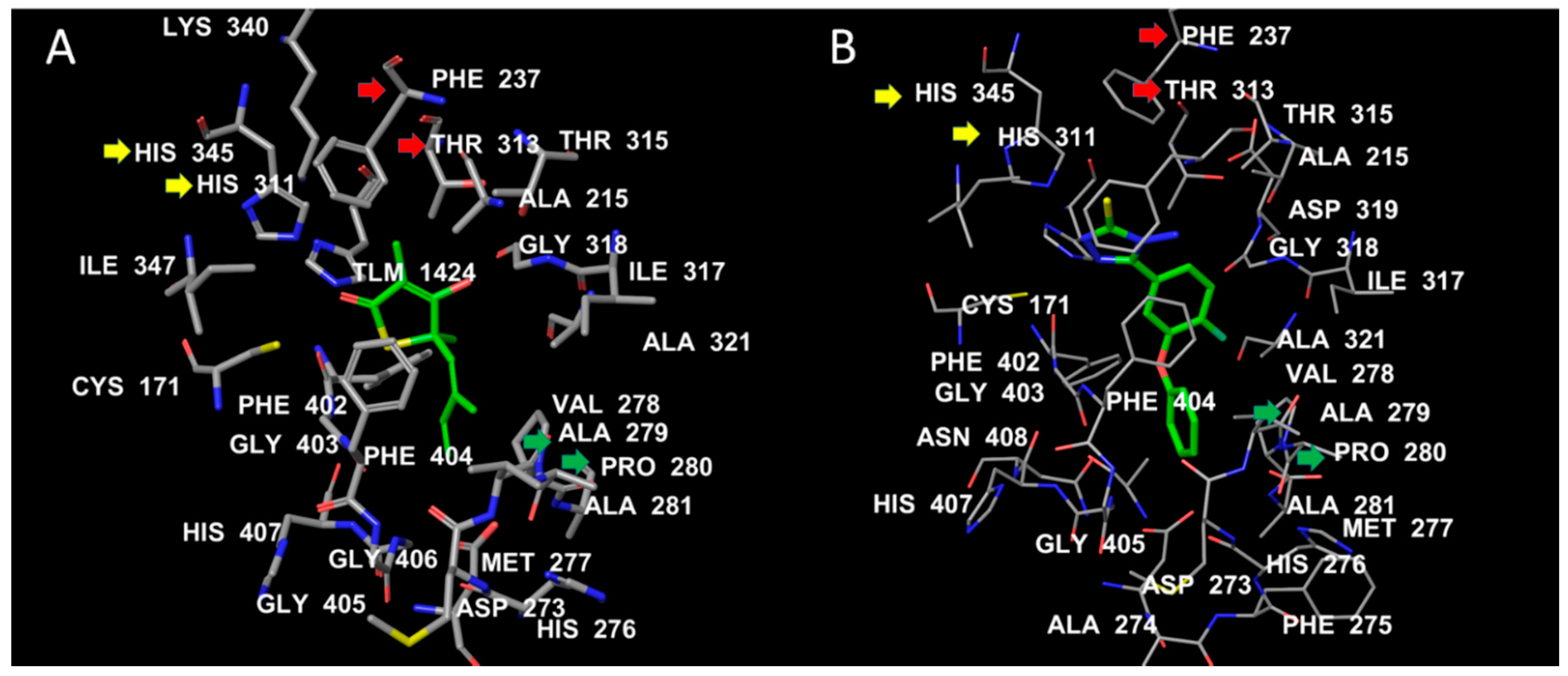

Figure 3. The binding interactions of TLM (A) and test compound 1 (B) with MTB KasA. The ligand hydrocarbons are displayed in green, while the protein residues are colored by atom type, where carbons are white, nitrogen is blue, and oxygen is red. The labels of the active-site residues are displayed by residue number.
Figure 3. The binding interactions of TLM (A) and test compound 1 (B) with MTB KasA. The ligand hydrocarbons are displayed in green, while the protein residues are colored by atom type, where carbons are white, nitrogen is blue, and oxygen is red. The labels of the active-site residues are displayed by residue number.
Antibiotics 09 00559 g003
Antibiotics 09 00559 g004 550

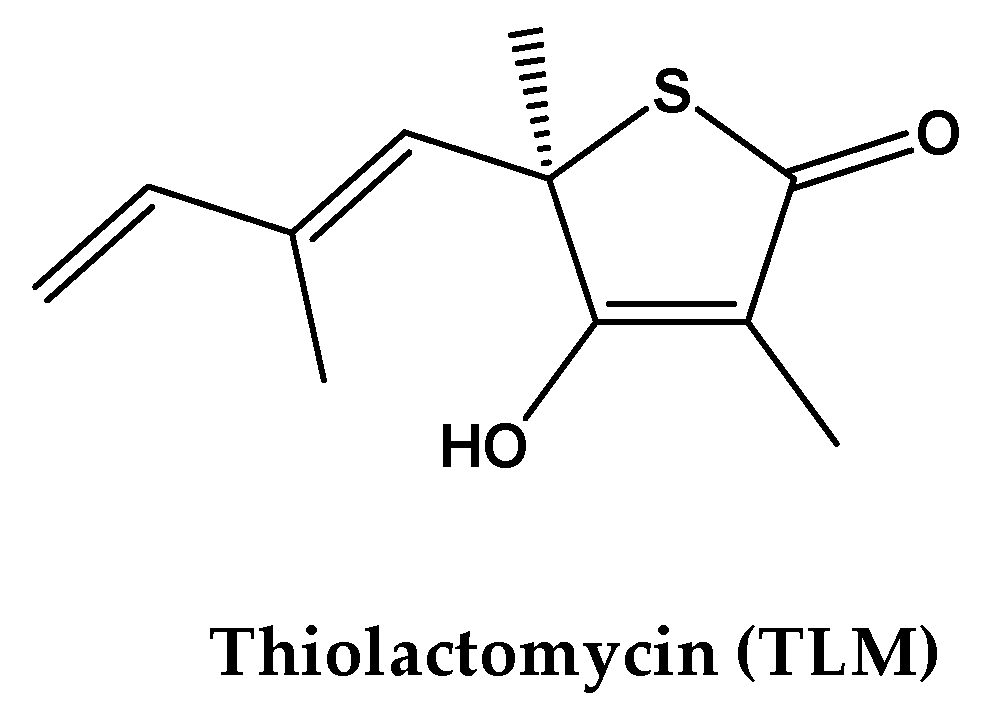

Figure 4. Chemical structure of the co-crystal ligand thiolactomycin (TLM) of β-ketoacyl ACP synthase I (KasA).
Figure 4. Chemical structure of the co-crystal ligand thiolactomycin (TLM) of β-ketoacyl ACP synthase I (KasA).
Antibiotics 09 00559 g004
Antibiotics 09 00559 g005 550
Figure 5. (A) Time dependent RMSD of the α-carbon atom for ApoKasA, KasA bound with TLM, and KasA bound with the compound 1. The simulation was run for 200 ns. (B) Per-residue changes in root mean square deviation (RMSD) during 200 ns of simulation. The X-axis represents the residue number and the Y-axis is the RMSD of the α-carbon atom. The color blue, orange and grey represents the structures of ApoKasA, KasA bound with TLM, and KasA bound with the compound 1, respectively.
Figure 5. (A) Time dependent RMSD of the α-carbon atom for ApoKasA, KasA bound with TLM, and KasA bound with the compound 1. The simulation was run for 200 ns. (B) Per-residue changes in root mean square deviation (RMSD) during 200 ns of simulation. The X-axis represents the residue number and the Y-axis is the RMSD of the α-carbon atom. The color blue, orange and grey represents the structures of ApoKasA, KasA bound with TLM, and KasA bound with the compound 1, respectively.
Antibiotics 09 00559 g005
Antibiotics 09 00559 g006 550
Figure 6. Structure alignment of MTB ApoKasA, KasA-TLM, and KasA-compound 1 (KasA-C1) before (red) and after (green) MD simulation. Two major areas of noticeable RMSD changes are the α5–α6 helix (encircled by blue circles) and ALA274–ALA281 (encircled by violet circles) and are further represented by additional insets.
Figure 6. Structure alignment of MTB ApoKasA, KasA-TLM, and KasA-compound 1 (KasA-C1) before (red) and after (green) MD simulation. Two major areas of noticeable RMSD changes are the α5–α6 helix (encircled by blue circles) and ALA274–ALA281 (encircled by violet circles) and are further represented by additional insets.
Antibiotics 09 00559 g006
Antibiotics 09 00559 g007 550
Figure 7. Total Energy decomposition, van der Waals and electrostatic energy (kcal/mol) for the complexes of compound 1 and TLM with protein.
Figure 7. Total Energy decomposition, van der Waals and electrostatic energy (kcal/mol) for the complexes of compound 1 and TLM with protein.
Antibiotics 09 00559 g007
Table
Table 1. In vitro anti-TB activity of compound 1 and its Schiff bases 2, 3, and 4 against H37Rv and MDR strains of MTB.
Table 1. In vitro anti-TB activity of compound 1 and its Schiff bases 2, 3, and 4 against H37Rv and MDR strains of MTB.
Compound Code aMIC (µg/mL)
H37RvMDR-MTB b
15.511
220NA
311NA
420NA
Note: MIC, minimum inhibitory concentration. a The synthesis and characterization of test compounds 1–4 are detailed in our previous reports [56,57]. b These isolates were resistant to rifampicin (1 µg/mL) and isoniazid (0.2 µg/mL). NA, not active (the concentration considered for screening was 0.2–32 µg/mL).
Table
Table 2. IUPAC and cLogP of the title compounds used for whole-cell anti-TB screening against H37Rv and MDR strains of MTB.
Table 2. IUPAC and cLogP of the title compounds used for whole-cell anti-TB screening against H37Rv and MDR strains of MTB.
Compound CodeMol Formula
(Mol Weight)		IUPACcLogP
1C14H11FN4OS
(302)		4-Amino-5-(4-fluoro-3-phenoxyphenyl)-4H-1,2,4-triazole-3-thiol3.9987
2C21H14F2N4OS
(408)		(E)-5-(4-Fluoro-3-phenoxyphenyl)-4-((4-fluorobenzylidene)amino)-2,4-dihydro-3H-1,2,4-triazole-3-thione5.2660
3C21H14ClFN4OS
(425)		(E)-4-((4-Chlorobenzylidene)amino)-5-(4-fluoro-3-phenoxy phenyl)-2,4-dihydro-3H-1,2,4-triazole-3-thione5.8360
4C26H23ClFN5O2S
(524)		(E)-4-((4-Chlorobenzylidene)amino)-5-(4-fluoro-3-phenoxyphenyl)-2-(morpholinomethyl)-2,4-dihydro-3H-1,2,4-triazole-3-thione6.7721
Table
Table 3. The molecular targets used in the computational study to identify the potential target for test the compound 1.
Table 3. The molecular targets used in the computational study to identify the potential target for test the compound 1.
Molecular Target NamePDB IDTest Compound 1 Docking ScoreCo-Crystalized Substrate Docking ScoreRelative Docking ScoreReference
β-ketoacyl carrier protein synthase III (FABH)2QX1−227−3380.67[58]
β-ketoacyl ACP synthase I (KasA)2WGE−644−5081.27[59]
CYP1215WP2−413−4550.9[60]
Dihydrofolate reductase1DF7−411−6090.68[61]
Enoyl-acyl carrier protein reductase4COD−434−6000.72[62]
N-acetylglucosamine-1-phosphate uridyltransferase2QKX−470−4780.99[63]
Table
Table 4. MM(GB/PB)SA binding free energy and entropy (kcal/mol) for compound 1 and TLM.
Table 4. MM(GB/PB)SA binding free energy and entropy (kcal/mol) for compound 1 and TLM.
Compound CodesBinding Free EnergyEntropy
MMGBSAMMPBSA
Compound 1−45.553 (2.15) *−29.096 (2.95)−33.613
TLM−28.042 (1.17)−21.0636 (1.98)−31.732
* standard deviation.

Share and Cite

MDPI and ACS Style

Venugopala, K.N.; Kandeel, M.; Pillay, M.; Deb, P.K.; Abdallah, H.H.; Mahomoodally, M.F.; Chopra, D. Anti-Tubercular Properties of 4-Amino-5-(4-Fluoro-3- Phenoxyphenyl)-4H-1,2,4-Triazole-3-Thiol and Its Schiff Bases: Computational Input and Molecular Dynamics. Antibiotics 2020, 9, 559. https://doi.org/10.3390/antibiotics9090559

AMA Style

Venugopala KN, Kandeel M, Pillay M, Deb PK, Abdallah HH, Mahomoodally MF, Chopra D. Anti-Tubercular Properties of 4-Amino-5-(4-Fluoro-3- Phenoxyphenyl)-4H-1,2,4-Triazole-3-Thiol and Its Schiff Bases: Computational Input and Molecular Dynamics. Antibiotics. 2020; 9(9):559. https://doi.org/10.3390/antibiotics9090559

Chicago/Turabian Style

Venugopala, Katharigatta N., Mahmoud Kandeel, Melendhran Pillay, Pran Kishore Deb, Hassan H. Abdallah, Mohamad Fawzi Mahomoodally, and Deepak Chopra. 2020. "Anti-Tubercular Properties of 4-Amino-5-(4-Fluoro-3- Phenoxyphenyl)-4H-1,2,4-Triazole-3-Thiol and Its Schiff Bases: Computational Input and Molecular Dynamics" Antibiotics 9, no. 9: 559. https://doi.org/10.3390/antibiotics9090559

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
