A Comparative Study on the Influence of Al2O3-ZnO ALD Nanolaminates on the Properties of CrCN PVD Sputtered Coatings with Distinctive Morphologies and Microstructures

by
Elias Kaady
1,2,*,
Syreina Sayegh
3,
Mikhael Bechelany
3,
Roland Habchi
2,4 and
Akram Alhussein
1,*
1
UR LASMIS, Université de Technologie de Troyes, Pôle Technologique Sud Champagne, 52800 Nogent, France
2
EC2M, Faculty of Sciences, Campus Pierre Gemayel, Lebanese University, Fanar 90656, Lebanon
3
Institut Européen des Membranes, IEM UMR 5635, Université de Montpellier, CNRS, ENSCM, 34730 Montpellier, France
4
Center for Applied Mathematics and Bioinformatics, Gulf University for Science and Technology, Hawally 32093, Kuwait
*
Authors to whom correspondence should be addressed.
Coatings 2023, 13(6), 1017; https://doi.org/10.3390/coatings13061017
Submission received: 24 April 2023 / Revised: 24 May 2023 / Accepted: 25 May 2023 / Published: 30 May 2023
(This article belongs to the Special Issue Nanostructured Materials Deposition Techniques and Characterization)
Browse Figures
Review Reports Versions Notes

Abstract

:
Chromium carbonitride (CrCN) coatings present the desired characteristics for improving the mechanical properties and the corrosion resistance of marine components. The purpose of this work is to investigate the effect of carbon insertion, using CH4 gas flow as the carbon precursor in magnetron sputtering, on the mechanical and electrochemical properties of the CrN coating. Moreover, the influence of the Al2O3-ZnO nanolaminates sealing layers deposited by the atomic layer deposition (ALD) on the properties of distinctive CrCN sputtered coatings (dense and columnar) is investigated. Structural, morphological, and topographical analyses were performed using scanning electron microscopy, X-ray diffraction, and atomic force microscopy. The nanoindentation measurements determined the mechanical properties and the electrochemical behavior was evaluated in a saline solution. The results revealed new important insights in the field of duplex treatment based on hybrid deposition using magnetron sputtering and ALD techniques.

1. Introduction

Marine equipment such as gears, bearings, propellers, as well as shafts are mainly essential materials in the field of marine engineering [1,2]. These components suffer from damages and a short lifetime service due to the synergistic effect of corrosion degradation and frictional wear in aggressive seawater environments [3]. Hence, it is imperative to guarantee the stability and the work reliability of these workpieces in a strong corrosive salt media [4]. Protective thin film technology is widely used as a good strategy to improve the surface properties of the materials used in harsh and severe environments [5]. Scientists and engineers are challenged to develop new coatings for ensuring the protection of metallic components from corrosive media and wear loss.
Among the used coatings in the marine related field, chromium carbonitrides CrCN are well reported [3,4,6,7,8,9] to present the well-desired characteristics for improving the mechanical properties and the corrosion resistance of the marine components. They have been paid more attention to than chromium nitride CrN coatings [6], presenting higher hardness and lower friction coefficients. The good lubrication and wear-reduction effects observed in CrCN coatings are due to the amorphous carbon element [5]. Thus, the carbon incorporation into chromium nitride coatings influences their structural properties and acts as a self-lubricated material reducing the friction coefficient [5]. Furthermore, it is well reported that complex carbides generated from the reaction of transition elements such as Cr with the interstitial carbon could form hard layers that improve the corrosion resistance of steels and ductile iron-based alloys as reported by Günen et al. [10]. Physical Vapor deposition (PVD) techniques are one of the most widely used thin-film deposition techniques. Several studies pointed out the optimization and the deposition of chromium carbonitride coatings using PVD techniques. Xu et al. [8] studied the structural, electrochemical, and tribocorrosion behavior of CrCN in a corrosive environment. They found that the dense CrCN deposited by magnetron sputtering exhibited more electrochemical performances than CrN. CrCN with 20.3% of carbon content presented the lowest wear rate of 3.85 × 10−7 mm3/N·m and the minimum open circuit potential (OCP) value of −0.19 V which revealed its excellent tribocorrosion properties. Liu et al. [5] found that the addition of carbon in the CrN matrix induced the formation of other phases of carbon and CNx. It improved the hardness from ~17 GPa to ~19 GPa with 6.3 at.% of carbon and the average friction coefficient decreased gradually from 0.62 to 0.40 with 23.7 at.% of carbon. Several studies pointed out the deposition of CrCN coatings using multi-arc ion plating or sputtering techniques using graphite target [5,11,12,13] or acetylene gas [3,4,6,7,8,9,14] as a source of the carbon element. However, there is no relevant detailed study on CrCN coatings deposited by magnetron sputtering using CH4 gas as a carbon element source.
The last few years, intensive research was held to develop the PVD coatings, improve their properties, and achieve a higher performance in order to diversify their possible applications to meet the industrial requirements. Despite their high mechanical characteristics, the inherent defects [15] including columnar structures, pores, and discontinuities in PVD coatings significantly affect their corrosion resistance and toughness. Deposition of coatings in architectured multilayers [16] was applied as a suitable strategy to reduce the structural defects. These coatings exhibit strong mechanical properties and exceptional resistance to corrosion and oxidation, surpassing that of monolayer coatings. It may be due to the fact that the interlayer boundaries can restrain or change the direction of crack propagation [17]. Kong et al. [18] found that CrN/CrCN multilayered coatings had higher toughness and wear resistance than CrN monolayer coating, which can be attributed to the densification effect and characteristics of multilayer coating. Wang et al. [9] reported that the as-deposited CrN/CrCN multilayered coating could demonstrate significant improvement of tribocorrosion resistance compared to the CrN and CrCN monolayer coatings. Pogrebnjak et al. [19] studied MoN/CrN nanostructured coatings deposited by the Arc-PVD process. They noticed that the multilayer architecture approach with control of layer thickness and deposition parameters is an efficient method for transition metal nitrides fabrication.
Recently, duplex coatings combining PVD layers with atomic layer deposition (ALD) thin films presented more efficiency in mechanical and anti-corrosion properties than the as-deposited PVD coatings [20,21,22,23,24]. ALD is a powerful technique to deposit coatings with precise thickness control, excellent uniformity, conformity, and tunable composition [25,26]. The ALD process involves a unique mechanism of cyclic repetition, in which self-limiting surface reactions occur with two or more gaseous precursors injected in separate pulses [27,28]. Over the last few decades, ALD layers emerged as candidates in corrosive environment applications [29,30,31,32,33] due to their high quality permeation barrier properties and dense structures. Due to their insulating dielectric properties and the ability to well nucleate on metals surfaces, aluminum oxide (Al2O3) ALD films are the most readily studied ALD thin films for corrosion protection [31,32,33,34]. However, in moist environments, Al2O3 films eventually fail to provide long-term corrosion protection [35]. Facing that problem, the nucleation ability of Al2O3 was combined with the chemical stability of other oxides such as TiO2 [36,37] and Ta2O5 [38] in nanolaminate architectures to provide an improvement in corrosion resistance, good barrier properties, and sufficient durability against chemical attacks. In our earlier study [39], we investigated the efficiency of Al2O3/ZnO nanolaminates in enhancing the mechanical and anticorrosion behavior of chromium nitride CrN coatings. The studied architectured coating presents a great potential as an advanced coating for corrosive environment applications.
Several studies on the duplex coatings deposited by the combination of physical vapor deposition and atomic layer deposition techniques for corrosion protection have been reported. Dai et al. [20] studied the properties of Al2O3/CrAlSiN hybrid ALD/PVD coatings in the multilayer design with various periods. Wan et al. [21] investigated the influence of the thickness and the position, where the Al2O3 ALD layer was inserted in the CrN PVD layer, on the microstructure, corrosion behavior, and mechanical properties of the coatings. Leppäniemi et al. [40] studied the effect of surface wear of ALD layers on the corrosion properties of the duplex coatings. They discovered that, despite removing the ALD nanolaminate completely from the top, the corrosion current density was still less than half that of the PVD CrN coating without surface wear. Staszuk et al. [41] investigated hybrid coatings produced using magnetron sputtering and ALD techniques, which consisted of layers of the same phase and were obtained through distinct surface treatment technologies.
In this study, a series of CrCN coatings was deposited by the pulsed magnetron sputtering technique using CH4 gas as a carbon precursor. The influence of the carbon insertion into CrN on the structural, mechanical, and electrochemical properties was investigated. Al2O3/ZnO nanolaminates were deposited using the ALD technique on the distinctive CrCN coatings containing different carbon percentages. The main goal of this study is to investigate the way that the ALD layer could enhance the PVD layers’ properties, and its relationship with the PVD layer morphology and microstructure. The current work provides important insights for the advanced duplex PVD and ALD hybrid coatings.

2. Materials and Methods

2.1. Deposition of CrCN Coatings

The CrCN coatings were deposited on AISI 316L stainless steel disks (Φ 25 mm × 8 mm, purchased from the UGITECH company, Ugine, France) and Single crystalline Si (100) one sided polished wafers using a DEPHIS4 (Etupes, France) magnetron sputtering machine. The composition of 316L substrates, the samples’ preparation before deposition, and the sputtering system were described in our previous work [39]. The vacuum pressure in the sputtering chamber was reduced via mechanical and turbo-molecular pumps to 10−4 Pa. The chromium target (99.99% purity, Φ = 200 mm × 6 mm) was etched for 20 min with argon ions’ Ar+ bombardment prior to the deposition, in order to clean its surface from thin oxide layers and other impurities (0.30 Pa pressure, Argon flow rate = 100 sccm, discharge power of 1A). To improve the adhesion strength of CrCN coatings, a 0.5 μm pure Cr transition layer was pre-deposited on the substrates by sputtering a Cr target at 1.5 A for 35 min. The CrCN coatings were deposited in a mixed atmosphere (Ar, N2, and CH4). Subsequently, the sputtering current of the Cr target was set to 1.5 A, and the flow rates of Ar and N2 gases injected in the chamber were fixed at 30 and 9 sccm, respectively, during the deposition. The substrate-holder rotation speed of 10 rpm was kept constant to obtain a homogeneous film in thickness and composition. During deposition, no bias on either substrates’ heating was performed. The CrCN coatings with different carbon contents were obtained by varying the flow rate of CH4 gas (0, 2, 3, 4, and 5 sccm). The total deposition time was 300 min. CrCN coatings with various carbon contents obtained from different CH4 gas flow rates (0, 2, 3, 4, and 5 sccm) were labeled as CrN, CrCN-2, CrCN-3, CrCN-4, and CrCN-5, respectively.
Al2O3/ZnO nanolaminates were deposited using the atomic layer deposition technique following the procedure described in our previous study [39].

2.2. PVD/ALD/PVD Duplex Coatings Deposition

In order to compare between the duplex coatings and to well outline the influence of the Al2O3/ZnO nanolaminates’ ALD insertion, the thickness should be the same for all the coatings. Three CrCN compositions were chosen: CrCN-2, CrCN-4, and CrCN-5. A Cr adhesion layer was formerly deposited for 35 min as mentioned previously. Deposition times were adjusted in order to deposit 1.5 µm of the desired CrCN coatings. Al2O3/ZnO nanolaminates for a total 50 nm thickness were deposited as sealing layers on the top of the first 1.5 µm CrCN layer followed by the second 1µm CrCN layer. The coatings were labeled CrCN-2/ALD, CrCN-4/ALD, and CrCN-5/ALD.

2.3. Characterization

A Hitachi (Tokyo, Japan) SU 8030 Scanning Electron Microscope (SEM) was used to investigate the coatings’ surfaces, thicknesses, and cross-sectional morphologies. The chemical composition was determined using scanning electron microscopy (SEM) Hirox (Tokyo, Japan) SH-4000 M equipped with an X-ray energy dispersive spectroscopy (EDS). A Bruker (Billerica, MA, USA) atomic force microscopy AFM was used to evaluate the surface topography and roughness on 2 × 2 µm2 scanning zones. The Rq roughness was calculated using Nanoscope Analysis software (Bruker). An X-ray diffractometer (Bruker D8 advance, XRD) with a Cu-Kα radiation tube (λ = 1.5418 Å), operated at 40 kV and 40 mA, was employed to identify the microstructure and crystal phases. The crystallite size was determined using Scherrer’s formula and the texture coefficient (TC) for any reflection determined using the equations described in our previous study [39].
The Hardness and reduced Young’s modulus of the coatings were determined using a TriboIndenter TI 980-Hysitron (Bruker) nanoindentation technique equipped with a Berkovich diamond tip (Eind = 1140 GPa, ʋind = 0.07). To avoid any effect from substrate stiffness, the maximum penetration depth was restricted to less than 10% of the film thickness. Thirty indents were conducted for each sample, and the average values were recorded. The measurements’ uncertainty was determined from the standard deviation. A dataphysics OCA series machine based on the sessile drop method was used to measure the water contact angles on the films. Three measurements were carried out to ensure the reliability of the data. The electrochemical corrosion properties were evaluated using an Origalys potentiostat and a “Biologic” flat corrosion cell adapted to the samples’ dimensions as described in our previous study [39]. Pitting corrosion tests were performed at room temperature in a 3.5 wt.% (0.6 M) NaCl solution and pH ~ 6.3. To ensure system stability, the open circuit potential was measured for 60 min. The measurement range was set from −150 mV/free to 1.3 V/ref. The scan rate and current threshold were both fixed at 0.5 mV/sec and 3 mA, respectively. The corrosion parameters were determined using the Tafel extrapolation method. The corrosion current density can be estimated by extrapolating the anodic branch of the polarization curve to the corrosion potential. The extrapolation involves fitting the anodic polarization curves to a straight line and extrapolating them to the corrosion potential. The point at which these lines intersect gives the corrosion current density. The polarization resistance Rp is calculated using the following equation:
Rp = β a . β c   β a + β c × 1 Jcorr
where βa and βc are the anodic and cathodic Tafel constants in V/decade, and Jcorr is the corrosion current density in A/cm2.

3. Results

3.1. Coatings Morphology and Surface Topography

Table 1 displays the chemical composition of the coatings. In order to compare the influence of the CH4 gas flow on the carbon content, it was necessary to deposit all coatings, CrN to CrCN-5, for the same deposition time of 300 min. Cr, N, O, and C percentages were measured using the EDS technique. We noticed the presence of oxygen in the coatings that might be due to the residual oxygen impurities in the sputtering chamber and to the native oxidation of coatings after deposition and exposition to ambient air. The carbon content increased from 17 at.% to 28 at.% when the CH4 flow was raised from 2 to 5 sccm. The C/N and (C + N)/Cr ratios increased, which might be attributed to the existence of other phases such as CNx. Hybrid coatings have a higher oxygen content due to the insertion of the ALD oxide layer.
Figure 1 shows the variation of the thickness and deposition rate versus the CH4 gas flow.
The thicknesses of CrN, CrCN-2, CrCN-3, CrCN-4, and CrCN-5 were 2.8, 3.1, 2.7, 2.4, and 2.5 µm, respectively. The deposition rate and film thickness increased with the addition of 2 sccm CH4; then, a linear decrease was observed with the increase of CH4 gas flow to 4 sccm. The highest deposition rate was obtained under a 2 sccm CH4 flow corresponding to 0.170 nm/s. The following decrease could be attributed to the carbon compounds adsorption on the chromium target surface. It is known that the sputtering rate of metals is different from that of compounds [42]. Furthermore, the sputtering efficiency using two reactive gases (N2 and CH4) is lower than that of one sputtering gas (N2 in CrN deposition) or inert gas (Ar), so the sputtering speed decreased with increasing the reactive gas’ volume. The increase in the deposition rate of CrCN-5 coating compared to CrCN-4 may be related to the formation of the CNx phase validated by the increase in C and N percentages and the decrease in the Cr content.
Figure 2 shows SEM and 2D AFM images of the surface and cross-section morphologies. This figure also presents the roughness values of CrN and the CrCN coatings.
Figure 2a shows the CrN coating as a “cauliflower” shaped surface. The insertion of carbon (17 at.%) into the CrN structure led to taper and “stars” faceted shape morphology (Figure 2b). The CrCN-2 coating SEM surface image shows the presence of intergranular voids and porosities that may form open paths and trajectories from the surface to the coating-substrate interface. The existence of those defects is related to the columnar growth of the coating as shown in the SEM cross-sectional image (Figure 2g). The CrCN-3 coating exhibited a granular surface morphology with an irregular shape and non-homogeneous grain size distribution (Figure 2c). In addition, less voids are observed as compared to CrCN-2, revealing that the increase in carbon content improves the compactness of the coating. Furthermore, the CrCN-4 and CrCN-5 surfaces became flat and fine, and no grain boundaries are visible. Meanwhile, the carbon led to a denser structure, which could be related to the increase of the amount of the amorphous carbon phase. Furthermore, the cross-sectional images (Figure 2f–j) show that all the relative coatings grew continuously on the substrate within the Cr adhesion layer, and no obvious defects (such as cracks) are observed, which indicates a strong interface between the coatings and the substrates with no visible delamination. The CrN coating had a columnar compact structure in the upward direction. The CrCN-2 and CrCN-3 coatings exhibited columnar growth. The width of CrCN-3 columns decreased as compared to CrCN-2 and showed a compact structure with narrow intercolumnar boundaries. For the CrCN-4 and CrCN-5 coatings, the cross-sectional images showed a dense structure. Meanwhile, the carbon improved the microstructure density preventing the coating columnar growth. On the other hand, the roughness of the CrCN-2 coating increased as compared to the CrN coating. This increase in roughness is well explained by the change in the surface morphology of CrCN-2, where the “stars” grain-like shapes are well faceted compared to the flat “cauliflower” grain shapes’ flat and smoother CrN surface. Comparing the CrCN coatings (Figure 2k–o), it was found that the surface roughness generally decreased with increasing CH4 flow and carbon content. The CrCN-3 coating was more compact than CrCN-2, resulting in a surface roughness Rq = 20 ± 2 nm lower than that of CrCN-2 (Rq = 24 ± 3 nm). CrCN-4 and CrCN-5 presented the lowest surface roughness Rq = 9 ± 1 and 6 ± 1 nm, respectively. This is confirmed by the SEM images showing a smooth surface morphology and dense microstructure.
The morphology and surface topography of the hybrid CrCN/Al2O3-ZnO nanolaminate coatings were investigated. The SEM and AFM images as well as roughness values are presented in Figure 3. The ALD sealing layer was inserted within two CrCN PVD layers.Figure 3a–c shows the surface morphology of the top PVD layer. From Figure 3a, we can notice that the CrCN-2 top layer has a different surface morphology compared to that observed in Figure 2b. In fact, the change in the surface morphology and “stars” grains to “cauliflower” shape occurred due to the insertion of the ALD Al2O3/ZnO nanolaminates’ sealing layer. The observed morphology is more compact than that of the CrCN-2 coating. Furthermore, the intergranular narrow voids are visible. In fact, this surface morphology is quite similar to that of the CrCN-3 coating (Figure 2c), but the difference is observed in the homogeneous shape and particle size distribution (Figure 3a). Furthermore, the fineness in particle size pointed out the decrease in the columns’ size observed in the cross-sectional SEM images (Figure 2d). The fineness in particle size is also confirmed by the smoother surface with a lower surface roughness Rq = 17 ± 2 nm (Figure 3g), which is less than those observed in the CrCN-2 or even CrCN-3 coatings (24 ± 3 and 20 ± 2 nm, respectively). These results reveal that the ALD sealing layer interrupted the continuous columnar growth of the first PVD layer. However, there is no change in the growth form type and the second PVD layer grew through the columnar form but with finer columns. This interruption of the large columnar crystal growth is attributed to the ALD layer that creates a modified surface and allows more nucleation sites during the deposition of the top PVD layer, as discussed in our previous work [39].
On the other hand, the top PVD layer in CrCN-4/ALD and CrCN-5/ALD coatings revealed the same surface morphologies observed, respectively, in CrCN-4 and CrCN-5. The results pointed out that the ALD layer did not change the surface morphology. The dense growth type is maintained as well as it is observed in the cross-sectional images (Figure 3e,f). A slight decrease in the surface roughness was observed in CrCN-4/ALD (Rq = 8 ± 1 nm in Figure 3h) and a non-significant change in the surface roughness was noticed in the CrCN-5/ALD coating.
To sum up, the ALD layer inserted as a sealing layer did not provoke a change in the growth form type of the PVD layer. The top PVD layer follows the growth type (dense or columnar) of the inner PVD layer. The influence of the ALD layer is particularly significant on the columnar growth type where it causes columns refinement by creating more nucleation sites. This phenomenon could absolutely influence the surface topography relative to the summits of the columns, and smooth the surface resulting in the decrease of the surface roughness. However, these changes are less pronounced when the PVD layer follows the dense growth mode.

3.2. Phase Composition and Microstructure Analysis

In order to investigate the effect of carbon insertion on the CrN microstructure and the influence of ALD nanolaminates on the microstructure of the top CrCN PVD layer, XRD experiments were performed. The XRD patterns and the texture coefficients of the different coatings are shown in Figure 4. The XRD pattern of the CrN thin film shows the peaks corresponding to (111), (200), (220), and (311) crystallographic orientation. All the peaks shift towards higher two theta values. The peaks broadening could be ascribed to the coating non-uniform residual internal stress or to the existence of an amorphous CrNx phase. CrN coatings exhibiting (111) preferential orientation were reported in our previous study [39], but in this case, the chromium nitride does not exhibit a preferential orientation. As shown in Figure 4d, the texture coefficients of (111) and (200) orientations are very close, and those of (220) and (311) are not negligible. The (200) orientation of CrN is associated with lower surface free energy, whereas the (111) orientation is expected when films present high compressive stress and dominant strain energy [43]. In this study, the (200) orientation is more pronounced. Meanwhile, the surface free energy dominates in the coating instead of the strain energy and the compressive stress. This could be attributed to the compact structure of the film with a small crystallite size (9 ± 1 nm), as compared to the pyramidal columnar structure of the CrN coating in the previous study [39], showing a high crystallite size (52 ± 1 nm).
The XRD patterns of all the coatings in Figure 4a,c show the presence of the peaks at 44.36° and 81.69° corresponding, respectively, to the (110) and (211) planes of the Cr adhesion layer compared to the standard reference file provided by the Joint Committee on Powder Diffraction (JCPDS, 01–085–1336). In Figure 4a, the CrCN-2, CrCN-3, and CrCN-4 coatings present two diffraction peaks at 2θ = 37.53° and 80.05° corresponding, respectively, to (111) and (222) planes of the CrN (JCPDS, 00–11–0065). From Figure 4d, we notice the increase of the texture coefficients calculated for the (111) and (222) orientations for the CrCN-2, CrCN-3, and CrCN-4 coatings while the other orientations are negligible as compared to the CrN coating. Thereby, the carbon insertion in the CrN coating led to the change in its texture, and promoted the (111) plane growth tendency. The Cr2N phase was not detected. For the CrCN-5 coating, the corresponding XRD pattern revealed, in addition to (111) and (222) corresponding peaks, the presence of peaks at 2θ = 43.73°, 63.53°, and 76.15° relative to (200), (220), and (311) planes of CrN, respectively (JCPDS, 00–11–0065). The texture coefficient variation shown in Figure 4d confirms this observation where the TC of the (111) orientation decreased while the TC of the other orientations increased. The magnified zone on the (111) orientation peaks of the various coatings is represented in Figure 4b. By increasing the CH4 gas flow and the carbon content in the coatings, the (111) corresponding peak of the coatings shifted towards lesser two theta values which indicates a possible increase in the residual stress [8].
For more investigation on the effect of carbon insertion in the CrN coating, the lattice parameter was calculated and displayed in Table 2.
No Cr7C3 phase or carbides crystalline phase peaks are detected in the XRD patterns. The carbon may exist as an amorphous carbon or an amorphous CNx phase, or inserted as a solid solution in the CrN lattice. The lattice parameter gradually increased with increasing the CH4 flow rate to reach its higher value of 4.174 Å at 5 sccm. Since the C atom has a larger atomic radius than that of N, the carbon substitutes N atoms in the CrN lattice and distorts it, resulting in a larger interplanar space distance and lattice parameter. Typically, the shift in the diffraction angles is due to the lattice parameter increase with increasing the C concentration. Furthermore, as it can be seen in Figure 4b, with the increase of the CH4 flow, a slight broadening and reduced intensity in the (111) XRD peak was observed. The (111) FWHM of the coatings was calculated and the crystallite size was estimated using the Scherrer equation (Table 2). The crystallite size increased from 9 ±1 nm to 46 ±1 nm with 17 at.% carbon insertion. The 17.4 at.% carbon addition could interrupt the formation of the CrNx amorphous phase that may exist in the CrN coating, and thus promote the crystalline state and the crystallite size increase. With increasing the CH4 flow rate from 2 to 5 sccm, the crystallite size decreased to reach 14 ± 1 nm. This indicates that the CrN crystals became finer with the increase of the amorphous carbon or CNx phases. Other studies [8,44] reported a similar decrease in the grain size due to the increase of carbon content. Hence, as reported in [18], the carbon addition changes the texture of the CrN crystal in the coating and interrupts the normal crystal arrangement of chromium nitride. It forms nucleation centers and limits the excessive growth of CrN grains [44].
Figure 4c shows the XRD patterns of the hybrid coatings CrCN/ALD. No new peaks corresponding to phases different of those than of the CrN phase were detected. The insertion of the Al2O3/ZnO ALD sealing layer did not provoke any phase transformation in the CrCN top layer of the three hybrid coatings. To further investigate the effect of the ALD layer, the texture coefficient was calculated and represented in Figure 4e. This allows the comparison of hybrid CrCN/ALD coatings with their relative CrCN PVD monolayer ones. The results revealed that there is no major texture variation despite the slight decrease in the TC of the (111) orientation in CrCN-4/ALD and CrCN-5/ALD coatings. The CrCN-2/ALD coating showed a decrease in the crystallite size (39 ± 1 nm) as compared to the CrCN-2 coating (46 ± 1 nm). The observed decrease in the crystallite size is due to the ALD layer that creates more nucleation sites that could suppress the large columnar crystal growth and contribute to crystal refinement as discussed in our previous work [39]. The CrCN-4/ALD and CrCN-5/ALD coatings showed no major variation in the crystallite size which means that the ALD layer has no effect on the PVD crystallite size when the PVD layer exhibits a dense microstructure.
The raman spectra of the CrN and CrCN coatings are shown in Figure 4e. The observed peak can be deconvoluted into two Gaussian peaks, the D and G bands’ characteristics of amorphous carbon at 1350 cm−1 and 1550 cm−1. The D peak corresponds to the disordered graphite vibration [18] and the G peak corresponds to the bond stretching vibration of the atoms at sp2 sites [8]. The D and G bands are absent in the CrN coating. With increasing the carbon content, these two peaks are raised, suggesting that the amorphous carbon increased which is consistent with the XRD analysis. The D and G peaks’ intensities are much higher in CrCN-5 than other coatings. Meanwhile, it confirms the role of amorphous carbon in densifying the structure of the CrCN-5 coating and decreasing its crystallite size. The peak observed around 540 cm−1 in the CrCN-5 coating spectrum is attributed to the Cr2O3 phase.

3.3. Hardness and Young’s Modulus

Figure 5 presents the hardness (H) and reduced Young’s modulus (Er) of coatings. H and Er values are shown in Table 3.
The hardness of the CrN coating was ~19 GPa higher than that already obtained in our previous work (5.4 GPa) [39]. The compact structure and the small crystallite size of the CrN coating are the most important parameters for the hardness improvement. With the 2 sccm CH4 gas flow rate, the hardness of the CrCN containing 17 at.% C decreased to ~11 GPa which is due to the coating columnar structure and the increase in the crystallite size according to the Hall–Petch relation [45]. As the CH4 gas flow increased, the density of the coatings increased significantly, and the roughness and the crystallite size decreased. The morphological and microstructural results are in accordance with nanoindentation measurements where the hardness increased with the increasing CH4 gas flow and thus the carbon content in the coatings. However, the CrCN-4 presented the highest hardness of ~20 GPa. The CrCN-5 coating hardness is slightly smaller than that of CrCN-4, which may be attributed to the increase of the amorphous carbon phase in the CrCN-5 coating observed in Raman spectra and correspondingly reducing the crystal phase in the coating. In this case, the cohesion energy decreased between the crystalline phase and amorphous carbon, which results in the decrease of the hardness [5,8]. Moreover, the Cr2O3 further decreased the hardness by breaking the continuity of amorphous carbon [13,46]. The reduced Young’s modulus of all the CrCN coatings is less than that of CrN, which means that the carbon increased the elasticity in the coatings. Figure 5b shows the effect of the ALD nanolaminate layer insertion on the mechanical properties of the duplex coatings as compared to their relative CrCN PVD monolayers. The ALD layer increased the hardness of the CrCN-2 coating to ~14 GPa and decreased the Er ~158 GPa. Such an improvement in the hardness is due to the decrease of the crystallite size (39 ± 1 nm) according to the Hall–Petch relation [45]. Similar improvement in the mechanical properties was discussed in the literature [20,22,39]. As the CrCN-2 coating exhibited a columnar morphology, the dense ALD layer blocked the defects proliferation and dislocations motion in the CrCN layer during the indentation, and resisted shear sliding between vertically aligned columnar grains [39]. On the other hand, the ALD layer did not enhance the hardness of the dense CrCN-4 and CrCN-5 coatings. The hardness of the duplex coatings CrCN-4/ALD and CrCN-5/ALD was in the same range as those of CrCN-4 and CrCN-5 PVD monolayer coatings. These results are in accordance with the microstructural and morphological observations discussed in Section 3.1 and 3.2 where the crystallite size remained constant and the morphology did not change with the ALD sealing layer insertion. However, a slight increase in the reduced Young’s modulus was observed.

3.4. Wettability Behavior

The interaction between the surface of the films and water was studied using contact angle (CA) measurements at room temperature. These measurements were also used to investigate the coating behavior in a humid environment. The contact angles of water droplets on the coatings’ surface are presented in Figure 6.
We can notice that the CrN coating exhibited a hydrophilic character with θ = 86 ± 1°. The addition of 17 at.% of carbon did not change the wettability behavior of the CrCN coating where the water contact angle was θ = 85°. As the CH4 gas flow and the carbon content in the coatings increased, the hydrophobic character was promoted with a CA higher than 90°. The surface smoothing, the decrease in voids and surface defects, and the dense microstructure are all parameters promoting the coating hydrophobic character. The contact angles between the water droplets and the films’ surfaces deposited at different CH4 gas flow rates 2, 3, 4, and 5 sccm were 85°, 96°, 98°, and 90°, respectively. Meanwhile, the contact angle and thus the hydrophobicity character increased gradually then decreased, with an increasing carbon content in the coatings. The results reveal that carbon promoted the hydrophobicity character by smoothing the surface appearance and densifying the microstructure of the coatings. However, the decrease of the CA on the CrCN-5 coating could be due to the increase of the amorphous carbon phase and to the existence of the Cr2O3 phase detected by the Raman spectroscopy. The influence of the ALD sealing layer insertion on the wettability character of the coatings is studied. The CrCN-2/ALD, CrCN-4/ALD, and CrCN-5/ALD contact angles’ measurements are presented in Figure 6f–h, respectively. They show an increase in the contact angle and they are all hydrophobic. Meanwhile, the Al2O3/ZnO nanolaminates’ ALD sealing layers through the smoothing of the surface appearance of the top PVD layer, and decreasing the microstructural voids and defects, led to the increase of the contact angles in the 106°–113° range.

3.5. Corrosion Behavior of the Coatings

The corrosion behavior of the coatings was investigated in an NaCl solution. The Tafel plots are presented in Figure 7. The electrochemical parameters were determined and listed in Table 4.
The CrN coating exhibited an Ecorr = −238 mV/SCE, Jcorr = 79 × 10−8 A·cm−2, and Epit = 122 mV/SCE. In comparison to the CrN studied in our previous study [39], the CrN in this work was less noble since Ecorr is lower and the pitting corrosion occurred at a lower potential of 122 mV/SCE. The reduced anticorrosion behavior of the CrN could be due to the decrease in the TC of the (111) crystallographic orientation, since the preferential orientation in the (111) direction exhibits a good anticorrosive behavior [47]. However, the CrN in this work exhibited an improvement in the mechanical properties. The aim of the carbon insertion is to maintain the good mechanical characteristics of the CrN coating with enhancing its corrosion behavior. The corrosion potential of the CrCN coatings gradually increased to −68 and 26 mV/SCE for CrCN-2 and CrCN-3 coatings respectively, and then decreased to −59 and −207 mV/SCE for CrCN-4 and CrCN-5 respectively. However, the corrosion rate is well defined by the corrosion current density. As it can be seen, the corrosion current density decreased from 79 × 10−8 A·cm−2 for CrN to reach a minimum value of 2.5 × 10−8 A·cm−2 for the CrCN-4 coating. The Jcorr of the CrCN-5 coating showed a slight increase to 5 × 10−8 A·cm−2, which can be due to the increase of the TC of the (200) orientation as observed in Figure 4d and to the slight decrease in the water contact angle to 90°, reducing the hydrophobic character. However, this slight increase in the corrosion current density does not indicate that the CrCN-5 coating exhibited a high current corrosion density. The lower corrosion density observed in CrCN-4 and CrCN-5 can be attributed to their dense microstructure, which exhibited fewer voids and defects. Although, the lower roughness value leads to a better anticorrosion behavior. Liao et al. [48] found that Acanthopanax senticosus leaf extracts as eco-friendly can act as an eco-friendly novel corrosion inhibitor for carbon steel in a HCl solution. The SEM, XPS, and water contact angle results presented in their study showed that the dense hydrophobic film can effectively retard the invasion of aggressive ions and inhibit the corrosion of carbon steel. Meanwhile, the hydrophobicity character of the CrCN coatings also leads to better anticorrosion behavior. The polarization resistance of CrN, CrCN-2, and CrCN-3 coatings was weak, while the CrCN-5 had a moderate Rp. The CrCN-4 had the highest Rp = 2283 kΩ·cm−2. The CrCN-2 and CrCN-3 presented a wide stage of passivation as shown in Figure 7a. All the coatings exhibited a pitting corrosion potential less than that of the 316L stainless steel (415 mV/SCE) except the CrCN-3 coating with an extended pitting potential of 763 mV/SCE. The passive region increased with increasing the carbon content to 21 at.% and then decreased. The obtained results could be explained by the increase of the amorphous carbon content in the CrCN-4 and CrCN-5 coatings that could limit the stability of the passive film. Despite the good enhancement in the corrosion resistance of the CrCN-4 and CrCN-5 coatings, validated by their low corrosion current density and high polarization resistance, the stability of their passive region was weak. Meanwhile, a stable pitting corrosion occurred at lower potentials, limiting their protection efficiency for steels against pitting corrosion.
For further investigation, and in order to enhance the stability of the passive film in the CrCN-4 and CrCN-5 coating while maintaining the benefit of their low corrosion densities, the Al2O3-ZnO ALD nanolaminates were deposited as sealing layers. The corrosion polarization plots with a reverse scan of the CrCN-2/ALD, CrCN-4/ALD, and the CrCN-5/ALD are plotted in Figure 7b–d, respectively.
From Figure 7b, we can notice that the ALD layer insertion shifted the Ecorr of the CrCN-2 from −68 to 4 mV/SCE and decreased the corrosion current density from 60 × 10−8 to 43 × 10−8 A·cm−2. In addition, it extended the stability of the passive film. This later exhibited a slow rhythm of depassivation, where the stable pitting occurred at 918 mV/SCE. However, the reverse scan of the CrCN-2/ALD coating showed no ability for re-passivation that can limit the efficiency of the coating for pitting protection even with the good enhancement in the electrochemical parameters and the anticorrosion behavior.
From Figure 7c, we notice, in comparison to the CrCN-4 coating, that the CrCN-4/ALD duplex coating showed a slight shift of the Ecorr to −56 mV/SCE and a slight decrease in the corrosion density to 1.5 × 10−8 A·cm−2. An increase in the polarization resistance to 2655 kΩ·cm−2 was noticed and the pitting corrosion shifted to 666 mV/SCE. The passive region was wider, indicating the improvement in the stability of the passive film. The CrCN-4/ALD film showed the ability for re-passivation in the reverse scan where the re-passivation occurred at 638 mV/SCE. The potential of re-passivation was very close to the pitting potential, which confirmed the difficulty for stabilize the pitting and to maintain the efficiency of the CrCN-4/ALD for the protection against pitting corrosion.
Figure 7d shows the corrosion behavior of the CrCN-5/ALD coating compared to CrCN-5. It is obvious that the corrosion potential presented a high shift from −207 to −50 mV/SCE. The corrosion current density of the CrCN-5/ALD coating ~1.2 × 10−8 A·cm−2 presented the lowest value as compared to all other coatings. Similarly, the Rp increased to reach the highest value of 2945 kΩ·cm−2. The reverse scan showed the ability of the coating for re-passivation without the existence of the pitting hysteresis loop. Meanwhile, the CrCN-5/ALD was the most efficient coating providing pitting corrosion protection. The Al2O3-ZnO nanolaminates’ ALD layer constituted a good barrier for preventing the diffusion of corrosive substances towards the coating-substrate interface [39].

4. Conclusions

In this work, we investigated the effect of carbon insertion on the structural, mechanical, and electrochemical properties of CrCN coatings deposited by magnetron sputtering. As the carbon content increased in the CrCN coating, the structure transformed from columnar to dense. The carbon existed as an amorphous phase in the coatings, reduced the crystallite size, decreased the intergranular voids, and enhanced surface smoothing. The hardness of the CrCN coating was enhanced with the carbon addition due to crystallite size refinement. Furthermore, the corrosion resistance of the coating was also enhanced where the lowest corrosion current density was found for the CrCN-4 coating (30 times less than that of CrN).
We also evaluated the effect of the Al2O3-ZnO nanolaminate layer (50 nm thick) deposited by the ALD technique on the properties of the CrCN coating. The ALD nanolaminates’ sealing layer insertion decreased the particles’ size and created more nucleation species in the columnar structure growth, while it had no significant effect on the dense coatings. The ALD sealing layer improved the hardness of the columnar CrCN coating while it has no significant effect on the dense coatings. The ALD sealing layer enhanced the pitting corrosion resistance of the CrCN coatings, extended their service lifetime, and improved the stability of their passive films with the capacity for re-passivation. The CrCN-4/ALD and the CrCN-5/ALD coatings presented excellent mechanical and anticorrosion properties. They can be used to ensure the protection of stainless steels against pitting corrosion.

Author Contributions

Conceptualization, A.A. and R.H.; methodology, E.K., S.S., A.A. and R.H.; software, E.K.; formal analysis, E.K.; investigation, E.K. and S.S.; data curation, E.K.; Sources, A.A. and M.B.; writing—original draft preparation, E.K.; writing—review and editing, A.A., R.H., E.K. and M.B; supervision, A.A. and R.H.; Validation, A.A., R.H. and M.B.; Project administration, A.A. All authors have read and agreed to the published version of the manuscript.

Funding

FEDER and UT/INSA-UL Network funded this research, within the DRAPED project.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

The authors would like to thank FEDER (European regional development Fund) and the Doctoral School in Sciences and Technology at the Lebanese University (Réseau UT/INSA-UL) for their financial support. This work was performed within the DRAPED project. The authors would also like to thank the “scientific research support program” of the Lebanese university for the grant given to Habchi. The authors would also like to thank Juan CREUS, La Rochelle University, for helping on the corrosion data determination.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhou, F.; Ma, Q.; Wang, Q.; Zhou, Z.; Li, L.K.-Y. Electrochemical and Tribological Properties of CrBCN Coatings with Various B Concentrations in Artificial Seawater. Tribol. Int. 2017, 116, 19–25. [Google Scholar] [CrossRef]
  2. Zhang, M.; Zhou, F.; Wang, Q.; Fu, Y.; Zhou, Z. Structural and Tribological Properties of CrMoCN Coatings with Various Mo Contents in Artificial Seawater. Appl. Surf. Sci. 2019, 493, 485–496. [Google Scholar] [CrossRef]
  3. Ye, Y.; Wang, Y.; Chen, H.; Li, J.; Yao, Y.; Wang, C. Doping Carbon to Improve the Tribological Performance of CrN Coatings in Seawater. Tribol. Int. 2015, 90, 362–371. [Google Scholar] [CrossRef]
  4. Zhang, J.; Su, X.; Shan, L.; Liu, Y.; Zhang, P.; Jia, Y. Preparation and Tribocorrosion Performance of CrCN Coatings in Artificial Seawater on Different Substrates with Different Bias Voltages. Ceram. Int. 2019, 45, 9901–9911. [Google Scholar] [CrossRef]
  5. Liu, C.; Ju, H.; Han, P.; Quan, C.; Mo, C.; Zhao, Y.; Geng, Y.; Xu, J.; Yu, L. The Influence of Carbon Content on the Microstructure, Mechanical and Frictional Property of Chromium Carbon Nitride Composite Films. Vacuum 2020, 178, 109368. [Google Scholar] [CrossRef]
  6. Ye, Y.; Wang, Y.; Wang, C.; Li, J.; Yao, Y. An Analysis on Tribological Performance of CrCN Coatings with Different Carbon Contents in Seawater. Tribol. Int. 2015, 91, 131–139. [Google Scholar] [CrossRef]
  7. Ye, Y.; Wang, Y.; Chen, H.; Li, J.; Zhou, S.; Xue, Q. Influences of Bias Voltage on the Microstructures and Tribological Performances of Cr–C–N Coatings in Seawater. Surf. Coatings Technol. 2015, 270, 305–313. [Google Scholar] [CrossRef]
  8. Xu, X.; Sun, J.; Xu, Z.; Li, Z.; Su, F. Microstructure, Electrochemical and Tribocorrosion Behaviors of CrCN Nanocomposite Coating with Various Carbon Content. Surf. Coatings Technol. 2021, 411, 126997. [Google Scholar] [CrossRef]
  9. Wang, Y.; Zhang, J.; Zhou, S.; Wang, Y.; Wang, C.; Wang, Y.; Sui, Y.; Lan, J.; Xue, Q. Improvement in the Tribocorrosion Performance of CrCN Coating by Multilayered Design for Marine Protective Application. Appl. Surf. Sci. 2020, 528, 147061. [Google Scholar] [CrossRef]
  10. Gunen, A.; Kalkandelen, M.; Karahan, I.H.; Kurt, B.; Kanca, E.; Sabri Gok, M.; Serdar Karakas, M. Properties and Corrosion Behavior of Chromium and Vanadium Carbide Composite Coatings Produced on Ductile Cast Iron by Thermoreactive Diffusion Technique. J. Eng. Mater. Technol. 2020, 142, 1–12. [Google Scholar] [CrossRef]
  11. Kim, Y.J.; Byun, T.J.; Han, J.G. Tribological and Mechanical Behaviors of CrN/a-CNx Superlattice Thin Films. Surf. Coatings Technol. 2008, 203, 790–793. [Google Scholar] [CrossRef]
  12. Pengfei, H.; Bailing, J. Study on Tribological Property of CrCN Coating Based on Magnetron Sputtering Plating Technique. Vacuum 2011, 85, 994–998. [Google Scholar] [CrossRef]
  13. Wang, Q.; Zhou, F.; Ding, X.; Zhou, Z.; Wang, C.; Zhang, W.; Li, L.K.-Y.; Lee, S.-T. Microstructure and Water-Lubricated Friction and Wear Properties of CrN(C) Coatings with Different Carbon Contents. Appl. Surf. Sci. 2013, 268, 579–587. [Google Scholar] [CrossRef]
  14. Gilewicz, A.; Chmielewska, P.; Murzynski, D.; Dobruchowska, E.; Warcholinski, B. Corrosion Resistance of CrN and CrCN/CrN Coatings Deposited Using Cathodic Arc Evaporation in Ringer’s and Hank’s Solutions. Surf. Coatings Technol. 2016, 299, 7–14. [Google Scholar] [CrossRef]
  15. Panjan, P.; Drnovšek, A.; Gselman, P.; Čekada, M.; Panjan, M. Review of Growth Defects in Thin Films Prepared by PVD Techniques. Coatings 2020, 10, 447. [Google Scholar] [CrossRef]
  16. Stueber, M.; Holleck, H.; Leiste, H.; Seemann, K.; Ulrich, S.; Ziebert, C. Concepts for the Design of Advanced Nanoscale PVD Multilayer Protective Thin Films. J. Alloys Compd. 2009, 483, 321–333. [Google Scholar] [CrossRef]
  17. Holleck, H.; Schier, V. Multilayer PVD Coatings for Wear Protection. Surf. Coatings Technol. 1995, 76–77, 328–336. [Google Scholar] [CrossRef]
  18. Kong, Y.; Tian, X.; Gong, C.; Chu, P.K. Enhancement of Toughness and Wear Resistance by CrN/CrCN Multilayered Coatings for Wood Processing. Surf. Coatings Technol. 2018, 344, 204–213. [Google Scholar] [CrossRef]
  19. Pogrebnjak, A.D.; Beresnev, V.M.; Bondar, O.V.; Postolnyi, B.O.; Zaleski, K.; Coy, E.; Jurga, S.; Lisovenko, M.O.; Konarski, P.; Rebouta, L.; et al. Superhard CrN/MoN Coatings with Multilayer Architecture. Mater. Des. 2018, 153, 47–59. [Google Scholar] [CrossRef]
  20. Dai, W.; Wang, Q.; Kim, K.-H.; Kwon, S.-H. Al2O3/CrAlSiN Multilayer Coating Deposited Using Hybrid Magnetron Sputtering and Atomic Layer Deposition. Ceram. Int. 2019, 45, 11335–11341. [Google Scholar] [CrossRef]
  21. Wan, Z.; Zhang, T.F.; Lee, H.-B.-R.; Yang, J.H.; Choi, W.C.; Han, B.; Kim, K.H.; Kwon, S.-H. Improved Corrosion Resistance and Mechanical Properties of CrN Hard Coatings with an Atomic Layer Deposited Al2O3 Interlayer. ACS Appl. Mater. Interfaces 2015, 7, 26716–26725. [Google Scholar] [CrossRef] [PubMed]
  22. Kong, J.; Li, C.; Sun, X.; Xuan, Y.; Zhai, H.; Li, A.; Wang, Q.; Zhou, F. Improved Tribological Properties and Corrosion Protection of CrN Coating by Ultrathin Composite Oxide Interlayer. Appl. Surf. Sci. 2021, 541, 148606. [Google Scholar] [CrossRef]
  23. Kong, J.-Z.; Xu, P.; Cao, Y.-Q.; Li, A.-D.; Wang, Q.-Z.; Zhou, F. Improved Corrosion Protection of CrN Hard Coating on Steel Sealed with TiOxNy-TiN Composite Layers. Surf. Coatings Technol. 2020, 381, 125108. [Google Scholar] [CrossRef]
  24. Kaady, E.; Habchi, R.; Bechelany, M.; Zgheib, E.; Alhussein, A. Effect of Al2O3, ZnO and TiO2 Atomic Layer Deposition Grown Thin Films on the Electrochemical and Mechanical Properties of Sputtered Al-Zr Coating. Coatings 2023, 13, 65. [Google Scholar] [CrossRef]
  25. Cremers, V.; Puurunen, R.L.; Dendooven, J. Conformality in Atomic Layer Deposition : Current Status Overview of Analysis and Modelling. Appl. Phys. Rev. 2019, 6, 021302. [Google Scholar] [CrossRef]
  26. George, S.M. Atomic Layer Deposition: An Overview. Chem. Rev. 2010, 110, 111–131. [Google Scholar] [CrossRef] [PubMed]
  27. Graniel, O.; Weber, M.; Balme, S.; Miele, P.; Bechelany, M. Atomic Layer Deposition for Biosensing Applications. Biosens. Bioelectron. 2018, 122, 147–159. [Google Scholar] [CrossRef]
  28. Weber, M.; Julbe, A.; Ayral, A.; Miele, P.; Bechelany, M. Atomic Layer Deposition for Membranes: Basics, Challenges, and Opportunities. Chem. Mater. 2018, 30, 7368–7390. [Google Scholar] [CrossRef]
  29. Marin, E.; Lanzutti, A.; Paussa, L.; Guzman, L.; Fedrizzi, L. Long Term Performance of Atomic Layer Deposition Coatings for Corrosion Protection of Stainless Steel. Mater. Corros. 2015, 66, 907–914. [Google Scholar] [CrossRef]
  30. Marin, E.; Guzman, L.; Lanzutti, A.; Fedrizzi, L.; Saikkonen, M. Chemical and Electrochemical Characterization of Hybrid PVD+ALD Hard Coatings on Tool Steel. Electrochem. Commun. 2009, 11, 2060–2063. [Google Scholar] [CrossRef]
  31. Potts, S.E.; Schmalz, L.; Fenker, M.; Díaz, B.; Światowska, J.; Maurice, V.; Seyeux, A.; Marcus, P.; Radnóczi, G.; Tóth, L.; et al. Ultra-Thin Aluminium Oxide Films Deposited by Plasma-Enhanced Atomic Layer Deposition for Corrosion Protection. J. Electrochem. Soc. 2011, 158, C132–C138. [Google Scholar] [CrossRef]
  32. Díaz, B.; Härkönen, E.; Światowska, J.; Seyeux, A.; Maurice, V.; Ritala, M.; Marcus, P. Corrosion Properties of Steel Protected by Nanometre-Thick Oxide Coatings. Corros. Sci. 2014, 82, 208–217. [Google Scholar] [CrossRef]
  33. Mirhashemihaghighi, S.; Światowska, J.; Maurice, V.; Seyeux, A.; Zanna, S.; Salmi, E.; Ritala, M.; Marcus, P. Corrosion Protection of Aluminium by Ultra-Thin Atomic Layer Deposited Alumina Coatings. Corros. Sci. 2016, 106, 16–24. [Google Scholar] [CrossRef]
  34. Daubert, J.S.; Hill, G.T.; Gotsch, H.N.; Gremaud, A.P.; Ovental, J.S.; Williams, P.S.; Oldham, C.J.; Parsons, G.N. Corrosion Protection of Copper Using Al2O3, TiO2, ZnO, HfO2, and ZrO2 Atomic Layer Deposition. ACS Appl. Mater. Interfaces 2017, 9, 4192–4201. [Google Scholar] [CrossRef] [PubMed]
  35. Díaz, B.; Härkönen, E.; Maurice, V.; Światowska, J.; Seyeux, A.; Ritala, M.; Marcus, P. Failure Mechanism of Thin Al2O3 Coatings Grown by Atomic Layer Deposition for Corrosion Protection of Carbon Steel. Electrochim. Acta 2011, 56, 9609–9618. [Google Scholar] [CrossRef]
  36. Wan, Z.; Zhang, T.F.; Ding, J.C.; Kim, C.-M.; Park, S.-W.; Yang, Y.; Kim, K.-H.; Kwon, S.-H. Enhanced Corrosion Resistance of PVD-CrN Coatings by ALD Sealing Layers. Nanoscale Res. Lett. 2017, 12, 248. [Google Scholar] [CrossRef] [PubMed]
  37. Leppäniemi, J.; Sippola, P.; Broas, M.; Aromaa, J.; Lipsanen, H.; Koskinen, J. Corrosion Protection of Steel with Multilayer Coatings: Improving the Sealing Properties of Physical Vapor Deposition CrN Coatings with Al2O3/TiO2 Atomic Layer Deposition Nanolaminates. Thin Solid Films 2017, 627, 59–68. [Google Scholar] [CrossRef]
  38. Härkönen, E.; Kolev, I.; Díaz, B.; Światowska, J.; Maurice, V.; Seyeux, A.; Marcus, P.; Fenker, M.; Toth, L.; Radnoczi, G.; et al. Sealing of Hard CrN and DLC Coatings with Atomic Layer Deposition. ACS Appl. Mater. Interfaces 2014, 6, 1893–1901. [Google Scholar] [CrossRef]
  39. Kaady, E.; Alhussein, A.; Bechelany, M.; Habchi, R. Al2O3-ZnO Atomic Layer Deposited Nanolaminates for Improving Mechanical and Corrosion Properties of Sputtered CrN Coatings. Thin Solid Films 2022, 759, 139476. [Google Scholar] [CrossRef]
  40. Leppäniemi, J.; Sippola, P.; Peltonen, A.; Aromaa, J.J.; Lipsanen, H.; Koskinen, J. Effect of Surface Wear on Corrosion Protection of Steel by CrN Coatings Sealed with Atomic Layer Deposition. ACS Omega 2018, 3, 1791–1800. [Google Scholar] [CrossRef]
  41. Staszuk, M.; Pakuła, D.; Reimann, Ł.; Kloc-Ptaszna, A.; Pawlyta, M.; Kříž, A. Structure and Properties of TiO2/NanoTiO2 Bimodal Coatings Obtained by a Hybrid PVD/ALD Method on 316L Steel Substrate. Materials 2021, 14, 4369. [Google Scholar] [CrossRef] [PubMed]
  42. Billard, A.; Perry, F. Pulvérisation Cathodique Magnétron. In Matériaux|Trait. des Métaux; Techniques de l’ingénieur: Paris, France, 2005. [Google Scholar]
  43. Gautier, C.; Machet, J. Study of the Growth Mechanisms of Chromium Nitride Films Deposited by Vacuum ARC Evaporation. Thin Solid Films 1997, 295, 43–52. [Google Scholar] [CrossRef]
  44. Guan, J.J.; Wang, H.Q.; Qin, L.Z.; Liao, B.; Liang, H.; Li, B. Phase Transitions of Doped Carbon in CrCN Coatings with Modified Mechanical and Tribological Properties via Filtered Cathodic Vacuum Arc Deposition. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2017, 397, 86–91. [Google Scholar] [CrossRef]
  45. Lasalmonie, A.; Strudel, J.L. Influence of Grain Size on the Mechanical Behaviour of Some High Strength Materials. J. Mater. Sci. 1986, 21, 1837–1852. [Google Scholar] [CrossRef]
  46. Tong, C.-Y.; Lee, J.-W.; Kuo, C.-C.; Huang, S.-H.; Chan, Y.-C.; Chen, H.-W.; Duh, J.-G. Effects of Carbon Content on the Microstructure and Mechanical Property of Cathodic Arc Evaporation Deposited CrCN Thin Films. Surf. Coatings Technol. 2013, 231, 482–486. [Google Scholar] [CrossRef]
  47. Ruden, A.; Restrepo-Parra, E.; Paladines, A.U.; Sequeda, F. Corrosion Resistance of CrN Thin Films Produced by Dc Magnetron Sputtering. Appl. Surf. Sci. 2013, 270, 150–156. [Google Scholar] [CrossRef]
  48. Liao, B.; Luo, Z.; Wan, S.; Chen, L. Insight into the Anti-Corrosion Performance of Acanthopanax Senticosus Leaf Extract as Eco-Friendly Corrosion Inhibitor for Carbon Steel in Acidic Medium. J. Ind. Eng. Chem. 2023, 117, 238–246. [Google Scholar] [CrossRef]
Coatings 13 01017 g001 550

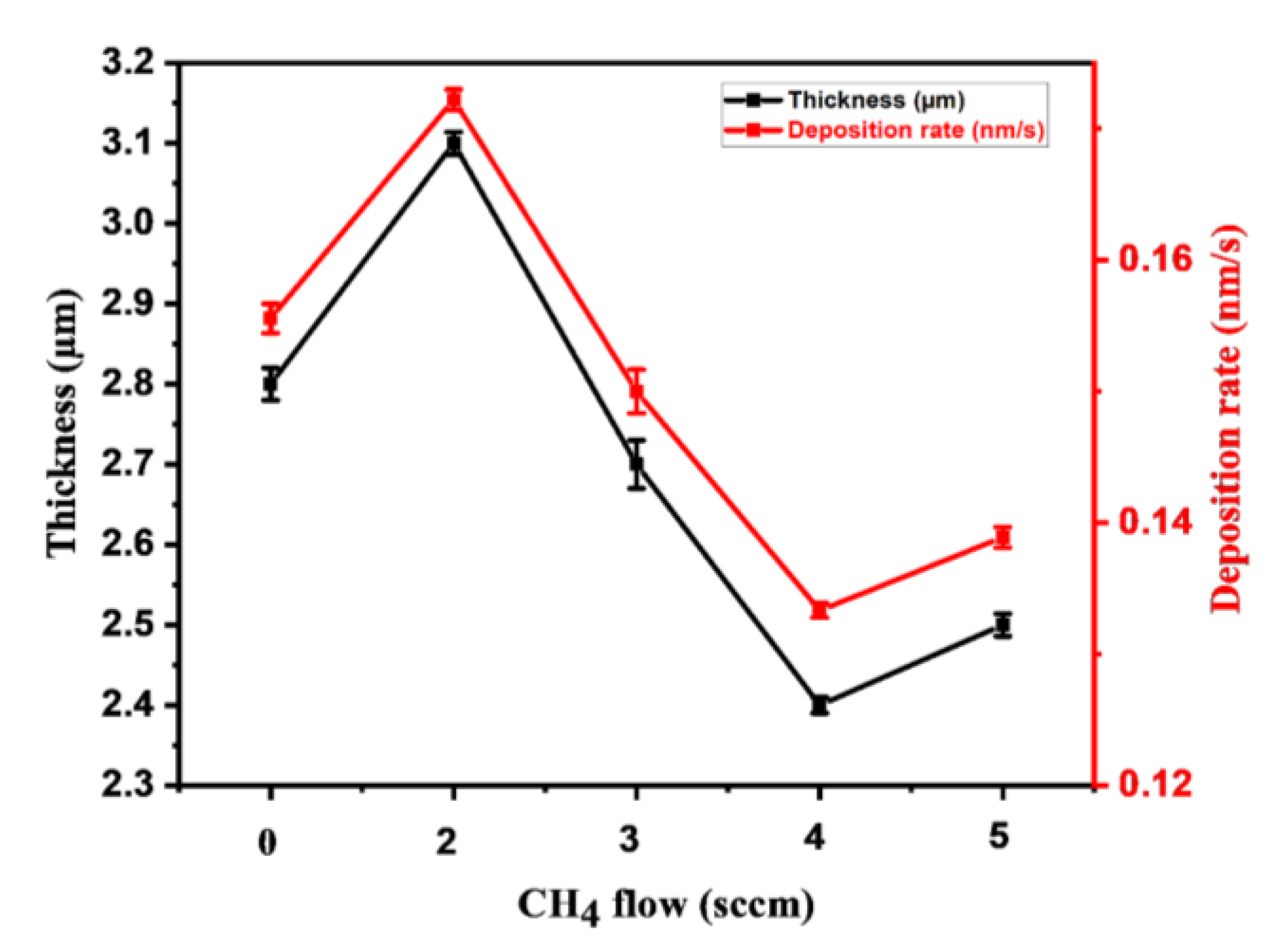

Figure 1. Film thickness and deposition rate variation as a function of CH4 flow.
Figure 1. Film thickness and deposition rate variation as a function of CH4 flow.
Coatings 13 01017 g001
Coatings 13 01017 g002 550
Figure 2. Surface, cross sectional SEM and AFM 2D images, respectively, of (a,f,k) CrN; (b,g,l) CrCN-2; (c,h,m) CrCN-3; (d,i,n) CrCN-4; and (e,j,o) CrCN-5 coatings.
Figure 2. Surface, cross sectional SEM and AFM 2D images, respectively, of (a,f,k) CrN; (b,g,l) CrCN-2; (c,h,m) CrCN-3; (d,i,n) CrCN-4; and (e,j,o) CrCN-5 coatings.
Coatings 13 01017 g002
Coatings 13 01017 g003 550
Figure 3. SEM surface and cross section images, and 2D AFM images with Rq values of (a,d,g) CrCN-2/ALD; (b,e,h) CrCN-4/ALD; and (c,f,i) CrCN-5/ALD coatings, respectively.
Figure 3. SEM surface and cross section images, and 2D AFM images with Rq values of (a,d,g) CrCN-2/ALD; (b,e,h) CrCN-4/ALD; and (c,f,i) CrCN-5/ALD coatings, respectively.
Coatings 13 01017 g003
Coatings 13 01017 g004 550

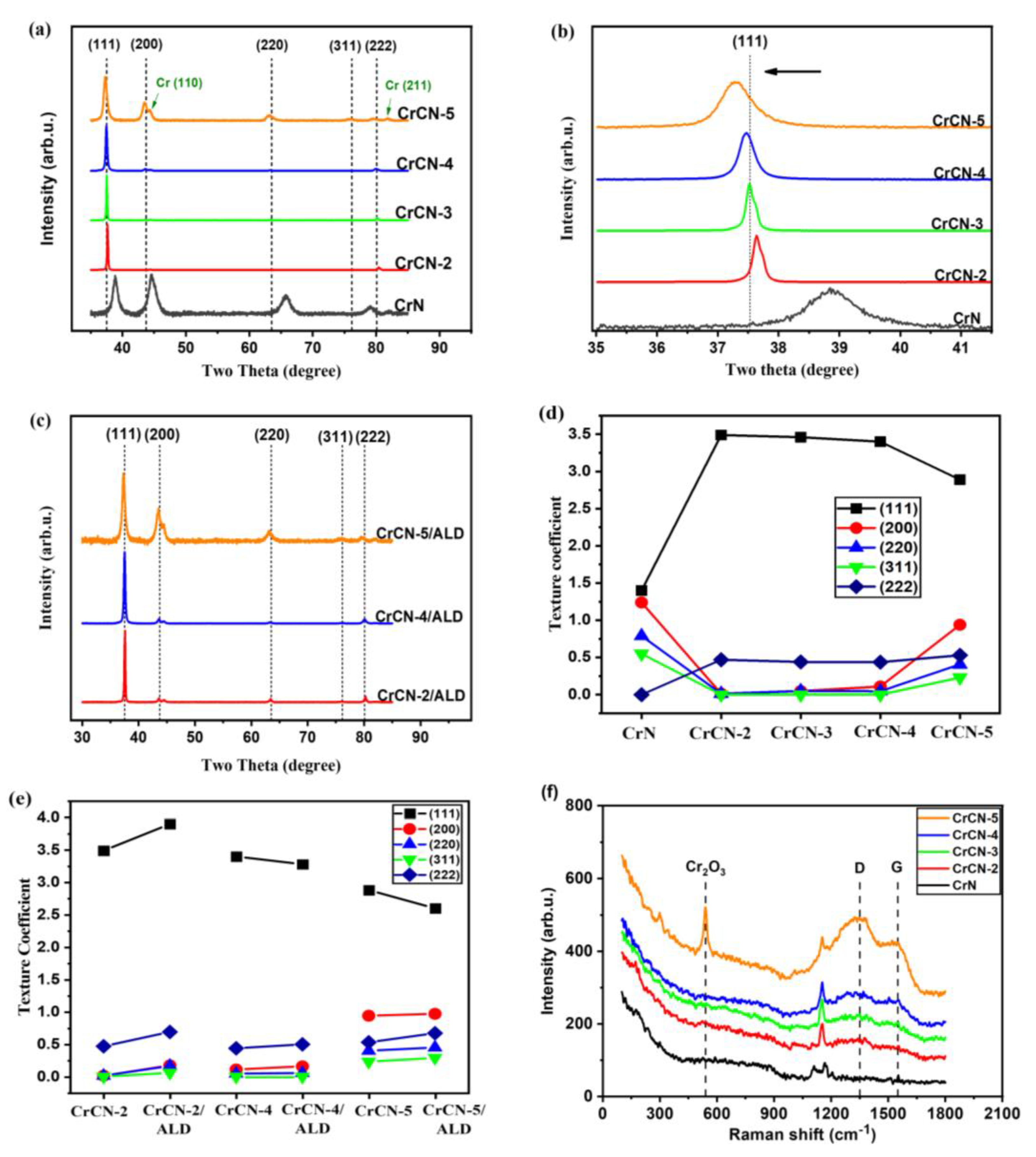

Figure 4. XRD diffractograms and texture coefficient variations of (a,b,d) CrN, CrCN-2, to CrCN-5 and (c,e) CrCN/ALD duplex coatings. (f) Raman spectra of CrN and CrCN-2 to CrCN-5 coatings.
Figure 4. XRD diffractograms and texture coefficient variations of (a,b,d) CrN, CrCN-2, to CrCN-5 and (c,e) CrCN/ALD duplex coatings. (f) Raman spectra of CrN and CrCN-2 to CrCN-5 coatings.
Coatings 13 01017 g004
Coatings 13 01017 g005 550
Figure 5. Hardness and reduced Young’s modulus: (a) as a function of CH4 flow rate and (b) for different coatings.
Figure 5. Hardness and reduced Young’s modulus: (a) as a function of CH4 flow rate and (b) for different coatings.
Coatings 13 01017 g005
Coatings 13 01017 g006 550
Figure 6. Water contact angles of (a) CrN; (b) CrCN-3; (c) CrCN-2; (d) CrN-4; (e) CrCN-5; (f) CrCN-2/ALD; (g) CrCN-4/ALD; and (h) CrCN-5/ALD coatings.
Figure 6. Water contact angles of (a) CrN; (b) CrCN-3; (c) CrCN-2; (d) CrN-4; (e) CrCN-5; (f) CrCN-2/ALD; (g) CrCN-4/ALD; and (h) CrCN-5/ALD coatings.
Coatings 13 01017 g006
Coatings 13 01017 g007 550

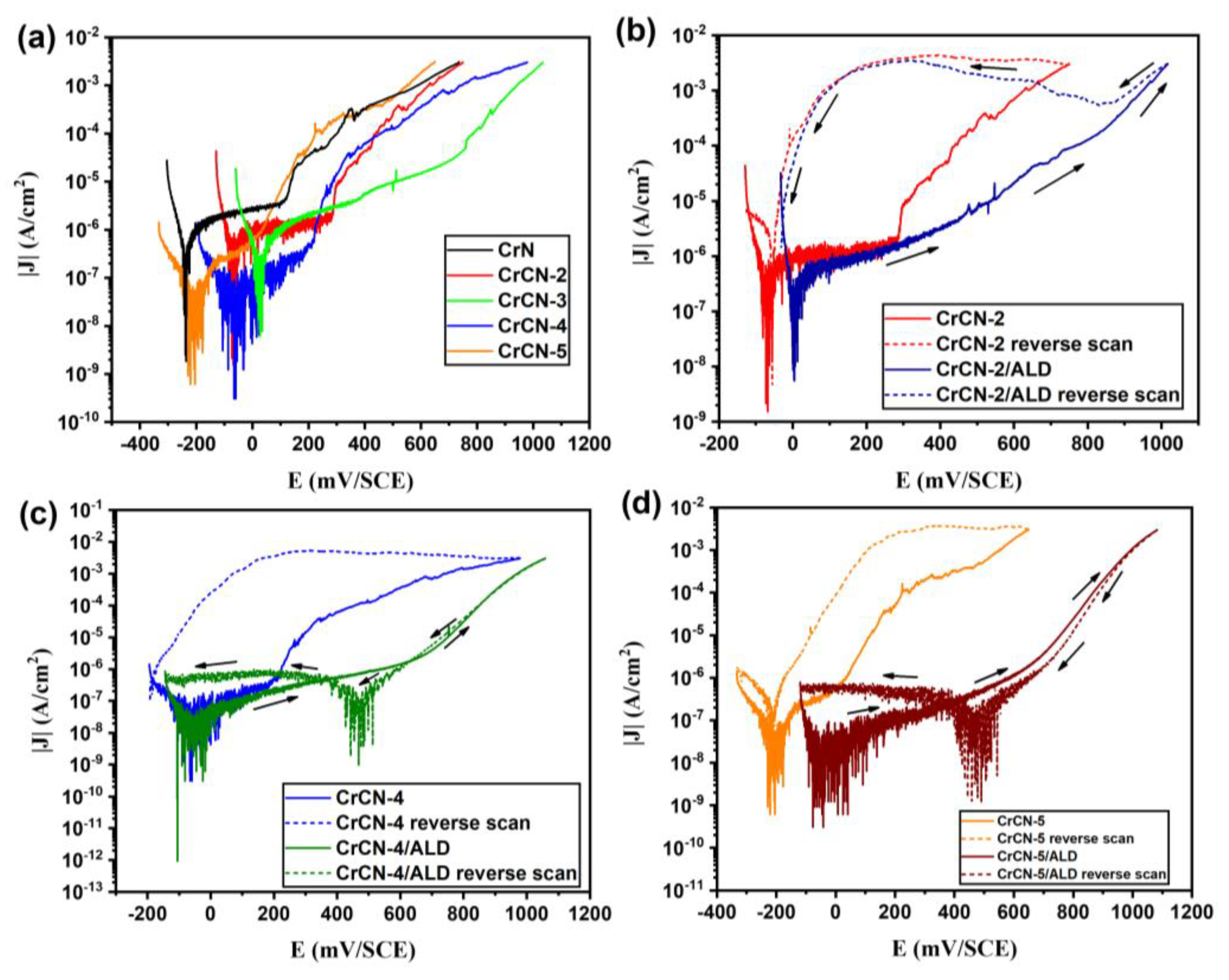

Figure 7. (a–d) Cyclic polarization curves of coatings tested in a 3.5 wt.% NaCl solution.
Figure 7. (a–d) Cyclic polarization curves of coatings tested in a 3.5 wt.% NaCl solution.
Coatings 13 01017 g007
Table
Table 1. Chemical composition of CrCN coatings.
Table 1. Chemical composition of CrCN coatings.
CoatingsCH4 Flow (sccm)Elemental Composition (at.%)
Er (C, N, O) ~ 5% Er (Cr) ~ 3%		C/N(C+N)/Cr
CrNCO
CrN -5838-4-0.7
CrCN-2 243361740.51.3
CrCN-3 336362170.61.6
CrCN-4 434342750.81.8
CrCN-5 530382840.72.2
CrCN-2/ALD 2224522110.53.1
CrCN-4/ALD 424442480.52.8
CrCN-5/ALD 528382950.82.3
Table
Table 2. Crystallite size and lattice parameter of the different coatings.
Table 2. Crystallite size and lattice parameter of the different coatings.
SampleCrNCrCN-2CrCN-3CrCN-4CrCN-5CrCN-2/ALDCrCN-4/ALDCrCN-5/ALD
Crystallite Size (nm) 9 ± 146 ± 149 ± 130 ± 114 ± 139 ± 130 ± 115 ± 1
Lattice parameter (Å) 4.0114.1374.1504.1574.1744.1484.1524.171
Table
Table 3. H and Er values of the different coatings.
Table 3. H and Er values of the different coatings.
SampleCrNCrCN-2CrCN-3CrCN-4CrCN-5CrCN-2/ALDCrCN-4/ALDCrCN-5/ALD
H (GPa)19 ± 111 ± 115 ± 220 ± 219 ± 114 ± 119 ± 119 ± 1
Er (GPa)220 ± 5172 ± 8160 ± 10181 ± 8167 ± 3158 ± 4192 ± 8170 ± 5
Table
Table 4. Electrochemical parameters of the different coatings.
Table 4. Electrochemical parameters of the different coatings.
SampleCrNCrCN-2CrCN-3CrCN-4CrCN-5CrCN-2/ALDCrCN-4/ALDCrCN-5/ALD
Ecorr (mV/SCE)−238−826−59−2074−56−50
Jcorr (×10−8 A·cm−2)7960482.55431.51.2
βc (mV/decade)28235683119125638
βa (mV/decade)300385234190130500148370
Rp (kΩ·cm2)323695228312302726552945
Epit (mV/SCE)1222857632248918666662
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kaady, E.; Sayegh, S.; Bechelany, M.; Habchi, R.; Alhussein, A. A Comparative Study on the Influence of Al2O3-ZnO ALD Nanolaminates on the Properties of CrCN PVD Sputtered Coatings with Distinctive Morphologies and Microstructures. Coatings 2023, 13, 1017. https://doi.org/10.3390/coatings13061017

AMA Style

Kaady E, Sayegh S, Bechelany M, Habchi R, Alhussein A. A Comparative Study on the Influence of Al2O3-ZnO ALD Nanolaminates on the Properties of CrCN PVD Sputtered Coatings with Distinctive Morphologies and Microstructures. Coatings. 2023; 13(6):1017. https://doi.org/10.3390/coatings13061017

Chicago/Turabian Style

Kaady, Elias, Syreina Sayegh, Mikhael Bechelany, Roland Habchi, and Akram Alhussein. 2023. "A Comparative Study on the Influence of Al2O3-ZnO ALD Nanolaminates on the Properties of CrCN PVD Sputtered Coatings with Distinctive Morphologies and Microstructures" Coatings 13, no. 6: 1017. https://doi.org/10.3390/coatings13061017

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
