3.1.1. Time Dependence of SRB Corrosion

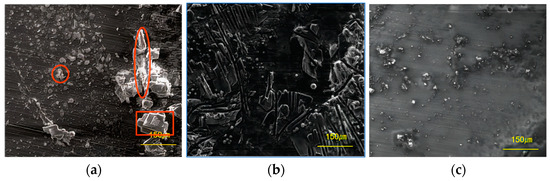

Figure 2 depicts typical SEM micrographs showing the morphologies of BG L450OQO-RCB pipe steel sample surfaces after corrosion in the growth medium with SRB concentration of approximately 104 cells/mL at 40 °C for varying immersion times. After 5 days of immersion testing (
Figure 2a), the surface of the sample exhibited corrosion products of diverse sizes and shapes. It displayed dark gray spherical products (red circular mark), bright diamond-shaped products (red rectangular mark), and strip-like products (red oval mark). After 10 days of corrosion (
Figure 2b), there was a decrease in the presence of gray spherical products, while the presence of strip and diamond-shaped products increased. After 20 days of corrosion (
Figure 2c), the diamond and strip products were nearly imperceptible, unlike the bright spherical products, which exhibited a scattered distribution across the surface of the steel sample.

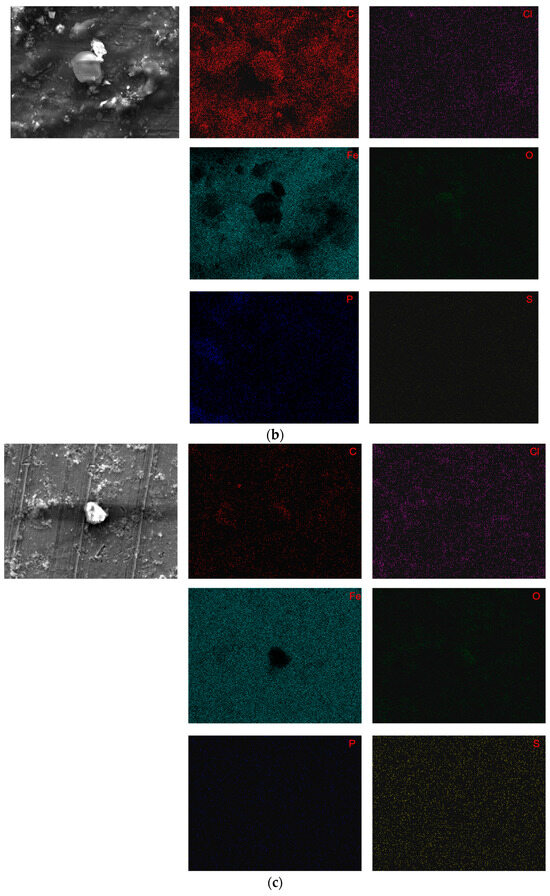

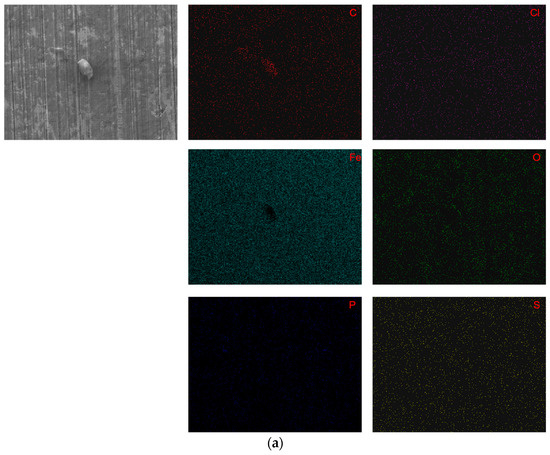

Figure 3 displays typical results of EDS mapping of BG L450OQO-RCB pipe steel surfaces after corrosion in the bacterial liquid with SRB concentration of approximately 104 cells/mL at 40 °C for varying durations. After 5 days of immersion testing (
Figure 3a), the surface of the sample exhibited limited products, primarily gray coverage, along with a small quantity of ellipsoidal products (red spherical markers). C, Cl, Fe, O, and S were the elements detected on the sample surface. The oval product was labeled as spherical and did not contain Fe but contained high concentrations of O and C elements. It was speculated that it was extracellular polymer (EPSs) produced by SRB. The distribution of O, S, Cl, and C was relatively uniform, indicating the presence of chloride and FeS corrosion product on the sample surface. After 10 days of corrosion (
Figure 3b), there was an increase in corrosion products. These could be categorized into gray irregular shapes and bright irregular shapes mixed together based on their appearance and brightness. The surface composition primarily indicated the presence of C, Cl, Fe, and O elements. The surface product was poor in Fe but rich in C and O, leading to speculation that it was mainly composed of SRB-EPSs. According to the Cl distribution map, there was a presence of chloride on the steel surface. After 20 days of corrosion (
Figure 3c), small and bright product were present on the steel surface. By comparing the distribution of elements, SRB-EPSs were mainly present in one part of this surface. The other part of the surface was covered with chloride and FeS corrosion products.

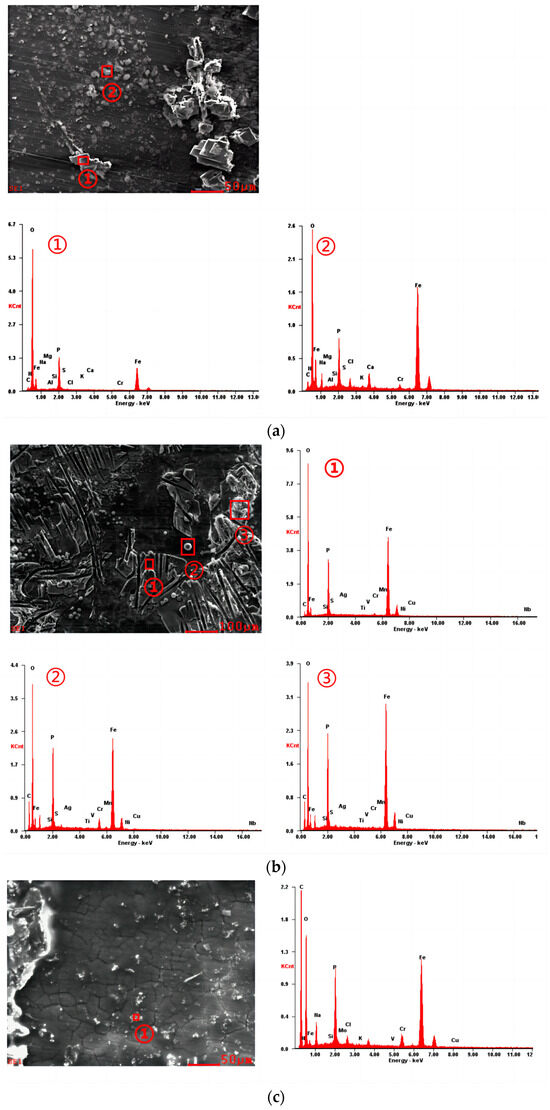

Figure 4 and
Table 2 display EDS point analyses of BG L450OQO-RCB pipe steel surfaces after corrosion in the bacterial liquid with SRB concentration of approximately 104 cells/mL at 40 °C for varying durations. Despite SRB metabolism producing O, the oxygen peak observed in EDS was notably strong. This phenomenon could be attributed to surface oxidation occurring after corrosion and before SEM-EDS analysis. After 5 days of corrosion (
Figure 4a), the surface exhibited irregular-sized product aggregation areas, with the majority being diamond-shaped, along with scattered distribution areas. EDS analysis in point 1 indicated that the diamond product was primarily composed of P and Fe, suggesting it to be a Fe-P compound. The analysis in point 2 suggested that irregular gray products comprised elements such as P, Fe, Cl, Ca, and Na. Hence, the gray area was presumed to be a chloride-based corrosion product. After 10 days of corrosion (
Figure 4b), although the shapes of the surface products analyzed at points 1, 2, and 3 varied, they all contained P and Fe. The intensity of C peaks in EDS spectra derived at points 1 and 2 was higher than that obtained from the sample surfaces after 5 days of corrosion. After 20 days of corrosion (
Figure 4c), significant changes in surface morphology were observed, with the presence of a uniform surface corrosion product. The EDS spectrum taken at point 1 exhibited strong Na, Cl, and Fe peaks and relatively weak C and P peaks, indicating that the surface was primarily composed of chlorides. The corrosion caused by SRB gradually intensified up to 10 days. In other words, between 0 and 10 days of immersion, there was a gradual increase in the number of surface products. However, from 10 to 20 days of immersion, the environmental corrosion on the steel surfaces intensified, resulting in the formation of a chloride product film that hindered the corrosion caused by SRB.
Table 3 displays the solution composition (mg/L) after the corrosion of steel samples in bacterial liquid with an SRB concentration of 104 cells/mL at 40 °C for different immersion times. As the corrosion time increased, the pH value remained stable, and the concentration of sulfate ions gradually increased. The content of Na+ and Cl
− ions initially decreased and then increased with corrosion time. Conversely, the concentrations of Ca
2+ and Mg
2+ initially increased and then decreased with the corrosion time. The presence of Fe ions was detected only after 10 days of corrosion. Throughout the corrosion process, both SRB corrosion and chemical corrosion (Cl
− corrosion) occurred concurrently. After 20 days of corrosion, the pH value increased and the content of sulfate ions increased, indicating reduced consumption. This suggested that after 20 days of corrosion, the activity of SRB decelerated and SRB corrosion weakened. Conversely, after 10 days of corrosion, the content of Cl
− in the solution was the lowest, indicating that the Cl
− corrosion was the strongest at this moment. Cl
− corrosion was weak after 5 and 20 days of corrosion. However, after 10 days of corrosion, the content of Mg
2+ and Ca
2+ in the solution was the highest, indicating less consumption and suggesting that the calcium and magnesium deposition was the least pronounced at the 10-day mark.
3.1.2. Temperature Dependence of SRB Corrosion
In

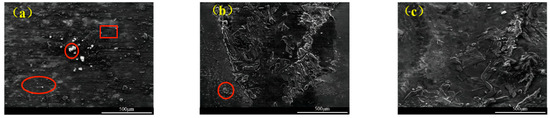

Figure 5, the SEM micrographs illustrate surface morphologies of BG L450OQO-RCB pipe steel samples after 10 days of corrosion in bacterial liquid with SRB concentration of 104 cells/mL at various temperatures. The types, morphology, distribution, and density of surface products on the steel samples after SRB corrosion at different temperatures exhibited variations. After corrosion at 25 °C (
Figure 5a), the sample surface exhibited three surface products distinguished by different colors: extremely bright irregular shapes (circular mark), gray flocculent areas (rectangular mark), and the scattered distribution of medium-bright and extremely small spherical particles (elliptical mark). After corrosion at 40 °C (
Figure 5b), the sample’s surface contained not only extremely small spherical particles (circular marks) similar to those in
Figure 5a but also bright and dark strips (rectangular marks). After corrosion at 60 °C (
Figure 5c), there were no particularly bright irregular shapes observed on the surface, unlike in the case of
Figure 5a. Instead, a small number of extremely small spherical particles (elliptical mark) similar to the medium-bright particles in
Figure 5a were observed. These particles were connected with the bright and dark strips (rectangular marks) seen in
Figure 5b, forming pieces that appeared cracked (rectangular marks).

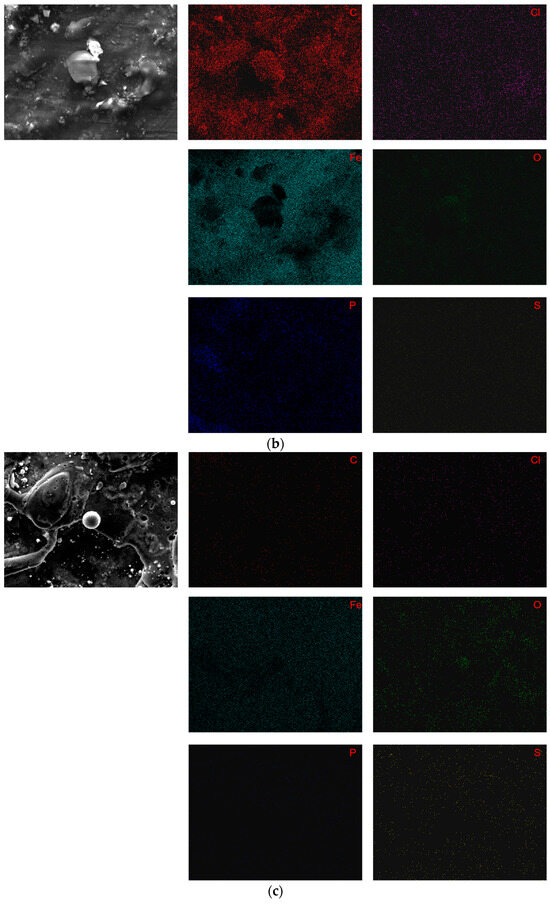

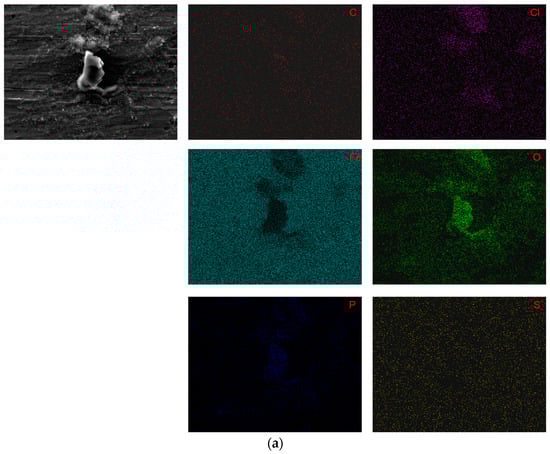

Figure 6 depicts the EDS mapping of BG L450OQO-RCB pipe steel sample surfaces after 10 days of corrosion in bacterial liquid with SRB concentration of 104 cells/mL at various temperatures. The brightness in the element distribution maps corresponded to higher element content. The distribution of the Cl element was non-uniform. At point 2 (where the gray edge was flocculent aggregates), there was an increase in brightness, indicating higher Cl content. The brightness distribution of the Fe element was relatively even, except at points 1 and 2. The distribution characteristic of the O element was similar to that of the C element, with an even distribution and the highest brightness observed at points 1 and 2. The P element was only detected at points 1 and 2, with a very low content and weak brightness. The distribution of S elements across the entire observation area was relatively uniform. The presence of S elements may originate from the solution or from the SRB metabolism. The P element was solely found at point 1 with low content, indicating that the P element did not originate from the solution. At point 1, the content of the Fe element was very low, while the contents of C and O elements were high. This suggested that the surface product at point 1 was primarily composed of SRB extracellular polymer substances (EPSs). Furthermore, the slightly bright floccules around the dark and gray matter at points 1 and 2 corresponded to the Cl element, indicating that chloride product was distributed around the SRB-EPSs.
After corrosion at 40 °C (
Figure 6b), the content of the C element on the surface of the sample was low. The distribution of the Cl element was relatively uniform, with no obvious bright area observed. The distribution of the Fe element was non-uniform, and the element content was low in the gray area. The distribution of the O element was similar to that of the Fe element, appearing non-uniform with low element content in the gray area. The brightness of the P element was very weak across the entire detection area. Similarly, the distribution of S elements was relatively uniform, although the brightness was also relatively weak. The S element appeared relatively uniform but with weak brightness. This suggested that as the temperature increased, the presence of the surface sulfide film formed during the immersion of the sample decreased. The low content of the Fe element and the high content of the C and O elements indicated the presence of SRB-EPSs, with significantly increased content compared to corrosion at 25 °C. There was no significant change in the distribution of chloride.
After corrosion at 60 °C (
Figure 6c), the brightness of the C element on the surface of the sample decreased significantly, and the distribution was sparse, indicating a reduction in SRB-EPSs and a decrease in SRB activity. The distribution of the Cl element was relatively uniform, with no obvious highlighted area. Compared to 20 and 40 °C, the brightness of Cl was reduced, suggesting a reduction in chloride content. The distribution of the Fe element was more uniform. The distribution of the O element was not uniform, with high brightness and the content of the O element observed at the product area. The brightness of the P element remained very weak across the entire detection area. Similarly, the distribution of S elements was relatively uniform, albeit with weak brightness. In summary, SRB activity was highest at 40 °C, followed by 20 °C, and relatively low at 60 °C.

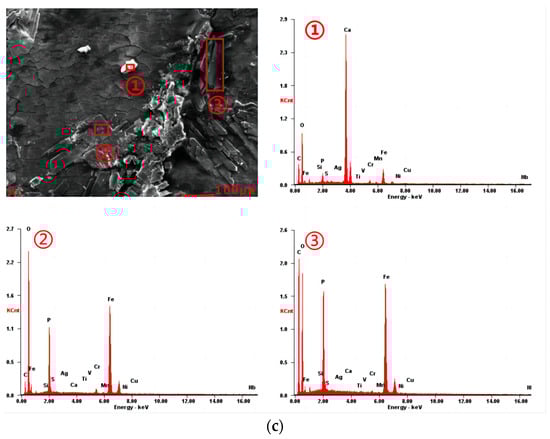

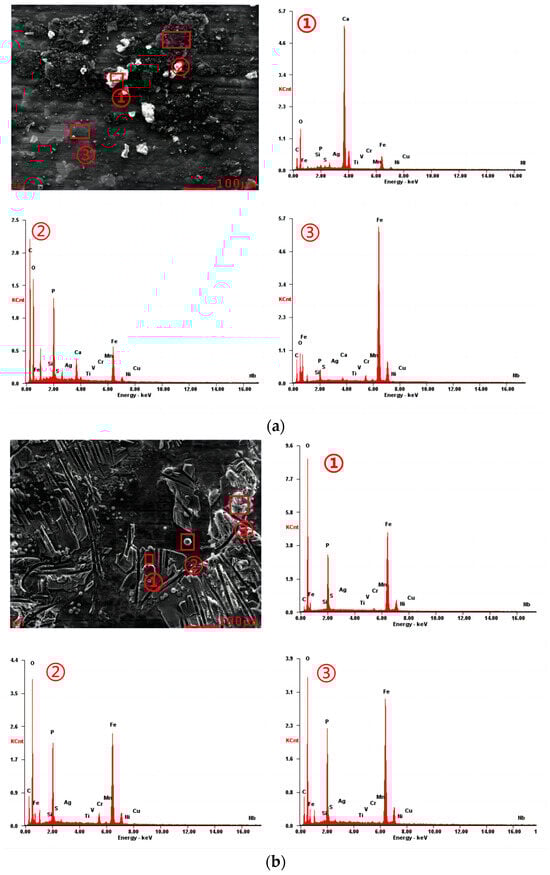

Figure 7 and
Table 4 display the EDS point analysis of the BG L450OQO-RCB pipe steel surface after 10 days of corrosion in bacterial liquid with an SRB concentration of 104 cells/mL at varying temperatures. After corrosion at 25 °C (
Figure 7a), the irregularly shaped substance with high brightness at point 1 exhibited strong intensity of the Ca peak, indicating the formation of a calcium-rich product. The dark gray area at position 2 contained very small dispersions, mainly consisting of C, O, P, and Fe peaks, inferred to be SRB-EPSs. The color at point 3 is lighter, indicating a lower Fe peak intensity. After corrosion at 40 °C (
Figure 7b), strong peaks of Fe and P were observed at point 1 with light and dark stripes, point 2 with spherical particles, and point 3. These features were presumed to be indicative of iron phosphide. After corrosion at 60 °C (
Figure 7c), the highlighted irregular-shaped objects at point 1 mainly showed a strong Ca peak, with a secondary C peak, speculated to be the calcium-rich product. The object at point 2 could be the iron phosphide because P and Fe peaks were identified in this point. The objects at point 3 were suggested to be a combination of SRB-EPSs and iron phosphide due to the darker color than that at point 2, and they contained C, O, P, and Fe peaks.
Table 5 presents the composition of the corrosion solution obtained after corrosion of BG L450OQO-RCB pipe steel surfaces in bacterial liquid with SRB concentration of 104 cells/mL for 10 days at different temperatures. The pH value remained relatively stable at 25 and 40 °C but increased slightly after corrosion at 60 °C. The difference in the content of Na
+ and K
+ at 25 and 40 °C was minimal, with a decrease observed at 60 °C. The content of Ca
2+ in the solution decreased with the increase in temperature after corrosion, with little difference between 25 and 40 °C. However, the content of Ca
2+ in the solution decreased significantly by 19% after corrosion at 60 °C. On the other hand, the content of Mg
2+ in the solution remained relatively stable after corrosion at 25 and 40 °C but increased significantly after corrosion at 60 °C. Sulfide ions (S
2−) were not detected at different temperatures. The content of Cl
− in the solution remained stable after corrosion at 25 and 40 °C but decreased after corrosion at 60 °C. Similarly, the content of
in the solution remained stable after corrosion at 25 and 40 °C but increased after corrosion at 60 °C.

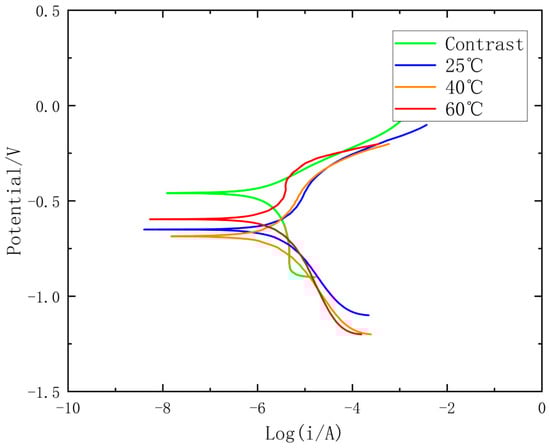

Figure 8 displays the polarization curves of BG L450OQO-RCB pipe steel samples before SRB corrosion and after corrosion at various temperatures. The corrosion current density of the sample before corrosion was −5.320 μA/cm
2, with an electrode potential of −0.456 V.
Table 6 presents the fitting results of the polarization curve of BG L450OQO-RCB pipe steel samples after corrosion in bacterial liquids with SRB concentration of 104 cells/mL for 20 days at different temperatures. Notably, there was no passivation zone observed in BG L450OQO-RCB pipe steel samples at various temperatures, indicating that steel consistently remained in an activated state. However, the electrode potential and current density varied at different temperatures. At 40 °C, BG L450OQO-RCB pipe steel exhibited a maximum potential of 0.678 V and a current density of 6.213 μA/cm
2, followed by those at 25 °C. When the temperature was 60 °C, the polarization potential and the current density were the lowest. This suggested that the corrosion rate, the polarization potential, and the current density were highest after corrosion at 40 °C, followed by those at 25 °C and finally at 60 °C.
