Uncovering the Genetic of Cadmium Accumulation in the Rice 3K Panel

by
Chien-Hui Syu
1,
Ting-Iun Nieh
2,
Meng-Ting Hsieh
2,
Yu-Ching Lo
1,
Pei-Rong Du
2,
Yu-Wen Lin
1 and
Dong-Hong Wu
2,*
1
Agricultural Chemistry Division, Taiwan Agricultural Research Institute, Council of Agriculture, Executive Yuan, Taichung City 413008, Taiwan
2
Crop Science Division, Taiwan Agricultural Research Institute, Council of Agriculture, Executive Yuan, Taichung City 413008, Taiwan
*
Author to whom correspondence should be addressed.
Plants 2022, 11(21), 2813; https://doi.org/10.3390/plants11212813
Submission received: 25 August 2022 / Revised: 1 October 2022 / Accepted: 19 October 2022 / Published: 22 October 2022
(This article belongs to the Special Issue Opportunities and Challenges in Plant Germplasm)
Browse Figures
Versions Notes

Abstract

:
Because Cadmium (Cd) is harmful to humans, and most non-smokers are exposed to Cd mainly through rice consumption, low-Cd rice breeding is urgently needed. It might not be possible to apply variation created using gene editing technology to breeding directly, so it is important to explore genetic variation in this trait in a natural population. In this study, variation in 4 genes was identified among 3024 accessions from the International Rice Research Institute 3000 Rice Genome Project (IRRI 3K-RGP) and 71 other important varieties, and the relationships between the variants and plant Cd accumulation were validated with hydroponic and pot experiments. Variants in OsNRAMP1, OsNRAMP5, OsLCD, and OsHMA3 were grouped into two, four, three, and two haplotypes, respectively. Fourteen combinations of these haplotypes, which were referred to as Cd-mobile types, were found in the collection. Of these, type 14 was shown to have the greatest potential for low-Cd accumulation, and functional markers for this type were designed. The results of this study provide an important resource for low-Cd rice breeding and highlight an effective strategy for pre-breeding programs.

1. Introduction

Cadmium (Cd) is a heavy metal that is harmful to many human organs, such as the kidney and liver, and it can affect the immune system and fertility and even cause cancer [1,2,3,4]. Most non-smokers are mainly exposed to Cd through ingestion. Rice (Oryza sativa L.), an important staple food with an average Cd content of about 0.025 mg kg−1, is one of the main sources of Cd intake [5,6]. Rice plants take up Cd primarily from soils, and Cd contamination of soil has increased with industrial development [6]. Therefore, to ensure food safety, there is an urgent need to develop approaches to reduce Cd uptake such as developing low-Cd rice varieties [7].
In addition to reducing the bioavailability of Cd in soil through agricultural practices such as water management and soil pH adjustment [8], low-Cd rice breeding is an important strategy [9]. There are three main processes responsible for the accumulation of Cd in rice grains. First, Cd is absorbed by roots. Second, Cd is loaded into and transported through the xylem. Finally, Cd is transferred from the xylem to phloem at nodes and undergoes internode phloem transport [10,11,12]. Although the molecular mechanisms underlying these processes have not been revealed, several genes related to Cd accumulation have been identified. OsNRAMP1 and OsNRAMP5, genes in the natural resistance-associated macrophage protein (NRAMP) family, were shown to play important roles in Cd uptake [7,13]. Both encode transporters located on the plasma membrane and play a role in Cd uptake and transport; unlike OsNRAMP1, which is located on the plasma membrane, OsNRAMP5 is localized at the distal side of the exodermis and endodermis cells in roots [14,15]. OsHMA3, which belongs to another gene family, Heavy Metal ATPase (HMA), is involved in Cd translocation, and encodes a transporter located at the tonoplast in root cells [16]. Miyadate et al. [17] suggested that Cd is sequestered into vacuoles in root cells through an OsHMA3-mediated pathway, resulting in restricted Cd transport from roots to shoots. OsHMA2, a homolog of OsHMA3, is also believed to be involved in root-to-shoot Cd transport [18]. It is localized to the plasma membrane of pericyclic cells in roots and the phloem parenchyma and companion cells in nodes, and it mediates the loading of Cd into xylem and phloem [19]. Low-affinity Cation Transporter 1 (OsLCT1) and Low Cadmium (OsLCD) were shown to be important for grain Cd accumulation. OsLCT1 encodes a plasma membrane protein and an efflux-type transporter mainly expressed in leaf blades and nodes [20]. OsLCD encodes a protein expressed in vascular tissue, and it was suggested to participate in Cd transport [21].
In addition to validating the functions of these genes by performing experiments on transgenic lines or gene-edited rice, researchers have mapped several quantitative trait loci (QTLs) for Cd-accumulation in grains in segregating populations. For example, qCd1, 2, 3, 7, 9, and 10 were mapped in an F6 recombinant inbred line (RIL) population derived from a cross between Bala (indica) and Azucena (japonica) [22]; qGCd2 and qGCd7 were mapped in a backcross BC1F2 population derived from the recurrent parent Sasanishiki (japonica) and donor parent Habataki (indica) [23]; qCd7 was mapped in an F2 population derived from Cho-Ko-Koku (indica) and Akita 63 (japonica) [24]; qCdp7 was mapped in a BC1F6 population derived from the recurrent parent Koshihikari (japonica) and donor parent Jarjan (indica) [25]; and an unnamed QTL was mapped in an F2 population derived from Anjana Dhan (indica) and Nipponbare (japonica) [26]. Interestingly, many of these QTLs mapped to the short arm of chromosome 7, and OsNRAMP1, OsNRAMP5, and OsHMA3 are also located in this region [7,16,26]. Therefore, this region is regarded as a hot spot of Cd-accumulation genes. These findings revealed the rich genetic diversity in Cd accumulation between varieties, which would benefit low-Cd accumulation rice breeding.
Several studies have been dedicated to producing low-Cd rice based on these findings, but few studies have screened the genetic diversity of Cd accumulation-related genes in natural populations. Tian et al. [27] constructed three LHZ transgenic rice lines co-expressing OsLCT1, OsHMA2, and OsZIP3 and found that Cd accumulation was lower in the LHZ lines compared with that in wild type. In another study, OsNRAMP5 was knocked out using clustered regularly interspaced short palindromic repeat/Cas9 (CRISPR/Cas9) technology, and the Cd concentrations in shoots, roots, and grains of the resulting transgenic indica rice lines were lower than those in wild type [28]. Yang et al. [29] also used CRISPR/Cas9 technology to knock out OsNRAMP5, and in the resulting transgenic japonica rice lines, Cd accumulation was reduced in flag leaves and grains. However, other agronomy traits were also affected, which slightly reduced the grain yield of these plants. To solve this problem, the authors suggested that soil pH and soil water be monitored carefully when planting the OsNRAMP5 knockout rice to maintain the manganese (Mn) availability in the soil; this is because OsNRAMP5 was also found to be the major transporter participating in transport of this essential micronutrient. Wang et al. [30] constructed three sets of near isogenic lines (NILs) with marker-assisted backcrossing (MABC) for which the donor was the japonica variety IRTA129 and the recipients were the indica varieties 9311, H611, and H819. They determined the OsHMA3-OsNRAMP5-OsNRAMP1 haplotype of each plant, and eight plants from a single NIL were chosen. These plants were homozygous for the IRTA129-type OsHMA3-OsNRAMP5-OsNRAMP1 haplotype and showed lower Cd and higher Mn contents in brown grains than NILs with other haplotypes. They also showed improvement in some agronomic traits, including days to heading, number of panicles per plant, and yield per plant.
The development of sequencing technology has enabled the generation of a large amount of rice genetic data, which is now shared on public databases, such as the National Center for Biotechnology Information (NCBI, https://www.ncbi.nlm.nih.gov/, accessed on 1 January 2020), Rice Annotation Project Database (RAP-DB, https://rapdb.dna.affrc.go.jp/, accessed on 1 January 2020), and Rice SNP-Seek Database (https://snp-seek.irri.org/, accessed on 1 January 2020). This allows scientists to easily share genetic resources and greatly benefits plant research.
In our previous study, we constructed a low-Cd indica line, TCS10-OsNRAMP1, using MABC. Specifically, the low Cd uptake allele of OsNRAMP1 was introgressed from the japonica cultivar Tai Keng 2 (TK2) into the indica cultivar Taichung Sen 10 (TCS10). The level of Cd accumulation in TCS10-OsNRAMP1 was 42.2% lower than that in TCS10, but other traits observed in TCS10-OsNRAMP1 were similar to those in TCS10; this line reduces the risk of Cd intake from indica rice consumption and promotes food safety [31]. To identify more genetic resources for low-Cd rice breeding, here we identified variation in four genes, OsNRAMP1, OsNRAMP5, OsLCD, and OsHMA3, in 71 varieties that are popular or important in Taiwan and 3024 rice accessions from the International Rice Research Institute 3000 Rice Genome Project (IRRI 3K-RGP, https://snp-seek.irri.org/_snp.zul, accessed on 1 January 2020). Then, the association between haplotype and plant Cd uptake and accumulation was investigated, and functional markers were designed.

2. Results

2.1. Genotype Organization

Four genes were used as queries in searches of the IRRI 3K-RGP dataset, where Nipponbare was defined as the reference genome. OsHMA3 (Os07g0232900), OsNRAMP1 (Os07g0258400), and OsNRAMP5 (Os07g0257200) are located in the major QTL qCdT7 on chromosome 7, and OsLCD (Os01g0956700) is located on chromosome 1. Using the sequence data for 3024 varieties, genotypes of these genes were grouped into several haplotypes (Figure 1A). Genotypes with complete sequences, which were related to high Cd accumulation, were defined as Hap1; all other haplotypes were responsible for low Cd accumulation phenotypes. OsHMA3 was found to be 2082 bp long, consist of 13 exons and 12 introns, and have 5′- and 3′-untranslated regions (UTRs) with lengths of 84 bp and 441 bp, respectively. The OsHMA3 genotypes could be divided into two haplotypes, ATT and GGC, according to a SNP in exon 1. However, none of the easily transportable genotypes described in Yan et al. (i.e., any combination of the following three variants: substitution at amino acid 80, substitution at amino acid 380, and insertion–deletion (InDel) at amino acids 826–878) [32] were found.
OsNRAMP1 was found to be 2995 bp long, consist of 13 exons and 12 introns, and have 5′- and 3′-UTRs with lengths of 266 bp and 376 bp, respectively. Genotypes of OsNRAMP1 were divided into two haplotypes according to a 406 bp deletion in the promoter. There was a clear difference in the distributions of the two haplotypes between the two major subspecies indica and japonica. The frequency of OsNRAMP1-Hap1 in indica was higher than 90%, while that of OsNRAMP1-Hap2 in japonica was higher than 85% (Figure 1B, Table S2).
OsNRAMP5 was found to be 2006 bp long, consist of 13 exons and 12 introns, and have 5′- and 3′-UTRs with lengths of 96 bp and 293 bp, respectively. Genotypes of OsNRAMP5 were classified into four haplotypes. OsNRAMP5-Hap2 had a C/T SNP in exon 13, OsNRAMP5-Hap3 had a 3 bp deletion in exon 7, and OsNRAMP5-Hap4 had a 13 bp deletion in intron 13. OsNRAMP5-Hap1 and OsNRAMP5-Hap4 were the most common haplotypes, with frequencies of 65.58% and 23.64%, respectively, while OsNRAMP5-Hap2 and OsNRAMP5-Hap3 were mainly found in indica and Aus, with overall frequencies of 5.56% and 5.16%, respectively (Figure 1B, Table S2). OsLCD was found to be 1775 bp long and consist of eight exons. The 5′-UTR consists of three exons 191 bp, 170 bp, and 83 bp in length, and the 3′-UTR consists of two exons 23 bp and 355 bp in length. Genotypes of OsLCD could be divided into three haplotypes. OsLCD-Hap2 had a 6 bp deletion near the 5′-UTR, and OsLCD-Hap3 had a 4 bp deletion near the 3′-UTR. The frequencies of OsLCD-Hap1 in the indica and japonica varieties were 40% and 70%, respectively, and the remaining 60% of indica varieties shared OsLCD-Hap2 and OsLCD-Hap3 (Figure 1B, Table S2).
In addition to the 3K-RGP accessions, 71 important varieties were also analyzed for genotypes of OsNRAMP1, OsNRAMP5, and OsLCD. The distribution of haplotypes in these 71 varieties was similar to that in 3K-RGP accessions. The frequency of OsNRAMP1-Hap1 in indica was 94% and that of OsNRAMP1-Hap2 in japonica was 81%. The OsNRAMP5 haplotypes found in most of the varieties were OsNRAMP5-Hap1 and OsNRAMP5-Hap4, and their distributions in indica and japonica varieties were similar. The frequencies of OsNRAMP5-Hap1 and OsNRAMP5-Hap4 were 77% and 16%, respectively; those of OsLCD-Hap1 in indica and japonica varieties were 38% and 94%, respectively; and the remaining 62% of indica varieties contained OsLCD-Hap2 and OsLCD-Hap3 (Table S2).
According to the OsNRAMP1, OsNRAMP5, and OsLCD genotypes, the 3K-RGP germplasm were grouped into 14 types, were referred as Cd-mobile types, related to different abilities to transport and accumulate Cd. OsNRAMP1-Hap1 was found in OsNRAMP1 type1 to type7, and OsNRAMP1-Hap2 was found in types 8 to 14. Among the 14 types, types 12 to 14 were low Cd accumulation types, and did not possess the Hap1 allele for any of the three genes. These 14 types covered 92% of the 3K-RGP germplasm and were considered representative. Type1, type5, and type8 were the three major types, with frequencies of 20%, 14%, and 27%, respectively. Most of the indica and japonica accessions belonged to these types. The frequencies of type1 and type5 indica subspecies were both 20%, and the frequency of type8 iaponica subspecies was 90%. The remaining 60% of indica accessions belonged to the other types, mainly type3 and type7, and the remaining japonica accessions mainly belonged to type11. The subspecies Aus mainly consisted of type1, type8, and type11 accessions, while Aromatics mainly consisted of type1 and type8 accessions. Other minor Cd-mobile types, such as type2, type6, and type9, were scattered among different subspecies (Table S3).

2.2. Correlation Analysis of Cd-Mobile Types and Cadmium Accumulation

To understand the Cd absorption and transport capacity of the 14 Cd-mobile types, a hydroponic experiment was conducted, and the results are shown in Table 1. The concentrations of Cd in roots of type2, type3, and type6 accessions were higher than 270 mg kg−1, and the concentrations in type3 (299 mg kg−1) accessions was the highest among the 14 types. However, for type12, type13, and type14, Cd concentrations in roots were less than 200 mg kg−1, and those in type14 were the lowest, only half of those in type3. The shoot Cd concentrations in type3 and type6 accessions reached 35 mg kg−1, while those in type13 and type14 accessions were lower. We also observed that Cd concentrations in shoots of type14 were approximately half as much as those in type3. The highest and the lowest shoot-Cd/root-Cd ratios were observed in type4 and type11 accessions, which had ratios of 14.75% and 8.41%, respectively (Table 1, Figure 2).
All type1 to type11 accessions had the Hap1 genotype, which is related to the high Cd accumulation phenotype, for at least one of the three genes. The Cd concentrations were higher than 200 mg kg−1 in roots and 20 mg kg−1 in shoots. In contrast, the Cd concentrations in type12, type13, and type14 accessions were lower than 200 mg kg−1 in roots and 20 mg kg−1 in shoots. The difference between the two groups was significant, confirming that type12, type13, and type14 accessions have low Cd accumulation potential, with type14 having the lowest (Table 1).
To verify the capacity of type14 accessions to absorb and accumulate Cd, a pot experiment was conducted with soil collected from a Cd-contaminated paddy field. The Cd concentration of this soil was 3.5 mg kg−1 (Table S5), which is between 2.5 mg kg−1 and 5 mg kg−1, the Taiwan Environmental Protection Administration monitoring and control standard for farmland soils. Of the five representative varieties used in the pot experiment, TN11 and TCS10-OsNRAMP1 belonged to type8, and Uprh166, Landeo, and Asu belonged to type11, type14 and type13, respectively. Type11, type13 and type14 were combinations of three different haplotypes of OsLCD, OsNRAMP1-Hap2, and OsNRAMP5-Hap3 (Table 2).
The Cd concentrations in brown rice of all varieties grown in the pot experiment were far lower than 0.4 mg kg−1, the safety value for edible rice defined by the Ministry of Health and Welfare of Taiwan. The concentration was the lowest for Asu (0.03 mg kg−1) and the highest for Uprh166 (0.16 mg kg−1). Similar trends were observed for root and shoot Cd concentrations, which were 4.98 mg kg−1 and 0.68 mg kg−1, respectively, for Asu, and 22.54 mg kg−1 and 1.33 mg kg−1, respectively, for Uprh166. There was no significant difference in the concentrations between different parts of the plants. This result confirmed that type14 is a Cd-mobile type with low Cd accumulation potential, which is consistent with the results of the hydroponic experiment (Figure 2, Table 2).

2.3. Specific Marker Design and Genotype Analysis

To improve the utilization of natural resources for modulation of Cd absorption and transport, functional markers were designed for OsNRAMP1, OsNRAMP5, and OsLCD. An InDel marker was designed for the 406 bp deletion in the promoter of OsNRAMP1. For OsNRAMP5, three markers, OsNRAMP5-Hap2, OsNRAMP5-Hap3, and OsNRAMP5-Hap4, were designed to detect different haplotypes. The OsNRAMP5-Hap2 reaction was designed to detect the C/T SNP; the amplified products of OsNRAMP5-Hap2 were digested by HpyCh4III to produce 264 bp and 196 bp fragments, while the products of other haplotypes were 460 bp long. The Tm for the OsNRAMP5-Hap2 reaction was 60 ℃. There were 3 bp and 13 bp deletions in OsNRAMP5-Hap3 and OsNRAMP5-Hap4, respectively. In the OsNRAMP5-Hap3 reaction, the amplified products were 113 bp long, and those of the other haplotypes were 116 bp long. In the OsNRAMP5-Hap4 reaction, the amplified products were 124 bp long, and those of the other haplotypes were 137 bp long. The Tm values of the OsNRAMP5-Hap3 and OsNRAMP5-Hap4 reactions were both 55 ℃. For OsLCD, two markers, OsLCD-Hap2 and OsLCD-Hap3, were designed to detect the 6 bp and the 4 bp deletions in OsLCD-Hap2 and OsLCD-Hap3, respectively. In the OsLCD-Hap2 reaction, the amplified products were 122 bp long, while those of the other haplotypes were 128 bp long. A TaqMan marker was used to distinguish OsLCD-Hap3 from the other haplotypes by detecting the 4 bp deletion (Figure 3, Table S4).

3. Discussion

The major QTL qCdT 7, which is 1.6 Mb long on chromosome 7, contains three genes related to Cd accumulation in rice plants, namely OsNRAMP1, which is responsible for Cd uptake by roots, OsHMA3, which is responsible for Cd transport, and OsNRAMP5, which is responsible for Cd, iron (Fe), and Mn uptake by roots [13,16,17,21,26,34,35]. These genes and another Cd accumulation-related gene, OsLCD, were chosen as target genes, and variants of these genes were summarized in this study. The 14 Cd-mobile types discussed here were organized according to the haplotypes of OsNRAMP1, OsNRAMP5, and OsLCD. Previous research showed that the deletion in OsNRAMP1-Hap2 resulted in the excessive expression of OsNRAMP1 and an increase in Cd absorption, and that the negative regulation of OsNRAMP1-Hap1 inhibited the uptake of Cd by roots [13]. In another study, Yan et al. found that loss of function of OsHMA3 leads to high Cd accumulation in shoots and grains [32], but here no loss-of-function allele was found. However, the possible influence of OsHMA3 should be considered carefully because OsNRAMP5 and OsHMA3 are located in close proximity and their relationship is still unclear. It is possible that a weak allele of OsNRAMP5 combined with a strong allele of OsHMA3 leads to the reduction in Cd accumulation in rice grains [9].
In the past decade, artificial variants have been created using a variety of methods, such as carbon ion-beam irradiation [7], T-DNA insertion [21,36], RNA interference [35,37], and CRISPR/Cas9 [28,38]. However, the application of these variants in low-Cd rice breeding has led to different results. Knockout of OsNRAMP5 reduces Cd accumulation and plant growth simultaneously [29] but the low-Cd accumulation plants have lower rice yield [28]. This indicates that artificial mutations can be used to generate ideal plants, but these plants might have unknown disadvantages. In contrast, Sun et al. [39] found that natural variants related to grain Cd content were not associated with the contents of other heavy metals such as Fe, Mn, copper (Cu) and Zinc (Zn), suggesting that breeding low-Cd rice using natural variation would not disrupt absorption of other elements or plant growth. Therefore, it is important to assess the genetic diversity of natural populations. Some variants related to Cd transport from shoot to grain were found in a previous study of 49 rice varieties [40]. A large deletion in the OsNRAMP1 promoter in Habataki was found to lead to a higher Cd content than that in Nipponbare [32]. Mutations in the 80th and 380th amino acids and a 153 bp deletion in 7th exon of OsHMA3 were found to affect functions related to Cd accumulation [16,17,32]. An InDel and 35 SNPs found in OsNRAMP5 were thought to aid low-Cd rice breeding [41]. Wang et al. [30] also reported that introduction of the OsHMA3-OsNRAMP5-OsNRAMP1 fragment from IRAT129 into 9311 resulted in a reduction in Cd accumulation in rice grains. In the present study, the 3K-RGP accessions were assigned to types according to genetic diversity in OsNRAMP1, OsNRAMP5, and OsLCD, which provides a valuable resource for low-Cd rice breeding in the future.
Variation of Cd accumulation in a natural population has been explored in other ways in previous studies. Several major QTLs were detected in a single hotspot among different mapping populations [23,26,42,43,44]. For example, both qCdp7 and qCdT7 are located on chromosome 7; qCdp7 explained 31–51% of the variation of Cd content in brown rice and 46–54% of the content in shoots [25], and qCDT7 explained 88% of variation in Cd transport [24]. Some QTLs were also detected in a genome-wide association study (GWAS) [45]. However, it takes a lot of time to develop a population for QTL mapping, and false positives frequently occur in GWAS, requiring additional verification. Searching for variations in known genes provides a rapid and promising way to breed low-Cd rice. For example, two variants of OsNRAMP1 and OsNRAMP5 were found to explain 46.4% and 22.6% of the variation in grain Cd accumulation, respectively, in a screen of seven Cd-related genes among 174 thermosensitive genic male sterile lines [46]. In this study, three Cd-mobile genotypes with the potential for low Cd accumulation were found and could be applied to breeding immediately.
In addition to the four genes discussed in the present study, large numbers of genes have also been shown to be involved in Cd uptake and transport. OsIRT1 and OsIRT2 transport Fe together with Cd [47]. OsHMA2 transports Cd and Zn from roots to shoots [48]. The plasma membrane protein OsMTP1 is also involved in transport of Zn and Cd. OsABCG43 confers Cd tolerance in yeast, which indicates that it might also affect Cd accumulation in rice [49]. The transporter OsLCT1 transports Cd in phloem [20]; however, Songmei et al. [38] showed that the reduction in Cd accumulation caused by a mutation in OsLCT1 was less than that observed when OsNRAMP5 was mutated, which suggested that OsNRAMP5 plays a larger role in Cd accumulation than OsLCT1. In addition, OsNRAMP1, OsNRAMP5, and OsLCD explained nearly 79.3% of variation of Cd accumulation observed in our study (Table S5), which indicates that these three genes are responsible for most of the variation in Cd accumulation in rice plants.
The ability of rice plants to take up and accumulate Cd can be verified by performing hydroponic, pot, and field experiments [13,21,29,32,36,39,40,41,46]. In this study, Cd concentrations in roots and shoots were first analyzed in hydroponic experiments among 14 Cd-mobile types, and then verified for 5 representative varieties by performing pot experiments together with measurements of Cd concentration in brown rice. Functional markers based on PCR and agarose gel electrophoresis were designed; these markers are easy to use and offer a rapid, specific, and easy genotyping method for future studies.

4. Materials and Methods

4.1. Gene Data Collection

The gene name was used to search for gene ID, and the gene ID was converted into the MSU form in RAP-DB. The gene ID was then used to search gene loci and sequences in IRRI 3K-RGP, which consists of 3024 accessions from the International Rice Genome Sequencing Project 1.0 (IRGSP 1.0). The “Autogroup” function on the same website with default parameters was used to identify haplotypes. All results were downloaded with variety names.

4.2. Plant Materials

Genotyping of target genes was conducted for 71 varieties, which were either popular cultivars in Taiwan or important germplasm. Three japonica rice cultivars, Nipponbare, Tainan 11 (TN11), and Taitung 30 (TT30); four indica rice cultivars, Habataki, TCS10, Taichung Sen 17 (TCS17), and Taichung Sen Waxy 2 (TCSW2); and 20 rice accessions introduced from IRRI were used in a hydroponic experiment (Table S1). Five representative varieties were used in a pot experiment, namely three accessions introduced from IRRI, Uprh166, Landeo, and Asu, and two Taiwanese cultivars, TN11 and TCS10-OsNRAMP1. TCS10 and TK2 were used for development of functional markers for OsNRAMP1; Habataki, Asu, Nipponbare, and TK2 were used for OsNRAMP5 marker development; Asu and the indica accession Hsin-T’ao Yuan Chin Yu introduced by IRRI were used in marker development for the OsLCD locus.

4.3. Hydroponic and Pot Experiments

Hydroponic culturing was performed in a greenhouse with a controlled temperature (35/25 °C, day/night) under sunlight. Rice seeds were sterilized in a solution containing 1% sodium hydrochloride and one drop of Tween 20 for 30 min, and then soaked in water for 2 days. Next, the seeds were drained and allowed to rest in an airtight container for 1 day. After germination, 20 seedlings were transferred to an iron mesh set on the surface of culture solution in a 0.6-L beaker. Seedlings were then raised in half-strength modified Kimura B nutrient solution (0.18 mM (NH4)2SO4, 0.09 mM KNO3, 0.27 mM MgSO4·7H2O, 0.09 mM KH2PO4, 30.6 μM Fe-citrate, 183 μM Ca(NO3)2·4H20, 2.51 μM H3BO3, 152 nM MnSO4·4H2O, 202 nM ZnSO4·7H2O, 52 nM CuSO4·5H2O, and 49 nM MoO3·H2O, pH adjusted to 4.8–5.0, solution renewed every 3 days) for 16 days until they reached the three-leaf stage. Then, the solution was replaced with full-strength nutrient solution and the indicated amount of Cd stock solution was added. The stock solutions of Cd were prepared using a Cd standard solution (1000 g mL−1 in 2% HNO3, High-Purity Standards). The Cd treatment concentrations were 0 and 0.1 mg L−1, and the exposure time was 14 days (growth period: July to August, 2020). Three replicates (pots) for each of the Cd treatments were conducted. After harvesting, the rice seedlings were separated into roots and shoots and rinsed first with tap water and then with deionized water. The biomass and lengths of each root and shoot were measured.
To understand the differences in Cd accumulation in rice grains among varieties with different target gene alleles, representative rice varieties were planted in Cd-contaminated soils. Topsoil (0–20 cm) was collected from paddy soils in Houli District, Taichung City, Taiwan; the paddy soil in this area had suffered Cd contamination caused by irrigation with Cd-containing wastewater in the past. The Cd concentration of the test soil was 3.76 mg kg−1. Air-dried soil samples were passed through a 2 mm sieve, homogenized, and stored in plastic vessels. The basic properties of the test soil, namely soil pH [50], organic matter [51], cation exchange capacity [52], the available Cd concentration [53] and the total Cd concentration [54], were analyzed.
Pot experiments were conducted in the same glasshouse mentioned above. The rice seed sterilization, germination, and seedling-raising procedures were the same as those described for the hydroponic experiment. Three well-grown seedlings were selected and transplanted together into a pot filled with 5 kg of the test soil for ~105 days of cultivation. The water level of the pots was maintained at 3–5 cm above the soil surface to simulate flooding conditions throughout the whole cultivation period. The soils were supplemented with 220 kg of nitrogen (N) ha−1, 100 kg of phosphorus oxide (P2O5) ha−1, and 180 kg of potassium oxide (K2O) ha−1 by the addition of urea (CO(NH2)2), monocalcium phosphate (Ca(H2PO4)2·H2O), and potassium chloride (KCl) as fertilizers. Fifty percent N, 100% P2O5, and 40% K2O were applied as the base fertilizer before transplantation. Twenty-five percent N and 40% K2O were applied as the first top dressing 30 days after transplantation, and 25% N and 20% K2O were applied as the second top dressing 49 days after transplantation. After harvesting, rice plants were rinsed with tap water and divided with ceramic scissors into roots, shoots, and grains, and then the biomass of plant tissues and grain yield were measured.

4.4. Plant Collection, Digestion, and Analysis

Air-dried plant tissues (roots, shoots, brown rice) were digested separately with concentrated HNO3 (69–70%, J.T. Baker, Phillipsburg, NJ, USA)/H2O2 (30% [w/w] in H2O, Sigma-Aldrich, Burlington, MA, USA) in a heating block at 125 ℃ [55]. The digests were diluted by adding deionized water to 50 mL, filtered through a 0.45 μm filter, and stored in plastic bottles for subsequent element analysis. The concentrations of Cd in the digests were determined by inductively coupled plasma-mass spectrometry (ICP-MS 7700, Agilent Technologies, Taipei, Taiwan).

4.5. Functional Marker Design and Genotyping

Genomic DNA of leaves was extracted by quick extraction. Leaves (100 mg) were cut into pieces in a 2 mL tube, and 20 μL quick extract buffer (QuickExtract Plant DNA Extraction Solution, QEP70750) was added. The sample was centrifuged for 5 min at room temperature at 4400 rpm and incubated at 65 ℃ for 6 min and 95 ℃ for 2 min on a polymerase chain reaction (PCR) machine (Thermo Fisher Scientific, Waltham, MA, USA). Then, 50 μL of deionized water was added.
Sequences of haplotypes downloaded from RAP-DB were used as queries in a blast search of bacterial artificial chromosome sequences downloaded from NCBI in BioEdit [56], and functional markers were designed using Primer Premier 5 (Premier Biosoft International, Palo Alto, CA, USA) and NCBI Primer Blast [57] (Table S2). Except for OsLCD-Hap3, all markers were PCR-based. Each 10 μL PCR reaction contained 1× Taq Buffer, 2 mM MgCl2, 0.2 mM dNTP, 0.6 U Taq polymerase (BioVan, Taichung, Taiwan), 0.2 μM forward primer, 0.2 μM reverse primer, and 2 μL sample DNA. The sample was first denatured at 95 ℃ for 1 min, followed by 35 cycles of denaturation for 15 s at 95 ℃, annealing for 15 s at the melting temperature (Tm) (Table S3), and extension for 20 s at 72 ℃, and a final extension for 1 min at 72℃. PCR products were visualized by electrophoresis in a 26 cm × 26 cm 3% Agarose Low EEO gel at 350 V for 30 min. Because the products of OsNRAMP1-Hap1 were large, the annealing and extension times were modified to 20 and 25 s, respectively. OsNRAMP5-Hap2 was designed as a cleaved amplified polymorphic sequences (CAPS) marker; the PCR products were digested by HpyCh4III overnight at 37 ℃ followed by inactivation at 65 ℃ for 20 min to produce 264 bp and 196 bp fragments. OsLCD-Hap3 was designed as a TaqMan marker. The 10 μL reaction sample contained 1× qPCRBIO Probe Blue Mix (PCR Biosystems, London, UK), 1× custom TaqMan SNP genotyping assay (Thermo Fisher Scientific), and 2 μL sample DNA. The sample was incubated at 25 ℃ for 30 s and 95 ℃ for 20 s, followed by 45 cycles of 3 s at 95 ℃ and 20 s at 60 ℃ on a StepOnePlus quantitative PCR machine (Thermo Fisher Scientific), and the data were analyzed with StepOne software v2.3 (Thermo Fisher Scientific).

4.6. Statistical Analysis

The outliers were removed before data analysis, and replicates exceeding one standard deviation from the mean were eliminated. Analysis of variance (ANOVA) was performed with the package agricolae [58] in R Studio [59]. If differences between varieties and treatments were significant, ANOVA was performed again for single genes or genotypes to divide the degrees of freedom from varieties. Then, the least significant difference test (LSD) was used to determine whether the difference between genotypes was significant, and LSD0.05 was calculated. To visualize the results, the package ggplot2 [60] was used in R Studio.

5. Conclusions

In conclusion, haplotypes of OsHMA3, OsNRAMP1, OsNRAMP5, and OsLCD were summarized in this study, and their relationships with Cd accumulation in rice plants were verified in hydroponic and pot experiments. Among them, type14 accessions which possess deletions in OsHMA3, OsNRAMP1, and OsNRAMP5 were shown to have low Cd accumulation potential, and functional markers for this type were designed. The strategy used in this study provides an effective tool for low-Cd rice pre-breeding.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11212813/s1, Table S1: Accession number, subspecies, and nationality of 27 varieties used in hydroponic experiments; Table S2: The frequency (shown as a percentage) of each OsNRAMP1, OsNRAMP5, and OsLCD haplotype in the rice 3K panel; Table S3: The functional markers for each OsNRAMP1, OsNRAMP5, and OsLCD haplotype; Table S4: The frequencies of 14 Cd-mobile types in the 3K-RGP panel; Table S5: Basic properties of the Cd-contaminated paddy soil.

Author Contributions

Conceptualization, D.-H.W. and C.-H.S.; methodology, C.-H.S., T.-I.N., Y.-C.L., P.-R.D. and D.-H.W.; software, T.-I.N., M.-T.H. and D.-H.W.; formal analysis, T.-I.N., Y.-W.L., P.-R.D. and D.-H.W.; writing—original draft preparation, C.-H.S., T.-I.N. and M.-T.H.; writing—review and editing, D.-H.W.; visualization, C.-H.S. and T.-I.N.; supervision, D.-H.W.; funding acquisition, D.-H.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially supported by the “General Agricultural Science and Technology Programs” funded by the Council of Agriculture, Taiwan, R.O.C. (Grant No. 109AS-7.1.2-CI-C1, 110AS-4.1.1-CI-C1 and 111AS-4.1.1-CI-C1).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets presented in the study are either included in the article or in the Supplementary Materials; further inquiries can be directed to the corresponding authors.

Acknowledgments

We thank Drs. Ming-Hsin Lai, Charng–Pei Li, Hsing–Mu Yen and the staff members of the Rice Laboratory, TARI for their excellent technical support on paddy managements and trait collection. The authors would like to Lehti Life Science Editing, LLC for English editing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Krueger, W.S.; Wade, T.J. Elevated Blood Lead and Cadmium Levels Associated with Chronic Infections among Non-Smokers in a Cross-Sectional Analysis of NHANES Data. Environ. Health 2016, 15, 16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Ju, H.; Arumugam, P.; Lee, J.; Song, J.M. Impact of Environmental Pollutant Cadmium on the Establishment of a Cancer Stem Cell Population in Breast and Hepatic Cancer. ACS Omega 2017, 2, 563–572. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kumar, S.; Sharma, A. Cadmium Toxicity: Effects on Human Reproduction and Fertility. Rev. Environ. Health 2019, 34, 327–338. [Google Scholar] [CrossRef]
  4. Ebrahimi, M.; Khalili, N.; Razi, S.; Keshavarz-Fathi, M.; Khalili, N.; Rezaei, N. Effects of Lead and Cadmium on the Immune System and Cancer Progression. J. Environ. Health Sci. Eng. 2020, 18, 335–343. [Google Scholar] [CrossRef] [PubMed]
  5. Authority (EFSA), E.F.S. Cadmium in Food—Scientific Opinion of the Panel on Contaminants in the Food Chain. EFSA J. 2009, 7, 980. [Google Scholar] [CrossRef]
  6. Genchi, G.; Sinicropi, M.S.; Lauria, G.; Carocci, A.; Catalano, A. The Effects of Cadmium Toxicity. Int. J. Environ. Res. Public. Health 2020, 17, 3782. [Google Scholar] [CrossRef] [PubMed]
  7. Ishikawa, S.; Ishimaru, Y.; Igura, M.; Kuramata, M.; Abe, T.; Senoura, T.; Hase, Y.; Arao, T.; Nishizawa, N.K.; Nakanishi, H. Ion-Beam Irradiation, Gene Identification, and Marker-Assisted Breeding in the Development of Low-Cadmium Rice. Proc. Natl. Acad. Sci. USA 2012, 109, 19166–19171. [Google Scholar] [CrossRef] [Green Version]
  8. Honma, T.; Ohba, H.; Kaneko-Kadokura, A.; Makino, T.; Nakamura, K.; Katou, H. Optimal Soil Eh, PH, and Water Management for Simultaneously Minimizing Arsenic and Cadmium Concentrations in Rice Grains. Environ. Sci. Technol. 2016, 50, 4178–4185. [Google Scholar] [CrossRef]
  9. Zhao, F.-J.; Wang, P. Arsenic and Cadmium Accumulation in Rice and Mitigation Strategies. Plant Soil 2020, 446, 1–21. [Google Scholar] [CrossRef]
  10. Uraguchi, S.; Fujiwara, T. Cadmium Transport and Tolerance in Rice: Perspectives for Reducing Grain Cadmium Accumulation. Rice 2012, 5, 5. [Google Scholar] [CrossRef]
  11. Uraguchi, S.; Fujiwara, T. Rice Breaks Ground for Cadmium-Free Cereals. Curr. Opin. Plant Biol. 2013, 16, 328–334. [Google Scholar] [CrossRef] [PubMed]
  12. Li, H.; Luo, N.; Li, Y.W.; Cai, Q.Y.; Li, H.Y.; Mo, C.H.; Wong, M.H. Cadmium in Rice: Transport Mechanisms, Influencing Factors, and Minimizing Measures. Environ. Pollut. 2017, 224, 622–630. [Google Scholar] [CrossRef] [PubMed]
  13. Takahashi, R.; Ishimaru, Y.; Senoura, T.; Shimo, H.; Ishikawa, S.; Arao, T.; Nakanishi, H.; Nishizawa, N.K. The OsNRAMP1 Iron Transporter Is Involved in Cd Accumulation in Rice. J. Exp. Bot. 2011, 62, 4843–4850. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Sasaki, A.; Yamaji, N.; Yokosho, K.; Ma, J.F. Nramp5 Is a Major Transporter Responsible for Manganese and Cadmium Uptake in Rice. Plant Cell 2012, 24, 2155–2167. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Chang, J.-D.; Huang, S.; Konishi, N.; Wang, P.; Chen, J.; Huang, X.-Y.; Ma, J.F.; Zhao, F.-J. Overexpression of the Manganese/Cadmium Transporter OsNRAMP5 Reduces Cadmium Accumulation in Rice Grain. J. Exp. Bot. 2020, 71, 5705–5715. [Google Scholar] [CrossRef]
  16. Ueno, D.; Yamaji, N.; Kono, I.; Huang, C.F.; Ando, T.; Yano, M.; Ma, J.F. Gene Limiting Cadmium Accumulation in Rice. Proc. Natl. Acad. Sci. USA 2010, 107, 16500–16505. [Google Scholar] [CrossRef] [Green Version]
  17. Miyadate, H.; Adachi, S.; Hiraizumi, A.; Tezuka, K.; Nakazawa, N.; Kawamoto, T.; Katou, K.; Kodama, I.; Sakurai, K.; Takahashi, H.; et al. OsHMA3, a P1B-Type of ATPase Affects Root-to-Shoot Cadmium Translocation in Rice by Mediating Efflux into Vacuoles. New Phytol. 2011, 189, 190–199. [Google Scholar] [CrossRef]
  18. Takahashi, R.; Ishimaru, Y.; Shimo, H.; Ogo, Y.; Senoura, T.; Nishizawa, N.K.; Nakanishi, H. The OsHMA2 Transporter Is Involved in Root-to-Shoot Translocation of Zn and Cd in Rice. Plant Cell Environ. 2012, 35, 1948–1957. [Google Scholar] [CrossRef]
  19. Yamaji, N.; Xia, J.; Mitani-Ueno, N.; Yokosho, K.; Feng Ma, J. Preferential Delivery of Zinc to Developing Tissues in Rice Is Mediated by P-Type Heavy Metal ATPase OsHMA2. Plant Physiol. 2013, 162, 927–939. [Google Scholar] [CrossRef] [Green Version]
  20. Uraguchi, S.; Kamiya, T.; Sakamoto, T.; Kasai, K.; Sato, Y.; Nagamura, Y.; Yoshida, A.; Kyozuka, J.; Ishikawa, S.; Fujiwara, T. Low-Affinity Cation Transporter (OsLCT1) Regulates Cadmium Transport into Rice Grains. Proc. Natl. Acad. Sci. USA 2011, 108, 20959–20964. [Google Scholar] [CrossRef]
  21. Shimo, H.; Ishimaru, Y.; An, G.; Yamakawa, T.; Nakanishi, H.; Nishizawa, N.K. Low Cadmium (LCD), a Novel Gene Related to Cadmium Tolerance and Accumulation in Rice. J. Exp. Bot. 2011, 62, 5727–5734. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Norton, G.J.; Deacon, C.M.; Xiong, L.; Huang, S.; Meharg, A.A.; Price, A.H. Genetic Mapping of the Rice Ionome in Leaves and Grain: Identification of QTLs for 17 Elements Including Arsenic, Cadmium, Iron and Selenium. Plant Soil 2010, 329, 139–153. [Google Scholar] [CrossRef]
  23. Ishikawa, S.; Abe, T.; Kuramata, M.; Yamaguchi, M.; Ando, T.; Yamamoto, T.; Yano, M. A Major Quantitative Trait Locus for Increasing Cadmium-Specific Concentration in Rice Grain Is Located on the Short Arm of Chromosome 7. J. Exp. Bot. 2010, 61, 923–934. [Google Scholar] [CrossRef] [Green Version]
  24. Tezuka, K.; Miyadate, H.; Katou, K.; Kodama, I.; Matsumoto, S.; Kawamoto, T.; Masaki, S.; Satoh, H.; Yamaguchi, M.; Sakurai, K.; et al. A Single Recessive Gene Controls Cadmium Translocation in the Cadmium Hyperaccumulating Rice Cultivar Cho-Ko-Koku. Theor. Appl. Genet. 2010, 120, 1175–1182. [Google Scholar] [CrossRef] [PubMed]
  25. Abe, T.; Taguchi-Shiobara, F.; Kojima, Y.; Ebitani, T.; Kuramata, M.; Yamamoto, T.; Yano, M.; Ishikawa, S. Detection of a QTL for Accumulating Cd in Rice That Enables Efficient Cd Phytoextraction from Soil. Breed. Sci. 2011, 61, 43–51. [Google Scholar] [CrossRef] [Green Version]
  26. Ueno, D.; Koyama, E.; Kono, I.; Ando, T.; Yano, M.; Ma, J.F. Identification of a Novel Major Quantitative Trait Locus Controlling Distribution of Cd Between Roots and Shoots in Rice. Plant Cell Physiol. 2009, 50, 2223–2233. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Tian, S.; Liang, S.; Qiao, K.; Wang, F.; Zhang, Y.; Chai, T. Co-Expression of Multiple Heavy Metal Transporters Changes the Translocation, Accumulation, and Potential Oxidative Stress of Cd and Zn in Rice (Oryza Sativa). J. Hazard. Mater. 2019, 380, 120853. [Google Scholar] [CrossRef]
  28. Tang, L.; Mao, B.; Li, Y.; Lv, Q.; Zhang, L.; Chen, C.; He, H.; Wang, W.; Zeng, X.; Shao, Y.; et al. Knockout of OsNramp5 Using the CRISPR/Cas9 System Produces Low Cd-Accumulating Indica Rice without Compromising Yield. Sci. Rep. 2017, 7, 14438. [Google Scholar] [CrossRef] [Green Version]
  29. Yang, C.; Zhang, Y.; Huang, C. Reduction in Cadmium Accumulation in Japonica Rice Grains by CRISPR/Cas9-Mediated Editing of OsNRAMP5. J. Integr. Agric. 2019, 18, 688–697. [Google Scholar] [CrossRef]
  30. Wang, K.; Yan, T.; Xu, S.; Yan, X.; Zhou, Q.; Zhao, X.; Li, Y.; Wu, Z.; Qin, P.; Fu, C.; et al. Validating a Segment on Chromosome 7 of Japonica for Establishing Low-Cadmium Accumulating Indica Rice Variety. Sci. Rep. 2021, 11, 6053. [Google Scholar] [CrossRef]
  31. Wu, P.-J.; Lin, Y.-W.; Li, C.-P.; Syu, C.-H.; Jwo, W.-S.; Yen, H.-M.; Guo, H.-Y.; Lai, M.-H.; Wu, D.-H. A Novel Indica Rice Breeding Line Selection with Low Cadmium Accumulation Level by Functional Markers Assisted Backcross Strategy. J. Taiwan Agric. Res. 2017, 66, 248–260. [Google Scholar] [CrossRef]
  32. Yan, J.; Wang, P.; Wang, P.; Yang, M.; Lian, X.; Tang, Z.; Huang, C.-F.; Salt, D.E.; Zhao, F.J. A Loss-of-Function Allele of OsHMA3 Associated with High Cadmium Accumulation in Shoots and Grain of Japonica Rice Cultivars. Plant Cell Environ. 2016, 39, 1941–1954. [Google Scholar] [CrossRef] [Green Version]
  33. Alexandrov, N.; Tai, S.; Wang, W.; Mansueto, L.; Palis, K.; Fuentes, R.R.; Ulat, V.J.; Chebotarov, D.; Zhang, G.; Li, Z.; et al. SNP-Seek Database of SNPs Derived from 3000 Rice Genomes. Nucleic Acids Res. 2015, 43, D1023–D1027. [Google Scholar] [CrossRef] [PubMed]
  34. Ramesh, S.A.; Shin, R.; Eide, D.J.; Schachtman, D.P. Differential Metal Selectivity and Gene Expression of Two Zinc Transporters from Rice. Plant Physiol. 2003, 133, 126–134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Ishimaru, Y.; Takahashi, R.; Bashir, K.; Shimo, H.; Senoura, T.; Sugimoto, K.; Ono, K.; Yano, M.; Ishikawa, S.; Arao, T.; et al. Characterizing the Role of Rice NRAMP5 in Manganese, Iron and Cadmium Transport. Sci. Rep. 2012, 2, 286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Yang, M.; Zhang, Y.; Zhang, L.; Hu, J.; Zhang, X.; Lu, K.; Dong, H.; Wang, D.; Zhao, F.-J.; Huang, C.-F.; et al. OsNRAMP5 Contributes to Manganese Translocation and Distribution in Rice Shoots. J. Exp. Bot. 2014, 65, 4849–4861. [Google Scholar] [CrossRef] [Green Version]
  37. Takahashi, R.; Ishimaru, Y.; Shimo, H.; Bashir, K.; Senoura, T.; Sugimoto, K.; Ono, K.; Suzui, N.; Kawachi, N.; Ishii, S.; et al. From Laboratory to Field: OsNRAMP5-Knockdown Rice Is a Promising Candidate for Cd Phytoremediation in Paddy Fields. PLoS ONE 2014, 9, e98816. [Google Scholar] [CrossRef]
  38. Songmei, L.; Jie, J.; Yang, L.; Jun, M.; Shouling, X.; Yuanyuan, T.; Youfa, L.; Qingyao, S.; Jianzhong, H. Characterization and Evaluation of OsLCT1 and OsNramp5 Mutants Generated Through CRISPR/Cas9-Mediated Mutagenesis for Breeding Low Cd Rice. Rice Sci. 2019, 26, 88–97. [Google Scholar] [CrossRef]
  39. Sun, L.; Xu, X.; Jiang, Y.; Zhu, Q.; Yang, F.; Zhou, J.; Yang, Y.; Huang, Z.; Li, A.; Chen, L.; et al. Genetic Diversity, Rather than Cultivar Type, Determines Relative Grain Cd Accumulation in Hybrid Rice. Front. Plant Sci. 2016, 7, 1407. [Google Scholar] [CrossRef] [Green Version]
  40. Arao, T.; Ae, N. Genotypic Variations in Cadmium Levels of Rice Grain. Soil Sci. Plant Nutr. 2003, 49, 473–479. [Google Scholar] [CrossRef]
  41. Wang, T.; Li, Y.; Fu, Y.; Xie, H.; Song, S.; Qiu, M.; Wen, J.; Chen, M.; Chen, G.; Tian, Y.; et al. Mutation at Different Sites of Metal Transporter Gene OsNramp5 Affects Cd Accumulation and Related Agronomic Traits in Rice (Oryza Sativa L.). Front. Plant Sci. 2019, 10, 1081. [Google Scholar] [CrossRef] [PubMed]
  42. Ishikawa, S.; Ae, N.; Yano, M. Chromosomal Regions with Quantitative Trait Loci Controlling Cadmium Concentration in Brown Rice (Oryza Sativa). New Phytol. 2005, 168, 345–350. [Google Scholar] [CrossRef] [PubMed]
  43. Kashiwagi, T.; Shindoh, K.; Hirotsu, N.; Ishimaru, K. Evidence for Separate Translocation Pathways in Determining Cadmium Accumulation in Grain and Aerial Plant Parts in Rice. BMC Plant Biol. 2009, 9, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Hu, D.; Sheng, Z.; Li, Q.; Chen, W.; Wei, X.; Xie, L.; Jiao, G.; Shao, G.; Wang, J.; Tang, S.; et al. Identification of QTLs Associated with Cadmium Concentration in Rice Grains. J. Integr. Agric. 2018, 17, 1563–1573. [Google Scholar] [CrossRef] [Green Version]
  45. Zhao, J.; Yang, W.; Zhang, S.; Yang, T.; Liu, Q.; Dong, J.; Fu, H.; Mao, X.; Liu, B. Genome-Wide Association Study and Candidate Gene Analysis of Rice Cadmium Accumulation in Grain in a Diverse Rice Collection. Rice 2018, 11, 61. [Google Scholar] [CrossRef] [Green Version]
  46. Hao, X.; Wu, C.; Wang, R.; Tian, L.; Song, T.; Tan, H.; Peng, Y.; Zeng, M.; Chen, L.; Liang, M.; et al. Association between Sequence Variants in Cadmium-Related Genes and the Cadmium Accumulation Trait in Thermo-Sensitive Genic Male Sterile Rice. Breed. Sci. 2019, 69, 18191. [Google Scholar] [CrossRef]
  47. Nakanishi, H.; Ogawa, I.; Ishimaru, Y.; Mori, S.; Nishizawa, N.K. Iron Deficiency Enhances Cadmium Uptake and Translocation Mediated by the Fe 2+ Transporters OsIRT1 and OsIRT2 in Rice. Soil Sci. Plant Nutr. 2006, 52, 464–469. [Google Scholar] [CrossRef]
  48. Satoh-Nagasawa, N.; Mori, M.; Nakazawa, N.; Kawamoto, T.; Nagato, Y.; Sakurai, K.; Takahashi, H.; Watanabe, A.; Akagi, H. Mutations in Rice (Oryza Sativa) Heavy Metal ATPase 2 (OsHMA2) Restrict the Translocation of Zinc and Cadmium. Plant Cell Physiol. 2012, 53, 213–224. [Google Scholar] [CrossRef] [Green Version]
  49. Oda, K.; Otani, M.; Uraguchi, S.; Akihiro, T.; Fujiwara, T. Rice ABCG43 Is Cd Inducible and Confers Cd Tolerance on Yeast. Biosci. Biotechnol. Biochem. 2011, 75, 1211–1213. [Google Scholar] [CrossRef]
  50. Mclean, E.O. Soil PH and Lime Requirement. In Methods of Soil Analysis; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 1983; pp. 199–224. ISBN 978-0-89118-977-0. [Google Scholar]
  51. Nelson, D.W.; Sommers, L.E. Total Carbon, Organic Carbon, and Organic Matter. In Methods of Soil Analysis; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 1983; pp. 539–579. ISBN 978-0-89118-977-0. [Google Scholar]
  52. Chapman, H.D. Cation-Exchange Capacity. In Methods of Soil Analysis; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 1965; pp. 891–901. ISBN 978-0-89118-204-7. [Google Scholar]
  53. Nelson, J.L.; Boawn, L.C.; Viets, F.G.J. Method for Assessing Zinc Status of Soils Using Acid-Extractable Zinc and “Titratable Alkalinity” Values. Soil Sci. 1959, 88, 275–283. [Google Scholar] [CrossRef]
  54. Lin, Y.-W.; Liu, T.-S.; Guo, H.-Y.; Chiang, C.-M.; Tang, H.-J.; Chen, H.-T.; Chen, J.-H. Relationships between Cd Concentrations in Different Vegetables and Those in Arable Soils, and Food Safety Evaluation of Vegetables in Taiwan. Soil Sci. Plant Nutr. 2015, 61, 983–998. [Google Scholar] [CrossRef] [Green Version]
  55. Meharg, A.A.; Rahman, M.M. Arsenic Contamination of Bangladesh Paddy Field Soils:  Implications for Rice Contribution to Arsenic Consumption. Environ. Sci. Technol. 2003, 37, 229–234. [Google Scholar] [CrossRef] [PubMed]
  56. Hall, T.A. BioEdit: A User-Friendly Biological Sequence Alignment Editor and Analysis Program for Windows 95/98/NT. Nucleic Acids Symp Ser 1999, 41, 95–98. [Google Scholar]
  57. Ye, J.; Coulouris, G.; Zaretskaya, I.; Cutcutache, I.; Rozen, S.; Madden, T.L. Primer-BLAST: A Tool to Design Target-Specific Primers for Polymerase Chain Reaction. BMC Bioinform. 2012, 13, 134. [Google Scholar] [CrossRef] [Green Version]
  58. De Mendiburu, F. Agricolae: Statistical Procedures for Agricultural Research. R Package Version 2014, 1, 1–4. [Google Scholar]
  59. Allaire, J. RStudio: Integrated Development Environment for R. Boston MA 2012, 770, 165–171. [Google Scholar]
  60. Wickham, H. Ggplot2. Wiley Interdiscip. Rev. Comput. Stat. 2011, 3, 180–185. [Google Scholar] [CrossRef]
Plants 11 02813 g001 550

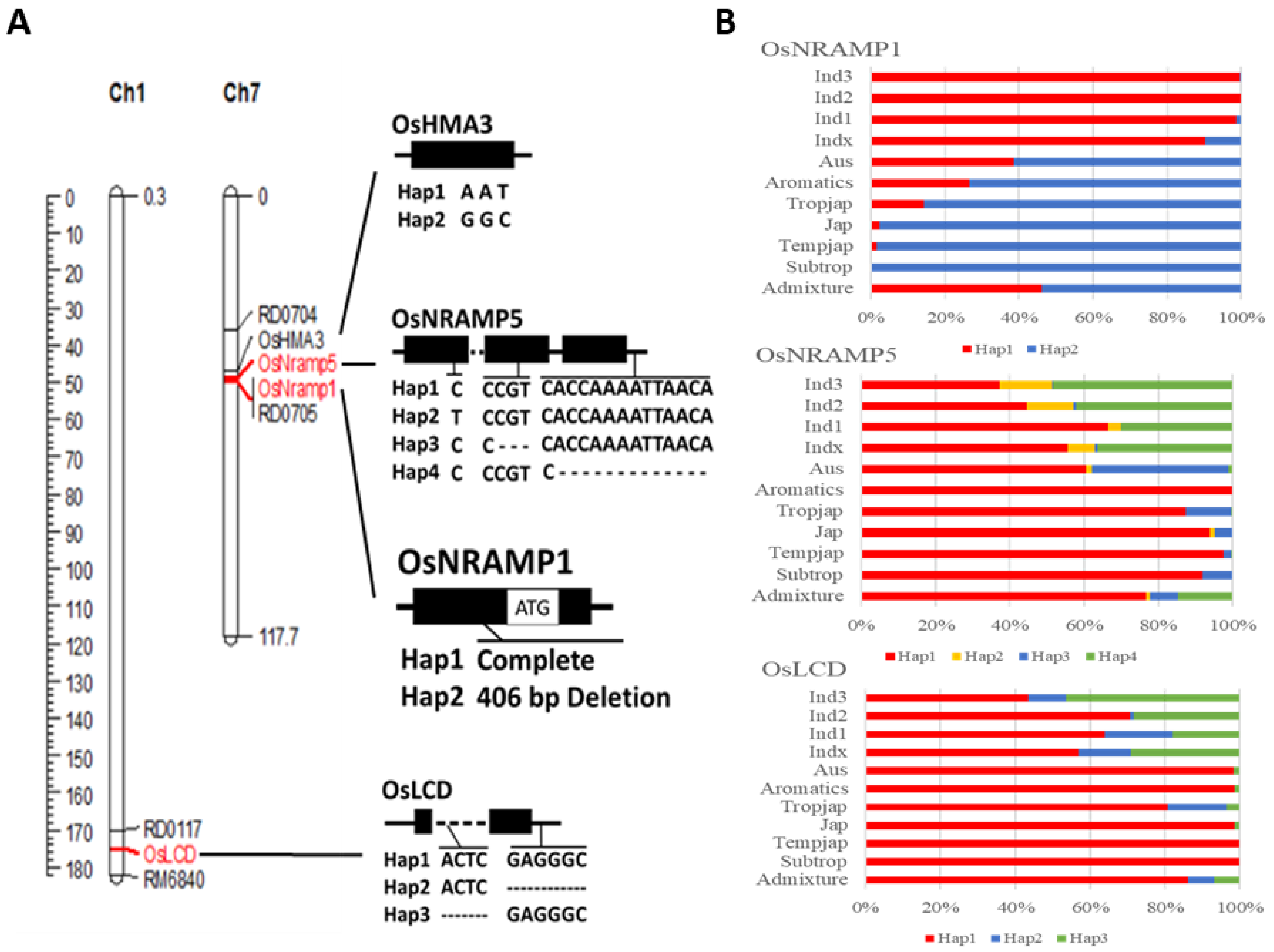

Figure 1. The haplotypes of OsHMA3, OsNRAMP1, OsNRAMP5, and OsLCD (A) and their distributions among 3K-RGP accessions (B). Subpopulation designation is based on Alexandrov et al. (2015) [33]. Ind1, ind2 and ind3 are three groups of indica rice, indx corresponds to other indica varieties, temp is temperate japonica, trop is tropical japonica, temp/trop and trop/temp are admixed temperate and tropical japonica varieties, japx is other japonica varieties, Aus is aus, inax is admixed aus and indica, Aromatics is aromatic and admixture is all other unassigned varieties.
Figure 1. The haplotypes of OsHMA3, OsNRAMP1, OsNRAMP5, and OsLCD (A) and their distributions among 3K-RGP accessions (B). Subpopulation designation is based on Alexandrov et al. (2015) [33]. Ind1, ind2 and ind3 are three groups of indica rice, indx corresponds to other indica varieties, temp is temperate japonica, trop is tropical japonica, temp/trop and trop/temp are admixed temperate and tropical japonica varieties, japx is other japonica varieties, Aus is aus, inax is admixed aus and indica, Aromatics is aromatic and admixture is all other unassigned varieties.
Plants 11 02813 g001
Plants 11 02813 g002 550
Figure 2. The distribution of 14 Cd-mobile types among the 3K-RGP accessions (A), and the Cd concentrations in roots (B) and shoots (C) in a hydroponic experiment. Ind1, ind2 and ind3 are three groups of indica rice, indx corresponds to other indica varieties, temp is temperate japonica, trop is tropical japonica, temp/trop and trop/temp are admixed temperate and tropical japonica varieties, japx is other japonica varieties, Aus is aus, inax is admixed aus and indica, Aromatics is aromatic and admixture is all other unassigned varieties. N, the number of varieties. Each variety has three replicates and labels the original points in the graph.
Figure 2. The distribution of 14 Cd-mobile types among the 3K-RGP accessions (A), and the Cd concentrations in roots (B) and shoots (C) in a hydroponic experiment. Ind1, ind2 and ind3 are three groups of indica rice, indx corresponds to other indica varieties, temp is temperate japonica, trop is tropical japonica, temp/trop and trop/temp are admixed temperate and tropical japonica varieties, japx is other japonica varieties, Aus is aus, inax is admixed aus and indica, Aromatics is aromatic and admixture is all other unassigned varieties. N, the number of varieties. Each variety has three replicates and labels the original points in the graph.
Plants 11 02813 g002
Plants 11 02813 g003 550
Figure 3. The gene structures, functional markers, and PCR results for haplotypes of OsNRAMP1, OsNRAMP5, and OsLCD.
Figure 3. The gene structures, functional markers, and PCR results for haplotypes of OsNRAMP1, OsNRAMP5, and OsLCD.
Plants 11 02813 g003
Table
Table 1. The Cd concentrations for representative varieties of 14 Cd-mobile types tested in hydroponic experiments.
Table 1. The Cd concentrations for representative varieties of 14 Cd-mobile types tested in hydroponic experiments.
Cd Mobile-TypeNR1NR5LCDCd Concentration (mg kg−1)Variety
Root 1ShootShoot/Root Ratio
Type1Hap1Hap1Hap1195.19 bc22.64 cd11.60% abcHabataki, Taichung Sen 10, Kurulutudu, Maranhao Branco
Type2Hap1Hap1Hap2275.91 a28.55 b10.35% bcTaichung Sen 17, Chang Le San Shu Zao
Type3Hap1Hap1Hap3299.13 a35.91 a12.01% abcHsinchu Ai Chio Chieng
Type4Hap1Hap2Hap2171.31 de25.26 cd14.75% aHsi’-T’ao Yuan Ching Yu
Type5Hap1Hap4Hap1223.47 cde23.91 ef10.70% abcTaichung Sen Waxy 2, Ncs840, Psbrc50, IR 19661-364-1-2-3
Type6Hap1Hap4Hap2278.80 a35.19 a12.62% abB 6136-3-TB-0-1-5, B 6136 E-3-TB-0-1-5
Type7Hap1Hap4Hap3224.41 bc27.08 bc12.07% abcNcs771A, Arc14868, IR 80310-12-B-1-3-B
Type8Hap2Hap1Hap1288.23 a25.42 cd8.82% cNipponbare, Tainan 11, Taitung 30
Type9Hap2Hap1Hap2209.07 bcde29.63 b14.18% abJin Jun Dao
Type10Hap2Hap1Hap3219.09 bcd28.54 b13.03% abLobang (white), Balibud
Type11Hap2Hap3Hap1251.53 ab21.16 ef8.41% cUprh166
Type12Hap2Hap2Hap3188.28 cde23.32 de12.39% abcAi Jiao Zi
Type13Hap2Hap3Hap2168.37 de18.09 fg10.75% abcLandeo
Type14Hap2Hap3Hap3149.88 e14.64 g9.77% bcAsu
1 Values are expressed as the mean of three replicates and means within each column followed by the same letter(s) are not significantly different at the 5% level as determined by Fisher’s protected LSD test. NR1: OsNRAMP1; NR5: OsNRAMP5; LCD: OsLCD.
Table
Table 2. The Cd concentrations for representative varieties of five Cd-mobile types tested in pot experiments.
Table 2. The Cd concentrations for representative varieties of five Cd-mobile types tested in pot experiments.
Cd in Soil
(mg kg−1)		Cd-Mobile TypeNR1NR5LCDCd Concentration (mg kg−1)Cd Concentration RatioVariety
Root 1ShootBrown RiceShoot/RootBrown Rice/RootBrown Rice/Shoot
3.76Type8Hap2Hap1Hap113.29b1.24ab0.04b9.33%a0.30%b3.23%aTN11
Type8Hap2Hap1Hap17.01bc0.68c0.07b9.70%a1.00%a10.29%aTCS10-OsNRAMP1
Type11Hap2Hap3Hap122.54a1.33a0.16a5.90%a0.71%ab12.03%aUprh166
Type13Hap2Hap3Hap28.96bc0.88bc0.06b9.82%a0.67%ab6.82%aLandeo
Type14Hap2Hap3Hap34.98c0.68c0.03b13.65%a0.60%ab4.41%aAsu
1 Values are expressed as means of three replicates. Letters represent the results of Fisher’s protected LSD test at the 95% confidence level. NR1: OsNRAMP1; NR5: OsNRAMP5; LCD: OsLCD; TN11: Tainan; TCS10-OsNRAMP1: Taichung Sen 10-OsNRAMP1.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Syu, C.-H.; Nieh, T.-I.; Hsieh, M.-T.; Lo, Y.-C.; Du, P.-R.; Lin, Y.-W.; Wu, D.-H. Uncovering the Genetic of Cadmium Accumulation in the Rice 3K Panel. Plants 2022, 11, 2813. https://doi.org/10.3390/plants11212813

AMA Style

Syu C-H, Nieh T-I, Hsieh M-T, Lo Y-C, Du P-R, Lin Y-W, Wu D-H. Uncovering the Genetic of Cadmium Accumulation in the Rice 3K Panel. Plants. 2022; 11(21):2813. https://doi.org/10.3390/plants11212813

Chicago/Turabian Style

Syu, Chien-Hui, Ting-Iun Nieh, Meng-Ting Hsieh, Yu-Ching Lo, Pei-Rong Du, Yu-Wen Lin, and Dong-Hong Wu. 2022. "Uncovering the Genetic of Cadmium Accumulation in the Rice 3K Panel" Plants 11, no. 21: 2813. https://doi.org/10.3390/plants11212813

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
