Chemical Constituents of the Roots of Polygala tenuifolia and Their Anti-Inflammatory Effects

Abstract

Increasing scientific evidence has demonstrated that the roots of Polygala tenuifolia Willd. have pharmacological effects related to anti-inflammation. Therefore, the aim of this study is to investigate the chemical constituents from P. tenuifolia roots as anti-inflammatory drug candidates. In the present work, twenty-three compounds were isolated from P. tenuifolia roots, including three saponins (1–3), ten phenylpropanoid sucrose esters (4–12), one benzoic acid sugar ester derivative (13), four xanthones (14–17), two hydroxy benzophenone derivatives (18 and 19), two phenolic derivatives (20 and 21), and two ionones (22 and 23). All isolates were tested for their inhibitory effects of LPS-stimulated NO and PGE₂ production in RAW 264.7 macrophages. Among these, 3-O-(3,4,5-trimethoxy-cinnamoyl),6′-O-(p-methoxybenzoyl) sucrose ester (TCMB; 11) together with compounds 3 and 21 exhibited significant inhibitory effects on NO production, while TCMB and compounds 17, 19, and 21 showed strong inhibitory effects on PGE₂ production. Specifically, TCMB (11) downregulated the protein levels of iNOS and COX-2 in LPS-induced RAW 264.7 macrophages. In addition, TCMB (11) dose-dependently diminished the relative mRNA expression levels of iNOS, PGE₂, and proinflammatory cytokines (TNF-α, IL-1β, and IL-6). A molecular docking study showed that TCMB (11) has strong binding affinities with iNOS and COX-2.

1. Introduction

Inflammation is one of the vital processes in which immune cells are activated by microbial infections, certain injuries, or toxins [1]. Macrophages play a crucial role in innate immune response by their cytotoxic and phagocytosis mechanism [2]. However, excessive immune response can lead to chronic inflammation, which in turn causes a variety of inflammatory-mediated disease [3]. Lipopolysaccharide (LPS), an endotoxin, is derived from Gram-negative bacteria and detected by Toll-like receptor 4 (TLR4) to activate the macrophages [4]. In activated macrophages by LPS, transcription factors of inflammatory response such as nuclear factor kappa-light-chain-enhancer of activated B cells (NF-κB) are consequently expressed. As a result, proinflammatory mediators such as nitric oxide (NO) and prostaglandin E₂ (PGE₂) are produced by inducible nitric oxide synthase (iNOS) and cyclooxygenase-2 (COX-2) [5]. NO is a signaling molecule in the immune process, but overproduction of NO can lead to inflammation diseases such as septic shock, cardiomyocyte apoptosis, and osteoarthritis [6,7,8]. PGE₂ can also cause vasodilatation, edema, fever, and pain [9]. Therefore, controlling proinflammatory mediators is an important factor in the development of therapeutic agents for various inflammation-related diseases.

The genus Polygala is one of the largest genera in the family Polygalaceae, with more than 600 species occurring throughout the world [10]. Since ancient times, several species of the genus Polygala have been widely used as main ingredients in traditional herbal remedies. In particular, the roots of Polygala tenuifolia Willd (Polygalae Radix) are included in several standardized documents, including the European (Ph. Eur.), Korean, Chinese, and Japanese Pharmacopoeias, as well as WHO monographs. Polygalae Radix, also known as “Onji” or “Yuanzhi” in East Asia, is one of the most important ingredients in traditional Oriental medicine. For example, it has been extensively used to treat inflammation-mediated diseases, neurasthenia or anxiety-related disorders, and memory deficits [10]. Recent research has revealed that P. tenuifolia roots have pharmacological effects related to anti-inflammatory, antitumor, neuroprotective, antidepressant, and sedative–hypnotic activities [11,12,13,14,15]. In phytochemical studies, triterpenoids, oligosaccharide esters, and phenolic compounds, including xanthones, have been identified from P. tenuifolia roots [10]. In a project directed towards the search for anti-inflammatory compounds in plants, a 70% MeOH extract from the roots of P. tenuifolia showed a significant inhibitory effect on the production of LPS-induced NO in RAW 264.7 macrophages (inhibition rate of 32.66% at 100 μg/mL). Despite the fact that chemical constituents of P. tenuifolia have been identified as potent anti-inflammatory agents, only a few compounds have undergone significant research to date. Therefore, the aim of this study is to investigate chemical constituents of the roots of P. tenuifolia as anti-inflammatory drug candidates.

In the present work, secondary metabolites in the 70% MeOH extract of P. tenuifolia were isolated through repeated chromatographic purification. To investigate the anti-inflammatory properties of the isolates, they were incubated with LPS-stimulated RAW 264.7 macrophages. The most potent compound was chosen to identify its effects on iNOS/COX-2 proteins and mRNA expression. The inhibitory activity of this compound on proinflammatory mediator mRNAs, including TNF-α, IL-1β, and IL-6, was also tested. Finally, a molecular docking study with iNOS and COX-2 protein was conducted to assess the performance of the compound as a selective iNOS and COX-2 inhibitor.

2. Results

2.1. Isolation and Identification of Compounds 1–23 from the Roots of P. tenuifolia

In this study, twenty-three compounds were isolated from the roots of P. tenuifolia, including three saponins (1–3), ten phenylpropanoid sucrose esters (4–12), one benzoic acid sugar ester derivative (13), four xanthones (14–17), two hydroxy benzophenone derivatives (18 and 19), two phenolic derivatives (20 and 21), and two ionones (22 and 23) (Figure 1).

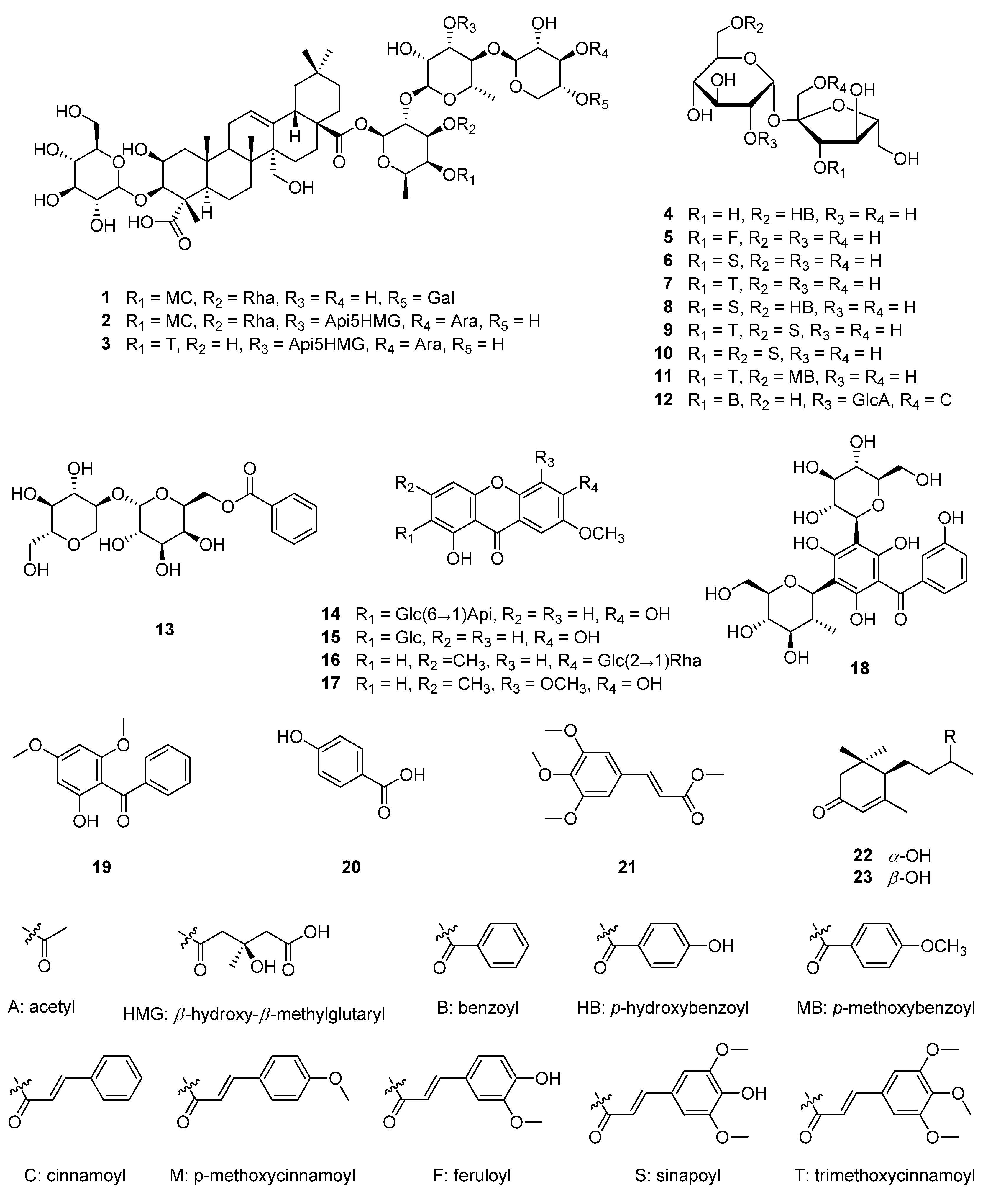

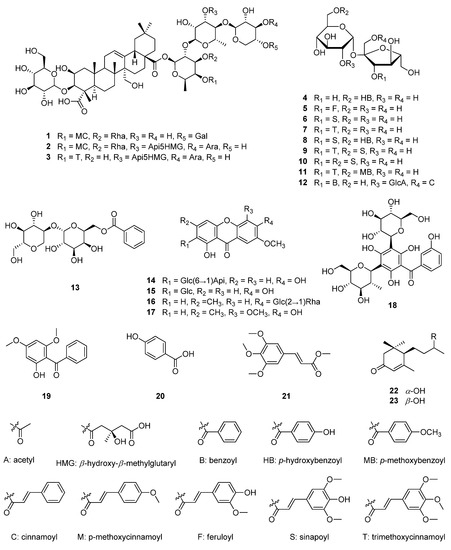

By comparing 1D-NMR (¹H and ¹³C) spectra of the isolated compounds with previously reported data, the chemical structures were identified as onjisaponin B (1) [16], onjisaponin J (2) [17], onjisaponin Fg (3) [18], sibiricose A₃ (4), sibiricose A₅ (5), sibiricose A₆ (6) [19], tenuifoliside A (7), tenuifoliside B (8), tenuifoliside C (9) [20], 3,6′-disinapoyl sucrose ester (10) [21], 3-O-(3,4,5-trimethoxy-cinnamoyl),6′-O-(p-methoxybenzoyl) sucrose ester (11), 1-O-(cinnamoyl),3-O-(benzoyl),2′-O-(6-O-acetyl-β-d-glucopyranosyl) sucrose ester (12) [22], polygalatenoside A (13) [14], polygalaxanthone III (14) [19], polygalaxanthone IV (15) [23], 7-O-methylmangiferin (16) [24], 3,4,5-trimethoxyxanthone (17) [25], tenuiphenone B (18) [26], hydrocotoin (19) [27], p-hydroxybenzoic acid (20) [28], 3,4,5-trimethoxycinnamic acid methyl ester (21) [29], blumenol C (22), and 9-epi-blumenol C (23) [30].

2.2. Effects of Compounds 1–23 on NO and PGE₂ Production in RAW 264.7 Macrophages

The compounds 1–23 obtained from the roots of P. tenuifolia were evaluated for their inhibitory effects of LPS-stimulated NO and PGE₂ production in RAW 264.7 macrophages (

Table 1. The inhibitory activities of compounds 1–23 obtained from the roots of P. tenuifolia on LPS-induced NO and PGE₂ production in RAW 264.7 macrophages. _L-NIL and NS398 are positive control for NO production and PGE₂ production, respectively.

Compound	Inhibition Rate (%) a [IC50 (μM)]		Compound	Inhibition Rate (%) a [IC50 (μM)]
	NO	PGE2		NO	PGE2
1	b ND	b ND	13	13.63	40.11
2	b ND	b ND	14	15.98	47.02
3	67.58 [24.62]	c NE	15	13.92	44.50
4	c NE	46.41	16	9.15	45.65
5	c NE	50.54	17	47.50	94.44 [13.56]
6	c NE	7.26	18	16.97	41.73
7	1.46	61.23	19	38.12	91.17 [11.03]
8	c NE	36.25	20	9.63	37.50
9	25.45	65.05	21	56.53 [32.92]	79.39 [24.57]
10	18.56	45.52	22	9.61	46.68
11	68.21 [46.08]	93.39 [10.01]	23	8.89	38.67
12	11.86	45.40	L-NIL	57.87	b ND
			NS398	b ND	67.98

^a Cells were pretreated with 1–23 (50 μM) and LPS (100 ng/mL) for 1 h and incubated for 24 h. ^b ND: not detected. ^c NE: no effect.

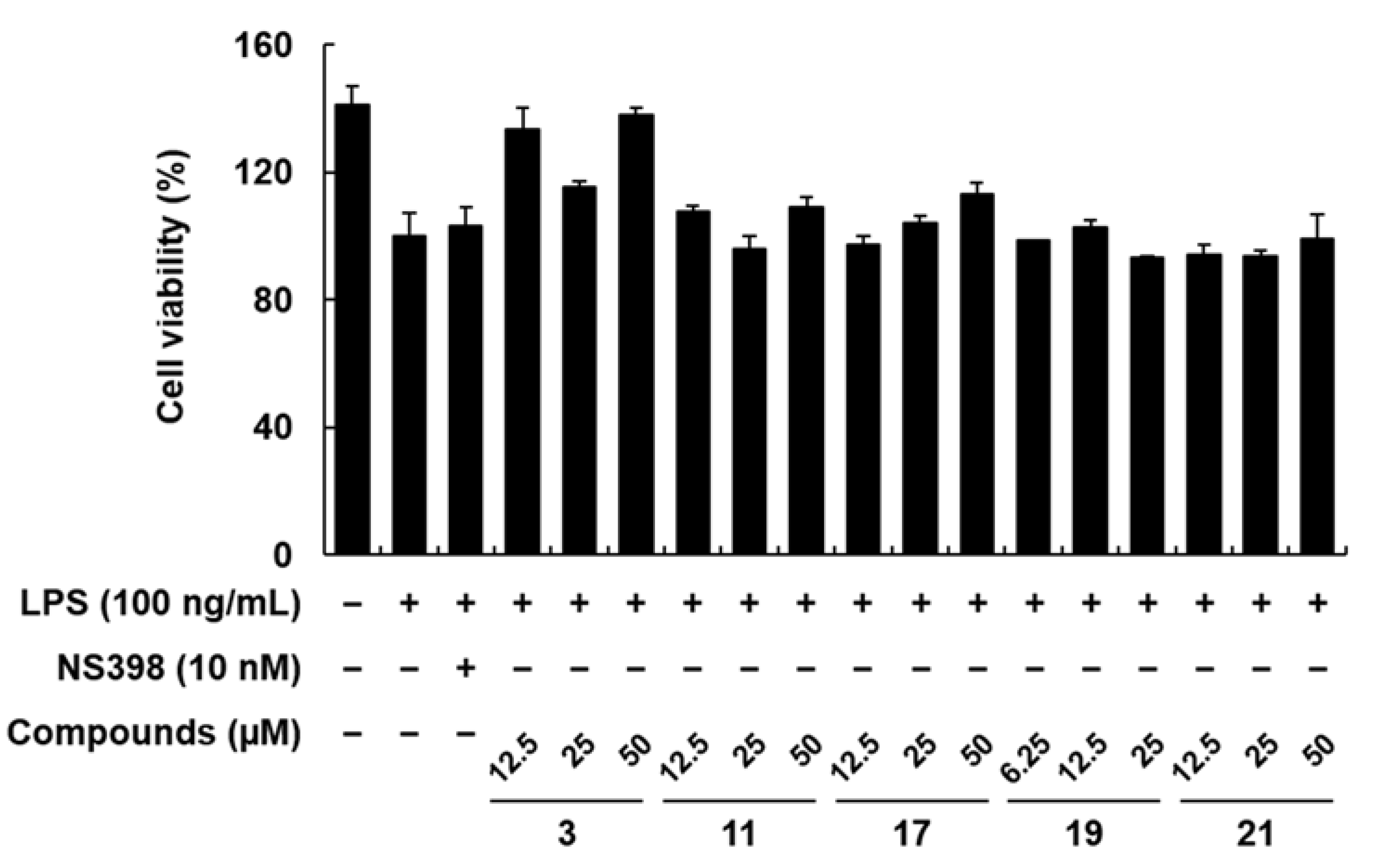

). Among these compounds, onjisaponins B (1) and J (2) were not subjected to further experiments since the cell viability of onjisaponins B and J (2) was under 80%, indicating the toxicity of compounds (data not shown), whereas onjisaponin Fg (3), 3-O-(3,4,5-trimethoxy-cinnamoyl),6′-O-(p-methoxybenzoyl) sucrose ester (11), and 3,4,5-trimethoxycinnamic acid methyl ester (21) exhibited significant inhibitory effects on LPS-stimulated NO production with observed IC₅₀ values of 24.62, 46.08, and 32.92 μM, respectively at non-toxic concentrations (Table 1; Figure 2). Meanwhile, 3-O-(3,4,5-trimethoxy-cinnamoyl),6′-O-(p-methoxybenzoyl) sucrose ester (11), 3,4,5-trimethoxyxanthone (17), hydrocotoin (19), and 3,4,5-trimethoxycinnamic acid methyl ester (21) presented strong inhibitory effects on PGE₂ production, with observed IC₅₀ values of 10.01, 13.56, 11.03, and 24.57 μM, respectively (Table 1; Figure 3). Of these active compounds, 3-O-(3,4,5-trimethoxy-cinnamoyl),6′-O-(p-methoxybenzoyl) sucrose ester (TCMB) (11) was chosen for detailed experiments related to inflammation since it showed the most potent inhibitory effect on PGE₂ production, as well as significant inhibition on NO production.

2.3. Effects of TCMB on iNOS and COX-2 Protein Level in RAW 264.7 Macrophages

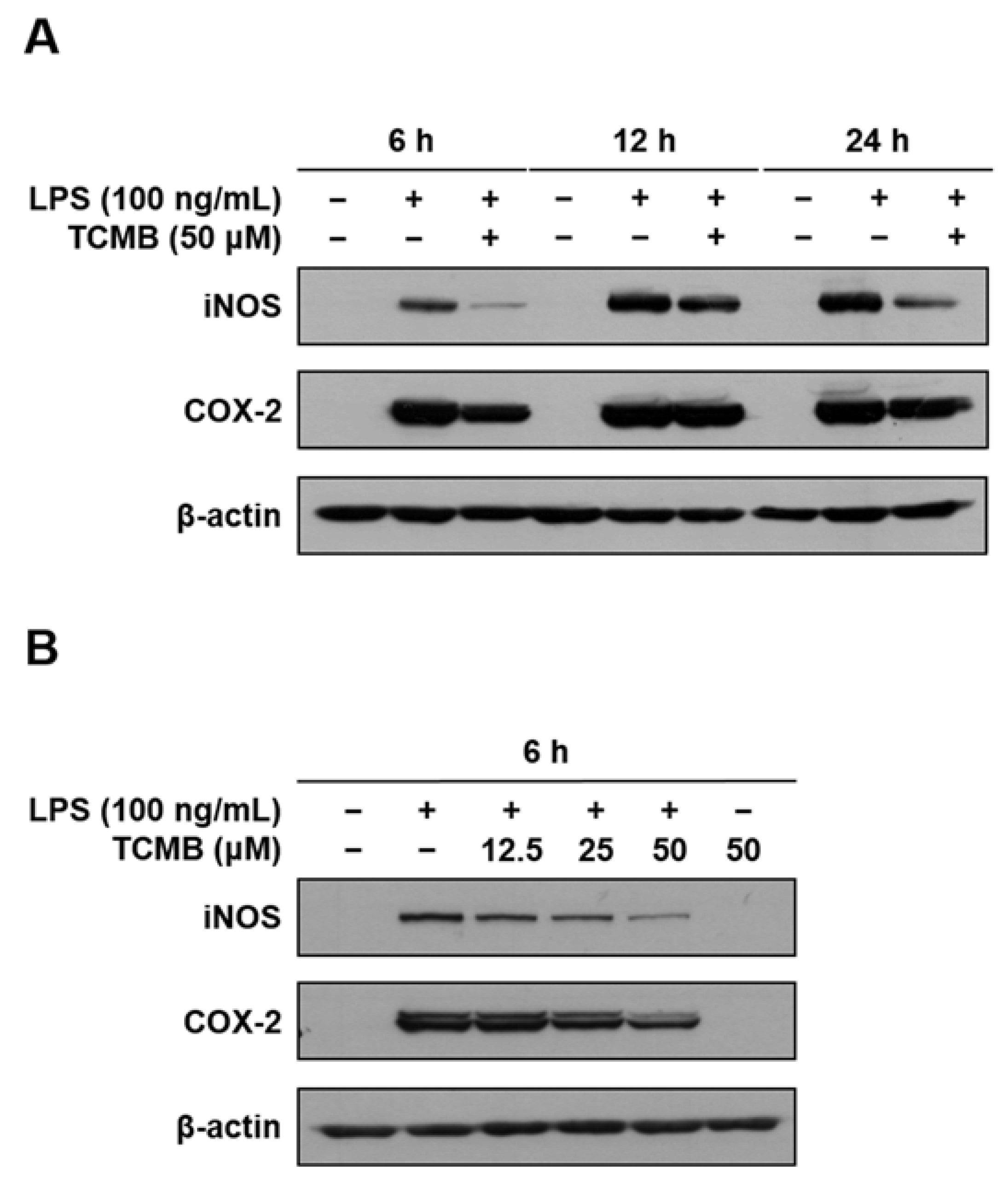

As TCMB (11) significantly inhibited the levels of NO and PGE₂ production (Figure 2 and Figure 3), the protein levels of iNOS and COX-2 were estimated. After treatment with or without TCMB (11) and LPS for 6, 12, and 24 h, the protein expression of iNOS and COX-2 was upregulated by LPS treatment, whereas their expression was potently downregulated by the TCMB (11) treatment at a concentration of 50 μM (Figure 4A). Since TCMB (11) showed the strongest inhibitory effect against the protein expression levels of iNOS and COX-2 at 6 h, we further examined the ameliorating effect at various concentrations (12.5, 25, and 50 μM) of TCMB (11). As shown in Figure 4B, TCMB (11) decreased the protein levels of iNOS and COX-2 in a dose-dependent manner (Figure 4B).

2.4. Effects of TCMB on iNOS and COX-2 mRNA Expression Levels in LPS-Stimulated RAW 264.7 Macrophages

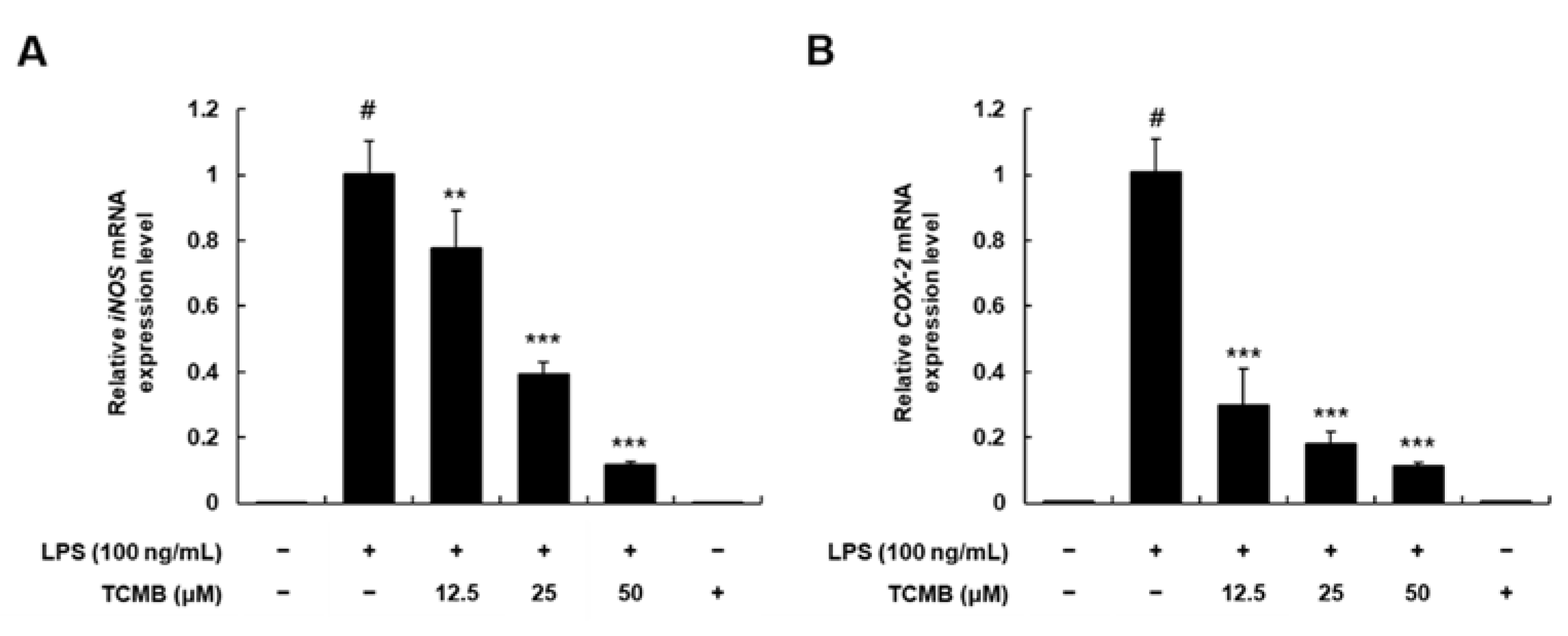

To examine whether TCMB (11) affects the mRNA expression level of iNOS and COX-2, qRT-PCR was performed. The relative iNOS and COX-2 mRNA expression levels were elevated by LPS treatment, while TCMB (11) treatment (12.5, 25, and 50 μM) significantly diminished the relative LPS-stimulated mRNA expression levels of iNOS and COX-2 in a dose-dependent manner (Figure 5A,B).

2.5. Effects of TCMB on TNF-α, IL-1β, and IL-6 mRNA Expression Levels in LPS-Stimulated RAW 264.7 Macrophages

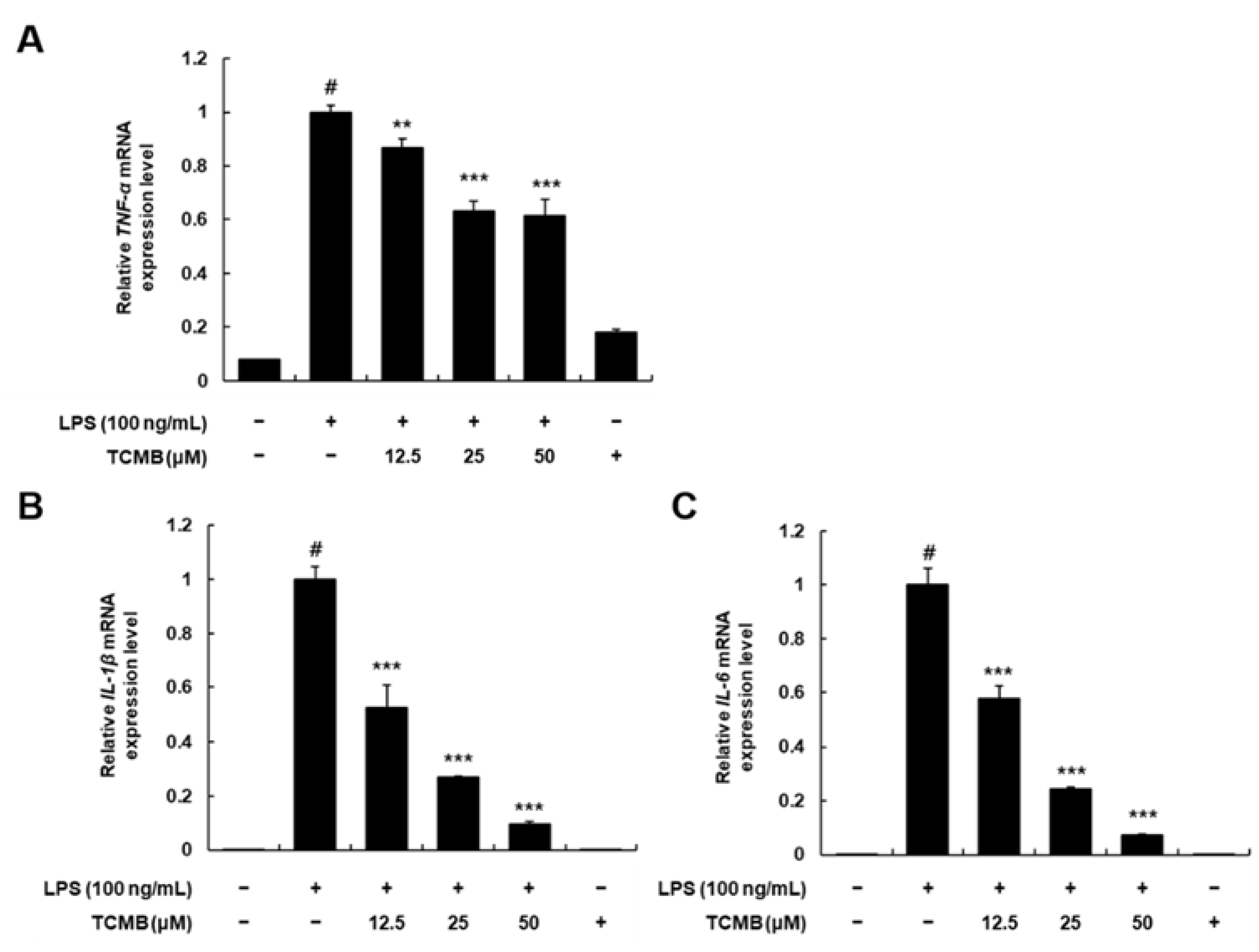

Based on the data indicating the suppression effect of TCMB (11) on the production of proinflammatory mediators (NO and PGE₂)_, we further estimated the relative mRNA expression levels of proinflammatory cytokines. As shown in Figure 6, we observed the dose-dependent suppression of TCMB (11) on the relative mRNA expression levels of TNF-α, IL-1β, and IL-6 in LPS-stimulated RAW 264.7 macrophages. These results suggest that further studies are needed to clarify the anti-inflammatory active site of TCMB (11).

2.6. Molecular Docking with TCMB and iNOS/COX-2 Proteins

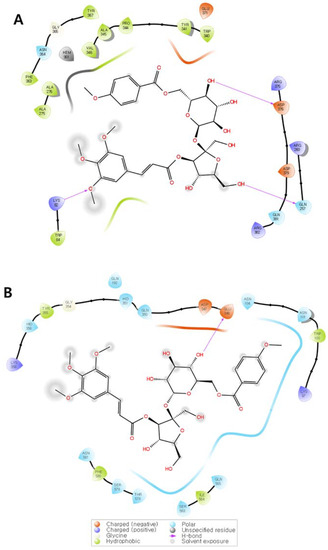

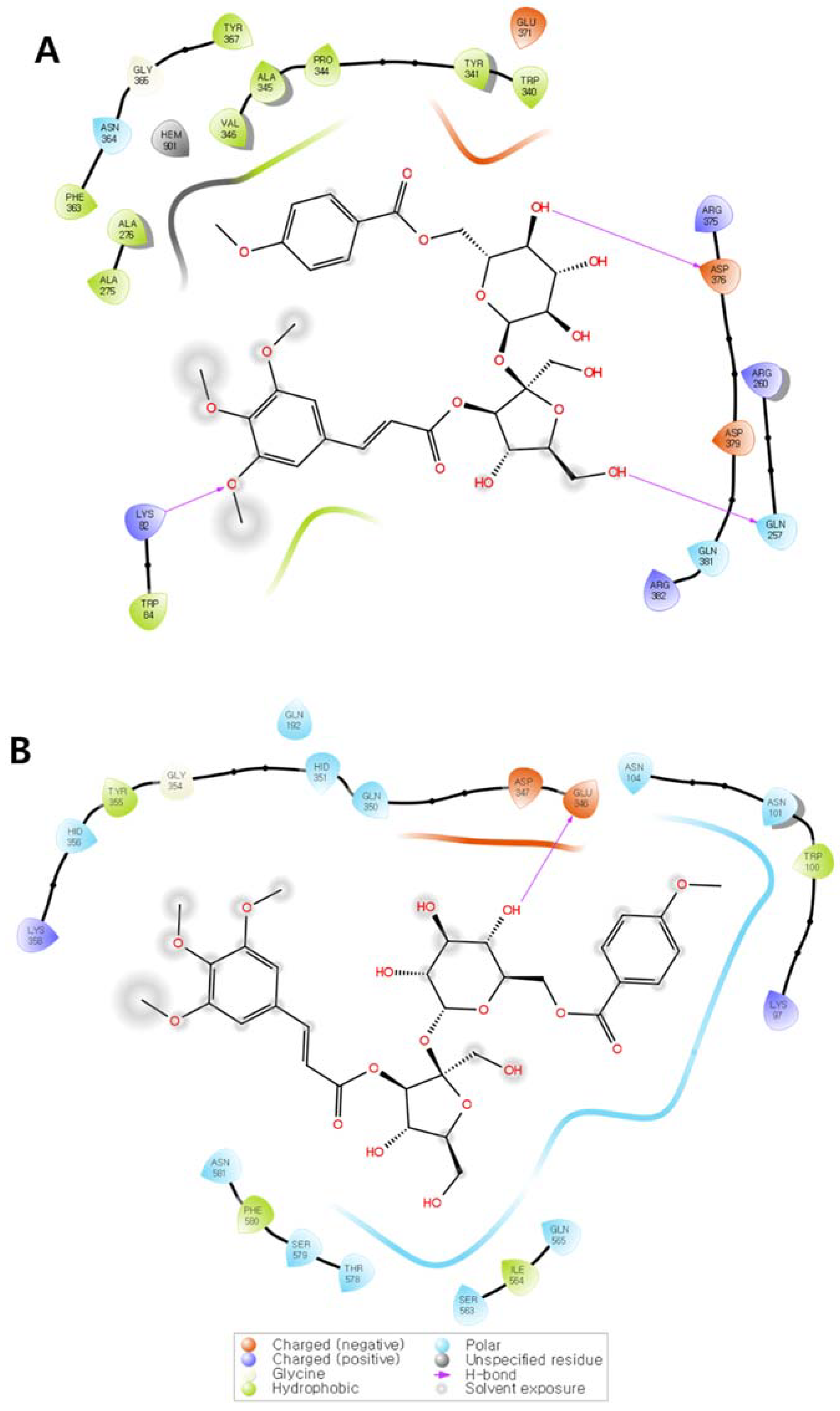

To further investigate how TCMB (11) interacts with the iNOS and COX-2 proteins, a molecular docking simulation was conducted in the active sites of each protein. Co-crystallized ligands IA2 for iNOS and S58 for COX, and positive controls NG-Monomethyl-L-arginine (L-NMMA) for iNOS and N-(2-cyclohexyloxy-4-nitrophenyl)methane sulfonamide (NS398) for COX-2, were utilized for comparison of binding affinity and docking position (Figures S1 and S2; Tables S1 and S2). At the lowest energy conformation, TCMB (11) showed a binding affinity of −10.4 kcal/mol (RMSD < 1.0) with iNOS. TCMB (11) interacted with residues ASP-376, GLN-257, and LYS-82 through hydrogen bonding, as shown in Figure 7A. ASP-376 and GLN-257 accepted a hydrogen bond from the sugar moiety of TCMB (11), whereas LYS-82 donated a hydrogen bond to the trimethoxycinnamoyl moiety. A hydrophobic pocket was exhibited by the association of hydrophobic residues from TRP-340 to VAL-346, ALA-275 to ALA276, PHE-363, and TYR-367.

The lowest affinity of TCMB (11) with COX-2 protein was calculated as −7.1 kcal/mol (RMSD < 1.0). GLU-346 accepts a hydrogen bond from TCMB (11) in this conformation and is also involved in negatively charged residue with ASP-347 (Figure 7B). Positively charged residues were also revealed, such as LYS-97 and LYS-358. The most observed interaction was the association of several polar residues, including ASN-101, ASN-104, GLN-192, GLN-350, HID-351, HID-356, GLN-565, SER-563, THR-578, SER-579, and ASN-581.

3. Discussion

Since the potency of natural products with anti-inflammatory properties has been demonstrated, natural products have been employed continuously in the discovery for anti-inflammatory drug candidates. In a recent study, the root of P. tenuifolia, which has been traditionally used as an expectorant, was found to inhibit TLR4 and Myd-88 expression [11]. Moreover, P. tenuifolia roots suppress NF-κB translocation by blockade of IkappaB-α (IκB-α) degradation in LPS-stimulated BV2 cells [11]. It has also been reported that P. tenuifolia contains phytochemicals with anti-inflammatory properties. Tenuigenin, a triterpenoid from P. tenuifolia, inhibits mitogen-activated protein kinases (MAPKs) and NF-κB signaling while inducing Nrf2/HO-1 signaling in macrophages [31]. Tenuifoliside A (7), a unique phenolic sugar ester, has an anti-inflammatory effect in LPS-stimulated macrophages by inhibiting the c-Jun N-terminal kinase (JNK) and NF-κB signaling pathways [31]. In order to search for other phytochemicals with anti-inflammatory effects from the roots of P. tenuifolia, three saponins (1–3), ten phenylpropanoid sucrose esters (4–12), one benzoic acid sugar ester derivative (13) four xanthones (14–17), two hydroxy benzophenone derivatives (18 and 19), two phenolic derivatives (20 and 21), and two ionones (22 and 23) were isolated through repeated chromatography. To the best of our knowledge, blumenol C (22) and 9-epi-blumenol C (23) were isolated for the first time from the roots of P. tenuifolia in this study.

Proinflammatory mediators or cytokines are released by activated macrophages, causing inflammation-mediated diseases, including septic shock and arthritis [5,32]. Here, we tested the inhibitory impact of proinflammatory mediators on all extracted compounds from P. tenuifolia roots in an attempt to identify new inhibitors of proinflammatory mediators. An oligosaccharide ester, 3-O-(3,4,5-trimethoxy-cinnamoyl),6′-O-(p-methoxybenzoyl) sucrose ester (TCMB) (11), showed the most significant inhibitory effect on PGE₂ production, with an IC₅₀ value of 10.01 μM, and this is the first study to reveal that it has anti-inflammatory properties. In this work, however, another oligosaccharide, tenuifoliside A (7), exhibited a lower inhibition rate than TCMB (11), despite an anti-inflammatory mechanism being known.

Molecular docking with COX-2 provided another explanation for the PGE₂ inhibition activity of TCMB (11). It showed significant binding affinity (−7.1 kcal/mol, RMSD < 1.0). Besides this, molecular dynamics simulations or kinetic analysis will be required to determine the stability of TCMB (11) with iNOS binding in a further investigation. In our experiment, the inhibitory effect of TCMB (11) on NO production was very weak, whereas simulations of direct binding to iNOS, iNOS protein, and mRNA expression revealed a strong binding affinity.

In the present research, it was observed that the inhibition rate of compounds on PGE₂ and NO production were compatible with one another. However, the inhibition rate of NO production tended to be lower than that of PGE₂ inhibition. Despite this tendency, TCMB (11) had a remarkable inhibitory effect on the protein and mRNA expression of iNOS and COX-2 in a dose-dependent manner. In addition, TCMB (11) significantly inhibited cytokines’ mRNA expression, including TNF-α, IL-1β, and IL-6. Further mechanistic studies and animal experiments will be able to prove its potential as an anti-inflammatory drug.

4. Materials and Methods

4.1. Plant Material

The roots of Polygala tenuifolia Willd. (Polygalaceae) were obtained at Neimenggu, China, in August 2017. The origin of the herbal material was identified by prof. Dae Sik Jang, and a voucher specimen (D170828001) was deposited in the Herb Resource Bank of Traditional Korean Medicine (http://herb-bank.com; accessed on 16 November 2022), Kyung Hee University (Seoul, Republic of Korea).

4.2. Extraction and Isolation of Compounds from P. tenuifolia

The dried roots of P. tenuifolia (3.0 kg) were extracted three times with 70% MeOH at room temperature for 24 h, respectively.

The 70% MeOH extract (1.0 kg) was chromatographed over Diaion HP-20 (10.0 × 59.0 cm) as stationary phase eluting with a MeOH:H₂O gradient [0:1 (7.0 L), 4:6 (12.0 L), 6:4 (19.5 L), 7:3 (2.0 L), 8:2 (23.0 L), 9:1 (5.0L), 10:0 (7.0 L)] to afford 15 fractions (P1–15).

P4 was fractionated using Sephadex LH-20 column chromatography (CC; 6.5 × 49.0 cm) with MeOH:H₂O mixture (6:4 v/v) and produced 16 fractions (P4-1~P4-16). P4-7 was further subjected to silica gel CC (230–400 mesh, 4.8 × 25.0 cm, EtOAc:acetone:H₂O = 5:4:1 to 4:5:1 v/v/v) and generated 20 subfractions (P4-7-1~P4-7-20). P4-7-9 produced compounds 13 (50.4 mg) and 6 (259.0 mg) using silica gel CC (230–400 mesh, 4.8 × 25.0 cm, CH₂Cl₂:MeOH:H₂O = 7:2.7:0.3 to 6:3.6:0.4 v/v/v). P4-12 produced 16 subfractions using silica gel CC (P4-12-1~P4-12-16; 230–400 mesh, 3.8 × 25.0 cm, EtOAc:acetone:H₂O = 5.5:4:0.5 to 5:4:1 v/v/v). P4-12-4 was fractionated into 12 fractions (P4-12-4-1~P4-12-4-12) by medium-pressure liquid chromatography (MPLC) using Redi Sep-C18 cartridge (43 g, MeOH:H₂O = 1.3:8.7 to 3:7 v/v) to obtain compounds 4 (29.9 mg), 5 (151.5 mg), and 7 (10.8 mg). Compound 18 (16.8 mg) was obtained from P4-12-9 by MPLC using Redi Sep-C18 cartridge (13 g, MeOH:H₂O = 1:9 to 3.5:6.5 v/v). Compound 20 (17.9 mg) was purified from P4-16 using MPLC with Redi Sep-C18 cartridge (30 g, MeOH: H₂O = 1:9 to 6.5:3.5 v/v), successively.

P5 was subjected to silica gel CC (230–400 mesh, 6.5 × 58.0 cm, MC:MeOH:H₂O = 8:1.8:0.2 to 5:4.5:0.5 v/v/v) to produce 13 fractions (P5-1~P5-13). Compound 14 (1.04 g) was purified by recrystallization with MeOH from P5-10. P5-2 was fractionated into P5-2-1~P5-2-9 by MPLC using Redi Sep-C18 cartridge (130 g, MeOH:H₂O = 3.5:6.5 to 5:5 v/v). Compound 9 (30.3 mg) was purified from P5-2-6 using MPLC (Redi Sep-silica 24 g, CH₂Cl₂:MeOH = 9.5:0.5 to 7.5:2.5 v/v). P5-3 was fractionated into P5-3-1~P5-3-16 by GLAS RP-18 CC (ODS-A 12 nm S-150 μm, 5.2 × 50.0 cm, MeOH:H₂O = 3.5:6.5 to 6:4 v/v). Compound 8 (352.5 mg) was purified from P5-3-8 using MPLC with Redi Sep-silica (40 g, CH₂Cl₂:MeOH = 9:1 to 7:3 v/v). P5-4 was fractionated using Sephadex LH-20 CC (3.8 × 60.0 cm) with MeOH:H₂O mixture (7:3 v/v) and produced 14 fractions (P5-4-1~P5-4-14). Compound 16 (9.4 mg) was purified by recrystallization with MeOH from P5-4-11.

P9 was fractionated using Sephadex LH-20 (5.8 × 50.0 cm) with MeOH:H₂O mixture (7:3 v/v) and produced 11 fractions (P9-1~P9-11). P9-6 was further fractionated using silica gel CC (70–230 mesh, 4.5 × 45.0 cm, EtOAc:acetone:H₂O = 8:1.5:0.5 to 5:4.5:0.5 v/v/v) and produced 18 subfractions (P9-6-1~P9-6-18). Compounds 9 (100.0 mg) and 12 (92.4 mg) were obtained from P9-6-9 and P9-6-14, respectively. Compounds 22 (3.3 mg) and 23 (3.5 mg) were generated from P9-6-2 by performing prep HPLC with Gemini NX-C18 110A column (250 × 21.2 mm i.d., 5 μm, Phenomenex). Compound 11 (48.0 mg) was isolated from P9-6-6 using MPLC with Redi Sep-C18 cartridge (30g, MeOH: H2O = 2:8 to 8:2 v/v). P9-9 was chromatographed over silica gel (230–400 mesh, 3.6 × 32.0 cm, EtOAc:acetone:H₂O = 9:0.5:0.5 to 6:3.5:0.5 v/v/v) to afford 17 pooled fractions (P9-9-1~P9-9-17). Compound 15 (112.3 mg) was obtained by recrystallization with MeOH from P9-9-15.

P10 was fractionated using Sephadex LH-20 CC (5.8 × 56.0 cm) with MeOH:H₂O mixture (7:3 v/v) and produced 12 fractions (P10-1~P10-12). P10-9 was further fractionated using silica gel CC (230–400 mesh, 3.8× 32.0 cm, n-hexane: EtOAc:MeOH = 4.5:5:0.5 to 2.5:7:0.5 v/v/v), producing compound 10 (34.3 mg).

P13 was fractionated using silica gel CC (230–400 mesh, 4.5 × 42.0 cm, CH₂Cl₂:EtOH:H₂O = 5:4.5:0.5 v/v/v) and produced 10 subfractions (P13-1~P13-10). P13-5 was further fractionated into P13-5-1~P13-5-16 by GLAS CC (ODS-A 12 nm S-150 μm, 5.2 × 50.0 cm, MeOH:H₂O = 4:6 to 9:1 v/v) to give yielding compounds 1 (75.8 mg), 2 (158.0 mg), and 3 (25.8 mg).

P15 was separated by Sephadex LH-20 CC (5.8 × 56.0 cm) with MeOH:H₂O mixture (8.5:1.5 v/v) and gave 16 fractions (P15-1~P15-16). Fraction P15-7 was fractionated into P15-7-1~P15-7-7 by MPLC (Redi Sep-silica 80 g, n-hexane:EtOAc = 9.5:0.5 to 6:4 v/v) to purify compounds 19 (9.7 mg) and 21 (15.5 mg). Fraction P15-13 produced compound 17 (8.3 mg) after using MPLC (Redi Sep-C18 26 g, MeOH:H₂O, 7:3 to 8.5:1.5 v/v).

4.3. Cell Culture and Cell Viability Assay

The RAW 264.7 macrophage cells were obtained from the Korea Cell Line Bank (Seoul, Republic of Korea). These cells were cultured with Dulbecco’s modified Eagle’s Medium (DMEM) containing 10% fetal bovine serum and 1% penicillin and seeded in 24-well plates at a density of 2 × 10⁵/mL. After 24 h of incubation, cells were incubated with compounds at concentrations of 6.25, 12.5, 25, and 50 μM and then stimulated with LPS 100 ng/mL. After incubation for 24 h, the cell viability was estimated by MTT assay. A total of 20 μL of MTT solution (5 mg/mL) was added to each well and then incubated for 2 h. The supernatant was removed and remained formazan was dissolved with DMSO. The absorbance was determined by using microplate reader (Molecular Devices Inc., San Jose, CA, USA) at 540 nm.

4.4. Measurement of NO and PGE₂ Production

The RAW 264.7 macrophage cells were seeded in 24-well plates at a density of 2 × 10⁵/mL. After incubation for 24 h, cells were pretreated with compounds at concentrations of 6.25, 12.5, 25, and 50 μM for 1 h and then stimulated with LPS 100 ng/mL for 24 h. The cultured media were collected to estimate NO and PGE₂ production. To observe the NO production, 100 μL of cultured media was transferred to 96 wells, and then Griess reagent was added to each well. _L-NIL (40 μM) was used as a positive control for the NO assay. The estimation of PGE₂ production was performed using PGE₂ enzyme-linked immunosorbent assay (ELISA) Kit (Enzo Life Sciences). NS398 (10 nM) was treated as a positive control for the PGE₂ assay. The absorbance was determined by using microplate reader (Molecular Devices Inc., San Jose, CA, USA) at 504 nm and 405 nm for NO production and PGE₂ production, respectively.

4.5. Western Blot Analysis

The RAW 264.7 macrophage cells were seeded in a culture dish at a density of 5 × 10⁵/mL. Cells were pretreated with 50 μM of TCMB (11) for 1 h and then stimulated with LPS 100 ng/mL for 6, 12, and 24 h. After incubation, the cultured media were removed and cells were washed with PBS. Whole protein was extracted by using PRO-PREP protein extraction solution (Intron Biotechnology, Seoul, Republic of Korea). Extracted proteins were quantified by Bio-Rad protein assay using a reagent (Bio-Rad Laboratories Inc., Hercules, CA, USA). The whole protein (25 μg) was separated by SDS-PAGE using 10% acrylamide gel and then transferred to the PVDF membrane. The blots were incubated with iNOS (sc-650, Santa Cruz Biotechnology, Santa Cruz, CA, USA) and COX-2 (No: 160106, Cayman Chemical, Ann Arbor, MI, USA) antibodies diluted in 5% skim milk with 1:1000 and 1:5000 ratio, respectively. After incubation at 4 °C for 18 h, the blots were washed 3 times using TBS/T. The washed blots were then incubated for 2 h with horseradish peroxidase-conjugated secondary antibody diluted in 5% skim milk with 1:2000 ratio and washed 3 times using TBS/T. The washed blots were developed using an ECL chemiluminescence substrate (Santa Cruz Biotechnology, Santa Cruz, CA, USA). The developed blots were then visualized with Amersham Hyperfilm ECL (GE Healthcare Life Sciences, Chicago, IL, USA).

4.6. Preparation of RNA and qRT-PCR

The RAW 264.7 macrophage cells were seeded in a culture dish at a density of 5 × 10⁵/mL. After incubation for 6 h, cells were pretreated with 12.5, 25, and 50 μM of TCMB (11) for 1 h and then stimulated with LPS 100 ng/mL for 6, 12, and 24 h. The cultured media were removed and cells were washed with PBS. Total mRNA was extracted by using Easy Blue^® kits (Intron Biotechnology, Seoul, Republic of Korea) and synthesized to cDNA using 0.5 mg/mL random oligonucleotide primers (Promega, Madison, WI, USA) and TOPscriptTM RTDryMIX (Enzynomics, Daejeon, Republic of Korea). PCR amplification was analyzed by using the incorporation of SYBR green (TaKaRa, Shiga, Japan) and primers for iNOS (forward strand 5′-AAC ATC CTG GAG GAA GTG GG-3′; reverse strand 5′-GCT GTG TGG TGG TCC ATG AT-3′), COX-2 (forward strand 5′-TGC TGT ACA AGC AGT GGC AA-3′; reverse strand 5′-GCA GCC ATT TCC TTC TCT CC-3′), TNF-α (forward strand 5′-AGC ACA GAA AGC ATG ATC CG-3′; reverse strand 5′-CTG ATG AGA GGG AGG CCA TT-3′), IL-1β (forward strand 5′-ACC TGC TGG TGT GTG ACG TT-3′; reverse strand 5′-TCG TTG CTT GGT TCT CCT TG-3′), and IL-6 (forward strand 5′-GGG ACT GAT GCT GGT GAC AA-3′; reverse strand 5′-CCA CGA TTT CCC AGA GAA CA-3′). All primers were purchased from Bioneer (Seoul, Republic of Korea).

4.7. Statistical Analysis

All results are expressed as the mean ± SD. Statistical significance was analyzed by using one-way analysis of variance (ANOVA) and Dunnett’s post hoc test using GraphPad Prism software (GraphPad Software, Inc., San Diego, CA, USA). # p < 0.05 vs. non-LPS-induced control group; * p < 0.05, ** p < 0.01, and *** p < 0.001 as compared to the LPS-only-induced group. p-values below 0.05 are considered significant.

4.8. Molecular Docking Study

Molecular docking studies were performed by a previously described method [33]. iNOS (PDB ID: 3E6T, resolution: 2.5 Å) and COX-2 (PDB ID:6COX, resolution: 2.8 Å) were downloaded from the RCSB PDB database. TCMB (11) was minimized with MMFF94 force field by Chem 3D pro 14.0. Proteins and ligands were prepared using AutoDock 4.2 software (The Scripps Research Institute, La Jolla, CA, USA). The active sites were determined by previously published data [34,35]. The molecular docking conformations were simulated with the hybrid Lamarckian Genetic Algorithm (LGA) by AutoDock vina software and receptor–ligand interaction diagrams were obtained by Maestro 12.9 software (Schrödinger, LLC, New York, NY, USA).

5. Conclusions

A total of 23 compounds were obtained from the roots of P. tenuifolia and were evaluated for their inhibitory effects of LPS-stimulated NO and PGE₂ production in RAW 264.7 macrophages. Among these, 3-O-(3,4,5-trimethoxy-cinnamoyl),6′-O-(p-methoxybenzoyl) sucrose ester (TCMB) (11) exhibited significant inhibitory effects on both NO and PGE₂ production. Western blot analysis revealed that TCMB (11) effectively downregulated the protein expression of iNOS and COX-2 in dose-dependent manner. Moreover, TCMB (11) showed inhibitory effect on the relative mRNA expression level of iNOS, COX-2, and cytokines (TNF-α, IL-1β, IL-6) significantly. Taken together, our data imply that TCMB (11) has an anti-inflammatory effect by inhibiting proinflammatory mediators. A molecular docking study showed that TCMB (11) has strong binding affinities with iNOS and COX-2 protein.
