Genome-Wide Identification and Expression Analysis of TUA and TUB Genes in Wheat (Triticum aestivum L.) during Its Development

by
Yang Ren
1,2,†,
Qilu Song
1,†,
Sicong Shan
1,
Junwei Wang
1,
Shoucai Ma
1,
Yulong Song
1,
Lingjian Ma
1,
Gaisheng Zhang
1,* and
Na Niu
1,*
1
Key Laboratory of Crop Heterosis of Shaanxi Province, Wheat Breeding Engineering Research Center, Ministry of Education, College of Agronomy, Northwest A&F University, Yangling 712100, China
2
College of Plant Protection, Northwest A&F University, Yangling 712100, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2022, 11(24), 3495; https://doi.org/10.3390/plants11243495
Submission received: 9 November 2022 / Revised: 5 December 2022 / Accepted: 9 December 2022 / Published: 13 December 2022
(This article belongs to the Special Issue Improvement and Genetic Analysis of Germplasm Resources in Major Crops)
Browse Figures
Versions Notes

Abstract

:
Microtubules play a fundamental role in plant development, morphogenesis, and cytokinesis; they are assembled from heterodimers containing an α-tubulin (TUA) and a β-tubulin (TUB) protein. However, little research has been conducted on the TUA and TUB gene families in hexaploid wheat (Triticum aestivum L.). In this study, we identified 15 TaTUA and 28 TaTUB genes in wheat. Phylogenetic analysis showed that 15 TaTUA genes were divided into two major subfamilies, and 28 TaTUB genes were divided into five major subfamilies. Mostly, there were similar motif compositions and exon-intron structures among the same subfamilies. Segmental duplication of genes (WGD/segmental) is the main process of TaTUA and TaTUB gene family expansion in wheat. It was found that TaTUA and TaTUB genes presented specific temporal and spatial characteristics based on the expression profiles of 17 tissues during wheat development using publicly available RNA-seq data. It was worth noting, via qRT-PCR, that two TaTUA and five TaTUB genes were highly expressed in fertile anthers compared to male sterility. These were quite different between physiological male sterile lines and S-type cytoplasmic male sterile lines at different stages of pollen development. This study offers fundamental information on the TUA and TUB gene families during wheat development and provides new insights for exploring the molecular mechanism of wheat male sterility.

1. Introduction

Microtubules are important elements of the cytoskeleton and are found in all eukaryotes. They play an important role in the process of intracellular transport, cell morphology, cell wall deposition, organelle localization, cell motility, signal transduction, cell polarity, and cell division. In vivo, microtubules are highly dynamic, taking part in depolymerization, severing, bundling and nucleation, and transport. These processes are precisely regulated by hundreds of microtubule-associated proteins (MAPs). Microtubules are tubular structures composed of α/β-tubulin heterodimers. α-tubulin (TUA) is composed of 450 amino acid residues and has a molecular mass of 50 kDa. β-Tubulin (TUB) is composed of 455 amino acid residues and about 50 kDa in mass.
In eukaryotes, TUA sequences have 89~95% similarity, and TUB sequences have 88~94% similarity [1]. Different tubulins also have structural differences in net electric charge, dipole moments, and dipole vector orientations [2]. In higher plants, TUA and TUB have many subtypes, and the diversity of these subtypes is owed to two reasons: TUA and TUB are encoded by several different genes, and they are modified after translation [3]. Six genes encode TUA proteins, and nine genes encode TUB proteins in Arabidopsis [4,5]. Furthermore, there are 8 TUA genes and 20 TUB genes in poplar [6], 4 TUA genes and 8 TUB genes in rice [7], and 19 TUB genes in cotton [8]. The diversity of microtubule subtypes contributes to the assembly of specific microtubule arrays and endows microtubules with different functions, which participate in various biological processes of plant growth and development. Microtubule function is also involved in mitosis and meiosis. In mitosis, tubulins are organized into different microtubule arrays, such as the cortical microtubules, preprophase band (PPB), spindle, and phragmoplast microtubule array, which assist the smooth transition between different stages of cell division. Microtubules cannot form a PPB during meiosis. During microspore division, microtubules are organized into asymmetrical spindles and phragmoplast microtubule arrays, which assist the microspore in dividing twice.
Wheat (Triticum aestivum L.) is an economically important food crop worldwide. With improved living standards, the increasing size of the labor force and production costs, and the uncertainty of biotic and abiotic stresses, there is a need to address the challenges of high yields, stable yields, improving quality, reducing costs, and protecting the environment in wheat production. The use of wheat heterosis has been shown to be an effective way to improve both yield and quality. As a self-pollinating crop, it is challenging to create wheat heterosis [9]; male sterility is a much more effective and practical protocol. Although researchers have conducted numerous studies regarding the mechanism, the results are inconclusive.
Our previous studies noted that meiosis and mitosis are abnormal in most types of cytoplasm male sterile (CMS) lines in wheat [10,11,12]. Besides, the failure of microtubules to organize into normal microtubule arrays leads to division failure and the formation of aborted microspores during cell division [13,14,15,16,17]. It is worth studying whether male sterility is caused by abnormal assembly of microtubules. We have little information on the quantity and types of wheat tubulins, which have been shown to be composed of α/β -tubulin heterodimers. Tubulin’s function in wheat growth and development and regulation of cell division is still unclear, so a systematic analysis of the TUA and TUB gene family was performed for the first time in T.aestivum L, including gene characteristics, gene structure, cis-acting promoter elements, gene repetition and protein motif, and tubulin gene synteny relationship with other species. We analyzed the expression patterns of TaTUA and TaTUB genes in different wheat tissues at different developmental stages based on transcriptomic data. Importantly, we compared the expression patterns of two TaTUA and five TaTUB genes between the cytoplasm of anthers of male sterile lines and fertile wheat lines. The results provided a preliminary reference for further study the functions of TaTUA and TaTUB genes in wheat growth and development. Furthermore, they provided valuable insights into the mechanism of cytoplasm male sterility in wheat.

2. Results

2.1. Identification and Physicochemical Characteristics of TUA and TUB Proteins in Wheat

A total of 43 tubulin genes were identified in wheat, including 15 TaTUA genes and 28 TaTUB genes through HMM analysis, BLASTP alignment, and CDD domain identification (Table 1). Of all genes, 1 TaTUB gene mapped to an unclassified chromosome, and the other 42 genes were, respectively, mapped to each chromosome except for 6A and 7B.
All the genes were renamed based on their positions on the chromosomal scaffolds (Table 1). Wheat is a heterologous hexaploidy plant (2n = 6X = BBAADD = 42) with three subgenomes: A, B, and D. Most genes contain redundant homologous copies from subgenomes A, B, and D (called triplets). Blast searches revealed that the 30 genes belonged to the triplets of 10 genes, 4 genes (TaTUB-6B, TaTUB-6D, TaTUB-7A, and TaTUB-7D) belonged to twin genes with two homologous copies, and 9 genes had one homolog copy in the subgenomes (Table 1 and Table 2).
The predicted physicochemical properties of the amino acid sequences of TaTUA and TaTUB proteins showed that the 15 TaTUA genes encoded proteins containing 449 to 451 amino acids. The MW and pI varied from 49.61 to 49.89 kDa and 4.57 to 4.84, respectively. The subcellular localization predictions suggested that 13 TaTUA were located in the cytoplasm and 2 TaTUA were located in the Golgi apparatus. The 28 TaTUB genes encoded proteins containing 232 to 499 amino acids. The MW and pI varied from 25.06 to 55.81 kDa and 4.4 to 8.68, respectively. The subcellular localization predictions suggested that 15 TaTUB were located in the cytoplasm, 6 TaTUB were located in the Golgi apparatus (GA), and 7 TaTUB were located in plasmids. The GRAVY of TaTUA and TaTUB proteins were negative, indicating that they were hydrophilic.

2.2. Gene Duplication and Synteny Analysis of TaTUA and TaTUB

Gene duplications are the primary driving forces in the evolution of genomes and genetics [18]. We explored duplications within the TaTUA and TaTUB gene family using MCScan X. The results indicated that 37 segmental duplication genes (WGD/segmental), 2 tandem duplication genes (tandem), and 4 dispersed duplication genes (dispersed) were discovered in 43 genes (Table 1). The results determined that WGD was the main means of TaTUA and TaTUB gene family expansion in wheat.
We performed synteny analysis in wheat to further investigate gene duplications in the TaTUA and TaTUB gene families. The syntenic relationship is shown in Figure 1. The results showed that there were 1719 synteny blocks in the wheat genome, and 78622 synteny gene pairs were found in these synteny blocks. In total, 34 synteny gene pairs had arisen from 37 WGD of TaTUA and TaTUB genes, and 31 pairs of synteny gene pairs existed between the same group of heterologous chromosomes. For example, TaTUA-1A1, TaTUA-1B1, and TaTUA-1D1 were detected in the chromosomes 1A,1B, and 1D, respectively, and three genes formed two synteny gene pairs. TaTUA-4B2 and TaTUA-5A5 were located on chromosomes 4B and 5A, respectively, and formed one synteny gene pair. There was a synteny relationship between TaTUA-4B2, TaTUA-5A5, and TaTUB-Un that was not located on any chromosome.
To further investigate gene duplications in the TaTUA and TaTUB gene family, we performed synteny analysis between wheat and nine plants to determine the synteny relationship between TUA and TUB genes of wheat and that of other species. These included four monocot plant species—Hordeum vulgare, Brachypodium distachyon, Oryza sativa, and Zea mays (Figure 2A)—and five dicot plant species—Arabidopsis thaliana, Brassica napus, Gossypium spp, Glycine max, and Cucumis sativus (Figure 2B). The results of synteny analysis between wheat and the four monocot plant species showed that 36 genes had 37, 24, 29, and 31 pairs of synteny gene pairs with 11 TUA and TUB genes in B. distachyon, 9 in H. vulgare, 10 in O. sativa, and 9 in Z. mays, respectively (Figure 2A). Among the 36 genes, 6 TaTUA and 7 TaTUB genes had synteny relationships with each of the four monocot plant species, which suggested that these 13 genes were present before species differentiation (Figure 2A, yellow lines). Between wheat and the five dicot plant species, a total of 18 TaTUA and TaTUB genes had 6, 3, 39, 20, and 9 pairs of synteny gene pairs with 2 TUA and TUB genes in A. thaliana, 1 in B. napus, 9 in Gossypium spp, 4 in G. max, and 2 in C. sativus, respectively (Figure 2B). Furthermore, 3 of the 18 TaTUA and TaTUB genes had a synteny relationship with each of the five dicot plant species (Figure 2B, yellow lines).
The evolutionary relationship of TaTUA and TaTUB proteins between wheat and five representative plants is shown in Figure 3. A total of 42 TUA and 76 TUB genes were screened from A. thaliana, H. vulgare, B. distachyon, O. sativa, and Z. mays using Hmmer searches and BLASTP alignment. TUA were divided into two groups based on their evolutionary relationship, shown in Figure 3A. As shown in the phylogenetic tree of TUA proteins, class I contains nine TaTUA genes (TaTUA-5A, 5B, 5D, 1A1, 1B1, 1D1, 4A2, 4B2, and 4D2), and class II contains six TaTUA genes (TaTUA- 4A1, 4B1, 4D1, 2A, 2B, and 2D). TUB proteins were divided into five groups, as shown in Figure 3B. From the phylogenetic tree of TUB, we found nine TaTUB, and most of the TUB genes of other monocotyledons were grouped in class I. In contrast, only one TUB gene in the dicotyledon Arabidopsis was found in class I. In class II, there were four TUB genes in Arabidopsis, three TaTUB genes in wheat, and one TUB gene each in other monocotyledonous plants, including six TaTUB and four TaTUB genes grouped in class III and class IV, respectively. Class V only contained six TUB genes in wheat.

2.3. Gene Structure Analysis of TaTUA and TaTUB

Gene structural diversity and motif type, number, and location are important for the evolutionary and functional analyses of gene family members [19]. The length of most TaTUA genes is in the range of 2406 bp to 3658 bp. The length of the TaTUA-4B1 gene was 5274 bp, significantly different from other TaTUA genes. The variation of TaTUB gene length was large, ranging from 1430 bp to 6067 bp.
Exon-intron analysis is shown in Figure 4. The results showed that three genes (TaTUA-4B2, TaTUB-1A5, and TaTUB-5A1) had no UTR region. Further, 25 genes harbored one 5′UTR and one 3′UTR, 4 genes contained one 5′UTR and two 3′UTR, 2 genes contained one 5′UTR and three 3′UTR, and 9 genes harbored two 5′UTR and one 3′UTR. TaTUA in class I and class II contained four and five exons, respectively (Figure 4A). In total, 26 of all 28 TaTUB genes contained three exons, and 2 TaTUB genes (TaTUB-3A and TaTUB-3D) had four exons (Figure 4B). Differential exons were located in the 5 ‘UTR region.
Gene structure analysis revealed that most TaTUA and TaTUB genes in the same group had a similar gene structure, except for members of TaTUB genes in class V. The location of exons and the length of introns mainly determined the differences in gene structure among different subclasses. In class II of TaTUA genes, TaTUB-4B1 contained a longer intron, resulting in an extended gene length. The gene structure of TaTUB genes in class V was significantly different, mainly caused by differences in the number and length of UTR regions and introns. Overall, 11 conserved motifs of TaTUA proteins and 15 conserved motifs of TaTUB proteins were identified by MEME analysis. All TaTUA proteins contained the same motif, and motif distribution was consistent (Figure 4A). TaTUB proteins had the same motif and distribution patterns in classes I, II, III, and IV, but TaTUB-3D contained an elongated N-terminal. Class V only contained 1, 2, 5, 7, 8, 10, and 13 motifs (Figure 4B).

2.4. Promoter Cis-Acting Element Analysis of TaTUA and TaTUB Genes

We identified cis-acting elements in the 2000 base pairs upstream of the TaTUA and TaTUB genes using the PlantCARE database, which is shown in Figure 5. The TaTUA-1A1 gene was not identified because of its incomplete promoter sequence. The cis-acting elements were divided into 10 categories after removing core promoters, including ethylene response elements (ERE), auxin response elements (TGA-element and AuxRR-core), GA response elements (GARE-motif, P-box, and TATC-box), SA response elements (TCA-element and SARE), MeJA response elements (TGACG-motif and CGTCA-motif), ABA response elements (ABRE), light response elements (G-Box, Sp1, ACE, GT1-motif), developmental-related elements (CCGTCC motif, CAT-box, RY-element, GCN4_motif), stress response-related elements (STRE, ARE, DRE core, GC-motif, WUN-motif), and MYB\MYC transcription factor binding site. Among them, 355 light response elements, 308 MYB\MYC transcription factor binding sites, and 301 stress-related elements accounted for 63.3% of all cis-acting elements. The result suggested that the transcription of TaTUA and TaTUB genes was regulated by light and the MYB\MYC transcription factor. Meanwhile, they were involved in various biological and abiotic stress response processes. Furthermore, 177 developmental-related elements, 157 ABA, and 147 MeJA response elements were identified, which showed that TaTUA and TaTUB genes were involved in the development of wheat and were regulated by ABA and MeJA. Cis-acting elements were non-uniform in different gene promoters, indicating that the different genes might have different transcriptional regulation patterns.

2.5. Expression Patterns of TaTUA and TaTUB Genes in Different Tissues and Developmental Stages of Wheat

RNA-seq data were used to analyze the expression patterns of all TaTUA and TaTUB genes according to four types of leaf tissues of nine developmental stages, grains of four developmental stages, the root tissues of six developmental stages, and seven spike tissues of five developmental stages (Figures S1 and S2) [20,21].
TaTUA and TaTUB genes fell into eight classes in leaf tissues of different developmental stages (Figure S1a). Almost all the genes in class II were highly expressed at all stages. In class III, three TaTUA and nine TaTUB genes were highly expressed at the seedling stage, three-leaf stages, five-leaf stage, and flag leaf stage, while there was a lower expression at the other stages. In classes IV, V, VI, VII, and VIII, only a few TaTUB genes were highly expressed.
TaTUA and TaTUB genes fell into seven classes during grain development (Figure S1b) and fell into six classes in root tissues (Figure S2a). Almost all the genes in classes I and II were highly expressed at each stage in the two tissues. Genes were gradually downregulated with grain development but not in root tissues. Genes in class III were lower expression but showed the same trend. All the TaTUB genes in other classes were expressed at lower levels or were not expressed during different developmental stages in two tissues.
TaTUA and TaTUB genes fell into seven classes in different tissues of the spike at different developmental stages (Figure S2b). Most genes in classes IV and V were expressed at high levels but had a lower expression or no expression in the other classes.
We focused on the expression of genes in anthers. TaTUA-2A, TaTUA-2B, and TaTUA-2D showed higher expression levels, and the genes of TaTUB-1A4, TaTUB-1D2, TaTUB-1B2, and TaTUB-7A showed lower expression levels. TaTUB-3A, TaTUB-3B, TaTUB-3D, TaTUB-1A3, TaTUB-1B1, and TaTUB-1D1 were notably absent in the anther. Furthermore, TaTUB-4A1, TaTUB-4B1, and TaTUB-4D1 were more highly expressed than other genes in the anther.
To investigate whether microtubules are involved in the regulation of meiosis and microspore mitosis in wheat pollen mother cells, the anthers of different developmental stages from physiological male sterile lines PHYMS-XN1376, S-types cytoplasmic male sterile lines SCMS-XN1376, and their maintainer lines MF-XN1376 were selected for analysis of the expression patterns of seven TaTUA and TaTUB genes by qRT-PCR (Figure 6). The expression patterns of seven TaTUA and TaTUB genes showed significant differences. TaTUB-6D showed only slight expression during the stage of anther development. TaTUA-2B showed different trends from the other five genes in the first four stages of anther development among three types of materials. Compared to SCMS, the other five genes showed high expression in maintainer lines and PHYMS, except for TaTUA-2B at every stage. Five genes showed opposite results between PHYMS-XN1376 and SCMS-XN1376, both at the early and late mononuclear stages. TaTUA-2B was upregulated in PHYMS-XN1376 and downregulated in SCMS-XN1376.

3. Discussion

Plant TUA and TUB protein sequences are highly conserved, especially in the middle regions of the proteins. These regions control the basic functions of microtubules, being responsible for microtubule polymerization and interactions between dimers [22]. In our study, the analysis of protein domains showed that the different classifications of TaTUA and TaTUB proteins had conserved motifs and were similar in alignment and distribution, except for class V of TaTUB proteins. TaTUB proteins in class V lacked C-terminal sequences, and their molecular weight (MW) was only about 25 kDa. Meanwhile, their distribution of motifs was different from other TaTUB proteins, and the phylogenetic analysis showed no similarity with TaTUB proteins in other species, so these TUB proteins are probably unique to wheat. Although TaTUA and TaTUB proteins were highly conserved, the number and length of introns in different classes of TaTUA and TaTUB genes were variable. Research shows that introns play an important role in alternative splicing and regulation of gene expression [23,24,25]. Jeon et al. (2000) suggest that tissue-preferential expression of the OsTuBA1 gene is mediated by intron 1, and it may be involved in a more efficient RNA splicing mechanism [26]. Thus, the intron differences of TaTUA and TaTUB genes not only enrich the subtypes of TaTUA and TaTUB proteins, but may also be involved in regulating the tissue-preferential expression of genes.
In addition, the number of microtubule genes varies among plant species. For example, there are 4–5 TUA genes in Liriodendron chinense [27], at least 13 TUA genes in cotton [28], 8 TUB genes in rice [7], and 20 TUB genes in poplars [6]. Furthermore, 15 α-tubulin genes and the chromosome location of 7 α-tubulin genes are identified in hexaploid bread wheat [29]. In this study, 15 TUA and 28 TUB genes were screened, and all TUA and TUB genes confirmed their chromosome location; 5 TUA genes and 16 TUB genes were not homologous in wheat according to ploidy correction. Gene duplications and evolutionary differences among species mainly caused the differences in the number of TUA and TUB genes. Gene duplications and their subsequent divergence play an important role in the evolution of novel gene functions [30]. Based on comparing plants and other eukaryotic genomes, plant genomes tend to evolve at a higher rate, leading to higher genome diversity [31]. WGD/segmental, tandem, transposon-mediated duplication, and retroduplication are the major types of gene duplication [32]. An analysis of the types of gene duplication showed that most TaTUA and TaTUB genes were part of WGD owing to polyploidization during wheat evolution. Meanwhile, TaTUB genes in class V had no synteny relationship with the TUA and TUB genes in common wheat and ancient wheat species. The evolutionary relationship between these genes and wheat needs to be further studied.
Tubulin is usually expressed at high levels in most tissues because the cytoskeleton requires many microtubules. However, many studies have shown that the expressions of almost all TUA and TUB genes are controlled both spatially and temporally during plant growth, development, and the process of responding to specific signals. For example, α-tubulin genes play an important role in wheat’s cold acclimation and low-temperature tolerance [33,34]. The different expression patterns of tubulins showed that tubulin subtypes might play specific roles during plant development [22]. In our study, we analyzed the expression patterns of the TaTUA and TaTUB genes in different tissues and developmental stages of wheat. The results showed that not all TaTUA and TaTUB genes were highly expressed in different wheat tissues, but they did display tissue specificity to some extent. The expression patterns of TaTUA and TaTUB genes in other tissues and developmental stages of wheat showed that only 13 genes were expressed at high levels in 17 wheat tissues. However, TaTUA and TaTUB genes were not expressed explicitly in any of the 17 tissues, which suggested that the tissue expression specificity of TaTUA and TaTUB genes was only relative. Meanwhile, we found that the expression patterns of homologous genes were basically similar, and there was no prominent difference in gene expression levels. The results indicated that TaTUA and TaTUB homologous genes played a common role in the development of different tissues. Interestingly, TaTUB genes in class V showed low or no expression in almost all wheat tissues in this study, which indicated that these genes might be involved in other biological processes rather than the growth and development examined in this study. Furthermore, we further analyzed the different expression patterns of two TaTUA and five TaTUB genes in anthers of male sterile lines and the maintainer by qRT-PCR; the results showed that they were significantly different in the fertile lines and male sterile lines, and gene expression patterns were also different in anthers of different male sterile wheat types. In particular, TaTUA-2B showed different trends from the other five genes in the first four stages of anther development compared to the maintainer, indicating that TaTUA and TaTUB genes were involved in the regulation of wheat anther development and fertility. However, determining the concrete regulatory function and the mechanism of action still needs further research.

4. Materials and Methods

4.1. Materials

S-type cytoplasmic male sterile line with the nucleus of common wheat and cytoplasm of Triticum spelta L. (named SCMS-XN1376) and its maintainer common wheat Xinong 1376 (called MF-XN1376) were used in this study. The seeds were grown conventionally in the experimental station of Northwest Agriculture and Forestry University, Yangling, China (108° E, 34°150 N). Each row was 1 m long, and the row spacing was 0.25 m. When the wheat developed to Feeks 8.5 (stamens and pistils begin to differentiate), we sprayed SQ-1 to MF-XN1376 at the rate of 5 kg/hm2 to achieve physiological male sterility (named PHYMS- XN1376) [35]. PHYMS-XN1376 and MF-XN1376 had the same genotype but different fertility. We collected the anthers of three materials at five developmental stages: meiosis, early mononuclear, late mono-nuclear, binucleate, and trinuclear. The samples were frozen quickly with liquid nitrogen and stored in a refrigerator at −80 °C for future use.

4.2. Identification of the Members of the TaTUA and TaTUB Gene Family

The protein, CDS, DNA sequence, and gene annotation file of wheat was downloaded from the Ensembl Plants database (http://plants.ensembl.org/info/data/ftp/index.html, accessed on 1 March 2021). The tubulin family contains a conserved domain called tubulin; the Hidden Markov models (HMMs) of the tubulin domain were downloaded from the Pfam database (http://pfam.xfam.org/, accessed on 10 March 2021). The first search was performed by homologous alignment (p < 10−3) based on wheat protein sequences. Candidate proteins with p < 1 × 10−26 were selected to establish new HMM models. The second search and screening of candidate proteins initially obtained members of the wheat tubulin gene family. TaTUA and TaTUB genes were further screened by homologous alignment, and the candidate tubulin protein sequence was submitted to the SMART (http://smart.embl-heidelberg.de/smart/set_mode.cgi?NORMAL=1, accessed on 12 March 2021) and CDD (https://www.ncbi.nlm.nih.gov/cdd/, accessed on 16 March 2021) databases to confirm the tubulin domain and remove proteins with incomplete domains; all members of TaTUA and TaTUB gene families in wheat were obtained.

4.3. TaTUA and TaTUB Gene Structural, Evolution, and Protein Motifs Analysis

The location information of chromosome, exon, intron, and UTR region prediction of the TaTUA and TaTUB genes were determined from wheat genome annotation information and visualized with GSDS2.0 software [36]. The number of nucleotides, molecular weights (MW), and theoretical isoelectric points (pI) were obtained based on TaTUA and TaTUB protein sequences using the ExPASy database (https://web.expasy.org/compute_pi/, accessed on 19 April 2021). The MEME online database (https://meme-suite.org/meme/, accessed on 2 May 2021) was used to analyze the conserved motifs of TaTUA and TaTUB proteins, with the following parameters: the number of motifs at 15 and visualized with TBtools [37]. All TaTUA and TaTUB proteins were compared in multiple sequences by Clustal X 1.83. The phylogenetic analysis was constructed using MAGA X [37,38].

4.4. Promoter Cis-Acting Elements Analysis of TaTUA and TaTUB Genes

The 2000 bp ATG upstream sequence of the TaTUA and TaTUB genes were extracted from the wheat genome as the promoter region. The promoter region sequence was submitted to the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 23 May 2021) for cis-acting element analysis [39], and the main cis-acting elements were visualized using GSDS 2.0 online software [36].

4.5. Gene Duplication and Synteny Analysis of TaTUA and TaTUB Genes

Gene duplication types of TaTUA and TaTUB genes were analyzed using MCScanX. Local BLAST searches were performed based on the whole protein group alignment of TaTUA and TaTUB proteins; synteny gene blocks and pairs were obtained using MCScanX in the wheat genome [40], and the synteny gene pairs were visualized using Circos software [41].

4.6. RNA Extraction, Reverse Transcription, and qRT-PCR Analysis

RNA in anthers was extracted according to the instructions in the RNA Extraction Kit (SUM7806, summer BIOTECH, Beijing, China). Total RNA (1 μg) was subjected to gDNA removal followed by reverse transcription reaction, according to the manufacturer’s instructions. The specific primers of qRT-PCR were designed by Oligo 7 software [42], and the specificity and amplification efficiency of the primers were detected by qRT-PCR. TaActin was used as a reference gene [43]. Primer sequences are shown in Table 3. The primers were efficient by gel electrophoresis and qRT-PCR (Figures S3 and S4). Actin was used as the reference gene. Relative expression levels were calculated using the 2−ΔΔCt method [44]. Statistical analyses and significant difference tests were analyzed by SPSS Statistics 22. The data and charts were processed using Origin 8.0.

5. Conclusions

In this study, a comprehensive analysis demonstrated the importance of TaTUA and TaTUB genes in wheat development, and 15 TaTUA and 28 TaTUB genes were identified. We analyzed and established the physicochemical characteristics, prediction of subcellular localization, gene duplication, sequence characterization, chromosome location, and evolutionary relationships. The expression patterns of the TaTUA and TaTUB genes provide evidence of the potential functions of these genes in different tissues and developmental stages of wheat. Moreover, analysis of TUB-1B1, TUA-2B, TUB-3B, TUB-4A1, TUA-4B2, TUB-6D, and TUB-Un gene expression in anthers of male sterile lines showed that TaTUA and TaTUB genes were involved in the regulation of wheat anther development and fertility. This genome-wide analysis of the TaTUA and TaTUB family will be useful for further exploring the molecular mechanism of TaTUAs and TaTUBs in wheat male sterility.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11243495/s1. Figure S1: Expression patterns of TaTUA and TaTUB genes in wheat leaf and grain during various development stages; Figure S2: Expression patterns of TaTUA and TaTUB genes in wheat root and different tissues of the spike during various developmental stages; Figure S3: The gel electrophoresis of the primers; Figure S4: The standard curves of the primers.

Author Contributions

N.N. and G.Z. supervised the experiments; Y.R. and Q.S. performed most of the experiments, analyzed the data, and prepared the figures and tables; Y.R. wrote the manuscript; Resources, revision S.S., J.W., S.M., Y.S. and L.M. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by Yangling Seed Industry Innovation Key Research and Development (No. Ylzy-xm-03), Key Laboratory of Shaanxi Province (No. 2018SZS-22); Chinese University Scientific Fund (No. 2452022109).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article.

Acknowledgments

We thank Charlesworth Author Services for language editing during the preparation of this manuscript. We also thank Vivi Arief, lecture in the School of Agriculture and Food Sciences, the University of Queensland for linguistic assistance and revision during the preparation of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fygenson, D.K.; Needleman, D.J.; Sneppen, K. Variability-based sequence alignment identifies residues responsible for functional differences in alpha and beta tubulin. Protein Sci. 2004, 13, 25–31. [Google Scholar] [CrossRef] [PubMed]
  2. Tuszynski, J.A.; Carpenter, E.J.; Huzil, J.T.; Malinski, W.; Luchko, T.; Luduena, R.F. The evolution of the structure of tubulin and its potential consequences for the role and function of microtubules in cells and embryos. Int. J. Dev. Biol. 2006, 50, 341–358. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Parrotta, L.; Cresti, M.; Cai, G. Accumulation and post-translational modifications of plant tubulins. Plant Biol. 2014, 16, 521–527. [Google Scholar] [CrossRef] [PubMed]
  4. Kopczak, S.D.; Haas, N.A.; Hussey, P.J.; Silflow, C.D.; Snustad, D.P. The small genome of Arabidopsis contains at least six expressed alpha-tubulin genes. Plant Cell 1992, 4, 539–547. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Snustad, D.P.; Haas, N.A.; Kopczak, S.D.; Silflow, C.D. The small genome of Arabidopsis contains at least nine expressed beta-tubulin genes. Plant Cell 1992, 4, 549–556. [Google Scholar] [CrossRef] [Green Version]
  6. Oakley, R.V.; Wang, Y.S.; Ramakrishna, W.; Harding, S.A.; Tsai, C.J. Differential expansion and expression of alpha- and beta-tubulin gene families in Populus. Plant Physiol. 2007, 145, 961–973. [Google Scholar] [CrossRef] [Green Version]
  7. Yoshikawa, M.; Yang, G.X.; Kawaguchi, K.; Komatsu, S. Expression analyses of beta-tubulin isotype genes in rice. Plant Cell Physiol. 2003, 44, 1202–1207. [Google Scholar] [CrossRef] [Green Version]
  8. He, X.C.; Qin, Y.M.; Xu, Y.; Hu, C.Y.; Zhu, Y.X. Molecular cloning, expression profiling, and yeast complementation of 19 beta-tubulin cDNAs from developing cotton ovules. J. Exp. Bot. 2008, 59, 2687–2695. [Google Scholar] [CrossRef] [Green Version]
  9. Singh, S.P.; Srivastava, R.; Kumar, J. Male sterility systems in wheat and opportunities for hybrid wheat development. Acta Physiol. Plant 2015, 37, 108006. [Google Scholar] [CrossRef]
  10. Li, H.X.; Guo, J.L.; Zhang, C.Y.; Zheng, W.J.; Song, Y.L.; Wang, Y. Identification of Differentially Expressed miRNAs between a Wheat K-type Cytoplasmic Male Sterility Line and Its Near-Isogenic Restorer Line. Plant Cell Physiol. 2019, 60, 1604–1618. [Google Scholar] [CrossRef]
  11. Liu, Z.; Li, S.; Li, W.; Liu, Q.; Zhang, L.; Song, X. Comparative transcriptome analysis indicates that a core transcriptional network mediates isonuclear alloplasmic male sterility in wheat (Triticum aestivum L.). BMC Plant Biol. 2020, 20, 10. [Google Scholar] [CrossRef] [Green Version]
  12. Wang, S.; Zhang, G.; Song, Q.; Zhang, Y.; Li, Z.; Guo, J.; Niu, N.; Ma, S.; Wang, J. Abnormal development of tapetum and microspores induced by chemical hybridization agent SQ-1 in wheat. PLoS ONE 2015, 10, e0119557. [Google Scholar] [CrossRef]
  13. Galindo-Trigo, S.; Grand, T.M.; Voigt, C.A.; Smith, L.M. A malectin domain kinesin functions in pollen and seed development in Arabidopsis. J. Exp. Bot. 2020, 71, 1828–1841. [Google Scholar] [CrossRef] [Green Version]
  14. Niu, B.X.; Wang, L.D.; Zhang, L.S.; Ren, D.; Ren, R.; Copenhaver, G.P.; Ma, H.; Wang, Y.X. Arabidopsis Cell Division Cycle 20.1 Is Required for Normal Meiotic Spindle Assembly and Chromosome Segregation. Plant Cell 2015, 27, 3367–3382. [Google Scholar] [CrossRef] [Green Version]
  15. Oh, S.A.; Allen, T.; Kim, G.J.; Sidorova, A.; Borg, M.; Park, S.K.; Twell, D. Arabidopsis Fused kinase and the Kinesin-12 subfamily constitute a signalling module required for phragmoplast expansion. Plant J. 2012, 72, 308–319. [Google Scholar] [CrossRef] [PubMed]
  16. Oh, S.A.; Allen, T.; Twell, D. A ticket for the live show: Microtubules in male gametophyte development. Plant Signal. Behav. 2010, 5, 614–617. [Google Scholar] [CrossRef] [Green Version]
  17. Tchorzewska, D.; Derylo, K.; Blaszczyk, L.; Winiarczyk, K. Tubulin cytoskeleton during microsporogenesis in the male-sterile genotype of Allium sativum and fertile Allium ampeloprasum L. Plant Reprod. 2015, 28, 171–182. [Google Scholar] [CrossRef] [Green Version]
  18. Moore, R.C.; Purugganan, M.D. The early stages of duplicate gene evolution. Proc. Natl. Acad. Sci. USA 2003, 100, 15682–15687. [Google Scholar] [CrossRef] [Green Version]
  19. Yu, X.F.; Han, J.P.; Wang, E.F.; Xiao, J.; Hu, R.; Yang, G.X.; He, G.Y. Genome-Wide Identification and Homoeologous Expression Analysis of PP2C Genes in Wheat (Triticum aestivum L.). Front. Genet. 2019, 10, 561. [Google Scholar] [CrossRef] [Green Version]
  20. Borrill, P.; Ramirez-Gonzalez, R.; Uauy, C. expVIP: A Customizable RNA-seq Data Analysis and Visualization Platform. Plant Physiol. 2016, 170, 2172. [Google Scholar] [CrossRef]
  21. Ramírez-González, R.; Borrill, P.; Lang, D.; Harrington, S.; Brinton, J.; Venturini, L.; Davey, M.; Jacobs, J.; van Ex, F.; Pasha, A.; et al. The transcriptional landscape of polyploid wheat. Science 2018, 361, eaar6089. [Google Scholar] [CrossRef] [Green Version]
  22. Radchuk, V.V. The transcriptome of the tubulin gene family in plants. In NATO Science for Peace and Security Series C; Springer: Berlin/Heidelberg, Germany, 2008; pp. 219–241. [Google Scholar] [CrossRef]
  23. Breviario, D.; Giani, S.; Ponzoni, E.; Mastromauro, F.; Morello, L. Plant tubulin intronics. Cell Biol. Int. 2008, 32, 571–573. [Google Scholar] [CrossRef] [PubMed]
  24. Jacob, A.G.; Smith, C.W.J. Intron retention as a component of regulated gene expression programs. Hum. Genet. 2017, 136, 1043–1057. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Rose, A.B. Intron-mediated regulation of gene expression. Curr. Top. Microbiol. Immunol. 2008, 326, 277–290. [Google Scholar] [CrossRef] [PubMed]
  26. Jeon, J.S.; Lee, S.; Jung, K.H.; Jun, S.H.; Kim, C.; An, G. Tissue-preferential expression of a rice alpha-tubulin gene, OsTubA1, mediated by the first intron. Plant Physiol. 2000, 123, 1005–1014. [Google Scholar] [CrossRef] [Green Version]
  27. Yamamoto, E.; Zeng, L.; Baird, W.V. Alpha-tubulin missense mutations correlate with antimicrotubule drug resistance in Eleusine indica. Plant Cell 1998, 10, 297–308. [Google Scholar] [CrossRef] [Green Version]
  28. Li, L.; Wang, X.L.; Huang, G.Q.; Li, X.B. Molecular characterization of cotton GhTUA9 gene specifically expressed in fibre and involved in cell elongation. J. Exp. Bot. 2007, 58, 3227–3238. [Google Scholar] [CrossRef]
  29. Ridha Farajalla, M.; Gulick, P.J. The alpha-tubulin gene family in wheat (Triticum aestivum L.) and differential gene expression during cold acclimation. Genome 2007, 50, 502–510. [Google Scholar] [CrossRef]
  30. Innan, H.; Kondrashov, F. The evolution of gene duplications: Classifying and distinguishing between models. Nat. Rev. Genet. 2010, 11, 97–108. [Google Scholar] [CrossRef]
  31. Murat, F.; Van de Peer, Y.; Salse, J. Decoding Plant and Animal Genome Plasticity from Differential Paleo-Evolutionary Patterns and Processes. Genome Biol. Evol. 2012, 4, 917–928. [Google Scholar] [CrossRef] [Green Version]
  32. Panchy, N.; Lehti-Shiu, M.; Shiu, S.H. Evolution of Gene Duplication in Plants. Plant Physiol. 2016, 171, 2294–2316. [Google Scholar] [CrossRef] [Green Version]
  33. Buy, D.D.; Demkovych, A.E.; Pirko, Y.V.; Blume, Y.B. Analysis of α-tubulin gene expression during cold acclimation of winter and spring soft wheat. Cytol. Genet. 2019, 53, 23–33. [Google Scholar] [CrossRef]
  34. Christov, N.K.; Imai, R.; Blume, Y. Differential expression of two winter wheat alpha-tubulin genes during cold acclimation. Cell Biol. Int. 2008, 32, 574–578. [Google Scholar] [CrossRef]
  35. Song, Q.; Wang, S.; Zhang, G.; Li, Y.; Li, Z.; Guo, J.; Niu, N.; Wang, J.; Ma, S. Comparative proteomic analysis of a membrane-enriched fraction from flag leaves reveals responses to chemical hybridization agent SQ-1 in wheat. Front. Plant Sci. 2015, 6, 669. [Google Scholar] [CrossRef] [Green Version]
  36. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [Green Version]
  37. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  38. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  39. Lescot, M.; Dehais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouze, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef]
  40. Wang, Y.P.; Tang, H.B.; DeBarry, J.D.; Tan, X.; Li, J.P.; Wang, X.Y.; Lee, T.H.; Jin, H.Z.; Marler, B.; Guo, H.; et al. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef]
  41. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An information aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef] [Green Version]
  42. Rychlik, W. OLIGO 7 primer analysis software. Methods Mol. Biol. 2007, 402, 35–60. [Google Scholar] [CrossRef] [PubMed]
  43. Rauf, M.; Awais, M.; Ud-Din, A.; Ali, K.; Gul, H.; Rahman, M.; Hamayun, M.; Arif, M. Molecular Mechanisms of the 1-Aminocyclopropane-1-Carboxylic Acid (ACC) Deaminase Producing Trichoderma asperellum MAP1 in Enhancing Wheat Tolerance to Waterlogging Stress. Front. Plant Sci. 2021, 11, 614971. [Google Scholar] [CrossRef] [PubMed]
  44. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(T)(-Delta Delta C) method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
Plants 11 03495 g001 550

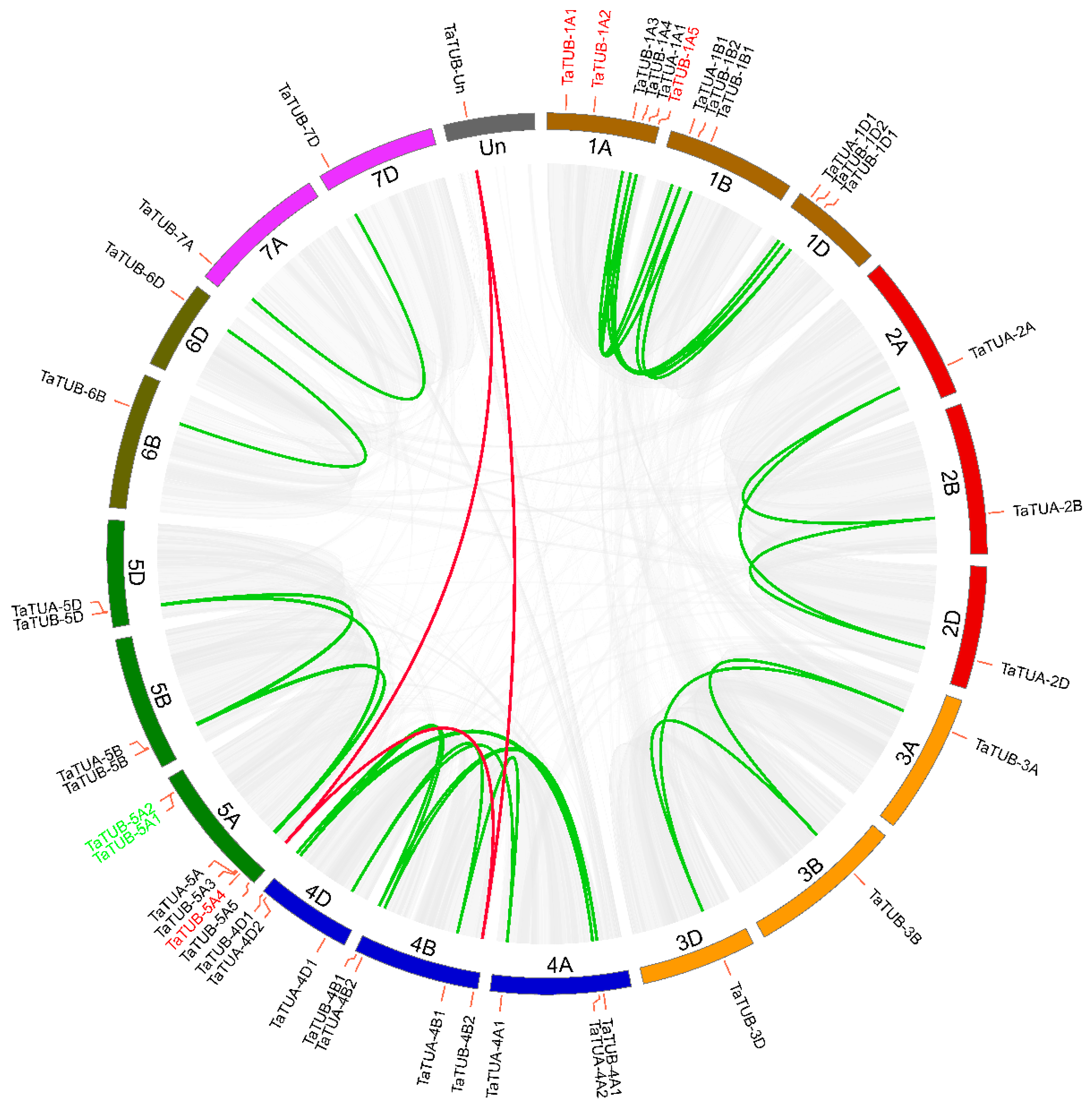

Figure 1. Synteny of the TaTUA and TaTUB genes in wheat. All syntenic blocks of the wheat genome are linked by grey lines, while colored lines link syntenic relationships of the TaTUA and TaTUB genes.
Figure 1. Synteny of the TaTUA and TaTUB genes in wheat. All syntenic blocks of the wheat genome are linked by grey lines, while colored lines link syntenic relationships of the TaTUA and TaTUB genes.
Plants 11 03495 g001
Plants 11 03495 g002 550

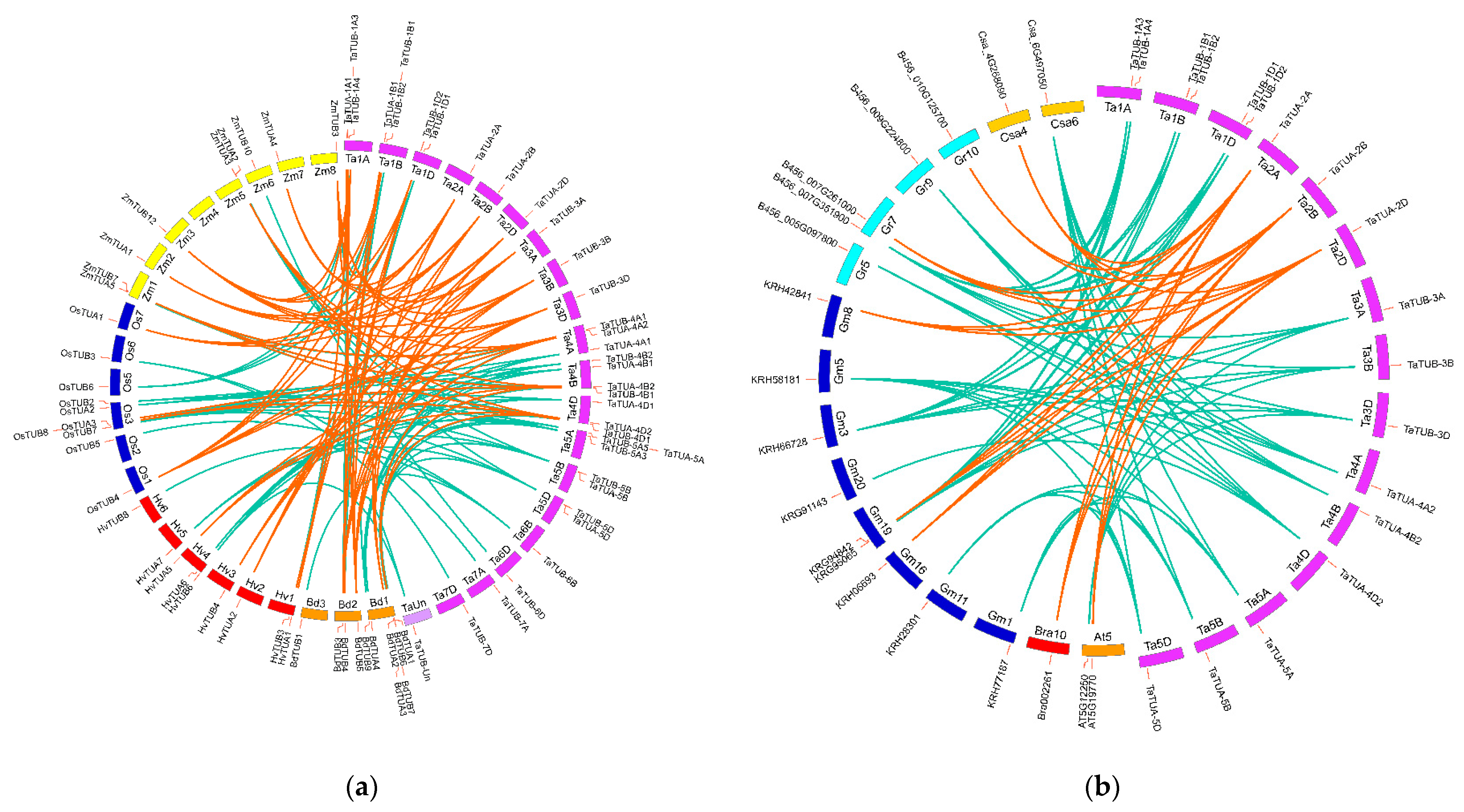

Figure 2. Synteny of TaTUA and TaTUB genes in wheat with other plant species: (a) wheat and four monocot plant species; (b) wheat and five dicot plant species. Colored lines link syntenic relationships of the TUA and TUB genes.
Figure 2. Synteny of TaTUA and TaTUB genes in wheat with other plant species: (a) wheat and four monocot plant species; (b) wheat and five dicot plant species. Colored lines link syntenic relationships of the TUA and TUB genes.
Plants 11 03495 g002
Plants 11 03495 g003 550

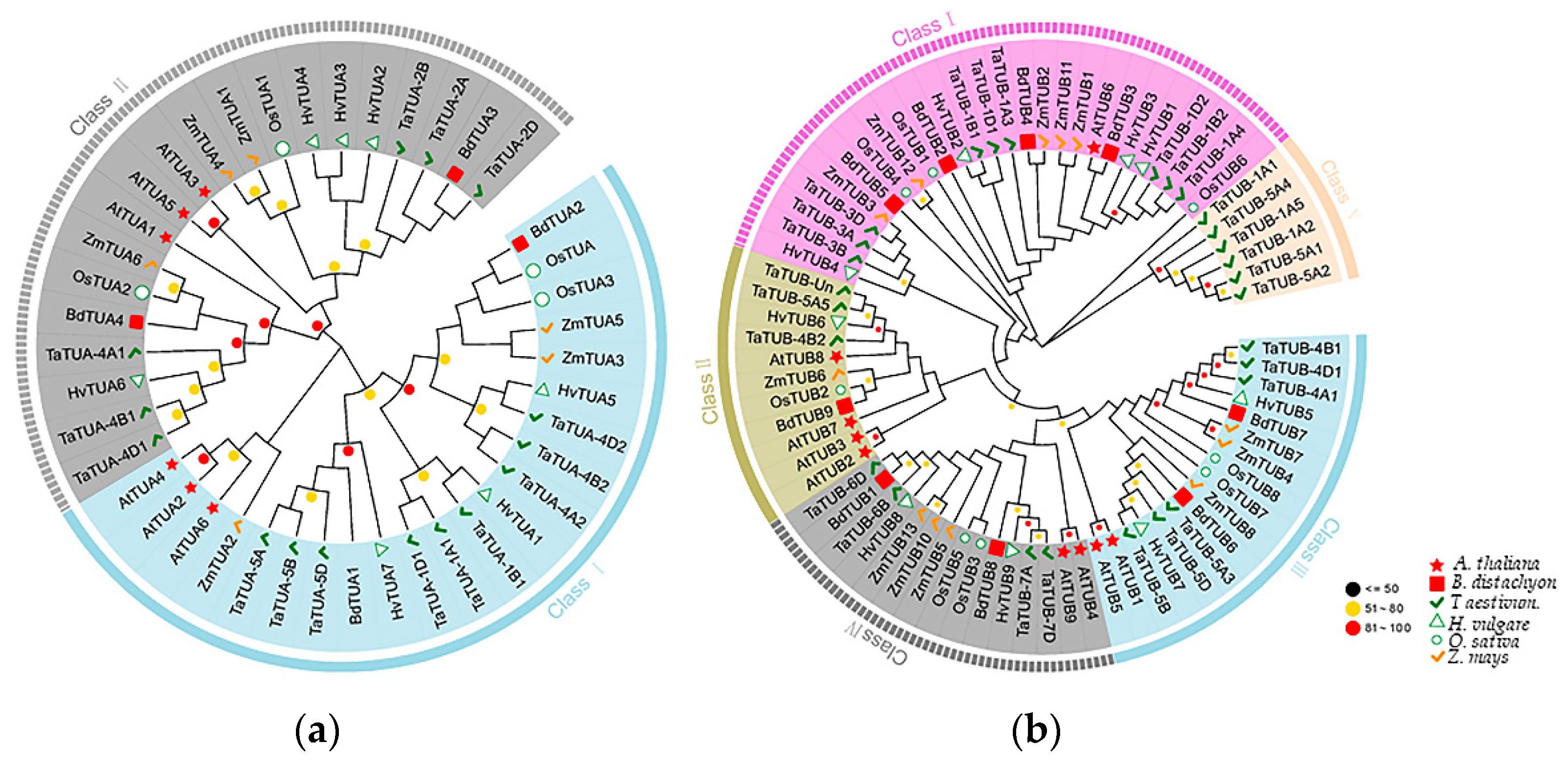

Figure 3. Evolutionary relationships of plant TUA and TUB genes. (a) Evolutionary relationships of TUA genes. (b) Evolutionary relationships of TUB genes. The evolutionary history was inferred using the Neighbor-Joining method. The evolutionary distances were computed using the JTT matrix-based method.
Figure 3. Evolutionary relationships of plant TUA and TUB genes. (a) Evolutionary relationships of TUA genes. (b) Evolutionary relationships of TUB genes. The evolutionary history was inferred using the Neighbor-Joining method. The evolutionary distances were computed using the JTT matrix-based method.
Plants 11 03495 g003
Plants 11 03495 g004 550

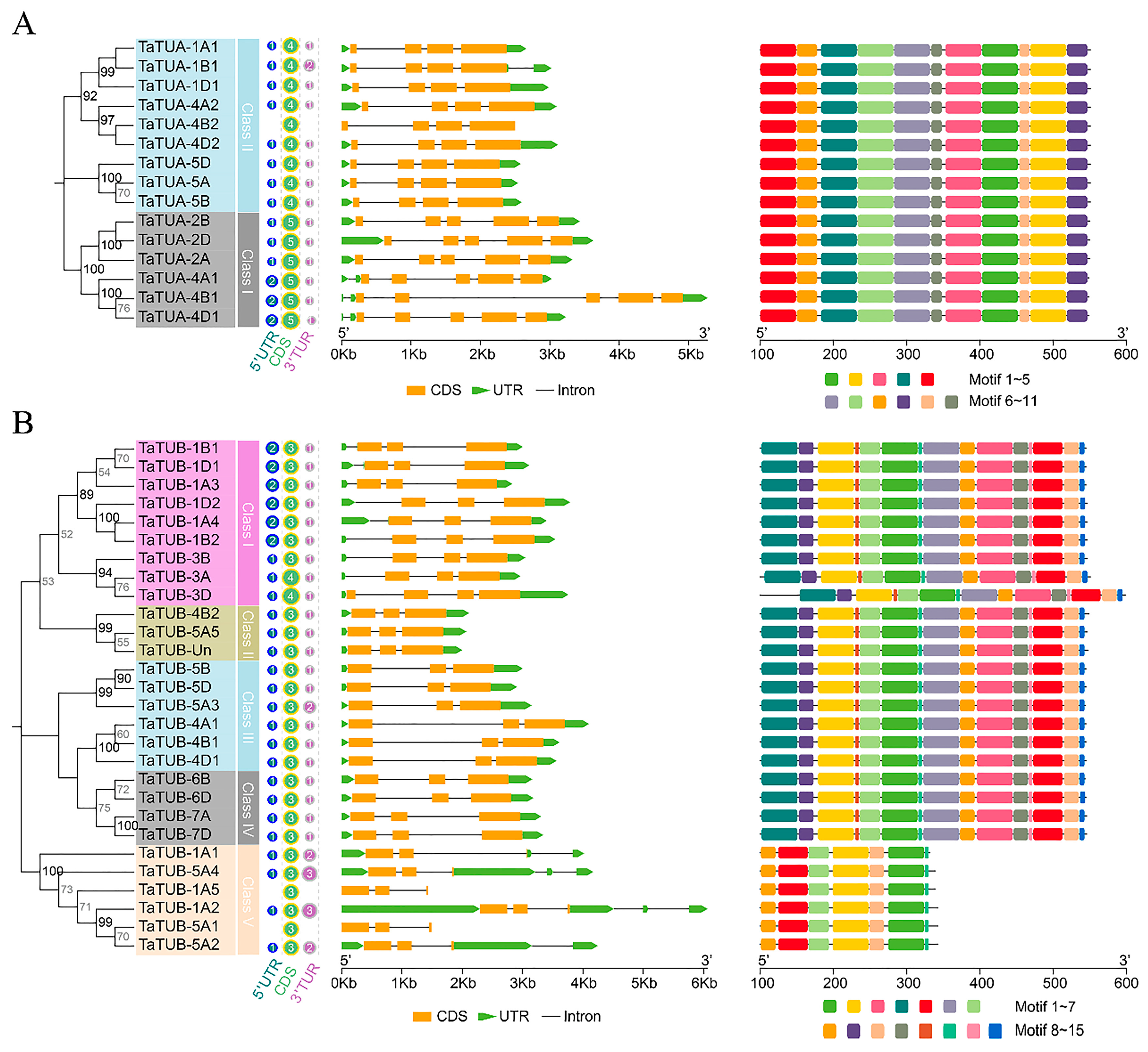

Figure 4. Phylogenetic relationships, gene structure, and architecture of conserved protein motifs in the TaTUA (A) and TaTUB (B) genes. The phylogenetic tree was constructed using the maximum likelihood (ML) method. The evolutionary distances of TaTUA and TaTUB genes were computed using the JTT and WAG matrix-based methods.
Figure 4. Phylogenetic relationships, gene structure, and architecture of conserved protein motifs in the TaTUA (A) and TaTUB (B) genes. The phylogenetic tree was constructed using the maximum likelihood (ML) method. The evolutionary distances of TaTUA and TaTUB genes were computed using the JTT and WAG matrix-based methods.
Plants 11 03495 g004
Plants 11 03495 g005 550

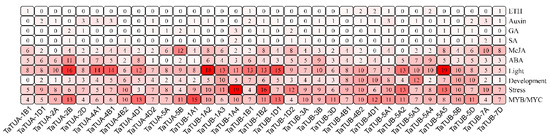

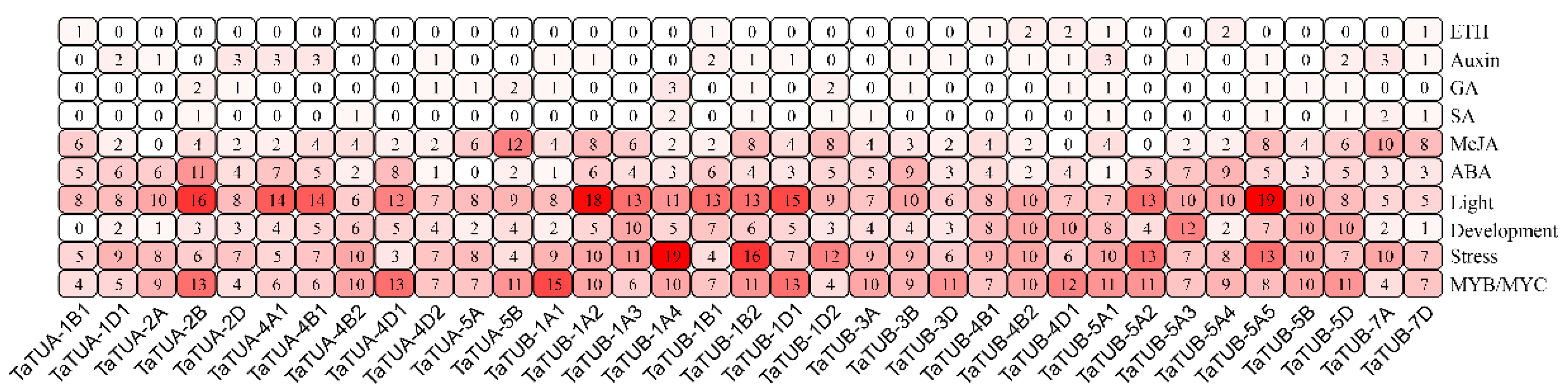

Figure 5. Analysis of the cis-element in TaTUA and TaTUB gene promoters.
Figure 5. Analysis of the cis-element in TaTUA and TaTUB gene promoters.
Plants 11 03495 g005
Plants 11 03495 g006 550

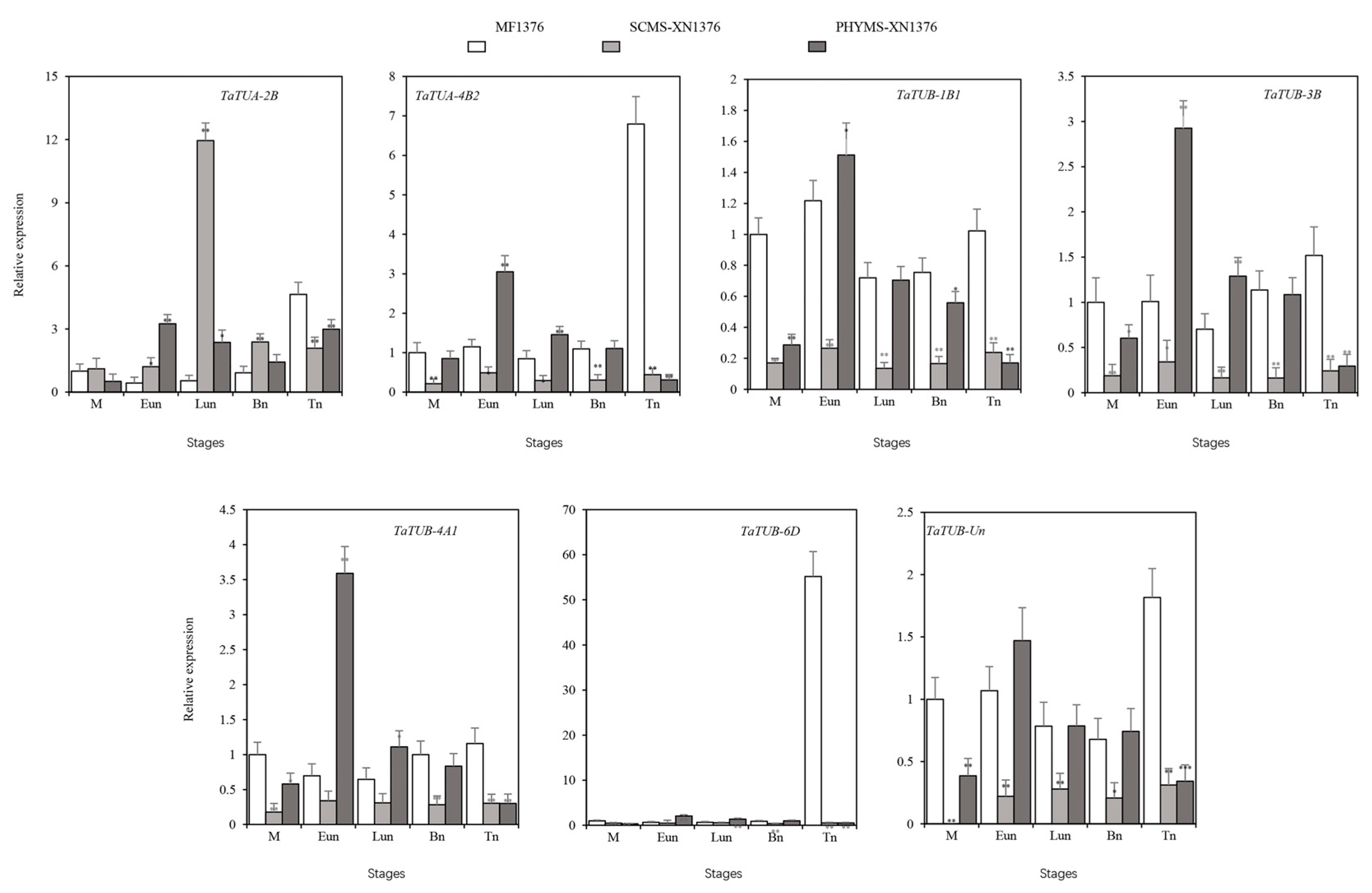

Figure 6. Expression patterns of TaTUA and TaTUB genes in anthers of MF-XN1376, SCMS-XN1376, and PHYMS-XN1376. MF-XN1376: Xinong 1376; SCMS-XN1376: S-type cytoplasmic male sterile line; PHYMS-XN1376: physiological male sterility; M: Meiosis stage; Eun: Early-uninucleate stage; Lun: Late-uninucleate stage; Bn: Binucleate stage; Tn: Trinucleate stage. An asterisk (*) indicates significance at p-values < 0.05, two asterisks (**) indicates significance at p-values < 0.01, three asterisks (***) indicates significance at p-values < 0.001.
Figure 6. Expression patterns of TaTUA and TaTUB genes in anthers of MF-XN1376, SCMS-XN1376, and PHYMS-XN1376. MF-XN1376: Xinong 1376; SCMS-XN1376: S-type cytoplasmic male sterile line; PHYMS-XN1376: physiological male sterility; M: Meiosis stage; Eun: Early-uninucleate stage; Lun: Late-uninucleate stage; Bn: Binucleate stage; Tn: Trinucleate stage. An asterisk (*) indicates significance at p-values < 0.05, two asterisks (**) indicates significance at p-values < 0.01, three asterisks (***) indicates significance at p-values < 0.001.
Plants 11 03495 g006
Table
Table 1. Identification of TaTUA and TaTUB genes, physicochemical characteristics and subcellular localization of TaTUA and TaTUB proteins, and gene duplication patterns.
Table 1. Identification of TaTUA and TaTUB genes, physicochemical characteristics and subcellular localization of TaTUA and TaTUB proteins, and gene duplication patterns.
Gene IDGene NameChrLengthMW (kDa)pIGravyLocationGene Duplicate Patterns
TraesCS1A02G350200TaTUA-1A11A45149.714.65−0.20GAWGD/segmental
TraesCS1B02G364500TaTUA-1B11B45149.714.65−0.20cytosolWGD/segmental
TraesCS1D02G353100TaTUA-1D11D45149.714.65−0.20cytosolWGD/segmental
TraesCS2A02G185500TaTUA-2A2A45049.614.72−0.15cytosolWGD/segmental
TraesCS2B02G221800TaTUA-2B2B45049.614.72−0.15cytosolWGD/segmental
TraesCS2D02G202200TaTUA-2D2D45049.614.72−0.15cytosolWGD/segmental
TraesCS4A02G065700TaTUA-4A14A44949.874.84−0.19cytosolWGD/segmental
TraesCS4A02G257800TaTUA-4A24A45149.734.65−0.20cytosolWGD/segmental
TraesCS4B02G056700TaTUA-4B24B45149.734.65−0.20cytosolWGD/segmental
TraesCS4B02G243100TaTUA-4B14B44949.894.84−0.19cytosolWGD/segmental
TraesCS4D02G057000TaTUA-4D24D45149.734.65−0.20cytosolWGD/segmental
TraesCS4D02G242700TaTUA-4D14D44949.894.84−0.19cytosolWGD/segmental
TraesCS5A02G407800TaTUA-5A5A45149.794.57−0.22GAWGD/segmental
TraesCS5B02G412700TaTUA-5B5B45149.794.57−0.22cytosolWGD/segmental
TraesCS5D02G417700TaTUA-5D5D45149.774.6−0.22cytosolWGD/segmental
TraesCS1A02G101000TaTUB-1A11A23225.067.31−0.23plastiddispersed
TraesCS1A02G142800TaTUB-1A21A24326.048.68−0.33plastiddispersed
TraesCS1A02G258800TaTUB-1A31A44550.144.48−0.36GAWGD/segmental
TraesCS1A02G309700TaTUB-1A41A44750.314.45−0.34GAWGD/segmental
TraesCS1A02G437700TaTUB-1A51A23925.696.5−0.33plastiddispersed
TraesCS1B02G269400TaTUB-1B11B44550.154.49−0.36cytosolWGD/segmental
TraesCS1B02G320800TaTUB-1B21B44750.314.45−0.34cytosolWGD/segmental
TraesCS1D02G258800TaTUB-1D11D44550.154.49−0.36cytosolWGD/segmental
TraesCS1D02G309200TaTUB-1D21D44750.314.45−0.34cytosolWGD/segmental
TraesCS3A02G333300TaTUB-3A3A45150.684.45−0.36cytosolWGD/segmental
TraesCS3B02G363500TaTUB-3B3B44750.214.42−0.37GAWGD/segmental
TraesCS3D02G326900TaTUB-3D3D49955.814.8−0.36plastidWGD/segmental
TraesCS4A02G296600TaTUB-4A14A44549.734.46−0.35cytosolWGD/segmental
TraesCS4B02G017100TaTUB-4B14B44549.764.47−0.36cytosolWGD/segmental
TraesCS4B02G366500TaTUB-4B24B44950.244.41−0.34cytosolWGD/segmental
TraesCS4D02G015400TaTUB-4D14D44549.764.47−0.35cytosolWGD/segmental
TraesCS5A02G069700TaTUB-5A15A24326.018.68−0.30plastidtandem
TraesCS5A02G069800TaTUB-5A25A24326.028.49−0.28plastidtandem
TraesCS5A02G416400TaTUB-5A35A44449.844.53−0.36cytosolWGD/segmental
TraesCS5A02G443500TaTUB-5A45A23925.536.88−0.34plastiddispersed
TraesCS5A02G534300TaTUB-5A55A44750.104.45−0.35cytosolWGD/segmental
TraesCS5B02G418700TaTUB-5B5B44549.974.5−0.37GAWGD/segmental
TraesCS5D02G424100TaTUB-5D5D44549.974.5−0.37cytosolWGD/segmental
TraesCS6B02G169300TaTUB-6B6B44449.874.4−0.38cytosolWGD/segmental
TraesCS6D02G130500TaTUB-6D6D44549.964.4−0.37GAWGD/segmental
TraesCS7A02G466600TaTUB-7A7A44650.214.43−0.39GAWGD/segmental
TraesCS7D02G454200TaTUB-7D7D44650.214.43−0.39cytosolWGD/segmental
TraesCSU02G137900TaTUB-UnUn44850.214.45−0.34cytosolWGD/segmental
Table
Table 2. The subgenome distribution of TaTUA and TaTUB homeologs.
Table 2. The subgenome distribution of TaTUA and TaTUB homeologs.
Number of
Homologous Loci		Distribution of GenomeNumber of GenesTotal Number of Genes
Three homeologsA, B, D1030
Two homeologsA, D12
B, D12
One homeologA714
B12
Un12
Total 43
Table
Table 3. Primers in this study.
Table 3. Primers in this study.
GeneForward PrimerReverse Primer
TaActinACCTTCAGTTGCCCAGCAATCAGAGTCGAGCACAATACCAGTTG
TUB-1B1AGCACCAAGGAGGTTGATGAACAGTTGCCGATGAAGGTGGACG
TUA-2BAGCTCATCTCTGGGAAGGAGGGATCCAGTTCCACCACCAACA
TUB-3BACAAAGGAGGTGGACGAGCAGTGGAGGTCGAGTTGCCAACAA
TUB-4A1GACGCCAAGAACATGATGTGTGTCTGCTCATCCACCTCCTTTGT
TUA-4B2TTTGTTGATCTTGAGCCCACTGTTGATACGGTCCAGGCATAGGTC
TUB-6DGTCAGCTGAACTCCGACCTCGGGTCAACTCAGGAACAGTGA
TUB-UnCTCCACCTTCATCGGCAACTCGGCCTCGGTGAACTCCATC
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ren, Y.; Song, Q.; Shan, S.; Wang, J.; Ma, S.; Song, Y.; Ma, L.; Zhang, G.; Niu, N. Genome-Wide Identification and Expression Analysis of TUA and TUB Genes in Wheat (Triticum aestivum L.) during Its Development. Plants 2022, 11, 3495. https://doi.org/10.3390/plants11243495

AMA Style

Ren Y, Song Q, Shan S, Wang J, Ma S, Song Y, Ma L, Zhang G, Niu N. Genome-Wide Identification and Expression Analysis of TUA and TUB Genes in Wheat (Triticum aestivum L.) during Its Development. Plants. 2022; 11(24):3495. https://doi.org/10.3390/plants11243495

Chicago/Turabian Style

Ren, Yang, Qilu Song, Sicong Shan, Junwei Wang, Shoucai Ma, Yulong Song, Lingjian Ma, Gaisheng Zhang, and Na Niu. 2022. "Genome-Wide Identification and Expression Analysis of TUA and TUB Genes in Wheat (Triticum aestivum L.) during Its Development" Plants 11, no. 24: 3495. https://doi.org/10.3390/plants11243495

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
