Isolation and Molecular Characterisation of TtDro1A and TtDro1B Genes from Triticum turgidum Subspecies durum and turgidum, Study of Their Influences on Seedling Root Angles

by
Yolanda Loarce
,
Alejandra Cabeza
,
Rodrigo Cañas
and
Juan M. González
*
Departamento de Biomedicina y Biotecnología, Universidad de Alcalá, 28805 Alcalá de Henares, Spain
*
Author to whom correspondence should be addressed.
Plants 2022, 11(6), 821; https://doi.org/10.3390/plants11060821
Submission received: 1 February 2022 / Revised: 1 March 2022 / Accepted: 17 March 2022 / Published: 19 March 2022
(This article belongs to the Section Plant Genetics, Genomics and Biotechnology)
Browse Figures
Versions Notes

Abstract

:
Durum wheat (Triticum turgidum, 2n = 4x = AABB) includes several subspecies with differential characteristics in their root system architecture (RSA). Subspecies durum has longer and more vertical roots, while subspecies turgidum has smaller and shallower roots. The homeologous genes TtDro1A and TtDro1B of both subspecies have been identified and found to differ in their sizes, sequences and the proteins they encode. To determine whether there is a relationship between the level of expression of these two genes and the angle adopted by the roots of durum wheat seedlings, their expressions has been studied by RT-qPCR, both in the primary seminal root and in the other seminal roots. The results of the analyses showed that the TtDro1A gene is expressed 1.4 times more in the primary seminal root than in the other seminal roots. Furthermore, this gene is expressed 2.49 to 8.76 times more than TtDro1B depending on root type (primary or seminal) and subspecies. There are positive correlations between the expression ratio of both genes (TtDro1A/TtDro1B) and the mean of all root angles, the most vertical root angle and the most horizontal root angle of the seedlings. The higher the expression of TtDro1B gene, the lower the root growth angles.

1. Introduction

Durum wheat (Triticum turgidum Desf. 2n = 4x = 28, AABB genomes) includes several subspecies such as durum and turgidum [1,2,3]. This species is of great economic importance since is used to produce important food products such as pasta and couscous. The main durum-growing regions are the Middle East, Southern Europe, North Africa, the former Soviet Union, North America, and India. Worldwide, durum is grown on approximately 17 million hectares and the production in 2019 was about 38.1 million tons [4,5]. Although the majority of durum wheat cultivation is rain-fed, the production and yield of currently cultivated varieties may decrease considerably due to water shortages because of the climate change [6,7,8]. It is necessary to obtain new varieties capable of developing and maintaining the yield with a lower contribution of rainwater and, in this scenario, the root system of the plants has a great importance since the root is the organ that the plants use to capture mineral nutrients and water [9,10,11,12].
The number, length, and angle of roots at which they grow into the soil has been called root system architecture (RSA) and will largely determine the plant ability to reach nutrients and water [13,14]. Several authors have demonstrated the importance of the type of root system in the intake of nitrogen, phosphorus, or water on crop yield [15,16,17,18], and how deeper root systems increase production under drought conditions [10,19,20,21].
It has been proposed that through genetic breeding programs, RSA can be remodelled so that the roots are able to reach deeper, wetter areas of the soil, making survival and plant growth possible [22,23,24,25,26]. However, RSA is a complex topic and governing genes, as well as the environmental factors, influence the development of the root system. Several studies have attempted to elucidate the genetic factors underlying the establishment of RSA in cereals showing the complex genetic control associated with RSA, mostly regulated by a set of genes with small effect, although QTLs that individually explain up to 30% of the phenotypic variation in rice and maize and up to 50% in wheat, have also been described [23,27,28,29,30,31,32,33,34].
One of the most important features of RSA is the angle at which the roots grow, which will determine whether the roots will be shallow or deep and therefore have better access to nutrients that remain at the soil surface such as phosphorus, or water resources and nitrogen that accumulates in deeper layers [35,36]. Thus, a narrow root angle in rice was shown to improve yield by up to 10% when water was not limiting [35].
In cereals, the seminal roots are used by the plants both in the first weeks of growth and in advanced stages of development, being the primary seminal root that go deeper into the soil [37,38]. The ability of the seedling to develop its roots and reach the deeper soil layers where water is more abundant is a critical characteristic for plant establishment and subsequent vegetative development [13,39,40,41]. Sanguineti et al. [42] found that the length and weight of the seminal roots at an early growth stage provide useful clues about early vigour, a desirable trait for the improvement of water use efficiency and yield in wheat. A previous work has shown that the angle of the seminal roots in the seedling stage is correlated with the RSA in the mature plant [15], and Robinson et al. [43] found a correlation ranging from −0.21 to 0.36, between root angle and yield traits in a panel of 216 two-rowed spring barley genotypes.
Several QTLs and genes associated with rice roots had been described [20,36,44,45]. These authors identified the Dro1 (Deeper Rooting 1) locus from the DNA of two rice cultivars showing polymorphism for root inclination [20]. The study was able to associate the polymorphism with a mutation responsible to produce a truncated Dro1 protein in the cultivar with smaller and shallower roots, which was not present in the cultivar with longer and deeper roots. Overexpression of Dro1 in rice or its introduction by backcrossing into shallow-rooted cultivars caused changes in the RSA, decreasing the root growth angle and thus producing deeper rooting. The influence of Dro1 has also been shown in other plants such as Arabidopsis, where mutation of AtDro1 produced more horizontal roots, or in Prunus domestica where overexpression of PpeDro1 produced phenotypes with deeper roots [46]. It is expected that, as in rice, the homologous loci to the Dro1 gene play a role in determining the root angles in durum wheat. Furthermore, as it is a polyploid plant, the genes will be duplicated, and their involvement in the root angles may not necessarily be the same, which will require the study of the loci individually.
Ruiz et al. [47] conducted a study of the RSA in the Spanish durum wheat core collection found that the seedlings showed a large variability with respect to the mean of all root angles, the most vertical root angle and the most horizontal root angle. In addition, they found that the subspecies durum has larger and more vertical roots than the subspecies turgidum. In the present work we aim to investigate whether the difference in the RSA between the two subspecies is determined, at least in part, by the durum wheat genes homeologous to the rice Dro1 gene. For this purpose, two genotypes with very different RSAs were selected, one belonging to the subspecies durum and the other to turgidum, with the following objectives: (1) to identify and characterise the genes homeologous to the rice Dro1 gene, (2) to study by RT-qPCR the expression of these genes in the seminal roots of seedlings of a collection of genotypes of durum and turgidum subspecies, and (3) to determine the possible relationship between their expression level and root angles in seedlings of durum and turgidum subspecies.

2. Results

2.1. RSA Analysis

Mean values of the nine RSA variables in each of the eight genotypes of T. turgidum (Table 1) were used to perform a Principal Component Analysis (PCA). In the Figure 1, a biplot of the first two main components is shown. The first principal component explains 75.5% of the variance and separates the genotypes as a function of variables related to root angles on the one hand, and length, volume, and surface of the roots on the other.
There is a clear differentiation between genotypes according to the subspecies they belong to. Thus, subspecies durum has a larger root system with more vertical roots while the roots of subspecies turgidum have a shorter overall length and are shallower. Figure 2 shows some examples of the RSA of the eight genotypes studied.

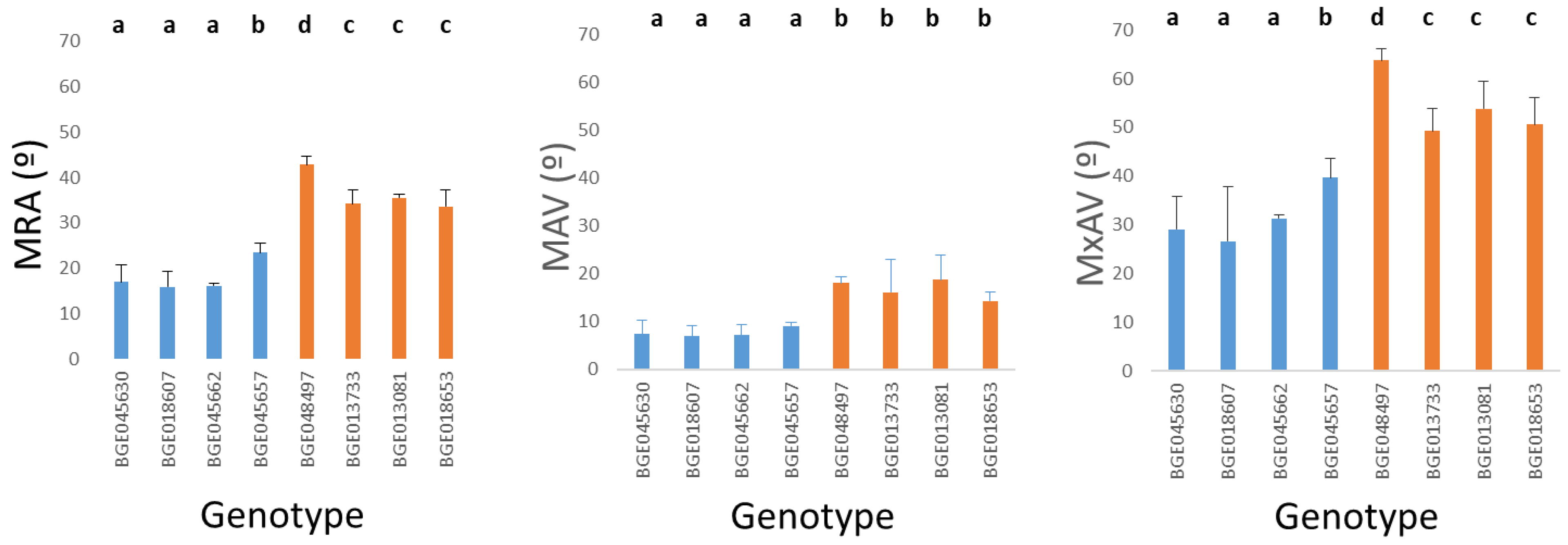

Analysis of variance (ANOVA) taken the genotype as independent factor were performed for each of the three variables related with the root angles. The results were highly significant (p < 0.05). Figure 3 is a graphical representation of MRA, MAV and MxAV in the eight genotypes, including the results of Least Significant Difference test (LSD).

2.2. Identification, Cloning and Analysis of the TtDro1A and TtDro 1B Genes of T. turgidum

For the identification, cloning and analysis of the TtDro1 genes of T. turgidum, the genotypes BGE045630 from subspecies durum and BGE048497 from subspecies turgidum were selected on the basis that they have long deep roots and short shallow roots, respectively.
Firstly, the rice Dro1 gene sequence [20] was used in a BLAST search with the Triticum aestivum sequences included in the Ensembl Plants database [48] (http://plants.ensembl.org/Triticum_aestivum/Tools/Blast. Accessed on 18 March 2021). The T. aestivum homologous sequences located in the 5A and 5B chromosomes were used for PCR subgenomes specific primers design. The Figure 4 shows a representation of the amplified gene regions (Promoters, UTRs, exons, and introns) and the position of the primers used in PCR reactions. The amplified regions of both genomes of each of the lines were aligned for comparison (Figure S1). The information for annotation of sequences (UTRs, exons, and introns) were obtained from the T. aestivum cDNA clones included in Ensembl Plants database.

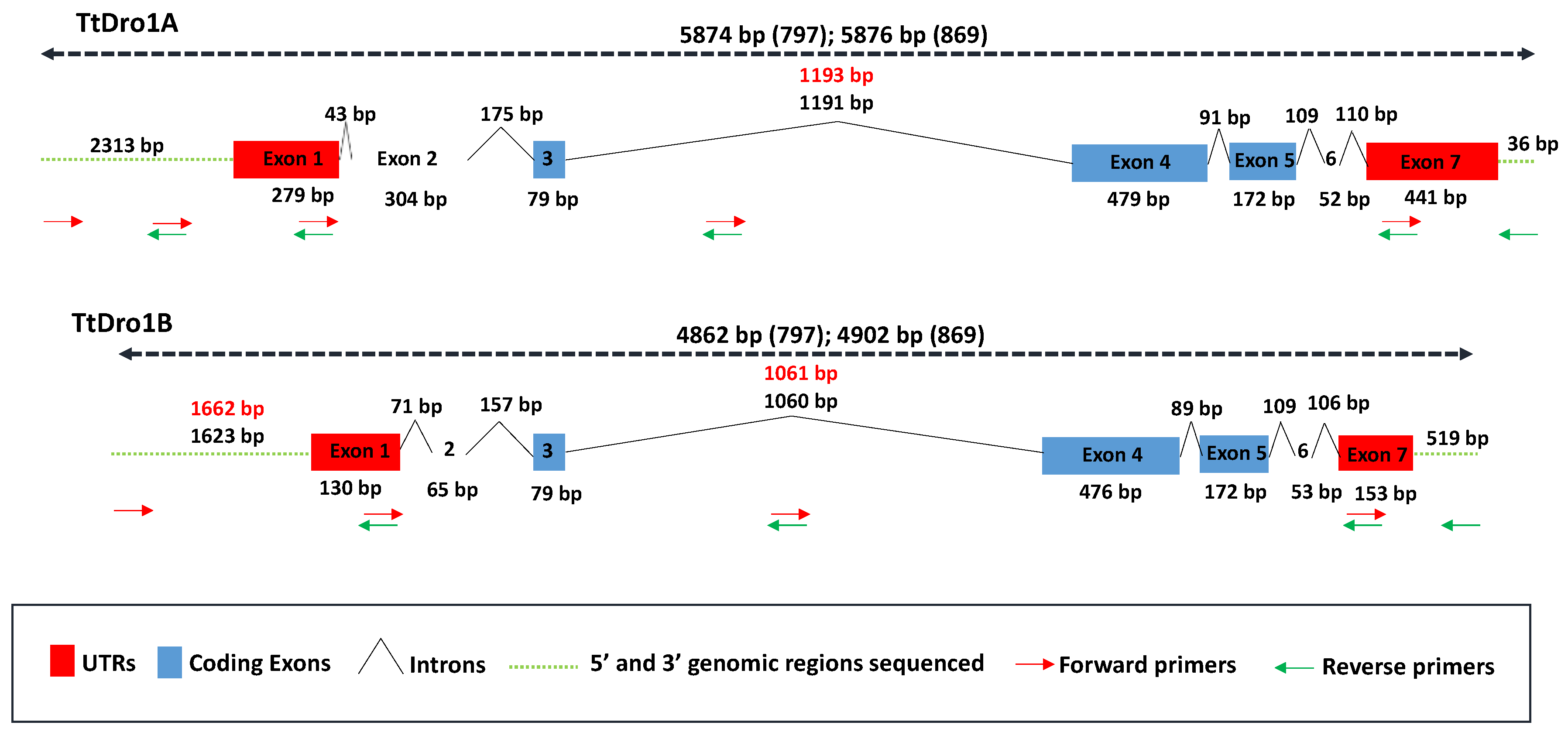

The subgenomic A regions containing the TtDro1A homologous sequence span 5874 and 5876 bp for the BGE045630 and BGE048497 genotypes, respectively (GenBank accession numbers: MZ151530, MZ151531, MZ151532, MZ151533). Both sequences are identical except for two extra bases in the larger intron in the BGE048497 genotype and therefore have no effect on the amino acid sequence of the protein. The TtDro1B homologous genomic regions sequenced from B genome were shorter, spanning 4862 bp for BGE045630 and 4902 for BGE048497. In addition to one more bp in the longer intron in the BGE048497 genotype, the alignment showed two different bp in exon 4 that involves the change of two amino acids in the proteins. More differences were found between the 5′ regions of TtDro1B coding sequences in both genotypes, being striking the presence of an insertion of 38 bp in the BGE048497 genotype. This insertion was catalogued by the CENSOR software [49] as a partial MITE (Miniature Inverted-repeat Transposable Element) element belonging to the Tc1-Mariner class, specifically to the Stowaway superfamily and Hades family.

2.3. Analysis of TtDro1A and TtDro1B Proteins

The gene sequences obtained from BGE045630 and BGE048497 genotypes were translated into the amino acids sequence coded by them. An alignment of these sequences (Figure 5a) together with those of Dro proteins from other cereals was used to construct a phylogenetic tree (Figure 5b).

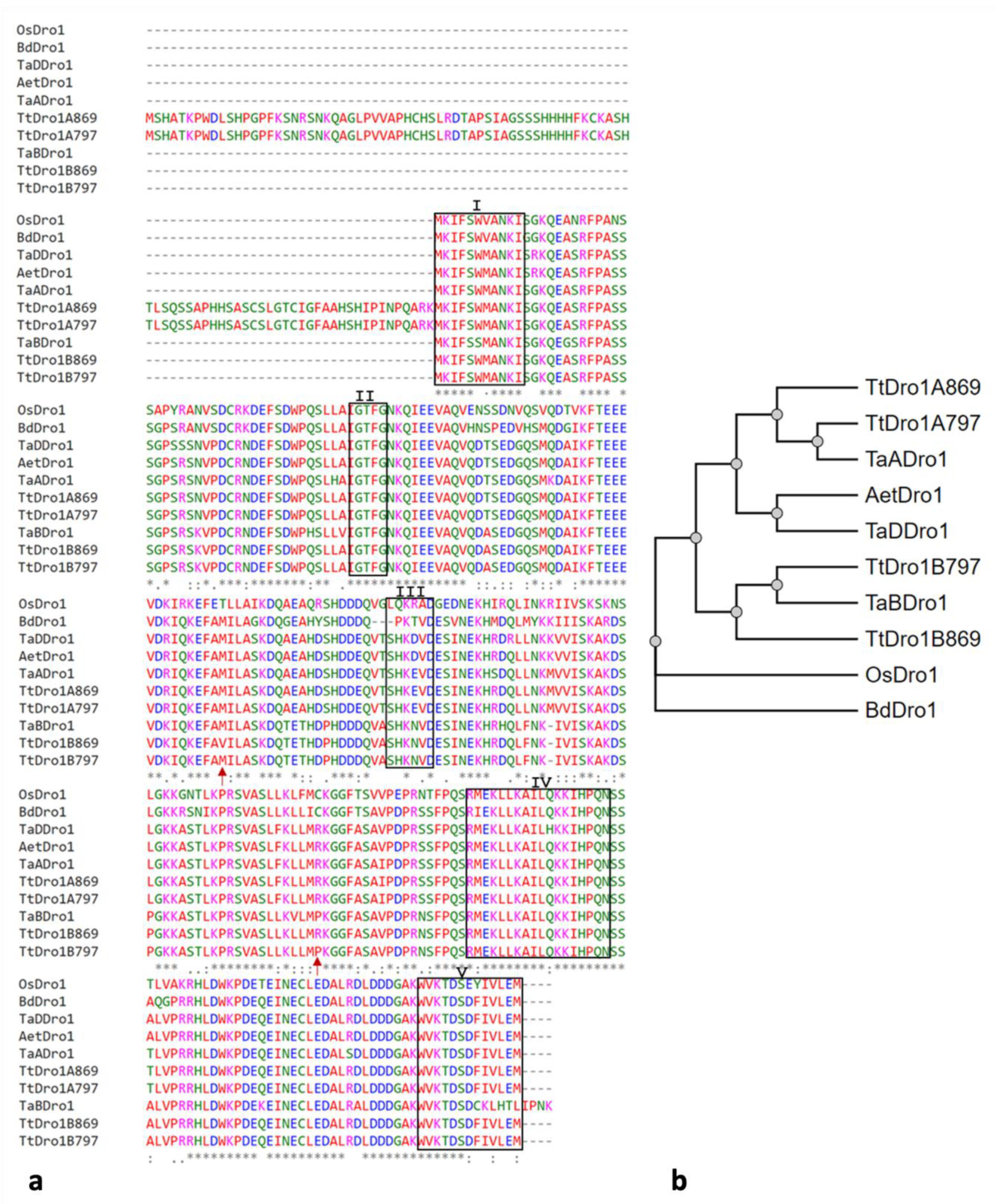

The alignment of the sequences showed that TtDro1A and TtDro1B code different proteins but with the characteristic motifs (I-V) for the IGT gene family. The most substantial difference is that protein A is longer, with 96 additional amino acids at the N-terminal end that are not present in the protein encoded by the TtDro1B gene nor in the other Dro1 proteins included in the alignment. These results would indicate that it is the TtDro1B gene that encodes a protein with a function similar to that encoded by the rice Dro1 gene. In the rest of the amino acid sequence the proteins of both sub-genomes of durum wheat showed 8 more differences. However, no differences were found between subgenome A protein. Two missense change were found between TtDro1B proteins from both genotypes, valine for methionine and arginine for proline, respectively (Figure 5a). The PROVEAN software tool [50] was used to predict if these two amino acid substitutions had an impact on the biological function of the protein, being the variants catalogued such as neutral. Therefore, the two amino acid changes in the TtDroB proteins do not seem to be responsible for the different angles of inclination shown by the roots of the two genotypes.

2.4. TtDro1A and TtDro1B Genes Expression in Roots of T. turgidum Subsp. durum and turgidum

Since the differences between the proteins encoded by the TtDro1A and TtDro1B genes did not seem to be responsible for the differences in the root angles of the durum and turgidum genotypes, we analysed by RT-qPCR assay whether the differential expression of any of the TtDro1 genes could be related to the different phenotype in both subespecies.
RT-qPCR of TtDro1A and TtDro1B was performed in three replicates on both primary and seminal roots of two-day-old seedlings in each of the eight genotypes of subspecies durum and turgidum. Nine variables were annotated (AP, AS, BP, BS) or calculated (MA(P + S), MB(P + S), AP/BP, AS/BS, MA(P + S)/MB(P + S) as indicated in the Material and Methods section, and their mean values and standard deviation are shown in Table 2. Figure 6 is a representation of these values in both subspecies and the results of the t-Student test performed between the corresponding means.
TtDro1A is expressed more than TtDro1B. The greatest difference in expression between TtDro1A and TtDro1B was 8.76 (AP/BP) observed in the primary root of subspecies turgidum (Table 2), and the smallest difference in expression (2.49) was observed in the secondary roots of the subspecies durum. All variables showed highly significant differences between the two subspecies, except TtDro1A gene expression in the primary root, seminal roots and in the mean expression of both root types. [MA(P + S)] (Figure 6).
Considering overall the eight genotypes of the two subspecies of T. turgidum, the TtDro1A gene is expressed 1.4 times more in the primary root than in the seminal roots (AP/AS = 9.85/7.01) (Table 2). It is also noteworthy that TtDro1A and TtDro1B are differentially expressed in T. turgidum, with TtDro1A gene expression being 4.85 times higher than TtDro1B (MA(P + S)/MB(P + S) (Table 2). t-Student was also applied to compare the expression of TtDro1A and TtDro1B genes according to the type of root, the ratio (AP/BP)/(AS/BS), and the ratio of average expressions of the genes [MA(P + S)/MB(P + S)], in the primary and the seminal roots, and the results are shown in Table 3.

2.5. Study of Correlation between Root Angles and the Expression of the Genes TtDro1A and TtDro1B, in Triticum turgidum

Correlations between variables of the RSA measuring root angles, and expression values of TtDro1A and TtDro1B gene were calculated as follows: the minimum angle (MAV) with respect to TtDro1A and TtDro1B genes expression in the primary root and also with respect to the AP/BP ratio; the maximum angle (MxAV) with respect to TtDro1A and TtDro1B genes expression in the seminal roots and also with respect to the AS/BS ratio; and the mean value of all angles (MRA) with respect to medium expression of the TtDro1A or TtDro1B genes in the primary root and the seminal roots, and with respect to the MA(P + S)/MB(P + S) ratio. Table 4 shows the results obtained. The three positive and highly significant correlations obtained indicate that the greater the expression of the TtDro1B gene with respect to the TtDro1A gene is, the more vertical the roots are.

3. Discussion

Varieties of cultivated species with a deep root system have the potential to obtain water resources in underground layers, especially when rainfall is scarce. Landraces and old varieties are the main sources of variability that can be used in breeding programs since they present a great variability of phenotypes of the root system [51,52]. Ruiz et al. [47] studying the Core Collection of Spanish durum wheat have demonstrated the existence of a large variability in the RSA and, more specifically, in the root growth angle of the seedlings.
In the present work, the eight genotypes of T. turgidum analysed belonging to the subspecies durum and turgidum have differences in their root system (Table 1). The PCA study (Figure 1) showed that both subspecies have clearly different RSA both in terms of roots size, and root angles to the vertical. Thus, the subspecies durum has longer and deeper roots while the subspecies turgidum has shorter and shallower roots. Furthermore, the ANOVAs analysis of the three variables related to the angle (MRA, MAV and MxAV) and the corresponding LSD tests confirmed the differential behaviour of both subspecies (Figure 3). These differences may be due, at least in part, to differences in the TtDro1 gene that controls root inclination as demonstrated by Uga et al. [20] and Kitomi et al. [36] in rice.
From genotypes BGE045630 and BGE048497, belonging to subspecies durum and turgidum, we have carried out molecular characterisation of the TtDro1 genes of the A and B subgenomes of Triticum turgidum, which are homologous to Dro1 of rice described by Uga et al. [20]. These genes have shown that the small differences founded in the exonic sequences do not appear to be responsible for the different RGA of both subspecies. The Dro1A-proteins of both lines were identical, and the Dro1B-proteins differed in the substitution of the amino acid proline by leucine (Figure 5) that was classified as neutral by the PROVEAN software tool [50].
The most important difference in the sequence of the TtDro1B genes of both lines is the presence of an incomplete MITE element in the 5′UTR region of genotype BGE048497 that is not present in BGE045630, which could influence gene expression. The presence of this mobile element is not surprising because, transposable elements are very abundant in plants, that have evolved different mechanisms to tolerate the presence of Transposable Elements (TE) into or near genes with variable influence on gene [53]. In the case of wheat group species, TE might comprise up to 90% of the genome [54].
BLAST analysis in the Esembl Plants database showed that the proteins encoded by the TtDro1A and TtDro1B genes were different although both have the typical elements of the IGT family [46]. The Dro1 genes are orthologous to the LAZY genes that give name to one of the clades of the IGT family and that are involved in shoot and root gravitropism in dicots and monocots plants [55,56]. The LAZY clade differs from the TAC1 clade by the conserved C-terminal domain V containing an EAR motif (Ethylene-responsive element binding factor-associated Amphiphilic Repression). EAR motif-mediated transcriptional repression is the main form of transcriptional repression identified in plants and the proteins containing them can suppress transcription by interacting directly with the promoter as transcription factors, by interacting with other co-repressors such as TOPLESS, or by recruiting histone modifying proteins [57,58]. Surprisingly, TtDro1A and TtDro1B have the same EAR-motif (IVLEM) (Figure 5a) while proteins A and B reported for common wheat contain the different EAR motifs IVLEM and KLHTLPNK, respectively, the latter shared with the barley Dro protein [59]. TtDro1A (346 aa) and TtDro1B (251 aa) share the C-terminal region with 8 differences, and in addition, TtDro1A has 96 extra amino acids in its N-terminal region (Figure 5a). The phylogenetic tree obtained (Figure 5b) shows that the TtDro1A and TtDro1B proteins cluster with those encoding the A and B subgenomes of common wheat. However, the TaDro1A protein sequence is more similar to the TtDro1A protein sequence of the durum subspecies than that of the turgidum subspecies, which could indicate a shorter evolutionary distance. There is also a higher similarity between the sequences of the proteins encoded by the TaDDro1 gene of T. aestivum and Ae. speltoides, which is the donor of the D genome, with the TtDro1A protein than with the TtDro1B protein.
So far, all Dro-like proteins reported from different plant species are about 250 amino acids in size [59]. However, the protein encoded by the TtDro1A gene is 347 amino acids in size as the coding region is longer, which is supported by the recognition of the promoter consensus sequences. Identifying the promoter and transcription start site is not always easy, because many genes lack a TATA box and not all consensus sequences are easily identifiable. However, in this case, both promoters have a TATA box and the transcription factor B recognition element (BRE). In addition, the TtDro1A and TtDro1B introns are very different between both genes (Table S1), which indicates a long time of divergent sub-genomes evolution prior to the hybridisation process that gave rise to the allopolyploid. A mutation in the intron-exon region may have occurred in the parental donor of genome A, causing a change in the splicing process with the subsequent formation of a new protein. This difference was not previous reported by Ashraf et al. [59] when described the Dro1 homeologues genes from T. aestivum subgenomes A, B and D.
In contrast with diploid plants, polyploids have more complex regulatory mechanisms to coordinate gene expression among homeologues and define their relative contribution to the phenotype [60]. The fact that the two genes TtDro1A and TtDro1B encode different proteins would be consistent with a distinct involvement in the signalling pathway to give steeper or less steep roots.

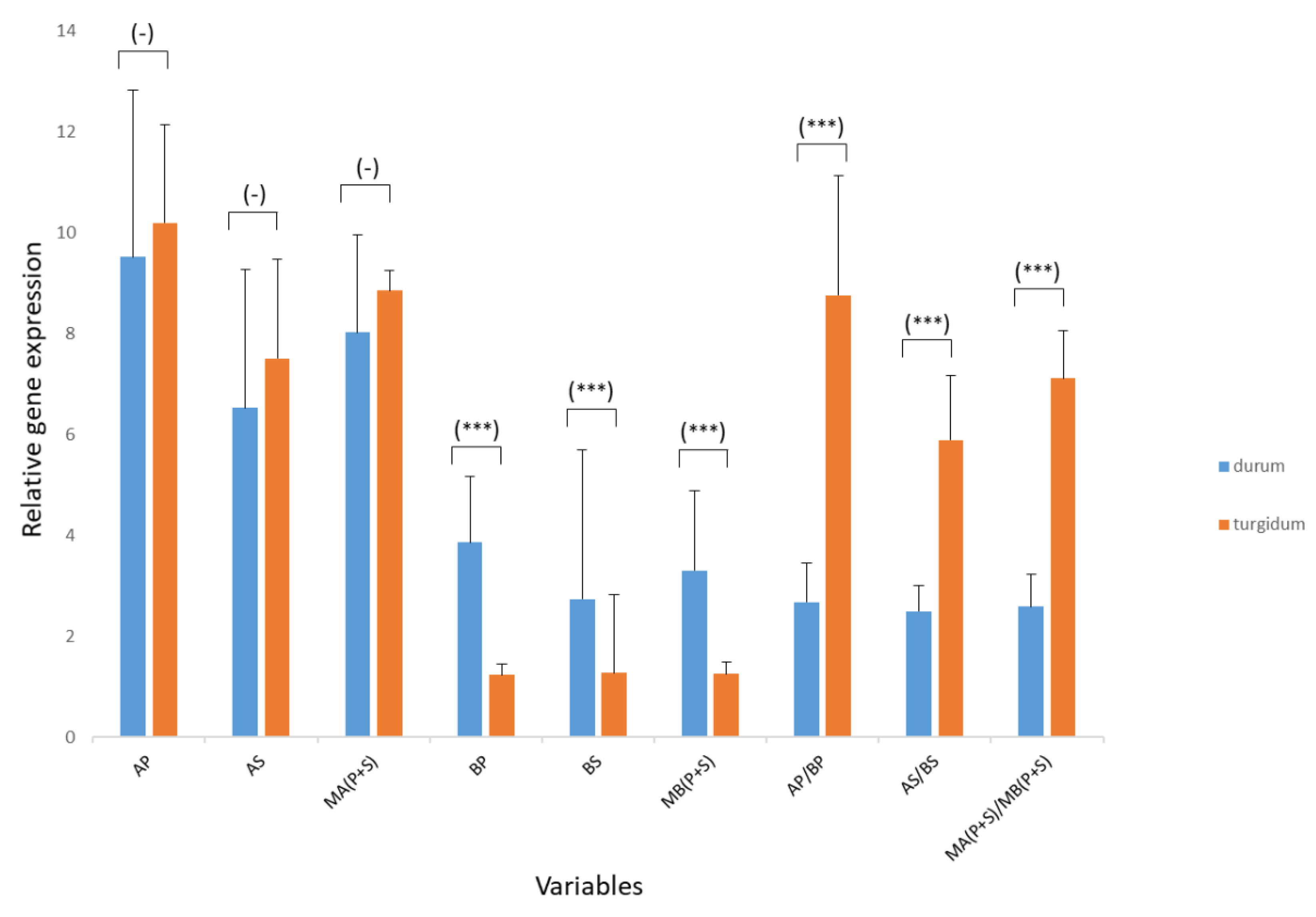

In order to find out whether there is a differential expression of the TtDro1A and TtDro1B genes between durum and turgidum subspecies, which could be involved in root angles development, we have carried out an expression study of these genes, considering four genotypes of each of the subspecies. The results obtained shown differences in all variables, except when comparing the expression of the TtDro1A gene in the primary root, in the seminal roots and in the mean of both types of roots (Figure 6).
When analysing the expression of TtDro1A, TtDro1B genes and their ratio taking into account the eight genotypes of T. turgidum, it was observed that there is difference in the expression of TtDro1A gene between the primary root and the seminal roots, with higher gene expression in the primary root (1.4 times) than in the seminal roots (Table 2). This result could indicate that this gene is involved in the difference in inclination between the two types of roots.
It should be noted that, in both subspecies and in both root types, the TtDro1A gene is expressed between 2.49 (AS/BS) to 8.76 (AP/BP) more than TtDro1B (Table 2, Figure 6), with clear statistically significant difference (Table 3). This agrees with the results obtained by Ashraf et al. [59] in common wheat that suggested that the presence of AuxRE motifs near the transcriptional start site in the TaDro1B-like promoter is the reason for the distinct expression of DroA and DroB. In the present work, the most noticeable difference between the TtDro1B genes of both subspecies is the presence of the element MITE in the 5′UTR region in the 4 genotypes of turgidum (data not shown) which leads us to think that this could be the cause of the lower expression of the gene in the turgidum subspecies. A similar finding was made by Xi et al. [61] who identified a MITE element in the 5′UTR region of the chalcone synthetase gene as responsible for the lower expression of the gene in the ‘Opata’ variety of T. aestivum relative to the expression of the same gene in the ‘Gy115′ variety without the insertion.
The TtDro1A and TtDro1B genes have differences in the nucleotide sequence, in the amino acid sequence of the proteins they encode and also differential expression, suggesting that they have different functions. However, our results indicate that both genes are involved in the root phenotype and specifically in root angle, which is supported by the high positive correlations obtained between the gene expression ratios of both root types and the corresponding angle data, while there was no correlation with the expression levels of TtDro1A and TtDro1B taken independently. (Table 4). Thus, although TtDro1B has a lower expression than TtDro1A, our data indicate that it plays an important role in the angle adopted by the roots. Therefore, the higher the expression of TtDro1B the lower the root angle, as observed in subspecies durum which has deeper roots than subspecies turgidum (Figure 2).

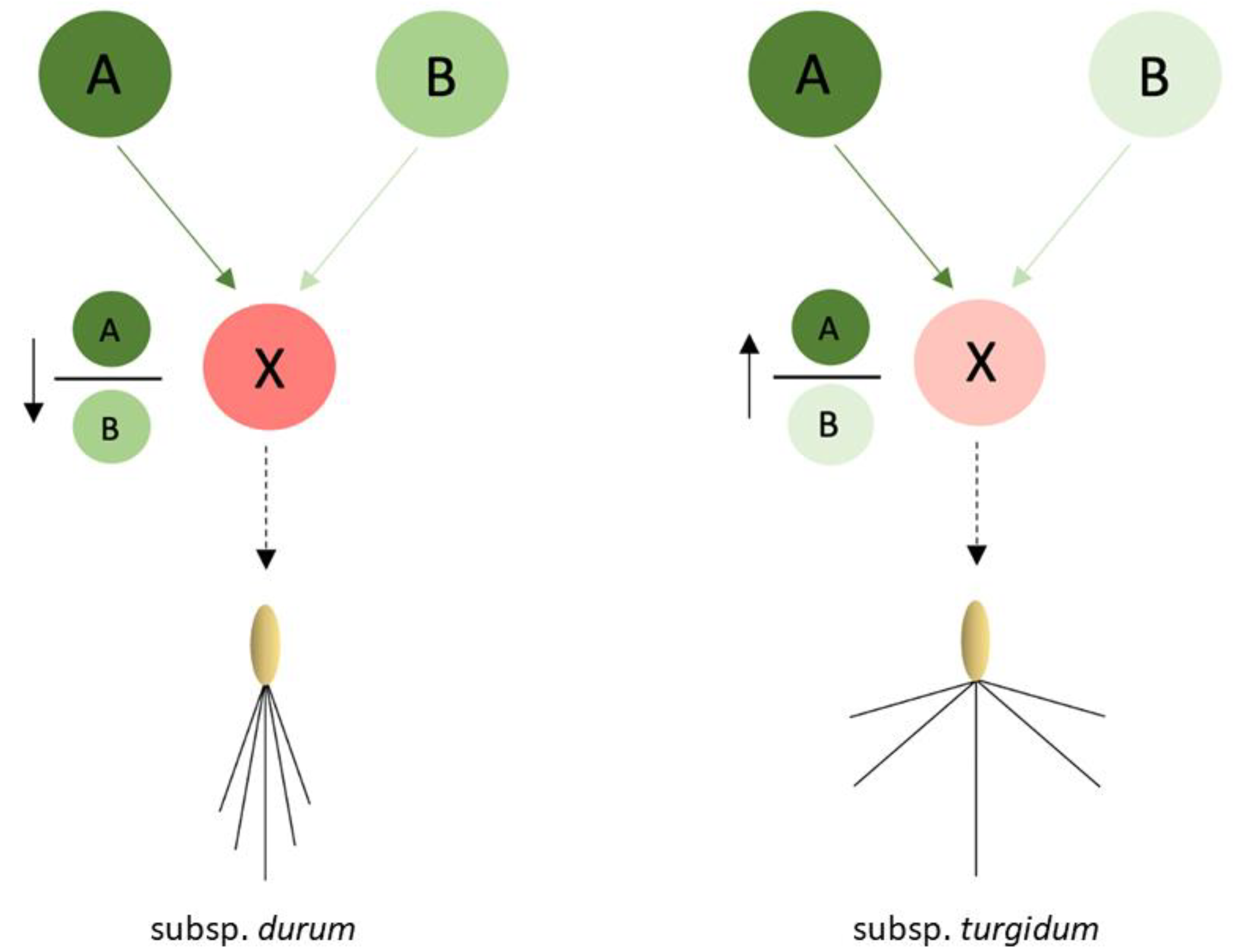

From the study carried out, we propose that root angle in durum wheat is determined, at least in part, by the differential expression of the TtDro1A and TtDro1B genes. Thus, the TtDro1A gene would be involved in the difference in inclination between the primary and the seminal roots, while the expression ratio between the two genes TtDro1A/TtDro1B is what determines whether the roots as a whole will be deeper as in durum subspecies or shallower as in turgidum subspecies, as shown in the hypothetical model of the Figure 7.

4. Materials and Methods

4.1. Plant Materials

In this work, eight genotypes of durum wheat (Triticum turgidum Desf.) belonging to the subspecies durum and turgidum, have been used. The materials were provided by the National Plant Genetic Resource Center of Spain (INIA-CRF), and their passport data are available at https://bancocrf.inia.es/en/ (accessed on 15 December 2020). (Table 5).

4.2. Methods

4.2.1. Root Phenotyping

In this case, 12 seeds per genotype were disinfected with sodium hypochlorite solution (1.25%) during 15 min and rinsed 4 times with sterile distilled water. Seeds were placed in Petri dishes with of filter paper moistened with 4 mL of distilled water were kept at 4 °C for 2 days, and then put in the rhizoslide system according to the description of Ruiz et al. [47] and Boudiar et al. [62], and grown in a chamber at 22–18 °C with a photoperiod of 12 h of light for 1 week. After the seedling growth period, the roots were scanned at 300 ppi using a Canon “LiDE210” flat scanner. The images obtained from every seedling was analysed using the SmartRoot software v.3.32 [63] which is a plugin of ImageJ1.46R software (http://imagej.nih.gov/ij/download.html. Accessed 10 October 2019). For each seedling, the following variables were noted or calculated: number of roots (NR), total root length in cm (TRL), primary seminal root (hereinafter primary) length in cm (PRL), total root area in cm2 (S), total root volume in cm3 (V), mean root diameter in cm (DS), mean of root angles respect to the vertical in degrees (MRA), minimum root angle in degrees (MAV) and maximal root angle in degrees (MxRA). For statistical analysis, the 12 plantlets were divided into three replicates of four seedlings/replica.

4.2.2. TtDro1 Genes Genotyping

DNA of BGE 045630 and BGE048497 was extracted from leaves of 7-day-old seedlings, with the “NZY Plant/Fungi gDNA Isolation kit” (NZYTech, Lisbon, Portugal) following the instructions specified by the manufacturer. The specific primers for PCR amplification of the Dro1 genes of T. turgidum were designed from the T. aestivum genomic sequences included in the Ensembl Plants database [48] which were homologous to the Dro1 sequence of rice [20]. Given the large size of the candidate gene, 9 pairs of primers were manually designed (Table S1) to cover the entire gene regions with their PCR products overlapping, to obtain a unique and complete sequence of each gene.

4.2.3. PCR Amplification and Fragment Cloning

PCR reactions were performed in a 25 μL volume containing 50 ng of genomic DNA using the primers designed for each subgenome with NZYTaq II 2× Green Master Mix (NZYTech, Lisbon, Portugal). The thermal cycling conditions for the amplification were: 94 °C for 5 min, followed by 38 cycles at 94 °C for 30 s, 55 °C for 30 s, 72 °C for 1.5 min, and a final extension of 72 °C for 10 min.
The fragments amplified by PCR were cloned with NZY-A PCR cloning kit (NZYTech), and 3 clones of each fragment were sequenced to rule out the Taq polymerase errors. All sequencing reactions was performed at the Molecular Biology Unit of the University of Alcalá (Alcalá de Henares, Spain). Sequence analysis were performed using software CodonCode Aligner v.3.7.1 (CodonCode Corporation, Centerville, MA, USA).

4.2.4. Multiple Alignment Sequences and Phylogenetic Tree Construction

The alignment of the amino acid sequences of the Dro1 proteins was performed using the Clustal Omega multiple sequence alignment and MUSCLE 3.0 softwares, available at http://www.ebi.ac.uk/Tools/msa/clustalo/ (accessed 25 February 2022), on the EMBL-EBI website [64]. The Phylogeny.fr software was used to construct the phylogenetic tree [65].

4.2.5. RT-qPCR

For the extraction of root RNA, 60 seeds/genotype were used and were germinated and grown in the same way as for the RSA study, but keeping them only for two days in the rhizoslide system, because that time is when the roots were observed to start developing and acquiring their growth angle.
For each genotype, RNA was extracted from the apical meristems of the primary seminal root and from the other seminal roots separately, using Tripure Reagent (Roche, Germany) according to the manufacturer’s instructions, and treated with Turbo RNase-free DNase (Ambion, Thermo Fisher Scientific, Whaltman, MA, USA) to remove all contaminating DNA. cDNA was synthesized from 1 μg of RNA employing the SMARTer PCR cDNA Synthesis Kit (Clontech, Takara Bio, Shiga, Japan) according to the manufacturer’s recommendations.
25 ng of cDNA from each sample were amplified in three technical replicates in a 7500 Fast Real Time PCR System Thermocycler (Thermo-Fisher Scientific, Whaltman, MA, USA), with primers designed from specific regions of TtDro1A and TtDro1B genes (Table S1). Ct values were determined and the relative expression level for each gene in the different templates calculated using the 2−ΔΔCt method, normalized against the gene coding for malate dehydrogenase (MDH), which has been evaluated such as housekeeping gene in wheat by Pérez et al. [66]. The expression of the TtDro1B in primary roots from genotype BGE013733 was used as calibrator.
The following variables were calculated:
  • AP: expression of the TtDro1A gene in the primary root.
  • AS: expression of the TtDro1A gene in the seminal roots.
  • BP: expression of the TtDro1B gene in the primary root.
  • BS: expression of the TtDro1B gene in the seminal roots.
  • MA(P + S): average expression of the TtDro1A gene in the primary and seminal roots.
  • MB(P + S): average expression of the TtDro1B gene in the primary and seminal roots.
  • AP/BP: ratio between expressions of the genes TtDro1A and TtDro1B in the primary root.
  • AS/BS: ratio between expressions of the genes TtDro1A and TtDro1B in the seminal roots.
  • M(P + S)/MB(P + S): ratio between the average expressions of the genes TtDro1A and TtDro1B in the primary and the seminal roots.

4.2.6. Statistical Analysis

Principal Component Analysis (PCA), t-Student, Fisher’s LSD test (Least Significant Difference), analysis of variance (ANOVA) and Pearson correlation were performed with the StatGraphics plus software v.5.1.

5. Conclusions

Triticum turgidum subspecies durum has a larger root system with more vertical roots than subspecies turgidum, which has shorter and shallower roots. The homeologous genes TtDro1A and TtDro1B show differences in their sequences, in the proteins they encode and in their expression levels in the roots of durum wheat seedlings. TtDro1A gene is expressed between 2.49 to 8.76 more than TtDro1B depending on the subspecies and type of seminal root. The TtDro1A gene is expressed more in the primary seminal root than in the other seminal roots. A positive and significant correlation has been observed between the root inclination angle and the expression ratio between the two genes. Thus, the lower this ratio (higher TtDro1B expression), the shallower the roots of durum wheat seedlings will be. This work demonstrates for the first time the relationship between the expression of TtDro1 genes and the angle of inclination of the roots in durum wheat seedlings.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11060821/s1. Figure S1: Genomic sequence alignments of the TtDro1A and TtDro1B genes from durum wheat lines 797 (subspecies durum) and 869 (subspecies turgidum) by MUSCLE (3.8). Table S1: Primers used in PCR for TtDro1 subgenomic amplifications and RT-qPCR analysis.

Author Contributions

Conceptualization, J.M.G. and Y.L.; methodology, A.C., R.C., Y.L. and J.M.G.; formal analysis, Y.L. and J.M.G.; investigation, A.C., Y.L. and J.M.G.; resources, Y.L. and J.M.G.; writing—original draft preparation, Y.L. and J.M.G.; writing—review and editing, J.M.G., Y.L., R.C. and A.C.; funding acquisition, Y.L. and J.M.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by University of Alcalá grant no. CCG19/CC-061.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The passport data of the plant material used in this work are available at https://bancocrf.inia.es/en/ (accessed on 15 December 2020) and in the Table 1. The sequences of the genes during the current study are available in GenBank with accession numbers MZ151530-MZ151533. The other data sets supporting the conclusions of this article are included within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. MacKey, J. Species relationship in Triticum. Hereditas 1966, 1963 (Suppl. 2), 237–276. [Google Scholar]
  2. Van Slageren, M.W. Wild Wheats: A Monograph of Aegilops L. and Amblyopyrum (Jaub. & Spach) Eig (Poaceae); Wageningen Agricultural University: Wageningen, The Netherlands, 1994; Volume 94. [Google Scholar]
  3. Li, S.; Xi, L.; Liu, H.; Zhu, W.; Xu, L.; Wang, Y.; Zeng, J.; Fan, X.; Sha, L.-N.; Zhang, H.-Q.; et al. The classification of tetraploid wheat by phylogenetic and cytogenetic analyses. Biol. Plant. 2020, 64, 324–334. [Google Scholar] [CrossRef]
  4. Xynias, I.N.; Mylonas, I.; Korpetis, E.G.; Ninou, E.; Tsaballa, A.; Avdikos, I.D.; Mavromatis, A.G. Durum Wheat Breeding in the Mediterranean Region: Current Status and Future Prospects. Agronomy 2020, 10, 432. [Google Scholar] [CrossRef] [Green Version]
  5. FAOstat 2022. Available online: https://www.fao.org/faostat/en/#home (accessed on 17 January 2022).
  6. Araus, J.L.; Kefauver, S.C. Breeding to adapt agriculture to climate change: Affordable phenotyping solutions. Curr. Opin. Plant Biol. 2018, 45 Pt B, 237–247. [Google Scholar] [CrossRef]
  7. Luo, Q.; O’leary, G.; Cleverly, J.; Eamus, D. Effectiveness of time of sowing and cultivar choice for managing climate change: Wheat crop phenology and water use efficiency. Int. J. Biometeorol. 2018, 62, 1049–1061. [Google Scholar] [CrossRef]
  8. Sabella, E.; Aprile, A.; Negro, C.; Nicolì, F.; Nutricati, E.; Vergine, M.; Luvisi, A.; De Bellis, L. Impact of Climate Change on Durum Wheat Yield. Agronomy 2020, 10, 793. [Google Scholar] [CrossRef]
  9. Manschadi, A.M.; Christopher, J.; deVoil, P.; Hammer, G.L. The role of root architectural traits in adaptation of wheat to water-limited environments. Funct. Plant Biol. 2006, 33, 823–837. [Google Scholar] [CrossRef] [Green Version]
  10. Ehdaie, B.; Layne, A.; Waines, J. Root system plasticity to drought influences grain yield in bread wheat. Euphytica 2012, 186, 219–232. [Google Scholar] [CrossRef]
  11. Ahmadi, J.; Pour-Aboughadareh, A.; Fabriki-Ourang, S.; Mehrabi, A.; Siddique, K.H. Screening wheat germplasm for seedling root architectural traits under contrasting water regimes: Potential sources of variability for drought adaptation. Arch. Acker Pflanzenbau Bodenkd. 2018, 64, 1351–1365. [Google Scholar] [CrossRef]
  12. Sinha, S.; Rani, M.; Kumar, A.; Kumar, S.; Venkatesh, K.; Mandal, P. Natural variation in root system architecture in diverse wheat genotypes grown under different nitrate conditions and root growth media. Theor. Exp. Plant Physiol. 2018, 30, 223–234. [Google Scholar] [CrossRef]
  13. Lynch, J.P. Root architecture and plant productivity. Plant Physiol. 1995, 109, 7–13. [Google Scholar] [CrossRef] [PubMed]
  14. Lynch, J.P. Steep, cheap and deep: An ideotype to optimize water and N acquisition by maize root systems. Ann. Bot. 2013, 112, 347–357. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Manschadi, A.M.; Hammer, G.L.; Christopher, J.T.; deVoil, P. Genotypic variation in seedling root architectural traits and implications for drought adaptation in wheat (Triticum aestivum L.). Plant Soil 2008, 303, 115–129. [Google Scholar] [CrossRef]
  16. Lynch, J.P. Root phenotypes for improved nutrient capture: An underexploited opportunity for global agriculture. New Phytol. 2019, 223, 548–564. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Varshney, R.K.; Tuberosa, R.; Tardieu, F. Progress in understanding drought tolerance: From alleles to cropping systems. J. Exp. Bot. 2018, 69, 3175–3179. [Google Scholar] [CrossRef] [PubMed]
  18. Nguyen, V.L.; Palmer, L.; Roessner, U.; Stangoulis, J. Genotypic Variation in the Root and Shoot Metabolite Profiles of Wheat (Triticum aestivum L.) Indicate Sustained, Preferential Carbon Allocation as a Potential Mechanism in Phosphorus Efficiency. Front. Plant Sci. 2019, 10, 995. [Google Scholar] [CrossRef] [Green Version]
  19. Palta, J.A.; Chen, X.; Milroy, S.P.; Rebetzke, G.J.; Dreccer, M.F.; Watt, M. Large root systems: Are they useful in adapting wheat to dry environments? Funct. Plant Biol. 2011, 38, 347–354. [Google Scholar] [CrossRef] [Green Version]
  20. Uga, Y.; Sugimoto, K.; Ogawa, S.; Rane, J.; Ishitani, M.; Hara, N.; Kitomi, Y.; Inukai, Y.; Ono, K.; Kanno, N.; et al. Control of root system architecture by DEEPER ROOTING 1 increases rice yield under drought conditions. Nat. Genet. 2013, 45, 1097–1102. [Google Scholar] [CrossRef]
  21. Hassouni, K.; Alahmad, S.; Belkadi, B.; Filali-Maltouf, A.; Hickey, L.T.; Bassi, F.M. Root System Architecture and Its Association with Yield under Different Water Regimes in Durum Wheat. Crop Sci. 2018, 58, 2331. [Google Scholar] [CrossRef] [Green Version]
  22. Lynch, J.P.; Brown, K.M. New roots for agriculture: Exploiting the root phenome. Philosophical transactions. J. Biol. Sci. 2012, 367, 1598–1604. [Google Scholar] [CrossRef]
  23. Rogers, E.D.; Benfey, P.N. Regulation of plant root system architecture: Implications for crop advancement. Curr. Opin. Biotechnol. 2015, 32, 93–98. [Google Scholar] [CrossRef] [PubMed]
  24. Richard, C.; Christopher, J.; Chenu, K.; Borrell, A.; Christopher, M.; Hickey, L. Selection in Early Generations to Shift Allele Frequency for Seminal Root Angle in Wheat. Plant Genome 2018, 11, 170071. [Google Scholar] [CrossRef] [Green Version]
  25. Wasaya, A.; Zhang, X.; Fang, Q.; Yan, Z. Root Phenotyping for Drought Tolerance: A Review. Agronomy 2018, 8, 241. [Google Scholar] [CrossRef] [Green Version]
  26. Uga, Y. Challenges to design-oriented breeding of root system architecture adapted to climate change. Breed. Sci. 2021, 71, 3–12. [Google Scholar] [CrossRef]
  27. Ren, Y.; He, X.; Liu, D.; Li, J.; Zhao, X.; Li, B.; Tong, Y.; Zhang, A.; Li, Z. Major quantitative trait loci for seminal root morphology of wheat seedlings. Mol. Breed. 2012, 30, 139–148. [Google Scholar] [CrossRef]
  28. Christopher, J.; Christopher, M.; Jennings, R.; Jones, S.; Fletcher, S.; Borrell, A.; Manschadi, A.M.; Jordan, D.; Mace, E.; Hammer, G. QTL for root angle and number in a population developed from bread wheats (Triticum aestivum) with contrasting adaptation to water-limited environments. Theor. Appl. Genet. 2013, 126, 1563–1574. [Google Scholar] [CrossRef] [PubMed]
  29. Petrarulo, M.; Marone, D.; Ferragonio, P.; Cattivelli, L.; Rubiales, D.; De Vita, P.; Mastrangelo, A.M. Genetic analysis of root morphological traits in wheat. Mol. Genet. Genom. 2015, 290, 785–806. [Google Scholar] [CrossRef]
  30. Iannucci, A.; Marone, D.; Russo, M.A.; De Vita, P.; Miullo, V.; Ferragonio, P.; Blanco, A.; Gadaleta, A.; Mastrangelo, A.M. Mapping QTL for Root and Shoot Morphological Traits in a Durum Wheat × T. dicoccum Segregating Population at Seedling Stage. Int. J. Genom. 2017, 2017, 6876393. [Google Scholar]
  31. Ma, J.; Luo, W.; Zhang, H.; Zhou, X.; Qin, N.; Wei, Y.-M.; Liu, Y.-X.; Jiang, Q.-T.; Chen, G.-Y.; Zheng, Y.-L.; et al. Identification of quantitative trait loci for seedling root traits from Tibetan semi-wild wheat (Triticum aestivum subsp. tibetanum). Genome 2017, 60, 1068–1075. [Google Scholar] [CrossRef] [Green Version]
  32. Alahmad, S.; El Hassouni, K.; Bassi, F.M.; Dinglasan, E.; Youssef, C.; Quarry, G.; Aksoy, A.; Mazzucotelli, E.; Juhász, A.; Able, J.A.; et al. A Major Root Architecture QTL Responding to Water Limitation in Durum Wheat. Front. Plant Sci. 2019, 10, 436. [Google Scholar] [CrossRef] [Green Version]
  33. Hohn, C.E.; Bektas, H. Genetic Mapping of Quantitative Trait Loci (QTLs) Associated with Seminal Root Angle and Number in Three Populations of Bread Wheat (Triticum aestivum L.) with Common Parents. Plant Mol. Biol. Rep. 2020, 38, 572–585. [Google Scholar] [CrossRef]
  34. Alemu, A.; Feyissa, T.; Maccaferri, M.; Sciara, G.; Tuberosa, R.; Ammar, K.; Badebo, A.; Acevedo, M.; Letta, T.; Abeyo, B. Genome-wide association analysis unveils novel QTLs for seminal root system architecture traits in Ethiopian durum wheat. BMC Genom. 2021, 22, 20. [Google Scholar] [CrossRef]
  35. Arai-Sanoh, Y.; Takai, T.; Yoshinaga, S.; Nakano, H.; Kojima, M.; Sakakibara, H.; Kondo, M.; Uga, Y. Deep rooting conferred by DEEPER ROOTING 1 enhances rice yield in paddy fields. Sci. Rep. 2014, 4, 5563. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Kitomi, Y.; Hanzawa, E.; Kuya, N.; Inoue, H.; Hara, N.; Kawai, S.; Kanno, N.; Endo, M.; Sugimoto, K.; Yamazaki, T.; et al. Root angle modifications by the DRO1 homolog improve rice yields in saline paddy fields. Proc. Natl. Acad. Sci. USA 2020, 117, 21242–21250. [Google Scholar] [CrossRef] [PubMed]
  37. Araki, H.; Iijima, M. Deep rooting in winter wheat (Triticum aestivum): Rooting nodes of deep roots in two cultivars with deep and shallow root systems. Plant Prod. Sci. 2001, 4, 215–219. [Google Scholar] [CrossRef] [Green Version]
  38. Pigolev, A.; Miroshnichenko, D.; Dolgov, S.; Savchenko, T. Regulation of Sixth Seminal Root Formation by Jasmonate in Triticum aestivum L. Plants 2021, 10, 219. [Google Scholar] [CrossRef] [PubMed]
  39. Richards, R.A.; Passioura, J.B. Seminal Root Morphology and Water Use of Wheat I. Environmental Effects. Crop Sci. 1981, 21, 249–252. [Google Scholar] [CrossRef]
  40. Richards, R.A.; Passioura, J.B. Seminal Root Morphology and Water Use of Wheat II. Genetic Variation. Crop Sci. 1981, 21, 253–255. [Google Scholar] [CrossRef]
  41. Hamada, A.; Nitta, M.; Nasuda, S.; Kato, K.; Fujita, M.; Matsunaka, H.; Okumoto, Y. Novel QTLs for growth angle of seminal roots in wheat (Triticum aestivum L.). Plant Soil 2012, 354, 395–405. [Google Scholar] [CrossRef] [Green Version]
  42. Sanguineti, M.C.; Li, S.; Maccaferri, M.; Corneti, S.; Rotondo, F.; Chiari, T.; Tuberosa, R. Genetic dissection of seminal root architecture in elite durum wheat germplasm. Ann. Appl. Biol. 2007, 151, 291–305. [Google Scholar] [CrossRef]
  43. Robinson, H.; Kelly, A.; Fox, G.; Franckowiak, J.; Borrell, A.; Hickey, L. Root architectural traits and yield: Exploring the relationship in barley breeding trials. Euphytica 2018, 214, 151. [Google Scholar] [CrossRef]
  44. Uga, Y.; Kitomi, Y.; Ishikawa, S.; Yano, M. Genetic improvement for root growth angle to enhance crop production. Breed. Sci. 2015, 65, 111–119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Uga, Y.; Kitomi, Y.; Yamamoto, E.; Kanno, N.; Kawai, S.; Mizubayashi, T.; Fukuoka, S. A QTL for root growth angle on rice chromosome 7 is involved in the genetic pathway of DEEPER ROOTING 1. Rice 2015, 8, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Guseman, J.M.; Webb, K.; Srinivasan, C.; Dardick, C. DRO1 influences root system architecture in Arabidopsis and Prunus species. Plant J. Cell Mol. Biol. 2017, 89, 1093–1105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Ruiz, M.; Giraldo, P.; González, J.M. Phenotypic variation in root architecture traits and their relationship with eco-geographical and agronomic features in a core collection of tetraploid wheat landraces (Triticum turgidum L.). Euphytica 2018, 214, 54. [Google Scholar] [CrossRef]
  48. Kersey, P.J.; Allen, J.E.; Armean, I.; Boddu, S.; Bolt, B.J.; Carvalho-Silva, D.; Christensen, M.; Davis, P.; Falin, L.J.; Grabmueller, C.; et al. Ensembl Genomes 2016: More genomes, more complexity. Nucleic Acids Res. 2016, 44, D574–D580. [Google Scholar] [CrossRef] [Green Version]
  49. Kohany, O.; Gentles, A.J.; Hankus, L.; Jurka, J. Annotation, submission and screening of repetitive elements in Repbase: RepbaseSubmitter and Censor. BMC Bioinform. 2006, 7, 474. [Google Scholar] [CrossRef] [Green Version]
  50. Choi, Y.; Chan, A.P. PROVEAN web server: A tool to predict the functional effect of amino acid substitutions and indels. Bioinformatics 2015, 31, 2745–2747. [Google Scholar] [CrossRef] [Green Version]
  51. Bektas, H.; Hohn, C.; Waines, J. Root and shoot traits of bread wheat (Triticum aestivum L.) landraces and cultivars. Euphytica 2016, 212, 297–311. [Google Scholar] [CrossRef]
  52. Bektas, H.; Waines, J. Root and shoot traits in parental, early and late generation Green Revolution wheats (Triticum spp.) under glasshouse conditions. Genet. Resour. Crop Evol. 2018, 65, 2003–2012. [Google Scholar] [CrossRef]
  53. Hirsch, C.D.; Springer, N.M. Transposable element influences on gene expression in plants. Biochim. Biophys. Acta Gene Regul. Mech. 2017, 1860, 157–165. [Google Scholar] [CrossRef] [Green Version]
  54. Yaakov, B.; Ben-David, S.; Kashkush, K. Genome-Wide Analysis of Stowaway-Like MITEs in Wheat Reveals High Sequence Conservation, Gene Association, and Genomic Diversification. Plant Physiol. 2013, 161, 486–496. [Google Scholar] [CrossRef] [Green Version]
  55. Chen, Y.; Palta, J.A.; Prasad, P.V.V.; Siddique, K.H.M. Phenotypic variability in bread wheat root systems at the early vegetative stage. BMC Plant Biol. 2020, 20, 185. [Google Scholar] [CrossRef] [PubMed]
  56. Jiao, Z.; Du, H.; Chen, S.; Huang, W.; Ge, L. LAZY Gene Family in Plant Gravitropism. Front. Plant Sci. 2021, 11, 606241. [Google Scholar] [CrossRef]
  57. Kagale, S.; Rozwadowski, K. EAR motif-mediated transcriptional repression in plants. Epigenetics 2011, 6, 141–146. [Google Scholar] [CrossRef]
  58. Yang, J.; Liu, Y.; Yan, H.; Tian, T.; You, Q.; Zhang, L.; Xu, W.; Su, Z. PlantEAR: Functional Analysis Platform for Plant EAR Motif-Containing Proteins. Front. Genet. 2018, 9, 590. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Ashraf, A.; Rehman, O.U.; Muzammil, S.; Léon, J.; Naz, A.A.; Rasool, F.; Ali, G.M.; Zafar, Y.; Khan, M.R. Evolution of Deeper Rooting 1-like homoeologs in wheat entails the C-terminus mutations as well as gain and loss of auxin response elements. PLoS ONE 2019, 14, e0214145. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Kyriakidou, M.; Tai, H.H.; Anglin, N.L.; Ellis, D.; Strömvik, M.V. Current Strategies of Polyploid Plant Genome Sequence Assembly. Front. Plant Sci. 2018, 9, 1660. [Google Scholar] [CrossRef]
  61. Xi, X.; Li, N.; Li, S.; Chen, W.; Zhang, B.; Liu, B.; Zhang, H. The characteristics and functions of a miniature inverted-repeat transposable element TaMITE81 in the 5′ UTR of TaCHS7BL from Triticum aestivum. Mol. Genet. Genom. 2016, 291, 1991–1998. [Google Scholar] [CrossRef] [PubMed]
  62. Boudiar, R.; González, J.M.; Mekhlouf, A.; Casas, A.M.; Igartua, E. Durum Wheat Seminal Root Traits within Modern and Landrace Germplasm in Algeria. Agronomy 2020, 10, 713. [Google Scholar] [CrossRef]
  63. Lobet, G.; Pagès, L.; Draye, X. A Novel Image-Analysis Toolbox Enabling Quantitative Analysis of Root System Architecture. Plant Physiol. 2011, 157, 29–39. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Sievers, F.; Wilm, A.; Dineen, D.G.; Gibson, T.J.; Karplus, K.; Li, W.; Lopez, R.; McWilliam, H.; Remmert, M.; Söding, J.; et al. Fast, scalable generation of high-quality protein multiple sequence alignments using Clustal Omega. Mol. Syst. Biol. 2011, 7, 539. [Google Scholar] [CrossRef] [PubMed]
  65. Dereeper, A.; Guignon, V.; Blanc, G.; Audic, S.; Buffet, S.; Chevenet, F.; Dufayard, J.-F.; Guindon, S.; Lefort, V.; Lescot, M.; et al. Phylogeny.fr: Robust phylogenetic analysis for the non-specialist. Nucleic Acids Res. 2008, 36, W465–W469. [Google Scholar] [CrossRef] [PubMed]
  66. Pérez, R.; Jouve, N.; De Bustos, A. Comparative analysis of gene expression among species of different ploidy. Mol. Biol. Rep. 2014, 41, 6525–6535. [Google Scholar] [CrossRef] [PubMed]
Plants 11 00821 g001 550

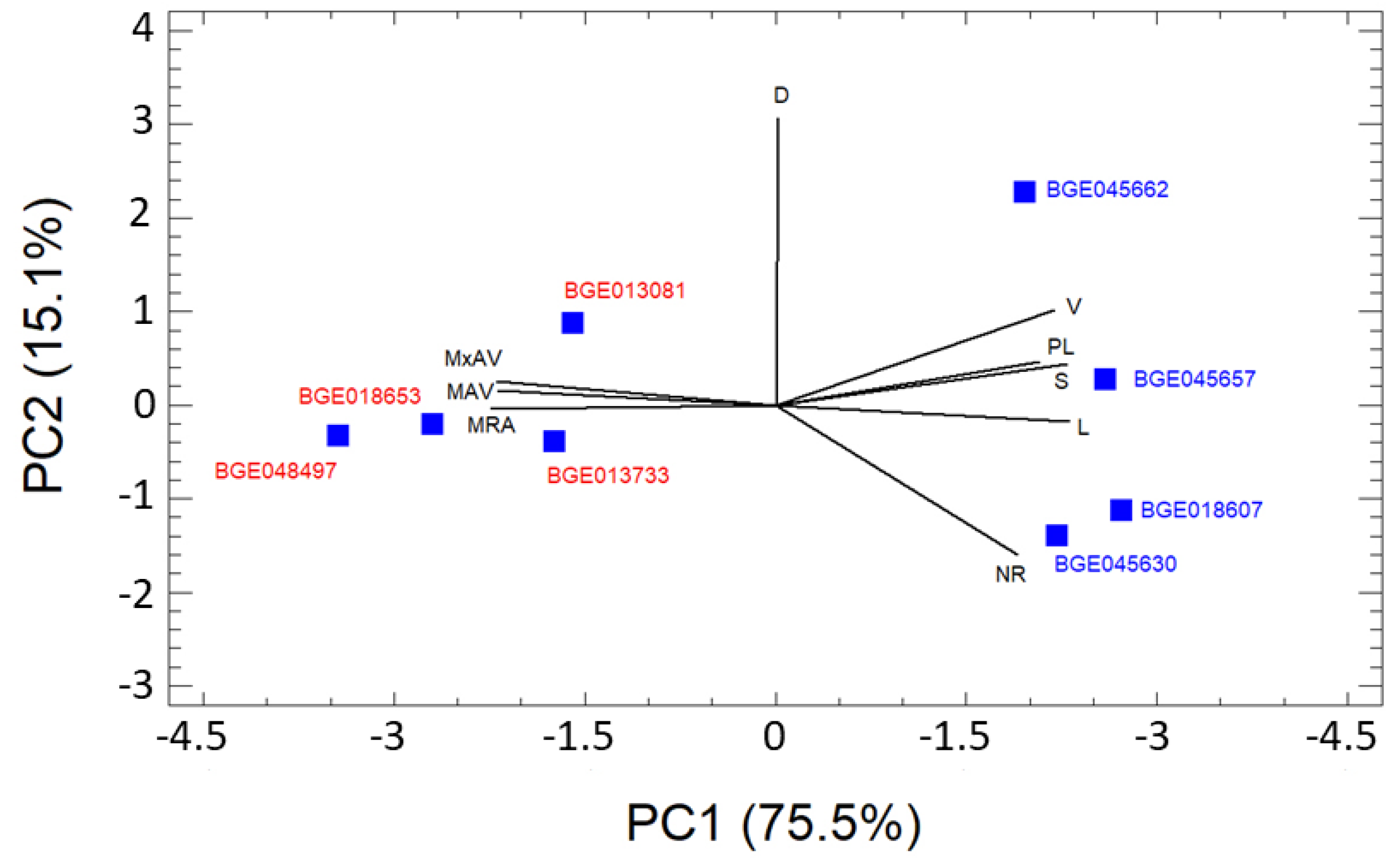

Figure 1. Biplot of the PCA two first principal components. Trait vectors of the RSA and the location of genotypes of the subsp. durum (blue) and turgidum (red) are showed. (NR) number of roots, (TRL) total root, (PRL) primary seminal length, (S) total root area, (V) total root volume, (DS) mean root diameter, (MRA) mean of root angles respect to the vertical, (MAV) minimum root angle and (MxRA) maximal root angle.
Figure 1. Biplot of the PCA two first principal components. Trait vectors of the RSA and the location of genotypes of the subsp. durum (blue) and turgidum (red) are showed. (NR) number of roots, (TRL) total root, (PRL) primary seminal length, (S) total root area, (V) total root volume, (DS) mean root diameter, (MRA) mean of root angles respect to the vertical, (MAV) minimum root angle and (MxRA) maximal root angle.
Plants 11 00821 g001
Plants 11 00821 g002 550
Figure 2. Examples of root development of the four genotypes of T. turgidum durum: (a–d); and the four of T. turgidum turgidum: (e–h). (e) shows how the maximum (MxAV) and minimum angles (MAV) of the roots with respect to the vertical were measured. The arrows point to the seminal primary roots.
Figure 2. Examples of root development of the four genotypes of T. turgidum durum: (a–d); and the four of T. turgidum turgidum: (e–h). (e) shows how the maximum (MxAV) and minimum angles (MAV) of the roots with respect to the vertical were measured. The arrows point to the seminal primary roots.
Plants 11 00821 g002
Plants 11 00821 g003 550
Figure 3. Mean values of the MRA (mean of root angles), MAV (minimum root angle), MxAV (maximal root angle). Results of the Fisher’s LSD test of the three variables related with the root angle. Genotypes with the same letter have no statistically significant differences at p < 0.05. Blue and orange bars correspond to durum and turgidum subspecies, respectively. The error bars show SD (standard deviation).
Figure 3. Mean values of the MRA (mean of root angles), MAV (minimum root angle), MxAV (maximal root angle). Results of the Fisher’s LSD test of the three variables related with the root angle. Genotypes with the same letter have no statistically significant differences at p < 0.05. Blue and orange bars correspond to durum and turgidum subspecies, respectively. The error bars show SD (standard deviation).
Plants 11 00821 g003
Plants 11 00821 g004 550
Figure 4. Diagram of the subgenomic regions containing the sequenced durum wheat TtDro1 genes from BGE045630 (abbreviated as 797) y BGE048497 (abbreviated as 869) genotypes. UTR regions, introns and exons are identified. The regions of the primers used are indicated with arrows, forward primers in red and reverse primers in green.
Figure 4. Diagram of the subgenomic regions containing the sequenced durum wheat TtDro1 genes from BGE045630 (abbreviated as 797) y BGE048497 (abbreviated as 869) genotypes. UTR regions, introns and exons are identified. The regions of the primers used are indicated with arrows, forward primers in red and reverse primers in green.
Plants 11 00821 g004
Plants 11 00821 g005 550
Figure 5. (a) Alignment of amino acid sequences of Dro1 cereal proteins. The species and accession numbers used were: rice (OsDro1, Q69P88), Brachypodium (Bd Dro1 XM003578131), T. aestivum (TaADro1, MK639011; TaBDro1, MK639010; TaDDro1, MK639012), Aegilops speltoides (AetDro1 XM020332849) and T. turgidum (MZ151530, MZ151531, MZ151532, MZ151533). The numbered black boxes show the characteristic domains of the IGT gene family. The arrows indicate the 2 differences between the Dro1B proteins between genotypes BGE045630 and BGE048497, abbreviated as 797 and 869, respectively. (*) Identical amino acids in all analysed proteins. (b) Phylogenetic tree from the amino acid sequences of Dro1 proteins.
Figure 5. (a) Alignment of amino acid sequences of Dro1 cereal proteins. The species and accession numbers used were: rice (OsDro1, Q69P88), Brachypodium (Bd Dro1 XM003578131), T. aestivum (TaADro1, MK639011; TaBDro1, MK639010; TaDDro1, MK639012), Aegilops speltoides (AetDro1 XM020332849) and T. turgidum (MZ151530, MZ151531, MZ151532, MZ151533). The numbered black boxes show the characteristic domains of the IGT gene family. The arrows indicate the 2 differences between the Dro1B proteins between genotypes BGE045630 and BGE048497, abbreviated as 797 and 869, respectively. (*) Identical amino acids in all analysed proteins. (b) Phylogenetic tree from the amino acid sequences of Dro1 proteins.
Plants 11 00821 g005
Plants 11 00821 g006 550
Figure 6. Graphic representation of the nine variables analysed of TtDro1A and TtDro1B gene expression in both subspecies. Blue column corresponds to durum and orange column to turgidum. The error bars show SD (standard deviation). (-) indicates that there are no significant differences between the corresponding means. (***) indicates that there are significant differences between the corresponding means, p < 0.005. AP, AS, BP and BS: expression of the TtDro1A and TtDro1B genes in the primary root (P) and the others seminal (S). MA(P + S): average expression of the TtDro1A gene in the primary root and the seminal roots. MB(P + S): average expression of the TtDro1B gene in the primary root and the seminal roots. AP/BP: ratio between expressions of the genes TtDro1A and TtDro1B in the primary root. AS/BS: ratio between expressions of the genes TtDro1A and TtDro1B in the seminal roots. M(P + S)/MB(P + S): ratio between the average expressions of the genes TtDro1A and TtDro1B in the primary and the seminal roots.
Figure 6. Graphic representation of the nine variables analysed of TtDro1A and TtDro1B gene expression in both subspecies. Blue column corresponds to durum and orange column to turgidum. The error bars show SD (standard deviation). (-) indicates that there are no significant differences between the corresponding means. (***) indicates that there are significant differences between the corresponding means, p < 0.005. AP, AS, BP and BS: expression of the TtDro1A and TtDro1B genes in the primary root (P) and the others seminal (S). MA(P + S): average expression of the TtDro1A gene in the primary root and the seminal roots. MB(P + S): average expression of the TtDro1B gene in the primary root and the seminal roots. AP/BP: ratio between expressions of the genes TtDro1A and TtDro1B in the primary root. AS/BS: ratio between expressions of the genes TtDro1A and TtDro1B in the seminal roots. M(P + S)/MB(P + S): ratio between the average expressions of the genes TtDro1A and TtDro1B in the primary and the seminal roots.
Plants 11 00821 g006
Plants 11 00821 g007 550
Figure 7. Representation of the involvement of TtDro1A (A) and TtDro1B (B) genes in a hypothetical signalling pathway responsible for root angle in turgidum and durum subspecies. Circle A represents TtDro1A expression. Circle B represents TtDro1B expression. The intensity of the colours is related to the expression of the genes. Circle X represents a hypothetical gene that would act downstream of TtDro1A and TtDro1B in the signalling pathway and the difference in colour would not be related to its level of expression. A more intense green colour in circle B indicates a higher expression of this gene and thus a lower ratio between TtDro1A and TtDro1B expression; a less intense green colour in circle B indicates a lower expression of TtDro1B and thus a higher ratio between TtDro1A and TtDro1B expression.
Figure 7. Representation of the involvement of TtDro1A (A) and TtDro1B (B) genes in a hypothetical signalling pathway responsible for root angle in turgidum and durum subspecies. Circle A represents TtDro1A expression. Circle B represents TtDro1B expression. The intensity of the colours is related to the expression of the genes. Circle X represents a hypothetical gene that would act downstream of TtDro1A and TtDro1B in the signalling pathway and the difference in colour would not be related to its level of expression. A more intense green colour in circle B indicates a higher expression of this gene and thus a lower ratio between TtDro1A and TtDro1B expression; a less intense green colour in circle B indicates a lower expression of TtDro1B and thus a higher ratio between TtDro1A and TtDro1B expression.
Plants 11 00821 g007
Table
Table 1. Means and standard deviation (SD) of the nine RSA variables in the eight genotypes analysed. The means ( X ¯ ) of the four genotypes of each subspecies are highlighted in grey. (TRL) Total root length in cm, (PRL) primary root length in cm, (S) total root area in cm2; (V) total root volume in cm3; (DS) mean root diameter in cm; (NR) number of roots, (MRA) mean of root angles respect to the vertical in degrees, (MAV) minimum root angle in degrees and (MxRA) maximal root angle in degrees.
Table 1. Means and standard deviation (SD) of the nine RSA variables in the eight genotypes analysed. The means ( X ¯ ) of the four genotypes of each subspecies are highlighted in grey. (TRL) Total root length in cm, (PRL) primary root length in cm, (S) total root area in cm2; (V) total root volume in cm3; (DS) mean root diameter in cm; (NR) number of roots, (MRA) mean of root angles respect to the vertical in degrees, (MAV) minimum root angle in degrees and (MxRA) maximal root angle in degrees.
GenotypeSubsp.TRL
(SD)		PRL
(SD)		S
(SD)		V
(SD)		DS
(SD)		NR
(SD)		MRA
(SD)		MAV
(SD)		MxAV
(SD)
BGE045630durum108.57
(2.08)		25.36
(1.89)		17.16
(0.58)		0.225
(0.01)		0.051
(9 × 10−4)		5.58
(0.14)		15.43
(3.69)		5.67
(2.89)		27.42
(6.85)
BGE018607115.88
(4.56)		24.96
(0.25)		19.06
(1.02)		0.25
(0.01)		0.05
(8 × 10−4)		5.58
(0.38)		15.91
(3.35)		6.90
(2.15)		26.66
(11.28)
BGE045662101.85
(7.10)		24.62
(0.96)		18.56
(1.07)		0.275
(0.01)		0.05
(1 × 10−3)		5.16
(0.14)		16.13
(0.49)		7.08
(2.32)		31.33
(0.76)
BGE045657115.62
(4.31)		28.04
(0.92)		19.87
(1.28)		0.28
(0.02)		0.054
(8 × 10−4)		5.58
(0.14)		23.42
(2.21		9.08
(0.80)		39.67
(3.98)
X ¯ T. turgidum subsp. durum110.63
(9.63)		25.60
(1.64)		18.78
(0.95)		0.26
(0.02)		0.05
(2.8 × 10−3)		5.51
(0.23)		18.12
(3.56)		7.60
(1.01)		31.68
(5.65)
BGE048497turgidum63.70
(5.49		18.35
(0.97)		10.42
(1.14)		0.14
(0.01)		0.051
(2 × 10−3)		5
(0)		42.75
(1.96)		17.00
(1.32)		64.33
(2.42)
BGE01373380.26
(3.18)		19.98
(0.77)		13.69
(0.22)		0.19
(0.002)		0.053
(1 × 10−3)		5.33
(0.14)		34.25
(2.98)		16.07
(6.81)		49.30
(4.51)
BGE01308187.58
(0.29)		23.52
(1.25)		15.28
(0.34)		0.21
(0.01)		0.054
(1 × 10−3)		4.91
(0.14)		35.49
(0.92)		18.65
5.13)		53.80
(5.59)
BGE01865368.44
(8.18)		19.13
(1.84)		11.79
(1.28)		0.16
(0.01)		0.053
(1 × 10−3)		5
(0.25)		33.55
(3.79)		14.26
(1.82)		50.57
(5.47)
X ¯ T. turgidum subsp. turgidum76.38
(9.21)		20.79
(1.91)		13.15
(1.68)		0.19
(0.02)		0.05
(5.7 × 10−4)		5.06
(0.18)		36.52
(4.26)		16.74
(1.98)		54.36
(6.54)
Table
Table 2. Means and standard deviation (SD) of the nine variables measuring TtDro1A and TtDro1B gene expression in the four genotypes of each of the subspecies and in the total of the 8 genotypes. AP, AS, BP and BS: expression of the TtDro1A and TtDro1B genes in the primary root (P) and the others seminal (S). MA(P + S): average expression of the TtDro1A gene in the primary root and the seminal roots. MB(P + S): average expression of the TtDro1B gene in the primary root and the seminal roots. AP/BP: ratio between expressions of the genes TtDro1A and TtDro1B in the primary root. AS/BS: ratio between expressions of the genes TtDro1A and TtDro1B in the seminal roots. M(P + S)/MB(P + S): ratio between the average expressions of the genes TtDro1A and TtDro1B in the primary and the seminal roots.
Table 2. Means and standard deviation (SD) of the nine variables measuring TtDro1A and TtDro1B gene expression in the four genotypes of each of the subspecies and in the total of the 8 genotypes. AP, AS, BP and BS: expression of the TtDro1A and TtDro1B genes in the primary root (P) and the others seminal (S). MA(P + S): average expression of the TtDro1A gene in the primary root and the seminal roots. MB(P + S): average expression of the TtDro1B gene in the primary root and the seminal roots. AP/BP: ratio between expressions of the genes TtDro1A and TtDro1B in the primary root. AS/BS: ratio between expressions of the genes TtDro1A and TtDro1B in the seminal roots. M(P + S)/MB(P + S): ratio between the average expressions of the genes TtDro1A and TtDro1B in the primary and the seminal roots.
VariableSubsp.Both Subsp.(SD)
durum
(SD)		turgidum
(SD)
AP9.51
(3.30)		10.19
(1.97)		9.85
(2.67)
AS6.53
(2.73)		7.50
(1.97)		7.01
(2.38)
BP3.87
(1.93)		1.24
(0.39)		2.55
(1.91)
BS2.74
(1.31)		1.27
(0.21)		2.01
(1.18)
MA(P + S)8.02
(2.96)		8.84
(1.55)		8.43
(2.34)
MB(P + S)3.30
(1.59)		1.26
(0.24)		2.28
(1.52)
AP/BP2.68
(0.76)		8.76
(2.36)		5.71
(3.54)
AS/BS2.49
(0.51)		5.89
(1.27)		4.19
(1.98)
MA(P + S)/MB(P + S)2.59
(0.63)		7.11
(0.95)		4.85
(2.43)
Table
Table 3. Results of t-Student tests comparing the expression of the genes TtDro1A and TtDro1B in the primary the seminal roots and their ratio, considering the eight genotypes of the two T. turgidum subspecies. (-: p > 0.05; *: p < 0.05; ***: p < 0.005).
Table 3. Results of t-Student tests comparing the expression of the genes TtDro1A and TtDro1B in the primary the seminal roots and their ratio, considering the eight genotypes of the two T. turgidum subspecies. (-: p > 0.05; *: p < 0.05; ***: p < 0.005).
Variablesp Value
AP–AS*
BP–BS-
AP/BP–AS/BS-
AP–BP***
AS–BS***
MA(P + S)-MB(P + S)***
Table
Table 4. Results of the Pearson correlations between the three variables of the RSA related with the angle of the roots, and the expression of the TtDro1A, the TtDro1B genes and their ratio in the primary and seminal roots of T. turgidum. (-: p > 0.05; **: 0.01 > p > 0.005; ***: p < 0.005).
Table 4. Results of the Pearson correlations between the three variables of the RSA related with the angle of the roots, and the expression of the TtDro1A, the TtDro1B genes and their ratio in the primary and seminal roots of T. turgidum. (-: p > 0.05; **: 0.01 > p > 0.005; ***: p < 0.005).
Gene ExpressionMAV
(p)		Gene ExpressionMxAV
(p)		Gene
Expression		MRA
(p)
APr = 0.2626
(-)		ASr = 0.3801
(-)		A(P + S)r = 0.3108
(-)
BPr = −0.6740
(-)		BSr = −0.4927
(-)		B(P + S)r = −0.6557
(-)
AP/BPr = 0.9053
(***)		AS/BSr = 0.8648
(**)		MA(P + S)/MB(P + S)r = 0.9701
(***)
Table
Table 5. Genotypes of Triticum turgidum subspecies used in this study.
Table 5. Genotypes of Triticum turgidum subspecies used in this study.
Genotype NumberPassport DataT. turgidum Subsp.
BGE045630
(abbreviated as 797)		https://bancocrf.inia.es/en/accessions/ESP004/BGE045630durum
BGE018607https://bancocrf.inia.es/en/accessions/ESP004/BGE018607
BGE045662https://bancocrf.inia.es/en/accessions/ESP004/BGE045662
BGE045657https://bancocrf.inia.es/en/accessions/ESP004/BGE045657
BGE048497
(abbreviated as 869)		https://bancocrf.inia.es/en/accessions/ESP004/BGE048497turgidum
BGE013733https://bancocrf.inia.es/en/accessions/ESP004/BGE013733
BGE013081https://bancocrf.inia.es/en/accessions/ESP004/BGE013081
BGE018653https://bancocrf.inia.es/en/accessions/ESP004/BGE018653
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Loarce, Y.; Cabeza, A.; Cañas, R.; González, J.M. Isolation and Molecular Characterisation of TtDro1A and TtDro1B Genes from Triticum turgidum Subspecies durum and turgidum, Study of Their Influences on Seedling Root Angles. Plants 2022, 11, 821. https://doi.org/10.3390/plants11060821

AMA Style

Loarce Y, Cabeza A, Cañas R, González JM. Isolation and Molecular Characterisation of TtDro1A and TtDro1B Genes from Triticum turgidum Subspecies durum and turgidum, Study of Their Influences on Seedling Root Angles. Plants. 2022; 11(6):821. https://doi.org/10.3390/plants11060821

Chicago/Turabian Style

Loarce, Yolanda, Alejandra Cabeza, Rodrigo Cañas, and Juan M. González. 2022. "Isolation and Molecular Characterisation of TtDro1A and TtDro1B Genes from Triticum turgidum Subspecies durum and turgidum, Study of Their Influences on Seedling Root Angles" Plants 11, no. 6: 821. https://doi.org/10.3390/plants11060821

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
