Communication

Functional Differentiation of Floral Color and Scent in Gall Midge Pollination: A Study of a Schisandraceae Plant

College of Life Sciences, Wuhan University, Wuhan 430072, China
*
Authors to whom correspondence should be addressed.
Plants 2022, 11(7), 974; https://doi.org/10.3390/plants11070974
Submission received: 15 February 2022 / Revised: 28 March 2022 / Accepted: 28 March 2022 / Published: 2 April 2022
(This article belongs to the Special Issue Plant Evolutionary Ecology)

Abstract

:
Gall midges are among the most host-specific insects. Their interactions with plants likely date back to the Cretaceous period. Plants from at least seven families are involved in gall midge pollination; however, little is known about the pollination signals of gall midges. In this study, we used a ResseliellaSchisandra model to investigate the roles of floral scent and color in attracting gall midges. Field observations, behavioral bioassays via Y-tubes, and “flight box” experiments were performed. The results demonstrated that gall midges may be attracted by both floral scent and color and that two flower signals are more effective in promoting insect flower-landing than either alone. In the field, gall midges visited male flowers effectively at night but almost always visited female flowers during the day. Thus, during the ResseliellaSchisandra interactions, female flowers predominantly employed visual cues over scent to attract midges during the day; in contrast, olfactory cues were more functional for male flowers to export pollen in the dark. In this study, we first identified the roles of floral color and the functional differentiation of visual and olfactory cues during gall midge pollination.

1. Introduction

Cecidomyiidae (Diptera), commonly known as gall midges, originated from the Jurassic Period and comprise 6651 known species worldwide, approximately three-quarters of which are phytophagous [1,2]. The interaction between Cecidomyiidae and plants originated early in the Cretaceous era and has expanded greatly with respect to flowering plants in the Tertiary era [2,3]. Some Cecidomyiidae species have formed a stable relationship with their host plants during the co-evolution process, for example via galls induced by the larvae of gall midges [2,4,5] or through pollination (Table 1) [6].
Effective interactions between plants and pollinators facilitate the sexual reproduction of angiosperms. Floral trait diversity (color, scent, etc.) is often believed to be the basis of selection for pollinators [7,8]. Plants employ floral color [9,10], floral scent [11,12,13], or floral shape [14,15,16] to attract pollinators. Thus, studies on pollination signals are very important for understanding plant–pollinator interactions. To date, midge pollinators have been found in 37 species of the seven families, 27 of which belong to Schisandraceae (Table 1) [6]. Midge pollinators visit flowers for nectar [17,18], pollen [19,20], and liquid secreted by glandular trichomes [21,22] or to lay eggs in flowers [6,23,24,25,26]. However, we still know little about the pollination signals for gall midges.
Numerous studies have attempted to address the roles of floral scent or color in attracting gall midge pollination. For example, Kadsura longipedunculata flowers attract midges mainly by relying on floral odor because flower visiting occurs mostly at night, although color acts as an attractant in the daytime [27]. Conversely, the visual cues of Schisandra henryi are thought to play a major role in attracting pollinators owing to the odorless characteristics of flowers [28]. In Moraceae, the floral odor of Artocarpus integer was deemed to be an attractant of midges because both male and female inflorescences produce a fruit-like unpleasant smell and female inflorescences provide no rewards for gall midges [29]. Recently, two studies confirmed the role of floral odor in attracting gall midges via Y-tubes in Artocarpus heterophyllus [26] and Kadsura. coccinea [6]. However, the information on pollination signals for gall midges obtained from most studies is only speculative and lacks study data. Furthermore, none of these cases has analyzed the role of flower color in gall midges via bioassays.
Table 1. Plant species pollinated by gall midges (Cecidomyiidae): S = Schisandra; K = Kadsura; I = Illicium.
Table 1. Plant species pollinated by gall midges (Cecidomyiidae): S = Schisandra; K = Kadsura; I = Illicium.
Plant SpeciesPlant FamilyGall MidgesPollination RewardsFlower Odor and TimeVisiting TimeReferences
S. henryi



















Schisandraceae
Resseliella sp.PollenNo odor (by human smell and GC-MS)Daytime[19,28]
S. sphenantheraResseliella sp.Brood siteSweet odor day and nightDay and night for male flowers; day for female flowers[30]
S. repandaResseliella sp.PollenSweet odor day and night04:00–12:00 for male flowers; 07:00–12:00 for female flowers[19]
S. bicolorResseliella sp.PollenOdor from 19:00–22:00, but no odor after 06:0018:00–23:00 [19]
K. longipedunculataMegommata sp.PollenOdor from 21:00–02:0021:00–02:00[27]
K. coccineaResseliella sp.Brood siteStrong odor during the first two nights 19:00–04:00[25]
K. heteroclitaResseliella sp.Brood siteStrong odor during the first two nights22:30–04:00[25]
K. oblongifoliaResseliella sp.Brood siteStrong odor during the first two nights20:00–04:00[25]
I. floridanumMicromya sp.; Clinodiplosis sp.Nectar, possibly pollen Odor like freshly caught fish or wineAll day, more at dusk[17]
I. parviflorumClinodiplosis sp.; Giardomyia sp.; Lestodiplosis sp.Nectar, possibly pollen Faint sweet odorAll day, more at dusk[18]
I. henryiResseliella sp.Brood site, fungus myceliaNo odor detectable by human smellAll day, more at dusk
Du Unpub. data
I. dunnianum; I. tsangiiClinodiplosis sp.Brood site (flower heating)No odor detectable by human smellMostly at night[31]
I. lanceolatum; I. majus; I. oligandrum; I. petelotii; I. verumResseliella sp.Brood siteUnknownUnknown[6]
Amborella trichopodaAmborellaceaeAsphondylia sp.Brood site (female flowers), pollenScent like licorice or fecesAt night[24]
Siparuna sp.
Monimiaceae
Asynapta sp.; Clinodiplosis sp.; Dasineura sp.Brood site (on male flowers)Strong lemon scentAt night[32,33,34]
Piper novae-hollandiaePiperaceaeContarinia sp.Brood site (on male inflorescence)Sweet scent day and nightAt night[23]
Aspidistra xuansonensisAsparagaceaeSpecies of cecidomyiidBrood site, pollenNo odor by human smell9:00–14:20[20]
Artocarpus heterophyllus




Moraceae

Clinodiplosis ultracrepidataBrood site (on male inflorescence), fungus myceliaPrimarily methyl 2-methylbutyrate, methyl isovalerate, and methyl tiglateUnknown

[26]
Artocarpus integerContarinia sp.Brood site (on male inflorescence), fungus myceliaOdor similar to ripe watermelon scent between 18:00–20:00Mostly at night[29]
Theobroma cacaoSterculiaceaeClinodiplosis sp.; Mycodiplosis sp.Liquid secreted by glandular trichomes on the ovaryNo odor detectable via human smell
At night and early morning
[21,22]
Gall midges and Schisandraceae have been interacting since at least the Early Miocene era based on molecular clocks [6]. Schisandraceae plants predominantly exhibit a species-specific relationship with gall midge pollinators, especially with species of the genus Resseliella (Table 1) [6,25]. In this study, we used Schisandra sphenanthera and its obligate pollinator Resseliella sp. as a model system to study the relationships between floral stimuli and gall midge behaviors. A study conducted by Luo et al. [6] proved, via sequencing of the COI arthropod barcoding marker, that larvae and adult midges in S. sphenanthera flowers, which were collected at three locations in three provinces in China, are one species, which indicates that there is a strictly specific-species relationship between S. phenanthera and Resseliella sp. There were 17.6 ± 5.3 and 17 ± 4.9 midge eggs in male and female flowers of S. sphenanthera, and the “brood site” was the pollination reward for gall midges [6]. We attempted to determine if gall midges are attracted by floral scent and color, and if so, we tried to ascertain the nature of the relationship between visual and olfactory cues in gall midge pollination. We also wanted to discover whether floral scent and color have the same effect for male and female flowers in attracting gall midges in natural conditions.

2. Results

2.1. Gall Midge Reaction to Floral Scent and Color

In the Y-tube olfactometer tests, at least 52.2% of midges chose between the two arms, all of which exhibited significantly more attraction to the floral scent than the air control; (Ym (yellow male flower), χ2 = 28.57, df = 1, P < 0.001; Yf (yellow female flower), χ2 = 7.69, df = 1, P = 0.006; Rm (red male flower), χ2 = 16.10, df = 1, P < 0.001). In the box experiments, gall midges did not exhibit a preference between Ym and Rm flowers under dark conditions (Z = −0.43; n = 20; P = 0.67) but presented a significant preference for Rm flowers under light conditions in group 1 (t = 5.20; df =18; P < 0.001), suggesting that midges can distinguish between red and yellow colors and demonstrate a higher preference for the red color (Table 2). In group 2, under light or dark conditions, Ym flowers were all more attractive to midges than Yf flowers (light, Z = −2.84; n = 20; P = 0.004; dark, Z = −3.20; n = 20; P = 0.01). However, this preference towards male flowers was lost when flowers were placed in glass vessels (t = 0.13, df = 18, P = 0.90), indicating that the olfactory cues of male flowers differ from those of female flowers. Additionally, both olfactory cues (in the dark) or visual cues (in the glass vessels), when acting in isolation, could only trigger minimal midge flower-landing (13.12–22.94%), whereas both cues, when offered together, resulted in proportionally more frequent flower-landing (67.70−71.39%).

2.2. Visiting Preference for Male and Female Flowers in the Natural Community

In the field, more midges were observed on male flowers than on female flowers during the day and the night, and Rm flowers were more attractive to midges than both Ym and Yf flowers (Figure 1). Generally, there was an average of 0.96 ± 0.20 (n = 44) midges in each female flower, but 3.41 ± 0.35 and 7.27 ± 0.67 (n = 44) midges were found in each yellow and red male flower, respectively (based on data from 2013). Few midges were found in female flowers at night, and the visits to female flowers exhibited a “day–night movement rhythm”, indicating that color might be more functional for female flowers. This phenomenon has been observed in at least two of the study years (Figure 1).

3. Discussion

3.1. Floral Odor in Gall Midge Pollination

Diverse sensilla types of gall midges (sensilla coeloconica, sensilla trichodea, and sensilla circumfila) are thought to have an olfactory function [35]. In non-pollination interactions, female Resseliella theobaldi exhibit a strong preference for splits in raspberry canes [36,37] and Orseolia oryzivora are attracted by odors emitted from intact rice plants [38]. For plants pollinated by midges, at least 60% of species have floral scents (Table 1). Luo et al. [25] and Gardner et al. [26] have confirmed the role of floral odor in the responses of gall midges to A. heterophyllus and K. coccinea, respectively, via a two-choice glass Y-tube olfactometer. S. sphenanthera flowers produce scents during the life cycle [30]. Our results via Y-tube tests were consistent with those of Luo et al. [25] and Gardner et al. [26]. Gall midges were attracted by the flower scent, and there was a visiting peak for male flowers after flowering at dark (Figure 1). Though gall midges can still be found in male flowers in the daytime, most pollen was gone the next morning, which means that the pollination efficiency of insects with respect to male flowers during daytime was very low. Combined with the results of the box experiments (Ym and Yf under light and dark fields), we deduced that olfactory cues might be more crucial for pollen exportation in male flowers than floral color (Table 2, Figure 1). The gall midges found in male flowers in the daytime could rest or lay eggs [6].
In general, the life span of gall midge adults is very short (generally 1−2 days). Adult gall midges must finish copulation and oviposition, and then find the right host plants soon after. These features require efficient mechanisms for insects to find mates or hosts, such as using olfactory cues [38,39,40,41]. The different visiting preferences between male and female S. sphenanthera flowers imply the difference in floral odor among them (Table 2). According to the current studies of gall midge pollination, the main volatile components of flowers appear to be diverse [22,25,27,42]. For instance, methyl butyrate is the dominant compound for K. longipedunculata flowers [27]. but α-pinene is the compound for K. coccinea [25]; methyl 2-methylbutyrate, methyl isovalerate, and methyl tiglate are compounds for Artocarpus heterophyllus [26]; and tridecane, pentadecane, (Z)-7-pentadecene, and (Z)-8-heptadecene are compounds for Theobroma cacao [42].
Although floral fragrance emission is very common in gall midge-pollinated plants, odor emission rhythm and insect visiting times differ among species (Table 1). For example, S. bicolor and K. longipedunculata emitted floral scents and were pollinated only at night [19,27]. Gall midges visit Illicium floridanum and I. parviflorum flowers during both day and night [17,18]. Moreover, for some plants, such as S. sphenanthera and S. repanda, floral scents are produced throughout the lifespan of flowers, whereas gall midge visits to male and female flowers occur during different time periods (Figure 1) [19]. Gall midges are considered to be among the most host-specific insects (Table 1) [43]. This characteristic exists between most studied Schisandraceae species and gall midges, which was confirmed by sequencing the COI arthropod barcoding marker in larvae and adult midges found in Schisandraceae flowers [6]. In the wild, many Schisandraceae species, including S. sphenanthera, grow within meters of each other and have overlapping flowering times [6]. The different floral scent components and emission rhythms for different species could be an adaption to the obligate gall midge pollination mutualism and a mechanism to maintain species stability.

3.2. Floral Color in Gall Midge Pollination

Odorless plants that are visited by gall midges during the daytime might indicate the role of visual stimuli in flower visitation (e.g., Aspidistra xuansonensis and S. henryi) [20,28]. Some authors have speculated that Theobroma cacao flowers, which have Clinodiplosis sp. and Mycodiplosis sp. (Cecidomyiinae), as potential pollinators, might attract pollinating insects through brightly colored petal ligules and distinctive ultraviolet light-absorbing/reflecting properties [21,22,44]. In this study, the dark context could lower the landing rate of gall midges in the box experiments, suggesting that visual cues might facilitate insects landing on flowers. For female flowers, insect visiting in the field almost always occurred during the daytime (Figure 1). When compared with floral scents, visual cues seemed to be more functional for female flowers.
To date, plants with gall midges as pollinators have been found in the ANA grade (Amborellaceae and Schisandraceae (including Illiciaceae)), magnoliids (Piperaceae, Monimiaceae), monocots (Asparagaceae), as well as core eudicots (Moraceae and Malvaceae (incl. Sterculiaceae)). However, they are more prevalent in the ANA grade (Table 1). These flowers vary greatly in color, from single cream (e.g., Amborellaceae) to the broadest range of perianth pigmentation (e.g., Malvaceae). These plants usually attract insects using floral scent and colored tepals [45]. However, a few studies were referred to in the relationship between midges and floral colors. A few insects found in Kadsura longipedunculata may be attracted to it by virtue of its color in daylight hours, but the attraction of most gall midges (Megommata sp.) was deemed to correlate with the nocturnal production of heat and fragrance [25]. In Schisandra henryi, while pollen is the reward for midges in male flowers, female flowers are thought to attract pollinator insects using visual cues to deceive them, since they offer no food [26]. However, Luo et al. [25] denied all speculations that pollen is the pollination reward for gall midges, including in the cases of S. henryi and S. sphenanthera [6]. In Schisandraceae, the flowers of some species have a scent while others have no smell. Moreover, gall midges are observed as having different visiting rhythms for different plant species (Table 1). Thus, Schisandraceae plants provide an ideal phytogroup to study the relationship between flowers and Cecidomyiidae pollinators.

4. Materials and Methods

4.1. Species Studied

Schisandra sphenanthera Rehd. & Wils., a perennial, dioecious, woody liana found in central China, flowers from early May for approximately 3 weeks and is obligately pollinated by Resseliella sp. [30]. The most common flower color is yellow (present in both female and male flowers; Figure 2a,b), but flowers of some male individuals are red (only 5.92% of all individuals investigated) (Figure 2c) [30]. Male and female flowers open almost simultaneously at approximately 19:00 and release an obvious fragrance during the day as well as in the night. Anthers dehisce flowers open 0.5–1 h after, and pollen can be easily shed by gently tapping the flowers or when insects move on the androecia [30]. The stamens were almost empty of pollen the next morning. This study was conducted on Jigong Mountain (Henan Province, China) in 2013 and 2017. Herbarium vouchers of S. sphenanthera (No. 08114) were deposited at the Herbarium of Wuhan University (WH). Resseliella belongs to the subfamily Cecidomyiinae and comprises 56 species worldwide [2,46]. At present, at least 27 plants in three genera (Schisandra, Kadsura, and Illicium) of Schisandraceae are pollinated by Resseliella spp., and most species have their own midge pollinator (Table 1) [6,25].

4.2. Y-Tube Olfactometer Tests

To test if midges are attracted by floral scents, Y-tube olfactometer experiments were conducted in the dark and at room temperature. The Y-tube equipment was set up as described by Bertschy et al. and Tooker et al. [47,48], wherein the Y-tube was made of quartz glass tubing (1.5 cm internal diameter) and consisted of a main tube (20 cm long) and two selecting arms (15 cm long) at an angle of 75°. Compressed air was pushed by an atmospheric sampler and was passed through an activated charcoal filter and distilled water before entering the two glass cylinders containing the odor source. The air current was maintained at 100 mL min−1 by two flowmeters.
Midges were collected in the wild. Before testing, the insects were placed in the dark for 30 min. Each midge was individually placed in the entry of the horizontally oriented Y-tube and was given 5 min to choose. When the individual had moved into one arm to a distance 2 cm from the Y-junction point, the choice was recorded. If the midge remained in the main arm or had not reached the decision point in the given time, it was recorded as “no choice”. Fresh flowers versus air control were used as the odor source. Each midge was used only once, and 40 insects were used for each phenotype (Ym, Rm, and Yf). To neutralize any optical or asymmetrical effects of the olfactometer on insect behavior, both arms and odor chambers were switched every five assays to eliminate directional bias. Before the next bioassay, the Y-tube olfactometer and odor chambers were rinsed with 95% ethanol and distilled water and then dried with a hairdryer.

4.3. Flight Boxes and Behavioral Bioassays

To evaluate the behavioral responses of midges to visual and olfactory cues and to determine the relationship of the two floral stimuli under light and dark conditions, dual-choice bioassays were conducted in two self-made “flight boxes” during 14–16 May, 2017. One was made with transparent polyethylene terephthalate (TPT box; 30 cm × 15 cm × 15 cm), and the other was a non-transparent box made with corrugated paper (NT box; 30 cm × 15.5 cm × 15.5 cm). In the transparent TPT box, midges could detect both visual and olfactory cues (Figure 3a). To simulate dark conditions, the TPT box was placed into the NT box (Figure 3b), where midges could only sense olfactory cues. Behavioral bioassays were conducted for the following treatments: Group 1, with Ym and Rm flowers under light and dark conditions; Group 2, with Ym and Yf flowers under light and dark conditions and with Ym and Yf flowers in glass vessels (visual cues only) under light conditions.
Twenty fresh flowers (with copious pollen for male flowers and bright yellow petals for female flowers) of similar sizes were selected and hung on the box, as in Figure 3. Pedicles were bagged with slightly wet cotton to delay the wilting of flowers. Each group of flowers was used for only one treatment (e.g., “Ym and Rm flowers under light conditions” as a “treatment”). In each bioassay, 19–57 midges captured within 30 min each time were used and 10 groups of insects were used for each treatment. The number of midges landing on the flowers was recorded 2 min later when insects flew into the box from the entrance (E) on the lateral side of the boxes (Figure 3a,b) and stayed in flowers.

4.4. Flower Visitor Field Observations

To determine the visiting preferences of gall midges on flowers, 10 flowers of each phenotype (Yf, Ym, and Rm) were observed randomly in the field at hourly intervals during both day and night on 13 and 14 May 2013, and on 15 and 16 May 2017. The number of gall midges in each flower was recorded. A flashlight covered with thin red plastic film was used for nocturnal observations.

4.5. Statistical Analyses

We used the Chi-squared test to compare the attraction of different flower phenotypes to the air control in the Y-tube olfactometer tests. Independent samples t-tests, with assumed equal variances, were used to analyze the behavior of gall midges in the flight boxes. If the data in the box experiments were not normally distributed, a Mann–Whitney U test was used instead. All statistical analyses were conducted using the IBM SPSS 19.0 statistical software package (IBM, Armonk, NY, USA).

5. Conclusion and Prospects

Plants from at least seven families are involved in gall midge pollination; however, little is known about the pollination signals for them. In the present study, we first identified the roles of floral color and the functional differentiation of visual and olfactory cues to gall midges during the Resseliella–Schisandra interaction. Our results showed that gall midges could be attracted by both floral scent and color. Elimination of either floral color (via a dark field) or scent (via glass vessels) may lower the flower-landing rates of gall midges. Moreover, under natural conditions, gall midges showed a “day–night movement rhythm to female flowers” pollination mode, indicating that the visual cues were predominantly employed by female flowers over scent to attract midges during the day. In contrast, olfactory cues were more functional for male flowers to export pollen in the dark based on the male flower phenology and insects visiting activity.
Though have identified the role of floral color and scent in pollination, certain aspects are still unknown, such as why so many gall midges visited male flowers over female ones, even though both flowers serve midges equally well for “brooding” ( 17.6 ± 5.3 and 17 ± 4.9 midge eggs were found in male and female flowers of S. sphenanthera) [6] and why gall midges showed a day–night movement rhythm for female flower visitation. Further research may be necessary to detect the relationship between gall midges and flowers by GC-EAD (gas chromatography-electroantennographic detection). Moreover, additional field studies are needed to determine whether the “day–night movement rhythm to female flowers” pollination mode occurs in other species of Schisandraceae. A more complete understanding of the evolution of floral signals in response to pollinators of basal angiosperm should shed light on evolutionary processes that mediate the massive radiation of angiosperms.

Author Contributions

Conceptualization, S.-R.G. and W.D.; field work, S.-R.G. and W.D; writing—original draft preparation, S.-R.G.; writing—review and editing, W.D. and X.-F.W.; supervision, X.-F.W.; funding acquisition, W.D. and X.-F.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the NATIONAL NATURAL SCIENCE FOUNDATION OF CHINA, grant numbers 31970250 and 31300195, and the specimen platform of China, teaching specimens sub-platform (http://mnh.scu.edu.cn/).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are openly available in Mendeley Data at DOI: 10.17632/d4kfkw96sk.1.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Skuhravá, M.; Skuhravý, V.; Brewer, J.W. Biology of gall midges. In Biology of Gall Insects; Ananthakrishnan, T.N., Ed.; Printsman Press: Faridabad, Indian, 1984; pp. 169–222. [Google Scholar]
  2. Gagné, R.J.; Jaschhof, M. A Catalog of the Cecidomyiidae (Diptera) of the World, 5th ed.; Entomological Society of Washington: Washington, DC, USA, 2021; 816p. [Google Scholar]
  3. Grimaldi, D.; Engel, M.S. Evolution of the Insects; Cambridge University Press: Cambridge, UK, 2005. [Google Scholar]
  4. Price, P.W.; Fernandes, G.W.; Waring, G.L. Adaptive nature of insect galls. Env. Entomol. 1987, 16, 15–24. [Google Scholar] [CrossRef] [Green Version]
  5. Joy, J. Symbiosis catalyses niche expansion and diversification. Proc. R. Soc. B 2013, 280, 20122820. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Luo, S.X.; Zhang, L.J.; Yuan, S.; Ma, Z.H. The largest early-diverging angiosperm family is mostly pollinated by ovipositing insects and so are most surviving lineages of early angiosperms. Proc. Royal. Soc. B 2017, 285, 20172365. [Google Scholar] [CrossRef] [PubMed]
  7. Farré-Armengol, G.; Filella, I.; Llusià, J.; Peñuelas, J. Pollination mode determines floral scent. Biochem. Syst. Ecol. 2015, 61, 44–53. [Google Scholar] [CrossRef]
  8. Gervasi, D.L.; Schiestl, F.P. Real-time divergent evolution in plants driven by pollinators. Nat. Comm. 2017, 8, 14691. [Google Scholar] [CrossRef] [Green Version]
  9. Reverté, S.; Retana, J.; Gomez, J.M.; Bosch, J. Pollinators show flower color preferences but flowers with similar colors do not attract similar pollinators. Ann. Bot. 2016, 118, 249–257. [Google Scholar] [CrossRef] [Green Version]
  10. Cardona, J.; Lara, C.; Ornelas, J.F. Pollinator divergence and pollination isolation between hybrids with different floral color and morphology in two sympatric Penstemon species. Sci. Rep. 2020, 10, 8126. [Google Scholar] [CrossRef]
  11. Rosati, L.; Romano, V.A.; Cerone, L.; Fascetti, S.; Potenza, G.; Bazzato, E.; Cillo, D.; Mecca, M.; Racioppi, R.; D’Auria, M.; et al. Pollination features and floral volatiles of Gymnospermium scipetarum (Berberidaceae). J. Plant Res. 2019, 132, 49–56. [Google Scholar] [CrossRef]
  12. Barragán-Fonseca, K.Y.; van Loon, J.J.A.; Dicke, M.; Lucas-Barbosa, D. Use of visual and olfactory cues of flowers of two brassicaceous species by insect pollinators. Ecol. Entomol. 2020, 45, 45–55. [Google Scholar] [CrossRef] [Green Version]
  13. Milet-Pinheiro, P.; Domingos-Melo, A.; Olivera, J.B.; Albuquerque, N.S.L.; Costa, A.C.G.; Albuquerque-Lima, S.; Silva, M.F.R.; Navarro, D.M.A.F.; Maia, A.C.D.; Gundersen, L.L.; et al. A Semivolatile Floral Scent Marks the Shift to a Novel Pollination System in Bromeliads. Curr. Biol. 2021, 31, 860–868. [Google Scholar] [CrossRef]
  14. Boberg, E.; Alexandersson, R.; Jonsson, M.; Maad, J.; Ågren, J.; Nilsson, L.A. Pollinator shifts and the evolution of spur length in the moth-pollinated orchid Platanthera bifolia. Ann. Bot. 2014, 113, 267–275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Campos, E.O.; Bradshaw Jr, H.D.; Daniel, T.L. Shape matters: Corolla curvature improves nectar discovery in the hawkmoth Manduca sexta. Funct. Ecol. 2015, 9, 462–468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Smith, S.D.; Kriebel, R. Convergent evolution of floral shape tied to pollinator shifts in Iochrominae (Solanaceae). Evolution 2018, 72, 688–697. [Google Scholar] [CrossRef] [PubMed]
  17. Thien, L.B.; White, D.A.; Yatsu, L.Y. The reproductive biology of a relict: Illicium floridanum Ellis. Am. J. Bot. 1983, 70, 719–727. [Google Scholar] [CrossRef]
  18. White, D.A.; Thien, L.B. The pollination of Illicium parviflorum (Illiciaceae). J. Elisha Mitchell Sci. Soc. 1985, 101, 15–18. [Google Scholar]
  19. Fan, J.H.; Thien, L.B.; Luo, Y.B. Pollination systems, biogeography, and divergence times of three allopatric species of Schisandra in North America, China, and Japan. J. Syst. Evol. 2011, 49, 330–338. [Google Scholar] [CrossRef]
  20. Vislobokov, N.A.; Galinskaya, T.V.; Degtjareva, G.V.; Valiejo-Roman, C.M.; Samigullin, T.H.; Kuznetsov, A.N.; Sokoloff, D.D. Pollination of Vietnamese Aspidistra xuansonensis (Asparagaceae) by female Cedidomyiidi flies: Larvae of pollinator feed on Fertile polle in anthers of anthetic bisexual flowers. Am. J. Bot. 2014, 101, 1519–1531. [Google Scholar] [CrossRef]
  21. Young, A.M. Studies of cecidomyiid midges (Diptera: Cecidomyiidae) as cocoa pollinators (Theobroma cacao L.) in Central America. Proc. Entomol. Soc. Wash. 1985, 87, 49–79. [Google Scholar]
  22. Young, A.M.; Erickson, E.H.; Strand, M.A.; Erickson, B.J. Pollination biology of Theobroma and Herrania (Sterculiaceae): I. Floral biology. Int. J. Trop. Insect Sci. 1987, 8, 151–164. [Google Scholar] [CrossRef]
  23. Ollerton, J. Interactions between gall midges (Diptera: Cecidomyiidae) and inflorescences of Piper novae-hollandiae (Piperaceae) in Australia. Entomologist 1996, 115, 181–184. [Google Scholar]
  24. Thien, L.B.; Sage, T.L.; Jaffre, T.; Bernhardt, P.; Pontieri, V.; Weston, P.H.; Malloch, D.; Azuma, H.; Graham, S.W.; McPherson, M.A.; et al. The population structure and floral biology of Amborella trichopoda (Amborellaceae). Ann. Mo. Bot. Gard. 2003, 90, 466–490. [Google Scholar] [CrossRef]
  25. Luo, S.X.; Liu, T.T.; Cui, F.; Yang, Z.Y.; Hu, X.Y.; Renner, S.S. Coevolution with pollinating resin midges led to resin-filled nurseries in the androecia, gynoecia and tepals of Kadsura (Schisandraceae). Ann. Bot. 2017, 120, 653–664. [Google Scholar] [CrossRef] [PubMed]
  26. Gardner, E.M.; Gagné, R.J.; Kendra, P.E.; Montgomery, W.S.; Raguso, R.A.; McNeil, T.T.; Zerega, N.J.C. A Flower in Fruit’s Clothing: Pollination of Jackfruit (Artocarpus heterophyllus, Moraceae) by a New Species of Gall Midge, Clinodiplosis ultracrepidata sp. nov. (Diptera: Cecidomyiidae). Int. J. Plant Sci. 2018, 179, 350–367. [Google Scholar] [CrossRef]
  27. Yuan, L.C.; Luo, Y.B.; Thien, L.B.; Fan, J.H.; Xu, H.L.; Yukawa, J.; Chen, Z.D. Pollination of Kadsura longipedunculata (Schisandraceae), a monoecious basal angiosperm, by female, pollen-eating Megommata sp. (Cecidomyiidae: Diptera) in China. Biol. J. Linn. Soc. Lond. 2008, 93, 523–536. [Google Scholar] [CrossRef] [Green Version]
  28. Yuan, L.C.; Luo, Y.B.; Thien, L.B.; Fan, J.H.; Xu, H.L.; Chen, Z.D. Pollination of Schisandra henryi (Schisandraceae) by female, pollen-eating Megommata species (Cecidomyiidae, Diptera) in south-central China. Ann. Bot. 2007, 99, 451–460. [Google Scholar] [CrossRef] [Green Version]
  29. Sakai, S.; Kato, M.; Nagamasu, H. Artocarpus (Moraceae)-gall midge pollination mutualism mediated by male-flower parasitic fungus. Am. J. Bot. 2000, 87, 440–445. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Du, W.; Huang, L.J.; Wang, X.F. Deceit pollination and the effect of deforestation on reproduction in dioecious Schisandra sphenanthera (Schisandraceae) in Central-China. J. Syst. Evol. 2012, 50, 36–44. [Google Scholar] [CrossRef]
  31. Luo, S.X.; Chaw, S.M.; Zhang, D.; Renner, S.S. Flower heating following anthesis and the evolution of gall midge pollination in Schisandraceae. Am. J. Bot. 2010, 97, 1220–1228. [Google Scholar] [CrossRef] [Green Version]
  32. Feil, J.P. Reproductive ecology of dioecious Siparuna (Monimiaceae) in Ecuador—A case of gall midge pollination. Bot. J. Linn. Soc. 1992, 110, 171–203. [Google Scholar] [CrossRef]
  33. Feil, J.P.; Renner, S.S. The pollination of Siparuna (Monimiaceae) by gall-midges (Cecidomyiidae): Another likely ancient association. Am. J. Bot. 1991, 78, 186. [Google Scholar]
  34. Renner, S.S.; Schwarzbach, A.E.; Lohmann, L. Phylogenetic Position and Floral Function of Siparuna (Siparunaceae: Laurales). Int. J. Plant Sci. 1997, 158, S89–S98. [Google Scholar] [CrossRef] [Green Version]
  35. Boddum, T. Gall Midge Olfaction and Its Role in Speciation. Ph.D. Thesis, Swedish University of Agricultural Sciences, Alnarp, Sweden, 2013. [Google Scholar]
  36. Gordon, S.C.; Williamson, B. Raspberry cane midge. In Compendium of Raspberry and Blackberry Diseases and Insects; Ellis, M.A., Converse, R.H., Williams, R.N., Williamson, B., Eds.; APS Press: St Paul, MN, USA, 1991; pp. 75–76. [Google Scholar]
  37. Hall, D.; Shepherd, T.; Fountain, M.; Vétek, G.; Birch, N.; Jorna, C.; Farman, D.; Cross, J. Investigation of attraction of raspberry cane midge, Resseliella theobaldi, to volatiles from wounded raspberry primocanes. Abstracts of Meeting of IOBC Working Group “Integrated Plant Protection in Fruit Crops”, Budapest, Hungary. IOBC/WPRS Bull. 2010, 68, 1–7. [Google Scholar]
  38. Ogah, E.O.; Smart, L.E.; Woodcock, C.M.; Caulfield, J.C.; Birkett, M.A.; Pickett, J.A.; Nwilene, F.E.; Bruce, T.J. Electrophysiological and behavioral responses of female African rice gall midge, Orseolia oryzivora Harris and Gagné, to host plant volatiles. J. Chem. Ecol. 2017, 43, 13–16. [Google Scholar] [CrossRef] [PubMed]
  39. Hall, D.R.; Amarawardana, L.; Cross, J.V.; Francke, W.; Boddum, T.; Hillbur, Y. The Chemical Ecology of Cecidomyiid Midges (Diptera: Cecidomyiidae). J. Chem. Ecol. 2012, 38, 2–22. [Google Scholar] [CrossRef] [PubMed]
  40. Molnár, B.P.; Boddum, T.; Hill, S.R.; Hansson, B.S.; Hillbur, Y.; Birgersson, G. Ecological and Phylogenetic Relationships Shape the Peripheral Olfactory Systems of Highly Specialized Gall Midges (Cecidomiiydae). Front Physiol. 2018, 9, 323. [Google Scholar] [CrossRef] [Green Version]
  41. Skoczek, A.; Piesik, D.; Wenda-Piesik, A.; Buszewski, B.; Bocianowski, J.; Wawrzyniak, M. Volatile organic compounds released by maize following herbivory or insect extract application and communication between plants. J. Appl. Entomol. 2017, 141, 630–643. [Google Scholar] [CrossRef]
  42. Arnold, S.E.J.; Forbes, S.J.; Hall, D.R.; Farman, D.I.; Bridgemohan, P.; Spinelli, G.R.; Bray, D.P.; Perry, G.B.; Grey, L.; Belmain, S.R.; et al. Floral Odors and the interaction between Pollinating Ceratopogonid Midges and Cacao. J. Chem. Ecol. 2019, 45, 869–878. [Google Scholar] [CrossRef] [Green Version]
  43. Carneiro, M.A.A.; Branco, C.S.A.; Braga, C.E.D.; Almada, E.D.; Costa, M.B.M.; Maia, V.C.; Fernandes, G.W. Are gall midge species (Diptera, Cecidomyiidae) host-plant specialists? Rev. Bras. Entomol. 2009, 53, 365–378. [Google Scholar] [CrossRef]
  44. Young, A.M.; Severson, D.W. Comparative analysis of steam distilled floral oils of Cacao cultivars (Theobroma cacao L., Sterculiaceae) and attraction of flying insects: Implications for a Theobroma pollination syndrome. J. Chem. Ecol. 1994, 20, 2687–2703. [Google Scholar] [CrossRef]
  45. Thien, L.B.; Bernhardt, P.; Devall, M.S.; Chen, Z.D.; Luo, Y.B.; Fan, J.H.; Yuan, L.C.; Williams, J.H. Pollination biology of basal angiosperms (ANITA grade). Am. J. Bot. 2009, 96, 166–182. [Google Scholar] [CrossRef]
  46. Gagné, R.J.; Yukawa, J.; Elsayed, A.K.; McMechan, A.J. A New Pest Species of Resseliella (Diptera: Cecidomyiidae) on Soybean (Fabaceae) in North America, with a Description of the Genus. Proc. Ent. Soc. Wash. 2019, 121, 168–177. [Google Scholar] [CrossRef] [Green Version]
  47. Bertschy, C.; Turlings, T.C.J.; Bellotti, A.C.; Dorn, A.S. Chemically-mediated attraction of three parasitoid species to mealybug-infested cassava leaves. Fla. Entomol. 1997, 80, 383–395. [Google Scholar] [CrossRef]
  48. Tooker, J.F.; Crumrin, A.L.; Hanks, L.M. Plant volatiles are behavioral cues for adult females of the gall wasp Antistrophus rufus. Chemoecology 2005, 15, 85–88. [Google Scholar] [CrossRef]

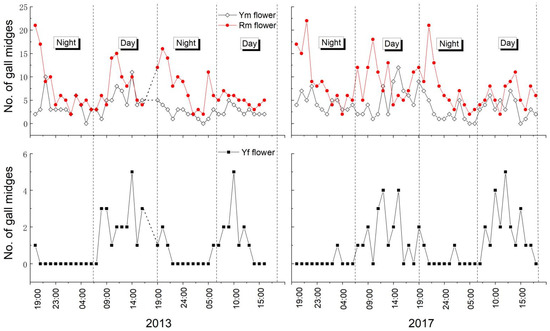

Figure 1. Visiting dynamics of gall midges on the three flower phenotypes of Schisandra sphenanthera under natural conditions.
Figure 1. Visiting dynamics of gall midges on the three flower phenotypes of Schisandra sphenanthera under natural conditions.
Plants 11 00974 g001
Figure 2. Phenotypes of Schisandra sphenanthera flowers: (a) yellow female flower; (b) yellow male flower and Resseliella pollinators (b’); (c) red male flower.
Figure 2. Phenotypes of Schisandra sphenanthera flowers: (a) yellow female flower; (b) yellow male flower and Resseliella pollinators (b’); (c) red male flower.
Plants 11 00974 g002

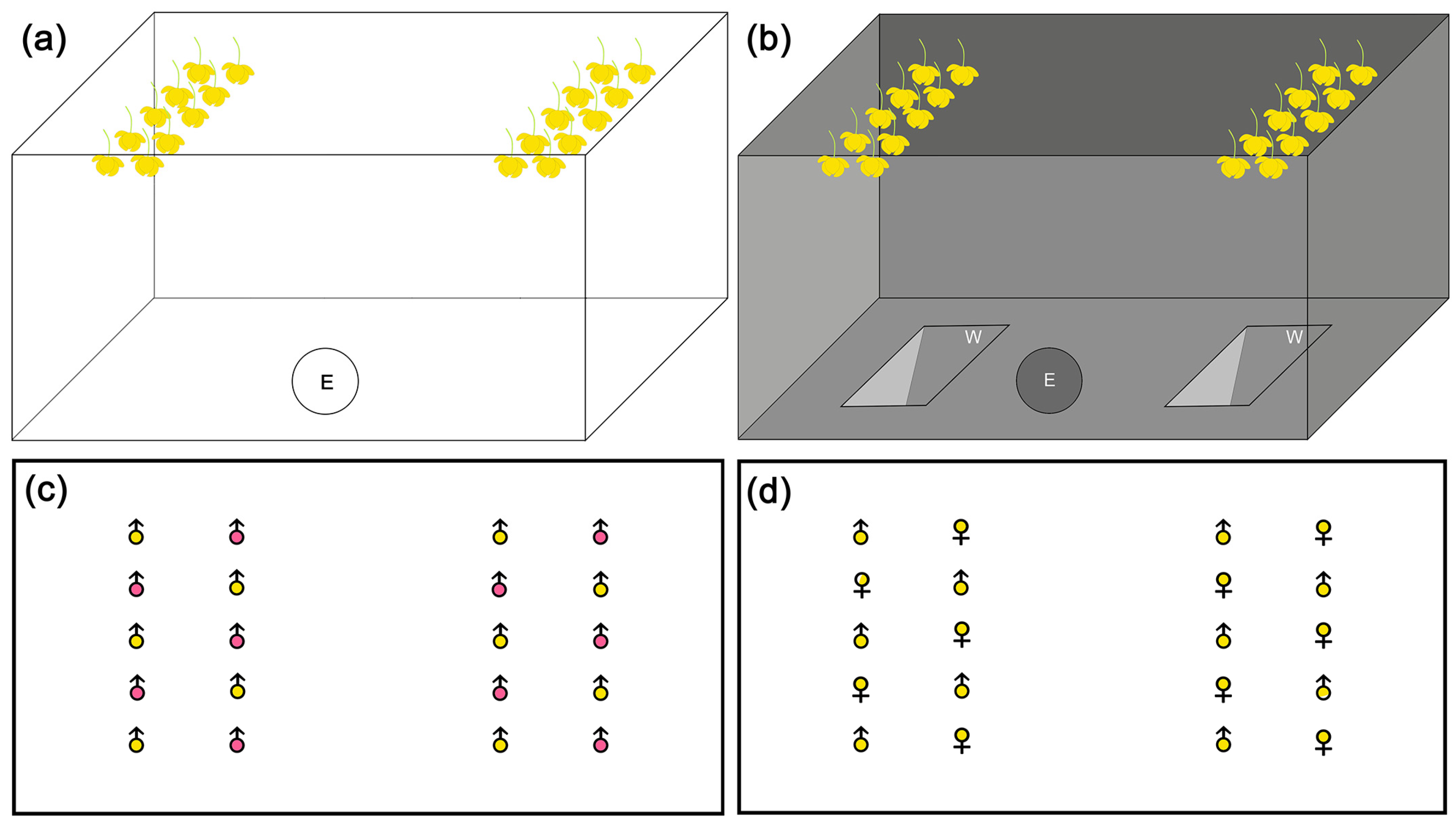

Figure 3. “Flight box” biotests. (a) Light-field box made of transparent polyethylene terephthalate (TPT). Fresh flowers hung on the roof plate via two lines of holes (line space = 4 cm; hole space = 2 cm; 3.5 and 5 cm from the two edges) (b) Dark-field boxes (TPT box placed inside a non-transparent (NT) box made of corrugated paper). E = insect entrance on the lateral side of boxes, 3 cm diameter; W = windows at the bottom plate of the NT box, which were used for insect landing observations under a lamplight. Windows were closed during testing. (c,d) Flower arrangement patterns on the roof plate as follows: (c) red and yellow male flowers; (d) yellow male and female flowers.
Figure 3. “Flight box” biotests. (a) Light-field box made of transparent polyethylene terephthalate (TPT). Fresh flowers hung on the roof plate via two lines of holes (line space = 4 cm; hole space = 2 cm; 3.5 and 5 cm from the two edges) (b) Dark-field boxes (TPT box placed inside a non-transparent (NT) box made of corrugated paper). E = insect entrance on the lateral side of boxes, 3 cm diameter; W = windows at the bottom plate of the NT box, which were used for insect landing observations under a lamplight. Windows were closed during testing. (c,d) Flower arrangement patterns on the roof plate as follows: (c) red and yellow male flowers; (d) yellow male and female flowers.
Plants 11 00974 g003
Table 2. Visiting response (mean ± SE) of gall midges to Schisandra sphenanthera flowers in the box experiments. The difference among flowers was assessed by the independent sample t-test; non-normal distributions were tested using the Mann–Whitney U test (Ym = yellow male, Rm = red male, Yf = yellow female).
Table 2. Visiting response (mean ± SE) of gall midges to Schisandra sphenanthera flowers in the box experiments. The difference among flowers was assessed by the independent sample t-test; non-normal distributions were tested using the Mann–Whitney U test (Ym = yellow male, Rm = red male, Yf = yellow female).
Group FlowerLight Field
(n = 10 )
PDark Field
(n = 10 )
PLight Field with Flowers in Glass Vessels (n = 10 )P
Group 1Ym flower6.20 ± 1.36<0.001 3.20 ± 0.440.67--
Rm flower15.60 ± 2.222.90 ± 0.43-
Group 2Ym flower15.50 ± 2.380.0042.70 ± 0.560.0012.70 ± 0.540.90
Yf flower7.70 ± 1.280.50 ± 0.222.60 ± 0.52
