Article

The Colonization and Effect of Isaria cateinannulata on Buckwheat Sprouts

by
Xiaona Zhang
1,2,
Xue Peng
2,
Guimin Yang
2,
Qingfu Chen
2 and
Daochao Jin
1,*
1
The Provincial Key Laboratory for Agricultural Pest Management of Mountainous Region, Institute of Entomology, Guizhou University, Guiyang 550025, China
2
Research Center of Buckwheat Industry Technology, College of Life Science, Guizhou Normal University, Guiyang 550001, China
*
Author to whom correspondence should be addressed.
Plants 2023, 12(1), 145; https://doi.org/10.3390/plants12010145
Submission received: 3 November 2022 / Revised: 9 December 2022 / Accepted: 12 December 2022 / Published: 28 December 2022
(This article belongs to the Special Issue Novel Biocontrol Tools and Resources for Plant Protection)
Browse Figures
Review Reports Versions Notes

Abstract

:
The use of entomogenous fungi as endophytes is currently an area of active research. Isaria cateniannulata is an important entomogenous fungus that has been employed for the active control of a range of pests in agricultural and forestry settings, but its direct impact on plants remains to be evaluated. Herein, we assessed the ability of I. cateniannulata to colonize buckwheat, Fagopyrum esculentum and F. tataricum, and its impact on buckwheat defense enzyme activity and physiological indexes. The majority of fungal submerge condia was able to enter into leaves through stomata and veins, and this was followed by conidial attachment, lytic enzyme secretion, conidial deformation, and enhanced defensive enzyme activity within buckwheat, followed by the repair of damaged tissue structures. I. cateniannulata populations on buckwheat leaf surfaces (in CFU/g) reached the minimum values at 24 h after inoculation. At this time, the blast analysis revealed that the sequence identity values were 100%, which was consistent with the sequence of I. cateniannula. The number of I. cateniannulata submerge conidia colonized in the buckwheat leaves gradually rose to peak levels on 7 d post-inoculation, and then gradually declined until 10 d, at which time the buckwheat plant growth index values increased. This study provided novel evidence that I. cateniannulata could be leveraged as an endophytic fungus capable of colonizing buckwheat plants and promoting their growth.

1. Introduction

Buckwheat Fagopyrum esculentum and F. tataricum (Polygonaceae) are food sources and they are also used for various medicinal purposes. Buckwheat seeds are rich in high-quality protein, dietary fiber, essential fatty acids, vitamins, minerals, and bioactive sterols and phenolic compounds that have been found to have a valuable function in improving circulation, alleviating gastrointestinal discomfort and preventing the development of tumors. Buckwheat is thus considered to be a functional food [1,2,3,4,5]. Buckwheat sprouts and microgreens have also been recently marketed as a novel food [6,7], containing more phytonutrients, including flavonoids, phenolic compounds, rutin, and quercetin, than buckwheat seeds [8,9,10,11]. Though some effective approaches to promote buckwheat growth and cultivation have been established, more work is needed to optimize sprout yields [7,8].
Isaria cateniannulata (Liang) Sanmson & Hywel-Jones (Hypocreales: Clavicipitaceae), also known as Paecilomyces cateniannulatus or Cordyceps cateniannulata [12,13,14], is an important pathogenic fungus of insects that has been utilized for the biocontrol of agricultural and forestry pests [15,16,17,18,19,20,21]. Recently, some scholars have found that it can promote the growth of buckwheat, tomato, tobacco, and so on [22,23,24,25], but the method of to colonizing plants and promoting plant growth has not been explored yet.
Taking buckwheat sprouts as the materials, we explored the colonizing process of I. cateniannulata on buckwheat leaves with molecular identification and assessed its impact on resistance enzyme activity and physiological indices in buckwheat plants, in order to understand potential of I. cateniannulata as an endophytic fungus.

2. Results and Analysis

2.1. Colonizing Process of I. cateniannulata on Buckwheat Sprouts via SEM

The ability of I. cateniannulata to colonize the leaves of six different buckwheat cultivars was assessed via SEM (Figure 1). The colonization began by 0.5 h after inoculation in all cultivars, and the duration of completing colonization varied among cultivars. The colonization process was completed within 4 h in cultivars No.1412-1 and NO.HT of F. esculentum, while this process took 2 h for F. esculentum No.1412-16, 8 h for F. tataricum No.M18, and 12 h for F. tataricum NO.M13 and NO.M55. Overall, the colonization time for F. esculentum was shorter than that for F. tataricum. In general, the process of I. cateniannulata colonization was comparable across buckwheat cultivars. Submerged conidia primarily invaded plant tissues through stomata and veins. During the invasion process, tissues around the submerged conidia were gradually dissolved, potentially by enzymes secreted by conidia [26], or by plant-derived enzymes. Deformed conidia then entered into leaves or were dissolved, leaving dissolution circles that gradually disappeared over time. Variability in the dynamics of this healing process among cultivars may be associated with differences in the ability of particular cultivars to repair colonization-associated wounds. In some cases, a small number of conidia and hyphae attached to leaf surfaces did not colonize the inside of leaves, which might be due to the sites not being suitable for invasion, although more work will be needed to verify this possibility.

2.2. Colonizing Process of Isaria cateniannulata on Buckwheat Sprouts via FM

The colonization of buckwheat sprout leaves by I. cateniannulata was assessed via FM (Figure 2). The fluorescence was primarily distributed around veins and stomata throughout the colonization process of the fungus, with fluorescence intensity varying from weak to strong. The fluorescence durations were different among buckwheat cultivars, with a 4 h for No.1412-1 and NO.HT of F. esculentum, 2 h for F. esculentum No.1412-16, 8 h for F. tataricum No.M18, and 12 h for F. tataricum NO.M13 and NO.M55, consistent with our SEM findings. After conidia colonized inoculated leaves, the overall brightness of these leaves increased significantly as compared to the control leaves, suggesting that I. cateniannulata primarily colonized the inside of buckwheat leaves through veins and stomata. In addition, some bright fluorescent spots were present on leaf surfaces at later time points, consistent with the presence of residual spores in line with our SEM findings.

2.3. Molecular Identification of Isaria cateniannula by Phylogenetic Analysis

The sequence length of the endophytic strain, namely 19GZAl-1.1, obtained from buckwheat sprouts was 563 bp. The ITS data generated for the endophytic isolate was identified with 19GZAl-1 depositing in GenBank with the accession number MW750414. The phylogenetic analysis revealed that the sequence identity values were 94% (Figure 3), identical to sequences of I. cateniannula. In the phylogenetic tree, 19GZAl-1 formed an independent branch from the other strains of the Isaria genus. Thus, the molecular and phylogenetic analyses of the sequenced data supported the endophytic isolate as I. cateniannula, which had colonized in the buckwheat sprouts at 24 h.

2.4. Population Dynamics of I. cateniannulata on Buckwheat Leaf Surfaces

Population dynamics of I. cateniannulata on the leaves of different buckwheat cultivars are shown in Figure 4. Fungal levels on leaf surfaces were lowest on the first day of the colonization, in line with SEM and FM findings as a consequence of most conidia having entered into the leaf. These CFU counts then increased over time until peaking on day 7, at which time the CFU/g values for HT, 1412-1, 1412-16, M13, M18, and M55 were 7.2 × 104 CFU/g, 1.1 × 105 CFU/g, 1.9 × 105 CFU/g, 1.3 × 105 CFU/g, 2.0 × 105 CFU/g, and 4.5 × 105 CFU/g, respectively. After day 7, fungal levels declined gradually until day 10, at which time the values for these cultivars were 5.3 × 104 CFU/g, 5.5 × 104 CFU/g, 6.2 × 104 CFU/g, 7.2 × 104 CFU/g, 1.3 × 105 CFU/g, and 1.4 × 105 CFU/g, respectively. This is due to the formation diverse of mutualistic symbiosis between buckwheat leaves and I. cateniannulata with the time [27]. Differences in CFU among cultivars may be due to differences in the chemical substances within the leaves of these different plants, although further research will be needed to verify this hypothesis.

2.5. The Impact of I. cateniannulata on Buckwheat Defense Enzyme Activity

Defensive enzyme activity levels of five different enzymes in these six buckwheat cultivars were in the process of changing, either increasing or decreasing, revealing that the effects of I. cateniannulata on defense enzyme activities were inconsistent in the tested cultivars. Activity levels of four enzymes, SOD, POD, CAT, and PAL in the treated group were higher than those in the control group, while that of PPO was in contrast. Taking F. tataricum No.M13 and F. esculentum 1412-16 as an example, the change in enzyme activities in the treated groups and the control groups are shown in Figure 5.
Superoxide dismutase (SOD), peroxidase (POD) and catalase (CAT) are mainly responsible for the production and elimination of intracellular reactive oxygen species (ROS). Under normal circumstances, SOD can dismutate superoxide anion radical to H2O2, which is further decomposed by enzymes such as CAT and POD [28]. Defense enzyme activity levels of SOD, POD, and CAT in the leaves of F. tataricum and F. tataricum were higher than those in the control group at 24 h after the colonization of I. cateniannulata (Figure 5). The activities of SOD, POD and CAT increased first and then decreased with the time, indicating that I. cateniannulata could mediate protective enzyme activities in plants. SOD reached the maximum on 3 d (Figure 5a,f), POD and CAT reached their maximum values on 5 d (Figure 5b,c,g,h), indicating that SOD activity was activated first; POD and CAT played their roles later. However, the activity of CAT decreased, and the activity of POD was stable as time went on, indicating that the concentration of ROS decreased at this time, and POD played a major role.
The activity of the PAL enzyme was on the rise (Figure 5e,j), indicating that the activity of the PAL enzyme could be activated by I. cateniannulata. Phenylalanine ammonia-lyase (PAL) can promote the production of salicylic acid, lignin, plant protectants, and other substances through phenylpropane metabolism. The increase of PAL activity could increase the contents of these chemicals in plants, and consequently enhance its resistance to disease [29]. The results indicated that I. cateniannulata could increase the buckwheat’s resistance to disease. The activity of the PPO enzyme was lower than that of the control group (Figure 5d,i), which might be due to inhibiting substances of the PPO enzyme in buckwheat having been activated by I. cateniannulata. Polyphenol oxidase is the main enzyme that causes browning in many plants. PPO can catalyze the formation of brown quinones from the substrate and participate in the enzymatic browning process of fruits and vegetables. Inhibiting the PPO enzyme has been an essential measure for long storage of fresh fruit and vegetable [30]. The results indicated that I. cateniannulata could play an important role in solving the browning problem of buckwheat sprouts during storage.

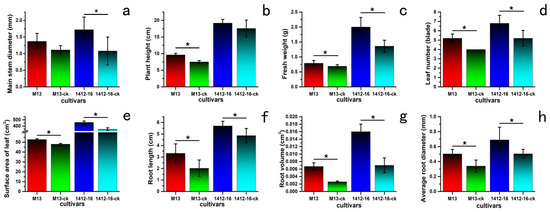

2.6. The Impact of I. cateniannulata on Buckwheat Sprout Growth

The buckwheat growth indices in each treatment group were better than those in the corresponding control group at 10 d after foliar spraying with I. cateniannulata, which indicated that the treatment of I. cateniannulata was conducive to the growth of buckwheat. However, the differences among different varieties were distinct, and the differences among different cultivars of the same variety were small, indicating that I. cateniannulata had different effects on the two buckwheat varieties. Taking F. tataricum No.M13 and F. esculentum 1412-16 as an example, the change in enzyme activities in the treated groups and the control groups are shown in Figure 5.
There were no significant differences in the main stem diameter (Figure 6a) of F. tataricum No.M13 and in the plant height (Figure 6b) of F. esculentum 1412-16 between the treated group and the control group (the detailed data given in Table 1). The main stem diameter values in the treated group were 58.6%, higher than those in the control group of F. esculentum (Figure 6a). The average plant heights in the treated group were 28.2%, higher than those in the control group for the M13 of F. tataricum (Figure 6b). I. cateniannulata could thus positively impact the main stem diameter (Figure 6a), the plant height in F. tataricum sprouts, the fresh weight (Figure 6c), the leaf number (Figure 6d), the leaf surface area (Figure 6e), the root length (Figure 6f), the root volume (Figure 6g), and the average root diameter (Figure 6h). These further indicated that I. cateniannulata might be beneficial to plant photosynthesis and nutrient transport, thereby enhancing the growth of these buckwheat sprouts.

3. Materials and Methods

3.1. Isaria cateniannulata Preparation

The Isaria cateniannulata strain 19GZAl-1, originally isolated from hymenoptera larvae in Baiyi, Guiyang, Guizhou, in 2019, was provided by the Research Center of Buckwheat Industry Technology, Guizhou Normal University, Guiyang, Guizhou, China. It was originally isolated from hymenoptera larvae in Baiyi, Guiyang, Guizhou, in 2019, and it was maintained on Potato Dextrose Agar medium (PDA). Submerged conidia were produced in a liquid medium containing Potato Dextrose (PDA without agar) and 10 glass beads at 25 ± 1 °C under 16L:8D, followed by incubation for 7 days with shaking at 150 rpm. Submerged conidia were then prepared in suspension, with conidia concentrations being measured via hemocytometer and adjusted to 2 × 106 conidia/mL using sterile water. The viability of the submerged conidia was confirmed to be >90% on PD at >90% relative humidity [15,16,17,18].

3.2. Fluorescein Diacetate (FDA) Preparation

FDA (4 mg; Sigma Chemical: St. Louis, MO, USA) was dissolved in 1 mL of acetone. A working solution was freshly prepared for each experiment by adding 35 μL of FDA liquid to 4 mL of deionized water. Samples were maintained on ice, protected from light [15] and were stored at 4 °C for up to 6 months protected from light [25].

3.3. Buckwheat Sprout Preparation

Six buckwheat cultivars (three of F. esculentum: HT; 1412-1; 1412-16. three of F. tataricum: M13; M18; M55) were obtained from the seed bank of the Research Center of Buckwheat Industry Technology, Guizhou Normal University. Buckwheat sprouts with uniform size and shape were disinfected by sequentially treating them with sterile water for 1 min, 75% ethanol for 1 min, 25% NaClO for 1 min, and sterile water for 1 min. Each of three seeds was added to individual holes in a seedling tray (50 holes, each 4.5 cm × 4.5 cm × 4.5 cm) filled with sterilized crystal sand (size 1–2 mm), after which all were treated with an equivalent dose of Dvordo concentrated plant nutrient solution (1:300 nutrient solution: sterile water). Six hundred seeds per cultivar were planted in four trays (3 seeds/holes × 50 holes × 4 trays). The trays were stored in a sterile artificial climate chamber at 25 ± 1 °C with 65–70% relative humidity and a 16 h/8 h light/dark cycle. The nutrient solution was used to water plants every 3 days. After 15 days, sprouts with 2–3 were examined [23].

3.4. Treatment of Buckwheat Sprouts with I. cateniannulata

Buckwheat sprouts of each cultivar in 2.3 were separated into two groups. One was the treatment group and sprayed with 0.5 mL of the prepared submerged I. cateniannulata conidia suspension on leaf surfaces, while another was the control group and sprayed with 0.5 mL of sterile water. The other conditions were same to that in Section 3.3.

3.5. Observation with Scanning Electron Microscopy (SEM) and Fluorescence Microscopy (FM)

For the SEM or FM experiments, upper portions of treated and control plants were sampled at 0.5, 1, 2, 4, 8, and 12 h after inoculation, with 5 plants per cultivar being analyzed. Buckwheat sprout leaves were cut to 8 mm × 5 mm and immersed in an alcohol solution after gradient dehydration. The samples were then dried by supercritical drying and put on a tray with double-sided tape, after which they were sputter-coated with carbon (HUS-5GB) using a high vacuum evaporator and then observed via SEM (JSM-6490LV) at an accelerated voltage of 15 kV. Alternatively, leaves were stained with FDA and assessed via an inverted microscope (Nikon, Tokyo, Japan, ECLIPSE Ti-U) at a wavelength of 450–490 nm. Images were taken using a digital camera controller (Nikon Digital Sight PS-U3, Japan).

3.6. Analysis of I. cateniannulata on Buckwheat Leaf Surfaces

The colonized number of I. cateniannulata liquid spores on buckwheat sprout surfaces were assessed at 3 min, 1 d, 3 d, 5 d, 7 d, 9 d, and 11 d after inoculation. Briefly, 0.1 g samples of leaves were isolated, cut into pieces, added to 1 mL of 0.05% Twin-80, and vortexed for 10 min to achieve a uniform suspension. Conidia were then subjected to gradient dilution, and 200 µL of each gradient suspension was transferred to solid selective medium, with three replicates per gradient concentration. Coated Petri dishes were cultured at 25 ± 1 °C with 70% relative humidity and a 16 h/8 h light/dark cycle. Numbers of colony-forming units (CFUs)/mL were determined as follows: CFUs/mL = average colonized number of three replicates × number of dilutions × 5 times. Data were analyzed using SPSS19.0, and figures were constructed using Origin85.

3.7. Molecular Identification of I. cateniannulata in Buckwheat Sprouts

The buckwheat sprouts treated with I. cateniannulata for 24 h were sterilized. The disinfection procedures comprised the following steps: washing 1 time with sterile water, immersing in 70% alcohol for 1 min, cleaning with 25% NaClO for 1 min, cleaning the residual NaClO with sterile water for 3 times, and taking 1 drop of the last clean sterile water for culture until no fungi grew for 5 consecutive days; this was considered to be a successful disinfection. The sterilized sprouts were continuously cultured on PDA medium at 25 ± 1 °C for 3 days until they grew out fungi for use.
Total genomic DNA was extracted from 200 mg mycelium of pure isolation obtained after 3 d of growth in buckwheat sprouts treated with I. cateniannulata, by using the DNeasy Plant mini kit (Aidlab), following the manufacturer’s instructions. Amplification reactions were performed in volumes of 50 µL, containing template 2 µL, primer1 2 µL, primer4 2 µL, 2 × Master Mix 25 µL, and ddH2O 19 µL. The internal transcribed spacer was amplified using the ITS1/ITS4 primer pair, namely ITS1 (5′-TCCGTAGGTGAACCTGCGG-3′) and ITS4 (5′-TCCTCCGCTTATTGATATGC-3′). The PCR amplification condition was initiated at a 95 °C denature for 6 min, followed by 35 cycles of denaturing at 94 °C for 30 s, annealed at 53 °C for 30 s, and extended at 72 °C for 50 s, then followed by a final extension step at 72 °C for 10 min. Sequencing was performed by Shanghai Sangon Biotech (Shanghai, China) using the above primers. The sequences were stored in GenBank and compared with multiple sequences alignment and manual correction using Clustalw. The phylogenetic tree was constructed using the neighbor-joining method (NJ) in MEGA 7. Confidence values for respective branches were determined by bootstrap analysis (1000 replications) [13].

3.8. Impact of I. cateniannulata on Buckwheat Defense Enzyme Activity

In total, 30 plants were sampled at 2, 4, 8, 12, and 24 h in both the control and treated groups. The aboveground (stems and leaves) and belowground (root) portions of these plants were separated, washed, and ground to a fine powder in a mortar cooled with liquid nitrogen. Next, 0.1 g samples were added to 1 mL of pre-cooled 50 mmol/L phosphoric acid buffer (containing 1% polyvinylpyrrolidone and 0.2% Ethyl Alcohol, pH 7.8), and were ground on ice until homogenized. Samples were then added to 2 mL tubes and were spun for 10 min at 8000 rpm at 4 °C. Supernatants were then used to measure catalase (CAT), superoxide dismutase (SOD), polyphenol oxidase (PPO), phenylalanine ammonia-lyase (PAL), and peroxidase (POD) activities. All extraction procedures were conducted based on protocols provided in a kit obtained from Suzhou Keming Biotechnology Co., Suzhou, China, LTD. Data were analyzed using SPSS19.0, and figures were constructed using Origin85.

3.9. Impact of I. cateniannulata on Buckwheat Growth

The treated and control buckwheat sprouts were cultured for 10 days when sampling. In total, 10 samples were taken from each group, and physical indexes such as plant height, stem diameter, number of leaves, leaf area, fresh weight, root length, root surface area, and root diameter were measured. All treatments including controls had three replicates. The data were measured with a root scanner (GXY-A) and were analyzed using SPSS19.0.

3.10. Statistical Analysis

All statistical analyses were carried out using SPSS v.19.0. Significance between the treatments and controls was evaluated using a t test and One-Way ANOVA at a significance level of 0.05.

4. Discussion

Endophytic fungi are capable of colonizing into host plants through various ways, thereby enhancing their growth [31,32,33]. Endophytes leveraged to date include Beauveria bassiana [34,35,36,37,38], Metarhizium anisopliae [39,40,41], Isaria fumosorosea [42,43], M. robertsii [44,45], and Paecilomyces lilacinus [46,47]. These fungi have been used to colonize corn [32], the common bean [48], arabidopsis [49], tomatoes [50], wheat, lemen [51], vicia faba [52], lettuce [53], tobacco [22] and other crops [51] via root irrigation [54], seed soaking [32], seed coating [55], stem base injection [56], root or rhizome soaking [46], leaf spraying [56], root mixing, and other methods [57]. In this study, we sprayed the buckwheat sprouts with I. cateinannulata, and found it could colonize and promote the growth of buckwheat. This result was consistent with the results of previous studies. Xu et al. found that I. cateinannulata could not only increase plant biomass, but also enhance plant stress resistance to abiotic factors [22]; Peng et al. found that it could increase the germination index of seeds of buckwheat [23]. Guan et al. found that it can increase tomato biomass [24]. Our results once again prove that I. cateinannulata could be used as an endophytic fungal preparation to colonize plants and promote plant growth.
Entomogenous fungi can colonize plants as endophytes by establishing a mutualistic relationship with host plants without causing any significant disease symptoms [58]. Understanding how these entomogenous fungi colonize plants is thus essential. The previous studies showed that the colonization process and pattern, the precise internal locations and status, of the endophytic fungus could be well evaluated by using light microscopy, electron microscopy and transmission electron microscopy, with the examining of the cellular anatomy of host plants [59,60,61,62]. Herein, we used FM and SEM to assess the colonization process of I. cateinannulata on the buckwheat sprout leaf. We determined that conidia invade these leaves via the stomata and veins, dissolving the surrounding tissues and deforming to generate a dissolution circle prior to entering the leaves, after which dissolution circles healed. Terna et al. found that the infection of corn plants by endophytic P. citrinum showed mild histopathological responses in host tissues [59]. Our findings offered more detail insight into the colonization process. In addition to direct observation of fungal colonization, molecular detection is another effective means to verify that endophytic fungi colonize plants [63,64]. Our sequenced data verified the endophytic isolate as I. cateniannula, colonized in the buckwheat sprouts at 24 h.
One of the most striking features of entomogenous fungi is their ability to colonize diverse hosts, ranging from obligate pathogens to very broad facultative pathogens [65]. The ability of these fungi to adapt to diverse hosts may be associated with their ability to obtain nutrients from sources other than insects, enabling them to colonize plants [66,67]. In this study, we found that the I. cateinannulata colonization process was similar in two buckwheat species, indicating that this endophyte was able to absorb nutrients under a range of growth conditions. Moreover, colonization times were shorter in F. esculentum than in F. tataricum, indicating that F. esculentum is more suitable than F. tataricum for I. cateinannulata colonizing.
The duration of colonization and the levels of entomogenous fungi within plant leaves are key factors that determine the efficacy of these fungi as mediators of pest control and plant growth. Cui et al. found that higher concentrations and longer residue times of B. bassiana on maize leaves could result in significant impacts on physical indexes such as plant height, leaf length, and leaf width of maize [55]. Zhang et al. found that I. cateniannulat attached to the surfaces of vegetable leaves could continuously provide protection against Tetranychus urticae for over 10 days [15]. Wakil et al. found that the integrated application of endophytic colonized B. bassiana and B. thuringiensis might be an effective approach against H. armigera [68]; Qayyum et al. found that the endophytic colonization of B. bassiana had an effective strategy to control H. armigera in tomatoes [69]. Our results were consistent with these previous studies. We found that I. cateniannulata could stay on the surface of buckwheat leaves for over 10 days, with relatively high residual concentrations that significantly enhanced plant growth with higher physical indexes such as plant height, stem diameter, leaf area, root length, and fresh weight. However, we observed cultivar-specific differences in the duration and levels of I. cateniannulata presence on leaf surfaces in this study, which might be due to the submerged conidia having been affected by the chemical composition on the leaf surfaces of the tested cultivars or by composition with other endophytic fungi inside the buckwheat, leading to the different colonization rates of I. cateniannulata in buckwheat [70].
Colonization of entomogenous fungi on/in plants can not only prevent pathogen-induced damage, but also protect plants from consumption by herbivores. The mechanistic basis for such protection is complex and is at least partially associated with the enhancement of the defense enzyme activity in host plants. For example, B. beauveria colonization in maize seedlings was associated with the enhancement of CAT, POD, SOD, and PAL activity [55], thereby protecting maize from corn borer-induced damage [32]. The increase of PAL activity can mediate the increase of the contents of salicylic acid, lignin and plant protectants and accordingly enhance the disease resistance of the plant [29]. Some studies have shown that PAL could enhance the resistance of the soybean against the nematode Heterodera glycines [71]. Our findings are in line with these documentations, as we found that I. cateniannulata colonization enhanced the activity of these defense enzymes in a cultivar-specific manner. The variation in endophyte-induced defensive responses among these cultivars may be related to differences in antioxidant contents in these different cultivars [21]. Buckwheat exhibits a robust antioxidant capacity, particularly under adverse conditions, protecting cells by SOD, CAT, and POD rapidly removing the free radicals and associated intermediates [72]. Due to PPO participates in the enzyme-mediated browning process of fruits and vegetables, inhibiting PPO activity has been a major measure to solve the browning problem of stored fresh fruit and vegetables [30]. Our results were consistent with the that of previous studies and indicated that I. cateniannulata could be used as a storage preparation to extend shelf life of buckwheat sprouts.

5. Conclusions

These results are the novel evidences that I. cateniannulata can colonize buckwheat sprouts. Fungal spores were able to colonize buckwheat plants within 12 h and exhibited a leaf residual time of over 10 days. Importantly, the endophytic I. cateniannulata could promote buckwheat growth and defense enzyme activity, although the mechanistic basis for this activity remains to be explored. Overall, our data offer a novel insight into the relationship between entomogenous fungi and plants, providing a foundation for future studies of I. cateniannulata as a biological agent.

Author Contributions

X.Z. conceived and designed the experiments and wrote the manuscript. X.P. carried out the experimental design. G.Y. analyzed data and drafted the manuscript. Q.C. and D.J. contributed analytic tool and python scripts. X.Z. and Q.C. contributed the experimental materials. All authors have read and agreed to the published version of the manuscript.

Funding

This work funded by the Open Project Fund of the Key Laboratory of Ministry of Education (QianJiaoHeKYZi[2020]246), The Chinese Zoology (700214181125) and the Doctoral Research Fund of Guizhou Normal University (11904/0517052).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author and the first author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Krkošková, B.; Mrázová, Z. Prophylactic components of buckwheat. Food Res. Int. 2005, 38, 561–568. [Google Scholar] [CrossRef]
  2. Gimenez-Bastida, J.A.; Zielinski, H. Buckwheat as a functional food and its effects on health. J. Agric. Food Chem. 2015, 63, 7896–7913. [Google Scholar] [CrossRef]
  3. Ji, X.; Han, L.; Liu, F.; Yin, S.; Peng, Q.; Wang, M. A mini-review of isolation, chemical properties and bioactivities of polysaccharides from buckwheat (Fagopyrum Mill). Int. J. Biol. Macromol. 2019, 127, 204–209. [Google Scholar] [CrossRef] [PubMed]
  4. Zhong, L.Y.; Zhao, G.; Zhao, J.L. Reaearch progress on buckwheat flavonoids and their biosynthesis and regulation. Guihaia 2020, 5, 1–18. (In Chinese) [Google Scholar]
  5. Liu, X.Y.; Yang, B.B.; Wang, C.H. The mechanism and research progress of buckwheat in the prevention and treatment of diabetes mellitus. Chin. Med. Mod. Distance Educ. China 2020, 18, 136–138. (In Chinese) [Google Scholar]
  6. Briatia, X.; Chang, K.J.; Ahn, C.H.; Lim, Y.S.; Kim, Y.B.; Park, S.U.; Park, B.J.; Sung, I.J.; Park, C.H. Effect of temperature, deep sea water and seed quality on growth of buckwheat sprouts. Korean J. Plant Res. 2011, 24, 724–728. [Google Scholar] [CrossRef]
  7. Briatia, X.; Jomduang, S.; Park, C.H.; Lumyong, S.; Kanpiengjai, A.; Khanongnuch, C. Enhancing growth of buckwheat sprouts and microgreens by endophytic bacterium inoculation. Int. J. Agric. Biol. 2017, 19, 373–380. [Google Scholar] [CrossRef]
  8. Kim, S.L.; Son, Y.K.; Hwang, J.J.; Kim, S.K.; Hur, H.S.; Park, C.H. Development and utilization of buckwheat sprouts as functional vegetables. Fagopyrum 2001, 18, 49–54. [Google Scholar]
  9. Kim, S.L.; Kim, S.K.; Park, C.H. Introduction and nutritional evaluation of buckwheat sprouts as a new vegetable. Food Res. Int. 2004, 37, 319–327. [Google Scholar] [CrossRef]
  10. Paulina, Š.; Dalia, U.; Aistė, B.; Pranas, V.; Jonas, V. Optimization of the Multienzyme-Assisted Extraction Procedure of Bioactive Compounds Extracts from Common Buckwheat (Fagopyrum esculentum M.) and Evaluation of Obtained Extracts. Plants 2021, 10, 2567. [Google Scholar] [CrossRef]
  11. Li, H.Y.; Lv, Q.Y.; Liu, A.; Wang, J.; Sun, X.; Deng, J.; Chen, Q.F.; Wu, Q. Comparative metabolomics study of Tartary (Fagopyrum tataricum (L.) Gaertn) and common (Fagopyrum esculentum Moench) buckwheat seeds. Food Chem. 2022, 371, 131125. [Google Scholar] [CrossRef] [PubMed]
  12. Liang, Z.Q. Two new species of Paecilomyces from insects. Acta. Microbiol. Sin. 1981, 21, 31–34. (In Chinese) [Google Scholar]
  13. Montes-Bazurto, L.G.; Bustillo-Pardey, A.E.; Medina-Cárdenas, H.C. Cordyceps cateniannulata, a novel entomopathogenic fungus to control Stenoma impressella Busck (Lepidoptera: Elachistidae) in Colombia. J. Appl. Entomol. 2020, 144, 788–796. [Google Scholar] [CrossRef]
  14. Zhou, Y.M.; Xie, W.; Ye, J.Q.; Zhang, T.; Li, D.Y.; Zhi, J.R.; Zou, X. New potential strains for controlling Spodoptera frugiperda in China: Cordyceps cateniannulata and Metarhizium rileyi. BioControl 2020, 65, 663–672. [Google Scholar] [CrossRef]
  15. Zhang, X.N.; Guo, J.J.; Zou, X.; Jin, D.C. Pathogenic differences of the entomopathogenic fungus Isaria cateniannulata to the spider mite Tetranychus urticae (Trombidiformes: Tetranychidae) and its predator Euseius nicholsi (Mesostigmata: Phytoseiidae). Exp. Appl. Acarol. 2018, 75, 69–84. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Zhang, X.N.; Jin, D.C.; Zou, X.; Guo, J.J. Screening for entomogenous fungi strain with high toxicity to Tetranychus urticae. Guizhou Agric. Sci. 2013, 41, 98–100. (In Chinese) [Google Scholar]
  17. Zhang, X.N.; Jin, D.C.; Zou, X.; Guo, J.J. Laboratory and field evaluation of an entomopathogenic fungus, Isaria cateniannulata strain 08XS-1, against Tetranychus urticae (Koch). Pest Manag. Sci. 2016, 72, 1059–1066. [Google Scholar] [CrossRef] [Green Version]
  18. Zhang, X.N.; Jin, D.C.; Zou, X.; Guo, J.J.; Qu, J.J. Screening of highly virulent strain of Isaria cateniannulata against Tetranychus urticae and its effect to Euseius nicholsi. J. Environ. Entomol. 2014, 36, 372–380. (In Chinese) [Google Scholar]
  19. He, J.; Kang, J.C.; Lei, B.X.; Liu, X.Y.; Wen, T.C. Identification of four entomogenous fungi and preliminary evaluation on their insecticidal activities to Plutella xylastellal. Acta. Phytophyl. Sci. 2010, 37, 341–346. (In Chinese) [Google Scholar]
  20. Li, F.B.; Wang, C.Y.; Yao, J.F.; Fang, L.J. Biological control of Cenopalpus lineola in Mountain Huangshan Scenic Spot by Paecilomyces cateniannulatus. J. Northeast For. Univ. 2011, 37, 77–78. (In Chinese) [Google Scholar]
  21. Wang, D.; Li, L.; Wu, G.; Vasseur, L.; Yang, G.; Huang, P. De novo transcriptome sequencing of Isaria cateniannulata and comparative analysis of gene expression in response to heat and cold stresses. PLoS ONE 2017, 12, e0186040. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Xu, S.H. Effects of Isaria Cateniannulata Colonization on Growth and Rhizosphere Microbial Diversity of Tobacco; Guizhou University: Guizhou, China, 2021. [Google Scholar]
  23. Peng, X.; Wu, Y.; Zhang, X.N.; Chen, W.H.; Zhu, L.W.; Chen, Q.F.; Deng, J. Screening of high germination rate strains of entomopathogenic fungi against buckwheat seeds. J. Shandong Agri. Univ. 2022, 53, 393–400. (Natural Science Edition) (In Chinese) [Google Scholar]
  24. Guan, J.Q.; Xu, Z.S.; Liu, J.; Gou, J.Y.; Zou, X. Effect of Cordyceps cateniannulata on the growth and antioxidant enzyme activity of Solanum lycopersicum. Acta. Microbio. Sinica. 2022, 62, 1119–1130. (In Chinese) [Google Scholar]
  25. Jones, K.H.; Senft, J.A. An improved method to determine cell viability by simultaneous staining with fluorescein diacetate-propidium iodide. J. Histochem. Cytochem. 1985, 33, 77–79. [Google Scholar] [CrossRef] [Green Version]
  26. Charnley, A.K.; Leger, R.J.S. The role of cuticle-degrading enzymes in fungal pathogenesis in insects. In Fungal Spore Disease Initiation in Plants and Animals; Cole, E.T., Hoch, H.C., Eds.; Springer: Boston, MA, USA, 1991; pp. 267–287. [Google Scholar]
  27. Vega, F.E. Insect pathology and fungal endophytes. J. Invertebr. Pathol. 2008, 98, 277–279. [Google Scholar] [CrossRef] [PubMed]
  28. Wu, Y. Effects of Cordyceps Cateniannulata on Enzyme Activity and Genes of Tetranychus Urticae. Master Dissertation, Guizhou Normal University, Guizhou, China, 2022. [Google Scholar]
  29. Lu, Y.; Zhang, H.; Liu, Y.; Ji, Q.; Xie, J.; Zhang, R.; Huang, L.; Mei, K.; Wang, J.; Gao, W. Engineering of triterpene metabolism and overexpression of the lignin biosynthesis gene PAL promotes ginsenoside Rg-3 accumulation in ginseng plant chassis. J. Integr. Plant Biol. 2022, 64, 1739–1754. [Google Scholar] [CrossRef]
  30. He, X.; Lei, J.; Guan, W. Comparison of enzyme properties of soluble and membrane-bound polyphenol oxidase from Agaricus bisporus. Food Sci. 2022, 1–15. Available online: https://kns.cnki.net/kcms/detail/11.2206.ts.20220729.0940.028.html (accessed on 1 October 2022). (In Chinese).
  31. Stone, L.B.L.; Bidochka, M.J. The multifunctional lifestyles of Metarhizium: Evolution and applications. Appl. Microbiol. Biotechnol. 2020, 104, 9935–9945. [Google Scholar] [CrossRef] [PubMed]
  32. Fei, H.Q. The Cononization of Beauveria Bassiana in Corn-Seedling and Colonization Effect on Protective Enzyme of Ostrinia Furnacalis. Master’s Thesis, Ji Lin Agriculture University, Changchun, China, 2016. (In Chinese). [Google Scholar]
  33. Kuzhuppillymyal-Prabhakarankutty, L.; Tamez-Guerra, P.; Gomez-Flores, R.; Rodriguez-Padilla, M.C.; Ek-Ramos, M.J. Endophytic Beauveria bassiana promotes drought tolerance and early flowering in corn. World J. Microbiol. Biotechnol. 2020, 36, 1–10. [Google Scholar] [CrossRef] [PubMed]
  34. Sui, L.; Xu, W.J.; Zhang, Z.S.; Yang, Z.; Wang, Z.H.; Du, Q.; Wang, Y.Z.; Chen, R.Z.; Li, Q.Y.; Lu, Y. Colonization of GFP-tagged Beauveria bassiana in Maize. Chin. J. Biol. Control 2018, 34, 848–857. [Google Scholar] [CrossRef]
  35. Sui, L.; Lu, Y.; Zhu, H.; Wan, T.; Li, Q.; Zhang, Z. Endophytic blastospores of Beauveria bassiana provide high resistance against plant disease caused by Botrytis cinerea. Fungal Biol. 2022, 126, 528–533. [Google Scholar] [CrossRef] [PubMed]
  36. Gupta, R.; Keppanan, R.; Leibman-Markus, M.; Rav-David, D.; Elad, Y.; Ment, D.; Bar, M. The entomopathogenic fungi Metarhizium brunneum and Beauveria bassiana promote systemic immunity and confer resistance to a broad range of pests and pathogens in tomato. Phytopathology® 2022, 112, 784–793. [Google Scholar] [CrossRef] [PubMed]
  37. Ramos-Aguila, L.C.; Akutse, K.S.; Bamisile, B.S.; Sánchez-Moreano, J.P.; Ashraf, H.J.; Zhou, C.; Wang, L. Endophytically colonized Citrus limon seedlings by Beauveria bassiana hampered development, reproduction and progeny fitness of Diaphorina citri. J. Appl. Entomol. 2022, 146, 229–242. [Google Scholar] [CrossRef]
  38. Akutse, K.S.; Maniania, N.K.; Fiaboe, K.K.; Van-den, B.J.; Ekesi, S. Endophytic colonization of Vicia faba and Phaseolus vulgaris (Fabaceae) by fungal pathogens and their effects on the life-history parameters of Liriomyza huidobrensis (Diptera: Agromyzidae). Fungal Ecol. 2013, 6, 293–301. [Google Scholar] [CrossRef]
  39. Batta, Y.A. Efficacy of endophytic and applied Metarhizium anisopliae (Metch.) Sorokin (Ascomycota: Hypocreales) against larvae of Plutella xylostella L.(Yponomeutidae: Lepidoptera) infesting Brassica napus plants. Crop Prot. 2013, 44, 128–134. [Google Scholar] [CrossRef]
  40. Razinger, J.; Lutz, M.; Schroers, H.J.; Palmisano, M.; Wohler, C.; Urek, G.; Grunder, J. Direct plantlet inoculation with soil or insect-associated fungi may control cabbage root fly maggots. J. Invertebr. Pathol. 2014, 120, 59–66. [Google Scholar] [CrossRef]
  41. Greenfield, M.; Gómez-Jiménez, M.I.; Ortiz, V.; Vega, F.E.; Kramer, M.; Parsa, S. Beauveria bassiana and Metarhizium anisopliae endophytically colonize cassava roots following soil drench inoculation. Biol. Control 2016, 95, 40–48. [Google Scholar] [CrossRef] [Green Version]
  42. Kwasna, H.; Szewczyk, W. Effects of fungi isolated from Quercus robur roots on growth of oak seedlings. Dendrobiology 2016, 75, 99–112. [Google Scholar] [CrossRef] [Green Version]
  43. Dash, C.K.; Bamisile, B.S.; Keppanan, R.; Qasim, M.; Lin, Y.; Islam, S.U.; Hussain, M.; Wang, L. Endophytic entomopathogenic fungi enhance the growth of Phaseolus vulgaris L. (Fabaceae) and negatively affect the development and reproduction of Tetranychus urticae Koch (Acari: Tetranychidae). Microb. Pathog. 2018, 125, 385–392. [Google Scholar] [CrossRef]
  44. Golo, P.S.; Gardner, D.R.; Grilley, M.M.; Takemoto, J.Y.; Krasnoff, S.B.; Pires, M.S.; Fernandes, É.K.K.; Bittencourt, V.R.E.P.; Roberts, D.W. Production of destruxins from Metarhizium spp. fungi in artificial medium and in endophytically colonized cowpea plants. PLoS ONE 2014, 9, e0104946. [Google Scholar] [CrossRef]
  45. Mantzoukas, S.; Chondrogiannis, C.; Grammatikopoulos, G. Effects of three endophytic entomopathogens on sweet sorghum and on the larvae of the stalk borer Sesamia nonagrioides. Entomol. Exp. Appl. 2015, 154, 78–87. [Google Scholar] [CrossRef]
  46. Lopez, D.C.; Sword, G.A. The endophytic fungal entomopathogens Beauveria bassiana and Purpureocillium lilacinum enhance the growth of cultivated cotton (Gossypium hirsutum) and negatively affect survival of the cotton bollworm (Helicoverpa zea). Biol. Control 2015, 89, 53–60. [Google Scholar] [CrossRef]
  47. Lopez, D.C.; Zhu-Salzman, K.; Ek-Ramos, M.J.; Sword, G.A. The entomopathogenic fungal endophytes Purpureocillium lilacinum (formerly Paecilomyces lilacinus) and Beauveria bassiana negatively affect cotton aphid reproduction under both greenhouse and field conditions. PLoS ONE 2014, 9, e0103891. [Google Scholar] [CrossRef] [Green Version]
  48. Elena, G.J.; Beatriz, P.J.; Alejandro, P.; Lecuona, R.E. Metarhizium anisopliae (Metschnikoff) Sorokin promotes growth and has endophytic activity in tomato plants. Adv. Biol. Res. 2011, 5, 22–27. [Google Scholar]
  49. González-Pérez, E.; Ortega-Amaro, M.A.; Bautista, E.; Delgado-Sánchez, P.; Jiménez-Bremont, J.F. The entomopathogenic fungus Metarhizium anisopliae enhances Arabidopsis, tomato, and maize plant growth. Plant Physiol. Biochem. 2022, 176, 34–43. [Google Scholar] [CrossRef]
  50. Liu, S.F. Endophytism and Growth-Promoting of Metarhizium Anisopliae During Peanut Development. Master’s Thesis, Chinese Academy of Agricultural Sciences, Beijing, China, 2015. (In Chinese). [Google Scholar]
  51. Bamisile, B.S.; Senyo-Akutse, K.; Dash, C.K.; Qasim, M.; Ramos-Aguila, L.C.; Ashraf, H.J.; Huang, W.; Hussain, M.; Chen, S.; Wang, L. Effects of seedling age on colonization patterns of Citrus limon plants by endophytic Beauveria bassiana and Metarhizium anisopliae and their influence on seedlings growth. J. Fungi. 2020, 6, 29. [Google Scholar] [CrossRef] [Green Version]
  52. Jaber, L.R.; Enkerli, J. Effect of seed treatment duration on growth and colonization of Vicia faba by endophytic Beauveria bassiana and Metarhizium brunneum. Biol. Control 2016, 103, 187–195. [Google Scholar] [CrossRef]
  53. Macuphe, N. Evaluating the Endophytic Activities of Beauveria bassiana on the Physiology, Growth, and Antioxidant Activities of Extracts of Lettuce (Lactuca sativa L.). Plants 2021, 10, 1178. [Google Scholar] [CrossRef]
  54. Juliet, A.; Thomas, D.; Gold, C.S.; Daniel, C. Beauveria bassiana (Balsamo) Vuillemin as an endophyte in tissue culture banana (Musa spp.). J. Invertebr. Pathol. 2007, 96, 34–42. [Google Scholar] [CrossRef]
  55. Cui, Y.H.; Bai, Y.; Cao, N.; Liu, Y.H.; Ghulam, A.; Wang, B. Effects of Beauveria bassiana inoculated with different methods on maize as growth promoter. Chin. J. Trop. Crops 2017, 38, 206–212. (In Chinese) [Google Scholar]
  56. Gomezvidal, S.; Lopezllorca, L.V.; Jansson, H.; Salinas, J. Endophytic colonization of date palm (Phoenix dactylifera L.) leaves by entomopathogenic fungi. Micron 2006, 37, 624–632. [Google Scholar] [CrossRef] [PubMed]
  57. Lu, Y.; Xu, W.J.; Sui, L.; Wang, Y.Z.; Zhang, Z.K.; Li, Q.Y. Beauveria bassiana: Endophytic colonization and applications in plant protection. J. North Agric. Sci. 2016, 41, 73–77. (In Chinese) [Google Scholar]
  58. Strobel, G.; Stierle, A.; Stierle, D.; Hess, W.M. Taxomyces andreanae, a proposed new taxon for a bulbilliferous hyphomycete associated with Pacific yew (Taxus brevifolia). Mycotaxon 1993, 47, 71–80. [Google Scholar]
  59. Terna, T.P.; Mohamed Nor, N.M.I.; Zakaria, L. Histopathology of Corn Plants Infected by Endophytic Fungi. Biology 2022, 11, 641. [Google Scholar] [CrossRef]
  60. Hinton, D.M.; Bacon, C.W. The distribution and ultrastructure of the endophyte of toxic tall fescue. Can. J. Bot. 1985, 63, 36–42. [Google Scholar] [CrossRef]
  61. Kuldau, G.A.; Yates, I.E. Evidence for Fusarium endophytes in cultivated and wild plants. In Microbial Endophytes; Woodhead Publishing: New York, NY, USA, 2000; pp. 85–117. [Google Scholar]
  62. García, A.; Rhoden, S.A.; Rubin Filho, C.J.; Nakamura, C.V.; Pamphile, J.A. Diversity of foliar endophytic fungi from the medicinal plant Sapindus saponaria L. and their localization by scanning electron microscopy. Biol. Res. 2012, 45, 139–148. [Google Scholar] [CrossRef] [Green Version]
  63. Istikorini, Y.; Sari, O.Y. Identification of Endophytic Fungi of Balangeran (Shorea balangeran Korth.) by Morphological Characterization. J. Sylva Lestari 2022, 10, 211–222. [Google Scholar] [CrossRef]
  64. Sunarti, S.; Ginting, C.N.; Ginting, S.F. Isolation and molecular identification of endophytic mold schizophillum commune in red Dahlia (Dahlia sp. L) tuber as producing inulinases. Maced. J. Med. Sci. 2022, 10, 49–55. [Google Scholar] [CrossRef]
  65. Li, X.H. Studies on Endophytic Character of Beauveria Bassiana and Its Ecological Control on Ostrinia Furnacalis. Master’s Thesis, Harbin Normal University, Harbin, China, 2015. (In Chinese). [Google Scholar]
  66. Tefera, T.; Vidal, S. Effect of inoculation method and plant growth medium on endophytic colonization of sorghum by the entomopathogenic fungus Beauveria bassiana. BioControl 2009, 54, 663–669. [Google Scholar] [CrossRef] [Green Version]
  67. Griffin, M.R. Beauveria Bassiana, A Cotton Endophyte with Biocontrol Activity Against Seedling Disease. Doctoral Dissertation, The University of Tennessee, Knoxville, TN, USA, 2007. [Google Scholar]
  68. Wakil, W.; Tahir, M.; Al-Sadi, A.M.; Shapiro-Ilan, D. Interactions between two invertebrate pathogens: An endophytic fungus and an externally applied bacterium. Front. Microbiol. 2020, 2624, 1–13. [Google Scholar] [CrossRef]
  69. Qayyum, M.A.; Wakil, W.; Arif, M.J.; Sahi, S.T.; Dunlap, C.A. Infection of Helicoverpa armigera by endophytic Beauveria bassiana colonizing tomato plants. Biol. Control 2015, 90, 200–207. [Google Scholar] [CrossRef]
  70. Powell, W.A.; Klingeman, W.E.; Ownley, B.H.; Gwinn, K.D.; Dee, M.; Flanagan, P.C. Endophytic Beauveria bassiana in tomatoes yields mycosis in tomato fruitworm larvae. HortScience 2007, 42, 933. [Google Scholar]
  71. Yang, R. Soybean GmPAL Gene Family Enhance the Resistance of Soybean against Heterodera Glycines. Doctoral Dissertation, Shenyang Agricultural university, Shenyang, China, 2022. [Google Scholar]
  72. Canassa, F.; Tall, S.; Moral, R.A.; de Lara, I.A.; Delalibera Jr, I.; Meyling, N.V. Effects of bean seed treatment by the entomopathogenic fungi Metarhizium robertsii and Beauveria bassiana on plant growth, spider mite populations and behavior of predatory mites. Biol. Control 2019, 132, 199–208. [Google Scholar] [CrossRef]
Plants 12 00145 g001 550
Figure 1. I. cateinannulata submerged conidia colonization of buckwheat leaf as assessed via scanning electron microscopy. Note: (A) Control group, no attachment or submerged conidial colonization were observed during the study period. (B) Submerged conidia (diameter ≤ 2 µm) were attached to leaf surfaces after spraying. (C) Submerged conidia on leaf surfaces, at 0.5 h after inoculation, began to invade leaf tissues, with clear evidence of tissue dissolution surrounding spores, which were primarily at leaf veins and stomata. (D) A germ tube was oriented in place and had transferred its nucleus into the leaf. (E,F) At 1–2 h after inoculation, the dissolution area of leaf tissue surrounding submerged conidia increased significantly, and these conidia gradually deformed and shrunk. (G–J) At 2–4 h after inoculation, the dissolution area of tissue surrounding inoculated spores gradually decreased, and numbers of submerged conidia had fallen substantially. The majority of conidia had either entered into leaves or dissolved with pit-shaped dissolution circles at this time point. Leaf morphology was normal at 4–8 h after spraying, with no morphological differences between inoculated leaves and control leaves. (K,L) Leaf tissues after inoculation. Some conidia (diameter > 2 µm) did not enter the leaves and formed no visible dissolution circles, instead growing to yield tentacle-like structures affixed to the blade surface (1 L). arrows: the condition of the I. cateinannulata submerged conidia and the buckwheat leaf.
Figure 1. I. cateinannulata submerged conidia colonization of buckwheat leaf as assessed via scanning electron microscopy. Note: (A) Control group, no attachment or submerged conidial colonization were observed during the study period. (B) Submerged conidia (diameter ≤ 2 µm) were attached to leaf surfaces after spraying. (C) Submerged conidia on leaf surfaces, at 0.5 h after inoculation, began to invade leaf tissues, with clear evidence of tissue dissolution surrounding spores, which were primarily at leaf veins and stomata. (D) A germ tube was oriented in place and had transferred its nucleus into the leaf. (E,F) At 1–2 h after inoculation, the dissolution area of leaf tissue surrounding submerged conidia increased significantly, and these conidia gradually deformed and shrunk. (G–J) At 2–4 h after inoculation, the dissolution area of tissue surrounding inoculated spores gradually decreased, and numbers of submerged conidia had fallen substantially. The majority of conidia had either entered into leaves or dissolved with pit-shaped dissolution circles at this time point. Leaf morphology was normal at 4–8 h after spraying, with no morphological differences between inoculated leaves and control leaves. (K,L) Leaf tissues after inoculation. Some conidia (diameter > 2 µm) did not enter the leaves and formed no visible dissolution circles, instead growing to yield tentacle-like structures affixed to the blade surface (1 L). arrows: the condition of the I. cateinannulata submerged conidia and the buckwheat leaf.
Plants 12 00145 g001
Plants 12 00145 g002 550
Figure 2. The colonization of I. cateinannulata submerged conidia in buckwheat leaf as assessed via fluorescence microscopy. Note: (A) In control samples, no fluorescent aggregation was observed, consistent with an absence of submerged conidia colonization. (B–D) At 0.5 to 1 h after spraying, significant fluorescent signal was visible and distributed around veins and stomata. (E,F) At 2 to 8 h after spraying, the fluorescence intensity of veins and stomata decreased. (G–I) At 4 to 12 h after spraying, fluorescence was no longer visibly associated with veins or stomata, and the leaves presented a uniform color brighter than that of control leaves (I). Some bright spots were visible on the blade surface (G,H), which may correspond to small amounts of conidia attached to the blade surface. Scale bar: 1 mm.
Figure 2. The colonization of I. cateinannulata submerged conidia in buckwheat leaf as assessed via fluorescence microscopy. Note: (A) In control samples, no fluorescent aggregation was observed, consistent with an absence of submerged conidia colonization. (B–D) At 0.5 to 1 h after spraying, significant fluorescent signal was visible and distributed around veins and stomata. (E,F) At 2 to 8 h after spraying, the fluorescence intensity of veins and stomata decreased. (G–I) At 4 to 12 h after spraying, fluorescence was no longer visibly associated with veins or stomata, and the leaves presented a uniform color brighter than that of control leaves (I). Some bright spots were visible on the blade surface (G,H), which may correspond to small amounts of conidia attached to the blade surface. Scale bar: 1 mm.
Plants 12 00145 g002
Plants 12 00145 g003 550

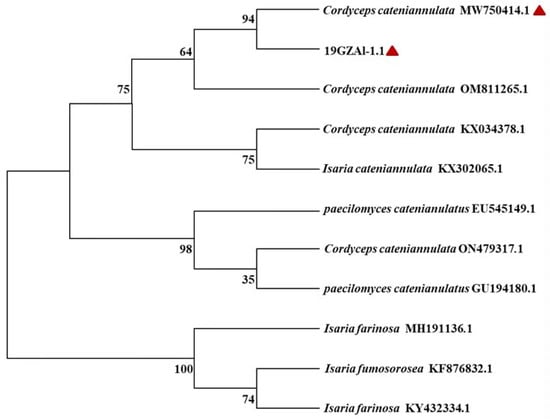

Figure 3. Phylogenetic analysis of the partial rDNA-ITS sequences of the endophytic isolated strain and related species (obtained from GenBank). Note: the two marked with red triangles were originally the same strain. 19GZAl-1.1 was the endophytic strain in this study; MW750414: the accession number of 19GZAl-1 Isaria cateniannula in GenBank submitted by the authors.
Figure 3. Phylogenetic analysis of the partial rDNA-ITS sequences of the endophytic isolated strain and related species (obtained from GenBank). Note: the two marked with red triangles were originally the same strain. 19GZAl-1.1 was the endophytic strain in this study; MW750414: the accession number of 19GZAl-1 Isaria cateniannula in GenBank submitted by the authors.
Plants 12 00145 g003
Plants 12 00145 g004 550

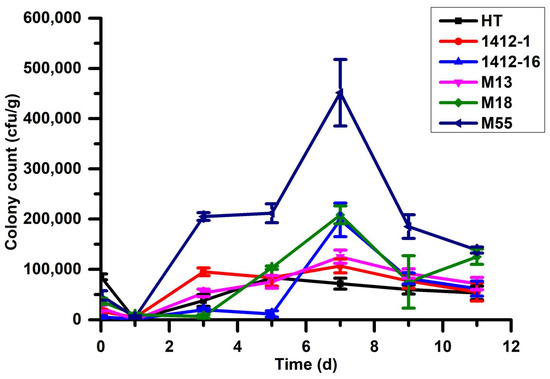

Figure 4. Population dynamics of I. cateinannulata on the leaf surfaces of six buckwheat cultivars (in CFUs/g).
Figure 4. Population dynamics of I. cateinannulata on the leaf surfaces of six buckwheat cultivars (in CFUs/g).
Plants 12 00145 g004
Plants 12 00145 g005 550
Figure 5. The impact of I. cateinannulata on defense enzyme activity in the leaves of two buckwheat varieties, F. tataricum No.M13 and 1412-16. Note: (a,f) Changes in SOD activity; (b,g): Changes in POD activity; (c,h) Changes in CAT activity; (d,i) Changes in PAL activity; (e,j) Changes in PPO activity; ck: the control group.
Figure 5. The impact of I. cateinannulata on defense enzyme activity in the leaves of two buckwheat varieties, F. tataricum No.M13 and 1412-16. Note: (a,f) Changes in SOD activity; (b,g): Changes in POD activity; (c,h) Changes in CAT activity; (d,i) Changes in PAL activity; (e,j) Changes in PPO activity; ck: the control group.
Plants 12 00145 g005
Plants 12 00145 g006 550
Figure 6. The impact of I. cateniannulata on the growth of two buckwheat varieties, F. tataricum No.M13 and F. esculentum 1412-16. at 10 d after foliar spraying. Note: significant differences between treatment group and control group were compared by one-way ANOVA. Significant differences at p < 0.05 were marked as single (*). The data were calculated using ten replicate assays. (a) main stem diameter; (b) plant height; (c) fresh weight; (d) leaf number; (e) surface area of leaf; (f) root length; (g) root volume; (h) average root diameter. ck: control group.
Figure 6. The impact of I. cateniannulata on the growth of two buckwheat varieties, F. tataricum No.M13 and F. esculentum 1412-16. at 10 d after foliar spraying. Note: significant differences between treatment group and control group were compared by one-way ANOVA. Significant differences at p < 0.05 were marked as single (*). The data were calculated using ten replicate assays. (a) main stem diameter; (b) plant height; (c) fresh weight; (d) leaf number; (e) surface area of leaf; (f) root length; (g) root volume; (h) average root diameter. ck: control group.
Plants 12 00145 g006
Table
Table 1. The impact of I. cateniannulata on the growth of different buckwheat cultivars at 10 d after foliar spraying.
Table 1. The impact of I. cateniannulata on the growth of different buckwheat cultivars at 10 d after foliar spraying.
CultivarsPlant Height (cm)Main Stem Diameter (mm)Fresh Weight (g)Leaf NumberSurface Area of Leaf (cm2)Root Length
(cm)		Root Surface Area (cm)Root Volume (cm3)Average Root Diameter (mm)
M13-s9.6400 ± 0.4561 *1.3700 ± 0.24210.7960 ± 0.0839 *5.20 ± 0.45 *52.7446 ± 0.7642 *3.3200 ± 0.8228 *0.6271 ± 0.2157 *0.0067 ± 0.0011 *0.5025 ± 0.0612 *
M13-d7.5200 ± 0.40871.1140 ± 0.13240.6900 ± 0.05794.00 ± 0.0048.0357 ± 0.71852.020 ± 0.72590.2464 ± 0.01710.0026 ± 0.00020.3400 ± 0.0876
M18-s13.2000 ± 0.5745 *1.7500 ± 0.27491.5480 ± 0.0817 *5.60 ± 0.89 *98.0285 ± 7.0741 *4.6000 ± 0.2449 *0.7382 ± 0.0989 *0.0043 ± 0.0001 *0.4848 ± 0.0728 *
M18-d11.5600 ± 1.09451.4140 ± 0.36201.3540 ± 0.02883.60 ± 0.5474.5337 ± 9.82544.3400 ± 0.08940.4018 ± 0.20030.0026 ± 0.00120.3730 ± 0.0325
M55-s10.5800 ± 1.0426 *1.5280 ± 0.27741.4160 ± 0.0709 *4.60 ± 0.89 *84.0771 ± 5.8239 *2.5200 ± 0.3898 *0.6229 ± 0.1683 *0.0066 ± 0.0025 *0.5662 ± 0.08581 *
M55-d9.6600 ± 0.37821.2800 ± 0.17561.2840 ± 0.07093.80 ± 0.4554.5186 ± 5.16922.1200 ± 0.26830.2198 ± 0.05310.0026 ± 0.00110.3238 ± 0.0347
HT-s30.1400 ± 4.34783.2040 ± 0.3325 *3.6140 ± 1.0313 *7.00 ± 0.71 *187.3840 ± 14.5548 *8.7800 ± 1.4772 *1.1236 ± 0.6708 *0.0163 ± 0.0022 *0.4456 ± 0.0884 *
HT-d27.2200 ± 3.47372.1640 ± 0.21541.9160 ± 0.48524.80 ± 0.84155.1280 ± 20.45644.3600 ± 0.18160.8348 ± 0.08470.0040 ± 0.00040.3812 ± 0.0522
1412-1-s15.8400 ± 2.44701.7700 ± 0.0906 *1.7560 ± 0.9965 *6.00 ± 1.22 *212.8579 ± 31.3140 *4.1800 ± 0.1923 *0.6979 ± 0.0583 *0.0131 ± 0.0037 *0.5895 ± 0.0604 *
1412-1-d11.0400 ± 1.04791.5320 ± 0.12231.4300 ± 0.12884.80 ± 0.84164.9717 ± 9.79313.3200 ± 0.17880.4290 ± 0.05810.0050 ± 0.00280.4583 ± 0.0275
1412-16-s19.2000 ± 1.09011.7200 ± 0.3843 *2.0000 ± 0.3221 *6.80 ± 0.86 *459.2300 ± 22.0052 *5.700 ± 0.4000 *0.7692 ± 0.0602 *0.0161 ± 0.0026 *0.6941 ± 0.1762 *
1412-16-d17.6000 ± 2.47491.0840 ± 0.42871.3660 ± 0.20175.20 ± 0.84347.5329 ± 25.08094.8600 ± 0.61070.4587 ± 0.26430.0070 ± 0.00230.5041 ± 0.0649
Note: Significant differences between the treatment group and the control group were compared by one-way ANOVA. Significant differences at p < 0.05 were marked as single (*). The data (mean ± SD) were calculated using ten replicate assays.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, X.; Peng, X.; Yang, G.; Chen, Q.; Jin, D. The Colonization and Effect of Isaria cateinannulata on Buckwheat Sprouts. Plants 2023, 12, 145. https://doi.org/10.3390/plants12010145

AMA Style

Zhang X, Peng X, Yang G, Chen Q, Jin D. The Colonization and Effect of Isaria cateinannulata on Buckwheat Sprouts. Plants. 2023; 12(1):145. https://doi.org/10.3390/plants12010145

Chicago/Turabian Style

Zhang, Xiaona, Xue Peng, Guimin Yang, Qingfu Chen, and Daochao Jin. 2023. "The Colonization and Effect of Isaria cateinannulata on Buckwheat Sprouts" Plants 12, no. 1: 145. https://doi.org/10.3390/plants12010145

APA Style

Zhang, X., Peng, X., Yang, G., Chen, Q., & Jin, D. (2023). The Colonization and Effect of Isaria cateinannulata on Buckwheat Sprouts. Plants, 12(1), 145. https://doi.org/10.3390/plants12010145

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
