Article

In Vitro Antimicrobial Activity of Nymphaea pubescens (Pink Water Lily) Leaf Extracts

by
Boontarika Thongdonphum
1,*,
Kittima Vanichkul
1,
Adun Bunchaleamchai
2 and
Pannapa Powthong
3
1
Faculty of Agricultural Technology, Rajamangala University of Technology Thanyaburi, Thanyaburi 12130, Thailand
2
Faculty of Medical Technology, Rangsit University, Mueang Pathum Thani 12000, Thailand
3
Faculty of Science, Rangsit University, Mueang Pathum Thani 12000, Thailand
*
Author to whom correspondence should be addressed.
Plants 2023, 12(20), 3588; https://doi.org/10.3390/plants12203588
Submission received: 15 August 2023 / Revised: 12 October 2023 / Accepted: 12 October 2023 / Published: 16 October 2023
(This article belongs to the Special Issue Antibacterial and Antioxidant Activities of Medicinal Plant Extracts)
Browse Figures
Review Reports Versions Notes

Abstract

:
This research comparatively investigates the in vitro antimicrobial activity of extracts from Nymphaea pubescens (pink water lily) leaves against pathogenic bacteria. The experimental extracts are aqueous, acetonic, and 95% ethanolic N. pubescens extracts; and the pathogenic bacteria being studied include Aeromonas hydrophila, Vibrio parahaemolyticus, Vibrio vulnificus, and Vibrio harveyi, which are commonly found in freshwater fish and brackish aquatic animals. The ethanolic N. pubescens extract achieves the highest bacterial inhibitory effects against V. parahaemolyticus and V. vulnificus. The minimum inhibitory concentrations of the ethanolic extract against A. hydrophila and V. harveyi are 10 mg/mL; and 2.5 mg/mL against V. parahaemolyticus and V. vulnificus. The ethanolic N. pubescens extract is effective against V. parahaemolyticus. The high-performance liquid chromatography results show that, in the phenolic acids group, gallic acid is the most dominant (0.600–3.21% w/w), followed by sinapic acid (0.37–0.83% w/w). In the flavonoids group, catechin is the most dominant (0.02–1.08% w/w), followed by rutin (0.002–0.03% w/w). Essentially, the ethanolic N. pubescens extract can potentially be used as a natural antibiotic agent to treat bacterial infections in fish and aquatic animals.

1. Introduction

Antimicrobial residues and contaminants in aquatic ecosystems are closely linked to the misuse and overuse of antimicrobials to treat infectious diseases in aquatic animals [1]. In addition to being harmful to humans and the environment, antimicrobial residues can cause antimicrobial resistance in microbes. Specifically, antimicrobial resistance occurs when microbes evolve mechanisms that protect them from the effects of antimicrobials [2].
Antimicrobials are medicines used to prevent and treat infections in humans, animals, and plants. They include antibiotics, antivirals, antifungals, and antiparasitics. Of particular interest are antibiotics which are widely used in the prevention and treatment of bacterial infections. In Thailand, the use of antibiotics in animal husbandry and aquaculture has been projected to increase by 67%, or from 63,000 tons in 2010 to 106,000 tons in 2030 [3]. The overuse of antibiotics, however, contributes to the prevalence of antibiotic-resistant bacteria or superbugs [4], which in turn are the primary sources of mobile genetic elements of fish pathogens [5].
The literature contained studies on the antimicrobial properties of plant extracts belonging to the family Nymphaeaceae [4,6,7]. Nymphaea (water lily) is a genus of hardy and tender aquatic plants in the family Nymphaeaceae. Water lilies are medicinal plants with a wide range of therapeutic effects, including aphrodisiac, anodynic, astringent, cardiotonic, sedative, analgesic, and anti-inflammatory properties [6]. The plants in the genus Nymphaea have traditionally been used to treat infections and diseases [8]. A comprehensive review of more than one hundred scientific studies was conducted and the findings showed that the content of phenolics and flavonoids of the Nymphaea medicinal plants varied, depending on the plant parts, e.g., flowers, leaves, stems, roots, and rhizomes [9].
Nymphaea pubescens (pink water lilies) have traditionally been used to treat a wide range of illnesses. N. pubescens is rich in phytochemicals, including flavonoids, alkaloids, phenolic acids, terpenoids, anthraquinones, saponins, and tannins [7]. Alkaloids have bacterial inhibitory effects against infectious diseases, while phenolic acids and tannins have bacterial inhibitory effects against pathogenic microorganisms. Phenolic acids possess antimicrobial, anti-inflammatory, and anti-cancer properties [10].
The pathogenic bacteria commonly found in freshwater fish and brackish aquatic animals include Aeromonas hydrophila, Vibrio parahaemolyticus, Vibrio vulnificus, and Vibrio harveyi. The genera Aeromonas and Vibrio are the causative agents of bacterial infections in freshwater fish and brackish aquatic animals. Specifically, A. hydrophila is the main causative agent of infectious diseases in freshwater fish [11]. This bacterial species causes fin or basal hemorrhage, skin and gill lesions, abdominal distension, cutaneous necrotic ulceration, and erosion of infected fish’s fins and orbicularis [12,13,14].
V. parahaemolyticus causes acute hepatopancreatic necrosis disease (AHPND) in Penaeus vannamei shrimps (whiteleg shrimps). The shrimp infected with AHPND exhibits lethargy, anorexia, slow growth, an empty digestive tract, and a pale-to-white hepatopancreas [15]. V. parahaemolyticus is a leading cause of gastrointestinal illness in humans if ingested [16]. V. vulnificus is commonly found in marine environments such as estuaries, brackish ponds, or coastal areas. This bacterial species is one of the causative agents of white feces disease (WFD) in Pacific white shrimp (Litopenaeus vannamei) [17]. WFD is a disease that attacks the shrimp’s digestive system. V. harveyi causes eye lesions/blindness, gastro-enteritis, muscle necrosis, skin ulcers, and tail rot disease in marine fish. This bacterial species is also the etiological agent of luminous vibriosis in shrimps [18].
The emergence of antibiotic-resistant bacteria in aquaculture due to excessive use of antibiotics necessitates the development of more potent synthetic (chemically based) antibiotics to control the spread of the superbugs. However, more potent antibiotics are more harmful to human and aquatic animal health and the environment. As a result, this research proposes, as an alternative to synthetic antibiotics, plant-based extracts with bacterial inhibitory effects. Unlike the chemically based antibiotics, the plant-derived extracts are more environmentally friendly and safer for human and aquatic animal health. Furthermore, the plant-based extracts are less likely to cause antibiotic resistance in bacteria.
Specifically, this research experimentally extracts Nymphaea pubescens (pink water lily) leaves using distilled water (aqueous), acetone, and 95% ethanol. The in vitro antimicrobial activity of the extracts against the pathogenic bacteria commonly found in freshwater fish and brackish aquatic animals are subsequently investigated. The pathogenic bacteria being studied include A. hydrophila, V. parahaemolyticus, V. vulnificus, and V. harveyi. The antimicrobial activity of the aqueous, acetonic and ethanolic extracts of N. pubescens leaves are determined in terms of the minimum inhibitory concentration and the minimum bactericidal concentration. Moreover, high-performance liquid chromatography is used to identify and quantify the phenolic and flavonoid compounds in the N. pubescens extracts. Essentially, this research is the first to experimentally extract phytochemical compounds from N. pubescens leaves, and the first to study the antimicrobial activity of the extracts against the pathogenic bacteria commonly found in freshwater fish and brackish aquatic animals.

2. Experimental Results and Discussion

Table 1 tabulates the screening results of the phytochemicals in the N. pubescens extracts. The aqueous extract of N. pubescens leaves contained flavonoids, alkaloids, phenolic acids, terpenoids, anthraquinones, saponins, and tannins. The phytochemicals present in the acetonic extract were alkaloids, phenolic acids, and tannins, while the ethanolic extract of N. pubescens leaves contained flavonoids, alkaloids, phenolic acids, and tannins.
The preliminary screening results showed that the N. pubescens leaves contained several major groups of phytochemicals, including flavonoids, alkaloids, phenolic acids, terpenoids, anthraquinones, saponins, and tannins. This is consistent with [19], who reported the presence of alkaloids, phenolic acids, and tannins in water lilies. Alkaloids are effective against infectious diseases, while phenolic acids and tannins have bacterial inhibitory effects against pathogenic microorganisms. Phenolic acids also possess antimicrobial, anti-inflammatory, and anti-cancer properties [10]. Alkaloids, flavonoids, and saponins in the ethanolic and acetonic extracts possess antibacterial properties and antioxidant capacity [20]. Meanwhile, the content of phenolics and flavonoids of the Nymphaea medicinal plants varied widely, depending on the plant parts, e.g., flowers, leaves, stems, roots, and rhizomes [9].
Table 2 compares the inhibition zone (in vitro antimicrobial activity) of the N. pubescens leaf extracts at 10 mg/mL concentration, 10% DMSO, and oxytetracycline (100 µg/mL) against A. hydrophila, V. parahaemolyticus, V. vulnificus, and V. harveyi. The aqueous extract failed to inhibit the pathogenic bacteria, while the acetonic and ethanolic extracts exhibited the inhibitory effects against V. parahaemolyticus and V. vulnificus. The experiments showed that the ethanolic N. pubescens extract achieved the highest bacterial inhibitory effects against V. parahaemolyticus and V. vulnificus, as evidenced by the largest inhibition zones (14.7 ± 0.6 mm for V. parahaemolyticus, and 12.7 ± 0.6 mm for V. vulnificus).
In Table 2, the results showed that 10% DMSO failed to inhibit the bacteria. Although oxytetracycline was more effective in inhibiting the pathogenic bacteria than the acetonic and ethanolic extracts, the N. pubescens leaf extracts are more environmentally friendly and less harmful to human and aquatic animal health [2]. Moreover, the N. pubescens extracts are also less likely to cause antibiotic resistance in bacteria [8]. Figure 1a–d shows the inhibition zone of the N. pubescens leaf extracts (10 mg/mL), 10% DMSO, and oxytetracycline against the experimental pathogenic bacteria.
Table 3 presents the MIC of the N. pubescens extracts against the experimental pathogenic bacteria. The results showed that the inhibitory effects of the aqueous, acetonic, and ethanolic extracts against A. hydrophila and V. harveyi were identical, as indicated by the MIC of 10 mg/mL. The ethanolic N. pubescens extract was effective in inhibiting the growth of V. parahaemolyticus and V. vulnificus, as evidenced by the lowest MIC (2.5 mg/mL), followed by the acetonic extract with the MIC of 5 mg/mL. Meanwhile, the aqueous extract is less effective in inhibiting the growth of the pathogenic bacteria (MIC = 10 mg/mL).
Table 4 presents the MBC of the N. pubescens extracts against the experimental pathogenic bacteria. The results showed that the ethanolic N. pubescens extract was very effective in killing the bacterial species V. parahaemolyticus, as evidenced by the lowest MBC of 2.5 mg/mL. However, the ethanolic extract was not effective in eliminating A. hydrophila, V. vulnificus, and V. harveyi, as indicated by MBC ≥ 10 mg/mL. Similarly, the aqueous and acetonic N. pubescens extracts were not effective in destroying the pathogenic bacteria, with MBC ≥ 10 mg/mL.
Table 5 tabulates the HPLC results of the aqueous, acetonic, and ethanolic extracts of N. pubescens leaves, consisting of six phenolic acids (i.e., caffeic acid, gallic acid, ferulic acid, p-coumaric acid, sinapic acid, and syringic acid) and six flavonoids (apigenin, catechin, kaempferol, myricetin, quercetin, and rutin).
In the phenolic acids group, gallic acid in the aqueous extract was highest (3.21% w/w), followed by the ethanolic extract (3.08% w/w) and the acetonic extract (0.6% w/w). Meanwhile, sinapic acid in the ethanolic extract was highest (0.83% w/w), followed by the aqueous extract (0.54% w/w) and the acetonic extract (0.37% w/w). The HPLC chromatograms showed that the N. pubescens extracts contained phenolic acids of variable quantities, depending on the extraction solvents. The phenolic acids present in the N. pubescens extracts included caffeic acid, gallic acid, p-coumaric acid, sinapic acid, and syringic acid.
The flavonoids present in the N. pubescens extracts were catechin and rutin, with varying quantities depending on the extraction solvents. In the flavonoids group, the ethanolic extract of N. pubescens leaves had the highest content of catechin (1.08% w/w), followed by the aqueous extract (0.17% w/w) and the acetonic extract (0.02% w/w). Similarly, the ethanolic extract had the highest content of rutin (0.03% w/w), followed by the aqueous extract (0.01% w/w) and the acetonic extract (0.002% w/w). Non-toxic and biodegradable ethanol is efficient in extracting phytochemicals from plants due to their polarity [21]. Figure 2a–d shows the HPLC chromatograms of the stock solutions, aqueous extract, acetonic extract, and ethanolic extract of N. pubescens leaves, respectively.
Specifically, in the phenolic acids group, gallic acid was the most dominant (0.600–3.21% w/w), followed by synapic acid (0.37–0.83% w/w). In the flavonoids group, catechin was the most dominant (0.02–1.08% w/w), followed by rutin (0.002–0.03% w/w) (Table 5). Gallic acid possesses remarkable antioxidant properties [10]. The ethanolic extract of N. nouchali seeds contained 0.27% w/w of gallic acid [4]. The ethanolic N. nouchali extract exhibited the inhibitory effects against negative bacteria, positive bacteria, and pathogens. Sinapic acid is present in fruits, vegetables, seed oils, herbs, and particularly abundant in the Cruciferae family. Sinapic acid is widely recognized for its antimicrobial, anti-inflammatory, anti-cancer, and antioxidant properties [22].
Caffeic acid is a hydroxycinnamic acid compound commonly found in wines [23]. Caffeic acid possesses antioxidant properties that enhance immunity, regulate blood lipid levels, and counteract the effects of mutagens. This acid is also found in various fruits, vegetables, and herbs [10]. The N. lotus flower extract exhibited minimal toxicity despite administering the extract over an extended period of time and in excessive quantities [24,25]. Due to the minimal toxicity, the plant-derived extracts are more environmentally friendly and safer to human and aquatic animal health. Furthermore, the plant extracts are less likely to cause antibiotic resistance in bacteria.
The N. pubescens extracts (i.e., aqueous, acetone, and 95% ethanol) contain the major phytochemical groups with bacterial inhibitory effects, including flavonoids, alkaloids, phenolic acids, terpenoids, anthraquinones, saponins, and tannins. The in vitro antimicrobial assay showed that the N. pubescens extracts, particularly the ethanolic N. pubescens extract, are effective in inhibiting the growth of A. hydrophila, V. parahaemolyticus, V. vulnificus, and V. harveyi, which are the pathogenic bacteria commonly found in freshwater and brackish aquatic animals. Specifically, the ethanolic N. pubescens extract is effective in inhibiting the growth of V. parahaemolyticus and V. vulnificus (MIC = 2.5 mg/mL). The ethanolic N. pubescens extract is also effective in eliminating the bacterial species V. parahaemolyticus (MBC = 2.5 mg/mL). By comparison, oxytetracycline (i.e., positive control) is more effective in inhibiting the pathogenic bacteria than the N. pubescens extracts. The N. pubescens leaf extracts are nonetheless less harmful to human and aquatic animal health and are less likely to cause antibiotic resistance in bacteria.

3. Materials and Methods

3.1. Experimental Plant

The fresh leaves were first thoroughly rinsed with water and oven-dried (Forced Convection Oven-FD115, Binder, Tuttlingen, Germany) at 60 °C for 48 h [26]. The dried N. pubescens leaves were ground into powder for subsequent extraction. The authenticity of fresh N. pubescens leaves was verified by the Lotus Museum of the Rajamangala University of Technology Thanyaburi.

3.2. Preparation of Plant Extracts

In the extraction, the dried N. pubescens powder was separately soaked in distilled water (aqueous), acetone, and 95% ethanol. Specifically, 30 g of powdered N. pubescens was soaked in 600 mL solvents (i.e., distilled water, acetone, and 95% ethanol) at 30 °C for 48 h on an orbital shaker. The mixture was filtered using Whatman No. 1 filter paper (Whatman, Buckinghamshire, UK), and the filtrate was concentrated using a rotary evaporator (HED-1560-01300-00, Heidolph, Schwabach, Germany) at 50 °C.

3.3. Experimental Pathogenic Bacteria

The experimental pathogenic bacteria included A. hydrophila, V. parahaemolyticus, V. vulnificus, and V. harveyi, which are four pathogenic bacteria commonly found in freshwater fish and brackish aquatic animals. A. hydrophila is a heterotrophic, Gram-negative, rod-shaped bacterium mainly found in freshwater fish, while Vibrio parahaemolyticus, V. vulnificus, and V. harveyi are curved, rod-shaped, Gram-negative bacteria found in brackish aquatic animals, such as whiteleg shrimp. The experimental pathogenic bacteria were inoculated on tryptic soy agar (TSA) and incubated at 37 °C for 24 h (VWR incubator model 1552, Shel lab, Cornelius, OR, USA). A. hydrophila, V. parahaemolyticus, and V. vulnificus were obtained from Thailand’s National Institute of Health, Mueang Nonthaburi, Thailand, and V. harveyi was acquired from the Thailand Institute of Scientific and Technological Research, Khlong Luang, Thailand.

3.4. Phytochemical Screening of Plant Extracts

A phytochemical screening was carried out with the N. pubescens extracts (i.e., aqueous, acetonic, and ethanolic N. pubescens extracts) to identify the chemical constituents in the extracts. The main chemical constituents included phenolic acids, flavonoids, tannins, saponins, alkaloids, anthraquinones, and terpenoids. The screening methods followed [27] for phenolic acids, [28] for flavonoids, [29] for tannins, [30] for saponins, [31] for alkaloids, [32] for anthraquinones, and [29] for terpenoids.

3.5. Determination of Bacterial Growth Inhibition

The agar well diffusion method was used to determine the bacterial growth inhibition of the aqueous, acetonic, and ethanolic N. pubescens extracts [33]. The experiments were carried out using petri dishes containing Mueller–Hinton agar (MHA) spread with the inoculums (i.e., the experimental pathogenic bacteria) using a sterile swab.
Prior to the agar well diffusion assay, the concentrations of the N. pubescens extracts in 10% dimethyl sulfoxide (DMSO) were varied between 0.1, 0.5, 1.0, 5.0, and 10 mg/mL. The preliminary results indicated that the concentrations below 10 mg/mL (<10 mg/mL) achieved unsatisfactory inhibition of bacterial growth. As a result, the concentration of 10 mg/mL was used in the agar well diffusion assay.
In the agar well diffusion assay, 30 µL of the N. pubescens extract in 10% DMSO (10 mg/mL) was pipetted (Eppendof research micropipette, Eppendof, Selangor Darul Ehsan, Malaysia) onto the wells, which were cut 6.0 mm in diameter. The petri dishes with the pipetted were then incubated at 37 °C for 24 h (VWR incubator model 1552, Shel lab, Cornelius, OR, USA). Afterwards, the inhibition zone of the aqueous, acetonic, and ethanolic N. pubescens extracts against the experimental pathogenic bacteria were measured by a caliper. The experiments were carried out in triplicate. In the disc diffusion assay, 10% DMSO was used as negative control and oxytetracycline (100 µg/mL) as positive control.

3.6. Determination of Minimum Inhibitory Concentration and Minimum Bactericidal Concentration

The resazurin-based 96-well plate microdilution method [34] was used to determine the minimum inhibitory concentration of the N. pubescens extracts against the experimental pathogenic bacteria. The minimum inhibitory concentration (MIC) is defined as the lowest concentration of an antimicrobial extract that inhibits the visible growth of a microorganism after overnight incubation.
Prior to the MIC analysis, A. hydrophila was cultured on TSA while Vibrio spp. was cultured on TSA and 1.5% NaCl. The cultures (A. hydrophila, V. parahaemolyticus, V. vulnificus, and V. harveyi) were inoculated at 37 °C for 24 h. Afterwards, the cultures were subcultured to standard glass tubes (16 mm in diameter) and diluted with 0.85% of NaCl until the bacterial suspension was 0.5 McFarland unit (DEN-1B McFarland densitometer, Biosan, Riga, Latvia). The bacterial suspensions were then diluted 100 times in Mueller–Hinton Broth to a density of 1 × 106 CFU/mL.
In the extraction, the broth microdilution method was used, whereby the N. pubescens extracts of 10 mg/mL initial concentration were two-fold serially diluted using Mueller–Hinton Broth (MHB) in 96-well microtiter plates. The diluted concentrations of the N. pubescens extracts were 10 (initial), 5, 2.5, 1.25, 0.62, 0.31, 0.15, and 0.08 mg/mL.
In the MIC analysis, 50 µL of the N. pubescens extracts of variable concentrations (10, 5, 2.5, 1.25, 0.62, 0.31, 0.15, 0.08 mg/mL) were pipetted onto sterile 96-well microtiter plates. Afterwards, 50 µL of the bacterial suspensions (A. hydrophila, V. parahaemolyticus, V. vulnificus, and V. harveyi) were added and mixed well. MHB (100 µL) and 10% DMSO (100 µL) were used as the positive control, and the bacterial suspensions (100 µL) were used as the negative control. The microtiter plates were subsequently incubated at 37 °C for 24 h. The MIC assays were performed in triplicate. After the first incubation, 10 µL of 0.18% resazurin indicator (blue color) was dropped in each well and further incubated at 37 °C for 1 h. After the second incubation, the colorimetric changes were determined, where the blue color indicates the inhibition of bacterial growth (i.e., positive result) and the change from blue to pink color indicates no inhibition of bacterial growth (negative result).
Meanwhile, the minimum bactericidal concentration (MBC) is defined as the lowest concentration of an antimicrobial agent that kills a microorganism (e.g., bacteria). In the MBC analysis, the extract concentrations with positive MIC results were transferred from the 96-well microtiter plates using sterile loop to the petri dishes containing TSA for A. hydrophila and TSA and 1.5% NaCl for Vibrio spp. The petri dishes were incubated at 37 °C for 24 h, and the MBC were subsequently determined. The MBC assays were carried out in triplicate. Specifically, the MBC was the concentrations of the extracts without bacterial colonies. In the MBC analysis, the bacterial suspensions were used as positive control, while TSA and 10% DMSO were used as negative control.

3.7. Determination of Phenolic Acids and Flavonoids

The high-performance liquid chromatography (HPLC) analysis was performed using Agilent technologies 1260 infinity (Conquer Scientific, Poway, CA, USA) equipped with Inertsil C18 column (5 mm, 4.6 × 250 mm) at 35 °C and 272 nm wavelength [10]. The gradient elution was acetonitrile and 1% acetic acid. The flow rate was 1.0 mL/min, and the injection volume was 20 µL. The phytochemical compounds being studied were the phenolic acids group (caffeic acid, gallic acid, ferulic acid, p-coumaric acid, sinapic acid, and syringic acid) and the flavonoids group (apigenin, catechin, kaempferol, myricetin, quercetin, and rutin).
The standard phenolic acids and flavonoids were acquired from Sigma-Aldrick (St. Louis, MO, USA). The HPLC-grade solvents, including distilled water, acetone, and 95% ethanol, were purchased from Merck (Darmstadt, Germany). Stock solutions of the phenolic acids and flavonoids groups were prepared by following [10]. The HPLC detection limits of the stock solutions of phenolic acids and flavonoids groups were 5, 10, 20, 30, 40, and 60 µg/mL, given R2 ≥ 0.99. The stock solutions and the N. pubescens extracts (i.e., aqueous, acetonic, and ethanolic extracts) at 10 mg/mL concentration were filtered by 0.45 um PVDF syringe filter and the mobile phase was degassed before the injection of the solutions.

4. Conclusions

This research investigated the in vitro antimicrobial activity of the extracts from N. pubescens leaves against pathogenic bacteria. The N. pubescens extracts included aqueous, acetone, and 95% ethanol extracts; and the experimental pathogenic bacteria were A. hydrophila, V. parahaemolyticus, V. vulnificus, and V. harveyi, which are commonly found in freshwater fish and brackish aquatic animals. The experimental results showed that the ethanolic N. pubescens extract was most effective in inhibiting bacterial growth. The ethanolic extract achieved the highest bacterial inhibitory effects against V. parahaemolyticus (14.7 ± 0.6 mm inhibition zone) and V. vulnificus (12.7 ± 0.6 mm). The MIC of the ethanolic extract against A. hydrophila and V. harveyi were 10 mg/mL; and 2.5 mg/mL against V. parahaemolyticus and V. vulnificus, respectively. The ethanolic extract of N. pubescens leaves was also very effective in eliminating V. parahaemolyticus. The HPLC results indicated that, in the phenolic acids group, gallic acid (0.600–3.21% w/w) and synapic acid (0.37–0.83% w/w) were the most and second most dominant active components. In the flavonoids group, catechin was the most dominant (0.02–1.08% w/w), followed by rutin (0.002–0.03% w/w). Although oxytetracycline was more effective in inhibiting the pathogenic bacteria than the acetonic and ethanolic extracts, the N. pubescens leaf extracts are more environmentally friendly and less harmful to human and aquatic animal health. Moreover, the N. pubescens extracts are also less likely to cause antibiotic resistance in bacteria. Essentially, the ethanolic N. pubescens extract holds promising potential as a natural antibiotic agent (i.e., an alternative to synthetic antibiotics) to prevent and treat bacterial infections in freshwater fish and brackish aquatic animals. As a result, subsequent research would experimentally mix the ethanolic N. pubescens extract with fish meal to treat infectious diseases in aquatic animals.

Author Contributions

Conceptualization and methodology, B.T., K.V., A.B. and P.P.; writing—original draft preparation, B.T.; writing— review, and editing, B.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially sponsored by the Science, Research, and Innovation Promotion Funding (TSRI) (Research block grant no. FRB650070/0168), which was managed by the Rajamangala University of Technology Thanyaburi (FRB65E02017).

Data Availability Statement

The article encompasses all the data that support the findings of the study.

Acknowledgments

The authors would like to express deep gratitude to the Faculty of Agricultural Technology, Rajamangala University of Technology Thanyaburi for the invaluable assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bojarski, B.; Kot, B.; Witeska, M. Antibacterials in Aquatic Environment and Their Toxicity to Fish. Pharmaceuticals 2020, 3, 189. [Google Scholar] [CrossRef] [PubMed]
  2. World Health Organization. Antimicrobial Resistance. 2021. Available online: https://www.who.int/news-room/fact-sheets/detail/antimicrobial-resistance (accessed on 1 August 2023).
  3. Sumpradit, N.; Suttajit, S.; Poonpolsub, S.; Chuanchuen, R.; Prakongsai, P. Landscape of Antimicrobial Resistance Situation and Action in Thailand. 2015. Available online: http://narst.dmsc.moph.go.th/documentation/AMR%20strategy%202560-2564.pdf (accessed on 1 August 2023).
  4. Parimala, M.; Shoba, F.G. In vitro antimicrobial activity and HPTLC analysis of hydroalcoholic seed extract of Nymphaea nouchali Burm.f. BMC Complement. Altern. Med. 2014, 14, 361. [Google Scholar] [CrossRef] [PubMed]
  5. Miller, R.A.; Harbottle, H. Antimicrobial drug resistance in fish pathogens. Microbiol. Spectr. 2018, 6. [Google Scholar] [CrossRef] [PubMed]
  6. Afolayan, A.J.; Sharaibi, O.J.; Kazeem, M.I. Phytochemical analysis and in vitro Antioxidant activity of Nymphaea lotus L. Int. J. Pharmacol. 2013, 9, 297–304. [Google Scholar] [CrossRef]
  7. Prasad, K.S.; Savithramma, N. Tapping of Aquatic Plant Nymphaea pubescens WILLD. for Synthesis of Silver Nanoparticles and Its Antimicrobial Evaluation. Int. J. Pharm. Sci. Rev. Res. 2015, 33, 63–66. [Google Scholar]
  8. Pokhrel, T.; Shrestha, D.; Dhakal, K.; Yadav, P.M.; Adhikari, A. Comparative Analysis of the Antioxidant and Antidiabetic Potential of Nelumbo nucifera Gaertn. and Nympaea lotus L. var. pubescens (Willd.). J. Chem. 2022, 2022, 4258124. [Google Scholar] [CrossRef]
  9. Tungmunnithum, D.; Thongboonyou, A.; Pholboon, A.; Yangsabai, A. Flavonoids and Other Phenolic Compounds from medicinal Plants for Pharmaceutical and Medical Aspects: An Overview. Medicines 2018, 5, 93. [Google Scholar] [CrossRef]
  10. Seal, T. Quantitative HPLC analysis of phenolic acids, flavonoids and ascorbic acid in four different solvent extracts of two wild edible leaves, Sonchus arvensis and Oenanthe linearis of North-Eastern region in India. J. Appl. Pharm. Sci. 2016, 6, 157–166. [Google Scholar] [CrossRef]
  11. Austin, B.; Austin, D.A. Bacterial Fish Pathogens: Disease of Farmed and Wild Fish, 5th ed.; Springer: Dordrecht, The Netherlands; Berlin/Heidelberg, Germany; New York, NY, USA, 2012; pp. 119–191. [Google Scholar]
  12. Pridgeon, J.W.; Klesius, P.H.; Mu, X.; Song, L. An in vitro screening method to evaluate chemicals as potential chemotherapeutants to control Aeromonas hydrophila infection in channel catfish. J. Appl. Microbiol. 2011, 111, 114–124. [Google Scholar] [CrossRef]
  13. Austin, B. Taxonomy of bacterial fish pathogens. Vet. Res. 2011, 42, 20. [Google Scholar] [CrossRef]
  14. Zhang, D.; Xu, D.H.; Shoemaker, C. Experimental induction of motile Aeromonas septicemia in channel catfish (Ictalurus punctatus) by waterborne challenge with virulent Aeromonas Hydrophila. Aquac. Rep. 2016, 3, 18–23. [Google Scholar] [CrossRef]
  15. Muthukrishnan, A.; Defoirdt, T.; Ina-Salwany, M.Y.; Yusoff, F.M.; Shariff, M.; Ismail, S.I.; Natrah, I. Vibrio parahaemolyticus and Vibrio harveyi causing Acute Hepatopancreatic Necrosis Disease (AHPND) in Penaeus vannamei (Boone, 1931) isolated from Malaysian shrimp ponds. Aquaculture 2019, 511, 734227. [Google Scholar] [CrossRef]
  16. Wang, R.; Zhong, Y.; Gu, X.; Yuan, J.; Saeed, A.F.; Wang, S. The pathogenesis, detection, and prevention of Vibrio parahaemolyticus. Front. Microbiol. 2015, 6, 144. [Google Scholar] [CrossRef]
  17. Somboon, M.; Purivirojkul, W.; Limsuwan, C.; Chuchird, N. Effect of Vibrio spp. in White Feces Infected Shrimp in Chanthaburi, Thailand. Kasetsart Univ. Fish. Res. Bull. 2012, 36, 7–15. [Google Scholar]
  18. Zhang, X.H.; He, X.; Austin, B. Vibrio harveyi: A serious pathogen of fish and invertebrates in mariculture. Mar. Life Sci. Technol. 2020, 2, 231–245. [Google Scholar] [CrossRef] [PubMed]
  19. Gueye, F.K.; Niang, L.; Dieng, B.; Gueye, M.F.; Ayessou, N.C.; Mame Samba Mbaye, M.S.; Noba, K. Phytochemical Screening and Antioxidant Activities of Water Lilies Seeds, Neglected and Underused Species in the Delta and Lower Valley of the Senegal River. Am. J. Plant Sci. 2022, 13, 756–765. [Google Scholar] [CrossRef]
  20. Borges, A.; Jose, H.; Homem, V.; Simões, M. Comparison of Techniques and Solvents on the Antimicrobial and Antioxidant Potential of Extracts from Acacia dealbata and Olea europaea. Antibiotics 2020, 9, 48. [Google Scholar] [CrossRef]
  21. Chaves, J.O.; Souza, M.C.; Silva, L.C.; Lachos-Perez, D.; Torres-Mayanga, P.C.; Fonseca Machado, A.P.; Forster-Carneiro, T.; Vázquez-Espinosa, M.; González-de-Peredo, A.V.; Barbero, G.F.; et al. Extraction of Flavonoids from Natural Sources Using Modern Techniques. Front. Chem. 2020, 8, 507887. [Google Scholar] [CrossRef]
  22. Nićiforović, N.; Abramovič, H. Sinapic Acid and Its Derivatives: Natural Sources and Bioactivity. Compr. Rev. Food Sci. Food Saf. 2014, 13, 34–51. [Google Scholar] [CrossRef]
  23. Espíndola, K.M.M.; Ferreira, R.G.; Narvaez, L.E.M.; Silva Rosario, A.C.R.; da Silva, A.H.M.; Silva, A.G.B.; Vieira, A.P.O.; Monteiro, M.C. Chemical and Pharmacological Aspects of Caffeic Acid and Its Activity in Hepatocarcinoma. Front. Oncol. 2019, 21, 541. [Google Scholar] [CrossRef]
  24. Kameni, P.M.; Dzeufiet, D.P.D.; Kamtchouing, P. A Review of the Pharmacological potential of the Water lily Nymphaea lotus. Mod. Appl. Bioequivalence Bioavailab. 2017, 1, 555572. [Google Scholar]
  25. Akinjogunla, O.J.; Yah, C.S.; Eghafona, N.O.; Ogbemudia, F.O. Antibacterial activity of leave extracts of Nymphaea lotus (Nymphaeaceae) on Methicillin resistant Staphylococcus aureus (MRSA) and Vancomycin resistant Staphylococcus aureus (VRSA) isolated from clinical samples. Annu. Biol. Res. 2010, 1, 174–184. [Google Scholar]
  26. Sranujit, R.P.; Noysang, C.; Tippayawat, P.; Kooltheat, N.; Luetragoon, T.; Usuwanthim, K. Phytochemicals and Immunomodulatory Effect of Nelumbo nucifera Flower Extracts on Human Macrophages. Plants 2021, 24, 2007. [Google Scholar] [CrossRef] [PubMed]
  27. Pandey, A.; Tripathi, S. Concept of standardization, extraction and pre phytochemical screening strategies for herbal drug. J. Pharmacogn. Phytochem. 2014, 2, 115–119. [Google Scholar]
  28. Shraim, A.M.; Ahmed, T.A.; Rahman, M.M.; Hijji, Y.M. Determination of total flavonoid content by aluminum chloride assay: A critical evaluation. Food Sci. Technol. 2021, 150, 111932. [Google Scholar] [CrossRef]
  29. Tiwari, P.; Kumar, B.; Kaur, M.; Kaur, G.; Kaur, H. Phytochemical screening and extraction: A review. Int. Pharm. Sci. 2011, 1, 98–106. [Google Scholar]
  30. Edeoga, H.O.; Okwu, D.E.; Mbaebie, B.O. Phytochemical constituents of some Nigerian medicinal plants. Afr. J. Biotechnol. 2005, 4, 685–688. [Google Scholar] [CrossRef]
  31. Harborne, J.B. Phytochemical Methods–A Guide to Modern Techniques of Plant Analysis; Springer Pvt. Ltd.: New Delhi, India, 2005. [Google Scholar]
  32. Harborne, J.B. Phytochemical Methods; Chapman & Hall: London, UK, 1999; pp. 60–66. [Google Scholar]
  33. Holder, I.A.; Boyce, S.T. Agar Well Diffusion Assay Testing of Bacterial Susceptibility to Various Antimicrobials in Concentrations non-toxin for Human Cells in Culture. Burns 1994, 20, 426–429. [Google Scholar] [CrossRef]
  34. Sarker, S.D.; Naharb, L.; Kumarasamy, Y. Microtitre plate-based Antibacterial Assay Incorporating Resazurin as an Indicator of Cell Growth, and its Application in the in vitro Antibacterial Screening of Phytochemicals. Methods 2007, 42, 321–324. [Google Scholar] [CrossRef]
Plants 12 03588 g001
Figure 1. The inhibition zone of N. pubescens leaf extracts, 10% DMSO and oxytetracycline against: (a) A. hydrophila, (b) V. parahaemolyticus, (c) V. vulnificus, (d) V. harveyi, where DW = aqueous extract, A = acetonic extract, E = ethanolic extract, DMSO = 10% DMSO, and OXY = oxytetracycline.
Figure 1. The inhibition zone of N. pubescens leaf extracts, 10% DMSO and oxytetracycline against: (a) A. hydrophila, (b) V. parahaemolyticus, (c) V. vulnificus, (d) V. harveyi, where DW = aqueous extract, A = acetonic extract, E = ethanolic extract, DMSO = 10% DMSO, and OXY = oxytetracycline.
Plants 12 03588 g001
Plants 12 03588 g002aPlants 12 03588 g002b

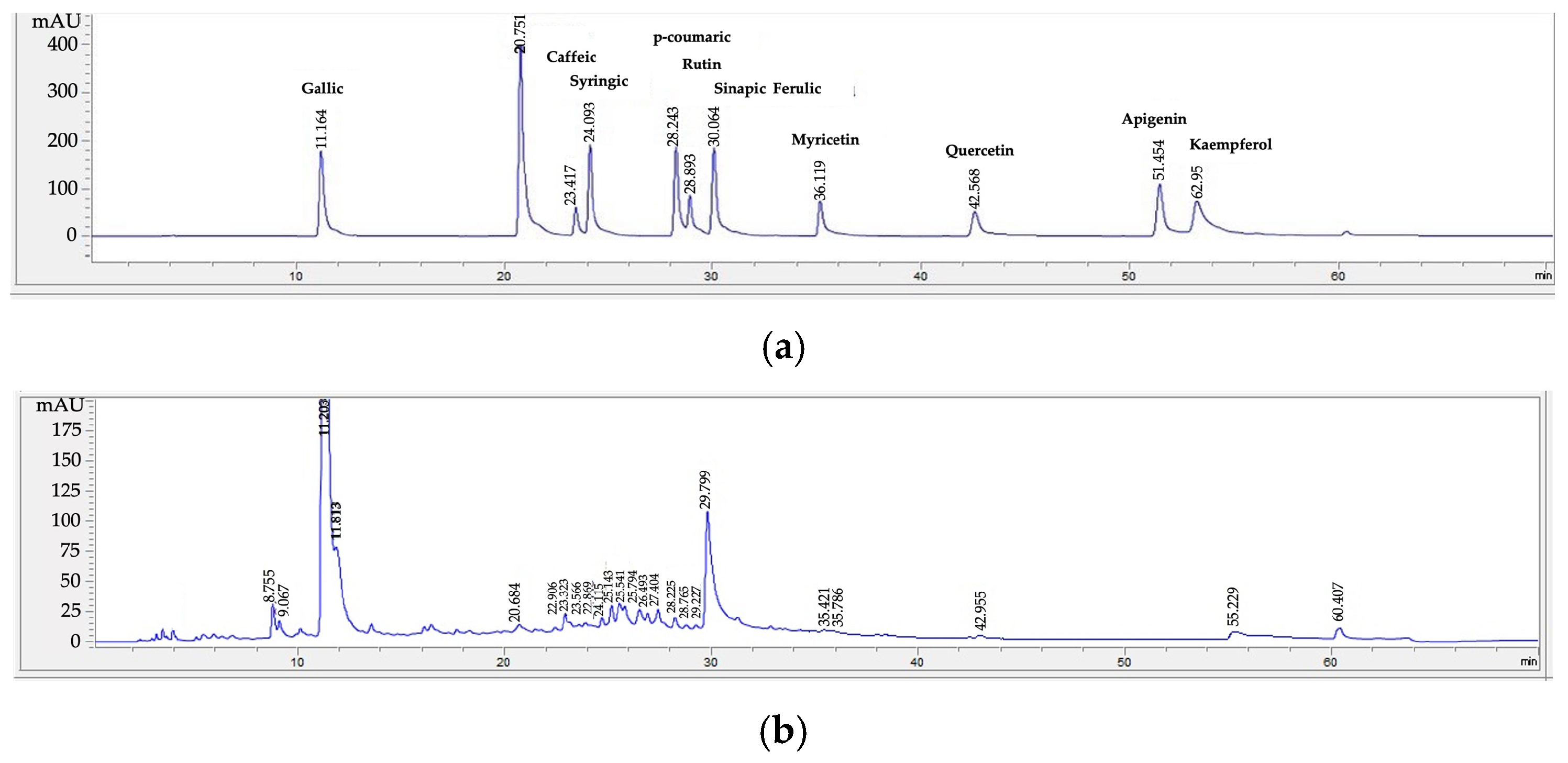

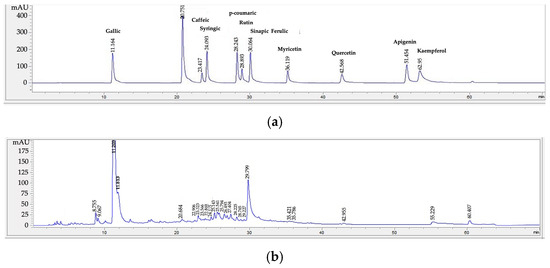

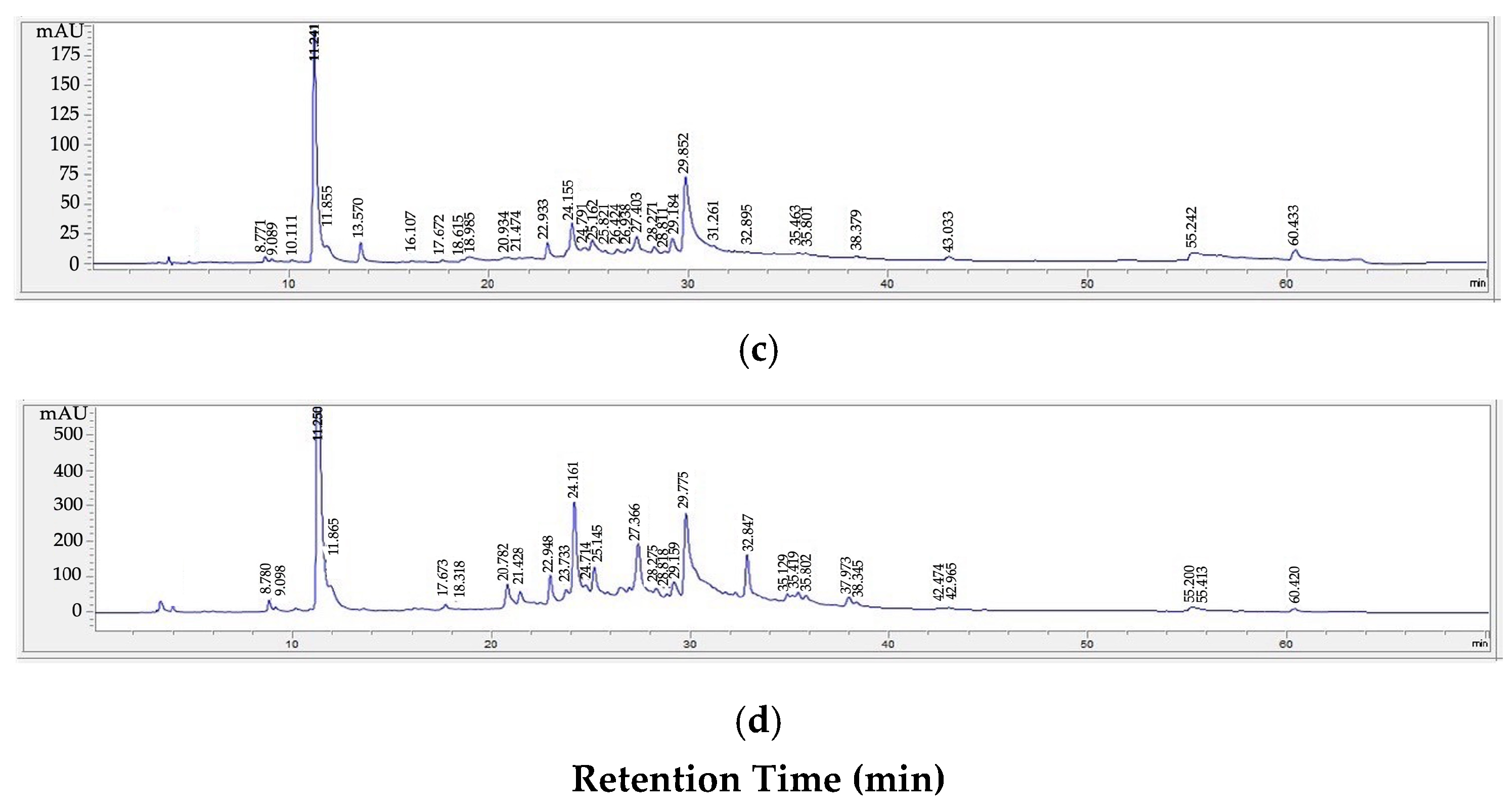

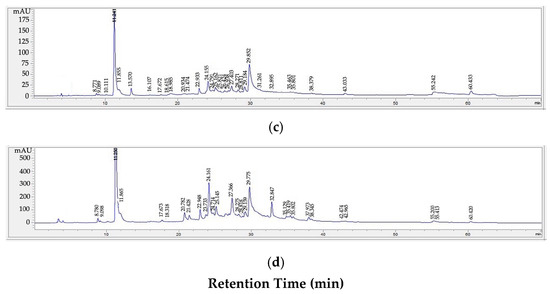

Figure 2. The HPLC chromatograms showing the presence of phenolic acids and flavonoids: (a) the stock solutions, (b) aqueous extract, (c) acetonic extract, (d) ethanolic extract of N. pubescens leaves.
Figure 2. The HPLC chromatograms showing the presence of phenolic acids and flavonoids: (a) the stock solutions, (b) aqueous extract, (c) acetonic extract, (d) ethanolic extract of N. pubescens leaves.
Plants 12 03588 g002aPlants 12 03588 g002b
Table 1. The major phytochemical groups in N. pubescens leaf extracts.
Table 1. The major phytochemical groups in N. pubescens leaf extracts.
PhytochemicalsAqueous ExtractAcetone ExtractEthanol Extract
Flavonoids+-+
Alkaloids+++
Phenolic acids+++
Terpenoids+--
Anthraquinones+--
Saponins+--
Tannins+++
Note: + denotes the presence of the compound and - the absence of the compound.
Table 2. The zone of inhibition (antimicrobial activity) of the experimental extracts from N. pubescens leaves (10 mg/mL), 10% DMSO (negative control), and oxytetracycline (positive control).
Table 2. The zone of inhibition (antimicrobial activity) of the experimental extracts from N. pubescens leaves (10 mg/mL), 10% DMSO (negative control), and oxytetracycline (positive control).
Extract/ControlZone of Inhibition (mm ± SD)
A. hydrophilaV. parahaemolyticusV. vulnificusV. harveyi
Aqueous extractNoNoNoNo
Acetone extractNo12.3 ± 0.611.0 ± 1.0No
Ethanol extractNo14.7 ± 0.612.7 ± 0.6No
10% DMSONoNoNoNo
OXY22.7 ± 0.620.0 ± 0.025.3 ± 0.625.0 ± 0.0
Note: OXY denotes oxytetracycline (100 µg/mL), and No indicates no inhibition of the pathogenic bacteria.
Table 3. The minimum inhibitory concentration (MIC) of the extracts from N. pubescens leaves against the experimental pathogenic bacteria.
Table 3. The minimum inhibitory concentration (MIC) of the extracts from N. pubescens leaves against the experimental pathogenic bacteria.
N. pubescens ExtractMIC (mg/mL)
A. hydrophilaV. parahaemolyticusV. vulnificusV. harveyi
Aqueous extract10101010
Acetone extract105510
Ethanol extract102.52.510
Table 4. The minimum bactericidal concentration (MBC) of the extracts from N. pubescens leaves against the experimental pathogenic bacteria.
Table 4. The minimum bactericidal concentration (MBC) of the extracts from N. pubescens leaves against the experimental pathogenic bacteria.
N. pubescens ExtractMBC (mg/mL)
A. hydrophilaV. parahaemolyticusV. vulnificusV. harveyi
Aqueous extract>101010>10
Acetone extract>101010>10
Ethanol extract>102.510>10
Table 5. The HPLC results of the aqueous, acetonic and ethanolic extracts of N. pubescens leaves.
Table 5. The HPLC results of the aqueous, acetonic and ethanolic extracts of N. pubescens leaves.
Phytochemicals% w/w (mean ± SD)
Aqueous ExtractAcetone ExtractEthanol Extract
Phenolic acids
Caffeic acid0.02 ± 0.000.02 ± 0.00-
Gallic acid3.21 ± 0.000.60 ± 0.003.08 ± 0.00
Ferulic acid---
p-coumaric acid0.02 ± 0.000.02 ± 0.000.05 ± 0.00
Sinapic acid0.54 ± 0.000.37 ± 0.000.83 ± 0.01
Syringic acid0.01 ± 0.000.10 ± 0.000.77 ± 0.01
Flavonoids
Apigenin---
Catechin0.17 ± 0.000.02 ± 0.001.08 ± 0.01
Kaempferol---
Myricetin---
Quercetin---
Rutin0.01 ± 0.000.002 ± 0.000.03 ± 0.00
Note: - denotes not detected.
