Fungal Pathogens of Cacao in Puerto Rico

by
Alina Sandra Puig
Foreign Disease-Weed Science Research Unit, United States Department of Agriculture-Agricultural Research Service, Fort Detrick, MD 21702, USA
Plants 2023, 12(22), 3855; https://doi.org/10.3390/plants12223855
Submission received: 30 September 2023 / Revised: 28 October 2023 / Accepted: 10 November 2023 / Published: 15 November 2023
(This article belongs to the Special Issue The Research of Plant Fungal Disease)
Browse Figures
Versions Notes

Abstract

:
Cacao production is a rapidly expanding industry in Puerto Rico, with new farmers planting ~20,000 trees in the past few years. To determine the etiology and extent of diseases affecting cacao in Puerto Rico, a survey was performed at eight sites around the island. Pod rot and/or branch dieback were observed at all sites. Most organisms isolated from symptomatic pod and stem samples were identified as Diaporthe spp. (48%) and Lasiodiplodia spp. (25%) based on sequences of the internal transcribed spacer and large subunit regions. Within these genera, Diaporthe tulliensis and Lasiodiplodia theobromae were the most prevalent species and were used in inoculation studies to determine their relative virulence on pods and stems. Phytophthora palmivora served as a positive control due to its well-established pathogenicity in all tissues. On pods, L. theobromae and P. palmivora caused significantly larger lesions (6.1 and 5.9 cm, respectively) than D. tulliensis (2.7 cm) four days post-inoculation. All three species caused disease on stems, with no differences found among species. Although P. palmivora was thought to be the primary pathogen affecting cacao in Puerto Rico, this study identifies L. theobromae and D. tulliensis as the common pathogens on the island. This improved understanding will help scientists and farmers control disease by selecting fungicides effective against both oomycetes and fungi.

1. Introduction

The tropical tree, Theobroma cacao, is grown commercially for its seeds, which are used as the main ingredient in the global multibillion-dollar chocolate industry [1]. T. cacao originated in the Amazon rainforest, but the majority is now being produced outside its native range, with African farmers growing over 73% of the global crop [2]. The Americas account for only 17% of global production, but 80% of fine-flavor cacao beans are grown here [3]. Fine-flavor cacao beans have more desirable sensory and flavor profiles than bulk cacao beans, and they have a higher market price [4,5]. Ecuador exports 56% of global fine-flavor beans, followed by the Dominican Republic (19%) and Peru (12%) [5].
Oomycetes, fungi, and/or viruses cause diseases in all production areas, resulting in losses of up to 40% of the global harvest [6]. Some diseases, like black pod rot, caused by oomycetes in the Phytophthora genus, are present in all production areas worldwide, while others are geographically limited such as vascular streak dieback in Asia and cacao swollen shoot virus disease in Africa [7]. In the Americas, frosty pod rot (caused by Moniliophthora roreri) and witches’ broom (caused by Moniliophthora perniciosa) are responsible for significant yield losses. The distribution of these fungi within the Americas is currently limited, but they can be easily introduced with the movement of infected plant material or windblown spores [8,9,10].
Local cacao cultivation in Puerto Rico began in 1636, but adverse weather and a disease of unknown etiology prevented further development of the crop [11,12]. The United States Department of Agriculture (USDA) conducted cacao research in Puerto Rico throughout the 1900s. Promising clones were evaluated in a multisite trial, and nine were recommended to local farmers for planting [13]. In 2000, a large increase in commercial production occurred following an initiative to develop a cacao industry on the island. The industry on the island has rapidly expanded, with tens of thousands of trees being planted in the past years [14].
Despite the recent success of Puerto Rico’s cacao industry, few studies have been conducted to determine the diseases present on the island. All commercial farmers on the island are growing this crop for the first time, and due to the previous failure of the industry in the 1800s from unknown diseases, it is important to know what pathogens are present in the area. Until recently, black pod rot, caused by Phytophthora palmivora, was thought to be the primary disease affecting cacao on the island, and more information is needed on other pathogens that are present [15]. Several high-consequence pathogens, such as M. perniciosa, M. roreri, and Ceratocystis cacaofunesta are present in the Americas, including nearby Jamaica (M. roreri), St. Lucia (M. perniciosa), and Trinidad (Ceratocystis cacaofunesta and M. perniciosa) [16,17,18]. Symptomatology can be highly variable, making it important for identification to be made based on genetic sequences from isolated organisms. The objective of this study was to identify pathogens affecting Theobroma cacao in Puerto Rico by sampling at eight sites throughout the island, including five commercial farms, two research sites, and one forested area with naturalized cacao trees.

2. Results

2.1. Disease Prevalence and Pathogen Isolation

Dieback, stem canker, and pods with necrotic lesions were observed on cacao trees at nearly all survey sites (Figure 1). The exception was the forested area with naturalized cacao trees, where no pods were present. Three of the sites had low to no shade. At these sites, severe dieback was observed on over 40% of trees. Most sites had relatively low incidences of pod rot with less than 10% of the trees having affected pods, except for the USDA germplasm collection, which had diseased pods on approximately 25% of the trees. Thirty-two pods and 45 stems/branches were sampled and processed for pathogen isolation. Fungal-like organisms were obtained from 24 out of 32 pods and 41 out of 45 stems sampled. Most of the pods yielded a single organism compared with only half of the stem samples.
Severe tree decline at multiple sites was accompanied by termite infestations. Many infested trees had lost over 50% of their stem tissue and branches, with little canopy remaining (Figure 2a,b). On other trees, termite colonies were visible through cracks in the bark at the stem base (Figure 2c). Arboreal termite nests and mud tubes were observed in several trees (Figure 2d–f).
A small number of trees with virus symptoms were observed during this study and found to be infected with cacao mild mosaic virus (CaMMV), as described in Puig et al. [19].

2.2. Molecular Identification

The most frequently isolated organisms were identified as Diaporthe spp. (47.9%) and Lasiodiplodia spp. (25.4%) based on genetic sequences. A subset of samples yielded Fusarium (11%), Nigrospora (11%), Colletotrichum (9%), and Phytophthora palmivora (7%); however, the first two were only found in stem samples (Table 1). Phytophthora palmivora, Auricularia sp., Annulohypoxylon stygium, Cophinforma atrovirens, Curvularia sp., Exoserohilum rostratum, Daldinia eschscholtzii, Nectriaceae sp., Xylaria sp., and Neofusicoccum sp. were obtained from diseased stem samples only once each. Cophinforma atrovirens was also obtained from a single diseased pod sample.
Within the Lasiodiplodia genus, L. theobromae was the predominant species recovered in this study, comprising 83.3% of all isolates. In addition, three isolates of L. pseudotheobromae and one of an undefined species were also recovered. Sequences from regions of the Internal Transcribed Spacer (ITS) and Large Subunit (LSU) of the latter, PR33, shared 100% identity with multiple species such as L. parva (MZ182360, JQ659278, etc.) and L. citricola (MN540684, MH183370, etc.).
Five of the thirty-four isolates of Diaporthe were identified as D. pseudomangiferae based on 100% identity with numerous entries in GenBank (MG576129), including one from Puerto Rico (KF616500). A single isolate was identified as Diaporthe fraxini-angustifoliae based on 100% identity with isolates from Panama (MF495396) and the USA (KU593528). Eight isolates were not identified to the species level, with most matching sequences having only genus-level identifications. Sequences from two representative isolates of these were deposited in GenBank as Diaporthe sp. 1 and Diaporthe sp. 2 (Table 2, Table S1).

2.3. Pathogenicity

Inoculation studies were performed with the predominant pathogens found, with P. palmivora serving as the positive control and uncolonized plugs of ½ PDA as the negative control. All pods inoculated with P. palmivora, L. theobromae, and D. tulliensis began developing firm black lesions within two to four days. Symptoms could not be distinguished based on the pathogen species used (Figure 3). However, L. theobromae and P. palmivora caused significantly larger lesions (6.1 and 5.9 cm, respectively) than D. tulliensis (2.7 cm) four days post-inoculation (p < 0.0011 and p < 0.0046) (Figure 4A).
All three species also caused disease on stems, with lesions ranging from 4.2 cm (±0.7) to 5.0 cm (±2.1). However, no differences in lesion sizes were found on stems following inoculation with the three species. The only significant differences found during stem inoculations were between the negative control and the three pathogens (p < 0.0278) (Figure 4B).

3. Discussion

This study represents the first island-wide study to determine the diseases affecting farmers in Puerto Rico’s emergent cacao industry. Several high-consequence pathogens, such as Moniliophthora perniciosa, M. roreri, and Ceratocystis cacaofunesta are present on nearby islands and could be accidentally introduced with the movement of infected material or hurricanes. Fortunately, none of these were detected on the island. Their absence gives the Puerto Rico cacao industry an advantage over other locations.
Diaporthe tulliensis and Lasiodiplodia theobromae were the most common pathogens found in this study, causing disease on both stems and pods. Diaporthe species were previously recently reported as pathogens on cacao pods [20,21], but their virulence relative to other pathogens was not known. This study shows that, on pods, D. tulliensis produces slightly smaller lesions than L. theobromae and P. palmivora. However, this is offset by their overall prevalence, with D. tulliensis present in 50% of diseased pods in this study. On stems, L. theobromae and D. tulliensis were shown to be of similar virulence as P. palmivora, which has been reported to kill over 10% of cacao trees annually [22,23]. L. theobromae is known to cause disease on both pods and stems of T. cacao, with substantial yield losses and tree death reported [24].
The Diaporthe genus includes species of Diaporthe as well as Phomopsis, which is its sexual state [25]. They are among of the most frequently encountered endophytes of cacao and other plants but are also common pathogens of plants and occasionally humans [26,27,28,29,30,31]. Villavicencio et al. [30] tested the pathogenicity of numerous cacao endophytes, and five out of nine Diaporthe spp. isolates were found to be pathogenic on fruit or leaves. Pathogenicity on woody tissue was not tested. This study is the first report of D. tulliensis as a stem pathogen on T. cacao.
A search of ‘cacao’ and ‘diaporthe’ in GenBank shows 103 deposited sequences from several species associated with the crop (NCBI, http://www.ncbi.nlm.nih.gov (accessed on 27 October 2023)). Most of these belong to D. tulliensis (67%) followed by Diaporthe sp. (17%) and then D. pseudomangiferae (9%). D. tulliensis is associated with diseased cacao in Malaysia (ON932315.1), Puerto Rico (OL412432), and Australia (NG_059130) [21,32]. Sequences of cacao-associated D. phaseolorum are available from Venezuela (KU377473) and Brazil (AY745987), D. helianthi from Brazil (AY746005), and D. inconspicua from Panama (MF495476). Sequences of Diaporthe sp. isolates with only genus-level identifications are available from cacao in China (KX999189) and soil from cacao production areas in Colombia (MN602872).
Despite only being recovered from two pods in this study, several species of Colletotrichum are known to cause disease in cacao fruits. Colletotrichum siamense and C. tropicale were recently reported as causing pod disease in Puerto Rico [33] and C. gloeosporioides in Cameroon, where its prevalence ranged between 18 and 39% [34]. However, in addition to being scarce, in this study, Colletotrichum spp. co-occurred in pods with D. tulliensis in both instances.
There is a substantial overlap between genera of pathogens and endophytes found in cacao. For example, Lasiodiplodia, Diaporthe, and Colletotrichum are among the most prevalent endophytes found in cacao tissue [31]. It is believed that these organisms may become pathogenic under certain conditions [35]. More information is needed on the effect of environmental conditions or abiotic stress on the ability of these organisms to cause disease.
Although the number of sites included in this study was sufficient to provide a general prevalence of disease and pathogen species, surveys are needed at different parts of the year to confirm these results. This study was conducted during the rainy season, which is expected to have favored the development of Phytopthora spp. diseases. Despite this, the overall prevalence of P. palmivora on pods was low. It is possible that this pathogen is relatively rare during the dry season. Additional studies are needed to confirm this.
The severity of termite damage observed in this study warrants additional research on this pest in Puerto Rico. Although historically, it was believed that trees attacked by termites were dying prior to the attack [36], numerous studies have shown that healthy living trees are also vulnerable to attack [37,38,39]. Several species of Coptotermes are known to target living trees [40], including C. gestroi, which is present in Puerto Rico [41]. Termites are a major constraint to cacao production in Africa, where their negative impacts on yield and tree survival have been extensively documented [42,43,44,45].
Neofusicoccum parvum was found to be a common cause of pod rot on cacao in Hawaii [46,47], but was not detected during this study. This may be due to the warmer climate of Puerto Rico compared with Hawaii, as N. parvum has a lower temperature optimum and range than L. theobromae, which was frequently detected in this study [47]. The related Neofusicoccum mangiferae was detected in a single sample. This tree was growing at the highest elevation production area on the island, which experienced substantially lower temperatures.
The role of fungi detected in only one or two samples is not clear. Some of these, such as Annulohypoxylon stygium (Xylariales, Ascomycota) are known wood decomposers [48], and are unlikely to have contributed to disease. Xylaria sp. are endophytic fungi of several plant species including cacao [31], as well as wood decomposers strongly associated with termites [49]. Nearly 70% of nests in South Africa contained this fungus, which is believed to be a termite symbiont [50]. Members of the Curvularia, Cophinforma, and Nigrospora genera have been reported as members of the microbial community of cocoa beans during the fermentation process [51]. However, C. atrovirens has been reported to cause dieback and canker on numerous woody plants such as cashew [52] and was recently found to be associated with dieback of T. cacao in Venezuela [53]. If these organisms are obtained from additional diseased material in the future, pathogenicity studies should be conducted to assess the relative risk they pose.

4. Materials and Methods

4.1. Pathogen Isolation

To determine what diseases are present on the island, eight sites were visited in August 2019: a USDA T. cacao germplasm collection in Mayaguez, a USDA field trial at Corozal Agricultural Experiment Station, a forested area with naturalized cacao trees, and five commercial farms (at high and low elevation). Diseased pods and stems were sampled and processed for pathogen isolation, and non-disease issues present at each site were recorded.
Samples of diseased pods were taken by excising 3 × 15 × 3 mm3 pieces from lesion margins containing healthy and symptomatic tissue. They were surface disinfested by immersing in 70% ethanol for 20 s, air dried on autoclaved paper towels, and plated on ½ strength potato dextrose agar (PDA) (Sigma Chemical Co., St. Louis, MO, USA; 19.5 g PDA, 7.5 g agar, and 1 L distilled water).
Diseased stem samples were taken from the expanding edge of cankers and contained both healthy and symptomatic tissue. Due to the presence of numerous saprophytes and endophytes in the vascular tissue of T. cacao trees, stem samples underwent an additional step to improve the likelihood of recovering pathogens. Instead of plating tissue directly on media as described above, they were inserted into openings made in healthy 4-month-old cacao pods, placed in zip lock bags, and incubated at room temperature (28 ± 3 °C) as described in Puig et al. [47] (Figure 5a). After three days, tissue was sampled from the margins of newly emerging lesions, surface disinfested, and plated on ½ PDA media (Figure 5b) as described above.
After three to five days, emerging hyphae were subcultured onto new ½ PDA plates to obtain pure cultures, and then incubated at room temperature for one week prior to DNA extraction. Mycelia were harvested by scraping the surfaces of colonized plates and DNA was extracted using the Qiagen DNeasy Plant Mini Kit following the manufacturer’s protocol (Qiagen, Valencia, CA, USA).

4.2. Molecular Identification

Organisms were identified based on sequences from Internal Transcribed Spacer (ITS) and Large subunit (LSU) using primers ITS5 (5′ GGA AGT AAA AGT CGT AAC AAG G 3′) and ITS4 (5′ TCC TCC GCT TAT TGA TAT GC 3′) for the ITS region [54] and primers LR5 (5′ ATC CTG AGG GAA ACT TC 3′) and LR0R (5′ GTA CCC GCT GAA CTT AAG C 3′) for the LSU gene [55] (Table 3). Gene regions were amplified in 25 µL PCR reaction consisting of 1 μL of DNA template, 12.5 μL 2× Immomix Red (Bioline, Taunton, MA, USA), 1 μL each of 10 μm forward and reverse primer, and sterile nuclease-free water to 25 μL.
For ITS, amplification was achieved using the following thermocycler conditions: 95 °C for 10 min; then, 30 cycles of 95 °C for 30 s, 57 °C for 30 s, and 72 °C for 45 s followed by a final primer extension step of 72 °C for 5 min. LSU regions were amplified using the following touchdown program: 95 °C for 12 min and then 34 cycles of 95 °C for 70 s, 59 °C for 60 s (decreasing by 0.1 °C/cycle), and 72 °C for 80 s followed by a final primer extension step of 72 °C for 15 min. A Bio-Rad C1000 Touch thermal cycler (Bio-Rad Laboratories, Inc., Hercules, CA, USA) was used to run all PCRs. Amplified products were visualized on 1% (w/v) agarose gels containing 8 μL of Biotium GelRed (Biotium, Fremont, CA, USA).
PCR-amplified fragments were purified using the Qiagen PCR Purification Kit (Qiagen, Hilden, Germany) and then bi-directionally Sanger sequenced by Eurofins Genomics (Louisville, KY, USA). Forward and reverse sequences were aligned and edited using Geneious 11.1.2 (Biomatters Ltd., Auckland, New Zealand) and then analyzed in BLASTn to determine identity. Sequences from representative isolates recovered in this study were deposited in GenBank, and their accession numbers are listed in Table 2. Isolates matching sequences from multiple species at 100% identity, are identified by genus name only. Also, isolates only matching sequences with genus-level identifications are classified in the same manner. Prevalence of each organism was calculated as the number of samples it was isolated from dived by the total number of samples taken during this study. This was then converted to percentage by multiplying by 100.

4.3. Pathogenicity

The most prevalent species, D. tulliensis and L. theobromae, were used in inoculation studies to determine their relative virulence on pods and stems. Two isolates of each were tested alongside Phytophthora palmivora (isolate H33 from cacao in Hawaii [56]) which served as a positive control due to its well-established pathogenicity on all cacao tissues. Mycelial discs of uncolonized ½ PDA were used as the negative control.
Five-month-old open-pollinated pods of the clone CCN 51 were wounded with a 1 mm diameter probe, to a depth of 2 mm, and 6 mm discs of ½ PDA with actively growing mycelia of each isolate were placed mycelial-side down over the site, covered with a damp 1 × 1 cm2 filter paper square, and wrapped in parafilm, as described in Puig et al. [47]. They were placed in laboratory growth chambers at 25 °C in the dark. Four days post-inoculation, two diameters were measured for each lesion. These were averaged to calculate mean diameters (Table S1).
To determine pathogenicity on stems, three-month-old open-pollinated seedlings of the Amelonado variety (n = 19) were inoculated, as described above, and then placed in laboratory growth chambers at 25 °C on a cycle of 12 h light and 12 h darkness. Lesions were measured three weeks post-inoculation, by removing bark and measuring vertical and horizontal lesion diameter (Table S1).
To determine whether lesion sizes differed among genera, an analysis of variance (ANOVA) was conducted on average lesion diameters using PROC MIXED in SAS Ver. 9.4 (SAS Institute 2016, Cary, NC, USA). Means were separated using Tukey–Kramer Comparison lines for least squares means of the isolates. ANOVAs were conducted for pods and stems separately. To confirm that the resulting lesions on pods and stems were caused by the organism it had been inoculated with, isolations were made from a subset of lesions, as described above.

5. Conclusions

This research improves our understanding of the diseases and pests affecting cacao production in Puerto Rico and identifies Diaporthe and Lasiodiplodia as the most prevalent pathogen genera. No symptoms consistent with frosty pod rot, witches’ broom, or Ceratocystis wilt were observed in this study, providing additional evidence for their absence from the island.
Future work should focus on identifying sources of genetic resistance to the dieback pathogens found in this study. The severe dieback and canopy loss associated with termite colonization also warrants further study. Understanding the issues affecting cacao production in Puerto Rico will ensure the continued success of this emerging industry.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12223855/s1, Table S1: Nucleotide sequences submitted to GenBank. Table S2: Pod and stem inoculation data.

Funding

This research was supported by the USDA-ARS Project No. 8044-22000-052-000-D and No. 6038-21000-025-000-D.

Data Availability Statement

Sequence and inoculation data are available in Supplementary Tables S1 and S2.

Acknowledgments

Thank you to Maddison Monet and Sarah Wurzel for their role in molecular characterization and pathogenicity screening. USDA is an equal opportunity provider and employer. Mention of trade names or commercial products in this publication is solely for the purpose of providing specific information and does not imply recommendation or endorsement by the U.S. Department of Agriculture.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Wickramasuriya, A.M.; Dunwell, J.M. Cacao biotechnology: Current status and future prospects. Plant Biotechnol. J. 2018, 16, 4–17. [Google Scholar] [CrossRef] [PubMed]
  2. Díaz-Valderrama, J.R.; Leiva-Espinoza, S.T.; Aime, M.C. The history of cacao and its diseases in the Americas. Phytopathology 2020, 110, 1604–1619. [Google Scholar] [CrossRef] [PubMed]
  3. Pipitone, L. Nuevas Tendencias en el Mercado Internacional de Cacao: Oportunidades Para el Perú Como Productor de Cacao Fino y de Aroma. In Proceedings of the International Cocoa Organization (ICCO) and Peru Cocoa Alliance conference, Lima, Peru, 20–22 October 2015; Available online: https://app.box.com/s/9a4t4jzlwohh8d487vjesjmyuldw0b8x (accessed on 9 November 2023).
  4. Bustamante, D.E.; Motilal, L.A.; Calderon, M.S.; Mahabir, A.; Oliva, M. Genetic diversity and population structure of fine aroma cacao (Theobroma cacao L.) from north Peru revealed by single nucleotide polymorphism (SNP) markers. Front. Ecol. Evol. 2022, 10, 895056. [Google Scholar] [CrossRef]
  5. Brenes, E.R.; Martinez, O.; Lopez, M.F.; Ciravegna, L.; Pichardo, C.A. Cacao Oro. Int. Food Agribus. Manag. Rev. 2023, 1, 1–17. [Google Scholar] [CrossRef]
  6. Credence Research. Cocoa Beans Market: Industry Analysis, Demand, Size, Share and Forecasts to 2028; 20 June 2022. Report ID: 3671. Available online: https://www.credenceresearch.com/report/cocoa-beans-market (accessed on 9 November 2023).
  7. Ploetz, R. The impact of diseases on cacao production: A global overview. In Cacao Diseases: A History of Old Enemies and New Encounters; Springer: Cham, Switzerland, 2016; pp. 33–59. [Google Scholar] [CrossRef]
  8. Bailey, B.A.; Evans, H.C.; Phillips-Mora, W.; Ali, S.S.; Meinhardt, L.W. Moniliophthora roreri, causal agent of cacao frosty pod rot. Mol. Plant Pathol. 2018, 19, 1580–1594. [Google Scholar] [CrossRef] [PubMed]
  9. Marelli, J.-P.; Guest, D.I.; Bailey, B.A.; Evans, H.C.; Brown, J.K.; Junaid, M.; Barreto, R.W.; Lisboa, D.O.; Puig, A.S. Chocolate under threat from old and new cacao diseases. Phytopathology 2019, 109, 1331–1343. [Google Scholar] [CrossRef]
  10. Evans, H.C. Cacao diseases—The trilogy revisited. Phytopathology 2007, 97, 1640–1643. [Google Scholar] [CrossRef]
  11. García, J.G.-B. Panorama Histórico de la Agricultura en Puerto Rico; Editorial CSIC-CSIC Press: Madrid, Spain, 1970; Volume 189. [Google Scholar]
  12. Cosme, S.; Cuevas, H.; Zhang, D.; Oleksyk, T.; Irish, B. Genetic diversity of naturalized cacao (Theobroma cacao L.) in Puerto Rico. Tree Genet. Genomes 2016, 12, 88. [Google Scholar] [CrossRef]
  13. Goenaga, R.; Irizarry, H.; Irish, B. TARS series of cacao germplasm selections. HortScience 2009, 44, 826–827. [Google Scholar] [CrossRef]
  14. Charles, D. Reviving Puerto Rico’s Cocoa Farms, Centuries After Hurricanes Destroyed Them; NPR National Public Radio: Washington, DC, USA, 2017. [Google Scholar]
  15. Irish, B.; Goenaga, R.; Park, S.; Kang, S. First report of Phytophthora palmivora, causal agent of black pod, on cacao in Puerto Rico. Plant Dis. 2007, 91, 1051. [Google Scholar] [CrossRef]
  16. Johnson, E.; Rutherford, M.; Edgington, S.; Flood, J.; Crozier, J.; Cafá, G.; Buddie, A.; Offord, L.; Elliott, S.; Christie, K. First report of Moniliophthora roreri causing frosty pod rot on Theobroma cacao in Jamaica. New Dis. Rep. 2017, 36, 2. [Google Scholar] [CrossRef]
  17. Kelly, P.; Reeder, R.; Rhodes, S.; Edwards, N. First confirmed report of witches’ broom caused by Moniliophthora perniciosa on cacao, Theobroma cacao, in Saint Lucia. Plant Pathol. 2009, 58, 798. [Google Scholar] [CrossRef]
  18. Engelbrecht, C.J.B.; Harrington, T.C.; Alfenas, A.C.; Suarez, C. Genetic variation in populations of the cacao wilt pathogen, Ceratocystis cacaofunesta. Plant Pathol. 2007, 56, 923–933. [Google Scholar] [CrossRef]
  19. Puig, A.; Ramos-Sobrinho, R.; Keith, C.; Kitchen, N.; Gutierrez, O.; Goenaga, R.; Brown, J. First Report of Cacao Mild Mosaic Virus Associated with Symptomatic Commercial Cacao (Theobroma cacao) Trees in Puerto Rico. Plant Dis. 2020, 104, 3089. [Google Scholar] [CrossRef]
  20. Puig, A.; Ramos-Sobrinho, R.; Keith, C.; Kitchen, N.; Gutierrez, O.; Goenaga, R.; Brown, J. Diseases affecting Theobroma cacao in Puerto Rico’s emerging cacao industry. Am. Phytopathol. Soc. 2020, 110, 10–14. [Google Scholar] [CrossRef]
  21. Serrato-Diaz, L.M.; Ayala-Silva, T.; Goenaga, R. First report of Diaporthe tulliensis and D. pseudomangiferae causing cacao pod rot in Puerto Rico. Plant Dis. 2022, 106, 2530. [Google Scholar] [CrossRef]
  22. Prior, C. Sudden death of cocoa in Papua New Guinea associated with Phytophthora palmivora cankers invaded by bark beetles. Ann. Appl. Biol. 1986, 109, 535–543. [Google Scholar] [CrossRef]
  23. Guest, D.; Anderson, R.; Foard, H.; Phillips, D.; Worboys, S.; Middleton, R. Long-term control of Phytophthora diseases of cocoa using trunk-injected phosphonate. Plant Pathol. 1994, 43, 479–492. [Google Scholar] [CrossRef]
  24. Kannan, C.; Karthik, M.; Priya, K. Lasiodiplodia theobromae causes a damaging dieback of cocoa in India. Plant Pathol. 2010, 59, 410. [Google Scholar] [CrossRef]
  25. Gomes, R.; Glienke, C.; Videira, S.; Lombard, L.; Groenewald, J.; Crous, P.W. Diaporthe: A genus of endophytic, saprobic and plant pathogenic fungi. Persoonia-Mol. Phylogeny Evol. Fungi 2013, 31, 1–41. [Google Scholar] [CrossRef]
  26. Boddy, L.; Griffith, G. Role of endophytes and latent invasion in the development of decay communities in sapwood of angiospermous trees. Sydowia 1989, 41, e73. [Google Scholar]
  27. Garcia-Reyne, A.; López-Medrano, F.; Morales, J.M.; Garcia Esteban, C.; Martín, I.; Eraña, I.; Meije, Y.; Lalueza, A.; Alastruey-Izquierdo, A.; Rodríguez-Tudela, J.L.; et al. Cutaneous infection by Phomopsis longicolla in a renal transplant recipient from Guinea: First report of human infection by this fungus. Transpl. Infect. Dis. 2011, 13, 204–207. [Google Scholar] [CrossRef] [PubMed]
  28. Murali, T.S.; Suryanarayanan, T.; Geeta, R. Endophytic Phomopsis species: Host range and implications for diversity estimates. Can. J. Microbiol. 2006, 52, 673–680. [Google Scholar] [CrossRef]
  29. Rubini, M.R.; Silva-Ribeiro, R.T.; Pomella, A.W.; Maki, C.S.; Araújo, W.L.; Dos Santos, D.R.; Azevedo, J.L. Diversity of endophytic fungal community of cacao (Theobroma cacao L.) and biological control of Crinipellis perniciosa, causal agent of Witches’ Broom Disease. Int. J. Biol. Sci. 2005, 1, 24. [Google Scholar] [CrossRef]
  30. Villavicencio, M.; Schuller, L.; Espinosa, F.; Noceda, C.; del Castillo, D.S.; Perez-Martinez, S. Foliar endophytic fungi of Theobroma cacao stimulate more than inhibit Moniliophthora spp. growth and behave more as an endophytes than pathogens. AgriRxiv 2020, 20203407060. [Google Scholar] [CrossRef]
  31. Mejía, L.C.; Rojas, E.I.; Maynard, Z.; Van Bael, S.; Arnold, A.E.; Hebbar, P.; Samuels, G.J.; Robbins, N.; Herre, E.A. Endophytic fungi as biocontrol agents of Theobroma cacao pathogens. Biol. Control 2008, 46, 4–14. [Google Scholar] [CrossRef]
  32. Crous, P.W.; Wingfield, M.J.; Le Roux, J.J.; Richardson, D.M.; Strasberg, D.; Shivas, R.G.; Alvarado, P.; Edwards, J.; Moreno, G.; Sharma, R. Fungal Planet description sheets: 371–399. Persoonia-Mol. Phylogeny Evol. Fungi 2015, 35, 264–327. [Google Scholar] [CrossRef]
  33. Serrato-Diaz, L.M.; Mariño, Y.A.; Guadalupe, I.; Bayman, P.; Goenaga, R. First report of Lasiodiplodia pseudotheobromae and Colletotrichum siamense causing cacao pod rot, and first report of C. tropicale causing cacao pod rot in Puerto Rico. Plant Dis. 2020, 104, 592. [Google Scholar] [CrossRef]
  34. Second, Z.M.A.; Aoudou, Y.; Rene, B.M. Aggressiveness of the Fungi Responsible for Pod Rot in Cropping Systems Based on Cocoa Trees (Theobroma cacao L.) in Cameroon. Am. J. Agric. For. 2021, 9, 156. [Google Scholar]
  35. Ali, S.S.; Asman, A.; Shao, J.; Balidion, J.F.; Strem, M.D.; Puig, A.S.; Meinhardt, L.W.; Bailey, B.A. Genome and transcriptome analysis of the latent pathogen Lasiodiplodia theobromae, an emerging threat to the cacao industry. Genome 2020, 63, 37–52. [Google Scholar] [CrossRef]
  36. Harris, W.V. Termites and forestry. Emp. For. Rev. 1955, 34, 160–166. [Google Scholar]
  37. Gould, M. The frequency of termite (Isoptera) damage to tree species in Namakutwa Forest, Tanzania. Sociobiology 1993, 23, 189–198. [Google Scholar]
  38. Mandal, B.; Bashar, K.; Howlader, A.; Rahman, K. Incidence of termite infestation to tree species in Jahangirnagar University Campus, Bangladesh. Bangladesh J. Life Sci. 2010, 22, 7–15. [Google Scholar]
  39. Intari, S. Effects of Neotermes tectonae Damm attack on the quality and quantity of teak timber in the Kebonharjo Forest Division, Central Java. Bul. Penelit. Hutan 1990, 25–35. [Google Scholar]
  40. Chouvenc, T.; Foley IV, J.R. Coptotermes gestroi (Wasmann)(Blattodea [Isoptera]: Rhinotermitidae), a threat to the southeastern Florida urban tree canopy. Fla. Entomol. 2018, 101, 79–90. [Google Scholar] [CrossRef]
  41. Chiu, C.-I.; Yeh, H.-T.; Tsai, M.-J.; Li, H.-F. Naturalization and control of Coptotermes gestroi (Blattodea: Rhinotermitidae) in a Taiwanese forest. J. Econ. Entomol. 2016, 109, 1317–1325. [Google Scholar] [CrossRef]
  42. Ollo, S.; Hervé, B.D.B.; Senan, S.; BI, T.; Sylvain, C. Effect of shade on the diversity of termites (Isoptera) in different cocoa agroforestry systems in the Nawa region (Côte d’Ivoire). J. Entomol. Zool. Stud. 2022, 10, 377–387. [Google Scholar] [CrossRef]
  43. Djuideu, C.T.; Bisseleua, H.D.; Kekeunou, S.; Ambele, F.C. Rehabilitation practices in cocoa agroforestry systems mitigate outbreaks of termites and support cocoa tree development and yield. Agric. Ecosyst. Environ. 2021, 311, 107324. [Google Scholar] [CrossRef]
  44. Kay, D. Termites attacking living tissues of Theobroma cacao L. in Nigeria. Proc. R. Entomol. Soc. Lond. A 1960. [Google Scholar] [CrossRef]
  45. Ambele, F.C.; Bisseleua Daghela, H.; Babalola, O.O.; Ekesi, S. Soil-dwelling insect pests of tree crops in Sub-Saharan Africa, problems and management strategies—A review. J. Appl. Entomol. 2018, 142, 539–552. [Google Scholar] [CrossRef]
  46. Puig, A.; Marelli, J.; Matsumoto, T.; Keith, L.; Gutierrez, O. First report of Neofusicoccum parvum causing pod rot on cacao in Hawaii. Plant Dis. 2019, 103, 1416. [Google Scholar] [CrossRef]
  47. Puig, A.; Keith, L.; Matsumoto, T.; Gutierrez, O.; Marelli, J. Virulence tests of Neofusicoccum parvum, Lasiodiplodia theobromae, and Phytophthora palmivora on Theobroma cacao. Eur. J. Plant Pathol. 2021, 159, 851–862. [Google Scholar] [CrossRef]
  48. Hsieh, H.-M.; Ju, Y.-M.; Rogers, J.D. Molecular phylogeny of Hypoxylon and closely related genera. Mycologia 2005, 97, 844–865. [Google Scholar] [CrossRef]
  49. Whalley, A. The xylariaceous way of life. Mycol. Res. 1996, 100, 897–922. [Google Scholar] [CrossRef]
  50. Visser, A.; Ros, V.; De Beer, Z.; Debets, A.; Hartog, E.; Kuyper, T.; Laessøe, T.; Slippers, B.; Aanen, D. Levels of specificity of Xylaria species associated with fungus-growing termites: A phylogenetic approach. Mol. Ecol. 2009, 18, 553–567. [Google Scholar] [CrossRef] [PubMed]
  51. Serra, J.L.; Moura, F.G.; de Melo Pereira, G.V.; Soccol, C.R.; Rogez, H.; Darnet, S. Determination of the microbial community in Amazonian cocoa bean fermentation by Illumina-based metagenomic sequencing. Lwt 2019, 106, 229–239. [Google Scholar] [CrossRef]
  52. Cardoso, J.; Fonseca, W.; Viana, F.; Ootani, M.; Araújo, F.; Brasil, S.; Mesquita, A.; Lima, C. First Report of Cophinforma atrovirens causing stem rot and dieback of cashew plants in Brazil. Plant Dis. 2019, 103, 1772. [Google Scholar] [CrossRef]
  53. Castillo, S.R.M.; Woodward, S.; Klopfenstein, N.B.; Kim, M.-S.; Stewart, J.E. Mycobiota associated with anthracnose and dieback symptoms on Theobroma cacao L. in Mérida State, Venezuela. Summa Phytopathol. 2023, 49, e245874. [Google Scholar] [CrossRef]
  54. White, T.J.; Bruns, T.; Lee, S.; Taylor, J. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. PCR Protoc. A Guide Methods Appl. 1990, 18, 315–322. [Google Scholar]
  55. Vilgalys, R.; Hester, M. Rapid genetic identification and mapping of enzymatically amplified ribosomal DNA from several Cryptococcus species. J. Bacteriol. 1990, 172, 4238–4246. [Google Scholar] [CrossRef]
  56. Puig, A.S.; Quintanilla, W.; Matsumoto, T.; Keith, L.; Gutierrez, O.A.; Marelli, J.-P. Phytophthora palmivora causing disease on theobroma cacao in Hawaii. Agriculture 2021, 11, 396. [Google Scholar] [CrossRef]
Plants 12 03855 g001
Figure 1. Diseases affecting cacao trees observed during this study. (a) Severe branch dieback on a tree growing in full sun; (b) bleeding canker with red stem tissue underneath bark; and (c) a pod with necrotic lesion.
Figure 1. Diseases affecting cacao trees observed during this study. (a) Severe branch dieback on a tree growing in full sun; (b) bleeding canker with red stem tissue underneath bark; and (c) a pod with necrotic lesion.
Plants 12 03855 g001
Plants 12 03855 g002
Figure 2. Termite damage on cacao trees in Puerto Rico: (a,b) living trees with visible termite galleries showing reduced stem volume and canopy; (c) termite colony visible through a crack at the stem base; (d,e) arboreal termite nests; and (f) termite mud tube on a tree branch.
Figure 2. Termite damage on cacao trees in Puerto Rico: (a,b) living trees with visible termite galleries showing reduced stem volume and canopy; (c) termite colony visible through a crack at the stem base; (d,e) arboreal termite nests; and (f) termite mud tube on a tree branch.
Plants 12 03855 g002
Plants 12 03855 g003
Figure 3. Necrotic lesions produced on cacao pods four days post-inoculation with (a) Phytophthora palmivora; (b) Lasiodiplodia theobromae; (c) Diaporthe tulliensis. Despite size differences, all three pathogens induced lesions of similar color and shape.
Figure 3. Necrotic lesions produced on cacao pods four days post-inoculation with (a) Phytophthora palmivora; (b) Lasiodiplodia theobromae; (c) Diaporthe tulliensis. Despite size differences, all three pathogens induced lesions of similar color and shape.
Plants 12 03855 g003
Plants 12 03855 g004

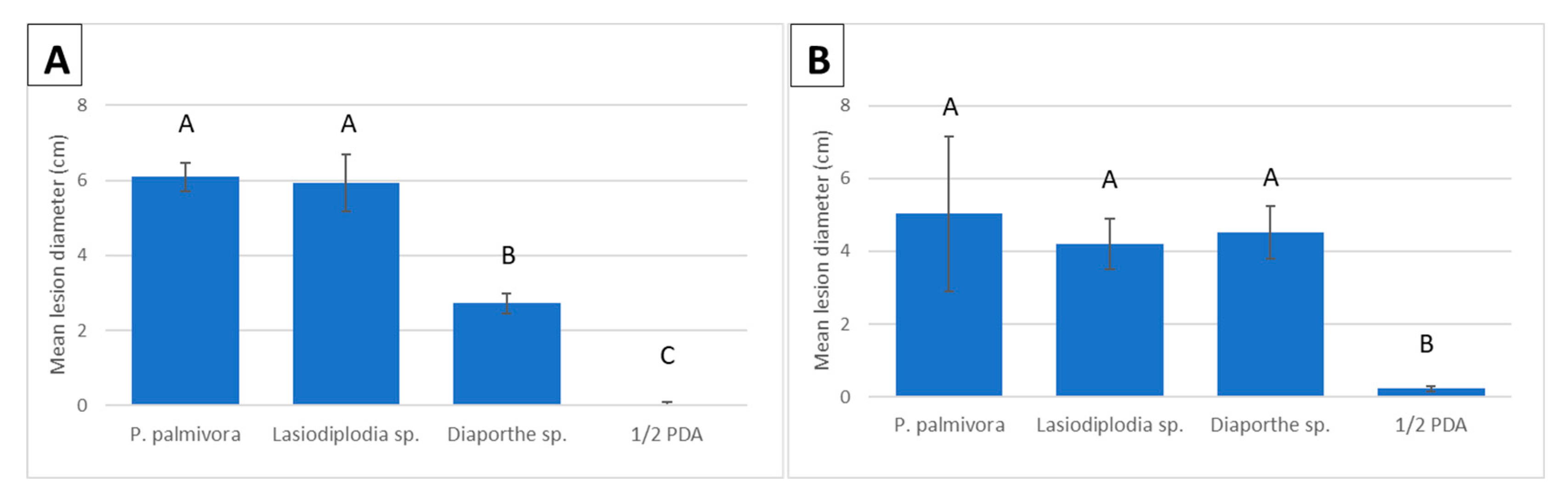

Figure 4. Average lesion diameter on pods (A) and stems (B) following inoculation with Phytophthora palmivora, Lasiodiplodia theobromae, Diaporthe tulliensis, and ½ PDA. The positive and negative controls are P. palmivora and ½ PDA, respectively. Species with the same letters above them are not significantly different (p ≤ 0.05), and bars represent standard errors.
Figure 4. Average lesion diameter on pods (A) and stems (B) following inoculation with Phytophthora palmivora, Lasiodiplodia theobromae, Diaporthe tulliensis, and ½ PDA. The positive and negative controls are P. palmivora and ½ PDA, respectively. Species with the same letters above them are not significantly different (p ≤ 0.05), and bars represent standard errors.
Plants 12 03855 g004
Plants 12 03855 g005
Figure 5. (a) Pathogens were isolated from diseased stems by surface-sterilizing and inserting tissue into a healthy cacao pod. (b) Newly emerging lesions were surface-disinfested and plated on ½ PDA.
Figure 5. (a) Pathogens were isolated from diseased stems by surface-sterilizing and inserting tissue into a healthy cacao pod. (b) Newly emerging lesions were surface-disinfested and plated on ½ PDA.
Plants 12 03855 g005
Table 1. Genera recovered from diseased cacao material and the percentage of samples from which they were recovered. Genus determinations were made based on the best matches obtained with sequences of the Internal Transcribed Spacer (ITS) and Large Subunit (LSU) regions.
Table 1. Genera recovered from diseased cacao material and the percentage of samples from which they were recovered. Genus determinations were made based on the best matches obtained with sequences of the Internal Transcribed Spacer (ITS) and Large Subunit (LSU) regions.
DiaportheLasiodiplodiaColletotrichumPhytophthoraFusariumNigrospora
Pod (n = 26)57.7% (15)23.1% (6)7.7% (2)15.4% (4)00
Stem (n = 45)42.2% (19)26.7% (12)8.9% (4)2.2% (1)17.8% (8)17.8% (8)
Table 2. Sequences of representative isolates of Lasiodiplodia spp. and Diaporthe spp. obtained in this study and deposited in the GenBank public database.
Table 2. Sequences of representative isolates of Lasiodiplodia spp. and Diaporthe spp. obtained in this study and deposited in the GenBank public database.
SpeciesIsolateITSLSU
Lasiodiplodia theobromaePR24OR717218OR717152
Lasiodiplodia pseudotheobromaePR46OR717219OR717153
Lasiodiplodia sp.PR33OR717220OR717154
Diaporthe tulliensisPR14OR717221OR717155
Diaporthe pseudomangiferaePR42BOR717222OR717156
Diporthe sp. 1J1BOR717223OR717157
Diporthe sp. 2PR32OR717224OR717158
Table 3. Primers used for the identification of fungal genera obtained in this study.
Table 3. Primers used for the identification of fungal genera obtained in this study.
LocusPrimer NamePrimer Sequence (5′–3′)Reference
LSULR5ATCCTGAGGGAAACTTC[55]
LR0RGTACCCGCTGAACTTAAGC
ITSITS5GGA AGT AAA AGT CGT AAC AAG G[54]
ITS4TCC TCC GCT TAT TGA TAT GC
