Article

New Genes Identified as Modulating Salt Tolerance in Maize Seedlings Using the Combination of Transcriptome Analysis and BSA

by
Yongxing Zhu
1,2,
Ying Ren
1,
Ji’an Liu
1,
Wenguang Liang
1,
Yuanyuan Zhang
1,
Fengyuan Shen
1,
Jiang Ling
1,* and
Chunyi Zhang
1,3,*
1
Biotechnology Research Institute, Chinese Academy of Agricultural Science, Beijing 100081, China
2
Agricultural Biotechnology Center, Ningxia Academy of Agriculture and Forestry Sciences, Yinchuan 750002, China
3
Sanya Institute, Hainan Academy of Agricultural Sciences, Sanya 572000, China
*
Authors to whom correspondence should be addressed.
Plants 2023, 12(6), 1331; https://doi.org/10.3390/plants12061331
Submission received: 2 February 2023 / Revised: 7 March 2023 / Accepted: 9 March 2023 / Published: 15 March 2023
(This article belongs to the Special Issue Identification and Validation of Quantitative Trait Loci for Important Agronomic Traits in Food Crops)
Browse Figures
Review Reports Versions Notes

Abstract

:
(1) Background: Salt stress is an abiotic factor that limits maize yield and quality. A highly salt-tolerance inbred AS5 and a salt-sensitive inbred NX420 collected from Ningxia Province, China, were used to identify new genes for modulating salt resistance in maize. (2) Methods: To understand the different molecular bases of salt tolerance in AS5 and NX420, we performed BSA-seq using an F2 population for two extreme bulks derived from the cross between AS5 and NX420. Transcriptomic analysis was also conducted for AS5 and NX420 at the seedling stage after treatment with 150 mM of NaCl for 14 days. (3) Results: AS5 had a higher biomass and lower Na+ content than NX420 in the seedling stage after treatment with 150 mM NaCl for 14 days. One hundred and six candidate regions for salt tolerance were mapped on all of the chromosomes through BSA-seq using F2 in an extreme population. Based on the polymorphisms identified between both parents, we detected 77 genes. A large number of differentially expressed genes (DEGs) at the seedling stage under salt stress between these two inbred lines were detected using transcriptome sequencing. GO analysis indicated that 925 and 686 genes were significantly enriched in the integral component of the membrane of AS5 and NX420, respectively. Among these results, two and four DEGs were identified as overlapping in these two inbred lines using BSA-seq and transcriptomic analysis, respectively. Two genes (Zm00001d053925 and Zm00001d037181) were detected in both AS5 and NX420; the transcription level of Zm00001d053925 was induced to be significantly higher in AS5 than in NX420 (41.99 times versus 6.06 times after 150 mM of NaCl treatment for 48 h), while the expression of Zm00001d037181 showed no significant difference upon salt treatment in both lines. The functional annotation of the new candidate genes showed that it was an unknown function protein. (4) Conclusions: Zm00001d053925 is a new functional gene responding to salt stress in the seedling stage, which provides an important genetic resource for salt-tolerant maize breeding.

1. Introduction

As a major environmental abiotic stress, soil salinity affects more than 7% of the world’s land area, and the total area of saline soil in China accounts for 4.88% of the country’s total available land [1,2]. Large, negative impacts have been observed on the yields of crops such as wheat (Triticum aestivum L.), maize (Zea mays L.), rice (Oryza sativa L.), and cotton (Anemone vitifolia Buch), and cultivating salt-tolerant varieties can effectively improve these negative effects [3]. The salt tolerance mechanisms of plants have been investigated for several decades, and a range of adaptive strategies of plants for salt responses have been reported, such as hormone signaling pathways [4], transcriptional and post-transcriptional regulation [5,6,7], chromatin modification [8,9], and the salt overly sensitive (SOS) pathway.
Among studies on osmotic, ionic, and oxidative stress under saline conditions, sodium chloride (NaCl) is the most studied worldwide due to its high solubility and ubiquitous distribution [2,10]. The excessive accumulation of sodium (Na+) evokes osmotic damage and ionic stress, and the uptake, translocation, and compartment of Na+ by the SOS pathway at cellular, tissue, and whole-plant levels are essential for plant salt tolerance [11]. The removal of Na+ from the cytoplasm by transporting Na+ into the vacuole or out of the cell is conducted by SOS1, which is a plasma-membrane-localized NHX family Na+/H+ antiporter, and it is activated by the direct phosphorylation of SOS2 (a CBL-interacting protein kinase (CIPK) family kinase) [12,13]. Another way that the decrease in the cytosolic Na+ concentration is regulated is through ion transporters, especially those with a preference for Na+ or potassium (K+) ions, such as the Na+-selective transporters encoded by the Na+/H+ exchanger (NHX), high-affinity K+ transporter 1 (HKT1) family genes, and the Na+-selective transporter encoded by high-affinity K+ (HAK) genes [11,14,15,16]. As the tolerance to salinity is a kind of quantitative genetic trait, previous studies have covered only partial knowledge about plants’ adaptability.
To broaden natural genetic diversities and to acquire more valuable sources for breeding salt-tolerant crops, dozens of quantitative genetic trait (QTL) genes and candidate genes from genome-wide association studies (GWAS) have been identified to be associated with natural variations in salt tolerance [3,16,17,18,19,20]. Several other key metabolisms were found to be associated with the Na+ content in cells. For example, in a study, it was found that the wheat ancestral Na+ transporter gene NAX2 (Na+ Exclusion 2) could increase the yield by 25% under salinity [21]. In other studies, it was found that an elite allelic variation of rice SKC1 (Shoot K+ Content 1) promotes salt tolerance by regulating K+/Na+ homeostasis [22], the maize chloride transport regulation of ZmCLCg could increase plants’ tolerance to salinity [23], and shoot Na+ variations were conferred by ZmNSA1 (Na+ content under saline–alkaline conditions) under NaHCO3 conditions [18]. This research indicates that natural genetic diversities provide valuable sources for identifying new candidate genes for breeding salt-tolerant crops. Recently, new strategies that combine several emerging technologies (Bulked Segregate Analysis, RNA-sequencing, metabolome analysis, or phosphoproteomic analysis) have been carried out to find new genes associated with several traits, such as the anthocyanin in cucumber (Cucumis sativus L.) fruit skin [24], the panicle grain number in rice [25], and the plant architecture in Brassica napus [26].
In this study, BSA-seq and RNA-seq were combined to find new candidate maize genes involved in leaf tolerance to salinity using two inbred lines, named “NX420” and “AS5”, which show differential tolerance levels to salinity. Two candidate genes were screened using the combination of RNA-seq from NaCl-treated inbred seedlings for 14 days and BSA-seq. Zm00001d053925 showed an inducible response at the transcriptional level upon NaCl treatment in NX420 and AS5, which were collected from Ningxia Province, China. Protein structure prediction indicated that Zm00001d053925 contained five transmembrane domains. These results indicate that Zm00001d053925 could be a new gene for salinity tolerance, with an unknown function.

2. Results

2.1. Detection of the Salinity Tolerance of AS5 and NX420 and Construction of the Extreme Mapping Population for BSA-seq

In this study, AS5 and NX420, collected from Ningxia Agricultural Institute, Ningxia Province, China, were used to investigate the genetic basis underlying salt tolerance in maize. We compared the phenotypes upon salt treatment between AS5 and NX420 under 150 mM of NaCl for 14 days. A moderate level of salt (150 mM NaCl) caused a significant reduction in plant height and biomass at the seedling stage (Figure 1A–C). AS5 showed a salt tolerance phenotype of a higher plant height and a lower loss of biomass, while NX420 already had dry heart leaves and showed a salt hypersensitive phenotype of shorter leaves and a lower biomass (Figure 1A–C). The salt-grown maize seedlings showed an increased leaf Na+ content and decreased leaf K+ content, which in turn caused an ion imbalance (i.e., reduced K+:Na+ ratios) [21,22,27]. The Na+ content was significantly lower in AS5 than that in NX420 leaves, and no differences were observed in the roots (Figure 1D); the K+ content was significantly higher in AS5 leaves (Figure 1E), which led to the K+: Na+ ratios being significantly higher in AS5 than those in NX420 leaves (Figure 1H). These results indicate that AS5 was more salt-tolerant than NX420.
To map the genes related to salinity tolerance in AS5, we constructed an F2 population derived from a cross between the salt-tolerant inbred AS5 and the salt-sensitive inbred NX420. This F2 population was used to identify the degree of salinity tolerance in the seedling stage in 150 mM of NaCl treatment for 14 days. Over 500 F2 seeds were analyzed, and 30 lines were screened to show salt tolerance (such as AS5 and LA1-30) and salt sensitivity (such as NX420 and LS1-30), using plant height to differentiate between the salt-tolerant lines and the salt-sensitive lines. Under 150 mM of NaCl treatment, the plant height survey and analysis of the two extreme populations showed that the plant height difference between the two extreme populations was significant, which was suitable for follow-up research (Figure 1I). So these lines were used to construct the tolerant and sensitive salinity bulks for BSA-seq.

2.2. Sequencing and Mapping of Reads to the B73 Reference Genome

Whole genome re-sequencing data were generated for both AS5 and NX420, the extreme salinity-tolerant bulk (tolerant, LA1-30), and the salinity-sensitive bulk (sensitive, LS1-30) (Table 1). A total of 61.67 million clean reads were generated for the salinity-tolerant parent, AS5; 62.08 million clean reads were generated for the salinity-sensitive parent, NX420; 78.85 million clean reads were generated for the tolerant bulk; and 75.73 million clean reads were generated for the sensitive bulk. The sequencing depths were 43.33× for AS5, 43.61× for NX420, 55.39× for the tolerant bulk, and 53.21× for the sensitive bulk. The properly paired ratios were more than 93% (93.14 for AS5, 95.29% for NX420, 94.25 for the tolerant bulk, and 94.41% for the sensitive bulk).

2.3. Candidate Genes for Salinity Tolerance by BSA Based on Genomic Resequencing

In total, 6,516,313 SNPs were detected between the two bulks. There were a total of 657,086 SNPs on Chromosome 1, 639,709 SNPs on Chromosome 2, 878,652 SNPs on Chromosome 3, 668,120 SNPs on Chromosome 4, 642,954 SNPs on Chromosome 5, 598,968 SNPs on Chromosome 6, 690,312 SNPs on Chromosome 7, 625,423 SNPs on Chromosome 8, 598,375 SNPs on Chromosome 9, and 516,732 SNPs on Chromosome 10 (Table 2). An association analysis of salinity tolerance and polymorphic markers was performed using the Euclidean distance (ED) and SNP/InDel-index methods. One hundred SNPs were identified after the results were obtained based on these two methods being overlapped (Table S1) and based on the threshold value of the confidence interval of Δ(SNP/InDel-index) at the 99% significance level (top 1%, blue line) (Figure 2A) and the ED at the 99% significance level (top 1%, pink line) (Figure 2B).

2.4. Transcriptome Analysis of Two Parents at the Seedling Stage under Salt Stress

To understand the differentially expressed genes responding to salt stress, we also performed transcriptomic sequencing under the condition of normal growth (14 days old, CK) and salt stress (150 mM of NaCl treatment for 14 days) to establish which genes responded differently in AS5 and NX420. The RNA sequencing of the 12 cDNA (CK420-1, CK420-2, CK420-3, S420-1, S420-2, S420-3, CKAS5-1, CKAS5-2, CKAS5-3, SAS5-1, SAS5-2, and SAS5-3) libraries was generated after filtering a total of 80.7 Gb clean bases; the average percentages for Q20 and Q30 were 96.2% and 87.7%, respectively (Table 3). Furthermore, using the HISAT2 software, 82.69% to 88.09% of the clean reads were mapped to the reference genome B73_V4. We investigated the number of upregulated and downregulated genes at the seedling stage and found that the number of upregulated genes was greater than that of the downregulated genes; there were 1854 genes upregulated and 1653 genes downregulated in AS5 (CKAS5 vs. SAS5) and 1826 genes upregulated and 934 genes downregulated in NX420 (CK420 vs. S420) (Figure 3A).
The KEGG enrichment results showed the DEGs from the treatment with and without 150 mM of NaCl for 14 days in AS5 and NX420. For NX420 and AS5, the top 20 KEGG pathways were based on the rich factor (Figure 3B,C). Common pathways such as metabolism pathways, the biosynthesis of secondary metabolites, starch and sucrose metabolism, and nitrogen metabolism were evidently enriched in both NX420 and AS5 (Figure 3B,C), while plant hormone signal transduction and the MAPK signaling pathway related to salt stress were explicitly found in NX420 (Figure 3B), and alanine, aspartate, and glutamate metabolism were explicitly only found in AS5 (Figure 3C).
A Gene Ontology (GO) analysis was performed to explore the biological process, the cellular component, and the molecular function related to salinity tolerance in NX420 and AS5 at the seedling stage. The top 20 GO terms were screened out based on enriched gene numbers (Figure 3D–I). Common GO terms such as protein phosphorylation were evidently enriched in AS5 and NX420, and oxidation–reduction processes related to salt stress were evidently enriched in the two inbred lines for biological processes (Figure 3D,G). The response to abscisic acid, the glutamate metabolic process, and the positive regulation of the response to salt stress processes were only enriched in NX420 (Figure 3G). Common GO terms such as the integral component of the membrane and the plasma membrane were evidently enriched in AS5 and NX420 for the cellular component (Figure 3E,H). Common GO terms such as protein serine/threonine kinase activity and cation binding were evidently enriched in AS5 and NX420 for the molecular function (Figure 3F,I). In addition, oxidoreductase activity and transmembrane transporter activity related to salinity tolerance were enriched in the two inbred lines (Figure 3F,I); ATP binding was only enriched in AS5 (Figure 3F).

2.5. The Candidate Genes’ Combined Analysis of DEGs and BSA-seq

The BSA-seq results show that 106 candidate regions for salt tolerance were mapped on all of the chromosomes by BSA-seq using the extreme populations. Based on the polymorphisms identified between parents, we detected 77 genes containing non-synonymous and synonymous coding SNPs and frameshift mutations in the open reading frame (ORF) regions. With transcriptome sequencing, we detected a large number of differentially expressed genes (DEGs) at the seedling stage under salt stress. The overlap of BSA-seq and DEGs showed that were two genes in AS5, Zm00001d053925 and Zm00001d037181, and four genes in NX420, Zm00001d053925, Zm00001d037181, Zm00001d0039920, and Zm00001d045404. Among them, three genes were significantly enriched in the integral component of the membrane. In addition, Zm00001d053925 and Zm00001d037181 were both detected in AS5 and NX420 (Table 4).

2.6. Candidate Gene Confirmation Using Real-Time PCR

Two candidate genes, Zm00001d037181 and Zm00001d053925, were finally determined through transcriptome and BSA techniques. To further confirm whether the candidate genes respond to salt stress and have different expressions in the two parents, 150 mM NaCl stress was applied to maize seedlings 10 days after sewing, and the leaves at 0 h, 24 h, and 48 h after treatment were taken for real-time PCR verification. The transcriptional levels of Zm00001d053925 in the AS5 leaves at 24 h were 7.83 times those at 0 h, while in NX420, its expression was only 1.46 times that at 0 h. After 48 h of treatment, its expression in AS5 was 41.99 times that at 0 h, while in NX420, its expression was only 6.06 times that at 0 h (Figure 4A). In the root, the NaCl treatment decreased the mRNA levels in NX420, while it increased the mRNA levels in AS5 (Figure 4B). The PCR results showed that Zm00001d037181 was expressed a little bit higher in NX420 than in AS5 leaves and roots at 24 h. There was no significant difference at 48 h (Figure 4C,D). These results indicate that Zm00001d053925 responds to salt stress and has different expression patterns in different maize inbred lines.
Zm00001d053925 is a protein with an unknown function and encodes 289 amino acids. GO analysis shows that it is an integral component of the membrane protein (Table 4). The protein structure prediction shows that there are five transmembrane domains (Figure 5A); the first is located at 56–73, and the second is located between 93 and 114. The third is between 192 and 214, the fourth is between 226 and 246, and the fifth is between 258 and 279. KEGG analysis showed that the gene was not enriched in any metabolic pathway.

3. Discussion

World, farmlands are increasingly affected by soil salinization, and most crops are glycophyte species that are sensitive to salt stress. As a result, salt tolerance is emerging as an important agronomical trait of crop breeding. However, decades of efforts have made little progress due to the complexity of salt responses and their interaction with variable environmental factors [2,28,29]. Maize is an important food crop worldwide, and it constitutes more than one-half of global calorie consumption [30]. However, salinity stress is a major threat to the development of maize production. Maize is sensitive to salt stress but is often planted on salt-contaminated land because most farmland is salinized. Therefore, elucidating the genetic architecture of salt tolerance in maize is instrumental for improving its salt tolerance. In this study, two maize inbred lines (AS5 and NX420) collected locally from Ningxia Agricultural Institute, Ningxia Province, China, were used due to their significant differences upon salt treatment (Figure 1A). BSA-seq and RNA-seq were combined to obtain SNPs and DEGs based on the plant height and the loss of biomass after growth in salt conditions. Similar strategies have been widely used in salt-tolerant maize. For example, compared with Zheng58 or Jing742, Chang7-2, LH65, and D9H showed salt sensitivity with a greater loss of biomass and dry leaves [31,32]. In our case, the loss of biomass in NX420 was around 40% higher than that in AS5 (Figure 1C), indicating that these two lines had more severely different phenotypes for salt tolerance analysis.
The analysis of Na+ and K+ also indicated that new candidates could be found using these two inbred lines because their main differences in Na+ and K+ were detected in both the leaves and roots, like in most cases, but salt decreased K+ in both the shoots and roots, resulting in no differences in the roots between these two lines [15,31]. Similar to other genes involved in salt tolerance, such as HAK4, HKT2, and SOS1 [15,16,31], the transcription levels of Zm00001d053925 were induced upon salt treatment, especially in AS5, implying that its higher mRNA levels could be related to the higher K+:Na+ ratio in the leaves (Figure 1H and Figure 4). However, after salt stress, there was no significant difference in the content of Na+ and K+ in the roots of the two inbred lines, and we also found that there was no significant difference in the transcription level of Zm00001d053925 in the two inbred lines (Figure 1E,G and Figure 4). We speculated that the gene might regulate the balance of sodium and potassium ions in the leaves. This new gene located on chromosome 4 was different from ZmSOS1 (chromosome 1) [31], ZmHKT1 (chromosome 3) [33], and ZmHAK4, is preferentially expressed in the root stele, and encodes a novel membrane-localized Na+-selective transporter that mediates shoot Na+ exclusion, probably by retrieving Na+ from xylem sap. Therefore, the function of the new gene may be different from that of ZmHAK4, which needs further functional analysis.
Maize salt tolerance is a complex trait which comprises distinct mechanisms, such as osmotic, ionic, and oxidative tolerance and other tolerances [1,34,35], making it challenging to identify previously uncharacterized QTLs that are related. Thus, in this study, we applied BSA and transcriptome techniques to identify a previously uncharacterized QTL which is related to maize salt tolerance. QTL mapping is a commonly used technology for dissecting complex trait loci in maize. For instance, QTL mapping has led to us understanding genetic regulation, including maize plant architecture [36], photoperiod sensitivity [37], flowering time [38], resistance to head smut [39], drought tolerance, and other traits [40,41]. Thus, in this study, we used BSA to detect the SNPs related to salt tolerance in the maize seedling stage (Figure 1 and Figure 2 and Table 1 and Table 2). We identified 106 SNPs which were distributed on 10 chromosomes of maize (Table S1), 7 on chromosome 1, 5 on chromosome 2, 25 on chromosome 3, 12 on chromosome 4, 4 on chromosome 5, 10 on chromosome 6, 19 on chromosome 7, 13 on chromosome 8, 1 on chromosome 9, and 2 on chromosome 10. Previous studies on QTL in maize for salt tolerance have identified, in the seedling stage, ZmNC1 and ZmSTL2 located on chromosome 1 [31,42], ZmSTL1 located on chromosome 3 [33], ZmqKC3 located on chromosome 5 [16], and so on, and these QTL findings are different in our study for chromosomes 1, 3, and 5. Previous studies also found that ZmNC2 (Chr4-57153152) was located in an intergenic region on chromosome 4. The key candidate region detected in this study, Chr4-243690332, is not in the same region as ZmNC2, and the candidate gene Zm00001d053925 is in this region (Table S1). Therefore, there may be several key QTLs on chromosome 4 that are related to salt tolerance in maize in the seedling stage.
Thus, based on the polymorphisms identified between both parents, we detected 77 genes associated with salt tolerance using BSA. In addition, the overlapping of BSA-seq and DEGs showed that there were two genes in AS5 and NX420: Zm00001d053925 and Zm00001d037181. Among them, three genes were significantly enriched in the integral component of the membrane. In addition, Zm00001d053925 and Zm00001d037181 were both detected in AS5 and NX420 (Table 4); the transcriptional levels of Zm00001d053925 in the AS5 leaves at 24 H were 7.83 times those at 0 H, while in NX420, its expression was only 1.46 times that at 0 H. After 48 H of treatment, its expression in AS5 was 41.99 times that at 0 H, while in NX420, its expression was only 6.06 times that at 0 H, and for Zm00001d037181, there were no obvious differences in the two inbred lines (Figure 4A). Therefore, Zm00001d053925 as a candidate gene involved in salt tolerance has been identified in this study, and Zm00001d053925 is a protein with an unknown function and encodes 289 amino acids. Additionally, the predicted protein structure contained five transmembrane domains, which resembled the structures of an ion transporter, but these ion transporters contain at least eight transmembrane domains (Figure 5B–D), such as the HKT protein [43]. These results indicate that Zm00001d053925 could be a new candidate involved in salt tolerance. In addition, its transmembrane domains were similar to those of known ion transporters, such as ZmHAK4 (Figure 5B), ZmHKT1 (Figure 5C), and ZmHKT2 (Figure 5D), but they had a different number of domains, which suggests that it might be involved in ion transport.

4. Materials and Methods

4.1. Materials, Plant Growth, and Salt Treatment

The maize inbred NX420 and AS5 were collected from Ningxia Agricultural Institute, Ningxia Province, China. To measure the leaves and roots’ Na+ and K+ contents for NX420 and AS5, pots with a diameter of 10 cm and a height of 10 cm were filled with a uniformly mixed Pinstripe substrate and were watered to soil saturation with 150 mm of NaCl solution (Salt) or watered to soil saturation with water (Control). Ten seeds were planted in each pot and then grown in a glasshouse for 2 weeks; the leaves and roots were collected for the measurement of Na+ and K+ contents and to measure the height and biomass (fresh) of NX420 and AS5. The statistical analysis of the data used Graphpad prism9.

4.2. Measurement of Ion (Na+ and K+) Content

The Na+ and K+ contents were determined with reference to the method described previously [44]. In essence, the leaves and roots were dried at 80 °C for 24 h to a constant weight, the dry weights of the samples were classified as the dry biomass, and the samples were then incinerated in a muffle furnace at 300 °C for 3 h and at 575 °C for 6 h. Next, 10 mL of 1% hydrochloric acid was used to dissolve the ashes, and then the samples were diluted in 1% hydrochloric acid. Na+ and K+ concentrations were analyzed using a 4100-MP AES device (Agilent, Santa Clara, CA, USA).

4.3. The Construction of the Extreme Population

We generated F1 seeds by crossing NX487 and AS5, and then we obtained the F2 population by selfing the F1 plants. The F2 plants were grown under 150 mM NaCl conditions for 14 days. Subsequently, we selected 30 salt-tolerant F2 plants showing a high height phenotype comparable with that of AS5 as a tolerant population, and 30 salt-sensitive F2 plants showed a tall height phenotype comparable with that of NX420 as a sensitive population.

4.4. Sample Collection, Extraction of Genomic DNA, and Construction of Segregating Pools

For the BSA-seq analysis, the young leaves of each line were sampled 14 days after being planted. The cetyltrimethylammonium bromide (CTAB) method was used to obtain high-quality genomic DNA [45]. DNA from 30 plants representing tolerance and sensitivity was equally mixed to form tolerance and sensitivity pools [25].

4.5. BSA-seq Analysis (Finished by GGI Tech)

BSA-seq was used to identify the genes regulating salt tolerance in the F2 population. We selected 30 plants that were extremely tolerant and sensitive to salinity to create an extreme population. Genomic DNA was extracted using a DNA extraction kit (GeneBETTER, Beijing, China). The DNA quality was checked using a microplate reader and agarose electrophoresis. Library preparation was performed according to the manufacturer’s protocol; it can be found in https://www.yuque.com/yangyulan-ayaeq/oupzan/cfq29z, 13 September 2022, Whole Genome Sequencing Library Preparation (DNBSEQ) BGI-NGS-JK-DNA-001 A0. Genomic re-sequencing was conducted to generate paired-end 100-base (PE100) reads using the DNBseq platform, which was conducted by BGI (Beijing, China). Clean reads were aligned to the reference genome sequences of the B73 genome (https://www.ncbi.nlm.nih.gov/assembly/GCF_000005005.2/ (accessed on 13 September 2022), Zea_mays.AGPv4.dna.toplevel.fa) using BWA software [46]. SNPs and small InDels were detected using GATK4 software [47]. We excluded SNP/InDel positions with multiple genotypes and a read depth < four from the two bulk sequences. The association analysis was conducted with the Euclidean distance (ED) and SNP/InDel index [48,49]. The overlapped regions based on the above two methods were considered candidate regions for salinity tolerance.

4.6. Transcriptome Sequencing

Three replicated plants that were sampled and collected were the same as those in 4.1; the leaves of NX420 and AS5 were used for transcriptome sequencing. There were three independent RAN-seq libraries per treatment, namely, Control: AS5-1, -2, -3, and NX420-1, -2, -3, Salt treatment: AS5-1, -2, -3, and NX420-1, -2, -3. Total RNA samples were extracted using TRIzol reagent (Invitrogen) and then treated by RNAase-free DNAse I (NEB) in order to remove genomic DNA. mRNA libraries were created according to the standard protocols provided by BGI. mRNA quality, including the mRNA concentration and fragment size, was tested by using Qubit2.0 and Agilent 2100. mRNA was enriched using Dynabeads oligo (dT) (Invitrogen, Waltham, MA, USA) and a fragmentation buffer. Double-stranded cDNAs were produced using reverse transcriptase (Superscript II; Invitrogen) and random hexamer primers and further purified using AMPure XP beads. The purified double-stranded cDNA samples were enriched by PCR to construct the final cDNA libraries for sequencing using Hiseq 2500 (150 bp paired ends), provided by BGI (China).
Clean reads were also aligned to the reference genome sequences of the B73 genome. Gene expression differences among the different sample points were detected using the EBSeq package (vl.10.1). A fold change ≥ 2 and a false discovery rate (FDR) < 0.01 were set to act as the standards for screening the DEGs. Functional classification of the DEGs, including the Gene Ontology and KEGG pathways, was analyzed using the GOseq R package (Release2.12) and KOBAS software (v2.0).

4.7. RNA Extraction and Real-Time PCR

To analyze the effect of salt stress on the Zm00001d037181 and Zm00001d053925 transcription levels, 10-day-old NX420 and AS5 plants were treated with 150 mM NaCl solution; then, the samples (leaves and roots) were collected at 0 h, 24 h, and 48 h. Total RNA was extracted using an RNA pure plant kit (Gene Better, Beijing, China); 2.0 μg RNA was used to synthesize first-strand cDNA using M-MLV reverse transcriptase, and qRT-PCR analyses were conducted using TransStart Top Green qPCR SuperMix (TRANS, Beijing, China) on an ABI 7500 thermocycler (Applied Biosystems, Marsiling industrial, Singapore). The maize GAPDH gene was provided as an internal standard. The primer sequences (ZmGAPDH-F, ZmGAPDH-R, Zm181-RT-F, Zm181-RT-R, Zm925-RT-F, and Zm1925-RT-R) are listed in Table S2. A 2−ΔΔCt-based calculation was used to quantify gene expression.

5. Conclusions

In conclusion, our QTL approach obtained Zm00001d053925, a new candidate gene involved in salt tolerance, which was identified with the combination of BSA-seq and transcriptome analysis based on the different phenotypes of two maize inbred lines. It encoded an unknown function protein which was predicted to contain five transmembrane domains, and its transcription levels were related to salt responses. Thus, a novel gene target for the development of salt-tolerant maize was identified, which provides a new gene resource for salt-tolerant maize research.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12061331/s1. Table S1: The overlap of the ED and the Delta-SNP index; Table S2: The list of primers for qPCR.

Author Contributions

Conceptualization, J.L. (Jiang Ling) and C.Z.; methodology, J.L. (Ji’an Liu) and Y.Z. (Yuanyuan Zhang); software, Y.Z. (Yongxing Zhu) and Y.R.; validation, J.L. (Jiang Ling) and Y.Z. (Yuanyuan Zhang); formal analysis, J.L. (Ji’an Liu) and F.S.; investigation, W.L. and Y.Z. (Yuanyuan Zhang); resources, C.Z.; data curation, Y.Z. (Yongxing Zhu); writing—original draft preparation, Y.Z. (Yongxing Zhu) and J.L. (Jiang Ling); writing—review and editing, Y.Z. (Yongxing Zhu) and J.L. (Jiang Ling); visualization, Y.Z. (Yongxing Zhu) and J.L. (Jiang Ling); supervision, C.Z.; project administration, Y.Z. (Yongxing Zhu) and J.L. (Jiang Ling); funding acquisition, Y.Z. (Yongxing Zhu) and J.L. (Jiang Ling). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ningxia Key R&D Plan, China, grant number 2022BBF03030; the Ningxia Natural Science Foundation Project, China, grant number 2020AAC02033; the foreign cooperation project of Ningxia Academy of Agriculture and Forestry Sciences, grant numbers DWHZC-2017001 and DW-X-2020002; the Ningxia Natural Science Foundation Project, China, grant numbers 2021AAC03276 and 2022AAC03462; the National Key Research and Development Program of China, China, grant number 2021YFF1000304; and the Agricultural Science and Technology Innovation Program, China, grant numbers SWLSZD2020-001 and CAAS-ZDRW202010.

Acknowledgments

We thank the Ningxia Academy of Agriculture and Forestry Sciences, Quality Standard Inspection Institute.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhu, J.K. Abiotic Stress Signaling and Responses in Plants. Cell 2016, 167, 313–324. [Google Scholar] [CrossRef] [Green Version]
  2. Munns, R.; Tester, M. Mechanisms of salinity tolerance. Annu. Rev. Plant Biol. 2008, 59, 651–681. [Google Scholar] [CrossRef] [Green Version]
  3. Ismail, A.M.; Horie, T. Genomics, Physiology, and Molecular Breeding Approaches for Improving Salt Tolerance. Annu. Rev. Plant Biol. 2017, 68, 405–434. [Google Scholar] [CrossRef] [Green Version]
  4. van Zelm, E.; Zhang, Y.; Testerink, C. Salt Tolerance Mechanisms of Plants. Annu. Rev. Plant Biol. 2020, 71, 403–433. [Google Scholar] [CrossRef] [Green Version]
  5. Wang, F.; Chen, H.W.; Li, Q.T.; Wei, W.; Li, W.; Zhang, W.K.; Ma, B.; Bi, Y.D.; Lai, Y.C.; Liu, X.L.; et al. GmWRKY27 interacts with GmMYB174 to reduce expression of GmNAC29 for stress tolerance in soybean plants. Plant J. 2015, 83, 224–236. [Google Scholar] [CrossRef] [Green Version]
  6. Pan, W.J.; Tao, J.J.; Cheng, T.; Bian, X.H.; Wei, W.; Zhang, W.K.; Ma, B.; Chen, S.Y.; Zhang, J.S. Soybean miR172a Improves Salt Tolerance and Can Function as a Long-Distance Signal. Mol. Plant 2016, 9, 1337–1340. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Wei, W.; Tao, J.J.; Chen, H.W.; Li, Q.T.; Zhang, W.K.; Ma, B.; Lin, Q.; Zhang, J.S.; Chen, S.Y. A Histone Code Reader and a Transcriptional Activator Interact to Regulate Genes for Salt Tolerance. Plant Physiol. 2017, 175, 1304–1320. [Google Scholar] [CrossRef] [Green Version]
  8. Kim, J.M.; Sasaki, T.; Ueda, M.; Sako, K.; Seki, M. Chromatin changes in response to drought, salinity, heat, and cold stresses in plants. Front. Plant Sci. 2015, 6, 114. [Google Scholar] [CrossRef] [Green Version]
  9. Lu, L.; Wei, W.; Tao, J.J.; Lu, X.; Bian, X.H.; Hu, Y.; Cheng, T.; Yin, C.C.; Zhang, W.K.; Chen, S.Y.; et al. Nuclear factor Y subunit GmNFYA competes with GmHDA13 for interaction with GmFVE to positively regulate salt tolerance in soybean. Plant Biotechnol. J. 2021, 19, 2362–2379. [Google Scholar] [CrossRef] [PubMed]
  10. Munns, R. Physiological processes limiting plant growth in saline soils: Some dogmas and hypotheses. Plant Cell Environ. 1993, 16, 15–24. [Google Scholar] [CrossRef]
  11. Yang, Y.; Guo, Y. Elucidating the molecular mechanisms mediating plant salt-stress responses. New Phytol. 2018, 217, 523–539. [Google Scholar] [CrossRef] [Green Version]
  12. Haruta, M.; Sussman, M.R. The effect of a genetically reduced plasma membrane protonmotive force on vegetative growth of Arabidopsis. Plant Physiol. 2012, 158, 1158–1171. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Yang, Z.; Wang, C.; Xue, Y.; Liu, X.; Chen, S.; Song, C.; Yang, Y.; Guo, Y. Calcium-activated 14-3-3 proteins as a molecular switch in salt stress tolerance. Nat. Commun. 2019, 10, 1199. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Horie, T.; Hauser, F.; Schroeder, J.I. HKT transporter-mediated salinity resistance mechanisms in Arabidopsis and monocot crop plants. Trends Plant Sci. 2009, 14, 660–668. [Google Scholar] [CrossRef] [Green Version]
  15. Zhang, M.; Liang, X.; Wang, L.; Cao, Y.; Song, W.; Shi, J.; Lai, J.; Jiang, C. A HAK family Na+ transporter confers natural variation of salt tolerance in maize. Nat. Plants 2019, 5, 1297–1308. [Google Scholar] [CrossRef] [PubMed]
  16. Cao, Y.; Liang, X.; Yin, P.; Zhang, M.; Jiang, C. A domestication-associated reduction in K+-preferring HKT transporter activity underlies maize shoot K+ accumulation and salt tolerance. New Phytol. 2019, 222, 301–317. [Google Scholar] [CrossRef]
  17. Campbell, M.T.; Bandillo, N.; Al Shiblawi, F.R.A.; Sharma, S.; Liu, K.; Du, Q.; Schmitz, A.J.; Zhang, C.; Very, A.A.; Lorenz, A.J.; et al. Allelic variants of OsHKT1;1 underlie the divergence between indica and japonica subspecies of rice (Oryza sativa) for root sodium content. PLoS Genet. 2017, 13, e1006823. [Google Scholar] [CrossRef] [Green Version]
  18. Cao, Y.; Zhang, M.; Liang, X.; Li, F.; Shi, Y.; Yang, X.; Jiang, C. Natural variation of an EF-hand Ca2+-binding-protein coding gene confers saline-alkaline tolerance in maize. Nat. Commun. 2020, 11, 186. [Google Scholar] [CrossRef] [Green Version]
  19. Luo, X.; Wang, B.; Gao, S.; Zhang, F.; Terzaghi, W.; Dai, M. Genome-wide association study dissects the genetic bases of salt tolerance in maize seedlings. J. Integr. Plant Biol. 2019, 61, 658–674. [Google Scholar] [CrossRef] [Green Version]
  20. Wang, Y.; Huang, L.; Du, F.; Wang, J.; Zhao, X.; Li, Z.; Wang, W.; Xu, J.; Fu, B. Comparative transcriptome and metabolome profiling reveal molecular mechanisms underlying OsDRAP1-mediated salt tolerance in rice. Sci. Rep. 2021, 11, 5166. [Google Scholar] [CrossRef]
  21. Munns, R.; James, R.A.; Xu, B.; Athman, A.; Conn, S.J.; Jordans, C.; Byrt, C.S.; Hare, R.A.; Tyerman, S.D.; Tester, M.; et al. Wheat grain yield on saline soils is improved by an ancestral Na+ transporter gene. Nat. Biotechnol. 2012, 30, 360–364. [Google Scholar] [CrossRef] [PubMed]
  22. Ren, Z.H.; Gao, J.P.; Li, L.G.; Cai, X.L.; Huang, W.; Chao, D.Y.; Zhu, M.Z.; Wang, Z.Y.; Luan, S.; Lin, H.X. A rice quantitative trait locus for salt tolerance encodes a sodium transporter. Nat. Genet. 2005, 37, 1141–1146. [Google Scholar] [CrossRef] [PubMed]
  23. Luo, M.; Zhang, Y.; Li, J.; Zhang, P.; Chen, K.; Song, W.; Wang, X.; Yang, J.; Lu, X.; Lu, B.; et al. Molecular dissection of maize seedling salt tolerance using a genome-wide association analysis method. Plant Biotechnol. J. 2021, 19, 1937–1951. [Google Scholar] [CrossRef]
  24. Wang, M.; Chen, L.; Liang, Z.; He, X.; Liu, W.; Jiang, B.; Yan, J.; Sun, P.; Cao, Z.; Peng, Q.; et al. Metabolome and transcriptome analyses reveal chlorophyll and anthocyanin metabolism pathway associated with cucumber fruit skin color. BMC Plant Biol. 2020, 20, 386. [Google Scholar] [CrossRef] [PubMed]
  25. Ma, Y.; Mackon, E.; Jeazet Dongho Epse Mackon, G.C.; Zhao, Y.; Li, Q.; Dai, X.; Yao, Y.; Xia, X.; Nong, B.; Liu, P. Combined Analysis of BSA-Seq Based Mapping, RNA-Seq, and Metabolomic Unraveled Candidate Genes Associated with Panicle Grain Number in Rice (Oryza sativa L.). Biomolecules 2022, 12, 918. [Google Scholar] [CrossRef]
  26. Ye, S.; Yan, L.; Ma, X.; Chen, Y.; Wu, L.; Ma, T.; Zhao, L.; Yi, B.; Ma, C.; Tu, J.; et al. Combined BSA-Seq Based Mapping and RNA-Seq Profiling Reveal Candidate Genes Associated with Plant Architecture in Brassica napus. Int. J. Mol. Sci. 2022, 23, 2472. [Google Scholar] [CrossRef]
  27. Gao, Y.; Lu, Y.; Wu, M.; Liang, E.; Li, Y.; Zhang, D.; Yin, Z.; Ren, X.; Dai, Y.; Deng, D.; et al. Ability to Remove Na+ and Retain K+ Correlates with Salt Tolerance in Two Maize Inbred Lines Seedlings. Front. Plant Sci. 2016, 7, 1716. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Li, J.; Zhou, H.; Zhang, Y.; Li, Z.; Yang, Y.; Guo, Y. The GSK3-like Kinase BIN2 Is a Molecular Switch between the Salt Stress Response and Growth Recovery in Arabidopsis thaliana. Dev. Cell 2020, 55, 367–380.e6. [Google Scholar] [CrossRef]
  29. Dinneny, J.R. Traversing organizational scales in plant salt-stress responses. Curr. Opin. Plant Biol. 2015, 23, 70–75. [Google Scholar] [CrossRef]
  30. Schnable, J.C. Genome evolution in maize: From genomes back to genes. Annu. Rev. Plant Biol. 2015, 66, 329–343. [Google Scholar] [CrossRef]
  31. Zhou, X.; Li, J.; Wang, Y.; Liang, X.; Zhang, M.; Lu, M.; Guo, Y.; Qin, F.; Jiang, C. The classical SOS pathway confers natural variation of salt tolerance in maize. New Phytol. 2022, 236, 479–494. [Google Scholar] [CrossRef] [PubMed]
  32. Luo, M.; Zhao, Y.; Wang, Y.; Shi, Z.; Zhang, P.; Zhang, Y.; Song, W.; Zhao, J. Comparative Proteomics of Contrasting Maize Genotypes Provides Insights into Salt-Stress Tolerance Mechanisms. J. Proteome Res. 2018, 17, 141–153. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, M.; Cao, Y.; Wang, Z.; Wang, Z.Q.; Shi, J.; Liang, X.; Song, W.; Chen, Q.; Lai, J.; Jiang, C. A retrotransposon in an HKT1 family sodium transporter causes variation of leaf Na+ exclusion and salt tolerance in maize. New Phytol. 2018, 217, 1161–1176. [Google Scholar] [CrossRef] [Green Version]
  34. Chen, T.H.; Murata, N. Glycinebetaine: An effective protectant against abiotic stress in plants. Trends Plant Sci. 2008, 13, 499–505. [Google Scholar] [CrossRef] [PubMed]
  35. Zhao, K.F.; Song, J.; Fan, H.; Zhou, S.; Zhao, M. Growth response to ionic and osmotic stress of NaCl in salt-tolerant and salt-sensitive maize. J. Integr. Plant Biol. 2010, 52, 468–475. [Google Scholar] [CrossRef] [PubMed]
  36. Studer, A.; Zhao, Q.; Ross-Ibarra, J.; Doebley, J. Identification of a functional transposon insertion in the maize domestication gene tb1. Nat. Genet. 2011, 43, 1160–1163. [Google Scholar] [CrossRef] [Green Version]
  37. Hung, H.Y.; Shannon, L.M.; Tian, F.; Bradbury, P.J.; Chen, C.; Flint-Garcia, S.A.; McMullen, M.D.; Ware, D.; Buckler, E.S.; Doebley, J.F.; et al. ZmCCT and the genetic basis of day-length adaptation underlying the postdomestication spread of maize. Proc. Natl. Acad. Sci. USA 2012, 109, E1913–E1921. [Google Scholar] [CrossRef] [Green Version]
  38. Romero Navarro, J.A.; Willcox, M.; Burgueno, J.; Romay, C.; Swarts, K.; Trachsel, S.; Preciado, E.; Terron, A.; Delgado, H.V.; Vidal, V.; et al. A study of allelic diversity underlying flowering-time adaptation in maize landraces. Nat. Genet. 2017, 49, 476–480. [Google Scholar] [CrossRef]
  39. Zuo, W.; Chao, Q.; Zhang, N.; Ye, J.; Tan, G.; Li, B.; Xing, Y.; Zhang, B.; Liu, H.; Fengler, K.A.; et al. A maize wall-associated kinase confers quantitative resistance to head smut. Nat. Genet. 2015, 47, 151–157. [Google Scholar] [CrossRef]
  40. Mao, H.; Wang, H.; Liu, S.; Li, Z.; Yang, X.; Yan, J.; Li, J.; Tran, L.S.; Qin, F. A transposable element in a NAC gene is associated with drought tolerance in maize seedlings. Nat. Commun. 2015, 6, 8326. [Google Scholar] [CrossRef] [Green Version]
  41. Wang, X.; Wang, H.; Liu, S.; Ferjani, A.; Li, J.; Yan, J.; Yang, X.; Qin, F. Genetic variation in ZmVPP1 contributes to drought tolerance in maize seedlings. Nat. Genet. 2016, 48, 1233–1241. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, Y.; Cao, Y.; Liang, X.; Zhuang, J.; Wang, X.; Qin, F.; Jiang, C. A dirigent family protein confers variation of Casparian strip thickness and salt tolerance in maize. Nat. Commun. 2022, 13, 2222. [Google Scholar] [CrossRef] [PubMed]
  43. Mäser, P.; Hosoo, Y.; Goshima, S.; Horie, T.; Eckelman, B.; Yamada, K.; Yoshida, K.; Bakker, E.P.; Shinmyo, A.; Oiki, S.; et al. Glycine residues in potassium channel-like selectivity filters determine potassium selectivity in four-loop-persubunit HKT transporters from plants. Proc. Natl. Acad. Sci. USA 2002, 99, 6428–6433. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Xu, J.; Li, H.D.; Chen, L.Q.; Wang, Y.; Liu, L.L.; He, L.; Wu, W.H. A protein kinase, interacting with two calcineurin B-like proteins, regulates K+ transporter AKT1 in Arabidopsis. Cell 2006, 125, 1347–1360. [Google Scholar] [CrossRef] [Green Version]
  45. Song, W.; Wang, B.; Hauck, A.L.; Dong, X.; Li, J.; Lai, J. Genetic dissection of maize seedling root system architecture traits using an ultra-high density bin-map and a recombinant inbred line population. J. Integr. Plant Biol. 2016, 58, 266–279. [Google Scholar] [CrossRef] [PubMed]
  46. Li, H. Aligning sequence reads, clone sequences and assembly con*gs with BWA MEM. Genomics 2013, 1, 1–3. [Google Scholar]
  47. McKenna, A.; Hanna, M.; Banks, E.; Sivachenko, A.; Cibulskis, K.; Kernytsky, A.; Garimella, K.; Altshuler, D.; Gabriel, S.; Daly, M.; et al. The Genome Analysis Toolkit: A MapReduce framework for analyzing next-generation DNA sequencing data. Genome Res. 2010, 20, 1297–1303. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Fekih, R.; Takagi, H.; Tamiru, M.; Abe, A.; Natsume, S.; Yaegashi, H.; Sharma, S.; Sharma, S.; Kanzaki, H.; Matsumura, H.; et al. MutMap+: Genetic mapping and mutant identification without crossing in rice. PLoS ONE 2013, 8, e68529. [Google Scholar] [CrossRef]
  49. Hill, J.T.; Demarest, B.L.; Bisgrove, B.W.; Gorsi, B.; Su, Y.C.; Yost, H.J. MMAPPR: Mutation mapping analysis pipeline for pooled RNA-seq. Genome Res. 2013, 23, 687–697. [Google Scholar] [CrossRef] [Green Version]
Plants 12 01331 g001 550

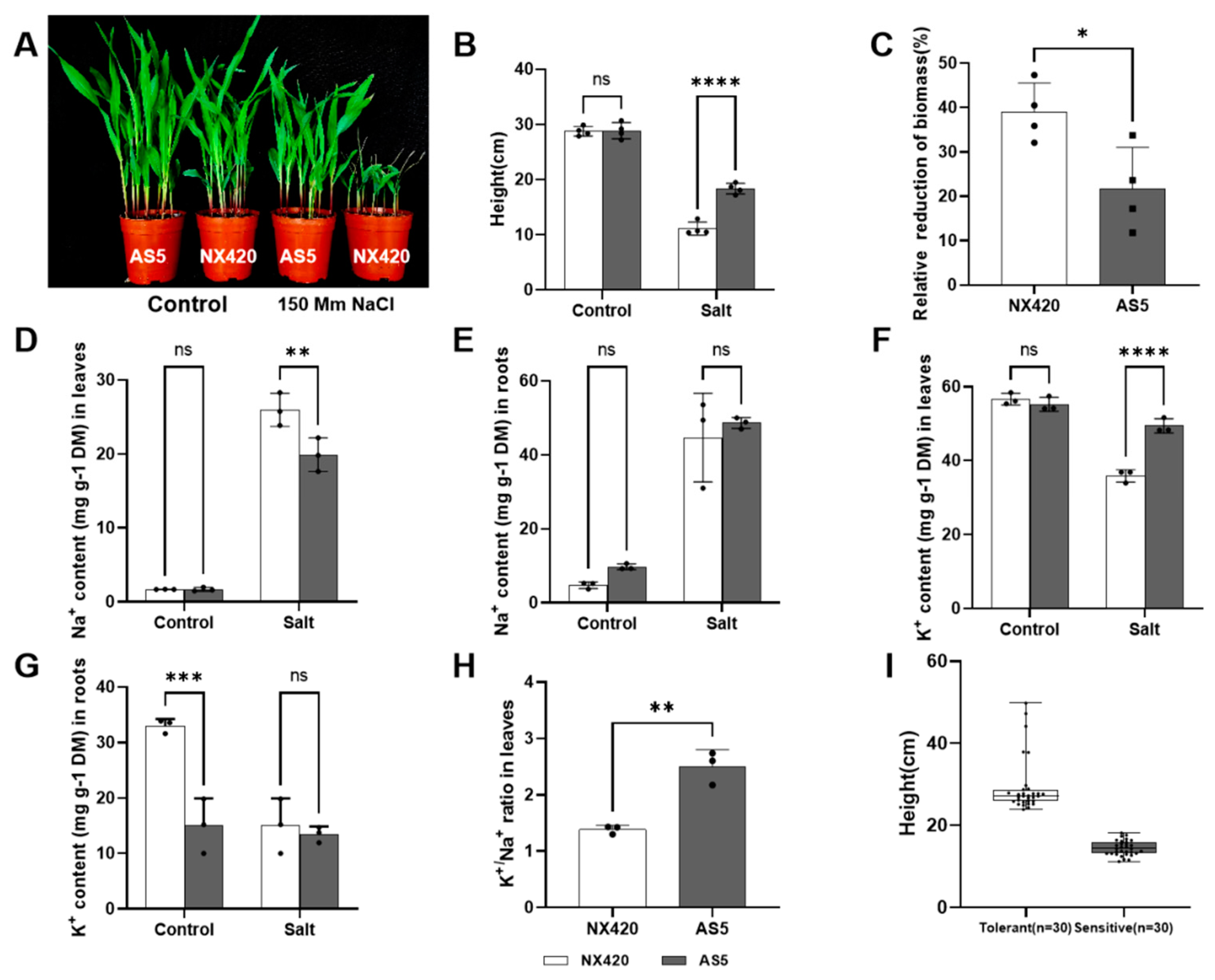

Figure 1. Identification of salt tolerance in AS5 and NX420. (A) The seedlings of AS5 and NX420 were treated with 150 mM NaCl for 14 days. (B,C) Plant height and the reduction in biomass. (D,E) Na+ content in leaves and roots. (F,G) K+ content in leaves and roots. (H) K+:Na+ ratios in leaves. (I) Plant height of extremum population. The bar is 10 cm. *, p < 0.1; **, p < 0.01; ***, p < 0.001; ****, p < 0.0001, ns is no significant difference.
Figure 1. Identification of salt tolerance in AS5 and NX420. (A) The seedlings of AS5 and NX420 were treated with 150 mM NaCl for 14 days. (B,C) Plant height and the reduction in biomass. (D,E) Na+ content in leaves and roots. (F,G) K+ content in leaves and roots. (H) K+:Na+ ratios in leaves. (I) Plant height of extremum population. The bar is 10 cm. *, p < 0.1; **, p < 0.01; ***, p < 0.001; ****, p < 0.0001, ns is no significant difference.
Plants 12 01331 g001
Plants 12 01331 g002 550

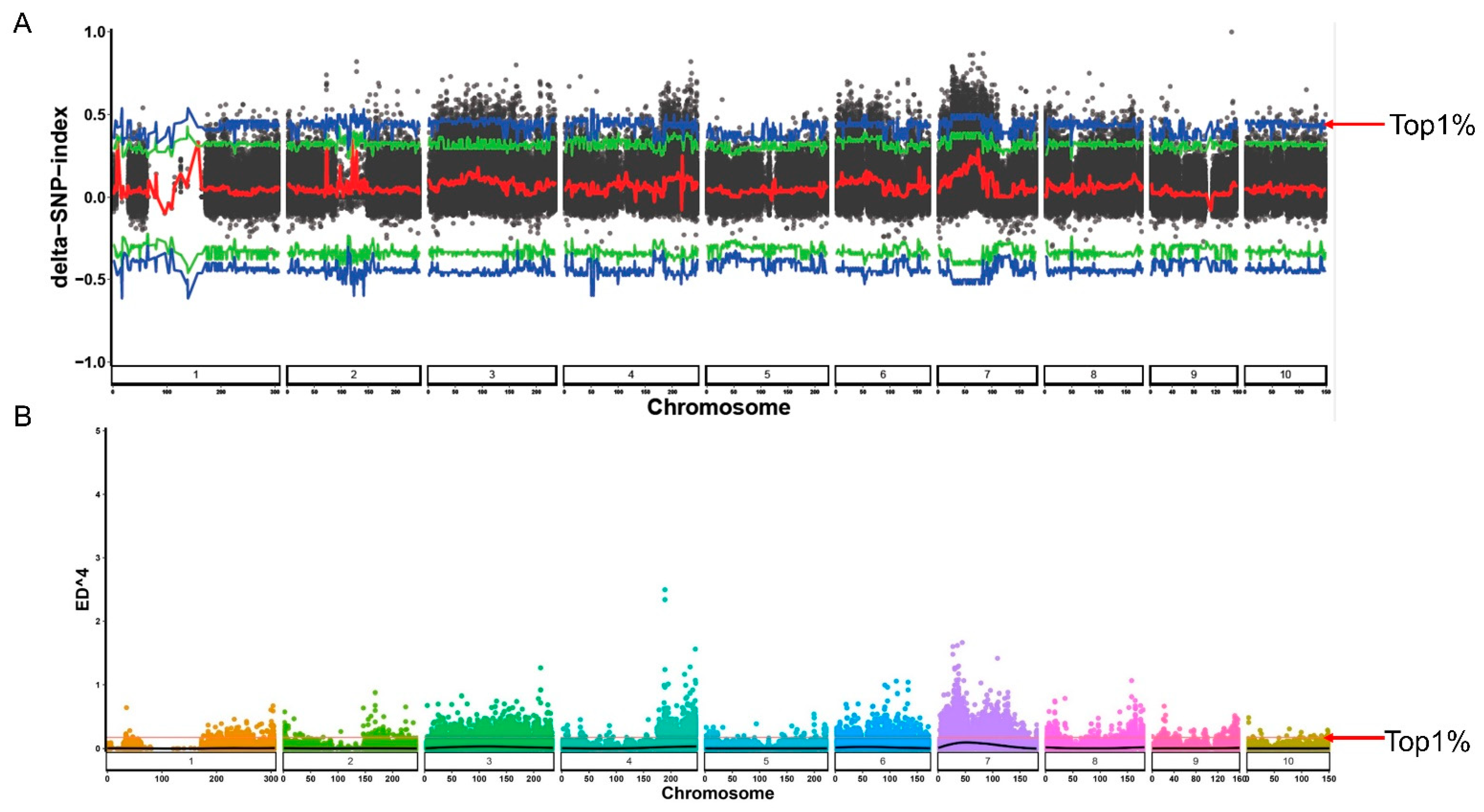

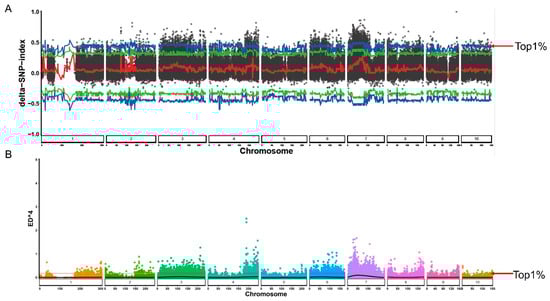

Figure 2. BSA: (A) SNP/InDel-index method and (B) ED method. Blue and red arrows indicate the top 1% threshold value in the two different methods, respectively.
Figure 2. BSA: (A) SNP/InDel-index method and (B) ED method. Blue and red arrows indicate the top 1% threshold value in the two different methods, respectively.
Plants 12 01331 g002
Plants 12 01331 g003 550

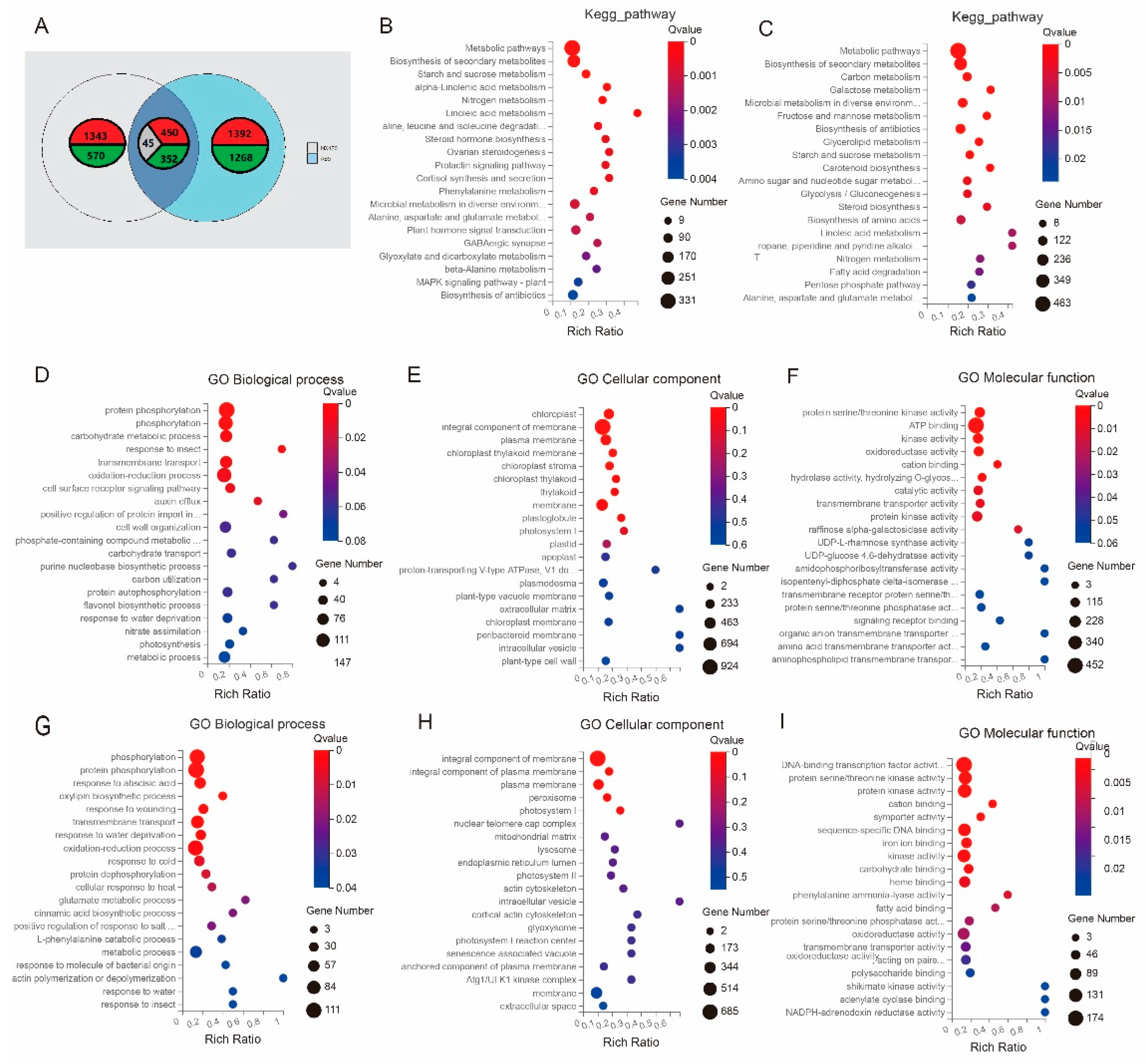

Figure 3. The differentially expressed genes (DEGs) at the seedling stage in NX420 and AS5. (A) The number of DEGs and two inbred lines; (B) KEGG enrichment at the seedling stage in NX420; (C) KEGG enrichment at the seedling stage in AS5; (D–F) GO enrichment at the seedling stage in AS5; (G–I) GO enrichment at the seedling stage in NX420.
Figure 3. The differentially expressed genes (DEGs) at the seedling stage in NX420 and AS5. (A) The number of DEGs and two inbred lines; (B) KEGG enrichment at the seedling stage in NX420; (C) KEGG enrichment at the seedling stage in AS5; (D–F) GO enrichment at the seedling stage in AS5; (G–I) GO enrichment at the seedling stage in NX420.
Plants 12 01331 g003
Plants 12 01331 g004 550

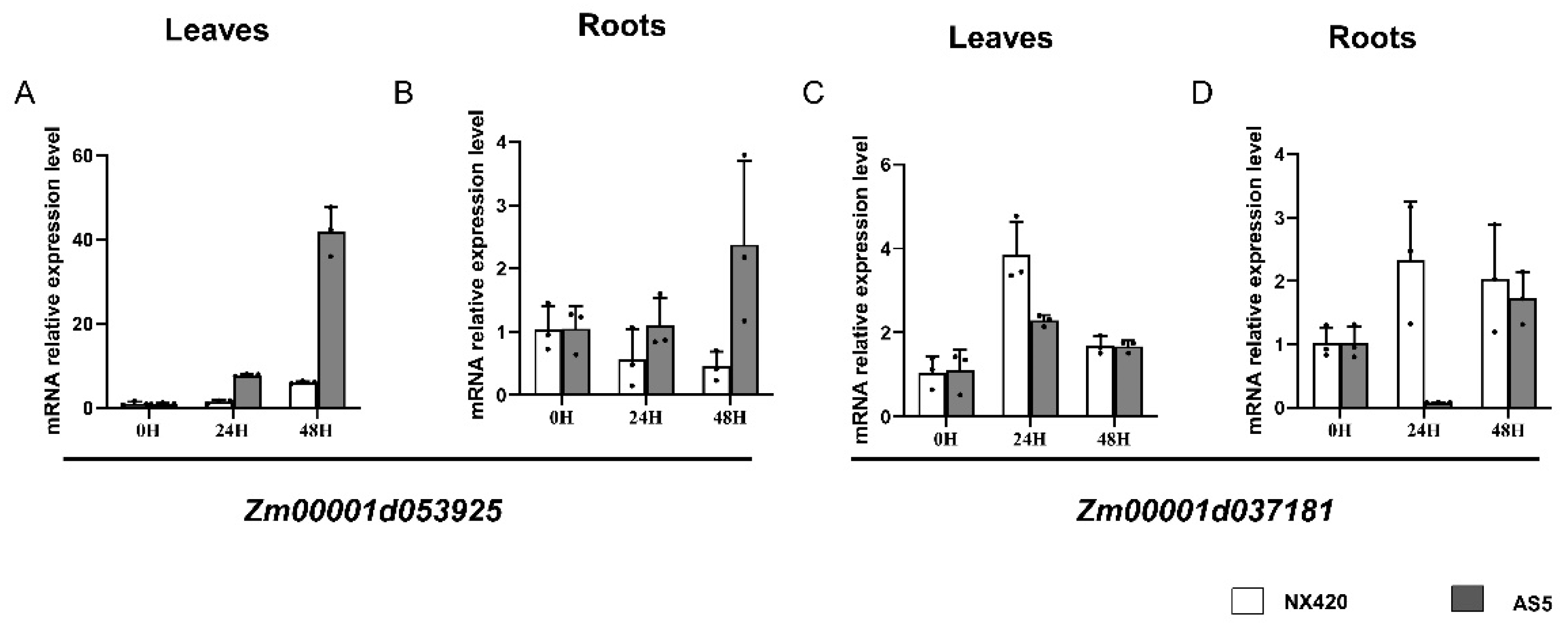

Figure 4. The mRNA relative expression level in the leaves and roots of NX420 and AS5. (A,B) The mRNA relative expression level of Zm00001d053925 in the leaves and roots; (C,D) the mRNA relative expression level of Zm00001d037181 in the leaves and roots.
Figure 4. The mRNA relative expression level in the leaves and roots of NX420 and AS5. (A,B) The mRNA relative expression level of Zm00001d053925 in the leaves and roots; (C,D) the mRNA relative expression level of Zm00001d037181 in the leaves and roots.
Plants 12 01331 g004
Plants 12 01331 g005 550
Figure 5. The prediction of the protein structure (www.maizegdb.org, 17 February 2022). (A) Zm00001d053925; (B) Zm00001d049987 (ZmHAK4); (C) Zm00001d040627 (ZmHKT1); (D) Zm00001d014680 (ZmHKT2).
Figure 5. The prediction of the protein structure (www.maizegdb.org, 17 February 2022). (A) Zm00001d053925; (B) Zm00001d049987 (ZmHAK4); (C) Zm00001d040627 (ZmHKT1); (D) Zm00001d014680 (ZmHKT2).
Plants 12 01331 g005
Table
Table 1. Coverage of the reads mapping to the B73 reference genome from the re-sequencing of AS5 and NX420 using BGI.
Table 1. Coverage of the reads mapping to the B73 reference genome from the re-sequencing of AS5 and NX420 using BGI.
Sample NameAS5 (Tolerant)NX420 (Sensitive)TolerantSensitive
Mapping read623,006,996624,618,518795,107,985763,413,251
Mapping ratio99.77%99.81%99.81%99.81%
Clean read616,749,238620,812,254788,519,740757,382,400
Clean base92,512,385,70093,121,838,100118,277,961,000113,607,360,000
Depth43.330X43.615X55.397X53.210X
Properly paired read574,440,938591,572,262743,200,496591,572,262
Properly paired ratio93.14%95.29%94.25%94.41%
Table
Table 2. Distribution statistics of high-quality SNPs on chromosomes.
Table 2. Distribution statistics of high-quality SNPs on chromosomes.
ChromosomeSNP Number
1657,086
2639,709
3878,652
4668,120
5642,954
6598,968
7690,312
8625,423
9598,375
10516,732
Total6,516,331
Table
Table 3. Summary of mapping reads and RNA-seq.
Table 3. Summary of mapping reads and RNA-seq.
SampleRaw Reads (M)Clean Reads (M)Clean Bases (Gb)Q20 (%)Q30 (%)Clean
Reads Ratio (%)		Total Mapping (%)
CK420-147.3343.996.696.3787.9992.9588.93
CK420-249.0845.266.7996.3488.2592.2387.76
CK420-349.0845.46.8196.4788.4992.5187.57
S420-149.0845.46.8196.3487.9792.587.89
S420-250.8345.066.7696.3988.288.6585.84
S420-349.0844.66.6995.9787.2690.8788.09
CKAS5-149.0844.366.6596.0287.4790.3984.05
CKAS5-249.0844.036.696.1187.4289.7184.14
CKAS5-350.8345.376.8195.485.8589.2684.33
SAS5-150.8345.16.7796.5388.5388.7382.69
SAS5-249.0844.056.6196.2887.9189.7683.73
SAS5-349.0845.366.896.1887.7592.4284.28
Table
Table 4. The candidate genes’ overlapped BSA-seq and DEGs.
Table 4. The candidate genes’ overlapped BSA-seq and DEGs.
SampleAS5NX420
IDZm00001d053925Zm00001d037181Zm00001d053925Zm00001d037181Zm00001d039920Zm00001d045404
Chr464639
ED40.3610.4520.3610.4520.2370.182
SNP-index0.550.580.550.580.50.46
q-value1.49 × 10−70.0411229076.02 × 10−60.0147981660.0089507370.041086237
GO
Annotation		Integral component of the membrane-Integral component of the membrane-Integral component of the membraneAcid phosphatase activity
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhu, Y.; Ren, Y.; Liu, J.; Liang, W.; Zhang, Y.; Shen, F.; Ling, J.; Zhang, C. New Genes Identified as Modulating Salt Tolerance in Maize Seedlings Using the Combination of Transcriptome Analysis and BSA. Plants 2023, 12, 1331. https://doi.org/10.3390/plants12061331

AMA Style

Zhu Y, Ren Y, Liu J, Liang W, Zhang Y, Shen F, Ling J, Zhang C. New Genes Identified as Modulating Salt Tolerance in Maize Seedlings Using the Combination of Transcriptome Analysis and BSA. Plants. 2023; 12(6):1331. https://doi.org/10.3390/plants12061331

Chicago/Turabian Style

Zhu, Yongxing, Ying Ren, Ji’an Liu, Wenguang Liang, Yuanyuan Zhang, Fengyuan Shen, Jiang Ling, and Chunyi Zhang. 2023. "New Genes Identified as Modulating Salt Tolerance in Maize Seedlings Using the Combination of Transcriptome Analysis and BSA" Plants 12, no. 6: 1331. https://doi.org/10.3390/plants12061331

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
