Transcriptome Profiling Reveals the Response of Seed Germination of Peganum harmala to Drought Stress

by
Zhen Zhang
1,
Hongyan Su
1,
Qingen Li
2 and
Mengfei Li
1,*
1
State Key Laboratory of Aridland Crop Science, Gansu Agricultural University, Lanzhou 730070, China
2
Station of Forestry and Grassland, Alxa Right Banner 737300, China
*
Author to whom correspondence should be addressed.
Plants 2024, 13(12), 1649; https://doi.org/10.3390/plants13121649
Submission received: 20 May 2024 / Revised: 6 June 2024 / Accepted: 11 June 2024 / Published: 14 June 2024
(This article belongs to the Topic Plant Responses to Environmental Stress)
Browse Figures
Versions Notes

Abstract

:
Peganum harmala L. is a perennial herbaceous plant that plays critical roles in protecting the ecological environment in arid, semi-arid, and desert areas. Although the seed germination characteristics of P. harmala in response to environmental factors (i.e., drought, temperature, and salt) have been investigated, the response mechanism of seed germination to drought conditions has not yet been revealed. In this study, the changes in the physiological characteristics and transcriptional profiles in seed germination were examined under different polyethylene glycol (PEG) concentrations (0–25%). The results show that the seed germination rate was significantly inhibited with an increase in the PEG concentration. Totals of 3726 and 10,481 differentially expressed genes (DEGs) were, respectively, generated at 5% and 25% PEG vs. the control (C), with 1642 co-expressed DEGs, such as drought stress (15), stress response (175), and primary metabolism (261). The relative expression levels (RELs) of the key genes regulating seed germination in response to drought stress were in accordance with the physiological changes. These findings will pave the way to increase the seed germination rate of P. harmala in drought conditions.

1. Introduction

Peganum harmala L. (family Zygophyllaceae) is a perennial herbaceous plant mainly distributed in arid, semi-arid, and desert areas in China (e.g., Xinjiang, Ningxia, and the Inner Mongolia province), and it plays critical roles in preventing land degradation [1]. Furthermore, it has been widely used to treat diabetes, hypertension, nervous system disorders, etc.; these uses largely rely on its bioactive compounds, including alkaloids, flavonoids, and anthraquinones [2].
As is known, drought significantly limits plant biomass, crop yield, and agricultural cultivation [3]. Plants can respond to drought stress through a series of physiological, biochemical, and nutritional networks [4]. Extensive studies have demonstrated that drought stress inhibits plant growth while improving the activity of antioxidant enzymes (e.g., SOD, CAT, and APX) by inducing the expression levels of related genes and stress-inducible genes encoding the enzymes involved in ABA biosynthesis [5,6]. Previous studies on Peganum multisectum Bobr (the same genus with P. harmala) have found that drought stress significantly increased the SOD and CAT activities as well as the soluble sugar, MDA, and Pro contents [7].
Seed germination is the first step toward continuous growth and development, especially under adverse conditions [8,9]. Generally, drought stress significantly affects the seed germination parameters (e.g., cumulative percent germination, maximum seed germination, and seed germination rate) [10]. A series of physiological and biochemical changes occur during seed germination in response to drought stress [11]. Early studies showed that the seed germination rate of P. harmala significantly decreased under drought stress, high temperature (>30 °C), and high salt concentrations (>100 mmol/L NaCl) [12,13]; in contrast, it increased under low salt concentrations (<50 mmol/L NaCl), low concentrations of a Ni2+, Cu2+, and Co2+ solution, and fluctuating temperatures (e.g., 30 °C/15 °C) [13,14].
To date, although the seed germination characteristics of P. harmala in response to different stress factors (i.e., drought, temperature, and salt) have been investigated [12,13,14], the regulatory mechanisms in the seed germination stage have not yet been revealed. In this study, the physiological characteristics and transcriptional profiles of P. harmala at the seed germination stage were examined under PEG 6000-induced drought stress.

2. Results

2.1. Germination Characteristics and Physiological Indices under PEG Treatments

The seed germination was significantly affected by the PEG-induced drought stress (Figure 1). The germination characteristics (i.e., seed germination rate, length of hypocotyl and radicle, and fresh weight) significantly decreased with an increase in the PEG concentration (Figure 1A–D). Meanwhile, the PEG treatments significantly adjusted the activities of antioxidant enzymes (i.e., SOD, POD, CAT, and APX) and the contents of osmolytes (i.e., soluble sugar, protein, MDA, and Pro) (Figures S1 and S2).

2.2. Transcriptome Profiles under PEG Treatments

2.2.1. Transcriptomic Analysis

After filtered sequences at C, 5%, and 25% PEG, totals of 67.48, 78.91, and 80.30 million high-quality reads were assembled, and 53.99, 63.17, and 63.97 million unique reads with 2.08, 2.43, and 2.49 million multiple reads were obtained, respectively (Table 1; Figure S3).
A total of 81,625 unigenes were annotated on the KEGG (37,725), KOG (24,809), Nr (41,636), and Swissprot databases (29,846) (Figure S4). Specifically, 46.22% transcripts were enriched in 139 biochemical pathways on the KEGG (Figure S5); 30.39% transcripts encoded the proteins on the KOG (Figure S6); the top 10 species (i.e., Pistacia vera, Citrus clementine, Carica papaya, Coffea arabica, Citrus sinensis, Vitis vinifera, Prunus dulcis, Actinidia chinensis, Theobroma cacao, and Rhodamnia argentea) were located on the NR (Figure S7); 36.56% transcripts were annotated on the Swissprot; and three ontologies were partitioned on the GO (Figure S8).

2.2.2. Excavation of DEGs

Totals of 3726 (1865 up-regulated (UR), 1861 down-regulated (DR)) and 10,481 (4783 UR, 5698 DR) DEGs were excavated from the 5% and 25% PEG vs. C, respectively (Figure 2), based on the comprehensive analysis (Figures S9–S11).

2.2.3. Identification of DEGs

After function retrieval from the databases, 2536 and 6113 genes were identified from the above 3726 and 10,481 DEGs, respectively, with 1642 genes co-expressed at C, 5%, and 25% PEG (Figure 3A–C). Furthermore, the 1642 genes were classified into 11 categories, such as drought stress (15 genes), cell morphogenesis (176 genes), and transcription factor (159 genes) (Figure 3D).

2.3. Specific Classification of DEGs and Expression Levels Validated via qRT-PCR

2.3.1. DEGs Associated with Drought Stress

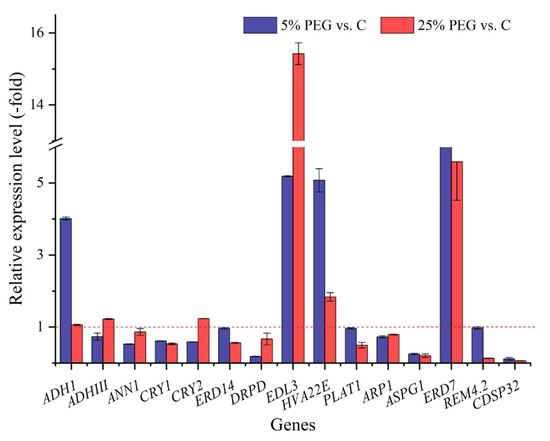

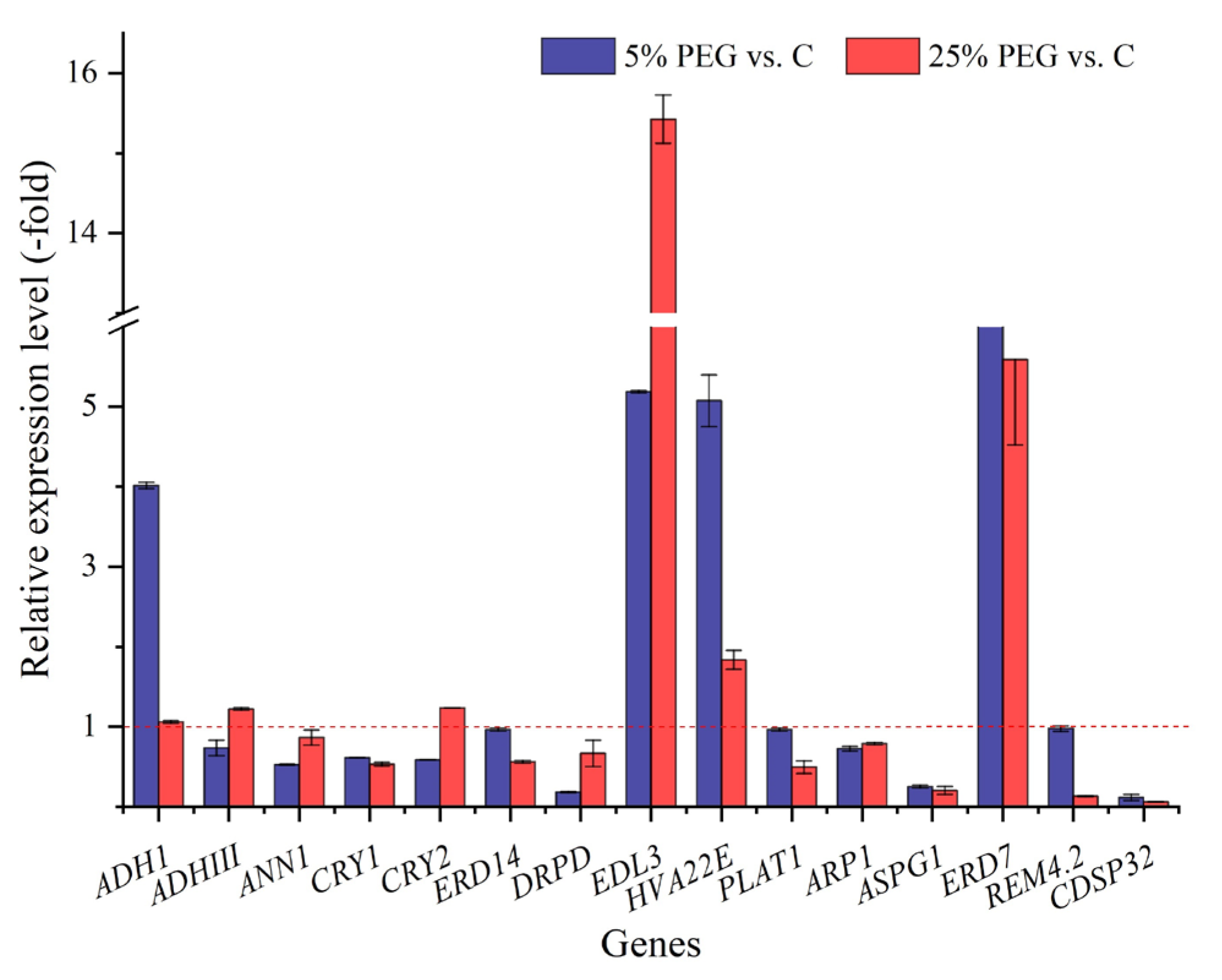

In this study, 15 genes were directly associated with drought stress (Table S1). The RELs of 4 genes showed 4.02- (ADH1) to 11.53-fold (ERD7) UR and those of 11 genes showed 0.12- (CDSP32) to 0.98-fold (REM4.2) DR under 5% PEG vs. C, while those of 6 genes showed 1.01- (ADH1) to 15.43-fold (EDL3) UR and those of 9 genes showed 0.06- (CDSP32) to 0.87-fold (ANN1) DR under 25% PEG vs. C (Figure 4). The RELs of most genes (e.g., ADH1, ANN1, and CRY1) were consistent with their RPKM values (Table S1).

2.3.2. DEGs Associated with Antioxidant Enzyme Activities

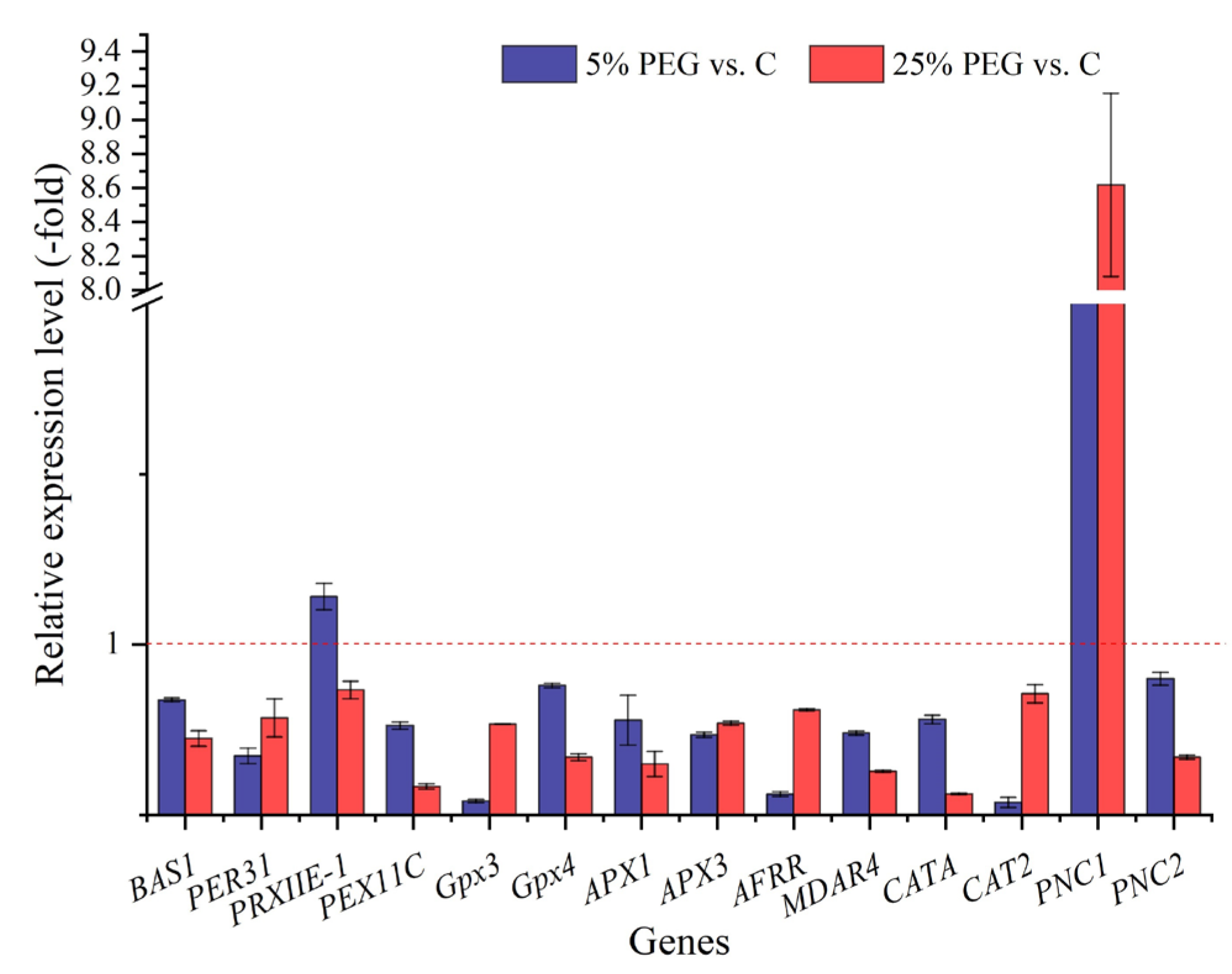

A total of 20 antioxidant enzymes genes were excavated from the 175 stress response genes (Tables S2 and S3). The RELs of 2 genes showed 1.28- (PRXIIE-1) and 6.07-fold (PNC1) UR, and those of 12 genes showed 0.07- (CAT2) to 0.80-fold (PNC2) DR under 5% PEG vs. C, while those of 1 gene showed 8.62-fold (PNC1) UR, and those of 13 genes showed 0.12- (CATA) to 0.73-fold (PRXIIE-1) DR under 25% PEG vs. C (Figure 5). The RELs of most genes (e.g., BAS1, PER31, and PEX11C) were consistent with their RPKM values (Table S2).

2.3.3. DEGs Associated with Osmolytes

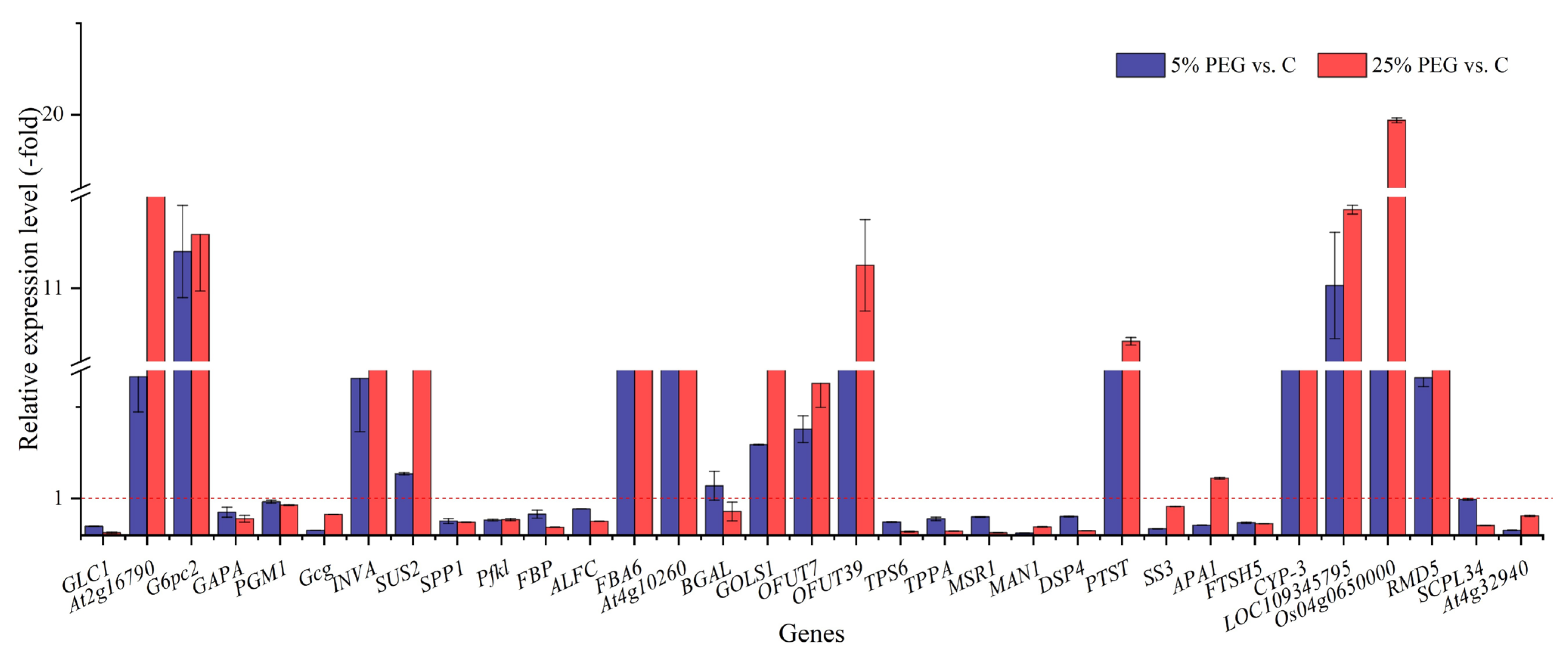

A total of 68 osmolytes genes were excavated from the 261 primary metabolism genes (Tables S4 and S5). The RELs of 33 genes were selected for validation, with those of 15 genes showing 1.35- (BGAL) and 12.01-fold (G6pc2) UR and those of 18 genes showing 0.06- (MAN1) to 0.98-fold (SCPL34) DR under 5% PEG vs. C, while those of 15 genes showed 1.56- (APA1) to 19.85-fold (Os04g0650000) UR, and those of 18 genes showed 0.07- (MSR1) to 0.82-fold (PGM1) DR under 25% PEG vs. C (Figure 6). The RELs of most genes (e.g., GLC1, At2g16790, and G6pc2) were consistent with their RPKM values (Table S4).

2.3.4. DEGs Associated with Seed Germination

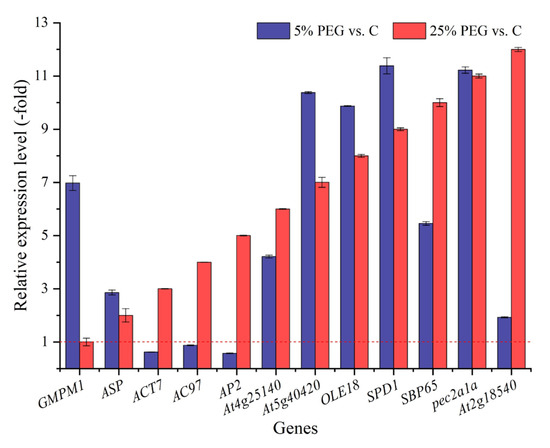

A total of 12 genes directly associated with seed germination were excavated from the 176 cell morphogenesis genes (Tables S6 and S7). The RELs of 9 genes showed 1.93- (At2g18540) and 11.38-fold (SPD1) UR and those of 3 genes showed 0.57- (AP2) to 0.87-fold (AC97) DR under 5% PEG vs. C, while those of 10 genes showed 1.06- (AP2) to 17.59-fold (At4g25140) UR and those of 2 genes showed 0.60-(ACT7) to 0.63-fold (AC97) DR under 25% PEG vs. C (Figure 7). The RELs of most genes (e.g., GMPM1, ASP, and At4g25140) were consistent with their RPKM values (Table S6).

2.3.5. TFs Associated with Seed Germination and Stress Response

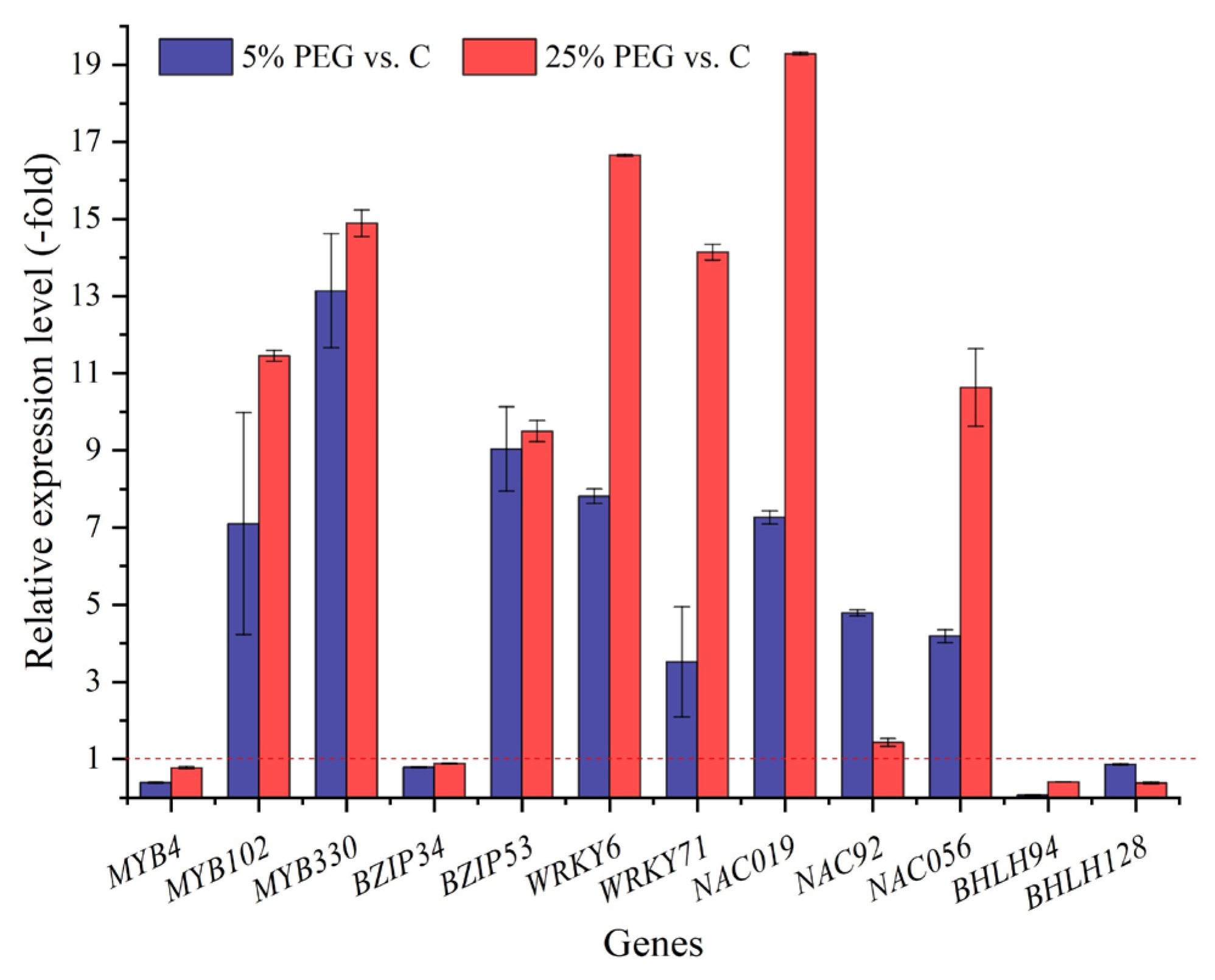

A total of 42 TFs directly associated with seed germination and the stress response were excavated from the 159 TFs (Tables S8 and S9). The RELs of 12 genes were selected for validation, with those of 8 genes showing 3.52- (WRKY71) to 13.14-fold (MYB330) UR and those of 4 genes showing 0.06- (BHLH94) to 0.86-fold (BHLH128) DR under 5% PEG vs. C, while those of 8 genes showed 1.43- (NAC92) to 19.29-fold (NAC019) UR and those of 4 genes showed 0.38- (BHLH128) to 0.88-fold (BZIP34) DR under 25% PEG vs. C (Figure 8). The RELs of most genes (e.g., MYB4, MYB102, and MYB330) were consistent with their RPKM values (Table S8).

2.3.6. DEGs Associated with Hormones

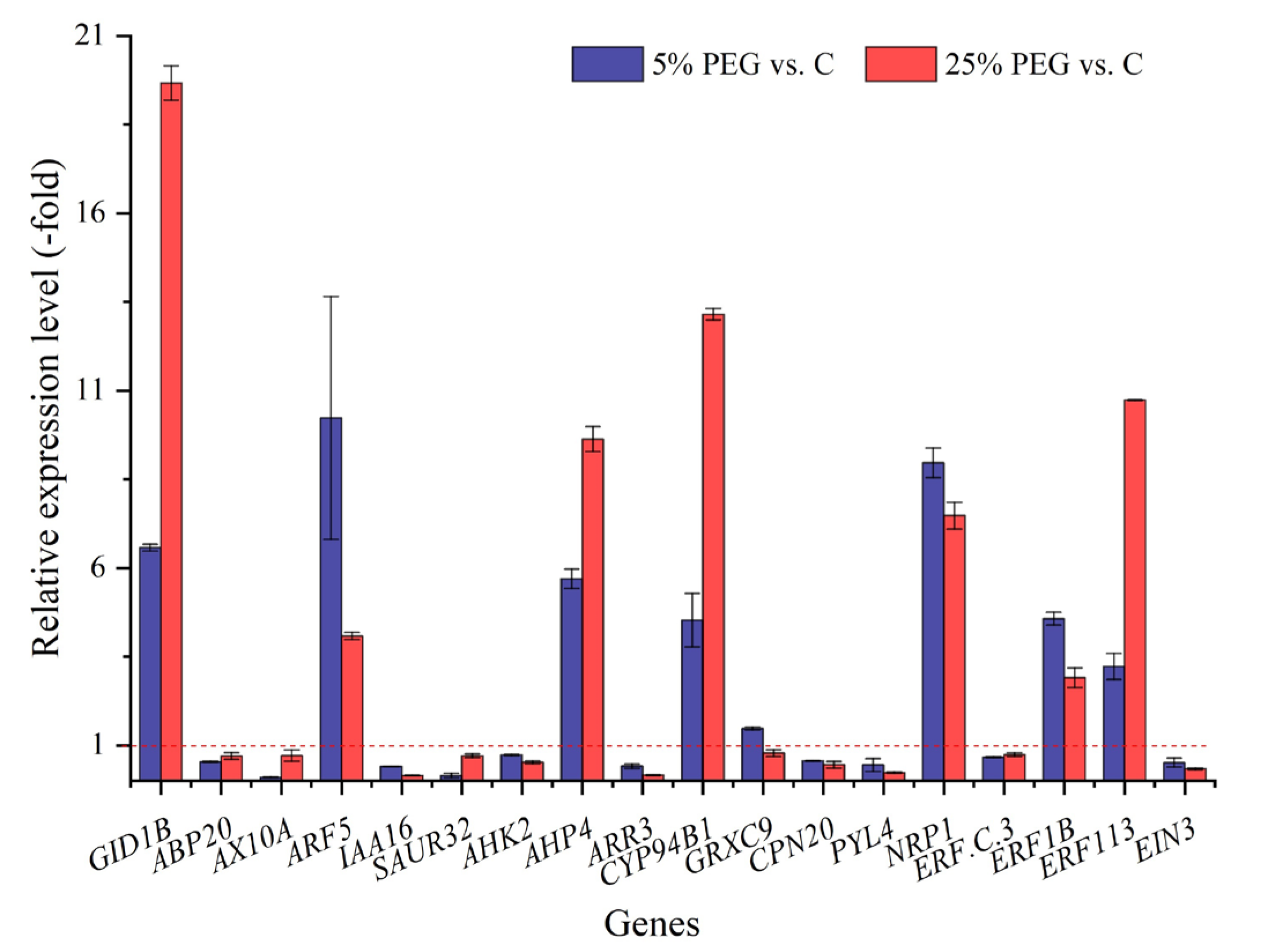

A total of 52 genes directly associated with hormones were excavated from the 219 bio-signaling genes (Tables S10 and S11). The RELs of 18 genes were selected for validation, with those of 8 genes showing 1.47- (GRXC9) to 10.23-fold (ARF5) UR and those of 10 genes showing 0.10- (AX10A) to 0.72-fold (AHK2) DR under 5% PEG vs. C, while those of 7 genes showed 2.90- (ERF1B) to 19.68-fold (GID1B) UR and those of 11 genes showed 0.14- (IAA16) to 0.78-fold (GRXC9) DR under 25% PEG vs. C (Figure 9). The RELs of most genes (e.g., GID1B, ABP20, and AX10A) were consistent with their RPKM values (Table S10).

2.3.7. Other Functional DEGs

Moreover, 490 DEGs were identified from the P. harmala in response to drought stress. The specific data are shown in Figure 3 and Tables S12–S16.

3. Discussion

Plants are frequently exposed to unfavorable environments, restricting their growth and development [15]. Drought seriously inhibits plant growth and development by interrupting various biological processes [16]. In this study, the physiological characteristics and transcriptional profiles of P. harmala were significantly affected during seed germination in response to PEG-induced drought stress.
Previous studies on drought have found that plants undergo changes in their phenotypes, antioxidant enzyme activities, and osmolyte contents [17]. For example, the germination rate of P. harmala significantly decreased under water limitations, PGE treatments, and dry cold storage [12,18]. The antioxidant enzymes and osmolytes in Peganum multisectum Bobr were affected under soil drought stress [7]. The contents of soluble sugar, free amino acids, and Pro significantly increased, while MDA gradually increased in Seabuckthorn under drought stress [19]. Furthermore, significant fluctuations of genes involved in protein kinases and TFs have been identified in response to drought stress [20]; for example, the expression levels of DHN1, RCD1, and LIPC were found to be related to the response to water-deficient up-regulation under PEG treatments [9].
In this study, the seed germination was significantly inhibited with an increase in the PEG concentrations, and the activities of antioxidant enzymes and contents of osmolytes were significantly altered under different PEG treatments. Meanwhile, 1642 DEGs were observed to be co-expressed in P. harmala, with 11 categories classified (e.g., drought stress, stress response, and primary metabolism) (see Figure 3).
Specifically, 15 genes directly participate in drought stress. For example, ADH1 and ADHIII are involved in the response to water deprivation [21]; ANN1 is differentially regulated under drought conditions [22]; CRY1 and CRY2 participate in the response to water deprivation [23]; ERD7 and ERD14 participate in the rapid response to dehydration [24]; DRPD participates in the response to desiccation and is abundantly expressed in dried leaves [25]; EDL3 participates in the response to drought stress via the plant hormones [26]; HVA22E plays a role in stress tolerance and is differentially regulated by dehydration stress [27]; PLAT1 acts as a positive regulator in response to abiotic stress [28]; ARP1 is involved in the response to water deprivation, affecting ABA-regulated seed germination [29]; ASPG1 is involved in drought avoidance through ABA signaling [30]; REM4.2 plays a role in various abiotic stresses and participates in the SnRK1-mediated signaling pathway [31]; and CDSP32 participates in the plastid defense against oxidative damage in response to water deprivation [32]. Based on the results of this study, we believe that these DEGs largely contribute to the seed germination under drought stress.
Generally, plants have evolved an antioxidant enzyme system to protect them from damage [33]. Here, 20 genes were found to be directly associated with antioxidant enzyme activities. For example, BAS1, PER31, and PRXIIE-1 play critical roles in cell protection against oxidative stress [34]; PEX11C is involved in peroxisomal proliferation [35]; Gpx3 participates in catalyzing the reduction of peroxides [36]; Gpx4 participates in preventing membrane lipid peroxidation [37]; APX1 and APX3 play key roles in hydrogen peroxide removal [38]; AFRR and MDAR4 are involved in the detoxification of H2O2 [39,40]; CATA and CAT2 protect cells from peroxide toxicity [41]; and PNC1 and PNC2 are involved in the response to the removal of H2O2 [42]. Based on the results of this study, these DEGs participate in regulating the antioxidant enzyme activities under drought stress.
For the 68 genes directly associated with osmolytes, 52 genes participate in soluble sugar metabolism. For example, At2g16790 is involved in D-gluconate degradation [43]; G6pc2 is involved in gluconeogenesis and carbohydrate biosynthesis [44]; PGM1 is involved in glucose metabolism [45]; Gcg plays a key role in glucose metabolism and homeostasis [46]; INVA cleaves sucrose into glucose and fructose [47]; SUS2 catalyzes sucrose synthesis and cleavage [48]; SPP1 is involved in sucrose biosynthesis [49]; Pfkl participates in the biosynthesis of D-glyceraldehyde 3-phosphate and glycerone phosphate [50]; FBP participates in the biosynthesis of fructose-1,6-bisphosphate and fructose-6-phosphate [51]. In this study, these DEGs must participate in regulating the soluble sugar and protein contents under drought stress.
Regarding the 12 genes directly associated with seed germination, briefly, ACT7 and AC97 are involved in seed germination and play an important role in cell division, organelle movement, and extension growth [52]; AP2 is required during seed development [53]; SBP65 plays roles in determining the seed germination capacity [54]; pec2a1a and At2g18540 act as seed storage proteins and play critical roles in seed development [55]. In this study, these DEGs must play dominant roles in seed germination under drought stress.
TFs play significant roles in regulating plant growth and development as well as signal networks [56]. Based on the results of this study, 42 TFs participate in seed germination and stress response. For example, MYB TFs participate in the drought, salt, and cold stress responses [57]; BZIP TFs (BZIP34 and BZIP53) act as transcriptional activators of seed development [58]; WRKY TFs (WRKY6 and WRKY71) are involved in the control of processes related to senescence and pathogen defense [59]; NAC TFs (NAC019, NAC92, and NAC056) are involved in the response to water deprivation and gene regulation during seed germination [60,61]; and BHLH TFs (BHLH94 and BHLH143) are involved in the response to abiotic stresses [62]. The results of this study indicate that these IFs may play critical roles in regulating the seed germination of P. harmala.
As is known, plant hormones play critical roles in the adaptation to various stresses [9]. Based on the results of this study, 52 genes participate in the hormone response; for example, GID1B acts as a GA receptor and is required for GA signaling, which controls seed germination [63]; AHK2 regulates several developmental processes, including seed germination, cell division, and shoot promotion [64]; and PYL4 is involved in ABA-mediated responses, such as germination inhibition [65]. These DEGs must regulate the fluctuation of hormones to control the seed germination of P. harmala.

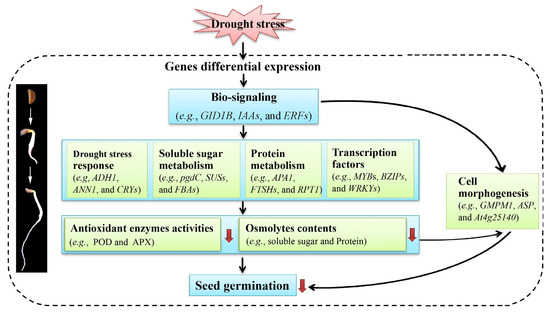

Based on the physiological characteristics and transcriptome profiles, a model of the seed germination of P. harmala in response to drought stress is outlined in Figure 10. Briefly, when seeds are exposed to drought stress, stress genes are induced to show differential expressions to switch on bio-signaling. Subsequently, low expression levels of genes participating in drought stress responses, soluble sugar metabolism, protein metabolism, and TFs will result in lower antioxidant enzyme activities and osmolyte contents, leading to membrane injury under drought stress; finally, these changes lead to cell morphogenesis, inhibiting the seed germination of P. harmala.

4. Materials and Methods

4.1. Plant Materials

P. harmala L. seeds were harvested from Alxa Left Banner of China in October 2019, air-dried, stored at 4 °C for two months, and then sown in a 15 cm Petri dish with 5 mL of PEG-6000, including: 0 (C, 0 MPa), 5% (−0.05 MPa), 10% (−0.15 MPa), 15% (−0.30 MPa), 20% (−0.50 MPa), and 25% (−0.77 MPa) [66]. There were 40 independent biological replicates for each treatment, with 30 seeds per dish.

4.2. Measurement of Germination Characteristics

After 3 d, the seed germination rate was measured. After 6 d, the lengths of the hypocotyls and radicles as well as the fresh weights of germinated seedlings were measured. Forty independent biological replicates were used for each measurement.

4.3. Determination of Antioxidant Enzyme Activities and Osmolyte Contents

The activities of SOD, POD, CAT, and APX were determined using a spectrometer at 560, 470, 240, and 290 nm, respectively [67,68,69,70]. The osmolyte contents of soluble sugar, protein, MDA, and Pro were determined with the methods of phenolsulfuric acid, coomassie brilliant blue colorimetric, thiobarbituric acid, and sulfosalicylic acid–acid ninhydrin, respectively [71,72,73,74]. Three biological replicates with 40 independent biological replicates were used for each determination.

4.4. Transcriptomic Analysis

High-quality RNA samples of the C, 5, and 25% PEG-6000 seedlings were used to construct the cDNA library, and the biosynthesis of second-strand cDNA and purification of cDNA fragments were performed according to previous protocols [75]. Their transcriptome profiles were analyzed using the Illumina HiSeqTM 4000 platform, with the filtration of raw reads, the assembly of clean reads, the normalization of transcripts to RPKM values, the expression analysis of different treatments, and the annotation of DEGs [76,77,78,79].

4.5. qRT-PCR Validation of Selected Genes

Primer-BLAST in the NCBI was used to design the primer sequence (Table S17). The cDNA synthesis, PCR amplification, and melting curve analysis were performed according to the manufacturers of the kits. The RELs of genes were calculated using the 2−ΔΔCt method, with actin used as a reference control [80].

4.6. Statistical Analysis

Significant differences at the p < 0.05 level were analyzed using ANOVA and Duncan’s post hoc test in SPSS 22.0.

5. Conclusions

The above observations reveal that the seed germination of P. harmala was inhibited under drought stress, with significant physiological changes in its antioxidant enzyme activities and osmolyte contents. The differential expressions of related genes play critical roles in regulating seed germination under drought stress. To identify the specific roles of genes related to drought resistance, additional studies are required.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13121649/s1. Figure S1: Changes in the antioxidant enzymes activities of P. harmala at the seed germination stage under different PEG treatments; Figure S2: Changes in the osmolyte contents of P. harmala at the seed germination stage under different PEG treatments; Figure S3: Length distribution of assembled unigenes; Figure S4: Basic annotation of all unigenes of P. harmala; Figure S5: Annotation of unigenes in KEGG database; Figure S6: Distribution of unigenes with KOG functional classification; Figure S7: Annotation of unigenes in NR database; Figure S8: Annotation of unigenes in GO database; Figure S9: Principal component analysis of C, 5% and 25% PEG; Figure S10: Pearson correlation analysis of C, 5%, and 25% PEG; Figure S11: Heat map of the DEGs under 5% and 25% PEG vs. C. Table S1: Genes associated with drought stress; Table S2: Genes associated with antioxidant enzymes; Table S3: Genes associated with other stress responses; Table S4: Genes associated with soluble sugar and protein metabolism; Table S5: Genes associated with other primary metabolism; Table S6: Genes associated with cell morphogenesis for seed germination; Table S7: Genes associated with other cell morphogenesis; Table S8: TFs associated with stress response and seed germination; Table S9: Other TFs at 5% and 25% PEG vs. C; Table S10: Genes associated with hormone response; Table S11: Genes associated with other bio-signaling; Table S12: Genes associated with photosynthesis and energy; Table S13: Genes associated with secondary metabolism; Table S14: Genes associated with transport; Table S15: Genes associated with polynucleotide metabolism; Table S16: Genes associated with translation; Table S17: Sequences of primers used for qRT-PCR validation.

Author Contributions

Z.Z.: methodology, formal analysis, and writing—original draft; H.S.: investigation and writing—original draft; Q.L.: investigation and resources; M.L.: writing—review and editing, supervision, and project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Major Special Projects of Science and Technology in Inner Mongolia Autonomous Region, China (ZDZX2018057).

Data Availability Statement

The datasets are publicly available at NCBI (https://www.ncbi.nlm.nih.gov/bioproject/PRJNA782232, accessed on 31 December 2022) and Sequence Read Archive (SRA) accession: C (SRR17012455, SRR17012461, and SRR17012462), 5% PEG (SRR17012448, SRR17012459, and SRR17012460), and 25% PEG (SRR17012456, SRR17012457, and SRR17012458).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ma, J.; Wang, X.L. The species and distribution of genus Peganum L. in the desert area of China. J. Desert Res. 1998, 18, 131–136. [Google Scholar]
  2. Li, H.; Shi, K.H.; Wu, K.X.; Zhou, J.H.; Mao, G.N. Research progress on chemical constituents, pharmacological effects, and toxicity of Peganum Harmala. Chin. Trad. Pat. Med. 2022, 44, 3936–3943. [Google Scholar]
  3. Wu, J.J.; Geng, G.P.; Zhou, H.K.; Liu, J.H.; Wang, Q.F.; Yang, J.H. Global vulnerability to agricultural drought and its spatial characteristics. Sci. China Earth Sci. 2017, 60, 910–920. [Google Scholar] [CrossRef]
  4. Ahanger, M.A.; Morad-Talab, N.; Abd-Allah, E.F.; Ahmad, P.; Hajiboland, R. Plant growth under drought stress. Water Stress Crop Plants A Sustain. Approach 2016, 2, 649–668. [Google Scholar]
  5. Zhu, Y.; Luo, X.; Nawaz, G.; Yin, J.; Yang, J. Physiological and biochemical responses of four cassava cultivars to drought stress. Sci. Rep. 2020, 10, 6968. [Google Scholar] [CrossRef]
  6. Uno, Y.; Furihata, T.; Abe, H.; Yoshida, R.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Arabidopsis basic leucine zipper transcriptional transcription factors involved in an abscisic acid-dependent signal transduction pathway under drought and high-salinity conditions. Proc. Natl. Acad. Sci. USA 2000, 97, 11632–11637. [Google Scholar] [CrossRef]
  7. Liu, J.X.; Zhao, G.L. Responses of activity of antioxidant enzymes and accumulation of osmolyte in Peganum multisectum Bobr leaves to soil drought stress. Agric. Res. Arid Areas 2005, 23, 127–131. [Google Scholar]
  8. Ren, J.; Yu, F.K.; Tao, L. Research advances on the germination of desert plants under stress. Bull. Bot. Res. 2011, 31, 121–128. [Google Scholar]
  9. Wu, Z.B.; Chang, P.X.; Zhao, J.; Wang, W.S.; Cui, X.W.; Li, M.F. Physiological and transcriptional responses of seed germination to moderate drought in Apocynum venetum. Front. Ecol. Evol. 2022, 10, 975771. [Google Scholar] [CrossRef]
  10. Wijewardana, C.; Reddy, K.R.; Krutz, L.J.; Gao, W.; Bellaloui, N. Drought stress has transgenerational effects on soybean seed germination and seedling vigor. PLoS ONE 2019, 14, e0214977. [Google Scholar] [CrossRef]
  11. Luo, D.; Wang, M.J.; Li, Y.H.; Chen, H.J.; Yang, Y. Four legumes response to simulated drought in the stages of seed germination and seedling growth and drought resistance assessment. Ecol. Environ. Sci. 2015, 24, 224–230. [Google Scholar]
  12. Liu, H.L.; Shi, Z.J.; Liao, J.; Qi, X.L.; Wang, J.J.; Zhu, L.J.; Wang, S.M. Study on seed characteristics, germination condition and the tolerant ability to salt and drought of Peganum harmala. J. Anhui Agric. Sci. 2010, 38, 3448–3450. [Google Scholar]
  13. Peng, M.Z.; Ji, X.M.; Jiang, L. Effects of temperature and salt stress on seed germination and seedling growth of Peganum harmala. North. Hortic. 2023, 2, 50–56. [Google Scholar]
  14. Xu, H.Q.; Wang, L.; Feng, Y.M.; He, M.Z. Effects of heavy metals on seed germination characteristics of Peganum Harmala under different temperatures and illuminations. Bull. Soil Water Conserv. 2012, 32, 33–37. [Google Scholar]
  15. Taiz, L.; Zeiger, E. Plant Physiology. In Responses and Adaptations to Abiotic Atress; Radin, J., Bressan, R., Drew, M., Hasegawa, P., Locy, R., Mickelbart, M., Salt, D., Eds.; Sinauer Associates Inc.: Sunderland, MA, USA, 2010; pp. 756–759. [Google Scholar]
  16. Farooq, M.; Wahid, A.; Kobayashi, N.; Fujita, D.; Basra, S. Plant drought stress: Effects, mechanisms and management. Agron. Sustain. Dev. 2009, 29, 185–212. [Google Scholar] [CrossRef]
  17. Zhang, H.M.; Zhu, J.H.; Gong, Z.Z.; Zhu, J.K. Abiotic stress responses in plants. Nat. Rev. Genet. 2022, 23, 104–119. [Google Scholar] [CrossRef] [PubMed]
  18. Lu, N.N.; Cui, X.L.; Wang, J.H.; Zhao, B.B.; Xu, X.L.; Liu, K. Effect of storage and light conditions on seed germination of 5 desert species in Zygophyllaceae. J. Desert Res. 2008, 28, 1130–1135. [Google Scholar]
  19. Han, R.L.; Li, L.X.; Liang, Z.S. Seabuckthorn relative membrane conductivity and osmotic adjustment under drought stress. Acta. Bot. Boreal. Occident. Sin. 2003, 23, 23–27. [Google Scholar]
  20. Li, X.; Li, J.J.; Su, H.Y.; Sun, P.; Zhang, Z.; Li, M.F.; Xing, H. Physiological and transcriptional responses of Apocynum venetum to salt stress at the seed germination stage. Int. J. Mol. Sci. 2023, 24, 3623. [Google Scholar] [CrossRef]
  21. de Bruxelles, G.L.; Peacock, W.J.; Dennis, E.S.; Dolferus, R. Abscisic acid induces the alcohol dehydrogenase gene in Arabidopsis. Plant Physiol. 1996, 111, 381–391. [Google Scholar] [CrossRef]
  22. Cantero, A.; Barthakur, S.; Bushart, T.J.; Chou, S.; Morgan, R.O.; Fernandez, M.P.; Clark, G.B.; Roux, S.J. Expression profiling of the Arabidopsis annexin gene family during germination, de-etiolation and abiotic stress. Plant Physiol. Biochem. 2006, 44, 13–24. [Google Scholar] [CrossRef] [PubMed]
  23. Sellaro, R.; Crepy, M.; Trupkin, S.A.; Karayekov, E.; Buchovsky, A.S.; Rossi, C.; Casal, J.J. Cryptochrome as a sensor of the blue/green ratio of natural radiation in Arabidopsis. Plant Physiol. 2010, 154, 401–409. [Google Scholar] [CrossRef] [PubMed]
  24. Kiyosue, T.; Yamaguchi-Shinozaki, K.; Shinozaki, K. Characterization of two cDNAs (ERD10 and ERD14) corresponding to genes that respond rapidly to dehydration stress in Arabidopsis thaliana. Plant Cell Physiol. 1994, 35, 225–231. [Google Scholar] [PubMed]
  25. Piatkowski, D.; Schneider, K.; Salamini, F.; Bartels, D. Characterization of five abscisic acid-responsive cDNA clones isolated from the desiccation-tolerant plant Craterostigma plantagineum and their relationship to other water-stress genes. Plant Physiol. 1990, 94, 1682–1688. [Google Scholar] [CrossRef] [PubMed]
  26. Koops, P.; Pelser, S.; Ignatz, M.; Klose, C.; Marrocco-Selden, K.; Kretsch, T. EDL3 is an F-box protein involved in the regulation of abscisic acid signalling in Arabidopsis thaliana. J. Exp. Bot. 2011, 62, 5547–5560. [Google Scholar] [CrossRef] [PubMed]
  27. Chen, C.N.; Chu, C.C.; Zentella, R.; Pan, S.M.; Ho, T.H.D. AtHVA22 gene family in Arabidopsis: Phylogenetic relationship, ABA and stress regulation, and tissue-specific expression. Plant Mol. Biol. 2002, 49, 633–644. [Google Scholar] [PubMed]
  28. Hyun, T.K.; van der Graaff, E.; Albacete, A.; Eom, S.H.; Grosskinsky, D.K.; Boehm, H.; Janschek, U.; Rim, Y.; Ali, W.W.; Kim, S.Y.; et al. The Arabidopsis PLAT domain protein1 is critically involved in abiotic stress tolerance. PLoS ONE 2014, 9, e112946. [Google Scholar] [CrossRef] [PubMed]
  29. Jung, H.J.; Kim, M.K.; Kang, H. An ABA-regulated putative RNA-binding protein affects seed germination of Arabidopsis under ABA or abiotic stress conditions. J. Plant Physiol. 2013, 170, 179–184. [Google Scholar] [CrossRef]
  30. Yao, X.; Xiong, W.; Ye, T.; Wu, Y. Overexpression of the aspartic protease ASPG1 gene confers drought avoidance in Arabidopsis. J. Exp. Bot. 2012, 63, 2579–2593. [Google Scholar] [CrossRef]
  31. Son, S.; Oh, C.J.; An, C.S. Arabidopsis thaliana remorins interact with SnRK1 and play a role in susceptibility to Beet Curly Top Virus and Beet Severe Curly Top Virus. Plant Pathol. J. 2014, 30, 269–278. [Google Scholar] [CrossRef]
  32. Broin, M.; Cuine, S.; Eymery, F.; Rey, P. The plastidic 2-cysteine peroxiredoxin is a target for a thioredoxin involved in the protection of the photosynthetic apparatus against oxidative damage. Plant Cell 2002, 14, 1417–1432. [Google Scholar] [CrossRef] [PubMed]
  33. Ahmad, P.; Jaleel, C.A.; Salem, M.A.; Nabi, G.; Sharma, S. Roles of enzymatic and non-enzymatic antioxidants in plants during abiotic stress. Crit. Rev. Biotechnol. 2010, 30, 161–175. [Google Scholar] [CrossRef] [PubMed]
  34. Ralph, S.G.; Chun, H.J.; Cooper, D.; Kirkpatrick, R.; Kolosova, N.; Gunter, L.; Tuskan, G.A.; Douglas, C.J.; Holt, R.A.; Jones, S.J.; et al. Analysis of 4,664 high-quality squence-finished poplar full-length cDNA clones and their utility for the discovery of genes responding to insect feeding. BMC Genom. 2008, 9, 57. [Google Scholar] [CrossRef] [PubMed]
  35. Orth, T.; Reumann, S.; Zhang, X.; Fan, J.; Wenzel, D.; Quan, S.; Hu, J. The PEROXIN11 protein family controls peroxisome proliferation in Arabidopsis. Plant Cell 2007, 19, 333–350. [Google Scholar] [CrossRef] [PubMed]
  36. Esworthy, R.S.; Chu, F.F.; Paxton, R.J.; Akman, S.; Doroshow, J.H. Characterization and partial amino acid sequence of human plasma glutathione peroxidase. Arch. Biochem. Biophys. 1991, 286, 330–336. [Google Scholar] [CrossRef] [PubMed]
  37. Yant, L.J.; Ran, Q.; Rao, L.; Van Remmen, H.; Shibatani, T.; Belter, J.G.; Motta, L.; Richardson, A.; Prolla, T.A. The selenoprotein GPX4 is essential for mouse development and protects from radiation and oxidative damage insults. Free Radic. Biol. Med. 2003, 34, 496–502. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, J.; Zhang, H.; Allen, R.D. Overexpression of an Arabidopsis peroxisomal ascorbate peroxidase gene in tobacco increases protection against oxidative stress. Plant Cell Physiol. 1999, 40, 725–732. [Google Scholar] [CrossRef]
  39. Lisenbee, C.S.; Lingard, M.J.; Trelease, R.N. Arabidopsis peroxisomes possess functionally redundant membrane and matrix isoforms of monodehydroascorbate reductase. Plant J. 2005, 43, 900–914. [Google Scholar] [CrossRef]
  40. Eastmond, P.J. MONODEHYROASCORBATE REDUCTASE4 is required for seed storage oil hydrolysis and postgerminative growth in Arabidopsis. Plant Cell 2007, 19, 1376–1387. [Google Scholar] [CrossRef] [PubMed]
  41. Ni, W.; Trelease, R.N. Post-transcriptional regulation of catalase isozyme expression in cotton seeds. Plant Cell 1991, 3, 737–744. [Google Scholar] [CrossRef]
  42. Buffard, D.; Breda, C.; van Huystee, R.B.; Asemota, O.; Pierre, M.; Dang Ha, D.B.; Esnault, R. Molecular cloning of complementary DNAs encoding two cationic peroxidases from cultivated peanut cells. Proc. Natl. Acad. Sci. USA 1990, 87, 8874–8878. [Google Scholar] [CrossRef] [PubMed]
  43. Rauch, B.; Pahlke, J.; Schweiger, P.; Deppenmeier, U. Characterization of enzymes involved in the central metabolism of Gluconobacter oxydans. Appl. Microbiol. Biotechnol. 2010, 88, 711–718. [Google Scholar] [CrossRef] [PubMed]
  44. Arden, S.D.; Zahn, T.; Steegers, S.; Webb, S.; Bergman, B.; O’Brien, R.M.; Hutton, J.C. Molecular cloning of a pancreatic islet-specific glucose-6-phosphatase catalytic subunit-related protein. Diabetes 1999, 48, 531–542. [Google Scholar] [CrossRef] [PubMed]
  45. Yu, L.R.; Zhu, Z.; Chan, K.C.; Issaq, H.J.; Dimitrov, D.S.; Veenstra, T.D. Improved titanium dioxide enrichment of phosphopeptides from HeLa cells and high confident phosphopeptide identification by cross-validation of MS/MS and MS/MS/MS spectra. J. Proteome Res. 2007, 6, 4150–4162. [Google Scholar] [CrossRef] [PubMed]
  46. Jiang, G.; Zhang, B.B. Glucagon and regulation of glucose metabolism. Am. J. Physiol. 2003, 284, E671–E678. [Google Scholar] [CrossRef] [PubMed]
  47. Xiang, L.; Le Roy, K.; Bolouri-Moghaddam, M.R.; Vanhaecke, M.; Lammens, W.; Rolland, F.; Van den Ende, W. Exploring the neutral invertase-oxidative stress defence connection in Arabidopsis thaliana. J. Exp. Bot. 2011, 62, 3849–3862. [Google Scholar] [CrossRef] [PubMed]
  48. Zheng, Y.; Anderson, S.; Zhang, Y.; Garavito, R.M. The structure of sucrose synthase-1 from Arabidopsis thaliana and its functional implications. J. Biol. Chem. 2011, 286, 36108–36118. [Google Scholar] [CrossRef] [PubMed]
  49. Chen, S.; Hajirezaei, M.; Peisker, M.; Tschiersch, H.; Sonnewald, U.; Boernke, F. Decreased sucrose-6-phosphate phosphatase level in transgenic tobacco inhibits photosynthesis, alters carbohydrate partitioning, and reduces growth. Planta 2005, 221, 479–492. [Google Scholar] [CrossRef] [PubMed]
  50. Graham, D.B.; Becker, C.E.; Doan, A.; Goel, G.; Villablanca, E.J.; Knights, D.; Mok, A.; Ng, A.C.; Doench, J.G.; Root, D.E.; et al. Functional genomics identifies negative regulatory nodes controlling phagocyte oxidative burst. Nat. Commun. 2015, 6, 7838. [Google Scholar] [CrossRef]
  51. Say, R.F.; Fuchs, G. Fructose 1,6-bisphosphate aldolase/phosphatase may be an ancestral gluconeogenic enzyme. Nature 2010, 464, 1077–1081. [Google Scholar] [CrossRef]
  52. Gilliland, L.U.; Pawloski, L.C.; Kandasamy, M.K.; Meagher, R.B. Arabidopsis actin gene ACT7 plays an essential role in germination and root growth. Plant J. 2003, 33, 319–328. [Google Scholar] [CrossRef] [PubMed]
  53. Drews, G.N.; Bowman, J.L.; Meyerowitz, E.M. Negative regulation of the Arabidopsis homeotic gene AGAMOUS by the APETALA2 product. Cell 1991, 65, 991–1002. [Google Scholar] [CrossRef] [PubMed]
  54. Hsing, Y.C.; Tsou, C.H.; Hsu, T.F.; Chen, Z.Y.; Hsieh, K.L.; Hsieh, J.S.; Chow, T.Y. Tissue- and stage-specific expression of a soybean (Glycine max L.) seed-maturation, biotinylated protein. Plant Mol. Biol. 1998, 38, 481–490. [Google Scholar] [CrossRef] [PubMed]
  55. Zhang, Y.; Lee, B.; Du, W.X.; Lyu, S.C.; Nadeau, K.C.; Grauke, L.J.; Zhang, Y.; Wang, S.; Fan, Y.; Yi, J.; et al. Identification and Characterization of a New Pecan [Carya illinoinensis (Wangenh.) K. Koch] Allergen, Car i 2. J. Agric. Food Chem. 2016, 64, 4146–4151. [Google Scholar] [CrossRef] [PubMed]
  56. Cheng, C.; An, L.; Li, F.; Ahmad, W.; Aslam, M.; Ul Haq, M.Z.; Yan, Y.; Ahmad, R.M. Wide-range portrayal of AP2/ERF transcription factor family in Maize (Zea mays L.) development and stress responses. Genes 2023, 14, 194. [Google Scholar] [CrossRef] [PubMed]
  57. Park, M.R.; Yun, K.Y.; Mohanty, B.; Herath, V.; Xu, F.; Wijaya, E.; Bajic, V.B.; Yun, S.J.; De Los Reyes, B.G. Supra-optimal expression of the cold-regulated OsMyb4 transcription factor in transgenic rice changes the complexity of transcriptional network with major effects on stress tolerance and panicle development. Plant Cell Environ. 2010, 33, 2209–2230. [Google Scholar] [CrossRef] [PubMed]
  58. Alonso, R.; Onate-Sanchez, L.; Weltmeier, F.; Ehlert, A.; Diaz, I.; Dietrich, K.; Vicente-Carbajosa, J.; Droege-Laser, W. A pivotal role of the basic leucine zipper transcription factor bZIP53 in the regulation of Arabidopsis seed maturation gene expression based on heterodimerization and protein complex formation. Plant Cell 2009, 21, 1747–1761. [Google Scholar] [CrossRef] [PubMed]
  59. Robatzek, S.; Somssich, I.E. Targets of AtWRKY6 regulation during plant senescence and pathogen defense. Genes Dev. 2002, 16, 1139–1149. [Google Scholar] [CrossRef] [PubMed]
  60. Tran, L.S.H.; Nakashima, K.; Sakuma, Y.; Simpson, S.D.; Fujita, Y.; Maruyama, K.; Fujita, M.; Seki, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Isolation and functional analysis of Arabidopsis stress-inducible NAC transcription factors that bind to a drought-responsive cis-element in the early responsive to dehydration stress 1 promoter. Plant Cell 2004, 16, 2481–2498. [Google Scholar] [CrossRef]
  61. Balazadeh, S.; Siddiqui, H.; Allu, A.D.; Matallana-Ramirez, L.P.; Caldana, C.; Mehrnia, M.; Zanor, M.I.; Koehler, B.; Mueller-Roeber, B. A gene regulatory network controlled by the NAC transcription factor ANAC092/AtNAC2/ORE1 during salt-promoted senescence. Plant J. 2010, 62, 250–264. [Google Scholar] [CrossRef]
  62. Osorio, M.B.; Bücker-Neto, L.; Castilhos, G.; Turchetto-Zolet, A.C.; Wiebke-Strohm, B.; Bodanese-Zanettini, M.H.; Margis-Pinheiro, M. Identification and in silico characterization of soybean trihelix-gt and bhlh transcription factors involved in stress responses. Genet. Mol. Biol. 2012, 35, 233–246. [Google Scholar] [CrossRef] [PubMed]
  63. Griffiths, J.; Murase, K.; Rieu, I.; Zentella, R.; Zhang, Z.L.; Powers, S.J.; Gong, F.; Phillips, A.L.; Hedden, P.; Sun, T.P.; et al. Genetic characterization and functional analysis of the GID1 gibberellin receptors in Arabidopsis. Plant Cell 2006, 18, 3399–3414. [Google Scholar] [CrossRef] [PubMed]
  64. Higuchi, M.; Pischke, M.S.; Maehoenen, A.P.; Miyawaki, K.; Hashimoto, Y.; Seki, M.; Kobayashi, M.; Shinozaki, K.; Kato, T.; Tabata, S.; et al. In planta functions of the Arabidopsis cytokinin receptor family. Proc. Natl. Acad. Sci. USA 2004, 101, 8821–8826. [Google Scholar] [CrossRef] [PubMed]
  65. Santiago, J.; Rodrigues, A.; Saez, A.; Rubio, S.; Antoni, R.; Dupeux, F.; Park, S.Y.; Marquez, J.A.; Cutler, S.R.; Rodriguez, P.L. Modulation of drought resistance by the abscisic acid receptor PYL5 through inhibition of clade A PP2Cs. Plant J. 2009, 60, 575–588. [Google Scholar] [CrossRef] [PubMed]
  66. Mirmazloum, I.; Kiss, A.; Erdélyi, É.; Ladányi, M.; Németh, É.Z.; Radácsi, P. The effect of osmopriming on seed germination and early seedling characteristics of Carum carvi L. Agriculture 2020, 10, 94. [Google Scholar] [CrossRef]
  67. Stewart, R.R.; Bewley, J.D. Lipid peroxidation associated with accelerated aging of soybean axes. Plant Physiol. 1980, 65, 245–248. [Google Scholar] [CrossRef]
  68. Hammerschmidt, R.; Nuckles, E.M.; Kuc, J. Association of enhanced peroxidase activity with induced systemic resistance of cucumber to Colletotrichum lagenarium. Physiol. Plant Pathol. 1982, 20, 73–82. [Google Scholar] [CrossRef]
  69. Chen, X.M. Comparison of three different methods of determining catalase activities in cut flowers. Chin. J. Trop. Agric. 2002, 22, 13–16. [Google Scholar]
  70. Shen, W.B.; Xu, L.L.; Ye, M.B.; Zhang, R.X. Study on determination of ASP activity. Plant Physiol. Comm. 1996, 32, 203–205. [Google Scholar]
  71. Dubois, M.; Gilles, K.A.; Hamilton, J.K.; Rebers, P.A.; Smith, F. Colorimetric method for determination of sugars and related substances. Anal. Chem. 1956, 28, 350–356. [Google Scholar] [CrossRef]
  72. Bradford, M.M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein dye binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef] [PubMed]
  73. Li, H.S. Principles and Techniques of Plant Physiological Biochemical Experimental; High Education Press: Beijing, China, 2000; pp. 260–261. [Google Scholar]
  74. Shi, H.T. Experimental Guidance of Plant Stress Physiology; Science Press: Beijing, China, 2016; pp. 14–15. [Google Scholar]
  75. Li, M.F.; Sun, P.; Kang, T.L.; Xing, H.; Yang, D.L.; Zhang, J.L.; Paré, P.W. Mapping podophyllotoxin biosynthesis and growth-related transcripts with high elevation in Sinopodophyllum hexandrum. Ind. Crop. Prod. 2018, 124, 510–518. [Google Scholar] [CrossRef]
  76. Chen, S.; Zhou, Y.; Chen, Y.; Gu, J. fastp: An ultra-fast all-in-one FASTQ preprocessor. Bioinformatics 2018, 34, i884–i890. [Google Scholar] [CrossRef] [PubMed]
  77. Grabherr, M.G.; Haas, B.J.; Yassour, M.; Levin, J.Z.; Thompson, D.A.; Amit, I.; Adiconis, X.; Fan, L.; Raychowdhury, R.; Zeng, Q.D.; et al. Full-length transcriptome assembly from RNA-Seq data without a reference genome. Nat. Biotechnol. 2011, 29, 644–652. [Google Scholar] [CrossRef] [PubMed]
  78. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNAseq data with DESeq2. Genome Biol. 2014, 15, 550. [Google Scholar] [CrossRef] [PubMed]
  79. Conesa, A.; Gotz, S.; Garcia-Gomez, J.M.; Terol, J.; Talon, M.; Robles, M. Blast2GO: A universal tool for annotation, visualization and analysis in functional genomics research. Bioinformatics 2005, 21, 3674–3676. [Google Scholar] [CrossRef]
  80. Willems, E.; Leyns, L.; Vandesompele, J. Standardization of real-time PCR gene expression data from independent biological replicates. Anal. Biochem. 2008, 379, 127–129. [Google Scholar] [CrossRef]
Plants 13 01649 g001

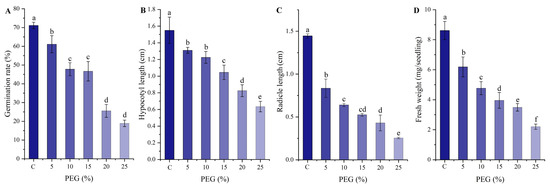

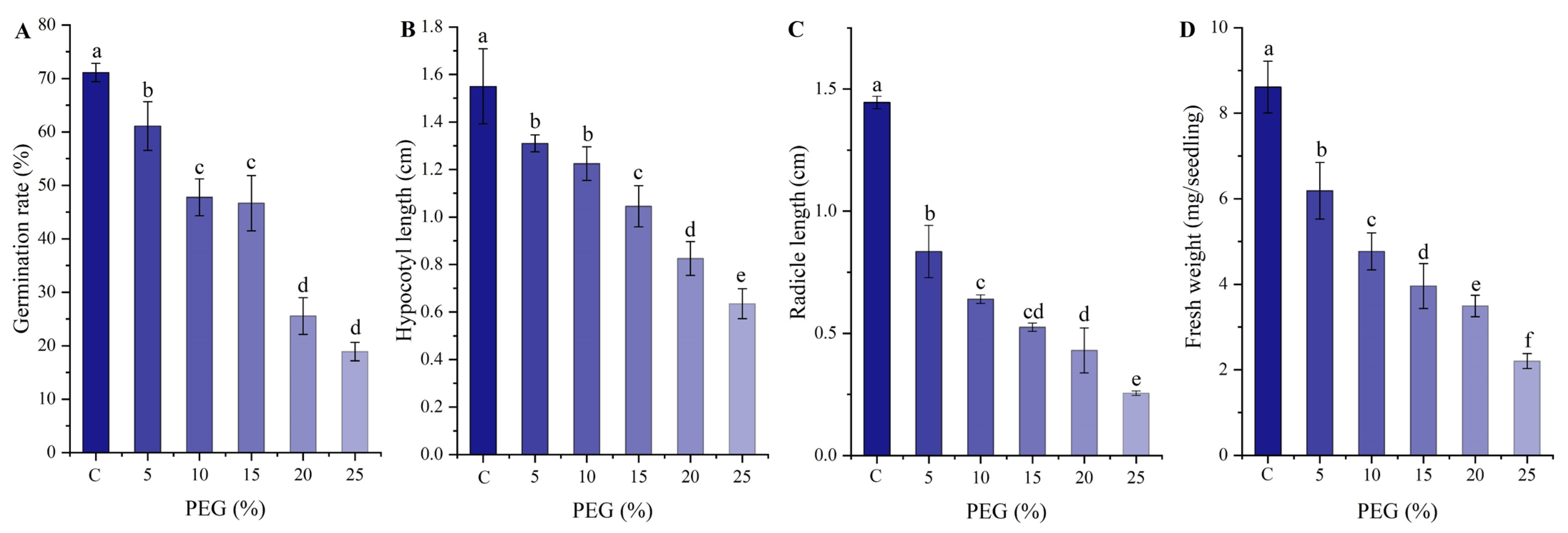

Figure 1. Seed germination characteristics of Peganum harmala under PEG treatments. Images (A–D) show the germination rate, hypocotyl length, radicle length, and fresh weight, respectively. Different letters indicate a significant difference at the p < 0.05 level.
Figure 1. Seed germination characteristics of Peganum harmala under PEG treatments. Images (A–D) show the germination rate, hypocotyl length, radicle length, and fresh weight, respectively. Different letters indicate a significant difference at the p < 0.05 level.
Plants 13 01649 g001
Plants 13 01649 g002

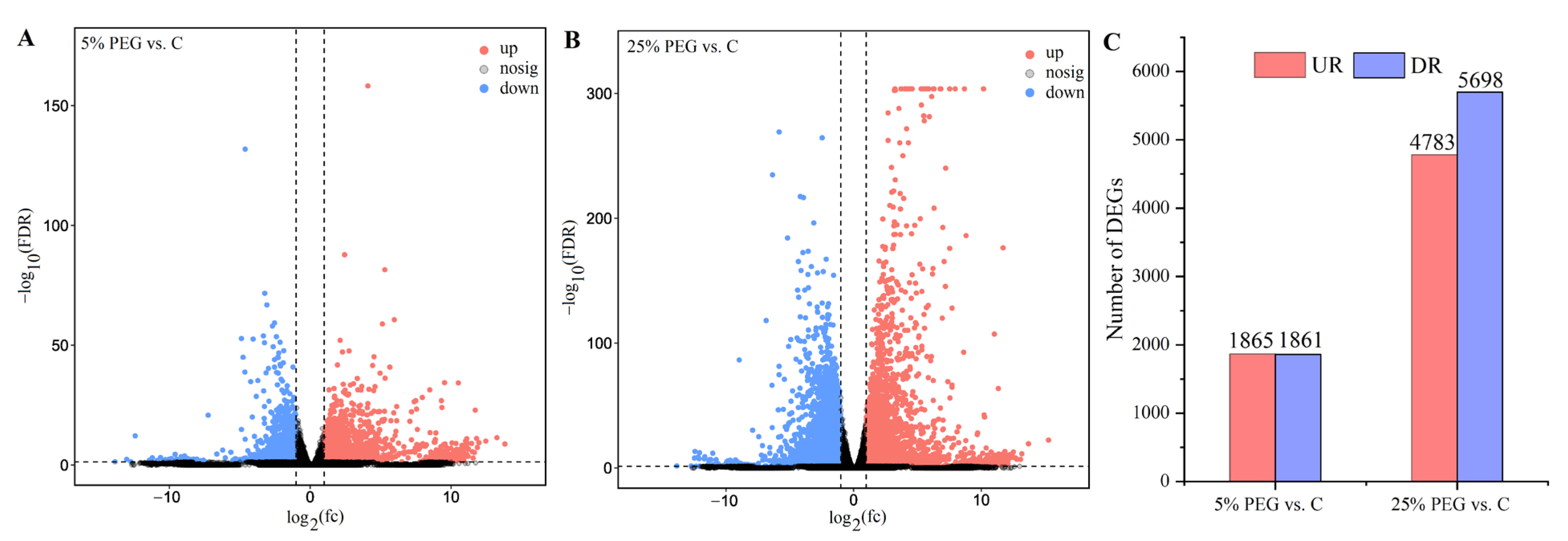

Figure 2. Volcano plot of unigenes and number of DEGs under 5% and 25% PEG vs. C. Images (A,B) show the volcano plots; image (C) shows the number of DEGs.
Figure 2. Volcano plot of unigenes and number of DEGs under 5% and 25% PEG vs. C. Images (A,B) show the volcano plots; image (C) shows the number of DEGs.
Plants 13 01649 g002
Plants 13 01649 g003

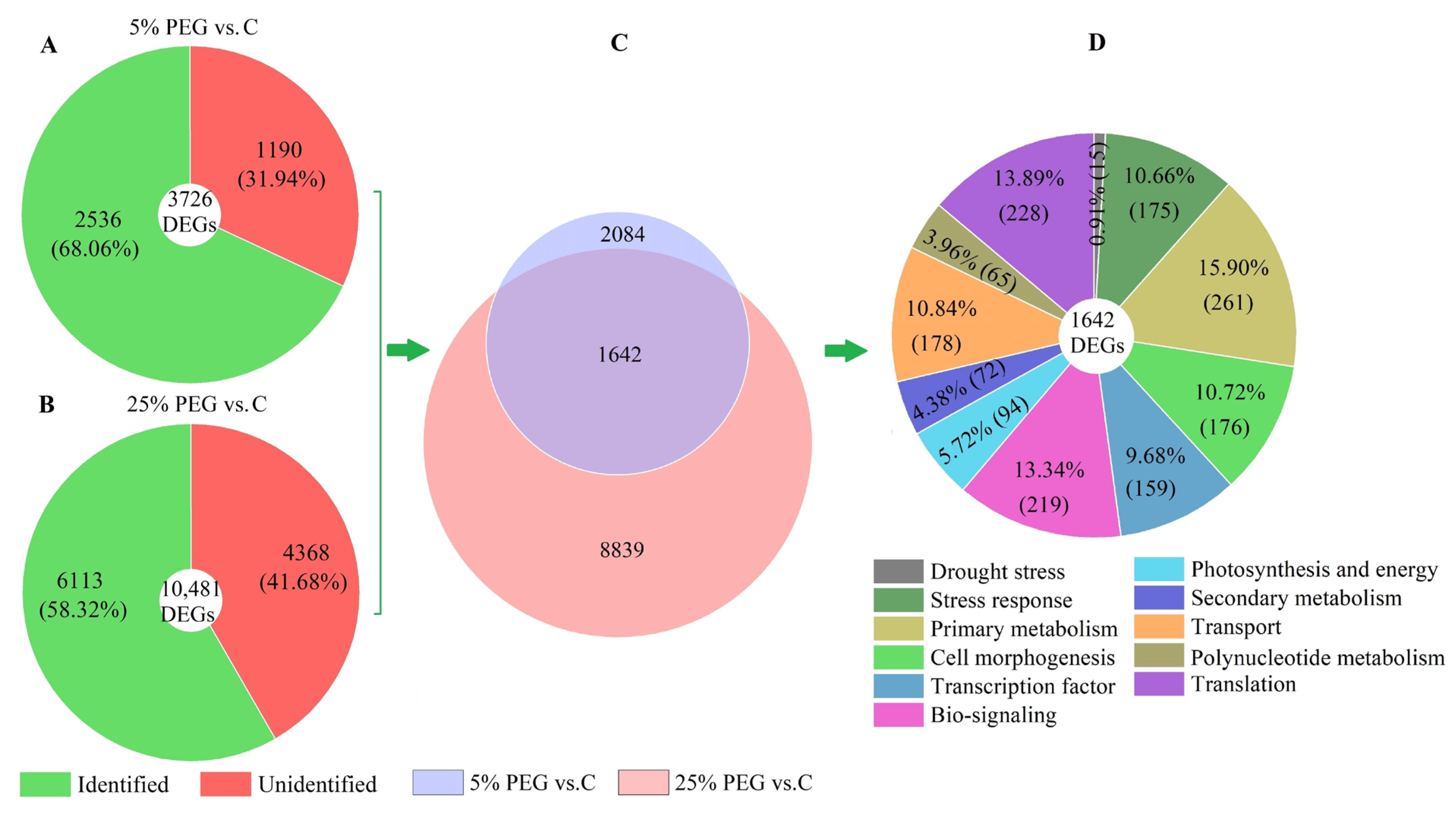

Figure 3. Classification of DEGs under PEG treatments. Images (A,B) show the identified and unidentified DEGs; image (C) shows their Venn diagram; and image (D) shows the classification of the co-expressed DEGs.
Figure 3. Classification of DEGs under PEG treatments. Images (A,B) show the identified and unidentified DEGs; image (C) shows their Venn diagram; and image (D) shows the classification of the co-expressed DEGs.
Plants 13 01649 g003
Plants 13 01649 g004
Figure 4. The RELs of drought stress genes in P. harmala (mean ± SD, n = 3). Abbreviations: ADH1, alcohol dehydrogenase class P; ADHIII, alcohol dehydrogenase class 3; ANN1, annexin D1; CRY1, cryptochrome 1; CRY2, cryptochrome 2; ERD14, dehydrin ERD14; DRPD, desiccation-related protein PCC27-45; EDL3, EID1-like F-box protein 3; HVA22E, HVA22-like protein e; PLAT1, PLAT domain-containing protein 1; ARP1, probable RNA-binding protein ARP1; ASPG1, protein ASPARTIC PROTEASE IN GUARD CELL 1; ERD7, protein EARLY-RESPONSIVE TO DEHYDRATION 7; REM4.2, remorin 4.2; CDSP32, thioredoxin-like protein CDSP32; vs., versus.
Figure 4. The RELs of drought stress genes in P. harmala (mean ± SD, n = 3). Abbreviations: ADH1, alcohol dehydrogenase class P; ADHIII, alcohol dehydrogenase class 3; ANN1, annexin D1; CRY1, cryptochrome 1; CRY2, cryptochrome 2; ERD14, dehydrin ERD14; DRPD, desiccation-related protein PCC27-45; EDL3, EID1-like F-box protein 3; HVA22E, HVA22-like protein e; PLAT1, PLAT domain-containing protein 1; ARP1, probable RNA-binding protein ARP1; ASPG1, protein ASPARTIC PROTEASE IN GUARD CELL 1; ERD7, protein EARLY-RESPONSIVE TO DEHYDRATION 7; REM4.2, remorin 4.2; CDSP32, thioredoxin-like protein CDSP32; vs., versus.
Plants 13 01649 g004
Plants 13 01649 g005
Figure 5. The RELs of antioxidant enzymes genes in P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: BAS1, 2-Cys peroxiredoxin BAS1; PER31, peroxidase 31; PRXIIE-1, peroxiredoxin-2E-1; PEX11C, peroxisomal membrane protein 11C; Gpx3, glutathione peroxidase 3; Gpx4, phospholipid hydroperoxide glutathione peroxidase; APX1, L-ascorbate peroxidase; APX3, L-ascorbate peroxidase 3; AFRR, monodehydroascorbate reductase; MDAR4, monodehydroascorbate reductase 4; CATA, catalase; CAT2, catalase isozyme 2; PNC1, cationic peroxidase 1; PNC2, cationic peroxidase 2; vs., versus.
Figure 5. The RELs of antioxidant enzymes genes in P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: BAS1, 2-Cys peroxiredoxin BAS1; PER31, peroxidase 31; PRXIIE-1, peroxiredoxin-2E-1; PEX11C, peroxisomal membrane protein 11C; Gpx3, glutathione peroxidase 3; Gpx4, phospholipid hydroperoxide glutathione peroxidase; APX1, L-ascorbate peroxidase; APX3, L-ascorbate peroxidase 3; AFRR, monodehydroascorbate reductase; MDAR4, monodehydroascorbate reductase 4; CATA, catalase; CAT2, catalase isozyme 2; PNC1, cationic peroxidase 1; PNC2, cationic peroxidase 2; vs., versus.
Plants 13 01649 g005
Plants 13 01649 g006
Figure 6. The RELs of osmolytes genes in P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: GLC1, glucan endo-1,3-beta-glucosidase; At5g58090, glucan endo-1,3-beta-glucosidase 6; G6pc2, glucose-6-phosphatase 2; GAPA, glyceraldehyde-3-phosphate dehydrogenase A; PGM1, phosphoglucomutase; Gcg, pro-glucagon; INVA, alkaline/neutral invertase A; SUS2, sucrose synthase 2; SPP1, sucrose-phosphatase 1; Pfkl, ATP-dependent 6-phosphofructokinase; FBP, fructose-1,6-bisphosphatase; ALFC, fructose-bisphosphate aldolase; FBA6, fructose-bisphosphate aldolase 6; At4g10260, probable fructokinase-5; BGAL, beta-galactosidase; GOLS1, galactinol synthase 1; OFUT7, O-fucosyltransferase 7; OFUT39, O-fucosyltransferase 39; TPS6, alpha,alpha-trehalose-phosphate synthase (UDP-forming) 6; TPPA, trehalose-phosphate phosphatase A; MSR1, protein MANNAN SYNTHESIS-RELATED 1; MAN1, mannan endo-1,4-beta-mannosidase 1; DSP4, phosphoglucan phosphatase DSP4; PTST, protein PTST homolog 3; SS3, soluble starch synthase 3; APA1, aspartic proteinase A1; FTSH5, ATP-dependent zinc metalloprotease FTSH 5; CYP-3, cysteine proteinase 3; LOC109345795, gamma conglutin 1; Os04g0650000, oryzain alpha chain; RMD5, protein RMD5 homolog; SCPL34, serine carboxypeptidase-like 34; At4g32940, vacuolar-processing enzyme gamma-isozyme; vs., versus.
Figure 6. The RELs of osmolytes genes in P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: GLC1, glucan endo-1,3-beta-glucosidase; At5g58090, glucan endo-1,3-beta-glucosidase 6; G6pc2, glucose-6-phosphatase 2; GAPA, glyceraldehyde-3-phosphate dehydrogenase A; PGM1, phosphoglucomutase; Gcg, pro-glucagon; INVA, alkaline/neutral invertase A; SUS2, sucrose synthase 2; SPP1, sucrose-phosphatase 1; Pfkl, ATP-dependent 6-phosphofructokinase; FBP, fructose-1,6-bisphosphatase; ALFC, fructose-bisphosphate aldolase; FBA6, fructose-bisphosphate aldolase 6; At4g10260, probable fructokinase-5; BGAL, beta-galactosidase; GOLS1, galactinol synthase 1; OFUT7, O-fucosyltransferase 7; OFUT39, O-fucosyltransferase 39; TPS6, alpha,alpha-trehalose-phosphate synthase (UDP-forming) 6; TPPA, trehalose-phosphate phosphatase A; MSR1, protein MANNAN SYNTHESIS-RELATED 1; MAN1, mannan endo-1,4-beta-mannosidase 1; DSP4, phosphoglucan phosphatase DSP4; PTST, protein PTST homolog 3; SS3, soluble starch synthase 3; APA1, aspartic proteinase A1; FTSH5, ATP-dependent zinc metalloprotease FTSH 5; CYP-3, cysteine proteinase 3; LOC109345795, gamma conglutin 1; Os04g0650000, oryzain alpha chain; RMD5, protein RMD5 homolog; SCPL34, serine carboxypeptidase-like 34; At4g32940, vacuolar-processing enzyme gamma-isozyme; vs., versus.
Plants 13 01649 g006
Plants 13 01649 g007
Figure 7. The RELs of genes directly associated with seed germination of P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: GMPM1, 18 kDa seed maturation protein; ASP, 21 kDa seed protein; ACT7, actin 7; AC97, actin 97; AP2, floral homeotic protein APETALA 2; At4g25140, oleosin 18.5 kDa; At5g40420, oleosin 21.2 kDa; OLE18, oleosin Zm-II; SPD1, protein SEEDLING PLASTID DEVELOPMENT 1; SBP65, seed biotin-containing protein SBP65; pec2a1a, Vicilin Car i 2.0101; At2g18540, vicilin-like seed storage protein At2g18540; vs., versus.
Figure 7. The RELs of genes directly associated with seed germination of P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: GMPM1, 18 kDa seed maturation protein; ASP, 21 kDa seed protein; ACT7, actin 7; AC97, actin 97; AP2, floral homeotic protein APETALA 2; At4g25140, oleosin 18.5 kDa; At5g40420, oleosin 21.2 kDa; OLE18, oleosin Zm-II; SPD1, protein SEEDLING PLASTID DEVELOPMENT 1; SBP65, seed biotin-containing protein SBP65; pec2a1a, Vicilin Car i 2.0101; At2g18540, vicilin-like seed storage protein At2g18540; vs., versus.
Plants 13 01649 g007
Plants 13 01649 g008
Figure 8. The RELs of TFs directly associated with seed germination and stress response in P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: MYB4, transcription factor MYB4; MYB102, transcription factor MYB102; MYB330, Myb-related protein 330; BZIP34, basic leucine zipper 34; BZIP53, bZIP transcription factor 53; WRKY6, WRKY transcription factor 6; WRKY71, WRKY transcription factor 71; NAC019, NAC domain-containing protein 19; NAC92, NAC domain-containing protein 92; NAC056, NAC transcription factor 56; BHLH94, transcription factor bHLH94; BHLH128, transcription factor bHLH128; vs., versus.
Figure 8. The RELs of TFs directly associated with seed germination and stress response in P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: MYB4, transcription factor MYB4; MYB102, transcription factor MYB102; MYB330, Myb-related protein 330; BZIP34, basic leucine zipper 34; BZIP53, bZIP transcription factor 53; WRKY6, WRKY transcription factor 6; WRKY71, WRKY transcription factor 71; NAC019, NAC domain-containing protein 19; NAC92, NAC domain-containing protein 92; NAC056, NAC transcription factor 56; BHLH94, transcription factor bHLH94; BHLH128, transcription factor bHLH128; vs., versus.
Plants 13 01649 g008
Plants 13 01649 g009
Figure 9. The RELs of genes associated with hormones in P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: GID1B, gibberellin receptor GID1B; ABP20, auxin-binding protein ABP20; AX10A, auxin-induced protein X10A; ARF5, auxin response factor 5; IAA16, auxin-responsive protein IAA16; SAUR32, auxin-responsive protein SAUR32; AHK2, histidine kinase 2; AHP4, histidine-containing phosphotransfer protein 4; ARR3, two-component response regulator ARR3; CYP94B1, cytochrome P450 94B1; GRXC9, glutaredoxin-C9; CPN20, 20 kDa chaperonin; PYL4, abscisic acid receptor PYL4; NRP1, nodulin-related protein 1; ERF.C.3, ethylene-response factor C3; ERF1B, ethylene-responsive TF 1B; ERF113, ethylene-responsive TF ERF113; EIN3, protein ETHYLENE INSENSITIVE 3; vs., versus.
Figure 9. The RELs of genes associated with hormones in P. harmala under 5% and 25% PEG vs. C (mean ± SD, n = 3). Abbreviations: GID1B, gibberellin receptor GID1B; ABP20, auxin-binding protein ABP20; AX10A, auxin-induced protein X10A; ARF5, auxin response factor 5; IAA16, auxin-responsive protein IAA16; SAUR32, auxin-responsive protein SAUR32; AHK2, histidine kinase 2; AHP4, histidine-containing phosphotransfer protein 4; ARR3, two-component response regulator ARR3; CYP94B1, cytochrome P450 94B1; GRXC9, glutaredoxin-C9; CPN20, 20 kDa chaperonin; PYL4, abscisic acid receptor PYL4; NRP1, nodulin-related protein 1; ERF.C.3, ethylene-response factor C3; ERF1B, ethylene-responsive TF 1B; ERF113, ethylene-responsive TF ERF113; EIN3, protein ETHYLENE INSENSITIVE 3; vs., versus.
Plants 13 01649 g009
Plants 13 01649 g010
Figure 10. An outlined model of seed germination of P. harmala in response to drought stress. Abbreviations: ADH1, alcohol dehydrogenase class P; ANN1, annexin D1; CRYs, cryptochromes; pgdC, 6-phosphogluconate dehydrogenase, decarboxylating 1; SUSs, sucrose synthase; FBAs, fructose-bisphosphate aldolases; APA1, aspartic proteinase A1; FTSHs, ATP-dependent zinc metalloprotease FTSHs; RPT1, 26S proteasome regulatory subunit 7; MYBs, transcription factor MYBs; BZIPs, bZIP transcription factors; WRKYs, WRKY transcription factors; GMPM1, 18 kDa seed maturation protein; ASP, 21 kDa seed protein; At4g25140, oleosin 18.5 kDa.
Figure 10. An outlined model of seed germination of P. harmala in response to drought stress. Abbreviations: ADH1, alcohol dehydrogenase class P; ANN1, annexin D1; CRYs, cryptochromes; pgdC, 6-phosphogluconate dehydrogenase, decarboxylating 1; SUSs, sucrose synthase; FBAs, fructose-bisphosphate aldolases; APA1, aspartic proteinase A1; FTSHs, ATP-dependent zinc metalloprotease FTSHs; RPT1, 26S proteasome regulatory subunit 7; MYBs, transcription factor MYBs; BZIPs, bZIP transcription factors; WRKYs, WRKY transcription factors; GMPM1, 18 kDa seed maturation protein; ASP, 21 kDa seed protein; At4g25140, oleosin 18.5 kDa.
Plants 13 01649 g010
Table 1. Summary of sequencing data under different PEG treatments (mean ± SD, n = 3).
Table 1. Summary of sequencing data under different PEG treatments (mean ± SD, n = 3).
C5% PEG25% PEG
Filtered data
Data of reads number (million)67.48 ± 7.6378.91 ± 6.6880.30 ± 11.65
Data of reads number×read length (million)10,122 ± 114411,836 ± 100212,044 ± 1747
Q20 (%)96.32 ± 0.2396.49 ± 0.1096.69 ± 0.17
Q30 (%)90.92 ± 0.4391.17 ± 0.1391.56 ± 0.32
Mapped data
Data of unique mapped reads (million)53.99 ± 6.0663.17 ± 5.3763.97 ± 9.35
Data of multiple mapped reads (million)2.08 ± 0.842.43 ± 0.842.49 ± 0.83
Mapping ratio (%)83.84 ± 0.1883.68 ± 0.0583.32 ± 0.10
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, Z.; Su, H.; Li, Q.; Li, M. Transcriptome Profiling Reveals the Response of Seed Germination of Peganum harmala to Drought Stress. Plants 2024, 13, 1649. https://doi.org/10.3390/plants13121649

AMA Style

Zhang Z, Su H, Li Q, Li M. Transcriptome Profiling Reveals the Response of Seed Germination of Peganum harmala to Drought Stress. Plants. 2024; 13(12):1649. https://doi.org/10.3390/plants13121649

Chicago/Turabian Style

Zhang, Zhen, Hongyan Su, Qingen Li, and Mengfei Li. 2024. "Transcriptome Profiling Reveals the Response of Seed Germination of Peganum harmala to Drought Stress" Plants 13, no. 12: 1649. https://doi.org/10.3390/plants13121649

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
