Genomic Insights into Disease Resistance in Sunflower (Helianthus annuus): Identifying Key Regions and Candidate Genes for Verticillium dahliae Resistance

by
Yue Yu
1,†,
Jianfeng Yang
2,†,
Jian Zhang
2,
Loren H. Rieseberg
1,* and
Jun Zhao
2,*
1
Department of Botany and Biodiversity Research Centre, University of British Columbia, Vancouver, BC V6T 1Z4, Canada
2
College of Horticulture and Plant Protection, Inner Mongolia Agricultural University, Hohhot 010010, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2024, 13(18), 2582; https://doi.org/10.3390/plants13182582
Submission received: 5 August 2024 / Revised: 6 September 2024 / Accepted: 11 September 2024 / Published: 14 September 2024
(This article belongs to the Special Issue Disease Resistance Breeding of Field Crops)
Browse Figures
Versions Notes

Abstract

:
Sunflower (Helianthus annuus) is a globally significant field crop, and disease resistance is crucial for ensuring yield stability and crop quality. Verticillium dahliae is a notorious soilborne pathogen that causes Verticillium Wilt (VW) and threatens sunflower production worldwide. In this study, we conducted a comprehensive assessment of sunflower resistance to V. dahliae across 231 sunflower cultivar lines, from the Sunflower Association Mapping (SAM) population. We employed EMMAX and ridge regression best linear unbiased prediction (rrBLUP) and identified 148 quantitative trait loci (QTLs) and 23 putative genes associated with V. dahliae resistance, including receptor like kinases, cell wall modification, transcriptional regulation, plant stress signalling and defense regulation genes. Our enrichment and quantitative real-time PCR validation results highlight the importance of membrane vesicle trafficking in the sunflower immune system for efficient signaling and defense upon activation by V. dahliae. This study also reveals the polygenic architecture of V. dahliae resistance in sunflowers and provides insights for breeding sunflower cultivars resistant to VW. This research contributes to ongoing efforts to enhance crop resilience and reduce yield losses due to VW, ultimately benefiting sunflower growers and the agricultural sector.

1. Introduction

Sunflower (Helianthus annuus) is one of the most significant oilseed crops globally, contributing to approximately 20 million tons of oil and over 22 million tons of confectionery consumption annually [1]. Verticillium dahliae is reported to infect over 200 plant species, including major crops like sunflower, tomato (Solanum lycopersicum), potato (Solanum tuberosum), and others [2,3,4,5,6,7,8].
Sunflowers infected by V. dahliae are reported in major production regions worldwide, including Ukraine, Russia, the European Union, Argentina, China, and the United States [3,9,10]. The resting structures of V. dahliae, microsclerotia, can persist in soil for years and rapidly germinate to infect host sunflowers through their roots. Vascular transport enables the pathogen to colonize inside the plant, leading to leaf chlorosis, necrosis, wilting, or death at the reproductive stage of plants [11,12,13]. The symptoms of Verticillium Wilt (VW) can cause yield losses exceeding 30% in susceptible cultivars, resulting in substantial economic impacts on agricultural production. Therefore, researching resistance strategies and breeding resistant sunflower varieties against V. dahliae is critical for maintaining sunflower production [14,15,16].
To date, the use of fungicides on plants infected with V. dahliae has been largely ineffective at stemming VW [17,18]. However, there is considerable evidence of genetic resistance against V. dahliae in sunflower [19] and other plant species, including cotton [20] (Gossypium arboretum), tomato [21], potato [22], and many more [23,24]. The resistance mechanisms that have been identified to date are similar to those known to be deployed against other fungal pathogens [24]. These include extracellular enzymes like chitinase, which can digest V. dahliae cell walls [25], and defense-related proteins such as polygalacturonase inhibitors [26] that protect plant cell walls by impeding pectin digestion. In addition, pathogen-associated molecules such as chitin and V. dahliae effector proteins are recognized by various receptor-like proteins [27,28], triggering immune responses. These include the activation of key signal transduction pathways, such as the jasmonic [29] and salicylic acid [30] pathways, as well as the reprogramming of genome-wide transcription [24]. In sunflower, Guo et al. [19] compared the transcriptomes of two cultivar lines (resistant and susceptible) using RNA-Seq and revealed some differentially expressed genes in plant–pathogen interaction pathways.
In the present study, we phenotyped the cultivated Sunflower Association Mapping (SAM) population for resistance to V. dahliae and carried out a comprehensive genome-wide association study (GWAS) to investigate the genetic architecture of resistance in sunflowers. The SAM population comprises 288 cultivated lines that encompass over 90% of the genetic diversity in cultivated sunflower [31,32]. It has been widely used in previous GWAS studies on abiotic and biotic stress resistance, including resistance to drought, flooding, salt and nutrient stress, and to downy mildew and stem canker [33,34,35,36,37,38]. Studies of downy mildew and stem canker successfully revealed complex polygenic genetic architectures and identified the quantitative trait loci (QTL) underlying resistance to these diseases [37,38], suggesting that the SAM population offers a promising means of investigating sunflower biotic stress resistance. Here, we conducted genome-wide association (GWA) analyses with both single-nucleotide polymorphisms (SNPs) and presence–absence variants (PAVs) derived from whole-genome sequencing of the SAM population [37] to achieve the following specific objectives: (1) to evaluate V. dahliae resistance in the SAM population; (2) to investigate the genetic architecture of V. dahliae resistance in cultivated sunflowers with both marker types; (3) to identify the quantitative trait loci (QTL) and candidate genes underlying sunflower resistance to V. dahliae and highlight their likely functions; and (4) to uncover the possible defense mechanisms in resistant sunflower accessions. Our ultimate goal is to use this information to guide the breeding of resistant sunflower cultivars.

2. Materials and Methods

2.1. Materials

2.1.1. Plant Materials

We obtained 287 SAM population lines from the National Plant Germplasm System (https://www.ars-grin.gov/Collections#plant-germplasm, accessed on 1 March 2020), which is operated by the USDA-ARS. Of these, only 231 lines successfully germinated and produced sufficient replication for downstream analyses. Additionally, two sunflower varieties, JK601 (resistant) and LD5009 (susceptible), from China, were included as checks. The SAM accessions have been categorized based on their agronomic usage and breeding history into the following groups: HA nonoil, HA oil, RHA nonoil, RHA oil, non-oil-introgressed, landrace, and open-pollinated varieties (OPVs). HA (maintainer lines) typically refers to unbranched plants, while RHA (restorer lines) refers to branched plants. The introgressed category includes oil and nonoil types with a history of wild H. annuus introgression. The landrace category comprises Native American landraces, and the OPV category represents a stage of pre-hybridization in sunflower breeding [32].

2.1.2. Fungal Materials

The V. dahliae strain V-89 was isolated from a single diseased plant, collected from the main sunflower growing region in China (Wuyuan County, Inner Mongolia). This strain was initially purified and cultured on PDA (Potato Dextrose Agar) medium, and then extensively propagated on wheat bran medium for 20 days. Lastly, the conidia were washed with sterile water and adjusted to a final concentration of 1 × 107 conidia per mL.

2.1.3. Genomic Data

Whole-genome sequencing raw data for the SAM population were generated by Hübner et al. [37], with an average coverage of 5–25× per line. Raw reads were aligned to the latest sunflower reference assembly HA412v2 reference genome (https://sunflowergenome.org/, accessed on 17 October 2022), from which the following two sets of markers were generated.
Single-Nucleotide Polymorphism (SNP) variants were called with methods described by Todesco et al. [39], following these steps. Raw reads with low-quality sequences and adapters were trimmed with Trimmomatic v0.36. Cleaned reads were then aligned to the reference genome using NextGenMap v0.5.3. Variant calling was performed with the Genome Analysis Tool Kit after excluding transposable elements. To eliminate low-quality variants, the variant quality score recalibration used 20 samples with the highest coverage as a goldset, then hard filters were applied to retain only bi-allelic SNPs with 90% tranche, a minor allele frequency greater than 0.03 and a genotyping rate above 50%. Finally, SNPs were phased using a linkage map with Beagle 5.0 with default settings [40]. The final set of filtered SNPs comprised 3,699,248 biallelic variants.
Presence–absence variants (PAVs) were generated as described by Lee et al. [41]. Briefly, the raw sequencing data described above were aligned to the HA412v2 genome using BWA mem (0.7.12). Reads with a mapping quality less than 10 were removed using Samtools (1.9). For each 100 bp window, the sequencing depth was measured at every position using Samtools with a custom perl script. Window depths equal to or above zero were translated into a genotype file of 0’s and 1’s, respectively. After filtering to retain PAVs with a minor allele frequency >5%, 7,541,946 PAVs were used for downstream analyses.

2.2. Methods

2.2.1. Pathogen Inoculation

The conidial root inoculation method was used for the evaluation of sunflower resistance to V. dahliae [42]. Six or seven seeds of each line were sown in small pots with a diameter of 13 cm containing sterilized soil and covered with sand. After seed germination, five seedlings were kept in each pot, and five pots were prepared for each line. The pots were placed randomly in a greenhouse with the temperature controlled between 25 °C to 28 °C and a relative humidity of 50% to 70%. After four true leaves had developed (V4 stage), which was reached approximately 21 days post sowing, the seedlings were inoculated with a conidial suspension of V. dahliae (1 × 107 conidia/mL) using the root inoculation as described in Peng et al. [42]. The experiment was set up with 3 replicates. After the susceptibility check (LD5009) showed typical VW symptoms of leaf necrosis, the disease scales (0~4) were scored for each plant based on the following criteria [43]: 0 = no symptoms, 1 = wilting and stunting < 25%, 2 = wilting and stunting ≥ 25%, 3 = wilting and stunting ≥ 50%, 4 = wilting and stunting ≥ 75%. The wilting and stunting percentage represents the number of necrotic leaves relative to all leaves.
For each accession, three replicates with a total of 25 plants were scored. The disease index (DI) was then calculated for each accession as follows:
Disease index = [((0 × N0) + (1 × N1) + (2 × N2) + (3 × N3) + (4 × N4))/(N1 + N2 + N3 + N4)] × 100
Nn = number of plants in each scale.
In each trial, the susceptible (LD5009) and resistant (JK601) cultivars were included as checks. Therefore, to reduce the error among different trials, a correction disease index (DIcorr) was employed:
DIcorr = DI − (DIn, controls − DI total, controls)
DIn, control = mean of the susceptible check in each trial; DI total, control = mean of the susceptible checks across all trials.

2.2.2. GWA Mapping Using EMMAX

The efficient mixed-model association eXpedited (EMMAX) model [44] was used for the GWA of both SNPs and PAVs. The Shapiro–Wilk test and Box–Cox transformation were applied to the corrected disease index (DIcorr) to improve normality to meet the EMMAX model assumptions for GWA. EMMAX (emmax-intel64-20120205) is a mixed model that can reduce false positive results by incorporating two covariates, kinship (K-matrix) and population structure (P-matrix). Both were calculated based on SNP data for the 231 accessions used in our analyses and then added to the final GWA model for the SNP and PAV datasets, respectively. The K-matrix was calculated using emmax-kin and the P-matrix was calculated based on the first three principal components (PCs) estimated from a PLINK pruned SNP set with the following parameters: 50 kbp sliding window, 50 bp steps and r2 threshold of 0.2 [45]. The log-transformed p-value (−log10P) indicates marker significance. The Bonferroni significance threshold was initially implemented for multiple testing correction to identify significant associations. The Bonferroni-corrected 5% significance threshold (−log10P) for 3,699,248 SNPs was 7.9 and for 7,541,946 PAVs was 8.1.

2.2.3. Identification of Candidate Markers and QTLs

The Bonferroni significance threshold can be overly conservative when many tests are conducted [46], such as in a GWA analysis with millions of SNPs or PAVs. For a polygenic trait, this may mean that few or no QTLs exceed the significance threshold. A complementary approach is to implement ridge-regression best linear unbiased prediction (rrBLUP) for top-ranking markers based on GWA p-values [34]. This approach examines aggregated marker effects on trait predictive ability [47]. Here, we tested the aggregate effects of the 5–1000 top markers on the predictability of each trait using rrBLUP (v4.6.3), with a step of five markers in each test. Candidate markers were subsequently selected based on when the improvement in the predictive ability started to significantly decrease (Figure 1b,d). The kin.blup() function in the rrBLUP package [47,48] was employed to solve the BLUP model using an additive relationship matrix calculated from testing markers with the A.mat() function. To estimate the predictive ability, the 231 samples were randomly divided into a testing set of 162 (70%) samples and a validation set of 69 (30%) samples. The predictive ability was calculated as the correlation between the actual and predicted trait values in the validation set. This process was repeated 500 times for a final average predictive ability. The candidate markers selected by rrBLUP were then extended into high LD haploblocks using the PLINK (v1.9) clump command with --clump-kb, 250; --clump-r2, 0.4; --clump-range-border 5 [45]. All the above analyses were run independently on both the SNP and PAV datasets. The clumped candidate regions for both marker types were independent and were then merged into a single list of QTLs. Genes within 5 kbp of the identified QTL areas were our final “candidate genes”.

2.2.4. From Candidate Regions to Genes and Functions

To understand how the identified candidate genes might contribute to plant–pathogen interactions and the plant defense mechanism, we used the functional annotations of 46,223 genes predicted from the latest sunflower reference genome HA412v2 [49]. The predicted genes were annotated with InterProScan version 5.0 [50] from the following three databases: protein family database (Pfam [51]), InterPro and gene ontology (GO).

2.2.5. GO and KEGG Enrichment Analyses

For GO enrichment, we clustered annotations at three levels of biological organization: biological pathways (BP), molecular functions (MF), and cellular components (CC). This was accomplished using the topGO package in R version 4.2.0 [52,53]. The statistical tests employed a classic algorithm, Fisher’s exact test, and an FDR correction with a significance threshold of 0.1 for multiple testing. KEGG enrichment was performed using the clusterProfiler package in R version 4.4.0 [54] on all candidate genes, with the parameters set to a pvalueCutoff of 0.05, a qvalueCutoff of 0.2, and pAdjustMethod “BH”. All genes were annotated to KEGG pathways through the KEGG Automatic Annotation Server (KAAS; https://www.genome.jp/kegg/kaas/, accessed on 5 April 2024 [55]).

2.2.6. Experimental Validation through Quantitative Real-Time PCR

Five lines from each of the three resistance levels (immune, resistant and susceptible) and a set of promising candidate genes were selected for experimental validation. The selected immune lines (DIcorr = 0) were SAM 136, SAM 158, SAM 163, SAM 177, and SAM 201. The resistant lines (0 < DIcorr < 25), selected from both high and medium treatment resistance levels, included SAM 001, SAM 010, SAM 014, SAM 078, and SAM 100. The susceptible lines (DIcorr > 25) were SAM 088, SAM 132, SAM 175, SAM 184, and SAM 086. Three replicates from each line were germinated. Three days after root development, the treatment group was inoculated with a conidial suspension of V. dahliae (1 × 107 conidia/mL) using the root inoculation method [42], while the control group was inoculated with water. Roots were collected at five different time points (0, 1, 3, 5, 7 dpi) for RNA extraction. Total RNA was extracted using TRIzol reagent (Invitrogen, Waltham, MA, USA) and purified with a PureLink RNA Mini Kit (Ambion, Austin, TX, USA) following the manufacturer’s instructions. RNA was reverse transcribed using SuperScript III reverse transcriptase (Invitrogen, Carlsbad, CA, USA) and oligo(dT) primers to obtain cDNA. Quantitative real-time PCR (qRT-PCR) was performed using SYBR® Premix Ex Taq™ II (Tli RNaseH Plus, Kusatsu, Japan) according to the manufacturer’s protocol (Takara: DRR420A). The qRT-PCR parameters included an initial denaturation step at 95 °C for 10 min, followed by 40 cycles of 95 °C for 15 s and 60 °C for 1 min. The sunflower Actin gene (HaActin) served as an endogenous control to normalize the expression levels of the candidate genes. The relative transcript levels were calculated using the 2−∆∆CT method for three independent biological replicates [56].

3. Results

3.1. Evaluation of Disease Resistance of Sunflower Cultivar Lines

The corrected disease index (DIcorr) categorized cultivar lines into five resistance levels, ranging from immunity to high susceptibility (classification summarized in Table 1; detailed information in Table S1). The check lines JK601 and LD5009 exhibited DIcorr values of 9.24 (highly resistant, HR) and 42.91 (highly susceptible, HS), respectively. Among the SAM accessions, the majority showed high to medium resistance to V. dahliae, with 102 and 103 accessions falling into these two categories. Conversely, only eighteen lines displayed full immunity, while eight accessions were classified as having medium susceptibility.

3.2. GWA Mapping and Identification of Top Candidate Markers and QTLs

The raw corrected disease index (DIcorr) was not normally distributed when tested by a Shapiro–Wilk normality test (p value = 6.622 × 10−7, Figure S1). The Box–Cox transformation of DIcorr using the EnvStats package [53,57] brought the Shapiro–Wilk p-value to 0.0034 (Figure S1). Although still deviating from normality, the transformed DIcorr dataset better fit the normal distribution compared to the raw DIcorr; thus, the transformed DIcorr was used for GWA mapping.
No markers passed the strict Bonferroni-corrected 5% significance threshold (−log10P) for either SNPs (Figure 1a) or PAVs (Figure 1c). Thus, we performed rrBLUP analyses to select candidate markers [34]. The predictive ability started to decrease when the −log10P from EMMAX output approached 4.232, resulting in 60 SNPs selected as candidate markers, with a DIcorr predictive ability of circa 0.7 (Figure 1b; Table S2). Similarly, the turning point of −log10P is at 4.404 for PAV data resulting in a candidate set of 135 PAVs, which explain over 85% of DIcorr variation (Figure 1d; Table S2). We identified 107 candidate regions for PAVs and 41 regions for SNPs. These were subsequently collapsed into 148 QTLs in total, which were distributed across all chromosomes (Figure 1; Table S3).

3.3. From Candidate Regions to Genes and Functions

We extracted 51 unique candidate genes from 34 QTLs (Table S4), as not all 148 QTLs captured genes within a 5 kbp window. Among our candidate genes, 23 putative genes were associated with plant disease resistance, classified into five functional categories: receptor-like kinases, cell wall modification enzymes, transcription regulators, plant stress signaling and defense regulation genes (Table 2). These putative genes were distributed across 16 unique QTLs, with notable accumulation on chromosomes 4, 5, 9 and 11.
Putative genes (Table 2) included three receptor-like genes: two Leucine-Rich Repeat kinases (LRR) and one gene in the THH1/TOM1/TOM3_domain. The enzyme category included four genes, three of which were annotated to pectin metabolism, ubiquitin-conjugating enzyme and GDP-fucose protein O-fucosyl transferase on chromosome 9. Another gene on chromosome 4 was identified as a plant glutathione S-transferase (GST). We identified two Pentatricopeptide Repeat (PPR) genes, which can serve as transcription regulators that mediate gene expression in plastids or mitochondria to support plant resistance [58,59]. The signaling category included eight genes, comprising two protein kinase domain genes and one Serine/threonine-protein kinase (STK) gene within 5 kbp of QTL: chr11:195944400..195944400. Additionally, there was one gene each for the following functions: the WD40 repeat domain, Ankyrin repeat domain, IQ Calmodulin-binding motif (IQM), Trichome Birefringence-Like (TBL) proteins, and host signal transduction and stress response domain. Lastly, we found six candidate genes related to defense regulation. Three genes were annotated to the Zinc finger domain, being involved in plant–pathogen interactions [60]. Two genes, Arf/Sar-related proteins in the small GTPase superfamily, are important regulators for generating and trafficking proteins and antimicrobials through vesicles, essential for intracellular signaling and regulation [61,62,63]. The last gene in this category is annotated to the CASP C-terminal domain, the C-terminal region of Golgi membrane proteins, which also plays a crucial role in vesicle transportation and membrane trafficking [63,64].

3.4. Enrichment Analysis

GO and KEGG enrichment analyses were conducted with 51 candidate genes. GO enrichment included genes that were annotated with at least one GO term relative to the global HA412v2 database of annotated GO terms. Due to the limited number of candidate genes, no Molecular Function (MF) or Biological Process (BP) categories showed any significant enrichment (Table S5). However, the Golgi membrane (GO: 0000139) in the Cellular Component (CC) was marginally enriched with an adjusted p-value of 0.06 and the ko00514 pathway for O-glycan biosynthesis, which is an important modulator for the plant defense process [65], was significantly enriched, with an adjusted p-value of 0.03.

3.5. Experimental Validation

We selected 11 genes out of 51 candidate genes for validation experiments using q-PCR (Table S6). Our rationale for drawing from the larger candidate gene pool is that genes without annotation or with unclear and indirect annotation might also reveal signals of Verticillium dahliae resistance through validation experiments. After artificial inoculation, candidate gene Ha412HOChr08g0327051 showed a consistently low expression in all control groups, regardless of the resistance category. A significant variation in expression was observed among treatment groups: immune lines had the highest expression, followed by resistant lines, while susceptible lines showed little difference between the treatment and control groups (Figure 2a). In immune lines SAM 177 and SAM 136, gene expression increased dramatically after initial treatment, peaking at 13.42 and 8.48 at 3 dpi, respectively, then decreased gradually with the prolongation of the inoculation time (Figure 2b). Resistant lines SAM 014 and SAM 010 presented a similar pattern, with a much lower peak expression at 3 dpi. Susceptible lines SAM 086 and SAM 175 also showed lower expression levels compared to those of the controls at 1 dpi. These results suggest that gene Ha412HOChr08g0327051 is involved in V. dahliae resistance and highlights that the first three days post-inoculation are likely to be critical for the activation of resistance genes in sunflowers. The remaining tested 10 candidate genes showed inconsistent expression patterns between the control and treatment groups at different inoculation timepoints (Table S6), indicating that these candidates likely do not contribute to the sunflower resistance against VW.

4. Discussion

Verticillium wilt causes substantial damage to sunflower production worldwide, as management practices such as fungicide sprays or crop rotations struggle to control the disease [17,18,66]. Therefore, we approached this problem from a different direction by investigating the genetic basis of resistance to V. dahliae. We first phenotyped 231 genetically diverse sunflower cultivar lines following the inoculation of the V. dahliae pathogen and calculated a disease index. The evaluation results showed that 18 accessions were fully immune to V. dahliae (DIcorr = 0, Table S1), or about 7% of all examined SAM accessions; however, when highly resistant accessions (0 < DIcorr ≤ 10) were included, this percentage increased to over 50%. We also compared our results to previous studies of resistance to biotic stress in the SAM population. Among the 18 fully immune lines, we found that four accessions were also highly resistant to stem canker [38] (Table S1) and 10 accessions were immune to downy mildew [37] (Table S1). Three accessions, SAM 054 (PI-655014), SAM 067 (PI-561918) and SAM 177 (PI-5999782), have common immunity for all three types of disease. This summarized information aids sunflower breeding programs in selecting lines with overall high resistance towards multiple major common pathogens in the field.
Genome-wide association analyses of 231 SAM accessions revealed 135 candidate PAVs, 60 candidate SNPs, 148 QTLs, and 51 candidate genes. These signals were found across almost all chromosomes (Figure 1, Table 2), suggesting the polygenic architecture of sunflower V. dahliae resistance. This finding is not surprising as many QTLs were also found for powdery mildew and stem canker resistance [37,38], and disease resistance clusters have been found on all sunflower chromosomes [67]. In our study, the contribution of many loci with small effects may explain the lack of signals above the strict Bonferroni threshold, but these loci are captured by rrBLUP due to its ability to quantify cumulative marker effects [48].
Among the 148 QTLs, 16 unique QTLs harbored 23 putative V. dahliae-resistant genes. The GWA signals for these primary QTLs were captured by either SNP or PAV markers (Figure 1). Notably, three QTLs on chromosome 9 and 11 harbored over one third (9 out of 23) of putative genes (Table 2). Two QTLs located on both ends of chromosome 11 (Ha412HOChr11:12496400..12496400 and Ha412HOChr11:195944400..195944400) captured five putative genes, including LRR, Zinc finger domain, protein kinase domain and STK. A similar pattern was observed in a 84.5 kbp candidate QTL on chromosome 9 (Ha412HOChr9:199587300..199671800), which captured a total of four genes related to LRR and enzymes responsible for pectin metabolism, protein degradation and glycan biosynthesis with a significant KEGG enriched signal (Table S5).
The identified 23 putative V. dahliae-resistance genes fall into the five main categories of mechanism involved in plant resistance to V. dahlia, as reviewed by Song et al. [24]: receptor-like kinases, cell wall modification enzymes, transcription regulation, plant stress signaling and defense regulation. Receptor-like kinases such as LRR proteins are important cell-surface receptors for pathogen recognition, as well as for the activation of downstream plant defenses against fungal pathogen invasions [28,68]. The enzymes involved in pectin metabolism, protein degradation and glycan biosynthesis play key roles in plant defense via cell wall modification [26,69]. Additionally, transcriptional regulator PPR mediates gene expression in plant organelles, further enhancing plant defense systems [58,59]. Plant stress signaling functions include serine/threonine-protein kinases (STKs), which contribute to resistance via both pathogen perception and through the transmission of external pathogen signals via phosphorylation [70,71]. The WD40 repeat domain can convert extracellular signals into intracellular chemical defense responses [72]. Although the salicylic acid or jasmonic acid-mediated signal transduction found by Gao et al. [73] was not directly captured in our candidate genes, we found other signaling functions such as IQ Calmodulin-binding motif (IQM), which is suggested to positively regulate jasmonic acid biosynthesis and plant defense [74] (Table 2). Our identified candidate genes can also aid the future construction of a gene co-expression network in sunflower biotic resistance processes [75].
Lastly, we found that membrane vesicle trafficking is likely an important defense mechanism in sunflowers. Two putative genes at the beginning of chromosome 8 and at the end of chromosome 16 (Ha412HOChr08g0327051 and Ha412HOChr16g0793171) were annotated to the ARF/SAR-related protein in the Small GTPase superfamily. One of these (Ha412HOChr08g0327051) was validated in our q-PCR experiment, with strong evidence of expression responses to V. dahliae in tested immune lines. The predicted protein for this tested gene encodes an important regulator for generating and trafficking vesicles, essential for the efficient and timely transportation of proteins and antimicrobials for intracellular and extracellular use, thus aiding in signaling and defense actions in the plant immune system in order to fight pathogen infections [61,62,63]. It should also be highlighted that the defense function of small GTPase can be interfered with by effectors secreted by resistant pathogens to enhance self-replication and in turn increase virulence [76,77]. Vesicle trafficking processes can involve several endomembrane organelles, such as the endoplasmic reticulum (ER), Golgi apparatus and others [78]. Our GO enrichment result is also in line with the role played by the vesicle trafficking process in resistance, highlighting that the Golgi membrane (GO:0000139) as an enriched cellular component in V. dahliae resistance (Table S5).

5. Conclusions

In conclusion, our study elucidates the genetic basis of V. dahliae resistance in sunflowers using a genome-wide association study, offering valuable insights for breeding disease-resistant cultivars. By evaluating V. dahliae resistance in 231 sunflower association mapping accessions, we identified 18 lines with full immunity to V. dahliae and three lines showing shared immunity to VW, stem canker, and downy mildew. Genome-wide association analyses using EMMAX and rrBLUP with both SNPs and PAVs confirmed the polygenic architecture of V. dahliae resistance in cultivated sunflowers. We also identified 148 QTLs and 23 putative V. dahlia-resistant genes within these QTL regions, classified into five functional categories: receptor-like kinases (LRR family and others), cell wall modification enzymes (including pectinesterase), transcription regulation (PPR), plant signaling (STK, IQM and others) and defense regulation (mainly small GTPase). Validation experiments and GO enrichment analyses further imply that membrane vesicle trafficking plays an important role in sunflower resistance, although other mechanisms likely contribute as well. This research advances our understanding of the plant–pathogen interaction between sunflower and V. dahliae and provides valuable information for breeding resistant sunflower cultivars.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13182582/s1, Figure S1: Frequency plot and QQ plot testing for data normality for raw corrected disease index (DIcorr) and boxcox transformation of DIcorr. Table S1: DIcorr recorded for 231 sunflower accessions in this study, classified into four resistance levels. Including metadata of accession name, line name, class, package number, sunflower association mapping (SAM) population. Overlapping immune lines for verticillium wilt, stem canker, and downy mildew are identified. Table S2: Predictive ability change along the top ranked single nucleotide polymorphisms (SNPs) and presence–absence variants (PAVs). Table S3: Information on candidate marker and QTLs identified with both SNPs and PAVs: including candidate marker position, QTL positions and lengths, genes within 5 kbp window of QTL areas. Table S4: Annotated Pfam, Interpro, GO terms, and gene positions for 51 candidate genes. Resistance classification, gene function, function description, related QTLs and references for 23 putative genes for V. dahliae resistance. Table S5: GO and KEGG enrichment results. Table S6: Information and results on validation experiments using quantitative real-time PCR (q-PCR) in 11 tested candidate genes. Including tested gene names, q-PCR reaction system, condition, designed primers and gene expression results.

Author Contributions

Conceptualization, L.H.R. and J.Z. (Jun Zhao); Formal analysis, Y.Y.; Funding acquisition, Y.Y., L.H.R. and J.Z. (Jun Zhao); Investigation, Y.Y. and J.Y.; Methodology, Y.Y., J.Y., L.H.R. and J.Z. (Jun Zhao); Project administration, Y.Y. and J.Z. (Jian Zhang); Resources, J.Z. (Jian Zhang), L.H.R. and J.Z. (Jun Zhao); Supervision, L.H.R. and J.Z. (Jun Zhao); Validation, J.Y.; Visualization, Y.Y.; Writing—original draft, Y.Y.; Writing—review and editing, Y.Y., J.Y., J.Z. (Jian Zhang), L.H.R. and J.Z. (Jun Zhao). All authors have read and agreed to the published version of the manuscript.

Funding

Funding was provided by China Scholarship Council (CSC-202108180006) to Y.Y., Natural Sciences and Engineering Research Council of Canada (NSERC-327475) to L.H.R., and China Agricultural Research System (CARS-14) and Basic Research Funds of Inner Mongolia Agriculture University (BR22-13-09) to J.Z. (Jun Zhao).

Data Availability Statement

All code associated with this project is available at: https://github.com/yueyu27/Verticillium-dahliae-resistance-in-cultivated-sunflowers, accessed on 3 August 2024.

Acknowledgments

We thank Mojtaba Jahani for his computing advice regarding EMMAX, Jose Miguel for his support with gene annotation and computing resources, Gregory Owens, Kaichi Huang and others in the Rieseberg lab for generating marker data, and Shuo Jia, Tie Li and Yitong Feng for their assistance with fieldwork and data acquisition.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. United States Department of Agriculture (USDA). Oilseeds: World Markets and Trade. United States Department of Agriculture Foreign Agricultural Service. Available online: https://apps.fas.usda.gov/psdonline/circulars/oilseeds.pdf (accessed on 10 July 2024).
  2. Inderbitzin, P.; Subbarao, K.V. Verticillium Systematics and Evolution: How Confusion Impedes Verticillium Wilt Management and How to Resolve It. Phytopathology 2014, 104, 564–574. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, Y.; Zhang, J.; Gao, J.; Zhang, G.; Yu, Y.; Zhou, H.; Chen, W.; Zhao, J. The Colonization Process of Sunflower by a Green Fluorescent Protein-Tagged Isolate of Verticillium dahliae and Its Seed Transmission. Plant Dis. 2018, 102, 1772–1778. [Google Scholar] [CrossRef] [PubMed]
  4. Acharya, B.; Ingram, T.W.; Oh, Y.; Adhikari, T.B.; Dean, R.A.; Louws, F.J. Opportunities and Challenges in Studies of Host-Pathogen Interactions and Management of Verticillium dahliae in Tomatoes. Plants 2020, 9, 1622. [Google Scholar] [CrossRef] [PubMed]
  5. Montes-Osuna, N.; Mercado-Blanco, J. Verticillium Wilt of Olive and Its Control: What Did We Learn during the Last Decade? Plants 2020, 9, 735. [Google Scholar] [CrossRef] [PubMed]
  6. Rowe, R.C.; Powelson, M.L. Potato Early Dying: Management Challenges in a Changing Production Environment. Plant Dis. 2002, 86, 1184–1193. [Google Scholar] [CrossRef]
  7. Centre for Agriculture and Bioscience International (CABI). Available online: https://www.cabi.org/isc/datasheet/56275#toDistributionMaps (accessed on 12 July 2024).
  8. Mathew, F.M.; Mohan, K.; Rafi, N.; Colombo, D.; Block, C.; Gulya, T.; Markell, S.G.; Reyley, M.; Thompson, S.; Harveson, R.M. Verticillium Wilt of Sunflower. Plant Health Instr. 2024, 24. [Google Scholar] [CrossRef]
  9. García-Ruiz, R.; García-Carneros, A.B.; Molinero-Ruiz, L. A New Race of Verticillium dahliae Causing Leaf Mottle of Sunflower in Europe. Plant Dis. 2014, 98, 1435. [Google Scholar] [CrossRef]
  10. Gulya, T. New Strain of Verticillium dahliae in North America. Helia 2007, 30, 115–120. [Google Scholar] [CrossRef]
  11. Sackston, W.E.; McDonald, W.C.; Martens, J. Leaf Mottle or Verticillium Wilt of Sunflower. Plant Dis. Res. Rep. 1957, 41, 337–343. [Google Scholar]
  12. Markell, S.; Harveson, R.; Block, C.; Gulya, T. Sunflower Disease Diagnostic Series; North Dakota State Cooperative Extension Service Publication; North Dakota State University: Fargo, ND, USA, 2023; p. 1727. [Google Scholar]
  13. Harveson, R.M.; Markell, S.G.; Block, C.C.; Gulya, T.J. Compendium of Sunflower Diseases: Part I: Biotic Diseases; American Phytopathological Society: St. Paul, MN, USA, 2018. [Google Scholar] [CrossRef]
  14. Creus, C.; Bazzalo, M.E.; Grondona, M.; Andrade, F.; León, A.J. Disease Expression and Ecophysiological Yield Components in Sunflower Isohybrids with and without Verticillium dahliae Resistance. Crop Sci. 2007, 47, 703–710. [Google Scholar] [CrossRef]
  15. Hoes, J.A.; Putt, E.D.; Enns, H. Resistance to Verticillium Wilt in Collections of Wild Helianthus in North America. Phytopathology 1973, 63, 1517–1520. [Google Scholar] [CrossRef]
  16. Wang, D.; Su, Z.; Ning, D.; Zhao, Y.; Meng, H.; Dong, B.; Zhao, J.; Zhou, H. Different Appearance Period of Verticillium Wilt Symptoms Affects Sunflower Growth and Production. J. Plant Pathol. 2021, 103, 513–517. [Google Scholar] [CrossRef]
  17. Klosterman, S.J.; Atallah, Z.K.; Vallad, G.E.; Subbarao, K.V. Diversity, Pathogenicity, and Management of Verticillium Species. Annu. Rev. Phytopathol. 2009, 47, 39–62. [Google Scholar] [CrossRef] [PubMed]
  18. Fradin, E.F.; Thomma, B.P. Physiology and Molecular Aspects of Verticillium Wilt Diseases Caused by V. dahliae and V. albo-atrum. Mol. Plant Pathol. 2006, 7, 71–86. [Google Scholar] [CrossRef]
  19. Guo, S.; Zuo, Y.; Zhang, Y.; Wu, C.; Su, W.; Jin, W.; Yu, H.; An, Y.; Li, Q. Large-Scale Transcriptome Comparison of Sunflower Genes Responsive to Verticillium dahliae. BMC Genom. 2017, 18, 42. [Google Scholar] [CrossRef]
  20. Mustafa, R.; Hamza, M.; Kamal, H.; Mansoor, S.; Scheffler, J.; Amin, I. Tobacco Rattle Virus-Based Silencing of Enoyl-CoA Reductase Gene and Its Role in Resistance against Cotton Wilt Disease. Mol. Biotechnol. 2017, 59, 241–250. [Google Scholar] [CrossRef]
  21. de Jonge, R.; van Esse, H.P.; Maruthachalam, K.; Bolton, M.D.; Santhanam, P.; Saber, M.K.; Zhang, Z.; Usami, T.; Lievens, B.; Subbarao, K.V.; et al. Tomato Immune Receptor Ve1 Recognizes Effector of Multiple Fungal Pathogens Uncovered by Genome and RNA Sequencing. Proc. Natl. Acad. Sci. USA 2012, 109, 5110–5115. [Google Scholar] [CrossRef]
  22. Tai, H.H.; De Koeyer, D.; Sønderkær, M.; Hedegaard, S.; Nielsen, K.L. Verticillium dahliae Disease Resistance and the Regulatory Pathway for Maturity and Tuberization in Potato. Plant Genome 2018, 11, 170040. [Google Scholar] [CrossRef]
  23. Markakis, E.A.; Krasagakis, N.; Manolikaki, I.; Papadaki, A.A.; Kostelenos, G.; Koubouris, G. Evaluation of Olive Varieties Resistance for Sustainable Management of Verticillium Wilt. Sustainability 2022, 14, 9342. [Google Scholar] [CrossRef]
  24. Song, R.; Li, J.; Xie, C.; Jian, W.; Yang, X. An Overview of the Molecular Genetics of Plant Resistance to the Verticillium Wilt Pathogen Verticillium dahliae. Int. J. Mol. Sci. 2020, 21, 1120. [Google Scholar] [CrossRef]
  25. Xu, J.; Xu, X.; Tian, L.; Wang, G.; Zhang, X.; Wang, X.; Guo, W. Discovery and Identification of Candidate Genes from the Chitinase Gene Family for Verticillium dahliae Resistance in Cotton. Sci. Rep. 2016, 6, 29022. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, N.; Zhang, X.; Sun, Y.; Wang, P.; Li, X.; Pei, Y.; Li, F.; Hou, Y. Molecular Evidence for the Involvement of a Polygalacturonase-Inhibiting Protein, GhPGIP1, in Enhanced Resistance to Verticillium and Fusarium Wilts in Cotton. Sci. Rep. 2017, 7, 39840. [Google Scholar] [CrossRef] [PubMed]
  27. Tanaka, K.; Nguyen, C.T.; Liang, Y.; Cao, Y.; Stacey, G. Role of LysM Receptors in Chitin-Triggered Plant Innate Immunity. Plant Signal. Behav. 2013, 8, e22598. [Google Scholar] [CrossRef] [PubMed]
  28. Nazar, R.N.; Xu, X.; Kurosky, A.; Robb, J. Antagonistic Function of the Ve R-Genes in Tomato. Plant Mol. Biol. 2018, 98, 67–79. [Google Scholar] [CrossRef] [PubMed]
  29. Li, X.; Pei, Y.; Sun, Y.; Liu, N.; Wang, P.; Liu, D.; Ge, X.; Li, F.; Hou, Y. A Cotton Cyclin-Dependent Kinase E Confers Resistance to Verticillium dahliae Mediated by Jasmonate-Responsive Pathway. Front. Plant Sci. 2018, 9, 642. [Google Scholar] [CrossRef]
  30. Gong, Q.; Yang, Z.; Wang, X.; Butt, H.I.; Chen, E.; He, S.; Zhang, C.; Zhang, X.; Li, F. Salicylic Acid-Related Cotton (Gossypium arboreum) Ribosomal Protein GaRPL18 Contributes to Resistance to Verticillium dahliae. BMC Plant Biol. 2017, 17, 59. [Google Scholar] [CrossRef]
  31. Mandel, J.R.; Dechaine, J.M.; Marek, L.F.; Burke, J.M. Genetic Diversity and Population Structure in Cultivated Sunflower and a Comparison to Its Wild Progenitor, Helianthus annuus L. Theor. Appl. Genet. 2011, 123, 693–704. [Google Scholar] [CrossRef]
  32. Mandel, J.R.; Nambeesan, S.; Bowers, J.E.; Marek, L.F.; Ebert, D.; Rieseberg, L.H.; Knapp, S.J.; Burke, J.M. Association Mapping and the Genomic Consequences of Selection in Sunflower. PLoS Genet. 2013, 9, e1003378. [Google Scholar] [CrossRef]
  33. Masalia, R.R.; Temme, A.A.; Torralba, N.L.; Burke, J.M. Multiple Genomic Regions Influence Root Morphology and Seedling Growth in Cultivated Sunflower (Helianthus annuus L.) under Well-Watered and Water-Limited Conditions. PLoS ONE 2018, 13, e0204279. [Google Scholar] [CrossRef]
  34. Gao, L.; Lee, J.S.; Hübner, S.; Hulke, B.S.; Qu, Y.; Rieseberg, L.H. Genetic and Phenotypic Analyses Indicate That Resistance to Flooding Stress Is Uncoupled from Performance in Cultivated Sunflower. New Phytol. 2019, 223, 1657–1670. [Google Scholar] [CrossRef]
  35. Temme, A.A.; Kerr, K.L.; Masalia, R.R.; Burke, J.M.; Donovan, L.A. Key Traits and Genes Associate with Salinity Tolerance Independent from Vigor in Cultivated Sunflower. Plant Physiol. 2020, 184, 865–880. [Google Scholar] [CrossRef]
  36. Temme, A.A.; Kerr, K.L.; Nolting, K.M.; Dittmar, E.L.; Masalia, R.R.; Bucksch, A.K.; Burke, J.M.; Donovan, L.A. The Genomic Basis of Nitrogen Utilization Efficiency and Trait Plasticity to Improve Nutrient Stress Tolerance in Cultivated Sunflower. J. Exp. Bot. 2024, 75, 2527–2544. [Google Scholar] [CrossRef] [PubMed]
  37. Hübner, S.; Bercovich, N.; Todesco, M.; Mandel, J.R.; Rieseberg, L.H. Sunflower Pan-Genome Analysis Shows That Hybridization Altered Gene Content and Disease Resistance. Nat. Plants 2019, 5, 54–62. [Google Scholar] [CrossRef]
  38. Guidini, R.; Jahani, M.; Huang, K.; Rieseberg, L.; Mathew, F.M. Genome-Wide Association Mapping in Sunflower (Helianthus annuus) Reveals Common Loci and Putative Candidate Genes for Resistance to Diaporthe gulyae and D. helianthi Causing Phomopsis Stem Canker. Plant Dis. 2023, 107, 667–674. [Google Scholar] [CrossRef] [PubMed]
  39. Todesco, M.; Owens, G.L.; Bercovich, N.; Légaré, J.S.; Soudi, S.; Burge, D.O.; Huang, K.; Ostevik, K.L.; Drummond, E.B.M.; Imerovski, I.; et al. Massive Haplotypes Underlie Ecotypic Differentiation in Sunflowers. Nature 2020, 584, 602–607. [Google Scholar] [CrossRef] [PubMed]
  40. Browning, B.L.; Zhou, Y.; Browning, S.R. A One-Penny Imputed Genome from Next Generation Reference Panels. Am. J. Hum. Genet. 2018, 103, 338–348. [Google Scholar] [CrossRef]
  41. Lee, J.S.; Jahani, M.; Huang, K.; Mandel, J.R.; Marek, L.F.; Burke, J.M.; Langlade, N.B.; Owens, G.L.; Rieseberg, L.H. Expression Complementation of Gene Presence/Absence Polymorphisms in Hybrids Contributes Importantly to Heterosis in Sunflower. J. Adv. Res. 2022, 42, 83–98. [Google Scholar] [CrossRef]
  42. Peng, S.; Xue-Lian, L.; Gao, F.; Guo-Ying, L.I.; Hui, L.I. Study on a New Rapid Inoculation Method for Verticillium Wilt and Fusarium Wilt of Cotton. Cotton Sci. 2008, 20, 174–178. [Google Scholar] [CrossRef]
  43. Jie, Y.; Ying, W.; Zhao, J.; Lan, J.; Zhou, H. Study on Inoculation Methods of Sunflower Verticillium Wilt. China Plant Protect. 2015, 12, 16–20. (In Chinese) [Google Scholar] [CrossRef]
  44. Kang, H.M.; Sul, J.H.; Service, S.K.; Zaitlen, N.A.; Kong, S.Y.; Freimer, N.B.; Sabatti, C.; Eskin, E. Variance Component Model to Account for Sample Structure in Genome-Wide Association Studies. Nat. Genet. 2010, 42, 348–354. [Google Scholar] [CrossRef]
  45. Purcell, S.; Neale, B.; Todd-Brown, K.; Thomas, L.; Ferreira, M.A.; Bender, D.; Maller, J.; Sklar, P.; de Bakker, P.I.; Daly, M.J.; et al. PLINK: A Tool Set for Whole-Genome Association and Population-Based Linkage Analyses. Am. J. Hum. Genet. 2007, 81, 559–575. [Google Scholar] [CrossRef] [PubMed]
  46. Noble, W.S. How Does Multiple Testing Correction Work? Nat. Biotechnol. 2009, 27, 1135–1137. [Google Scholar] [CrossRef] [PubMed]
  47. Endelman, J.B.; Jannink, J.L. Shrinkage Estimation of the Realized Relationship Matrix. G3 2012, 2, 1405–1413. [Google Scholar] [CrossRef] [PubMed]
  48. Endelman, J.B. Ridge Regression and Other Kernels for Genomic Selection with R Package rrBLUP. Plant Genome 2011, 4, 250–255. [Google Scholar] [CrossRef]
  49. Huang, K.; Jahani, M.; Gouzy, J.; Legendre, A.; Carrere, S.; Lázaro-Guevara, J.M.; González Segovia, E.G.; Todesco, M.; Mayjonade, B.; Rodde, N.; et al. The Genomics of Linkage Drag in Inbred Lines of Sunflower. Proc. Natl. Acad. Sci. USA 2023, 120, e2205783119. [Google Scholar] [CrossRef]
  50. Quevillon, E.; Silventoinen, V.; Pillai, S.; Harte, N.; Mulder, N.; Apweiler, R.; Lopez, R. InterProScan: Protein Domains Identifier. Nucleic Acids Res. 2005, 33, W116–W120. [Google Scholar] [CrossRef]
  51. Mistry, J.; Chuguransky, S.; Williams, L.; Qureshi, M.; Salazar, G.A.; Sonnhammer, E.L.L.; Tosatto, S.C.E.; Paladin, L.; Raj, S.; Richardson, L.J.; et al. Pfam: The Protein Families Database in 2021. Nucleic Acids Res. 2021, 49, D412–D419. [Google Scholar] [CrossRef]
  52. Alexa, A.; Rahnenfuhrer, J. topGO: Enrichment Analysis for Gene Ontology; R Package Version 2.56.0; Bioconductor: Dortmund, Germany, 2024. [Google Scholar]
  53. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2022; Available online: https://www.R-project.org/ (accessed on 1 June 2024).
  54. Yu, G.; Wang, L.G.; Han, Y.; He, Q.Y. clusterProfiler: An R Package for Comparing Biological Themes Among Gene Clusters. Omics A J. Integr. Biol. 2012, 16, 284–287. [Google Scholar] [CrossRef]
  55. Moriya, Y.; Itoh, M.; Okuda, S.; Yoshizawa, A.C.; Kanehisa, M. KAAS: An Automatic Genome Annotation and Pathway Reconstruction Server. Nucleic Acids Res. 2007, 35, W182–W185. [Google Scholar] [CrossRef]
  56. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  57. Millard, S.P. EnvStats: An R Package for Environmental Statistics; Springer: New York, NY, USA, 2013; Available online: https://link.springer.com/book/10.1007/978-1-4614-8456-1 (accessed on 13 June 2024).
  58. Qin, T.; Zhao, P.; Sun, J.; Zhao, Y.; Zhang, Y.; Yang, Q.; Wang, W.; Chen, Z.; Mai, T.; Zou, Y.; et al. Research Progress of PPR Proteins in RNA Editing, Stress Response, Plant Growth and Development. Front. Genet. 2021, 12, 765580. [Google Scholar] [CrossRef] [PubMed]
  59. Laluk, K.; AbuQamar, S.; Mengiste, T. The Arabidopsis Mitochondria-Localized Pentatricopeptide Repeat Protein PGN Functions in Defense Against Necrotrophic Fungi and Abiotic Stress Tolerance. Plant Physiol. 2011, 156, 2053–2068. [Google Scholar] [CrossRef] [PubMed]
  60. Gupta, S.K.; Rai, A.K.; Kanwar, S.S.; Sharma, T.R. Comparative Analysis of Zinc Finger Proteins Involved in Plant Disease Resistance. PLoS ONE 2012, 7, e42578. [Google Scholar] [CrossRef] [PubMed]
  61. Yorimitsu, T.; Sato, K.; Takeuchi, M. Molecular Mechanisms of Sar/Arf GTPases in Vesicular Trafficking in Yeast and Plants. Front. Plant Sci. 2014, 5, 411. [Google Scholar] [CrossRef] [PubMed]
  62. Schmidt, S.M.; Kuhn, H.; Micali, C.; Liller, C.; Kwaaitaal, M.; Panstruga, R. Interaction of a Blumeria graminis f. sp. hordei Effector Candidate with a Barley ARF-GAP Suggests That Host Vesicle Trafficking Is a Fungal Pathogenicity Target. Mol. Plant Pathol. 2014, 15, 535–549. [Google Scholar] [CrossRef]
  63. Gu, Y.; Zavaliev, R.; Dong, X. Membrane Trafficking in Plant Immunity. Mol. Plant 2017, 10, 1026–1034. [Google Scholar] [CrossRef]
  64. Gillingham, A.K.; Pfeifer, A.C.; Munro, S. CASP, the Alternatively Spliced Product of the Gene Encoding the CCAAT-Displacement Protein Transcription Factor, Is a Golgi Membrane Protein Related to Giantin. Mol. Biol. Cell 2002, 13, 3761–3774. [Google Scholar] [CrossRef]
  65. Chaliha, C.; Rugen, M.D.; Field, R.A.; Kalita, E. Glycans as Modulators of Plant Defense Against Filamentous Pathogens. Front. Plant Sci. 2018, 9, 928. [Google Scholar] [CrossRef]
  66. Kaya, Y. Sunflower. In Breeding Oilseed Crops for Sustainable Production; Academic Press: Cambridge, MA, USA, 2016; pp. 55–88. [Google Scholar] [CrossRef]
  67. Neupane, S.; Andersen, E.J.; Neupane, A.; Nepal, M.P. Genome-Wide Identification of NBS-Encoding Resistance Genes in Sunflower (Helianthus annuus L.). Genes 2018, 9, 384. [Google Scholar] [CrossRef]
  68. DeYoung, B.J.; Innes, R.W. Plant NBS-LRR Proteins in Pathogen Sensing and Host Defense. Nat. Immunol. 2006, 7, 1243–1249. [Google Scholar] [CrossRef]
  69. Li, B.; Lu, D.; Shan, L. Ubiquitination of Pattern Recognition Receptors. Mol. Plant Pathol. 2014, 15, 737–746. [Google Scholar] [CrossRef] [PubMed]
  70. Afzal, A.J.; Wood, A.J.; Lightfoot, D.A. Plant Receptor-Like Serine Threonine Kinases: Roles in Signaling and Plant Defense. Mol. Plant-Microbe Interact. 2008, 21, 507–517. [Google Scholar] [CrossRef]
  71. Zhang, Y.; Wang, X.; Li, Y.; Wu, L.; Zhou, H.; Zhang, G.; Ma, Z. Ectopic Expression of a Novel Ser/Thr Protein Kinase from Cotton (Gossypium barbadense) Enhances Resistance to Verticillium dahliae Infection and Oxidative Stress in Arabidopsis. Plant Cell Rep. 2013, 32, 1703–1713. [Google Scholar] [CrossRef] [PubMed]
  72. Miller, J.C.; Chezem, W.R.; Clay, N.K. Ternary WD40 Repeat-Containing Protein Complexes: Evolution, Composition, and Roles in Plant Immunity. Front. Plant Sci. 2016, 6, 1108. [Google Scholar] [CrossRef] [PubMed]
  73. Gao, Y.; He, C.; Zhang, D.; Liu, X.; Xu, Z.; Tian, Y.; Liu, X.H.; Zang, S.; Pauly, M.; Zhou, Y.; et al. Two Trichome Birefringence-Like Proteins Mediate Xylan Acetylation, Which Is Essential for Leaf Blight Resistance in Rice. Plant Physiol. 2017, 173, 470–481. [Google Scholar] [CrossRef]
  74. Lv, T.; Li, X.; Fan, T.; Luo, H.; Xie, C.; Zhou, Y.; Tian, C.E. The Calmodulin-Binding Protein IQM1 Interacts with CATALASE2 to Affect Pathogen Defense. Plant Physiol. 2019, 181, 1314–1327. [Google Scholar] [CrossRef]
  75. Ribone, A.I.; Fass, M.; Gonzalez, S.; Lia, V.; Paniego, N.; Rivarola, M. Co-Expression Networks in Sunflower: Harnessing the Power of Multi-Study Transcriptomic Public Data to Identify and Categorize Candidate Genes for Fungal Resistance. Plants 2023, 12, 2767. [Google Scholar] [CrossRef]
  76. Yuen, E.L.H.; Shepherd, S.; Bozkurt, T.O. Traffic Control: Subversion of Plant Membrane Trafficking by Pathogens. Annu. Rev. Phytopathol. 2023, 61, 325–350. [Google Scholar] [CrossRef]
  77. Yun, H.S.; Sul, W.J.; Chung, H.S.; Lee, J.-H.; Kwon, C. Secretory Membrane Traffic in Plant–Microbe Interactions. New Phytol. 2023, 237, 53–59. [Google Scholar] [CrossRef]
  78. Bhandari, D.D.; Brandizzi, F. Logistics of Defense: The Contribution of Endomembranes to Plant Innate Immunity. J. Cell Biol. 2024, 223, e202307066. [Google Scholar] [CrossRef]
Plants 13 02582 g001

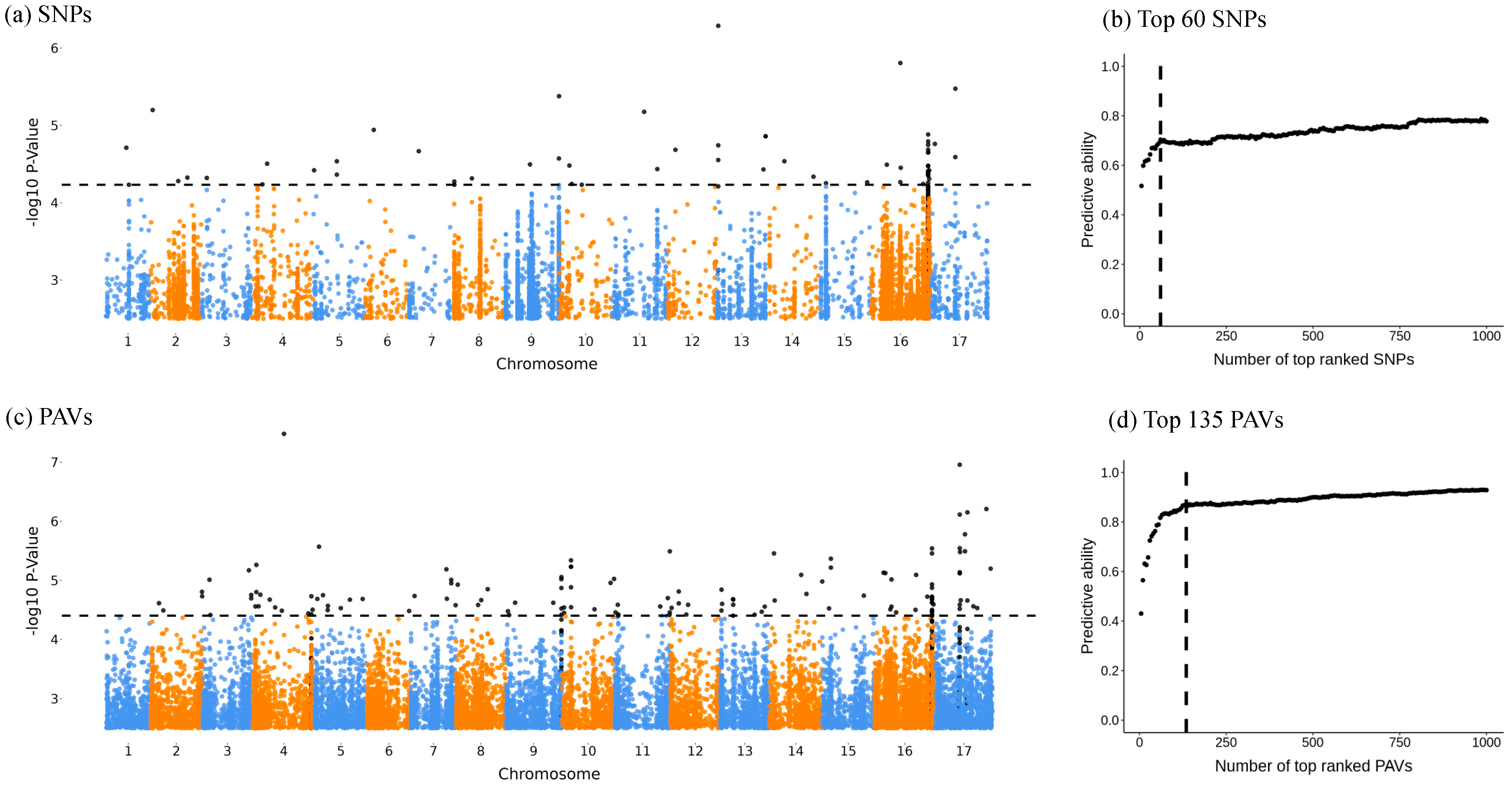

Figure 1. Genome-wide association mapping results for 3,699,248 single-nucleotide polymorphisms (SNPs) and for 7,541,946 presence–absence variants (PAVs). Manhattan plot of SNPs (a) and PAVs (c) with −log10P > 2.5; each point represents a single marker. Candidate marker threshold in black dashed horizontal lines, and candidate markers within QTLs highlighted as black points; non-candidate markers are in orange and blue. Changes in predictive ability for top markers identified with EMMAX (high −log10P) for SNPs (b) and PAVs (d). From top five to top 1000 markers (increments of five) using rrBLUP. Candidate marker threshold in black dashed vertical lines.
Figure 1. Genome-wide association mapping results for 3,699,248 single-nucleotide polymorphisms (SNPs) and for 7,541,946 presence–absence variants (PAVs). Manhattan plot of SNPs (a) and PAVs (c) with −log10P > 2.5; each point represents a single marker. Candidate marker threshold in black dashed horizontal lines, and candidate markers within QTLs highlighted as black points; non-candidate markers are in orange and blue. Changes in predictive ability for top markers identified with EMMAX (high −log10P) for SNPs (b) and PAVs (d). From top five to top 1000 markers (increments of five) using rrBLUP. Candidate marker threshold in black dashed vertical lines.
Plants 13 02582 g001
Plants 13 02582 g002

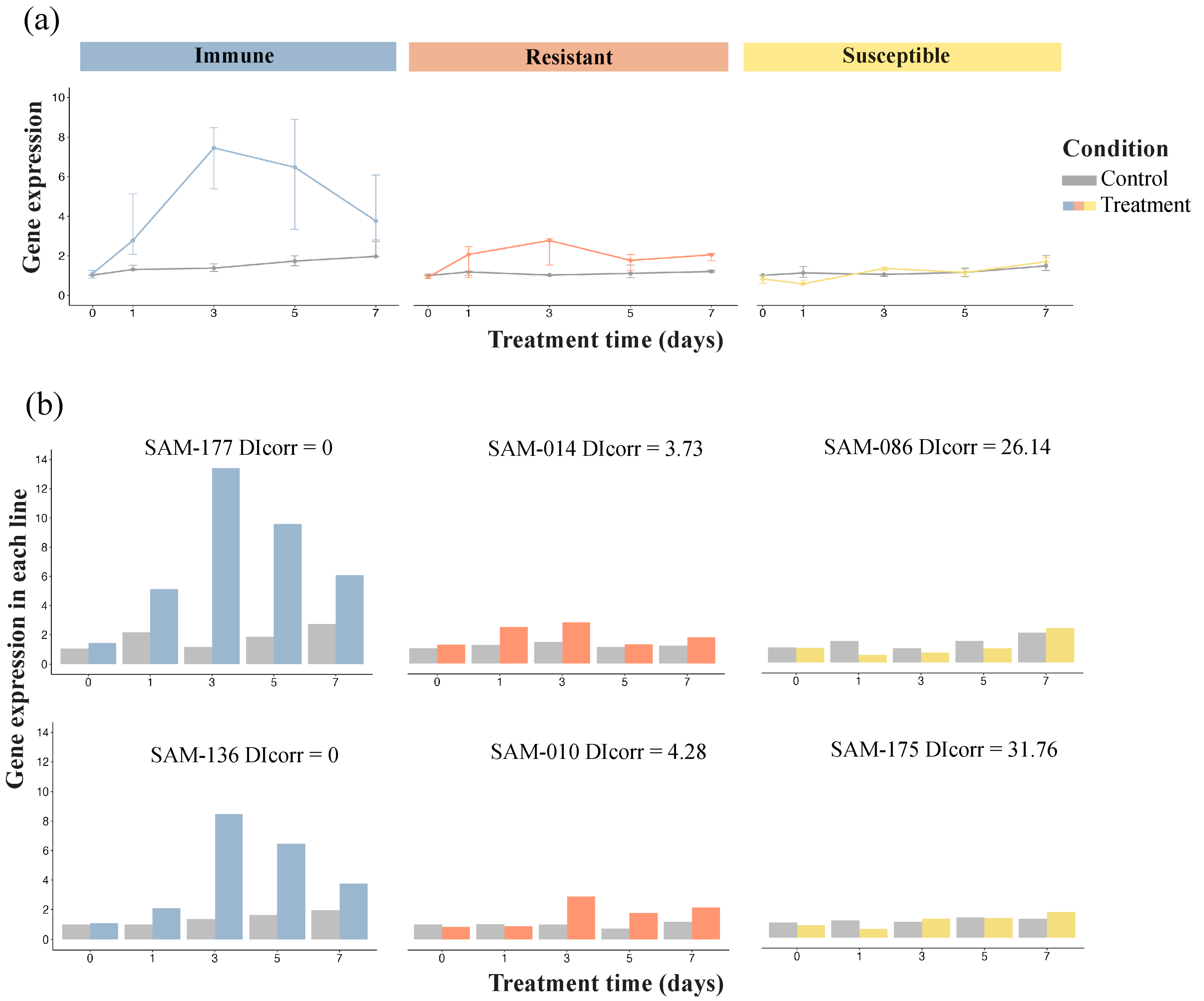

Figure 2. Gene expression of Ha412HOChr08g0327051 before and after Verticillium dahliae inoculation over time using quantitative real-time PCR in three resistance categories: immune, resistant and susceptible. Results for all sunflower lines in each category (a) and for two selected sunflower lines in each category (b). X-axis represents the treatment time: 0, 1, 3, 5 and 7 dpi. Y-axis represents the gene expression levels. Different colors represent different group conditions: grey for control group, and blue, orange and light yellow for treatment in immune, resistant and susceptible lines, respectively. (a) Median gene expression data for five tested lines in each resistance category for the control and treatment group. Points represent the median gene expression levels at each time point, and the error bars extending from each point indicate the interquartile range, with the lower bound representing the 25th percentile and the upper bound representing the 75th percentile of the gene expression levels. (b) Paired gene expression in selected line over time. DIcorr stands for corrected disease index.
Figure 2. Gene expression of Ha412HOChr08g0327051 before and after Verticillium dahliae inoculation over time using quantitative real-time PCR in three resistance categories: immune, resistant and susceptible. Results for all sunflower lines in each category (a) and for two selected sunflower lines in each category (b). X-axis represents the treatment time: 0, 1, 3, 5 and 7 dpi. Y-axis represents the gene expression levels. Different colors represent different group conditions: grey for control group, and blue, orange and light yellow for treatment in immune, resistant and susceptible lines, respectively. (a) Median gene expression data for five tested lines in each resistance category for the control and treatment group. Points represent the median gene expression levels at each time point, and the error bars extending from each point indicate the interquartile range, with the lower bound representing the 25th percentile and the upper bound representing the 75th percentile of the gene expression levels. (b) Paired gene expression in selected line over time. DIcorr stands for corrected disease index.
Plants 13 02582 g002
Table 1. Number of sunflower association mapping (SAM) accessions classified into evaluation level based on corrected disease index (DIcorr).
Table 1. Number of sunflower association mapping (SAM) accessions classified into evaluation level based on corrected disease index (DIcorr).
Resistance LevelCorrected Disease Index (DIcorr)Number of SAM Accessions
Immunity (I)DI = 018
High Resistance (HR)0 < DI ≤ 10102
Medium Resistance (MR)10 < DI ≤ 25103
Medium Susceptibility (MS)25 < DI ≤ 408
High Susceptibility (HS)DI > 400
Table 2. Twenty-three candidate plant disease resistance genes were classified into five functional categories: receptor-like kinases, enzymes, transcription regulation, signalling and defense regulation. The gene function in each resistance category, annotated gene name, position and each gene’s related quantitative trait loci (QTL) are presented in order; for more functional descriptions, see Table S4.
Table 2. Twenty-three candidate plant disease resistance genes were classified into five functional categories: receptor-like kinases, enzymes, transcription regulation, signalling and defense regulation. The gene function in each resistance category, annotated gene name, position and each gene’s related quantitative trait loci (QTL) are presented in order; for more functional descriptions, see Table S4.
Resistance ClassificationResistance Gene FunctionAnnotated Ha412 GeneQuantitative Trait Loci (QTLs)
NameChromosomeStartEndRangeLength (kbp)
Receptor-like kinasesLeucine-rich repeat (LRR) receptor-like protein kinases domainHa412HOChr09g04301819199,673,064199,676,740Chr9:199587300..19967180084.501
Ha412HOChr11g04851911112,489,90712,491,965Chr11:12496400..124964000.001
THH1/TOM1/TOM3_domainHa412HOChr05g020103152,135,3152,140,825Chr05:2142873..21428730.001
EnzymesPlant glutathione S-transferases (GSTs)Ha412HOChr04g0161611454,865,55854,867,010Chr04:54869161..548691610.001
PectinesteraseHa412HOChr09g04301219199,621,706199,624,213Chr9:199587300..19967180084.501
Ubiquitin conjugating enzyme E2Ha412HOChr09g04301319199,654,317199,657,697Chr9:199587300..19967180084.501
GDP-fucose protein O-fucosyl transferaseHa412HOChr09g04301419199,661,153199,666,513Chr9:199587300..19967180084.501
Transcription regulatorPentatricopeptide Repeat (PPR)Ha412HOChr05g020105152,144,5262,145,764Chr05:2142873..21428730.001
Ha412HOChr13g062483113159,187,929159,189,605Chr13:159192700..1591927000.001
SignallingWD40 repeat domainHa412HOChr04g0149911412,506,69012,515,912Chr4:12515100..125151000.001
Ankyrin repeat domainHa412HOChr04g01934014209,950,163209,950,678Chr4:209869900..20995750087.601
Signal response regulator receiver domainHa412HOChr05g0212311547,237,98647,241,942Chr5:47234800..472348000.001
IQ Calmodulin binding motif (IQM)Ha412HOChr07g0294431734,499,62734,502,094Chr07:34502762..345027620.001
Trichome Birefringence-Like (TBL) proteinsHa412HOChr08g03267318385,886387,955Chr08:391677..3916770.001
Protein kinase domainHa412HOChr11g053182111195,939,617195,939,979Chr11:195944400..1959444000.001
Ha412HOChr11g053183111195,940,158195,946,483Chr11:195944400..1959444000.001
Serine/threonine-protein kinase (STK)Ha412HOChr11g053184111195,949,268195,951,584Chr11:195944400..1959444000.001
Defense regulationSmall GTPase superfamily ARF/SAR related proteinHa412HOChr08g03270518812,081815,534Chr08:815128..8151280.001
Ha412HOChr16g079317116190,225,952190,245,150Chr16:190241501..1902415010.001
CASP C-terminal domainHa412HOChr17g083765117106,817,961106,823,156Chr17:106827000..1068271000.101
Zinc finger domainHa412HOChr01g0016781173,395,37673,396,787Chr01:73392344..733923440.001
Ha412HOChr11g04852011112,494,08712,496,285Chr11:12496400..124964000.001
Ha412HOChr16g080237116212,155,400212,161,057Chr16:212158239..21218795829.720
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yu, Y.; Yang, J.; Zhang, J.; Rieseberg, L.H.; Zhao, J. Genomic Insights into Disease Resistance in Sunflower (Helianthus annuus): Identifying Key Regions and Candidate Genes for Verticillium dahliae Resistance. Plants 2024, 13, 2582. https://doi.org/10.3390/plants13182582

AMA Style

Yu Y, Yang J, Zhang J, Rieseberg LH, Zhao J. Genomic Insights into Disease Resistance in Sunflower (Helianthus annuus): Identifying Key Regions and Candidate Genes for Verticillium dahliae Resistance. Plants. 2024; 13(18):2582. https://doi.org/10.3390/plants13182582

Chicago/Turabian Style

Yu, Yue, Jianfeng Yang, Jian Zhang, Loren H. Rieseberg, and Jun Zhao. 2024. "Genomic Insights into Disease Resistance in Sunflower (Helianthus annuus): Identifying Key Regions and Candidate Genes for Verticillium dahliae Resistance" Plants 13, no. 18: 2582. https://doi.org/10.3390/plants13182582

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
