Communication

Screening and Functional Evaluation of Four Larix kaempferi Promoters

by
Chen-Yi Zhang
1,2,
Zha-Long Ye
2,
Li-Wang Qi
2,
Ling Yang
1,3,* and
Wan-Feng Li
2,*
1
State Key Laboratory of Tree Genetics and Breeding, College of Forestry, Northeast Forestry University, Harbin 150040, China
2
State Key Laboratory of Tree Genetics and Breeding, Key Laboratory of Tree Breeding and Cultivation of the National Forestry and Grassland Administration, Research Institute of Forestry, Chinese Academy of Forestry, Beijing 100091, China
3
College of Forestry, Beijing Forestry University, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Plants 2024, 13(19), 2777; https://doi.org/10.3390/plants13192777
Submission received: 17 August 2024 / Revised: 1 October 2024 / Accepted: 3 October 2024 / Published: 3 October 2024
(This article belongs to the Special Issue Advances in Forest Tree Genetics and Breeding)
Browse Figures
Versions Notes

Abstract

:
Promoters are powerful tools for breeding new varieties using transgenic technology. However, the low and unstable expression of target genes is still a limiting factor in Larix kaempferi (Lamb.) Carr (Japanese larch) genetic transformation. In this study, we analyzed L. kaempferi transcriptome data, screened out highly expressed genes, cloned their promoters, and constructed plant expression vectors containing the β-glucuronidase (GUS) reporter gene driven by these promoters. Recombinant vectors were introduced into the L. kaempferi embryogenic callus by means of the Agrobacterium-mediated transient or stable genetic transformation method, and the promoter activity was then determined by measuring GUS expression and its enzyme activity in the transformed materials. Four highly expressed genes were identified: L. kaempferi Zhang Chen Yi-1 (LaZCY-1), Zhang Chen Yi-2 (LaZCY-2), Translationally Controlled Tumor Protein (LaTCTP), and ubiquitin (LaUBQ). The 2000 bp fragments upstream of ATG in these sequences were cloned as promoters and named pLaZCY-1, pLaZCY-2, pLaTCTP, and pLaUBQ. Semi-quantitative and quantitative RT-PCR analyses of transient genetic transformation materials showed that all four promoters could drive GUS expression, indicating that they have promoter activities. Semi-quantitative and quantitative RT-PCR analyses and the histochemical staining of stable genetic transformation materials showed that the pLaUBQ promoter had higher activity than the other three L. kaempferi promoters and the CaMV35S promoter. Thus, the pLaUBQ promoter was suggested to be used in larch genetic transformation.

1. Introduction

Larix kaempferi (Lamb.) Carr (Japanese larch) is an important tree for afforestation in China because it has a fast growth rate and wide adaptation [1,2]. Genetic transformation technology breaks the boundaries of conventional breeding, and it can be used to create new germplasm quickly for the directional improvement of forest trees [3]. Agrobacterium-mediated genetic transformation technology is a widely used research tool and has been used in the genetic improvement of larch [4,5,6,7,8,9,10,11,12].
The stable expression of target genes in transgenic plants is important for the genetic improvement of target traits, which largely depends on promoter activity [13]. The Cauliflower Mosaic virus 35S (CaMV35S) promoter is a constitutive promoter widely used in plant genetic transformation [11,14,15,16,17]; however, its activity is lower than that of native promoters in larch [18] and other conifers [19]. Therefore, identifying native and powerful promoters is of great importance.
For example, by using Chinese fir (Cunninghamia lanceolata) protoplast transient expression technology, the activities of Chinese fir Cula11 and Cula08 promoters were compared with that of the CaM35S promoter, and the results showed that Cula11 and Cula08 promoters have stronger activities [19]; notably, the Cula11 promoter also has stronger activity than the CaM35S promoter in transgenic poplar [19]. By using L. kaempferi transient transformation technology, the activity of the promoter of a L. kaempferi native gene, LaSCL6, was compared with that of the CaMV35S promoter, and the results showed that the LaSCL6 promoter has stronger activity [18]. These data show that screening native and efficient promoters from conifers for high-level constitutive gene expression is feasible and relevant.
Therefore, to identify powerful promoters that are specifically tailored to larch, we analyzed L. kaempferi transcriptome data, screened out four highly expressed genes, and compared their promoter activities in L. kaempferi transient and stable genetic transformation. This study aims to provide a potentially powerful tool for genetic transformation technology in larch.

2. Results and Discussion

2.1. Four Highly Expressed L. kaempferi Genes Were Screened, and Their Promoters Were Cloned and Analyzed

Transcriptomic data provide a better understanding of the global regulation of gene expression [20]. Many L. kaempferi transcriptomes are currently available [21], making it possible and easy to screen highly expressed L. kaempferi genes. After analyzing three sets of transcriptome data (Table 1), four highly expressed genes were screened, and they were named L. kaempferi Zhang Chen Yi-1 (LaZCY-1), Zhang Chen Yi-2 (LaZCY-2), Translationally Controlled Tumor Protein (LaTCTP), and ubiquitin (LaUBQ). Among these genes, LaZCY-1 and LaZCY-2 had not been annotated (Table 2). Based on the source of the transcriptome, these four genes were highly expressed in L. kaempferi, indicating that their promoters have constitutive activities. Their promoter sequences were then cloned (Figure 1) and analyzed (Figure 2).
It was found that these four L. kaempferi promoters are composed of many TATA-boxes and CAAT-boxes (Figure 2), which are core promoter elements required for transcription initiation [22]. The TATA-box is the first core promoter motif that was discovered, as well as the best known core promoter element [23], and it enables the precise initiation of transcription [24]. The CAAT-box is a conserved promoter element and has the greatest influence on the transcription initiation frequency; the change in any base in this region will greatly affect the transcription intensity of the target gene [22,25]. In addition, other elements related to hormones, light, defense, and stress were also found in these four promoters (Figure 2). The existence of these core elements and other elements in these four genes’ promoters might lead to their high expression, showing their potential for use in larch genetic transformation.
Table 1. Screening of four highly expressed genes of Larix Kaempferi.
Table 1. Screening of four highly expressed genes of Larix Kaempferi.
RankDifferent Seasons [21]Different Ages [26,27]Different Tissues or Organs [28,29]
1LK_I_c24897_16125LK_T_003052_c01_g01_i02.p1 *LK_I_c20093_79657
2LK_I_c29610_18909 *LK_I_c13741_08564 *LK_I_c26700_17377
3LK_I_c03008_01536LK_I_c29610_18909 *LK_I_c13741_08564 *
4LK_I_c20093_79657LK_I_c15119_09293LK_I_c34911_22534
5LK_I_c13741_08564 *LK_I_c24880_46025LK_I_c35735_23103 *
6LK_T_003052_c01_g01_i02.p1 *LK_I_c35735_23103 *LK_T_003052_c01_g01_i02.p1 *
7LK_I_c15119_09293LK_I_c08547_36770LK_I_c08682_05299
8LK_I_c17207_10752LK_I_c05858_35168LK_I_c29610_18909 *
9LK_I_c26700_17377LK_I_c40290_25505LK_I_c06228_35388
10LK_I_c35735_23103 *LK_I_c32634_50059LK_I_c00501_32008
* indicates the four common highly expressed genes in three transcriptomes.
Table 2. Annotation of four highly expressed genes in Larix kaempferi.
Table 2. Annotation of four highly expressed genes in Larix kaempferi.
IDGene NameDescription
LK_I_c29610_18909LaZCY-1−
LK_I_c35735_23103LaZCY-2−
LK_I_c13741_08564LaTCTPTranslationally Controlled Tumor Protein [30]
LK_T_003052_c01_g01_i02.p1LaUBQUbiquitin family
− means no annotation.

2.2. The Activities of the Four Promoters Were Detected in L. kaempferi Transient Transformation Based on GUS Expression

To verify the activities of these four L. kaempferi promoters, transient transformation was performed three times, and semi-quantitative and quantitative RT-PCRs were then performed to measure GUS expression. The semi-quantitative RT-PCR results showed that the amplified fragments of GUS were detected in all transformed L. kaempferi but not in the untransformed L. kaempferi (Figure 3a–c). The quantitative RT-PCR results showed that GUS was expressed in all transformed L. kaempferi at different levels (Figure 3d–f). These results indicated that GUS was successfully expressed in L. kaempferi transient transformation, and the four L. kaempferi promoters can drive GUS expression. However, transient transformation can only be utilized for temporary expression [31]; thus, L. kaempferi stable transformation was also carried out to further detect the activities of these four promoters.

2.3. GUS Expression and Activity Were Easily Detected in L. kaempferi Stable Transformation When Driven by pLaUBQ Promoter

To verify the insertion of GUS into the L. kaempferi genome, polymerase chain reaction (PCR) amplification was performed with GUS-specific primers (Table S1) and with L. kaempferi DNA as a template. The results showed that the amplified fragments of GUS were detected in the transformed L. kaempferi but not in the untransformed L. kaempferi (Figure 4a). With the L. kaempferi cDNA as a template, semi-quantitative and quantitative RT-PCR were performed to measure GUS expression. The semi-quantitative RT-PCR results showed that the amplified fragments of GUS were detected in all transformed L. kaempferi but not in the untransformed L. kaempferi (Figure 4b). The quantitative RT-PCR results showed that GUS was expressed in all transformed L. kaempferi, and the highest level occurred when GUS expression was driven by the pLaUBQ promoter (Figure 4c). Thus, these results indicated that GUS was successfully integrated into the L. kaempferi genome and strongly expressed when driven by the pLaUBQ promoter.
GUS staining was also used to detect the activities of four L. kaempferi promoters in stable transformation. After three hours, a blue color was only observed in cultures transformed with vectors harboring the pLaUBQ promoter (Figure 5); after 21 h, it was also observed in cultures transformed with vectors harboring the pLaTCTP promoter (Figure 5), but it was darker in cultures transformed with vectors harboring the pLaUBQ promoter. Notably, a blue color was not observed in cultures transformed with vectors harboring the other three promoters after 21 h of staining (Figure 5). These results show that the GUS activities were different when they were driven by different promoters in L. kaempferi stable transformation, and the pLaUBQ promoter had the strongest activity.

2.4. pLaUBQ Promoter Can Be Used in L. kaempferi Transformation and Gene Editing Systems

In plant transformation systems, the CaMV35S promoter is extensively used to drive the constitutive expression of selection marker genes, reporter genes, and genes of interest [32,33,34]. However, the use of the CaMV35S promoter to drive gene expression in conifer transformation is not ideal [17]. In this study, we suggested that the pLaUBQ promoter can be used in L. kaempferi transformation to replace the CaMV35S promoter because the pLaUBQ promoter’s activity is higher than the other three L. kaempferi promoters and the CaMV35S promoter in stable L. kaempferi transformation.
LaUBQ belongs to the ubiquitin family. Ubiquitin is a highly conserved eukaryotic protein that is expressed to a considerable degree in plant tissues at different developmental stages [35,36]. In this study, LaUBQ was also found to be strongly expressed in L. kaempferi, showing its promoter’s stable and high activity. In fact, the ubiquitin promoter is always used and has good performance. For example, when the maize ubiquitin promoter ZmUbi1 drives the expression of aryloxyalkanoate dioxygenase, it is more active than the CaMV35S promoter [37].
Notably, the ubiquitin promoter also shows great potential in CRISPR-mediated genome editing systems. For example, the use of the ubiquitin promoter UBQ2 improves editing efficiency by increasing the expression of Cas9 [38]. Targeted genome editing in L. kaempferi has been achieved using the CRISPR/Cas9 system, wherein the STU-Cas9 system driven by the larch LarPE004 promoter (a sequence fragment upstream of the initiation codon of polyubiquitin) [39] (6.1–11.0%) or ZmUbi promoter (2.7–3.5%) has better editing efficiency at a single site than the STU-Cas9 system driven by CaMV35S (1.8–2.0%) [40]. Thus, the future application of the pLaUBQ promoter in L. kaempferi CRISPR systems may also improve the efficiencies of targeted mutagenesis.
In addition, the pLaUBQ promoter is a native promoter; it may not be easily modified after being transformed into the L. kaempferi genome, so its modification, which may lead to the transgene silencing [41], can be avoided. In this study, the pLaUBQ promoter sequence is 2000 bp, and a little long compared with the CaMV35S promoter sequence (346 bp). In the future, we will detect the activities of the pLaUBQ promoters of different lengths to identify the short and powerful promoter fragments that are easily used in L. kaempferi transformation, and will measure the transgene expression and stability in the regenerated L. kaempferi plants.

3. Materials and Methods

3.1. Re-Analyzing L. kaempferi Transcriptomes to Screen Highly Expressed Genes

To obtain highly expressed genes, three sets of published transcriptomes were re-analyzed, and they were produced from different L. kaempferi materials, including stems collected from different seasons (from February 2019 to February 2020) [21], ages (1-, 4-, 8-, 12-, 20-, and 50-year-old dormant L. kaempferi trees; 1-, 2-, 5-, 10-, 25-, and 50-year-old active L. kaempferi trees) [26,27], and different tissues or organs (callus, roots, phloem, and leaves) [28,29]. In each set of data, the top ten highly expressed genes were obtained based on the rank of the minimum expression level of each gene, and the common genes in three sets of data were considered to be highly expressed genes (Table 1).

3.2. Promoter Cloning, Sequence Analysis, and Vector Construction

The 2000 bp fragment upstream of the initiation codon of the highly expressed gene was obtained from the genomic data [42], and after cloning, the cis-acting components in promoters were predicted using PlantCARE (https://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 1 March 2024). The CaMV35S promoter in the binary vector pCAMBIA1301 was replaced by cloned promoter fragments with SalⅠ and NcoⅠ restriction enzymes using the homologous recombination method, and there was a selection marker gene hygromycin phosphotransferase (HYGR) and a reporter gene, GUS, in the recombinant vectors (Figure 6), which were used for genetic transformation.

3.3. Agrobacterium-Mediated L. kaempferi Transient and Stable Transformation

The L. kaempferi embryogenic cell line C6 was used for genetic transformation; it was induced from immature embryos [43] and subsubstituted every 15 days on a solid proliferation medium [8] in the dark (25 ± 2 °C). The transformation was performed as described earlier [10], with some modifications. The Agrobacterium tumefaciens strain GV3101, harboring the recombinant vector, was cultured at 28 °C for 48 h on a solid Luria–Bertani (LB) medium supplemented with 50 mg/L kanamycin and 50 mg/L rifampicin. A single Agrobacterium clone was selected and cultured in 2 mL of liquid LB medium supplemented with the same antibiotics at 28 °C for 12 h on a rotary shaker (200 rpm). The culture was transferred to 50 mL of LB medium and grown under the same conditions for 12 h to OD600 = 0.6–0.8. The bacterial cells were collected via centrifugation at 4000 rpm for 10 min.
The pellet was re-suspended to OD600 = 0.05 and cultured in 100 mL of liquid proliferation medium, and 100 µM acetosyringone was added. Approximately 10 g (~50 mL) of the embryogenic cultures was added to an equal volume of the bacterial suspension. A vacuum filter was used to remove excess liquid from the cultures. The filtered cultures were spread on a solid proliferation medium supplemented with 100 µM acetosyringone and co-cultivated for 24 h in the dark at 25 °C, and then the cultures were sampled as transient transformation materials. The transient genetic transformation was repeated three times.
When the stable genetic transformation was performed, the pellet was re-suspended to OD600 = 0.1. After co-cultivation for 48 h in the dark at 25 °C, the cultures were washed four times each with 100 mL sterile distilled water and 100 mL cefotaxime solution (500 mg/L), and then they were transferred to a solid proliferation medium supplemented with 5 mg/L hygromycin and 500 mg/L cefotaxime. After ~4–8 weeks, hygromycin-resistant cultures were transferred to the same medium for further selection. The surviving cultures were maintained on the solid proliferation medium with 5 mg/L hygromycin until they were sampled as stable transformation materials.

3.4. Nucleic Acid Extraction and cDNA Synthesis

DNA was extracted with the Plant GenomicDNA Kit (TIANGEN, Beijing, China) from the untransformed callus for promoter cloning and from both the untransformed and transformed materials for PCR analysis.
Total RNA was extracted from both the untransformed and transformed callus with the EasyPure RNA Kit (TransGen Biotech, Beijing, China) according to the manufacturer’s protocol for gene expression analysis. Then, a 2.5 µg aliquot of total RNA was reverse-transcribed into cDNA with TransScript One-Step gDNA Removal and cDNA Synthesis SuperMix (TransGen Biotech, Beijing, China).

3.5. PCR, Semi-Quantitative RT-PCR, and Quantitative RT-PCR (qRT-PCR)

The PCR amplification of the sequence fragment of GUS (337 bp) was conducted to verify the insertion of GUS into the L. kaempferi genome with L. kaempferi DNA as a template. The following PCR program was used: 1 cycle at 94 °C for 2 min, then 35 cycles at 98 °C for 10 s, 58 °C for 5 s, and 68 °C for 5 s, followed by 1 cycle at 68 °C for 2 min. The PCR products were analyzed via electrophoresis in 1% agarose gel.
The PCR amplification of the sequence fragment of GUS (337 bp) was conducted to measure GUS expression with L. kaempferi cDNA as a template and LaUBC1 (ON887160) [44,45] as the internal control. The same PCR program as above was used, in addition to 30 cycles. The PCR products were analyzed via electrophoresis in 1% agarose gel.
The qRT-PCR was conducted with a Bio-Rad CFX96 PCR system using TB Green® Premix ExTaq™ (Tli RNase H Plus) (Takara, Shiga, Japan). Each reaction was carried out with 0.5 µM of gene-specific primers (Table S1) and 2 µL of a diluted cDNA sample in a total reaction system of 25 µL. LaUBC1 was used as the internal control. Four technical replicates were used for each sample, the ∆CT value (CTLaUBC1 − CTGUS) is used to represent the results, and the data are presented as mean ± SD values.
Excel was used for data statistics and analysis, and GraphPad Prism was used for drawing. The significance of the differences was analyzed with Statistical Product and Service Solutions (SPSS Statistics 26, IBM Corp., New York, NY, USA) software with an analysis of variance (ANOVA).

3.6. GUS Staining

Almost the same amounts of stable transformation materials were used for GUS staining, which was performed with a β-Galactosidase Reporter Gene Staining Kit (Huayueyang, Beijing, China) in a 1.5 mL centrifuge tube according to the kit instructions. After incubation at 37 °C in the dark for 3, 6, 9, or 21 h, the materials were photographed.

4. Conclusions

In this study, four highly expressed L. kaempferi genes were screened through transcriptome analysis, and their promoter activities were measured. All four promoters demonstrated activity because they could drive GUS expression. Among these promoters, the pLaUBQ promoter could replace CaMV35S for use in L. kaempferi genetic transformation and gene editing systems because it had a higher level of activity than the other three L. kaempferi promoters and the CaMV35S promoter.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13192777/s1, Table S1: Primer sequences used in this study.

Author Contributions

C.-Y.Z. carried out the study, analyzed the data, and wrote the manuscript. Z.-L.Y. screened four highly expressed genes. W.-F.L. conceived and designed the study and revised the manuscript. L.Y. and L.-W.Q. provided suggestions on the experimental design and analyses. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Biological Breeding-Major Projects (2022ZD0401602).

Data Availability Statement

The data presented in this study are available upon reasonable request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ma, C.; Sun, X.M. Larch genetic improvement and its future development in China. World For. Res. 2008, 21, 58–63. [Google Scholar]
  2. Marie-Anne, L.; Pilate, G. Transgenic in Larix. In Molecular Biology of Woody Plants; Jain, S.M., Minocha, S.C., Eds.; Springer: Dordrecht, The Netherlands, 2000; Volume 2, pp. 119–134. [Google Scholar]
  3. Maleki, S.S.; Mohammadi, K.; Ji, K. Study on factors influencing transformation efficiency in Pinus massoniana using Agrobacterium tumefaciens. Plant Cell Tissue Organ Cult. 2018, 133, 437–445. [Google Scholar] [CrossRef]
  4. Huang, Y.; Diner, A.M.; Karnosky, D.F. Agrobacterium rhizogenes-mediated genetic transformation and regeneration of a conifer: Larix decidua. Vitr. Cell Dev. Biol. Plant 1991, 27, 201–207. [Google Scholar] [CrossRef]
  5. Levee, V.; Lelu, M.A.; Jouanin, L.; Cornu, D.; Pilate, G. Agrobacterium tumefaciens-mediated transformation of hybrid larch (Larix kaempferi T L. decidua) and transgenic plant regenerationn. Plant Cell Rep. 1997, 16, 680–685. [Google Scholar] [CrossRef] [PubMed]
  6. Gleeson, D.; Lelu-Walter, M.A.; Parkinson, M. Overproduction of proline in transgenic hybrid larch (Larix x leptoeuropaea (Dengler)) cultures renders them tolerant to cold, salt and frost. Mol. Breed. 2005, 15, 21–29. [Google Scholar] [CrossRef]
  7. Mathieu, M.; Lelu-Walter, M.A.; Blervacq, A.S.; David, H.; Hawkins, S.; Neutelings, G. Germin-like genes are expressed during somatic embryogenesis and early development of conifers. Plant Mol. Biol. 2006, 61, 615–627. [Google Scholar] [CrossRef]
  8. Song, Y.; Bai, X.; Dong, S.; Yang, Y.; Dong, H.; Wang, N.; Zhang, H.; Li, S. Stable and efficient Agrobacterium-mediated genetic transformation of larch using embryogenic callus. Front. Plant Sci. 2020, 11, 584492. [Google Scholar] [CrossRef]
  9. Zhang, S.; Yan, S.; An, P.; Cao, Q.; Wang, C.; Wang, J.; Zhang, H.; Zhang, L. Embryogenic callus induction from immature zygotic embryos and genetic transformation of Larix kaempferi 3x Larix gmelinii 9. PLoS ONE 2021, 16, e0258654. [Google Scholar] [CrossRef]
  10. Dang, S.; Zhang, L.; Han, S.; Qi, L. Agrobacterium-mediated genetic transformation of Larix kaempferi (Lamb.) Carr. embryogenic cell suspension cultures and expression analysis of exogenous genes. Forests 2022, 13, 1436. [Google Scholar] [CrossRef]
  11. An, P.; Qin, R.; Zhao, Q.; Li, X.; Wang, C.; Cao, Q.; Zhang, H.; Zhang, L. Genetic transformation of LoHDZ2 and analysis of its function to enhance stress resistance in Larix olgensis. Sci. Rep. 2022, 12, 12831. [Google Scholar] [CrossRef]
  12. Li, Z.; Li, S.; Zhang, L.; Han, S.; Li, W.; Xu, H.; Yang, W.; Liu, Y.; Fan, Y.; Qi, L. Over-expression of miR166a inhibits cotyledon formation in somatic embryos and promotes lateral root development in seedlings of Larix leptolepis. Plant Cell Tissue Organ Cult. 2016, 127, 461–473. [Google Scholar] [CrossRef]
  13. Ali, S.; Kim, W.C. A fruitful decade using synthetic promoters in the improvement of transgenic plants. Front. Plant Sci. 2019, 10, 1433. [Google Scholar] [CrossRef]
  14. Grant, J.E.; Cooper, P.A.; Dale, T.M. Genetic transformation of micropropagated shoots of Pinus radiata D.Don. bioRxiv 2015. [Google Scholar] [CrossRef]
  15. Odell, J.T.; Nagy, F.; Chua, N.H. Identification of DNA sequences required for activity of the cauliflower mosaic virus 35s promoter. Nature 1985, 313, 810–812. [Google Scholar] [CrossRef]
  16. Tang, W.; Lin, J.; Newton, R.J. Okadaic acid and trifluoperazine enhance agrobacterium-mediated transformation in Eastern white pine. Plant Cell Rep. 2007, 26, 673–682. [Google Scholar] [CrossRef]
  17. Zhao, H.; Zhang, J.; Zhao, J.; Niu, S. Genetic transformation in conifers: Current status and future prospects. For. Res. 2024, 4, e010. [Google Scholar] [CrossRef]
  18. Xing, J.X.; Zang, Q.L.; Ye, Z.L.; Zhang, C.Y.; Cheng, D.X.; Qi, L.W.; Yang, L.; Li, W.F. Optimization and application of transient transformation system of Larix kaempferi. For. Res. 2024, 37, 129–135. [Google Scholar]
  19. Ye, S.; Ding, W.; Bai, W.; Lu, J.; Zhou, L.; Ma, X.; Zhu, Q. Application of a novel strong promoter from Chinese Fir (Cunninghamia Lanceolate) in the CRISPR/Cas mediated genome editing of its protoplasts and transgenesis of rice and poplar. Front. Plant Sci. 2023, 14, 1179394. [Google Scholar] [CrossRef]
  20. Xin, S.; Udayabhanu, J.; Dai, X.; Hua, Y.; Fan, Y.; Huang, H.; Huang, T. Identification and functional evaluation of three polyubiquitin promoters from Hevea brasiliensis. Forests 2022, 13, 952. [Google Scholar] [CrossRef]
  21. Wang, X.H.; Xing, J.X.; Shi, S.Q.; Yang, L.; Li, W.F. Identification of SNP, indel and their located biotic stress resistance genes in Larix kaempferi. For. Res. 2024, 37. [Google Scholar]
  22. Biłas, R.; Szafran, K.; Hnatuszko, K.K.; Kononowicz, A.K. Cis-regulatory elements used to control gene expression in plants. Plant Cell Tissue Organ Cult. 2016, 127, 269–287. [Google Scholar] [CrossRef]
  23. Juven, G.T.; Kadonaga, J.T. Regulation of gene expression via the core promoter and the basal transcriptional machinery. Dev. Biol. 2010, 339, 225–229. [Google Scholar] [CrossRef] [PubMed]
  24. Butler, J.E.; Kadonaga, J.T. Enhancer-promoter specificity mediated by DPE or TATA core promoter motifs. Genes Dev. 2001, 15, 2515–2519. [Google Scholar] [CrossRef] [PubMed]
  25. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. Plantcare, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef] [PubMed]
  26. Li, W.F.; Kang, Y.; Zhang, Y.; Zang, Q.L.; Qi, L.W. Concerted Control of the LaRAV1-LaCDKB1;3 Module by temperature during dormancy release and reactivation of larch. Tree Physiol. 2021, 41, 1918–1937. [Google Scholar] [CrossRef] [PubMed]
  27. Li, W.F.; Yang, W.H.; Zhang, S.G.; Han, S.Y.; Qi, L.W. Transcriptome analysis provides insights into wood formation during larch tree aging. Tree Genet. Genomes 2017, 13, 19. [Google Scholar] [CrossRef]
  28. Mishima, K.; Hirakawa, H.; Iki, T.; Fukuda, Y.; Hirao, T.; Tamura, A.; Takahashi, M. Comprehensive collection of genes and comparative analysis of full-length transcriptome sequences from Japanese larch (Larix kaempferi) and Kuril larch (Larix gmelinii var. japonica). BMC Plant Biol. 2022, 22, 470. [Google Scholar] [CrossRef] [PubMed]
  29. Sun, C.; Xie, Y.H.; Li, Z.; Liu, Y.J.; Sun, X.M.; Li, J.J.; Quan, W.P.; Zeng, Q.Y.; Peer, Y.V.; Zhang, S.G. The Larix kaempferi genome reveals new insights into wood properties. J. Integr. Plant Biol. 2022, 64, 1364–1373. [Google Scholar] [CrossRef]
  30. Zhang, L.F.; Li, W.F.; Han, S.Y.; Yang, W.H.; Qi, L.W. cDNA cloning, genomic organization and expression analysis during somatic embryogenesis of the translationally controlled tumor protein (TCTP) gene from Japanese larch (Larix leptolepis). Gene 2013, 529, 150–158. [Google Scholar] [CrossRef]
  31. Mohajer, S.; Taha, R.M.; Hajivand, S.; Pirkhezri, M.; Ahmed, A.B.A. Transient gene expression in molecular farming and functional genomics of tea (Camellia sinensis): A Review. J. Plant Growth Regul. 2023, 42, 4000–4019. [Google Scholar] [CrossRef]
  32. Hernandez-Garcia, C.M.; Finer, J.J. Identification and validation of promoters and cis-acting regulatory elements. Plant Sci. 2014, 217–218, 109–119. [Google Scholar] [CrossRef] [PubMed]
  33. Huang, T.; Xin, S.; Fang, Y.; Chen, T.; Chang, J.; Ko, N.C.K.; Huang, H.; Hua, Y. Use of a novel R2R3-MYB transcriptional activator of anthocyanin biosynthesis as visual selection marker for rubber tree (Hevea Brasiliensis) transformation. Ind. Crop Prod. 2021, 174, 114225. [Google Scholar] [CrossRef]
  34. Tang, W.; Xiao, B.; Fei, Y. Slash pine genetic transformation through embryo cocultivation with A. tumefaciens and transgenic plant regeneration. Vitr. Cell. Dev. Biol. Plant 2014, 50, 199–209. [Google Scholar] [CrossRef]
  35. Sullivan, J.A.; Shirasu, K.; Deng, X.W. The diverse roles of ubiquitin and the 26S proteasome in the life of plants. Nat. Rev. Genet. 2003, 4, 948–958. [Google Scholar] [CrossRef] [PubMed]
  36. Han, S.W.; Jung, B.K.; Park, S.H.; Ryu, K.Y. Reversible regulation of polyubiquitin gene UBC via modified inducible CRISPR/Cas9 system. Int. J. Mol. Sci. 2019, 20, 3168. [Google Scholar] [CrossRef]
  37. Beringer, J.; Chen, W.; Garton, R.; Sardesai, N.; Wang, P.H.; Zhou, N.; Gupta, M.; Wu, H.X. Comparison of the impact of viral and plant-derived promoters regulating selectable marker gene on maize transformation and transgene expression. Plant Cell Rep. 2017, 36, 519–528. [Google Scholar] [CrossRef]
  38. Ren, C.; Liu, Y.; Guo, Y.; Duan, W.; Fan, P.; Li, S.; Liang, Z. Optimizing the CRISPR/Cas9 system for genome editing in grape by using grape promoters. Hortic. Res. 2021, 8, 52. [Google Scholar] [CrossRef]
  39. Liu, B.L. Realization of Larch Promoter Element Mining and Genome Editing. Master’s Thesis, University of Electronic Science and Technology of China, Chengdu, China, 2020. [Google Scholar]
  40. Huang, L. Construction and Activity Evaluation of STU-Cas9 Genome Editing System of Larch. Master’s Thesis, University of Electronic Science and Technology of China, Chengdu, China, 2021. [Google Scholar]
  41. Wang, H.H.; Wu, S.J.; Li, F.F.; Chen, T.Z.; Jiang, Y.J.; Ju, M.; Zhao, J.; Lü, Y.H.; Zhang, T.Z.; Guo, W.Z. Transgene silencing caused by 35S promoter methylation in Upland Cotton (Gossypium hirsutum). Cotton Sci. 2008, 20, 274–280. [Google Scholar]
  42. Shirasawa, K.; Mishima, K.; Hirakawa, H.; Hirao, T.; Tsubomura, M.; Nagano, S.; Iki, T.; Isobe, S.; Takahashi, M. Haplotype-resolved de novo genome assemblies of four coniferous tree species. J. For. Res. 2024, 29, 151–157. [Google Scholar] [CrossRef]
  43. Kang, Y.H.; Li, W.F.; Zhang, L.F.; Qi, L.W.; Li, W.F. Over-expression of the cell-cycle gene LaCDKB1;2 promotes cell proliferation and the formation of normal cotyledonary embryos during Larix kaempferi somatic embryogenesis. Genes 2021, 12, 1435. [Google Scholar] [CrossRef]
  44. Li, X.Y.; Cheng, D.X.; Qi, L.W.; Zhan, J.W.; Li, W.F. Regulation of age-dependent expression patterns of five transcription factors in Larix kaempferi. For. Res. 2023, 3, 18. [Google Scholar] [CrossRef]
  45. Cheng, D.X.; Wang, X.H.; Wang, C.L.; Li, X.Y.; Ye, Z.L.; Li, W.F. Cambium reactivation is closely related to the cell-cycle gene configuration in Larix kaempferi. Int. J. Mol. Sci. 2024, 25, 3578. [Google Scholar] [CrossRef] [PubMed]
Plants 13 02777 g001

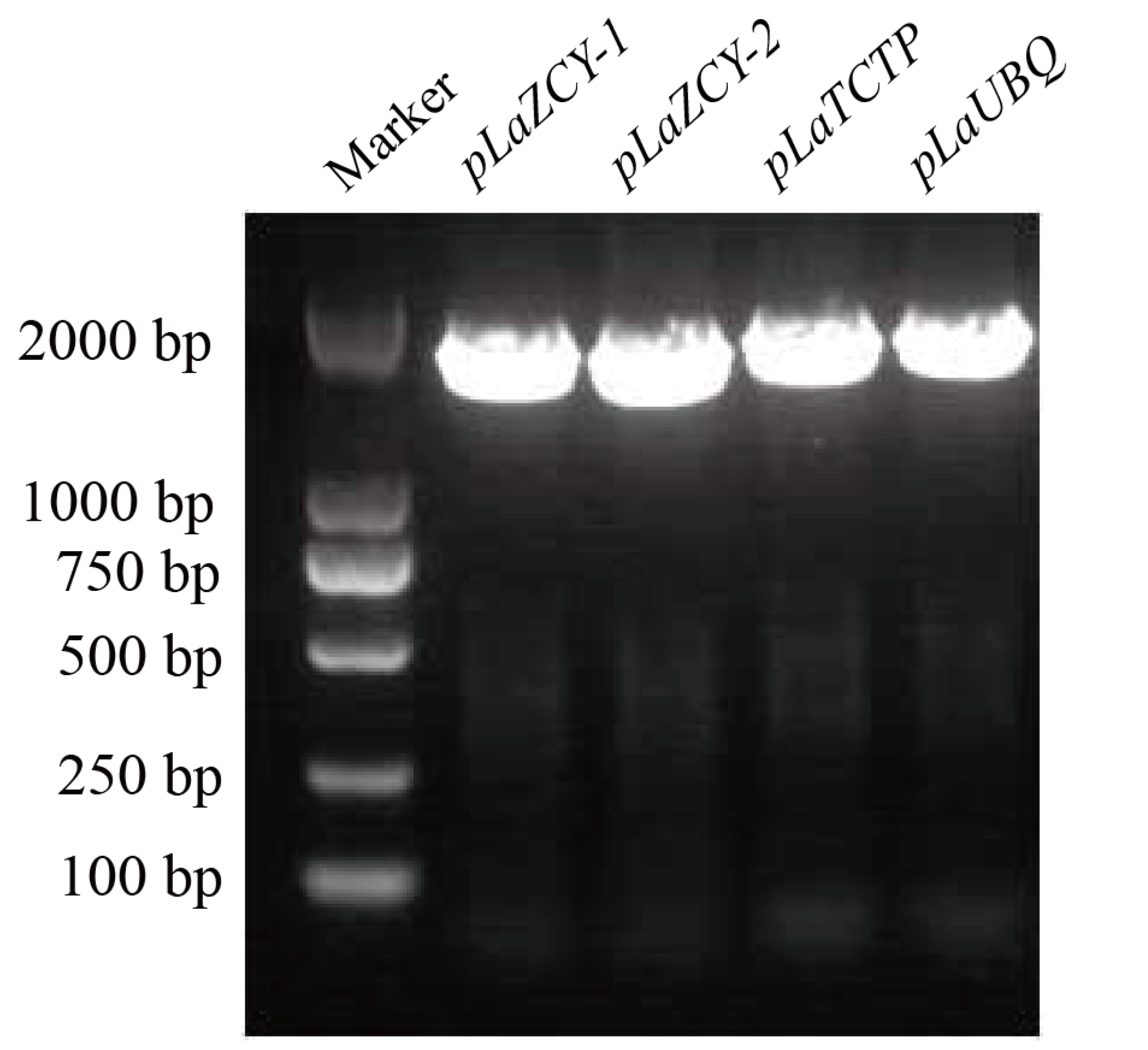

Figure 1. PCR amplification of Larix kaempferi promoters.
Figure 1. PCR amplification of Larix kaempferi promoters.
Plants 13 02777 g001
Plants 13 02777 g002

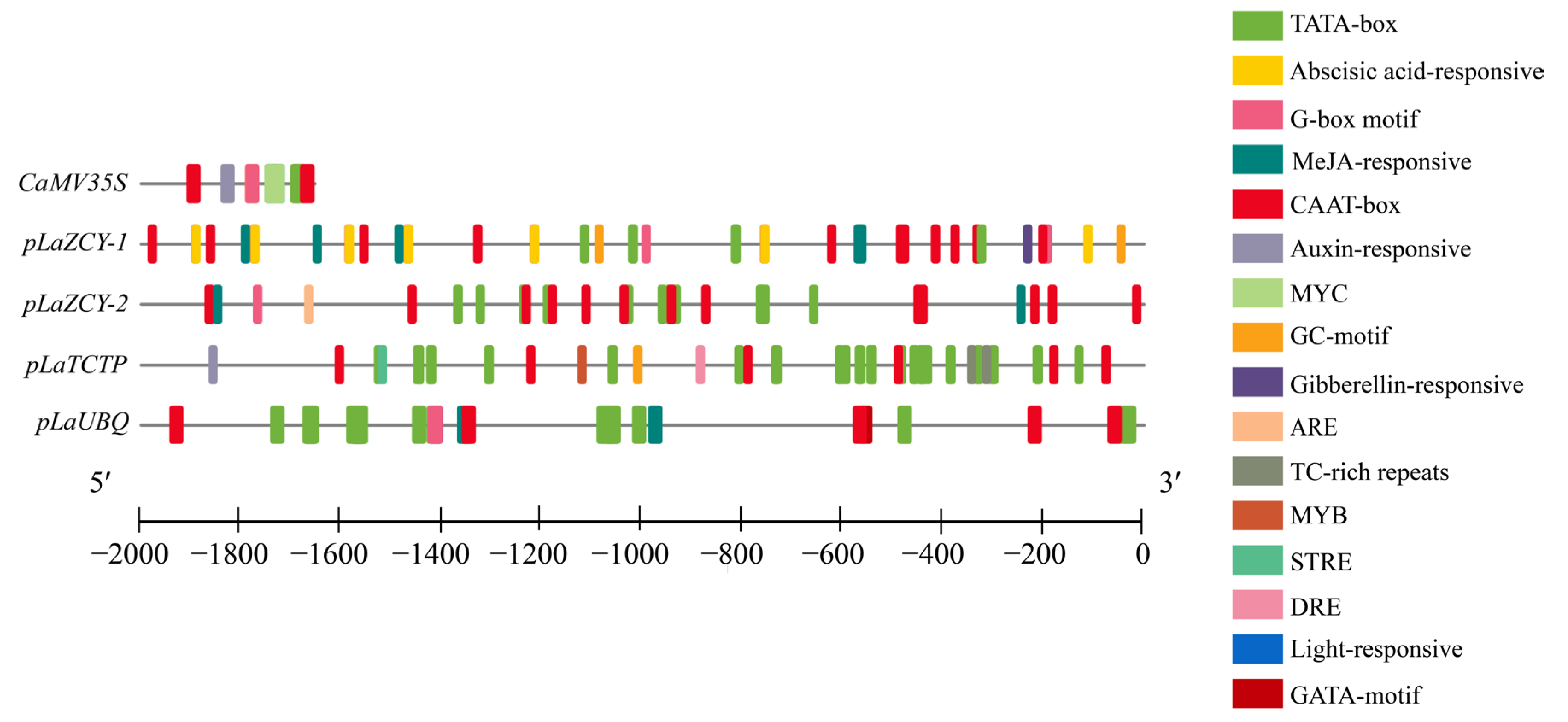

Figure 2. An analysis of the cis-acting elements of the five promoters.
Figure 2. An analysis of the cis-acting elements of the five promoters.
Plants 13 02777 g002
Plants 13 02777 g003

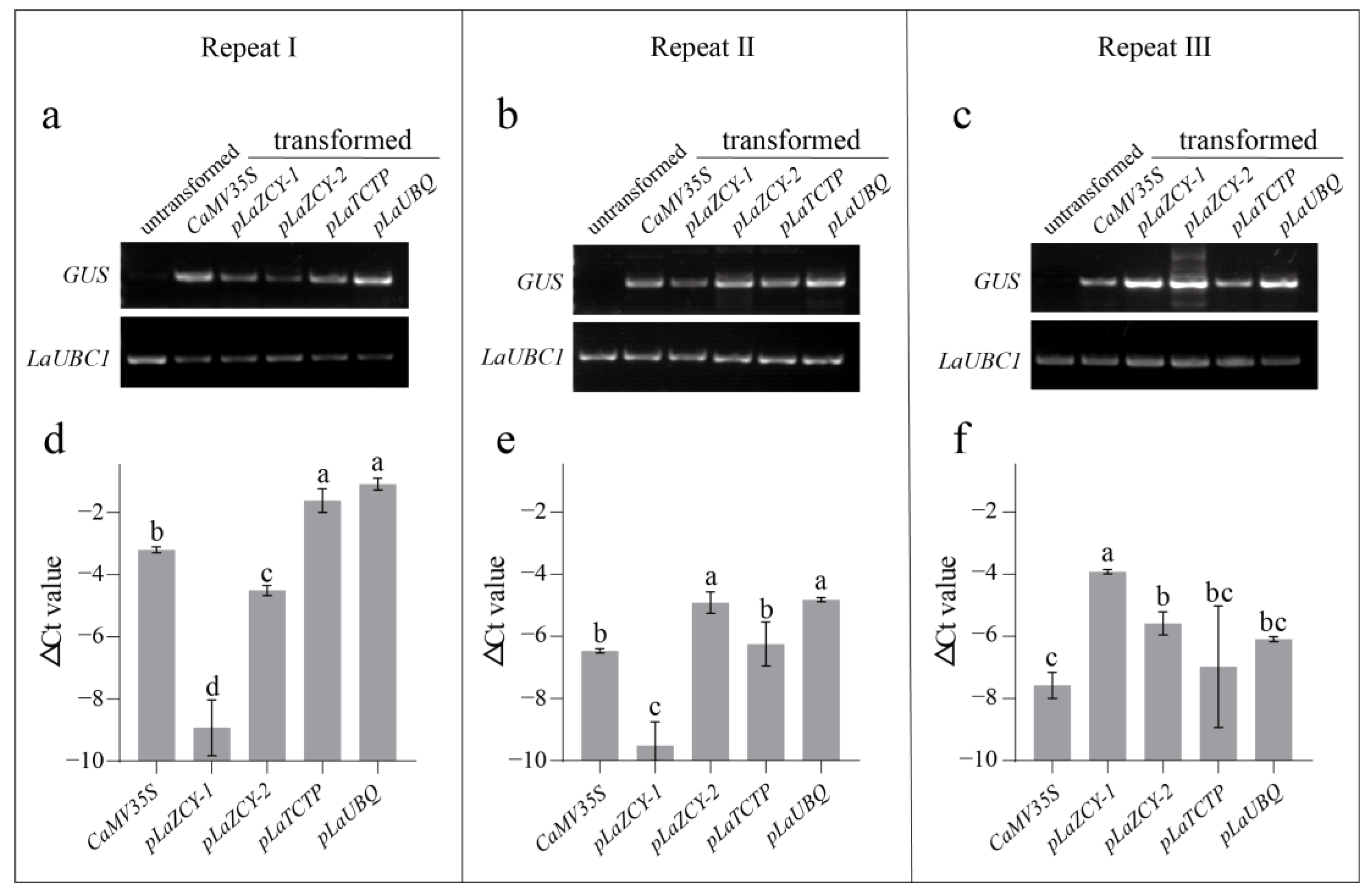

Figure 3. Semi-quantitative (a–c) and quantitative (d–f) RT-PCR analyses of GUS expression driven by five promoters separately in Larix kaempferi transient transformation. Error bars represent standard deviations of three replicates. Differences between each sample were analyzed using LSD, p ≤ 0.05, indicated by lowercase letters.
Figure 3. Semi-quantitative (a–c) and quantitative (d–f) RT-PCR analyses of GUS expression driven by five promoters separately in Larix kaempferi transient transformation. Error bars represent standard deviations of three replicates. Differences between each sample were analyzed using LSD, p ≤ 0.05, indicated by lowercase letters.
Plants 13 02777 g003
Plants 13 02777 g004

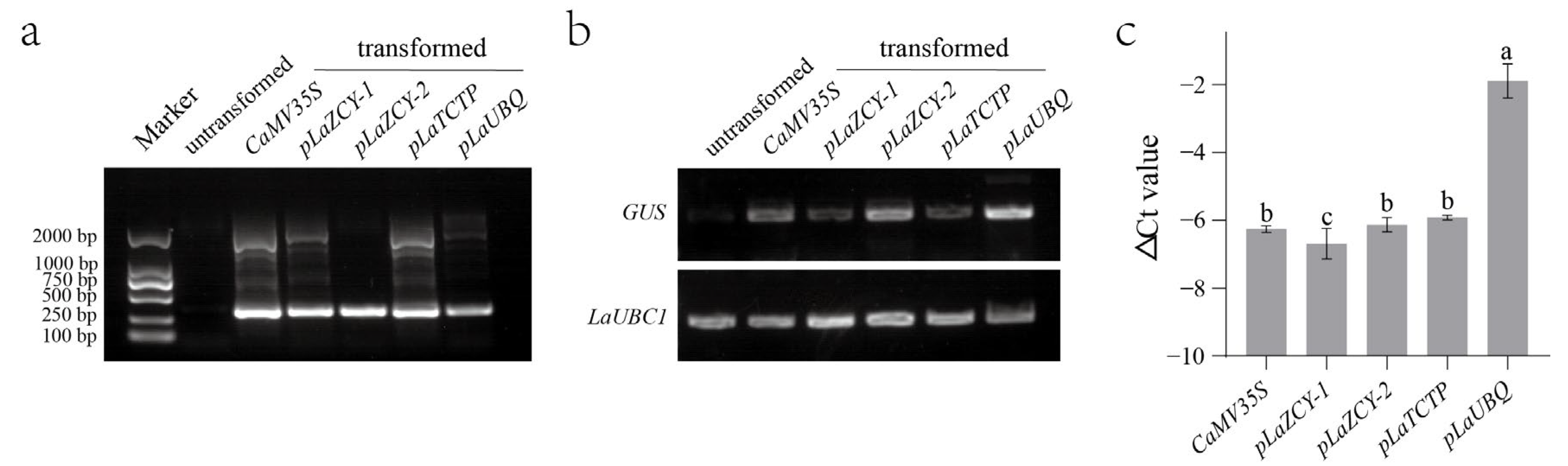

Figure 4. PCR (a), semi-quantitative (b), and quantitative (c) RT-PCR analyses of GUS in Larix kaempferi stable transformation. Error bars represent standard deviations of three replicates. Differences between each sample were analyzed using LSD, p ≤ 0.05, indicated by lowercase letters.
Figure 4. PCR (a), semi-quantitative (b), and quantitative (c) RT-PCR analyses of GUS in Larix kaempferi stable transformation. Error bars represent standard deviations of three replicates. Differences between each sample were analyzed using LSD, p ≤ 0.05, indicated by lowercase letters.
Plants 13 02777 g004
Plants 13 02777 g005
Figure 5. Pictures of Larix kaempferi transgenic callus after GUS staining for 0, 3, 6, 9, and 21 h.
Figure 5. Pictures of Larix kaempferi transgenic callus after GUS staining for 0, 3, 6, 9, and 21 h.
Plants 13 02777 g005
Plants 13 02777 g006

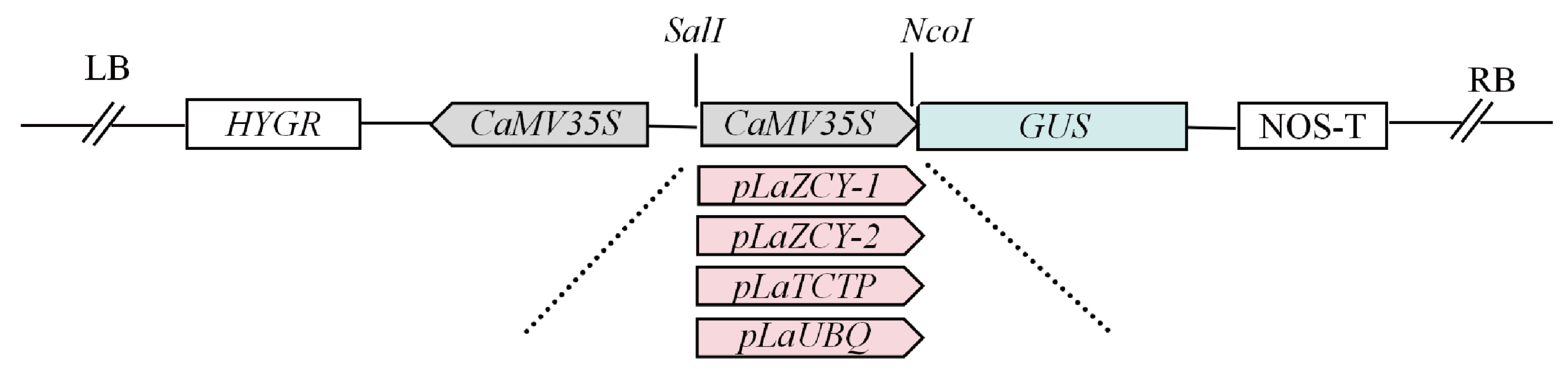

Figure 6. A schematic representation of the vectors used for Larix kaempferi genetic transformation.
Figure 6. A schematic representation of the vectors used for Larix kaempferi genetic transformation.
Plants 13 02777 g006
