Article

The MADS-Box Transcription Factor CaRIN Positively Regulates Chlorophyll Degradation During Pepper (Capsicum annuum L.) Fruit Ripening by Repressing the Expression of CaLhcb-P4

by
Yingying Song
†,
Qing Cheng
†,
Xingzhe Li
,
Shijie Ma
,
Huolin Shen
and
Liang Sun
*
Beijing Key Laboratory of Growth and Developmental Regulation for Protected Vegetable Crops, Department of Vegetable Science, College of Horticulture, China Agricultural University, Beijing 100193, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2025, 14(3), 445; https://doi.org/10.3390/plants14030445
Submission received: 31 December 2024 / Revised: 20 January 2025 / Accepted: 30 January 2025 / Published: 3 February 2025
(This article belongs to the Special Issue Gene Regulation in Flower and Fruit Development)
Browse Figures
Review Reports Versions Notes

Abstract

:
Pepper (Capsicum spp.) is an important global vegetable and spice, with fruit color being a key determinant of its commercial quality. However, the regulatory mechanisms underlying pepper fruit color are still not fully understood. This study focuses on the MADS-RIPENING INHIBITOR (MADS-RIN), a MADS-box transcription factor that regulates various aspects of fruit ripening, including pigmentation. We identified CaRIN, a homolog of tomato’s SlRIN, whose expression is closely associated with fruit ripening in pepper. Silencing CaRIN through virus-induced gene silencing (VIGS) resulted in increased chlorophyll and chlorophyll a content, reduced carotenoid accumulation, and uneven fruit coloration. Integrative analysis of the RNA-seq and DAP-seq data identified 77 target genes regulated by CaRIN, which was involved in processes such as chlorophyll metabolism and plant hormone signaling. Yeast one-hybrid (Y1H) and dual-luciferase (LUC) assays demonstrated that CaRIN directly bound to the promoter of CaLhcb-P4, repressing its expression. Downregulation of CaLhcb-P4 in pepper fruits via VIGS accelerated chlorophyll degradation. Additionally, CaRIN indirectly regulated multiple genes associated with chlorophyll and carotenoid metabolism, sugar transport, and cell wall degradation. These findings provide novel insights into the regulatory mechanisms of chlorophyll degradation during pepper fruit ripening, offering a foundation for further research and potential genetic improvement strategies.

1. Introduction

Pepper (Capsicum spp.) is a globally cultivated vegetable and spice, ranking among the top ten vegetables in terms of cultivated area in 2022. The quality of pepper fruits is determined by several traits that affect their appearance, flavor, texture, and nutritional value [1,2]. Among these, fruit color is especially important, as the pigments responsible for color are closely linked to both esthetic appeal and health benefits. Pepper fruits exhibit a diverse range of colors, which result from varying concentrations of carotenoids, chlorophylls, anthocyanins, and other pigments [3]. Carotenoids are the primary contributors to the color of ripe pepper fruits, while chlorophylls and anthocyanins play a more prominent role in immature fruits, though they can also influence the color of ripe fruits [4]. Therefore, understanding the molecular regulatory mechanisms underlying the accumulation of these pigments, particularly chlorophylls and carotenoids, is crucial for genetic improvement and enhancing fruit quality in pepper.
The ripening process in most fruits involves the conversion of chloroplasts into chromoplasts, accompanied by a distinct color change. This transition occurs through three main mechanisms: (I) the degradation of chlorophyll, which is linked to the breakdown and recycling of thylakoid membranes and photosynthetic proteins; (II) the accumulation of colored carotenoids in developing chromoplasts or other plastid-derived structures; and (III) the accumulation of anthocyanins or flavonoid-like pigments in cytosolic vesicles [5,6,7,8,9,10]. In tomato, chloroplasts dominate during the early stages, giving the fruit a green appearance. As the fruit matures, chlorophyll and thylakoid membranes degrade, revealing carotenoids and anthocyanins, which contribute to the diverse colors of ripe fruit, such as red, yellow, orange, and purple [11,12]. In citrus, chlorophyll degradation is accompanied by an increase in carotenoids, while in Golden Delicious apples, the degradation of chlorophyll results in a yellow color [13]. Similarly, in pepper, the transition from green, purple, or black immature fruits to yellow, orange, or red ripe fruits is driven by chlorophyll and anthocyanin degradation as well as carotenoid accumulation [14,15].
Recent studies have identified numerous transcription factors (TFs) that regulate pigment accumulation in fruits. In tomato, MADS-box proteins, particularly the MADS-RIPENING INHIBITOR (MADS-RIN) gene, play key roles in the transcriptional regulation of fruit ripening, including chlorophyll degradation and carotenoid accumulation [16]. The rin mutation in tomato results in a chimeric gene formed by the fusion of the RIN and MACROCALYX (MC) genes, producing a non-functional RIN-MC protein that inhibits ripening and carotenoid accumulation [17]. However, CRISPR/Cas9-mediated knockout of RIN did not fully suppress ripening initiation, indicating complex genetic regulation of ripening [18]. In addition to MADS-box proteins, other TFs such as MYB, WRKY, LOL, and BBX have also been identified as regulators of chlorophyll and carotenoid content [19,20,21]. These findings suggest that TFs act synergistically to regulate both chlorophyll degradation and carotenoid biosynthesis. However, the genetic network governing color transitions during pepper fruit ripening remains largely unexplored.

2. Results

2.1. Silencing of CaRIN Inhibits Chlorophyll Degradation and Carotenoid Accumulation During Pepper Fruit Ripening

BLAST analysis was conducted to identify homologs of SlRIN, resulting in the identification of five MADS-box genes. Phylogenetic analysis revealed that CaMADS3 and CaRIN share the closest evolutionary relationship with SlRIN (Figure 1A). qRT-PCR analysis showed that CaRIN exhibited higher expression levels, and its expression pattern closely correlated with the progression of fruit ripening (Figure 1B), suggesting a role for CaRIN in pepper fruit development. To investigate the function of CaRIN in fruit ripening, its expression was downregulated using VIGS (Figure 1C). The TRV2 vector used in this study harbors a GFP expression cassette, allowing for the selection of seedlings that fluoresced under UV light two weeks after vacuum infiltration (Figure 1D). Positive control fruits showed significant photobleaching at the mature green stage, confirming the effectiveness of the TRV-based VIGS system for studying gene function in pepper fruit development (Figure 1D). qRT-PCR analysis demonstrated that CaRIN transcript levels in silenced fruits were reduced to ~65% of those in the negative control (pTRV2-GFP) (Figure 1E). Silenced fruits also displayed uneven pigmentation at 64 DPA, with some areas of the fruit peel remaining brown, while the negative control fruits exhibited uniform red coloration at the same developmental stage (Figure 1E). In line with these color changes, total chlorophyll and chlorophyll a content in the pericarp of CaRIN-silenced fruits were significantly higher (by over 45%) compared to the negative control (Figure 1E). However, chlorophyll b content did not differ significantly between the two groups (Figure 1E). In contrast, carotenoid contents in the pericarp of CaRIN-silenced fruits were reduced by ~40% at 64 DPA compared to the negative control (Figure 1E). These results indicate that CaRIN is involved in regulating both chlorophyll degradation and carotenoid biosynthesis during pepper fruit ripening.

2.2. Impact of CaRIN on Transcriptome of Pepper Fruit During Ripening

To identify genes transcriptionally regulated by CaRIN during pepper fruit ripening, a comparative transcriptome analysis was conducted using fruits collected from CaRIN-silenced and negative control plants at 64 DPA. Principal component analysis (PCA) of the gene expression data clearly distinguished samples collected from the silenced and control fruits, indicating a significant impact of CaRIN on the fruit transcriptome (Figure 2A). Using DESeq2, a total of 2960 differentially expressed genes (DEGs) were identified, with 1364 genes downregulated and 1596 genes upregulated in the CaRIN-silenced fruits (Figure 2B; Table S3). Gene ontology (GO) enrichment analysis revealed three distinct ontologies that represent key aspects of protein function and the most dominant biological processes, including “molecular function”, “response to abscisic acid”, “response to salt stress”, “chloroplast organization”, “chloroplast stroma”, and “carotenoid metabolism” (Figure 2C).
To further investigate the regulatory effects of CaRIN on chlorophyll metabolism and carotenoid accumulation, genes associated with these processes were screened out. For chlorophyll metabolism-related genes, the transcript levels of CaNYC1 (encoding chlorophyll(ide) b reductase), CaSGR (encoding STAY-GREEN), CaUROS (encoding uroporphyrinogen III synthase), and CaCHLD (encoding magnesium-chelatase subunit ChlD) were significantly reduced in the CaRIN-silenced fruits compared to the negative control. In contrast, the transcript levels of CaCHLI (encoding magnesium-chelatase subunit ChlI), CaLhcb7 (encoding chlorophyll a-b binding protein 7), CaPOR1 (encoding protochlorophyllide reductase), CaLhcb-P4 (encoding chlorophyll a-b binding protein, part of the light-harvesting complex), CaCPO (encoding oxygen-independent coproporphyrinogen-III oxidase-like protein), and CaUROD (encoding putative uroporphyrinogen decarboxylase) were elevated in the silenced fruits (Figure 2D). For carotenoid biosynthesis-related genes, the expression of CaZEP (encoding zeaxanthin epoxidase) and CaLcyB (encoding lycopene beta cyclase) was upregulated in the silenced fruits, while the transcript levels of CaCCS (encoding capsanthin/capsorubin synthase), CaCrtZ1 (encoding beta-carotene hydroxylase 1), and CaPSY1 (encoding 15-cis-phytoene synthase) were downregulated (Figure 2E).
Thus, the abovementioned results suggest that CaRIN plays a crucial role in the transcriptional regulation of pepper fruit ripening, particularly in chlorophyll and carotenoid metabolism.

2.3. Identification of CaRIN Binding Sites in Pepper Using DAP-Seq

To further investigate CaRIN-mediated transcriptional regulation during pepper fruit ripening, DAP-seq was performed to identify the CaRIN binding sites at the genomic level. From two technical replicates, 12,398 enriched peaks corresponding to 868 genes were identified as high-confidence CaRIN binding sites, which were predominantly located upstream of the transcription start site (TSS) (Figure 3A,B; Table S2). These binding sites were distributed relatively uniformly across all 12 chromosomes of the pepper genome (Figure 3C). An analysis of cis-regulatory regions revealed that CaRIN binding occurred in promoters (3.05%), 5′ UTRs (0.18%), 3′ UTRs (0.06%), exons (0.31%), introns (3.79%), and intergenic regions (92.48%) (Figure 3D).
In order to gain deeper insights into the DNA-binding characteristics of CaRIN, its target motifs were predicted using DAP-seq data. Among the identified motifs, the canonical CC(A/T)6GG recognition sequence stood out, which is a well-established binding site for RIN, a key member of the MADS-box TF family (Figure 3E). Centrality analysis showed that this motif was distributed in the binding peaks detected by DAP-seq, following a normal distribution pattern (Figure 3E). GO enrichment analysis of the target genes identified the top enriched terms, including “translation”, “chloroplast thylakoid membrane”, “response to cold”, and “chloroplast” (Figure 3F). Notably, several ripening-related regulators were identified among the putative target genes, including two cell wall-associated genes, CaCSLD2 (encoding cellulose synthase-like protein D2) and CaCesA3 (encoding cellulose synthase A catalytic subunit 3); a sugar transport gene, CaSTP14 (encoding sugar transport protein 14-like); and several chlorophyll-related genes, such as CaCRS1 (encoding chloroplastic group IIA intron splicing facilitator), CaUROS (encoding uroporphyrinogen-III synthase), CaPSAB (encoding photosystem I P700 chlorophyll A apoprotein A2), and CaLhcb-P4 (encoding chlorophyll a-b binding protein P4). Additionally, several transcription factors (TFs) were identified, including WRKY TFs (CaWRKY49, CaWRKY55, CaWRKY18, CaWRKY17, CaWRKY75), MADS-box TFs (CaAGL62-like, CaAGL62, CaAGL29, CaSOC1), and NAC66-like (Table S2).

2.4. Identification of CaRIN-Regulated Target Genes Through Integrated Analysis of RNA-Seq and DAP-Seq

DAP-seq identified 944 genes with CaRIN binding peaks within 2 kb of the TSS, while RNA-seq detected 3037 DEGs. Among these, 77 genes were common to both datasets, representing strong candidate targets of CaRIN (Figure 4A; Table S4). Of these, 50 genes were significantly downregulated and 27 upregulated in the silenced fruits, suggesting that CaRIN positively regulates the former and negatively regulates the latter (Figure 4A).
KEGG pathway enrichment analysis revealed that the 77 candidates were involved in several metabolic pathways, including “plant hormone signal transduction”, “fatty acid metabolism”, “porphyrin and chlorophyll metabolism”, and “starch and sucrose metabolism” (Figure 4B). Consistent with the phenotype of the CaRIN-silenced fruits, two key chlorophyll-related genes were identified: CaUROS, which encodes uroporphyrinogen-III synthase involved in chlorophyll biosynthesis, and CaLhcb-P4, which encodes a chlorophyll a/b binding protein crucial for light absorption, energy transfer to PSI and PSII, and thylakoid membrane maintenance. Additionally, a cell wall-related gene, CaPEL13, encoding pectate lyase 13, and a sugar metabolism-related gene, CaSTP14, encoding sugar transport protein 14, were also identified, indicating that CaRIN may influence cell wall pectin content and sugar transport in pepper fruit during ripening. Apart from the abovementioned metabolic genes, several TFs, including CaWRKY75, were also identified, suggesting that CaRIN may regulate gene expression indirectly.
Plants 14 00445 g003

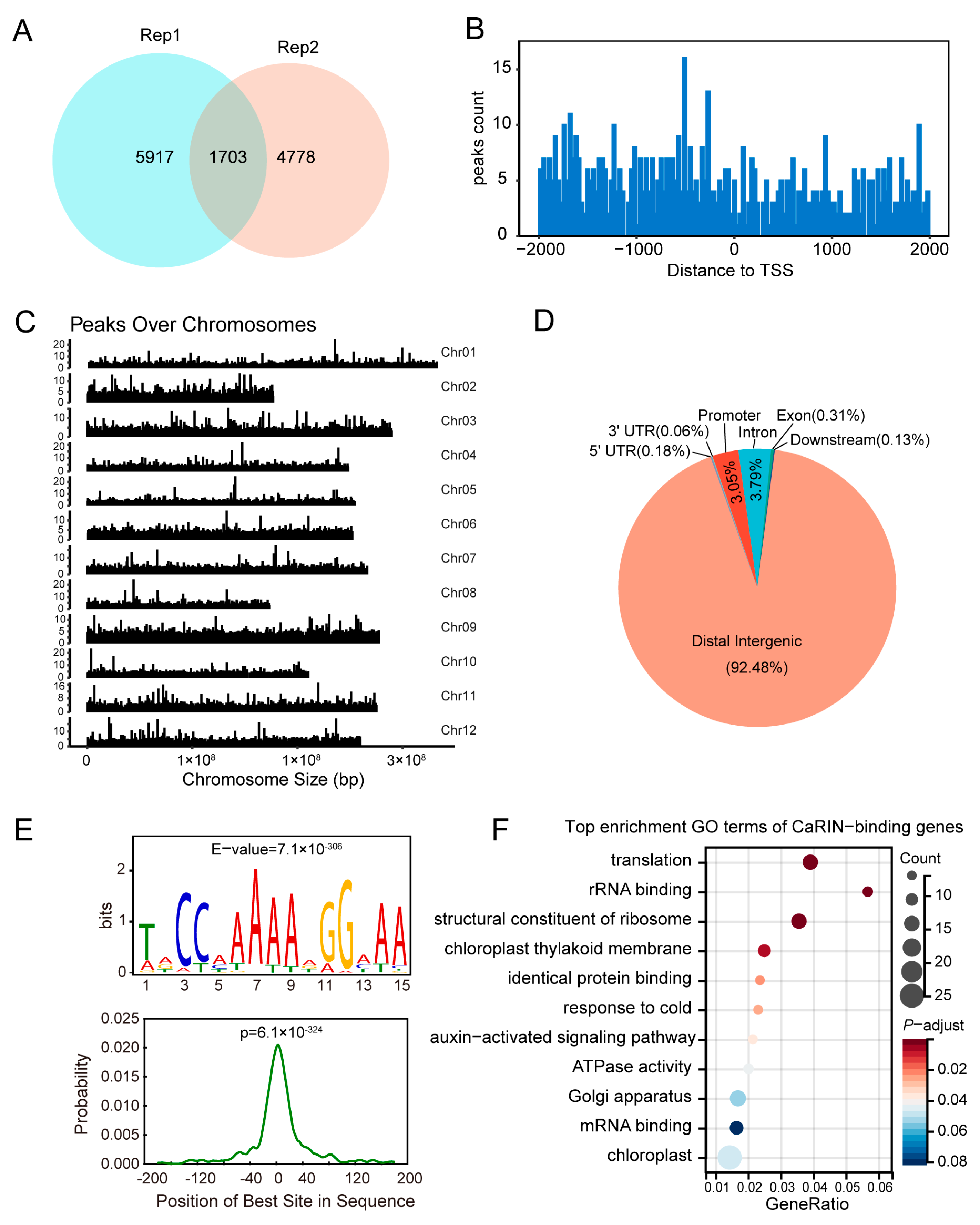

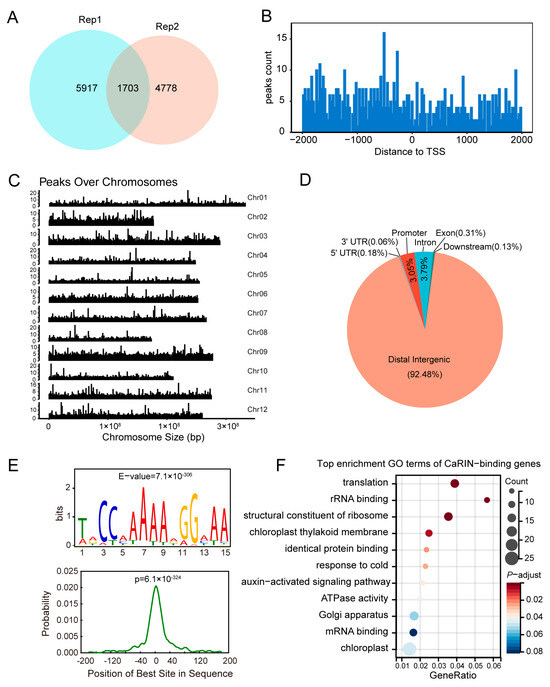

Figure 3. The genome-wide identification of CaRIN binding sites via DAP-seq. (A) A Venn diagram of the two biological replicates of DAP-seq. (B) The distribution of CaRIN binding sites relative to the transcription start sites (TSS). (C) The distribution of CaRIN binding sites across the 12 chromosomes. (D) The localization of CaRIN binding sites in relation to cis-regulatory regions. (E) The primary motif bound by CaRIN. (F) The top enriched GO terms associated with CaRIN-bound genes.
Figure 3. The genome-wide identification of CaRIN binding sites via DAP-seq. (A) A Venn diagram of the two biological replicates of DAP-seq. (B) The distribution of CaRIN binding sites relative to the transcription start sites (TSS). (C) The distribution of CaRIN binding sites across the 12 chromosomes. (D) The localization of CaRIN binding sites in relation to cis-regulatory regions. (E) The primary motif bound by CaRIN. (F) The top enriched GO terms associated with CaRIN-bound genes.
Plants 14 00445 g003
Plants 14 00445 g004

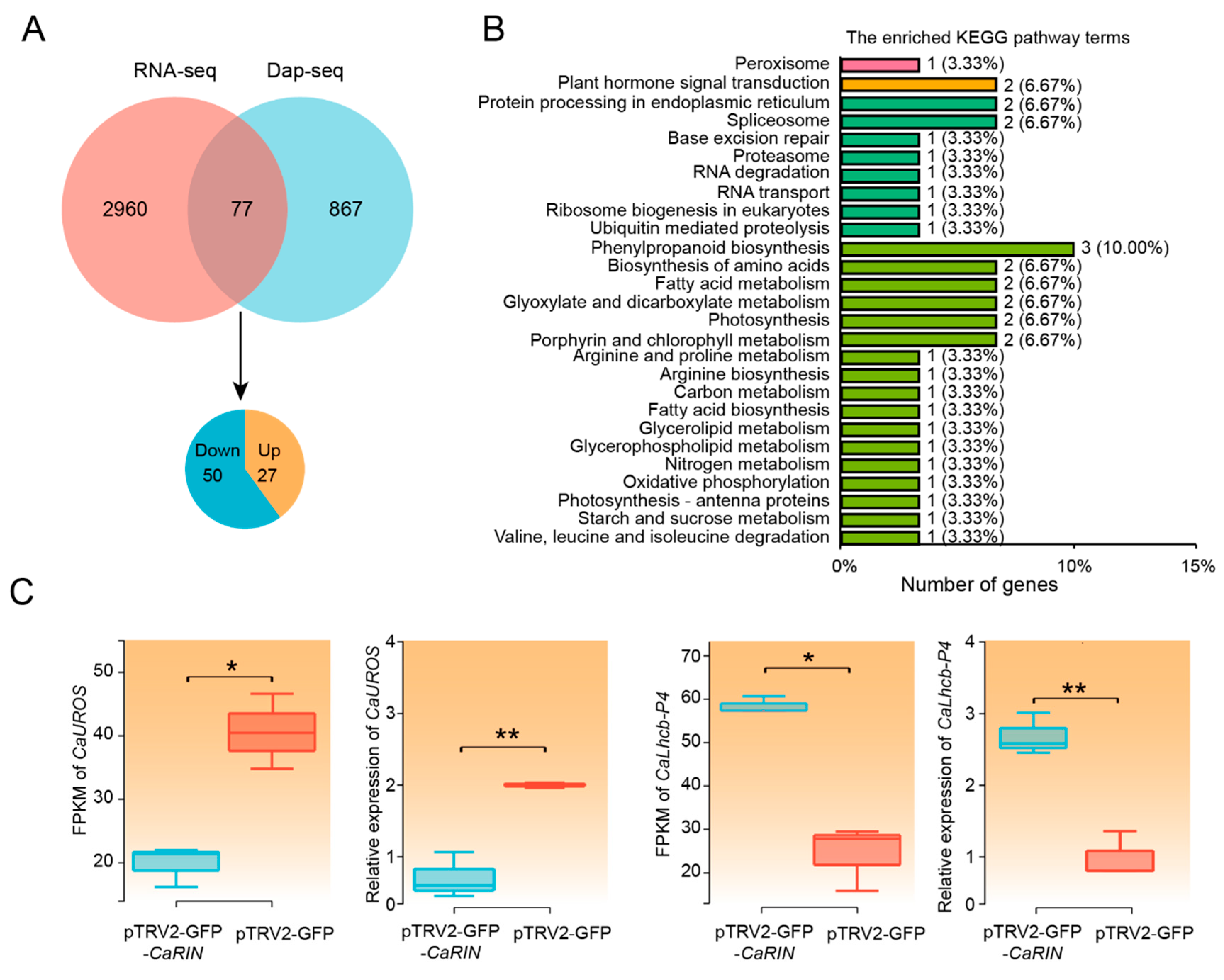

Figure 4. The Identification of CaRIN-regulated target genes. (A) A Venn diagram showing the overlap between CaRIN-bound genes identified by DAP-seq and DEGs from RNA-seq. (B) The top KEGG pathways enriched in the CaRIN-regulated target genes. (C) The relative expression levels of CaUROS and CaLhcb-P4 in CaRIN-silenced and negative control fruits (* p < 0.05; ** p < 0.01).
Figure 4. The Identification of CaRIN-regulated target genes. (A) A Venn diagram showing the overlap between CaRIN-bound genes identified by DAP-seq and DEGs from RNA-seq. (B) The top KEGG pathways enriched in the CaRIN-regulated target genes. (C) The relative expression levels of CaUROS and CaLhcb-P4 in CaRIN-silenced and negative control fruits (* p < 0.05; ** p < 0.01).
Plants 14 00445 g004

2.5. CaRIN Directly Regulates Key Genes in Chlorophyll Metabolism Pathway

In order to validate the direct regulation of chlorophyll metabolism by CaRIN, Y1H assays were performed to assess the binding of CaRIN to the promoters of CaLhcb-P4 and CaUROS, which were identified in the integrated analysis of RNA-seq and DAP-seq (Figure 5A). The results revealed that yeast cells transformed with pJG4-5-CaRIN and pLacZi-proCaLhcb-P4 formed blue colonies on selective medium, while those transformed with pJG4-5-CaRIN and pLacZi-proCaUROS, as well as the negative control, did not (Figure 5B), demonstrating that CaRIN specifically binds to the CaLhcb-P4 promoter in yeast. Subsequently, a LUC reporter assay was employed to investigate the effect of CaRIN on the transcriptional regulation of CaLhcb-P4. The CDS of CaRIN was cloned into the pGreenII 62-SK vector (effector vector), while a 502 bp fragment of the CaLhcb-P4 promoter region, including the CrAG-BOX element, was cloned into the pGreenII 0800-LUC vector (reporter vector) to generate the LUC reporter plasmid (Figure 5C). Co-infiltration of Agrobacterium strains containing 35S::CaRIN and proCaLhcb-P4::LUC led to a significant reduction in fluorescence intensity compared to the control, where the empty vector and proCaLhcb-P4::LUC were co-infiltrated (Figure 5D). The LUC/REN ratio in leaves co-expressing CaRIN and proCaLhcb-P4-LUC was notably lower than that in the control leaves. Furthermore, silencing CaLhcb-P4 via VIGS using the injection method resulted in lightening of the green color of the pericarp (Figure 5F). The expression level of CaLhcb-P4 in the silenced fruits was significantly reduced, and the chlorophyll a content was also notably lower, while the chlorophyll b content showed no significant difference. These findings suggest that the downregulation of CaLhcb-P4 reduces chlorophyll content, primarily through the reduction in chlorophyll a levels.
Taken together, the abovementioned findings indicate that CaRIN plays a critical role in chlorophyll metabolism by directly repressing the expression of CaLhcb-P4 in pepper fruit during ripening (Figure 6).

3. Discussion

MADS-RIN (or RIN) has been shown to be an important transcription factor in the regulation of fruit ripening in various horticultural crops, with one of its primary functions being the control of fruit coloring. In this study, based on sequence similarity and gene expression levels and patterns (Figure 1A,B), CaRIN is considered to be the most homologous gene to SlRIN in terms of function. Previous studies have also shown that overexpression of this gene in the tomato rin mutant partially rescued the phenotype of the mutant that is unable to ripen, indicating that CaRIN has the basic function of SlRIN [22]. In this experiment, the expression of CaRIN was downregulated using VIGS, and the most significant phenotype, which was visibly detectable, was the prolonged fruit color change process and uneven coloring (Figure 1D). The direct reason for this was the inhibition of chlorophyll degradation in fruit (Figure 1E). Moreover, although there was no significant difference in visual observation, the accumulation of carotenoids in the silenced fruits was also suppressed (Figure 1E). This phenomenon is similar to results obtained in tomato, apple, peach, and banana. In these horticultural crops, either natural mutations or artificial silencing of SlRIN and its homologous genes inhibits the degradation of chlorophyll and the accumulation of carotenoids or anthocyanins during ripening [11,23,24,25]. Building on the results discussed above, it can be inferred that the RIN-mediated regulation of color change during fruit ripening is highly conserved across both climacteric fruits (such as tomato, apple, peach, and banana) and non-climacteric fruits (such as pepper), as well as in dicot fruits (tomato, apple, peach, and pepper) and monocot fruits (banana). Among the various processes involved in color regulation during ripening, the most conserved mechanism appears to be the degradation of chlorophyll. This is because the primary pigments in the ripening fruits of tomato, pepper, and the peel of banana are carotenoids, while the key pigments in the ripening fruits of apple and peach are predominantly anthocyanins. Nonetheless, chlorophyll degradation is a common feature in all these fruits.
To further reveal the regulatory mechanism of RIN homologous genes in chlorophyll metabolism in non-climacteric pepper fruits, this study employed a series of omics, interaction, and regulatory experiments and found that CaRIN can directly bind to the promoter of the CaLhcb-P4 gene and inhibit its expression. CaLhcb-P4 encodes a chlorophyll a/b binding protein involved in light capture, transferring energy to the PS I and PS II centers, regulating the distribution of excitation energy, and maintaining thylakoid membrane structure. In this study, silencing this gene via VIGS reduced chlorophyll content in the fruit, ultimately leading to a delay in fruit de-greening. Similar results have also been observed in many studies; for example, downregulation of Lhcb homologous genes in citrus peel, cotton seedlings, and Arabidopsis leaves has been shown to significantly decrease chlorophyll content [26,27,28]. Therefore, it can be presumed that the upregulation of CaLhcb-P4 due to the silencing of CaRIN in this study is one of the main reasons for the delayed chlorophyll degradation in the CaRIN-silenced fruits. Furthermore, it is noteworthy that in the CaRIN-silenced fruits, many chlorophyll metabolism-related genes also exhibited significant changes in expression, even though these genes were not identified as the direct targets of CaRIN in DAP-seq. For example, the expression levels of CaNYC1, CaSGR, CaUROS, and CaCHLD were significantly downregulated, while the expression levels of CaCHLI, CalhcB7, CaPOR1, CaCPO, and CaUROD were significantly upregulated, in the CaRIN-silenced fruits. This suggests that CaRIN may indirectly regulate the expression of these genes. UROS, UROD, CHLD, CHLI, CHLM, and POR are involved in chlorophyll synthesis, while NYC catalyzes the conversion of chlorophyll b into free chlorophyll a, thereby maintaining the stability of the photosystem [29]. Studies have shown that mutations in the NYC gene inhibit chlorophyll degradation, leading to increased chlorophyll accumulation and the formation of darker green fruits [29]. Additionally, SGR is another important gene in the chlorophyll pathway in green plants. Mutations in the SGR genes in citrus, pak choi, and Arabidopsis inhibit chlorophyll degradation [30,31,32,33]. Therefore, the expression changes in chlorophyll metabolism-related genes induced indirectly by CaRIN are another major reason for the delayed chlorophyll degradation and uneven coloring in the CaRIN-silenced fruits.
Plants 14 00445 g006

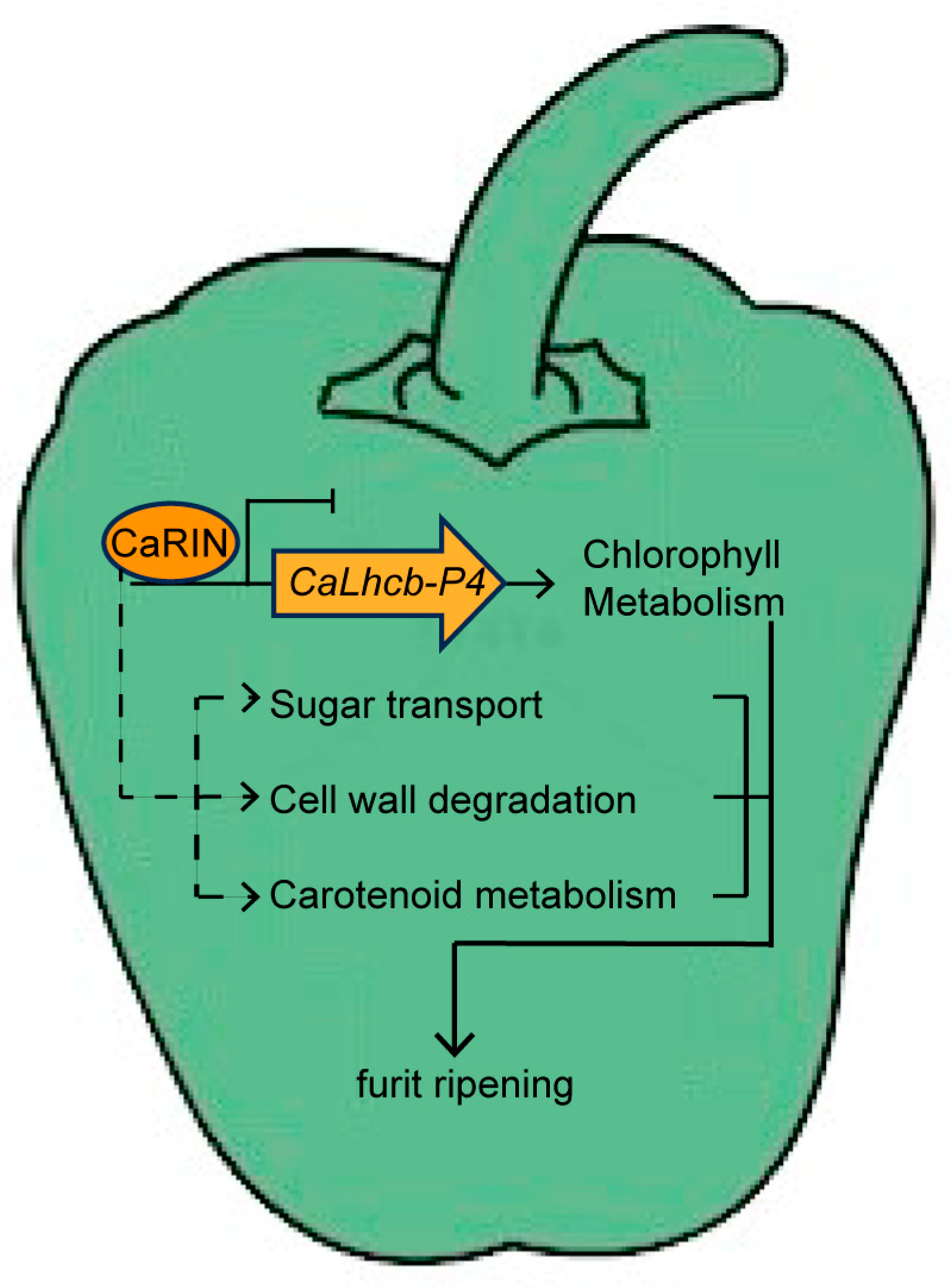

Figure 6. A proposed model for the regulation of fruit ripening by CaRIN in pepper. CaRIN represses CaLhcb-P4 expression by binding the CaLhcb-P4 promoter, and then, CaLhcb-P4 influences chlorophyll metabolism. CaRIN also indirectly regulates multiple genes associated with chlorophyll and carotenoid metabolism, sugar transport, and cell wall degradation.
Figure 6. A proposed model for the regulation of fruit ripening by CaRIN in pepper. CaRIN represses CaLhcb-P4 expression by binding the CaLhcb-P4 promoter, and then, CaLhcb-P4 influences chlorophyll metabolism. CaRIN also indirectly regulates multiple genes associated with chlorophyll and carotenoid metabolism, sugar transport, and cell wall degradation.
Plants 14 00445 g006
In addition to chlorophyll, the carotenoid content in the silenced fruits was significantly reduced, primarily due to the decreased expression of three key genes involved in carotenoid biosynthesis, including CaPSY1, CaCCS, and CaCrtZ1. Previous studies have shown that mutations in any of these genes can cause a color shift in the fruit from red to orange [1,34]. In this study, although DAP-seq did not identify the binding sites for carotenoid-related genes, it suggests that CaRIN may indirectly regulate the expression of genes related to carotenoid synthesis during pepper fruit development, thereby influencing carotenoid synthesis.
Besides pigment-related genes, hundreds of direct target genes of RIN have been identified in other horticultural crops, including ethylene biosynthesis genes such as ACS2 and ACS4 [35]; the ethylene receptor gene NR/ETR3 [36]; cell wall-softening genes such as PG, TBG4, EXP1, and CEL2 [35]; oxylipin flavor pathway genes such as LoxC and ADH2 [37]; ubiquitin-proteasome degradation genes such as SlUBC32 and PSMD2 [38]; and sugar metabolism genes like TAI and LIN5 [39,40]. In this study, through a combined analysis of DAP-seq and RNA-seq, 77 target genes were identified, including cell wall-related genes such as CaPEL13 (encoding pectate lyase), CaCel1 (encoding endoglucanase), CaEXLA10 (encoding expansin-A10 precursor), 2 CaEXLAs (encoding expansin), and 2 CaPGs (encoding polygalacturonase); sugar metabolism-related genes such as CaSTP14 (encoding sugar transport protein) and CaYfbT (encoding sugar phosphatase); and an ethylene signaling gene, CaETR2 (encoding ethylene receptor 2) (Supplementary Table S4). However, genes related to ethylene synthesis, the oxylipin flavor pathway, and ubiquitin-proteasome degradation were not identified. These findings suggest that, in both climacteric and non-climacteric fruits, the regulation of the cell wall, sugar metabolism, and chloroplast metabolism by CaRIN is highly likely to be relatively conserved.
In conclusion, by silencing CaRIN in pepper, we identified a novel direct target gene, CaLhcb-P4, which had not been previously reported. CaRIN directly binds to the promoter of CaLhcb-P4 and inhibits its expression, thereby affecting the changes in chlorophyll content during fruit ripening and suppressing the conversion of chloroplasts into chromoplasts. Additionally, through DAP-seq, we identified other target genes enriched in various biological processes, confirming the diversity and complexity of the CaRIN regulatory network. This study provides new insights into the complex transcriptional regulatory mechanisms of CaRIN in pepper fruit development and offers potential strategies for molecular breeding in the pepper industry.

4. Materials and Methods

4.1. Sequence Alignment and Phylogenetic Tree Construction

The TFs with the highest sequence identity to CaRIN and other known MADS TFs were retrieved from the public databases NCBI (https://www.ncbi.nlm.nih.gov, accessed on 12 November 2024) and the Pepper Genomics Database (http://ted.bti.cornell.edu/cgi-bin/pepper/index, accessed on 12 November 2024) to construct a phylogenetic tree. Sequence alignment and phylogenetic tree construction were performed using clustalx 2 (https://www.ebi.ac.uk/Tools/msa/clustalw2/, accessed on 12 November 2024) with 1000 bootstrap trials.

4.2. Virus-Induced Gene Silencing

A Tobacco Rattle Virus (TRV) system containing the GFP (Green Fluorescent Protein) reporter gene was used for functional studies [41]. The online tool Sol Genomics Network (https://vigs.solgenomics.net/, accessed on 15 November 2024) was used for partial sequence selection. Target fragments of CaRIN (Caz04g14950) and CaPDS (the phytoene desaturase gene that served as a positive control) were amplified using specific primers and cloned into the pTRV2-GFP vector. The VIGS experiments were conducted following the methods outlined in a previous study [42]. In brief, pepper seedlings were infiltrated with Agrobacterium tumefaciens GV3101 strains carrying both pTRV2-GFP-CaRIN and pTRV1 in a ratio of 1:1 (v/v), or with pTRV1 and pTRV2-GFP (the negative control). Photobleaching was observed in the positive control, and UV was used to observe pTRV spread and monitor VIGS efficiency about 2 weeks after infiltration. Total RNA was extracted from the peel of red ripe fruits for gene expression analysis and chlorophyll determination. The primers used for vector construction are listed in Table S1.

4.3. Transcriptome Analysis

Total RNA was extracted using Trizol from three biological replicates of fruits at the red ripe stage for gene expression analysis. As above, RNA-seq libraries were constructed and sequenced on the NovaSeq platform. The clean reads were mapped against the GS genome using Hisat2 (v2.0.5) software. The number of reads mapped was counted using HTSeq (v0.6.1), and the fragments per kilobase of exon per million mapped (FPKM) fragments values were subsequently calculated for each gene. Differentially expressed genes (DEGs) were identified in pTRV2-GFP-CaRIN and pTRV2-GFP using the DESeq R package, with the threshold for significant differential expression set to a fold change ≥1.5 and the p-value set to ≤0.05.

4.4. Total Chlorophyll and Carotenoid Measurement

To determine the chlorophyll and carotenoid contents, approximately 1.0 g of pericarp samples were placed into tubes containing 95% ethanol and then frozen. The frozen pericarp samples were placed in a mortar and ground with anhydrous ethanol until only the white tissue remained. The liquid from the macerated tissue was filtered through filter disks. The absorbance (A) was measured using a spectrophotometer at wavelengths of 470 nm, 649 nm, and 665 nm, and the calculation equations followed those described previously [43].

4.5. DAP-Seq

In vitro DAP-seq was performed as described previously [44]. Genomic DNA was extracted from ripe pericarps, and an affinity purification library was constructed from fragmented DNA using the NGS0602-MICH TLX DNA-Seq Kit following the manufacturer’s recommendations. For cell-free protein expression in vitro, Halo-tagged TF CaRIN and recombinant protein were produced in a TNT SP6 Coupled Wheat Germ Extract System (Promega, Madison, WI, USA). We incubated the cell-free protein expression premix and protein expression vector together for 2 h at 25 °C according to the manufacturer’s recommendations. We then detected specific bands of target protein after determining the protein expression. The Halo-tagged TF was bound to Beads and incubated with the affinity purification library. The typical motifs in the peak regions were analyzed using the MEME-chip software (v5.3.3) [45]. Peak-related genes were annotated using the R package ChIPseeker [46]. The frequency of distribution of reads in the vicinity of the TSS was analyzed using depTools2 software (v3.3.0), and density profiles and corresponding heatmaps were plotted [47]. The frequency of the distribution of peaks around TSS was calculated to visualize the distribution of peaks across the chromosome.

4.6. Y1H Assay

The promoter fragments of CaLhcb-P4 (496 bp) and CaUROS (447 bp) containing CaRIN binding peaks (up to 2 kb upstream from a TSS) were cloned into the pLacZi target vector to construct the pLacZi-CaLhcb-P4 and pLacZi-CaUROS recombinant vectors. The CDS of CaRIN was cloned into the pB42AD vector to construct the pB42AD:CaRIN expression vector. Both vectors were co-transformed into EGY48 yeast cells. The yeast was cultured in SD-Trp-Ura double-deficiency medium for 2 to 3 days. Single clones were transferred to SD-Trp-Ura medium containing X-Gal and incubated at 30 °C for 2 to 3 days to observe the color change in yeast cells [48]. The primers used for vector construction are listed in Table S1.

4.7. Dual-Luciferase Reporter Assay

An LUC reporter gene transient detection assay was performed in tobacco (N. benthamiana). The CDS of CaRIN was inserted into the pGreenII 62-SK vector (effector vector) driven by the 35S promoter. The same promoter fragment of CaLhcb-P4 (496 bp) as in YIH was inserted into the pGreenII 0800-LUC vector (reporter vector). The recombinant plasmids were transformed into A. tumefaciens GV3101 (P19). Agrobacterium was cultured to an OD600 value of 0.8–1.0 and suspended in osmotic buffer (10 mM MES, 10 mM MgCl2, 150 μM acetylcoumarin, pH = 5.8). The effector vector and reporter vector were mixed together at an OD600 ratio of 6:4 and injected into abaxial surfaces in tobacco leaves. Luciferase activity images of the leaves were observed 48 to 72 h post-transformation using the Night SHADE LB 985 system (Berthold, Bad Wildbad, Germany), and the wavelength was set to 350 to 700 nm. The luciferase activity was quantified using an LUC reporter assay kit as described previously [49], and the transcriptional activation ability of CaRIN was determined according to the LUC/REN ratio based on three biological replicates. The primers used for vector construction are listed in Table S1.

4.8. qRT-PCR Analysis

Total RNA was extracted from pericarp samples using TRIzol (Thermo Fisher Scientific, Waltham, MA, USA) reagent. For reverse transcription PCR, the first-strand cDNA was synthesized from 0.8 μg of total RNA using a HiScript IV 1st Strand cDNA Synthesis Kit (Nanjing Vazyme Biotech Co., Ltd., Nanjing, China). qRT-PCR was performed using the SupRealQ Purple Universal SYBR qPCR Master Mix (U+) (Nanjing Vazyme Biotech Co., Ltd., Nanjing, China). CaUBI-3 was used as the housekeeping gene, and the relative expression values were calculated using the 2–∆∆CT method. For each gene, each biological replicate was set with three independent technical replicates. The primer sequences used are listed in Table S1.

4.9. Statistical Analysis

For all experiments, three independent repetitions were conducted. Statistical analyses were performed using SPSS (IBM SPSS Statistics, v.22; SPSS Inc., Chicago, IL, USA) software and Microsoft EXCEL 2010. Significant differences were calculated using one-way ANOVA, Tukey’s test, and Student’s t-test (* p < 0.05; ** p < 0.01; *** p < 0.001).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants14030445/s1, Table S1: Primers used in this study; Table S2: List of CaRIN-bound genes determined by DAP-seq; Table S3: DEGs in the CaNAC2-silenced and negative control fruits at 64DPA; Table S4: Genes directly bound and regulated by CaRIN, identified through DAP-seq and RNA-seq.

Author Contributions

L.S., Y.S. and Q.C.: Investigation, Methodology, Data Curation, Writing—Original Draft; X.L. and S.M.: Data Curation, Formal Analysis; H.S.: Investigation, Methodology. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program of China (2023YFD2300702) and Beijing Natural Science Foundation (6232014).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the datasets supporting the conclusions of this article are included within the article and its Supplementary Materials.

Acknowledgments

We thank Nan Ma for kindly providing the VIGS vector.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Guzman, I.; Hamby, S.; Romero, J.; Bosland, P.W.; O’Connell, M.A. Variability of carotenoid biosynthesis in orange colored Capsicum spp. Plant Sci. 2010, 179, 49–59. [Google Scholar] [CrossRef] [PubMed]
  2. Paran, I.; Fallik, E. Breeding for fruit quality in pepper (Capsicum spp.). In Breeding for Fruit Quality; Jenks, M.A., Bebeli, P.J., Eds.; Wiley: Hoboken, NJ, USA, 2011; pp. 307–322. [Google Scholar]
  3. Wang, L.; Zhong, Y.; Liu, J.; Ma, R.; Miao, Y.; Chen, W.; Zheng, J.; Pang, X.; Wan, H. Pigment Biosynthesis and Molecular Genetics of Fruit Color in Pepper. Plants 2023, 12, 2156. [Google Scholar] [CrossRef] [PubMed]
  4. Borovsky, Y.; Paran, I. Chlorophyll breakdown during pepper fruit ripening in the chlorophyll retainer mutation is impaired at the homolog of the senescence-inducible stay-green gene. Theor. Appl. Genet. 2008, 117, 235–240. [Google Scholar] [CrossRef] [PubMed]
  5. Kahlau, S.; Bock, R. Plastid transcriptomics and translatomics of tomato fruit development and chloroplast-to-chromoplast differentiation: Chromoplast gene expression largely serves the production of a single protein. Plant Cell 2008, 20, 856–874. [Google Scholar] [CrossRef]
  6. Egea, I.; Barsan, C.; Bian, W.; Purgatto, E.; Latché, A.; Chervin, C.; Bouzayen, M.; Pech, J.C. Chromoplast differentiation: Current status and perspectives. Plant Cell Physiol. 2010, 51, 1601–1611. [Google Scholar] [CrossRef]
  7. Barsan, C.; Zouine, M.; Maza, E.; Bian, W.; Egea, I.; Rossignol, M.; Pech, J.C. Proteomic analysis of chloroplast-to-chromoplast transition in tomato reveals metabolic shifts coupled with disrupted thylakoid biogenesis machinery and elevated energy production components. Plant Physiol. 2012, 160, 708–725. [Google Scholar] [CrossRef]
  8. Suzuki, M.; Takahashi, S.; Kondo, T.; Dohra, H.; Ito, Y.; Kiriiwa, Y.; Hayashi, M.; Kamiya, S.; Kato, M.; Fujiwara, M.; et al. Plastid proteomic analysis in tomato fruit development. PLoS ONE 2015, 10, e0137266. [Google Scholar] [CrossRef]
  9. Gong, J.; Tian, Z.; Qu, X.; Meng, Q.; Guan, Y.; Liu, P.; Chen, C.; Deng, X.; Guo, W.; Cheng, Y.; et al. Illuminating the cells: Transient transformation of citrus to study gene functions and organelle activities related to fruit quality. Hortic. Res. 2021, 8, 175. [Google Scholar] [CrossRef]
  10. Wang, X.; Liu, Z.; Bai, J.; Sun, S.; Song, J.; Li, R.; Cui, X. Antagonistic regulation of target genes by the SISTER OF TM3-JOINTLESS2 complex in tomato inflorescence branching. Plant Cell 2023, 35, 2062–2078. [Google Scholar] [CrossRef]
  11. Klee, H.J.; Giovannoni, J.J. Genetics and control of tomato fruit ripening and quality attributes. Annu. Rev. Genet. 2011, 45, 41–59. [Google Scholar] [CrossRef]
  12. Ling, Q.; Sadali, N.M.; Soufi, Z.; Zhou, Y.; Huang, B.; Zeng, Y.; Rodriguez-Concepcion, M.; Jarvis, R.P. The chloroplast-associated protein degradation pathway controls chromoplast development and fruit ripening in tomato. Nat. Plants 2021, 7, 655–666. [Google Scholar] [CrossRef] [PubMed]
  13. An, J.P.; Zhang, X.W.; Bi, S.Q.; You, C.X.; Wang, X.F.; Hao, Y.J. The ERF transcription factor MdERF38 promotes drought stress-induced anthocyanin biosynthesis in apple. Plant J. 2019, 101, 573–589. [Google Scholar] [CrossRef] [PubMed]
  14. Camara, B.; Hugueney, P.; Bouvier, F.; Kuntz, M.; Monéger, R. Biochemistry and molecular biology of chromoplast development. Int. Rev. Cytol. 1995, 163, 175–247. [Google Scholar] [PubMed]
  15. Zhang, Y.; Shu, H.; Mumtaz, M.A.; Hao, Y.; Li, L.; He, Y.; Jin, W.; Li, C.; Zhou, Y.; Lu, X.; et al. Transcriptome and Metabolome Analysis of Color Changes during Fruit Development of Pepper (Capsicum baccatum). Int. J. Mol. Sci. 2022, 23, 12524. [Google Scholar] [CrossRef]
  16. Fujisawa, M.; Nakano, T.; Shima, Y.; Ito, Y. A Large-Scale Identification of Direct Targets of the Tomato MADS Box Transcription Factor RIPENING INHIBITOR Reveals the Regulation of Fruit Ripening. Plant Cell 2013, 25, 371–386. [Google Scholar] [CrossRef]
  17. Vrebalov, J.; Ruezinsky, D.; Padmanabhan, V.; White, R.; Medrano, D.; Drake, R.; Schuch, W.; Giovannoni, J. A MADS-box gene necessary for fruit ripening at the tomato ripening-inhibitor (rin) locus. Science 2002, 296, 343–346. [Google Scholar] [CrossRef]
  18. Ito, Y.; Nishizawa-Yokoi, A.; Endo, M.; Mikami, M.; Shima, Y.; Nakamura, N.; Kotake-Nara, E.; Kawasaki, S.; Toki, S. Re-evaluation of the rin mutation and the role of RIN in the induction of tomato ripening. Nat. Plants 2017, 3, 866–874. [Google Scholar] [CrossRef]
  19. Wu, M.; Xu, X.; Hu, X.; Liu, Y.; Cao, H.; Chan, H.; Gong, Z.; Yuan, Y.; Luo, Y.; Feng, B.; et al. SlMYB72 Regulates the Metabolism of Chlorophylls, Carotenoids, and Flavonoids in Tomato Fruit. Plant Physiol. 2020, 183, 854–868. [Google Scholar] [CrossRef]
  20. Borovsky, Y.; Monsonego, N.; Mohan, V.; Shabtai, S.; Kamara, I.; Faigenboim, A.; Hill, T.; Chen, S.; Stoffel, K.; Van Deynze, A.; et al. The zinc-finger transcription factor CcLOL1 controls chloroplast development and immature pepper fruit color in Capsicum chinense and its function is conserved in tomato. Plant J. 2019, 99, 41–55. [Google Scholar] [CrossRef]
  21. Chen, H.; Ji, H.; Huang, W.; Zhang, Z.; Zhu, K.; Zhu, S.; Chai, L.; Ye, J.; Deng, X. Transcription factor CrWRKY42 coregulates chlorophyll degradation and carotenoid biosynthesis in citrus. Plant Physiol. 2024, 195, 728–744. [Google Scholar] [CrossRef]
  22. Dong, T.; Chen, G.; Tian, S.; Xie, Q.; Yin, W.; Zhang, Y.; Hu, Z. A non-climacteric fruit gene CaMADS-RIN regulates fruit ripening and ethylene biosynthesis in climacteric fruit. PLoS ONE 2014, 9, e95559. [Google Scholar] [CrossRef] [PubMed]
  23. Ireland, H.S.; Yao, J.L.; Tomes, S.; Sutherland, P.W.; Nieuwenhuizen, N.; Gunaseelan, K.; Winz, R.A.; David, K.M.; Schaffer, R.J. Apple SEPALLATA1/2-like genes control fruit flesh development and ripening. Plant J. 2013, 73, 1044–1056. [Google Scholar] [CrossRef] [PubMed]
  24. Li, J.; Li, F.; Qian, M.; Han, M.; Liu, H.; Zhang, D.; Ma, J.; Zhao, C. Characteristics and regulatory pathway of the PrupeSEP1 SEPALLATA gene during ripening and softening in peach fruits. Plant Sci. 2017, 257, 63–73. [Google Scholar] [CrossRef] [PubMed]
  25. Elitzur, T.; Yakir, E.; Quansah, L.; Zhangjun, F.; Vrebalov, J.; Khayat, E.; Giovannoni, J.J.; Friedman, H. Banana MaMADS Transcription Factors Are Necessary for Fruit Ripening and Molecular Tools to Promote Shelf-Life and Food Security. Plant Physiol. 2016, 171, 380–391. [Google Scholar] [CrossRef]
  26. Andersson, J.; Wentworth, M.; Walters, R.G.; Howard, C.A.; Ruban, A.V.; Horton, P.; Jansson, S. Absence of the Lhcb1 and Lhcb2 proteins of the light-harvesting complex of photosystem II—Effects on photosynthesis, grana stacking, and fitness. Plant J. 2003, 35, 350–361. [Google Scholar]
  27. Pietrzykowska, M.; Suorsa, M.; Semchonok, D.A.; Tikkanen, M.; Boekema, E.J.; Aro, E.M.; Jansson, S. The light-harvesting chlorophyll a/b binding proteins Lhcb1 and Lhcb2 play complementary roles during state transitions in Arabidopsis. Plant Cell 2014, 26, 3646–3660. [Google Scholar] [CrossRef]
  28. Zhang, Q.; Ma, C.; Wang, X.; Ma, Q.; Fan, S.; Zhang, C. Genome-wide identification of the light-harvesting chlorophyll a/b binding (Lhc) family in Gossypium hirsutum reveals the influence of GhLhcb2.3 on chlorophyll a synthesis. Plant Biol. 2021, 23, 831–842. [Google Scholar] [CrossRef]
  29. Teng, K.; Tan, P.; Guan, J.; Dong, D.; Liu, L.; Guo, Y.; Guo, W.; Yuesen, Y.; Fan, X.F.; Wu, J.Y. Functional characterization of the chlorophyll b reductase gene nyc1 associated with chlorophyll degradation and photosynthesis in Zoysia japonica. Environ. Exp. Bot. 2021, 191, 104607. [Google Scholar] [CrossRef]
  30. Sakuraba, Y.; Park, S.Y.; Kim, Y.S.; Wang, S.H.; Yoo, S.C.; Hörtensteiner, S.; Paek, N.C. Arabidopsis STAY-GREEN2 is a negative regulator of chlorophyll degradation during leaf senescence. Mol Plant. 2014, 7, 1288–1302. [Google Scholar] [CrossRef]
  31. Shimoda, Y.; Ito, H.; Tanaka, A. Arabidopsis STAY-GREEN, Mendel’s green cotyledon gene, encodes magnesium-dechelatase. Plant Cell. 2016, 28, 2147–2160. [Google Scholar] [CrossRef]
  32. Wang, N.; Liu, Z.; Zhang, Y.; Li, C.; Feng, H. Identification and fine mapping of a stay-green gene (Brnye1) in pakchoi (Brassica campestris L. ssp. chinensis) . Theor. Appl. Genet. 2018, 131, 673–684. [Google Scholar] [CrossRef] [PubMed]
  33. Zhu, K.; Zheng, X.; Ye, J.; Huang, Y.; Chen, H.; Mei, X.; Xie, Z.; Cao, L.; Zeng, Y.; Larkin, R.M.; et al. Regulation of carotenoid and chlorophyll pools in hesperidia, anatomically unique fruits found only in Citrus. Plant Physiol. 2021, 187, 829–845. [Google Scholar] [CrossRef] [PubMed]
  34. Borovsky, Y.; Tadmor, Y.; Bar, E.; Meir, A.; Lewinsohn, E.; Paran, I. Induced mutation in β-CAROTENE HYDROXYLASE results in accumulation of β-carotene and conversion of red to orange color in pepper fruit. Theor. Appl. Genet. 2013, 126, 557–565. [Google Scholar] [CrossRef] [PubMed]
  35. Fujisawa, K.; Komiyama, K.; Muramatsu, H.; Shimamoto, D.; Tojo, T.; Kim, Y.A.; Hayashi, T.; Endo, M.; Oshida, K.; Terrones, M.; et al. Chirality-dependent transport in double-walled carbon nanotube assemblies: The role of inner tubes. ACS Nano 2011, 5, 7547–7554. [Google Scholar] [CrossRef]
  36. Zhong, S.; Fei, Z.; Chen, Y.R.; Zheng, Y.; Huang, M.; Vrebalov, J.; McQuinn, R.; Gapper, N.; Liu, B.; Xiang, J.; et al. Single-base resolution methylomes of tomato fruit development reveal epigenome modifications associated with ripening. Nat. Biotechnol. 2013, 31, 154–159. [Google Scholar] [CrossRef]
  37. Qin, G.; Wang, Y.; Cao, B.; Wang, W.; Tian, S. Unraveling the regulatory network of the MADS box transcription factor RIN in fruit ripening. Plant J. 2012, 70, 243–255. [Google Scholar] [CrossRef]
  38. Wang, Y.; Wang, W.; Cai, J.; Zhang, Y.; Qin, G.; Tian, S. Tomato nuclear proteome reveals the involvement of specific E2 ubiquitin-conjugating enzymes in fruit ripening. Genome Biol. 2014, 15, 548. [Google Scholar] [CrossRef]
  39. Slugina, M.A.; Shchennikova, A.V.; Kochieva, E.Z. TAI vacuolar invertase orthologs: The interspecific variability in tomato plants (Solanum section Lycopersicon). Mol. Genet. Genomics 2017, 292, 1123–1138. [Google Scholar] [CrossRef]
  40. Vallarino, J.G.; Yeats, T.H.; Maximova, E.; Rose, J.K.; Fernie, A.R.; Osorio, S. Postharvest changes in LIN5-down-regulated plants suggest a role for sugar deficiency in cuticle metabolism during ripening. Phytochemistry 2017, 142, 11–20. [Google Scholar] [CrossRef]
  41. Tian, J.; Pei, H.; Zhang, S.; Chen, J.; Chen, W.; Yang, R.; Meng, Y.; You, J.; Gao, J.; Ma, N. TRV-GFP: A modified Tobacco rattle virus vector for efficient and visualizable analysis of gene function. J. Exp. Bot. 2014, 65, 311–322. [Google Scholar] [CrossRef]
  42. Liu, Y.; Schiff, M.; Dinesh-Kumar, S.P. Virus-induced gene silencing in tomato. Plant J. 2002, 31, 777–786. [Google Scholar] [CrossRef] [PubMed]
  43. Lichtenthaler, H.K.; Wellburn, A.R. Determinations of total carotenoids and chlorophylls a and b of leaf extracts in different solvents. Biochem. Soc. Trans. 1983, 603, 591–592. [Google Scholar] [CrossRef]
  44. Bartlett, A.; O’Malley, R.C.; Huang, S.-S.; Galli, M.; Nery, J.R.; Gallavotti, A.; Ecker, J.R. Mapping genome-wide transcription-factor binding sites using DAP-seq. Nat. Protoc. 2017, 12, 1659–1672. [Google Scholar] [CrossRef]
  45. Machanick, P.; Bailey, T.L. MEME-ChIP: Motif analysis of large DNA datasets. Bioinformatics 2011, 27, 1696–1697. [Google Scholar] [CrossRef]
  46. Yu, G.; Wang, L.G.; He, Q.Y. ChIPseeker: An R/Bioconductor package for ChIP peak annotation, comparison and visualization. Bioinformatics 2015, 31, 2382–2383. [Google Scholar] [CrossRef]
  47. Ramírez, F.; Ryan, D.P.; Grüning, B.; Bhardwaj, V.; Kilpert, F.; Richter, A.S.; Heyne, S.; Dündar, F.; Manke, T. deepTools2: A next generation web server for deep-sequencing data analysis. Nucleic Acids Res. 2016, 44, W160–W165. [Google Scholar] [CrossRef]
  48. Xie, Y.; Liu, Y.; Ma, M.; Zhou, Q.; Zhao, Y.; Zhao, B. Arabidopsis FHY3 and FAR1 integrate light and strigolactone signaling to regulate branching. Nat. Commun. 2020, 11, 1955. [Google Scholar] [CrossRef]
  49. Ying, S.; Su, M.; Wu, Y.; Zhou, L.; Fu, R.; Li, Y.; Guo, H.; Luo, J.; Wang, S.; Zhang, Y. Trichome regulator SlMIXTA-like directly manipulates primary metabolism in tomato fruit. Plant Biotechnol. J. 2020, 18, 354–363. [Google Scholar] [CrossRef]
Plants 14 00445 g001

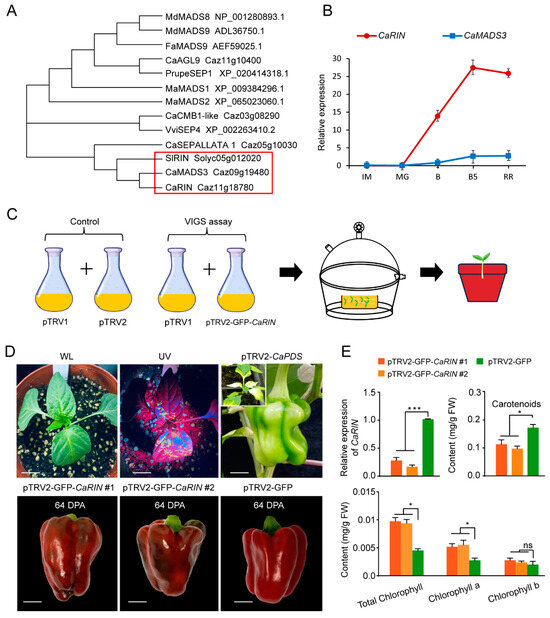

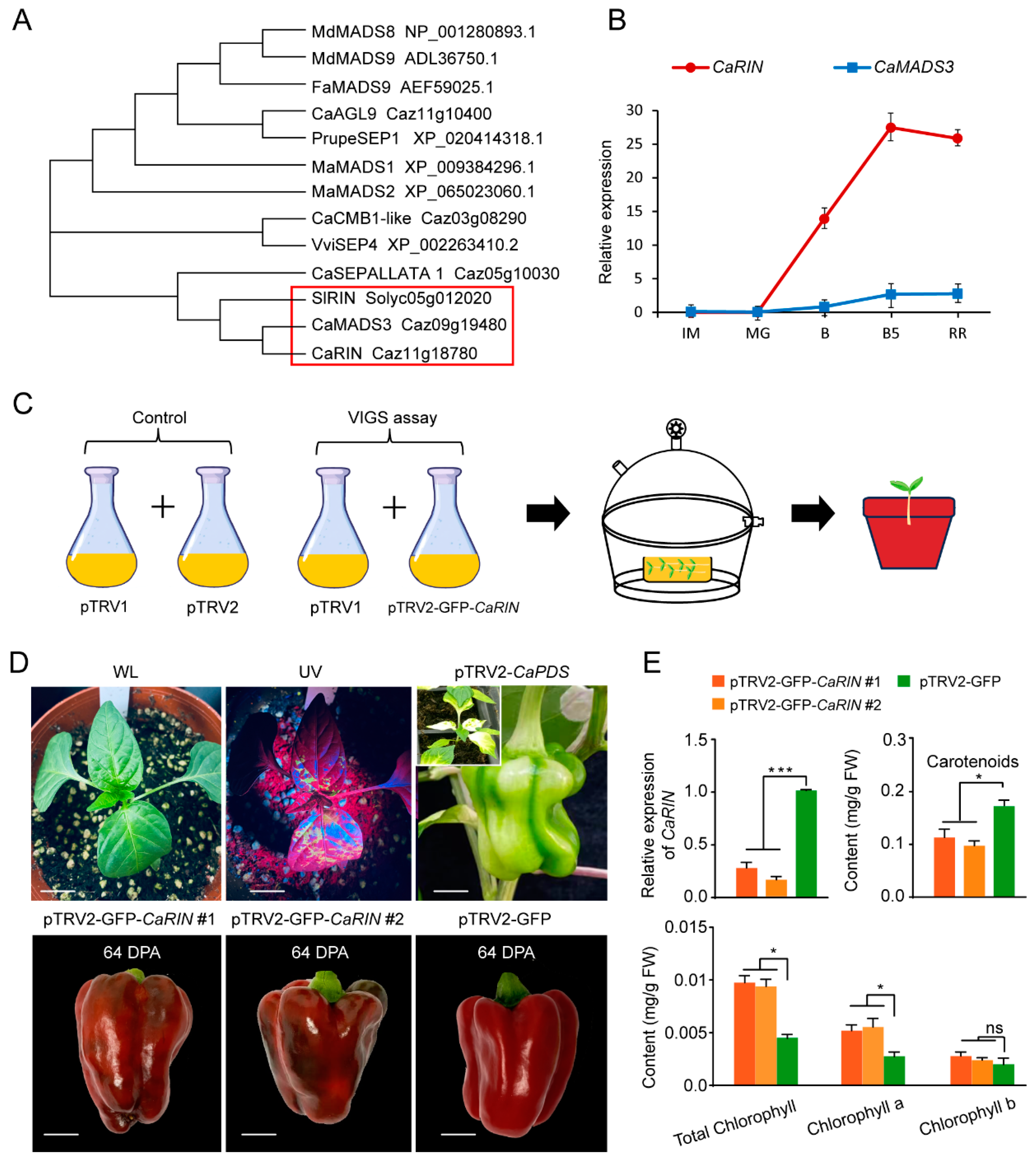

Figure 1. CaRIN regulates chlorophyll and carotenoid contents in pepper fruit during ripening. (A) A phylogenetic tree of SlRIN and its homologs in other species. (B) The relative expression levels of CaRIN and CaMADS3 in the sweet pepper inbred line 16C391 at various developmental stages: IM (immature green, 22 DPA), MG (mature green, 40 DPA), B (breaker, 49 DPA), B5 (breaker + 5, 54 DPA), and RR (red ripe, 63 DPA). (C) A schematic diagram of VIGS using the vacuum infiltration method. pTVR1 + pTRV2-GFP serves as the negative control, while pTVR1 + pTRV2-CaPDS is used as the positive control. (D) Phenotypic observations of CaRIN-silenced seedlings under white light and UV (top left and middle), light bleaching in the CaPDS-silenced fruit at the mature green stage (top right), CaRIN-silenced fruits at the red ripe stage (bottom right and middle), and fruit from the negative control (bottom left). Scale bar = 1.5 cm. (E) The relative expression of CaRIN and levels of chlorophyll and carotenoids in fruits at 64 DPA from the CaRIN-silenced and negative control plants. The data represent the mean ± SE (n = 3). Significant differences were determined using Student’s t-test (* p < 0.05; *** p < 0.001; ns, not significant).
Figure 1. CaRIN regulates chlorophyll and carotenoid contents in pepper fruit during ripening. (A) A phylogenetic tree of SlRIN and its homologs in other species. (B) The relative expression levels of CaRIN and CaMADS3 in the sweet pepper inbred line 16C391 at various developmental stages: IM (immature green, 22 DPA), MG (mature green, 40 DPA), B (breaker, 49 DPA), B5 (breaker + 5, 54 DPA), and RR (red ripe, 63 DPA). (C) A schematic diagram of VIGS using the vacuum infiltration method. pTVR1 + pTRV2-GFP serves as the negative control, while pTVR1 + pTRV2-CaPDS is used as the positive control. (D) Phenotypic observations of CaRIN-silenced seedlings under white light and UV (top left and middle), light bleaching in the CaPDS-silenced fruit at the mature green stage (top right), CaRIN-silenced fruits at the red ripe stage (bottom right and middle), and fruit from the negative control (bottom left). Scale bar = 1.5 cm. (E) The relative expression of CaRIN and levels of chlorophyll and carotenoids in fruits at 64 DPA from the CaRIN-silenced and negative control plants. The data represent the mean ± SE (n = 3). Significant differences were determined using Student’s t-test (* p < 0.05; *** p < 0.001; ns, not significant).
Plants 14 00445 g001
Plants 14 00445 g002

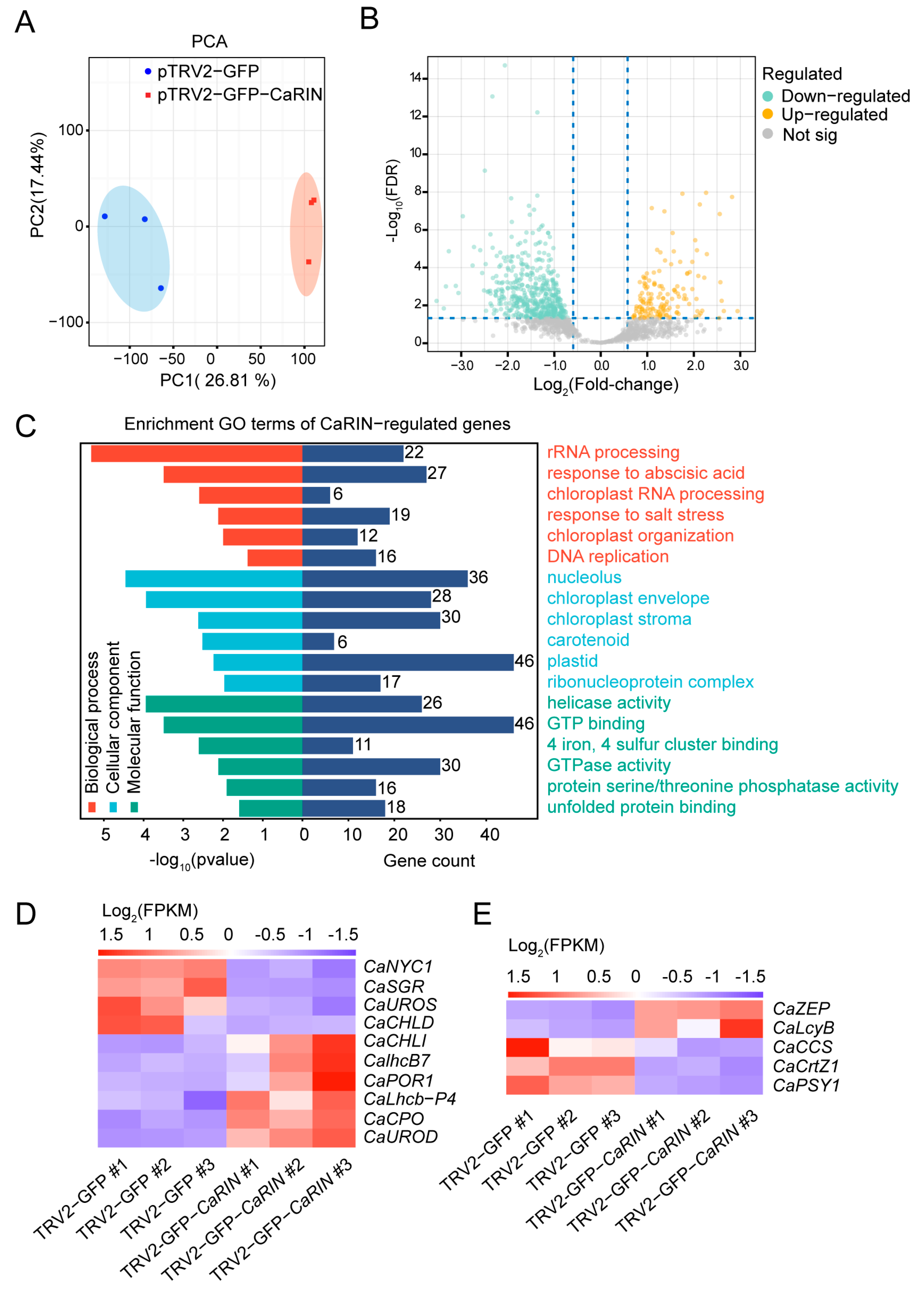

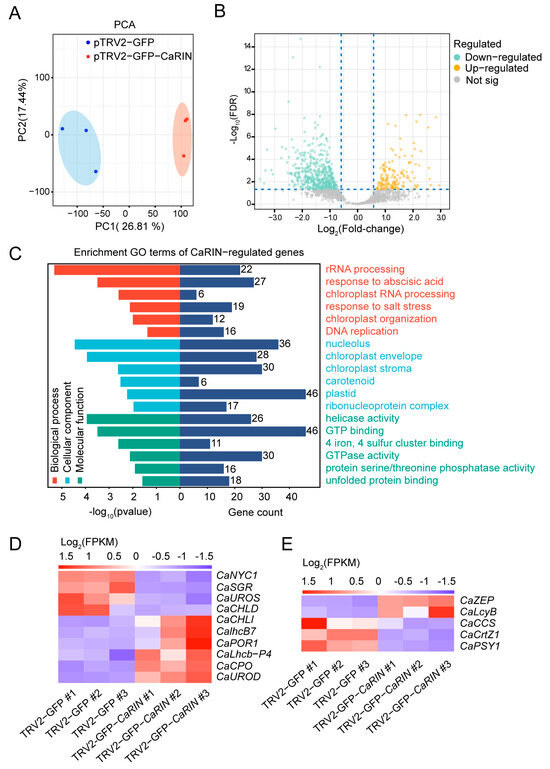

Figure 2. RNA-seq analysis of the pericarp collected from CaRIN-silenced and negative control fruits. (A) PCA of RNA-seq data. (B) Volcano plots of the DEGs. (C) GO enrichment analysis of DEGs. (D,E) heatmaps of DEGs related to chloroplast metabolism and carotenoid synthesis. #1, #2 and #3 represent three biological replicates.
Figure 2. RNA-seq analysis of the pericarp collected from CaRIN-silenced and negative control fruits. (A) PCA of RNA-seq data. (B) Volcano plots of the DEGs. (C) GO enrichment analysis of DEGs. (D,E) heatmaps of DEGs related to chloroplast metabolism and carotenoid synthesis. #1, #2 and #3 represent three biological replicates.
Plants 14 00445 g002
Plants 14 00445 g005

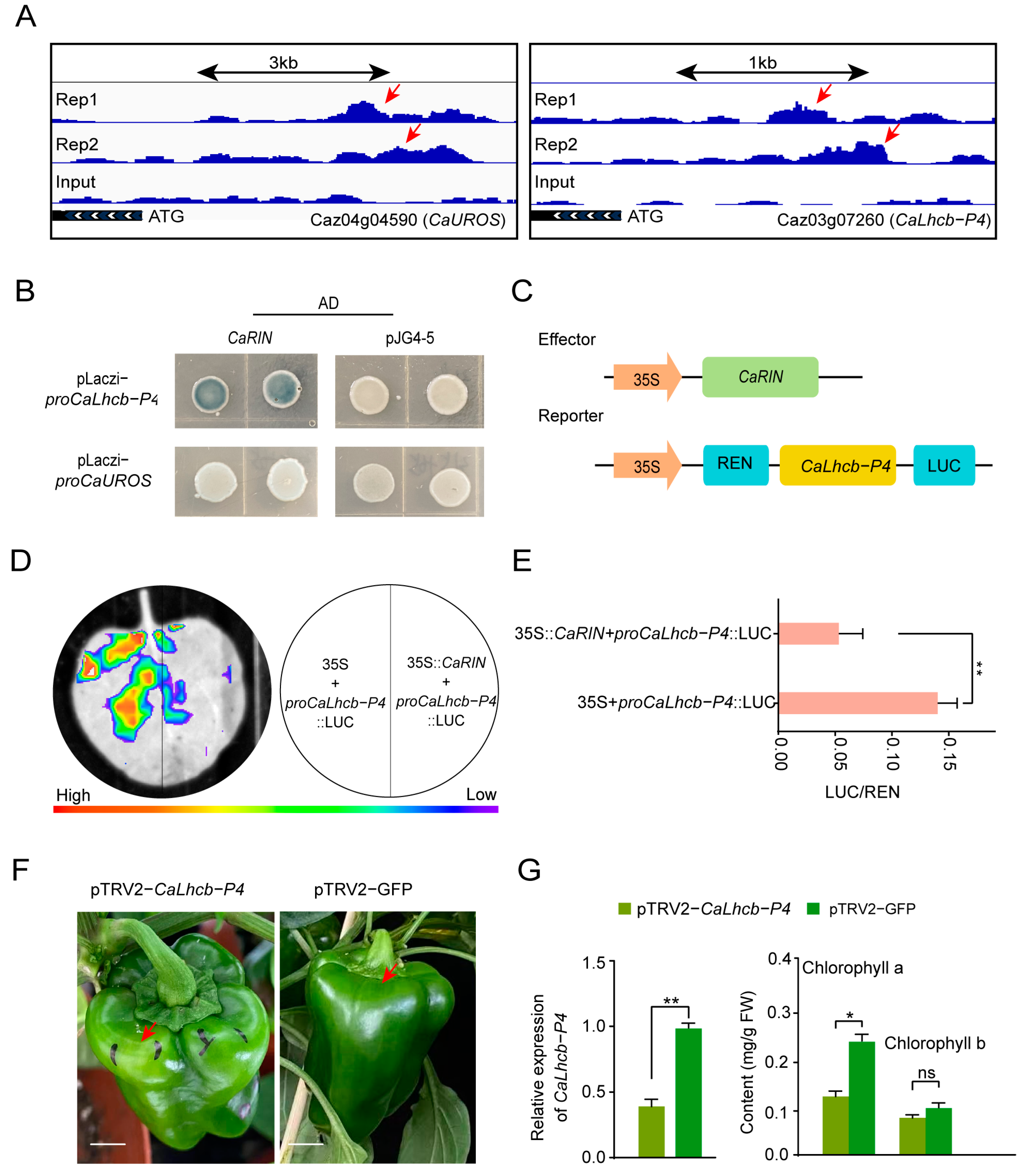

Figure 5. The interaction of CaRIN with CaLhcb-P4 and the silencing of CaLhcb-P4 in pepper fruit. (A) The binding peaks of CaRIN (Repeats 1 and 2) and the negative control (input) at the promoter regions of CaLhcb-P4 and CaUROS, as determined by DAP-seq. Red arrows represent binding peaks. (B) The Y1H assay of CaRIN interaction with the promoters of CaLhcb-P4 and CaUROS. Three independent yeast colonies were tested for each treatment, and the results were observed 3 days post-treatment. (C) A schematic representation of the reporter and effector constructs used in the dual-luciferase assay. (D) The LUC imaging assay confirming that CaRIN directly represses the expression of CaLhcb-P4. (E) The LUC/REN ratio analysis for the detection of CaRIN targeting CaLhcb-P4. LUC, firefly luciferase activity; REN, Renilla luciferase activity. The data are presented as mean values ± SD from three independent biological replicates. (F) The typical phenotype of CaLhcb-P4-silenced and control fruits. Red arrows represent silencing position. Scale bar = 1.5 cm. (G) The relative expression of CaLhcb-P4 and chlorophyll content in CaLhcb-P4-silenced and the negative control fruits. The data are expressed as the mean ± SE (n = 3). Statistical significance was assessed by Student’s t-test (* p < 0.05; ** p < 0.01; ns, not significant).
Figure 5. The interaction of CaRIN with CaLhcb-P4 and the silencing of CaLhcb-P4 in pepper fruit. (A) The binding peaks of CaRIN (Repeats 1 and 2) and the negative control (input) at the promoter regions of CaLhcb-P4 and CaUROS, as determined by DAP-seq. Red arrows represent binding peaks. (B) The Y1H assay of CaRIN interaction with the promoters of CaLhcb-P4 and CaUROS. Three independent yeast colonies were tested for each treatment, and the results were observed 3 days post-treatment. (C) A schematic representation of the reporter and effector constructs used in the dual-luciferase assay. (D) The LUC imaging assay confirming that CaRIN directly represses the expression of CaLhcb-P4. (E) The LUC/REN ratio analysis for the detection of CaRIN targeting CaLhcb-P4. LUC, firefly luciferase activity; REN, Renilla luciferase activity. The data are presented as mean values ± SD from three independent biological replicates. (F) The typical phenotype of CaLhcb-P4-silenced and control fruits. Red arrows represent silencing position. Scale bar = 1.5 cm. (G) The relative expression of CaLhcb-P4 and chlorophyll content in CaLhcb-P4-silenced and the negative control fruits. The data are expressed as the mean ± SE (n = 3). Statistical significance was assessed by Student’s t-test (* p < 0.05; ** p < 0.01; ns, not significant).
Plants 14 00445 g005
