Hydrogenases and the Role of Molecular Hydrogen in Plants

by
Grace Russell
1,
Faisal Zulfiqar
2 and
John T. Hancock
1,*
1
Department of Applied Sciences, University of the West of England, Bristol BS 16 1QY, UK
2
Institute of Horticultural Sciences, Faculty of Agriculture, University of Agriculture Faisalabad, Faisalabad 38040, Pakistan
*
Author to whom correspondence should be addressed.
Plants 2020, 9(9), 1136; https://doi.org/10.3390/plants9091136
Submission received: 30 July 2020 / Revised: 27 August 2020 / Accepted: 31 August 2020 / Published: 2 September 2020
(This article belongs to the Collection Feature Papers in Plant Physiology and Metabolism)
Browse Figures
Versions Notes

Abstract

:
Molecular hydrogen (H2) has been suggested to be a beneficial treatment for a range of species, from humans to plants. Hydrogenases catalyze the reversible oxidation of H2, and are found in many organisms, including plants. One of the cellular effects of H2 is the selective removal of reactive oxygen species (ROS) and reactive nitrogen species (RNS), specifically hydroxyl radicals and peroxynitrite. Therefore, the function of hydrogenases and the action of H2 needs to be reviewed in the context of the signalling roles of a range of redox active compounds. Enzymes can be controlled by the covalent modification of thiol groups, and although motifs targeted by nitric oxide (NO) can be predicted in hydrogenases sequences it is likely that the metal prosthetic groups are the target of inhibition. Here, a selection of hydrogenases, and the possibility of their control by molecules involved in redox signalling are investigated using a bioinformatics approach. Methods of treating plants with H2 along with the role of H2 in plants is also briefly reviewed. It is clear that studies report significant effects of H2 on plants, improving growth and stress responses, and therefore future work needs to focus on the molecular mechanisms involved.

1. Introduction

There is an increasing weight of evidence showing molecular hydrogen (H2) has effects in biological systems, in both animal [1] and plant species [2]. When considering an ever-increasing global population, and the growing obligation we have to feed each individual, the requirement for inexpensive and sustainable treatments which enhance the quality and longevity of produce will be necessary to prevent shortages of essential farmed foods. In this regard, treatment with H2 has been described as being beneficial for a range of human diseases [3,4], whilst in agriculture, application of H2 has been demonstrated to increase both crop health and yield [5], important factors that may prove beneficial for the arable and cattle-feed industries in particular. To illustrate, evidence shows that H2 is able to mediate root development and stress responses in plants, in response to heavy metals [6] and drought [7] in particular. It can also be used for improving post-harvest storage of crops, for example with kiwifruits [8]. Therefore, how organisms such as plants can be exposed to H2, and how they respond to it, is important to understand and may lead to better treatments and better yields in the future.
In light of ongoing research it is becoming clear that H2 should be seen as part of a suite of small reactive molecules that can influence and control cellular function. It has long been known that reactive oxygen species (ROS), such as superoxide anion (O2−), hydrogen peroxide (H2O2) and hydroxyl radicals (OH), are produced in cells and can impact activities in the intracellular and extracellular environs, during stress responses as an example [9]. Of further significance are the reactive nitrogen species (RNS), such as nitric oxide (NO) and peroxynitrite (ONOO−) [10]. Hydrogen sulfide (H2S) too, is an important signalling molecule [11], often produced, along with ROS and RNS, during stress responses [12].
As these molecules can be generated by plant cells concomitantly, both temporally and spatially, it is likely that there would be an interplay between them [13], and also, interactions with H2. This crosstalk could, of course, be bidirectional wherein H2 may interfere with NO signalling, for example. Alternatively ROS and NO may also modify H2 metabolism. In either case, signalling events would be affected, and this would influence both short-term and long-term cellular activities.
H2 is an extremely small (MW 2.016 g/mol) and relatively inert molecule. As a consequence, it is hard to envisage how it can be perceived by a classical receptor protein, or how it could partake in the control of proteins through covalent modifications, as has been found for NO effects, typically through S-nitrosation [14]. However, H2 has been shown to have effects through the selective removal of reactive oxygen species (ROS), in particular hydroxyl radicals [15], and the scavenging of RNS, in particular peroxynitrite. H2 is also known to have effects through action on haem oxygenase enzymes (e.g., HO-1) [16]. It has also been mooted that the physical properties of H2 may mediate some of the effects seen in higher plants and animals [17]. However, we are currently far from a full understanding of how H2 interacts with cellular components and influences cellular activity, and a great deal of research into the molecular mechanisms of the interplay between molecular hydrogen and cellular systems will be required if we are to elucidate such complexities.
Cells may be exposed to H2 from both endogenous and exogenous sources. Exogenous sources, such as the arrival of H2 from the environment, are important to consider, especially as this may be the way H2 is used as a medication or agricultural treatment. However, many organisms are known to contain discrete hydrogenase enzymes responsible for the reversible oxidation of molecular hydrogen. Such enzymes are typically classified on the basis of their metal chelation properties e.g., Fe, FeFe, and NiFe [18], which may either generate or remove molecular hydrogen in cellular systems. In animals, the gut microflora is also an important source of H2 [19]; however, non-gut bacteria may also contribute to accumulation of H2 in biological systems [20]. Here, bacteria as a H2 source for plants is briefly discussed.
In this review, the manner in which plants can be exposed to molecular hydrogen are explored, along with a discussion of how the enzymes involved may be impacted on by reactive signalling entities such as nitric oxide. The effects that have been reported in plants are also discussed, although the molecular mechanisms underpinning the action of H2 is not clear. Future work in this area may open the way for beneficial treatments of plants [5], a topic which will be briefly discussed here as well.

2. Hydrogen Production by Chlamydomonas reinhardtii

Algae are convenient and well-used models for exploring the biochemistry and physiology of higher plants. In this regard, the species Chlamydomonas reinhardtii is commonly used [21]. C. reinhardtii is a single-celled alga that has two flagella and a large single chloroplast occupying the majority of intracellular space. Although not a higher plant, it is pertinent here as it has the capacity to produce molecular hydrogen [22]. C. reinhardtii contains two [FeFe]-hydrogenases (HYDA1 and HYDA2; 497 and 505 amino acid lengths, respectively) [23]. Interestingly, all algal species studied that possess hydrogenase activity contain two such enzymes, which are likely to have formed from gene duplication events. Here, the hydrogenases are stromal located enzymes which are coupled to the electron transport of photosynthesis, accepting electrons from ferredoxin [24]. In the short term, electrons can be supplied via Photosystem II (PSII), but generated oxygen will soon inhibit the hydrogenase activity. Over the longer term, such activity can be driven from a NAD(P)H-plastoquinone-oxidoreductase [25]. Factors here that are noteworthy include the aforementioned hydrogenase genes, which are only expressed in the absence of oxygen [26], and that H2 production is increased in the absence of CO2. Hydrogen production is also light dependent but H2 is increased in low sulfur [25]. When considering these observations, it appears that production of H2 is dependent on the action of PSII, and the subsequent generation of starch, which is used as an electron donor [27]. However, mutants that lack Rubisco also do not accumulate starch, but these cells can produce H2, probably through the action of PSII [22]. When working with algae, Torzillo et al. [28], recognized that sulfur-depleted C. reinhardtii cells produced H2 in vivo at a rate in the order of 10 nmol.hr−1.µg Chlorophyll−1. Production in a D1 (a protein in the PSII center) mutant resulted in considerably more H2, mainly because generation was prolonged for longer [28]. In addition to this, a study designed by Philipps et al. [29] investigated what would happen under nitrogen deficiency, and although starch was accumulated when sulfur was deficient—which should increase H2—it was found that H2 generation was low [29]. It was suggested that this was because of increased cytochrome b6f complex degradation and reduced amounts of ferredoxin.
It is clear, therefore, that some lower photosynthetic organisms such as C. reinhardtii can produce significant amounts of H2 under certain environmental conditions. The probable function is to aid in the coordination of electron flow during times of altered environmental conditions, such as the rising presence of oxygen. Sustained H2 generation is probably wasteful to the cells [23]. However, such H2 production, if it can be increased and sustained will be of interest as a method for generating H2 gas as a biofuel [30,31].
A BLAST search using the HYDA1 amino acid sequence shows that many other algae also have homologous hydrogenase proteins, including Tetrabaena socialis, Gonium pectoral, Volvox carteri and Chlorella (data not shown). Clearly, H2 metabolism in green algae is a common occurrence, not exclusive to C. reinhardtii.

Possible Control of Algal Hydrogenases

As discussed in more depth below, H2 may have effects on ROS and NO metabolism. Therefore, it may be that a feedback mechanism would allow effects of ROS and NO in the control of hydrogenase activity. It was reported a long time ago that hydrogenases could be inhibited by NO [32]. NO is likely to act on proteins by covalently modifying cysteine residues through S-nitrosation to create the -SNO group [33], or through modification of tyrosine residues forming a nitrotyrosine group [34]. Evidently, HYDA1 has eleven cysteine residues, whilst HYDA2 has nine, with six common to both (data not shown), so there is a possibility of thiols being able to be covalently modified by ROS or NO, assuming such thiols are accessible and not buried in the protein structure. Using the iSNO-PseAAC prediction tool [35] to find possible positions of -SNO groups in HYDA1, Cys54, Cys170, Cys191, and Cys225 are suggested to be S-nitrosated. Using the HYDA2 sequence Cys17, Cys33, Cys194, and Cys228 are suggested to be S-nitrosated. The common ones shared by these two sequences are Cys191/194 and Cys225/228 (data not shown), perhaps suggesting that they may be significant for NO modification. However, it has been suggested that the three-dimensional structure around the nitrosated cysteine is important, rather than the amino acid sequence directly next the cysteine [36]. It has also been noted that for the formation of the -SNO group the presence of a (IL)-X-C-X-X-(DE) motif is favourable [37]. Both the HYDA1 and HYDA2 sequences are devoid of this sequence (data not shown), and perhaps therefore are not able to be S-nitrosated.
Of course, it may not be the amino acid sequence which is the target for control of hydrogenases. It has long been known that NO inhibits such enzymes [32], but more recently the NiFe hydrogenase of Desulfovibrio fructosovorans has been studied. Here, Ceccaldi et al. [38] demonstrated that the metallic elements were the target of NO, and that NO inhibited the NiFe active site whilst also irreversibly damaging the iron–sulfur centers [38]. Therefore, for NO action there is no specific requirement for a thiol modification at all.
No amino acid motif has been reported for ROS modification of thiols, so this would still be a matter for debate. Similarly, despite an extensive study on S-persulfidation in Arabidopsis thaliana there was no consensus of a target amino acid sequence for H2S mooted [39]. It has been suggested that sites that are S-persulfidated are similar in nature to those S-nitrosated [40], with the three-dimensional aspects of the thiol of vital importance, and with glutathione persulfide (GSSH) mediating the amino acid modification.
In a similar way, it might be possible to predict if such proteins are tyrosine nitrated. A nitration motif has been suggested [41] with the sequence:
-DKDADGWISPAYAK-
where the target tyrosine is underlined and bold. However, even though the HYDA1 sequence has nine tyrosine residues, there is no similarity in their surrounding sequences to the nitration sequence given here. HYDA2 differs in that it has eight tyrosine amino acids, and again there is no evidence that tyrosine nitration should be predicted (data not shown). Interestingly, "Prosite" [42] shows no prediction of tyrosine phosphorylation either (data not shown).
Others have designed a motif which may be glutathionylated [43]. This sequence is similar to the nitration sequence, both being based on EF-hand motifs. Here the sequence is:
-DKDADGWCG-
where the target cysteine is underlined and bold. Again, no similarly to this sequence is found in either the HYDA1 and HYDA2 amino acid sequences, which is not surprising as Prosite [42] does not predict the presence of a EF-hand consensus sequence either. This latter point might cast doubt on any control through Ca2+ metabolism too, which is important in many plant cell responses [44], although there are other methods of Ca2+ ion control other than the action of EF-hands.

3. Hydrogenases of Higher Plants

It has been known for a long time that hydrogen is metabolized by higher plants and that (FeFe)-hydrogenases exist in eukaryotic species, including plants [45]. These metallo-protein complexes appear to be able to catalyze both forward and backwards reactions, effectively removing or generating H2. They also seem to be involved in the appropriate biosynthesis of (Fe-S) clusters and the sensitivity to O2. Knockouts of encoding genes leads to poor plant development, with these enzymes appearing to be involved in the control of the cell cycle and sugar metabolism [46], as well as transcription control and in stress responses [47]. Eukaryotic hydrogenases are often referred to as NAR (nuclear architecture related) or GOLLUM (different oxygen levels influences morphogenesis) proteins. For example, in plants there is GOLLUM1 in Medicago truncatula [48] and AtNAR1 in Arabidopsis [49], although currently such naming appears to be interchangeable.
It is tempting, as with the hydrogenases in C. reinhardtii, to suggest that redox signalling molecules may have an impact on the action of higher plant hydrogenases. As with the HYDA1 and HYDA2 sequences above, if such enzymes are controlled by the presence of ROS, NO, or H2S, then thiol side groups may be the targets for modification. This may, for example, be for covalent modification with ROS or NO, but neither polypeptide sequence contains any -SNO motifs ((IL)-X-C-X-X-(DE) [37]) suggesting that control by NO by this means is unlikely. A brief analysis of the Arabidopsis AtNar1 sequence (Accession number: NM_117739) shows 13 cysteine residues. When aligned with the ferredoxin hydrogenase from Artemisia annua (sweet wormwood or qinghao: Accession number: PWA71961) there is 69% identity in the sequence. Interestingly, all but one of the cysteine residues is conserved, thereby evolution would suggest that they are retained for a reason.
Aligning these plant sequences with the sequence for the human cytosolic iron-sulfur assembly component 3 isoform 1 (Accession number: NP_071938.1), using Clustal Omega [50], there are still nine conserved cysteine residues. Surprisingly, Cys 380 is conserved in Arabidopsis AtNAR1 but not in the Artemisia sequence, yet it is contained in the human sequence (Figure 1). The human sequence also contains three cysteine residues not found in the plant sequences, but still they do not fall in a -SNO conserved region. However, putting the sequence through the iSNO-PseAAC prediction tool [35] gives the data shown in Table 1. Four conserved cysteine residues in the three sequences investigated were predicted to be modified by NO. Using the Arabidopsis sequence numbers, these were Cys24, Cys177, Cys233, and Cys362. Interestingly, two of these are conversed also in the human sequence: Cys177 and Cys233 (Table 1 and Figure 1). Such conservation across a wide range of species suggests that they have a possible significant role and it may be that they are there for control through NO signalling. This is, of course, with the caveat that it has been suggested that the three-dimensional orientation of the amino acids is more important than the sequence in the region [36]. Furthermore, as discussed above, it is likely that the metal prosthetic groups are the target for NO, rather than the amino acid thiol side chains [38].
The three-dimensional orientation of amino acids may be important for S-persulfidation of these proteins as well [40], although there appears to be no evidence in the literature of hydrogenases being covalently modified in this way. This being said, it is known that hydrogenases are inhibited by H2S [51], perhaps by attack on the metal center, as suggested for NO [38].
All three sequences (Human, Arabidopsis, and Artemisia: Figure 1) have eight conserved tyrosine residues. It is possible that they may be used for nitro-tyrosine formation, but there is no evidence of the conserved region used by Urmey and Zondlo [41]. In a similar way, looking for the cysteine residues which may be glutathionylated [43], there is no evidence of this sequence being in the hydrogenase amino acid sequences investigated here (Figure 1). From what can be considered a rather naïve point of view, using bioinformatics, it is therefore possible that hydrogenases in higher organisms are inhibited by NO through thiol modification, and possibly by ROS, but as yet there is little evidence that such control is significant.

4. Influence of Bacteria on Hydrogen Availability to Plants

As well as from endogenous sources, the bioavailability of H2 can be influenced by external factors. Naturally, this may be from other organisms [52], such as bacteria [53] or fungi [54], for example. It has also been suggested that bacteria in the soil which oxidize H2 can promote the growth of plants [55]. Nutrient availability, and factors which affect it, are crucial for plant growth [56], as well affecting mineral accumulation in crops [57]. Clearly plant/soil interactions are crucial for healthy plants [58].
As far back as 1937, Wilson and Umbreit [59] reported the effects of H2 on nitrogen fixation. Root nodules containing a symbiont are known to evolve H2; however, this appears to be detrimental to nitrogen fixation. Endogenously, H2 is a by-product of nitrogenase activity [60], with approximately 50% of the electrons being used to fix nitrogen, the rest being used to produce H2. This is then lost to the environment [61], possibly accounting for some of the benefits of crop rotation [62].
H2 oxidizing bacteria are known to be associated with many plants and such organisms as streptomyces in particular contain an (NiFe)-hydrogenase. To illustrate, Kanno et al. [63] inoculated seedlings of Oryza sativa and Arabidopsis thaliana with streptomyces and found that the bacteria were taken into the plant tissues and that their H2 oxidizing activity continued. Likewise, treatment of soils with H2 can alter the populations of microorganisms which may be found there [2], and this can also have an influence on plant growth.
It has long been known that some hydrogenases can be inhibited by NO [32], and that hydrogenase enzymes can also be inhibited by O2, CO, and acetylene [64]. The inhibition by NO was originally reported for Proteus vulgaris in 1954 [32]. Since then, it has been determined that NO may influence the [Fe-S] clusters [65]; however, it should be noted that the interaction of (NiFe)-hydrogenase with NO is much more complex than this [38]. Nevertheless, these studies indicate that NO can indeed influence hydrogenase activity. Furthermore, such hydrogenases have also been identified as being inhibited by H2S [51]. As plants are known to produce both NO [66] and H2S [67], there is potential for an interaction between gaseous signalling species, this would effectively modulate H2 metabolism and any subsequent downstream effects.

5. How to Treat Plants with Molecular Hydrogen

Molecular hydrogen is a gas, and so the obvious way to treat an organism is to use it as an aerosol. This approach is used to treat animals which can breathe the gas in, and is often utilized in the medical arena [3]. However, for plants, unless this is carried out in an enclosed space this would not be a practical approach. In addition, H2 in its gaseous form is also highly flammable, and so safety issues need to be a primary consideration. Therefore, for large scale treatments, including agriculture, an alternative approach needs to be taken.
Often hydrogen is given to an organism as a saturated solution. This may be what is referred to as hydrogen–rich water (HRW), as used by Liu et al. [68]. To produce this water can be bubbled with hydrogen gas. The solubility of H2 is relatively low, and it has been suggested, using Henry’s Law, that a saturated solution has a concentration of H2 of approximately 1.6 mg·L−1 (equivalent to 0.8 mM) [69]. However, H2 will rapidly enter the vapor phase (atmosphere) so a saturated solution would not retain this concentration of H2 for long. An alternate method for producing HRW is to use a magnesium-based tablet. With many commercial products available, it is relatively easy to produce a water-based solution enriched with H2. To treat plants, such a solution can be watered onto the soil or sprayed over the foliage. However, if H2-generating tablets are used, it should be considered that there will be by-products left over in the solution, including additives included by the tablet manufacturers. In addition, of possible important use, commercially available products that utilize methylene blue-based techniques and quantify the dissolved hydrogen in solution, have been developed [70]. Therefore, an estimation of dissolved H2 can be obtained before any solution is used, which will help in ensuring preparations are suitable before treatments are given.
Alternatively, a saline, or salt solution can be enriched, in what is referred to as hydrogen-rich saline (HRS). Although useful for animal research [71], this is less likely to be useful for plant treatments, unless high salt is needed or being studied, such as carried out by da-Silva et al. whilst looking at the effects of H2S [72].
From a biological viewpoint the treatment of plants with H2 should be relatively safe. There are few, if any, detrimental effects of H2 on biological systems. However, from a pragmatic point of view, it has to be remembered that H2 is highly explosive, especially the presence of atmospheric oxygen. Therefore large-scale spraying of crops may require some safety measures.
For an overview on the application of molecular hydrogen, along with the use of other reactive molecules used in signalling, a review by Hancock [73] is recommended.

6. H2 Effects on Plants

H2 is involved in a range of physiological responses in plants, which is one of the reasons why it has been proposed to be a useful tool for agriculture [20]. As only some highlights are discussed here, an in-depth review by Li et al. [2], which focusses on the multiple roles of H2 within plant systems is recommended.
An early study looked at the uptake of H2 by leaves [74]; however, as previously discussed, plants produce molecular hydrogen by endogenous means as well. To exemplify, in experimental studies using tomato plant seedlings, endogenous H2 generation was stimulated by treatment with naphthalene-1-acetic acid (NAA; an auxin analogue), whilst H2 generation was later reduced by the inhibition of auxin transport with N-1-naphthyphthalamic acid (NPA). These experiments have demonstrated that an increase of biologically available H2 can promote lateral root development with both NAA and H2 promoting the generation of NO, hypothesized to mediate the effects seen [75]. Additionally, Lin et al. [16] have also reported that the application of HRW could regulate root development in cucumber plants. Here, the response was thought to be mediated through the enzyme HO-1. Post-harvest, treatment with hydrogen may be beneficial too. It was found that treatment of kiwi fruits with HRW delayed ripening. Lipid peroxidation was lowered and activity of superoxide dismutase was increased [6].
In a similar manner to that seen with ROS, NO and H2S, H2 has been implicated in mediating stress responses in plants. The inhibition of root elongation by aluminum was alleviated by H2 in alfalfa [76]. Interestingly this response also involved NO signalling. Others too have reported H2 effects on aluminum stress [77]. Here, plant hormones such as gibberellic acid (GA) and abscisic acid (ABA) were implicated, along with mechanisms which involved miRNA and gene expression. Zeng et al. [78] showed that ABA, jasmonic acid (JA), and ethylene all increased H2 generation in rice. They also showed that H2 had significant effects on the levels of antioxidants, and on gene expression. Such mechanisms were shown to bestow stress tolerance during salt and drought stress [7]. This is also evidenced in additional research that supports the supposition that H2 treatments can alleviate salt stress [79,80]. H2 treatment has also been shown to mitigate other stresses as well, for example, HRW reduced cadmium ion toxicity in Medicago sativa [6] and mercury ion stress in alfalfa [81].
Earlier in this paper the interplay between H2 and other reactive signalling systems has been described, how excess ROS can cause oxidative stress, and which molecules may be induced by the presence of other stress initiators, such as heavy metals [82]. Of pertinence here is an empirical study conducted by Jin et al. [83], utilizing alfalfa seedlings as a model. Here, H2 gas was shown to increase the tolerance to oxidative stress induced by the presence on paraquat (which increases the accumulation of ROS) [83]. This effect was mediated by the haem oxygenase system in these plants. Hydrogen treatment has also been shown to alleviate oxidative stress in other organisms too, such as animalia and human beings [84], although the mechanism of action remained elusive. Clearly, H2 has effects on some ROS and RNS species, such as hydroxyl radicals [15], but this is unlikely to be the only mode of action of H2 as upregulation of antioxidant genes is another, as yet not well understood, example of the beneficial effects attributed to H2. Some of the effects of H2 on plants discussed here are summarized in Table 2.

7. Conclusions and Perspectives

There is a growing body of evidence that molecular hydrogen is perceived by organisms and has beneficial effects. Lower plants such as C. reinhardtii are known to produce substantial quantities of H2, so much so that their use as a source of H2 to be used as a biofuel has been suggested [30,31]. Higher plants also contain hydrogenases, which catalyze the reversible oxidation of H2. H2 is likely to be present in cells spatially and temporally with other reactive molecules used in cell signalling, such as ROS, NO, and H2S. Therefore, the interplay between H2 enzymes and metabolism will need to take this into account in future enquiries. Spatial and temporal measurements of all the reactive molecules involved in signalling need to be undertaken, probably requiring new fluorescent probes. Only by knowing where and when all relevant players in the regulatory orchestra are accumulated, will a full understanding of the manner in which they give a coordinated response be gained.
Hydrogenase enzymes are known to be inhibited by NO [32]. Even though -SNO formation sites can be predicted in hydrogenase sequences using algorithms such as iSNO-PseAAC [32], there is little, if any, experimental evidence that they are used in such a way, rather that the metal centres are likely targets [38]. Similarly, hydrogenases are known to be inhibited by H2S [52], but again there is little evidence of such proteins being S-persulfidated. Future experimental work should be focused on clarifying if there are any effects of NO, ROS, and H2S on the accumulation of H2 in plant cells.
The bioavailability of H2 for a plant will also be influenced by the environment, perhaps by associated organisms. However, it is now well known that climate change-induced abiotic stress events such as droughts, floods, or soil infertility in particular are exerting a negative influence on agricultural yields. With the frequency of such challenging situations increasing, there is an inescapable need to search for yield enhancing strategies to meet the target of food security for feeding the growing human population. Another aspect that favours the utilization of non-toxic substances such as molecular hydrogen, is the current and continued usage of chemical fertilizers for enhancing yields. These practices are not sustainable when considering long-term future plans as the chemicals used in these products are recognized as being environmentally destructive, on land and in aqueous regions, where there is a threat to life caused by noxious chemicals leaching from surrounding farm lands. Figure 2 gives a brief synopsis of how molecular hydrogen can effectively increase the quality, yields, and longevity of produce whilst reducing both production and environmental costs.
Of particular interest to plant science is how the application of H2 can be carried out in a commercial setting [20], and how this may be made sustainable and safe, considering hydrogen is highly inflammable. Spray treatments with HRW are probably the most convenient, cost-effective, and practical methods, where delivery can theoretically be applied either onto the soil or directly onto the foliage. In light of this, and with future vertical farming in mind, future inquiry should also include the application of H2 within hydroponic cultures.
It is extremely unlikely that plant cells perceive the presence of molecular hydrogen in a truly classical manner, by utilizing a cell receptor protein. Effects of H2 application have been seen on the levels of some reactive signalling molecules, particularly hydroxyl radicals and peroxynitrite, with other ROS and RNS being relatively unaffected [14]. Effects have also been reported on haem-oxygenase activity [76], whilst it has been postulated that the physical properties of H2 may be important in mediating HO-1 activity [16]. Certainly, much more work needs to be carried out to ascertain how H2 has effects on the biochemical processes inside cells. Many enzymes and regulatory proteins are redox sensitive, and the manner in which H2 interacts with the intracellular redox environment will need to be explored. Therefore, future work may also need to focus on exploring how H2 alters gene expression and the complement of proteins in cells. This may, of course, be different in distinct plant tissues, so work would need to be carried out on roots and leaves, for example, as well as using specialist cells within those tissues, such as guard cells.
It is reasonably well established that H2 has profound effects on plants, and can promote plant growth and development, and help to alleviate stress responses. Unlike ROS, NO, and H2S, which are all extremely toxic, (despite being used as signalling molecules) [13,85], molecular hydrogen, either as a gas or dissolved in water (HRW), is thought to be biologically safe [84]. Therefore, manipulation of the availability of molecular hydrogen to plants, and a full appreciation of the effects it elicits, along with an understanding of the underpinning mechanisms of action of H2, should be a priority in future plant science endeavors for such work is likely to enhance plant growth and crop yields in the future.

Author Contributions

J.T.H. contributed to the draft of this manuscript and carried out the bioinformatics. G.R. and F.Z. contributed to the draft manuscript and aided in the editing of the work before submission. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are grateful to the University of the West of England, Bristol, for supporting JTH’s time to write this article and for access to the literature.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Huang, L. Molecular hydrogen: A therapeutic antioxidant and beyond. Med. Gas Res. 2016, 6, 219–222. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Li, C.; Gong, T.; Bian, B.; Liao, W. Roles of hydrogen gas in plants: A review. Funct. Plant Biol. 2018, 45, 783–792. [Google Scholar] [CrossRef] [PubMed]
  3. Ge, L.; Yang, M.; Yang, N.-N.; Yin, X.-X.; Song, W.-G. Molecular hydrogen: A preventive and therapeutic medical gas for various diseases. Oncotarget 2017, 8, 102653–102673. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Hong, Y.; Chen, S.; Zhang, J.M. Hydrogen as a selective antioxidant: A review of clinical and experimental studies. J. Int. Med Res. 2010, 38, 1893–1903. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Zeng, J.; Ye, Z.; Sun, X. Progress in the study of biological effects of hydrogen on higher plants and its promising application in agriculture. Med. Gas Res. 2014, 4, 15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Cui, W.; Gao, C.; Fang, P.; Lin, G.; Shen, W. Alleviation of cadmium toxicity in Medicago sativa by hydrogen-rich water. J. Hazard. Mater. 2013, 260, 715–724. [Google Scholar] [CrossRef]
  7. Chen, Y.; Wang, M.; Hu, L.; Liao, W.; Dawuda, M.M.; Li, C. Carbon monoxide is involved in hydrogen gas-induced adventitious root development in cucumber under simulated drought stress. Front. Plant Sci. 2017, 8, 128. [Google Scholar] [CrossRef]
  8. Hu, H.; Li, P.; Wang, Y.; Gu, R. Hydrogen-rich water delays postharvest ripening and senescence of kiwifruit. Food Chem. 2014, 156, 100–109. [Google Scholar] [CrossRef]
  9. Miller, G.; Suzuki, N.; Ciftci-Yilmaz, S.; Mittler, R. Reactive oxygen species homeostasis and signalling during drought and salinity stresses. Plant Cell Environ. 2010, 33, 453–467. [Google Scholar] [CrossRef] [PubMed]
  10. Corpas, F.J. Reactive nitrogen species (RNS) in plants under physiological and adverse environmental conditions: Current view. Prog. Bot. 2016, 78, 97–119. [Google Scholar]
  11. Filipovic, M.R.; Jovanović, V.M. More than just an intermediate: Hydrogen sulfide signalling in plants. J. Exp. Bot. 2017, 68, 4733–4736. [Google Scholar] [CrossRef] [PubMed]
  12. Lisjak, M.; Teklic, T.; Wilson, I.D.; Whiteman, M.; Hancock, J.T. Hydrogen sulfide: Environmental factor or signalling molecule? Plant Cell Environ. 2013, 36, 1607–1616. [Google Scholar] [CrossRef] [PubMed]
  13. Hancock, J.T.; Whiteman, M. Hydrogen sulfide and cell signaling: Team player or referee? Plant Physiol. Biochem. 2014, 78, 37–42. [Google Scholar] [CrossRef] [PubMed]
  14. Sánchez-Vicente, I.; Fernández-Espinosa, M.G.; Lorenzo, O. Nitric oxide molecular targets: Reprogramming plant development upon stress. J. Exp. Bot. 2019, 70, 4441–4460. [Google Scholar] [CrossRef] [Green Version]
  15. Ohsawa, I.; Ishikawa, M.; Takahashi, K.; Watanabe, M.; Nishimaki, K.; Yamagata, K.; Katsura, K.; Katayama, Y.; Asoh, S.; Ohta, S. Hydrogen acts as a therapeutic antioxidant by selectively reducing cytotoxic oxygen radicals. Nat. Med. 2007, 13, 688. [Google Scholar] [CrossRef]
  16. Lin, Y.; Zhang, W.; Qi, F.; Cui, W.; Xie, Y.; Shen, W. Hydrogen-rich water regulates cucumber adventitious root development in a heme oxygenase-1/carbon monoxide-dependent manner. J. Plant Physiol. 2014, 171, 1–8. [Google Scholar] [CrossRef]
  17. Hancock, J.T.; Hancock, T.H. Hydrogen gas, ROS metabolism, and cell signaling: Are hydrogen spin states important? React. Oxyg. Species 2018, 6, 389–395. [Google Scholar] [CrossRef]
  18. Vignais, P.M.; Billoud, B.; Mayer, J. Classification and phylogeny of hydrogenases. FEMS Microbiol. Rev. 2001, 25, 455–501. [Google Scholar] [CrossRef]
  19. Hylemon, P.B.; Harris, S.C.; Ridlon, J.M. Metabolism of hydrogen gases and bile acids in the gut microbiome. FEBS Lett. 2018, 592, 2070–2082. [Google Scholar] [CrossRef]
  20. Ostojic, S.M. Non-gut microbiota as a source of bioactive hydrogen. Postgrad. Med. J. 2017, 93, 170. [Google Scholar] [CrossRef]
  21. Jeanneret, R.; Contino, M.; Polin, M. A brief introduction to the model microswimmer Chlamydomonas reinhardtii. Eur. Phys. J. Spec. Top. 2016, 225, 2141–2156. [Google Scholar] [CrossRef] [Green Version]
  22. Hemschemeier, A.; Fouchard, S.; Cournac, L.; Peltier, G.; Happe, T. Hydrogen production by Chlamydomonas reinhardtii: An elaborate interplay of electron sources and sinks. Planta 2008, 227, 397–407. [Google Scholar] [CrossRef] [PubMed]
  23. Meuser, J.E.; D’Adamo, S.; Jinkerson, R.E.; Mus, F.; Yang, W.; Ghirardi, M.L.; Seibert, M.; Grossman, A.R.; Posewitz, M.C. Genetic disruption of both Chlamydomonas reinhardtii [FeFe]-hydrogenases: Insight into the role of HYDA2 in H2 production. Biochem. Biophys. Res. Commun. 2012, 417, 704–709. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Happe, T.; Kaminski, A. Differential regulation of the Fe-hydrogenase during anaerobic adaptation in the green alga Chlamydomonas reinhardtii. Eur. J. Biochem. 2002, 269, 1022–1032. [Google Scholar] [CrossRef] [PubMed]
  25. Melis, A.; Zhang, L.; Forestier, M.; Ghirardi, M.L.; Seibert, M. Sustained photobiological hydrogen gas production upon reversible inactivation of oxygen evolution in the green alga Chlamydomonas reinhardtii. Plant Physiol. 2000, 122, 127–135. [Google Scholar] [CrossRef] [Green Version]
  26. Forestier, M.; King, P.; Zhang, L.; Posewitz, M.; Schwarzer, S.; Happe, T.; Ghirardi, M.L.; Seibert, M. Expression of two [Fe]-hydrogenases in Chlamydomonas reinhardtii under anaerobic conditions. Eur. J. Biochem. 2003, 270, 2750–2758. [Google Scholar] [CrossRef]
  27. Fouchard, S.; Hemschemeier, A.; Caruana, A.; Pruvost, J.; Legrand, J.; Happe, T.; Peltier, G.; Cournac, L. Autotrophic and mixotrophic hydrogen photoproduction in sulfur-deprived Chlamydomonas cells. Appl. Environ. Microbiol. 2005, 71, 6199–6205. [Google Scholar] [CrossRef] [Green Version]
  28. Torzillo, G.; Scoma, A.; Faraloni, C.; Ena, A.; Johanningmeier, U. Increased hydrogen photoproduction by means of a sulfur-deprived Chlamydomonas reinhardtii D1 protein mutant. Int. J. Hydrogen Energy 2009, 34, 4529–4536. [Google Scholar] [CrossRef]
  29. Philipps, G.; Happe, T.; Hemschemeier, A. Nitrogen deprivation results in photosynthetic hydrogen production in Chlamydomonas reinhardtii. Planta 2012, 235, 729–745. [Google Scholar] [CrossRef]
  30. Khetkorn, W.; Rastogi, R.P.; Incharoensakdi, A.; Lindblad, P.; Madamwar, D.; Pandey, A.; Larroche, C. Microalgal hydrogen production–A review. Bioresour. Technol. 2017, 243, 1194–1206. [Google Scholar] [CrossRef]
  31. Mahidhara, G.; Burrow, H.; Sasikala, C.; Ramana, C.V. Biological hydrogen production: Molecular and electrolytic perspectives. World J. Microbiol. Biotechnol. 2019, 35, 116. [Google Scholar] [CrossRef] [PubMed]
  32. Krasna, A.I.; Rittenberg, D. The inhibition of hydrogenase by nitric oxide. Proc. Natl. Acad. Sci. USA 1954, 40, 225–227. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Feng, J.; Chen, L.; Zuo, J. Protein S-nitrosylation in plants: Current progresses and challenges. J. Integr. Plant Biol. 2019, 61, 1206–1223. [Google Scholar] [CrossRef] [PubMed]
  34. Kolbert, Z.; Feigl, G.; Bordé, Á.; Molnár, Á.; Erdei, L. Protein tyrosine nitration in plants: Present knowledge, computational prediction and future perspectives. Plant Physiol. Biochem. 2017, 113, 56–63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Xu, Y.; Ding, J.; Wu, L.Y.; Chou, K.C. ISNO-PseAAC: Predict cysteine S-nitrosylation sites in proteins by incorporating position specific amino acid propensity into pseudo amino acid composition. PLoS ONE 2013, 8, e55844. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Ascenzi, P.; Colasanti, M.; Persichini, T.; Muolo, M.; Polticelli, F.; Venturini, G.; Bordo, D.; Bolognesi, M. Re-evaluation of amino acid sequence and structural consensus rules for cysteine-nitric oxide reactivity. Biol. Chem. 2000, 381, 623–627. [Google Scholar] [CrossRef]
  37. Jia, J.; Arif, A.; Terenzi, F.; Willard, B.; Plow, E.F.; Hazen, S.L.; Fox, P.L. Target-selective protein S-nitrosylation by sequence motif recognition. Cell 2014, 159, 623–634. [Google Scholar] [CrossRef] [Green Version]
  38. Ceccaldi, P.; Etienne, E.; Dementin, S.; Guigliarelli, B.; Léger, C.; Burlat, B. Mechanism of inhibition of NiFe hydrogenase by nitric oxide. BBA Bioenerg. 2016, 1857, 454–461. [Google Scholar] [CrossRef]
  39. Aroca, A.; Benito, J.M.; Gotor, C.; Romero, L.C. Persulfidation proteome reveals the regulation of protein function by hydrogen sulfide in diverse biological processes in Arabidopsis. J. Exp. Bot. 2017, 68, 4915–4927. [Google Scholar] [CrossRef] [Green Version]
  40. Ju, Y.; Fu, M.; Stokes, E.; Wu, L.; Yang, G. H₂S-Mediated protein S-sulfhydration: A prediction for its formation and regulation. Molecules 2017, 22, 1334. [Google Scholar] [CrossRef]
  41. Urmey, A.R.; Zondlo, N.J. Design of a protein motif responsive to tyrosine nitration and an encoded turn-off sensor of tyrosine nitration. Biochemistry 2019, 58, 2822–2833. [Google Scholar] [CrossRef] [PubMed]
  42. Sigrist, C.J.A.; de Castro, E.; Cerutti, L.; Cuche, B.A.; Hulo, N.; Bridge, A.; Bougueleret, L.; Xenarios, I. New and continuing developments at PROSITE. Nucleic Acids Res. 2012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Scheuermann, M.J.; Forber, C.R.; Zondlo, N.J. Redox-responsive protein design: Design of a small protein motif dependent on glutathionylation. Biochemistry 2018, 57, 6956–6963. [Google Scholar] [CrossRef]
  44. Aldon, D.; Mbengue, M.; Mazars, C.; Galaud, J.-P. Calcium signalling in plant biotic interactions. Int. J. Mol. Sci. 2018, 19, 665. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Renwick, G.M.; Giumarro, C.; Siegel, S.M. Hydrogen metabolism in higher plants. Plant Physiol. 1964, 39, 303–306. [Google Scholar] [CrossRef]
  46. Mondy, S.; Lenglet, A.; Cosson, V.; Pelletier, S.; Pateyron, S.; Gilard, F.; Scholte, M.; Brocard, L.; Couzigou, J.-M.; Tcherkez, G.; et al. GOLLUM [FeFe]-hydrogenase-like proteins are essential for plant development in normoxic conditions and modulate energy metabolism. Plant Cell Environ. 2014, 37, 54–69. [Google Scholar] [CrossRef] [Green Version]
  47. Nakamura, M.; Buzas, D.M.; Kato, A.; Fujia, M.; Kurata, N.; Kinoshita, T. The role of Arabidopsis thaliana NAR1, a cytosolic iron-sulfur cluster assembly component, in gametophytic gene expression and oxidative stress responses in vegetative tissue. New Phytol. 2013, 199, 925–935. [Google Scholar] [CrossRef]
  48. Scholte, M.; d’Erfurth, I.; Rippa, S.; Mondy, S.; Cosson, V.; Durand, P.; Breda, C.; Trinh, H.; Rodriguez-Llorente, I.; Kondorosi, E.; et al. T-DNA tagging in the model legume Medicago truncatula allows efficient gene discovery. Mol. Breed. 2002, 10, 203–215. [Google Scholar] [CrossRef]
  49. Luo, D.; Bernard, D.G.; Balk, J.; Hai, H.; Cui, X. The DUF59 family gene AE7 acts in the cytosolic iron-sulfur cluster assembly pathway to maintain nuclear genome integrity in Arabidopsis. Plant Cell 2012, 24, 4135–4148. [Google Scholar] [CrossRef] [Green Version]
  50. Sievers, F.; Wilm, A.; Dineen, D.; Gibson, T.J.; Karplus, K.; Li, W.; Lopez, R.; McWilliam, H.; Remmert, M.; Söding, J.; et al. Fast, scalable generation of high-quality protein multiple sequence alignments using Clustal Omega. Mol. Syst. Biol. 2011, 7, 539. [Google Scholar] [CrossRef]
  51. Vincent, K.A.; Belsey, N.A.; Lubitz, W.; Armstrong, F.A. Rapid and reversible reactions of [NiFe]-hydrogenases with sulfide. J. Am. Chem. Soc. 2006, 128, 7448–7449. [Google Scholar] [CrossRef] [PubMed]
  52. Irvine, P.; Smith, M.; Dong, Z. Hydrogen fertilizer: Bacteria or fungi? Acta Hortic. 2004, 631, 239–242. [Google Scholar] [CrossRef]
  53. Suzuki, A.; Ito, M.; Hamaguchi, T.; Mori, H.; Takeda, Y.; Baba, R.; Watanabe, T.; Kurokawa, K.; Asakawa, S.; Hirayama, M.; et al. Quantification of hydrogen production by intestinal bacteria that are specifically dysregulated in Parkinson’s disease. PLoS ONE 2018, 13, e0208313. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Ivarsson, M.; Schnürer, A.; Bengtson, S.; Neubeck, A. Anaerobic fungi: A potential source of biological H2 in the oceanic crust. Front. Microbiol. 2016, 7, 674. [Google Scholar] [CrossRef] [Green Version]
  55. Maimaiti, J.; Zhang, Y.; Yang, J.; Cen, Y.P.; Layzell, D.B.; Peoples, M.; Dong, Z. Isolation and characterization of hydrogen-oxidizing bacteria induced following exposure of soil to hydrogen gas and their impact on plant growth. Environ. Microbiol. 2007, 9, 435–444. [Google Scholar] [CrossRef]
  56. Little, C.J.; Wheeler, J.A.; Sedlacek, J.; Cortes, A.J.; Rixen, C. Small-scale drivers: The importance of nutrient availability and snowmelt timing on performance of the alpine shrub Salix Herbacea. Oecologia 2016, 180, 1015–1024. [Google Scholar] [CrossRef] [Green Version]
  57. Wu, X.; Islam, A.S.M.F.; Limpot, N.; Mackasmiel, L.; Mierzwa, J.; Cortes, A.J.; Blair, M.W. Genome-wide SNP identification and association mapping for seed mineral concentration in mung bean (Vigna radiata L.). Front. Genet. 2020, 11, 656. [Google Scholar] [CrossRef]
  58. Sedlacek, J.F.; Bossdorf, O.; Cortes, A.J.; Wheeler, J.A.; Kleunen, M. What role do plant–soil interactions play in the habitat suitability and potential range expansion of the alpine dwarf shrub Salix herbacea? Basic Appl. Ecol. 2014, 15, 305–315. [Google Scholar] [CrossRef] [Green Version]
  59. Wilson, P.W.; Umbreit, W.W. Mechanism of symbiotic nitrogen fixation. III. Hydrogen as a specific inhibitor. Arch. Mikrobiol. 1937, 8, 44–57. [Google Scholar] [CrossRef]
  60. Schubert, K.R.; Evans, H. Hydrogen evolution: A major factor affecting the efficiency of nitrogen fixation in nodulated symbionts. Proc. Natl. Acad. Sci. USA 1976, 73, 1207–1211. [Google Scholar] [CrossRef] [Green Version]
  61. Ruiz-Argüeso, T.; Maier, R.J.; Evans, H.J. Hydrogen evolution from alfalfa and clover nodules and hydrogen uptake by free-living Rhizobium meliloti. Appl. Environ. Microbiol. 1979, 37, 582–587. [Google Scholar] [CrossRef] [Green Version]
  62. Golding, A.; Dong, Z. Hydrogen production by nitrogenase as a potential crop rotation benefit. Environ. Chem. Lett. 2010, 8, 101–121. [Google Scholar] [CrossRef]
  63. Kanno, M.; Constant, P.; Tamaki, H.; Kamagata, Y. Detection and isolation of plant-associated bacteria scavenging atmospheric molecular hydrogen. Environ. Microbiol. 2016, 18, 2495–2506. [Google Scholar] [CrossRef] [PubMed]
  64. Tibelius, K.H. Hydrogenase activity in Azospirillum brasilense is inhibited by nitrite, nitric oxide, carbon monoxide, and acetylene. J. Bacteriol. 1984, 160, 103–106. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Ahmed, A.; Lewis, R.S. Fermentation of biomass-generated synthesis gas: Effects of nitric oxide. Biotechnol. Bioeng. 2007, 97, 1080–1086. [Google Scholar] [CrossRef]
  66. Kolbert, Z.; Barroso, J.B.; Brouquisse, R.; Corpas, F.J.; Gupta, K.J.; Lindermayr, C.; Loake, G.J.; Palma, M.; Petřivalský, M.; Wendehenne, D.; et al. A forty year journey: The generation and roles of NO in plants. Nitric Oxide 2019, 93, 53–70. [Google Scholar] [CrossRef] [Green Version]
  67. Gotor, C.; García, I.; Aroca, Á.; Laureano-Marín, A.M.; Arenas-Alfonseca, L.; Jurado-Flores, A.; Moreno, I.; Romero, L.C. Signaling by hydrogen sulfide and cyanide through post-translational modification. J. Exp. Bot. 2019, 70, 4251–4265. [Google Scholar] [CrossRef]
  68. Liu, F.; Jiang, W.; Han, W.; Li, J.; Liu, Y. Effects of hydrogen-rich water on fitness parameters of rice plants. Agron. J. 2017, 109, 2033–2039. [Google Scholar] [CrossRef] [Green Version]
  69. Available online: http://www.molecularhydrogeninstitute.com/concentration-and-solubility-of-h2 (accessed on 27 July 2020).
  70. Seo, T.; Kurokawa, R.; Sato, B. A convenient method for determining the concentration of hydrogen in water: Use of methylene blue with colloidal platinum. Med. Gas Res. 2012, 2, 1. [Google Scholar] [CrossRef] [Green Version]
  71. Zhai, Y.; Zhou, X.; Dai, Q.; Fan, Y.; Huang, X. Hydrogen-rich saline ameliorates lung injury associated with cecal ligation and puncture-induced sepsis in rats. Exp. Mol. Pathol. 2015, 98, 268–276. [Google Scholar] [CrossRef]
  72. Da-Silva, C.J.; Modolo, L.V. Hydrogen sulfide: A new endogenous player in an old mechanism of plant tolerance to high salinity. Acta Bot. Bras. 2018, 32, 150–160. [Google Scholar] [CrossRef] [Green Version]
  73. Hancock, J.T. Methods for the addition of redox compounds. In Redox-Mediated Signal Transduction; Hancock, J.T., Conway, M.E., Eds.; Humana: New York, NY, USA, 2019; pp. 13–25. [Google Scholar]
  74. Sanadze, G.A. Absorption of molecular hydrogen by green leaves in light. Fiziol. Rast. 1961, 8, 555–559. [Google Scholar]
  75. Cao, Z.; Duan, X.; Yao, P.; Cui, W.; Cheng, D.; Zhang, J.; Jin, Q.; Chen, J.; Dai, T.; Shen, W. Hydrogen gas is involved in auxin-induced lateral root formation by modulating nitric oxide synthesis. Int. J. Mol. Sci. 2017, 18, 2084. [Google Scholar] [CrossRef] [PubMed]
  76. Chen, M.; Cui, W.; Zhu, K.; Xie, Y.; Zhang, C.; Shen, W. Hydrogen-rich water alleviates aluminium-induced inhibition of root elongation in alfalfa via decreasing nitric oxide production. J. Hazard. Mater. 2014, 267, 40–47. [Google Scholar] [CrossRef] [PubMed]
  77. Xu, D.; Cao, H.; Fang, W.; Pan, J.; Chen, J.; Zhang, J.; Shen, W. Linking hydrogen-enhanced rice aluminum tolerance with the reestablishment of GA/ABA balance and miRNA-modulated gene expression: A case study on germination. Ecotoxicol. Environ. Saf. 2017, 145, 303–312. [Google Scholar] [CrossRef]
  78. Zeng, J.; Zhang, M.; Sun, X. Molecular hydrogen is involved in phytohormone signaling and stress response in plants. PLoS ONE 2013, 8, e71038. [Google Scholar] [CrossRef]
  79. Xie, Y.; Mao, Y.; Lai, D.; Zhang, W.; Shen, W. H2 enhances Arabidopsis salt tolerance by manipulating ZAT10/12-mediated antioxidant defence and controlling sodium exclusion. PLoS ONE 2012, 7, e49800. [Google Scholar] [CrossRef] [Green Version]
  80. Xu, S.; Zhu, S.S.; Long, J.Y.; Wang, N.; Wang, R.; Shen, W. Hydrogen-rich water alleviates salt stress in rice during seed germination. Plant Soil 2013, 370, 47–57. [Google Scholar] [CrossRef]
  81. Cui, W.; Fang, P.; Zhu, K.; Mao, Y.; Gao, C.; Xie, Y.; Wang, J.; Shen, W.B. Hydrogen-rich water confers plant tolerance to mercury toxicity in alfalfa seedlings. Ecotoxicol. Environ. Saf. 2014, 5, 103–111. [Google Scholar] [CrossRef]
  82. Fryzova, R.; Pohanka, M.; Martinkova, P.; Cihlarova, H.; Brtnicky, M.; Hladky, J.; Kynicky, J. Oxidative stress and heavy metals in plants. Rev. Environ. Contam. Toxicol. 2018, 245, 129–156. [Google Scholar]
  83. Jin, Q.; Zhu, K.; Cui, W.; Xie, Y.; Han, B.; Shen, W. Hydrogen gas acts as a novel bioactive molecule in enhancing plant tolerance to paraquat-induced oxidative stress via the modulation of heme oxygenase-1 signalling system. Plant Cell Environ. 2013, 36, 956–969. [Google Scholar] [CrossRef] [PubMed]
  84. LeBaron, T.W.; Kura, B.; Kalocayova, B.; Tribulova, N.; Slezak, J. A new approach for the prevention and treatment of cardiovascular disorders. Molecular hydrogen significantly reduces the effects of oxidative stress. Molecules 2019, 24, 2076. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Hancock, J.T. Harnessing evolutionary toxins for signaling: Reactive oxygen species, nitric oxide and hydrogen sulfide in plant cell regulation. Front. Plant Sci. 2017, 8, 189. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Plants 09 01136 g001 550

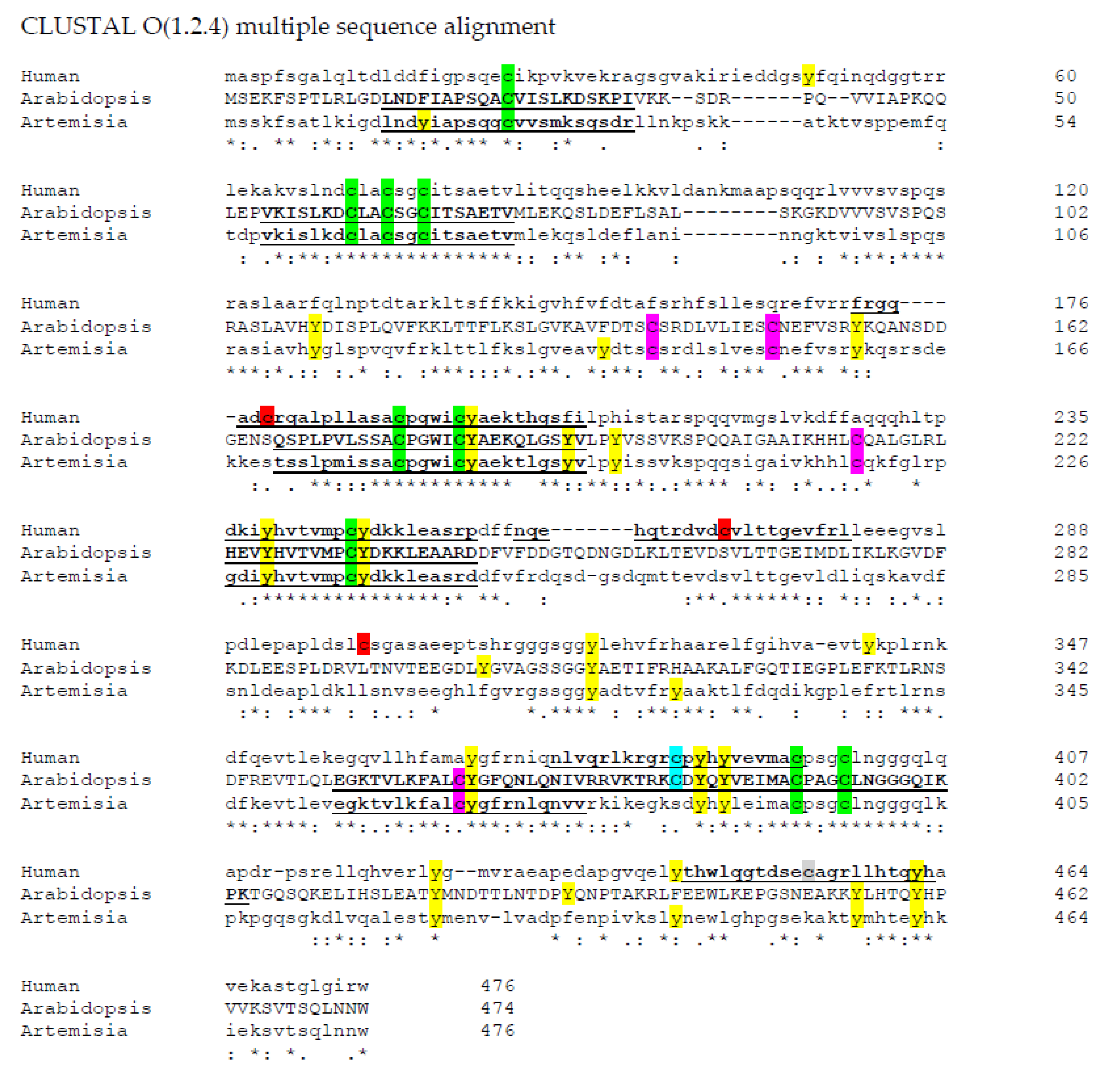

Figure 1. Amino acid sequence alignments of hydrogenases. Clustal Omega [50] was used to align three hydrogenase sequences: human cytosolic iron-sulfur assembly component 3 isoform 1(Accession number: NP_071938.1); AtNar1 (Accession number: NP_567496.4); ferredoxin hydrogenase from Artemisia annua (Accession number: PWA71961). C: Common to all sequences; C: common to just plant species; C: Common to human and Arabidopsis; C: unique to human; and Y: tyrosine residues. Sequences predicted to become -SNO using the iSNO-PseAAC prediction tool [35] are underlined and in bold. -SNO: nitrosated thiol. * Means total consensus, : means conserved changes, . means less conserved and a gap is not conserved.
Figure 1. Amino acid sequence alignments of hydrogenases. Clustal Omega [50] was used to align three hydrogenase sequences: human cytosolic iron-sulfur assembly component 3 isoform 1(Accession number: NP_071938.1); AtNar1 (Accession number: NP_567496.4); ferredoxin hydrogenase from Artemisia annua (Accession number: PWA71961). C: Common to all sequences; C: common to just plant species; C: Common to human and Arabidopsis; C: unique to human; and Y: tyrosine residues. Sequences predicted to become -SNO using the iSNO-PseAAC prediction tool [35] are underlined and in bold. -SNO: nitrosated thiol. * Means total consensus, : means conserved changes, . means less conserved and a gap is not conserved.
Plants 09 01136 g001
Plants 09 01136 g002 550

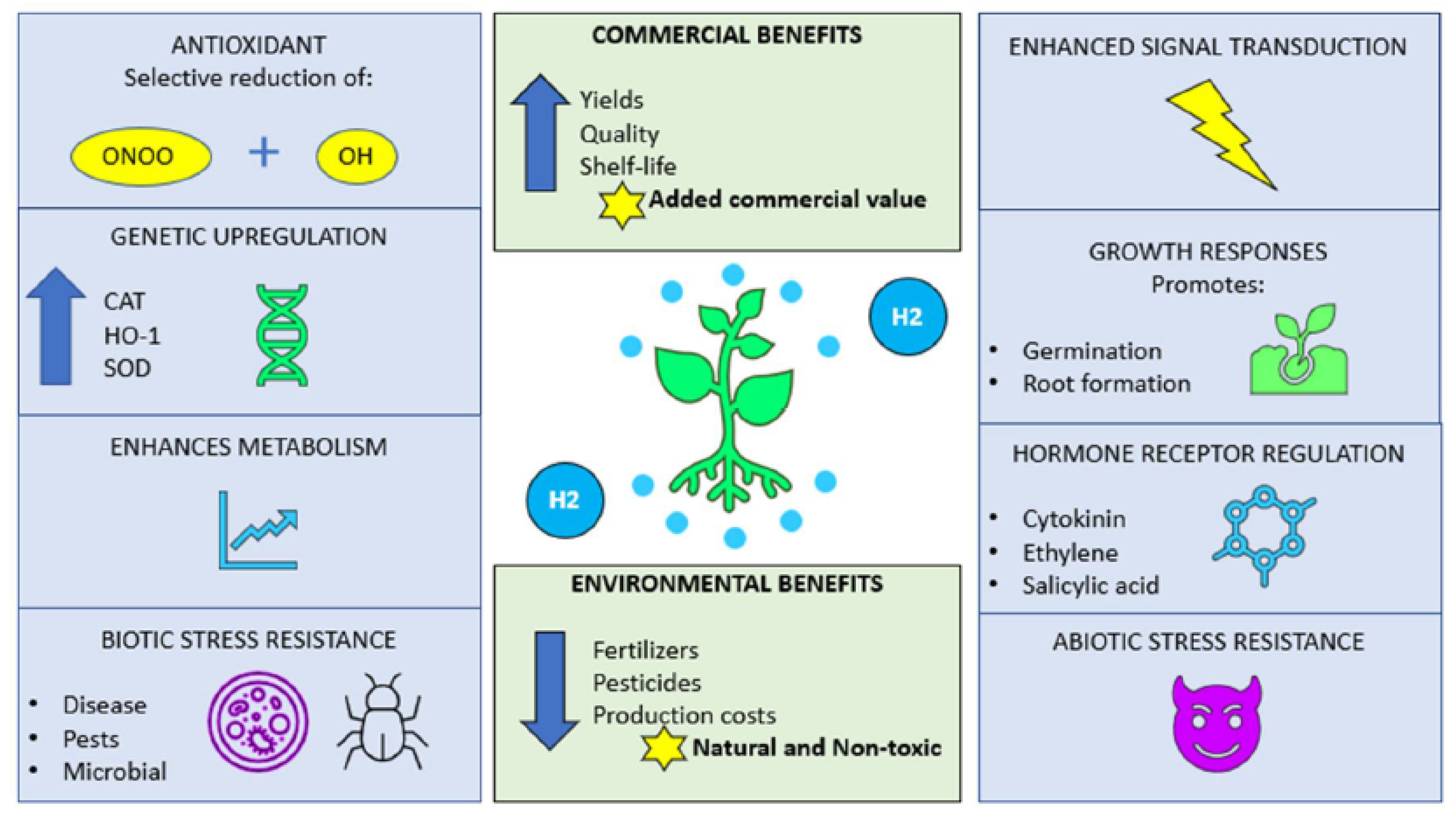

Figure 2. Possible mechanisms by which H2 acts in as a protective agent within plant systems. Several ways are shown by which H2 may act, whilst highlighting the benefits for both agricultural and environmental sustainability. ONOO: peroxynitrite; OH: hydroxyl radical; CAT: catalase; HO-1; haem oxygenase-1; and SOD: superoxide dismutase.
Figure 2. Possible mechanisms by which H2 acts in as a protective agent within plant systems. Several ways are shown by which H2 may act, whilst highlighting the benefits for both agricultural and environmental sustainability. ONOO: peroxynitrite; OH: hydroxyl radical; CAT: catalase; HO-1; haem oxygenase-1; and SOD: superoxide dismutase.
Plants 09 01136 g002
Table
Table 1. S-nitrosation sites in four hydrogenase proteins predicted using the iSNO-PseAAC prediction tool (http://app.aporc.org/iSNO-PseAAC/) [35]. Arabidopsis: ferredoxin hydrogenase (Arabidopsis thaliana) NP_567496.4; Medicago: protein NAR1 (Medicago truncatula) XP_003606579.2; Artemisia: ferredoxin hydrogenase (Artemisia annua) PWA71961.1; Human: cytosolic iron-sulfur assembly component 3 isoform 1 (Homo sapiens) NP_071938.1. Alignment table signifies that the regions are aligned in the amino acid sequences (highlighted in Figure 1). Target cysteine residues which may become -SNO are highlighted here in red. -SNO: nitrosated thiol.
Table 1. S-nitrosation sites in four hydrogenase proteins predicted using the iSNO-PseAAC prediction tool (http://app.aporc.org/iSNO-PseAAC/) [35]. Arabidopsis: ferredoxin hydrogenase (Arabidopsis thaliana) NP_567496.4; Medicago: protein NAR1 (Medicago truncatula) XP_003606579.2; Artemisia: ferredoxin hydrogenase (Artemisia annua) PWA71961.1; Human: cytosolic iron-sulfur assembly component 3 isoform 1 (Homo sapiens) NP_071938.1. Alignment table signifies that the regions are aligned in the amino acid sequences (highlighted in Figure 1). Target cysteine residues which may become -SNO are highlighted here in red. -SNO: nitrosated thiol.
ArabidopsisMedicagoArtemisiaHuman
Position of -SNOSequencePosition of -SNOSequencePosition of -SNOSequencePosition of -SNOSequence
24LNDFIAPSQACVISLKDSKPI24VNDFIVPSQACTVSLKERRLK24LNDYIAPSQGCVVSMKSGSDR
64VKISLKDCLACSGCITSAETV 68VKISLKDCLACSGCITSAETV
179FVRRFRGQADCRQALPLLASA
177QSPLPVLSSACPGWICYAEKQ176KSSLPMISSACPGLICYAEKS181TSSLPMISSACPGWICYAEKT190RQALPLLASACPGWICYAEKT
182VLSSACPGWICYAEKQLGSYV 186MISSACPGWICYAEKTLGSYV195LLASACPGWICYAEKTHGSFI
233HEVYHVTVMPCYDKKLEAARD232EEVYHVTVMPCYDKKLEASRD237GDIYHVTVMPCYDKKLEASRD246DKIYHVTVMPCYDKKLEASRP
270NQEHQTRDVDCVLTTGEVFRL
362EGKTVLKFALCYGFQNLQNIV366DGETVLKFALCYGFSNLQKNI365EGKTVLKFALCYGFRNLQNVV
380NIVRRVKTRKCDYQYVEIMAC 385NLVQRLKRGRCPYHYVEVMAC
394YVEIMACPAGCLNGGGQIKPK
453THWLQGTDSECAGRLLHTQYH
Table
Table 2. A summary of some of the effects of molecular hydrogen in plants.
Table 2. A summary of some of the effects of molecular hydrogen in plants.
Plant Species StudiesEffects of H2 StudiedCommentsReference(s)
RiceFitness parametersEffects of roots and shoot length seenEffects on reproduction reported[68]
TomatoLateral root formationEffects mediated by NO[75]
CucumberAdventitious root developmentEffects mediated by haem oxygenase[16]
KiwifruitPostharvest storageRipening and senescence was delayed[8]
AlfalfaAluminum effects of rootsMediated by NO[76]
RiceGermination in presence of aluminumEffects on hormones and miRNA levels[77]
RiceEffects on hormone signalling [78]
ArabidopsisSalt toleranceMediated by altered antioxidants and sodium exclusion[79]
RiceGermination during salt stressAlleviated oxidative stress. Antioxidants increased[80]
Medicago sativaCadmium stressAlleviated oxidative stress. Antioxidants increased[6]
AlfalfaMercury stressAlleviated oxidative stressRebalanced redox[81]
AlfalfaParaquat induced oxidative stressAlleviated oxidative stressMediated by haem oxygenase[83]

Share and Cite

MDPI and ACS Style

Russell, G.; Zulfiqar, F.; Hancock, J.T. Hydrogenases and the Role of Molecular Hydrogen in Plants. Plants 2020, 9, 1136. https://doi.org/10.3390/plants9091136

AMA Style

Russell G, Zulfiqar F, Hancock JT. Hydrogenases and the Role of Molecular Hydrogen in Plants. Plants. 2020; 9(9):1136. https://doi.org/10.3390/plants9091136

Chicago/Turabian Style

Russell, Grace, Faisal Zulfiqar, and John T. Hancock. 2020. "Hydrogenases and the Role of Molecular Hydrogen in Plants" Plants 9, no. 9: 1136. https://doi.org/10.3390/plants9091136

APA Style

Russell, G., Zulfiqar, F., & Hancock, J. T. (2020). Hydrogenases and the Role of Molecular Hydrogen in Plants. Plants, 9(9), 1136. https://doi.org/10.3390/plants9091136

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
