Thermally Induced Vibration of a Flexible Plate with Enhanced Active Constrained Layer Damping

Abstract

When spacecraft execute missions in space, their solar panels—crucial components—often need to be folded, unfolded, and adjusted at an angle. These operations can induce numerous detrimental nonlinear vibrations. This paper addresses the issues of nonlinear and thermal-coupled vibration control within the context of space-based flexible solar panel systems. Utilizing piezoelectric smart hybrid vibration control technology, this study focuses on a flexible plate augmented with an active constrained layer damping. The solar panel, under thermal field conditions, is modeled and simulated using the commercial finite element simulation software ABAQUS. The research examines variations in the modal frequencies and damping properties of the model in response to changes in the coverage location of the piezoelectric patches, their coverage rate, rotational angular velocity, and the thickness of the damping layer. Simulation results indicate that structural damping is more effective when the patches are closer to the rotation axis, the coverage area of the patches is larger, the rotational speed is lower, and the damping layer is thicker. Additionally, the effectiveness of vibration suppression is influenced by the interplay between the material shear modulus, loss factor, and specific working temperature ranges. The selection of appropriate parameters can significantly alter the system’s vibrational characteristics. This work provides necessary technical references for the analysis of thermally induced vibrations in flexible solar sails under complex space conditions.

1. Introduction

In the ongoing advancement of human spaceflight technology, flexible appendages such as solar sail panels and robotic arms have been widely utilized in aerospace applications [1,2,3,4,5]. These flexible components exploit their foldable and deployable properties to significantly reduce the overall volume of spacecraft structures and enhance operational flexibility, thereby optimizing the launch and transportation processes of spacecraft. The application of flexible appendages also significantly enhances the adaptability and operational flexibility of spacecraft in extreme external environments. For instance, the adaptive adjustment capabilities of solar sail panels greatly improve the efficiency of solar energy utilization [6,7], while the flexibility of robotic arms supports precise spatial operations and maintenance tasks [8,9,10,11]. The deployment of these technologies enables spacecraft to perform more effective payload configuration and deployment under extreme space conditions, demonstrating the modern aerospace engineering demands for flexibility, efficiency, and reliability, and opens new possibilities for the design and execution of future space missions, expanding new avenues for the exploration of distant celestial bodies and utilization of space resources.

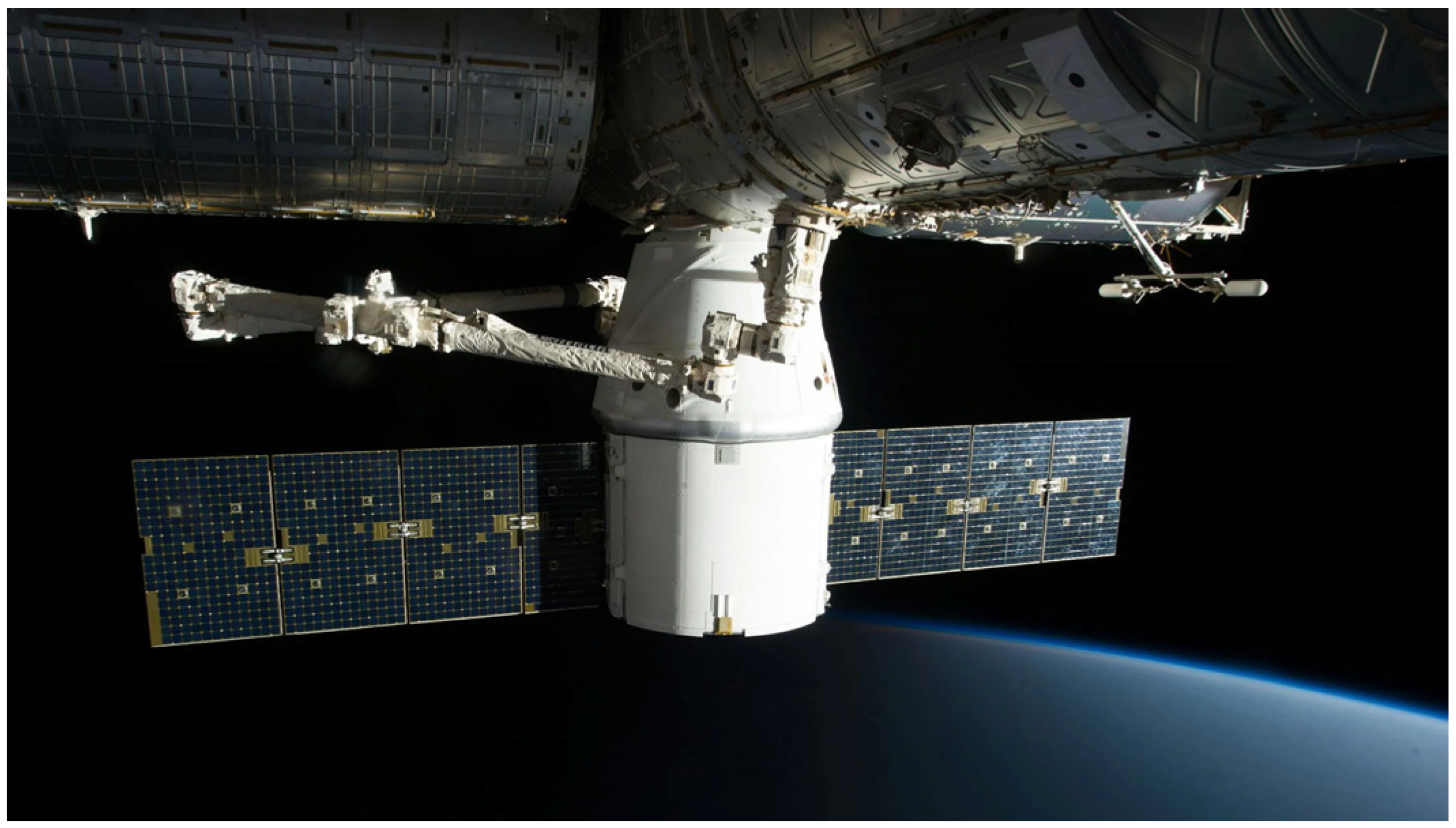

Deployable solar sail panels (as shown in Figure 1), typically made from lightweight flexible materials, are connected to the central spacecraft via a hinged mechanism. When conducting space missions under extreme space conditions, this structure often exhibits significant nonlinear vibrational coupling with the spacecraft’s main structure due to its low stiffness, large span, and weak damping characteristics [12,13,14,15]. Movements of the rigid main body during orbital maneuvers or attitude adjustments can induce vibrations in the flexible solar sails. These vibrations, due to the structural flexibility, nonlinear behavior at the hinge points, and the large span of the sails, display complex nonlinear characteristics. If these vibrations are not effectively controlled during precise scientific experiments or spacecraft docking tasks, they may lead to structural damage, affecting the normal functionality of the spacecraft.

Furthermore, solar sail panels also encounter thermal coupling vibrations influenced by direct solar radiation, Earth’s infrared radiation, and Earth’s albedo radiation [16,17,18,19]. These thermal flows not only alter the temperature distribution of the sails but also create a temperature gradient between the sails and the spacecraft main body, thereby generating thermal stresses. These thermal stresses, coupled with structural vibrations, may trigger thermally induced vibrational coupling, further complicating the dynamic behavior of the spacecraft. For instance, thermal expansion or contraction can lead to material deformation, affecting the stiffness and natural frequencies of the structure, thereby impacting the dynamic response and stability of the entire spacecraft system.

Due to the weak damping and low modal frequency characteristics of the flexible sail structures, once these adverse vibrations occur, their attenuation is typically very slow [20,21,22]. This not only interferes with the satellite’s spatial positioning accuracy, causing deviations in the system’s rigid motion posture, but also increases the risk of structural fatigue vibrations damaging the sails, thus reducing the service life of the spacecraft’s flexible appendages. In extreme cases, it could even break the support mechanisms of the sails, posing a threat to the life of extravehicular activity personnel. Consequently, the issues of dynamics and vibration control of flexible solar sails have become increasingly prominent, urgently necessitating researchers to develop more precise and efficient vibration damping methods [23,24].

Researchers have extensively studied the structural vibration control of flexible spatial components made from advanced functional materials. Common vibration-control methods include passive control, active control, and hybrid active–passive control. A technique known as Passive Constrained Layer Damping (PCLD) [25,26,27,28,29,30] involves covering the vibrating structure with ordinary constrained layers and viscoelastic material (VEM) damping layers [31,32]. This configuration suppresses vibrations by dissipating energy through the viscoelastic material when the structure vibrates. Active Constrained Layer Damping (ACLD), a vibration control technology introduced by Baz [33,34,35,36,37,38,39] in the 1990s, distinguishes significantly from traditional PCLD. ACLD employs a viscoelastic material layer sandwiched between the base layer and the constrained layer, combined with active control elements (such as piezoelectric or electromagnetic actuators), to effectively suppress vibrations. This technology integrates the advantages of passive damping and active control. By applying voltage through the controller, the shear deformation angle of the viscoelastic damping layer is increased; concurrently, the piezoelectric material’s inverse piezoelectric effect enhances the energy dissipation capacity of the damping layer when the structure is subjected to compression or tension. Through real-time adjustments to the structural response by the active elements, ACLD technology significantly enhances vibration reduction effects [40,41,42,43].

In the decades following the development of ACLD technology, numerous scholars have conducted in-depth research on its modeling assumptions, numerical methods, and control strategies. Kumar et al. [44] utilized Hamilton’s principle and the finite element method to derive the dynamic equations for beams, proposing the addition of an isolation layer between the viscoelastic layer and the base beam to enhance the damping performance of ACLD and PCLD technologies. Liao and Wang [45,46,47] introduced innovative edge elements to improve the stiffness of the entire structure and further suppress vibrations—a technique known as Enhanced Active Constrained Layer Damping (EACLD). This method improves the weakening of the active control ability caused by the dissipation of the VEM layer and enhances the efficiency of the piezoelectric layer to control and constrain the structure, which has been widely applied in subsequent research. Li et al. [48] used the assumed modal method and Lagrange’s equations to establish discrete rigid–flexible dynamic models for hub-beam systems equipped with EACLD in open- and closed-loop scenarios, demonstrating the effect of increased edge element stiffness on the system’s natural frequency, while the addition of mass to the edge elements reduced the natural frequency. Jiang et al. [49] extended the EACLD technique to plate structures, establishing a rigid–flexible dynamic model for a rotating hub-plate system treated with EACLD, considering the coupling effects of transverse bending and in-plane stretching of the rotating EACLD plate, verifying the wide applicability of EACLD technology in different structural vibration reduction applications.

In recent years, due to the focus on thermal coupling vibration issues caused by space thermal radiation in flexible appendages, researchers have also made significant progress in the field of thermally induced vibration control. Ganesan and Pradeep [50] employed the displacement field method proposed by Khatua and Cheung, using the finite element method to analyze the natural frequencies and loss factors of sandwich beams in various temperature environments, assessing the impact of the temperature-dependent shear modulus of the core material on the buckling and vibration behavior of the beams. Javani et al. [51] explored the application of active control methods and their strategies to mitigate thermally induced vibrations in functionally graded material (FGM) circular plates under thermal shocks in different boundary conditions, influenced by thermal-induced torques, forces, and thermoelectric effects. Li et al. [52] conducted studies on thermally induced vibration suppression in rotating rigid–flexible intelligent composite beams under temperature field influence, focusing on the thermal-induced vibration suppression effects in FGM beams in longitudinal and transverse directions. Fang Yuan et al. [53] and others used EACLD treatment to study the vibration control problem under thermal load shocks in high-temperature-dependent FGM base beams, considering the temperature-dependent conditions of the viscoelastic material in the constrained layer, verifying the effectiveness of EACLD treatment in suppressing thermally induced vibrations.

This paper employs finite element simulation using ABAQUS to analyze the vibrational control of EACLD plate structures in temperature fields through varying physical parameters such as temperature, patch placement, coverage, and damping layer thickness, conducting simulation analyses to study the effects of EACLD on the vibration suppression of flexible solar sail panels. The rest of the article is organized as follows: the description of constitutive relations for piezoelectric, viscoelastic, and active constrained layer damping are presented in Section 2. Section 3 illustrates the finite element model and its verification and the temperature dependence of the material model. The numerical results presenting the effects of the position/coverage area of piezoelectric patches, rotational angular velocity, and thickness of damping layers are discussed in Section 4. The main points and conclusions are summarized in Section 5.

2. Description of the Constitutive Relationship

2.1. Constitutive Relationship of Piezoelectric Materials

The first type of coupled equation for piezoelectric materials, with stress and electric field as variables, is represented as [54]:

$${\epsilon }_{ij}=s_{ijkl}^E{\sigma }_{kl}+d_{ijk}{E}_k$$

(1)

$$D_i=d_{ikl}{\sigma }_{kl}+{\epsilon }_{ij}^{\sigma }{E}_j$$

(2)

Equation (1) indicates that the strain of piezoelectric materials is composed of two parts: one due to the stress it bears and the other is due to the electric field. The first term represents the effect of stress on strain when the electric field strength is constant, and the second term represents the effect of electric field strength on strain. Equation (2) shows that the electric displacement of piezoelectric materials is influenced by both the stress it bears and the electric field, where the first term indicates the electric displacement caused by stress and the second term represents the electric displacement caused by electric field strength when the stress is zero.

In ABAQUS, it is common to use the strain and electric field strength as independent variables, employing the second type of coupled equation for piezoelectric materials [54]:

$${\sigma }_{ij}=c_{ijkl}^E{\epsilon }_{kl}-e_{kij}{E}_k$$

(3)

$$D_i=e_{ikl}{\epsilon }_{kl}+{\lambda }_{ik}^{\epsilon }{E}_k$$

(4)

The piezoelectric material used in this paper is piezoelectric ceramic. When defining piezoelectric materials in simulation software, it is necessary to input the elastic constant matrix, the relative permittivity matrix, and the piezoelectric coefficient matrix.

$$\left[\begin{array}{c}{\sigma }_{11}\\ {\sigma }_{22}\\ {\sigma }_{33}\\ {\sigma }_{12}\\ {\sigma }_{13}\\ {\sigma }_{23}\end{array}\right]=\left[\begin{array}{cccccc}{c}_{11}& c_{12}& c_{13}& 0& 0& 0\\ c_{12}& c_{11}& c_{13}& 0& 0& 0\\ c_{13}& c_{13}& c_{33}& 0& 0& 0\\ 0& 0& 0& c_{66}& 0& 0\\ 0& 0& 0& 0& c_{44}& 0\\ 0& 0& 0& 0& 0& c_{44}\end{array}\right]\left[\begin{array}{c}{\epsilon }_{11}\\ {\epsilon }_{22}\\ {\epsilon }_{33}\\ {\gamma }_{12}\\ {\gamma }_{13}\\ {\gamma }_{23}\end{array}\right]-\left[\begin{array}{ccc}0& 0& e_{31}\\ 0& 0& e_{31}\\ 0& 0& e_{33}\\ 0& 0& 0\\ e_{15}& 0& 0\\ 0& e_{15}& 0\end{array}\right]\left[\begin{array}{c}{E}_1\\ E_2\\ E_3\end{array}\right]$$

(5)

where $c_{66}=\frac{1}{2}(c_{11}-c_{12})$.

$$\left[\begin{array}{c}{D}_1\\ D_2\\ D_3\end{array}\right]=\left[\begin{array}{cccccc}0& 0& 0& 0& e_{15}& 0\\ 0& 0& 0& 0& 0& e_{15}\\ e_{31}& e_{31}& e_{33}& 0& 0& 0\end{array}\right]\left[\begin{array}{c}{\epsilon }_{11}\\ {\epsilon }_{22}\\ {\epsilon }_{33}\\ {\gamma }_{12}\\ {\gamma }_{13}\\ {\gamma }_{23}\end{array}\right]+\left[\begin{array}{ccc}{\lambda }_{11}& 0& 0\\ 0& {\lambda }_{11}& 0\\ 0& 0& {\lambda }_{33}\end{array}\right]\left[\begin{array}{c}{E}_1\\ E_2\\ E_3\end{array}\right]$$

(6)

2.2. Constitutive Relationship of the Viscoelastic Layer

In engineering, the commonly used constitutive model to describe linear viscoelastic materials is the Prony series model. Its creep form can be expressed as [55]:

$$E(t)=E_{\infty }+{\displaystyle \sum _{i=1}^n{E}_i{e}^{-t/{\tau }_i}}$$

(7)

where ${\tau }_i$ represents the relaxation time, $E_i$ is the corresponding relaxation modulus, and $E_{\infty }$ denotes the equilibrium modulus. If using the Maxwell model to describe viscoelastic materials, its mathematical expression is [56]

$$\sigma +\frac{\eta }{E}\dot{\sigma }=\eta \dot{\epsilon }$$

(8)

Note that when $t=0$, it follows that $E_0=E_{\infty }+{\displaystyle \sum E_i}$, letting $m_i=E_i/E_0$, and then we have:

$$E(t)=E_0(1-{\displaystyle \sum _{i=1}^N{m}_i})+{\displaystyle \sum _{i=1}^N{m}_i{E}_0{e}^{-t/{\tau }_i}}$$

(9)

where $E_{\infty }$ represents the long-term relaxation modulus; $E_i$ is the elastic modulus of the $i^{th}$ Maxwell model; and ${\tau }_i$ is the relaxation time of the $i^{th}$ Maxwell model.

$$E=3K(1-2v)$$

(10)

$$E=2G(1+v)$$

(11)

The shear modulus and bulk modulus can be calculated as follows:

$$G(t)=G_0(1-{\displaystyle \sum _{i=1}^N{g}_i})+{\displaystyle \sum _{i=1}^N{g}_i{G}_0{e}^{-t/{\tau }_i}}$$

(12)

$$K(t)=K_0(1-{\displaystyle \sum _{i=1}^N{k}_i})+{\displaystyle \sum _{i=1}^N{k}_i{K}_0{e}^{-t/{\tau }_i}}$$

(13)

It can be seen that, when using the Prony series model in the form of Equations (12) and (13) in ABAQUS to equivalently calculate viscoelastic materials, it is only necessary to compute $G_0$ (shear modulus) and $K_0$ (bulk modulus) from the elastic parameters $E$ (modulus of elasticity) and $\nu$ (Poisson’s ratio) provided as input. The remaining parameters $\left(g_i,K_i,{\tau }_i\right)$ are the Prony series parameters that need to be input. The Prony series model of viscoelastic materials for one element has the same mathematical form as the Maxwell model.

2.3. ACLD Structure Dynamics Equation

Based on the classical modeling theory of plates, the kinetic energy expressions and potential energy expressions for the piezoelectric constrained layer, damping layer, boundary element layer, and base layer can be derived using the energy method. The dynamic matrix can be obtained using the Lagrangian method, and the overall dynamic equation can be formed by assembly according to the finite element method as follows:

$$M\ddot{\Delta }+G\dot{\Delta }+K\Delta =Q_f$$

(14)

When the system moves solely under the drive of piezoelectric forces without any other external forces, the right-hand side of the above equation is zero. On this basis, the state space form can be rewritten as

$$\overline{M}\dot{z}+\overline{K}z=0$$

(15)

where $z=\left[\begin{array}{l}\stackrel{·}{\Delta }\\ \Delta \end{array}\right]$, $\overline{M}=\left[\begin{array}{cc}M& 0\\ 0& I\end{array}\right]$, $\overline{K}=\left[\begin{array}{cc}G& K\\ -I& 0\end{array}\right]$.

3. Modeling and Simulation Analysis Based on ABAQUS

3.1. Model Establishment and Verification

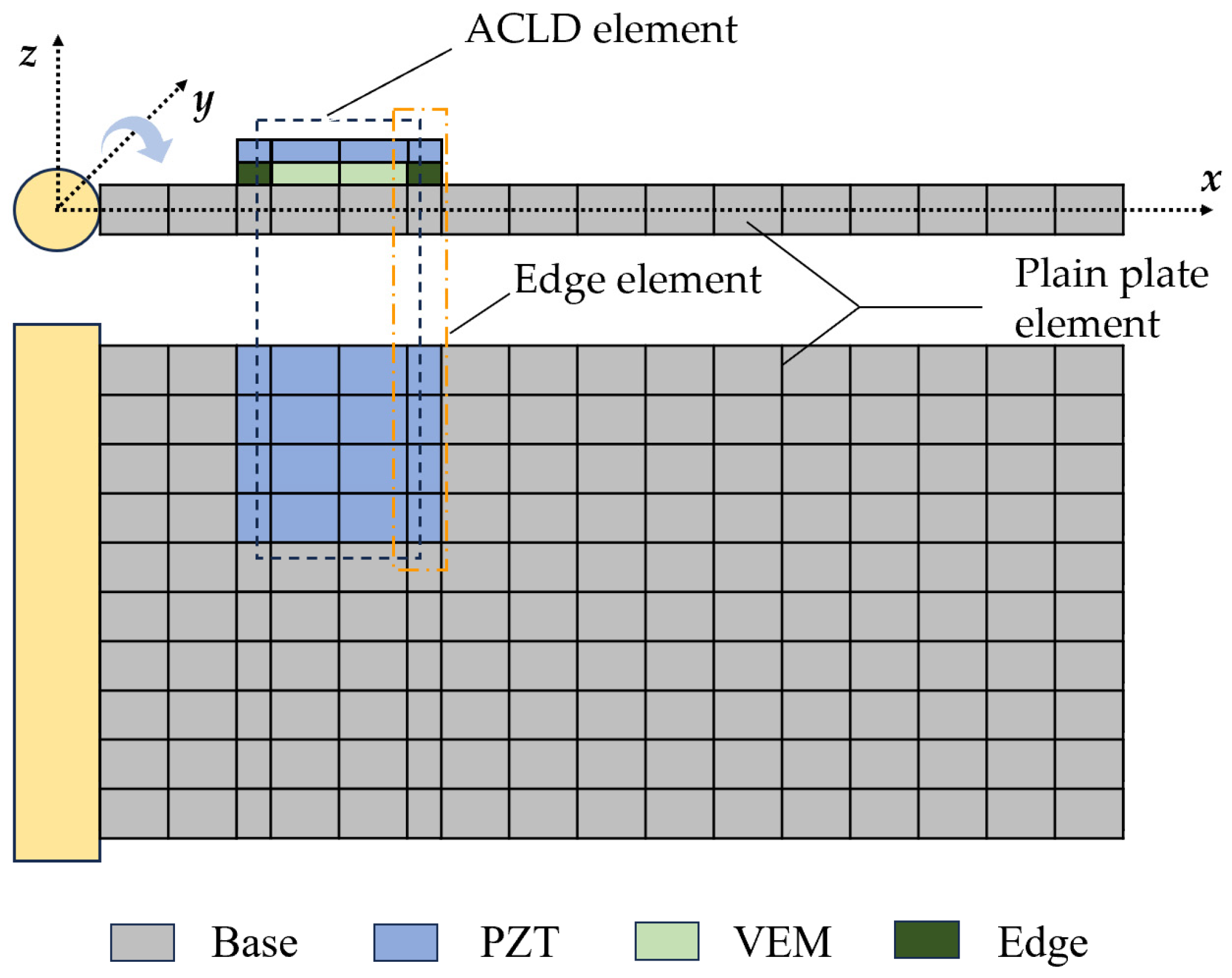

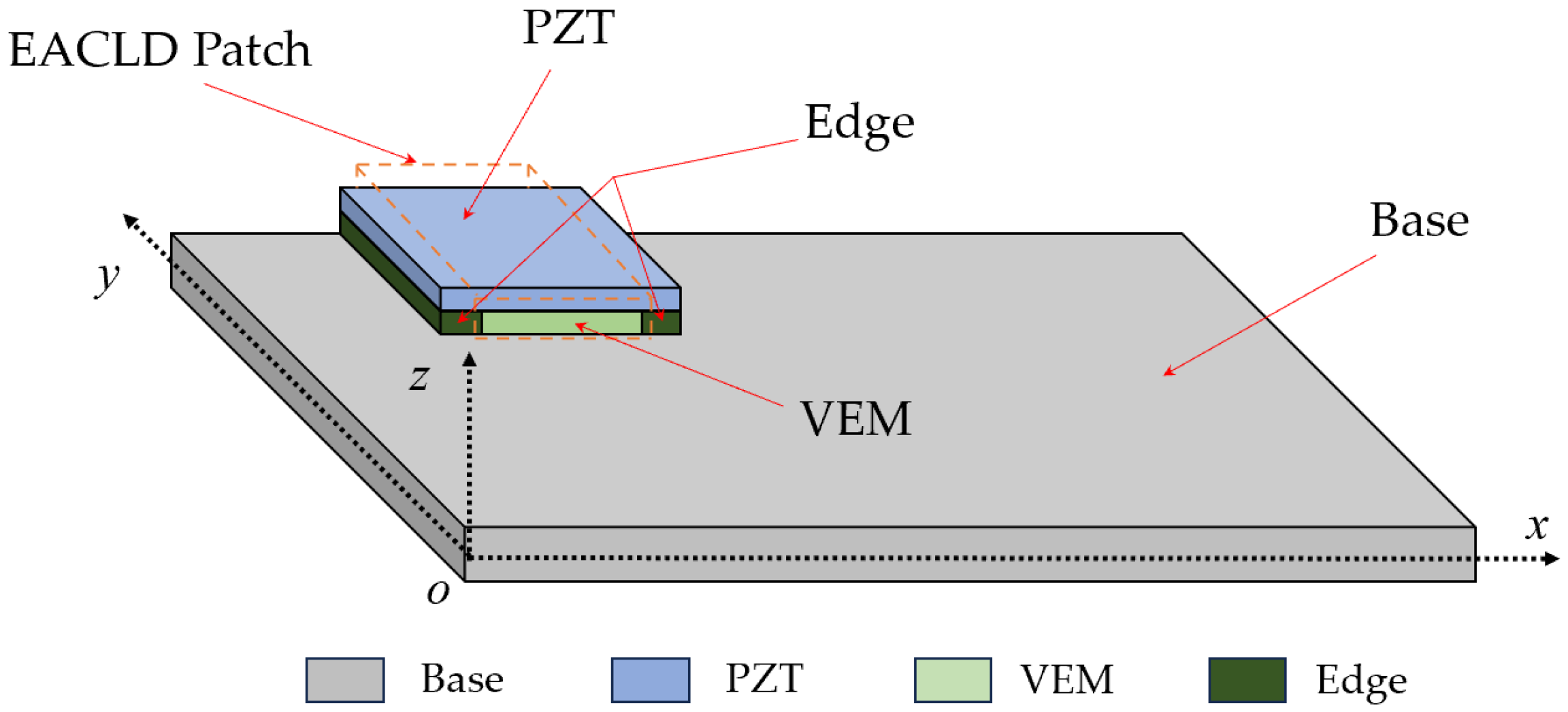

The subject of this paper is a solar sail panel moving around a central rigid body. When modeling in finite element software, it is simplified to a thin rectangular plate model with one end fixed and the other end free. As shown in Figure 2, the model consists of a piezoelectric patch made of viscoelastic material and piezoelectric material, partially laid on the surface of a complete aluminum base plate.

To verify the accuracy of the modeling, this paper establishes the model using the same parameters as those found in the literature [57]. Additionally, it is necessary to define parameters such as the piezoelectric constants and dielectric constants of the piezoelectric material and use the Assembly module to move the components to the appropriate positions for assembly. After assembly, static analysis steps and frequency analysis steps are created in the Step module. Considering the synergistic action between components, the Tie contact type is used to bond the base layer, viscoelastic layer, and piezoelectric layer in pairs. Then, in the load application Load step, the left end of the base layer is subjected to constraints for rotation and displacement in six degrees of freedom. In the simulations conducted, the piezoelectric patches are assumed to operate under open-circuit conditions, as in the literature [57]. Finally, the established model is divided into a mesh grid. In the ACLD model, the base layer is divided into 30 columns and 10 rows on average, with a total of 300 elements. The element type is S4R, the number of nodes is 411 and the total number of variables in the model is 2466. Meanwhile, in the EACLD model, the base is divided into 16 columns and 10 rows, with a total of 160 elements. The third and sixth columns and the first to the fourth rows are edge elements; Columns 4 and 5 and 1 through 4 represent traditional ACLD elements, and the element length of the edge elements is half that of the ACLD. The element type is S4R, the number of nodes is 231 and the total number of variables in the model is 2772. The detailed mesh is shown in Figure 3.

The first three order natural frequencies obtained from the finite element simulation software are compared with the experimental results from the literature [57]. The detailed results comparison is given in

Table 1. Comparison of natural frequencies of the plate between experiment and simulation.

Model	Mode No.	Ref. [57]/Hz	Present/Hz	Error (%)
ACLD	1	18.00	18.31	1.70
	2	76.66	77.99	1.74
	3	106.58	108.50	1.80
EACLD	1	18.37	18.35	0.11
	2	77.12	78.10	1.27
	3	107.91	109.48	1.45

. The first and second modal shapes correspond to the first two bending modes of the model, respectively, and the third modal shape corresponds to the first torsional mode of the model. It can be seen that the natural frequencies calculated by the simulation software closely match the results obtained from the experiments in the literature, with errors all controlled within 2%, preliminarily proving the accuracy of the finite element software simulation modeling.

3.2. Temperature Dependence of Materials

In actual engineering applications, the vibrational performance of solar sail plates is significantly influenced by different temperature fields, showing notable variations. To better observe and study the vibrational characteristics of the structure under various temperature conditions, it is necessary to describe the temperature characteristics of the different materials comprising the model separately.

It is generally considered that the parameters of the piezoelectric layer PZT material change slightly with temperature and can be neglected during modeling; the viscoelastic layer made of Dyad606, however, shows that its complex shear modulus and loss factor vary with temperature, as illustrated in Figure 4 [58]:

The base layer made of Ti-6Al-4V exhibits variations in its Young’s modulus ($E_3(T)$) and thermal expansion coefficient ($k_3(T)$) with temperature. These variations are characterized using the following parametric formula:

$$P=P_0(\frac{P_{-1}}{T}+1+P_{1}T+P_2{T}^2+P_3{T}^3)$$

(16)

Here, $T$ represents the current temperature and $P$ denotes any variable changes in Young’s modulus or thermal expansion coefficient. The constants $P_{-1}$, $P_0$, $P_1$, $P_2$ and $P_3$ are determined by fitting material property data, as listed in

Table 2. Parameters of Ti-6Al-4V with temperature.

Properties	${\mathit{P}}_{-1}$	${\mathit{P}}_0$	${\mathit{P}}_1$	${\mathit{P}}_2$	${\mathit{P}}_3$
$E_3/\mathrm{Pa}$	0	122.56 × 109	−4.486 × 10−4	0	0
$k_3$	0	7.75788 × 10−6	6.638 × 10−4	−3.147 × 10−6	0

for both the Young’s modulus and thermal expansion coefficient [58]. In ABAQUS, these data are entered by defining the “complex modulus” of the viscoelastic material, which includes the real- and imaginary-part modulus values of the material’s shear modulus and bulk modulus at different temperatures.

4. Different Parameter Verification

4.1. The Influence of the Coverage Position of Piezoelectric Patches on Structural Damping Effect

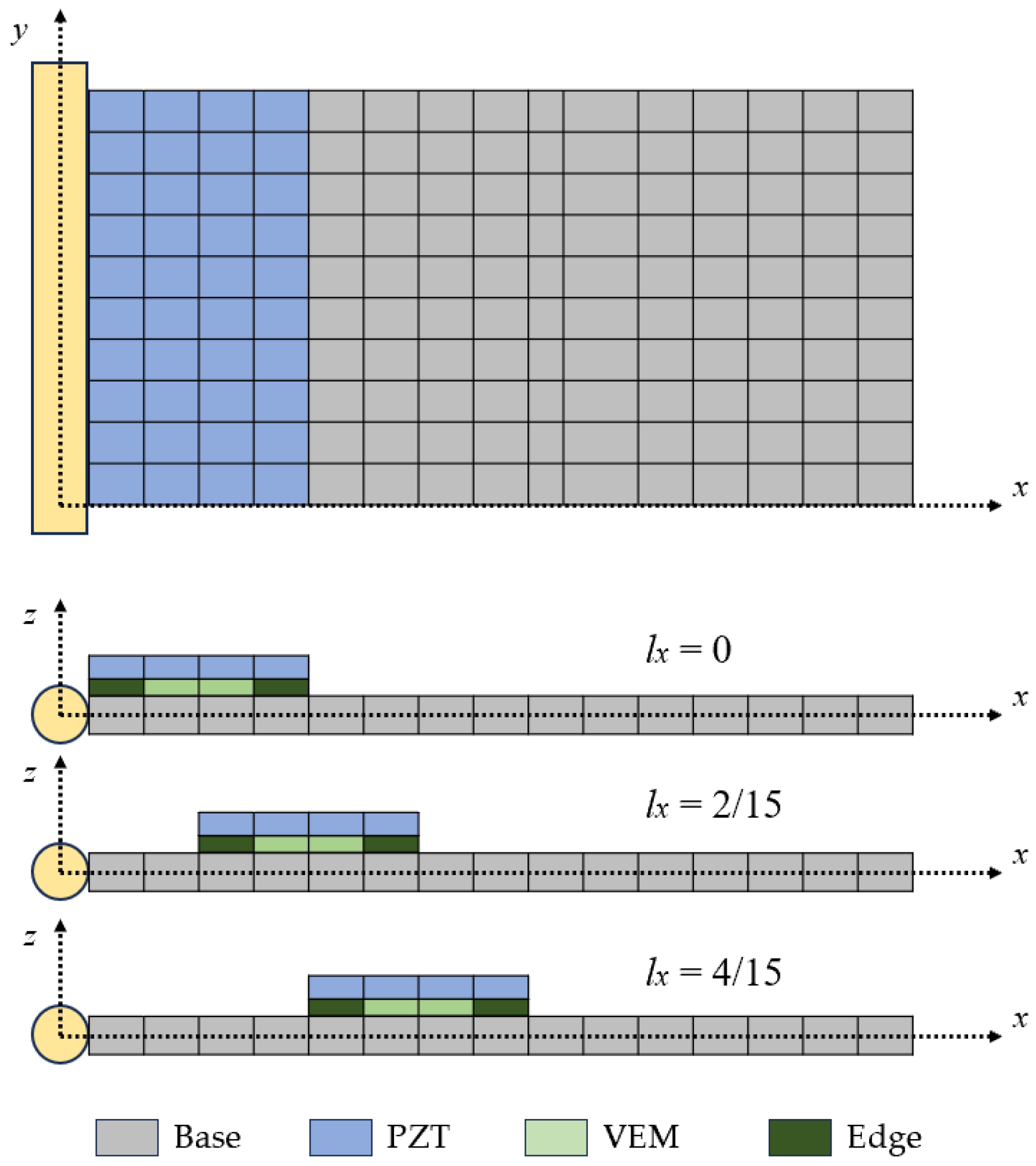

In practical applications, the vibrational characteristics of structures are often affected by the coverage position of piezoelectric patches. This section discusses the impact of the coverage position of piezoelectric patches. Initially, a model of the EACLD flexible plate is established, with the temperature dependence of the materials already explained in Section 3.2. The remaining geometric parameters and material parameters are as shown in

Table 3. Geometrical and physical parameters of a flexible plate with EACLD treatment.

Parameter	Value	Parameter	Value
$L$	0.3 m	${\rho }_1$	7600 kg/m3
$L_e$	0.15 m	${\rho }_2$	1250 kg/m3
$h_1$	2.54 × 10−4 m	${\rho }_3$	4430 kg/m3
$h_2$	5.08 × 10−4 m	$G_2$	Varies with temperature
$h_3$	1.89 × 10−3 m	$G_{eq}$	0.862
$E_1$	64.9 GPa	${\mu }_1$	0.33
$E_2$	$2(1+{\mu }_2)$$G_2$	${\mu }_2$	0.45
$E_3$	Varies with temperature	${\mu }_3$	0.342
$k_3$	Varies with temperature	$R$	0 m

.

To better study the influence of temperature and the coverage position of piezoelectric patches on vibration characteristics under open-circuit conditions, the size of the piezoelectric patch is set to 0.06 m × 0.15 m. A dimensionless parameter $l_x$ is introduced, representing the ratio of the distance from the left side of the patch to the pivot axis to the total length of the base layer, as shown in Figure 5. In the temperature field from 0 °C to 150 °C, with increments of 10 °C, $l_x$ values of 0, $2/15$ and $4/15$ are considered to calculate the natural frequencies of the EACLD model as the relative position of the patch changes.

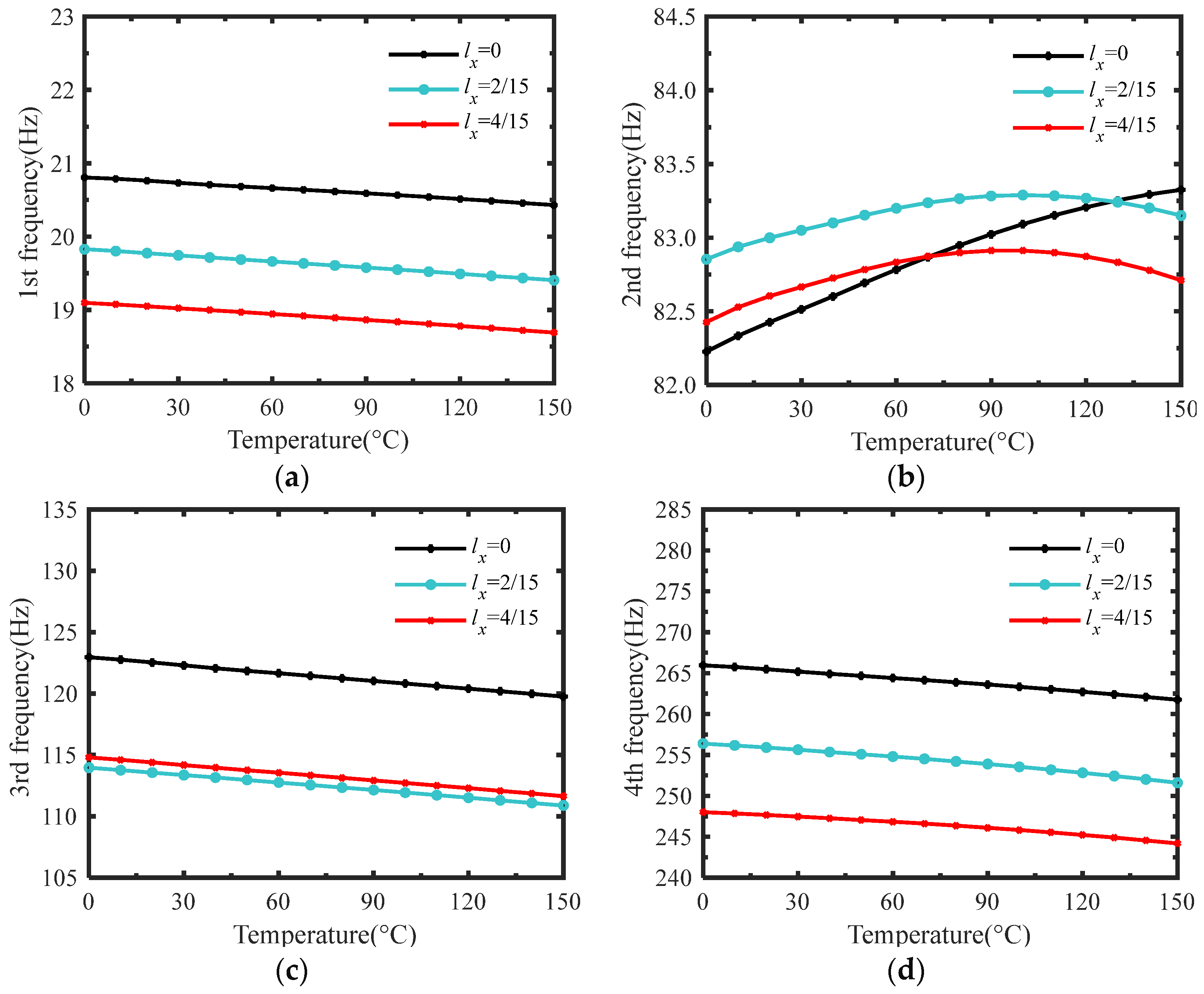

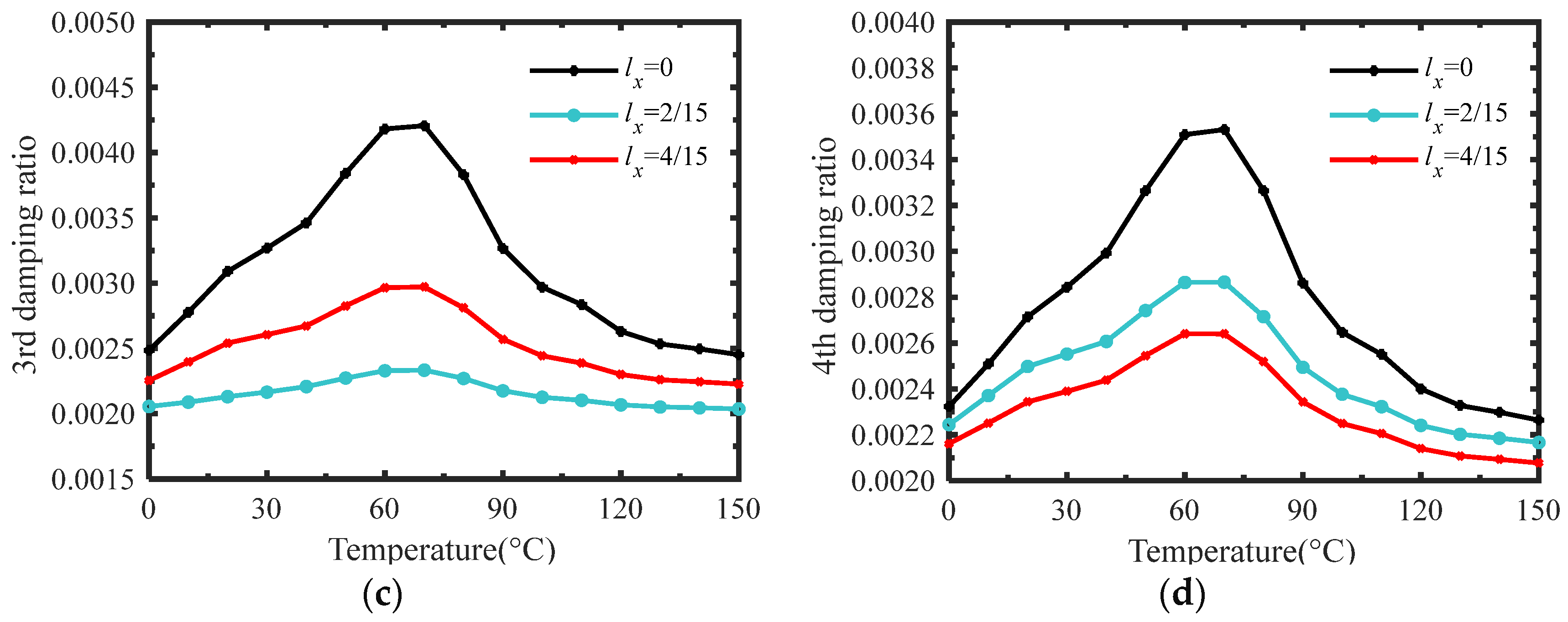

Figure 6 and Figure 7 show the curves of the first four natural frequencies and damping ratios as a function of temperature when $l_x$ varies. It can be observed that, for the same coverage condition, the trend of frequency and damping ratio changes with temperature is basically the same under the same modal condition: the natural frequency decreases with the increase in temperature, while the system’s damping ratio shows a trend of first increasing and then decreasing, with an inflection point occurring in the temperature range of 60 °C to 70 °C.

For other modal conditions, at the same temperature, the structure’s natural frequency tends to decrease as the patch moves rightward. The rightward movement of the patch causes geometric changes in the structure, changing the system’s mass distribution and structural stiffness, thereby leading to changes in natural frequencies. Specifically, for the second modal condition, the natural frequencies for $l_x=2/15$ and $l_x=4/15$ first increase and then decrease with temperature, while for $l_x=0$, the natural frequency unexpectedly rises. This indicates that the second modal vibration differs from other modes, being more sensitive to temperature changes and thus exhibiting different frequency variation trends.

Additionally, all three modal conditions achieve the highest natural frequency and maximum damping ratio at $l_x=0$ (for the second modal condition, the maximum damping ratio is achieved at $l_x=4/15$). Accordingly, we can find the best passively damped patch cover position for different modes, as shown in

Table 4. Patch locations for best passive damping.

Mode No.	Best Choice	Second Choice (If Available)
1	$l_x=0$	$l_x=2/15$
2	$l_x=4/15$	$l_x=2/15$
3	$l_x=0$	$l_x=4/15$
4	$l_x=0$	$l_x=2/15$

. Overall, the vibrational characteristics of the structure are significantly affected by changes in the position of the piezoelectric patch placement. For systems under the influence of high-frequency external excitation sources, the closer the relative position $l_x$ is to 0, meaning the closer the left side of the piezoelectric patch is to the pivot axis, the faster the decay of the first, third, and fourth modal vibrations and the better the damping effect.

4.2. The Influence of the Coverage Ratio of Piezoelectric Patches on Structural Damping Effect

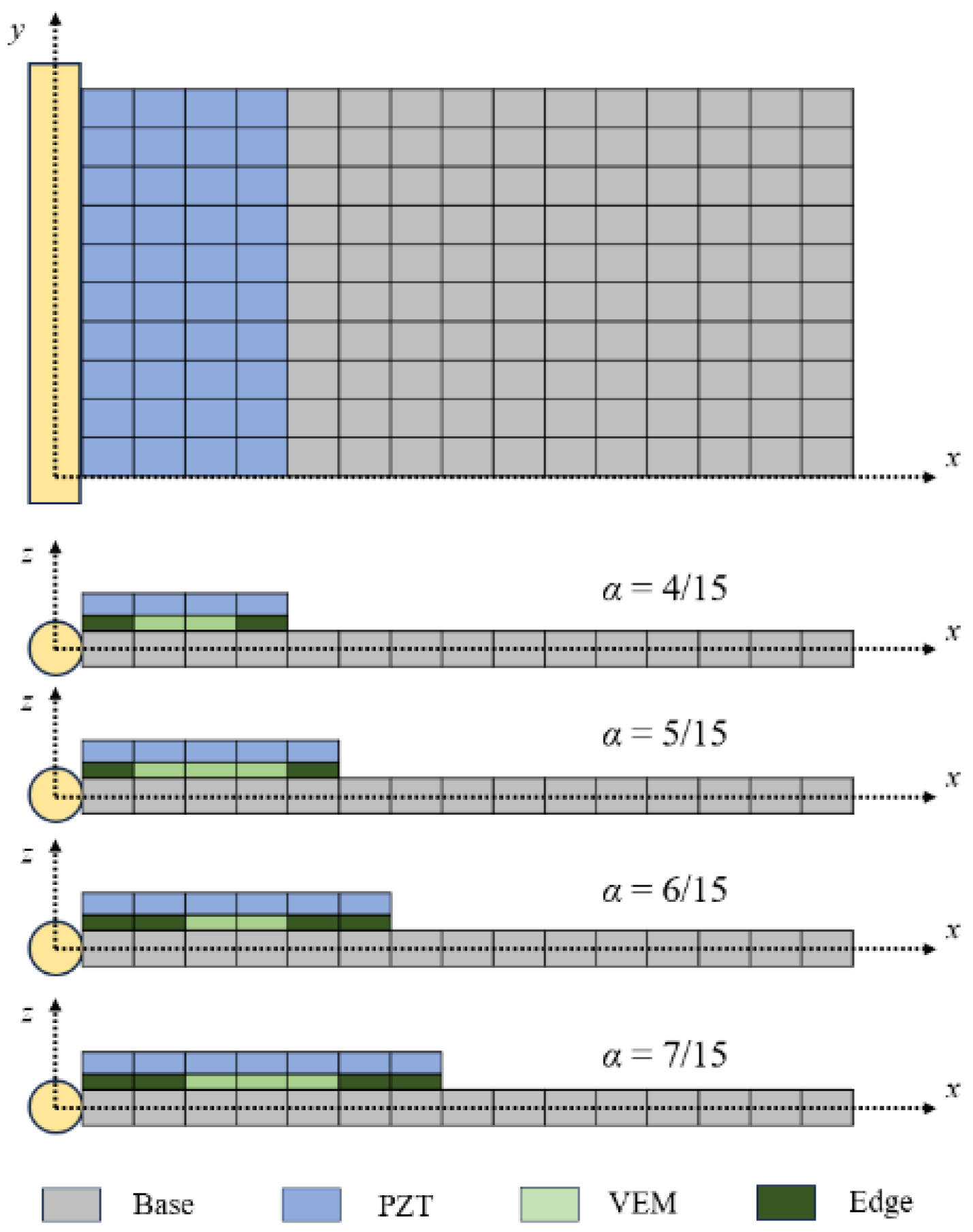

The damping characteristics of a structure are also closely related to the coverage area of the piezoelectric patches. We allowed the left end of the patch to be aligned with the pivot axis and placed on the base layer, as shown in Figure 8, varying the length of the patch along the length direction of the base layer, with all other parameters remaining consistent with Section 4.1. Simulation calculations were performed for models with coverage ratios of $4/15$, $5/15$, $6/15$ and $7/15$, respectively.

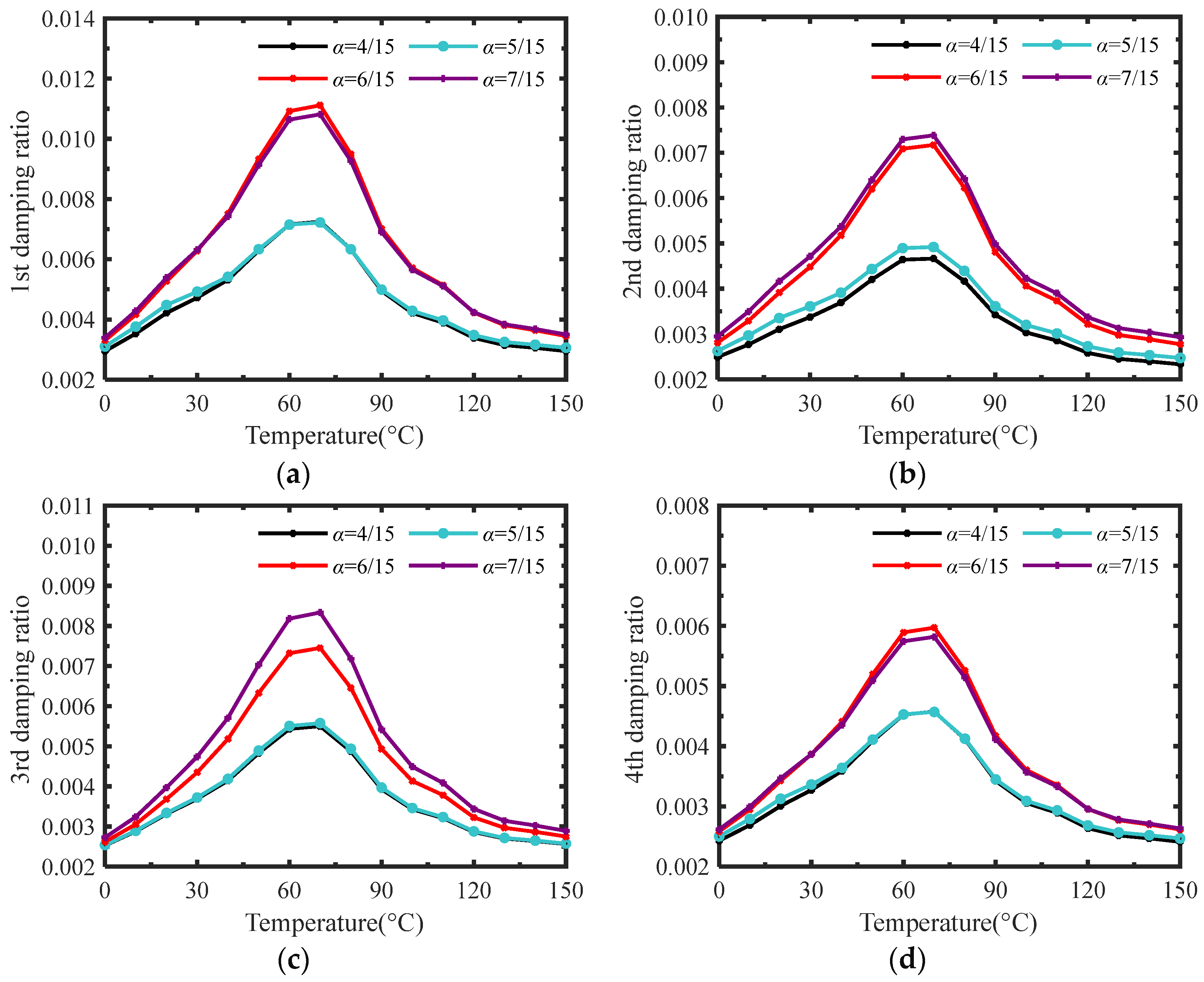

Figure 9 and Figure 10 present the curves of the first four modal natural frequencies and damping ratios as a function of temperature for models with different coverage ratios. As the temperature increases, the natural frequencies of different modalities in models of different coverage ratios generally show a decreasing trend; however, for the second mode (see Figure 9b), as the coverage ratio increases, the natural frequency of each model transitions from a singular rising trend to first rising and then falling, with the falling portion occupying an increasingly larger temperature range. This is mainly due to changes in the thermal expansion coefficient, elastic modulus, and structural damping coefficient of the viscoelastic material with increasing temperature, which reduces the stiffness of the structure and further affects the system’s vibrational characteristics, leading to changes in the natural frequency. However, the second mode is less sensitive to temperature changes, resulting in the overall small changes in natural frequency and increases in certain intervals.

Furthermore, by comparing models with different coverage ratios, it can be observed that models with $4/15$ coverage ratios have similar damping ratio values and trends, as do those with $6/15$ and $7/15$, but there is a significant difference in the third mode between $6/15$ and $7/15$ coverage ratios. Figure 10 also reveals that when the temperature is below 60 °C, the damping ratio increases with rising temperature. However, as the temperature rises above 70 °C, further increases in temperature lead to a gradual decrease in the damping ratio, and the system’s damping effect gradually worsens. In the temperature range of 30 °C to 100 °C, the damping ratio is highly sensitive to temperature changes, with changes in the material’s elastic modulus and internal friction effect, significantly affecting the damping effect on the vibrational system. Also, we can find the best passively damped patch coverage for the first four modes, as shown in

Table 5. Patch coverage for best passive damping.

Mode No.	Best Choice	Second Choice (If Available)
1	$\alpha =6/15$	$\alpha =7/15$
2	$\alpha =7/15$	$\alpha =6/15$
3	$\alpha =7/15$	$\alpha =6/15$
4	$\alpha =6/15$	$\alpha =6/15$

. Therefore, in engineering design, the impact of temperature must be fully considered, and the operational temperature range of the system should be controlled reasonably to ensure the system has good vibration-control performance.

4.3. The Influence of Rotational Angular Velocity on Structural Damping Effect

The vibrational characteristics of structures with EACLD are also related to the structure’s rotational angular velocity. Considering a thin plate whose left end displacement and rotational angle are constrained, a 0.06 m × 0.15 m patch on it is fixed at a length of $\mathrm{L}=0.04 \mathrm{m}$. The rotation of model around the y-axis is simulated by applying equivalent rotational body forces to the structure, with all other parameters remaining consistent with Section 4.1. Simulations are conducted in the temperature field for the structure’s modal vibrations at rotational speeds $\omega =0$ to 6000 rpm, with intervals of 1000 rpm.

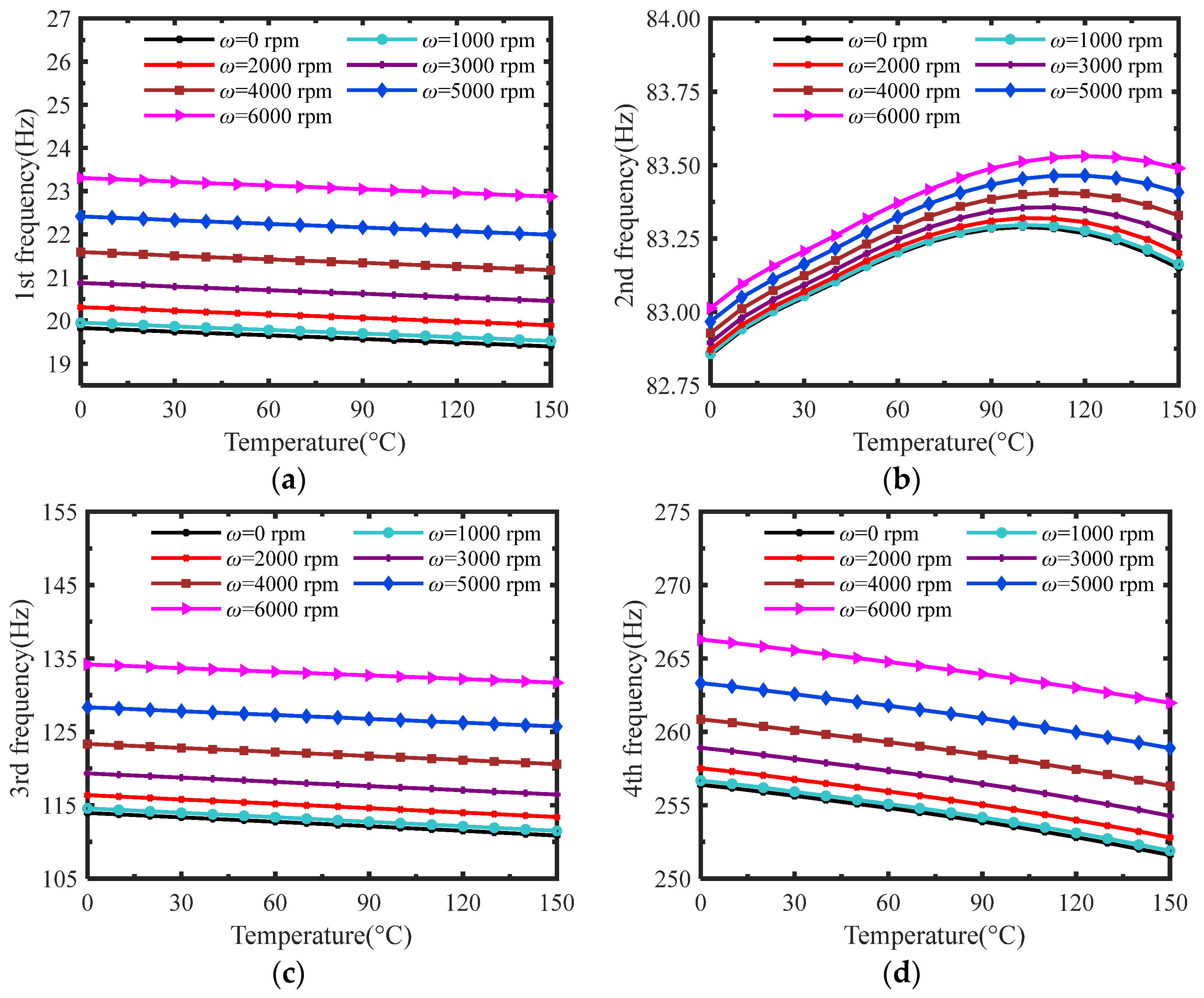

From Figure 11, it can be observed that at low rotational speeds, each modal frequency has a lower natural frequency and a higher damping ratio, indicating better damping effects at this stage. As the rotational speed increases, the natural frequencies gradually rise, and the damping ratios gradually decrease, weakening the system’s damping effect. This is because low rotational speeds entail smaller dynamic loads, with the stiffness of the structure dominating at this stage, leading to relatively strong internal friction and energy dissipation. As the rotational speed increases, greater inertial forces act on each mass element, increasing the system’s equivalent stiffness. At the same time, the material and structure’s non-linear properties become more pronounced, leading to increased natural frequencies and reduced damping effects.

Figure 11b shows that the second modal frequencies of models at different rotational speeds exhibit a similar trend: with increasing temperature, the natural frequency first increases slowly to a certain temperature point and then decreases, with this temperature threshold interval being approximately between 100 and 120 °C, indicating significant material temperature dependence within this range. Observing Figure 12b, it can also be found that the second modal damping ratios at different rotational speeds have almost identical values and trends, showing that the system’s dynamic response and excitation exhibit linear characteristics. This means that the damping characteristics of the second mode are mainly influenced by the system’s inherent properties and structural qualities, rather than by the rotational speed, leading to relative stability in the damping ratio across the studied range of rotational speeds.

Especially from Figure 11, it can be noted that at lower rotational speeds (1000 rpm), the pattern of changes in the natural frequencies of the structure’s modalities is essentially consistent with that of the model without applied rotational speed (0 rpm). This implies that for this system, adopting lower rotational speeds is an effective method for reducing the natural frequencies of the structure. Additionally, we can find the suitable rotational speeds for different modes of vibration control, as shown in

Table 6. Rotational speeds for best passive damping.

Mode No.	Best Choice	Second Choice (If Available)
1	$\omega =0 \mathrm{rpm}$	$\omega =1000 \mathrm{rpm}$
2	$\omega$ From 0 to 6000 rpm	$\omega$ From 0 to 6000 rpm
3	$\omega =0 \mathrm{rpm}$	$\omega =1000 \mathrm{rpm}$
4	$\omega =0 \mathrm{rpm}$	$\omega =1000 \mathrm{rpm}$

. In conclusion, to control the vibrational state of specific modes of rotating flexible plates, it is necessary to select appropriate rotational angular velocities and specific operational temperature ranges.

4.4. The Influence of Damping Layer Thickness on Structural Damping Effect

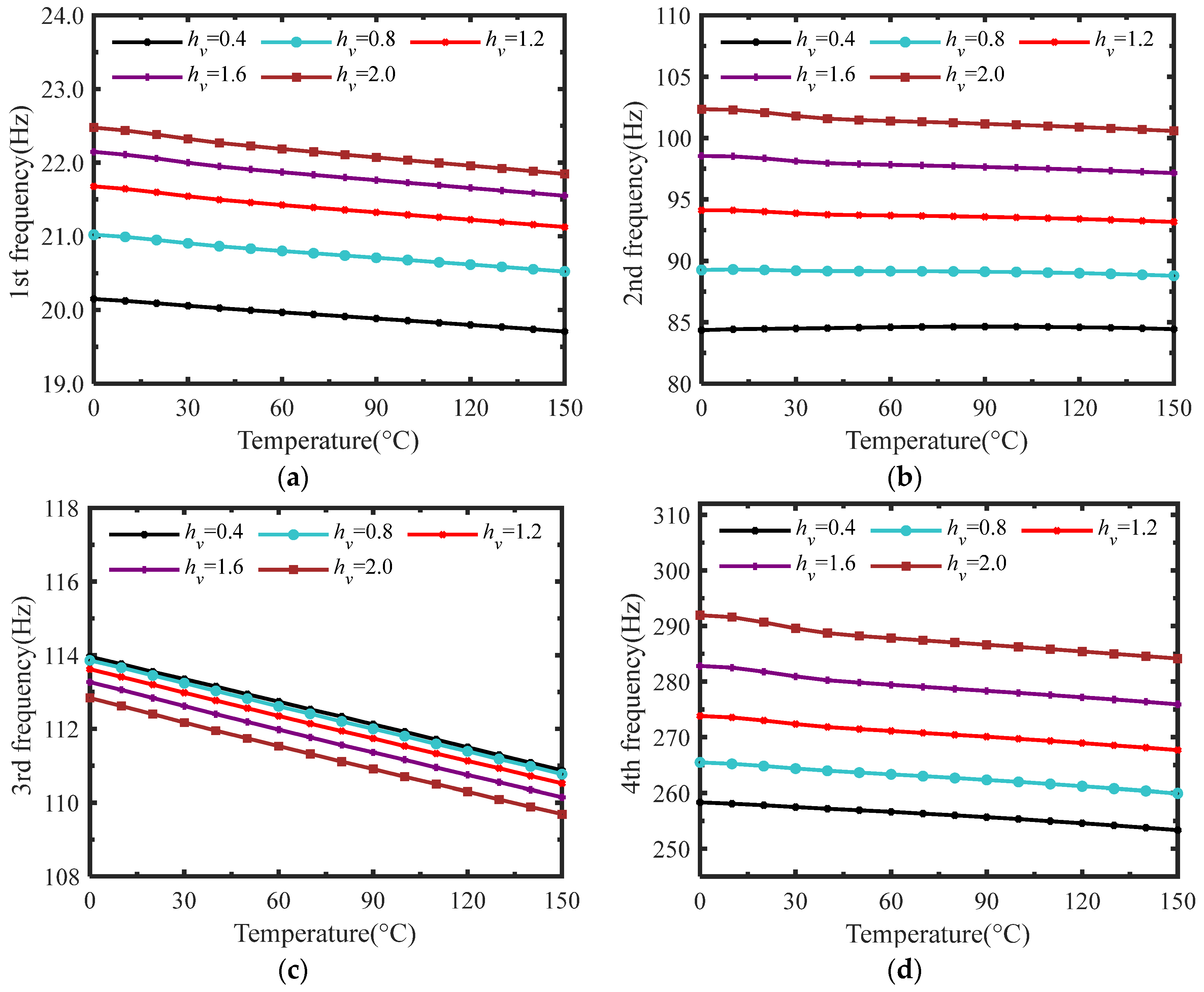

The thickness of the damping layer also significantly impacts the structure’s damping effect. To make the simulation results more universally applicable, a dimensionless parameter $h_v=h_2/h_3$ representing the ratio of the viscoelastic layer’s thickness to the base layer’s thickness is defined, where $h_2$ is the viscoelastic layer thickness and $h_3$ is the base layer thickness. Five different cases are considered ($h_v=$ 0.4, 0.8, 1.2, 1.6 and 2.0) for simulation calculations and analysis of the EACLD rotating flexible plate model.

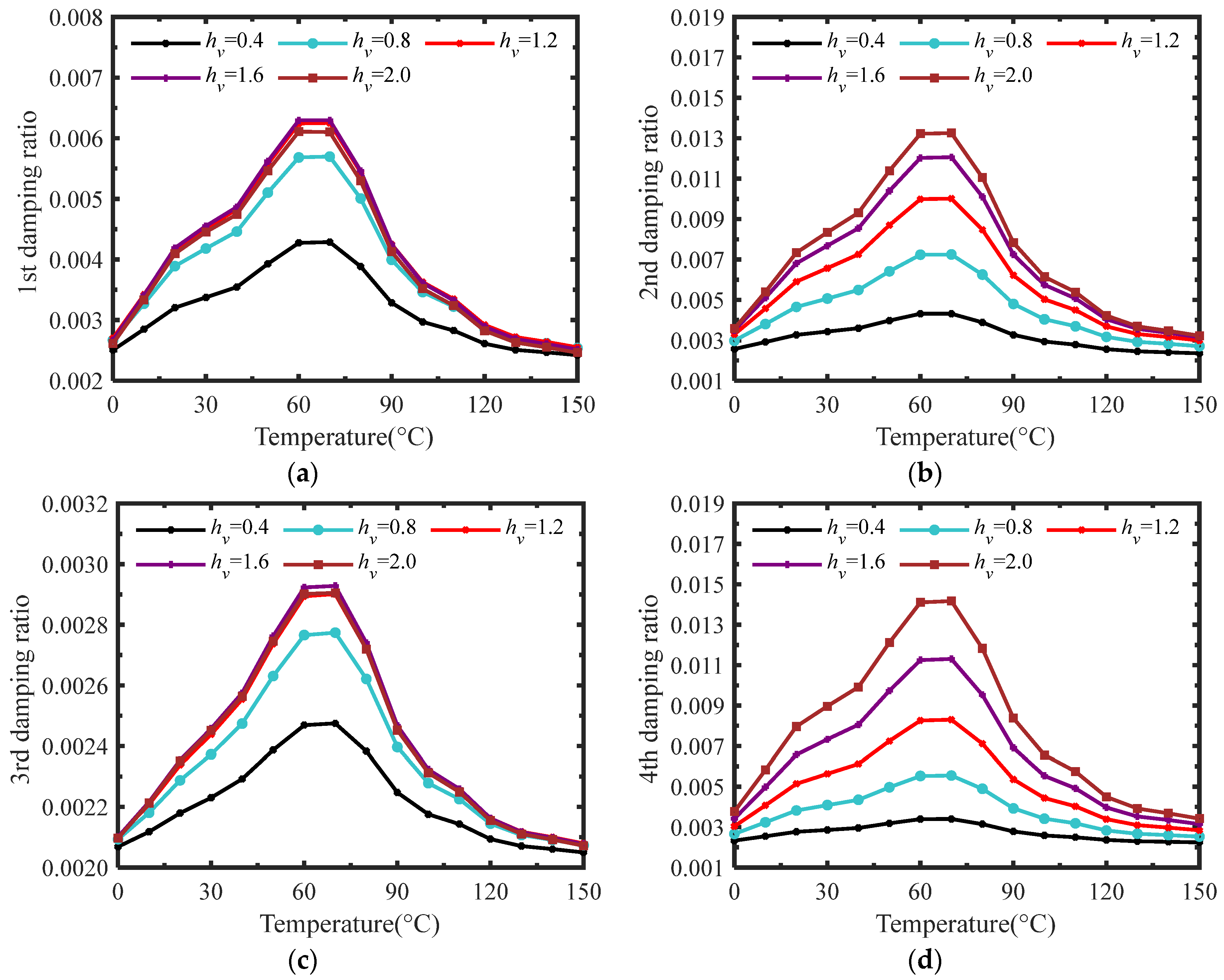

From Figure 13, it can be observed that under any value of $h_v$, the natural frequency of the same mode generally shows a decreasing trend as the temperature increases. At the same temperature, as the viscoelastic layer becomes thicker, the system’s first, second, and fourth modal natural frequencies gradually increase, with the damping ratio showing a similar trend; for the third mode, the natural frequency tends to decrease with the increasing thickness of the viscoelastic layer at the same temperature. This is because the modal frequencies of the system are influenced by the structure’s elasticity and mass distribution. As the viscoelastic layer becomes thicker, it increases the system’s total mass and the energy dissipation caused by internal friction, thus affecting the system’s modal frequency response and damping effect. From Figure 14, it is evident that regardless of temperature changes, for the second and fourth modal vibrations, the damping ratio always increases with the thickening of the viscoelastic layer. For the first and third modal vibrations, the damping ratios in the cases of $h_v=$ 1.2, 1.6 and $h_v=2.0$ are very close, and $h_v=1.6$ has a larger damping ratio peak, indicating that at this time, the thickness of the viscoelastic layer has a smaller impact on damping performance, and the damping ratio is not sensitive to changes in the thickness. This implies that in engineering applications, if the aim is to suppress vibrations of different modal orders, the choice of damping layer thickness should be made flexibly according to the actual situation (see

Table 7. Thickness of damping layer for best passive damping.

Mode No.	Best Choice	Second Choice (If Available)
1	$h_v=1.2$ or $h_v=1.6$	$h_v=2.0$
2	$h_v=2.0$	$h_v=1.6$
3	$h_v=1.6$	$h_v=1.2$ or $h_v=2.0$
4	$h_v=2.0$	$h_v=1.6$

), as blindly increasing the thickness of the damping layer is not always the optimal solution.

5. Conclusions

This paper conducted a vibration analysis of EACLD plate structures considering the temperature field using ABAQUS. By simulating the model through variations in physical parameters such as temperature, patch position, coverage ratio, and damping layer thickness, the study investigated the vibration-damping effect of EACLD on flexible solar sail panels, leading to the following conclusions:

• Position and Coverage Area of Piezoelectric Patches: The research indicates that increasing the coverage area of piezoelectric patches near the rotation axis by 20% can enhance the damping efficiency by up to 15%.
• Temperature Effects: The results demonstrate that as the ambient temperature increases from 20 °C to 100 °C, the system’s natural frequency may decrease by 5% to 10%, while the damping ratio significantly increases in certain modes, particularly peaking between 60 °C and 70 °C.
• Effects of Rotational Speed: With an increase in rotational speed from 1000 rpm to 5000 rpm, the modal frequency rises approximately 3% to 7%, whereas the corresponding damping ratio decreases by 5% to 10%.
• By increasing the thickness of the damping layer from 0.76 mm to 2.27 mm, the structure exhibits improved damping performance in the temperature range of 40 °C to 100 °C, with nearly a 20% increase in the damping ratio.
