Recent Development and Future Prospective of Tiwari and Das Mathematical Model in Nanofluid Flow for Different Geometries: A Review

Abstract

The rapid changes in nanotechnology over the last ten years have given scientists and engineers a lot of new things to study. The nanofluid constitutes one of the most significant advantages that has come out of all these improvements. Nanofluids, colloid suspensions of metallic and nonmetallic nanoparticles in common base fluids, are known for their astonishing ability to transfer heat. Previous research has focused on developing mathematical models and using varied geometries in nanofluids to boost heat transfer rates. However, an accurate mathematical model is another important factor that must be considered because it dramatically affects how heat flows. As a result, before using nanofluids for real-world heat transfer applications, a mathematical model should be used. This article provides a brief overview of the Tiwari and Das nanofluid models. Moreover, the effects of different geometries, nanoparticles, and their physical properties, such as viscosity, thermal conductivity, and heat capacity, as well as the role of cavities in entropy generation, are studied. The review also discusses the correlations used to predict nanofluids’ thermophysical properties. The main goal of this review was to look at the different shapes used in convective heat transfer in more detail. It is observed that aluminium and copper nanoparticles provide better heat transfer rates in the cavity using the Tiwari and the Das nanofluid model. When compared to the base fluid, the Al₂O₃/water nanofluid’s performance is improved by 6.09%. The inclination angle of the cavity as well as the periodic thermal boundary conditions can be used to effectively manage the parameters for heat and fluid flow inside the cavity.

1. Introduction

Researchers have worked to comprehend the structure of nanofluids, evaluate their heat transfer ability, and analyze their heat transmission mechanisms. Nanofluids consist of a base fluid and a low volume percentage (between 1% and 10%) of solid particles with diameters typically less than 100 nm.

Oil, water, and ethylene glycol blends, which are commonly used as heat transfer fluids, are inefficient heat transfer fluids due to the thermal conductivity of the fluid, which in turn reduces the heat transfer coefficient between the fluid and the heat transfer surface.

Nanofluids possess unique thermal transport abilities and performance characteristics not found in conventional heat transfer fluids. Nanofluids have the potential to increase the heat transfer rates in solar collectors, nuclear reactors, and automobile radiators in comparison to standard solid–liquid suspensions, for these reasons [1,2]:

• The large surface area for heat transfer among the nanoparticles and the fluid implies a high effective thermal conductivity.
• The particles move in a dominating Brownian motion, resulting in a high dispersion stability.
• The pumping power is limited to obtain the same heat transfer intensification as pure liquid.
• The conventional slurries are less susceptible to particle blockage, making them appropriate for application in microsystems.
• The changes in particle concentration will effectively change a surface’s thermal conductivity and wettability to meet the requirements of various applications.

Nanofluids play a vital role in heat transfer, solar energy, heat exchangers, the oil and gas industry, cooling technology, and thermal energy storage systems. Figure 1 explains the number of publications on nanofluids per year; the number represents the significance of the nanofluids for researchers. In Figure 2, the graph represents the publications of different fields, such as engineering, sciences, mathematics, etc. Figure 3 and Figure 4 define the importance of nanofluid cavities for the different nanofluid applications.

Many engineering and industrial processes lead to the production of entropy, which consumes all the energy in the system. Knowing how quickly entropy is generated is critical to obtaining the most out of a system and using the least energy. When studying porous media, it is often vital to know the fields of temperature and velocity, as well as the pressure and other similar things. Other factors may also be relevant [3,4,5,6,7,8]. This is because the second rule of thermodynamics applies to all reversible flow and heat transfer processes. The reason for this is the fact that heat cannot be created or destroyed. Yet, the second law of thermodynamics is not often used to study the entropy. Heat transfer has demonstrated over the past three decades that the second law of thermodynamics must be applied when making thermal design decisions for porous media. The researchers believe that this new technology has a good chance of improving the design of thermal systems.

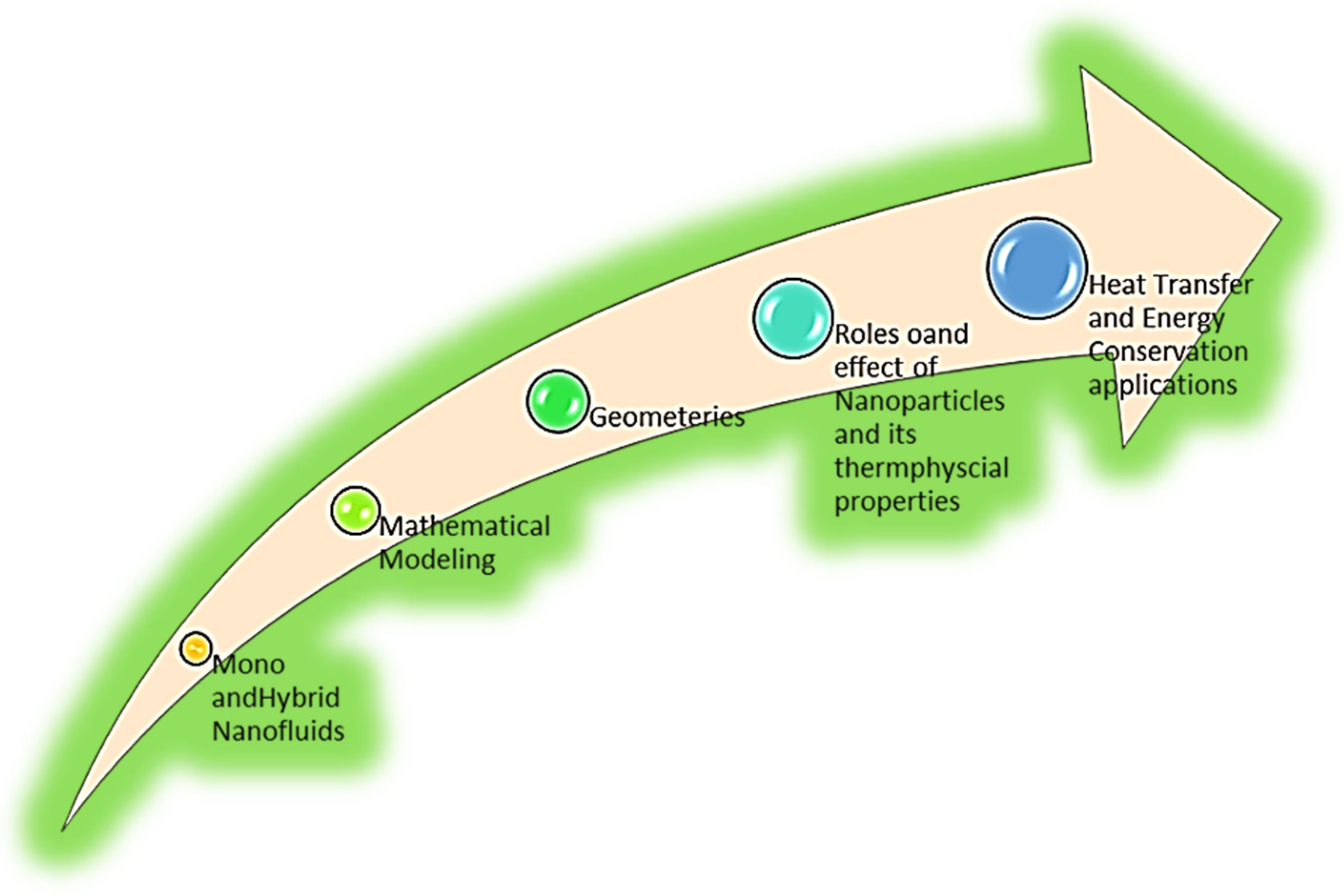

The review focuses on the following points, which are shown in Figure 5.

2. Literature Review

Many heat transfer engineering applications rely on the basic features of fluid flows and their importance in cavities. Oil extraction in grooved wet clutches, thermal energy storage, solar collectors, and heat exchange thermal performance augmentation are examples of such uses [9]. The examples include building cooling systems, food drying, heat exchangers, and nuclear reactors [10]. In recent years, many writers have examined natural, forced, and changing convection in the hollows of various geometries. The shape of lid-driven cavities is accessible in various structures and geometries in engineering applications, including square, rectangle, triangle, and trapezoidal, as well as other designs with a wide range of thermal boundary settings.

Table 1. Nanoparticles and cavities studies in convective heat transfer.

Ref.	Type of Fluid	Cavities	Nanoparticles	Mechanism	Remarks
[11]	Nanofluid, viscous fluid	Square	Cu-water	Free convection	When thermal conductivity decreases, the heat transfer rate also decreases inside the cavity.
[12]	Nanofluid, viscous fluid	Square	Cu, Ag	Natural convection	Copper nanoparticles exhibit the highest heat transfer rates, whereas Ag nanoparticles exhibit the lowest.
[13]	Nanofluid, MHD	Wavy wall cavity	-	Natural convection	Increase in Hartmann number, decrease in heat transfer.
[14]	Non-Newtonian nanofluid	Porous square cavity	Cu	Natural convection	The rate of heat transmission as well as the various irreversibilities all improve with a higher Rayleigh number.
[15]	Nanofluid, viscous fluid	Triangular	-	Free convection	As Rayleigh and Lewis values drop, average Nusselt rises.
[16]	Ferrofluid	Trapezoidal	Fe3O4	Natural convection	The inclination angle = $\pi$/2, demonstrating the instabilities inherent in heat and fluid flow.
[17]	Nanofluid, viscous fluid	Lid-driven cavity	CuO	Mixed convection	Adding nanoparticles is more valuable for improving local heat transfer.
[18]	Nanofluid, viscous fluid	Inclined wavy	CuO	MHD, Natural convection	Increases in the number of undulations result in a decrease in convective flow and an increase in heat transfer.
[19]	Nanofluid, viscous fluid	Porous undulant wall cavity	-	Natural convection	As heater temperature rises, fluid Nusselt number drops. Local Nusselt number increases when the cylinder is raised.
[20]	Nanofluid, viscous fluid	Open porous cavity	CuO	MHD, Free convection	As Darcy and Raleigh values increase, so does the rate at which warmer fluid leaves.
[21]	Nanofluid, viscous fluid	Rectangular cavity	CuO	MHD, Free convection	Angle of inclination of the magnetic field increases; the average Nusselt number decreases as the Hartmann number rises.
[22]	Nanofluid, viscous fluid	Porous cavity	CuO	Natural convection	The best heat transmission performance for high and low Ra values can be seen in cases D (hot and cold points are located at the top of the cavity) and C (hot and freezing points are located at the top and bottom of the hot and cold walls, respectively).
[23]	Nanofluid, viscous fluid	Lid-driven cubic cavity	Al2O3	MHD, Forced convection	A magnetic field enhances the heat transfer rate.
[24]	Nanofluid, viscous fluid	Porous cavity	Al2O3-H2O	Forced convection	Temperature gradients are proportional to Darcy and Reynolds numbers. Increased Lorentz forces result in a decrease in the Nusselt number.
[25]	Nanofluid,	Porous cavity	Cu-H2O	MHD, Forced convection	The results reveal that using nanoparticles with a platelet form results in the highest heat transmission rate. Nusselt number increases with the Darcy and Reynolds numbers but drops as the Lorentz force increases.
[26]	Nanofluid, viscous fluid	Porous corrugated cavity, rectangular shape cavity	-	MHD	The heat transmission rate increases as the Rayleigh number and wavelength parameter are raised. The Darcy and Hartmann numbers have no discernible influence on the temperature distribution.
[27]	Micropolar nanofluid, viscous fluid	Square	CuO	Conjugate natural convection	As the porosity advances in response to the low pass, traditional Naiver–Stokes equations govern the flow of the nanofluids.
[28]	Nanofluid, viscous fluid	Square	CuO, Al2O3, Ti2O	Natural convection	An increase in heat transfer compared to the base fluid (water) has been seen for all Rayleigh number ranges (Ra). For the purpose of describing heat transfer rates and temperature patterns created utilizing heat lines, the presence of viscous or buoyant forces is critical.
[29]	Non-viscous fluid	Spherical cavity	-	Thermodynamically coupled heat and water flow	A significant rise in pore pressure and displacements due to the existence of thermodynamically connected flows, but does not affect temperature.
[30]	Nanofluid, viscous fluid	Square	CuO	Natural convection	The sole use of nanofluid in a transparent cavity demonstrated that raising the nanofluid volume fraction increases Nu for Ra = ${10}^3$, while there is an ideal concentration for different Ra values to optimize the average Nu.
[31]	Non-Newtonian nanofluid, viscous fluid	Porous cavity	-	Natural convection	Increasing the Lewis number boosts the overall irreversibility. Moreover, as the number of buoyancy ratios increases, the overall generation of entropy increases.
[32]	Ferrofluid	Square cavity	Cobalt	Natural convection	The increase in the Hartman number negatively impacts isotherms and streamlines circulations.
[33]	Ferrofluid	Linearly heated cavity	Kerosene and cobalt	Natural convection	Heat transport declines with increasing volume percentage of ferromagnetic particles at the nanoscale for different Rayleigh numbers.
[34]	Viscous fluid	Square cavity	-	Natural convection	Nonuniform heating of the bottom wall causes a faster rate of heat transfer to the centre of the bottom wall than uniform heating does for all Rayleigh numbers.
[35]	Newtonian fluid, viscous fluid	Inclined cavity	-	Natural convection	Calculating maps of local entropy generation is possible and can provide vital information for choosing an appropriate inclination angle.
[36]	Nanofluid, viscous fluid	Nanofluid-filled cavity	Cu	MHD, Natural convection	Heat transport decreases when the Hartmann number rises for various Rayleigh numbers.
[37]	Nanofluid, viscous fluid	Porous wavy wall cavity	-	Natural convection	The rate of heat transmission dramatically increases as dispersion increases.
[38]	Nanofluid, viscous fluid	Square porous cavity	-	Natural convection	According to the findings, increasing the viscosity change parameter enhances convective flow and heat transmission in a porous medium but has the opposite effect in pure fluids.
[39]	Viscous fluid, nanofluid	Square porous cavity	-	Natural convection	The thermophoresis, buoyancy ratio, and phase deviation are progressive functions of the Nusselt and Sherwood values. Additionally, this includes the Lewis number, Brownian motion, and amplitude ratio’s decrementing functions.
[40]	Viscous fluid, nanofluid	Square cavity	Cu-water	MHD, Natural convection	Heat transfer and flow have no effect on the direction of a slip wall when slip parameters are present.
[41]	Viscous nanofluid	Square cavity	-	Free convection	Heat transfer and flow have no effect on the direction of a slip wall in the presence of slip parameters.
[42]	Viscous nanofluid	Lid-driven cavity	Cu-water	Mixed convection	Heat transfer could be improved by up to 8.3% with the improved heterogeneous porous medium.
[43]	Incompressible viscous, nanofluid	Square cavity	-	Natural convection	The effect of thermophoresis results in a low concentration of nanoparticles near the porous wall’s hot vertical interface. However, there is a high concentration near the cold vertical interface.
[44]	Viscous nanofluid	Square cavity	Al2O3 water	MHD, Mixed convection	With a constant Richardson number, the maximum stream function value increases when the porosity parameter and the Darcy number are increased.
[45]	Nanofluid flow	Rectangular cavity	CuO	Natural convection	The rate of heat transfer increases as the number of grooves on the inner rods increases.
[46]	Viscous nanofluid	Porous cavity	-	Mixed convection	Heat transfer is enhanced when the number of petals is even, as opposed to odd.
[47]	Non-Newtonian nanofluid	Rectangular cavities	Fe3O4, CuO, and Al2O3	MHD, Thermal analysis, entropy generation	The geometric parameters increase the local and average Nusselt numbers, as do the various entropy generation terms.
[48]	Ferrofluid	Porous cavity	Fe3O4-H2O	Natural convection	The magnetic field is an excellent heat transfer controller.
[49]	Nanofluids	Square cavity	Cu	Natural convection	Cu provides maximum heat transfer.
[50]	Nanofluid, incompressible	Square vented cavity	-	Mixed convection	Changes in porosity have a more significant influence on heat transfer with lower Richardson values. This results in an increase of around 79 percent in the Nusselt number in the best condition at conductivity ratios of 33.33 (Ri = 0.1) and 17.4 percent in the worst situation at conductivity ratios of 10 (Ri = 10).

summarizes the information and relevance of the cavities, the various nanoparticles, and the various heat transfer phenomena investigations in various fluids.

Closed cavity flow and heat transfer problems are more complex than open channel flow and heat transfer problems. Many challenges must be overcome, including geometry and boundary conditions, the type of governing equations used, and the finding of the optimal numerical solution. A large amount of literature may cover these critical physical difficulties. This crucial research topic has risen to prominence due to its unavoidable applications. Examples include home heating and cooling, microprocessors, air conditioning, solar collectors, and other related uses. The researchers have always worked to improve the performance of such procedures to increase their efficiency.

Many researchers have conducted experimental and mathematical experiments, the results of which have been published. Due to the low thermal conductivity of conventional heat transfer fluids such as water, oil, and ethylene glycol, the use of mono and hybrid nanofluids can provide a higher heat transfer rate. It is the most significant impediment to improving the performance and compactness of many electrical engineering devices. The Rayleigh number is an important parameter regulating heat transmission in porous media. The researchers investigated how the Rayleigh number, the nanoparticles’ solid volume fraction parameter, the porosity of the porous medium, the porous medium, and the factual matrix of the porous medium affect the flow field, temperature distribution, and the Nusselt number [51,52,53].

Inside the cavity, regardless of the Rayleigh number or the material used to create the solid porous medium matrix, only one circular circulation flow occurs. The flow cell elongates along the horizontal axis as the Rayleigh number increases, and the boundary layers thicken. It strengthens conventional flow. The increase in Rayleigh numbers for the glass beads used as the porous medium’s solid matrix results in a decrease in the porosity range where the heat transmission by convection is low [9,10,11,12,13,14,15].

Modern metallurgy and metalworking are fascinated by the MHD flow and heat transmission of electrically conductive fluid because it transfers a considerable quantity of energy. In numerous technical applications, such as MHD generators, plasma research, nuclear reactors, fuel from geothermal sources, and metal from non-metallic enclosures, MHD generators are researched.

As the Hartmann number (Ha) grows, heat conduction becomes the predominant mechanism of energy transfer, followed by commensurate declines in the heat transfer rate, ferrofluid rate, and entropy creation rate. The best values for the magnetic field tilt angle and intensity selection vary with the engineering application, even if the oscillation phases for the mean Nusselt number and average entropy generation are the same. When the porous layer is kept thick, heat transport will be slowed, and entropy will increase.

MEMs, coating and solidification, food processing, and nuclear reactor cooling are all important geotechnical engineering applications for lid-driven cavities. The interaction between shear-driven flow and buoyancy is quite complex, and it has a significant impact on how efficiently flow mixes and heat are transferred. Using numerical simulations for various flow parameters, it is possible to simulate mixed convection and entropy generation in nanofluid-filled lidded cavities under the influence of inclined magnetic fields imposed on their upper and lower triangular domains. The effect of the magnetic tilt angle was found to be more pronounced for common values of the Richardson number (Ri) and negligible for high values of Ri. Entropy generation decreases as the Ra value increases. Due to the high temperature gradients along the bottom, the effect is more prominent in the lower triangular area. Entropy production declines as the solid volume fraction increases. As the Ha grows, the suppression of fluid motion inside the cavity for the bottom and upper triangular domains reduces the total development of entropy [13,14,15]. The researchers also work on different non-Newtonian nanofluid models to find out the maximum heat transfer rate [31,54].

In most engineering applications, the system boundaries can take a curved shape. This technology is used to build robots, toys, spacecraft, and other electrical gadgets. The irregularity of the grid at the boundary points makes it more difficult to solve these geometries using computing than it is to solve problems involving the solution of regular shapes such as squares, circles, or rectangles. In these kinds of situations, cavities can be heated by one or two walls running the length of the wall, a full-wall partial heater, or both. It is common practice in the design of electronic devices for nanofluid or neat fluid-filled chambers to include either a partially or a completely recessed heating source. It has been said that the higher the Hartmann number, the less the convection flow and heat transfer rate, but the overall generation of entropy increases [55,56]. As a result of the fact that the radiation parameter can be either an increasing or a decreasing function of the Darcy number, it influences the transmission of heat and the flow of fluid. As a result of the fact that the heater and the cooler are in separate locations, the angle of inclination of the cavity shifts quite a bit, which has a significant impact on the flow of fluid and the temperature. The influence of the magnetic field also has the additional effect of decreasing the heat transmission rate inside the cavity. This is true because when the magnetic field is applied in the horizontal direction, pure conduction becomes the primary mode of operation [56]. Free convection and conduction mechanisms are responsible for most of the heat transfer. When added to the base fluid, nanoparticles have the potential to raise the viscosity of the nanofluid while simultaneously enhancing the thermal conductivity of the nanofluid, which has the effect of reducing the strength of the convective flow field. A similar thing can occur when a porous layer is applied; the rate of heat transfer by conduction will increase, while the rate of heat transfer via free convection will decrease.

Entropy generation has garnered significant attention owing to its reputation in numerous natural and industrial applications. For example, studying the rate at which entropy is created is essential in engineering because it helps them figure out the irreversibility of thermodynamics more accurately [57,58,59,60].

In the past two decades, much of the research has focused on convective heat and mass transfer through porous media. Numerous engineering applications involving forced and free convection in permeable channels and cavities with simple and complex geometries, such as rectangular cavities and cylindrical containers, have been studied using various numerical, experimental, and analytical techniques.

The entropy generation function quantifies the level of irreversibilities accessible in a process. When irreversibilities are present, the performance of the engineering equipment decreases, and the entropy generation function is used to determine this level. As the development of entropy is the criterion for measuring the available work destruction of systems, minimizing the effect of entropy is crucial to achieving the optimal design of energy systems [61].

Additionally, entropy formation causes systems to either decrease usable power cycle outputs, as with devices that produce power or increase power input and as with devices that consume energy [62], which is why the second law is more reliable.

3. Significance of The Review

Nanofluids offer an extensive array of applications in engineering challenges, as they do in aerodynamics, nuclear reactors, heat exchangers, etc. They produce impressive results that entice researchers to employ them for various applications. Several reviews [62,63,64,65,66] on nanofluids help researchers and scientists to gain more knowledge and to apply it to different industrial problems to solve them and obtain convincing results. Still, according to a thorough literature review, the appropriate mathematical models play a critical role in enhancing heat transfer, saving energy, and lowering production costs in various real-world applications. However, there are very few reviews. Much research is currently being conducted in the literature on the use of cavities in nanofluid flow in convective heat transfer [10,67,68,69]. We prepared a review of the mathematical models and the use of cavities in nanofluid flow for convective heat transfer and entropy generation, which are giving efficient results in different applications such as thermal energy storage systems, cooling technology, and temperature control systems in buildings and infrastructure.

4. Mathematical Modeling

In nanofluid flow, different mathematical models are employed to predict how the flow will behave to improve heat transfer by using different shapes and cavities. The two-phase nanofluid model of Buongiorno [70], the nanofluid model of Tiwari and Das, the Brinkmann model, and the Darcy–Forchheimer Extended Brinkmann model [71] are well-known models. According to the literature, the model of Tiwari and Das is very efficient for a uniform flow of nanofluids; thus, we delve deeper into the Tiwari and Das model in this review; however, the study on this model has not been published.

4.1. Tiwari and Das Nanofluid Model

Tiwari and Das [72] created a mathematical model of a single-phase nanofluid to study nanofluid behavior in a square cavity driven by a differentially two-sided cavity. Three distinct situations were considered, as seen in Figure 6. The left (cold) wall rises in this scenario, whereas the right (hot) wall flowers. In cases II and III, the left wall descends, the right wall ascends, and both walls ascend simultaneously. In all three scenarios, the moving walls travel at the same speed, and the gravitational force is parallel. The following steps of the fluid flow were observed:

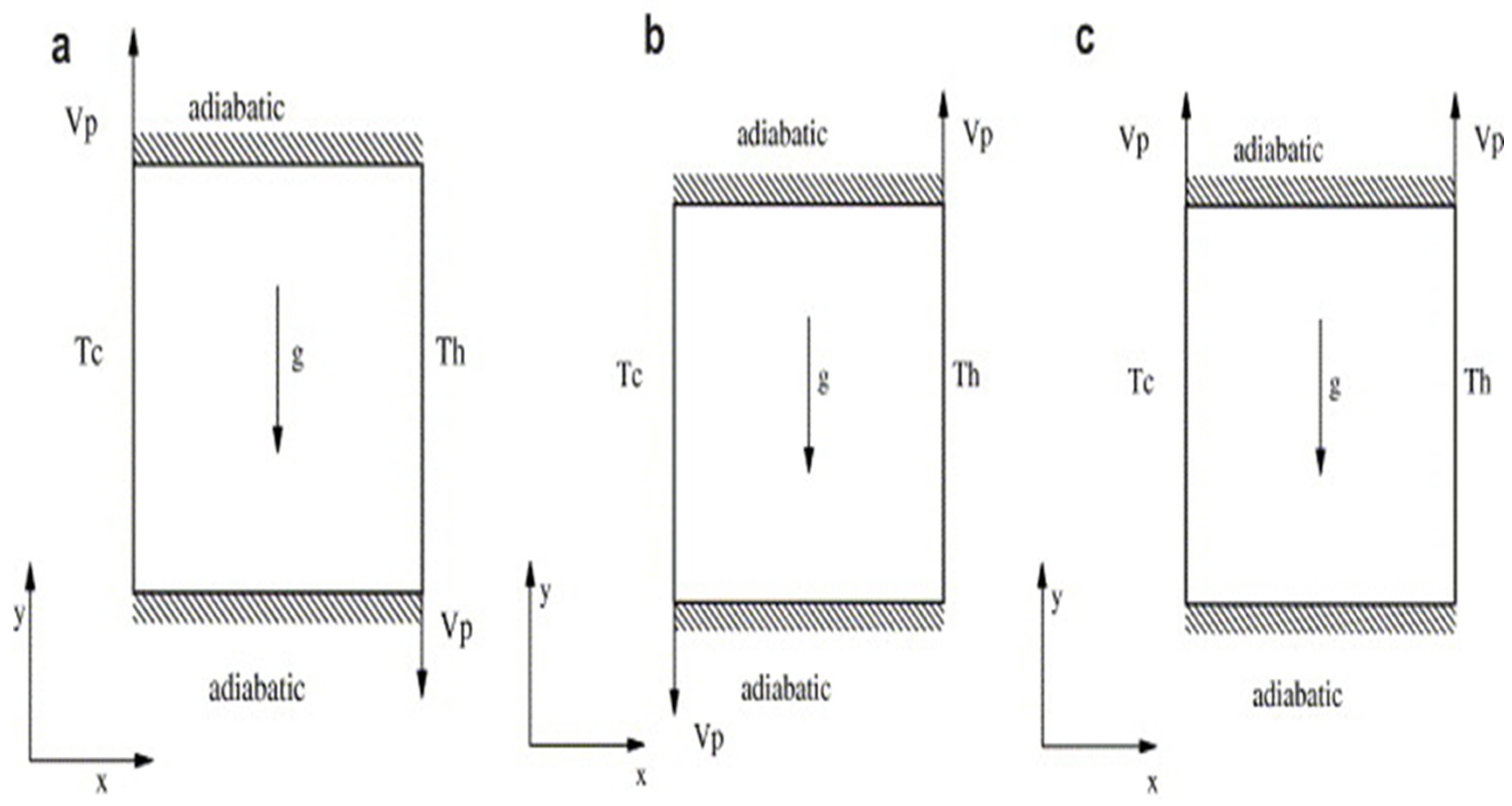

In Figure 6, $V_p$ defines the velocity of the moving liquid, where $T_c$ and $T_h$ represent the temperatures at the hot and cold walls of the cavity and g is gravity. In Figure 6, a, b, and c represent the three different cases of temperature distribution in heat transfer in the cavity.

The mathematical model is composed of the following equations:

$$\frac{\partial u^{-}}{\partial x^{-}}+\frac{\partial v^{-}}{\partial y^{-}}=0$$

(1)

$$\frac{\partial u^{-}}{\partial t}+\frac{\partial u^{-}{}^2}{\partial x^{-}}+\frac{\partial u^{-}.v^{-}}{\partial y^{-}}=-\frac{1}{{\rho }_{nf,0}} \frac{\partial p}{\partial x^{-}}+\frac{{\mu }_{eff}}{{\rho }_{nf,0}} \left(\frac{{\partial }^2{u}^{-}}{\partial x^{-}{}^2}+\frac{{\partial }^2{u}^{-}}{\partial y^{-}{}^2}\right)$$

(2)

$$\mathrm{a}\frac{\partial v^{-}}{\partial t}+\frac{\partial u^{-}.v^{-}}{\partial x^{-}}+\frac{\partial v^{-}{}^2}{\partial y^{-}}=-\frac{1}{{\rho }_{nf,0}} \frac{\partial p}{\partial y^{-}}+\frac{{\mu }_{eff}}{{\rho }_{nf,0}} \left(\frac{{\partial }^2{v}^{-}}{\partial x^{-}{}^2}+\frac{{\partial }^2{v}^{-}}{\partial y^{-}{}^2}\right)+ \frac{1}{{\rho }_{nf,0}}(\phi {\rho }_{s,0}{\beta }_s+\left(1-\phi \right){\rho }_{f,0}{\beta }_f\left( T-T_C\right),$$

(3)

$$\frac{\partial T}{\partial t}+\frac{\partial u^{-}.T}{\partial x^{-}}+\frac{\partial v^{-}.T}{\partial y^{-}}={\alpha }_{nf}\left(\frac{{\partial }^{2}T}{\partial x^{-}{}^2}+\frac{{\partial }^{2}T}{\partial y^{-}{}^2}\right)$$

(4)

$${\alpha }_{nf}=\frac{k_{eff}}{{\left(\rho C_P\right)}_{nf,0}},$$

(5)

where $u^{-}, v^{-}$ are the $x^{-}$ and $y^{-}$ components of the velocities, respectively, and $x^{-}, y^{-}$ are the horizontal and vertical components, respectively, of the cavity. The physical parameters of the nanofluids employed in this model to solve the problem are summarized in

Table 2. Thermophysical properties employed in the Tiwari and Das model.

Effective Viscosity	${\mathit{\mu }}_{\mathit{e}\mathit{f}\mathit{f}}=\frac{{\mathit{\mu }}_{\mathit{f}}}{{\left(1-\mathit{\phi }\right)}^{2.5}}$
Effect of density at reference temperature	${\rho }_{nf,0}=\left(1-\phi \right){\rho }_{f,0}+\phi {\rho }_{s,0}$
Heat capacitance	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho C_P\right)}_f+\phi {\left(\rho C_P\right)}_s$
Thermal conductivity	$\frac{k_{eff}}{k_f}=\frac{\left(k_s+2k_f\right)-2\phi \left(k_f-k_s\right)}{\left(k_s+2k_f\right)+\phi \left(k_f-k_s\right)}$
Thermal conductivity enhancement coefficient	$K=\frac{k_{eff}-k_f}{k_{HC}-k_f}$

.

The Tiwari and Das models are some of the most attractive models for modeling Newtonian fluids (nanofluids) among researchers. This model’s capacity to replicate a wide range of Newtonian nanofluids is one reason for its appeal. Table 3 summarizes some of the studies conducted on Newtonian fluids in cavities. These investigations used the Tiwari and Das models to determine fluid flow in cavities.

4.2. Role of The Entropy Generation in Cavities

Improving heat transfer efficiency in areas such as electronic cooling, heat exchangers, and food drying is one of the most complex engineering challenges. In certain industrial applications, the dispersion of solid nanoparticles with high thermal conductivity in a pure fluid to increase the heat transfer rate has recently gained popularity. For example, one of the fluid-based coolant alternatives for cooling electronic chips and processors with high cooling requirements is this fluid-based coolant, which incorporates nanoparticles suspended in pure liquid [73].

The researchers study entropy generation using square, U-shaped, triangular, and wavy cavities, copper and aluminium nanoparticles, and the Tiwari and Das nanofluid mathematical model [58,73,74,75,76,77]. The experts have also researched how nanofluids move heat through cavities driven by lids using mixed convection. In a variety of industrial system preferences, mixed convective flow and heat transfer in cavities can be performed, including ingot solidification, float glass processing, coating or continuous reheat furnaces, and any other place where a solid material or heat moves from one chamber to another, because the wall moves and the temperature changes, shear force, and buoyancy force all play a role in how heat moves.

Adding nanoparticles reduces the buoyancy effects for the current range of parameter values, and the forced convection heat transfer mechanism takes over as the dominant heat transfer mechanism. It is possible to achieve much more heat transfer than entropy generation in a nanofluid at high Grashof numbers. This is true for many Reynolds and Grashof numbers [74,75]. In a corrugated cavity, increasing the Raleigh number intensifies the convective flow and heat transfer. In contrast, increased fluid friction causes a decrease in the average Bejan number. A convective plume forms above the upper wavy ridge as the Ra increases, as do the non-monotonic changes in the mean Nusselt and Bejan numbers over time. The primary convective flow inside the cavity becomes more intense as the number of ripples increases, and the domain of interest cools more rapidly. The effects of increasing the number of ripples are as follows: as k increases, the heat transfer rate and average entropy generation due to heat transfer decrease, lowering all the critical parameters considered [77]. To better understand heat transfer and entropy generation in a cavity with sinusoidal roughness elements on the bottom wall, the researchers [76] used numerical simulation. Following careful examination, the results show that entropy generation due to heat transfer contributes significantly to the increase in total entropy generation. At low Ra and low Re, the entropy generation could be kept to a bare minimum at a constant N and A, where A is the amplitude of the roughness surface on the cavity’s surface. Adding a minor feature to a heated surface could be an excellent alternative to smooth surfaces to reduce entropy and increase the amount of heat that can be transferred.

The generation of entropy in a nanofluid under LTNE for different positions of the heated wall of the enclosure has been studied using the nanofluid models of Tiwari and Das. This research is beneficial in improving system performance while simultaneously reducing entropy generation. The irreversibility of the system is significantly controlled by buoyancy and magnetic forces, with the angle of inclination of the magnetic field having only a marginal effect. When the heated wall is located in the upper part or vertical wall of the envelope, the geometry of the angle of inclination affects the irreversibility. However, this does not change the irreversibility of the two heated wall positions on the other side [78].

Finally, it is possible to improve or optimize the thermodynamic performance of engineering systems by employing strategies such as entropy generation analysis and minimization, which are both effective approaches. The development of these approaches spans multiple decades and has resulted in the creation of design processes, the evolution of which has been driven primarily by the assistance of computer resources. Entropy generation analysis is harder to use with non-steady processes because you have to look for an optimal time history, which means minimizing the amount of entropy made in a finite amount of time. Because of this, entropy generation is rarely used to deal with transient operations and conditions that are not what was planned. This is a big gap in the research because most of the energy systems that people are interested in right now, such as energy storage, solar systems, and micro-cogeneration, work under unsteady state protocols or are affected by natural changes in the time of the primary energy inflow.

4.3. Impact of the Correlations of Thermal Conductivity in Cavities

The researchers are trying out different cavities in nanofluid flows to see which ones allow heat to move the fastest. In this section’s middle part, we will talk briefly about the extension of the Tiwari and Das single-phase nanofluid mathematical model and the extension of different correlations in the physical properties of nanoparticles, such as the thermal conductivity, specific heat capacity, and viscosity correlation of nanofluids in cavities and how they affect heat transfer. Table 3 and

Table 4. Specific heat capacity and thermal diffusivity used by researchers using Tiwari and Das model in different cavities/geometries.

Ref.	Cavity	Nanoparticles	Specific Heat Capacity	Thermal Diffusivity
[79]	Square	Ag	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho C_P\right)}_f+\phi {\left(\rho C_P\right)}_P$	${\alpha }_{nf}=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$
[80]	Chamber	Al2O3	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_P$	-
[11]	Porous square cavity	Cu	${\left(\rho C_P\right)}_{mnf}=[1-ϵ\phi \frac{{\left(\rho C_P\right)}_f-{\left(\rho C_P\right)}_p}{{\left(\rho C_P\right)}_m}]$${\left(\rho C_P\right)}_m$	${\alpha }_{mnf}=\frac{k_{mnf}}{{\left(\rho C_P\right)}_{nf}}$
[81]	Porous parabolic cavity	Cu, Al2O3	${\left(\rho C_P\right)}_{mnf}=[1-ϵ\phi \frac{{\left(\rho C_P\right)}_f-{\left(\rho C_P\right)}_p}{{\left(\rho C_P\right)}_m}]$	${\alpha }_{mnf}=\frac{k_{mnf}}{{\left(\rho C_P\right)}_{nf}}$
[82]	Triangular cavity	Cu, CuO, Al2O3, TiO2	${\left(\rho C_P\right)}_n=\left(1-\phi \right){\left(\rho C_P\right)}_f+\phi {\left(\rho C_P\right)}_s$	${\alpha }_n=\frac{k_n}{{\left(\rho C_P\right)}_n}$
[83]	Square porous cavity	Cu, Aluminum foam	${\left(\rho C_P\right)}_{mnf}={\left(\rho C_P\right)}_m[1-ϵ\phi \frac{{\left(\rho C_P\right)}_f-{\left(\rho C_P\right)}_p}{{\left(\rho C_P\right)}_m}]$	${\alpha }_{mnf}=\frac{k_{mnf}}{{\left(\rho C_P\right)}_{nf}}$
[84]	Moving needle	Al2O3	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s$	-
[85]	Triangular cavity	Al2O3	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_{bf}+\phi {\left(\rho c\right)}_p$	-
[86]	Wavy wall cavity	-	${\left(\rho C\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_p$	${\alpha }_n=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$
[87]	Shrinking sheet	TiO2, Al2O3, Cu	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s$	${\alpha }_n=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$
[88]	Shrinking sheet	TiO2, Al2O3, Cu	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s$	${\alpha }_n=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$
[89]	Rotating disk	Fe3O4	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s$	-
[90]	Porous cylinder	Au-Ag water	$[\left(1-{\phi }_2\right) \{\left(1-{\phi }_1\right) {\left(\rho C_P\right)}_f+$${\phi }_1{\left(\rho C_P\right)}_{s1}\}s+$${\phi }_2{\phi }_1{\left(\rho C_P\right)}_{s2}$	${\alpha }_n=\frac{k_{hnf}}{{\left(\rho C_P\right)}_{hnf}}$
[91]	Sheet	Cu, Al2O3	${\left(\rho C\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_p$	${\alpha }_n=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$
[92]	Vertical cone	TiO2, Al2O3, Cu	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s$	${\alpha }_n=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$
[93]	Cone	Cu, Al2O3	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s$	${\alpha }_n=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$
[94]	Circular cylinder	TiO2, Al2O3, Cu	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s$	${\alpha }_n=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$
[95]	Shrinking sheet	TiO2, Al2O3, Cu	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s$	${\alpha }_n=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$
[96]	Porous channel	Cu	${\left(\rho C_P\right)}_{nf}=\left(1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s$	${\alpha }_n=\frac{k_{nf}}{{\left(\rho C_P\right)}_{nf}}$

provide the details of the thermophysical properties used in different geometries with the Tiwari and Das model.

Table 3. Different thermal conductivity correlations used by researchers using the Tiwari and Das model for various geometries.

Ref.	Cavity/Geometry	N. P	Thermal Conductivity	Remarks
[79]	Square	Ag	$k_{nf}=k_f\left(\frac{k_p+2k_f-2\phi \left(k_f-k_p\right)}{k_p+2k_f+2\phi \left(k_f-k_p\right)}\right)$	Heat transfer rate increases in the range of 6.3–12.4% at ${\phi }_o=0.05.$
[80]	Chamber	Al2O3	$k_{nf}=k_f\left(1+2.944\phi +19.672{\phi }^2\right)$	Heat flow rate increases with nanoparticle concentration for high Rayleigh numbers.
[11]	Porous square cavity	Cu	$k_{mnf}=k_m\left(1-\frac{3\epsilon \phi \left(k_f-k_p\right)}{k_m(k_p+2k_f+\phi \left(k_f-k_p\right)}\right)$	Less conductivity of the solid material reduces convective heat transport within the cavity.
[81]	Porous parabolic cavity	Cu, Al2O3	$k_{mnf}=k_m\left(1-\frac{3\epsilon \phi \left(k_f-k_p\right)}{k_m(k_p+2k_f+\phi \left(k_f-k_p\right)}\right)$	Reduction in the porosity upsurge of the thermal conductivity of the porous matrix, whereas decreased inclination angle and aspect ratio exacerbate the heat transfer degradation.
[82]	Triangular cavity	Cu, CuO, Al2O3, TiO2	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	For all Rayleigh numbers, increases the nanoparticle volume in pure water and increases the rate of change in the heat transfer rate.
[83]	Square porous cavity	Cu, Aluminum foam	$k_{mnf}=k_m\left(1-\frac{3\epsilon \phi \left(k_f-k_p\right)}{k_m(k_p+2k_f+\phi \left(k_f-k_p\right)}\right)$	Thermal stratification has a critical effect on heat and fluid flow fields.
[84]	Moving needle	Al2O3	$k_{nf}=k_f\left(1+2.944\phi +19.672{\phi }^2\right)$	While the combined action of Dufour and Soret diffusions increases the heat transfer coefficient, the mass transfer coefficient shows a dual behavior.
[85]	Triangular cavity	Al2O3	$k_{nf}=k_f\left(\frac{k_p+2k_f-2\phi \left(k_f-k_p\right)}{k_p+2k_f+\phi \left(k_f-k_p\right)}\right)$	At Ri = 100, the average heat transfer enhances to 48.26%.
[86]	Wavy wall cavity	-	$k_{nf}=k_f\left(1+2.944\phi +19.672{\phi }^2\right)$	The average Nusselt number decreases with the increasing nanoparticle volume fraction for all inclination angles except =$\pi$/4, where nanoparticles improve heat transmission.
[87]	Shrinking sheet	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The addition of suction and sliding results expands the range of existing dual solutions.
[88]	Shrinking sheet	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The skin friction coefficient and the local Nusselt number at the sheet’s surface upsurge as the suction rate increases.
[89]	Rotating disk	Fe3O4	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The addition of ferromagnetic particles improves the convective heat transfer coefficient of water.
[90]	Porous cylinder	Au-Ag H2O	$[\frac{k_{s2}+2k_{nf}-2{\phi }_2\left(k_{nf}-k_{s2}\right)k_{s1}+2k_f-2{\phi }_1\left(k_f-k_{s1}\right)}{k_{s2}+2k_{nf}+{\phi }_2\left(k_{nf}-k_{s2}\right)k_{s1}+2k_f+{\phi }_1\left(k_f-k_{s1}\right)}]k_f$	Hybrid nanofluids may be recommended for heat transfer applications to improve the thermophysical properties of conventional fluids and mono nanofluids.
[91]	Sheet	Cu, Al2O3	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Cu gives best performance as compared to Al2O3.
[92]	Sheet	Cu, Al2O3	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Cu gives maximum heat transfer rate.
[93]	Vertical cone	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The size of the nanoparticle is significant in heat transfer enhancement.
[94]	Cone	Cu, Al2O3	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Alumina and copper nanoparticles have the lowest and highest values of the skin friction coefficient.
[95]	Circular cylinder	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Cu gives maximum heat transfer.
[96]	Shrinking sheet	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Cu gives maximum heat transfer.
[97]	Porous channel	Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The concentration increases considerably as the Schmidt number and chemical reaction parameter increase.

Table 3. Different thermal conductivity correlations used by researchers using the Tiwari and Das model for various geometries.

Ref.	Cavity/Geometry	N. P	Thermal Conductivity	Remarks
[79]	Square	Ag	$k_{nf}=k_f\left(\frac{k_p+2k_f-2\phi \left(k_f-k_p\right)}{k_p+2k_f+2\phi \left(k_f-k_p\right)}\right)$	Heat transfer rate increases in the range of 6.3–12.4% at ${\phi }_o=0.05.$
[80]	Chamber	Al2O3	$k_{nf}=k_f\left(1+2.944\phi +19.672{\phi }^2\right)$	Heat flow rate increases with nanoparticle concentration for high Rayleigh numbers.
[11]	Porous square cavity	Cu	$k_{mnf}=k_m\left(1-\frac{3\epsilon \phi \left(k_f-k_p\right)}{k_m(k_p+2k_f+\phi \left(k_f-k_p\right)}\right)$	Less conductivity of the solid material reduces convective heat transport within the cavity.
[81]	Porous parabolic cavity	Cu, Al2O3	$k_{mnf}=k_m\left(1-\frac{3\epsilon \phi \left(k_f-k_p\right)}{k_m(k_p+2k_f+\phi \left(k_f-k_p\right)}\right)$	Reduction in the porosity upsurge of the thermal conductivity of the porous matrix, whereas decreased inclination angle and aspect ratio exacerbate the heat transfer degradation.
[82]	Triangular cavity	Cu, CuO, Al2O3, TiO2	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	For all Rayleigh numbers, increases the nanoparticle volume in pure water and increases the rate of change in the heat transfer rate.
[83]	Square porous cavity	Cu, Aluminum foam	$k_{mnf}=k_m\left(1-\frac{3\epsilon \phi \left(k_f-k_p\right)}{k_m(k_p+2k_f+\phi \left(k_f-k_p\right)}\right)$	Thermal stratification has a critical effect on heat and fluid flow fields.
[84]	Moving needle	Al2O3	$k_{nf}=k_f\left(1+2.944\phi +19.672{\phi }^2\right)$	While the combined action of Dufour and Soret diffusions increases the heat transfer coefficient, the mass transfer coefficient shows a dual behavior.
[85]	Triangular cavity	Al2O3	$k_{nf}=k_f\left(\frac{k_p+2k_f-2\phi \left(k_f-k_p\right)}{k_p+2k_f+\phi \left(k_f-k_p\right)}\right)$	At Ri = 100, the average heat transfer enhances to 48.26%.
[86]	Wavy wall cavity	-	$k_{nf}=k_f\left(1+2.944\phi +19.672{\phi }^2\right)$	The average Nusselt number decreases with the increasing nanoparticle volume fraction for all inclination angles except =$\pi$/4, where nanoparticles improve heat transmission.
[87]	Shrinking sheet	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The addition of suction and sliding results expands the range of existing dual solutions.
[88]	Shrinking sheet	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The skin friction coefficient and the local Nusselt number at the sheet’s surface upsurge as the suction rate increases.
[89]	Rotating disk	Fe3O4	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The addition of ferromagnetic particles improves the convective heat transfer coefficient of water.
[90]	Porous cylinder	Au-Ag H2O	$[\frac{k_{s2}+2k_{nf}-2{\phi }_2\left(k_{nf}-k_{s2}\right)k_{s1}+2k_f-2{\phi }_1\left(k_f-k_{s1}\right)}{k_{s2}+2k_{nf}+{\phi }_2\left(k_{nf}-k_{s2}\right)k_{s1}+2k_f+{\phi }_1\left(k_f-k_{s1}\right)}]k_f$	Hybrid nanofluids may be recommended for heat transfer applications to improve the thermophysical properties of conventional fluids and mono nanofluids.
[91]	Sheet	Cu, Al2O3	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Cu gives best performance as compared to Al2O3.
[92]	Sheet	Cu, Al2O3	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Cu gives maximum heat transfer rate.
[93]	Vertical cone	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The size of the nanoparticle is significant in heat transfer enhancement.
[94]	Cone	Cu, Al2O3	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Alumina and copper nanoparticles have the lowest and highest values of the skin friction coefficient.
[95]	Circular cylinder	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Cu gives maximum heat transfer.
[96]	Shrinking sheet	TiO2, Al2O3, Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	Cu gives maximum heat transfer.
[97]	Porous channel	Cu	$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right)$	The concentration increases considerably as the Schmidt number and chemical reaction parameter increase.

Table 3 and Table 4 list the different types of nanoparticles, geometries, and cavities and the correlations between the thermal conductivity, specific heat capacity, and viscosity that the researchers found in the nanofluids and hybrid nanofluids using the Tiwari and Das single-phase nanofluid model to obtain the most heat transfer.

Using nanofluids with different shapes and cavities is a better way to improve thermal performance than using each method separately. When researchers talk about nanofluids, they discuss fluids with nanoparticles in them [71,98,99]. Nanofluids are used for several reasons, the most important of which is that it is well known that they have better thermophysical properties, most notably higher thermal conductivity. Nanofluids are used for many different reasons, but the most important one is that it is well known that they have better thermophysical properties. The thermophoresis effect was caused by Brownian motion, which was caused by the increase in thermal conductivity [100,101] [102]. Numerous pieces of research have reported on distinct cavities that contain a variety of nanofluids; these are described in Table 3.

The researchers have extended the Tiwari and Das model by incorporating different thermal conductivity correlations to achieve the greatest heat transfer rate possible using different nanoparticles in the nanofluid flow and various geometries. Most authors examine the thermal conductivity correlations and specific heat capacitance and viscosity with the Tiwari and Das model, as given in Equations (6)–(8):

$$k_{nf}=k_f\left(\frac{k_s+2k_f-2\phi \left(k_f-k_s\right)}{k_s+2k_f+\phi \left(k_f-k_s\right)}\right),$$

(6)

$${\left(\rho C_P\right)}_{nf}=\left( 1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_s,$$

(7)

$${\mu }_{nf}=\frac{{\mu }_f}{{\left(1-\phi \right)}^{2.5} },$$

(8)

In Equations (6) and (7), $k_{nf}$ defines the thermal conductivity of the nanofluid; $k_f$ represents the thermal conductivity of regular fluids; $k_s$ defines the thermal conductivity of the solid, and $\phi$ defines the nanoparticle concentrations; $\rho$ defines density; $C_P$ explains the heat capacity; $\mu$ explains viscosity; and the subscripts f and nf represent the fluids and nanofluids. Chen [97] developed the mathematical model in the parameters of the dimensionless flux function and temperature, taking into account the Darcy–Boussinesq approximation and other factors.

The numerical analysis was carried out using the Tiwari and Das nanofluid model, which was updated to include more accurate empirical correlations for the physical parameters of the nanofluids. The author used the following correlation for thermal conductivity and specific heat capacity for the porous square cavity, as provided in Equations (9) and (10):

$$k_{mnf}=k_m\left(1-\frac{3\epsilon \phi \left(k_f-k_p\right)}{k_m(k_p+2k_f+\phi \left(k_f-k_p\right)}\right)$$

(9)

$${\left(\rho C_P\right)}_{mnf}={\left(\rho C_P\right)}_m[ 1-ϵ\phi \frac{{\left(\rho C_P\right)}_f-{\left(\rho C_P\right)}_p}{{\left(\rho C_P\right)}_m}]$$

(10)

where $k_{mnf}$ represents the thermal conductivity of nanoparticles inserted in a porous medium; $k_m$ represents the thermal conductivity of the porous medium; $\epsilon$ represents the porosity; $\phi$ represents the initial concentration of the nanoparticles; and the indices $f$ and $p$ represent the nanoparticles and clear fluid, respectively, and $k_m$ represents the thermal conductivity of the porous medium. The use of copper nanoparticles in a porous square cavity results in a significant increase in heat transfer efficiency. The authors use aluminum foam and a glass bulb as porous media in the problem. The impact of copper nanoparticles in combination with aluminum as a porous medium increases the thermal conductivity, and as a result, the maximum heat transfer rate is attained.

The researchers in [79,80,84,86] use the thermal conductivity correlation and specific heat capacitance in a nanofluid flow in a chamber, moving the needle and wavy wall cavity together with the Tiwari and Das model, as given in Equations (11) and (12):

$$k_{nf}=k_f\left(1+2.944\phi +19.672{\phi }^2\right)$$

(11)

$${\left(\rho C_P\right)}_{nf}=\left( 1-\phi \right){\left(\rho c\right)}_f+\phi {\left(\rho c\right)}_P$$

(12)

The above correlations also provide a maximum heat transfer rate. In hybrid nanofluids, the correlation of thermal conductivity and specific heat capacity is defined in Equations (13) and (14):

$$\frac{k_{s_2}+2k_{nf}-2{\phi }_2\left(k_{nf}-k_{s_2}\right)k_{s_1}+2k_f-2{\phi }_1\left(k_f-k_{s_1}\right)}{k_{s_2}+2k_{nf}+{\phi }_2\left(k_{nf}-k_{s_2}\right)k_{s_1}+2k_f+{\phi }_1\left(k_f-k_{s_1}\right)}$$

(13)

$$\left(1-{\phi }_2\right)\{\left(1-{\phi }_1\right){\left(\rho C_P\right)}_f+{\phi }_1{\left(\rho C_P\right)}_{s_1}]+{\phi }_2{\phi }_1{\left(\rho C_P\right)}_{s_1}$$

(14)

In Equations (13) and (14), $s_1$ and $s_2$ define the solid particles of hybrid nanofluids. When it comes to improving heat transfer, the thermal conductivity and viscosity of the fluids play a significant role in the final product. It has been discovered that the utilization of hybrid nanofluids can boost the thermal conductivity of nanoparticles, which ultimately results in the highest possible rate of heat transmission.

The thermal conductivity of nanofluids is known to be superior to that of base fluids, as has been observed by the vast majority of the authors. The greater the concentration of particles, the higher their value. There are a number of factors, including temperature, particle size, dispersion, and stability, that influence the nanofluid’s thermal conductivity [103].

4.4. Imapct of the Nanoparticles in Cavities

When it comes to solving a variety of engineering challenges, nanoparticles play an essential function in increasing heat transmission. The selection of nanoparticles to be carried by the nanofluid flow results in the highest possible rate of heat transmission. Waini and colleagues [84] investigated the effects that nanoparticles have on the flow of fluid and the transfer of heat. The authors were able to realize the flow of the Al₂O₃-water nanofluid on a thin moving needle by using the model developed by Tiwari and Das. This model takes into account the Dufour and Soret effects. If the Schmidt number is 1, it means that the viscosity and the mass diffusion rates are both the same. The researchers in [81] discovered an increase in the rate of the heat transfer of nanofluids inside a porous parallelogram enclosure filled with a nanofluid. These findings were the subject of a numerical study using copper and alumina nanoparticles, and the researchers discovered that the presence of nanoparticles decreases the rate of heat transfer in all of the scenarios that were studied. When applied to porous media, as shown in Figure 7, the nanofluid does not give the greatest amount of heat transmission. This is demonstrated by the given fact.

The use of nanofluids is not adequate for applications involving heat transmission in porous media. It is also possible to see that the increase in heat conductivity of the porous matrix is accompanied by a decrease in the matrix’s porosity. Nevertheless, the rate at which the heat transfer is reduced would increase with a reduction in both the tilt angle and the aspect ratio. On the other hand, one may also see that an increase in the thermal conductivity of the porous matrix is accompanied by a decrease in the porosity of the matrix. However, a decrease in the tilt angle and an increase in the aspect ratio would result in a faster rate of heat transfer.

The author in [84] examines the heat transfer problem by natural convection, identifies the effects of aluminum foam, glass beads, and Cu nanoparticles, and indicates that nanoparticles in nanofluids can the improve heat transfer performance. Copper nanoparticles perform better than other nanoparticles because Cu has higher thermal conductivity than the other three nanoparticles; this enhances heat transmission in the given problem.

The authors in [89] examine the ongoing von Kármán disc problem by conducting rotary flow and heat transfer investigations of water-based magnetic nanofluids in the presence of viscous dissipation while ferrofluid is present in the space above the spinning disc. According to the findings of this study, increasing the solid volume percentage of the ferromagnetic particles leads to an increase in the rate of heat transmission through the wall. This was determined by analyzing the results of the study. In addition to this, the addition of ferromagnetic particles to water raises the convective heat transfer coefficient. The researchers in [93], investigate the free convection flow of an electrically conductive nanofluid in the vicinity of a downward-pointing spinning vertical cone when a transverse magnetic field is present. In a comparison of several nanofluids, the copper-water nanofluid was shown to have the highest skin friction coefficient and local Nusselt number. This was due to the fact that copper had the highest thermal conductivity, which is why it offers the best possible rate of heat transfer.

Finally, the nanoparticles’ role in improving heat transfer is also very significant because of the way they behave thermophysically. For example, in the Tiwari and Das model for different nanofluid flow problems with different geometries, copper nanoparticles have the highest heat transfer rate compared to the other nanoparticles. Furthermore, adding a magnetic field to the nanoparticles also gives the highest rate of heat transfer improvement.

4.5. Impact of the Inclined Cavities

The use of cavities and various geometries has become increasingly crucial in nanofluids and hybrid nanofluids in recent years as the different shapes and structures of the geometry alter the flow direction and significantly affect the physical conditions of the problem, thereby assisting in achieving the desired results. The researchers used various cavities and geometries such as square, rectangular, triangular, vertical plate, channel, and trapezoidal to observe the effect of heat transfer and achieved fruitful results in controlling the temperature in buildings and in cooling technology, solar collectors, and cooling electronic equipment. The geometry of holes is crucial when it comes to increasing heat transmission in nanofluid flow. It will improve the numerical convergence of the system. This attribute pushes researchers to examine the varied cavities (geometries) for heat transfer efficiency in order to improve heat transmission efficiency. It has been demonstrated that using an inclined porous square cavity [104] in a nanofluid flow can significantly increase the amount of heat transmitted if the heater installation and inclination angle with regard to the nanofluid concentration and porous media are appropriately located. The use of inclination angle in the heat transfer enhancement is described in Figure 8.

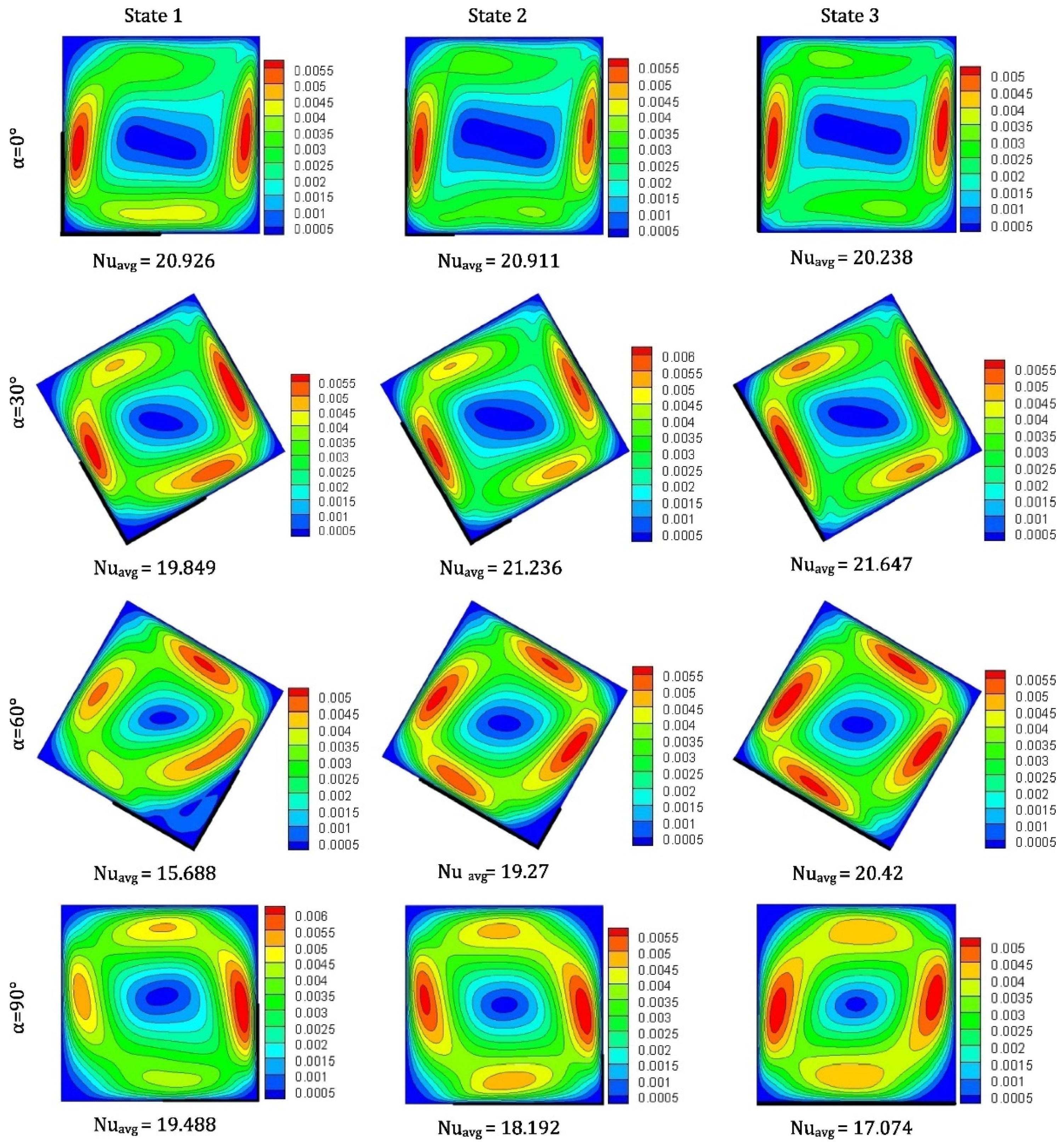

According to Figure 8, the largest amount of heat transfer occurs at an angle of 0 degrees, whereas the lowest amount of heat transfer is recorded at an inclination angle of 60 degrees. However, it is feasible for an inclined cavity with side wall heating to lead to enhanced heat transfer rates when the convection effects are more prominent than the conduction effects. The angle of the cavity should be 30 degrees to 0 degrees. Another aspect of heat transmission events being investigated by researchers [86] is an inclined wavy hollow. The influence that the cavity’s inclination angle has on the rate at which heat is transferred is shown in Figure 9.

The angle at which the cavity is tilted is an excellent control parameter that can improve how heat is distributed. Except for the case in which the angle is 45 degrees, the average Nusselt number goes down whenever the nanoparticle volume fraction is up. The processes of heat transport have also been investigated by researchers [105] using a slanted square cavity. The impact on the circulation of heat is depicted in Figure 10.

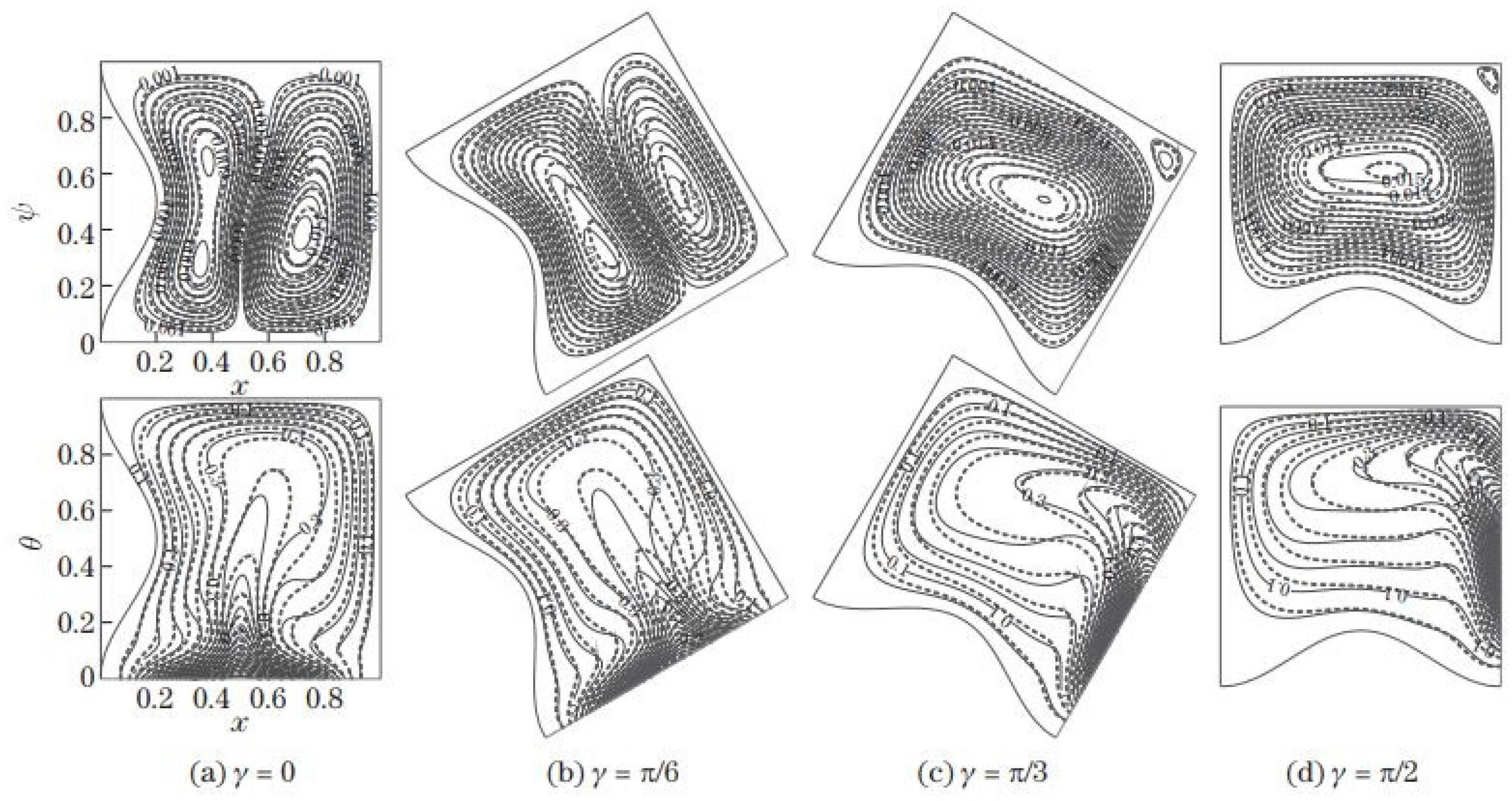

The inclination angle reveals a vibrant factor that significantly impacts the cavity’s flow fields and temperature lines. The streamlines of the fluid inside the cavity are nearly stationary for the average angle of inclination ($0°\le \theta \le 60°$). At a high Ri, the impact of the inclination angle is generally observed in the temperature distribution and the fluid flow.

In conclusion, the angle of inclination of the cavity and the periodic thermal boundary conditions are both effective means of controlling the parameters that govern the movement of heat and fluid inside the cavity.

5. Future Recommendations

Several recommendations for future research efforts are made considering the literature review. According to the study, the Tiwari and Das nanofluid mathematical model and the cavities can be used to analyze heat transmission in various ways. Therefore, the following recommendations for future research are made:

• In the future, the mathematical model developed by Tiwari and Das can be extended to include thermal energy storage systems based on nanofluids.
• In the future, the Tiwari and Das single-phase model can be extended for the applications of solar collectors and the microchannel heat exchanger, along with the use of square cavities for entropy generation.
• Because the literature indicates that copper, aluminum, and titanium are the most frequently employed nanoparticles, it is proposed that additional nanoparticles be explored to achieve maximum heat transmission.
• The angle of inclination of the cavity and the periodic thermal boundary conditions can control the flow of heat and fluid inside the cavity; it is recommended to use inclined cavities in the cooling of nuclear reactors and in buildings to maintain temperature. Tilted cavities can also be used to control the flow of heat and fluid outside of the cavity.
• The recent years have seen more research on synthesizing and the thermophysical properties of hybrid nanofluids. The free convection of hybrid nanofluids in cavity flow has been investigated minimally. It is suggested that the Tiwari and Das model for free convection hybrid nanofluids be extended to include the application of solar collectors and drug delivery applications.

6. Conclusions

The current report provides a comprehensive overview of the research advances made in increasing convective heat transfer employing various cavities and geometries based on the Tiwari and Das nanofluid mathematical model. According to the reviewed literature, nanofluids and hybrid nanofluids offer a more significant potential for cooling, thermal storage, solar energy components, heat exchangers, and cooling-related technologies. The following closing statements are made considering the present review:

• Furthermore, it is established that copper nanoparticles provide the maximum heat transmission rate.
• The highest possible rate of heat transfer can be achieved in a variety of applications by combining hybrid nanofluids with cavities and geometries. This boosts the thermal conductivity of the nanoparticles.
• It is observed that aluminium and copper nanoparticles provide better heat transfer rates in the cavity using the Tiwari and Das nanofluid model. When compared to the base fluid, the Al₂O₃/water nanofluid’s performance is improved by 6.09%.
• The inclination angle of the cavity as well as the periodic thermal boundary conditions can be used to effectively manage the parameters for heat and fluid flow inside the cavity.
