1. Introduction
The growing global population, coupled with rapid industrialization and climate change, has intensified the pressure on freshwater resources, leading to an escalating crisis of water scarcity [
1]. According to the United Nations, by 2025, nearly two-thirds of the world’s population could be living under water-stressed conditions, with 1.8 billion people facing absolute water scarcity [
2]. In response to this critical issue, seawater desalination has emerged as a vital technology to supplement the dwindling freshwater supply. Rapid population growth and industrial development have exacerbated the imbalance between the supply and demand of freshwater [
3]. However, traditional desalination methods, heavily reliant on non-renewable energy sources, are not sustainable in the long term due to their significant environmental impact [
4].
Desalination technologies vary significantly in terms of operation, energy consumption, and environmental impact. A comparative analysis between solar-powered desalination and other conventional methods, as discussed in Reference [
5], highlights the unique advantages and limitations of each approach.
Solar desalination systems have become a promising approach to addressing global issues of water scarcity and energy sustainability. With the growing demand for freshwater and the depletion of fossil fuel resources, there is an increasing need for innovative and efficient desalination technologies that utilize renewable energy. Significant progress has been made in optimizing solar desalination systems, especially through the incorporation of novel materials and technologies such as biowaste, nanofluids, and advanced membranes [
6], which have played a crucial role in improving the efficiency and sustainability of these systems.
To enhance the efficiency and sustainability of solar desalination systems, researchers have been exploring various innovative technologies. Among these, the integration of biowaste, nanofluids, and advanced membranes has shown considerable promise in both improving thermal efficiency and reducing operational costs. Biowaste, for example, can be utilized as a cost-effective and environmentally friendly thermal energy storage medium, while nanofluids are known to significantly enhance heat transfer rates in solar collectors. Additionally, the application of artificial intelligence (AI) in solar desalination processes is proving to be a game-changer, enabling more precise control and optimization of system operations [
7]. By leveraging AI, researchers can develop predictive models that adjust system parameters, thus improving overall efficiency and adaptability in varying environmental conditions.
To further enhance distilled water production, researchers have explored a range of innovative methods. For instance, Hitesh et al. [
8]. used magnesia waste brick material as energy storage to improve solar still performance, while Kaviti and colleagues [
9] employed aluminum fins as solar absorbers to boost desalination efficiency. Mevada et al. [
10] achieved a 72.6% increase in daily efficiency using black granite and marble stones compared to traditional stills. Minghao [
11] revealed that aged PLA microplastics, especially under UV, significantly boost ciprofloxacin (CIP) adsorption, potentially acting as long-term antibiotic carriers in aquatic environments. This emphasizes the importance of understanding material interactions in desalination systems for environmental sustainability and pollutant control. Kaviti et al. [
6] further improved distillate output by 36.35% using camphor-soothed banana stems. Other studies include using derived carbon materials from plastic waste for green energy applications, hydrogels for brine water treatment, and porous absorbers with activated carbon tubes for better energy and environmental performance. Kumar and co-researchers [
12] enhanced desalination by 104.54% with magnets and charcoal, while Kaviti’s team achieved 60% efficiency by fabricating hierarchical structures. Additional research focused on regulating salt concentration for freshwater generation and optimizing solar still performance through fin geometry and energy storage materials.
Moreover, the optimization of AI models, including the calibration of hyperparameters and activation functions, has further improved the prediction reliability of desalination processes. Sohani et al. [
13] used digital systems to model variables like pressure drop and air temperature using multivariate regression and genetic programming. Asfahan et al. [
14] applied AI to predict the thermal performance of various cooling systems, optimizing the algorithm with techniques like Adam and RMSprop to enhance learning and accuracy. Derbali et al. [
15] explored defect detection in water membrane distillation systems using machine learning, with decision trees yielding the highest classification accuracy. Raghuvanshi et al. [
16] used data mining to monitor solar water distillation performance, while Salem et al. [
7] enhanced regression models, particularly the multilayer perceptron (MLP), using optimization techniques. H. Salem et al. [
17] emphasize that explainable AI (XAI) is essential for improving the transparency and accuracy of AI models in water treatment. This study uses XAI to enhance understanding and decision-making in solar-powered desalination systems. Baetens et al. [
18] presented two modeling approaches for forecasting temperatures in cooling towers, combining fluid dynamics with adaptive neuro-fuzzy systems, and highlighted the benefits and limitations of pre-cooling methods. In summary, these AI-driven advancements have greatly enhanced the efficiency, accuracy, and reliability of desalination processes.
Table 1 below presents a summary of important studies on predictive modeling in solar desalination, highlighting their respective advantages, limitations, and key findings. This table provides a broader understanding of the current state of research in this field and the gaps that still need to be addressed.
Despite these advancements, several crucial gaps remain unaddressed in the current literature. One of the most pressing issues is the lack of integration between predictive models and thermal energy storage (TES) systems in solar desalination. While predictive models, particularly those powered by AI, have shown promise in optimizing system operations by forecasting solar radiation and adjusting operational parameters, their combined application with TES remains underexplored. This integration is crucial for ensuring continuous desalination processes, especially during periods of low solar radiation or fluctuating environmental conditions.
Moreover, there is a notable gap in accurately calculating water based on energy availability needs for remote and residential areas. This is particularly important for developing effective and sustainable water supply plans tailored to specific energy expectations, which is essential for the successful implementation of solar-powered desalination in geographically diverse regions.
This research aims to bridge these gaps by introducing an innovative solar desalination system that seamlessly integrates predictive models with advanced TES. By leveraging precise solar radiation forecasts, the proposed system dynamically adjusts feed water flow rates, ensuring consistent top feed water temperatures (TBT) and continuous operation. This approach not only enhances the overall efficiency of the desalination process but also provides a more accurate framework for calculating water needs in remote and residential areas.
The novelty of this research lies in its holistic approach to optimizing solar desalination, offering a scalable and sustainable solution that can be adapted to various climatic and geographical conditions. Successfully integrating predictive modeling with TES represents a significant advancement in the field, addressing key limitations in current solar desalination systems and contributing to the broader adoption of renewable energy-driven water production technologies.
3. Results
To evaluate the system’s efficiency, one must determine several key performance parameters, including the water temperature in the TES tank, overall efficiency, and feed water flow rates. These parameters were meticulously calculated using a MATLAB program (R2024a), which executed hourly simulations over 24-hour periods spanning several years. The simulations incorporated critical heating system parameters, such as collector area, mass flow rate, and TES tank volume.
In these calculations, values are set for the feed water flow rate, collector area, and TES tank volume at different operational and design conditions. To ensure the optimal values for the heating system components, namely tank volume, collector area, and mass flow rate, the results derived from the numerical calculations are comprehensively presented and analyzed.
The detailed analysis of these parameters reveals the system’s capability to optimize the desalination process. By adjusting the TES tank volume, collector area, and mass flow rate, the system demonstrates enhanced performance metrics. These insights are crucial for refining the design and operation of solar thermal desalination systems, ensuring they meet the demands for efficiency and sustainability in diverse environments.
3.1. Optimizing TES Tank Size for Enhanced System Efficiency
The TES tank size significantly influences the solar desalination system’s efficiency. As depicted in
Figure 2, the analysis shows that smaller TES tanks (e.g., 10 m
3) experience lower thermal losses—approximately 15% less than larger tanks (e.g., 30 m
3). However, these smaller tanks also exhibit greater temperature fluctuations, with water temperatures ranging from 50 °C to 90 °C across different seasons. Conversely, larger tanks maintain more stable temperatures, typically between 70 °C and 85 °C, but are accompanied by a 25% increase in thermal losses and the need for a larger solar collector area. The findings indicate that an optimal TES tank size, around 20 m
3, strikes a balance by maintaining sufficient water temperature with thermal losses kept under 20%, indicating efficient performance throughout the year.
3.2. Determining Optimal Collector Area for Consistent Performance
Figure 2 also illustrates the relationship between solar collector area and water temperature in the TES tank. The analysis reveals that increasing the collector area from 4190 m
2 to 4300 m
2 results in a 10% rise in the average TES tank temperature, from 75 °C to 82.5 °C. This temperature increase enhances the system’s thermal energy absorption, particularly during peak sunlight hours. However, the additional area also leads to a proportional rise in system costs. The optimal collector area is determined to be 4245 m
2, which provides a sufficient temperature increase while keeping costs within a manageable range, ensuring consistent and efficient operation, especially during periods of lower solar radiation in winter months.
3.3. Impact of Mass Flow Rate on System Performance
The impact of mass flow rate on TES tank performance is shown in
Figure 2, where three different flow rates are analyzed: 5 kg/s, 7.5 kg/s, and 10 kg/s. The results indicate that a higher mass flow rate of 10 kg/s maintains more stable water temperatures, with fluctuations contained within a 5 °C range. This stability is crucial during winter, where the temperature only drops to 70 °C, compared to lower flow rates, which see temperatures drop to 60 °C or lower. The peak mass flow rate of 10 kg/s is, therefore, identified as optimal, as it confirms that the TES tank maintains temperatures above the critical 70 °C threshold, leading to more reliable and efficient desalination throughout the year.
These findings provide clear numerical evidence of how TES tank size, collector area, and mass flow rate significantly affect the performance of the solar desalination system, offering valuable insights for optimizing these parameters in practical applications.
3.4. Feed Water Temperature Profiles under Varying Solar Radiation Conditions

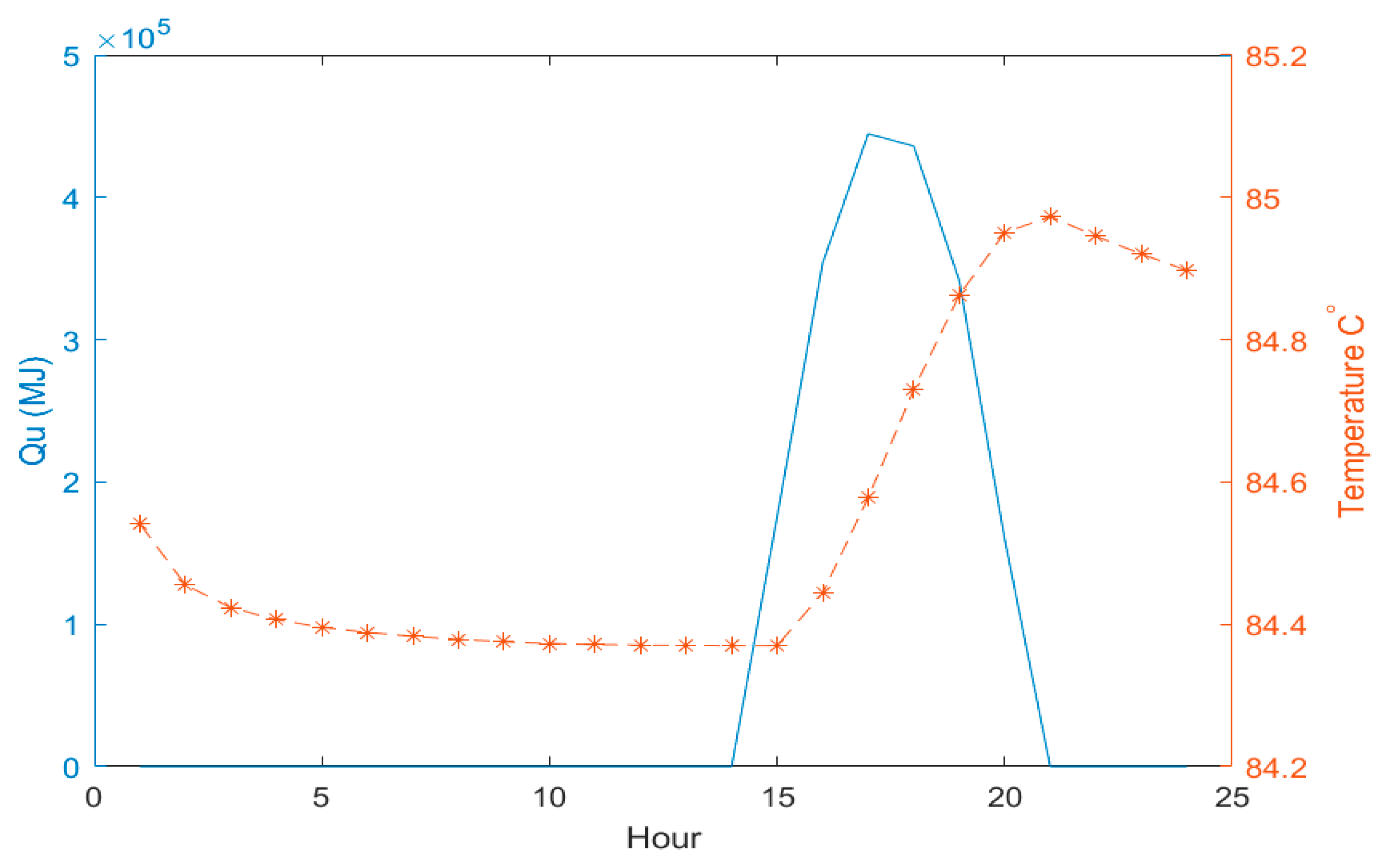

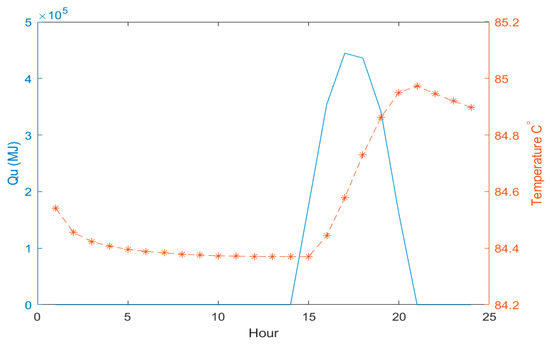

Figure 3 shows the charging tank temperature profile for a day with average solar irradiance. The tank receives a moderate flow of preheated feed water from the desalination unit, causing the tank temperature to initially drop from the top feed water temperature (TBT) to the preheated flow temperature of the desalination unit. During daylight hours, beneficial heat from the solar array raises the tank temperature back to TBT.
These observations demonstrate that solar energy density significantly impacts the thermal performance of the system. On days with moderate solar radiation, the system can utilize available solar energy to moderately raise the temperature of the feed water. The results are calculations of the amount of feed water that can be raised to TBT, reflecting typical operating conditions throughout the year.
On days when solar intensity is at its minimum, the amount of feed water is the lowest. This illustrates the large variation in solar intensity between a clear summer day and a cloudy winter day.
3.5. Daily Energy Gains and Feed Water Flow

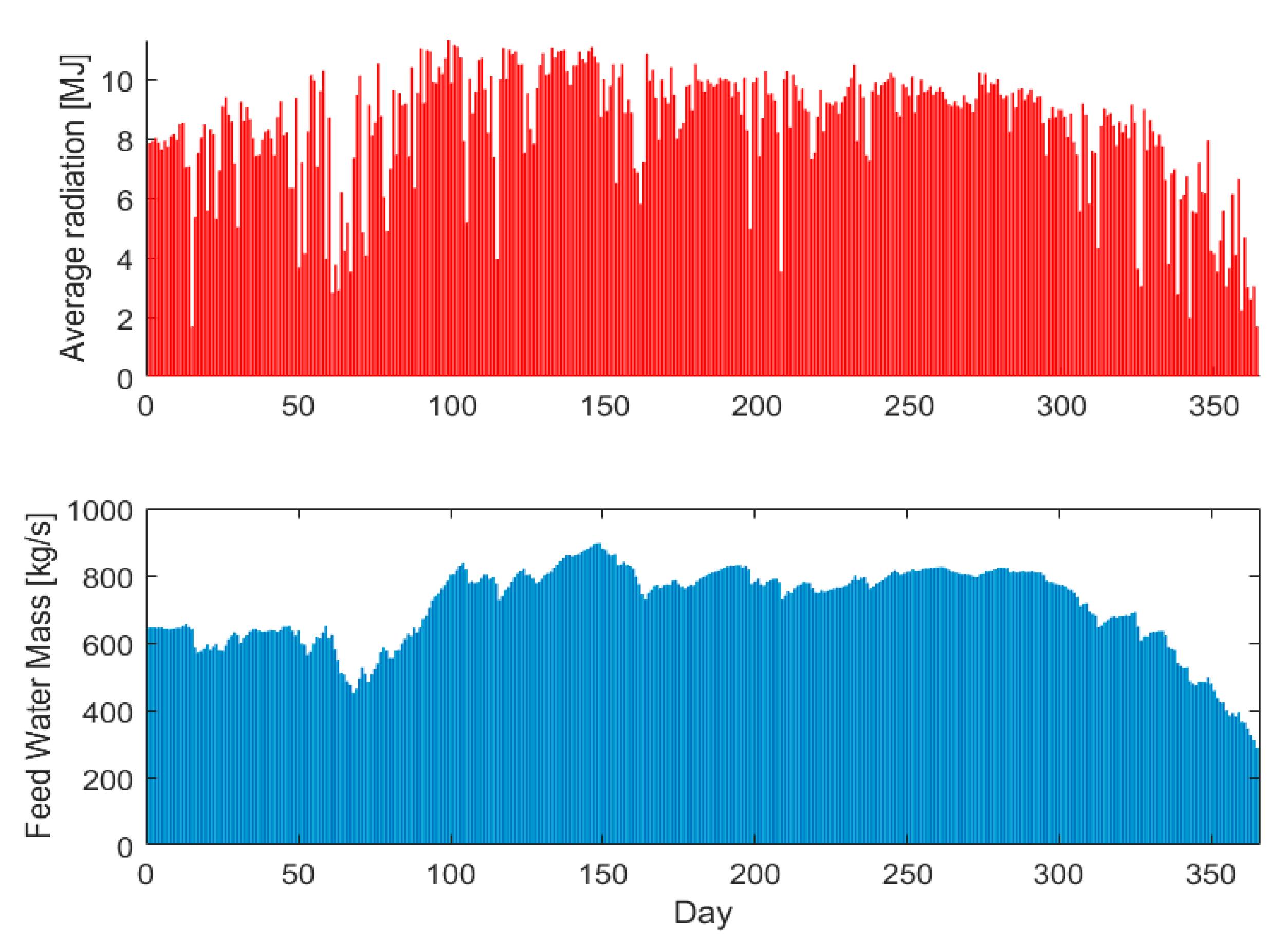

Figure 4 illustrates the daily energy captured by the desalination unit and solar collector, along with feed water masses and temperatures, over a period with significant variations in solar radiation. The figure also depicts the relationship between these variables.
For instance, on days with the highest solar radiation, the system receives the maximum amount of feed water, resulting in a substantial temperature rise through the solar collector. Conversely, on days with lower solar radiation, there is a noticeable drop in temperature, representing the solar collector’s ability to achieve the same temperature rise despite reduced solar input.
3.6. Variations in the Hot Water Capacity

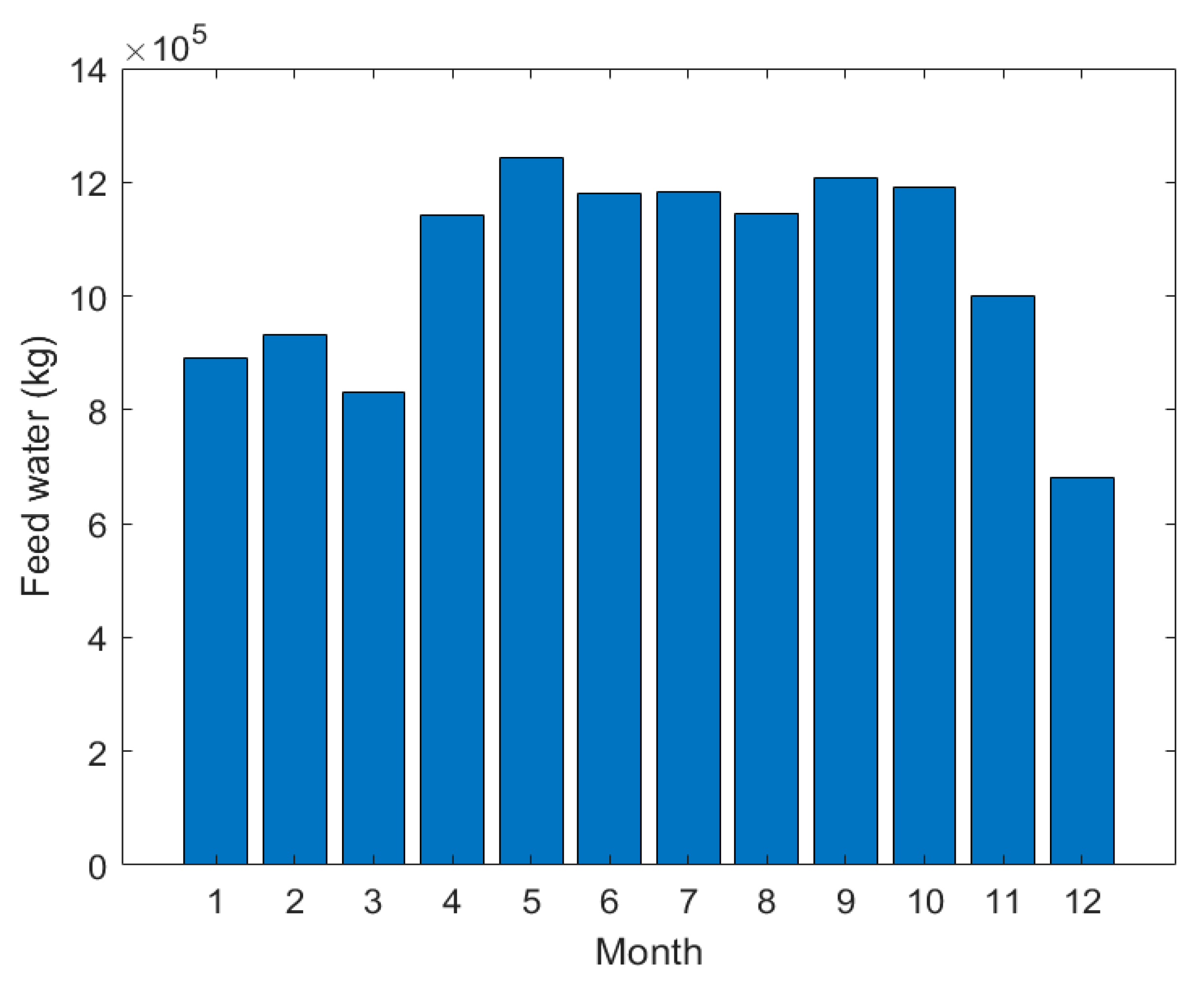

The monthly flow rate of hot water varies significantly, with the lowest rates during winter and the highest in summer. As shown in
Figure 5, in June, the flow rate peaks, driven by higher solar radiation that boosts the system’s heating capacity. These fluctuations align with changes in monthly average temperatures and solar fraction values. Increased solar radiation in summer elevates water temperatures and feed water flow, enhancing the desalination system’s efficiency.
3.7. Maximum and Minimum Feed Water Mass under Varying Solar Intensity

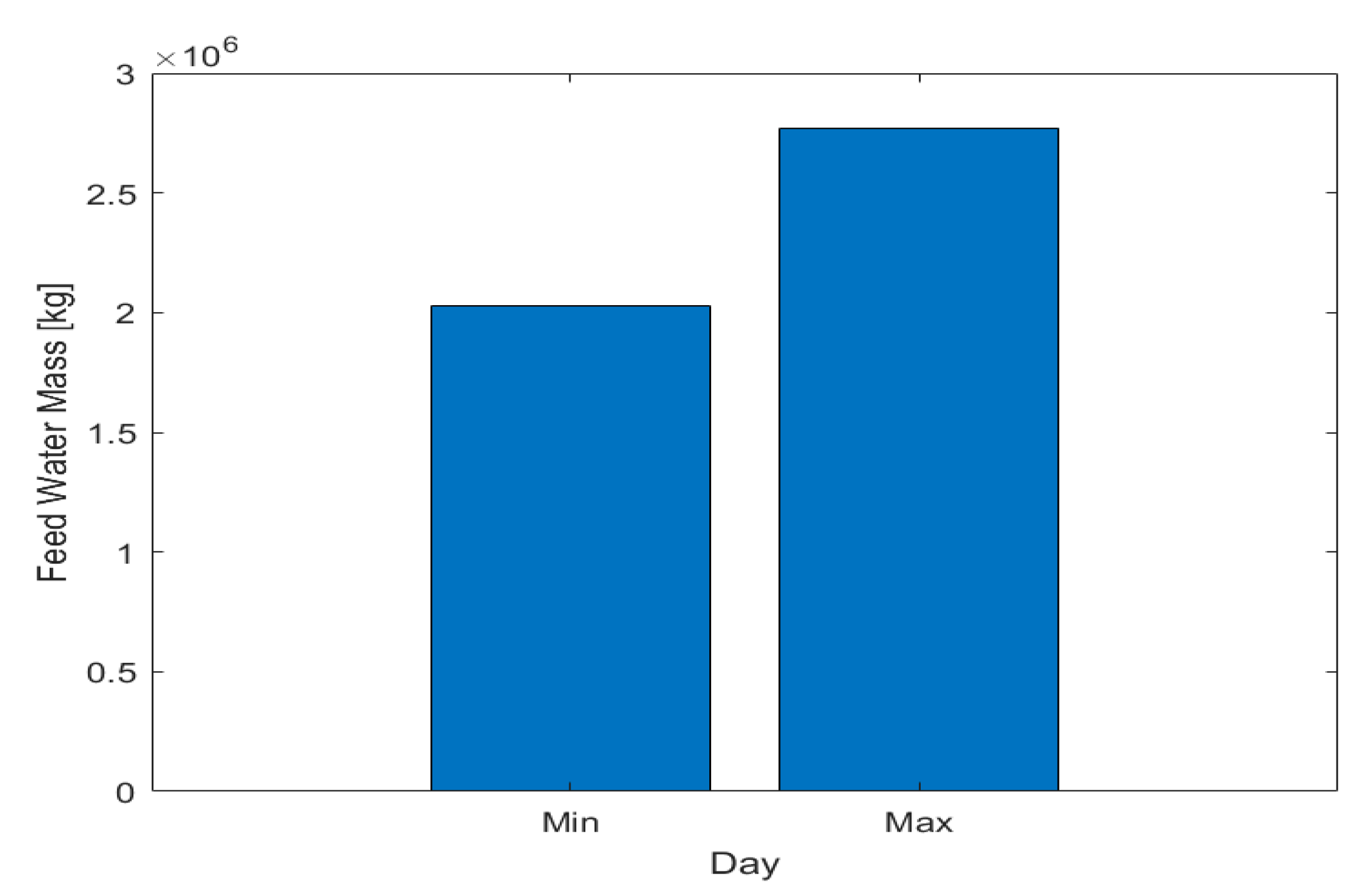

During periods of peak solar intensity, the system achieves a maximum useful heat transfer, as illustrated in
Figure 6. These contrasting scenarios highlight the system’s adaptability to varying solar conditions, demonstrating its ability to efficiently harness solar energy across a wide spectrum of irradiance, from the high intensity of a clear summer day to the diminished levels on a cloudy winter day. This adaptability is a crucial key for maintaining consistent desalination performance and optimizing freshwater production throughout the year.
3.8. Cost Analysis of the Thermal Energy Storage
The cost analysis of the proposed thermal energy storage aims to provide a comprehensive estimation of both capital and operating costs related to the thermal tank and solar collector. These components are fundamental to the overall investment, with the cost of the solar array determined by its required area, while the cost formula accounts for bulk purchasing benefits. The thermal storage tank costs are calculated based on their volume, which is crucial for daily feed water storage. Additionally, indirect capital costs, including freight, insurance, construction overhead, and pipeline expenses, collectively contribute an additional percentage to the direct capital costs.
A significant finding from this analysis is the unit product cost (UPC), which is estimated to be approximately , assuming a standard production level and excluding subsidies. This UPC emphasizes the economic feasibility of the solar desalination plant in comparison to conventional desalination methods, particularly when considering the potential for government incentives for renewable energy projects. The thorough economic evaluation underscores the cost-effectiveness of incorporating solar energy into desalination processes, thereby promoting sustainable and affordable water production.
3.9. Annual Variation in Thermal Tank Efficiency
The thermal tank’s energy efficiency varies throughout the year, influenced by changes in solar radiation and corresponding adjustments in feed water volume. To evaluate this efficiency, heat loss is monitored and inferred from the average temperature changes in the water. The energy efficiency (η) is quantified by the ratio of recoverable energy to total input energy [
23], expressed as:

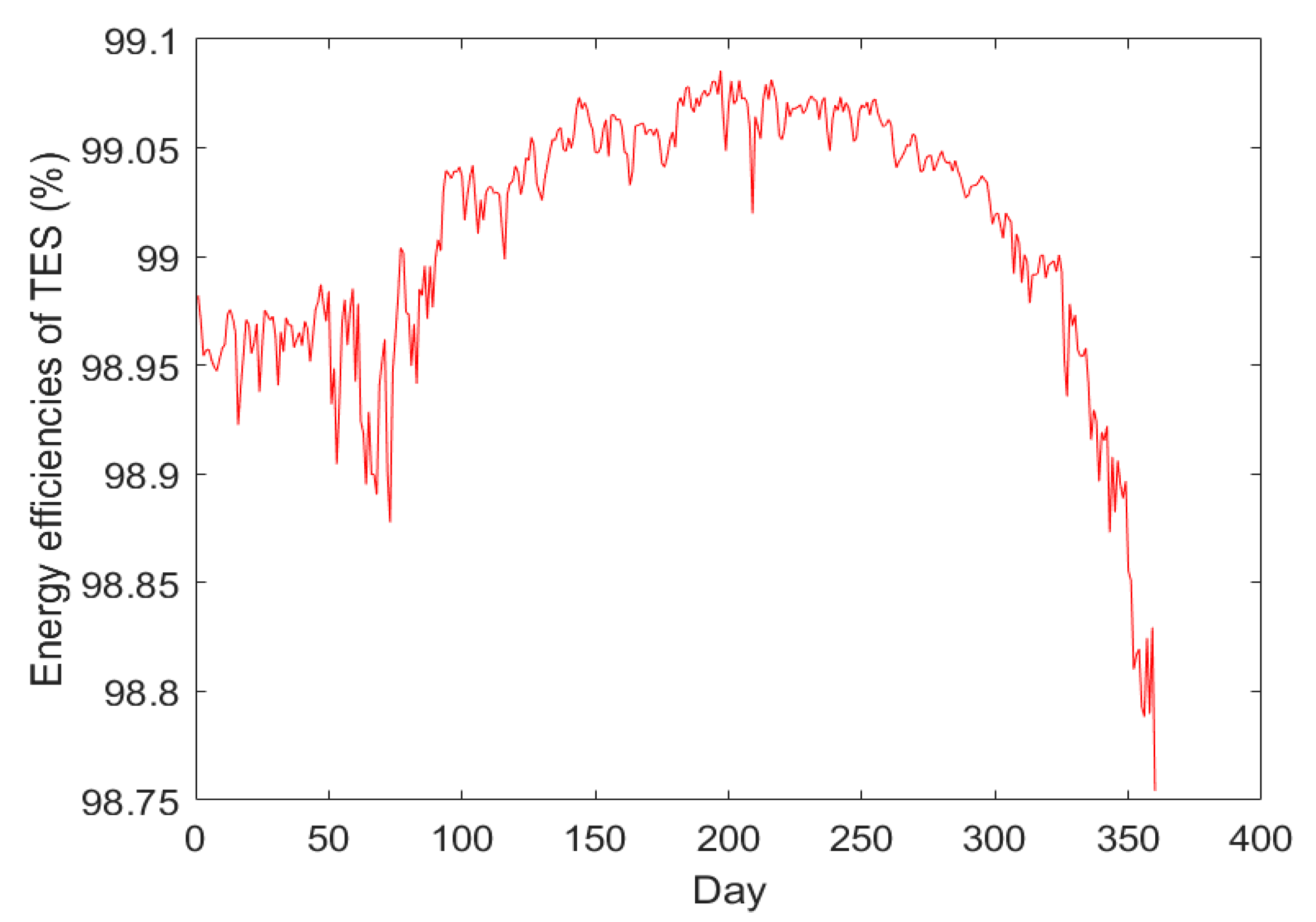

Figure 7 presents the annual energy efficiency profile, showcasing consistently high values. During peak summer months, the system achieves optimal performance with energy efficiencies of up to 99.1% for the summer flow rate and 98.8% for the winter flow rate. These high-efficiency rates are attributed to minimal heat leakage, which is the system’s primary energy loss mechanism. The higher flow rates during summer further enhance efficiency by reducing heat loss to the environment.
In contrast, winter months see a slight reduction in efficiency due to decreased solar radiation and lower feed water flow. Additionally, the cooler ambient temperatures in winter increase heat loss, contributing to this efficiency drop. Despite these seasonal variations, the system maintains notably high efficiency throughout the year.
These findings highlight the system’s capacity to adapt to fluctuating solar conditions, maintaining high efficiency and optimizing freshwater production. This robust performance stresses the viability of integrating thermal energy storage in solar desalination systems, leading to sustainable and efficient operation year-round. The comprehensive analysis affirms that while energy efficiency is a critical metric, it is part of a broader assessment of the system’s thermodynamic performance and sustainability.
3.10. Summary of Environmental Impact for the Solar Desalination Plant
The life cycle assessment (LCA) of the solar desalination plant, with a focus on the thermal tank and solar collector, reveals substantial environmental advantages. Adhering to the rigorous ISO 14040 standards, the LCA encompasses every phase of the plant’s life cycle, from manufacturing to disposal, and was meticulously conducted using GaBi 6 software. The primary construction materials include steel, glass, and PVC, each requiring considerable energy for production and transportation. Key environmental impact categories, such as global warming potential (GWP) and acidification potential (AP), are quantified in CO2-equivalents and SO2-equivalents, respectively.
The findings indicate that the solar-powered desalination plant significantly reduces environmental impact compared to traditional fossil-fuel-powered systems. Specifically, the thermal tanks and solar collectors contribute to a marked decrease in GWP, primarily due to the reliance on renewable energy sources. For instance,
Table 2 shows that the GWP of the solar plant is significantly lower, primarily due to the use of renewable energy sources. The operational phase of the plant, where electricity for water pumping is the main GWP contributor, contrasts with the manufacturing phase, which incurs the highest emissions due to material processing. However, due to efficient recycling practices, the dismantling and disposal phases exhibit minimal environmental impact.
Furthermore, the system’s high efficiency translates into lower emissions. As illustrated in
Table 3, substituting conventional energy sources with solar energy leads to a notable reduction in both GWP and AP. This significant decrease underscores the critical role of renewable energy integration in desalination processes, promoting sustainable and eco-friendly water production (
Table 4).
In essence, the LCA underscores the environmental benefits of the solar desalination plant, as well as its potential to mitigate climate change impacts and advance sustainable water resource management. By leveraging renewable energy, this innovative system not only enhances freshwater production but also contributes to broader environmental conservation efforts (

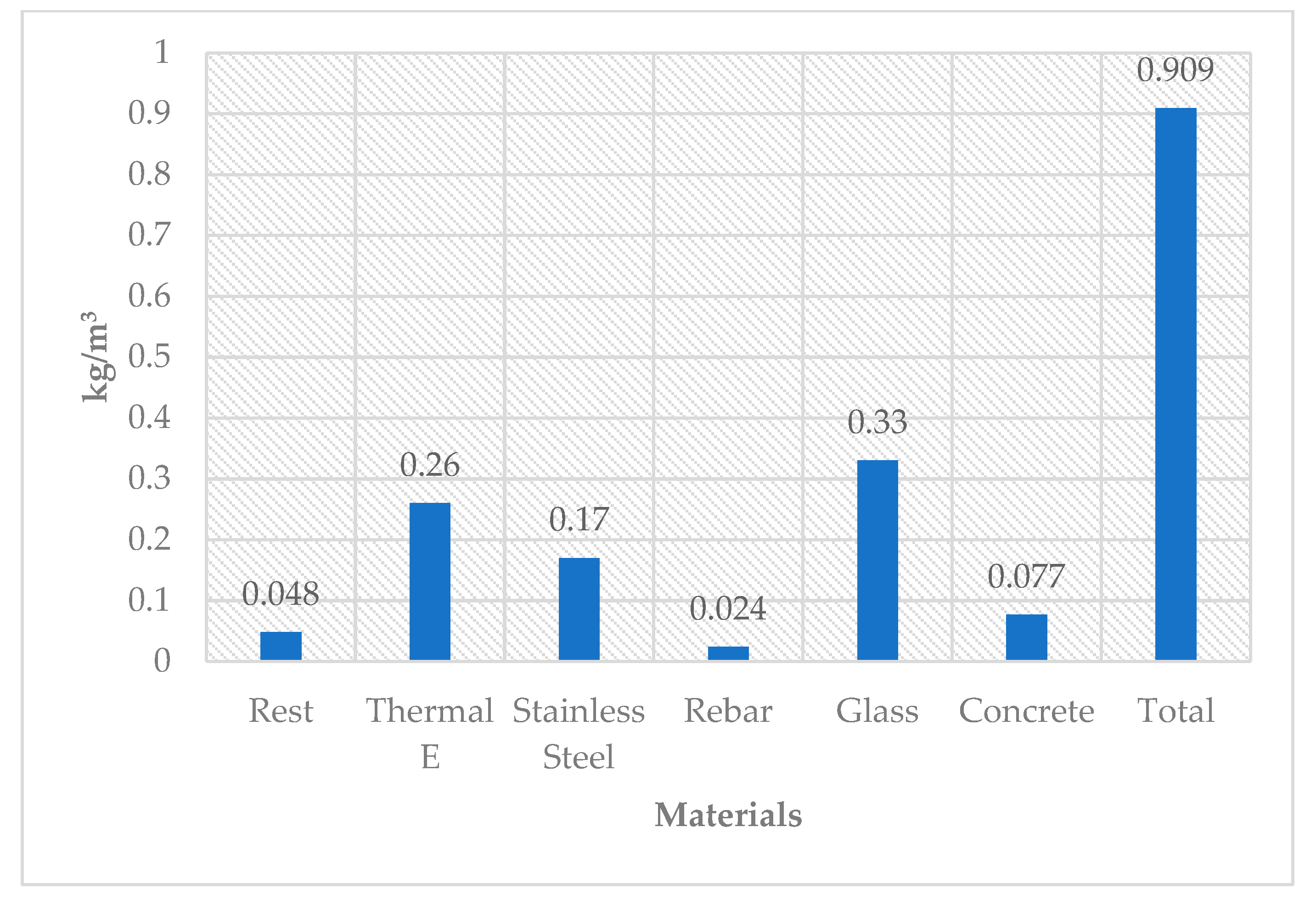

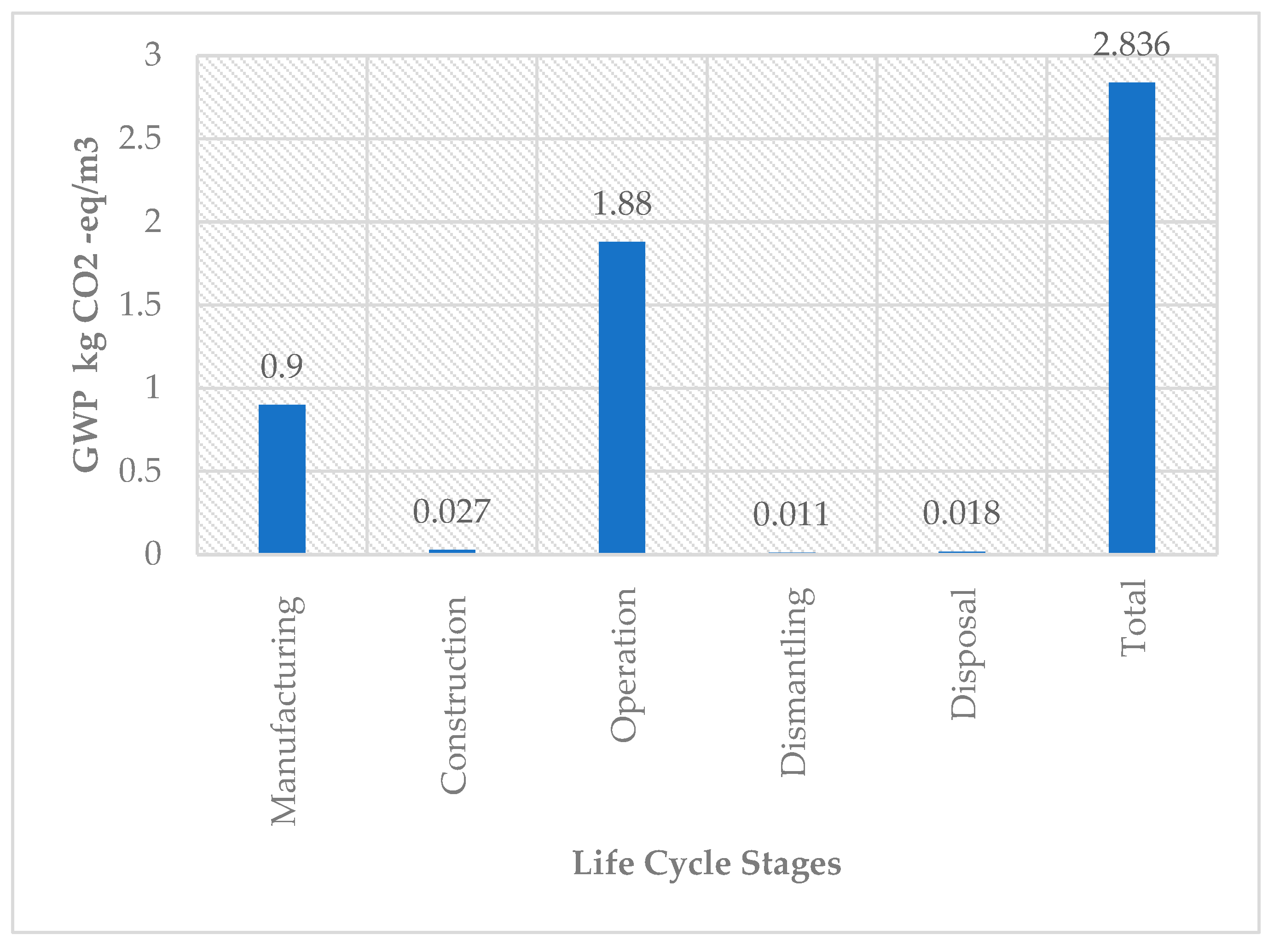

Figure 8 and
Figure 9).
3.11. Verification of the Mathematical Model with Previous Works
The predictive models were validated using historical solar radiation data from the King Abdullah City for Atomic and Renewable Energy (K.A.CARE). This crucial validation process ensures the accuracy and reliability of the mathematical model developed in this study. To establish the model’s credibility, its predictions were compared with results from previous studies on various thermal energy storage (TES) technologies and solar desalination systems [
28,
29,
30,
31]. This comparison confirmed the model’s alignment with established methodologies and findings in the field, reinforcing its robustness and reliability.
4. Conclusions
This study advances solar desalination technology by integrating thermal energy storage (TES) with predictive modeling, significantly enhancing system efficiency and sustainability. Optimizing key parameters such as TES tank size, collector area, and mass flow rate led to notable improvements in freshwater production. For instance, increasing the collector area to 4245 m2 resulted in a 10% rise in TES tank temperatures, maintaining an average of 82.5 °C, which boosts thermal energy absorption. A higher mass flow rate of 10 kg/s stabilized water temperatures, reducing fluctuations and leading to efficiency throughout the year.
The study also identifies research gaps, such as the need to explore system adaptability across diverse climates and the integration of alternative renewable energy sources like wind or geothermal energy. Additionally, accurately calculating water needs for remote and residential areas based on energy availability is essential for developing effective water supply plans.
Economic analysis indicates the system is cost-effective, with a production cost of approximately USD 5.86 million, competitive with conventional methods. The environmental benefits are significant, with reductions in global warming potential (GWP) to 2.24 kg CO2-eq per cubic meter and acidification potential (AP) to 0.008 kg SOx-eq per cubic meter.
In conclusion, this research acts as a strong foundation for the broader adoption of renewable energy-driven desalination systems, contributing to sustainable water resource management and environmental conservation.
