Collapse Dynamics of Vector Vortex Beams in Kerr Medium with Parity–Time-Symmetric Lattice Modulation

Abstract

Based on the two-dimensional (2D) nonlinear Schrödinger equation, we investigate the collapse dynamics of a vector vortex optical field (VVOF) in nonlinear Kerr media with parity–time (PT)-symmetric modulation. The critical power for the collapse of a VVOF in a Kerr-ROLP medium (Kerr medium with a real optical lattice potential) is derived. Numerical simulations indicate that the number, position, propagation distance, and collapse profile of the collapse of a VVOF in sine and cosine parity–time-symmetric potential (SCPT) Kerr media are closely related to the modulation depth, initial powers, and the topological charge number of a VVOF. The VVOF collapses into symmetric shapes during propagation in a Kerr-ROLP medium, and collapse shapes are sensitively related to the density of the PT-symmetric optical lattice potential. In addition, due to gain–loss, the VVOF will be distorted during propagation in the Kerr-SCPT medium, forming an asymmetric shape of collapse. The power evolution of the VVOF in a Kerr-SCPT medium as a function of the transmission distance with different modulating parameters and topological numbers is analyzed in detail. The introduction of PT-symmetric optical lattice potentials into nonlinear Kerr materials may provide a new approach to manipulate the collapse of the VVOF.

1. Introduction

In the past few decades, light field manipulation has been extensively studied, leading to many breakthroughs in research [1,2,3,4,5,6]. The nonlinear collapse phenomenon of a structured beam in nonlinear optical media has attracted much attention due to its fundamental interest and potential applications [7,8,9,10]. The collapse dynamics refer to a phenomenon in optics that the intensity of the optical field rapidly increases due to the nonlinear self-focusing effect of the medium, leading to localized concentration phenomena. In a medium undergoing self-focusing, the collapse of beams occurs once the input power surpasses a critical threshold. The local intensity of the optical field increases to a level where the nonlinear self-focusing effect can no longer sustain it, resulting in collapse. Following by other nonlinear phenomena like multiple photon absorption, plasma generation, or higher-order defocusing effects could inhibit the collapse of the beam. As a result, the beam can propagate and self-focus in filaments over a long range when the power exceeds the critical power [8,9,11,12,13,14,15]. Some typical applications include aerosol detection, plasma physics research, and the generation of sub-THz radiation [16,17,18,19]. Therefore, the dynamic manipulation of the collapse of a structured optical field is an important topic in nonlinear optics, such as the position of collapse, the critical power of collapse, and the suppression of collapse.

Recently, the concept of PT symmetry originated from the study of quantum mechanics and has been introduced into optical systems [20,21,22,23,24,25,26]. It is worth noting that the parity–time (PT)-symmetric lattice, as an interesting periodic structure, has been extensively studied in nonlinear optics and soliton physics [27,28,29,30]; in particular, the study of the stabilization mechanisms of various solitons in PT-symmetric systems has obtained fruitful achievements [31,32,33,34,35]. Many novel applications in linear and nonlinear PT symmetry optics systems have been demonstrated, such as the localization of light, unidirectional transmission, and information encryption [36,37,38,39,40]. The nonlinear collapse and evolution of different types of beams in PT-symmetrically modulated nonlinear media have recently been studied [10,41,42,43]. The PT-symmetric potential mainly affects the collapse of light beams through two mechanisms. On one hand, the propagation and focusing of the beam are manipulated by the modulation of the refractive index distribution of the lattice (the real part of the parity–time-symmetric potential). On the other hand, the energy distribution of the light beams is controlled through the gain–loss modulation of the lattice (the imaginary part of the parity–time symmetric potential). When the scalar vortex beams propagate in the PT-symmetric Kerr medium, the beams will collapse into a symmetrical or distorted shape under different modulation factors of the PT potential [10]. In addition, the state of the collapse of the light field is also affected by the vortex topological charge and the initial powers [10]. This work studies the collapse dynamics of vector vortex beams in Kerr media with PT-symmetric lattice modulation. Compared with scalar vortex beams, the collapse dynamics of the VVOF in PT-symmetrical Kerr media proceed with more complex evolution due to the involvement of different polarization components. In particular, the effect of the PT symmetry modulation of the complex refraction index on the collapse dynamics of vector vortex beams in the Kerr medium under different polarization topological charges is studied in detail. It is found that the collapse number, collapse location, and propagation distance for the collapse occurrence of the target beam are closely related to the modulation depth of the PT symmetry structure and the parameters of the initial vector vortex beam. When the vector vortex beams propagate in the Kerr medium with real optical lattices, the collapse positions are sensitively dependent on the density of the PT-symmetric optical lattice potential, initial powers, and polarization state of the light field. For the Kerr-SCPT medium with the gain–loss modulation, the VVOF distorts during propagation in the sine and cosine parity–time-symmetric potential (SCPT) Kerr (hereafter, we denote as the Kerr-SCPT) medium due to the existence of gain–loss, forming an asymmetric shape of collapse. These results provide a new means and a deeper understanding of manipulating the collapse of a VVOF in a PT-symmetric Kerr medium.

2. Theoretical Model

The optical lattice potential, Q(X, Y), with PT operator characteristics, is expressed in the form of a complex function as follows [44]:

$$Q(X,Y)=V_{0}V(X,Y)+i{W}_{0}W(X,Y),$$

(1)

Here, the real part V(X, Y) of Q(X, Y), even in X and Y, represents the refractive index modulation in optics, while the imaginary part function W(X, Y), odd in X and Y, represents the gain–loss; X = x/w₀ and Y = y/w₀ are the dimensionless transverse coordinates with w₀ representing the beam waist width; V₀ and W₀ represent the modulation depth of V(X, Y) and W(X, Y), respectively. V(X, Y) and W(X, Y) can be expressed in SCPT forms V(X, Y) = cos²(X/d) + cos²(Y/d), W(X, Y) = sin(2X/d) + sin(2Y/d) [23], where d represents the modulator factor for the PT-symmetric lattice density. In particular, when V₀ ≠ 0 and W₀ = 0, Q(X, Y) = V₀V(X, Y) degenerates the ROLP (real optical lattice potential). The refractive index and gain–loss distributions with different modulator factors d for the PT-symmetric lattice are shown in Figure 1.

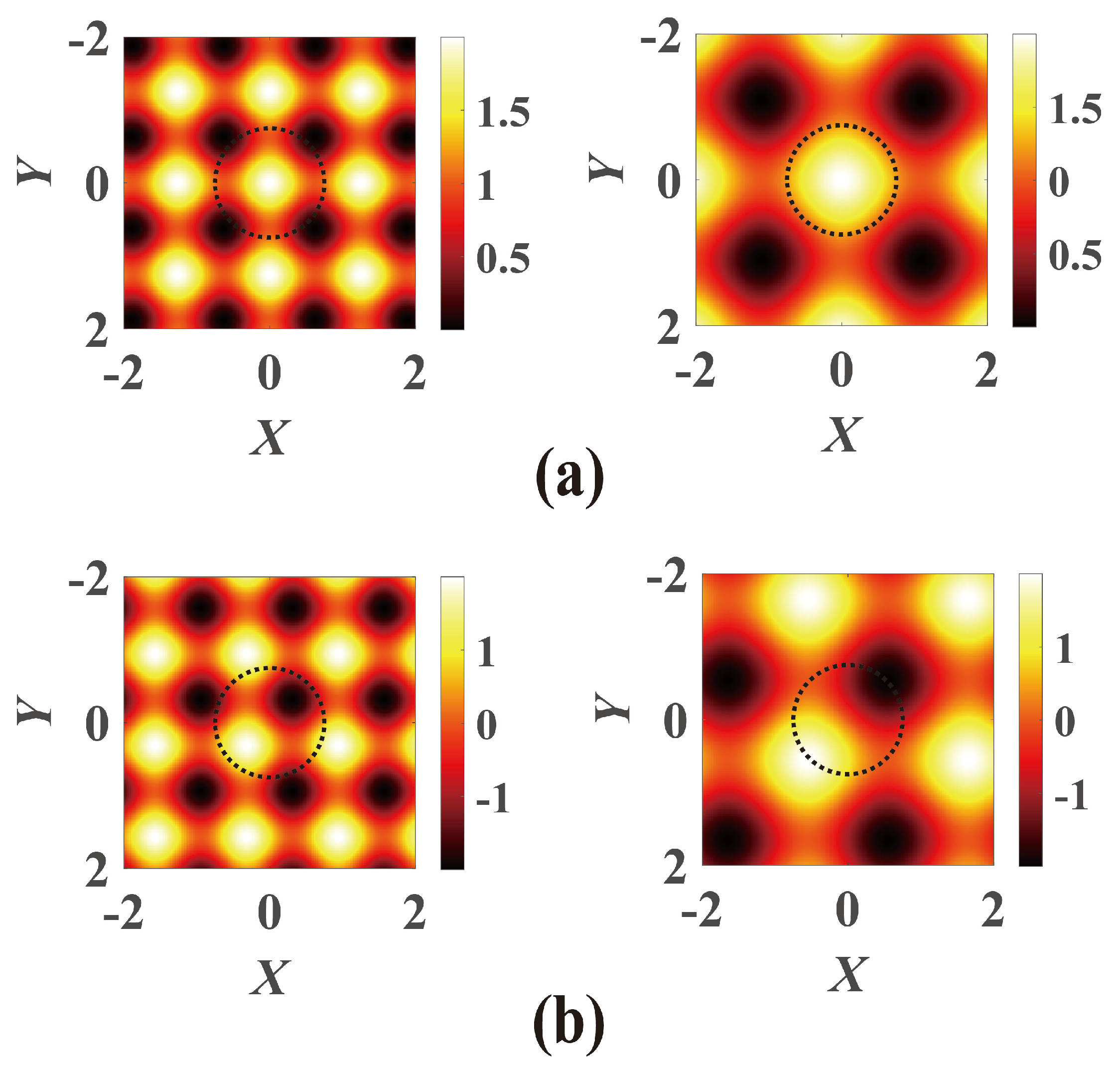

The propagation dynamic behavior of a structured beam in the Kerr-SCPT medium is expressed by the following two-dimensional coupled nonlinear Schrodinger (NLS) equation [18]:

$${\nabla }_{\perp }^2{E}_{\pm }+i\frac{\partial E_{\pm }}{\partial Z}+\frac{2}{3}\left({\left|E_{\pm }\right|}^2+2{\left|E_{\mp }\right|}^2\right)E_{\pm }+Q(X,Y)E_{\pm }=0,$$

(2)

where the first term on the left of the equation represents the diffraction term of the light field, ${\nabla }_{\perp }^2={\partial }^2/\partial X^2+{\partial }^2/\partial Y^2$ represents the Laplace operator, and the second term denotes the propagation term of the light field. The third term indicates the third-order Kerr nonlinear effect, and the fourth term denotes the modulation action term of the PT-symmetric optical lattice potential. $+$ and $-$ represent the left- and right-hand circular polarization components. The normalized two-dimensional coupled nonlinear Schrodinger (NLS) equation (Equation (1)) is obtained from the two-dimensional coupled nonlinear Schrödinger (NLS) equations ${\nabla }_{\perp }^2{A}_{\pm }+2ik\frac{\partial A_{\pm }}{\partial z}+\frac{4n_2{k}^2}{3n_0}\left({\left|A_{\pm }\right|}^2+2{\left|A_{\mp }\right|}^2\right)A_{\pm }+Q\prime (x,y)A_{\pm }=0$ [18,19,20], by setting X = x/w₀, Y = y/w₀, Z = z/(2kw₀²), and E(x, y) = kw₀(2n₂/n₀)^1/2A(x, y), where n₂ is the third-order nonlinear coefficient, n₀ is the linear refraction index of the medium, w₀ is the beam width, and k is the linear wave number.

A vector vortex optical field (VVOF) can be expressed as follows:

$$E(X,Y,Z=0)=A_0{r}^n\exp (-r^2)e^{in\phi }\left[\cos (m\phi +{\phi }_0)e_x+i\sin (m\phi +{\phi }_0)e_y\right],$$

(3)

where A₀ is the amplitude of the VVOF, r is the normalized polar coordinates to w₀, and φ and φ₀ are the azimuth coordinates and the initial phase. e_x and e_y are the unit vectors in the x-direction and the y-direction. m and n represent the polarization and the vortex topological charges, respectively.

When propagating in the Kerr-ROLP medium (Kerr medium with a real optical lattice potential), the beam has two important physical quantities, namely, the beam power $P(z)={\displaystyle {\iint }_S{\left|E_{+}\right|}^2}+{\left|E_{-}\right|}^{2}dXdY$ and the Hamiltonian. Let us define four quantities as follows [45,46]:

$$\begin{array}{l}{I}_1\left(Z\right)={\displaystyle {\iint }_S\left({\left|E_{+}\right|}^2+{\left|E_{-}\right|}^2\right)dXdY},\\ I_2\left(Z\right)={\displaystyle {\iint }_S\left(X^2+Y^2\right)\left({\left|E_{+}\right|}^2+{\left|E_{-}\right|}^2\right)dXdY},\\ I_3\left(Z\right)=i\left[{\displaystyle {\iint }_{S}X\left(\frac{\left(E_{+}+E_{-}\right)\partial \left(E_{+}^{\ast }+E_{-}^{\ast }\right)}{\partial X}-\frac{\left(E_{+}^{\ast }+E_{-}^{\ast }\right)\partial \left(E_{+}+E_{-}\right)}{\partial X}\right)dXdY}\right]\\ +i\left[{\displaystyle {\iint }_{S}Y\left(\frac{\left(E_{+}+E_{-}\right)\partial \left(E_{+}^{\ast }+E_{-}^{\ast }\right)}{\partial Y}-\frac{\left(E_{+}^{\ast }+E_{-}^{\ast }\right)\partial \left(E_{+}+E_{-}\right)}{\partial Y}\right)dXdY}\right],\\ I_4\left(Z\right)={\displaystyle {\iint }_S{\left|\nabla E_{+}\right|}^2}+{\left|\nabla E_{-}\right|}^2-\frac{1}{3}({\left|E_{+}\right|}^4+{\left|E_{-}\right|}^4+4{\left|E_{+}\right|}^2{\left|E_{-}\right|}^2)\\ -V_0({\cos }^2({X/d)+{\cos }^2(Y/d))(\left|E_{+}\right|}^2+{\left|E_{-}\right|}^2)dXdY,\end{array}$$

(4)

where I₁ is the beam power, I₂ the beam’s root-mean-square width, I₃ the momentum, and I₄ the Hamiltonian, which separately satisfy the evolution relations: dI₁/dz = 0, dI₂/dz = 0, dI₃/dz = 0, and dI₄/dz = 0. There is an important propagation invariant Q = 2I₂(Z)I₄(Z) − I₃²(Z)/4 that is related to the root-mean-square width I₂ via the relation as follows [47]:

$$\frac{d^2{I}_2^{1/2}\left(Z\right)}{d{Z}^2}=\frac{Q}{I_2^{3/2}\left(Z\right)}.$$

(5)

The general solution of Equation (5) with the VVOF as an initial field distribution can be given [42] as follows:

$$I_2\left(Z\right)=I_2\left(Z=0\right)+\frac{Q}{I_2\left(Z=0\right)}{Z}^2,$$

(6)

where

$$\begin{array}{l}Q=2^{(-4-5n)}\pi A_0^4(n+1)!\\ \times \left[2^{(3n+1)}\left[2\pi \left(2(m^2+n+n^2)(n-1)!+n!\right)-G(n)V_0\right]-\pi A_0^2(2n)!\right],\end{array}$$

(7)

where $G(n)={\displaystyle {\sum }_{k=0}^n\left(\begin{array}{c}n\\ k\end{array}\right)}\Gamma \left(k+\frac{1}{2}\right)\Gamma \left(n-k+\frac{1}{2}\right)\left[{}_{1}F_1\left(n-k+\frac{1}{2};\frac{1}{2};-\frac{1}{2d^2}\right)+{}_{1}F_1\left(k+\frac{1}{2};\frac{1}{2};-\frac{1}{2d^2}\right)+2\right]$, ${}_{1}F_1(\alpha ,\beta ,z)$ is a hypergeometric function. $\Gamma (.)$ is the gamma function. Equation (6) describes the variation in the root-mean-square beam width of the VVOF in a Kerr-ROLP medium. When the Hamiltonian I₄ = 0, the root-mean-square beam width became constant, and a balance was reached between the self-focus effect and the diffraction defocus effect [7,47]. Therefore, the critical amplitude A₀ of the vector vortex beam can be calculated by setting I₄ = 0, and then the critical power P_cr is obtained by the beam power $P(z)={\displaystyle {\iint }_S({\left|E_{+}\right|}^2+{\left|E_{-}\right|}^2)dXdY}$:

$$P_{cr}=\frac{4^{n+1}\pi (m^2+n^2+n)(n-1)!n!}{(2n)!}-\frac{4^n{V}_{0}G(n)n!}{(2n)!},$$

(8)

The critical power $P_{cr}$ of the collapse of scalar vortex beams in a Kerr medium can be given by assuming a topological charge of m = 0 and a modulation depth of V₀ = 0 in Equation (8): $P_{cr}=\left(4^{n}n!(n+1)!/2n!\right)P_G$, where the normalized critical power of a Gaussian beam in a Kerr medium P_G = 4π [48,49].

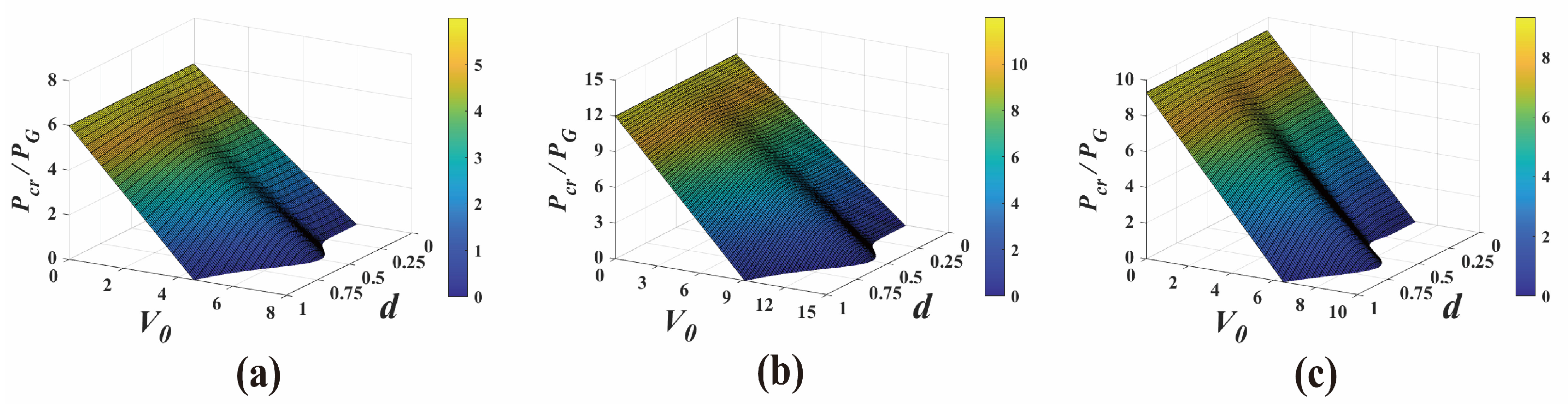

The critical powers of the VVOF in a Kerr-ROLP medium with different V₀ and d for various topological numbers are shown in Figure 2. The critical power in Equation (8) is determined by the parameters of the medium and beam, V₀, d, n, and m. This critical power in Equation (8) indicates the total balance between the self-focusing, the diffraction, and the PT-symmetric lattice refractive index modulation during a vector vortex beam propagating in the PT-symmetry Kerr medium. The root-mean-square beam width remains constant when the input power is P_in = P_cr [50]. When the input power exceeds the threshold P_cr, the beam evolves into a global collapse, and the beam width decreases to zero over a finite distance. Notably, through numerical simulation, we found that the critical power of the vector vortex beam when it collapses is often smaller than the theoretical critical power. The critical power mentioned here is the upper threshold of the power when the beam collapses [8,50,51]. When the initial powers P_in = αP_G (α is any positive value) are given, the initial amplitude of the vector vortex optical field E₀ can be obtained by P_in = πE₀²n!/2ⁿ⁺¹.

3. Numerical Results and Analysis

Numerical calculations with split-step finite difference are carried out to further explore the collapse dynamics of a VVOF in a PT-symmetric Kerr medium, here λ = 0.53 μm and w₀ = 10 μm. The evolution of the polarization state of a VVOF in a Kerr-SCPT can be described by the Stokes parameters: S₀ = |E_X|² + |E_Y|², S₁ = |E_X|² − |E_Y|², S₂ = E_XE_Y^* + E_YE_X^*, and S₃ = i(E_XE_Y^* − E_YE_X^*), where S₀ denotes the light intensity and S₁ represents the linear polarization component (its positive and negative values correspond to the horizontal and vertical directions, respectively). Similarly, positive and negative S₂ represent the linear polarization components in the 45° and 135° directions, respectively, and the positive and negative values of S₃ denote the left and right circular polarization components, respectively.

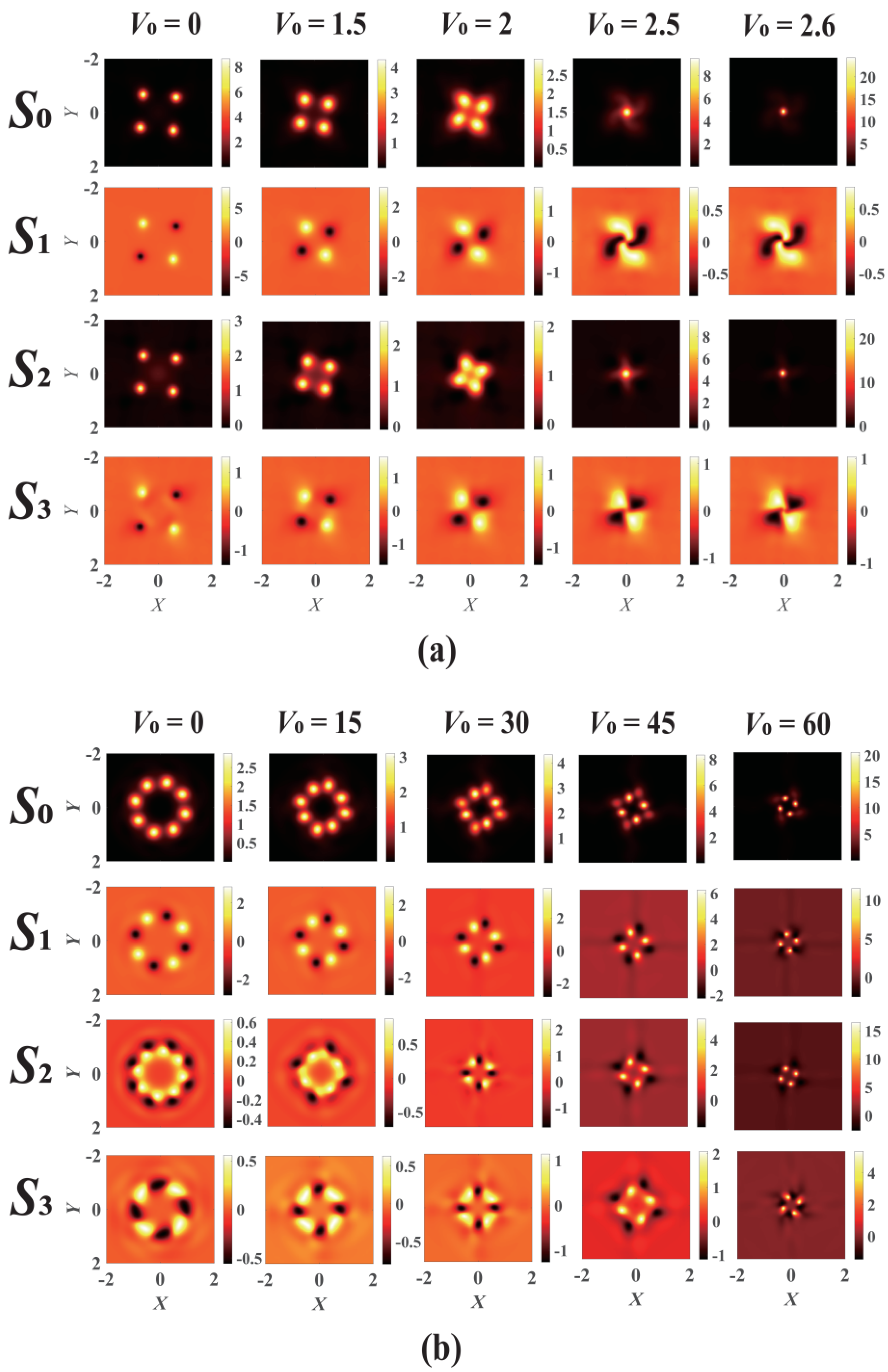

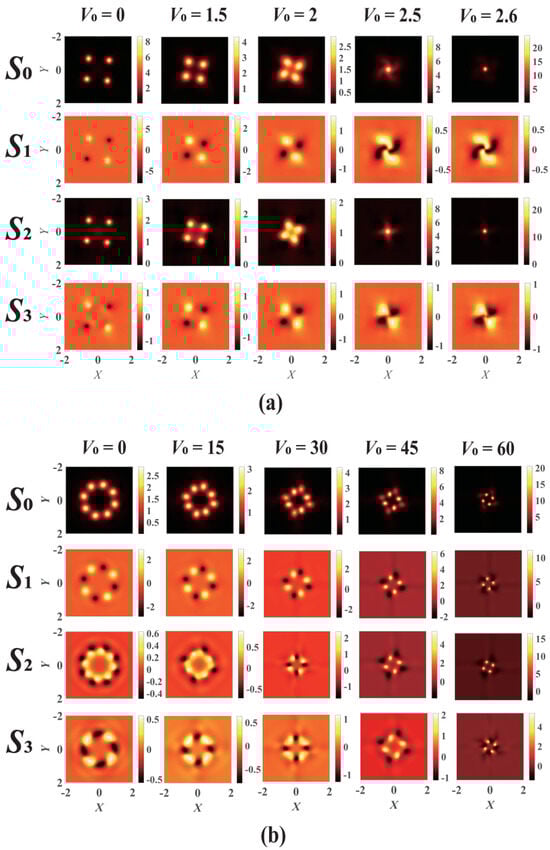

First, we investigate the collapse evolution of the VVOF in Kerr-ROLP media for m = 1, n = 1. The initial intensity profiles (Z = 0) of the optical field in Figure 3 are shown in the corresponding plots below. It can be seen from Figure 3a that when the VVOF propagates in the Kerr-ROLP medium with V₀ = 0, the beam collapses at four points. These four points correspond to the positions of the four linear polarizations in the target beam, because the nonlinear refractive index of linearly polarized light is greater than that of circularly polarized light [18], thus the energy of the beam tends to be concentrated at the linearly polarized position. With the increase in V₀ (the modulation depth of the real optical lattice potential), the four points that initially collapsed outside the axis gradually converge toward the center of the beam, and the center of the beam forms a partial collapse. This is because when the VVOF propagates in the Kerr-ROLP medium, the interaction among the lens convergence effect of the refractive index distribution of the real optical lattice potential (see Figure 1), the self-focusing effect of the Kerr nonlinear medium, and the linear diffraction effect of the beam leads to the difference in collapse positions.

The collapse evolution of the VVOF with m = 1 and n = 1 in a Kerr-ROLP medium for different modulation depths V₀ is shown in Figure 3b. With the increase in V₀ (the optical lattice potential modulation depth), the eight collapse points outside the axis can be collapsed at four collapse positions where a higher refractive index is located. In addition, when m ≠ n, there is always an optical singularity located at the beam center (unlike the case of m = n, there can exist the optical field in the center of the beam such as m = n = 1); therefore, the beam never collapses at the beam center when m ≠ n.

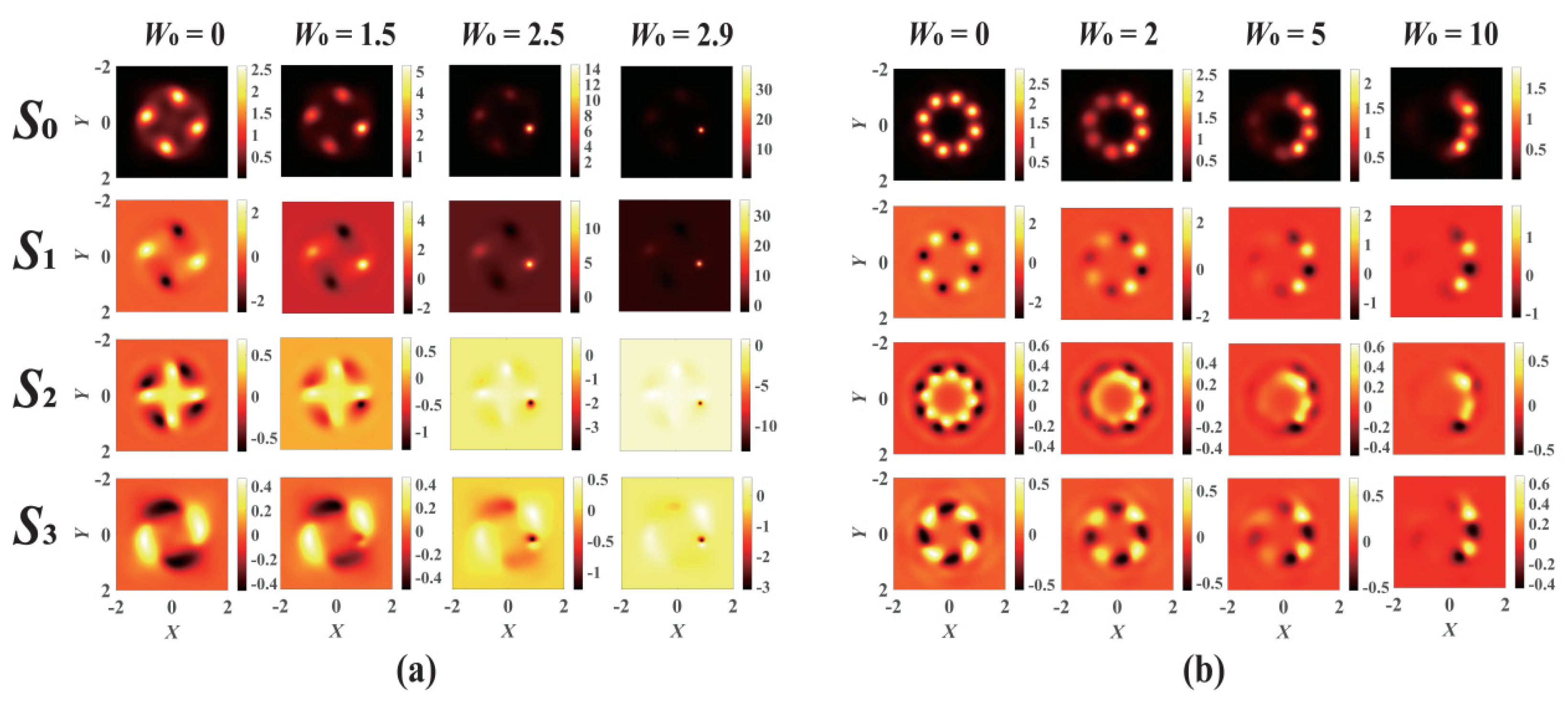

The evolution of vector vortex beams in a Kerr-SCPT medium for different gain–loss modulations is shown in Figure 4. For the case m = 1 and n = 1, when W₀ (the imaginary part gain–loss modulation depth) increases, three points of the original four collapse points gradually become darker, and finally there is only one collapse point, as seen in Figure 4a. On the other hand, for m = 2 and n = 1, the beam collapses into three or four collapse points with varying intensities instead of the original eight points as W₀ increases, as shown in Figure 4b. The distortion and variation in the collapse positions are attributed to the modulation of the gain–loss distribution. The asymmetric collapse is attributed to the anti-centrosymmetric gain–loss modulation of the lattice.

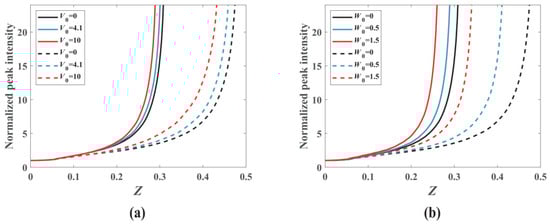

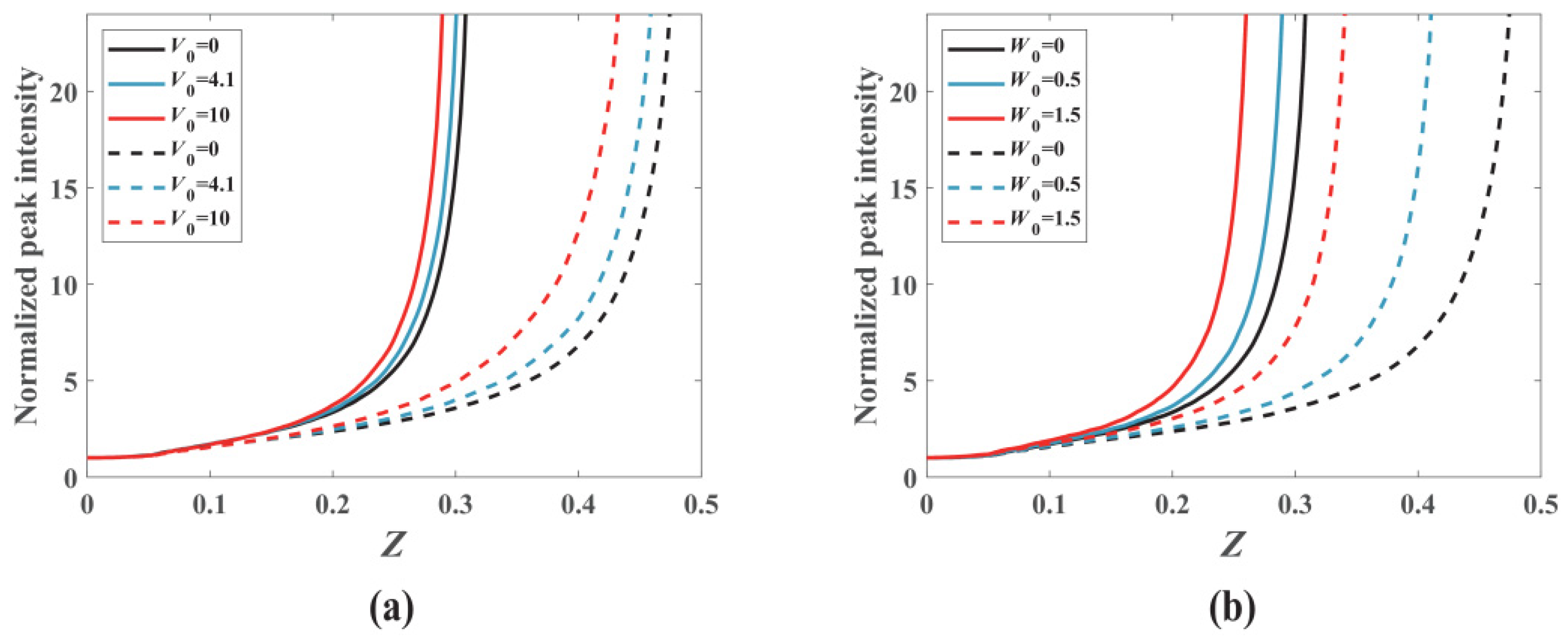

The collapse distance of the VVOF as a function of the initial powers, modulation depth V₀, and W₀ is shown in Figure 5. The collapse distance is significantly shortened with increasing initial powers. The collapse distance of the light field is also shortened with increasing V₀ and W₀, which is consistent with our previous observations [8,9,10].

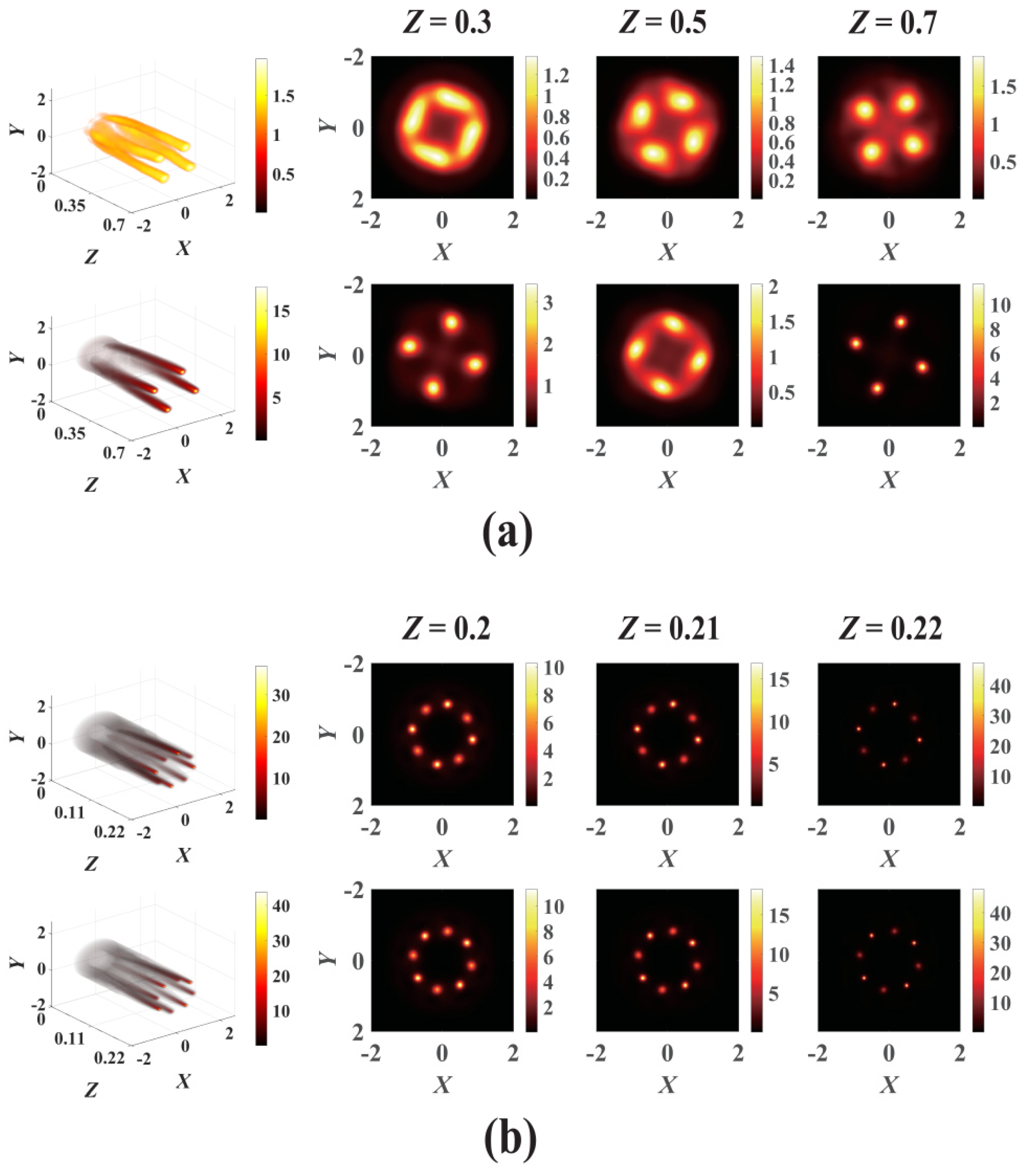

The effect of the variation in PT-symmetric optical lattice potential density on the propagation and collapse dynamics of the VVOF in a Kerr-ROLP medium is further intuitively described in 3-dimensional intensity evolutions, as shown in Figure 6, for the cases m = 1, n = 1 and m = 2, n = 1, respectively. The collapse positions of the beam are sensitively related to the optical lattice potential density. The main collapse positions of the VVOF with m = 2, n = 1 are 4 points for V₀ = 4.1, W₀ = 0, and P_in = 1.7 P_cr. It is worth noting that the collapse of the VVOF with d = 0.4 and d = 0.19 is at opposite positions, as shown in Figure 6b. This is because the refractive index distribution modulated by the potential density of the PT-symmetric optical lattice gradually turns the collapse point to a higher refractive index position. Therefore, the results confirm that the positions and number of collapses of the VVOF in the PT-symmetric optical lattice can be manipulated by the potential density, initial powers, topological charge number, and modulation depth.

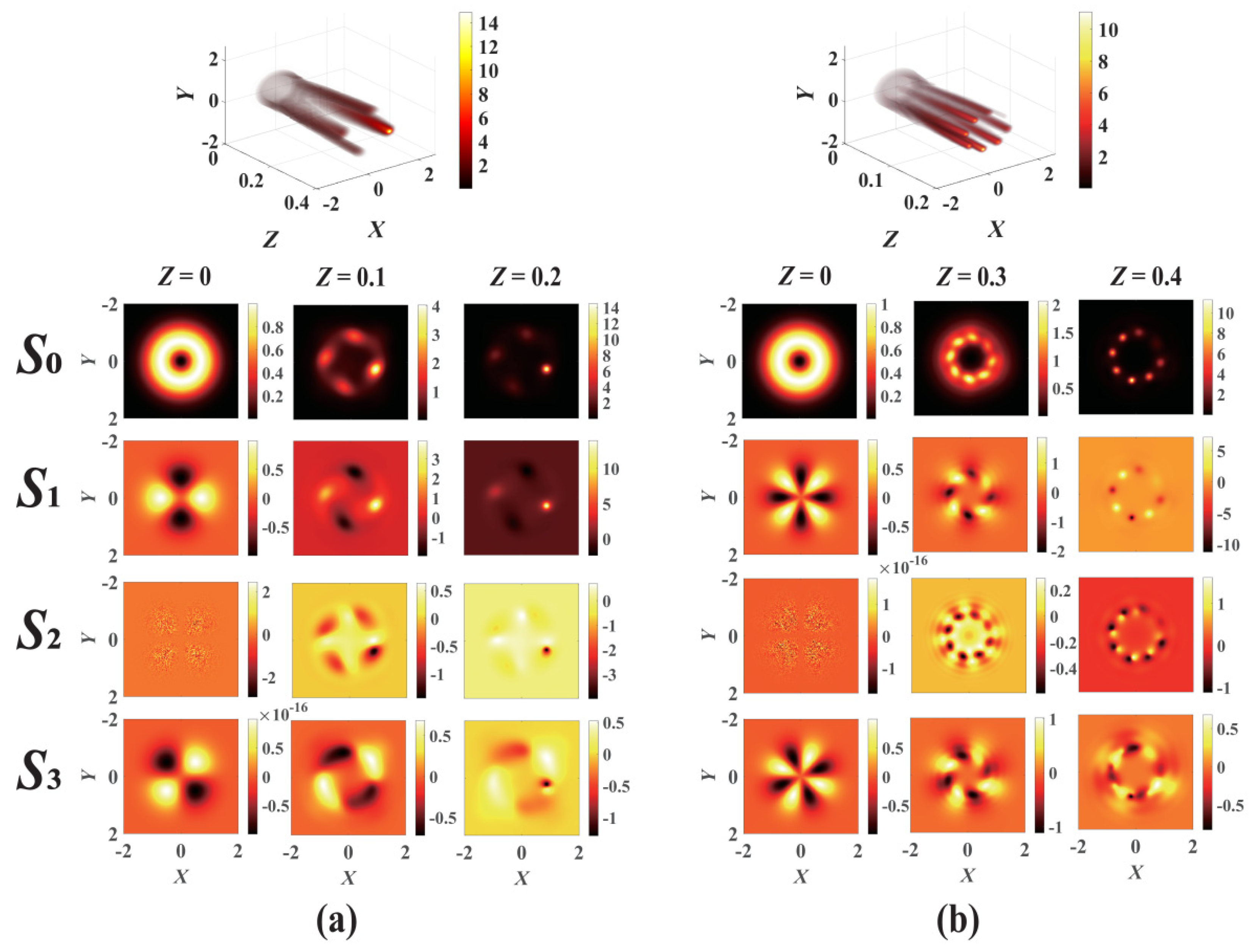

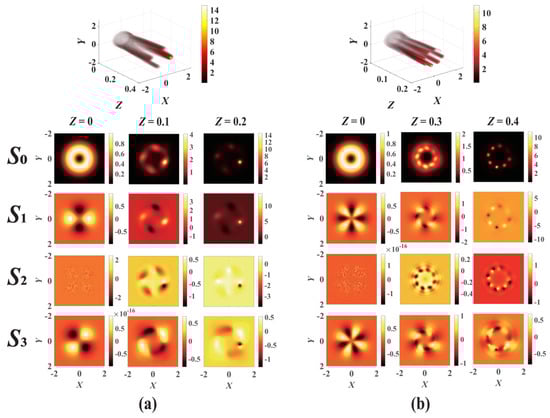

For Kerr-SCPT media, the collapse points formed on the VVOF section present an asymmetric and non-uniform distribution due to the gain–loss modulation, as shown in Figure 7. Different from the Kerr-ROLP medium, the energy can be more concentrated on one point or side, whereas the intensity of a certain point or side of the beam is weakened. The number and positions of the final collapse points of the VVOF are significantly dependent on the modulation of gain–loss. It provides an effective means to manipulate the collapse of the VVOF in Kerr-SCPT media.

When the VVOF propagates in the PT-Kerr medium, the field distribution and reshape of the VVOF vary due to the influence of the self-focusing of the Kerr medium, the real refractive index modulation, and optical diffraction in the PT lattice potential. Therefore, when the VVOF is modulated by gain–loss, the ratio of the gain–loss suffered by each point in the optical field is always changing. The proportion of the gain–loss modulation received by each point on the VVOF is closely dependent on the density of the PT optical lattice potential d, which determines the relative position of each point on the VVOF and the lattice potential.

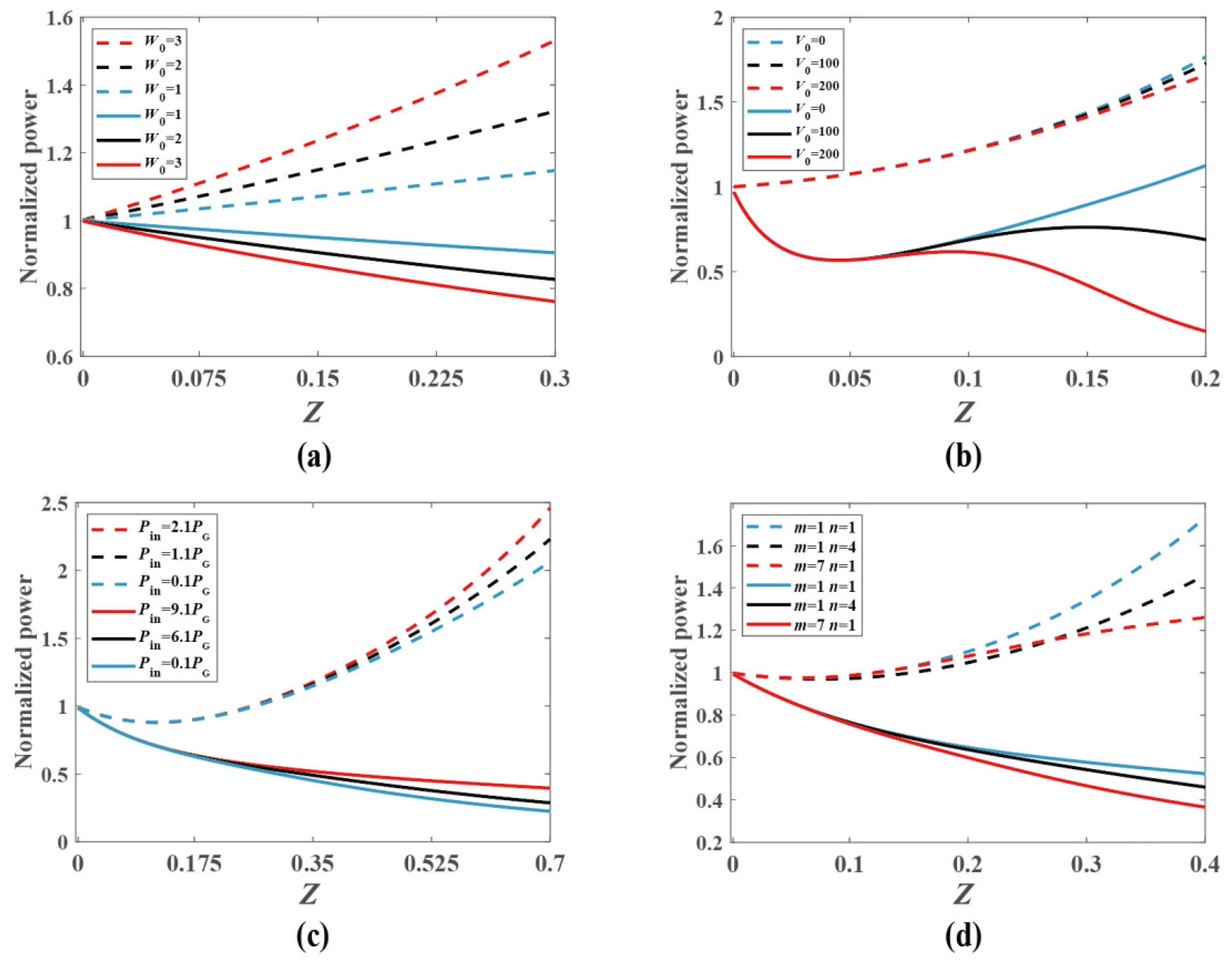

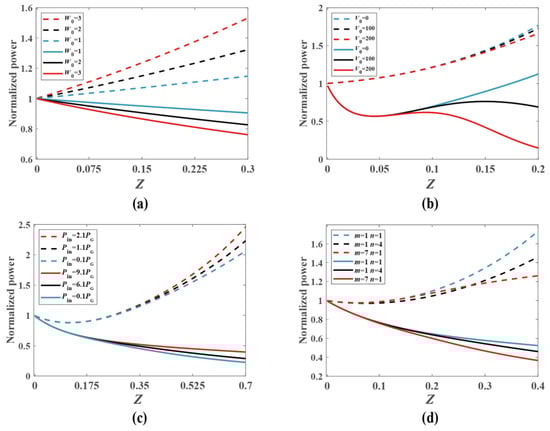

The normalized powers of the VVOF in a Kerr-SCPT medium as a function of the transmission distance with different modulating parameters W₀, V₀, and d and topological numbers (m, n) are shown in Figure 8. The powers have been normalized to their initial powers. The powers remain invariant if W₀ = 0 because of the conservation of energy. When d = 0.25, V₀ = 0, and W₀ ≠ 0, the powers of the VVOF increase during propagation in a Kerr-SCPT medium, indicating that the gain effect of the VVOF is greater than the loss effect. On the contrary, if d = 0.45, V₀ = 0, and W₀ ≠ 0, the power of the VVOF weakens with the extension of transmission distance, indicating that the gain effect of the VVOF is less than the loss effect, as shown in Figure 8a. When V₀ ≠ 0 and W₀ ≠ 0, the powers of the VVOF are influenced by the refractive index modulation of V₀ due to its effect on the evolution of the VVOF. The influence of V₀ on the power of the VVOF depends on the relative position of the PT lattice potential. When the VVOF is subjected to more gain for the values of V₀, the power of the VVOF will be enhanced. In the contrary scenario, the power of the VVOF will be weakened. As shown in Figure 8b, when d = 0.95 and W₀ = 12, the power of the VVOF increases with the extension of the transmission distance. It is worth noting that with the increase in V₀, the power enhancement trend of the VVOF decreases. This is because the increase in V₀ changes the refractive index of the Kerr-SCPT medium and the field distribution of the VVOF, resulting in the change in the relative position of the VVOF and PT lattice potential. However, due to the complex evolution of the VVOF in the Kerr-SCPT medium, the gain–loss ratio of the VVOF may have large fluctuations, as shown in Figure 8b. Especially when the value of W₀ is large, the powers are sensitively related to the variation in V₀, as shown by the solid lines in Figure 8b with d = 0.45, W₀ = 90, and the power curves of the VVOF show large fluctuations during propagation. In addition, the power variations are also related to the initial powers and the topological charge number (m and n), as shown in Figure 8c,d. The reason for the power changes is that the nonlinear refraction index and gain–loss are related to the initial powers, as shown in Figure 8c, whereas the distributions of the VVOF are modulated by the topological charge number (m and n), as shown in Figure 8d. Therefore, the powers of the VVOF in a Kerr-SCPT medium can be dynamically manipulated with the modulation of the gain–loss (W₀), the real refractive index modulation depth (V₀), initial power (P_in), and topological charge number (m and n) when W₀ ≠ 0.

4. Discussion

The nonlinear collapse of a structured light field and its control and manipulation have become a challenging research topic due to the rapid development of nonlinear optics and its wide application. The collapse properties of a VVOF in a PT-symmetry Kerr medium remain unexplored. With the introduction of PT-symmetric potential to a nonlinear Kerr medium, the collapse dynamics of a VVOF become more complex and provide a more flexible manipulation of a VVOF in nonlinear Kerr media due to the modulation of the symmetric distribution of the real part of the PT-symmetric potential (refraction index) and the asymmetric distribution of the imaginary part (gain–loss). In this work, the study of the collapse dynamics of a VVOF in nonlinear Kerr media with PT-symmetric modulation indicates that a VVOF collapses into symmetric shapes during propagation in a Kerr-ROLP medium, and collapse shapes are sensitively related to the density of the PT-symmetric optical lattice potential. In addition, due to the modulation of the asymmetric distribution of the gain–loss, the VVOF will be distorted during propagation in the Kerr-SCPT medium, forming an asymmetric shape of collapse. On the other hand, the power evolution of the VVOF in a Kerr-SCPT medium as a function of the transmission distance is closely related with different modulating parameters and topological charge numbers. The collapse dynamics of a VVOF propagating in a Kerr medium with a PT-symmetry complex refractive index distribution can extend our deeper understanding of the collapse dynamics in PT-symmetric Kerr media and provides a more flexible manipulation of the collapse of a VVOF in the Kerr-SCPT medium.

5. Conclusions

The collapse dynamics of a VVOF in PT-symmetric Kerr nonlinear media are demonstrated by using the 2D NLS equation. The critical power needed to keep the root-mean-square width of the beam constant during a VVOF propagating in the PT-symmetric Kerr nonlinear medium is derived theoretically. The numerical results indicate that the number, location, propagation distance for collapse, and profile of the collapse of the VVOF in SCPT Kerr media are closely related to the modulation depth, initial power, and the topological charge number of the VVOF. The VVOF collapses into symmetric shapes during propagation in a Kerr-ROLP medium, and collapse shapes are sensitively related to the density of the PT-symmetric optical lattice potential. In addition, due to gain–loss, the VVOF will be distorted during propagation in a Kerr-SCPT medium, forming an asymmetric shape of collapse. The power evolution of the VVOF in a Kerr-SCPT medium as a function of the transmission distance with different modulating parameters W₀, V₀, and d and topological numbers (m, n) is analyzed in detail.
