1. Introduction
Air pollution poses a significant environmental risk to human health, leading to 4.2 million premature deaths every year [
1]. Therefore, air quality monitoring networks are established in many countries to warn the public, monitor compliance to regulations concerning air pollutant emissions, and analyze observations to assist with the development of new regulations [
2,
3]. Tropospheric ozone is a toxic air pollutant. In contrast to stratospheric ozone, which protects humans and plants from harmful ultraviolet radiation, tropospheric, near-surface ozone harms humans and plants. It is also a greenhouse gas [
4]. Uncovering the spatial variability of air pollutants such as ozone is crucial for controlling air pollution and assessing human exposure.
Machine learning is a complementary approach to established physics-based chemistry-transport modeling [
5,
6,
7]. Data-driven techniques and machine learning are increasingly explored for air quality modeling [
8,
9,
10,
11,
12] because many observations are available on the one hand. On the other hand, these methods were proven to capture complex relationships while being easy to implement [
12].
The downside of these easy-to-implement methods is the problem of opaque models. For atmospheric scientists, it is essential to understand the internal functioning of their models. Investigating machine learning approaches to predict ozone values based on environmental data can help pinpoint influential factors for ozone values or predict the spatial variability of ozone. In addition, for decision-making, trustworthy and reliable models are required. Understanding the models’ capabilities and limitations is a way to increase trust in a model. Explaining how a trained machine learning model arrives at its predictions gives us insights into its core functioning.
As stated in the beginning, air pollution monitoring is essential to design policies to protect the public and for research to understand air pollution chemistry. Inspired by the increasing application of data-driven techniques to air quality research, Betancourt et al. [
11] combine environmental data with air quality observations for the challenge to model air pollutant tropospheric ozone. An impression of the AQ-Bench dataset is given in

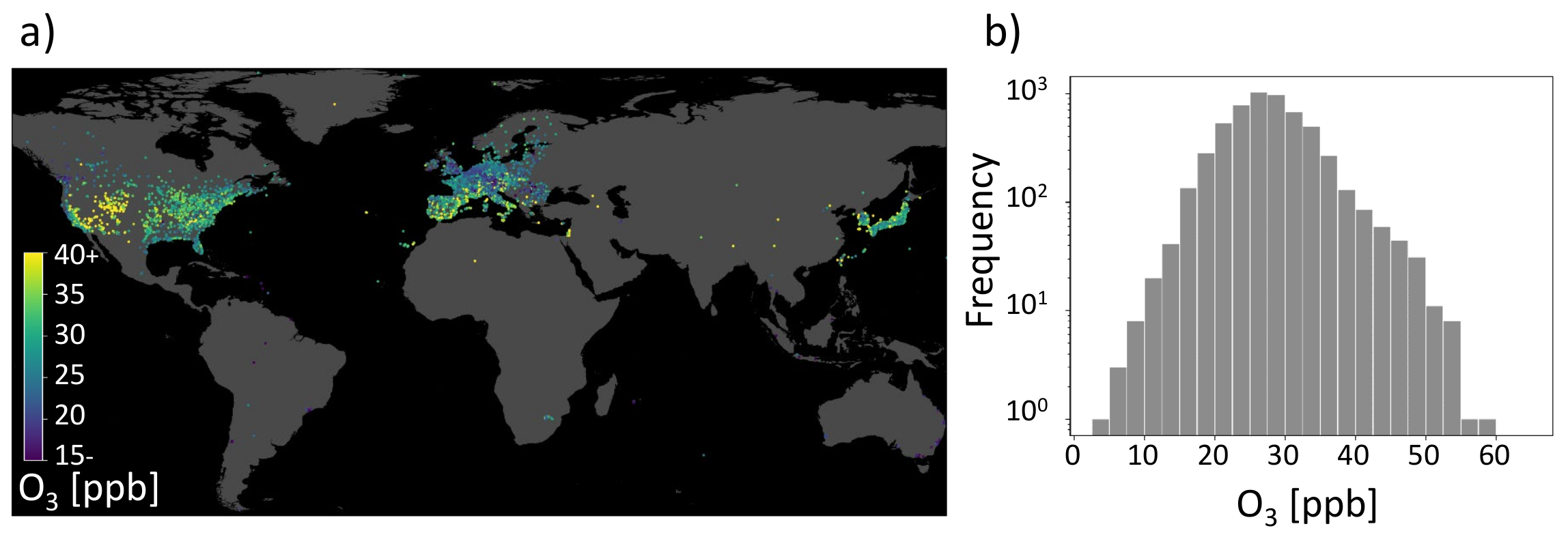

Figure 1.
Figure 1a shows the locations of ozone observation stations distributed around the globe and their ozone values, while
Figure 1b gives a histogram of the target data distribution. In AQ-Bench, the authors model the target ozone metrics derived from air quality measurement stations based on various geospatial datasets using different machine learning algorithms [
11]. Betancourt et al. [
11] show differing scores for the coefficient of determination for a random forest and a two-layer shallow neural network. They compare the coefficient of determination of the three data-driven approaches and found that the nonlinear methods had a higher score than linear regression. They conclude a similar performance of the shallow neural network and the random forest. What is rarely done, to our knowledge, is to explain the differences between various machine learning architectures applied to the same task.
In this study, we explain the similarity of a shallow neural network and a random forest, which are two different algorithms trained on the same dataset by showing similar behavior in the models’ representation space. Thus, the contribution of this study is two-fold. On the one hand, we uncover the core functionality of two different machine learning approaches trained on the same benchmark dataset AQ-Bench. On the other hand, we use the models’ explanations to gain a deeper understanding of the underlying dataset. The explanations reveal the representation of AQ-Bench in the machine learning models. With our analysis, we flag untrustworthy data samples, identify training data samples irrelevant for prediction, and recommend where to build new near-surface ozone measurement stations based on underrepresented test samples. The uniqueness of our approach is that we use machine learning explanations based on analysis of the models’ representation space to derive understanding and make recommendations in the geographical space.
4. Methods
We combine the following methods to gain novel scientific insights about the AQ-Bench dataset. First, we use the methods to understand how the trained models work. Second, we use our knowledge about the models’ functioning to explain inaccurate predictions. We train our models on a dataset that consists of input feature vectors
and target values
. Both machine learning models predict
based on the input feature vector:
To gain novel insights, we uncover the models’ functioning by calculating SHAP global importance for both models; see
Section 4.1 and visualizing prediction patterns. Since we use a random forest and a neural network, we implement visualization methods tailored to the specific architectures.
Section 4.2 presents the neural network visualization method and
Section 4.3 presents the random forest visualization method. These visualizations help us to explain individual predictions. Nevertheless, interpreting individual predictions does not yield a global understanding of the trained models. Therefore, we move from single predictions to studying prediction patterns. For this, we use k-nearest neighbors on both models for explaining inaccurate predictions; see
Section 4.4.
4.1. SHAP
As Lundberg et al. [
32] proposed, we use SHapley Additive exPlanations (SHAP) to explain local and global predictions [
36]. SHAP values are derived by a model-agnostic post hoc explainable machine learning method and therefore are suitable for comparison of our two different machine learning algorithms. The SHAP values quantify the contribution of each feature to the model prediction. Contribution refers to the deviation from the base rate, which is the expected value of the training dataset, where features with high absolute contributions are considered more important. For example, a feature with a negative SHAP value causes the model to predict a value lower than the expected value of the training set. Since features with large SHAP absolute values are considered important for a single prediction, averaging absolute SHAP values per feature across data results in an estimate for global importance based on SHAP.
4.2. Neural Network Activation
For the neural network, Equation (
1) takes the form:
where
and
represent the neural network’s parameters [
37]. Our trained, shallow neural network can be easily visualized by representing the node structure and expressing the values of weights and biases as colors (

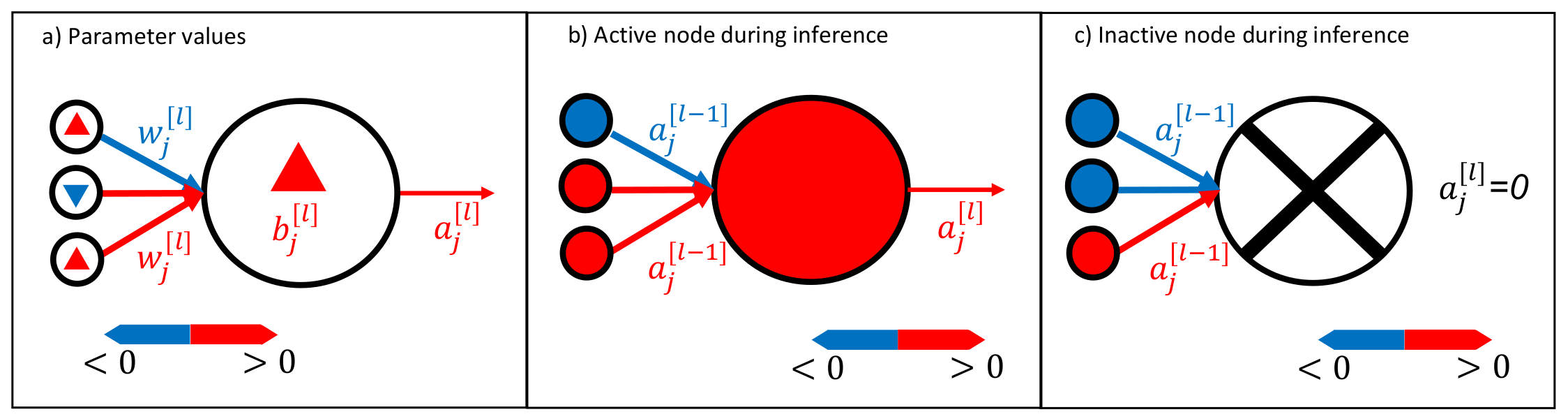

Figure 2, left). During inference, the trained neural networks parameters
are combined with the input feature vector
and the activation function
in each layer:
where
and
the weights and biases of layer
l [

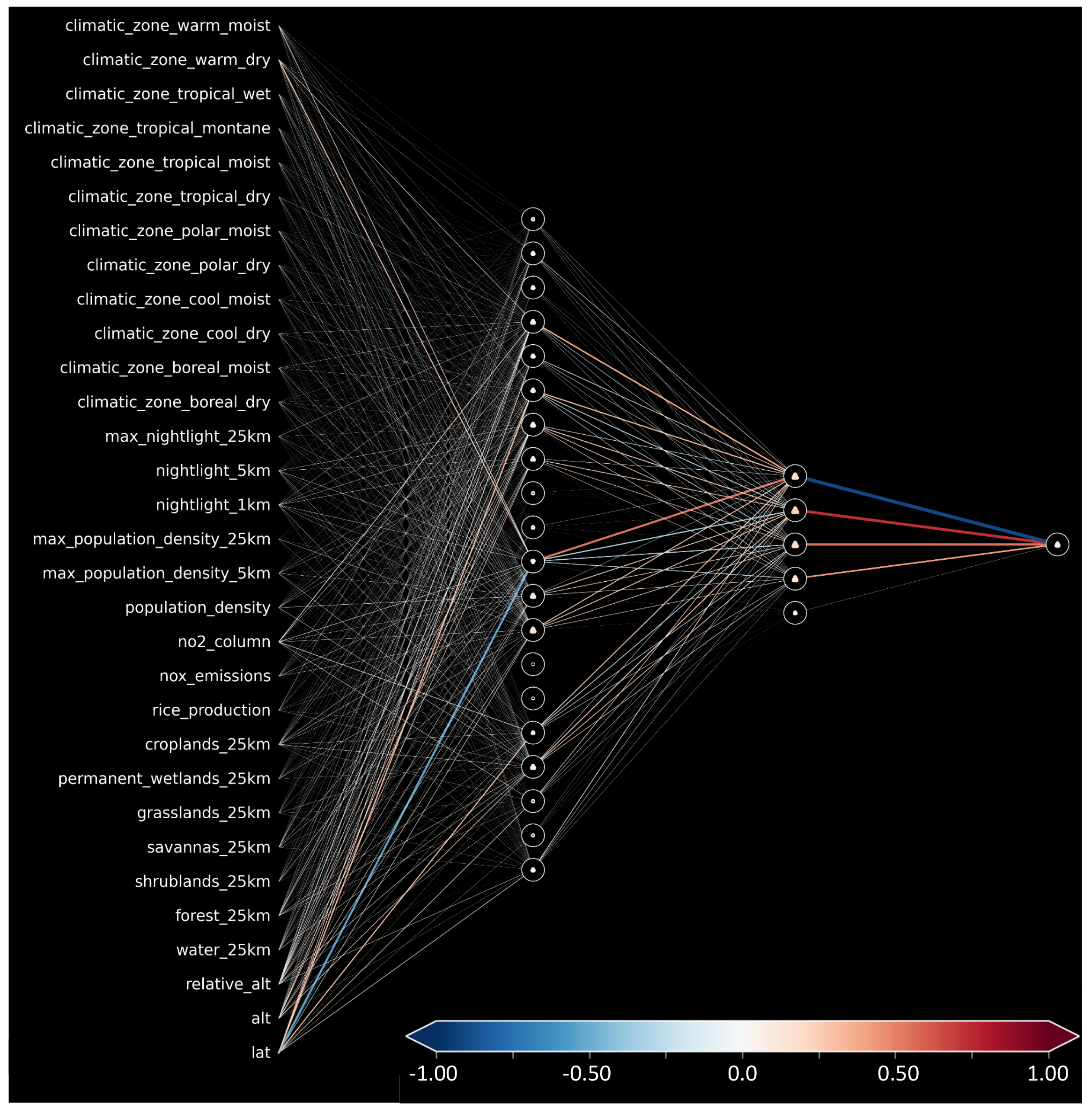

37]. Therefore, we can also visualize the trained neural network during inference by plotting the activation
. The neural network signals are obtained by visualizing Equations (
3) and (
4); see
Figure 2 (right).
4.3. Random Forest Activation
A random forest consists of decision trees
, where
are independent and identically distributed random vectors. The random forest prediction is the average over all
K decision tree predictions. Thus, Equation (
1) takes the form:
given the input
[
38]. Typically, a random forest consists of hundreds of decision trees [
39]. Therefore, visualization of the individual decision trees is possible, but hardly useful due to their sheer number and complexity.
Since we can represent our data in the geographical space, we use a more intuitive way of visualizing the basis set of influential training samples that the random forest used for its prediction. By visualizing the location of the basis set used for prediction on a global map, we display the random forests’ functioning. We name this type of visualization

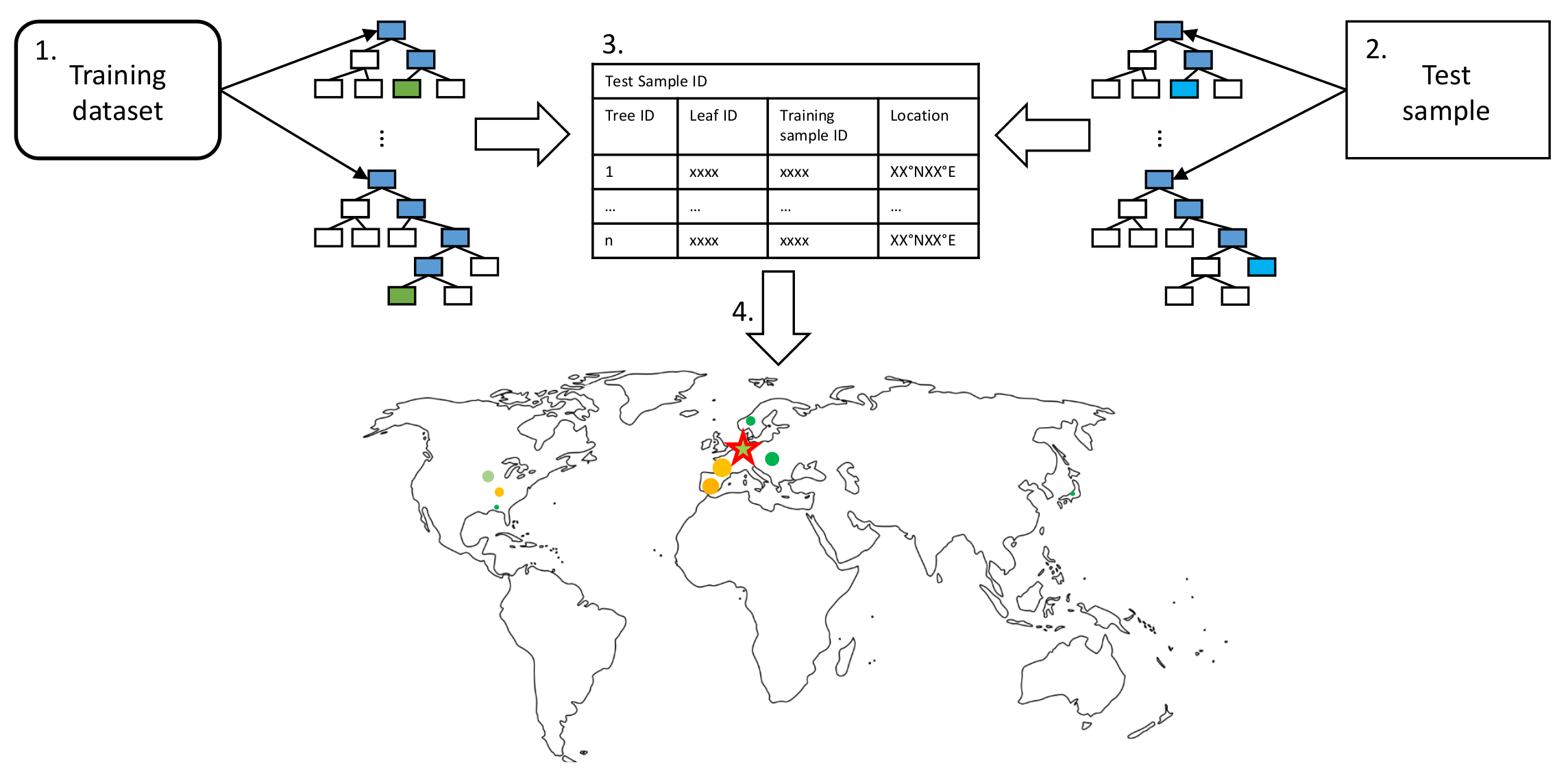

leaf activation to emphasize the similarity to an activated neural network during prediction. The steps to create this kind of visualization are illustrated in
Figure 3 and listed in the following:
Propagate all training samples through the trained random forest. Keep track of the tree IDs, leaf node IDs, and corresponding training sample IDs.
Propagate a single test sample through the random forest. Track the corresponding responsible tree IDs and leaf node IDs for the prediction.
To identify training samples that are most relevant for a given prediction, keep track of the relative frequency of the training samples contributing to the leaf node predictions responsible for a given test sample prediction.
Since each training sample has geographical information; influential training samples can be visualized on a map. The marker size indicates the frequency of a specific training sample contributing to the leaf nodes responsible for a particular prediction.
As decision trees split the data according to their features, these groups of training samples should have similar features as the target test sample. These training samples took the same decision path through the decision trees and ended up in the same leaf node as the test sample.
4.4. Explaining Inaccurate Predictions with k-Nearest Neighbors

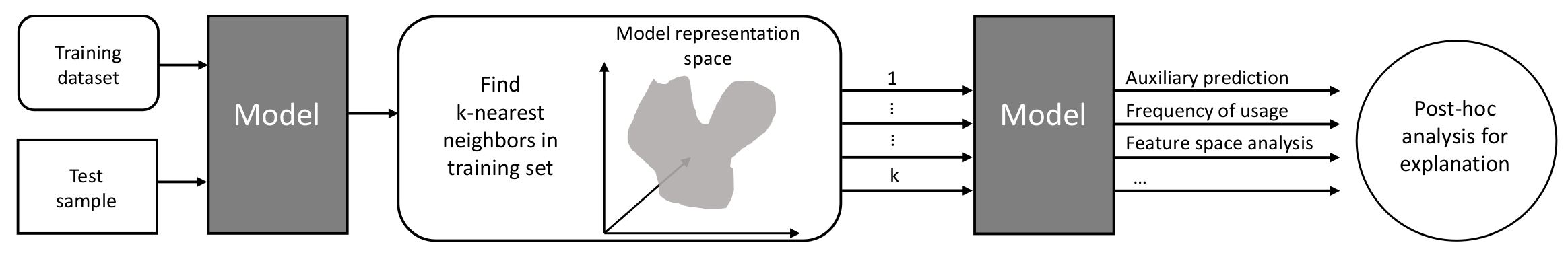

Figure 4 shows how to use k-nearest neighbors to explain inaccurate model predictions as proposed by Bilgin and Gunestas [
40], who explain their deep learning models through post hoc analysis of k-nearest neighbors. For an inaccurately predicted test sample, they extract the k-nearest neighbors in the training dataset and feed them into the trained model. By comparing the prediction based on the nearest neighbors in the training set and the inaccurate prediction of the test sample, they derive an interpretation of the model’s response and identify different cases. Bilgin and Gunestas [
40] apply their method to two standard machine learning benchmark datasets: IRIS and CIFAR10. They originally tested their method on supervised classification tasks, and we adapted and applied it to our supervised regression task.
Since our goal is to explain the functioning of our two machine learning models, we search the k-nearest neighbors in their respective representation spaces. For the random forest, we defined the nearest neighbors as samples in the same leaf nodes (
Section 4.3). For the neural network, we defined the nearest neighbors as samples leading to similar activation patterns (
Section 4.2), i.e., a group of neurons activated. To search the neural network activation pattern space, we use the Euclidean distance
where
and
are a pair of neighboring activation patterns in the n-dimensional neural network activation space.

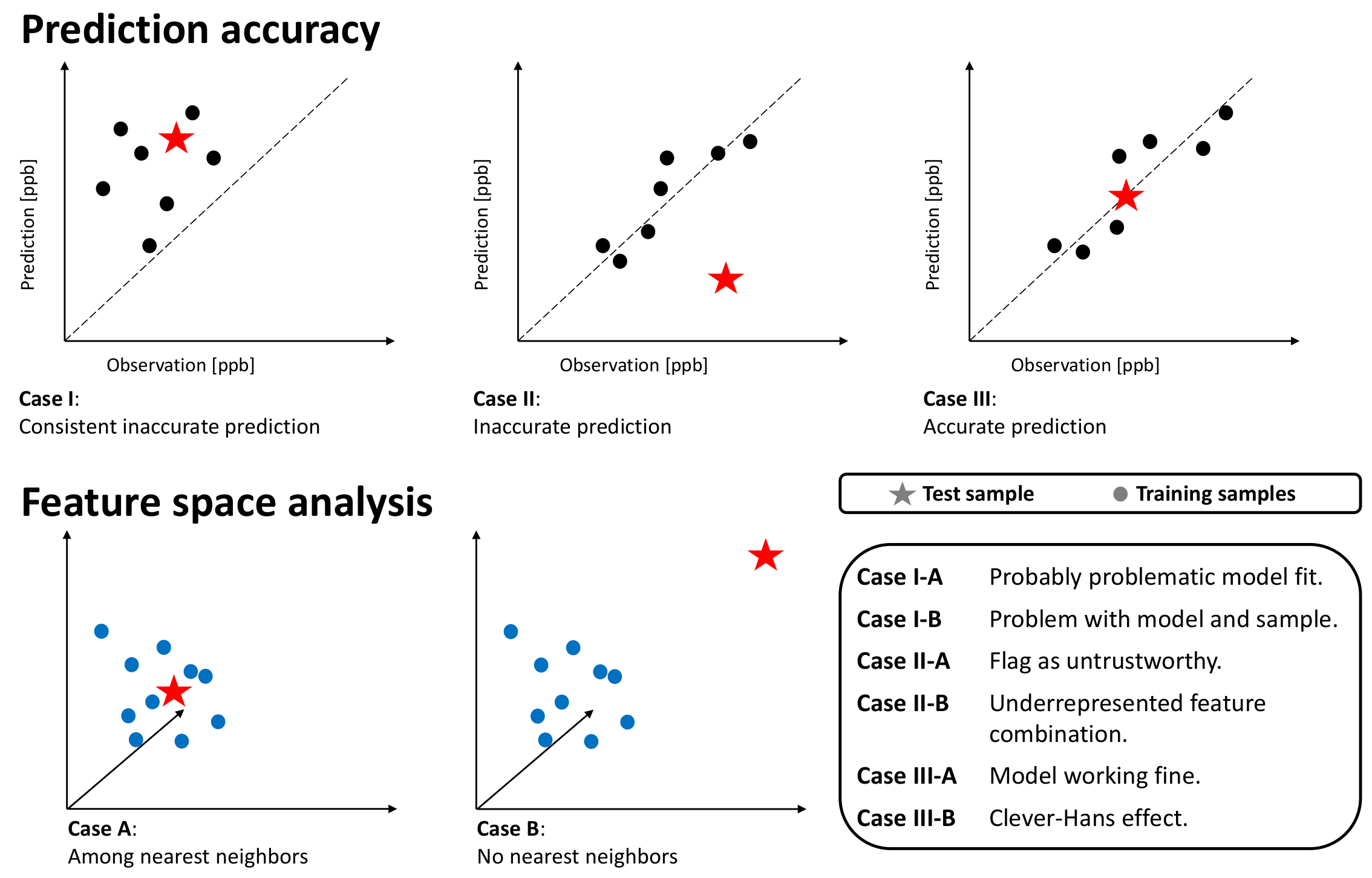

We define the following prediction scenarios for inaccurate predictions; see
Figure 5:
Case-I-A: A sample of k-nearest neighbors leads to consistent, inaccurate predictions. The k-nearest neighbors and the test station are located next to each other in the feature space. The inaccurate prediction of the test sample is not unexpected. In this case, the model might not be fitted well.
Case-I-B: A sample of k-nearest neighbors leads to consistent, inaccurate predictions. The k-nearest neighbors and the test station are not located next to each other in the feature space. The inaccurate prediction of the test sample is not unexpected. In this case, the model might not be fitted well, and the test sample is not well represented– too many problems.
Case-II-A: The model accurately predicts a sample of k-nearest neighbors, while it inaccurately predicts the test sample. The k-nearest neighbors and the test station are located next to each other in the feature space. Therefore, the inaccurate prediction of the test sample is unexpected. This could point to either an erroneous test sample or a model limitation. In any case, this prediction is untrustworthy.
Case-II-B: A sample of k-nearest neighbors leads to accurate prediction, while the test sample is inaccurately predicted. The k-nearest neighbors and the test station are not located next to each other in the feature space. Thus, the inaccurate prediction of the test sample is not unexpected. This points to an underrepresented test sample.
Case-III-A: A sample of k-nearest neighbors leads to scattered accurate predictions. The test sample is accurately predicted. In the feature space, the accurately predicted test sample has nearest neighbors. The models are predicting a correct value. This is the usual case for a healthy prediction.
Case-III-B: A sample of k-nearest neighbors leads to scattered predictions; both accurate and inaccurate predictions are possible. The test sample is accurately predicted but due to the wrong reasons. The accurately predicted test sample has no nearest neighbors in the feature space. The models are predicting a correct value but due to the wrong reason. We can flag this case as the Clever-Hans effect [
35].
For the search of the k-nearest neighbors, we prepared the feature space by (i) using scaled features such that all features have a comparable range of values and (ii) weighting the features with the respective SHAP importance value. The weighting of the feature space follows the method by Meyer and Pebesma [
41], which calculates the distances’ multidimensional feature space, with features being weighted by their respective importance in the model. Then, a Euclidean distance in this scaled and weighted feature represents the distance relevant to the model prediction.
5. Experimental Setup
This Section gives an overview of the experimental setups of model training and the application of explainable machine learning methods to our models. We describe the model training in
Section 5.1 and the evaluation in
Section 5.2. We compare the feature importance of both models with SHAP, as described in
Section 5.3. To gain an insight into the representation of AQ-Bench in the trained machine learning models, we visualize single predictions, as described in
Section 5.4. By investigating the predictions made on the test set in relation to the training samples that this prediction is based upon, we gain an understanding of prediction accuracy. We present in
Section 5.5 how we use k-nearest neighbors for explaining inaccurate predictions.
5.1. Model Training
We train a shallow neural network and a random forest to solve the task posed by Betancourt et al. [
11]: given geospatial data describing the environmental features, infer the ozone metrics. In this study, we focus on predicting one ozone metric, the average ozone. We want to solve the task of predicting average ozone values by training two machine learning models on a subset of AQ-Bench features. AQ-Bench originally contains over 100 features. Following the feature selection method by Meyer et al., here, we only use 31 of them (features listed in
Appendix A,
Table A1), because fewer features decrease model complexity and enable more comprehensible explanations. Ref. [
13] showed that forward feature selection applied on AQ-Bench leads to 31 features. The data split is kept as in AQ-Bench with 60% training (approximately 3300 samples) and 20% validation and test samples (roughly 1110 samples, respectively).
We trained a two-layer shallow neural network and a random forest to predict the average ozone value based on this subset of geospatial data. The hyperparameters of both machine learning models are summarized in
Table A2 in
Appendix B.
5.2. Evaluation Metrics
To evaluate the performance of our models, we use common evaluation metrics in the field of machine learning. We calculate the Root Mean Square Error (RMSE) and the coefficient of determination (
) based on the following formulas:
Moreover, we consider deviations between the prediction and the reference value as residuals. Residual
is calculated by subtracting the prediction
from the observed ozone value
y:
Therefore, negative residuals point to an overestimation by the prediction, while positive residuals depict underestimation.
5.3. SHAP Values
We aim to compare machine learning models based on different algorithms. Gu et al. [
12] propose to treat SHAP (
Section 4.1) as a unifying framework for the comparison of different machine learning models. Thus, we use SHAP feature importance to rank features of both trained random forest and neural network according to their relevance. SHAP values for the random forest are are calculated analytically, whereas the SHAP values for the neural network area are approximations. Details about the calculation of the SHAP values and the software we used can be found in [
32].
We expect that both models use similar features to predict average ozone, i.e., a subset of features that are among the most important for both models.
5.4. Visualization of Individual Predictions
By visualizing the predictions patterns of an accurate prediction and an inaccurate prediction, we aim to show that the underlying patterns leading to an accurate prediction can be differentiated from the patterns leading to an inaccurate prediction. Here, we choose two example test samples for visualization where the models had to predict high ozone values. The one example shows accurate predictions by both models, while the second example displays an inaccurate prediction with a positive residual, which is also called underestimation by the models. We chose test samples to be geographically close to each other; both are located in southern Europe. An overview of the selected test sample stations, observed average ozone value, predicted values, and residuals is given in
Table 1.
5.5. Identify k-Nearest Neighbors and Classify Predictions
We aim to test our hypothesis that certain feature combinations lead to activation patterns in both models related to prediction accuracy. Moreover, we increase our understanding of how the models function and identify different reasons for inaccurate predictions. To do so, we use auxiliary predictions on the k-nearest neighbors, as described in
Section 4.4. We identify the k-nearest neighbors for the auxiliary predictions in the models’ representations spaces and compare if these k-nearest neighbors are also the test sample’s k-nearest neighbors in the feature space. To automatically classify our test samples to the different cases (
Figure 5), we determine 11 nearest neighbors in the training set of a given test sample. Then, we calculate the average residual of the training samples and compare it to the test sample’s residual. In addition, we calculate the average distance between the group of k-nearest neighbor training samples in the feature space and compare it to the average distance between the test sample and its k-nearest neighbors. Based on these values, we can classify our samples into different cases.
We expect both models to lead to similar classifications of the test stations to the cases.
5.6. Train on a Reduced Dataset
We hypothesize that removing non-influential training samples will not affect the performance of machine learning models. To test the hypothesis, we re-train our models on a reduced dataset. We identify the 10% training samples that are not influential for the predictions on the test samples. To identify which samples are non-influential, we used the identified 100 nearest neighbors for each test sample and ranked the whole training dataset according to the proximity to the test samples. We eliminated the 10% of data with the lowest proximity to the test samples in the models’ representation spaces from the training dataset. This leads to a training dataset of the size 3000 training samples. For evaluation, we use the evaluation metrics introduced in
Section 5.2. The hyperparameters of both models are kept unchanged.
We do not expect significant performance losses of both models. The random forest is less sensitive to changes in the training dataset than the neural network, such that we expect a slightly higher performance loss of the neural network than the random forest.
7. Discussion
The following discussion is based on several assumptions. First, we assume that the SHAP values, which indicate the impact a feature has on the prediction, are related to the global importance of a feature when taking the entire set of SHAP values into account. Moreover, to use the Euclidean distance as a measure for similarity, we assume that the weighted feature space and the representation space are smooth. On top of this, we suppose that the Euclidean distance in the weighted feature space and representation space reflects similar samples and similar prediction patterns. We also assume that the weights in the neural network and the structure of the decision trees within the random forest have meaning. Finally, we assume that the k-nearest neighbors in the representations space are the influential training samples for the prediction. This assumption is weak for the random forest since we identified the training samples sharing leaf nodes with the predicted test sample. It is a somewhat stronger assumption for the neural network, where we cannot verify if the training stations we identified as k-nearest neighbors in the representation space are the stations on which the prediction on the test sample is based.
The random forest achieves a higher
score and a lower RMSE than the neural network on the training data set. However, both models achieve similar
scores differing by 3.5% on the test set (

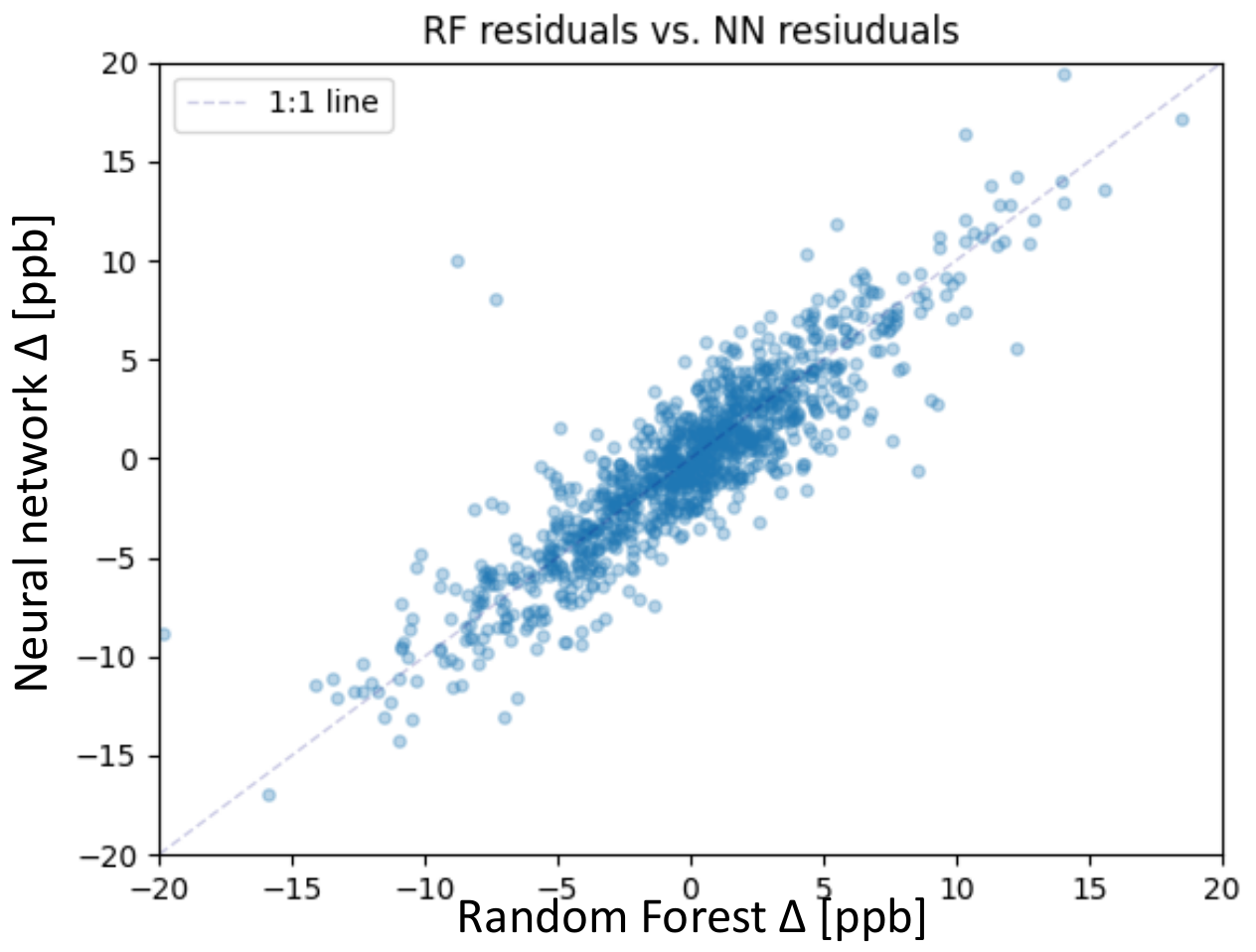

Section 6.2). The comparison of the residuals of the neural network and random forest shows that both models have difficulties of accurately predicting a subset of the test samples, which points to shortcomings of the AQ-Bench dataset rather than poorly fitted models.
To understand the difference between an accurate prediction and an inaccurate prediction in the models’ representation space, we visualize the signal activation of the neural network and the leaf activation of the random forest (
Section 6.3). In both cases, the patterns within the models’ activation differ between an accurate and an inaccurate prediction(

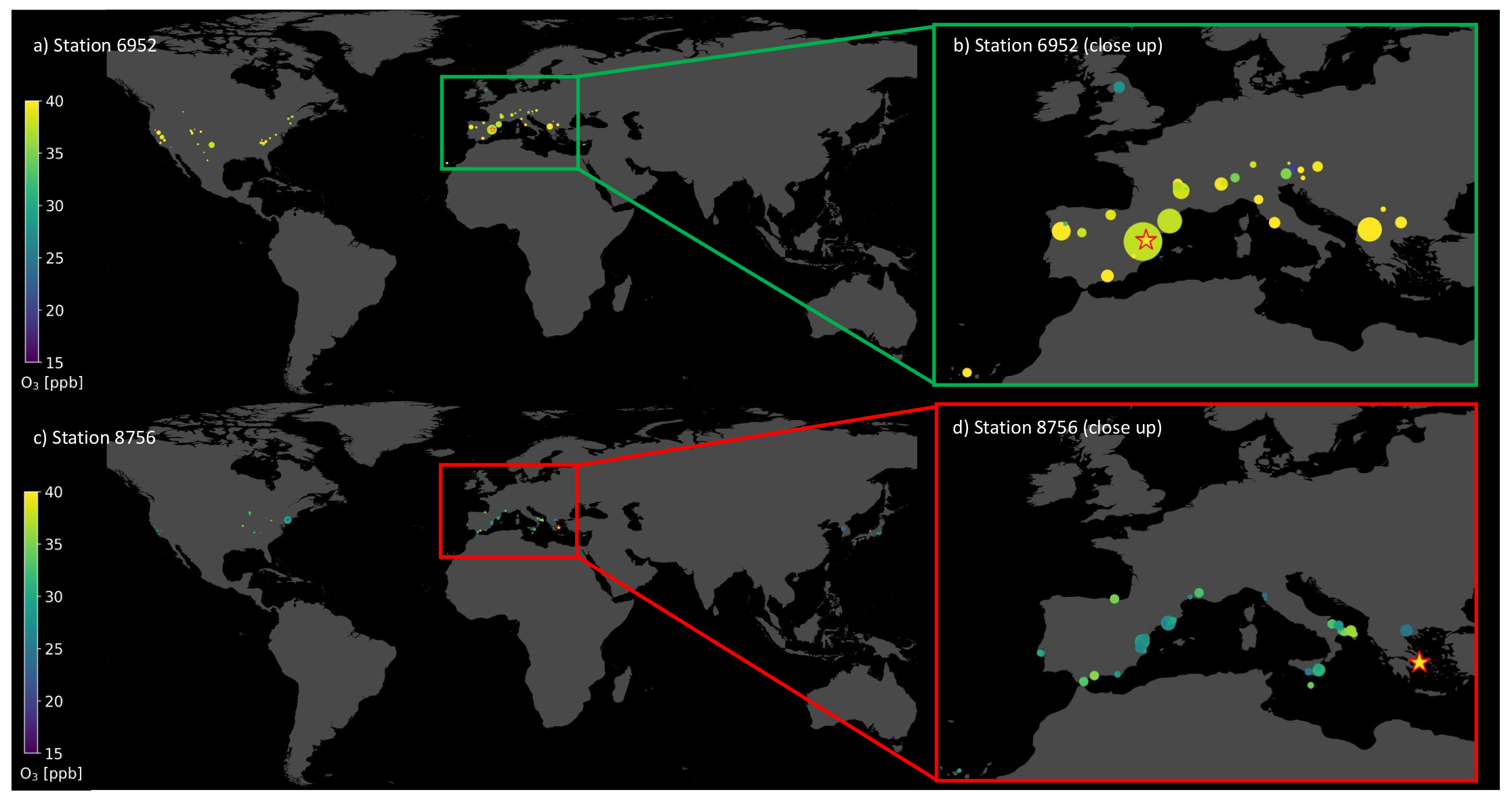

Figure 7 and

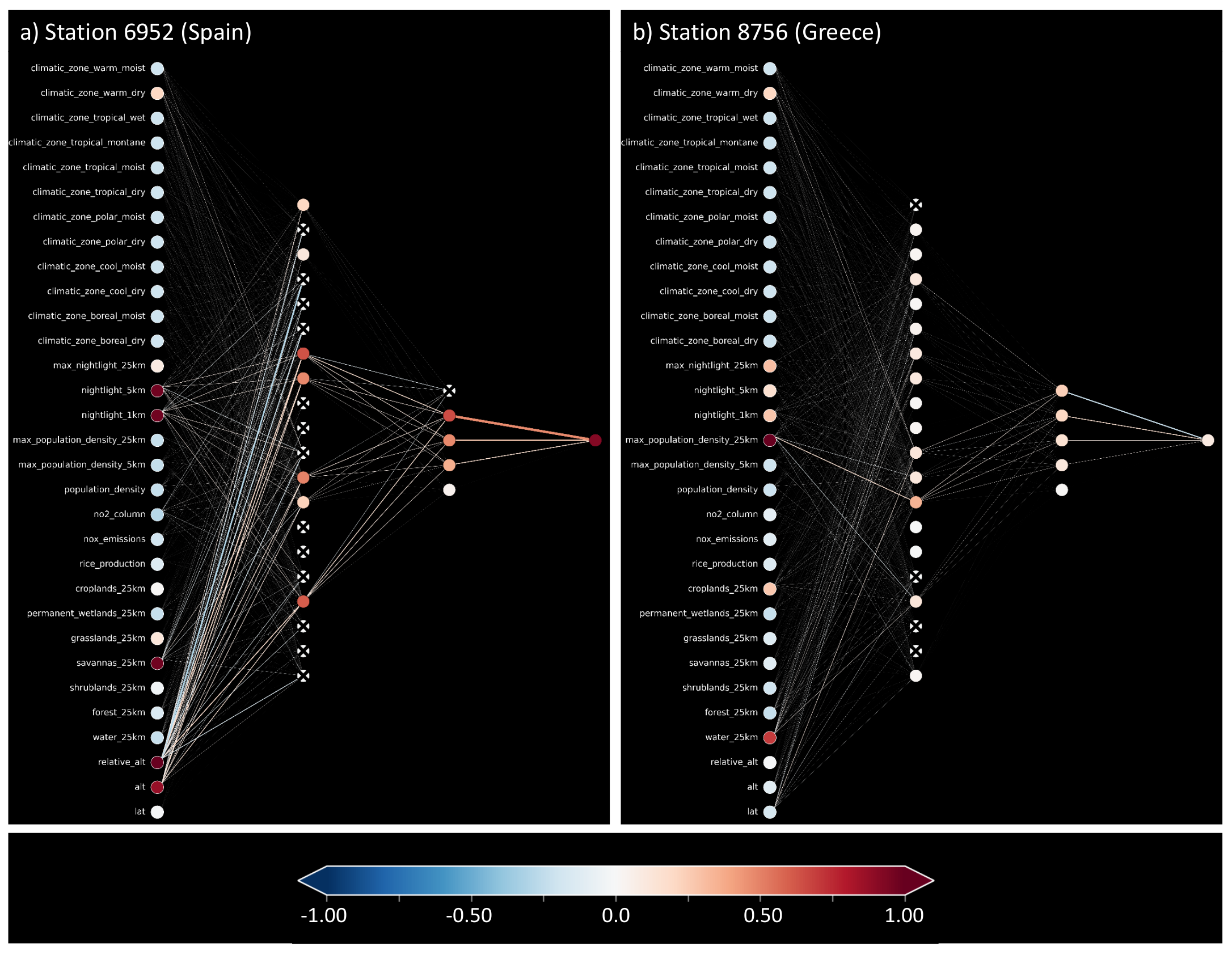

Figure 8). These prediction patterns, which are representations of AQ-Bench samples in the model representation space, can be used to classify inaccurate predictions by the reason the prediction failed.
Section 4.4 defines cases based upon the distance to the nearest neighbors in the model representation space and the weighted feature space. The numerals in the names of the cases point to the model’s representation of the data. Case-I points to consistent inaccurate predictions, case-II points to inaccurate predictions, and case-III points to accurate predictions. On top of the model representation, we analyze the weighted feature space where we defined cases. In case-A, the test sample is among its nearest neighbors of the training set, while in case-B, it is far away from the training samples classified as nearest neighbors in the model representation space. In the following, we first discuss case-I and case-III because case-II gives more insights to AQ-Bench.
The first conclusion we draw from the analysis in
Section 6.4 is that samples are assigned to any case except case-I-A and case-I-B, which means that both models are well fitted. Furthermore, case-III represents all accurate predictions. Over 93% of the predictions can be assigned to case-III-A for both models, which shows that most of these samples are not affected by the Clever-Hans effect (case-III-B). Although there is a difference between the neural network and the random forest, the neural network detected nearly nine times more often Clever-Hans predictions than the random forest.
In contrast to case-I and case-III, the discussion of case-II is diverse. Test predictions assigned to case-II are unexpected and inaccurate, while the k-nearest neighbor predictions are accurately predicted. Based on the examination of the weighted feature space, it is possible to identify underrepresented samples and untrustworthy predictions. The explanations lead to further insights about the AQ-Bech dataset and both models’ predictions, as discussed in the following.
Overall, we found 0.5% underrepresented test samples for the random forest and 2% for the neural network. We suppose the data split causes the low rates of underrepresented test samples because Betancourt et al. [
11] follow good practices of a dataset design, taking into account spatial correlations, data distribution, and representation ability.
Nevertheless, there is an overlap between the test samples identified as underrepresented in the training dataset, leading to areas where we recommend building new ozone observation stations based on both models (violet areas, see
Figure 11). We chose machine learning as an alternative method to propose new station locations, which is a task that is also tackled by using an atmospheric chemistry model [
42]. Although we show that the number of underrepresented test samples is not a significant issue for the prediction on the test dataset, underrepresented locations become problematic in the case of applying the models to areas outside the AQ-Bench dataset, e.g., in (global) mapping studies [
13,
41,
43].
We also identified training samples that are non-influential when making predictions on the test set shown in
Section 5.6. Those samples were either rarely or not included in the set of the 100 nearest neighbors and never used as auxiliary predictions. Neural network and random forest show slight differences regarding which subset of training samples are non-influential, but both agree on a set of roughly 5%. The non-influential stations are either located in data-dense regions or data-sparse regions. We interpret non-influential stations appearing in a data-dense region as redundancy in the training dataset. In contrast, non-influential stations in data-sparse areas are attributed to rare feature combinations not present in the test dataset and therefore are not needed to make accurate predictions on the test set. We further observe training samples in areas with sparse observations that are non-influential for one model but influential for the other one (
Figure 11). One model recommends adding more stations in these areas while the other model flagged the available station as non-influential, highlighting the differences in the models’ representations. This is underlined by the SHAP importance (
Table 2) that shows that the models primarily base their predictions on different features. The spatial distribution of the new building locations in

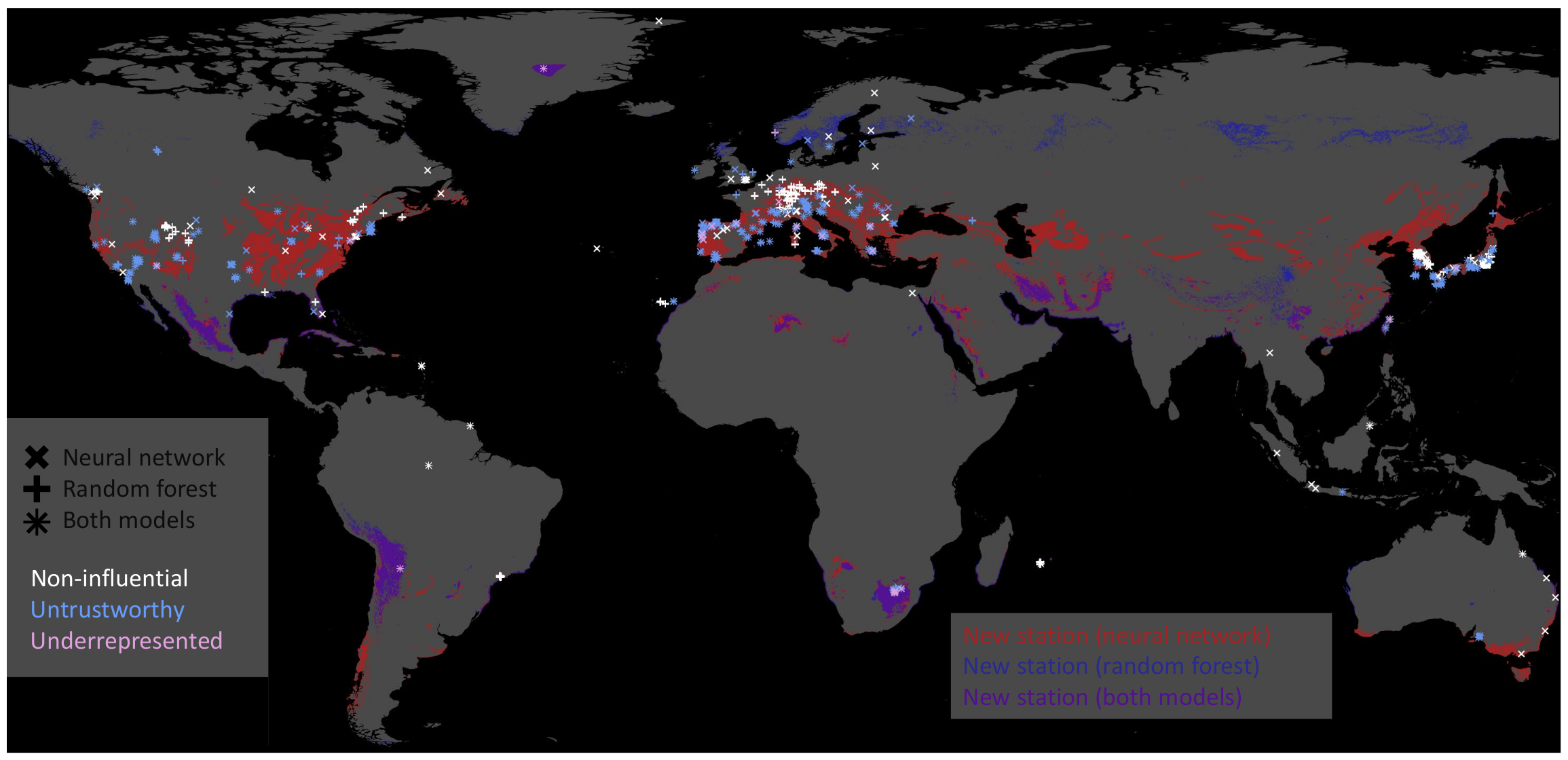

Figure 11 shows the strong influence of the feature absolute latitude. Areas, where we recommend building new stations based on the model’s results, are distributed across zonal bands and are characterized by relevant feature combinations.
The majority of the inaccurately predicted test samples of approximately 22% for both models belong to the case-II-A of an unexpected inaccurate prediction (
Section 6.4). Here, the auxiliary predictions of the 11 nearest neighbors are accurate, and these training samples are also nearest neighbors in the weighted features space. We flag these predictions as untrustworthy because we do not trust the decision process they follow, as detailed in the following. There are two possible reasons for an inaccurate test sample prediction while the nearest neighbor predictions are accurate. The first reason is that the test sample’s ozone value is erroneous, which might be due to an error in the observation. The AQ-Bench is a reliable benchmark dataset originating from a trustworthy data source. Errors in ozone values could occur in single cases, but it is doubtful that 22% of the data are erroneous. The second reason is the relationship between the features and their importance and the target average ozone deviates for these samples. The features in AQ-Bench are a variety of characteristics describing the environment around the measurement station and are proxies for precursors and atmospheric variables. There is no direct chemical relationship between environmental characteristics and average ozone. As a result, possible relevant features are missing, and the relation between features and target cannot be represented sufficiently because the system is underdetermined. Therefore, we attribute the untrustworthy samples to unique relationship between features and targets not reflected in the learned models.
