Article

Typology of Production Units for Improving Banana Agronomic Management in Ecuador

by
Carlos Alberto Quiloango-Chimarro
1,*,
Henrique Raymundo Gioia
2 and
Jéfferson de Oliveira Costa
3
1
Biosystems Engineering Department, Luiz de Queiroz College of Agriculture, University of Sao Paulo (USP), Piracicaba 13418-900, SP, Brazil
2
Applied Economics Department, Luiz de Queiroz College of Agriculture, University of Sao Paulo (USP), Piracicaba 13425-075, SP, Brazil
3
Experimental Field of Gorutuba, Minas Gerais Agricultural Research Agency (EPAMIG), Nova Porteirinha 39525-000, MG, Brazil
*
Author to whom correspondence should be addressed.
AgriEngineering 2024, 6(3), 2811-2823; https://doi.org/10.3390/agriengineering6030163
Submission received: 18 July 2024 / Revised: 5 August 2024 / Accepted: 8 August 2024 / Published: 12 August 2024

Abstract

:
Ecuador is one of the world’s leading banana exporters; however, low productivity resulting from inadequate agronomic management requires an analysis of banana production units. This study aimed to define the types of banana production units based on the different agronomic management practices adopted by producers in two Ecuadorian provinces. Data from the National Institute of Statistics and Censuses (INEC) for 2021 were used, with a sample of 319 production units. Principal component and cluster analyses were applied to identify the different types of production units, resulting in four types: high technology conventional (Cluster 1), balanced conventional (Cluster 2), intensive conventional (Cluster 3), and agroecological (Cluster 4). It is important to highlight that 58% of the production units are intensive conventional and use an average of 3.5 management practices, with 98% using fertilizers, 100% using fungicides and pesticides, and 45% using improved genotypes. In contrast, agroecological production is still incipient in Ecuador (4.7%). Regression analysis showed that waste is important in high-yield production units in the three clusters. In addition, Cluster 2 relied on regional factors, family labor, and irrigation efficiency, while in intensive conventional farms (Cluster 3), banana yield was related to fungicide application. Therefore, public policies should be customized according to cluster-specific characteristics to optimize agronomic management practices and facilitate their transfer among groups.

1. Introduction

Agriculture in Ecuador plays an important role in food security, poverty reduction, economic development, and resource generation [1,2]. In the coastal lowlands, agriculture is carried out by small and large producers and is concentrated near the river basins [3]. In this region, agricultural activities are favored by geographical and climatic factors (i.e., tropical climate, fertile soils, irrigation potential, and export access), with crops such as bananas, cocoa, rice, corn, soybeans, sugarcane, and African palms [4]. Among these crops, bananas are the most economically important agricultural product in Ecuador, accounting for around 35% of the country’s agricultural GDP [5]. They are also the crop with the greatest technification, involving irrigation, precision application of fertilizers and pesticides, and biological control methods [6,7].
The provinces of Guayas and Los Ríos are where bananas are traditionally grown [8]. According to the 2022 agricultural census, the production of bananas in the Guayas and Los Ríos provinces accounted for 431 Mg and 351 Mg, respectively [9]. Collectively, these two provinces account for 70% of the total production in Ecuador, as indicated by Ortiz-Ulloa et al. [10]. The favorable local conditions, including temperature, rainfall distribution, and fertile soils, make these provinces suitable for banana cultivation [11]. However, there is significant variation in yields between production units [12]. Moreover, there has been a decrease in yields over the past five years [9]. It is important to note that when comparing production per unit area with Central American countries, Ecuador’s yield values are relatively low [13]. These low yields are primarily linked to fungal diseases affecting the roots of the plants [14].
In this context, this may be attributed to inadequate farming practices: improper fertilization, insufficient use of pesticides to combat pests and diseases, and the quality of the genetic material [14,15,16]. Research aimed at enhancing the agronomic management of the banana is limited. For example, Villaseñor-Ortiz et al. [6] developed a tool to determine the optimal levels of potassium and nitrogen fertilization through the analysis of leaf data from commonly grown varieties in Ecuador, but further modifications are necessary before it can be implemented in the field. Separately, Veneziano et al. [17] investigated Carbendazim residues in bananas from Ecuador, Panama, and Costa Rica and discovered that 5% of the samples studied exceeded the permissible limits for this chemical compound. Clearly, these inadequate practices have detrimental effects on yield, economic income, and health [18,19].
The primary approaches for cultivating top-quality bananas are promoted by numerous agricultural extension organizations. These include, first and foremost, the implementation of genetic material that exhibits resistance to diseases and pests [20] and the integration of diverse irrigation techniques on all banana farms [21]. Moreover, the government, private sector, and farmers are vigilant in efforts to prevent the introduction of new diseases, such as the fungal pathogen Fusarium oxysporum tropical race 4, which is already present in the neighboring countries of Venezuela, Colombia, and Peru [22].
Despite the programs and initiatives of different organizations to improve the agronomic management of bananas, little research has been carried out to adopt these technologies. The diversification of techniques can benefit both banana yields and economic income, regardless of the size of the production unit [23,24]. This diversification of techniques can be known and applied if there is technology transfer between farmer groups and extension services, private companies, and government agencies [25].
In previous studies, in order to establish different types of agricultural production units of different species (peppers, sugar cane, melons, and rice), socioeconomic variables were included together with different agronomic management [26,27]. Thus, this typology could help in the implementation of robust public policies to increase the yield per unit area of the banana plant.
The objective of the present work was to define types of banana production units based on different agronomic management practices adopted by producers in two provinces of Ecuador. The specific objectives were: (i) to explore the variation between production units in the adoption of different banana management practices; (ii) to identify relevant management practices adopted by the different groups of producers through principal component analysis and cluster analysis; and (iii) to analyze the variation in yield, access to agricultural extension services, knowledge, socioeconomic characteristics, and agronomic attributes of each group.

2. Materials and Methods

In this study, the adoption of various management practices and technologies linked to banana production and property types was examined. First, the characteristics of the properties and types of management in this crop were obtained through a literature review and discussion with technicians from the private and public sectors [28,29]. In the second step, data from the ‘National Agricultural Census’ conducted by Ecuador’s National Institute of Statistics and Censuses (INEC) in 2021 were evaluated for quality and adequacy. In the third step, the processed data were analyzed using Principal Component Analysis (PCA) and Cluster Analysis (CA) to identify homogeneous groups according to the technologies used in crop management. Finally, multiple linear regression (MLR) analysis was performed for each cluster to identify significant explanatory variables for yield (Mg of banana per ha) rather than for prediction.

2.1. Study Area and Data Formatting

Since 2015, the INEC has utilized a semi-structured survey at the national level to gather data on social, technological, and income factors for both agricultural and livestock products (ESPAC). INEC divided the country into segments, defined as squares of land between 0.1 and 5.8 square kilometers. The size of each segment is determined by the intensity of agricultural production in the area, and these segments are characterized by homogeneous agroecological conditions [30]. The permanent crops section of the survey includes information on the banana plant, as well as 80 other species.
The provinces of Guayas and Los Ríos (Figure 1) were selected for this study due to their significant planted areas and high number of producers [11]. Both provinces are situated in Ecuador’s coastal region and have comparable geographical and climatological conditions. The altitude in these provinces ranges from 5 to 50 m above sea level, and, according to the Koppen classification system, they fall within the tropical savannah agroecological zone (Af) [31]. The average annual rainfall in these provinces is 2208 mm, with most precipitation occurring between January and May and in December [32]. The primary soil types in both provinces are vertisols, alfisols, and entisols, with variable textures [33].
The original spreadsheet is open for consultation and can be viewed on the website https://www.ecuadorencifras.gob.ec/estadisticas-agropecuarias-2/, accessed on 3 January 2023. In the survey, the variables described above were expressed per production unit. Thus, the variables that were created/modified based on the information of the original spreadsheet were yield (Mg ha−1), waste (Mg ha−1), and quantities (kg ha−1 or L ha−1) of the variables: fertilizer, pesticide, fungicide, and organic inputs. In addition, as all the production units had irrigation, the irrigation efficiency was calculated for the systems used (furrows, sprinklers, micro-sprinklers, and drip irrigation) using the values proposed by Mantovani [34].
After all the variables were created, exploratory data analysis was carried out. Outliers (by productive unit) were eliminated, especially blank spaces for the yield. These production units were likely in the non-productive phase (production units removed: 21). In total, 319 productive units were included in the analysis: 150 properties in Los Rios and 169 properties in Guayas. Ecuador is divided into provinces, cantons, parishes, and neighborhoods. In addition, the information used and the characteristics of each variable are shown in Table 1. The Section 2.2 details the crop management variables used to create the clusters.

2.2. Data Analysis

The data were analyzed using RStudio, version 12.0. A multivariate approach was used to evaluate the relationships between all the variables studied (Pearson’s correlation coefficient) using the Factoextra package [35]. Principal component analysis (PCA) was then used to reduce the number of variables into a new set of components using the psych package [36]. Six variables related to banana management practices were chosen for the PCA (use of fertilizer, use of organic inputs, use of fungicides, use of pesticides, use of improved genotypes, and planting density). The Kaiser criterion was utilized to determine the factors, with individual values ranging from 0.55 to 0.84, and an overall value of 0.65. Moreover, Bartlett’s test of sphericity was associated with a p-value < 0.001, indicating that the analysis is valid. Evaluating the correlations between the factors, a load > 0.5 or <−0.5 was considered to subsequently name each group (Table 2).
After identifying the factors, cluster, hierarchical, and agglomerative analyses were performed for the management variables using Ward’s method to minimize the variance within each cluster with the aid of the cluster package [37]. The square of the Euclidean distance was used to measure the distances. A new spreadsheet was generated, categorizing the data into four distinct groups.
The analysis of variance (ANOVA) was carried out using the Agricolae package [38] to test for differences between clusters for all the variables in the different categories: agronomic management, yield, access to agricultural extension and knowledge, socioeconomic characteristics, and agronomic attributes. For the variables with statistical significance (<0.05), Fischer’s LSD test was used to differentiate the means between clusters.
The multiple linear regression was performed in order to define a linear relation between the yield of banana and the predictor variables (access to agricultural extension and knowledge, socio-economic characteristics, and agronomic attributes) for each of the clusters previously defined. Cluster 4 was excluded because it had an insufficient number of production units. This analysis was performed using the backward elimination of variables [39]. In the backward selection process, the model starts with all of the predictors (complete model), and, at each stage, variables that contribute the least to the model are iteratively removed. The normality of the residuals was assessed using the Shapiro–Wilk test, with p-values greater than 0.05 indicating a normal distribution and the Breusch–Pagan test was used to verify homoscedasticity. The occurrence of multicollinearity between predictors was evaluated using the Variance Inflation Factor (VIF). If the VIF is greater than 10, then multicollinearity is no longer acceptable [40].

3. Results and Discussion

3.1. General Characteristics

The Pearson correlation analysis provides a comprehensive overview of the current state of banana production in Ecuador (Figure 2). The analysis indicated a significant positive association between the use of fertilizers and fungicides and yield, with yield also showing a strong correlation with export levels (p < 0.001). However, it is important to note that high yields are often linked to increased waste, a topic discussed below. In addition, waste is positively associated with the adoption of high-density planting, fungicide use, and irrigation efficiency. Another key finding is that the amount of fungicide used correlates positively with both private and government support, suggesting that fungal diseases such as Sigatoka are significant challenges in banana production [41].
Improved banana genotypes are positively associated with the use of fertilizers, fungicides, and pesticides. However, the amount of fungicide applied was negatively related to these improved genotypes, indicating that newer varieties may be less susceptible to pests. Furthermore, farmers with more years of experience in banana cultivation tend to show a negative correlation with innovation and adoption of improved genotypes. This is consistent with previous research, which reported that introducing new technologies on long-established farms is a difficult task, primarily because of high adoption costs [42]. Finally, support from the Ministry of Agriculture is negatively correlated with exports and irrigation efficiency, suggesting that government assistance primarily benefits small farmers rather than larger producers.
According to Table 3, 95% of the production units commonly use fertilizer, 15% use organic inputs, 72% use fungicides, 93% use pesticides, 9% use high planting density, and 49% use improved genotypes. Mineral fertilizer is applied at a rate of 874 kg ha−1 while organic fertilizer is applied at an average of 77 kg ha−1. The amount of fungicide applied is 10.1 kg ha−1 while pesticides are used at an average of 6.3 kg ha−1. On average, 3.1 management technologies have been adopted in the six production units analyzed in this study. It is worth noting that the average yield is 49 Mg ha−1 and that waste amounts to 1.2 Mg ha−1 (losses of 2.4% in relation to yield). Results suggest that the banana crop is managed as an intensive crop with high use of fungicides, pesticides, and fertilizers [43]. On the other hand, the low use of improved genotypes that help reduce the risk of yield penalties due to pests and diseases may be associated with the higher cost of this genetic material [44]. Moreover, the low use of organic inputs may be related with various factors such as a lack of education among producers [45], which, in Latin America, Asia, and Africa are still little explored [46].
Considering the socioeconomic factors, it is important to recognize that 10% of the production units received support from the Ministry of Agriculture, while 31% received support from the private sector. The average years of experience for farmers in the banana sector was 19.6 years, with a range of 0–60 years. The size of the production units varied greatly, from 0.35 to 2670 ha, with an average size of 136 ha. On average, each production unit employed 6.1 hired workers and 1.4 family workers. It is worth noting that 91% of production is intended for export. In general, despite the fact that banana crops are a critical component of Ecuador’s economy, insufficient government support has been provided to advance the technology. For example, the country investment in research and development in agriculture is less than 0.4% of its gross domestic product [47], one of the lowest in the region. Therefore, offering aid to farmers can significantly boost their productivity and competitiveness.

3.2. Cluster and Principal Component Analyses Based on Banana Management

The principal component analysis of the six agronomic management variables resulted in the extraction of four factors, which accounted for 85.2% of the total variance (Table 2). The first factor accounted for the highest percentage of variance with 39.0%. This factor was positively correlated with the use of fertilizers and fungicides. The second factor accounted for 20% of the variance; it was positively correlated with the use of organic inputs and negatively correlated with planting density and the use of improved genotypes, suggesting that these practices are mutually exclusive. The third factor accounted for 14.3% of the variance and was related to planting density and the use of improved genotypes. The fourth factor accounted for 11.8% of the variance and was negatively associated with fungicide use. The correlations of each factor suggest the identification of properties within a particular cluster as mentioned by Priegnitz et al. [48].
The cluster analysis resulted in the formation of four groups. Cluster 2 was separated from the others by the high use of organic inputs and low planting densities and the lower use of improved genotypes (Cluster 2, according to the principal component analysis, is related to factor two). Cluster 3 was separated from the other clusters by the high use of fertilizers and pesticides (Cluster 3, according to principal component analysis, is related to factor one). Cluster 1 was separated from the others by the high density of planting and the use of improved genotypes (Cluster 1, according to principal component analysis, is related to factor three). Cluster 4 was separated from the others by the exclusion of fungicide use (Cluster 4, according to principal component analysis, is related to factor four). The differences between these clusters can be seen more clearly in Figure 3, where the percentages of agronomic management adopted in each cluster are shown in a radial diagram. In this study, it was possible to associate the PCA factors with the groups created from the cluster analysis in a similar way to that reported by Granato et al. [49] in the area of food science. These authors conclude that the use of PCA and cluster analysis simplifies the interpretation of similarity and hidden patterns for groupings.

3.3. Classification of Production Units According to Cluster Analysis

Table 3 presents the results for all the variables examined in the four groups created after the cluster analysis. The designation of each group was based on the number of agronomic management practices employed and the types of management used in each cluster. The characterization of each group took into account the variables with statistical significance (p < 0.05), while the variables without significance were excluded from the characterization of each group of production units.
Cluster 1: Conventional high-tech farms represented 8.5% of the production units (n = 27). Of the farmers in this group, 100% use fertilizer, pesticides, and high planting density, 81% use fertilizer, and 74% use improved genotypes. It is worth noting that the farmers in this group do not use organic inputs. The number of agronomic managements adopted by this group was on average 4.6. The yield per unit area was higher compared to Clusters 1 and 4 and similar to Cluster 3 (46.7 Mg ha−1). Other important characteristics that differentiate this group from the other clusters include the fact that 93% of production is exported and that the farms are large (160 ha). However, this group is responsible for the highest rate of banana waste (3.2 Mg ha−1).
Cluster 2: Balanced conventional farms represented 28.8% of the production units (n = 92). Of the farmers in this group, 97% used fertilizer, 40% used organic inputs, 24% used fungicides, 91% used pesticides, and 47% used improved genotypes. However, they did not use high planting density. The average number of agronomic management practices adopted by this group was 3.0. The yield per unit area was lower than those of Clusters 1 and 3 (45.8 Mg ha−1). In addition, the size of the farms and the percentage of bananas exported are smaller when compared to Clusters 1 and 3, 88.7 ha and 83%, respectively.
Cluster 3: Intensive conventional farms account for 58% of the production units (n = 185). Of the farmers in this group, 98% used fertilizer, 100% fungicides, 100% pesticides, 1% high planting density, and 45% used improved genotypes. No organic input was used in this group. On average, the number of agronomic management practices adopted by this group was 3.5 on average. The yield per unit area was the highest, along with that of Cluster 1 (51.7 Mg ha−1). Other important characteristics that differentiate this group from the other clusters include the export of 94% of production and the fact that the farms are large, averaging 162 hectares.
Cluster 4: Agroecological farms represented 4.7% of production units (n = 15). Of the farmers in this group, 73% used organic inputs, 7% had a high planting density, and 67% had improved genotypes. Fungicides, mineral fertilizers, and pesticides were not used in this group. The average number of agronomic managements adopted by this group was 1.5. The yield per unit area was lower, similar to that of Cluster 2 (40.6 Mg ha−1). The size of the properties is smaller compared to Clusters 1 and 3 (67 ha) and it is noteworthy that in this cluster waste is low (0.04 Mg ha−1).

3.4. Multiple Linear Regression

The multiple linear regression models exhibited adjusted R2 values ranging from 0.15 to 0.52 (Table 4). Cluster 1 attained the highest adjusted R2 value of 0.52, indicating a more robust model fit compared to Clusters 2 and 3. The adjusted R2 took into account the number of predictors and the sample size in order to correct the R2 in each model. Among the 14 predictor variables originally examined in this study, seven were found to be pertinent for at least one multiple linear regression model.
No significant effects were observed across all clusters concerning support from the Ministry of Agriculture (MAG) or private support. This could be because support from the MAG and the private sector was not effectively tailored to the specific needs of banana farmers. Additionally, the number of years working with bananas did not significantly affect yield, which is consistent with the study of Zhang et al. [50], who found that the level of education impacts yield rather than the experience of farmers.
Regarding socioeconomic characteristics, the province is significant only for Cluster 2, indicating that regional factors play a crucial role in differentiating this cluster. This is supported by the fact that, among the three clusters, Cluster 2 adopted fewer management practices (Table 3), suggesting a higher dependence on spatial characteristics, such as climatic and soil variables. Additionally, family workers had a positive effect on Cluster 2, indicating that family labor was more prevalent or effective in this cluster. The size of the production unit has a negative and significant effect on yields in both Clusters 1 and 2, implying that larger production units are associated with lower yields in these clusters. Family exportation is significant only for Cluster 3, suggesting that producers in this cluster are more likely to engage in export activities.
Analyzing agronomic characteristics, the utilization of fungicides exhibited a positive association with Cluster 3, indicating a higher inclination towards using fungicides in this cluster to enhance banana production. This may be because banana cultivation in Ecuador is highly susceptible to transboundary fungal diseases [41], which require the application of large quantities of fungicides. Given this situation, it is worth noting the initiatives taken to introduce genome-editing platforms in Ecuador to generate transgenic-free edited banana plants [51]. Irrigation efficiency was positive for Cluster 2, suggesting that drip irrigation led to higher yields, which is consistent with the study of Yang et al. [52], who demonstrated their positive impacts on grain yield and water use efficiency. Ultimately, waste emerged as a crucial concern across all clusters, exhibiting a positive relationship, indicating that units with higher banana yields per unit of land may encounter challenges during postharvest and marketing process.

4. Conclusions

In Ecuador, banana production units use fertilizers, pesticides, and fungicides to improve yields. Despite the efforts of the Ministry of Agriculture, mainly involving small farmers, this assistance may not effectively target yield improvement. Notably, producers with more years of experience exhibited a negative correlation with the number of innovations adopted and the use of improved genotypes.
Four distinct types of production units were identified: conventional high-tech, conventional balanced, intensive conventional, and agroecological. Conventional high-tech and intensive conventional farms, which represent 66.5% of the studied units, achieve the highest yield and are relatively large, with an average of 93.5% of their production exported.
Each group demonstrates distinct factors influencing yield. For example, conventional balanced units depend more on regional factors, family labor, and irrigation efficiency, whereas intensive conventional farms rely heavily on fungicide application. Consequently, public policies should be tailored to the specific characteristics of each cluster to facilitate effective technology transfers.
A limited number of production units employ organic inputs, which can command higher selling prices. However, economic data for these units are not available in the INEC database. Future studies should investigate the economic viability of each group.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agriengineering6030163/s1.

Author Contributions

Conceptualization, C.A.Q.-C.; methodology, C.A.Q.-C.; software, C.A.Q.-C. and J.d.O.C.; validation, C.A.Q.-C., H.R.G. and J.d.O.C.; formal analysis, C.A.Q.-C. and J.d.O.C.; investigation, C.A.Q.-C.; resources, C.A.Q.-C.; data curation, C.A.Q.-C.; writing—original draft preparation, C.A.Q.-C.; writing—review and editing, C.A.Q.-C., H.R.G. and J.d.O.C.; visualization, C.A.Q.-C., H.R.G. and J.d.O.C.; supervision, H.R.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are available in the Supplementary Materials.

Acknowledgments

The first author would like to thank PECEGE USP/ESALQ for the scholarship he received to specialize in Data Science and Analytics.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Martínez Valle, L. Agribusiness, Peasant Agriculture and Labour Markets: Ecuador in Comparative Perspective. J. Agrar. Chang. 2017, 17, 680–693. [Google Scholar] [CrossRef]
  2. Deaconu, A.; Mercille, G.; Batal, M. The Agroecological Farmer’s Pathways from Agriculture to Nutrition: A Practice-Based Case from Ecuador’s Highlands. Ecol. Food Nutr. 2019, 58, 142–165. [Google Scholar] [CrossRef] [PubMed]
  3. Forio, M.A.E.; Villa-Cox, G.; Van Echelpoel, W.; Ryckebusch, H.; Lock, K.; Spanoghe, P.; Deknock, A.; De Troyer, N.; Nolivos-Alvarez, I.; Dominguez-Granda, L. Bayesian Belief Network Models as Trade-off Tools of Ecosystem Services in the Guayas River Basin in Ecuador. Ecosyst. Serv. 2020, 44, 101124. [Google Scholar] [CrossRef]
  4. Páez, C.F.T.; Salazar, O.V. The Water–Energy–Food Nexus: An Analysis of Food Sustainability in Ecuador. Resources 2022, 11, 90. [Google Scholar] [CrossRef]
  5. Giuggioli, N.R.; Ollani, S.; Zanchini, R.; Danielle, B.; Sparacino, A.; Massaglia, S.; Merlino, V.M. The Appeal of Bananas: A Qualitative Sensory Analysis and Consumers’ Insights into Tropical Fruit Consumption in Italy. J. Agric. Food Res. 2024, 16, 101110. [Google Scholar] [CrossRef]
  6. Villaseñor-Ortiz, D.; de Mello Prado, R.; Pereira da Silva, G.; Lata-Tenesaca, L.F. Applicability of DRIS in Bananas Based on the Accuracy of Nutritional Diagnoses for Nitrogen and Potassium. Sci. Rep. 2022, 12, 18125. [Google Scholar] [CrossRef]
  7. Campos, J.C.; Manrique-Silupú, J.; Dorneanu, B.; Ipanaqué, W.; Arellano-García, H. A Smart Decision Framework for the Prediction of Thrips Incidence in Organic Banana Crops. Ecol. Model. 2022, 473, 110147. [Google Scholar] [CrossRef]
  8. INEC Estadísticas Agropecuarias. Available online: https://www.ecuadorencifras.gob.ec/estadisticas-agropecuarias-2/ (accessed on 3 January 2023).
  9. INEC Censo Nacional Agropecuario. Available online: https://www.ecuadorencifras.gob.ec/censo-nacional-agropecuario/ (accessed on 3 January 2023).
  10. Ortiz-Ulloa, J.A.; Abril-González, M.F.; Pelaez-Samaniego, M.R.; Zalamea-Piedra, T.S. Biomass Yield and Carbon Abatement Potential of Banana Crops (Musa Spp.) in Ecuador. Environ. Sci. Pollut. Res. 2021, 28, 18741–18753. [Google Scholar] [CrossRef] [PubMed]
  11. Vásquez-Castillo, W.; Racines-Oliva, M.; Moncayo, P.; Viera, W.; Seraquive, M. Calidad Del Fruto y Pérdidas Poscosecha de Banano Orgánico Musa Acuminata En El Ecuador. Enfoque UTE 2019, 10, 57–66. [Google Scholar] [CrossRef]
  12. INEC Censo Nacional Agropecuario. Available online: https://www.ecuadorencifras.gob.ec/modulo-economico-espac/ (accessed on 3 January 2023).
  13. Algeet-Abarquero, N.; Marchamalo, M.; Bonatti, J.; Fernández-Moya, J.; Moussa, R. Implications of Land Use Change on Runoff Generation at the Plot Scale in the Humid Tropics of Costa Rica. Catena 2015, 135, 263–270. [Google Scholar] [CrossRef]
  14. Aguirre, O.; Chávez, C.; Giraud, A.; Araya, M. Frequencies and Population Densities of Plant-Parasitic Nematodes on Banana (Musa AAA) Plantations in Ecuador from 2008 to 2014. Agron. Colomb. 2016, 34, 61–73. [Google Scholar] [CrossRef]
  15. Riera, N.; Ramirez-Villacis, D.; Barriga-Medina, N.; Alvarez-Santana, J.; Herrera, K.; Ruales, C.; Leon-Reyes, A. First Report of Banana Anthracnose Caused by Colletotrichum gloeosporioides in Ecuador. Plant Dis. 2019, 103, 763. [Google Scholar] [CrossRef]
  16. Villaseñor, D.; Noblecilla-Romero, Y.; Luna-Romero, E.; Molero-Naveda, R.; Barrezueta-Unda, S.; Huarquila-Henriquez, W.; González-Porras, C.; Garzón-Montealegre, J. Optimal Economic Response of Potassic Fertilization on Productive Variables of Banana (Musa Spp.). Chil. J. Agric. Anim. Sci. Agro-Cienc. 2020, 36, 161–170. [Google Scholar] [CrossRef]
  17. Veneziano, A.; Vacca, G.; Arana, S.; De Simone, F.; Rastrelli, L. Determination of Carbendazim, Thiabendazole and Thiophanate-Methyl in Banana (Musa acuminata) Samples Imported to Italy. Food Chem. 2004, 87, 383–386. [Google Scholar] [CrossRef]
  18. Segura, R.A.; Serrano, E.; Pocasangre, L.; Acuña, O.; Bertsch, F.; Stoorvogel, J.J.; Sandoval, J.A. Chemical and Microbiological Interactions between Soils and Roots in Commercial Banana Plantations (Musa AAA, Cv. Cavendish). Sci. Hortic. 2015, 197, 66–71. [Google Scholar] [CrossRef]
  19. Nyombi, K. Diagnosis and Management of Nutrient Constraints in Bananas (Musa spp.). In Fruit Crops; Elsevier: Amsterdam, The Netherlands, 2020; pp. 651–659. [Google Scholar]
  20. Wunder, S. Ecuador Goes Bananas: Incremental Technological Change and Forest Loss. In Agricultural Technologies and Tropical Deforestation; CAB International: Wallingford, UK, 2001; pp. 167–194. [Google Scholar]
  21. Caicedo, O.; Balmaseda, C.; Proaño, J. Evaluación Hidráulica Del Riego Por Aspersión Subfoliar En Banano (Musa paradisiaca) En La Finca San José 2, Provincia Los Ríos, Ecuador. Rev. Cienc. Técnicas Agropecu. 2015, 24, 38–43. [Google Scholar]
  22. Fernández-Ledesma, C.M.; Garcés-Fiallos, F.R.; Rosso, F.; Cordero, N.; Ferraz, S.; Durigon, A.; Portalanza, D. Assessing the Risk of Fusarium oxysporum f. Sp. Cubense Tropical Race 4 Outbreaks in Ecuadorian Banana Crops Using Spatial Climatic Data. Sci. Agropecu. 2023, 14, 301–312. [Google Scholar] [CrossRef]
  23. Teshager Abeje, M.; Tsunekawa, A.; Adgo, E.; Haregeweyn, N.; Nigussie, Z.; Ayalew, Z.; Elias, A.; Molla, D.; Berihun, D. Exploring Drivers of Livelihood Diversification and Its Effect on Adoption of Sustainable Land Management Practices in the Upper Blue Nile Basin, Ethiopia. Sustainability 2019, 11, 2991. [Google Scholar] [CrossRef]
  24. Tamburini, G.; Bommarco, R.; Wanger, T.C.; Kremen, C.; Van Der Heijden, M.G.A.; Liebman, M.; Hallin, S. Agricultural Diversification Promotes Multiple Ecosystem Services without Compromising Yield. Sci. Adv. 2020, 6, eaba1715. [Google Scholar] [CrossRef] [PubMed]
  25. Fielke, S.; Taylor, B.; Jakku, E. Digitalisation of Agricultural Knowledge and Advice Networks: A State-of-the-Art Review. Agric. Syst. 2020, 180, 102763. [Google Scholar] [CrossRef]
  26. Aguilar-Rivera, N. A Framework for the Analysis of Socioeconomic and Geographic Sugarcane Agro Industry Sustainability. Socio-Econ. Plan. Sci. 2019, 66, 149–160. [Google Scholar] [CrossRef]
  27. Kılıç, O.; Boz, İ.; Eryılmaz, G.A. Comparison of Conventional and Good Agricultural Practices Farms: A Socio-Economic and Technical Perspective. J. Clean. Prod. 2020, 258, 120666. [Google Scholar] [CrossRef]
  28. Naranjo, L.; Correa-Cano, M.E.; Rey, D.; Chengot, R.; España, F.; Sactic, M.; Knox, J.W.; Yan, X.; Viteri-Salazar, O.; Foster, W. A Scenario-Specific Nexus Modelling Toolkit to Identify Trade-Offs in the Promotion of Sustainable Irrigated Agriculture in Ecuador, a Belt and Road Country. J. Clean. Prod. 2023, 413, 137350. [Google Scholar] [CrossRef]
  29. Ramírez-Orellana, A.; Ruiz-Palomo, D.; Rojo-Ramírez, A.; Burgos-Burgos, J.E. The Ecuadorian Banana Farms Managers’ Perceptions: Innovation as a Driver of Environmental Sustainability Practices. Agriculture 2021, 11, 213. [Google Scholar] [CrossRef]
  30. Stemmler, H.; Meemken, E.-M. Greenhouse Farming and Employment: Evidence from Ecuador. Food Policy 2023, 117, 102443. [Google Scholar] [CrossRef]
  31. Ayala, V.R.; Kunapuli, S.; Maiguashca, J. Development of Yield Prediction Models in the Maize Crop Using Spectral Data for Precision Agriculture Applications. Ecuad. Calid. Rev. Científica Ecuat. 2015, 2, 16–22. [Google Scholar]
  32. Farfán, F.P. Agroclimatología del Ecuador; Editorial Abya-Yala: Quito, Ecuador, 2018; ISBN 9978104925. [Google Scholar]
  33. Mihai, R.A.; Melo Heras, E.J.; Terán Maza, V.A.; Espinoza Caiza, I.A.; Pinto Valdiviezo, E.A.; Catana, R.D. The Panoramic View of Ecuadorian Soil Nutrients (Deficit/Toxicity) from Different Climatic Regions and Their Possible Influence on the Metabolism of Important Crops. Toxics 2023, 11, 123. [Google Scholar] [CrossRef] [PubMed]
  34. Bernardo, S.; Soares, A.A.; Mantovani, E.C. Manual de Irrigação; Soares, A.A., Mantovani, E.C., Eds.; Viçosa UFV: Viçosa, Brazil, 2006. [Google Scholar]
  35. Kassambara, A.; Mundt, F. Package ‘Factoextra’. Extr. Vis. Results Multivar. Data Anal. 2017, 76, 1–74. [Google Scholar]
  36. Revelle, W.; Revelle, M.W. Package ‘Psych’. Compr. R Arch. Netw. 2015, 337, 161–165. [Google Scholar]
  37. Maechler, M.; Rousseeuw, P.; Struyf, A.; Hubert, M.; Hornik, K.; Studer, M. Package ‘Cluster’. Dosegljivo 2013, 980, 1–84. [Google Scholar]
  38. de Mendiburu, F.; Yaseen, M. Agricolae: Statistical Procedures for Agricultural Research. R Package Version 1.4.0. Available online: https://myaseen208.com/agricolae/authors.html (accessed on 3 January 2023).
  39. Derksen, S.; Keselman, H.J. Backward, Forward and Stepwise Automated Subset Selection Algorithms: Frequency of Obtaining Authentic and Noise Variables. Br. J. Math. Stat. Psychol. 1992, 45, 265–282. [Google Scholar] [CrossRef]
  40. Yoo, W.; Mayberry, R.; Bae, S.; Singh, K.; He, Q.P.; Lillard Jr, J.W. A Study of Effects of Multicollinearity in the Multivariable Analysis. Int. J. Appl. Sci. Technol. 2014, 4, 9. [Google Scholar] [PubMed]
  41. Coral, C.; Mithöfer, D. The Backbone of Agrifood Value Chain Resilience: Innovation in the Ecuadorian Banana Value Chain from a Historical Perspective. World Dev. Perspect. 2023, 29, 100476. [Google Scholar] [CrossRef]
  42. Curry, G.N.; Nake, S.; Koczberski, G.; Oswald, M.; Rafflegeau, S.; Lummani, J.; Peter, E.; Nailina, R. Disruptive Innovation in Agriculture: Socio-Cultural Factors in Technology Adoption in the Developing World. J. Rural Stud. 2021, 88, 422–431. [Google Scholar] [CrossRef]
  43. Dadrasnia, A.; Usman, M.M.; Omar, R.; Ismail, S.; Abdullah, R. Potential Use of Bacillus Genus to Control of Bananas Diseases: Approaches toward High Yield Production and Sustainable Management. J. King Saud Univ. 2020, 32, 2336–2342. [Google Scholar] [CrossRef]
  44. Sonah, H.; Bastien, M.; Iquira, E.; Tardivel, A.; Légaré, G.; Boyle, B.; Normandeau, É.; Laroche, J.; Larose, S.; Jean, M. An Improved Genotyping by Sequencing (GBS) Approach Offering Increased Versatility and Efficiency of SNP Discovery and Genotyping. PLoS ONE 2013, 8, e54603. [Google Scholar] [CrossRef] [PubMed]
  45. Jouzi, Z.; Azadi, H.; Taheri, F.; Zarafshani, K.; Gebrehiwot, K.; Van Passel, S.; Lebailly, P. Organic Farming and Small-Scale Farmers: Main Opportunities and Challenges. Ecol. Econ. 2017, 132, 144–154. [Google Scholar] [CrossRef]
  46. Timsina, J. Can Organic Sources of Nutrients Increase Crop Yields to Meet Global Food Demand? Agronomy 2018, 8, 214. [Google Scholar] [CrossRef]
  47. Stads, G.; Nienke, M.B.; Perez, S.; Flaherty, K.; Falconi, C.A. A Cross-Country Analysis of Institutions, Investment, and Capacities, Inter-American Development Bank (IDB); International Food Policy Research Institute: Baltimore, MD, USA, 2020. [Google Scholar]
  48. Priegnitz, U.; Lommen, W.J.M.; Onakuse, S.; Struik, P.C. A Farm Typology for Adoption of Innovations in Potato Production in Southwestern Uganda. Front. Sustain. Food Syst. 2019, 3, 68. [Google Scholar] [CrossRef]
  49. Granato, D.; Santos, J.S.; Escher, G.B.; Ferreira, B.L.; Maggio, R.M. Use of Principal Component Analysis (PCA) and Hierarchical Cluster Analysis (HCA) for Multivariate Association between Bioactive Compounds and Functional Properties in Foods: A Critical Perspective. Trends Food Sci. Technol. 2018, 72, 83–90. [Google Scholar] [CrossRef]
  50. Zhang, A.; Hochman, Z.; Horan, H.; Navarro, J.G.; Das, B.T.; Waldner, F. Socio-Psychological and Management Drivers Explain Farm Level Wheat Yield Gaps in Australia. Agron. Sustain. Dev. 2019, 39, 10. [Google Scholar] [CrossRef]
  51. Santos, E.; Sánchez, E.; Villao, L. Establishing a Genome Editing Platform of Banana in Ecuador: Challenges and Regulation. In Proceedings of the XXXI International Horticultural Congress (IHC2022): International Symposium on Breeding and Effective Use of Biotechnology and 1362, Angers, France, 14–20 August 2022; pp. 43–48. [Google Scholar]
  52. Yang, P.; Wu, L.; Cheng, M.; Fan, J.; Li, S.; Wang, H.; Qian, L. Review on Drip Irrigation: Impact on Crop Yield, Quality, and Water Productivity in China. Water 2023, 15, 1733. [Google Scholar] [CrossRef]
Figure 1. Geographical location of the Ecuadorian provinces included in this study.
Figure 1. Geographical location of the Ecuadorian provinces included in this study.
Agriengineering 06 00163 g001
Figure 2. Pearson correlation analysis (n = 319) between all variables included in this study (agronomic managements, access to agricultural extension and knowledge, socio-economic characteristics, and agronomic attributes). Significance levels are indicated by * (p < 0.05), ** (p < 0.01) and *** (p < 0.001).
Figure 2. Pearson correlation analysis (n = 319) between all variables included in this study (agronomic managements, access to agricultural extension and knowledge, socio-economic characteristics, and agronomic attributes). Significance levels are indicated by * (p < 0.05), ** (p < 0.01) and *** (p < 0.001).
Agriengineering 06 00163 g002

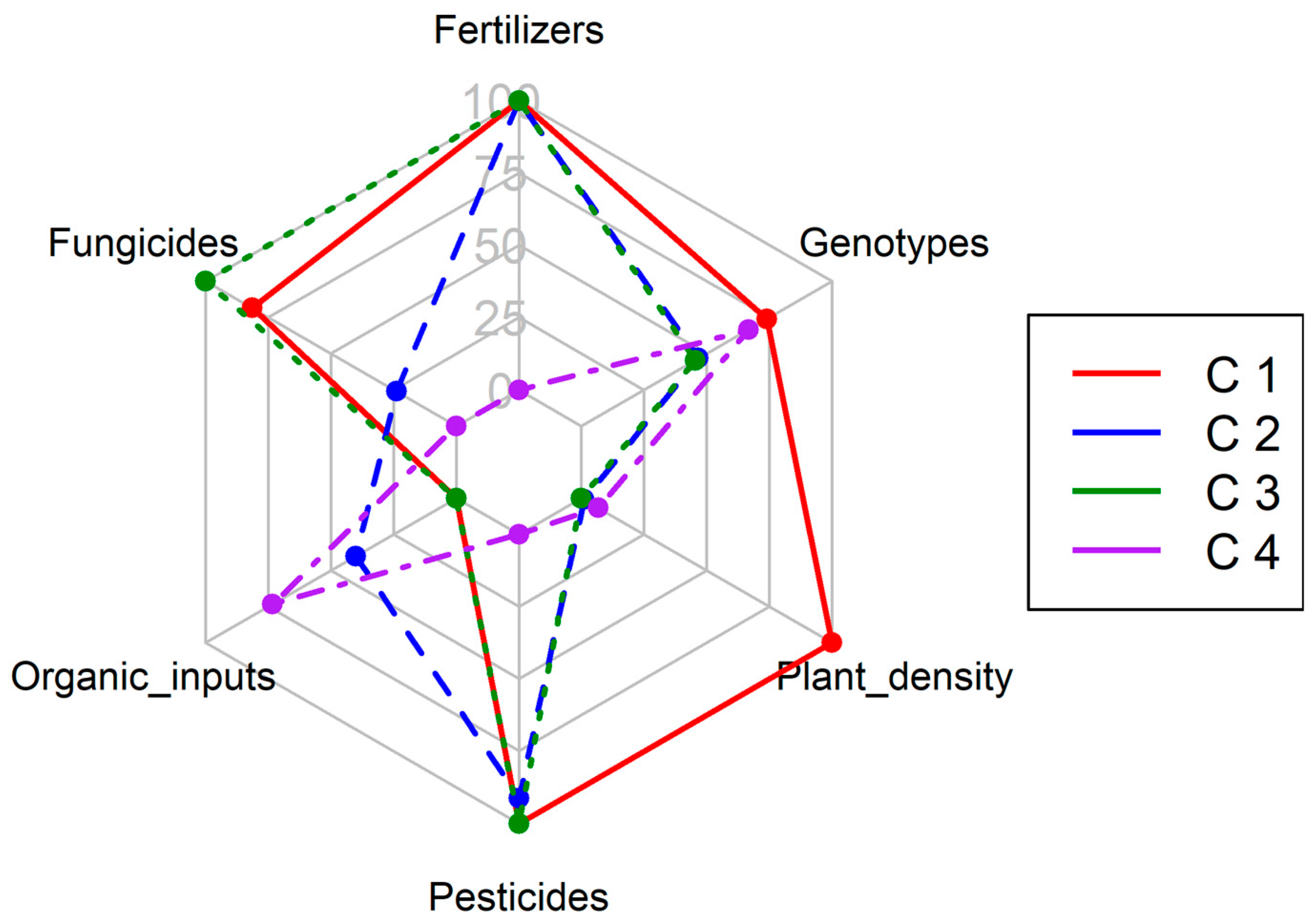

Figure 3. Radial graphic with percentages of agronomic managements adopted in each cluster.
Figure 3. Radial graphic with percentages of agronomic managements adopted in each cluster.
Agriengineering 06 00163 g003
Table 1. Description of the variables, units, and minimum and maximum values of the variables used for the principal component analysis and cluster analysis and the subsequent variables included to characterize the types of production units.
Table 1. Description of the variables, units, and minimum and maximum values of the variables used for the principal component analysis and cluster analysis and the subsequent variables included to characterize the types of production units.
VariableDescription and UnitsMinimumMaximum
Agronomic managements
Use of fertilizer=1 if mineral fertilizers are used. 0 if mineral fertilizers are not used.01
Use of organic inputs=1 if organic inputs are used. 0 if organic inputs are not used.01
Use of fungicides=1 if fungicides are used. 0 if fungicides are not used.01
Use of pesticides=1 if pesticides are used. 0 if pesticides are not used.01
Plant density=1 if high density is used. 0 if low density is used. 01
Use of improved genotypes=1 if improved genotypes are used. 0 if improved genotypes are not used.01
Yield
YieldMg of banana per ha1.1895.12
Access to agricultural extension and knowledge
Support from the Ministry of Agriculture (MAG) =1 if there is access to MAG support. 0 if there is no access to MAG support.01
Private support=1 if there is access to private support. 0 if there is no access to private support.01
Years working with bananaNumber of years060
Socio-economic characteristics
Province=1 for Guayas. 0 for Los Rios01
Size of the production unitha per production unit0.352658.90
Hired workersContract workers per ha018
Family workersFamily workers per ha08.5
Exportation=1 if production is for exportation. 0 if production is for local market.01
Agronomic attributes
Amount of mineral fertilizerin l or kg per ha0.002500.00
Amount of pesticide in l or kg per ha0.0024.80
Amount of fungicidein l or kg per ha0.0092.00
Amount of organic fertilizerin l or kg per ha0.005010.00
WasteMg per ha0.0014.00
Irrigation efficiencyin %0.500.90
Table 2. Loadings of the four factors resulting from the Principal Component Analysis with their respective eigenvalues and percentage of variance.
Table 2. Loadings of the four factors resulting from the Principal Component Analysis with their respective eigenvalues and percentage of variance.
Agronomic ManagementFactors
1234
Use of fertilizer0.570.040.08−0.23
Use of organic inputs−0.380.53−0.240.35
Use of fungicides0.420.06−0.19−0.84
Use of pesticides0.590.080.040.10
Plant density0.03−0.650.750.11
Use of improved genotypes−0.08−0.680.58−0.32
Eigenvalues2.341.311.141.03
Variance (%)39.0020.0414.3011.84
Cumulative variance (%)39.0059.0773.3785.21
In bold, loads greater than 0.5 or less than −0.5.
Table 3. Characteristics of the four identified clusters, including p-values and the analysis of variance. Means within a row followed by distinct letters are different by the LSD test at 0.05 significance.
Table 3. Characteristics of the four identified clusters, including p-values and the analysis of variance. Means within a row followed by distinct letters are different by the LSD test at 0.05 significance.
VariableAverage ValueCluster 1
(n = 27)
Cluster 2
(n = 92)
Cluster 3
(n = 185)
Cluster 4
(n = 15)
p-Value
Agronomic managements
Use of fertilizer0.951.00 a0.97 a0.98 a0.00 b0.000
Use of organic inputs0.150.00 c0.40 b0.00 c0.73 a0.000
Use of fungicides0.720.81 b0.24 c1.00 a0.00 d0.000
Use of pesticides0.931.00 a0.91 b1.00 a0.00 c0.000
Plant density0.091.00 a0.01 c0.01 c0.07 b0.001
Use of improved genotypes0.490.74 a0.47 b0.45 b0.67 ab0.019
Number of managements adopted3.134.56 a3.03 c3.45 b1.47 d0.000
Yield
Yield in Mg ha−149.0346.68 a45.83 b51.65 a40.64 b0.001
Access to agricultural extension and knowledge
Support from the Ministry of Agriculture (MAG)0.100.110.120.100.070.980
Private support0.310.310.270.320.430.660
Years working with banana19.6316.4419.6220.1818.730.563
Socio-economic characteristics
Province0.530.48 ab0.48 ab0.58 a0.33 b0.041
Size of the production unit136.13160.16 a88.72 b161.85 a66.53 b0.008
Hired workers6.073.52 b7.53 a5.86 ab4.20 ab0.039
Family workers1.421.001.071.691.070.812
Exportation0.910.93 ab0.83 b0.94 a0.93 ab0.025
Agronomic attributes
Amount of mineral fertilizer874.131304.96 a870.66 b883.85 b0.00 c0.001
Amount of pesticide6.268.71 ab8.43 a5.62 b0.00 c0.000
Amount of fungicide10.100.81 b0.24 c1.00 a0.00 d0.000
Amount of organic inputs77.290.00 b83.79 b0.00 b1129.80 a0.000
Waste1.223.24 a0.69 c1.29 b0.04 c0.000
Irrigation efficiency0.840.830.840.830.830.743
Table 4. Multiple regression models explaining yield of banana per unit of area.
Table 4. Multiple regression models explaining yield of banana per unit of area.
Cluster 1Cluster 2Cluster 3
Adjusted R20.520.260.15
Probability********
N2792185
Access to agricultural extension and knowledge
Support from the Ministry of Agriculture (MAG)nsnsns
Private supportnsnsns
Years working with bananansnsns
Socio-economic characteristics
Provincens(+) ***ns
Size of the production unit(−) *(−) *ns
Hired workersnsnsns
Family workersns(+) *ns
Exportationnsns(+) ***
Agronomic attributes
Amount of mineral fertilizernsnsns
Amount of pesticidensnsns
Amount of fungicidensns(+) *
Amount of organic inputsnsnsns
Waste(+) ***(+) ***(+) ***
Irrigation efficiencyns(+) *ns
+/−: positive/negative estimator. ns: not significant. significance levels: * 0.05; ** 0.01; *** 0.001.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Quiloango-Chimarro, C.A.; Gioia, H.R.; de Oliveira Costa, J. Typology of Production Units for Improving Banana Agronomic Management in Ecuador. AgriEngineering 2024, 6, 2811-2823. https://doi.org/10.3390/agriengineering6030163

AMA Style

Quiloango-Chimarro CA, Gioia HR, de Oliveira Costa J. Typology of Production Units for Improving Banana Agronomic Management in Ecuador. AgriEngineering. 2024; 6(3):2811-2823. https://doi.org/10.3390/agriengineering6030163

Chicago/Turabian Style

Quiloango-Chimarro, Carlos Alberto, Henrique Raymundo Gioia, and Jéfferson de Oliveira Costa. 2024. "Typology of Production Units for Improving Banana Agronomic Management in Ecuador" AgriEngineering 6, no. 3: 2811-2823. https://doi.org/10.3390/agriengineering6030163

Article Metrics

Back to TopTop
