Designing CO2 Monitoring System for Agricultural Land Utilizing Non-Dispersive Infrared (NDIR) Sensors for Citizen Scientists

Biosystems and Agricultural Engineering, Michigan State University, East Lansing, MI 48824, USA
*
Author to whom correspondence should be addressed.
AgriEngineering 2025, 7(3), 85; https://doi.org/10.3390/agriengineering7030085
Submission received: 14 February 2025 / Revised: 7 March 2025 / Accepted: 10 March 2025 / Published: 18 March 2025
(This article belongs to the Section Sensors Technology and Precision Agriculture)

Abstract

:
The increasing atmospheric CO2 concentration due to anthropogenic activities has led to the development of low-cost, portable, and user-friendly sensing technologies. Non-Dispersive Infrared (NDIR) sensors offer reliable CO2 detection with high sensitivity, which makes them ideal for citizen scientists. In this context, we designed two low-cost CO2 monitoring systems: an automatic opening chamber with a lid and a portable device using NDIR sensors. These monitoring systems were calibrated (R2 = 0.99) with known CO2 concentrations. Besides its reliability and accuracy, the Automated CO2 Monitoring System costs approximately USD 220.77 and portable CO2 device costs USD 151.43, which makes them suitable for citizen scientists. Due to CO2 gas monitoring system’s simplicity, structure, and operation, non-expert users can use and actively participate in environmental monitoring data collection. This promotes public engagement in climate and air quality monitoring and enables citizen scientists to have reliable data for CO2 monitoring and environmental awareness.

1. Introduction

A continued pressing concern around the world is increased greenhouse gas emissions into the atmosphere [1]. However, there are many sources from which these gases are emitted. One that may be overlooked easily is the release of greenhouse gases from farmland [2]. The process of irrigating farmland has various components that contribute to global greenhouse gas emissions [3]. The ground is the second largest carbon sink [4], right after the ocean, and is an important part of the carbon cycle. Usually, soil acts as a sink through carbon sequestration [5], but when lands, such as forests or grasslands, are converted into agricultural fields, they can instead become a source of carbon in the cycle [4]. Microorganisms exist in the soil and when water suddenly flows in, their respiration rate increases, releasing carbon dioxide and other greenhouse gases into the atmosphere [6]. When land is transformed into agricultural fields, this process can then be further amplified due to the decreased carbon sequestration that usually offsets this respiration from soil microbes. Efficient irrigation practices can help offset these greenhouse gas emissions by limiting excess water consumption [7]. Although CO2 emissions from agriculture have been a known contributor, how these emissions are further broken down is where information can become sparse. Extensive previous research has been conducted on the farming equipment’s contribution to CO2 emissions, or the pumps required to irrigate the fields, as well as emissions of greenhouse gases from the soil [8,9]. Understanding emissions from agricultural land is important to implement better agricultural practices to limit and reduce the environmental impacts. A previous study has shown that cover crops and mulching can reduce these greenhouse gas emissions from soil [10]. Another study evaluated the effect of irrigation methods on soil greenhouse gas emissions and stated that soil moisture and temperature are key factors affecting greenhouse gas emissions [11].
CO2 monitoring systems are valuable tools in agricultural operations, which offer understanding about crop health, soil condition, and environmental impact. Recent research has focused on innovative sensing technologies for CO2 monitoring in agriculture. For grain quality issues during storage, researchers have developed a continuous CO2 monitoring system [12]. For soil CO2 assessment, the Internet of Things (IoT)-based CO2 sensor probes are used to measure CO2 concentrations [13]. An Arduino-based monitoring platform for atmospheric, soil, and dissolved CO2 concentrations has been developed by researchers [14]. The different sensing technologies include NDIR sensors, electric field sensors, and Tunable Diode Laser Absorption Spectroscopy (TDLAS) [15]. Currently, there is not a large range of technology on the market to support greenhouse gas emission research or data collection [16]. Static gas collection chambers are current and reliable methods for monitoring CO2 flux within agricultural applications, with systems like the eosAC-LT/LO Automated Soil Flux Chamber and LI-COR Smart Chamber allowing for measurement, scheduling, and continuous soil gas flux monitoring. The high cost of these systems limits their use by citizen scientists (farmers, field staff, agricultural professionals, etc.). With growing interest from citizen scientists in monitoring soil gas flux, the development of affordable CO2 gas monitoring systems is needed.
This study introduces and designs a portable CO2 monitoring device and an automatic opening chamber CO2 monitoring system with unique designs and affordable prices compared to commercially available systems. Thus, the purpose of this study is to provide the design and development of an affordable and user-friendly CO2 monitoring system for citizen scientists using microcontrollers and IoT (Internet of Things) technology.

2. Materials and Methods

This study focused on the development and design of a low-cost and innovative CO2 monitoring system using Non-Dispersive Infrared (NDIR) sensor technology for citizen scientists. Two different systems were designed to address CO2 monitoring. One is an automatic opening chamber, and the other is a portable device. The automatic opening chamber is designed for stationary and precise CO2 flux measurement, while the portable device is primarily designed for flexible and on-time CO2 flux monitoring.

2.1. Design 1: Automated CO2 Monitoring System

An automatic opening chamber was designed to monitor precise and uninterrupted CO2 flux in diverse environmental conditions. To minimize manual interruptions, external interventions, and consistent sampling, a motorized lid was designed for the chamber that opens and closes automatically at programmed intervals. The system runs on a 30-min loop, with the chamber being in the closed position for 4 min and then opening for 26 min before repeating the loop. AutoCAD version 24.1 was used for custom fitting parts of the chamber.

2.1.1. Hardware Design

The automatic opening chamber comprises a lid, worm gear motor, and a cylindrical chamber. The lid and chamber were both designed in AutoCAD version 24.1 and printed using a Bambu Lab P1S 3D printer (Bambu Lab., Shenzhen, China) using PETG green filament. The materials used for printing are durable and resistant to varying environmental conditions. The automated lid was connected to a worm gear motor (single shaft, 12 volts with 110 RPM manufactured by Greartisan) and controlled with an Arduino microcontroller motor driver (HiLetGo, Shenzhen, China). A rechargeable 12-volt power lead acid battery (Expert Power, Paramount, CA, USA) with 2.1 Ampere output was used for power supply to the motor. The NDIR CO2 sensor was adjusted in the chamber for accurate CO2 flux measurement. Figure 1 shows the system being used in a blueberry research field at Michigan State University’s south campus farms (East Lansing, MI, USA). The individual components that make up this system are displayed in (Figure 2).

2.1.2. Software Design

The software design of the automatic opening chamber CO2 system was built on an open-source platform using two separate Arduino boards. One ran the code for the CO2 sensor and micro-SD card writer, and another monitors the motor’s functions. The CO2 sensor’s code was initially taken from GitHub and further tailored for CO2 measurement. The GitHub code only ran the CO2 sensor but was unable to save the data to an SD card, which was altered to enable the data storage function. The opening and closing of the chamber’s lid were controlled by code, with options for how long the loop function performs its speed, and duration that the motor spins either clockwise or counterclockwise. By integrating the components, a 30-min loop function was created, where the first 4 min involved in recording and saving data while the lid is closed, and the next 26 min were used for recording and saving data with the lid open. Figure 3 shows a flowchart of the code for the operation of the chamber. The code comprises four input commands, where typing “A” into the serial monitor rotates the motor clockwise, while typing “C” rotates the motor counterclockwise for 500 milliseconds. For the codes to work, the lid needs to start in an “open” position, which can be manipulated with the command’s “A” and “C”. Giving the command “Go” to the serial monitor causes the code to begin its loop, with the initial step being the closing of the lid. After 4 min, the lid opens, and data is further collected for 26 more minutes before the code loops. The “Stop” command stops the code from running and requires the user to input another “Go” before the loop restarts. At the beginning of each loop, the code creates a new file on the SD card to be able to separate data for separate trials.

2.2. Design 2: IoT-Based Portable CO2 Monitoring System

2.2.1. Hardware Design

The schematic workflow of the portable CO2 monitoring system (Figure 4) prioritizes space, efficiency, portability, and ease of assembly due to durable housing, modular electronics, and a custom-designed sensor chamber. The system’s components are housed in a Polycase ML-57F (Polycase, Avon, OH, USA) enclosure with an ML-58K aluminum mounting plate (Polycase, Avon, OH, USA). The Polycase enclosure has an Ingress Protection of 68 (IP68), which does not permit dust and water to enter. Its polycarbonate walls are easy to modify for custom fittings. For this experiment, a 6.35 mm cable gland was installed at the enclosure’s bottom to connect the CO2 sensor.
Inside the enclosure, components are mounted on the aluminum plate, as shown in Figure 5. Four holes were drilled to secure an Adafruit Quad 2 × 2 FeatherWing Kit (Adafruit, Brooklyn, NY, USA) using M 2.5 standoffs and screws. The kit supports up to four modules. In this setup, it holds an Adafruit FeatherWing OLED 128 × 64 display module and a Particle Boron LTE (Particle, San Francisco, CA, USA) 4G LTE cellular microcontroller. The collected data is sent to the Ubidots IoT web server. The Sensirion CO2 sensor is connected to the microcontroller via a QWIIC cable.
The system is powered by a Voltaic V50 USB battery pack (Voltaic, Brooklyn, NY, USA), which features two USB Type-A and two USB Type-C ports. Its 12,800 mAh capacity ensures reliable operation of the microcontroller and sensors during data collection, making it ideal for IoT applications. The Voltaic battery packs can be integrated with solar panel if extended power is needed for the collection of CO2 data.
To optimize CO2 data collection, a custom chamber was designed in AutoFusion CAD. Measuring 180 × 93 mm, it was 3D printed with white PLA filament using a Bambu Lab P1S printer (Bambu Lab., Shenzhen, China). The chamber aligns with the enclosure’s bottom, mounting easily with four bolts and nuts. To ensure an airtight seal, 6.33 × 1.58 mm weather-stripping was applied between the chamber and enclosure.

2.2.2. Software Design

The software for the portable CO2 monitoring system was designed to ensure accurate data collection, efficient data transmission, and user-friendly operation (Figure 6). It combines firmware development, cloud services, and data visualization for the seamless integration of hardware components and real-time functionality. The particle microcontrollers were programmed using Particle’s IDE, either through the Web IDE or the Workbench in Visual Studio Code version 1.86. The codes for this system were adapted from example files provided by the library dependencies of the components. The Adafruit FeatherWing OLED display provides a live visual interface for the system. The display presents real-time CO2 readings, as well as info about data transmission status or any errors that may arise. To conserve energy, the Particle Boron enters low-power sleep mode during idle periods between readings. During standby, the OLED and sensor are completely powered down to minimize power loss. Particle Boron manages the wake cycle, ensuring the system resumes operation at the programmed intervals (every 10 s for 5 min) without user intervention.

2.3. SCD 30 Sensor Calibration and Testing

Prior to data collection, the Senirons SCD 30 sensor was calibrated. First, the system was tested with a leakproof smoke testing kit. The smoke kit was attached to the intake tubing and allowed to run to see the flow of gas throughout the system to identify any leaks. This allowed testing of the Sensiron AG SCD30 in a controlled environment, without the entrance of other gases, using a small clear plastic chamber connected to Gasco CO2 cylinders of varying mg/L values, from 500 to 2000 mg/L (Gasco Affiliates, LLC., Oldsmar, FL, USA). Each Sensiron AG SCD30 was calibrated to ±2% of the desired concentration and balanced with oxygen. Each cylinder was pressurized to 1000 psi prior to purchase and had valve openings of 15.9 mm. To connect the gas cylinders to the calibration chamber, the cylinders were fitted with a pressure regulator, which was attached to the chamber via rubber tubing. The chamber had three openings, one each for the sensor’s wires, the gas inlet, and the gas to escape the chamber. Figure 7 shows the setup for the sensor calibration. The dimensions of the chamber length, width, and height were 88, 64.1, and 56.4 mm, respectively. The CO2 sensor is connected to an Arduino Uno R3 (Arduino, Somerville, MA, USA) and runs via the Arduino desktop application, using hand-tailored code made to collect data every 5 min before repeating. To access the collected data, an Adafruit 5v Ready Micro-SD Breakout Board+ (Adafruit, New York, NY, USA) was used and connected to the Arduino. To power the setup, the Arduino Uno R3 simply had to be connected to a computer or laptop via a USB type B cable.
Using custom code, the sensor collected CO2, humidity, and temperature at every 5 s for 5 min (300 s). For calibration, only the CO2 data was used, which was saved to a Micro Center 16 GB SD card (Micro Center, Hillard, OH, USA), and transferred to Excel via a .txt file for further statistical manipulation. For stabilizing the chamber to measure the cylinder’s concentration level, the chamber was left for 15 min prior to data collection. Data was collected three times for CO2 concentrations ranging from 500 to 2000 mg/L. The programming was adjusted by adding 104.82 mg/L to each sensor value to ensure accurate reading.
The CO2 flux (Fc; mole m−2 s−2), leaving the surface, was calculated through Equation (1):
F c   = V P o R S T o · d c d t
where Fc refers to the CO2 flux, R is the gas constant number 8.314 (joule kelvin−1 mole−1), V is the volume of the air (liters) exposed above the surface area of the soil face within the jar, Po indicates the pressure in the container (assumed to be atmospheric in pascals), and S represents the surface area being measured for flux, which was (38.465 cm2), as the face of exposed soil within the cylinder. The   T o represents the temperature (assumed to be 25 °C, as the experiment was conducted in a temperature-controlled environment) and dc/dt represents the initial rate of change in the CO2 mole fraction. The change in CO2 over time for post-irrigation (5 min) was calculated.
Raw CO2 curves were normalized to create delta values using the initial faster rate followed by the slower rate over time. Following the normalization of curves, the delta CO2 was computed from the maximum value from the normalized figure minus the minimum value. By omitting the first stage of CO2 measurement, the more stable second stage provided a better comparison between treatments, as it persists for longer periods and gives a more accurate representation of the change in CO2.
After calibration, the Seniron was used in a temperature-controlled condition laboratory for testing. The treatments comprised two moisture contents (16 and 32%) along with a control (no water application), replicated five times (Figure 8). About 9 cylindrical plastic jars with a volume of 706.86 cm3 were filled with 280 g of dried sandy loam soil collected from Michigan State University’s south farm. The CO2 data of each experimental unit was recorded for ten minutes, with five minutes prior to irrigation and five minutes after irrigation, allowing time in between to drain the applied water fully. The data was collected for each treatment and replication.

2.4. SCD 30 Performance Field Evaluation

The Sensiron AG SCD30 was deployed in an agricultural field and recorded CO2 concentration data for about 50 days. The aim was to assess the sensor’s CO2 concentration measurement relationship with environmental factors, especially temperature (°C), humidity (%), and rainfall (mm). The sensor recorded a time series (every 30 min) of the CO2 concentration, and the data were sent to the IoT server using an embedded 4G LTE modem. The SCD30 sensor was in the WH31-SRS solar radiation shield to avoid getting wet.

2.5. Statistical Analysis

The CO2 sensor’s performance and accuracy were evaluated through calibration. The calibration curve was generated, and the coefficient of determination (R2) was used to assess the sensor’s measurement reliability. The CO2 change and flux were calculated using formulas. The data obtained were presented as mean values, with error bars indicating the standard deviation to reflect measurement variability.

3. Results and Discussion

3.1. SCD30 Sensor Calibration

The CO2 sensor was calibrated through comparing sensor readings with corresponding values of known CO2 concentrations. The collected CO2 (mg/L) sensor values were plotted against the known CO2 concentrations (mg/L), as shown in Figure 9. The relationship between the sensor value and the known CO2 concentration was assessed with a linear trendline, as shown in Figure 9. The regression equation showed a strong linear relationship with R2 of 0.999, showing the high accuracy and reliability of the sensor’s CO2 measurement. Other commercially available sensors, such as Sunrise AB and K30, exhibit an accuracy of ±3%, while the GMP343 probe has an accuracy of ±1% [17].

3.2. Design 1: Automated CO2 Monitoring System

This Automated CO2 Monitoring System comprises a motorized lid mechanism operated by codes and a microcontroller (e.g., Arduino), which enables lid opening and closing automatically at programmed intervals. The chamber materials are durable enough to cope with environmental stresses in open fields. This is an energy-efficient and user-friendly automatic system for citizen scientists. This system is low-cost for building and installation, compared to current CO2 monitoring systems that are commercially available. The components, including quantity, cost per unit, and the manufacturer of the products for making an Automated CO2 Monitoring System, are presented in Table 1. The eosAC-LT/LO Automated Soil Flux Chamber, initially introduced within the Introduction, is a currently marketed system capable of remotely recording and monitoring CO2 and other gas emissions from the soil. This system, however, depending on the quote, has ranged from USD 5000 to 10,000. These quotes do not include the electricity to run the systems and a computer, which it is assumed the prospective citizen scientist already has access to. Our Automated CO2 Monitoring System costs approximately USD 220.77 (Table 1). Other CO2 monitoring equipment is on the market, yet they lack the control chamber included in our Automated CO2 Monitoring System or the eosAC-LT/LO system. Other published systems that include a mount like the one described in our paper are significantly more expensive [18]. This includes a system that costs USD 385.00 with a mounted attachment. The Vernier CO2 Gas Sensor (Vernier, Beaverton, OR, USA) is capable of reading CO2 mg/L levels of 0–10,000 or 0–100,000. This range is higher, but greatly exceeds the range needed for soil CO2 monitoring. Its unit cost, however, is USD 299.00 and does not include a chamber, which makes it more expensive than our Automated CO2 Monitoring System (USD 220.77).

3.3. Design 2: IoT-Based Portable CO2 Monitoring System

The IoT-based portable CO2 monitoring system equipped with an NDIR sensor is designed for mobility and is easy to use for real-time data monitoring. It is housed in a compact, weather-resistant, lightweight, and durable enclosure, powered by a power bank and supports data storage and remote data access. The components, unit price, and total price of an IoT-based portable CO2 monitoring system costs approximately USD 151.43 (Table 2). Comparable articles advocating low-cost sensor systems do not include an aluminum capturing device; rather, they include an enclosure system with no means of mounting to the ground or a station. An example is provided by [19], with USD 215 as a recent low-cost option.

3.4. Laboratory Experiment

The CO2 patterns observed from the IoT server Ubidots (Medillllen, Columbia), following the wet treatment, followed an immediate pulse pattern in which there was a peak CO2 reading within the first 20% of the time collected, followed by a dramatic stabilization, as shown in Figure 10. A sresearch described that CO2 concentrations initially increase at a faster rate and then remain stable [20]. Two promising rates are observed in this trial, showing the initial linear increase with a faster rate followed by a slower rate and then remaining stable. The first faster rate experienced a change from the atmospheric CO2 mg/L to a peak, with an average duration of two minutes. The second slow-rate CO2 mg/L measurement typically followed the last three minutes of the experiment and presented a much more stable reading. Following the normalization of the curves, the delta CO2 was computed from the maximum value from the normalized figure minus the minimum value. By omitting the first stage of CO2 measurement, the more stable second stage provided a better comparison between treatments, as it persists for longer periods and gives a more accurate representation of the change in CO2.
The bar graph (Figure 11) depicts the measured CO2 flux with the Sensiron AG SCD30 in different soil moisture contents, along with the control (dry soil). This figure showed that wet soil produced more CO2 than dry soil. It is clear that higher soil moisture content increases CO2 flux. The maximum CO2 flux was observed for soil with 32% moisture content, followed by soil with 16% moisture content. The dry soil showed negligible CO2 flux. This figure suggests a positive correlation between the moisture content and the CO2 flux over time. Research demonstrated that CO2 flux in drying and ambient soil is less than the CO2 flux in wet soil [21]. A rapid increase in CO2 flux at the start of a wetting event is reported [22]. An increase in soil moisture results in an increase in CO2 concentration with a peak and decline pattern for CO2 emissions at 16% water-filled pore space [21]. Another study reported a positive correlation between soil moisture contents and the CO2 concentration [23].

3.5. CO2 Concentration Monitoring in an Agricultural Field

Outside of a laboratory environment, the Sensiron AG SCD30 was deployed for field testing (50 days) to continuously monitor the CO2. The field deployment of the CO2 monitoring system indicates its capability to capture CO2 dynamics over time alongside environmental factors (temperature, humidity, and rainfall), as shown in Figure 12. The data revealed that CO2 exhibits a moderate to strong negative correlation with temperature with a Pearson correlation coefficient (r = −0.594). This suggests that as the temperature increases, CO2 decreases due to the influence of temperature on photosynthesis. A moderate positive correlation of CO2 with humidity (r = 0.528) suggests that an increase in humidity also increases CO2 concentrations, while CO2 dynamics did not show any significant linear relationship with daily rainfall. A negative correlation between the temperature and CO2 was also reported by Zhu et al. [24], while a positive correlation between humidity and CO2 was reported by Singh and Malarvili, [25]. A strong documented correlation exists between the CO2 concentration and temperature [25]. The data collected within the field evaluation in Figure 12 documents the positive trend confirmed at our test site with the Sensiron AG SCD30. For the CO2 monitoring system kinetics improvement, the selection of an optimized sensor that compensates with environmental fluctuation, drift prevention, advanced algorithms, machine learning, and predictive modeling can be used for sensor performance. The narrowband optical filtering makes the NDIR sensor highly specific to CO2, even in a mixture of different gases [26]. The figure indicates that individual factors did not fully explain the variations, indicating the need to account for other environmental and biological factors in CO2 assessment. This system demonstrates the potential to monitor CO2 continuously, providing avenues to assess complex interactions between CO2 and its influencing factors. This system is beneficial for long-term environmental monitoring research studies and citizen scientist use.

4. Conclusions

The CO2 monitoring systems designed in this study, including an Automatic Opening Chamber and a portable CO2 monitoring device, were tested for their reliability, accuracy, and continuous data measurement. Both systems are low-cost compared to the commercial systems available for CO2 monitoring. NDIR sensors were used and calibrated in both systems. These systems are accurate, reliable, and low-cost, which makes them suitable for citizen scientists. The Automatic Opening Chamber CO2 monitoring unit cost is USD 220.77, and the portable CO2 monitoring system unit cost is USD 151.43. Due to these CO2 gas monitoring systems’ simplicity, structure, and operation, non-expert users can use them and actively participate in environmental monitoring data collection. The Automated CO2 Monitoring System provides a valuable solution for continuous CO2 monitoring over time, while the IoT-based portable CO2 device offers mobility, ease of use, and real-time measurement. Both systems are cost-effective and accurate and are designed to help and empower citizen scientists to contribute to agricultural and environmental research. Laboratory testing shows sensor accuracy and reliability in capturing CO2 dynamics under different soil moisture conditions. The field deployment of sensors shows the systems’ ability to capture CO2 fluctuation and trends over time under different environmental factors. However, there is a need for long-term field sensor deployment research to assess the sensors’ degradation and drift for sensor accuracy and reliability. These systems offer practical, user-friendly, and cost-effective solutions for citizen scientists. They promote public engagement in climate and air quality monitoring, which enables citizen scientists to obtain reliable data for CO2 monitoring and environmental awareness.

Author Contributions

Conceptualization, G.S., J.C., T.R., K.J. and Y.D.; methodology, G.S., N.A., J.C., T.R., K.J. and Y.D.; formal analysis, G.S., N.A. and J.C.; investigation, G.S., N.A., J.C., T.R., K.J. and Y.D.; data curation, G.S., J.C. and K.J.; writing—original draft preparation, G.S., N.A., J.C., T.R., K.J. and Y.D.; writing—review and editing, G.S., N.A., J.C., T.R. and Y.D.; visualization, G.S., N.A., J.C. and T.R.; supervision, Y.D.; project administration, Y.D.; funding acquisition, Y.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the AgBioResearch Ag Climate Resiliency Program (#AG24-12).

Data Availability Statement

Data will be available upon request.

Acknowledgments

The authors thank a Michigan State University Horticulture Research and Teaching Center for allowing us access to their field to collect data.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. European Parliament Climate Change: The Greenhouse Gases Causing Global Warming. Available online: https://www.europarl.europa.eu/pdfs/news/expert/2023/3/story/20230316STO77629/20230316STO77629_en.pdf (accessed on 9 March 2025).
  2. Zornoza, R.; Rosales, R.M.; Acosta, J.A.; de la Rosa, J.M.; Arcenegui, V.; Faz, Á.; Pérez-Pastor, A. Efficient Irrigation Management Can Contribute to Reduce Soil CO2 Emissions in Agriculture. Geoderma 2016, 263, 70–77. [Google Scholar] [CrossRef]
  3. Chataut, G.; Bhatta, B.; Joshi, D.; Subedi, K.; Kafle, K. Greenhouse Gases Emission from Agricultural Soil: A Review. J. Agric. Food Res. 2023, 11, 100533. [Google Scholar] [CrossRef]
  4. European Commission. Environment Directorate-General Soil: The Hidden Part of the Climate Cycle; European Comission: Brussels, Belgium, 2011. [Google Scholar]
  5. Lal, R. Carbon Sequestration. Philos. Trans. R. Soc. B Biol. Sci. 2008, 363, 815–830. [Google Scholar] [CrossRef]
  6. Dunfiel, K.; Mafa-Attoye, T.; Obregon, D. Soil Microbes Contribute to Climate Change, New U of G Research Finds. Available online: https://news.uoguelph.ca/2023/03/soil-microbes-contribute-to-climate-change-new-u-of-g-research-finds/ (accessed on 9 March 2025).
  7. Liu, F.; Gao, M.; Zhang, H.; Yuan, H.; Zong, R.; Liu, Z.; Wei, S.; Li, Q. Response of Soil CO2 Emissions and Water-carbon Use Efficiency of Winter Wheat to Different Straw Returning Methods and Irrigation Scenarios. J. Sci. Food Agric. 2024, 104, 2449–2457. [Google Scholar] [CrossRef]
  8. Lovarelli, D.; Bacenetti, J. Exhaust Gases Emissions from Agricultural Tractors: State of the Art and Future Perspectives for Machinery Operators. Biosyst. Eng. 2019, 186, 204–213. [Google Scholar] [CrossRef]
  9. Zou, X.; Li, Y.; Li, K.; Cremades, R.; Gao, Q.; Wan, Y.; Qin, X. Greenhouse Gas Emissions from Agricultural Irrigation in China. Mitig. Adapt. Strateg. Glob. Chang. 2015, 20, 295–315. [Google Scholar] [CrossRef]
  10. Guardia, G.; Abalos, D.; García-Marco, S.; Quemada, M.; Alonso-Ayuso, M.; Cárdenas, L.M.; Dixon, E.R.; Vallejo, A. Effect of Cover Crops on Greenhouse Gas Emissions in an Irrigated Field under Integrated Soil Fertility Management. Biogeosciences 2016, 13, 5245–5257. [Google Scholar] [CrossRef]
  11. Ye, X.; Liu, H.; Zhang, X.; Ma, J.; Han, B.; Li, W.; Zou, H.; Zhang, Y.; Lin, X. Impacts of Irrigation Methods on Greenhouse Gas Emissions/Absorptions from Vegetable Soils. J. Soils Sediments 2020, 20, 723–733. [Google Scholar] [CrossRef]
  12. Neethirajan, S.; Freund, M.S.; Jayas, D.S.; Shafai, C.; Thomson, D.J.; White, N.D.G. Development of Carbon Dioxide (CO2) Sensor for Grain Quality Monitoring. Biosyst. Eng. 2010, 106, 395–404. [Google Scholar] [CrossRef]
  13. Saini, J.; Dutta, M.; Marques, G. Sensors for Indoor Air Quality Monitoring and Assessment through Internet of Things: A Systematic Review. Environ. Monit. Assess. 2021, 193, 66. [Google Scholar] [CrossRef]
  14. Blackstock, J.M.; Covington, M.D.; Perne, M.; Myre, J.M. Monitoring Atmospheric, Soil, and Dissolved CO2 Using a Low-Cost, Arduino Monitoring Platform (CO2-LAMP): Theory, Fabrication, and Operation. Front. Earth Sci. 2019, 7. [Google Scholar] [CrossRef]
  15. Bannov, A.G.; Trubin, I.V.; Zakharov, I.K.; Maksimovskiy, E.A.; Kurmashov, P.B. A Critical Review on Soil Gas Analysis: Modern Technologies and Problems. Agronomy 2024, 14, 2374. [Google Scholar] [CrossRef]
  16. Chiaravalloti, I.; Theunissen, N.; Zhang, S.; Wang, J.; Sun, F.; Ahmed, A.A.; Pihlap, E.; Reinhard, C.T.; Planavsky, N.J. Mitigation of Soil Nitrous Oxide Emissions during Maize Production with Basalt Amendments. Front. Clim. 2023, 5. [Google Scholar] [CrossRef]
  17. Dubey, R.; Telles, A.; Nikkel, J.; Cao, C.; Gewirtzman, J.; Raymond, P.A.; Lee, X. Low-Cost CO2 NDIR Sensors: Performance Evaluation and Calibration Using Machine Learning Techniques. Sensors 2024, 24, 5675. [Google Scholar] [CrossRef]
  18. Levintal, E.; Lee Kang, K.; Larson, L.; Winkelman, E.; Nackley, L.; Weisbrod, N.; Selker, J.S.; Udell, C.J. EGreenhouse: Robotically Positioned, Low-Cost, Open-Source CO2 Analyzer and Sensor Device for Greenhouse Applications. HardwareX 2021, 9, e00193. [Google Scholar] [CrossRef]
  19. Brown, S.L.; Goulsbra, C.S.; Evans, M.G.; Heath, T.; Shuttleworth, E. Low Cost CO2 Sensing: A Simple Microcontroller Approach with Calibration and Field Use. HardwareX 2020, 8, e00136. [Google Scholar] [CrossRef]
  20. Andrews, H.M.; Krichels, A.H.; Homyak, P.M.; Piper, S.; Aronson, E.L.; Botthoff, J.; Greene, A.C.; Jenerette, G.D. Wetting-induced Soil CO2 Emission Pulses Are Driven by Interactions among Soil Temperature, Carbon, and Nitrogen Limitation in the Colorado Desert. Glob. Chang. Biol. 2023, 29, 3205–3220. [Google Scholar] [CrossRef]
  21. Hao, Y.; Mao, J.; Bachmann, C.M.; Hoffman, F.M.; Koren, G.; Chen, H.; Tian, H.; Liu, J.; Tao, J.; Tang, J.; et al. Soil Moisture Controls over Carbon Sequestration and Greenhouse Gas Emissions: A Review. NPJ Clim. Atmos. Sci. 2025, 8, 16. [Google Scholar] [CrossRef]
  22. Min, K.; Berhe, A.A.; Khoi, C.M.; van Asperen, H.; Gillabel, J.; Six, J. Differential Effects of Wetting and Drying on Soil CO2 Concentration and Flux in Near-Surface vs. Deep Soil Layers. Biogeochemistry 2020, 148, 255–269. [Google Scholar] [CrossRef]
  23. Bezyk, Y.; Dorodnikov, M.; Górka, M.; Sówka, I.; Sawiński, T. Temperature and Soil Moisture Control CO2 Flux and CH4 Oxidation in Urban Ecosystems. Geochemistry 2023, 83, 125989. [Google Scholar] [CrossRef]
  24. Zhu, X.; Chang, L.; Hu, Y.; He, Z.; Wang, W.; Wu, D. Warming Reduces Soil CO2 Emissions but Enhances Soil N2O Emissions: A Long-Term Soil Transplantation Experiment. Eur. J. Soil Biol. 2024, 121, 103614. [Google Scholar] [CrossRef]
  25. Singh, O.P.; Malarvili, M. Effect of Temperature, Pressure and Humidity on Carbon Dioxide Concentration—Simulation Study. IOP Conf. Ser. Mater. Sci. Eng. 2020, 884, 012007. [Google Scholar] [CrossRef]
  26. Makhdoumi Akram, M.; Nikfarjam, A.; Hajghassem, H.; Ramezannezhad, M.; Iraj, M. Low Cost and Miniaturized NDIR System for CO 2 Detection Applications. Sensor Rev. 2020, 40, 637–646. [Google Scholar] [CrossRef]

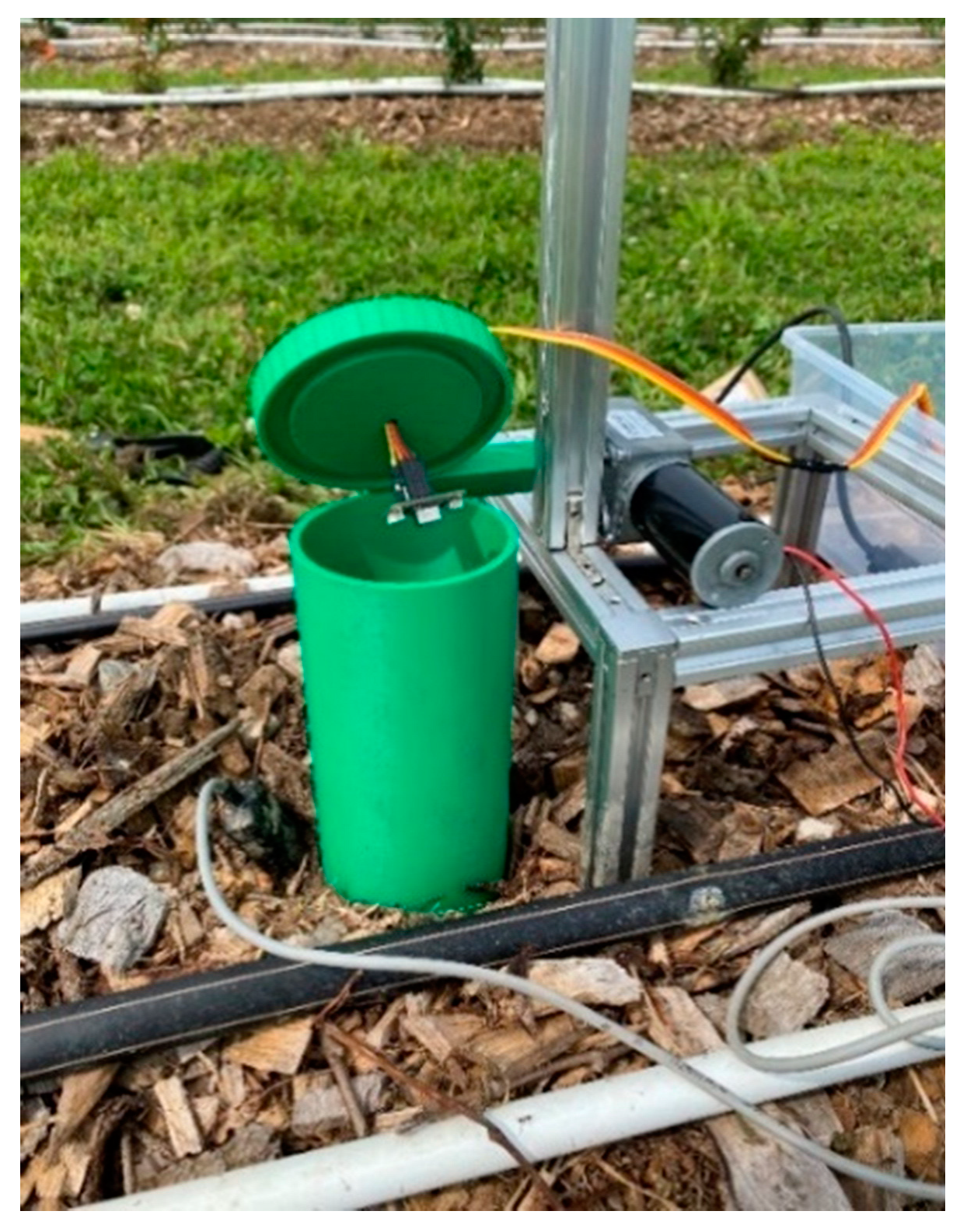

Figure 1. Field experimentation setup depicts chamber and motor setup with CO2 sensor.
Figure 1. Field experimentation setup depicts chamber and motor setup with CO2 sensor.
Agriengineering 07 00085 g001

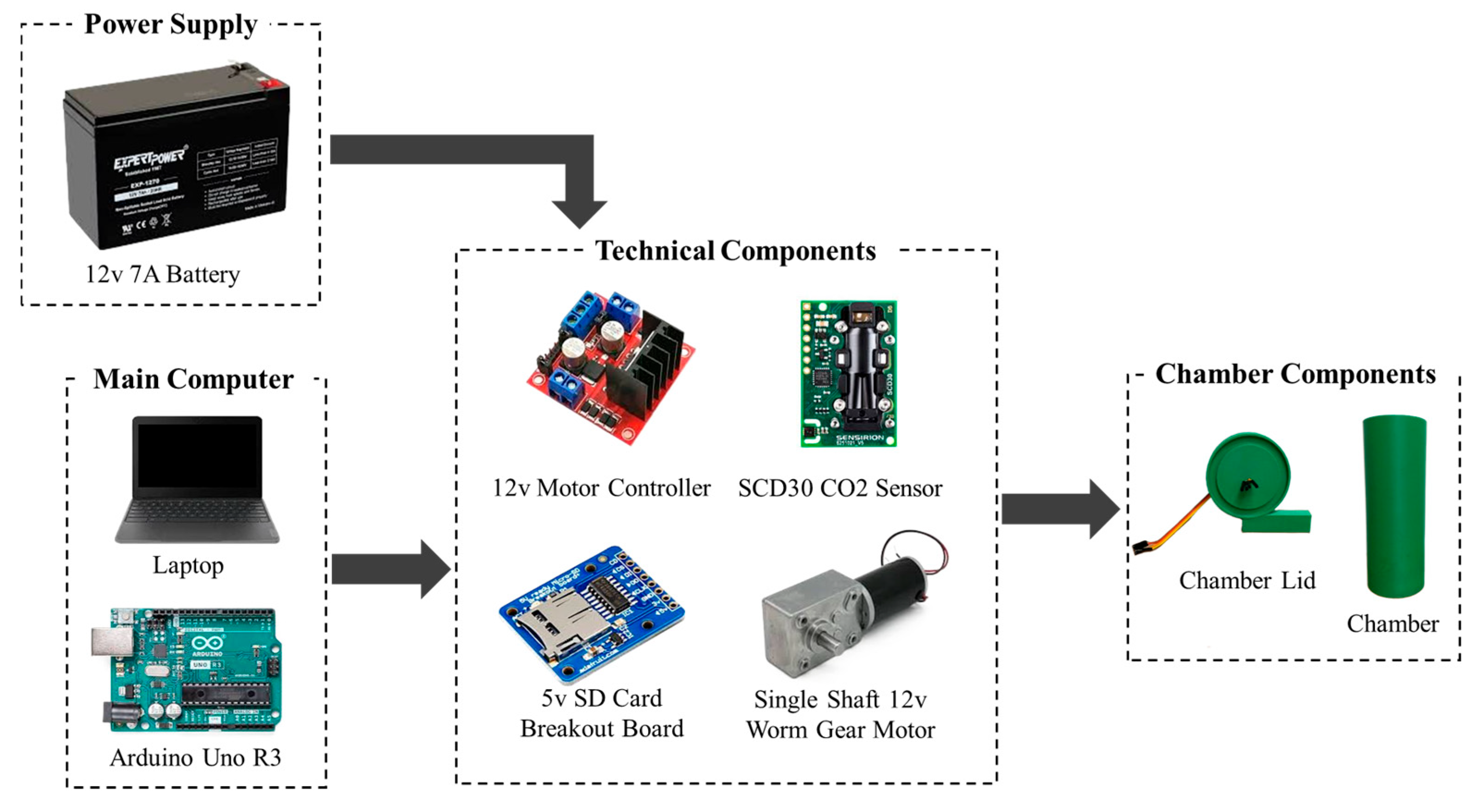

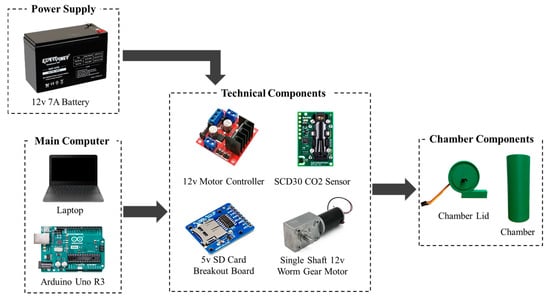

Figure 2. Block diagram of the CO2 sensor and soil moisture sensor setup using a laptop and Arduino Uno R3.
Figure 2. Block diagram of the CO2 sensor and soil moisture sensor setup using a laptop and Arduino Uno R3.
Agriengineering 07 00085 g002

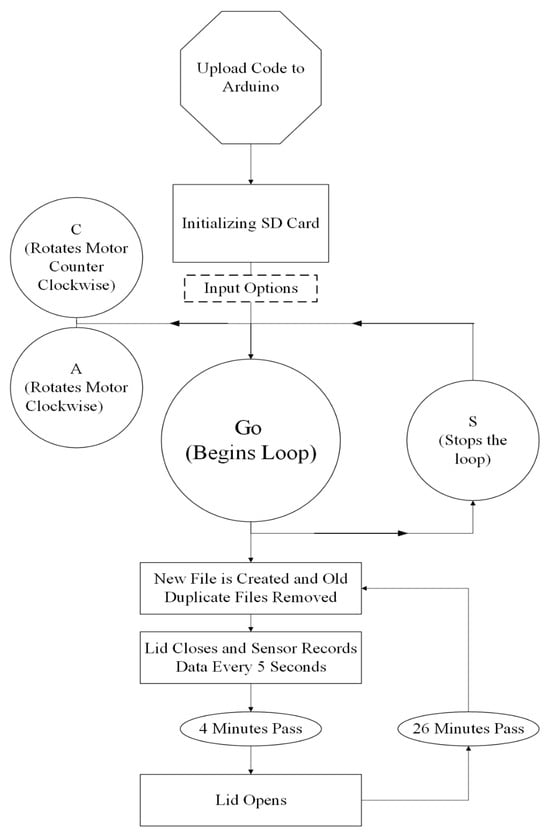

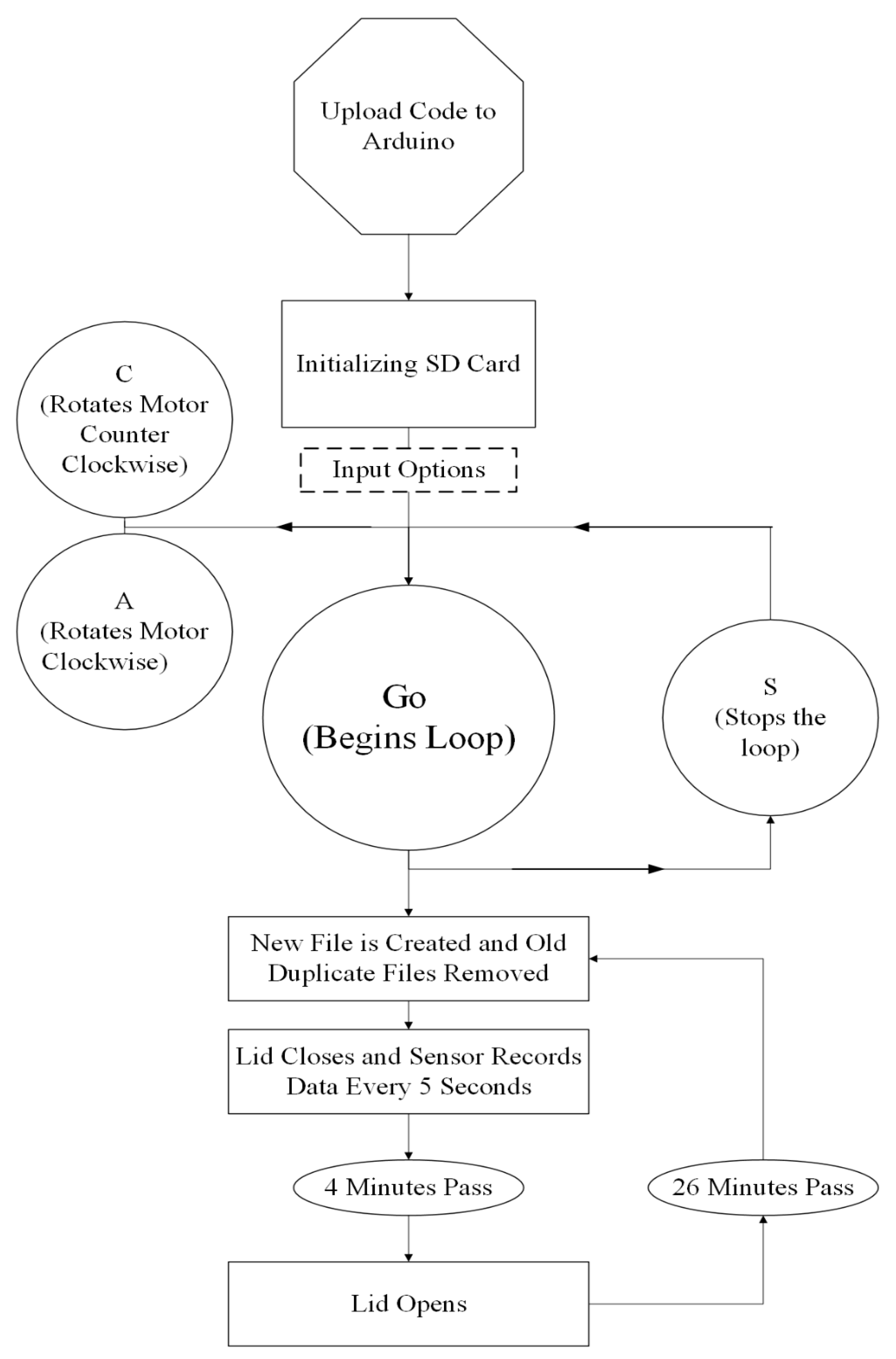

Figure 3. Arduino code flow diagram: the circles represent the input commands and the rectangles indicate the code processes.
Figure 3. Arduino code flow diagram: the circles represent the input commands and the rectangles indicate the code processes.
Agriengineering 07 00085 g003

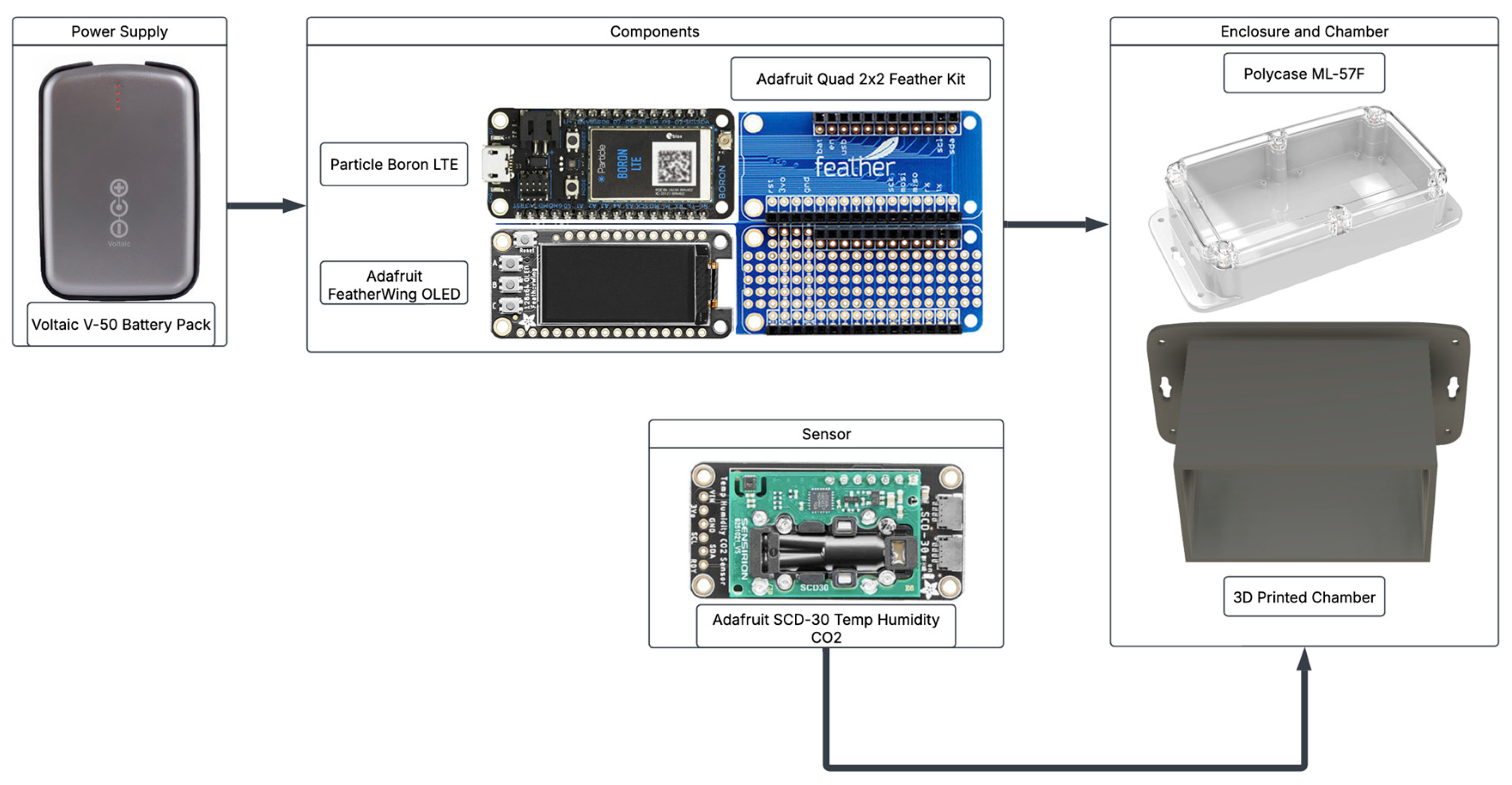

Figure 4. Schematic workflow of IoT-based portable CO2 monitoring system.
Figure 4. Schematic workflow of IoT-based portable CO2 monitoring system.
Agriengineering 07 00085 g004

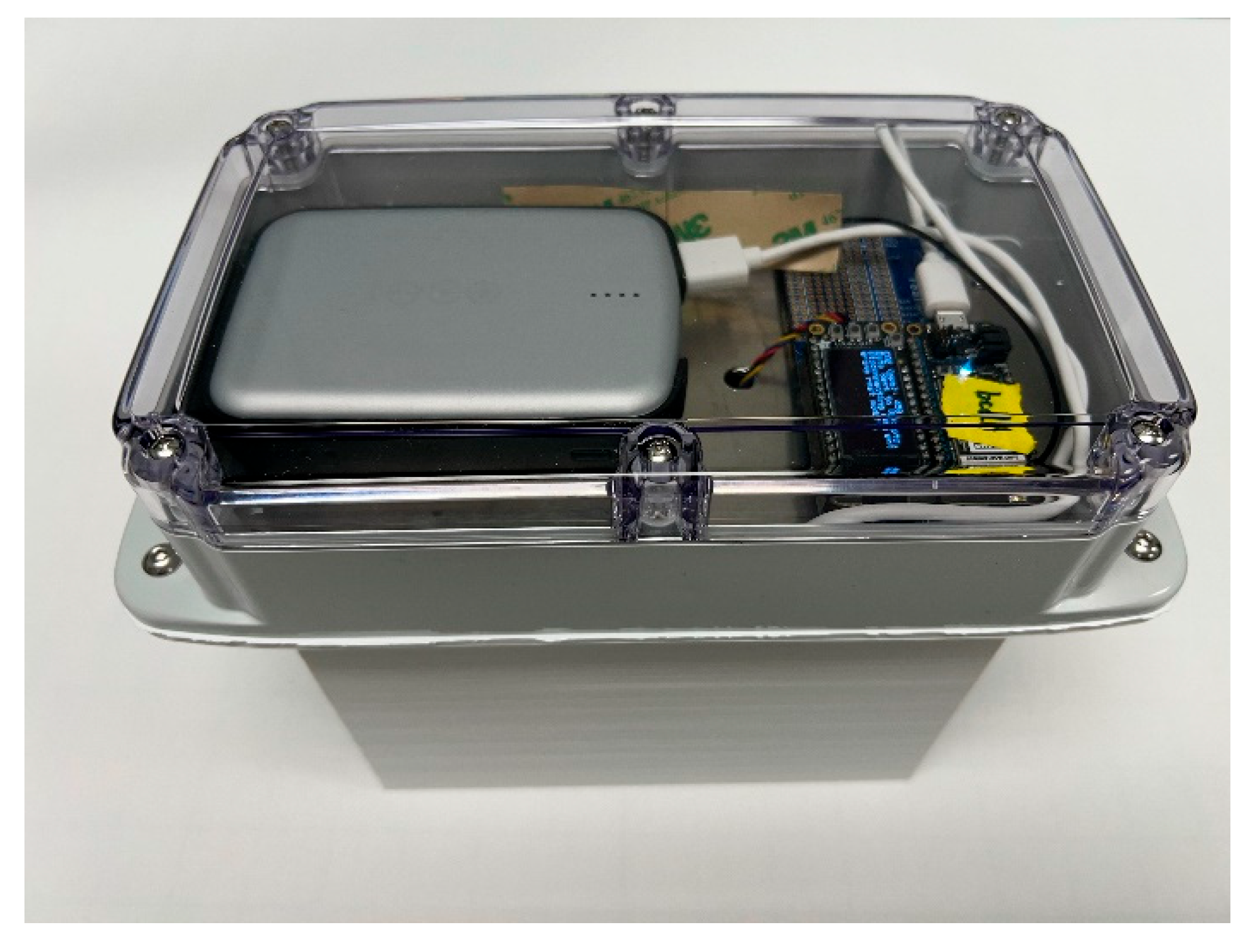

Figure 5. IoT-based portable CO2 monitoring system.
Figure 5. IoT-based portable CO2 monitoring system.
Agriengineering 07 00085 g005

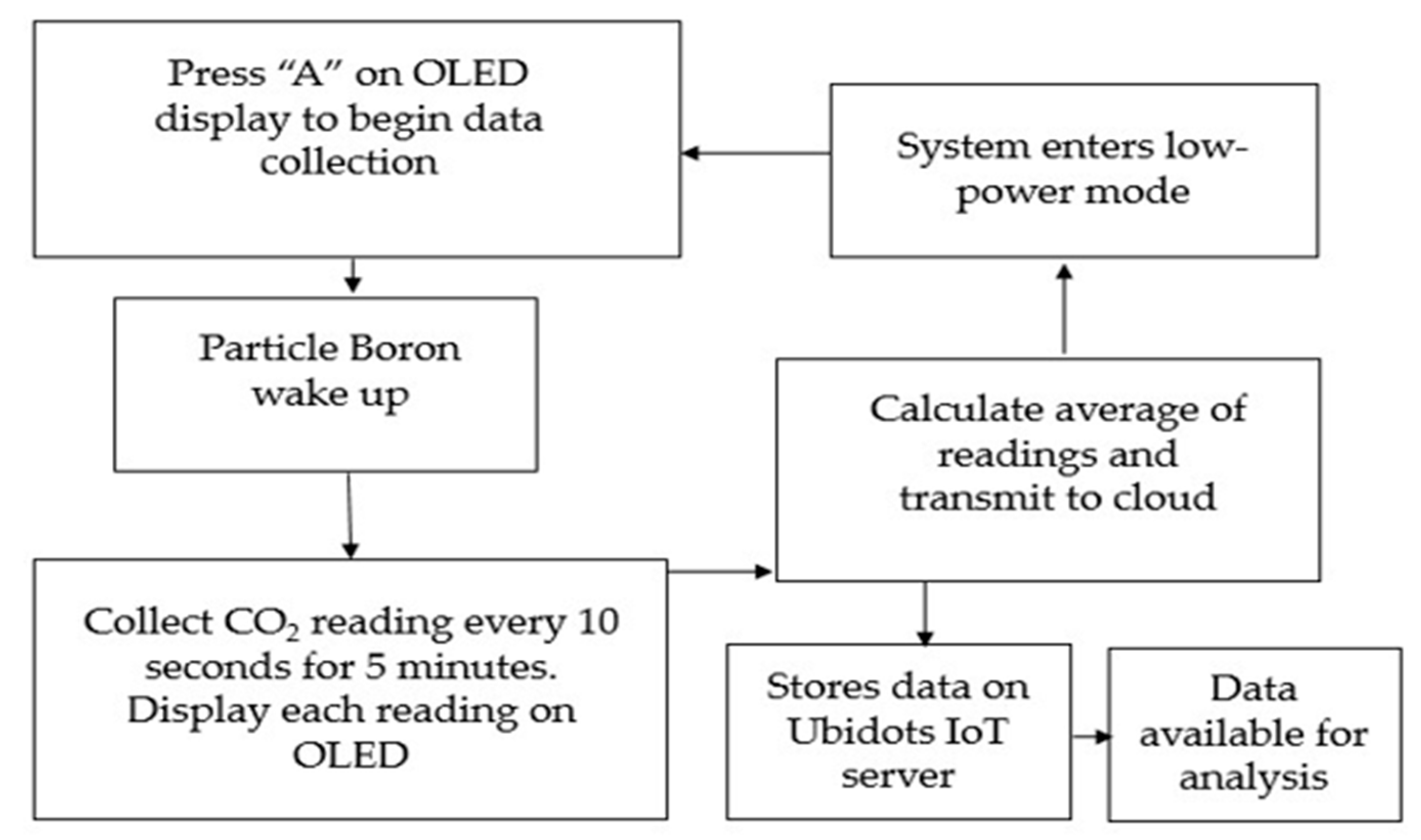

Figure 6. Schematic flow chart for IoT-based portable CO2 monitoring system.
Figure 6. Schematic flow chart for IoT-based portable CO2 monitoring system.
Agriengineering 07 00085 g006

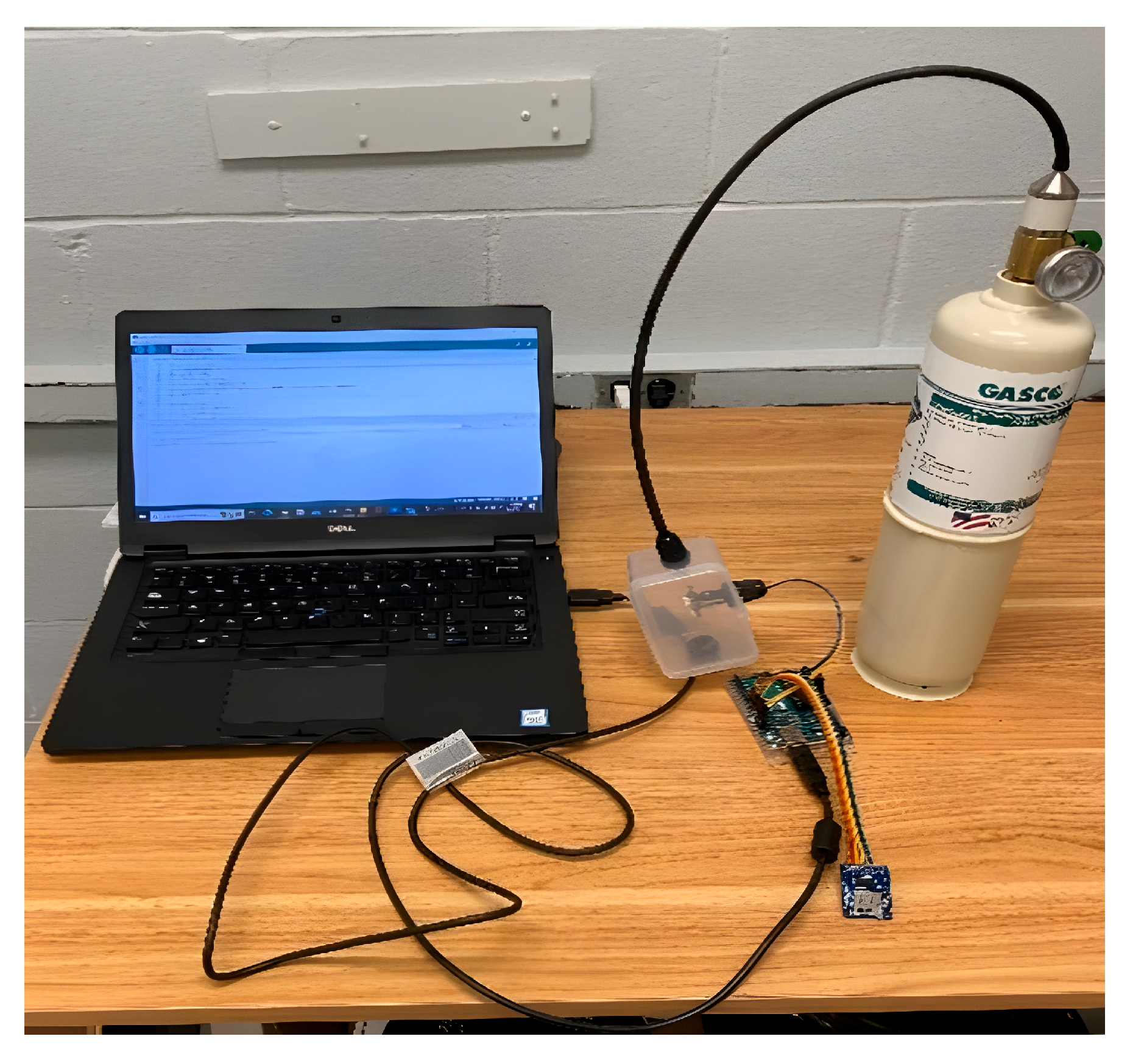

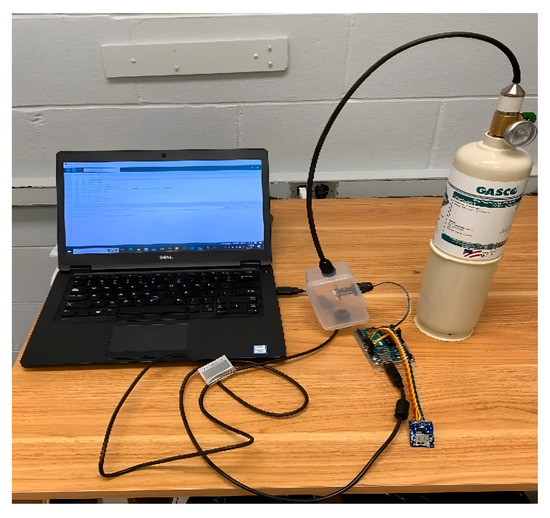

Figure 7. CO2 sensor calibration data collection setup.
Figure 7. CO2 sensor calibration data collection setup.
Agriengineering 07 00085 g007

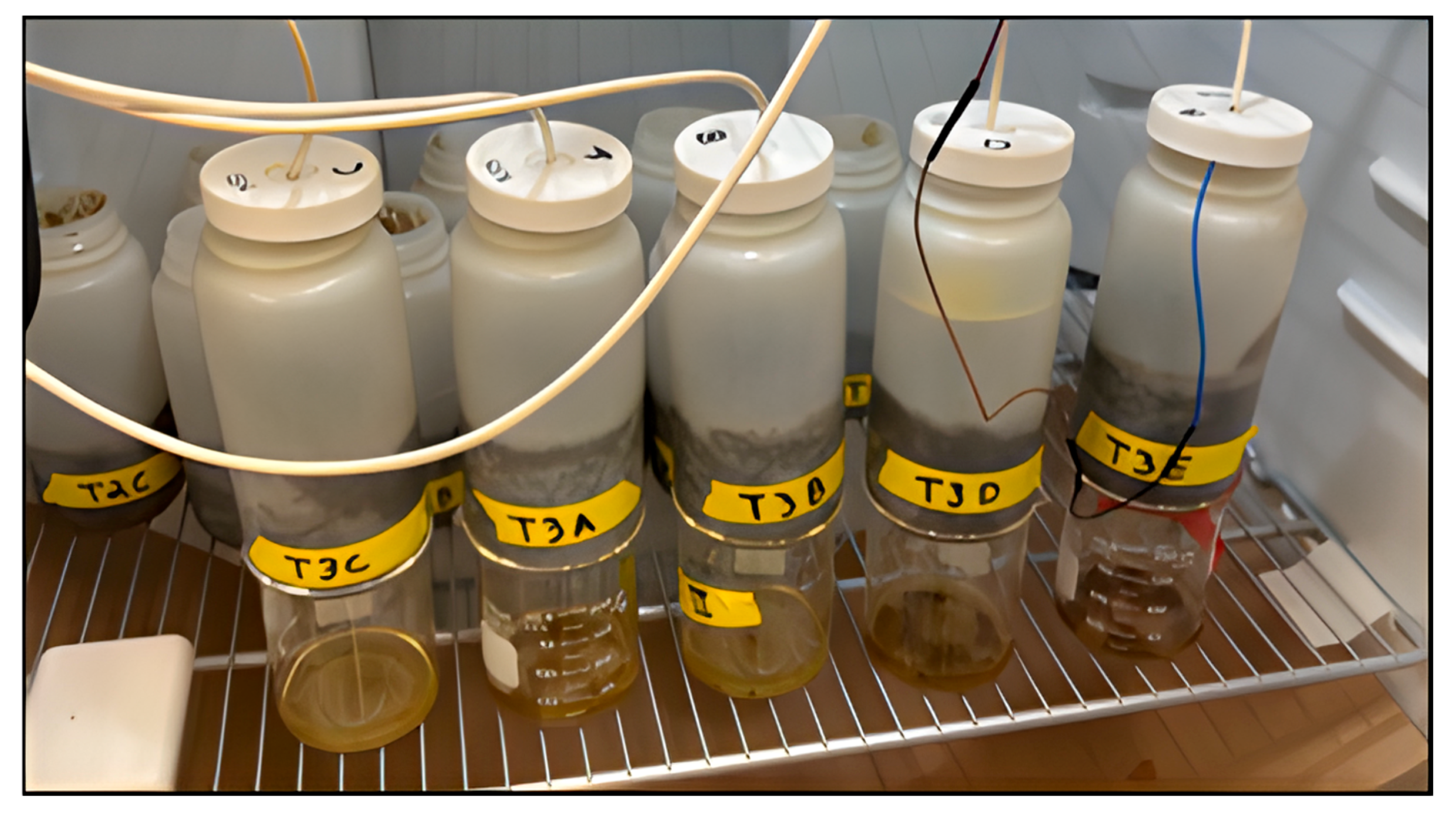

Figure 8. The laboratory experiment setup for assessing the CO2 flux at different moisture contents through the SCD 30 CO2 sensor.
Figure 8. The laboratory experiment setup for assessing the CO2 flux at different moisture contents through the SCD 30 CO2 sensor.
Agriengineering 07 00085 g008

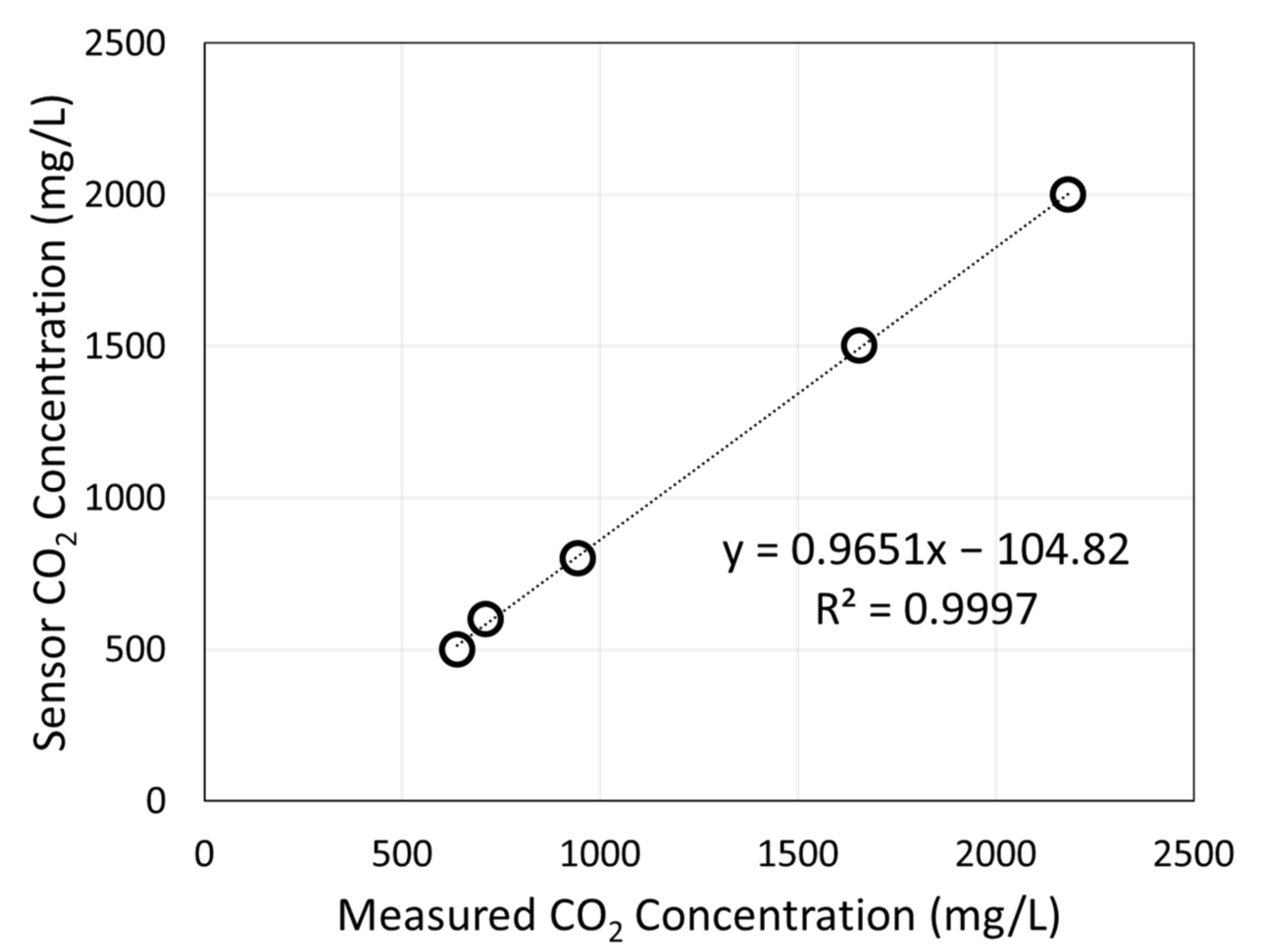

Figure 9. Calibration curve represents the relationship between the sensor reading and the known CO2 concentrations.
Figure 9. Calibration curve represents the relationship between the sensor reading and the known CO2 concentrations.
Agriengineering 07 00085 g009

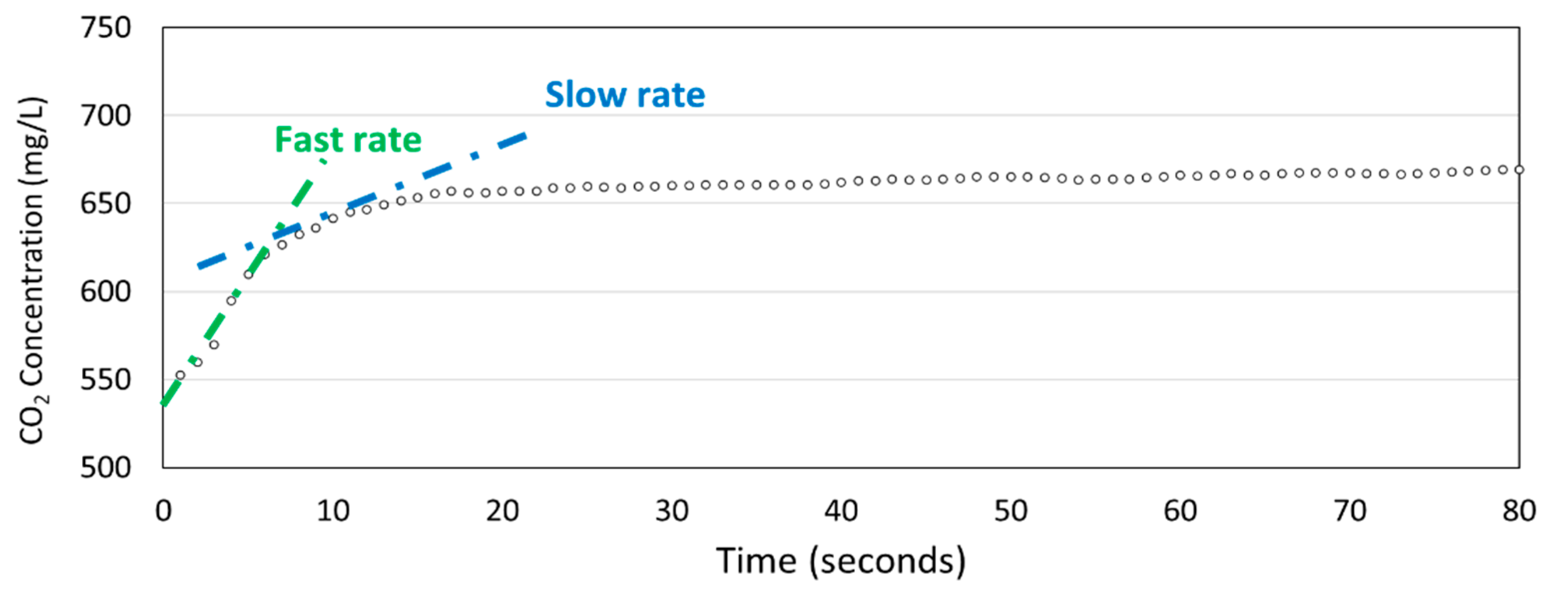

Figure 10. CO2 concentration (mg/L) represented by circle with time shows trend (initial rise, then changes slowly with steady increase) over time.
Figure 10. CO2 concentration (mg/L) represented by circle with time shows trend (initial rise, then changes slowly with steady increase) over time.
Agriengineering 07 00085 g010

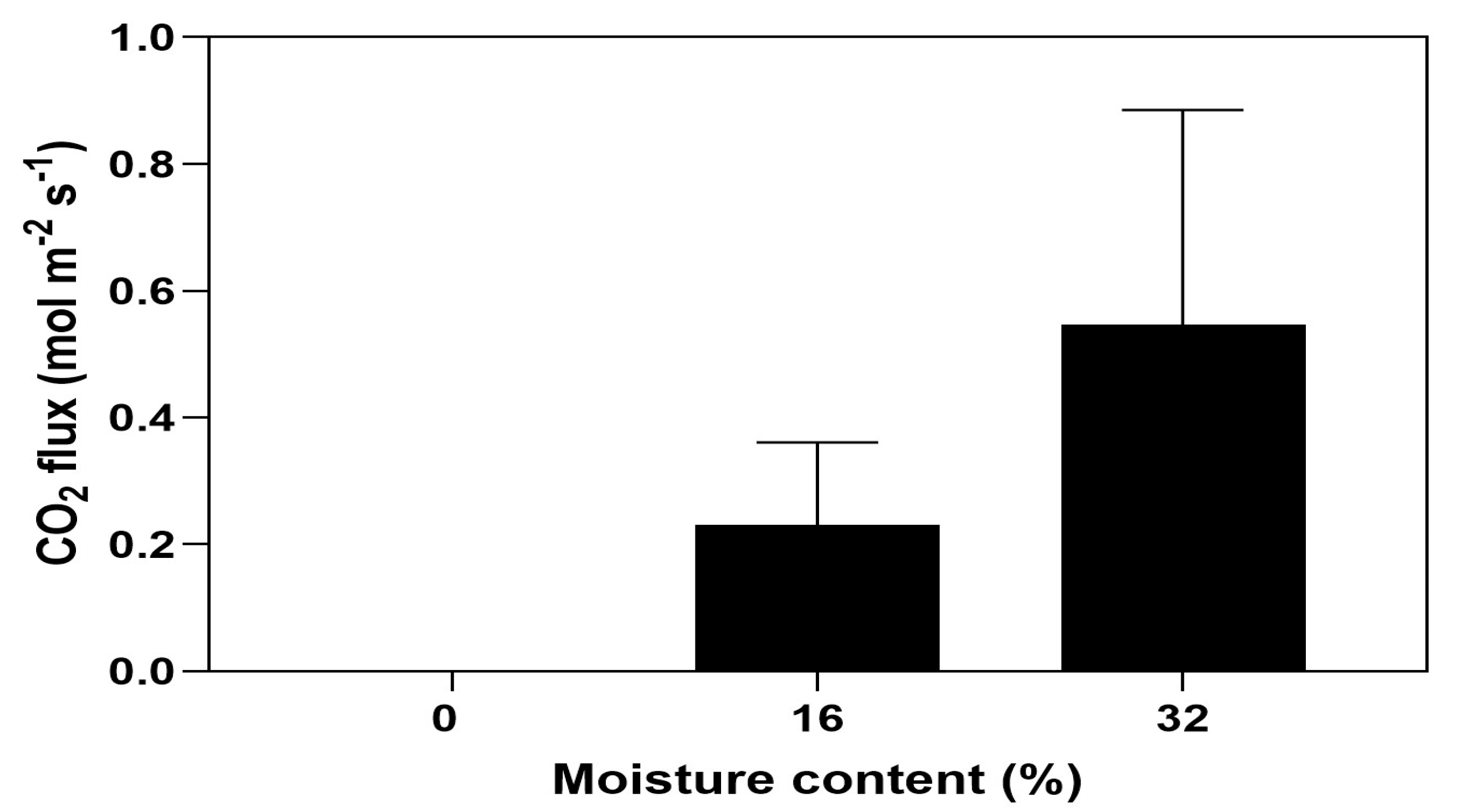

Figure 11. CO2 flux (mol m−2 s−1) measurement for two different soil moisture contents (16 and 32%) compared to control (dry soil).
Figure 11. CO2 flux (mol m−2 s−1) measurement for two different soil moisture contents (16 and 32%) compared to control (dry soil).
Agriengineering 07 00085 g011

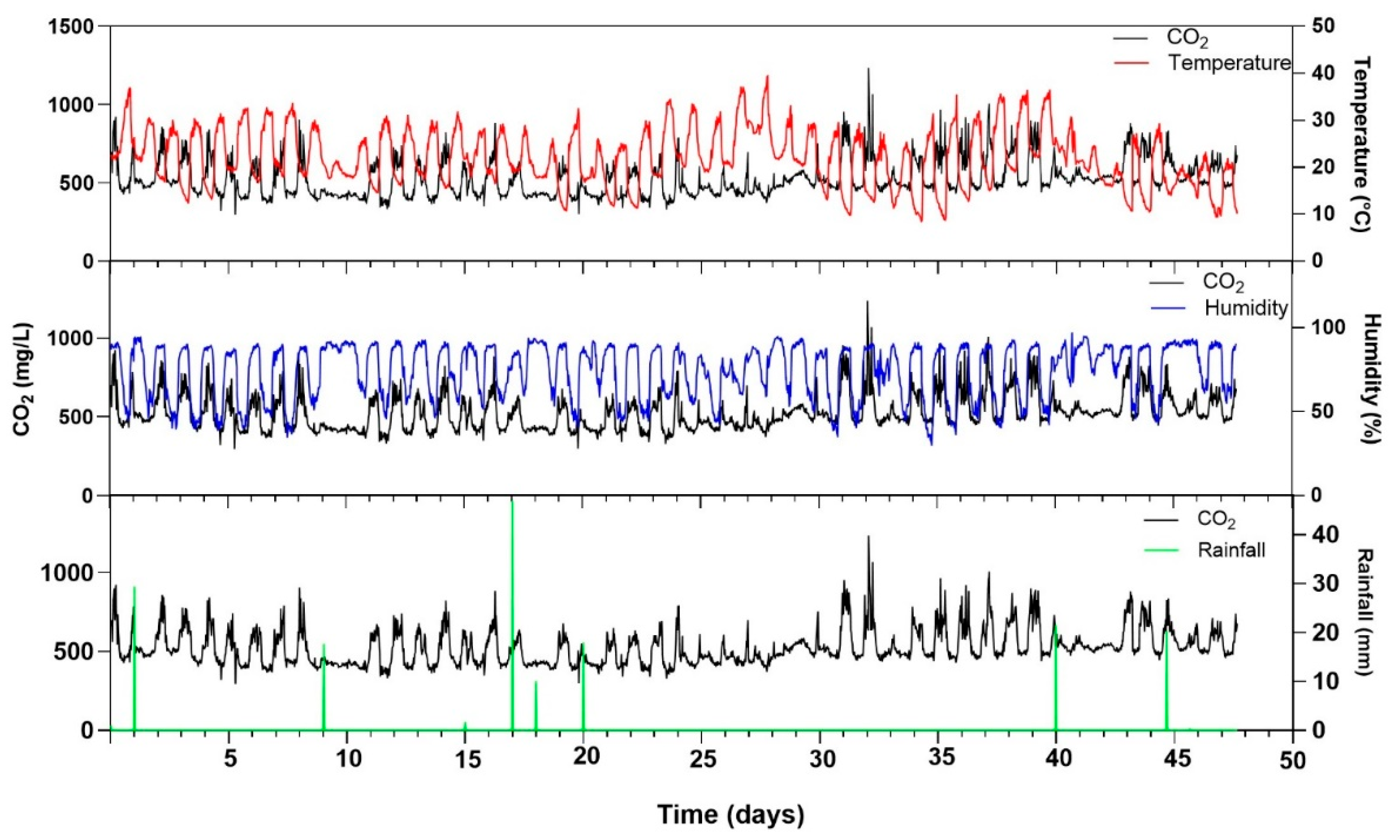

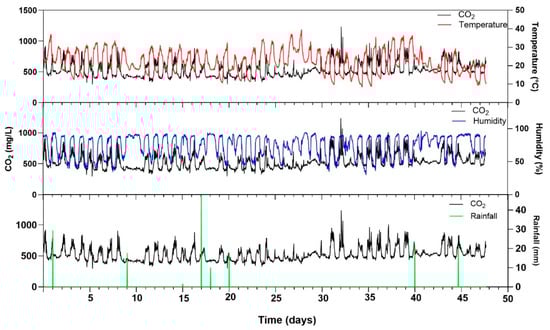

Figure 12. Time series CO2 concentration (mg/L) plotted against temperature (°C), humidity (%), and rainfall (mm) during field deployment of sensor.
