Sustainable Charging Stations for Electric Vehicles

Abstract

In this work, we develop a detailed analysis of the current outlook for electric vehicle charging technology, focusing on the various levels and types of charging protocols and connectors used. We propose a charging station for electric cars powered by solar photovoltaic energy, performing the analysis of the solar resource in the selected location, sizing the photovoltaic power plant to cover the demand completely, and exploring different configurations such as grid connection or physical and virtual electric energy storage. Despite the current development applying for specific working conditions, operating voltage, charging rate, power demand, etc., the proposed configuration is modular, adaptable, and resilient. The simulated system operates within the 360 V to 800 V range of direct current for charging the electric vehicles, with a selectable power range between 20 and 180 kW. The basic layout includes four charging poles, each servicing all working voltages. An oversized PV plant powers the charging station at any time of the year, saving money compared to the alternative of the electric storage unit. In addition, we build simulation tools and algorithms that optimize the design of future projects, providing a solid basis for sustainable energy infrastructure planning and design.

1. Introduction

Today, the continuous growth of carbon emissions, which are responsible for climatic change, requires a transitional process to power sources more respectful of the environment. Among the feasible solutions to implement this process, renewable energy sources are a priority for politicians, technicians, energy developers, and citizens.

The global GHG emissions into the atmosphere come from the industrial, commercial, residential, and transportation sectors; this last source contributes 30% of the total emissions, representing a significant fraction [1,2]. The implementation of electric vehicles represents a positive action in the process of reducing greenhouse gas emissions [3,4,5].

People opposing the transformation of the vehicle fleet from fossil fuel engines to electric motors argue that the required electricity to charge the electric vehicle battery comes from fossil fuel power plants, generating carbon emissions in the energy generation process [6,7,8]. Therefore, it is necessary to power the electric vehicle charging stations from energy plants powered by renewable energies like photovoltaic plants, wind farms, geothermal and hydroelectric power plants, etc. [9,10,11,12].

The atmosphere’s increased pollution level is a relevant problem in cities, where the concentration of particles harmful to health is higher due to the high vehicle density. Local authorities apply measurements to reduce these particle emissions by promoting and implementing laws, norms, and regulations to favor electric vehicle use and penalizing conventional fossil fuel engine cars [13,14,15].

The European Union leads the transportation sector electrification process, developing a protocol about the infrastructure of alternative fuels, which specifically includes the following action (sic) [16]:

“Starting in 2025, fast electric vehicle charging stations, with a minimum power of 150 kW for light vehicles and small vans, should be implemented every 60 km in the main European Union traffic corridors; the so-called Trans-European Transportation Network (RTE-T)”.

“The charging stations for heavy vehicles, with a minimum charging power of 350 kW, should also be implemented every 60 km in the basic RTE-T network and every 100 km in the enlarged global RTE-T network, should be completed by 2030”.

The European directive aims to solve the problem of the low number of charging stations in some countries that are a long way from completing the directions included in the protocol; one of the most relevant cases is Spain, the fourth economy of the European Union with only thirty thousand charging stations in the national transportation network, far below the European Union average. To make matters worse, more than 25% of the charging stations are out of order, aggravating the problem of vehicle fleet electrification [17]. The Spanish case is not the only one in the European Union, as we show in Figure 1. We notice that some other countries suffer from the same low density of electric vehicle charging stations [18].

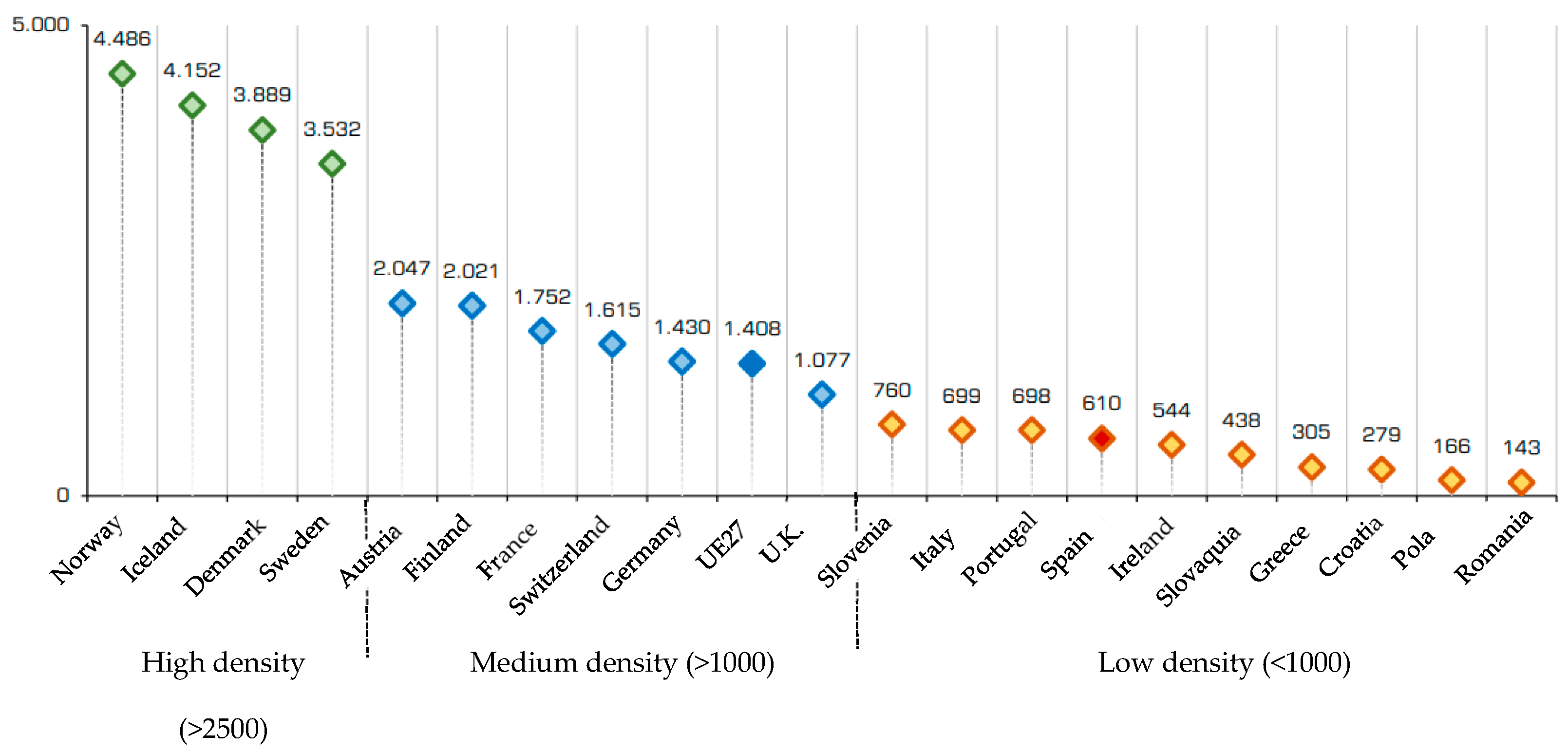

Readers can notice the difference between Norway (highest level) and Romania (lowest level), with a factor of 30 in the charging point density. On the other hand, countries in the high-density range—Norway, Iceland, Denmark, and Sweden—only represent 0.65% of the total number of charging points in the European Union, since the population density in these countries is very low, reinforcing the need to implement a dense electric vehicle charging station network to compete with fossil fuel engine cars.

Another issue for consideration is the high number of low-charging-rate points, 83%, with a maximum output power of 22 kW, representing a one-hour charging time for a driving range of 100 km (60 miles) in a standard electric vehicle, which discourages drivers from using electric cars in long-distance trips [19].

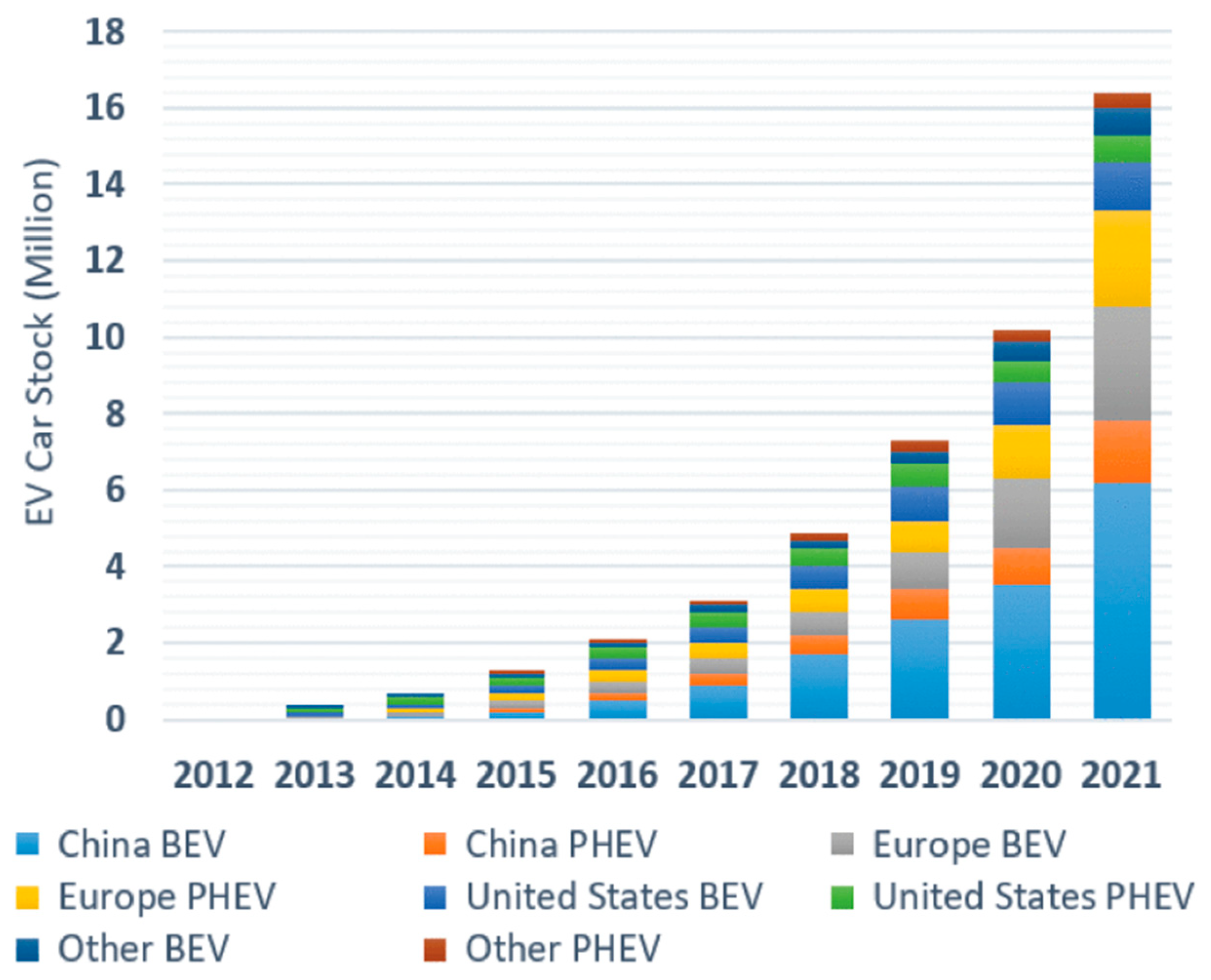

Despite the many obstacles to implementing electric vehicles in modern society, the number of cars powered by electricity is continuously growing, as shown in Figure 2. This situation generates a conflict because the number of charging stations is not growing at the same rate as electric vehicle sales.

2. Charging Point

An electric vehicle charging point is characterized by the charging rate, the charging mode, and the charging connector. The charging rate is regulated by the norms SAE J1772 [21,22] and IEC 61851-1 [23]; the former includes three types of rate and the latter four types.

Table 1. Charging rate specifications for variable power supply [21,22,23].

Specification	Level 1	Level 2	Level 3	Extreme Fast Charging (XFC)
Charging power	1.44 kW–1.9 kW	3.1 kW–19.2 kW	20 kW–350 kW	>350 kW
Charger type	Onboard—Slow charging	Onboard—Semi-fast charging	Offboard—Fast cahrging	Offboard—Ultrafast charging
Charge location	Residential	Private and commercial	Commercial	Commercial
Charging time	200 km: +/−20 h	200 km: +/−5 h	80% of 200 km: +/−30 min	Approximately 5 min with high energy density
Power supply	120/230 Vac, 12 A–16 A Single phase	208/240 Vac, 12 A–80 A Single phase/Split phase	120/230 Vac & 300–800 Vdc, 250 A–300 A Three phase	1000 Vdc and above, 400 A and higher Polyphase
Supply interface and protection type	Convenience outlet (Breaker in cable)	Dedicated EV supply equipment (Breaker in the cable and pilot function)	Dedicated EV supply equipment (communication & event monitoring between EV and charging station)	Dedicated EV supply equipment (communication & event monitoring between EV and charging station)
Standards	SAE J1772 [24], IEC 62196-2 [25], IEC 61851-22/23 [26], GB/T 20234-2 [27]		IEC 61581-23/24 [26], IEC 62196-3 [28]	IEC 62196 [29], SAE J2839/2 & J2847/2 [30]

shows the specifications of the different charging rates depending on the power supply.

2.1. Charging Rate

Level 1 corresponds to a domestic power socket with a maximum power supply of 2 kW. Level 2 requires a specific power socket for electric vehicle charging with a maximum power supply of 19.2 kW. These two levels operate in alternating monophasic current. Level 3 corresponds to a fast charging rate and operates only in triphasic alternating current up to 350 kW power supply. The level 3 charging points are in road or street public charging stations. Extreme fast charging, or ultra-fast charging, is an extension of the fast charging rate for a power supply above 350 kW; this type of charging point is scarce.

2.2. Charging Mode

The IEC defines four operational modes for electric vehicle charging depending on the specifications and configuration: alternating or direct current, maximum charging current, voltage, power, and connection type.

In levels 1 to 3, the charging mode uses alternating current (AC), monophasic for levels 1 and 2, and triphasic for level 3, as mentioned previously. The operating voltage ranges from 220 V for level 1 to 480 V for level 3. Levels 2 and 3 also operate with intermediate voltages of 360 and 400 V. The power supply is 7.6, 15.3, and 120 kW for levels 1, 2, and 3, respectively. In the XFC mode, the current ranges up to 400 ADC (direct current), and the voltage operates between 600 and 1000 VDC.

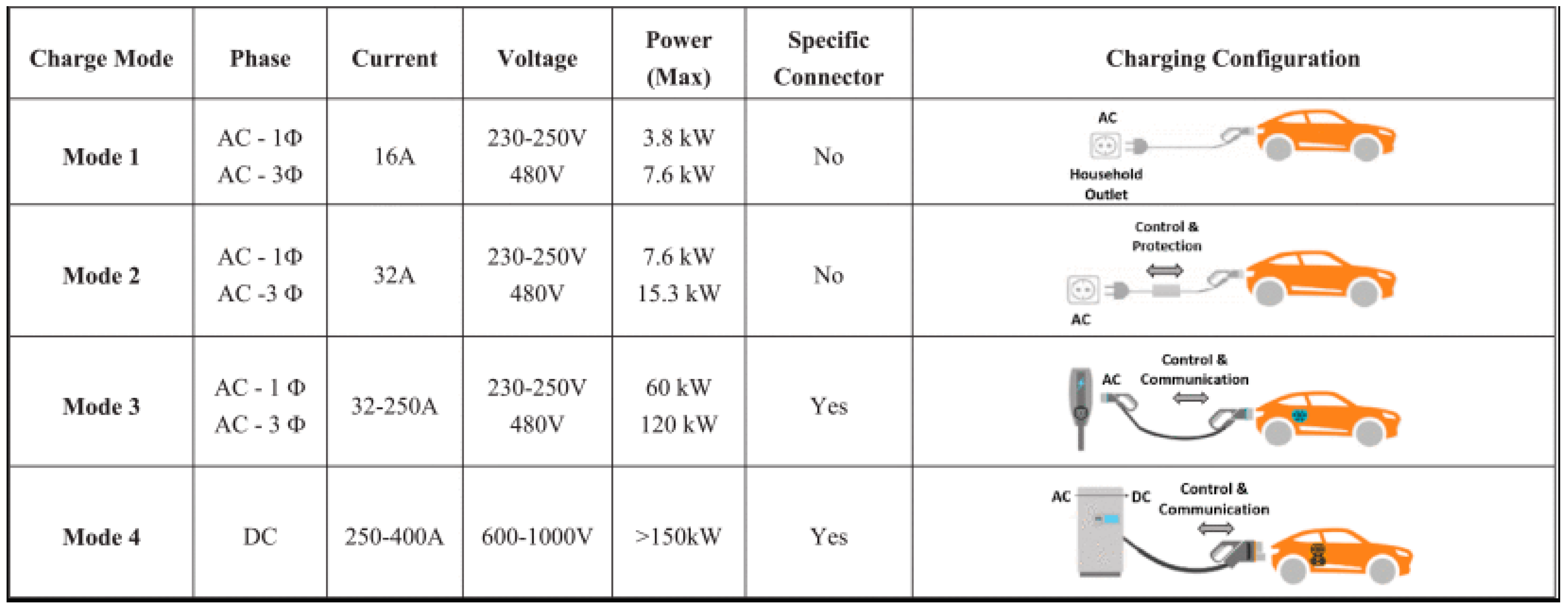

Figure 3 shows the various types of charging mode.

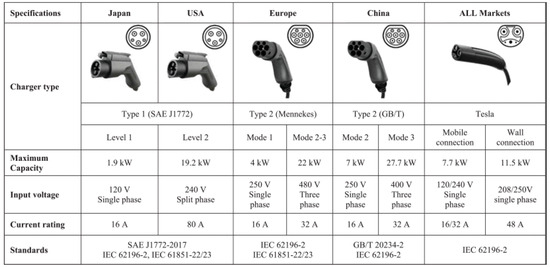

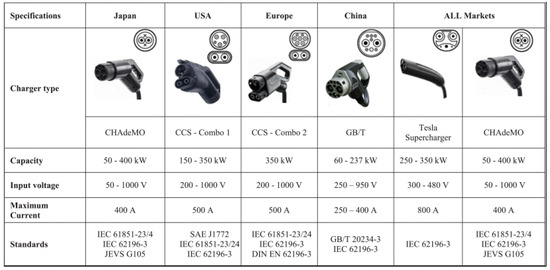

2.3. Charging Socket

Level 1 does not require a specific socket for charging the electric vehicle; the charging point can use a domestic one; nevertheless, levels 2 and 3, and the XFC mode, require a specific socket of the type shown in Figure 4 and Figure 5.

The DC socket type allows higher charging voltage and current, operating at a power supply of up to 350–400 kW. This configuration reduces the charging time for a 100 km driving range in a standard electric vehicle from 1 h in AC mode to 15 min in DC mode.

3. Solar Power Supply

A sustainable charging station for electric vehicles should collect energy from renewable power sources like photovoltaic, wind, geothermal, hydroelectric, and others. Since analyzing every type of renewable power plant is beyond the scope of this work, we prioritize photovoltaic power plants as the primary energy source for powering the charging station prototype.

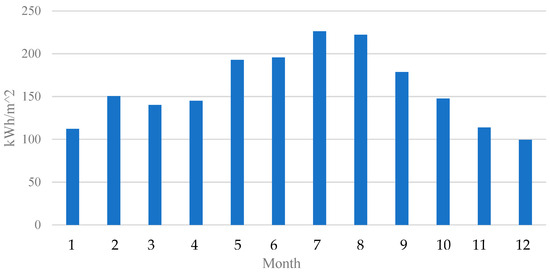

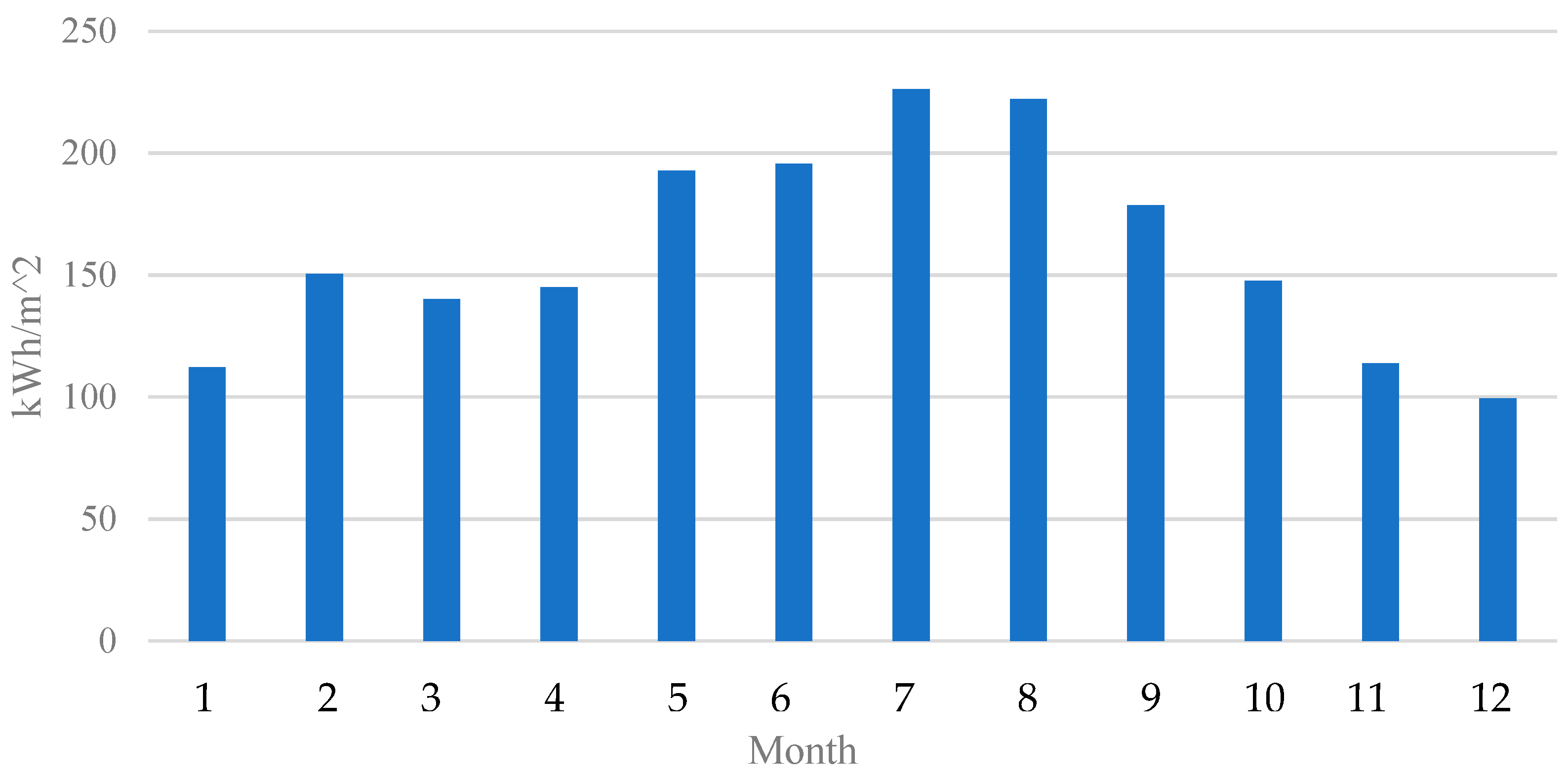

Photovoltaic power plant location is selected from the solar radiation database provided by the Geographical Information System (GIS) from the European Commission Service for Photovoltaic Systems (PVGIS) [33]. The selection criteria are based on maximizing the monthly average solar radiation on site; following these criteria, the photovoltaic array is oriented to the equator and tilted 35°. Figure 6 shows the monthly solar radiation distribution in the selected location (Madrid, Spain).

Considering a uniform behavior over time, we calculate the daily average solar radiation, obtaining the following (

Table 2. Estimated average monthly and daily solar radiation in the selected location (Madrid, Spain).

Month	Monthly Average (kWh/m2)	Daily Average (kWh/m2)
January	112.13	3.74
February	150.45	5.02
March	140.02	4.67
April	145.05	4.84
May	192.73	6.42
June	195.55	6.52
July	226.09	7.54
August	222.10	7.40
September	178.51	5.95
October	147.50	4.92
November	113.85	3.80
December	99.48	3.32

):

Because solar radiation changes every day, we apply the estimated daily average value for the calculations.

4. Energy Demand

The energy demand depends on the number of charging points, the maximum power supply at every charging point, the daily operating time, and the daily occupancy factor. Considering a charging pole with four charging points, one per power supply, a 14 h daily operating time, and a 75% occupancy factor, the daily energy demand is as follows (

Table 3. Daily energy demand (charging station).

Charging Point Number	Maximum Power Supply (kW)	Daily Energy Demand (kWh)
1	22	308
2	48	672
3	96	1344
4	180	2520
Total	346	4844

):

5. Photovoltaic Array Design

The photovoltaic array consists of a set of PV modules grouped in series and parallel to generate the required voltage and current. We select a panel of 460 W with 21% efficiency. Figure 7 shows the PV module’s electric response.

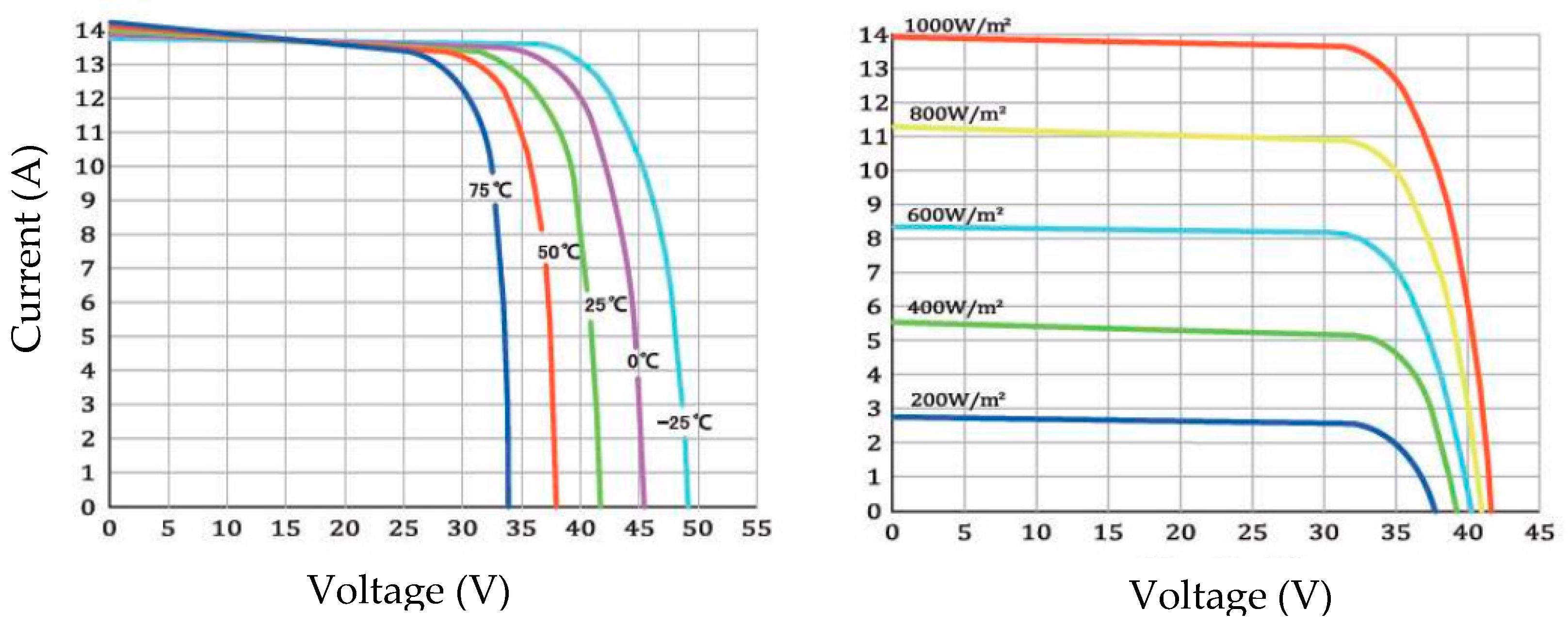

Technical characteristics for the PV module are provided by the manufacturer (

Table 4. PV module technical characteristics [35].

Parameter	Value
Maximum power	460 Wp
Voltage at maximum power	35.10 V
Current at maximum power	13.11 A
Open-circuit voltage	41.65 V
Short-circuit current	13.99 A
Efficiency	21.25
Power tolerance	0/+5
PV array maximum voltage	DC 1.500 V

).

Data have been retrieved for the selected location of Madrid, Spain [36]; therefore, we can estimate the temperature correction for the operational PV module voltage and current. The maximum and minimum temperatures over the year are listed below:

• Minimum average monthly temperature: −1.0 °C (January).
• Maximum average monthly temperature: 33.5 °C (July).
• Maximum yearly absolute temperature: 43.5 °C (10 August).
• Minimum yearly absolute temperature: −12.5 °C (12 January).

Applying the following equation, we determine the PV module operating temperature [37]:

$$T_{cell}=T_{amb}+{\displaystyle \frac{NOCT-20}{800}}G$$

(1)

T is the operating temperature, with subscripts cell and amb indicating PV cell temperature and ambient temperature; NOCT is the normal operating cell temperature, being the standard temperature of 45 °C; and G is the solar radiation level.

According to Equation (1), and applying values for maximum and minimum temperatures, the operating PV module temperature is as follows (

Table 5. PV module working temperature.

Condition	Value
Maximum	69.8 °C
Minimum	8.9 °C

):

Since the working temperature modifies the output voltage and current, we should apply the correction factor for these two parameters to obtain the operational values for the working temperature. The new values for the voltage and current derive from the following expressions [30]:

$$V_M=V_M^{STD}+\beta \left(T_{cell}^{\min }-25\right)$$

(2)

$$I_M=I_M^{STD}+\alpha \left(T_{cell}^{\max }-25\right)$$

(3)

V and I are the PV module voltage and current, and coefficients α and β are the temperature correction factors for current and voltage. Subscripts M and cell account for maximum power point and PV cell, and superscripts STD, min, and max correspond to standard working conditions and minimum and maximum cell temperature.

Applying values from Table 4 and Table 5 to Equations (2) and (3), we obtain the following (

Table 6. PV module electric operating parameters.

Parameter	Value
α (A/°C)	0.05%/°C
β (V/°C)	−0.30%/°C
Voltage (V)	46.00
Current (A)	9.65
Power (W)	444

):

Using data from Table 6, we can determine the PV array energy generation by applying the following expression:

$${\xi }_{AC}=P_{PV}(sph){\eta }_T$$

(4)

P_PV is the PV module’s peak power, sph is the sun’s peak hours, and η_T is the global efficiency including electric and thermal losses.

The global efficiency in a standard PV array is about 80% (η_T = 0.8) [38].

The PV array configuration depends on the charging station operating voltage. Because the electric vehicle manufacturers disagree on a common voltage, we decided to operate with a standard 400 V for the PV array and line transmission and convert this voltage into the required one at the charging point, depending on the pole configuration.

Combining the output voltage for a single panel with the global 400 V voltage for the power supply to the charging station, the number of serial PV modules is as follows:

$$n_s={\displaystyle \frac{400}{46}}=8.69$$

(5)

If we round the result from Equation (5), the effective number is nine.

Repeating the process for the current, considering the maximum power supply required by the charging station (Table 3), the number of parallel strings is as follows:

$$n_s={\displaystyle \frac{346000}{9\times 444}}=86.58$$

(6)

If we round the result from Equation (5), the effective number is 87.

Therefore, the PV array configuration results in a set of 87 parallel strings of nine panels in series for a total of 783 panels, which generate a global output power of 347.65 kW, 0.5% above the required value.

The above calculation is valid for a single pole with four charging points of power supply, as shown in Table 3; if the charging station includes multiple charging poles, we should resize the system according to the number of poles. In the next section, we develop the case of numerous charging poles in a charging station.

6. Charging Station Layout Engineering

The charging station layout engineering is based on a modular functioning that can be replicated and enlarged depending on current requirements. As we have mentioned before, the basic unit is a charging pole with four sockets, one per power supply; this configuration permits the charging of four electric vehicles simultaneously, provided the charging power requirements are different for each one, with a slow (22 kW), medium (48 kW), fast (96 kW), and extra fast (180 kW) charging rate. The supply voltage range is 360 to 800 V.

Table 7. Electric characteristics of the charging station.

Power (kW)	22			48			96			180
Voltage (V)	360	400	480	360	400	480	400	480	800	400	480	800
Current (A)	61	55	45	133	120	100	266	200	60	450	375	225

summarizes the main characteristics of the charging station layout.

The charging station operates under direct current (DC) since it allows a higher charging rate than alternating current.

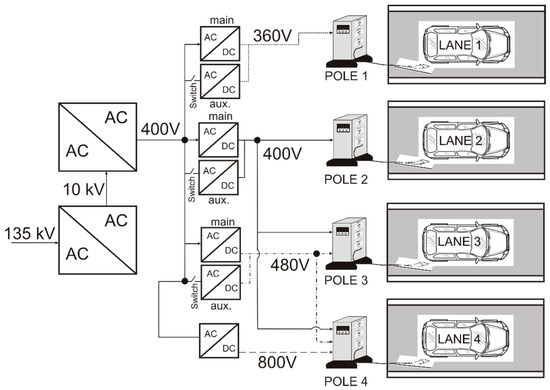

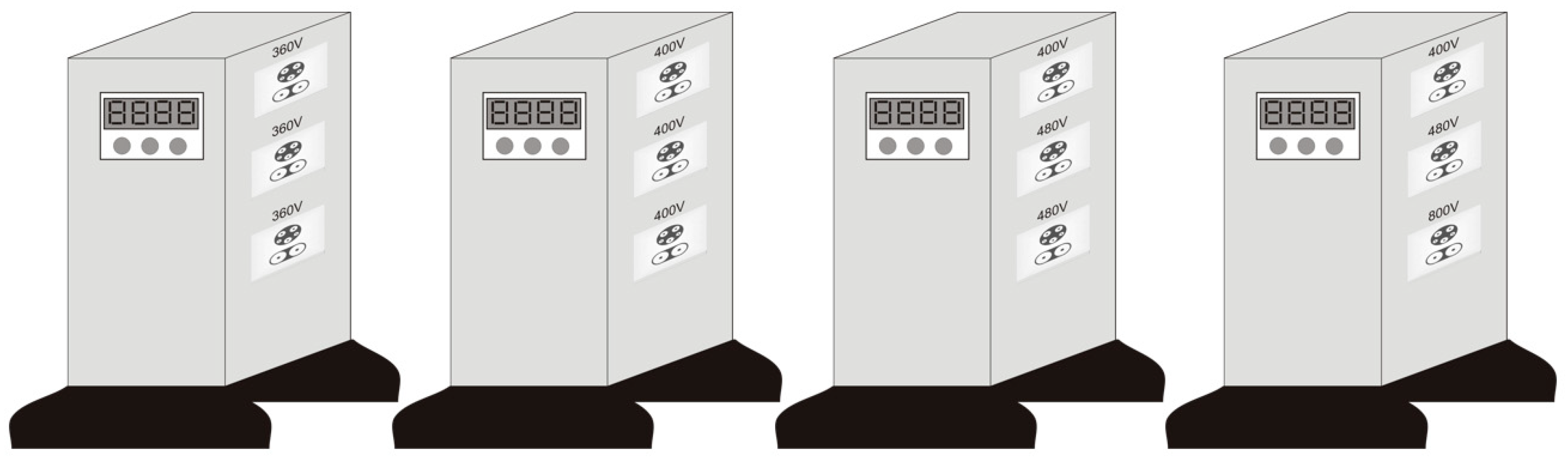

The basic design of the charging station includes four charging poles with four sockets for each pole. Figure 8 shows the voltage supply for each pole and socket.

We observe that one charging pole is exclusively dedicated to a voltage supply of 360 V (first from the left) and another to 400 V (second from the left) because these are the most common electric vehicle motor voltages in the vehicle fleet. The other two charging poles combine a voltage supply from 400 V to 800 V due to the lower number of electric vehicles with 480 and 800 V electric motors.

Since the electric transmission line operates at 135 kV alternating current, the engineering requires a multiple voltage conversion; to do so, we use a first voltage conversion from 135 kV to 10 kV and a second conversion from 10 kV to 400 V. These two conversions are in alternating current. The reason for converting from high to low voltage in two steps is to reduce energy losses, since a drastic voltage reduction increases energy losses in the voltage converter. A higher number of voltage conversions in more than two steps would require multiple voltage converters, meaning higher investment and maintenance costs. Therefore, the two-step voltage conversion optimizes the energy losses to investment ratio. Figure 9 shows the voltage conversion layouts’ engineering.

According to the previous statement of reducing the transmission line voltage conversion in two steps, the electric engineering operates with a reference voltage. We decided to operate at 360, 400, 480, or 800 V as the reference voltage, analyzing the energy losses derived from the initial conversion from 10 kV to the selected voltage, and from this value to the required ones at the pole sockets. The analysis concludes that the optimum reference value is 400 V.

Once the voltage has been reduced to 400 VAC, we convert it into direct current using specific rectifiers depending on the voltage supply; therefore, the electric circuit engineering requires four types of voltage rectifiers: 400 VAC to 360 VDC, 400 VAC to 400 VDC, 400 VAC to 480 VDC, and 400 VAC to 800 VDC. We decided to duplicate each type of rectifier to avoid unexpected service stops in case of failure.

7. PV Power Plant Layout Engineering

Based on data for a single charging pole, shown in the Energy Demand section, and considering the charging station layout from Figure 9, the prototype requires a global power of 1776 kW, corresponding to four charging poles of 444 kW each. On the other hand, if we transport this power at the 400 VDC corresponding to the PV array output voltage, as described in a previous section, the energy losses are enormous; indeed, for every kilometer of transmission line from the PV power plant to the charging station, operating under these values, we have the following power losses:

$${\xi }_L=I^{2}R={\left({\displaystyle \frac{P}{V}}\right)}^{2}R={\left({\displaystyle \frac{1776\times {10}^3}{400}}\right)}^{2}1=19.7\times {10}^{6}W=19.7MW$$

(7)

Nevertheless, if we operate at a high voltage, 135 kV, the power losses are reduced to the following:

$${\xi }_L={\left({\displaystyle \frac{1776\times {10}^3}{135\times {10}^3}}\right)}^{2}1=137W$$

(8)

The new value represents a negligible power loss amount.

Since the basic PV array layout produces 347.65 kW, we need to replicate this basic configuration to reach the global power; therefore, the number of PV array blocks in the PV power plant matrix is as follows:

$$m={\displaystyle \frac{1776}{347.65}}=5.11$$

(9)

Because of the fractional number, two options arise for the PV power plant configuration; the first is to install five blocks with the same characteristics as for the PV array and a smaller PV array to complete the fractional number, while the second is to design five identical PV array blocks incrementing the number of PV modules in each block with regard to the original configuration.

Since the voltage conversion from 400 VDC to 135 kV alternating current is too high, we decided to group every two serial strings in pairs, doubling the string output voltage, reducing the voltage conversion factor, and lowering the energy losses at the DC/AC converter.

Table 8. PV power plant characteristics (per block).

Configuration	PV Array Blocks	PV Modules Number	Serial String Number	Parallel Row Number	Output Voltage (V)	Output Current (A)	Global Output Power (kW)
A	5	783	18	44	828	424.6	351.6
	1	90	18	3	828	28.95	24
B	5	792	18	46	828	443.9	367.5

summarizes the PV power plant characteristics of the two options.

Configuration B uses more PV modules, 4140 versus 3969 for configuration A, but its design is less complex since it uses the same structure for every block. On the other hand, configuration B generates 1837.5 kW versus 1782.0 kW for configuration A, which is 3% higher, representing a safety factor in case of increasing demand at the charging station. Therefore, we decided to adopt configuration B as the reference for our prototype.

The PV power plant uses an area of 3054 m², corresponding to a rectangular space of 61.08 m × 50 m, as shown in Figure 10.

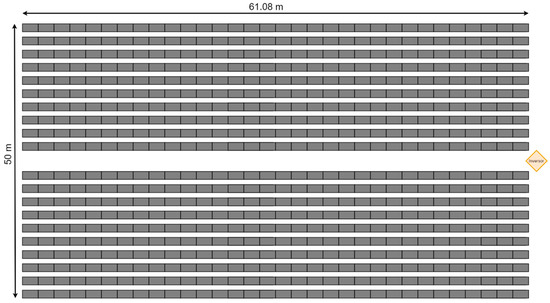

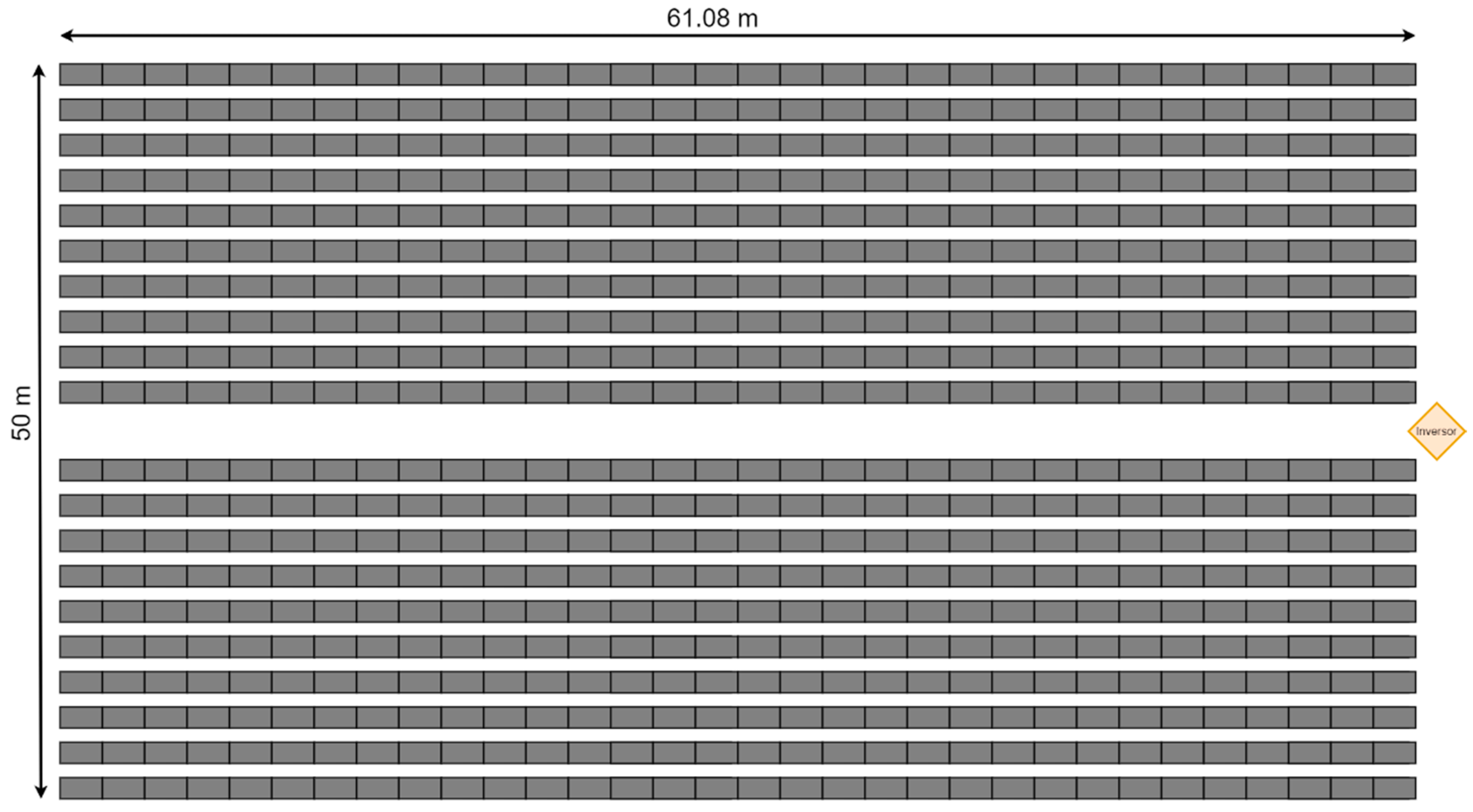

Figure 10 shows a simulated view of the PV power plant prototype layout; therefore, the number of parallel rows and serial strings do not correspond to current values.

The PV power plant uses four DC/AC converters, model INGECON^® SUN 330TL M12 from the INGETEAM company (Milwaukee, WI, USA) [39], for a total of 24 inputs and 12 MPPT units; however, due to design specifications, the converters only use 20 inputs and 10 MPPT units.

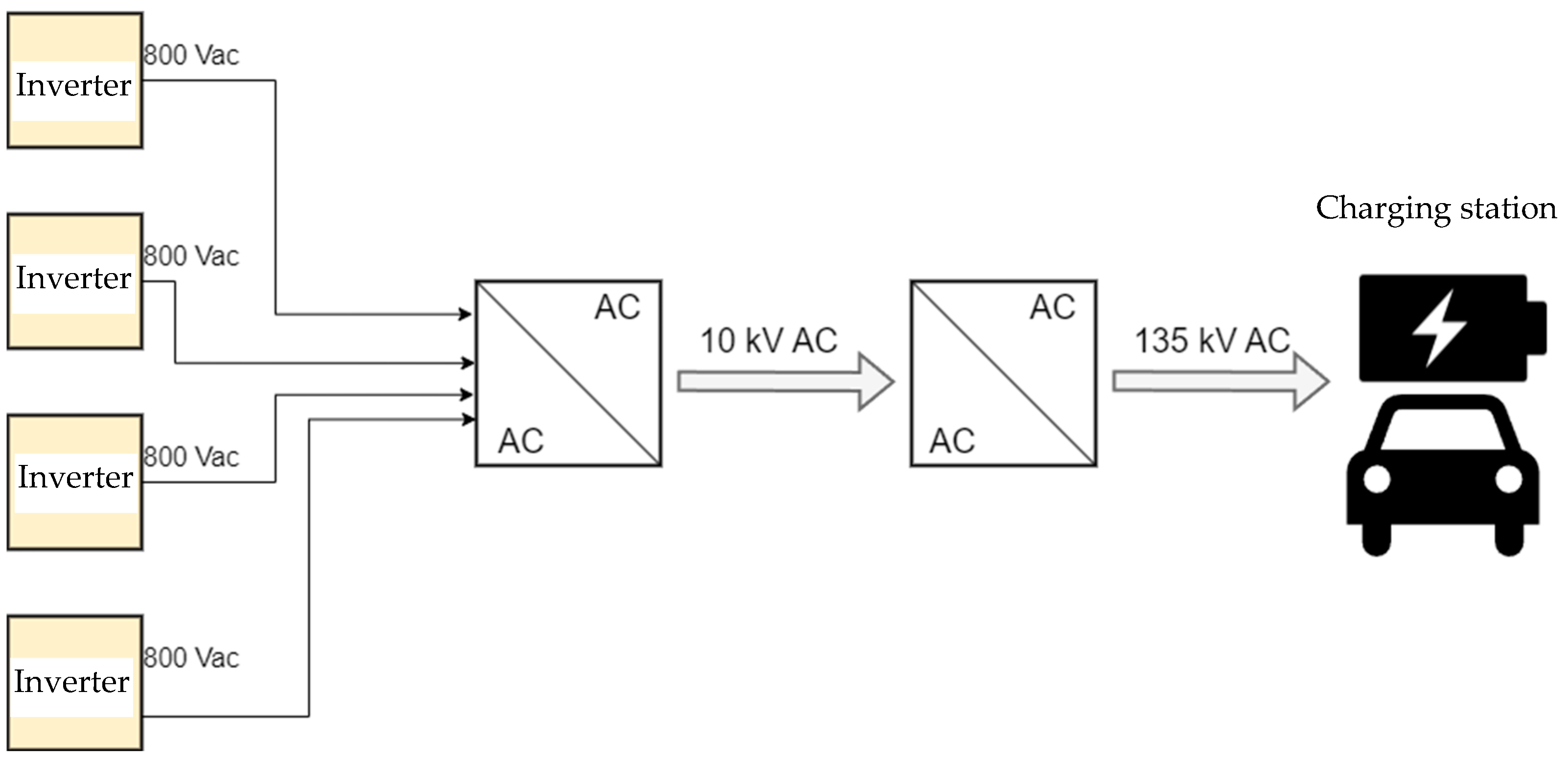

Every converter output connects to the voltage transformation station that elevates the voltage to 135 kV for the transmission line. The process develops in two steps; the first elevates the voltage from 800 VDC to 10 kV alternating current and the second from 10 to 135 kV AC. Figure 11 shows the schematic representation of the voltage transformation process.

8. Transmission Line to Charging Station Electric Engineering

The electric connection between the transmission line and the charging station depends on the power source, renewable energy plant, grid, or storage unit. Therefore, there may be an alternating-current bus configuration, a direct-current bus configuration, or a combination of the two. We can see the AC and DC bus configurations in Figure 12 and Figure 13.

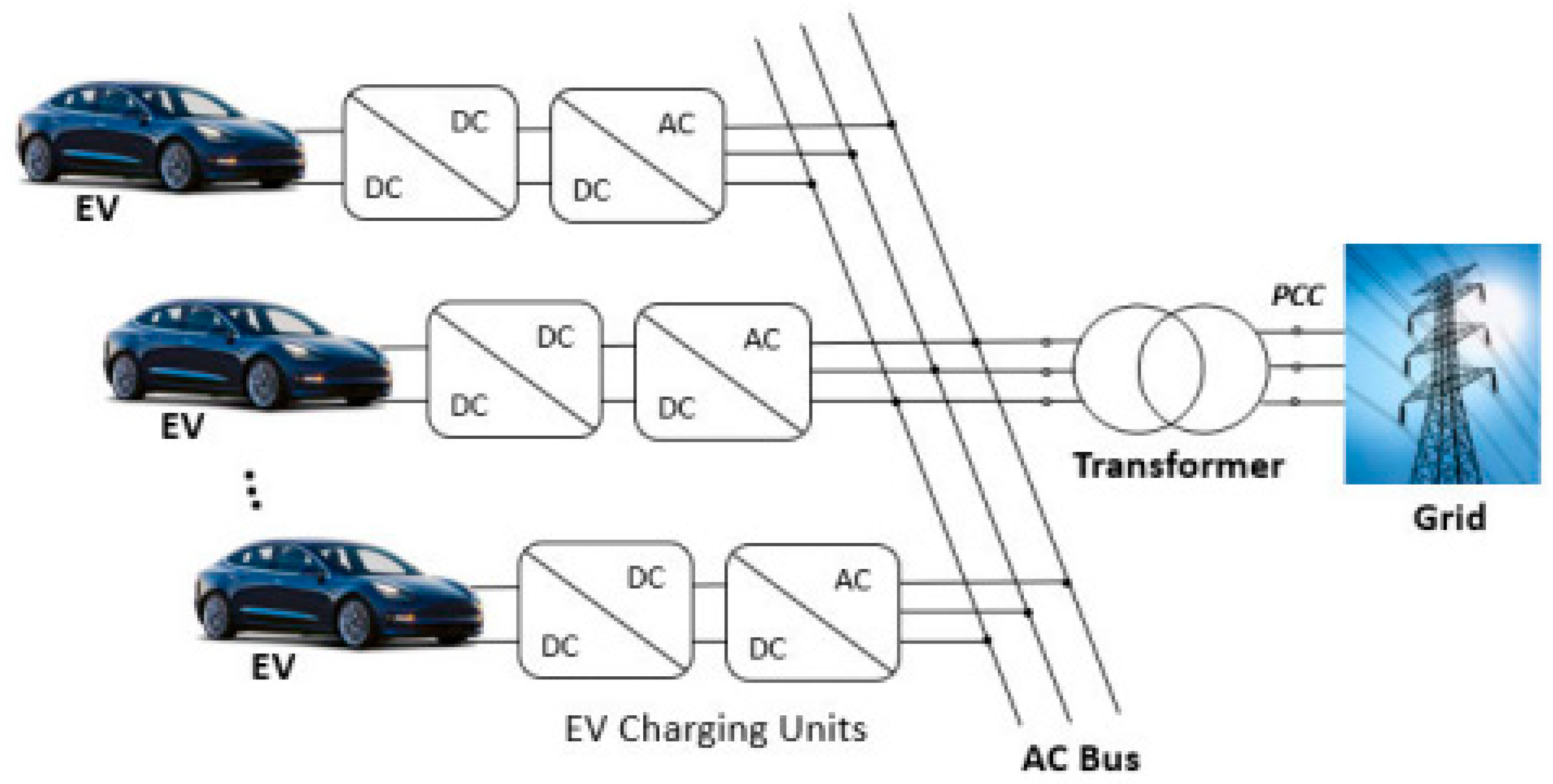

The AC bus configuration is characterized by an AC/AC transformer that reduces the 135 kV from the line transmission to 10 kV in the AC bus. The 10 kV alternating current is then converted into direct current at the reference voltage, 400 V, using an AC/DC converter; the process is replicated in three lines to service the final DC voltage supply sockets at 360, 480, and 800 volts.

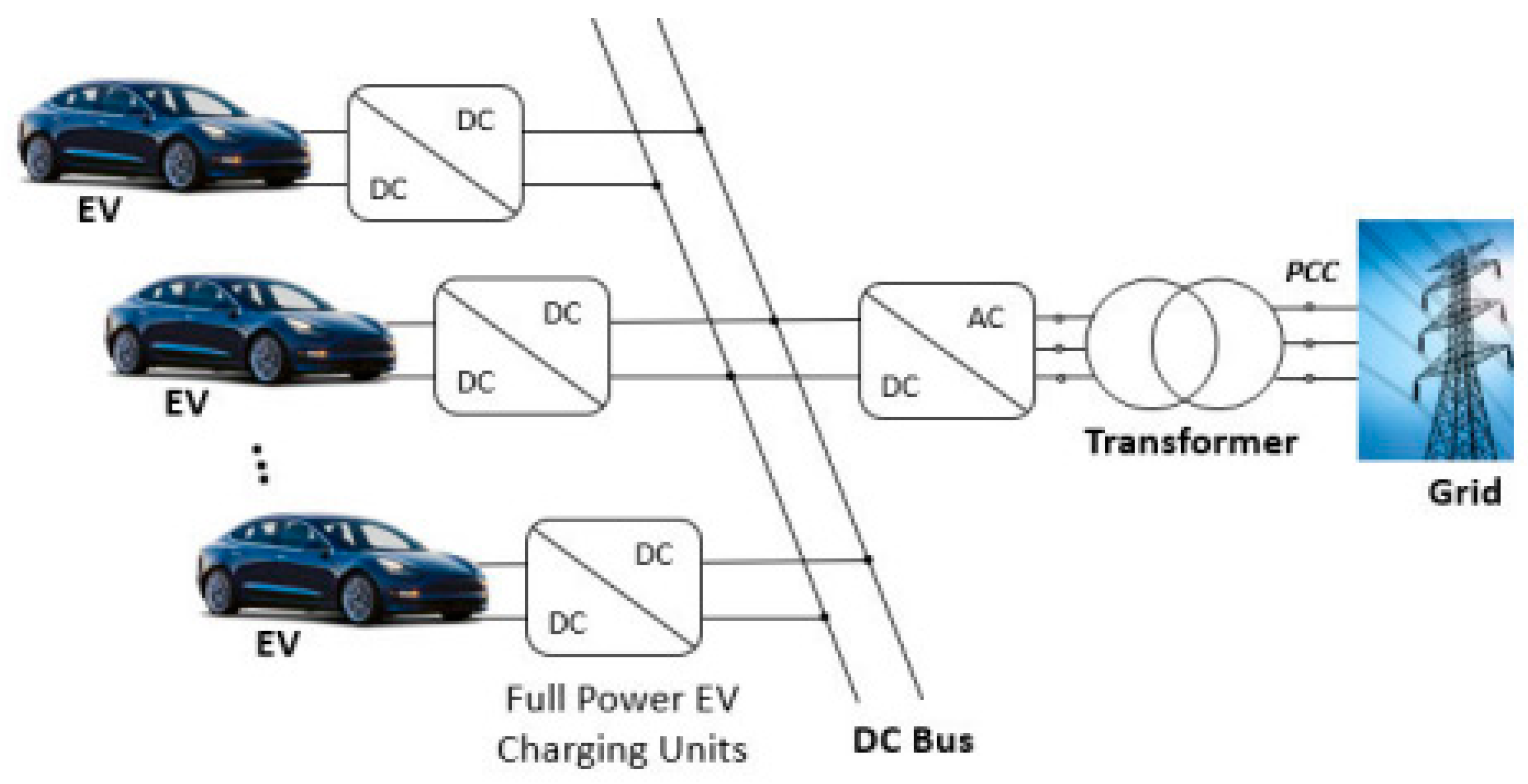

The DC bus configuration is characterized by an AC/AC transformer that reduces the 135 kV from the line transmission to 10 kV and an AC/DC converter, which reduces the 10 kV alternating current to 400 volts direct current at the DC bus. The 400 V is reduced to 360 V or elevated to 480 or 800 V using the corresponding DC/DC converter to service the final DC voltage supply sockets at 360, 480, and 800 volts.

9. Charging Station Wiring Design and Engineering

The voltage drop in the transmission lines is due to the Joule effect. We need to size the wires correctly to minimize the energy losses during transmission. The wire section derives from the following expression [40,41,42]:

$$S={\displaystyle \frac{1}{28}}{\displaystyle \frac{I^2}{\Delta V}}$$

(10)

S is the wire section, I is the transported current, and ΔV is the voltage drop percentage.

Because the national legislation differs for every country, we selected a 1.5% voltage drop percentage, a current value admitted in many Western countries [43,44]. Since we operate with different power and voltage supply values, we size the wire section according to every configuration. Considering a 5 m length for every power supply hose, the wire sizing is as follows (

Table 9. Wire sizing for the charging points.

Power (kW)	22			48			96			180
Voltage (V)	360	400	480	360	400	480	400	480	800	400	480	800
Current (A)	61	55	45	133	120	100	266	200	60	450	375	225
Section (mm2)	25	25	25	60	50	35	150	120	25	300	240	120
Percentage losses in 5 m	0.8	0.7	0.5	1.38	1.34	1.33	2.21	2.24	1.34	3.15	2.73	1.97

):

10. Simulation

Applying data from the previous development, we run a simulation process based on the engineering design to validate the proposed prototype. The simulation uses data from previous development and focuses on determining the feasibility of the system and its autonomy.

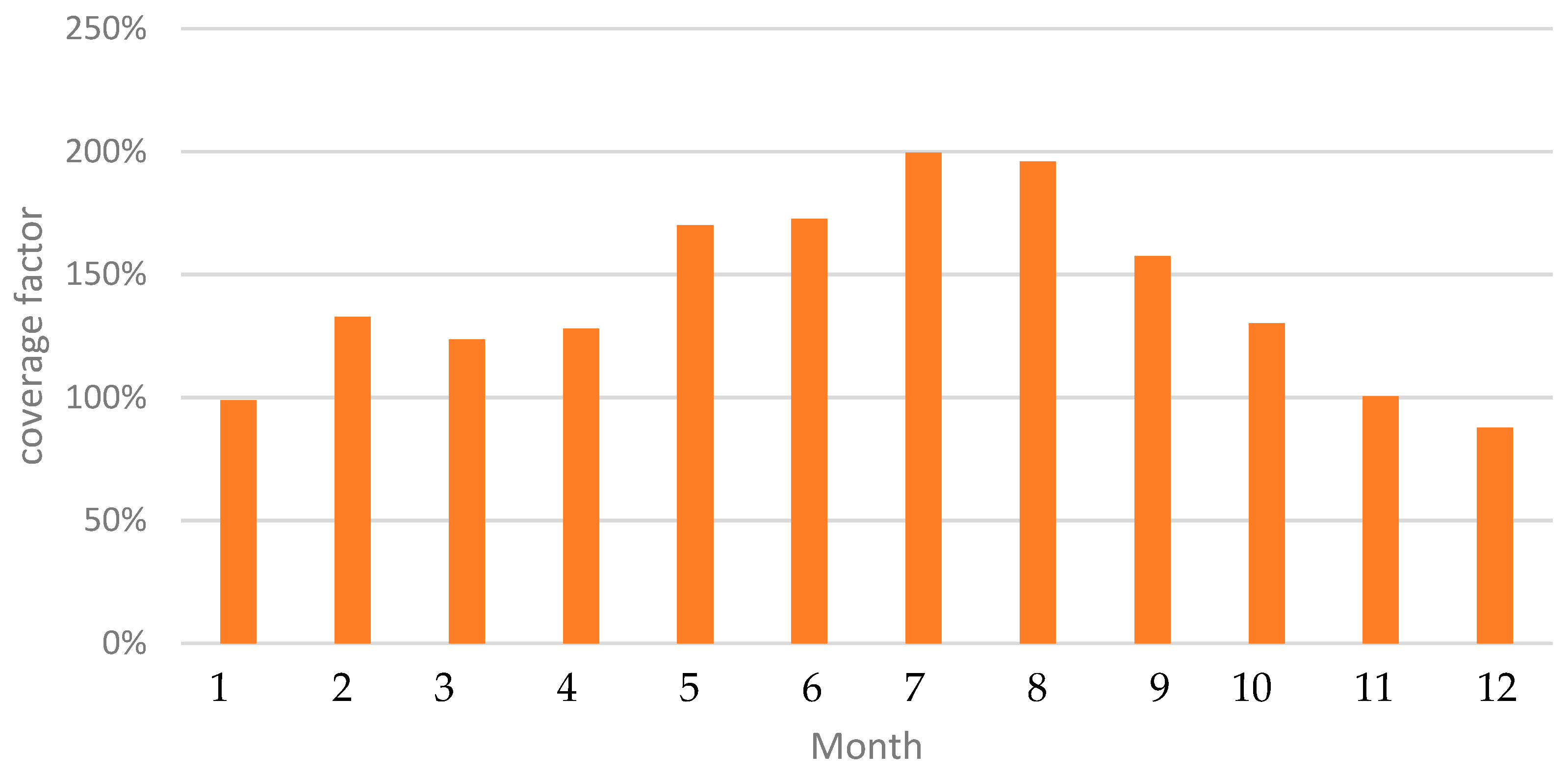

The first simulation step evaluates the solar energy coverage factor, defined as the ratio between the photovoltaic power generation and energy demand. Considering the data from the designed PV power plant and the charging station, calculated in previous sections, we obtain the following results (Figure 14):

The proposed PV power plant produces a solar photovoltaic energy coverage factor above 100% for the entire year except in December, where the coverage factor barely reaches 88%. The coverage factor in January was 99%, near the required 100% to ensure the functioning of the charging station. On the other hand, the energy excess generated from February to November can be stored in electric batteries and used in January and December to guarantee complete energy coverage from the PV power plant. The power supply is guaranteed because the coverage factor exceeds the 100% coverage factor in various months of the year.

We also run a daily energy coverage to verify the system feasibility; to do so, we evaluate the daily hourly evolution for the characteristic day of every month. We only show the results for the lowest and highest energy coverage months to validate the simulation process (Figure 15).

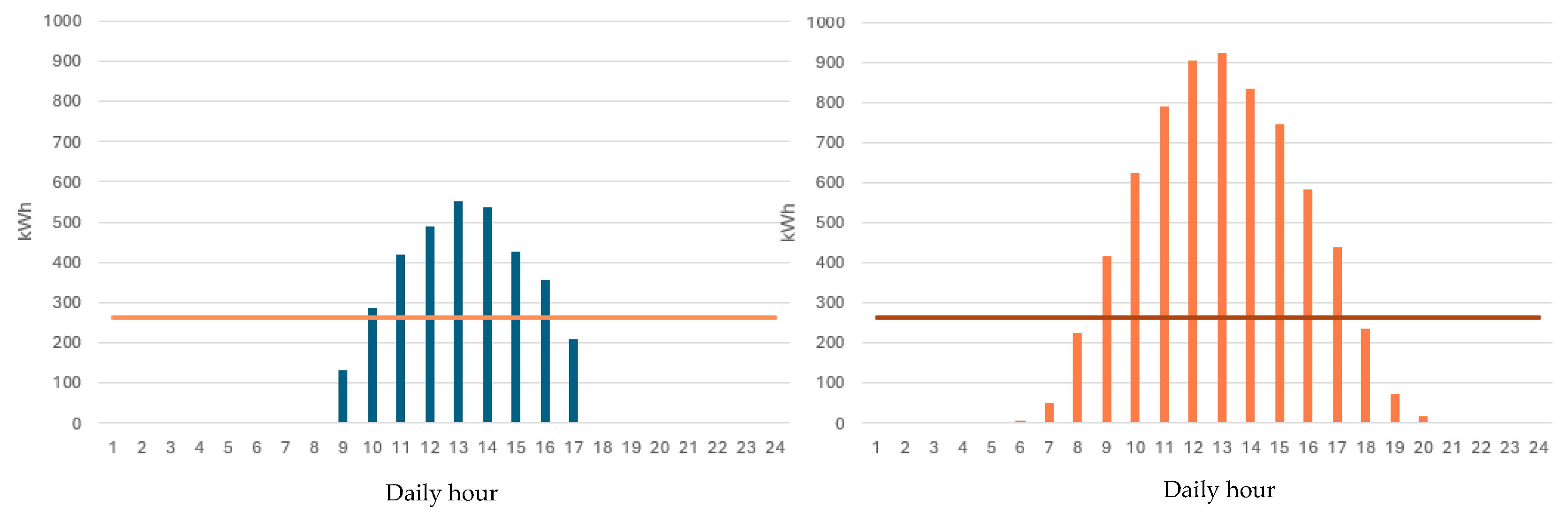

The horizontal line in Figure 15 represents the charging station energy demand, which is considered to be constant. The bars represent the photovoltaic power supply. It is clear that solar photovoltaic power does not cover the energy demand from sunset to sunrise (night hours); nevertheless, this is the period of lowest activity at the charging station, matching the time when the charging station requires low or no energy because of the small number of charging sockets being used. On the other hand, the excess power generation during the central hours of the day, from 10:00 to 16:00 in the poorest month (left side) and from 09:00 to 17:00 in the best month (right side), compensates for the lack or absence of photovoltaic power supply.

Energy Compensation

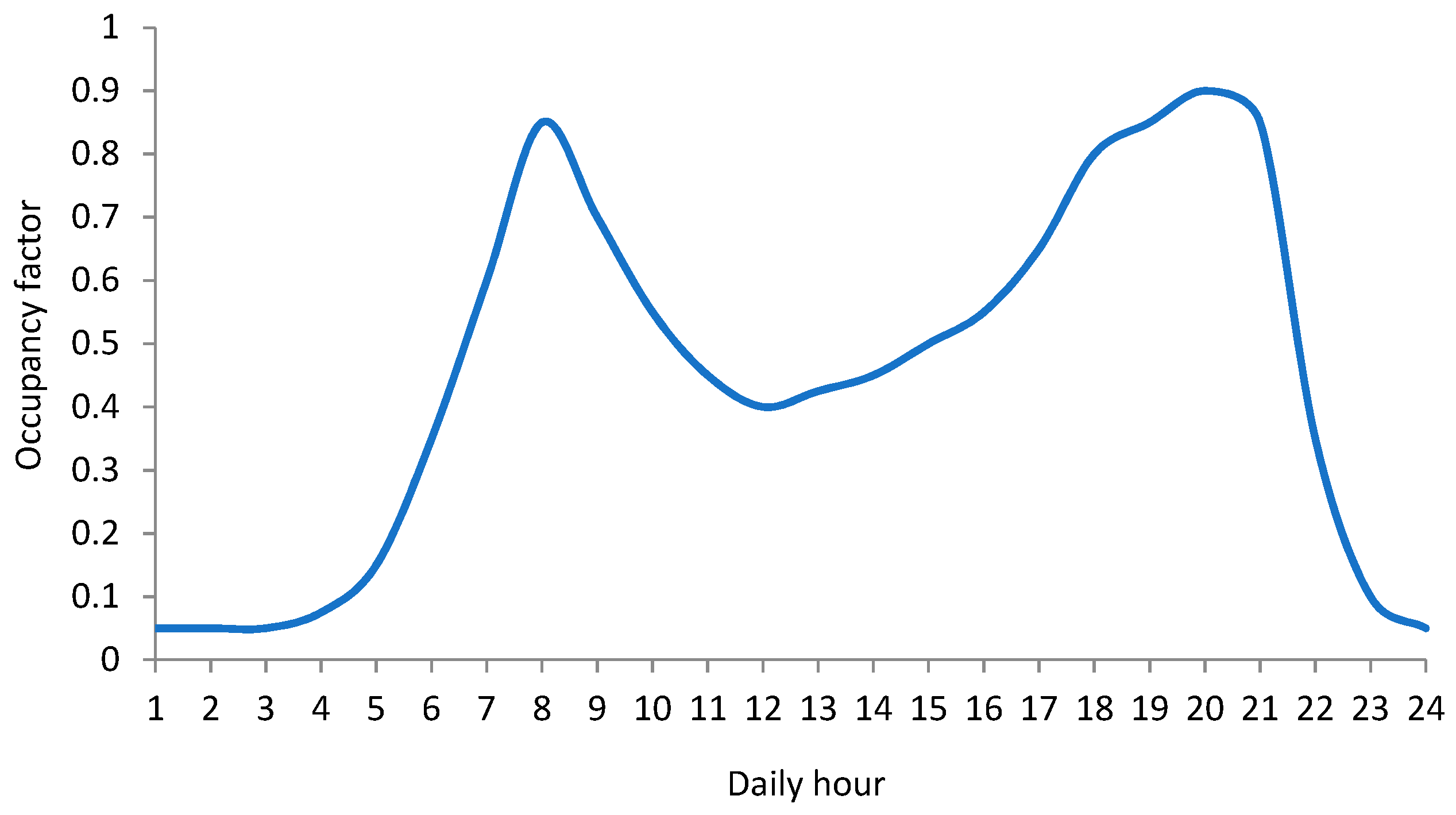

Based on statistical data from many countries, the occupancy of charging poles in an electric vehicle charging station follows human activity, which reduces drastically during night hours (Figure 16) [45,46,47]. Therefore, the lack or absence of solar photovoltaic power is minimized and compensated for by the excess during the central hours of the day, considering the balance between the grid and PV facility and the grid as a virtual battery.

Combining the maximum power demand and the occupancy factor, the daily energy demand distribution in the charging station yields the following (Figure 17):

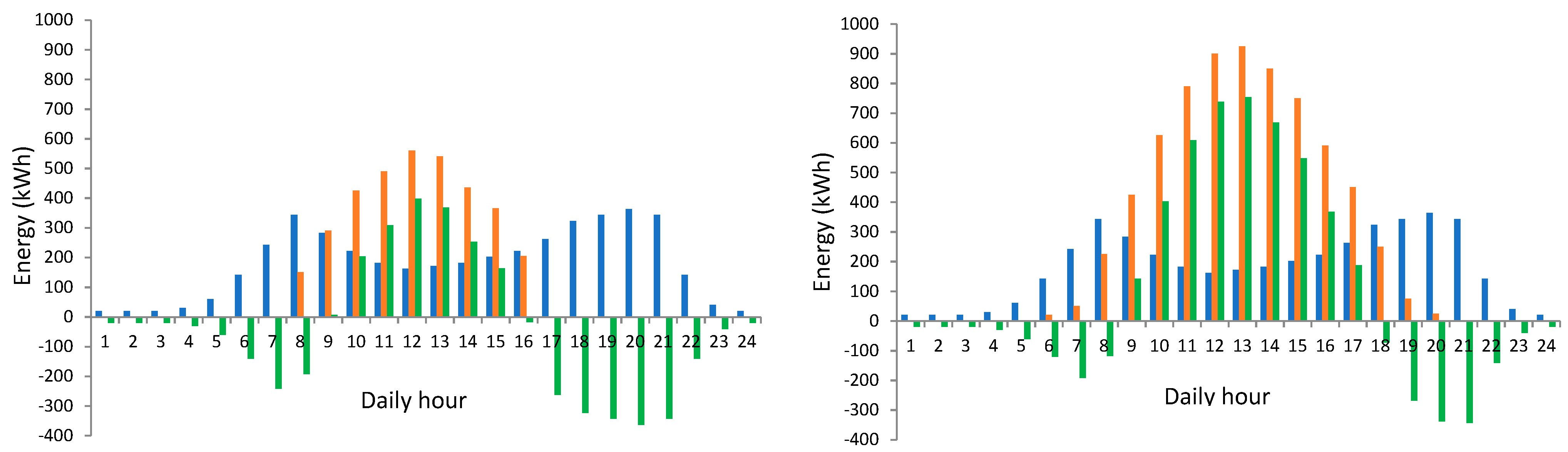

The bars in Figure 17 represent the PV power supply (orange), the charging station energy demand (blue), and the energy balance (green). We observe that some green bars are negative, indicating a lack of power supply from the PV power plant during these hours; nevertheless, the cumulative negative energy balance is partially or completely compensated for by the hours when the PV power supply exceeds the energy demand from the charging station.

We analyzed the daily energy balance compensation for each month, and we found that only in January and December were the monthly energy balance results negative; however, if we extend the energy balance compensation throughout the year, the result becomes positive, indicating the system is energetically feasible provided we implement a storage unit to compensate for the negative and positive monthly energy balance.

11. Energy Storage Engineering Design and Sizing

We have only two months with a negative energy balance, December and January; therefore, we determine the cumulative energy balance for these two months. Because the two months are consecutive, the storage unit energy capacity should match the cumulative energy balance.

Using data from the simulation, the cumulative energy balance for the two months is −952.7 kWh. The battery capacity is given by the following formula [48]:

$$C_n={\displaystyle \frac{\xi }{V_{bat}}}$$

(11)

C_n, V_bat, and ξ are the battery nominal capacity, operating voltage, and energy capacity, respectively.

Considering that the battery operates at the reference voltage for the system, 400 V, the nominal capacity is as follows:

$$C_n={\displaystyle \frac{952.7\times {10}^3}{400}}=2381.75\hspace{0.33em}Ah$$

(12)

This capacity corresponds to a discharge current of 119 A, matching a discharge rate at 20 h.

The battery capacity, however, depends on the discharge rate according to the following expression [49]:

$$C_r=f_C{C}_n$$

(13)

C_r is the current battery capacity for a given discharge rate, and f_C is the capacity correction factor, which is expressed as follows:

$$f_C={\left({\displaystyle \frac{C_n{V}_{bat}}{20P_t}}\right)}^b$$

(14)

P_t is the power demand, and b is a coefficient that depends on the type of battery. For lithium-ion batteries, b = 0.0148, and for lead–acid ones, b = 0.1701 [50].

Retrieving data from the simulation for the maximum negative power demand, we obtain the following:

$$f_C=\left\{\begin{array}{c}{\left[{\displaystyle \frac{(2381.75)(400)}{20(363.3\times {10}^3)}}\right]}^{0.0148}=0.970\to Li-ion\\ {\left[{\displaystyle \frac{(2381.75)(400)}{20(363.3\times {10}^3)}}\right]}^{0.1701}=0.708\to Pb\end{array}\right.$$

(15)

Therefore, the corrected battery capacity for the storage unit is as follows:

$$C_n=\left\{\begin{array}{c}{\displaystyle \frac{2381.75}{0.970}}=2455.4\hspace{0.33em}Ah\hspace{0.33em}(Li-ion)\\ {\displaystyle \frac{2381.75}{0.708}}=3364.1\hspace{0.33em}Ah\hspace{0.33em}(Pb)\end{array}\right.$$

(16)

The lead–acid battery capacity is 37% higher; however, the lithium-ion battery costs 40% more, compensating for it. We therefore base the selection on maintenance and replacement costs, where lithium-ion batteries are cheaper; our selection is a lithium-ion battery block of 2500 Ah at 400 V.

No single cell fulfills the mentioned capacity and voltage; therefore, we design the battery block by grouping lithium-ion cells in series and parallel to fit the required values. The commercial units may reach up to 22.1 kWh per battery block, grouping cells of 3 Ah and 4.2 volts per cell. The battery block configuration consists of 19 parallel strings of 95 cells for a total energy capacity of 22.7 kWh. The final battery layout consists of 16 blocks of 22.7 kWh coupled in parallel to reach the required energy capacity of 363.3 kWh for negative energy balance compensation.

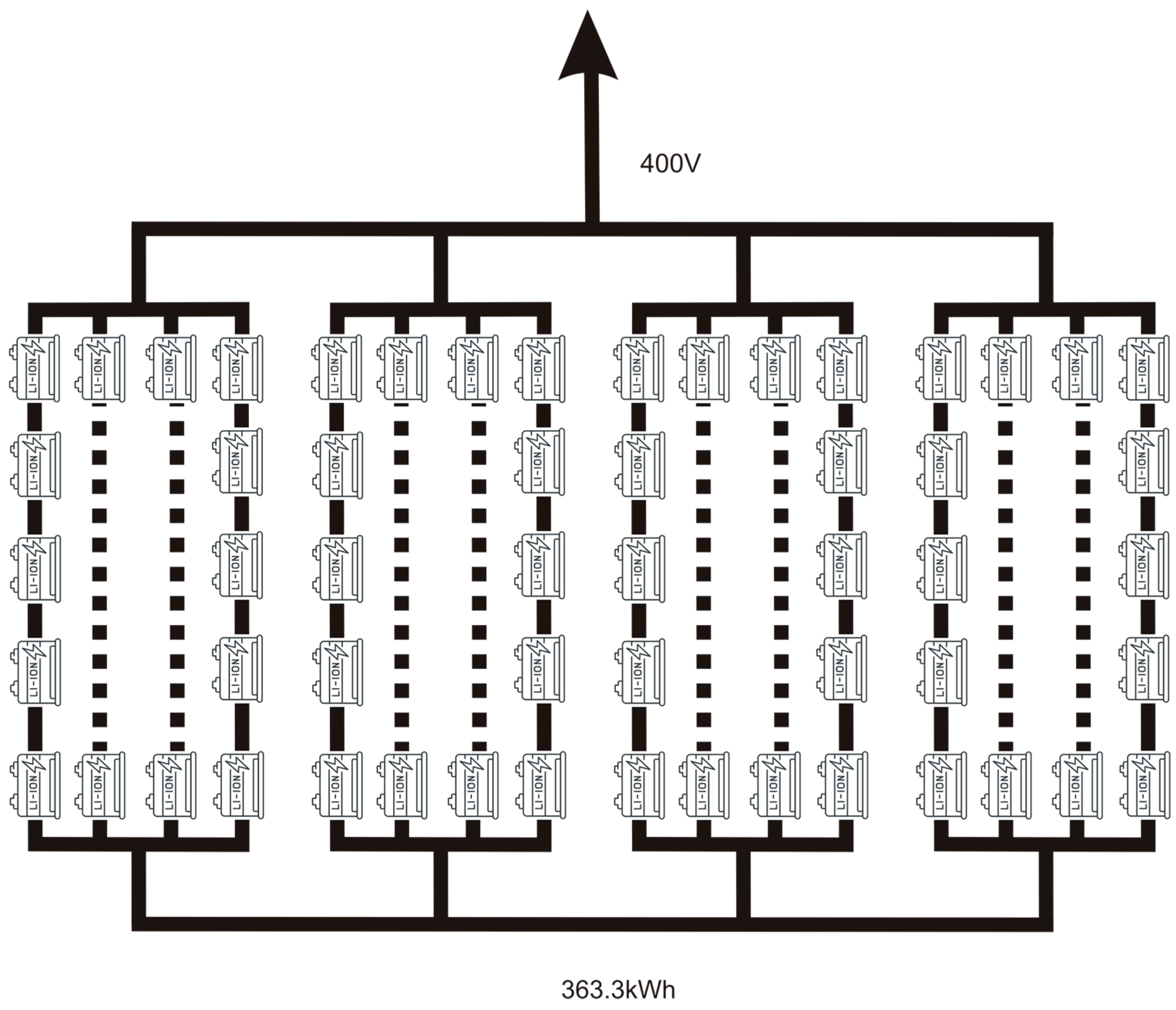

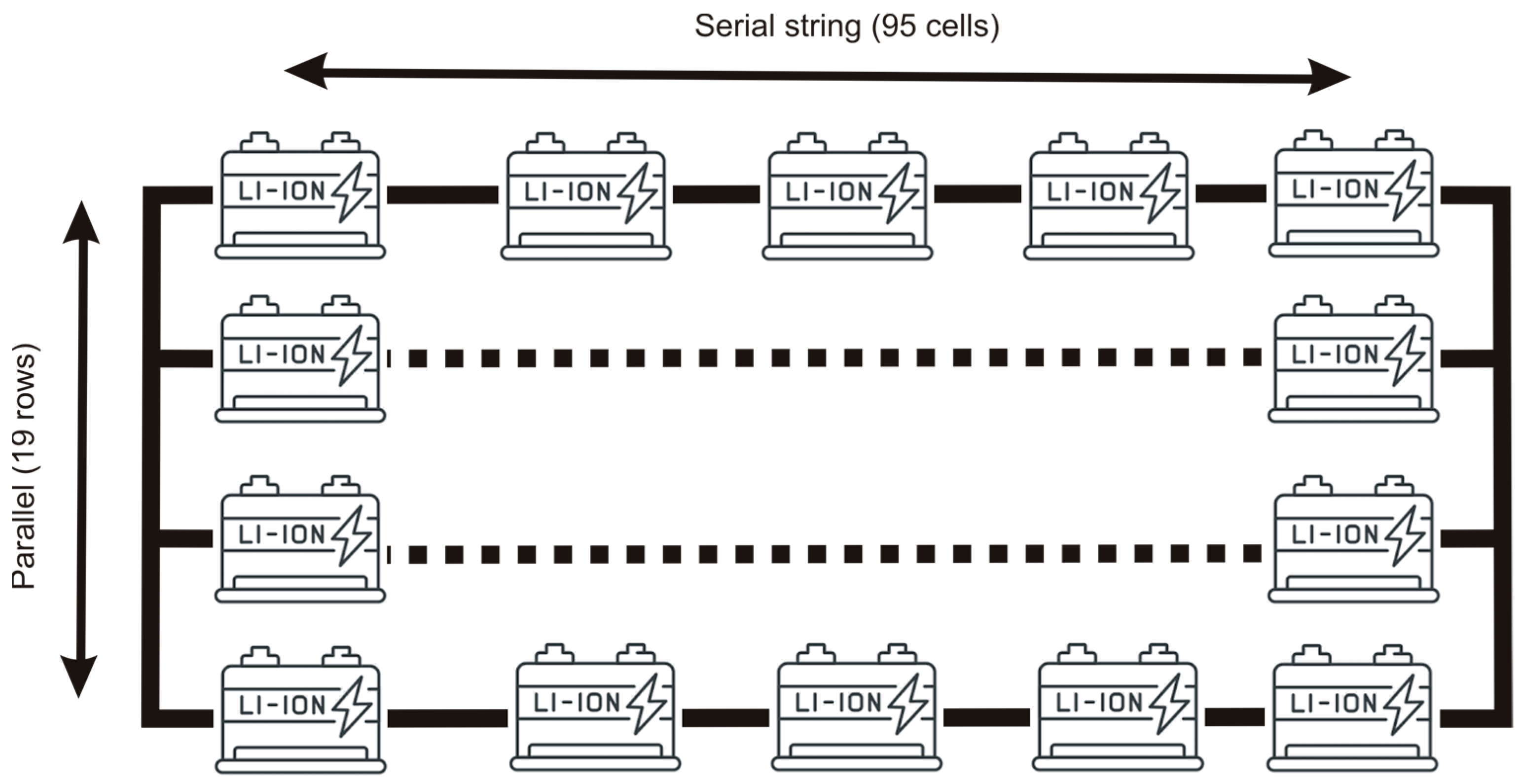

Figure 18 and Figure 19 show the engineering design of the battery block and storage unit.

12. Control Unit

The charging station operates automatically without on-site operator supervision. Users manipulate the charging socket following instructions specifically addressed to guide the users to recharge the electric vehicle according to their needs. The charging protocol appears on the charging pole screen, where the users may select the charging mode and the charging parameters like the driving range, charging time, charging rate, and operational voltage.

The charging process develops according to one of the following parameters to be selected by the user: charging time, specific driving range, or battery capacity percentage. If the parameter does not correspond to electric vehicle battery characteristics, the protocol shows an error and asks the user again to introduce a valid value for the selected parameter.

Once the user selects the parameter and introduces a valid value, the protocol asks the user to choose the charging power depending on the electric vehicle battery voltage (see Table 7). The protocol calculates the charging parameters depending on the charging rate and shows the relevant charging process parameter on the charging pole screen for the user’s information.

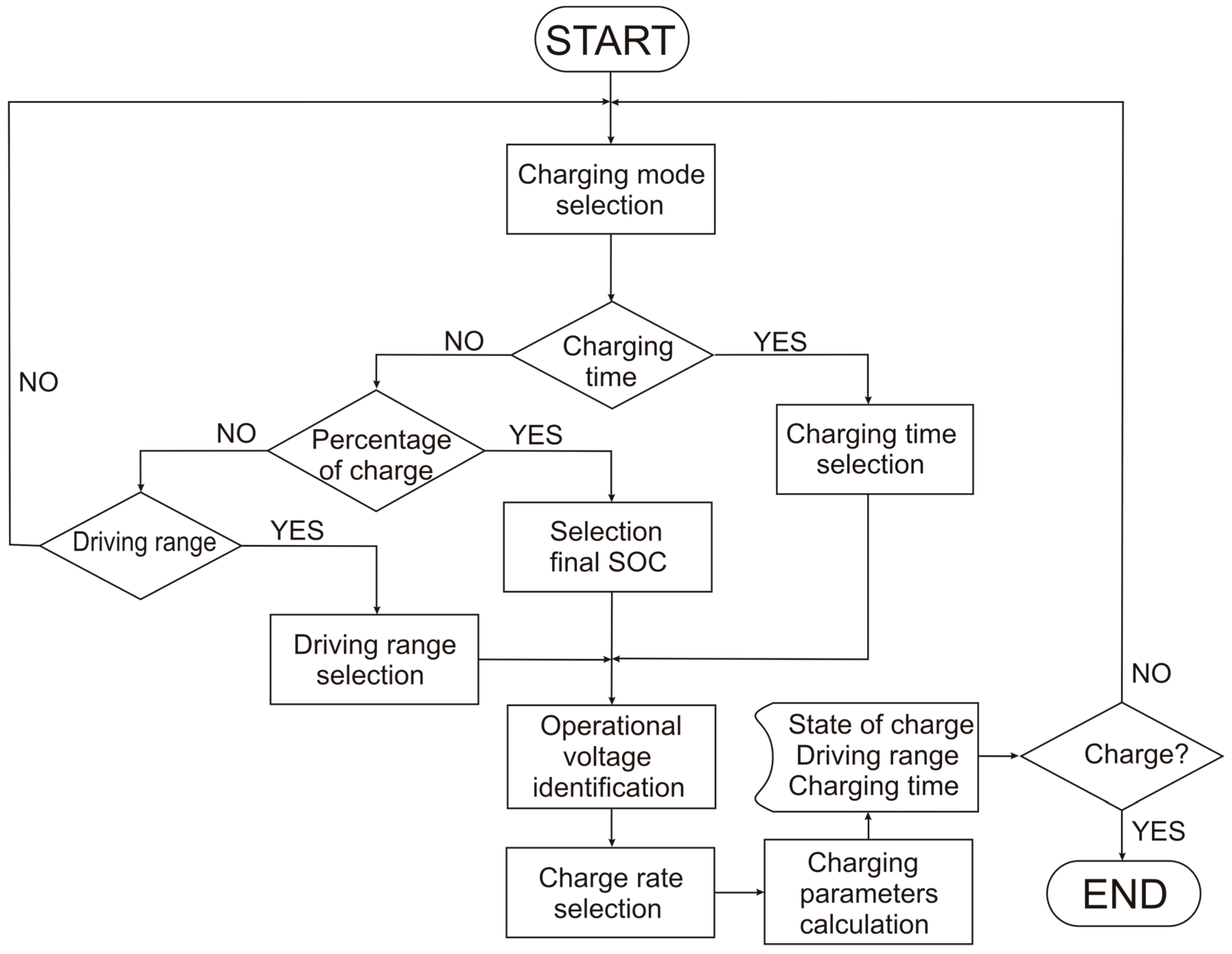

Figure 20 shows the protocol that controls the charging process.

13. Life Cycle Cost

The feasibility of the proposed installation depends on the economic reliability; with this goal in mind, we develop a Life Cycle Cost (LCC) analysis to prove the project’s viability. The LCC process is based in the software developed by the Alaska Department of Education & Early Development [51].

Table 10. Life Cycle Cost analysis of the proposed system.

Concept	Cost (EUR)
Initial investment	298,455
Operations	44,223
Maintenance and repair	92,130
Replacement	31,576
Residual value	0
Total LCC	466,384

shows the LCC development.

Considering a 25-year exploitation, the yearly revenue represents EUR 18,655, or EUR 1555 per month, an amount that is perfectly feasible.

Details of the initial investment costs are as follows:

Concept	Cost (EUR)
Construction management	4875
Land acquisition	94,674
Site investigation	1020
Design services	5100
Construction	29,250
Equipment	110,088
Technology	17,049
Indirect/administration	6250
Art	17,649
Contingency	12,500
TOTAL	298,455

The internal rate derives from the following expression:

$$F_{RC}={\displaystyle \frac{r}{\left[1-{\left(1+r\right)}^{-N}\right]}}$$

(17)

r is the yearly interest rate, and N the investment payback time.

Considering an average interest rate of 3%, the internal rate as a function of the payback time is as follows (

Table 11. Yearly internal rate as a function of investment payback time.

N	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
FRC	1.03	0.52	0.35	0.27	0.22	0.18	0.16	0.14	0.13	0.12	0.11	0.10	0.09	0.09	0.08

):

Using the F_RC value, the required electricity cost for the payback time is as follows:

$${\zeta }_{el}={\displaystyle \frac{C_c{F}_{RC}+C_{OM}}{\xi }}$$

(18)

C_c is the investment cost, C_OM is the operation and maintenance costs, and ξ is the yearly energy demand.

Applying data for our system, we obtain the following (

Table 12. Electricity cost vs. payback time.

N	2	3	4	5	6	7	8
ζel	0.1764	0.1511	0.1481	0.1540	0.1644	0.1773	0.1918
N	9	10	11	12	13	14	15
ζel	0.2074	0.2237	0.2406	0.2579	0.2754	0.2933	0.3028

):

On the other hand, considering the average price of electric energy, 0.1781 EUR/kWh [52], the investment payback time is around seven years, which we consider a suitable value for an investment since the system lifespan is 25 years.

14. Conclusions

Using renewable energy sources to supply electric vehicles makes this transport solution sustainable, resilient, and future-proof. The design proposed in this work covers current and future standards for electric cars, also making it possible to replicate the design in different locations, increasing or decreasing the number of stations and the generator to meet demand based on the expected influx and the solar resource present at the location.

In places where solar resources are high and with great potential for use in electric vehicle charging infrastructure, this work demonstrates the feasibility of their use as an alternative to traditional energy sources, with CO₂ emissions, which are increasingly falling into disuse.

The modular design allows for expansions, either in the number of stations or in the supply power, at a relatively low cost, making this installation especially attractive.

The independence from external sources, battery packs, or grid connection allows this type of installation to adapt to areas where access to the grid is complex, expensive, or impossible, as well as in areas where the power supply from the grid is subject to periodic failures or interruptions.

This independence also makes expansions of the installation economically feasible because they do not require the expansion of the supply network, which in many cases limits the installation or expansion of renewable energies. The greater complexity of systems connected to the grid with or without a storage unit makes them more prone to failure and requires higher maintenance.

For all the above reasons, electric vehicle charging stations powered by photovoltaic solar energy are a solution for the present and the future, not requiring a grid connection to build an installation suitable for present and future electric mobility standards.

The LCC analysis shows the economic viability of the proposed project.
