Article

Cropping Flax for Grain and Fiber: A Case-Study from Italy

by
Piernicola Masella
1,2,*,
Giulia Angeloni
2 and
Incoronata Galasso
1
1
Institute of Agricultural Biology and Biotechnology, National Research Council (IBBA-CNR) Via A. Corti 15, 20133 Milan, Italy
2
Dipartimento di Scienze e Tecnologie Agrarie, Alimentari, Ambientali e Forestali (DAGRI), Università degli Studi di Firenze, Piazzale delle Cascine 15, 50144 Florence, Italy
*
Author to whom correspondence should be addressed.
Biomass 2024, 4(2), 599-609; https://doi.org/10.3390/biomass4020032
Submission received: 19 April 2024 / Revised: 20 May 2024 / Accepted: 31 May 2024 / Published: 6 June 2024
(This article belongs to the Topic Biomass for Energy, Chemicals and Materials)

Abstract

:
Flax (Linum usitatissimum L.) can be grown both as an oil crop and as a fiber crop, and this offers new opportunities when included in the framework of a whole-crop biorefinery, a system in which a range of products are made from portions of grain and straw and in which both of these should be satisfactorily produced. In the present experiment, the effect of flax genotypes (7 varieties), cultivation sites (two locations) and seasons (two years) were tested with a standard randomized complete block design, in search of a compromise for the production performance for both grain and straw, with the aim of reintroducing flax back into the northern Italian environment. Overall, grain yield reaches an average value of about 1.4 t ha−1 (dw), while straw yield reaches 2.77 t ha−1 (dw). The former is strictly dependent on the environmental effects of the growing site and season, while the effect of genotype was not significant. The straw yield also depends on the second-order interaction of the factors analyzed, although the performance of three varieties, Festival, Solal and Linoal, was noteworthy and seemed to respond well in both environments. Overall, it was found that flax can be conveniently grown for both grain and straw production.

1. Introduction

The political, economic and energy contingencies of recent years—such as the Kyoto Protocol, European legislation on renewable sources, new EU agricultural policies, climate change, growing energy demand, and the rising costs of fossil-based raw materials—have significantly boosted scientific research in the bioenergy sector [1,2,3,4]. Within this sector, the agricultural field plays a crucial role as a primary source of biomass, which consists of materials of animal and vegetable origin that have not undergone any fossilization process [5,6]. Agricultural biomass can be sourced either from the waste produced by conventional agricultural processes (residual biomass) or as the main product of these processes through so-called energy crops [7,8,9,10]. Energy crops appear to offer a promising solution to the growing need for diversification in surplus agricultural production [11,12]. However, the use of energy crops solely for energy production has recently been surpassed by the concept of “biorefinery”. A biorefinery is an integrated system that includes chemical, physical or microbiological processes to convert biomass not only for energy purposes but also to produce materials and chemical compounds with high added value [13,14,15,16,17]. The VeLiCa project [18], financed by the Lombardy region in Italy, fits into this new context. Part of the project’s aim was to investigate the potential of reintroducing an ancient crop of the North Italy regions, Linum usitatissimum L. (flax/linseed), into the Lombard environment for exploitation according to the biorefinery approach. The implementation of the research project involved achieving several key goals.
Among these tasks was an assessment of the agronomic performance of flax in the Lombard environment for the concurrent production of a significant amount of biomass (fiber plus shives) as straw, and a substantial quantity of grain for oil and meal production.
To achieve this goal, the research activity focused on evaluating the productive performance of various flax varieties to verify their adaptability to the environmental conditions of the region and their production potential, considering the growing season. The experimental plan, using a conventional randomized complete block design, considered the location, variety and year of cultivation as sources of variation by repeating the tests over two years. The production yields of straw and seed were assessed, and the results of this experiment are reported in the present paper.
This information gains new interest in light of the recent rediscovery of flax in the region, driven by some farms aiming for the full exploitation of this crop (https://www.bergamonews.it/2022/06/04/astino-la-fioritura-dei-campi-di-lino-a-bergamo-cresce-la-coltivazione-della-fibra/521226/, accessed on 10 May 2024; https://www.linificio.it/en/composite-materials/, accessed on 10 May 2024).
Despite flaxseed (linseed) not currently being a major crop in Lombardy’s agricultural landscape, historically, flax cultivation played a significant role in the region’s agrarian practices, particularly in textile production. Historically, flax was cultivated in Lombardy primarily for linen production rather than for its seeds. Flax cultivation for linen was important in various parts of Europe, including Italy, until the development of cotton and synthetic fibers became dominant. Flax was grown for its fibers, which were processed into linen, a highly valued textile in historical times.
Nowadays, Italian and EU agricultural policies might shift to support more diverse and sustainable crops. Subsidies and grants for flax cultivation could encourage farmers in Lombardy to adopt this crop, aligning with broader goals of environmental sustainability and agricultural diversification. Moreover, the current concept of biorefinery adds to this issue through its multipurpose character. The International Energy Agency (IEA) Bioenergy Task 42 defines biorefinery as “sustainable processing of biomass into a spectrum of marketable products (food, feed, materials, and chemicals) and energy (fuels, power, and heat)”, while according to the American National Renewable Energy Laboratory, “a biorefinery is a facility that integrates biomass conversion processes and equipment to produce fuels, power, and chemicals from biomass”. This is fully compliant with a life cycle perspective, where the overall environmental impact strictly depends on the extent of the spectrum that a process chain can cover. Flax has the potential to be an affordable feedstock for the development of biorefineries in Lombardy.

2. Materials and Methods

Agronomic tests were conducted in two locations in Lombardy through field trials set up according to a randomized complete block design, applied in triplicate. In these two environments, seven different flax varieties were assessed over two consecutive years, 2011 and 2012.

2.1. Location, Soil, Climate, and Plant Material

The details of the two localities are summarized in Table 1. They belong to the municipality of Treviglio in the province of Bergamo (Italy) and in the municipality of Cavriana in the province of Mantova (Italy). These localities were chosen because they are representative of heterogeneity of the Lombardy environment.
The main meteorological data, specifically significant temperatures (maximum, minimum and average) and the amount of precipitation, were continuously monitored throughout the entire crop cycle using dedicated electronic control units placed near the experimental plots. These units were programmed to acquire values on an hourly basis (Table 2). The following seven varieties of flax were assessed: Kaolin, Linoal, Natural, Valoal, Festival, Merlin, and Solal. All varieties were of French origin, with seeds supplied by Semfor (Italy).

2.2. Experimental Procedure

The experimental fields were set up on two arable farms, each typical of its respective area. Table 3 summarizes the agronomic details and management practices applied during the experiment. In both locations and for the two years of testing, two main plots of land, each with a surface area of about 1600 square meters, were identified and delimited. Each main plot was further subdivided into three homogeneous sectors (blocks) of equal surface area, which were then subdivided into seven experimental plots (110 m2 each, one per variety within each block). This setup allowed for a reliable application of the randomized complete block design.
The soil of the experimental plots was prepared following conventional agronomic practices, including autumn plowing, harrowing at the end of winter, and later refinement near sowing. Sowing was conducted mechanically using a universal seed drill for linseed. In both locations, irrigation and weeding interventions were necessary.
After sowing, the development of the crop was monitored through numerous inspections, which allowed for the estimation of the timing of the main phenological phases of the growing cycle (emergence, flowering and ripening) (Table 4).
The vegetative period was calculated as the number of days between emergence and the beginning of flowering observed in the field (i.e., “flowering” minus “emergence” in the table). The flowering period corresponds to the number of days between the beginning of flowering and the end of flowering observed in the field.
At maturity, above-ground biomass produced from the experimental plots was entirely collected, thus allowing estimation of the potential yields. Harvest was conducted mechanically by two successive steps. In the first step, the plants were cut using a sickle bar mower and then collected manually. In the second step, the separation of the seed was carried out by means of a fixed-point thresher. At the same time as the harvesting operations, a sampling of whole plants taken from each plot was carried out. Specifically, two sampling areas (0.5 m length × 0.6 m wide) per plot were collected.
Then, 10 plants were randomly subsampled and used to determine the biometric traits, as described in Masella et al. [19]. The following traits were measured and/or assessed through plant sampling: plant density (plants per m2), total above-ground biomass (t ha−1 dw), straw yield (t ha−1 dw), potential seed yield (t ha−1 dw), grain yield (t ha−1 dw), seed moisture (percentage by weight), average plant height (mm), average height of the first branch (mm), average height of the first capsule (mm), basal stem diameter (mm), average number of basal branches per plant, average number of apical branches per plant, average number of capsules per plant, average weight of capsules per plant (g), and harvest index (dimensionless).
The straw resulting from the thresher was entirely collected and weighed after drying in a mechanically ventilated oven at 105 °C, allowing for the assessment of straw production per unit area. Seeds were air-dried at 30 °C in a ventilated chamber until they reached 8% seed moisture. The resulting seed or straw yield per plot was then converted to a hectare basis and expressed as t ha−1.

2.3. Statistical Analysis

The standard ANOVA procedure for a randomized complete block design (RCBD) was applied. The statistical model behind the (RCBD) is an extension of the basic analysis of variance (ANOVA) model. In RCBD, the variation in the response variable is partitioned into three main sources:
  • Treatment effect: This accounts for the differences between the treatments being compared.
  • Block effect: This represents the variation among the blocks, which are groups of experimental units that are similar in some aspect but may differ from one another.
  • Error term: This captures the random variability or unexplained variation within each block.
Mathematically, the model can be represented as the following:
Y(ij) = µ + τ_i + β_j + ε(ij)
where
-
Y(ij) is the response variable for the (i)th treatment in the (j)th block;
-
µ is the overall mean;
-
τ_i is the effect of the (i)th treatment;
-
β_j is the effect of the (j)th block;
-
ε(ij) is the random error term.
Analysis of variance techniques are generally used to test the significance of treatment effects, block effects and their interactions. Only when the ANOVA gave significance of the effects of the investigated factors or their interaction (of first- or second-order), multiple pair comparisons of treatment means were investigated for significance adopting Tukey’s honestly significant difference (HSD) post hoc test (p-value of 0.05) or Tukey’s b test.

3. Results and Discussion

The seasonal trend of rainfall differed both in terms of the cultivation location (Cavriana versus Treviglio) and the test year (2011 versus 2012) (Table 2). The differences are evident in the total rainfall, which was significantly higher in Treviglio in both test years, especially in 2011, when it was almost double that of Cavriana. In Treviglio, the highest rainfall in 2011 occurred in April, May and August, whereas in 2012, it was in June and July, highlighting the different trends linked to each test year. Specifically, Treviglio experienced significantly more rainfall in 2011 than in 2012, with the greatest differences observed in March, June and July. Conversely, April was noticeably rainier in 2012.
The total rainfall in Cavriana was remarkably similar for the two years, with a slight advantage of 30 mm in 2012. However, the rainfall distribution was quite different, appearing almost inverse when comparing the months. The highest rainfall in March, June, July and September of 2011 corresponded to the lowest rainfall in those same months in 2012. Regarding temperatures, the two locations and the two-year trial were substantially similar.
Table 5 summarizes all the measured parameters, regardless of the sources of variation considered, such as test year, location of cultivation and genotype. The values, along with the relative indices of dispersion (standard deviation and coefficient of variation), correspond to the average of the repetitions (3), locations (2), varieties (7), and test years (2), totaling 84 entries. Table 5 provides an overall view of the test results. The production responses appear favorable for both grain and straw, aligning well with the pre-established aim of the research to enhance both products.
As a general indication [20], “flax for fiber” is usually grown with remarkably high sowing densities (greater than 1500 plants per square meter) to produce thin (basal diameter less than 2 mm), long (height around one meter), and unbranched stems. In such cases, seed production is limited and typically much lower than one ton per hectare, while straw production can range from 5 to 7 tons per hectare. Conversely, for “linseed for oil”, sowing densities of around 500 plants per square meter are used, with relatively wide row spacing (20–30 cm) to encourage strong branching, both basal and apical.
In the present study, an intermediate configuration was adopted with a low plant density (potential sowing density of 600 seeds per square meter) and relatively limited row spacing (16 cm). As shown in Table 5, this approach resulted in relatively small plants (about 60 cm tall), moderately branched, with a considerable basal diameter (greater than 2 mm). Under these conditions, seed yield was satisfactory, exceeding 1.20 tons per hectare, and straw production reached 3.0 tons per hectare.
It is noteworthy that the analyzed parameters exhibited high variability, with some coefficients of variation exceeding 50%. For instance, the number of capsules per plant had a coefficient of variation over 70%.
This result is likely linked to the strongly plastic nature of flax, which can vary its phenotypic response according to changing environmental conditions. Overall, the productive performances assessed in this study align with other investigations, particularly regarding grain yield. Angelini et al. [21], in Italy, reported an average seed production of about 1.15 t ha−1 as the grand mean over two types of locations (lowland and hilly) and three successive seasons. The grand mean of grain yield measured in the present study was close to that value, at about 1.4 t ha−1. However, straw production performed comparatively worse, with about 2.8 t ha−1 versus 5.5 t ha−1 reported by Angelini et al. [21].
Tavarini et al. [22], also in Italy, reported actual seed yields ranging from 0.6 t ha−1 to 1.39 t ha−1, corresponding to an overall mean slightly lower than the present value (about 0.92 t ha−1). In their case, straw production performed better than in the present study, with an average value of about 5.1 t ha−1. The occurrence of lower straw production and higher seed yield compared to the literature is confirmed in reports from outside Italy. Bauer et al. [23] reported a rough average straw production of about 5.50 t ha−1 and a seed yield of 0.82 t ha−1 in the Southeast USA. Similarly, Rashwan et al. [24] reported about 10.00 t ha−1 of straw and 0.88 t ha−1 of seed yield. Dey et al. [25] reported a straw yield of about 6.9 t ha−1. Interestingly, data from the Flax Council of Canada [26] closely resemble the present work, with reported seed and straw yields of about 1.20 t ha−1 and 0.73 t ha−1, respectively (results of some plot trials from 2008 to 2011).
In the present study, the results of the ANOVA for grain yield (Table 6) indicate a lack of significant genotype effect, while the significant effects of the locality and the year of cultivation are evident. As depicted in Figure 1—Graph A on the left, 2012 offered more favorable conditions than 2011, with Cavriana exhibiting better performance compared to Treviglio (Figure 1—Graph A on the right).
For straw productivity, Table 6 summarizes the effects of the factors. The location effect is significant and varies with the year, as indicated by the significance of the interaction (Figure 1, Graph B). Additionally, the varietal effect is significant and varies with locality, as demonstrated by the significance of the interaction (Figure 1, Graph C).
For the genotype effect, the differences illustrated in Figure 1 (Graph C) were evaluated using “Tukey’s HSD” test. This test categorizes the analyzed cases into homogeneous sub-groups where the members do not significantly differ from each other, while the mean of one group significantly differs from the means of other groups. The best performances were observed in Festival and Solal at Cavriana, forming the first group. An interesting result was observed for Natural, which appeared twice in the second group, indicating good productions in both locations, possibly due to its adaptability to variable environmental conditions.
In summarizing the results for the crop’s productivity responses, it is crucial to highlight the importance of the environmental factor, expressed through both the variability induced by different cultivation sites and the seasons. Productivity was significantly higher at Cavriana, while 2012 offered more favorable conditions than 2011.
In addition to the varying meteorological conditions between the two locations over the two-year trial period, the diversity of environmental conditions can also be attributed to the physical characteristics of the two localities. It is helpful to consider certain soil characteristics traditionally deemed favorable for flax production, such as a preference for medium-textured (loam) or light soils, with ample organic matter, deep profiles and good drainage. Water stagnation and excess nitrogen should be avoided. From the data presented in Table 1, the soil of Cavriana appears to offer more favorable conditions for cultivation due to its lighter texture, characterized by a higher sandy fraction and lower clay content, thereby ensuring better drainage. Moreover, it possesses a higher organic matter content, as well as greater levels of phosphorus and potassium. These soil characteristics likely contributed to the superior results observed in cultivation near Cavriana.
The abundant water availability that characterized the growth cycle of the flax varieties cultivated in Treviglio in 2011 resulted in an extension of the vegetative phase of the crop at the expense of the reproductive phase. Conversely, in 2012, rainfall in Treviglio was significantly lower than the previous year, particularly from May to July. This likely facilitated a more consistent progression of the flowering and seed filling phases leading up to maturity.
Confirmation of the significance of water availability during the growth cycle is evident in the results of linear correlation analysis conducted between monthly weather parameters and the duration of flowering and vegetative periods. A strong positive linear association was observed between the length of the vegetative period and the total amount of rainfall (r = 0.98), particularly for the months of June, July and August (r ranging from 0.84 to 0.89). In contrast, the length of the flowering period exhibited a less strict association with rainfall, showing a negative correlation with a maximum r value of −0.62.
Similarly, the same approach was employed to assess the degree of linear association between the weather patterns and productive performances, specifically the correlation between monthly temperature and rainfall with grain and straw production. According to Table 7, grain yield is significantly influenced by rainfall, particularly in June and July, coinciding with the flowering period, showing a negative correlation (r ≥ −0.9).
Indeed, precipitation appears to have an impact on flowering. Overall, an excess of water seems to negatively affect grain production, whereas straw production seems to be less sensitive, as indicated by the reduced values of correlation coefficient (r).
Regarding temperature, its effect on grain production varies with the months. There is a negative correlation during the crop’s development in April and May, followed by a positive correlation in June and July, coinciding with the end of the vegetative period and flowering. Once more, straw yield appears to be less sensitive, displaying a high positive correlation only during August.
In consideration of the significance of precipitation, we examined the short-term rainfall patterns over a span of ten years from 2013 to 2023. Average temperature and rainfall values computed over this period, along with their 95% confidence limits, were documented in Table 2 to facilitate a direct comparison with experimental data. Unfortunately, this comparison was only feasible for Treviglio, as data for Cavriana were not available. Nevertheless, the experimental pattern closely resembles the short-term trend, with the average values from the experiment falling entirely within the confidence interval limits.
The genotype factor did not exhibit significant differences for grain yield, whereas significant differences were observed for straw yield. Particularly noteworthy was the statistically significant interaction between the test environment and the variety, indicating that the varietal effect is not consistent but varies with changing environmental conditions.
This variability could be attributed to the dual-purpose nature of the selected varieties and the heightened sensitivity of biological yield components other than seeds to environmental factors. Consequently, the degree of genetic effects on various biometric traits under changing environmental conditions might be more pronounced for straw than for seeds.

4. Conclusions

The trials have revealed satisfactory productive performance for flax, with weather patterns, particularly rainfall, playing a pivotal role. The disparity in rainfall between the two locations over the two test years was evident. In terms of genotype effects, the performance of three varieties—Festival, Solal and Linoal—stood out notably for straw production and demonstrated resilience in both environments. Furthermore, we demonstrated that the weather conditions during the experiment fell within the short-term variation observed over the past 10 years in one of the tested locations.
Overall, this study indicates that flax can be effectively cultivated for both grain and straw production, with grain yield averaging about 1.4 t ha−1 (dw) and straw yield reaching 2.77 t ha−1 (dw). Both traits exhibited considerable variability, with overall variation coefficients of 49% and 31%, respectively.
One limitation of the present study is the absence of fiber extraction, quantification, and characterization, as well as shive quantification and assessment of the oil content of the grain. Additionally, different cultivation strategies could have potentially optimized the overall productivity or highlighted better performance of specific genotypes. These aspects warrant consideration in future research.
The primary shortcoming likely lies in the time gap between the commencement of the experiment and the publication of the results. However, as outlined in the introduction, there has been renewed interest in flax and its multipurpose potential in the studied region since 2021. Several new projects are underway (https://www.chimicaverdelombardia.it/progetto-biomass-hub/, accessed on 10 May 2024), ensuring the relevance of the data and results of this work.

Author Contributions

Conceptualization, I.G. and P.M.; Methodology, I.G.; Software, P.M; Validation, I.G., P.M. and G.A.; Formal Analysis, G.A.; Investigation, I.G. and P.M.; Resources, I.G.; Data Curation, P.M.; Writing—Original Draft Preparation, P.M. and G.A.; Writing—Review and Editing, G.A. and I.G.; Visualization, G.A.; Supervision, I.G.; Project Administration, I.G.; Funding Acquisition, I.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially supported by Regione Lombardia through the research project “VeLiCa—From ancient crops, materials and products for the future” (protocol No. 14840/RCC).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors wish to express their gratitude to Sergio Mapelli (COVID-19 victim 20 Dec. 2020) for his collaboration and friendship. We wish to dedicate this work to his memory.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Daneshmandi, M.; Sahebi, H.; Ashayeri, J. The Incorporated Environmental Policies and Regulations into Bioenergy Supply Chain Management: A Literature Review. Sci. Total Environ. 2022, 820, 153202. [Google Scholar] [CrossRef]
  2. Duarah, P.; Haldar, D.; Patel, A.K.; Dong, C.D.; Singhania, R.R.; Purkait, M.K. A Review on Global Perspectives of Sustainable Development in Bioenergy Generation. Bioresour. Technol. 2022, 348, 126791. [Google Scholar] [CrossRef]
  3. Hosseinzadeh-Bandbafha, H.; Aghbashlo, M.; Tabatabaei, M. Life Cycle Assessment of Bioenergy Product Systems: A Critical Review. e-Prime-Adv. Electr. Eng. Electron. Energy 2021, 1, 100015. [Google Scholar] [CrossRef]
  4. Schipfer, F.; Mäki, E.; Schmieder, U.; Lange, N.; Schildhauer, T.; Hennig, C.; Thrän, D. Status of and Expectations for Flexible Bioenergy to Support Resource Efficiency and to Accelerate the Energy Transition. Renew. Sustain. Energy Rev. 2022, 158, 112094. [Google Scholar] [CrossRef]
  5. Feng, Y.; Tao, L.; Zheng, Z.; Huang, H.; Lin, F. Upgrading Agricultural Biomass for Sustainable Energy Storage: Bioprocessing, Electrochemistry, Mechanism. Energy Storage Mater. 2020, 31, 274–309. [Google Scholar] [CrossRef]
  6. Saleem, M. Possibility of Utilizing Agriculture Biomass as a Renewable and Sustainable Future Energy Source. Heliyon 2022, 8, e08905. [Google Scholar] [CrossRef]
  7. Zegada-Lizarazu, W.; Monti, A. Energy Crops in Rotation. A Review. Biomass Bioenergy 2011, 35, 12–25. [Google Scholar] [CrossRef]
  8. Fiala, M.; Bacenetti, J. Model for the Economic, Energy and Environmental Evaluation in Biomass Productions. J. Agric. Eng. 2012, 43, e5. [Google Scholar] [CrossRef]
  9. Duca, D.; Toscano, G.; Pedretti, E.F.; Riva, G. Sustainability of Sunflower Cultivation for Biodiesel Production in Central Italy According to the Renewable Energy Directive Methodology. J. Agric. Eng. 2013, 44, 175–180. [Google Scholar] [CrossRef]
  10. Babu, S.; Singh Rathore, S.; Singh, R.; Kumar, S.; Singh, V.K.; Yadav, S.K.; Yadav, V.; Raj, R.; Yadav, D.; Shekhawat, K.; et al. Exploring Agricultural Waste Biomass for Energy, Food and Feed Production and Pollution Mitigation: A Review. Bioresour. Technol. 2022, 360, 127566. [Google Scholar] [CrossRef]
  11. Koçar, G.; Civaş, N. An Overview of Biofuels from Energy Crops: Current Status and Future Prospects. Renew. Sustain. Energy Rev. 2013, 28, 900–916. [Google Scholar] [CrossRef]
  12. López-Bellido, L.; Wery, J.; López-Bellido, R.J. Energy Crops: Prospects in the Context of Sustainable Agriculture. Eur. J. Agron. 2014, 60, 1–12. [Google Scholar] [CrossRef]
  13. Cherubini, F. The Biorefinery Concept: Using Biomass Instead of Oil for Producing Energy and Chemicals. Energy Convers. Manag. 2010, 51, 1412–1421. [Google Scholar] [CrossRef]
  14. Fahd, S.; Fiorentino, G.; Mellino, S.; Ulgiati, S. Cropping Bioenergy and Biomaterials in Marginal Land: The Added Value of the Biorefinery Concept. Energy 2011, 37, 79–93. [Google Scholar] [CrossRef]
  15. Wang, L.; Agyemang, S.; Amini, H.; Shahbazi, G. Mathematical Modeling of Production and Biorefinery of Energy Crops. Renew. Sustain. Energy Rev. 2015, 43, 530–544. [Google Scholar] [CrossRef]
  16. Rahimi, V.; Shafiei, M. Techno-Economic Assessment of a Biorefinery Based on Low-Impact Energy Crops: A Step towards Commercial Production of Biodiesel, Biogas, and Heat. Energy Convers. Manag. 2019, 183, 698–707. [Google Scholar] [CrossRef]
  17. Clauser, N.M.; Felissia, F.E.; Area, M.C.; Vallejos, M.E. A Framework for the Design and Analysis of Integrated Multi-Product Biorefineries from Agricultural and Forestry Wastes. Renew. Sustain. Energy Rev. 2021, 139, 110687. [Google Scholar] [CrossRef]
  18. Ravasio, N.; Galasso, I.; Ottolina, G.; Sacchi, M.; Speranza, G.; Tonin, C. A Biorefinery Model Based on Flax and Hemp Crops. La Chim. e L’industria 2013, 95, 113. [Google Scholar]
  19. Masella, P.; Martinelli, T.; Galasso, I. Agronomic Evaluation and Phenotypic Plasticity of Camelina sativa Growing in Lombardia, Italy. Crop Pasture Sci. 2014, 65, 453–460. [Google Scholar] [CrossRef]
  20. Heller, K.; Sheng, Q.C.; Guan, F.; Alexopoulou, E.; Hua, L.S.; Wu, G.W.; Jankauskienė, Z.; Fu, W.Y. A Comparative Study between Europe and China in Crop Management of Two Types of Flax: Linseed and Fibre Flax. Ind. Crops Prod. 2015, 68, 24–31. [Google Scholar] [CrossRef]
  21. Angelini, L.G.; Tavarini, S.; Antichi, D.; Foschi, L.; Mazzoncini, M. On-Farm Evaluation of Seed Yield and Oil Quality of Linseed (Linum usitatissimum L.) in Inland Areas of Tuscany, Central Italy. Ital. J. Agron. 2016, 11, 199–202. [Google Scholar] [CrossRef]
  22. Tavarini, S.; Angelini, L.; Casadei, N.; Spugnoli, P.; Lazzeri, L. Agronomical Evaluation and Chemical Characterization of Linum usitatissimum L. as Oilseed Crop for Bio-Based Products in Two Environments of Central and Northern Italy. Ital. J. Agron. 2016, 11, 122. [Google Scholar] [CrossRef]
  23. Bauer, P.J.; Stone, K.C.; Foulk, J.A.; Dodd, R.B. Irrigation and Cultivar Effect on Flax Fiber and Seed Yield in the Southeast USA. Ind. Crops Prod. 2015, 67, 7–10. [Google Scholar] [CrossRef]
  24. Rashwan, E.A.; Mousa, A.; El Sabagh, A.; Barutçular, C. Yield and Quality Traits of Some Flax Cultivars as Influenced by Different Irrigation Intervals. J. Agric. Sci. 2016, 8, 226–240. [Google Scholar] [CrossRef]
  25. Dey, P.; Mahapatra, B.S.; Negi, M.S.; Singh, S.P.; Paul, J.; Pramanick, B. Seeding Density and Nutrient Management Practice Influence Yield; Quality and Nutrient Use Efficiency of Flax Grown under Sub-Tropical Humid Himalayan Tarai. Ind. Crops Prod. 2022, 178, 114616. [Google Scholar] [CrossRef]
  26. Flax Council of Canada. Growing Flax (Production, Management & Diagnostic Guide). 2016. Available online: https://www.saskflax.com/quadrant/media/Pdfs/Growing%20Flax/150101_FCOC-growers-guide-v11.pdf (accessed on 4 May 2023).

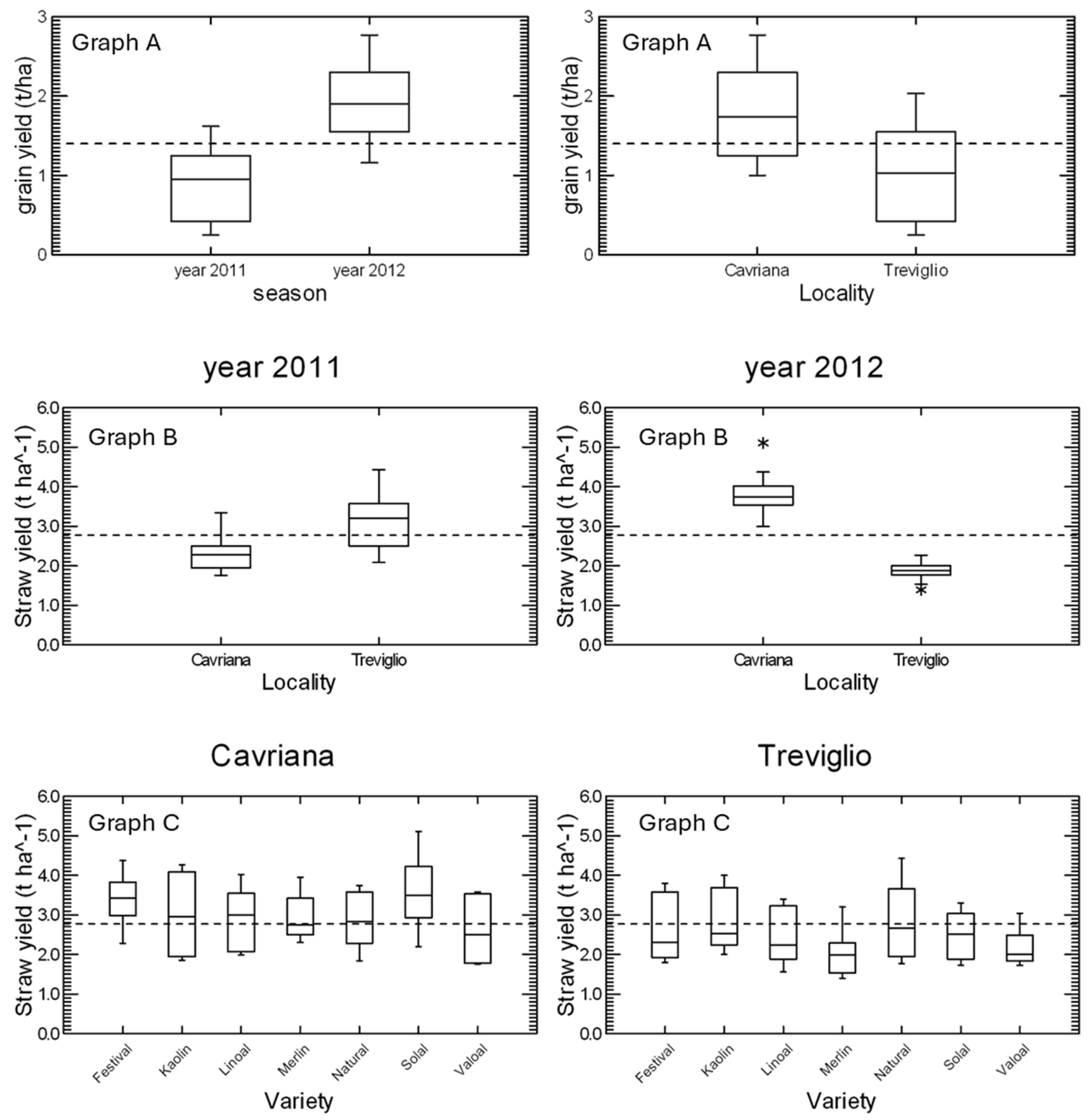

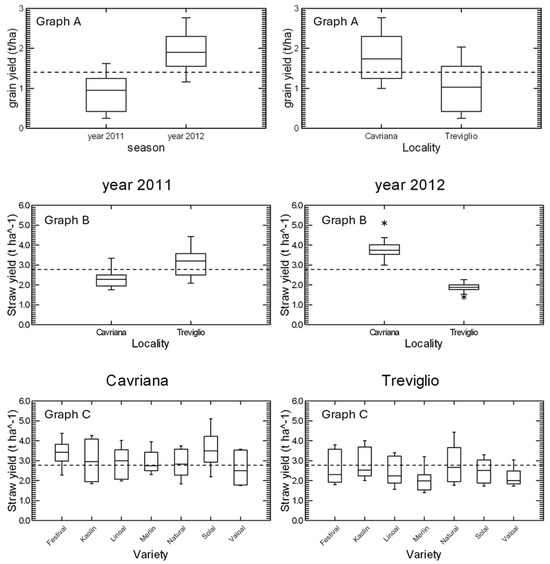

Figure 1. Box-plot of grain yield as affected by the main effects of locality of cultivation and season (Graph A); straw yield as affected by the interaction of locality of cultivation and season (Graph B); box-plot of straw yield as affected by the interaction of locality of cultivation and variety (Graph C); * indicate outlier values.
Figure 1. Box-plot of grain yield as affected by the main effects of locality of cultivation and season (Graph A); straw yield as affected by the interaction of locality of cultivation and season (Graph B); box-plot of straw yield as affected by the interaction of locality of cultivation and variety (Graph C); * indicate outlier values.
Biomass 04 00032 g001
Table 1. Main details of the two tested localities.
Table 1. Main details of the two tested localities.
Treviglio (BG)Cavriana (MN)
Geographic coordinates *#N 45°32′43″; E 9°35′00″N 45°18′49″; E 10°36′43″
Position *#flatflat
Altitude (m asl) *#12570
Temperature max (°C) *#3533
Temperature average (°C) *#1412
Temperature min (°C) *#−11−9
Humidity (%) *#7071
pH7.68.4
Soil texture (%) λsand: 62.5
silt: 18.0
clay: 19.5
type: sandy-clay
sand: 64.5
silt: 20.0
clay: 15.5
type: sandy-silt
Organic matter %dw λ0.600.86
Nitrogen (g/100 g) λ0.100.12
N ammonia (mg/kg dw) λ14.0027.1
N nitric (mg/kg dw) λ6.0519.5
P2O5 (mg/kg dw) λ149.00688
K2O (mg/kg dw) λ119.00150
Note: * average data over the area; # average data over the last four years; λ measured data.
Table 2. Rain and temperature average data recorded in the two tested environments over the two consecutive seasons.
Table 2. Rain and temperature average data recorded in the two tested environments over the two consecutive seasons.
Rain (mm) a
20112012Average over 2013–2023 for Treviglio c
CavrianaTreviglioCavrianaTreviglio95.0% Uper Confidence Limit95.0% Lower Confidence Limit
March77.866.20.41.6105.812.4
April3.415.088.6155.098.245.3
May20.8106.284.295.6168.467.7
June90.2170.223.486.2120.330.7
July40.0126.44.628.0117.141.1
August15.469.018.015.8115.444.0
September45.6115.5112.490.0113.728.4
Total293.2668.5331.6472.2--
Temperature (C°) b
20112012Average over 2013–2023 for Treviglio c
CavrianaTreviglioCavrianaTreviglio95.0% Uper Confidence Limit95.0% Lower Confidence Limit
March9.09.913.914.116.111.9
April16.017.412.712.321.017.1
May20.119.818.117.825.220.5
June22.022.223.522.732.026.2
July23.423.525.224.032.728.2
August25.426.026.024.831.827.4
September22.021.819.918.926.923.2
Mean19.720.119.919.3--
Note: a Cumulative data recorded with minimum 0.2 mm increment; b Data recorded with bihourly frequency, subsequently averaged on a monthly basis; c Data gathered from the weather station “Centro Meteo Treviglio” (https://www.meteotreviglio.com/, accessed on 10 May 2024).
Table 3. Agronomic details and management practices applied during the experiment.
Table 3. Agronomic details and management practices applied during the experiment.
Location
CavrianaTreviglio
Season2011201220112012
Crop precessioncornbarley–soycorn
Pre-seeding tillagespring plowing at 30 cm + 2 harrowing
Date of sowing31 March14 March31 March14 March
Orientationnorth–south
Parcel size and planting layout19.8 m2; 10 rows 11 m long, spaced at 0.16 m
Investment600 seed m−2
Pre-sowing fertilization15 March3 Marchabsent
N: 58 kgN: 69 kg-
P2O5: 69 kgP2O5: 83 kg-
K2O: 90 kgK2O: 72 kg-
Top dressing03 May30 April03 May2 May
N: 67 kgN: 50 kgN: 54 kgN: 67 kg
Pre-emergence weed controlAfalon DS 0.7 L ha−1, manual distribution
Post-emergence weed control121
Pesticide treatmentsabsent
Irrigationsurface floodingsurface flooding
n° 3 interventionn° 4 intervention
Table 4. Main phenological phases of the growing cycle.
Table 4. Main phenological phases of the growing cycle.
Number of Days from SowingVegetative Period (Days)Flowering Period (Days)
EmergenceFloweringRipening
Sowing on 31-March-2011
Cavriana14611024723
Treviglio21921517118
Sowing on 14-March-2012
Cavriana27711164417
Treviglio22811355922
Table 5. Grand mean values of agronomic and biometric parameters.
Table 5. Grand mean values of agronomic and biometric parameters.
ParameterUnitMeanStandard DeviationCoefficient of Variation
Grain yieldt ha−1 dw1.3990.68149
Straw yieldt ha−1 dw2.7690.87131
Plant densityn plant m−23877920
Total above-ground biomasst ha−1 dw6.3631.82729
Potential seedt ha−1 dw1.9070.80542
Seed moisture% w w−17.01.420
Average plant heightmm611.693.015
Average height first branchmm377.181.222
Average height of first capsulemm463.570.115
Basal stem diametermm2.40.938
Average number of basal branches per plantn1.50.751
Average number of apical branches per plantn9.13.235
Average number of capsules per plantn27.619.470
Average weight of capsules per plantg1.230.6250
Harvest indexdimensionless0.30.130
Table 6. ANOVA results for flax/linseed grain yield and straw yield.
Table 6. ANOVA results for flax/linseed grain yield and straw yield.
Results for Grain Yield
Source of Variationp-ValueStatistical Significance (p ≤ 0.05)
Block0.086no
Year0.000yes
Locality0.000yes
Variety0.636no
Year × Locality0.827no
Year × Variety 0.648no
Locality × Variety0.683no
Year × Locality × Variety0.170no
Results for Straw Yield
Source of Variationp-ValueStatistical Significance (p ≤ 0.05)
Block0.650no
Year0.142no
Locality0.000yes
Variety0.000yes
Year × Locality0.000yes
Year × Variety0.172no
Locality × Variety0.010yes
Year × Locality × Variety0.226no
Table 7. Correlation coefficients (Pearson) between rainfall or temperature (monthly basis), and flax/linseed grain yield and straw yield.
Table 7. Correlation coefficients (Pearson) between rainfall or temperature (monthly basis), and flax/linseed grain yield and straw yield.
RainfallTemperature
Grain YieldStraw YieldGrain YieldStraw Yield
March−0.73−0.120.700.09
April0.53−0.21−0.820.06
May−0.110.23−0.68−0.02
June−0.94−0.200.810.48
July−0.900.030.830.54
August−0.750.26−0.070.78
September0.040.54−0.610.13
total/mean−0.700.02−0.300.68
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Masella, P.; Angeloni, G.; Galasso, I. Cropping Flax for Grain and Fiber: A Case-Study from Italy. Biomass 2024, 4, 599-609. https://doi.org/10.3390/biomass4020032

AMA Style

Masella P, Angeloni G, Galasso I. Cropping Flax for Grain and Fiber: A Case-Study from Italy. Biomass. 2024; 4(2):599-609. https://doi.org/10.3390/biomass4020032

Chicago/Turabian Style

Masella, Piernicola, Giulia Angeloni, and Incoronata Galasso. 2024. "Cropping Flax for Grain and Fiber: A Case-Study from Italy" Biomass 4, no. 2: 599-609. https://doi.org/10.3390/biomass4020032

Article Metrics

Back to TopTop
