Search Results (29)

As a core component of a fully automatic pepper transplanter, the performance of the seedling-picking mechanism is of particular significance. However, existing seedling-picking mechanisms have problems such as being prone to damaging the seedling roots and substrate, as well as having poor stability. To develop a highly efficient, stable, and minimally damaging seedling-picking mechanism, this study proposed a design scheme for a stem-clamping-and-pulling-out-type seedling-picking end actuator driven by a non-circular gear system. The specific methods and objectives include the following: (1) designing a differential non-circular gear system to replicate a manual picking trajectory accurately; (2) establishing a kinematic model and developing optimization software to determine the optimal parameter combination; (3) experimentally validating the mechanism’s performance through virtual simulations and bench tests. The bench tests showed that the mechanism could complete two seedling-picking operations per rotation, extracting an entire row (eight plants) in a single rotation at a speed of 30 r/min. The measured angles of the end effector at four key postures were highly consistent with simulation and high-speed camera data, with all key posture errors less than 1°. These results demonstrate the mechanism’s high accuracy, efficiency, and reliability. Full article

Waste management is one of the key areas where circular models should be promoted, as it plays a crucial role in minimizing environmental impact and conserving resources. Effective material identification and classification are essential for optimizing recycling processes and selecting the appropriate production equipment. Proper sorting of materials enhances both the efficiency and sustainability of recycling systems. The proposed study explores the potential of using a cost-effective strategy based on hyperspectral imaging (HSI) to classify space waste products, an emerging challenge in waste management. Specifically, it investigates the use of HSI sensors operating in the near-infrared range to detect and identify materials for sorting and classification. Analyses are focused on textile and plastic materials. The results show promising potential for further research, suggesting that the HSI approach is capable of effectively identifying and classifying various categories of materials. The predicted images achieve exceptional sensitivity and specificity, ranging from 0.989 to 1.000 and 0.995 to 1.000, respectively. Using cost-effective, non-invasive HSI technology could offer a significant improvement over traditional methods of waste classification, particularly in the challenging context of space operations. The implications of this work identify how technology enables the development of circular models geared toward sustainable development hence proper classification and distinction of materials as they allow for better material recovery and end-of-life management, ultimately contributing to more efficient recycling, waste valorization, and sustainable development practices. Full article

With a focus on the problems of complex structure and accumulated lateral clearance in the single degree of freedom non-circular wheel system seedling-picking mechanism, which leads to poor motion accuracy, trajectory, and attitude, this study developed a 2R open-chain chili plug seedling-picking mechanism (SPM) constrained by a differential non-circular wheel system. The picking arm was driven by a single-stage non-uniform speed transmission mechanism to reproduce the seedling-picking trajectory and attitude. A protruding seedling-picking device, SPM control system, and test bench were designed. A kinematic model of a differential non-circular gear system was established, and an optimization design software for the SPM was developed based on kinematic analysis. The kinematic characteristics of the SPM were analyzed under optimal parameters. This study completed the seedling-picking performance test of the SPM on the control panel. The test showed that the designed chili SPM can sequentially complete the processes of seedling picking, conveying, retracting, pushing, and returning under the automatic control of the test bench without damaging the main root. The lateral root damage rate was 15.7%, effectively ensuring the integrity of the seedling bowl substrate. Full article

Innovative designs such as morphing wings and terrain adaptive landing systems are examples of biomimicry and innovations inspired by nature, which are actively being investigated by aerospace designers. Morphing wing designs based on Variable Geometry Truss Manipulators (VGTMs) and articulated helicopter robotic landing gear (RLG) have drawn a great deal of attention from industry. Compliant mechanisms have become increasingly popular due to their advantages over conventional rigid-body systems, and the research team led by the second author at Toronto Metropolitan University (TMU) has set their long-term goal to be exploiting these systems in the above aerospace applications. To gain a deeper insight into the design and optimization of compliant mechanisms and their potential application as alternatives to VGTM and RLG systems, this study conducted a thorough analysis of the design of flexible hinges, and single-, four-, and multi-bar configurations as a part of more complex, flexible mechanisms. The investigation highlighted the flexibility and compliance of mechanisms incorporating circular flexure hinges (CFHs), showcasing their capacity to withstand forces and moments. Despite a discrepancy between the results obtained from previously published Pseudo-Rigid-Body Model (PRBM) equations and FEM-based analyses, the mechanisms exhibited predictable linear behavior and acceptable fatigue testing results, affirming their suitability for diverse applications. While including additional linkages perpendicular to the applied force direction in a compliant mechanism with N vertical linkages led to improved factors of safety, the associated increase in system weight necessitates careful consideration. It is shown herein that, in this case, adding one vertical bar increased the safety factor by ${\displaystyle \frac{100}{N}}$ percent. The present study also addressed solutions for the precise modeling of CFHs through the derivation of an empirical polynomial torsional stiffness/compliance equation related to geometric dimensions and material properties. The effectiveness of the presented empirical polynomial compliance equation was validated against FEA results, revealing a generally accurate prediction with an average error of 1.74%. It is expected that the present investigation will open new avenues to higher precision in the design of CFHs, ensuring reliability and efficiency in various practical applications, and enhancing the optimization design of compliant mechanisms comprised of such hinges. A specific focus was put on ABS plastic and aluminum alloy 7075, as they are the materials of choice for non-load-bearing and load-bearing structural components, respectively. Full article

Vibroacoustic metamaterials represent an innovative technology developed for broadband vibration reduction. They consist of an array of local resonators and are able to reduce vibrations over a wide frequency range, commonly referred to as a stop band. Vibroacoustic metamaterials may be a promising strategy to reduce out-of-plane vibrations of thin-walled, disk-shaped structures, such as saw blades. However, their behavior in rotating systems has not yet been fully understood. In this study, a vibroacoustic metamaterial integrated into a circular disk for the reduction of out-of-plane vibrations is experimentally investigated in the rotating and non-rotating state. Derived from the predominant frequency range of noise emitted by saw blades, a vibroacoustic metamaterial with a numerically predicted stop band in the frequency range from 2000 Hz to 3000 Hz, suitable for integration into a circular disk, is designed. The resonators of the metamaterial are realized by cutting slots into the disk using a waterjet cutting machine. To experimentally examine the structural dynamic behavior, the disk is excited by an impulse hammer and observed by a stationary optical velocity sensor on a rotor dynamics test stand. The results of the rotating and the non-rotating state are compared. The measurements are carried out at two different radii and at speeds up to 3000 rpm. A distinct stop band characteristic is shown in the desired frequency range from 2000 Hz to 3000 Hz in the rotating and non-rotating state. No significant shift of the stop band frequency range was observed during rotation. However, adjacent modes were observed to propagate into the stop band frequency range. This work contributes to a better understanding of the behavior of vibroacoustic metamaterials in the rotating state and enables future applications of vibroacoustic metamaterials for vibration reduction in rotating, disk-shaped structures such as saw blades, brake disks or gears. Full article

To address the complex structure of existing rod mechanism exoskeleton robots and the difficulty in solving the motion trajectory of multi−rod mechanisms, an exoskeleton knee robot with a differential non−circular gear–pentarod mechanism is designed based on non−circular gears with arbitrary transmission ratios to constrain the degrees of freedom of the R-para-rod mechanism. In this study, the kinematic model of a non-circular gear–five−rod mechanism is established based on motion mapping theory by obtaining the normal motion positions of the human lower limb. An optimization design software for the non-circular gear–five−rod mechanism is developed using the MATLAB 2018b visualization platform, with the non−circular active gear as the sole input variable. A set of ideal parameters is obtained through parameter adjustment and optimal parameter selection, and the corresponding trajectories are compared with human trajectories. The three−dimensional model of the mechanism is established according to the obtained parameters, and the motion simulation of the non−circular gear–five−bar mechanism demonstrates that the mechanism can better reproduce the expected human knee joint motion posture, meeting the working requirements of an exoskeleton knee robot. Full article

Transplanting rice pot seedlings without damaging the roots, which promotes early tillering, is an effective measure to enhance rice yield and quality. This study aimed to obtain the mechanized-transplanting trajectory and attitude of rice pot seedlings by utilizing non-circular planetary-gear trains, focusing on the three key actions of rice pot-seedling transplanting: seedling picking, conveying, and planting. A lightweight and simplified rice pot-seedling transplanting machinery was designed, referring to the motion characteristics of artificially transplanting rice pot seedlings by first pulling them out and then planting them. Key technologies such as non-circular gear trains, the rice seedling supply system, the transmission system, and the rice seedling-picking device were studied, and their key components were designed and manufactured, resulting in the creation of two physical model machines: an ordinary ride type and a high-speed type. The seedling-picking test and field-transplanting test showed that the rice pot-seedling transplanting mechanism can accomplish the rice pot-seedling picking, rice conveying, and planting actions. The designed operation efficiency yielded a planting-depth qualification rate of over 92%, a seedling injury rate of less than 1.2%, and a missed-transplanting rate of less than 2%. Full article

To better meet the requirements of mechanized transplanting of pepper plug seedlings, this study explores the seedling picking mechanism of a fully automatic pepper transplanting machine. It introduces a novel “eagle beak” type trajectory for seedling picking and designs a probe-type mechanism for pepper plug seedling retrieval. We establish a kinematic theoretical model and delineate the composition and operational principles of this probe-type mechanism. Additionally, we develop an auxiliary optimization software tailored based on Visual Basic 6.0 visual programming software for this mechanism. It employs a blend of manual fine-tuning and a “parameter guidance” optimization algorithm, enabling the determination of 11 optimal target parameters. Our comparative analysis between the theoretical model, optimization software, and high-speed camera experiments reveals a strong correlation in the motion trajectories, and the maximum error of the pose angle is 1.2°. To validate the mechanism’s design, we conducted a seedling retrieval experiment. In this test, the success rates of the seedling harvesting mechanism at speeds of 30, 40, and 50 r/min were 96.4%, 94.3%, and 91.4%, respectively, thus demonstrating its practical feasibility. Full article

Super rice contains a variety of advantageous characteristics. However, current rice seedling transplanting machines fail to achieve the necessary trajectory and distance required for super rice mechanized transplanting. To address this issue, this study introduces a differential-speed rotary mechanism for transplanting super rice pot seedlings. The developed mechanism operates using a non-uniform speed differential gear train, which enables the transplanting arm components to mimic the specific trajectory and posture necessary for transplanting super rice pot seedlings. The kinematic model of the differential-speed rotary super rice pot seedling transplanting mechanism (PSTM) was established, and optimization design software was developed. This software facilitated the determination of a set of mechanism parameters optimized for super rice pot seedling transplantation. The results obtained from virtual simulations were found to be in alignment with those from the optimization software, thereby verifying the accuracy of the theoretical analysis and simulation. A testing bench for the rice PSTM was also developed and used for pot seedling pickup experiments. The bench tests demonstrated that the designed super rice PSTM yielded a seedling pickup success rate of 97% and a seedling injury rate of 1.8% when operating at an efficiency of 200 times/min. Full article

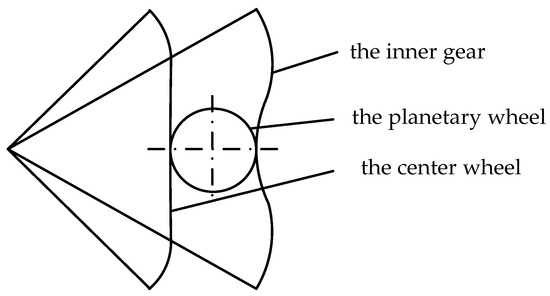

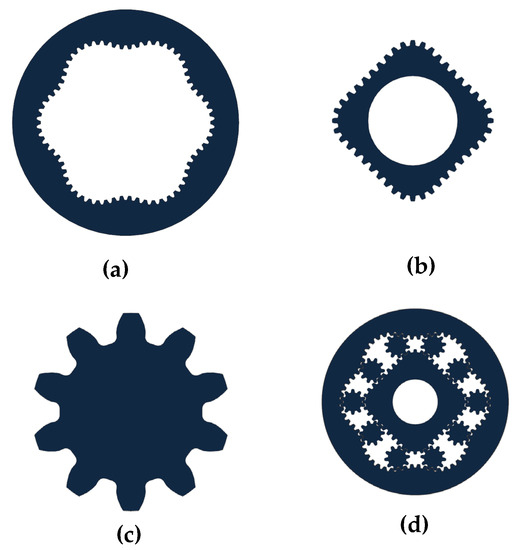

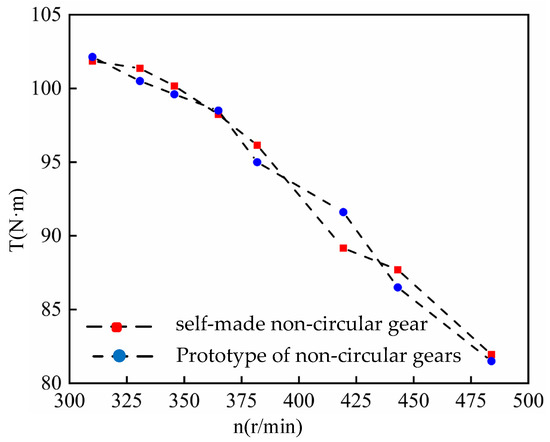

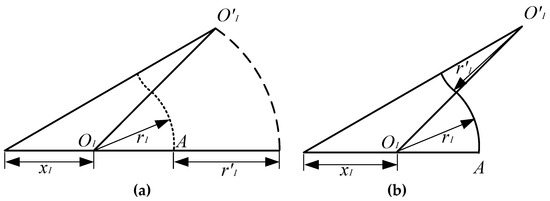

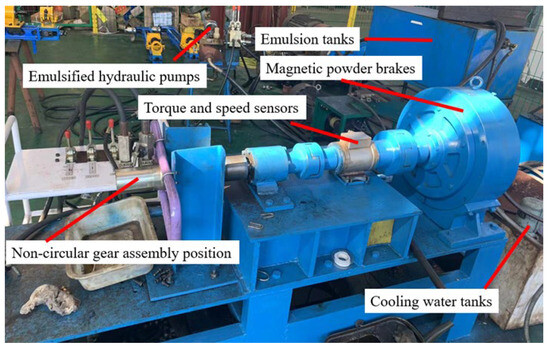

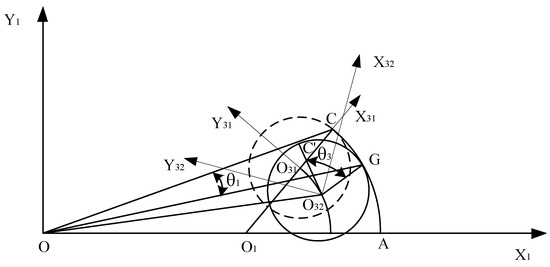

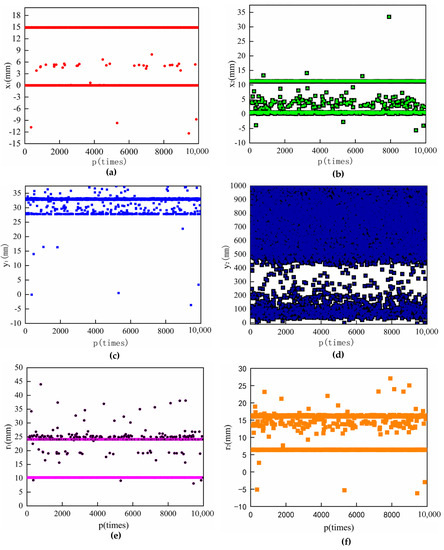

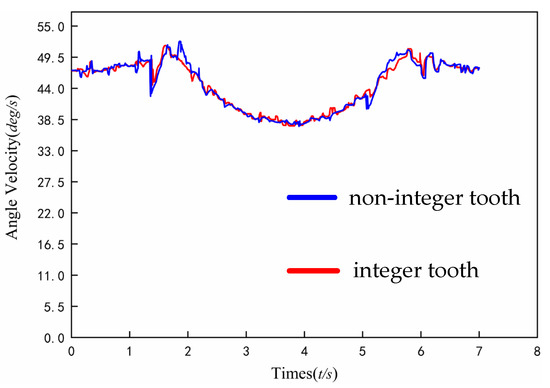

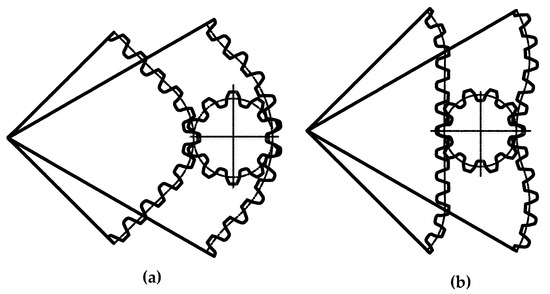

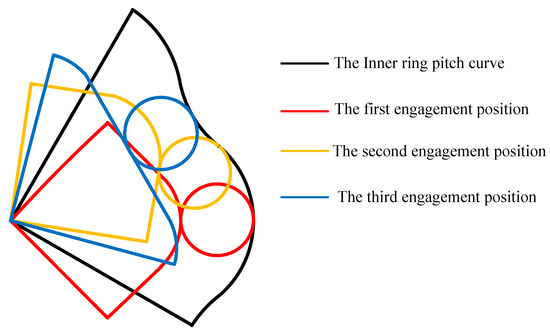

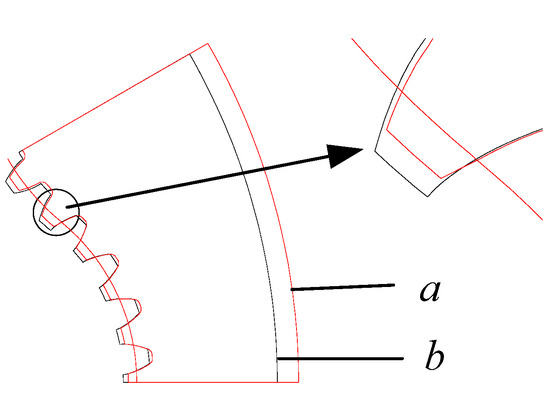

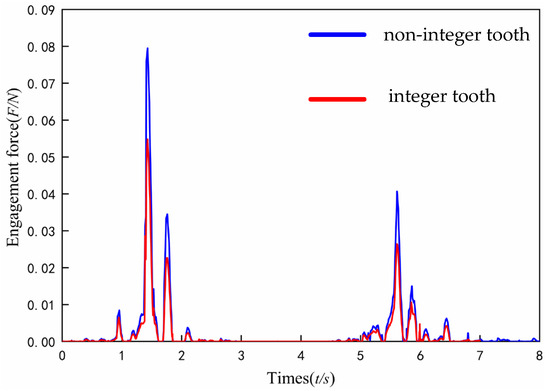

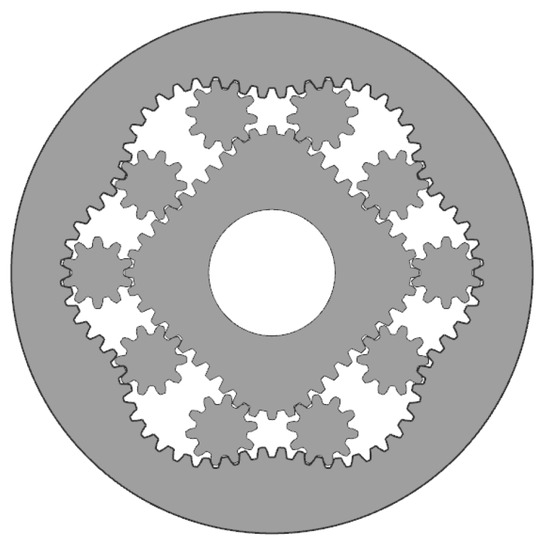

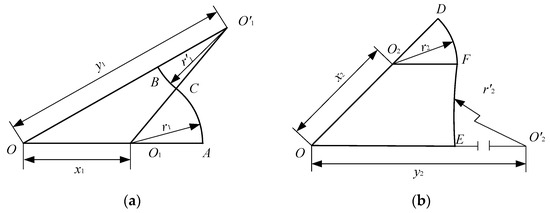

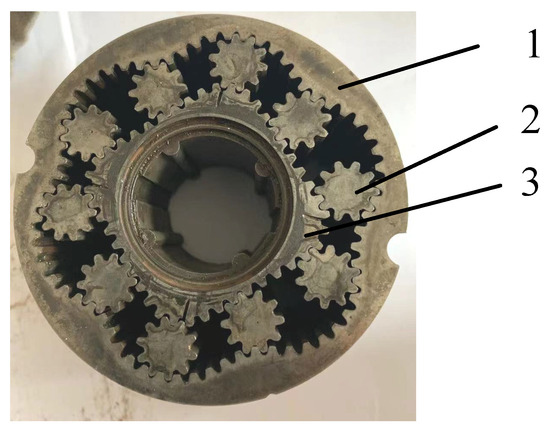

The double arc pitch curve is a novel way for creating a non-circular gear tooth profile. Aiming at the problems of the rounding of non-integer teeth and the nonlinear equation system in the construction of double circular arc tooth profile, an active design method based on planetary gear transmission kinematics and gear-meshing theory is proposed. By studying the double arc pitch curve of the three engagement positions, combined with the uniform theory of the relative curvature of surfaces, the distribution characteristics of the solution of the nonlinear equation system are analyzed in depth, leading to the optimal solution of the characteristic parameter values of the pitch curve. Combined with UG modeling and ADAMS motion simulation, the gear engagement force and the angular velocity of the planetary gear around the center are compared and analyzed in the case of integer tooth ratio and non-integer tooth profile. The results show that the engagement force of the gear pair constructed by integer teeth is reduced by about 17%. The optimal combination of the numbers of teeth is determined by orthogonal experiments, on which trial production and hydraulic load tests are based. The results reveal that the torque of the product at a rated speed is about 2.6% higher than that of foreign prototypes, which verifies the effectiveness of the design method proposed in this paper. Full article

Aiming at the nonlinear expansion/contraction drive problem between different cables in multi-joint cable drive mechanisms, a mechanical drive method based on a non-circular gear drive was proposed, which could replace the servo-sensing control system and minimize the system’s complexity and cost. A multi-joint single-degree-of-freedom (DOF) bending mechanism was constructed with several T-shaped components and cross-shaped components. The principle of the multi-joint mechanism driven by non-circular gears was clarified. The corresponding relationships between the joint bending angle, cables’ extension/retraction amount and non-circular gear transmission ratio were established. Using the Bowden cable driving, a multi-DOF bending mechanism decoupling scheme was proposed. Considering the adverse effect of non-circular gear hysteresis on the motion of multi-joint mechanisms, a non-circular gear backlash elimination method was proposed. The expression of the backlash of the non-circular gear with respect to the axial movement amount was deduced, which could enable the precise control of the backlash. A two-DOF multi-joint bionic mechanism driven by the non-circular gear was developed. The experimental results show that the mechanism can achieve coordinated bending motion by precisely controlling the line extension/contraction through non-circular gears. This multi-joint bionic mechanism driven by non-circular gears has the characteristics of reliable structure and simple control, and it is expected to be applied to bionic fish and bionic quadruped robots in the future. Full article

Shrink fitting of forging mold (SFFM) is an effective method for improving mold strength, extending the mold’s service life and reducing the manufacturing cost of forging mold. However, due to the asymmetric geometry and complex stress distribution, the precise design of SFFM for the precision forging of noncircular bevel gears is very difficult. In this paper, a new precise design method of SFFM for the precision forging of noncircular bevel gears is proposed, which mainly includes the following five parts. First, a new design method for the mold parting surface—the curved surface parting method—is proposed to design the forging mold of noncircular spur bevel gears. Then, new dimension design methods for the gear mold and shrink rings based on the uniform shrinkage force are proposed. Third, a new design method for the inhomogeneous interference value between shrink rings and the gear mold is developed to provide a precise, uniform shrinkage force. After that, a strength correction method for the shrink-fitted gear mold is proposed to ensure the gear mold and shrink rings have sufficient strength both in the assembly process of the shrink-fitted gear mold and precision in the forging process of noncircular spur bevel gears. Ultimately, finite element simulations and verification experiments are performed to verify the proposed precise design method of SFFM for the precision forging of noncircular bevel gears. The precise design method of SFFM proposed in this paper is not only applicable to the precise design of the high-strength gear mold for noncircular bevel gears, but can also provide a valid reference for the precise design of the high-strength mold for other complicated asymmetric parts. Full article

Non-circular gears have the characteristics of gear ratio accuracy, good dynamic performance, and wide application prospects but are difficult to manufacture. Wire electrical discharge machining (WEDM) can process almost all kinds of non-circular gear. In order to solve the problem that the process parameters are mainly adjusted using the operator’s experience and to improve the surface quality of non-circular gears machined using WEDM, this research took Pascal gears processed with a fast-walking WEDM machine as the object, conducted orthogonal tests, and used hybrid particle swarm optimization (HPSO) to optimize support vector regression (SVR) with different kernel functions, to predict various surface integrity indicators. The results showed that the rbf kernel function had a better performance in the prediction model of surface integrity indicators, which can provide a reference for the parameter selection of non-circular gear machining using WEDM. The final predicted results were R² = 0.9978, MAPE = 0.4534 for surface roughness, R² = 0.9483, MAPE = 3.1673 for surface residual stress, and R² = 0.9786, MAPE = 0.4779 for surface microhardness. Full article

At present, the research objects of rigid-body guidance synthesis are mostly limited to pure linkages, and there is little research on the combined mechanisms of gears or cams and linkages. In order to expand the research objects of rigid-body guidance and improve the kinematic mapping theory, this paper proposes a rigid-body guidance method of noncircular gear-five-bar combined mechanisms. A noncircular gear-five-bar mechanism can be regarded as a combination of a 2R (two revolute joints) open chain, a 3R (three revolute joints) open chain and a pair of noncircular gears. Firstly, the circle point curves and circle center point curves of the 2R and 3R open chains are obtained by using kinematic mapping, and they are formed into a double crank five-bar linkage. Secondly, the B-spline curve is used to fit the rotation angle relationship of the gear pair to obtain the pitch curves of noncircular gears. Finally, aiming at correcting patients’ abnormal gait, a noncircular gear-five-bar exoskeleton knee joint rehabilitation device is designed based on four task poses. The prototype is developed and the wear test is carried out. The test results verify the correctness of the rigid-body guidance synthesis method and the effectiveness of rehabilitation training. Full article

To solve the design problem of non-circular gears with cusp pitch curves, this paper proposed a new variable-involute and incomplete variable-cycloid composite tooth profile (VIIVC-CTF), deduced the new VIIVC-CTF mathematical model, and constructed the conjugate gear model based on the envelope method. The design software of the non-circular gear with a cusp pitch curve was developed based on MATLAB. The variation law of rolling radius on an incomplete cycloid profile and its characteristics such as pressure angle and radius of curvature were analyzed. The variation relationship of the rolling radius on the meshing line and the contact ratio of the VIIVC-CTF were studied. The variation relationship of incomplete variable-cycloid profile shape, pressure angle, and curvature radius corresponding to different elliptical eccentricities were analyzed. The meshing analysis of the non-circular gear transmission mechanism was carried out based on virtual software. A comparison of the consistency of the theoretical value and simulation value of the transmission ratio curve verified that the tooth profile design method was feasible, and the VIIVC-CTF was applied to the seedling pick-up mechanism of the non-circular gear planetary gear train. Through the seedling picking experiment of the seedling pick-up mechanism, the feasibility of the application of the VIIVC-CTF was verified. Full article
