Search Results (9)

Massively carbon-supersaturated (MCSed) tool steel dies were developed to make galling-free forging products from titanium bar feedstocks in dry conditions without lubricating oils. Two types of tool steel dies were used, SKD11 and ACD56, following the Japanese Industrial Standard (JIS). The plasma-immersion carburizing process was employed to induce massive carbon supersaturation in two kinds of tool steel dies at 673 K for 14.4 ks. A pure titanium bar was upset in a single stroke up to the reduction of thickness of 70% using the MCSed SKD11 die. Very few bulging displacements of the upset bar proved that μ = 0.05 on the contact surface of the MCSed SKD11 die to pure titanium work. Two continuous forging experiments were performed to demonstrate that an in situ lubrication mechanism played a role to prevent the contact surface from galling to titanium works in both laboratory- and industry-scaled forging processes. After precise microstructure analyses of the contact surface, the free-carbon film formed in situ acted as a lubricating tribofilm to reduce friction and adhesive wear in continuous forging processes. The MCSed ACD56 dies were also used to describe the galling-free forging behavior of manufacturing eyeglass frames and to evaluate the surface quality of the finished temples. The applied load was reduced by 30% when using the MCSed ACD56 dies. The average surface roughness of the forged product was also greatly reduced, from 4.12 μm to 0.99 μm, together with a reduction in roughness deviations. High qualification of forged products was preserved together with die life prolongation even in dry manufacturing conditions of the titanium and titanium alloys. Full article

In the die and mold industry, tempered JIS SKD11 steel is selected to manufacture cold-forming dies that require an optimum balance of toughness, strength, and wear resistance. Therefore, the machinability of tempered JIS SKD11 in the milling machining process is challenging. The use of eco-friendly machining settings is intended to diminish tool wear and enhance the quality of the machined surface as well as the accuracy of the machined components. Adapting to the aforementioned factors for cold-forming dies is a pivotal issue. In this study, the machinability of tempered JIS SKD11 steel was analyzed under dry, MQL, cryogenic cooling with liquid nitrogen (LN₂), and liquid carbon dioxide (LCO₂) machining settings during open slot milling operations with varying input parameters, including cutting speeds and cutting feeds. An in-depth evaluation of output responses, including tool wear, surface roughness, cutting temperature in the cutting zone, and microhardness of the machined surface, was also conducted. The findings unveiled that the flank wear of the cutters and surface roughness of the machined surfaces obtained minimum values of 0.22 mm and 0.197 µm, respectively, during open slot milling operations at a cutting speed of 100 m/min and a cutting feed of 204 mm/min under cryogenic cooling with liquid carbon dioxide (LCO₂). The findings from this study suggest that employing cryogenic cooling with LCO₂ could serve as a viable substitute for dry, MQL, and cryogenic cooling with LN₂ methods to enhance the machinability of hardened JIS SKD11 steel. Full article

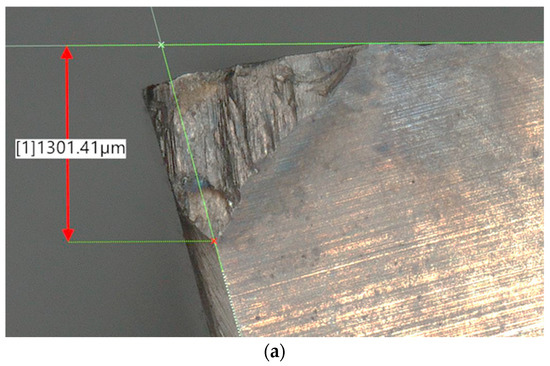

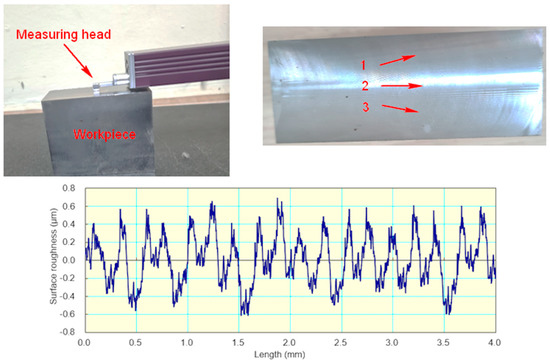

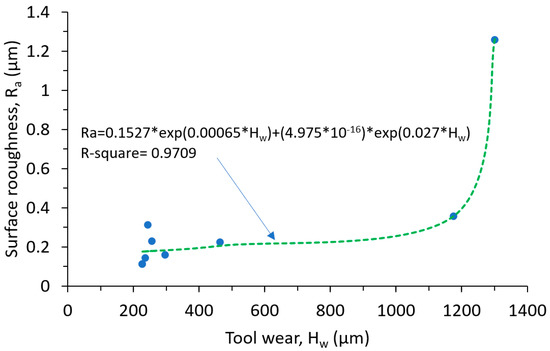

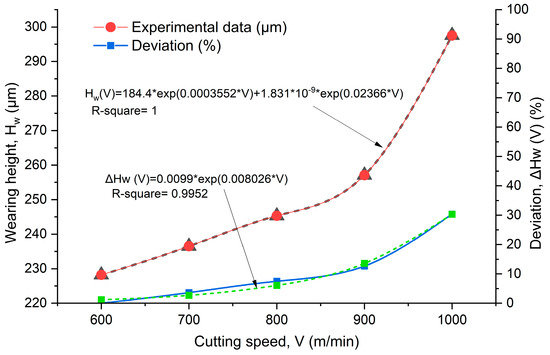

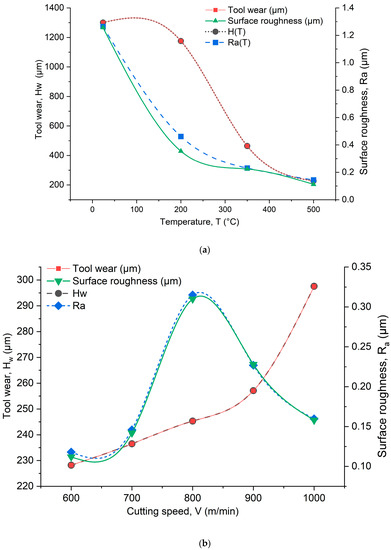

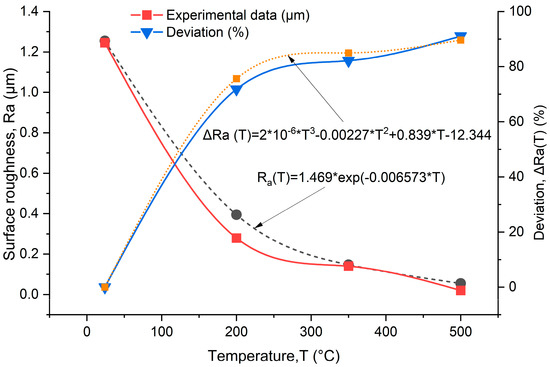

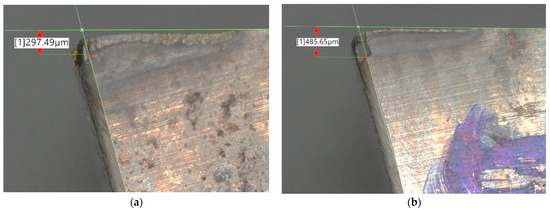

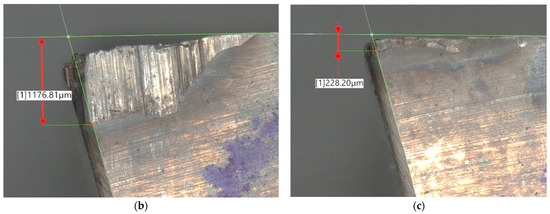

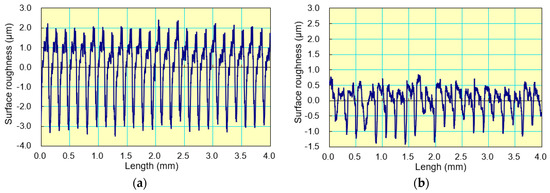

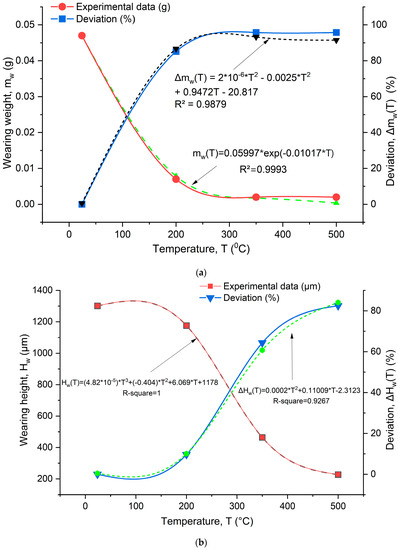

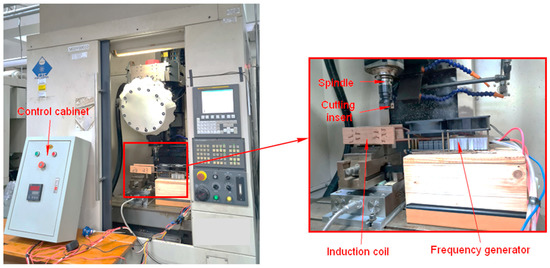

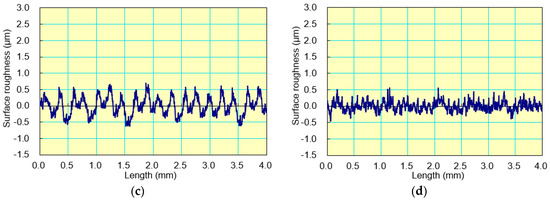

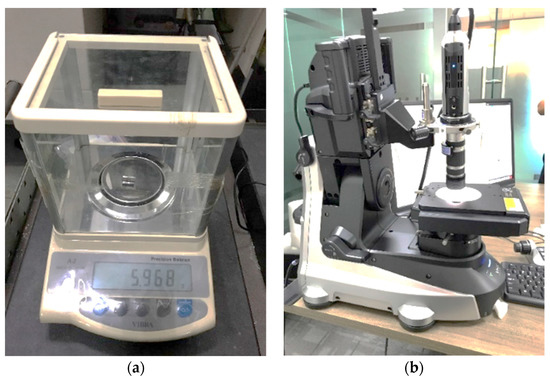

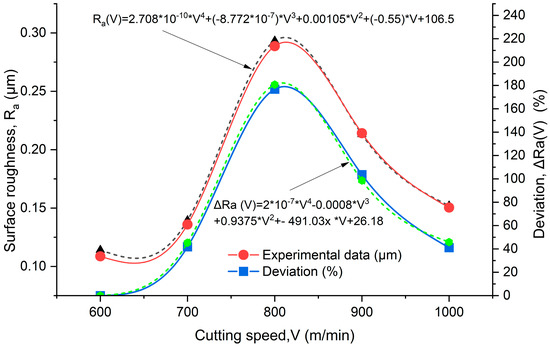

This research investigates the impact of high-speed and thermal-assisted machining (HS-TAM) on tool wear and surface roughness during the milling of SKD11 steel. The goal is to identify high-speed and elevated temperature zones that can improve machining efficiency, enhance surface quality, minimize costs, and extend tool life. The study involves the high-speed milling of SKD11 steel at various temperature conditions to evaluate the effect of temperature on tool wear and surface roughness. Additionally, experiments are conducted at the highest allowable support temperature with increased high-speed cutting to examine the effect of high speed on tool wear and surface roughness. The study demonstrates the correlation between cutting-tool wear and surface roughness at various high-speed cutting conditions and TAM environments and provides recommendations for cutting speeds and heating temperatures for different quality and productivity objectives. The findings indicate that high-speed milling of SKD11 at 600 m/min and 500 °C can decrease cutting tool-wear height (wear volume) and surface roughness by 82.47% (95.74%) and 91.08%, respectively, compared to machining at room temperature. Furthermore, the higher-speed modes at 500 °C result in a slight increase in wear height and surface roughness for high-speed cutting below 800 m/min, but reduces surface roughness for high-speed cutting beyond 800 m/min, reaching a value of 0.158 µm at the high-speed cutting limit of 1000 m/min. Full article

This study aimed to investigate the effects of Thermal-Assisted Machining (TAM) on SKD11 alloy steel using titanium-coated hard-alloy insert cutting tools. The microstructure, material hardness, chip color, cutting force, chip shrinkage coefficient, roughness, and vibration during TAM were evaluated under uniform cutting conditions. The machining process was monitored using advanced equipment. The results indicated that thermal-assisted processing up to 400 °C did not alter the microstructure and hardness of the SKD11 alloy steel. However, a significant variation in chip color was observed, indicating improved heat transfer through TAM. The cutting force, vibration amplitude of the workpiece, and surface roughness all decreased with increasing TAM. Conversely, the chip shrinkage coefficient of the machined chips tended to increase due to the high temperatures. Full article

In order to increase the performance of tool or mold/die, there are a lot of micro features on the surface to provide special functions, such as anti-adhesion or lubrication. The MPB (Micro Particle Bombarding) process provides a powerful technology to enhance the surface quality without damaging the micro features. The effect of MPB parameters were investigated by bombarding the surface with extremely small particles (20~200 µm in diameter) at a high velocity and pressure to obtain a better surface integrity. -The MPB has two functions, one is micro blasting for cleaning purposes and the other is micro shot peening for surface strengthening. The regression relationship between particle bombarding time and micro hardness is established to predict the surface hardness after MPB process. The experimental results reveal that the surface hardness of cermet is increased 14~66% (HV2167~HV3163) by micro particle bombarding. The micro shot peening provides a good surface integrity due to thebetter surface roughness of 0.1 μmRa and higher compress residual stress of −1393.7 MPa, which is up to 26% enhancement compared with the base material cermet. After micro shot peening, the surface hardness of the SKD11 tool steel increased from HV 686 to HV 739~985. The surface roughness of SKD 11 after micro shot peening was 0.31–0.48 μmRa, while the surface roughness after micro blasting was 0.77–1.15 μmRa. It is useful to predict the residual stress for micro blasting by surface roughness, and to estimate the residual stress after micro shot peening by surface hardness by applying the MPB process in industry in the case of SKD 11 tool steel. Full article

To improve the surface roughness of SKD61 die steel and reduce the secondary overflow of the molten pool, a steady magnetic field-assisted laser polishing method is proposed to study the effect of steady magnetic field on the surface morphology and melt pool flow behavior of SKD61 die steel. Firstly, a low-energy pulsed laser is used for the removal of impurities from the material surface; then, the CW laser, assisted by steady magnetic field, is used to polish the rough surface of SKD61 die steel to reduce the material surface roughness. The results show that the steady magnetic field-assisted laser polishing can reduce the surface roughness of SKD61 die steel from 6.1 μm to 0.607 μm, which is a 90.05% reduction compared with the initial surface roughness. Furthermore, a multi-physical-field numerical transient model involving heat transfer, laminar flow and electromagnetic field is established to simulate the flow state of the molten pool on the surface of the SKD61 die steel. This revealed that the steady magnetic field is able to inhibit the secondary overflow of the molten pool to improve the surface roughness of SKD61 slightly by reducing the velocity of the molten pool. Compared with the molten pool depth obtained experimentally, the molten pool depth simulation was 65 μm, representing an error 15.0%, thus effectively demonstrating the accuracy of the simulation model. Full article

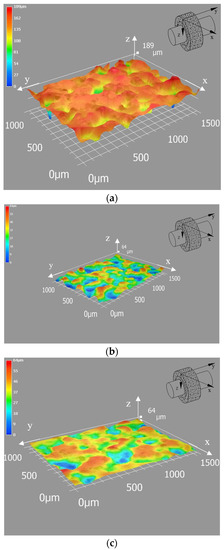

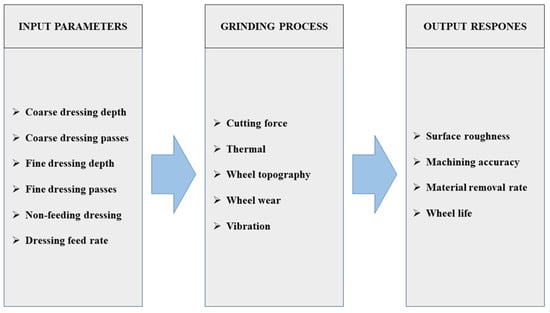

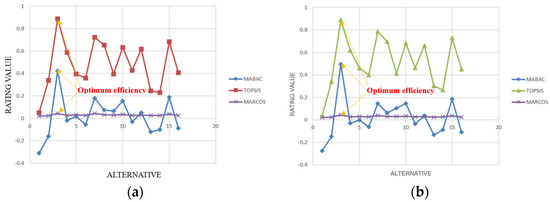

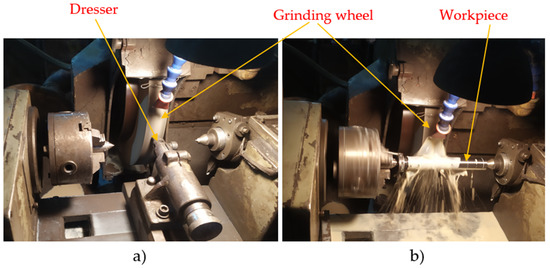

Multi-criteria decision making (MCDM) is a research area that entails analyzing various available options in a situation involving social sciences, medicine, engineering, and many other fields. This is due to the fact that it is used to select the best solution from a set of alternatives. The MCDM methods have been applied not only in economics, medicine, transportation, and the military, but also in mechanical processing processes to determine the best machining option. In this study, determining the best dressing mode for external grinding SKD11 tool steel using an MCDM method—the MABAC (multi-attributive border approximation area comparison) method—was introduced. The goal of this research is to find the best dressing mode for achieving the minimal surface roughness (RS), the maximum wheel life (T), and the minimal roundness (R) all at the same time. To perform this work, an experiment was carried out with six input parameters: the fine dressing depth, the fine dressing passes, the coarse dressing depth, the coarse dressing passes, the non-feeding dressing, and the dressing feed rate. In addition, the Taguchi method and an L16 orthogonal array were used to design the experiment. Furthermore, the MEREC (method based on the removal effects of criteria) and entropy methods were used to determine the weight of the criteria. The best dressing mode for external cylindrical grinding has been proposed based on the results. These findings were also confirmed by comparing them to the TOPSIS (technique for order of preference by similarity to ideal solution) and MARCOS (measurement of alternatives and ranking according to compromise solution) methods. Full article

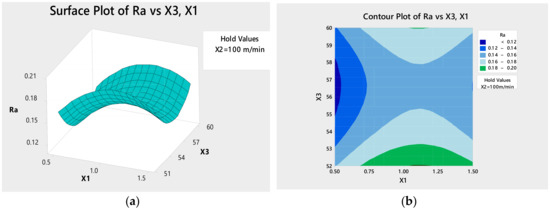

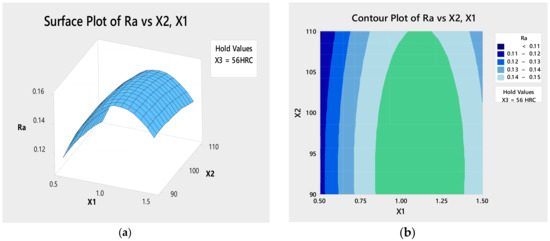

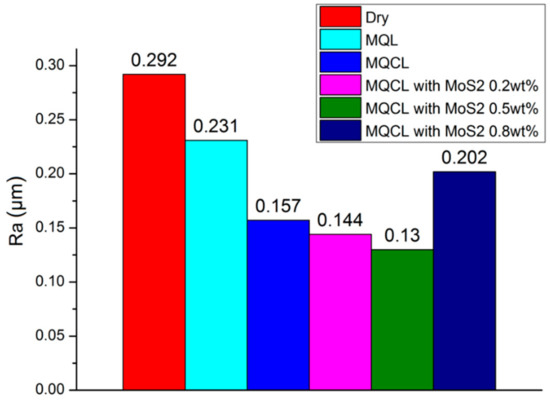

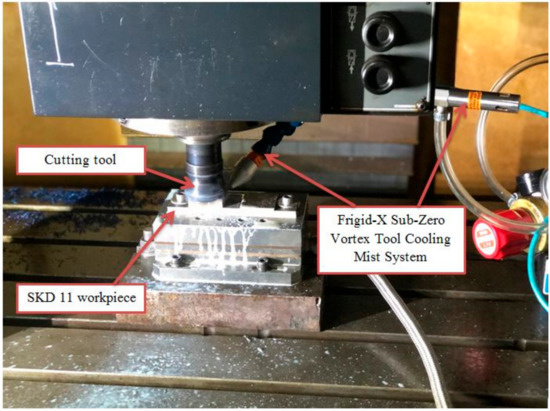

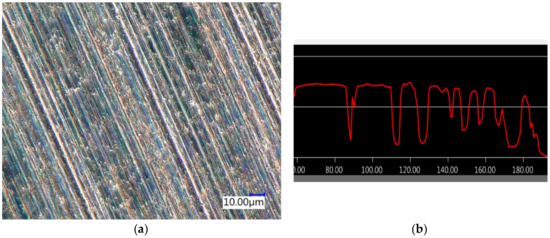

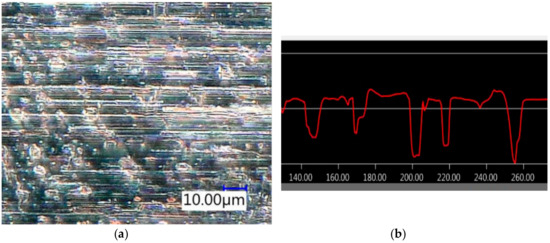

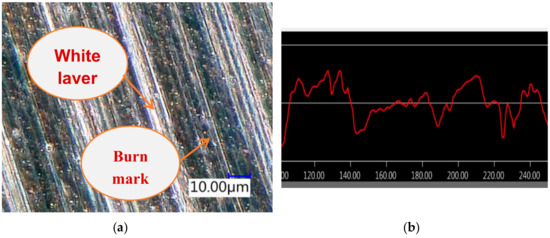

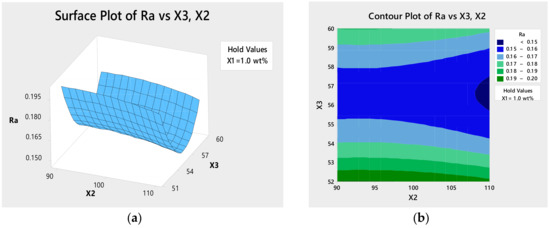

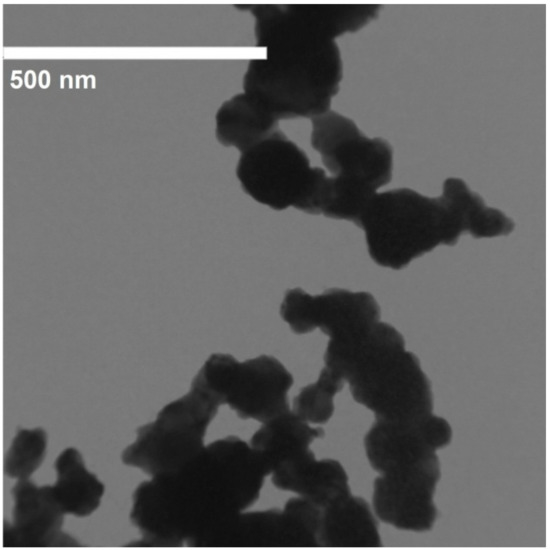

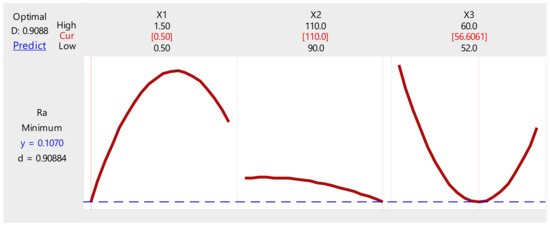

The present work shows an experimental investigation on the effect of minimum quantity cooling lubrication (MQCL) during hard milling of SKD 11 tool steel (52–60HRC). The novelty here lies on the use of MQCL technique, which comprises the cooling strategy based on the principle of Ranque-Hilsch vortex tube and MQL method. Moreover, MoS₂ nanoparticles are suspended in MQCL based fluid to improve the lubricating character. The response parameters, including surface roughness, surface microstructure, and surface profile are studied. The obtained results show that MQCL using nanofluid gives out better surface quality compared to dry, MQL, and MQCL with pure fluid. Also, the different concentrations of MoS₂ nanoparticles are investigated to find out the optimized value as well as the interaction effect on machined surface. Full article

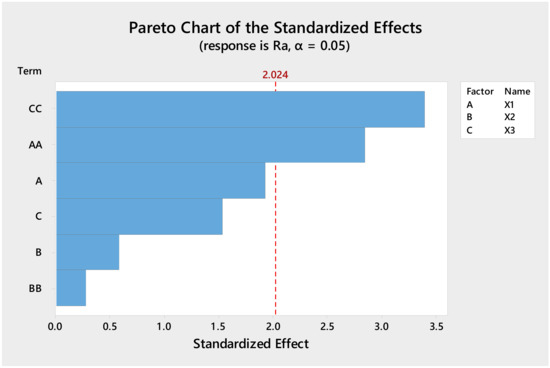

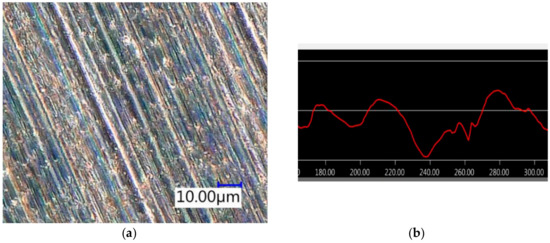

Hard machining is an efficient solution that can be used to replace the grinding operation in the mold and die manufacturing industry. In this study, an attempt is made to analyze the effect of process parameters on workpiece surface roughness (Ra) in the hard milling of JIS (Japanese Industrial Standard) SKD61 steel, based on a combination of the Taguchi method and response surface methodology (RSM). The cutting parameters are selected based on the structural dynamic analysis of the machine tool. A set of experiments is designed according to the Taguchi technique. The average Ra is measured by a Mitutoyo Surftest SJ-400, and then analysis of variance (ANOVA) is performed to determine the influences of cutting parameters on the given Ra. Quadratic mathematical modeling is introduced for prediction of the Ra during the hard milling process. The predicted values are in reasonable agreement with the observation of experiments. In an effort to obtain the minimizing Ra, a single objective optimization is employed based on the desirability function. The result shows that the percentage error between measured and predicted values of Ra is 3.2%, which is found to be insignificant. Eventually, the milled surface roughness under the optimized machining conditions is 0.122 µm. This finding shows that grinding may be replaced by finish hard milling in the mold and die manufacturing field. Full article
