Impact of Powdered Activated Carbon Structural Properties on Removal of Organic Foulants in Combined Adsorption-Ultrafiltration
Abstract
:1. Introduction
2. Materials and Methods
2.1. Feed Water
2.2. Powdered Activated Carbons (PACs)
2.3. Ultrafiltration Set-Up and Membrane
2.4. Experimental Procedures
2.4.1. Filtration Experiments
2.4.2. Adsorption Isotherms
2.5. Analytical Methods
2.5.1. Water Analysis
2.5.2. Carbon Analysis
3. Results and Discussion
3.1. Ultrafiltration
3.1.1. NOM Removal

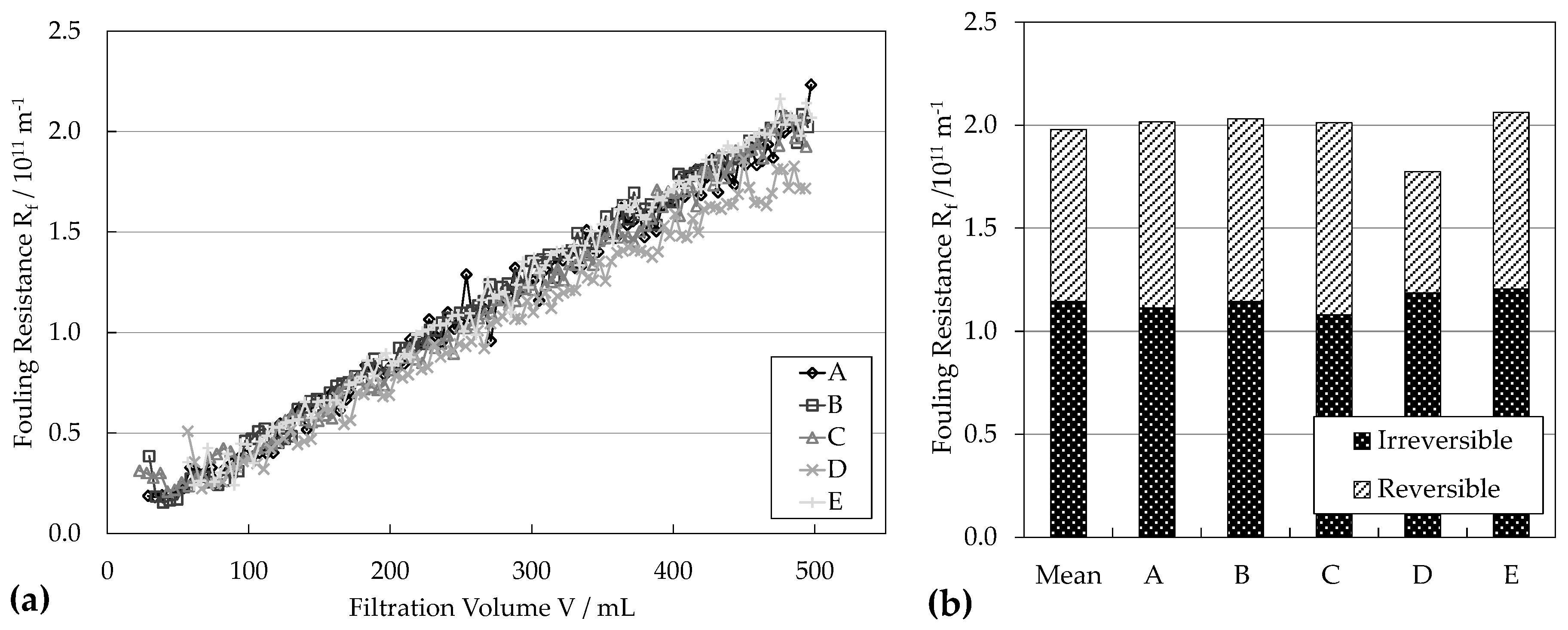

3.1.2. Membrane Fouling by NOM
3.2. NOM Adsorption onto PAC
3.3. Combined Adsorption-Ultrafiltration

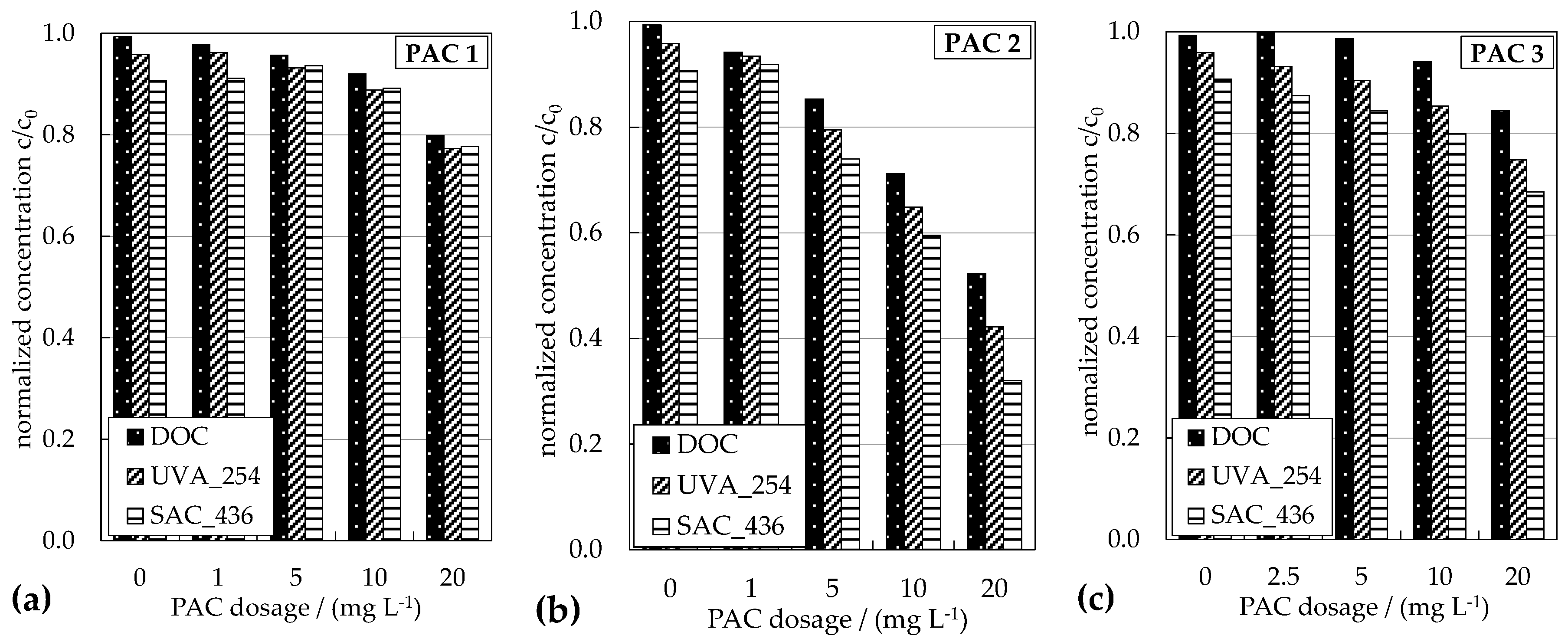

3.3.1. NOM Removal

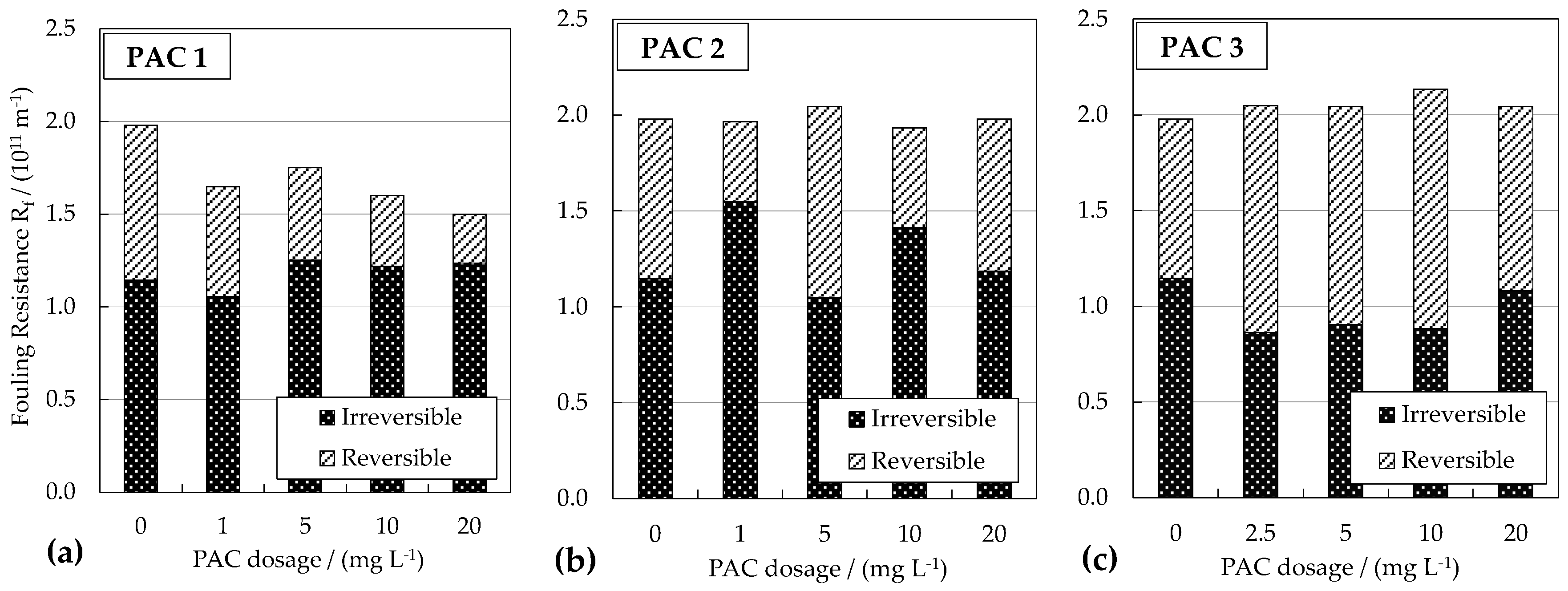

3.3.2. Membrane Fouling

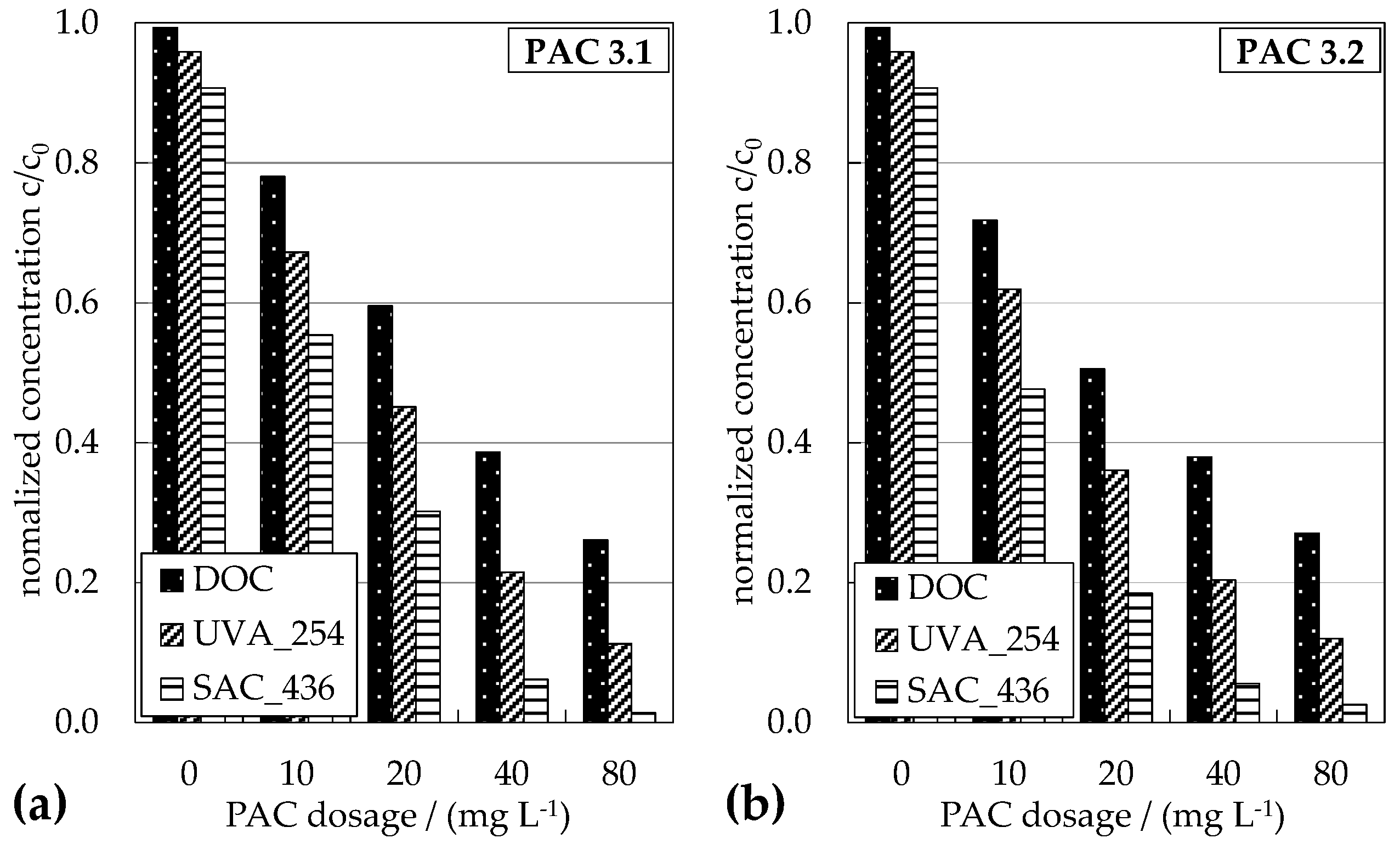

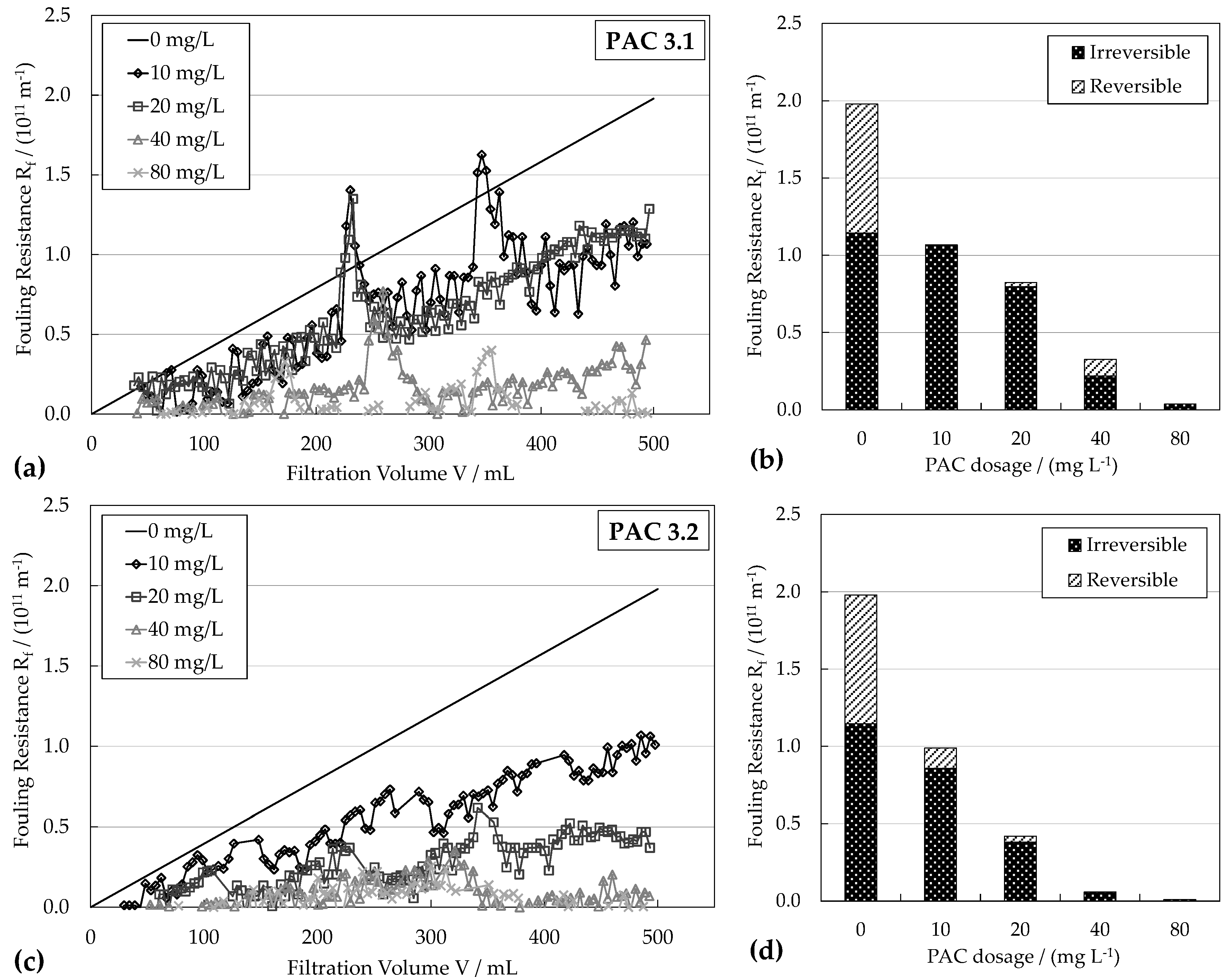

3.3.3. Impact of Particle Size

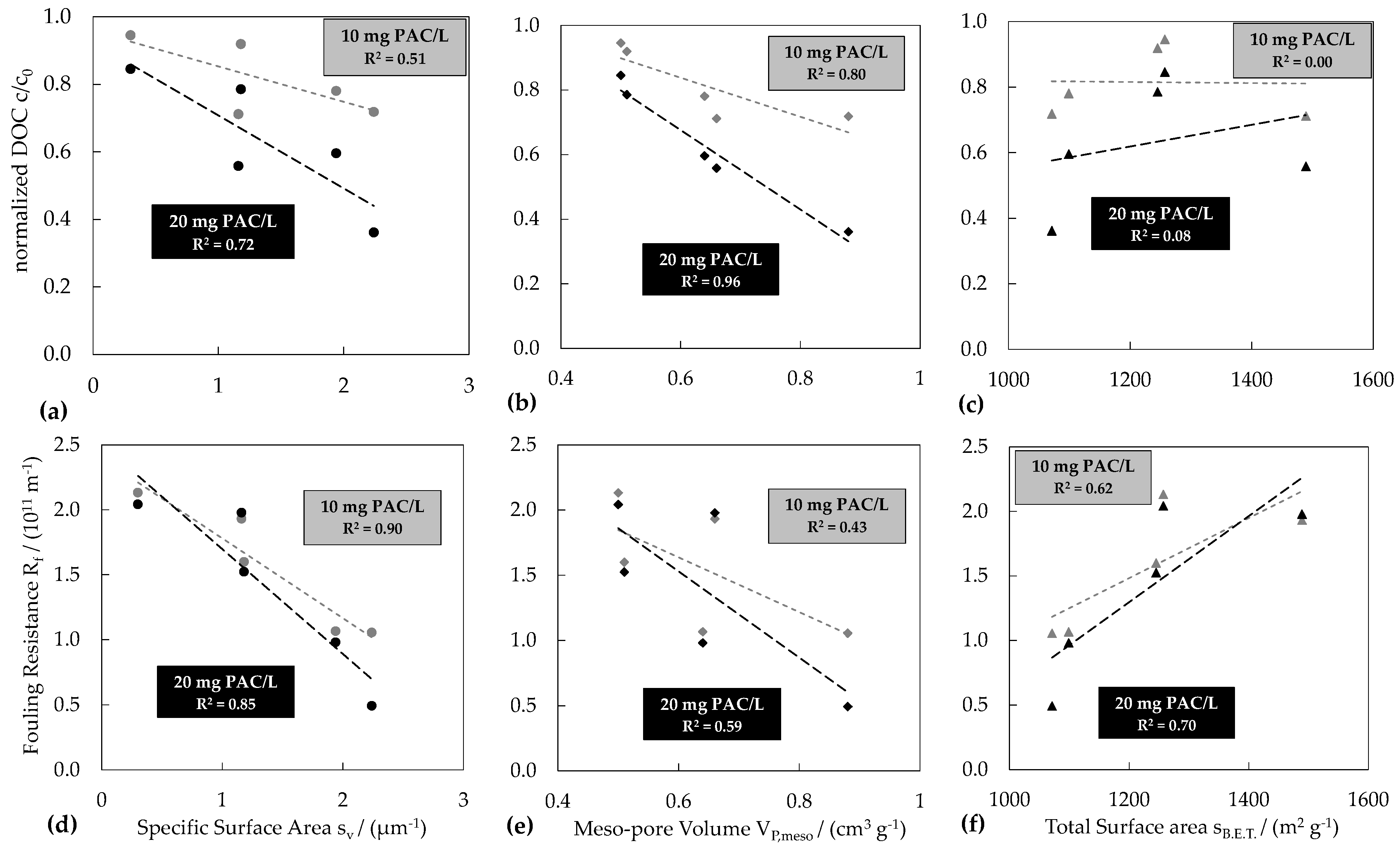

3.4. Impact of PAC Properties on Process Efficiency
4. Conclusions
- For the tested water, fouling was caused mainly by macromolecular fractions of humic substances, which carry a high amount of UV-absorbance (UVA254) and yellow color (SAC436).
- Conventional PAC performance indicators, such as B.E.T.-surface, iodine number, and nitrobenzene number, are not suitable to predict PACs potential for NOM removal or membrane fouling prevention because they include micro pores, which are not accessible for most NOM fractions.
- The meso-pore volume mainly governed the quantity of NOM removal and can be used to predict PACs’ potential to adsorb bulk organics.
- A high DOC rejection does not necessarily lead to considerable fouling prevention; rather, the quality of DOC that is removed is crucial for resulting filtration behavior.
- To prevent fouling, PACs should be selected that are able to specifically remove humic substances with high molecular weight.
- Particle size and associated specific surface area determine PACs potential to mitigate fouling in combined PAC-UF. This is because of a more homogeneous PAC distribution on the membrane surface, a better accessibility to meso-pores for organic molecules, an enhanced transport of solutes through the external boundary layer and, particularly, a higher external surface where macromolecular foulants are able to adsorb.

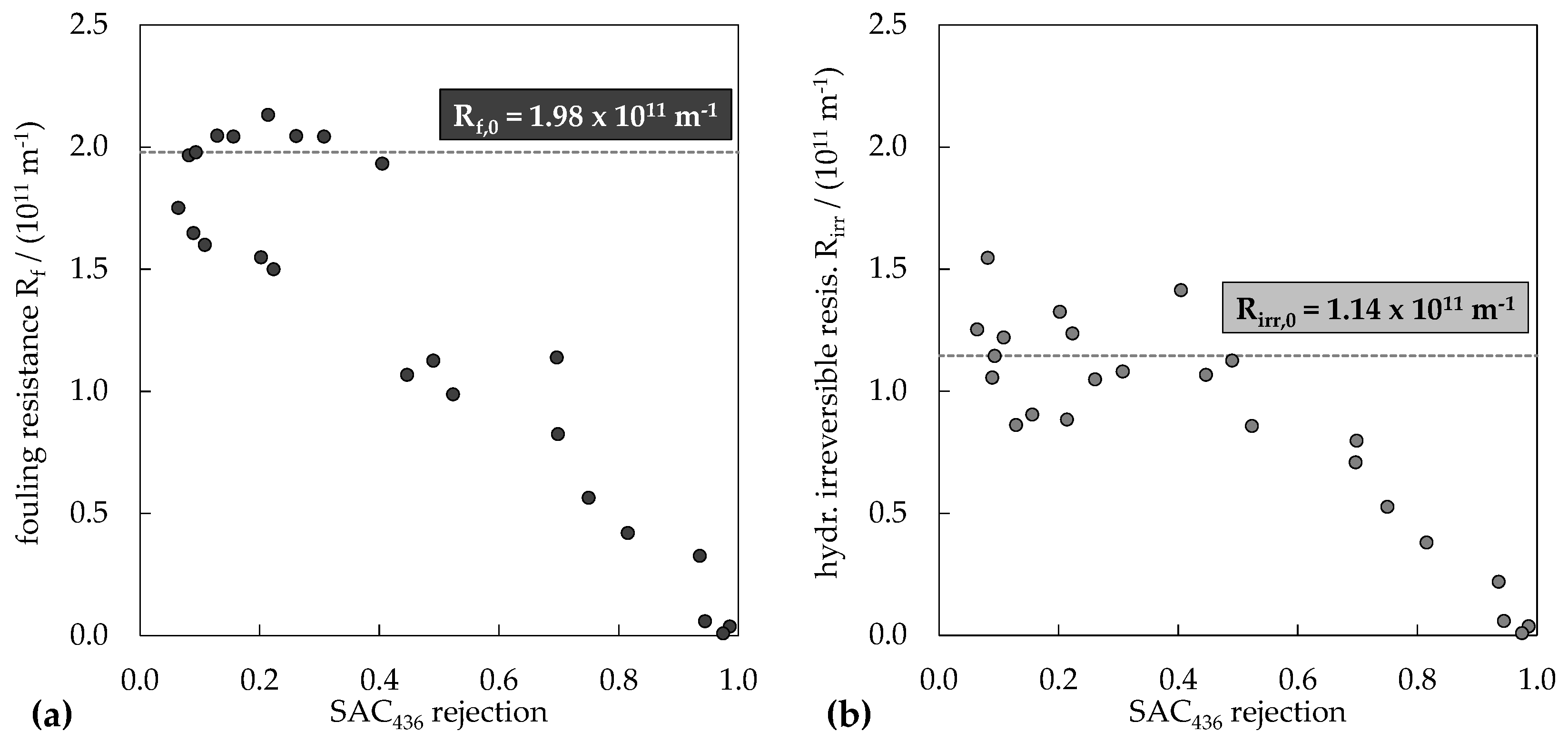

- Specific light absorption at 436 nm (SAC436) can serve as an indicator for the fouling potential of groundwater since it represents the macromolecular NOM fraction of the water.
Author Contributions
Conflicts of Interest
Appendix A
References
- Filella, M. Freshwaters: Which NOM matters? Environ. Chem. Lett. 2009, 7, 21–35. [Google Scholar] [CrossRef]
- Leenheer, J.A.; Croué, J.P. Characterizing Aquatic Dissolved Organic Matter. Environ. Sci. Technol. 2003, 37, 18. [Google Scholar] [CrossRef]
- Thurman, E.M. Organic Geochemistry of Natural Waters; Springer: Berlin/Heidelberg, Germany, 2013. [Google Scholar]
- Nikolaou, A.D.; Golfinopoulos, S.K.; Lekkas, T.D.; Kostopoulou, M.N. DBP Levels in Chlorinated Drinking Water: Effect of Humic Substances. Environ. Monit. Assess. 2004, 93, 301–319. [Google Scholar] [CrossRef] [PubMed]
- Sillanpää, M.E.T. (Ed.) Natural Organic Matter in Water: Characterization and Treatment Methods; Butterworth-Heinemann: Oxford, UK; Waltham, MA, USA, 2015. [Google Scholar]
- Jacangelo, J.G.; DeMarco, J.; Owen, D.M.; Randtke, S.J. Selected processes for removing NOM: An overview. Am. Water Works Assoc. 1995, 87, 64–77. [Google Scholar]
- Amy, G. Fundamental understanding of organic matter fouling of membranes. Desalination 2008, 231, 44–51. [Google Scholar] [CrossRef]
- Sutzkover-Gutman, I.; Hasson, D.; Semiat, R. Humic substances fouling in ultrafiltration processes. Desalination 2010, 261, 218–231. [Google Scholar] [CrossRef]
- Chan, R.; Chen, V. Characterization of protein fouling on membranes: Opportunities and challenges. J. Membr. Sci. 2004, 242, 169–188. [Google Scholar] [CrossRef]
- Cho, J.; Amy, G.; Pellegrino, J.; Yoon, Y. Characterization of clean and natural organic matter (NOM) fouled NF and UF membranes, and foulants characterization. Desalination 1998, 118, 101–108. [Google Scholar] [CrossRef]
- Evans, P.J.; Bird, M.R.; Pihlajamäki, A.; Nyström, M. The influence of hydrophobicity, roughness and charge upon ultrafiltration membranes for black tea liquor clarification. J. Membr. Sci. 2008, 313, 250–262. [Google Scholar] [CrossRef]
- Gao, W.; Liang, H.; Ma, J.; Han, M.; Chen, Z.-L.; Han, Z.-S.; Li, G.-B. Membrane fouling control in ultrafiltration technology for drinking water production: A review. Desalination 2011, 272, 1–8. [Google Scholar] [CrossRef]
- Katsoufidou, K.; Yiantsios, S.; Karabelas, A. A study of ultrafiltration membrane fouling by humic acids and flux recovery by backwashing: Experiments and modeling. J. Membr. Sci. 2005, 266, 40–50. [Google Scholar] [CrossRef]
- Çeçen, F.; Aktaş, Ö. Activated Carbon for Water and Wastewater Treatment; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2011. [Google Scholar]
- Bhatnagar, A.; Sillanpaa, M. Removal of natural organic matter (NOM) and its constituents from water by adsorption—A review. Chemosphere 2017, 166, 497–510. [Google Scholar] [CrossRef] [PubMed]
- Haberkamp, J.; Ruhl, A.S.; Ernst, M.; Jekel, M. Impact of coagulation and adsorption on DOC fractions of secondary effluent and resulting fouling behaviour in ultrafiltration. Water Res. 2007, 41, 3794–3802. [Google Scholar] [CrossRef] [PubMed]
- Stoquart, C.; Servais, P.; Bérubé, P.R.; Barbeau, B. Hybrid Membrane Processes using activated carbon treatment for drinking water: A review. J. Membr. Sci. 2012, 411–412, 1–12. [Google Scholar] [CrossRef]
- Huang, H.; Schwab, K.; Jacangelo, J.G. Pretreatment for Low Pressure Membranes in Water Treatment: A Review. Environ. Sci. Technol. 2009, 43, 3011–3019. [Google Scholar] [CrossRef] [PubMed]
- Hoffmann, G.; Hobby, R.; Gimbel, R. Organic Substance Removal by Combination of Powdered Activated Carbon Adsorption and Microfiltration—Optimization of the Process by Modifying Process Parameters. In Proceedings of the 9th IWA World Water Congress & Exhibition, Lisbon, Portugal, 21–26 September 2014. [Google Scholar]
- Kim, J.; Cai, Z.; Benjamin, M.M. Effects of adsorbents on membrane fouling by natural organic matter. J. Membr. Sci. 2008, 310, 356–364. [Google Scholar] [CrossRef]
- Cai, Z.; Kim, J.; Benjamin, M.M. NOM Removal by Adsorption and Membrane Filtration Using Heated Aluminum Oxide Particles. Environ. Sci. Technol. 2008, 42, 619–623. [Google Scholar] [CrossRef] [PubMed]
- Cai, Z.; Wee, C.; Benjamin, M.M. Fouling mechanisms in low-pressure membrane filtration in the presence of an adsorbent cake layer. J. Membr. Sci. 2013, 433, 32–38. [Google Scholar] [CrossRef]
- Lee, C.W.; Bae, S.D.; Han, S.W.; Kang, L.S. Application of ultrafiltration hybrid membrane processes for reuse of secondary effluent. Desalination 2007, 202, 239–246. [Google Scholar] [CrossRef]
- Tsujimoto, W.; Kimura, H.; Izu, T.; Irie, T. Membrane filtration and pre-treatment by GAC. Desalination 1998, 119, 323–326. [Google Scholar] [CrossRef]
- Matsui, Y.; Murase, R.; Sanogawa, T.; Aoki, N.; Mima, S.; Inoue, T.; Matsushita, T. Micro-ground powdered activated carbon for effective removal of natural organic matter during water treatment. Water Sci. Technol. Water Supply 2004, 4, 155–163. [Google Scholar]
- Mozia, S.; Tomaszewska, M.; Morawski, A.W. Application of an ozonation–adsorption–ultrafiltration system for surface water treatment. Desalination 2006, 190, 308–314. [Google Scholar] [CrossRef]
- Zhao, P.; Takizawa, S.; Katayama, H.; Ohgaki, S. Factors causing PAC cake fouling in PAC–MF (powdered activated carbon-microfiltration) water treatment systems. Water Sci. Technol. 2005, 51, 231–240. [Google Scholar] [PubMed]
- Schulz, M.; Soltani, A.; Zheng, X.; Ernst, M. Effect of inorganic colloidal water constituents on combined low-pressure membrane fouling with natural organic matter (NOM). J. Membr. Sci. 2016, 507, 154–164. [Google Scholar] [CrossRef]
- Lin, C.-F.; Huang, Y.-J.; Hao, O.J. Ultrafiltration processes for removing humic substances: Effect of molecular weight fractions and PAC treatment. Water Res. 1999, 33, 1252–1264. [Google Scholar] [CrossRef]
- Matsui, Y.; Ando, N.; Yoshida, T.; Kurotobi, R.; Matsushita, T.; Ohno, K. Modeling high adsorption capacity and kinetics of organic macromolecules on super-powdered activated carbon. Water Res. 2011, 45, 1720–1728. [Google Scholar] [CrossRef] [PubMed]
- Ando, N.; Matsui, Y.; Matsushita, T.; Ohno, K. Direct observation of solid-phase adsorbate concentration profile in powdered activated carbon particle to elucidate mechanism of high adsorption capacity on super-powdered activated carbon. Water Res. 2011, 45, 761–767. [Google Scholar] [CrossRef] [PubMed]
- Matsui, Y.; Nakao, S.; Yoshida, T.; Taniguchi, T.; Matsushita, T. Natural organic matter that penetrates or does not penetrate activated carbon and competes or does not compete with geosmin. Sep. Purif. Technol. 2013, 113, 75–82. [Google Scholar] [CrossRef]
- Greenwald, M.J.; Redding, A.M.; Cannon, F.S. A rapid kinetic dye test to predict the adsorption of 2-methylisoborneol onto granular activated carbons and to identify the influence of pore volume distributions. Water Res. 2015, 68, 784–792. [Google Scholar] [CrossRef] [PubMed]
- Dastgheib, S.A.; Karanfil, T.; Cheng, W. Tailoring activated carbons for enhanced removal of natural organic matter from natural waters. Carbon 2004, 42, 547–557. [Google Scholar] [CrossRef]
- Crittenden, J. Water Treatment: Principles and Design, 2nd ed.; Wiley: Hoboken, NJ, USA, 2010. [Google Scholar]
- Deutscher Verein des Gas- und Wasserfaches e.V. Entfernung Organischer Stoffe Bei Der Trinkwasseraufbereitung Durch Adsorption an Aktivkohle; DVGW: Bonn, Germany, 2011. [Google Scholar]
- Jantschik, R.; Nyffeler, F.; Donard, O. Marine particle size measurement with a stream-scanning laser system. Mar. Geol. 1992, 106, 239–250. [Google Scholar] [CrossRef]
- Huber, S.A.; Balz, A.; Abert, M.; Pronk, W. Characterisation of aquatic humic and non-humic matter with size-exclusion chromatography—Organic carbon detection—Organic nitrogen detection (LC-OCD-OND). Water Res. 2011, 45, 879–885. [Google Scholar] [CrossRef] [PubMed]
- Rouquerol, F.; Rouquerol, J.; Sing, K.S.W. Adsorption by Powders and Porous Solids: Principles, Methodology and Applications; Academic Press: San Diego, CA, USA, 1999. [Google Scholar]
- Piccolo, A. The supramolecular structure of humic substances. Soil Sci. 2001, 166, 810–832. [Google Scholar] [CrossRef]
pH | EC | TOC | DOC | DOC (HS) 1 | UVA254 | SAC436 | SUVA | Ca2+ | Turb. |
---|---|---|---|---|---|---|---|---|---|
- | μS cm−1 | mg L−1 | mg L−1 | mg L−1 | m−1 | m−1 | L m−1 mg−1 | mg L−1 | NTU |
7.9 | 410 | 3.49 ± 0.12 | 3.38 ± 0.10 | 2.24 ± 0.12 | 15.4 ± 0.08 | 1.19 ± 0.012 | 4.57 | 26.1 | 0.21 |
Parameter | Symbol | Unit | PAC 1 | PAC 2 | PAC 3 | PAC 3.1 | PAC 3.2 |
---|---|---|---|---|---|---|---|
Source material | mixture | brown coal | brown coal | ||||
Particle characteristics | |||||||
Diameter (30% undersize) 1 | d30 | μm | 2.65 | 3.12 | 5.31 | 1.87 | 1.56 |
Diameter (50% undersize) 1 | d50 | μm | 3.59 | 4.37 | 10.30 | 2.97 | 2.50 |
Diameter (70% undersize) 1 | d70 | μm | 5.00 | 5.93 | 27.01 | 3.90 | 3.43 |
Specific surface area 2 | sv | μm−1 | 1.18 | 1.16 | 0.30 | 1.94 | 2.24 |
Pore structure | |||||||
Meso-pore surface | sp,meso | m2 g−1 | 351 | 471 | 288 | 256 | 271 |
Meso-pore volume | vp,meso | cm3 g−1 | 0.51 | 0.66 | 0.50 | 0.64 | 0.88 |
Meso-pore radius | rp70,meso | Å | 25.8 | 25.2 | 29.0 | 29.9 | 35.4 |
Micro-pore volume | vp,micro | cm3 g−1 | 0.26 | 0.24 | 0.04 | 0.07 | 0.07 |
Internal surface area | |||||||
Total surface area | sB.E.T. | m2 g−1 | 1245 | 1489 | 1257 | 1099 | 1071 |
