Application of a Bio-Inspired Algorithm in the Process Parameter Optimization of Laser Cladding

Abstract

The process parameter optimization of laser cladding using a bio-inspired algorithm is a hot issue and attracts the attention of many scholars. The biggest difficulty, at present, is the lack of accurate information regarding the function relationship between objectives and process parameters. In this study, a novel process parameter optimization approach for laser cladding is proposed based on a multiobjective slime mould algorithm (MOSMA) and support vector regression (SVR). In particular, SVR is used as a bridge between target and process parameters for solving the problem of lacking accurate information regarding the function relationship. As a new metaheuristic algorithm, MOSMA is to obtain the Pareto solution sets and fronts. The Pareto solution sets are optimized process parameters, and the Pareto fronts are optimized objectives. Users can select the corresponding optimized process parameters according to their needs for the target. The performance of the proposed approach was evaluated by the TOPSIS method, based on actual laser cladding data and compared with several well known approaches. The results indicate that the optimal process parameters obtained by the proposed approach have better process performance.

1. Introduction

With the growing requirements for the mechanical properties of transmission parts, traditional hardening technology is not remarkable in terms of production cost, benefit and performance improvement. Laser cladding is a new surface hardening technology with great potential application value. Under the irradiation of a high energy laser, the cladding alloy powder is melted and added to the surface of the substrate. The cladding layer has good mechanical properties after cooling [1]. In addition, it also has the advantages of high precision, high quality and the low thermal effect of the substrate [2,3].

Laser power P, laser scanning speed V and powder feeding rate F (voltage $Fv$) are the three key process parameters, which are easy to control and have a strong impact on the quality of the cladding layer [4]. Optimal process parameters vary with different substrate materials and laser cladding powders. In order to obtain a high quality cladding layer, it is of great significance to perform parameter optimization for each laser cladding process.

An empirical statistics method has been used to optimize the process parameters of laser cladding. The relationship between cladding geometry (width, height, depth of molten and dilution rate) and process parameters (laser power, powder feeding rate and scanning speed) has been studied to obtain the linear relationship by the regression method [5]. According to simulation results of molten pool temperature distribution, the laser power and scanning speed had a great influence on the temperature field and geometry of the molten pool [6]. There are specific functions that have been proposed to describe the geometry of a laser cladding layer based on the recursive model and experimental results. Thereby, the complete geometry of the laser cladding layer can be predicted from the basic process parameters [7].

In this study, T15 high speed steel powder was deposited on a 42CrMo steel substrate with the laser cladding process. It greatly improved the surface hardness and wear resistance of the substrate and further improved the service life of mechanical parts [8]. On this basis, heuristic algorithms can be used to solve and optimize process parameters. However, there is no accurate formula between the machining objectives (dilution ratio, powder utilization rate, etc.) and process parameters. This causes significant difficulty for the multiobjective optimization of process parameters.

A slime mould algorithm (SMA) is an up to date bio-inspired method, which was presented by Chen et al. [9] in 2020. It simulated the behavior of slime mould and established the distinct mathematic model for an outstanding exploratory capacity and exploitation propensity. SMA was evaluated using various benchmark data and achieved superior results. A multiobjective slime mould algorithm (MOSMA) employed the same underlying SMA mechanisms for convergence, combined with an elitist nondominated sorting approach to estimate Pareto optimal solutions [10].

In this paper, a novel process parameter optimization approach for laser cladding is proposed based on MOSMA and SVR (MOSMA-SVR-POLC). MOSMA is used to optimize the process parameters of laser cladding (Pareto solution set). Support vector regression (SVR) is used to build the relationship between process parameters and machining objectives. The actual laser cladding data are utilized to assess the performance of MOSMA-SVR-POLC. Simultaneously, the data fitting method (DFM) [5], the response surface method (RSM) [11], MODA (multiobjective dragonfly algorithm)-SVR-POLC [12], MOEA/D (multiobjective evolutionary algorithm based on decomposition)-SVR-POLC [13] and other variant methods are compared with the proposed approach.

There are two innovations. First, the ingenious combination of MOSMA and SVR is modeled in the process parameter optimization of laser cladding. SVR is used to predict the optimization objectives based on the past data of laser cladding, and the predicted results are involved in the iteration process of MOSMA. Secondly, the proposed approach is tested using actual machining data, which can well verify the feasibility and effectiveness of the method.

The remainder of this paper is arranged as follows. Section 2 shows the research methodology and analysis methods. The MOSMA-SVR-POLC is described in detail. The case study is shown in Section 3. The discussion and conclusion are provided in Section 4 and Section 5, respectively.

2. MOSMA-SVR-POLC Approach

In this section, the new MOSMA-SVR-POLC hybrid approach is proposed to deal with the problem of the process parameter optimization of laser cladding. The main idea is as follows: (a) carry out the process parameter population representation of laser cladding, (b) obtain the current Pareto solution set and front based on the actual machining data as the training set and SVR as the fitness function, (c) update the population via the Pareto solution set, Pareto front and MOSMA. Steps (b) and (c) are repeated until the cut-off condition is met. The cut-off condition is generally set to reach the maximum iteration. During theorisation, there are two issues that need special attention. The first is how the process parameter population of laser cladding is represented. The second is the membership of the Pareto front. In MOSMA-SVR-POLC, the discussions of these issues are shown in the following.

• The process parameter population representation of laser cladding: The population X is made up of individuals $X_i$. X = $\left\{X_1,X_2,\dots ,X_n\right\}$, where n indicates the population size. The attributes of $X_i$ are determined by the process parameters of laser cladding (P, $Fv$, V).
• The membership of Pareto front: The dilution ratio $D\%$, powder utilization rate $PU$ and machining efficiency $ME$ are usually used to evaluate the effect of laser cladding. Therefore, these indicators can constitute the membership of Pareto front. Thus far, there is no accurate employing these objectives and process parameters; hence, the $ϵ$-SVR is applied to predict the objectives. In addition, $PU$ and $ME$ are special (in essence, bigger is better). It is necessary to obtain the reciprocal of $PU$ and $ME$ for unifying the characteristics of all the indicators (smaller is better).

In this work, $ϵ$-SVR [14] is used to predict the dilution ratio $D\%$, powder utilization rate $PU$ and machining efficiency $ME$, because there is no accurate calculation formula employing the objectives ($D\%$, $PU$ and $ME$) and the process parameters (P, $Fv$ and V) in the field of laser cladding. The development kit LIBSVM offers the source codes of $ϵ$-SVR [15]. The radial basis function (RBF) kernel is very efficient, especially in the prediction of high dimensional samples [16]. The function is listed below.

$$K\left(·\right)=exp(-\gamma {|\mathbf{u}-\mathbf{v}|}^2)$$

(1)

where $\gamma$ is a coefficient to be set manually, $\mathbf{u}$ is the prediction result vector, and $\mathbf{v}$ indicates the actual value vector.

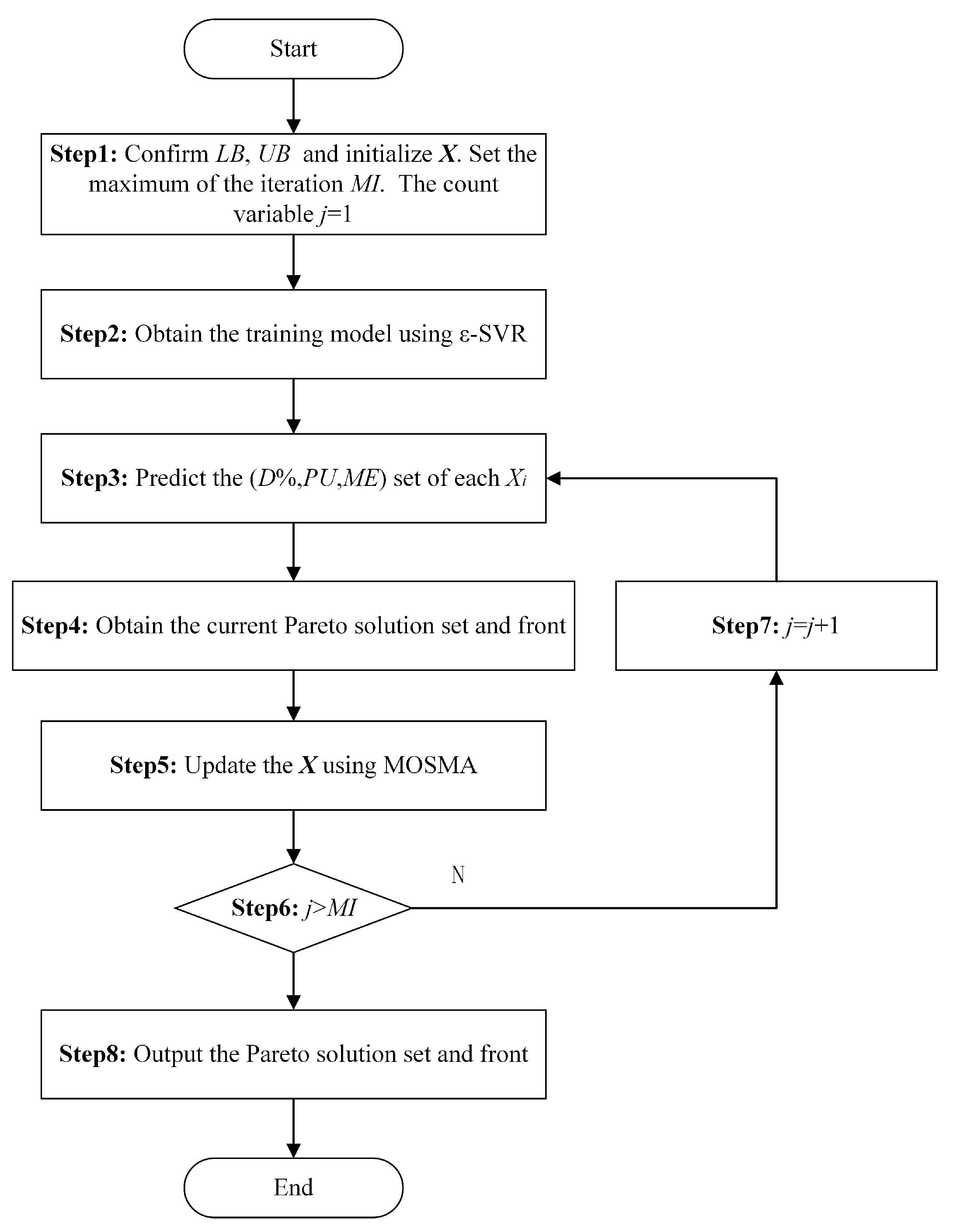

The main process of the MOSMA-SVR-POLC approach is depicted in Figure 1. The specific steps are shown in the following.

Step 1 Confirm the lower and upper limits of P, $Fv$ and V to form the lower limit sets $LB$ and the upper limit sets $UB$. Thus, X is initialized randomly within $LB$ and $UB$. The maximum of the iteration is marked as $MI$. The iteration count variable j is set to 1.

Step 2 Based on training data, obtain the training model using $ϵ$-SVR.

Step 3 Based on the training model, predict the $(D\%,PU,ME)$ set of each $X_i$.

Step 4 Obtain the current Pareto solution set $P{S}_X$ and front $P{S}_F$ with the $(D\%,PU,ME)$ sets.

Step 5 Update X with the operations of MOSMA.

Step 6 If $j>MI$, go to Step 8; otherwise, go to Step 7.

Step 7 j = j + 1. Go to Step 3.

Step 8 Output the Pareto solution set and front.

Multiobjective Slime Mould Algorithm

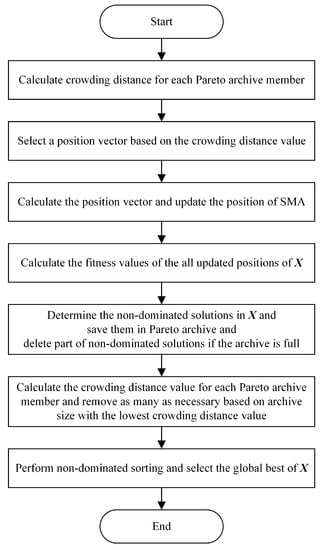

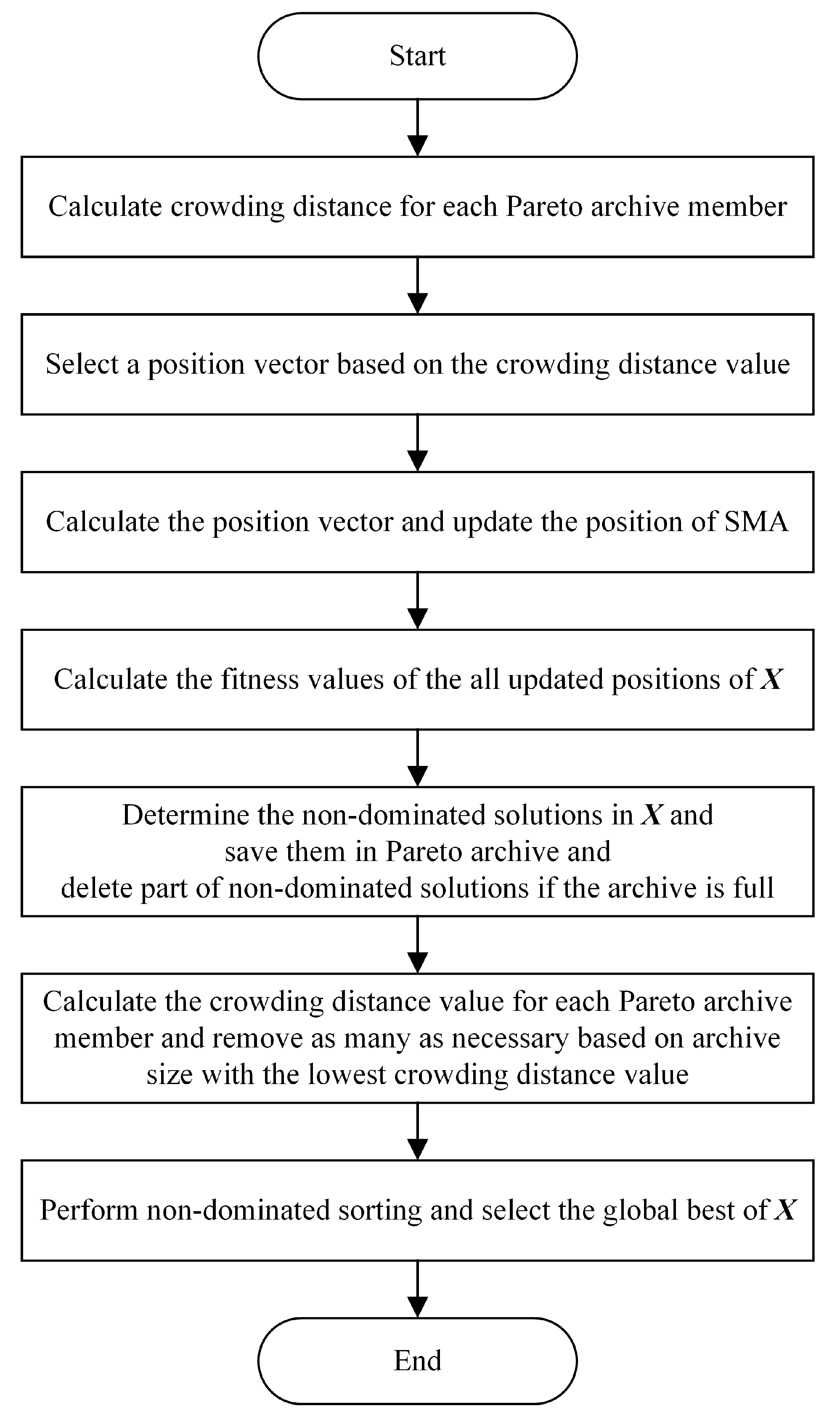

SMA was presented by Chen et al. [9] in 2020. It was motivated by the oscillating patterns of slime mould. For forming the optimum path to connect food with outstanding exploratory capacity and exploitation propensity, a distinct mathematic model was presented using accommodative weights to imitate the process of generating positive and negative feedback of the propagation wave supported by a bio-oscillator. MOSMA employed the same underlying SMA mechanisms for convergence, combined with an elitist nondominated sorting approach to estimate Pareto optimal solutions [10]. The operations of MOSMA required for this work are shown in Figure 2.

3. Case Study

3.1. Feasibility Experiment

The experimental conditions involve (i) a PC with Matlab R2018a, (ii) the LIBSVM software package, and (iii) the data sets, which were obtained from the practical laser cladding processing experiment. In this study, 42CrMo steel with dimensions of (100 × 100 × 15) mm was used as the substrate. The steel was treated by quenching and tempering. The cladding powder was T15 high speed steel powder with a particle size of (30–100) $\mathsf{\mu }$m. The chemical compositiosn of the T15 powder and 42CrMo steel are represented in

Table 1. Chemical composition of clad powder and substrate materials.

Material	Form	Elements wt (%)
		C	V	Mn	Cr	Mo	Co	Si	W	Fe
42CrMo	Plate	0.4	-	0.63	0.99	0.19	-	0.21	-	Rem
T15	Powder	1.6	4.7	0.45	4.5	-	5.4	0.48	11.7	Rem

.

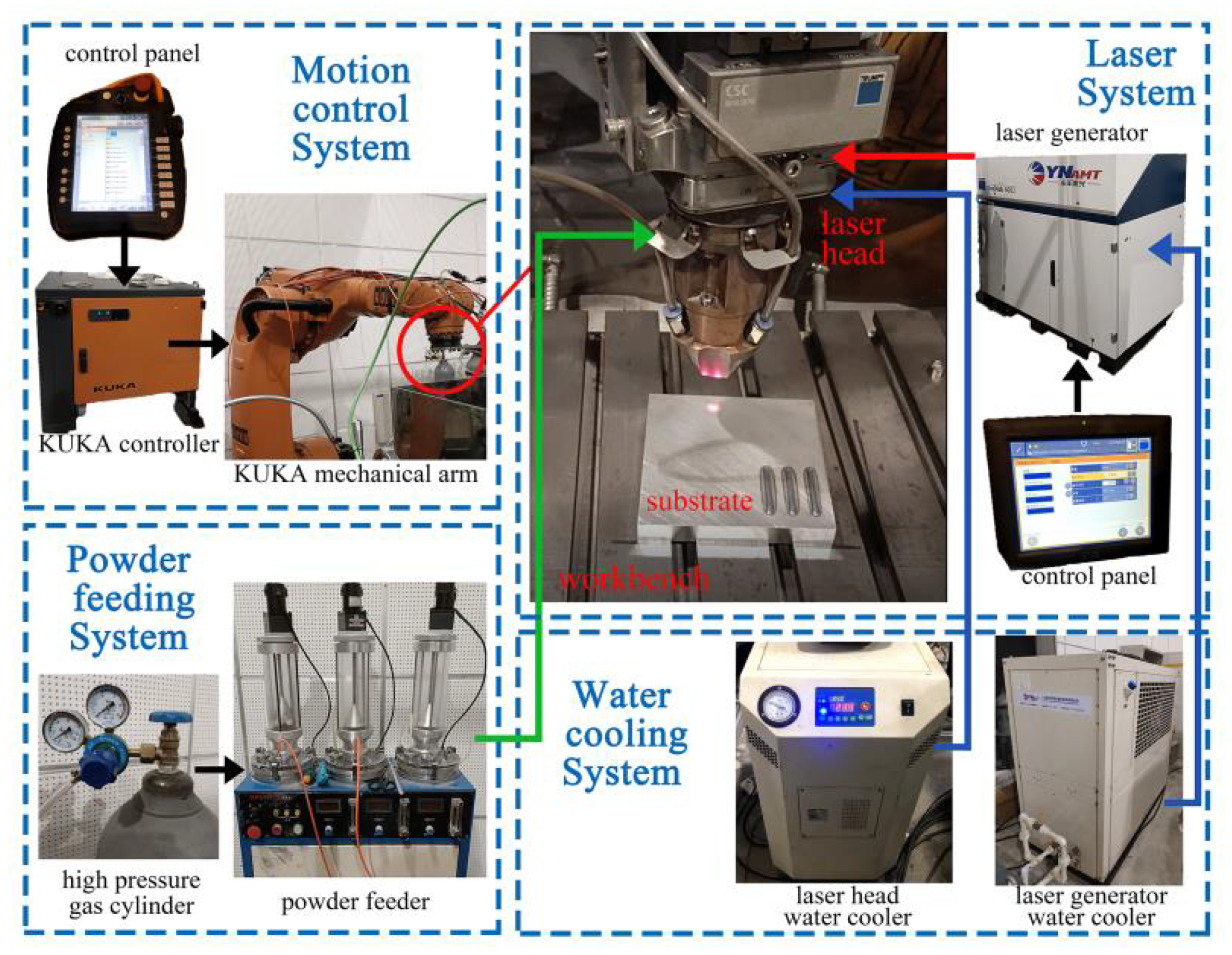

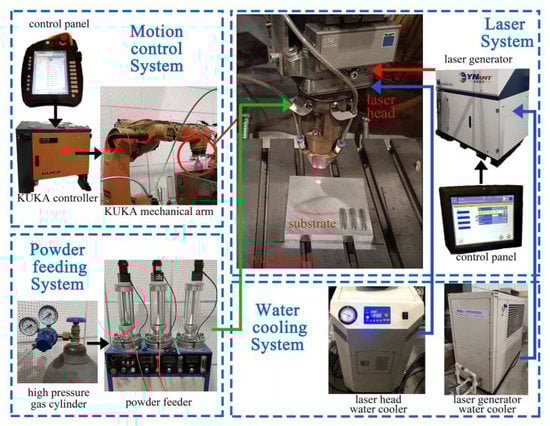

The laser model was a TruDisk4002, as shown in Figure 3. A single layer cladding layer was prepared by the coaxial powder feeding method with T15 high speed steel as the cladding powder, argon as the powder carrier gas and shielding gas in the cladding process. Experimental process parameters are listed below: laser power (P) selection of 1400 W, 1700 W, 2000 W and 2300 W; the scanning speeds (V) were 6 mm/s, 7 mm/s, 8 mm/s and 9 mm/s; similarly, there were four rates of powder feeding voltage ($Fv$): 40 V, 50 V, 60 V, 70 V. Other parameters include: defocus: 16 mm, lap rate: 30%, and protective gas flow: 20 L/min. The complete experimental method was adopted. A total of 64 machining experiments were carried out. They were cut with a sample size of (15 × 15 × 15) mm. The inlaying, grinding, polishing and other processes were carried out to make the sample surface show a mirror effect and no obvious scratches. Then, the surface of the samples were etched with a solution with HNO${}_3$. Lastly, the 64 samples were placed in sequence under an electron microscope for observation and photography. The geometric shape of the cladding layer of each sample was recorded (as shown in Figure 4 and Figure 5, where w is width, h is height, and b is melting depth. $S1$ is melting height area, and $S2$ is melting depth area). Figure 5 shows the transverse cross section of the claddings using a scanning electron microscope. The relative geometric dimensions of the cladding layer were measured with AutoCAD software. It was found that there were no obvious cracks, pores, inclusions nor other defects in the cladding layer section.

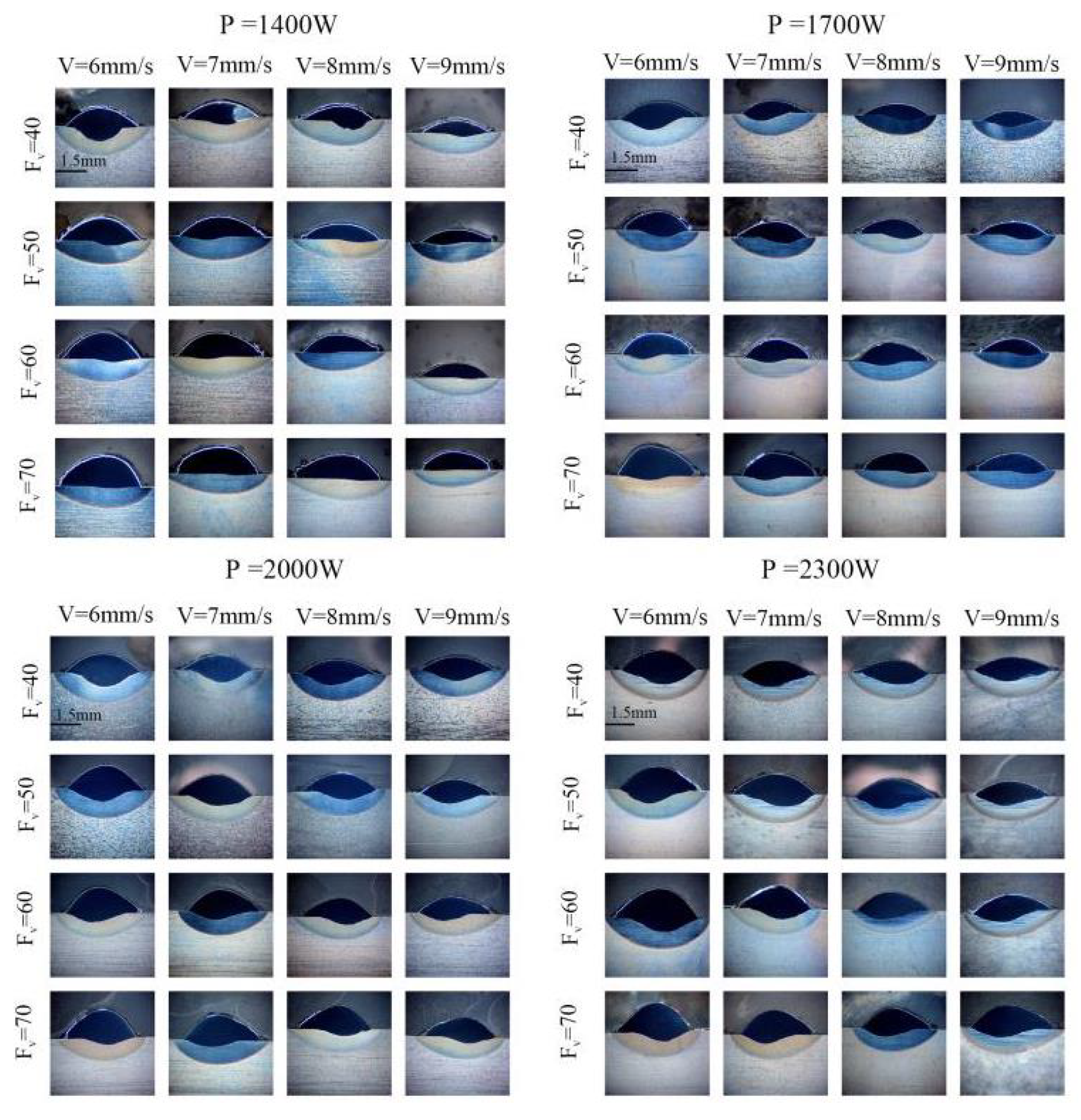

The machining data are shown in

Table 2. Machining parameters and measurement results for each single clad.

ID	P (W)	$\mathit{Fv}$ (V)	V (mm/s)	$\mathit{D}\%$	$\mathit{PU}$	$\mathit{ME}$ (mm3/s)
1	1400	40	6	37.51%	0.5082	11.921
2	1400	40	7	21.71%	0.432	10.132
3	1400	40	8	31.95%	0.4636	10.874
4	1400	40	9	18.71%	0.3966	9.3024
5	1400	50	6	11.18%	0.4654	13.65
6	1400	50	7	48.71%	0.4509	13.223
7	1400	50	8	7.74%	0.4035	11.835
8	1400	50	9	7.87%	0.3697	10.842
9	1400	60	6	5.73%	0.4497	15.826
10	1400	60	7	3.46%	0.4446	15.644
11	1400	60	8	3.38%	0.3939	13.86
12	1400	60	9	3.31%	0.3648	12.837
13	1400	70	6	2.90%	0.4675	19.193
14	1400	70	7	1.55%	0.439	18.02
15	1400	70	8	0.69%	0.4514	18.531
16	1400	70	9	0.49%	0.3968	16.288
17	1700	40	6	29.19%	0.4797	11.251
18	1700	40	7	26.65%	0.4791	11.237
19	1700	40	8	28.27%	0.4815	11.294
20	1700	40	9	34.03%	0.4673	10.961
21	1700	50	6	17.46%	0.5342	15.667
22	1700	50	7	18.50%	0.4816	14.123
23	1700	50	8	16.66%	0.4893	14.35
24	1700	50	9	17.86%	0.4348	12.753
25	1700	60	6	8.81%	0.4919	17.311
26	1700	60	7	11.61%	0.4923	17.324
27	1700	60	8	11.31%	0.4934	17.362
28	1700	60	9	11.37%	0.4495	15.819
29	1700	70	6	7.03%	0.5152	21.148
30	1700	70	7	7.07%	0.4809	19.741
31	1700	70	8	4.98%	0.455	18.679
32	1700	70	9	7.43%	0.4282	17.576
33	2000	40	6	36.10%	0.588	13.791
34	2000	40	7	37.95%	0.549	12.878
35	2000	40	8	38.59%	0.5437	12.754
36	2000	40	9	39.37%	0.5456	12.798
37	2000	50	6	26.31%	0.6026	17.674
38	2000	50	7	27.72%	0.6127	17.968
39	2000	50	8	29.92%	0.5654	16.582
40	2000	50	9	31.49%	0.5601	16.427
41	2000	60	6	19.79%	0.5891	20.73
42	2000	60	7	21.59%	0.5807	20.435
43	2000	60	8	21.60%	0.5501	19.358
44	2000	60	9	21.75%	0.5057	17.795
45	2000	70	6	12.90%	0.5743	23.573
46	2000	70	7	14.43%	0.5379	22.082
47	2000	70	8	14.92%	0.525	21.55
48	2000	70	9	15.71%	0.5068	20.805
49	2300	40	6	42.39%	0.6426	15.072
50	2300	40	7	39.94%	0.6557	15.379
51	2300	40	8	42.53%	0.6237	14.629
52	2300	40	9	41.97%	0.6167	14.465
53	2300	50	6	30.71%	0.6159	18.064
54	2300	50	7	34.84%	0.5758	16.888
55	2300	50	8	36.04%	0.5794	16.993
56	2300	50	9	39.57%	0.5202	15.256
57	2300	60	6	25.77%	0.6217	21.876
58	2300	60	7	27.57%	0.5631	19.816
59	2300	60	8	29.52%	0.5669	19.949
60	2300	60	9	30.35%	0.5241	18.443
61	2300	70	6	18.37%	0.6274	25.756
62	2300	70	7	18.88%	0.5917	24.289
63	2300	70	8	22.34%	0.5601	22.991
64	2300	70	9	22.47%	0.5741	23.568

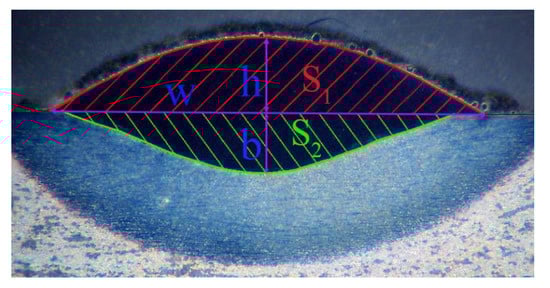

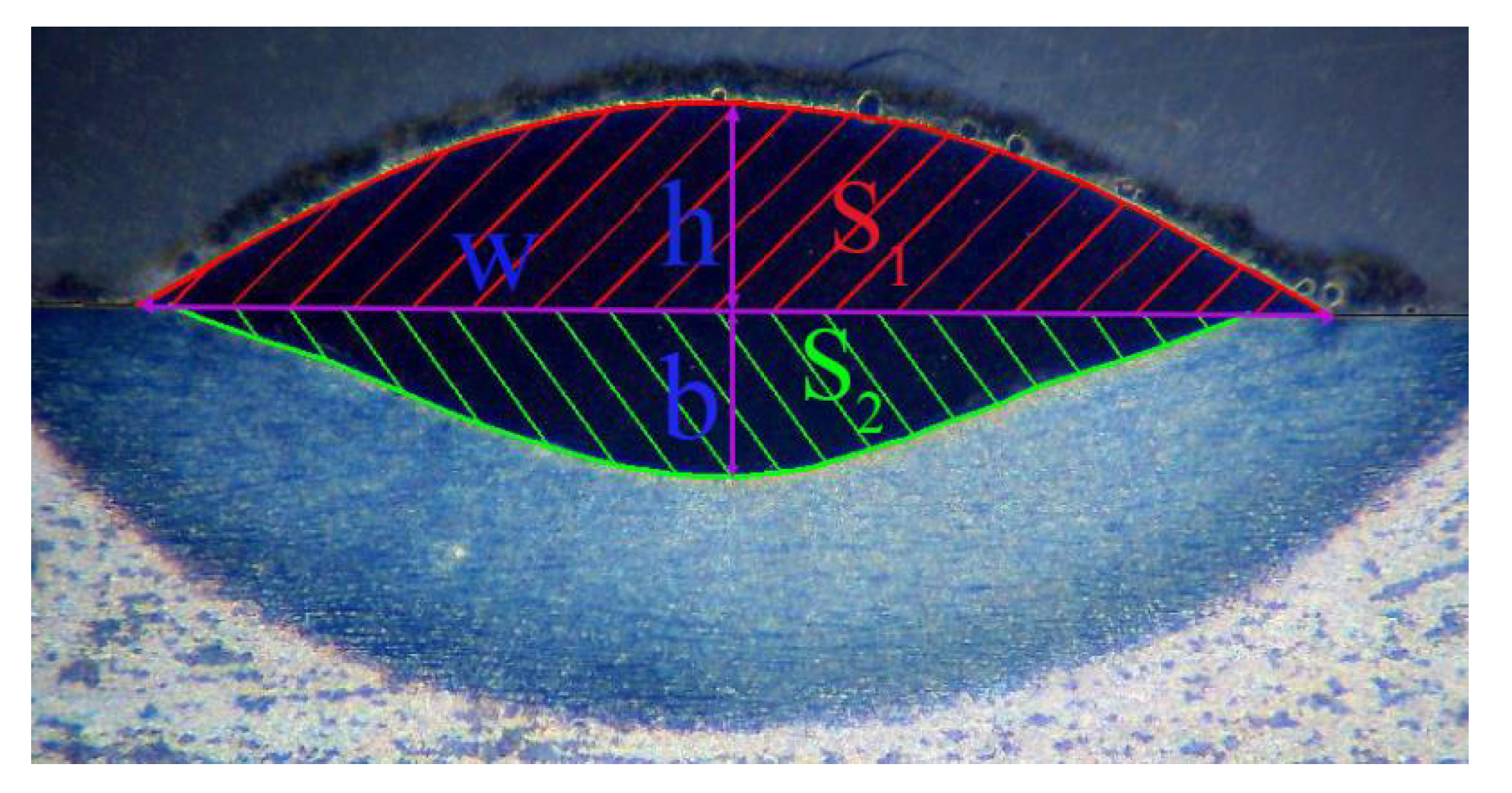

, where $D\%$ can be obtained according to Equation (2) [17]. $PU$ is calculated via Equation (3), and $ME$ is obtained by Equation (4).

$$\begin{array}{c}\hfill D\%={\displaystyle \frac{S2}{S1+S2}}\end{array}$$

(2)

$$\begin{array}{c}\hfill PU={\displaystyle \frac{S1\times V\times 0.00819\times 60}{0.28815\times Fv}}\end{array}$$

(3)

$$\begin{array}{c}\hfill ME=S1\times V\end{array}$$

(4)

With the machining data in Table 2, the proposed MOSMA-SVR-POLC was used to search the optimized process parameters. The parameter settings of MOSMA-SVR-POLC are shown in

Table 3. Parameter setting of MOSMA-SVR-POLC and other approaches.

Approach	Parameter Item	Value
All	Number of search agents	200
	Number of maximum iterations	200
	Kernel type of $ϵ$-SVR	RBF
	Penalty factor of $ϵ$-SVR	0.7
	Coefficient $\gamma$ of $ϵ$-SVR	1/3
	Coefficient $ϵ$ of $ϵ$-SVR	0
MOSMA-SVR-POLC	Parameter z	0.03
MODA-SVR-POLC	Enemy distraction weight	0.096
MOEA/D-SVR-POLC	Probability of selecting parents	0.9
	Maximal copies of a new child	2
	Number of neighbours	13
MOPSO-SVR-POLC	Personal learning coefficient	1.5
	Global learning coefficient	2
	Inertia weight	1
	Inertia weight damping ratio	0.99
NSGAII-SVR-POLC	Crossover rate	0.5
	Mutation rate	0.02
MOGWO-SVR-POLC	Number of grids	10
	Leading wolf selection pressure coefficient	4
	Noncracking selected coefficient	2

. The machining data is regarded as the training set, and X is taken as the test set. The prediction $D\%$, $1/PU$ and $1/ME$ are obtained via these approaches. The final Pareto optimal solution and front of MOSMA-SVR-POLC are revealed in

Table 4. Pareto optimal solutions and fronts of MOSMA-SVR-POLC.

ID	P	$\mathit{Fv}$	V	$\mathit{D}\%$	$1/\mathit{PU}$	$1/\mathit{ME}$
1	1400	67.9	6	16.86%	1.9885	0.0596
2	1400	68.3	6	14.08%	2.0169	0.0589
3	1400	68.4	6	13.27%	2.0251	0.0587
4	1400	68.5	6	12.43%	2.0342	0.0585
5	1400	68.6	6	11.56%	2.0433	0.0583
6	1400	68.7	6	10.67%	2.053	0.0581
7	1400	68.8	6	9.77%	2.0627	0.0578
8	1400	68.9	6	8.87%	2.0725	0.0576
9	1400	69.2	6	6.34%	2.1004	0.057
10	1400	69.3	6	5.59%	2.1088	0.0568
11	1400	69.9	6	2.93%	2.1395	0.0562
12	1400	70	6	2.87%	2.1404	0.0562
13	1400	70	6.1	2.5%	2.1687	0.056
14	1400	70	6.2	2.2%	2.1954	0.0559
15	1400	70	6.3	1.96%	2.2198	0.0558
16	1400	70	6.4	1.78%	2.2411	0.0557
17	1400	70	6.6	1.57%	2.2707	0.0556
18	1400	70	6.7	1.53%	2.2789	0.0555
19	1400	70	6.9	1.51%	2.2815	0.0556
20	1400	70	7.1	1.52%	2.2691	0.0557
21	1400	70	7.2	1.51%	2.2589	0.0559
22	1400	70	7.3	1.49%	2.2477	0.056
23	1400	70	7.4	1.45%	2.2361	0.0562
24	1400	70	7.5	1.37%	2.2257	0.0564
25	1400	70	7.6	1.28%	2.2168	0.0566
26	1400	70	7.7	1.15%	2.2109	0.0568
27	1400	70	8.2	0.3%	2.2462	0.0583
28	1999	70	9	17.21%	1.9662	0.0572
29	2300	40	6	42.43%	1.5557	0.064
30	2300	40	6.2	42.01%	1.5349	0.0642
31	2300	40	6.4	41.4%	1.5216	0.0644
32	2300	40	6.5	41.07%	1.5177	0.0645
33	2300	40	6.6	40.75%	1.5156	0.0646
34	2300	40	6.7	40.46%	1.5156	0.0647
35	2300	40	6.8	40.22%	1.5175	0.0648
36	2300	40	6.9	40.04%	1.5209	0.0649
37	2300	40	7	39.94%	1.5256	0.065
38	2300	40	7.1	39.91%	1.5316	0.0651
39	2300	40.4	6	41.33%	1.5718	0.0639
40	2300	40.6	6	40.04%	1.5916	0.0637
41	2300	70	6	18.35%	1.5944	0.0559
42	2300	70	6.2	18.1%	1.601	0.0556
43	2300	70	6.4	18%	1.6152	0.0552
44	2300	70	6.5	18.03%	1.6252	0.0551
45	2300	70	6.6	18.1%	1.6364	0.0549
46	2300	70	6.8	18.4%	1.6622	0.0547
47	2300	70	6.9	18.63%	1.6764	0.0546
48	2300	70	7.4	20.28%	1.7452	0.0543

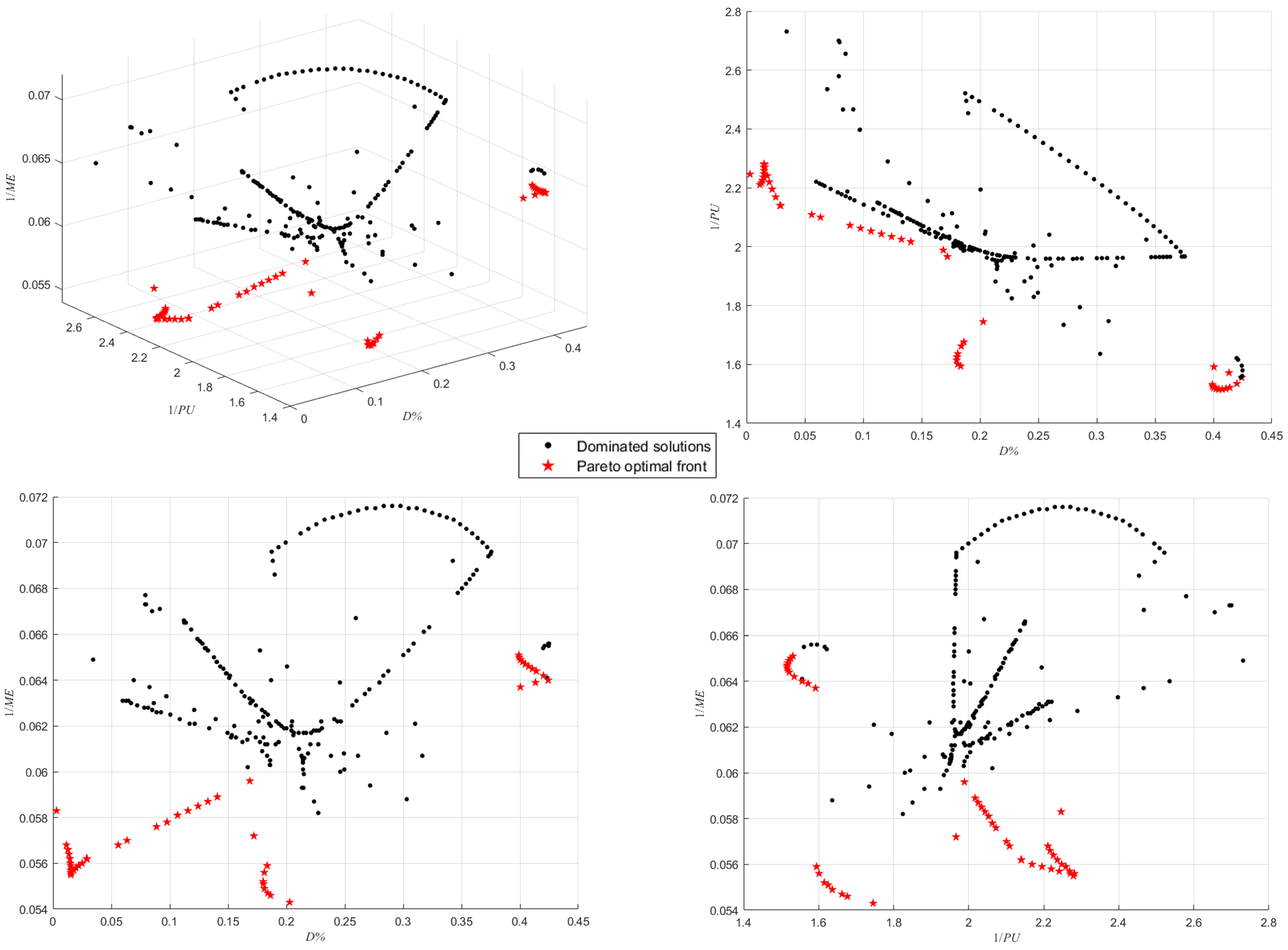

. The corresponding graphics of MOSMA-SVR-POLC are shown in Figure 6. From the figures, the relationship between $D\%$, $PU$ and $ME$ is extremely complex.

Many optimized process parameters were obtained, which is a challenge for practical application: how to select the optimal one for practical machining? The TOPSIS method [18] was used to obtain the best process parameter. The key lies in the weight of the three indicators: $D\%$, $1/PU$ and $1/ME$. The Saaty weight method was used to calculate the weight. The problem becomes to determine how much users value the $D\%$, $1/PU$ and $1/ME$. In this work, $D\%$ is considered to be slightly more important than the other two indicators. Therefore, the weight of $D\%$, $1/PU$ and $1/ME$ is 0.6:0.2:0.2 using the Saaty weight method. The optimal process parameters under this weight are shown in

Table 5. Optimal process parameters and relative errors ($RE$) of MOSMA-SVR-POLC.

ID in Table 4	($\mathit{P},\mathit{Fv},\mathit{V}$)	$\mathit{RE}$
12	(1400, 70, 6)	(1.03%, 0.06%, 7.29%)

, based on Table 4. The relative error between MOSMA-SVR-POLC and the actual laser cladding is also calculated and shown in Table 5. From Table 5, it can be seen that only the last error of $ME$ is relatively large, and the others are small. The feasibility of this method is verified to a great extent.

3.2. Comparative Experiment

The experimental conditions are consistent with those in the feasibility experiment. The proposed MOSMA-SVR-POLC is compared with the mainstream methods: DFM [5] and RSM [11], and some variants of MOSMA-SVR-POLC, such as MODA-SVR-POLC [12], MOEA/D-SVR-POLC [13], MOPSO-SVR-POLC [19], NSGAII-SVR-POLC [20], MOGWO-SVR-POLC [21]. The parameter settings of these approaches are also shown in Table 3. The TOPSIS method [18] is also used to obtain the best process parameter. The weight of $D\%$, $1/PU$ and $1/ME$ is also set to 0.6:0.2:0.2. The best process parameters and relative errors ($RE$) of these approaches are shown in

Table 6. Optimal process parameters and relative errors ($RE$) of the comparison methods.

Approach	($\mathit{P},\mathit{Fv},\mathit{V}$)	$\mathit{RE}$
DFM	(1400, 70, 6)	(180.61%, 8.10%, 6.98%)
RSM	(1400, 70, 9)	(51.81%, 6.51%, 24.02%)
MODA-SVR-POLC	(1700, 70, 6.2)	(0.14%, 0.04%, 14.42%)
MOEA/D-SVR-POLC	(1700, 70, 6)	(0.14%, 0.04%, 15.56%)
MOPSO-SVR-POLC	(1700, 70, 6)	(1.03%, 0.06%, 7.29%)
NSGAII-SVR-POLC	(1402, 68.3, 6)	(81.73%, 10.69%, 3.93%)
MOGWO-SVR-POLC	(1400, 70, 6)	(1.03%, 0.06%, 7.29%)

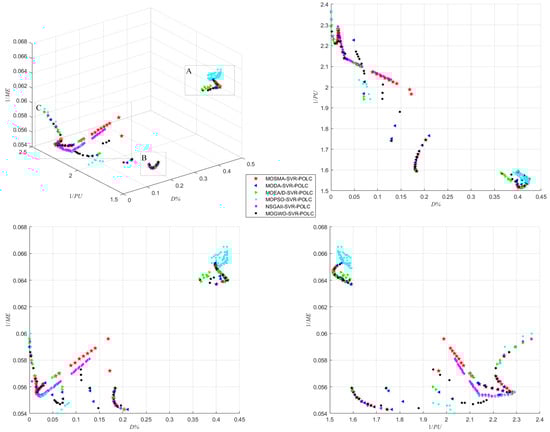

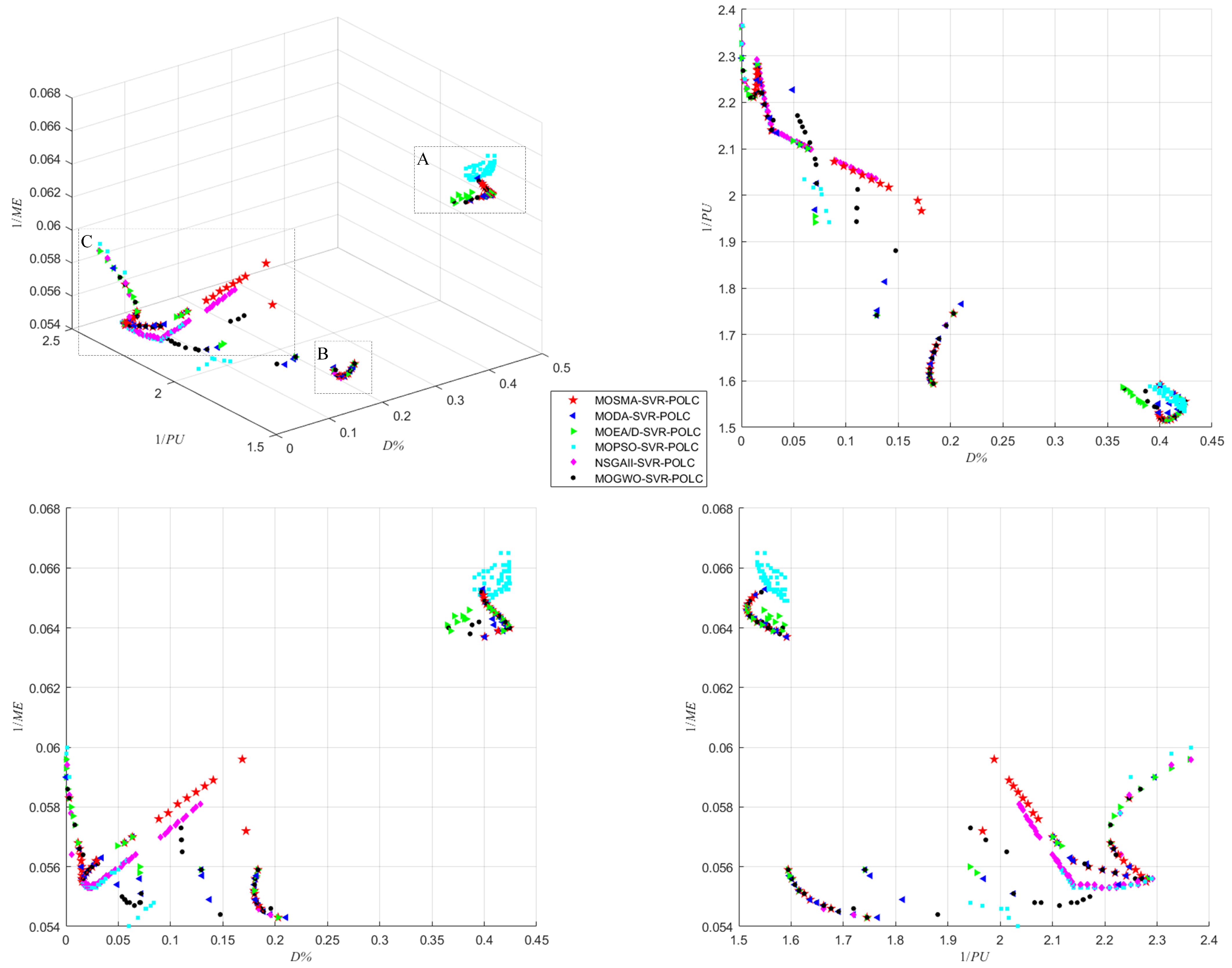

. Figure 7 shows the Pareto optimal front obtained by MOSMA-SVR-POLC and its similar algorithms.

From Table 5 and Table 6, it can be seen that the proposed MOSMA-SVR-POLC had the same optimal process parameters as DFM and MOGWO-SVR-POLC. In terms of $RE$, it was much better than DFM and the same as MOPSO-SVR-POLC and MOGWO-SVR-POLC. DFM performed extremely badly in the $RE$ of $D\%$. RSM, MODA-SVR-POLC, MOEA/D-SVR-POLC and NSGAII-SVR-POLC obtained different optimal process parameters. RSM lagged behind MOSMA-SVR-POLC. MODA-SVR-POLC and MOEA/D-SVR-POLC also had a good performance, except for the $RE$ of $ME$. NSGAII-SVR-POLC did not perform well in the $RE$ of D%. From Figure 7, MOPSO-SVR-POLC, NSGAII-SVR-POLC and MOGWO-SVR-POLC had a good performance in area C. MOSMA-SVR-POLC performed well in regions A and B. The above results confirm the capacity of MOSMA-SVR-POLC. The proposed approach proves to be very competitive.

4. Discussion

In the feasibility experiment, the TOPSIS method was used to obtain the optimal process parameters. However, the difference in weight ratios between optimization objectives affects the selection of optimal process parameters. In this section, the different weight ratios were selected to study the output of the optimal process parameters, and the prediction accuracy of the proposed approach will be further discussed. The results are shown in

Table 7. Optimal process parameters and relative errors ($RE$) of the proposed approach under different weight ratios.

Objective Weight Ratio	ID in Table 4	($\mathit{P},\mathit{Fv},\mathit{V}$)	$\mathit{RE}$
1/3:1/3:1/3	44	(2300, 70, 6.4)	(8.57%, 5.26%, 32.90%)
0.6:0.2:0.2	12	(1400, 70, 6)	(1.03%, 0.06%, 7.29%)
0.2:0.6:0.2	42	(2300, 70, 6)	(0.11%, 0.03%, 43.98%)
0.2:0.2:0.6	47	(2300, 70, 6.8)	(11.76%, 3.30%, 39.54%)

.

From Table 7, it can be seen that the different weight ratios do define the different optimal process parameters. This meets the needs of different users for objectives. No matter which weight ratio, the prediction accuracy of the first two targets, $D\%$ and $1/PU$, are higher than $1/ME$. Especially in the weight ratios 1/3:1/3:1/3, 0.2:0.6:0.2 and 0.2:0.2:0.6, this situation is more obvious. The improvement ofthe prediction accuracy of $1/ME$ may be the next important research topic.

In addition, the big oh notation is used to calculate the computation cost of the proposed approach. The computation cost of MOSMA and SVR is O($MI$($n·d+cof·n$)) and O($l·tk$), respectively, $cof$ is the consumption time of objective calculation, d is the attribute number of individuals, l represents the sample size, and $tk$ represents the time consumed for the calculation of the SVR kernel function. The proposed approach is composed of MOSMA and SVR. Therefore, its computation cost is O($MI$($n·d+l·tk·n$)).

5. Conclusions

This work proposed a new hybrid approach for the process parameter optimization of laser cladding using a multiobjective slime mould algorithm and support vector regression. The proposed MOSMA-SVR-POLC realizes objectives prediction and process parameter optimization in laser cladding and provides users with the most valuable parameters for different objectives. Furthermore, $ϵ$-SVR is applied to predict the $D\%$, $1/PU$ and $1/ME$. The training data are from the actual laser cladding. MOSMA is used to obtain the Pareto optimal solutions and fronts. The feasibility experiment and comparative experiment were carried out to test the performance of MOSMA-SVR-POLC. The experimental results reveal that MOSMA-SVR-POLC achieves a competitive predictive performance compared with other well established approaches. The study confirms the feasibility and effectiveness of MOSMA-SVR-POLC in the field of process parameter optimization in laser cladding.

For future work, the improvement of the setting parameters and prediction accuracy of $ϵ$-SVR should be further studied. Secondly, more kinds of laser cladding experiments, such as multichannel laser cladding, should be added to verify and modify the method in this paper.
