Genome-Wide Identification of CHYR Gene Family in Sophora alopecuroides and Functional Analysis of SaCHYR4 in Response to Abiotic Stress

by
Youcheng Zhu
1,2,
Ying Wang
2,
Zhipeng Ma
2,
Di Wang
2,
Fan Yan
2,
Yajing Liu
2,
Jingwen Li
2,
Xuguang Yang
2,
Ziwei Gao
2,
Xu Liu
2,
Le Wang
2,*,† and
Qingyu Wang
2,*,†
1
College of Biological and Agricultural Engineering, Jilin University, Changchun 130022, China
2
College of Plant Science, Jilin University, Changchun 130062, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2024, 25(11), 6173; https://doi.org/10.3390/ijms25116173
Submission received: 3 May 2024 / Revised: 31 May 2024 / Accepted: 1 June 2024 / Published: 4 June 2024
(This article belongs to the Special Issue Molecular Research in Abiotic Stress Tolerance)
Browse Figures
Review Reports Versions Notes

Abstract

:
Sophora alopecuroides has important uses in medicine, wind breaking, and sand fixation. The CHY-zinc-finger and RING-finger (CHYR) proteins are crucial for plant growth, development, and environmental adaptation; however, genetic data regarding the CHYR family remain scarce. We aimed to investigate the CHYR gene family in S. alopecuroides and its response to abiotic stress, and identified 18 new SaCHYR genes from S. alopecuroides whole-genome data, categorized into 3 subclasses through a phylogenetic analysis. Gene structure, protein domains, and conserved motifs analyses revealed an exon–intron structure and conserved domain similarities. A chromosome localization analysis showed distribution across 12 chromosomes. A promoter analysis revealed abiotic stress-, light-, and hormone-responsive elements. An RNA-sequencing expression pattern analysis revealed positive responses of SaCHYR genes to salt, alkali, and drought stress. SaCHYR4 overexpression considerably enhanced alkali and drought tolerance in Arabidopsis thaliana. These findings shed light on SaCHYR’s function and the resistance mechanisms of S. alopecuroides, presenting new genetic resources for crop resistance breeding.

1. Introduction

Sophora alopecuroides, a perennial shrub belonging to the Leguminosae family, is known for its well-developed roots and remarkable resilience in arid and sandy soils. This particular species exhibits a wide range of practical applications in medicine, pesticides, fodder, nectar production, windbreaks, and sand fixation [1]. In the field of medicine, S. alopecuroides has heat elimination and detoxification functions, as well as antibacterial, anti-inflammatory, analgesic, and insecticidal properties [1,2].
Various compounds isolated from S. alopecuroides, including alkaloids, flavonoids, and steroids, play important roles in the treatment of gynecological inflammation and exhibit neuroprotective and anticancer properties [2,3]. In particular, the alkaloids in S. alopecuroides have been used in pest control against, for example, diamond moths, cinnabar mites, red spiders, and aphids and to regulate plant growth activities, such as promoting the growth and formation of cucumber cotyledons and roots [2,4]. Alkaloid extraction yields a high-protein residue that can be developed into a high-protein feed [1,4].
Known as the “desert honey reservoir”, S. alopecuroides is also an important nectar source, owing to its rich flowers, delicate nectar, long flowering period, and high nutritional value [1]. Of note, Sophora alopecuroides is resistant to salt, alkali, drought, and wind erosion and can improve soil and maintain the ecological balance in arid and semi-arid areas, which is vital for preventing and controlling desertification [1,5,6]. This species is typically cultivated as a cash crop in northwest China [4] and is an ideal genetic resource for identifying abiotic stress tolerance genes. Given its high resilience to adverse conditions, research studies have focused on identifying saline–alkali- and drought-tolerant genes from S. alopecuroides and utilizing them in the development of novel saline–alkali-tolerant crop germplasm. Indeed, previous studies have already identified several saline–alkali tolerance genes from S. alopecuroides and reported the underlying mechanism of its salt tolerance [1,6]. A CHY-zinc finger and RING finger (CHYR) family gene was reportedly found during the analysis of saline–alkali and drought tolerance genes in S. alopecuroides; however, its role in plant saline–alkali and drought tolerance remains elusive.
The CHYR proteins belong to the RING-type E3 ubiquitin ligase family and contain the CHY-zinc finger and RING-H2 finger domains [7]. The N-terminal of the CHY-zinc finger domain contains conserved “CxHY” amino acid sequences, including His and Cys residues, which are involved in protein interactions, ubiquitination, and zinc ion binding [8,9,10,11]. The RING-H2 finger domain is located on the C-terminus of CHYR, binds two zinc atoms, and may be involved in protein–protein interactions [12], whereas the CHYR N-terminus comprises conserved hemerythrin domains, such as AtBTSL1 and AtBTSL2 [12,13]. Arabidopsis BTS plays a vital role in drought stress response by promoting the degradation of the vascular plant one-zinc finger 1/2 (VOZ1/2) protein [14]. Tomato SlVOZ1 is mainly localized in the cytoplasm, but abscisic acid (ABA) can promote the migration of its phosphorylated form to the nucleus; functional analysis has demonstrated that SlVOZ1 plays a positive regulatory role in tomato flowering and drought response [15]. A total of 16 genes encoding GmCHYRs with conserved CHY-zinc finger and RING finger domains have been identified in soybean and are divided into 3 subfamilies [7], of which members of subfamilies I and II are primarily involved in saline–alkali stress, whereas those of subfamily III are induced or inhibited by dehydration and saline–alkali stress [7]. Moreover, 18 TaCHYR genes have been identified in wheat. TaCHYRs are upregulated under drought stress and have different expression patterns under salt, cold, and high-temperature stress [16].
CHYR regulates plant growth, development, and stress response through ubiquitination and degradation [11,17,18]. The specificity of the ubiquitination substrate is primarily determined by several E3 ubiquitin ligases [19,20]. E3 ubiquitin ligases containing CHY-zinc finger domains accumulate in the cytoplasm or nucleus and play a pivotal role in mediating the abiotic stress responses through the ABA, ethylene, and mitogen-activated protein kinase signaling pathways [21]. CHYR1, an Arabidopsis E3 ubiquitin ligase, is phosphorylated upon interaction with SnRK2.6, a critical protein kinase in the ABA signal transduction pathway. The overexpression of phosphorylated CHYR1 promotes stomatal closure and reactive oxygen species production and improves drought resistance in plants [11].
With climate change further exacerbating the abiotic stress faced by plants, understanding the environmental adaptability characteristics of S. alopecuroides becomes crucial given its various medicinal properties. Consequently, research has been increasingly focusing on investigating related genetic resources and the mechanisms underlying plant stress resistance in plants [1]. Nonetheless, studies on the stress resistance of S. alopecuroides remain limited, mainly focusing on its molecular biology aspects. Therefore, the present study aimed to identify and analyze the CHYR family genes in S. alopecuroides and investigate the role of SaCHYR family genes in its response to salt, alkali, and drought stress using expression-level analyses of S. alopecuroides. Our findings demonstrated the effect of SaCHYR4 overexpression on enhancing stress resistance in Arabidopsis thaliana, providing insights into the stress resistance of S. alopecuroides and novel genetic resources for breeding stress-resistant crops.

2. Results

2.1. Identification and Classification of CHYR Genes in S. alopecuroides

A total of 18 CHYR family genes were identified in S. alopecuroides. Based on the phylogenetic analysis of the SaCHYR genes and their chromosomal locations, they are referred to as SaCHYR1 to SaCHYR18. The predicted protein lengths of the SaCHYRs ranged from 259 to 1287 amino acids, their estimated molecular weights ranged between 29.6 and 148.6 kDa (Table 1), and their isoelectric point values were between 5.52 and 7.83. Subcellular localization prediction showed that the SaCHYR proteins were mainly localized in the nucleus and chloroplast, but SaCHYR14 was predicted to be localized in extracellular space.
To better understand the evolutionary relationships between and the classification of SaCHYRs, we generated phylogenetic trees based on the amino acid sequences of 41 CHYRs from 3 species belonging to the identified CHYR gene family, namely, Arabidopsis, soybean, and S. alopecuroides (Figure 1 and Supplementary Table S2). The SaCHYRs could be divided into three clades: SaCHYR1, SaCHYR2, SaCHYR3, SaCHYR4, SaCHYR12, and SaCHYR14 were grouped together with AtCHYR1 and GmCHYR1 and belonged to clade I; SaCHYR7, SaCHYR8, SaCHYR9, SaCHYR10, SaCHYR16, and SaCHYR18 belonged to clade II and were homologous to AtCHYR5 and GmCHYR2; and SaCHYR5, SaCHYR6, SaCHYR11, SaCHYR13, SaCHYR15, and SaCHYR17 belonged to clade III and were clustered with AtCHYR4 and GmCHYR8. The phylogenetic analysis results showed that the SaCHYR genes were paired and evenly distributed in three subfamilies.

2.2. SaCHYR Gene Structure and Conserved Motif Analysis

To understand the structural variations and characteristics of the SaCHYR genes, we analyzed the exon–intron structures and conserved motifs of these genes (Figure 2a–c). The minimum and maximum numbers of exons on the SaCHYRs were 11 and 14, respectively (Figure 2b). We classified the SaCHYR genes with similar exon and intron structures into three subfamilies. Of note, most of the more evolutionarily related genes shared similar exon–intron structures.
To analyze the sequence characteristics of the CHYR family members of S. alopecuroides, 15 conserved amino acid sequence motifs were predicted (Figure 2c,d). All SaCHYR proteins contained the conserved CHY-zinc finger, zinc ribbon domains, and C3H2C3-type Ring finger (Figure 2c); these results validated the reliability of the CHYR family of genes identified in S. alopecuroides. Based on the distribution of the conserved domains, the SaCHYR proteins in each group showed similar motif distributions. The SaCHYR protein sequence alignment showed that the CHY-zinc finger and zinc ribbon domains were highly conserved (Supplementary Figure S1).
In addition, the group III members had two or three heme domains at the N-terminus, consistent with the results obtained in Arabidopsis, soybean, and wheat, which may explain the involvement of the CHYR members of group III in the regulation of iron homeostasis (Figure 2c).
We further analyzed the conserved motifs in the SaCHYR gene family using MEME and found that the detected motifs 1, 7, and 3 constituted the CHY-zinc finger domain; 5 and 11 constituted the ring finger domain; 4 and 2 constituted the zinc ribbon domain; and 9 and 7 constituted the merythrin domain. Conserved motifs 9 and 13, with similar heme domains, were found in group III members (Figure 2c). Overall, the SaCHYR genes of the internal members of each group showed similar motif compositions and combinations.

2.3. Chromosomal Mapping of SaCHYR Genes in S. alopecuroides

A chromosomal distribution analysis showed that the 18 identified SaCHYR genes were distributed on 12 chromosomes, with 2 genes each on chromosomes 9–14 and 1 gene each on chromosomes 1, 2, and 5–8 (Figure 3). Group I members were mainly distributed on chromosomes 1, 2, 5, 6, and 9–14; group II on chromosomes 9 and 10; and group III on chromosomes 7, 8, and 11–14 (Figure 3). Our results showed no significant correlation between the number of SaCHYR genes and chromosome length.

2.4. Cis-Regulatory Element Analysis of SaCHYR Gene Promoters

To explore the regulatory mechanisms of the SaCHYR gene family in response to abiotic stress, we analyzed the CREs of the SaCHYR gene promoter using PlantCARE. We identified 52 CREs in the promoter regions of 18 S. alopecuroides CHYR gene family members, including elements related to photoresponsiveness, stress responsiveness, hormone responsiveness, and growth- and development-related elements (Figure 4a,b). The SaCHYR promoter included several stress and hormone response elements, especially stress response elements, mainly including the anaerobic response element (ARE) and MBS (MYB binding site; Figure 4c). These results are similar to those predicted based on the CREs of the CHYR family gene promoters in soybean and wheat [7,16].

2.5. Analysis of the 3D Structure of SaCHYR Proteins

The three-dimensional (3D) protein structure helps to understand protein function; therefore, we analyzed the 3D structure of the SaCHYR protein. SWISS-MODEL was used to predict the 3D structure of the SaCHYR protein, and the quality of the model was further evaluated using QMEANDisCo values. All 18 SaCHYR proteins had QMEANDisCo values of >0.72, indicating the reliability of the predicted 3D structure (Figure 5, Table S3). The results showed a high similarity between the SaCHYR3/4, SaCHYR5/6, SaCHYR7/9, SaCHYR8/10, SaCHYR11/13, SaCHYR12/14, SaCHYR15/17, and SaCHYR16/18 protein pairs. Slight differences were noted between the SaCHYR1 and SaCHYR2 proteins. Combining the 3D structures of the SaCHYR proteins could facilitate a clearer understanding of the similarities and differences among family members, which would provide a reference for further understanding of the function of SaCHYR proteins in S. alopecuroides.

2.6. Prediction of Proteins Interacting with S. alopecuroides CHYR

Using the soybean CHYR protein as a reference, the proteins interacting with the CHYR protein in S. alopecuroides were predicted to determine the biological function of the CHYR protein in S. alopecuroides. The results revealed 31 CHYR-interacting proteins, including methyltransferase, AAA_assoc domain-containing protein, UmuC domain-containing protein, DNA repair protein REV1, ubiquitin-like domain-containing protein, AAA domain-containing protein, DNA repair protein rev1, ubiquitin-like domain-containing protein, AAA domain-containing protein, RING-type domain-containing protein, Tify domain-containing protein, and cytochrome P450 (Figure 6). Such results provide a reference for the functional study of the CHYR family genes in S. alopecuroides, which were predicted to determine the biological function of the CHYR protein in S. alopecuroides.

2.7. Expression Patterns of SaCHYR Genes Based on RNA-Seq Analysis

To explore the expression levels of the CHYR family genes in different S. alopecuroides tissues, transcriptome sequencing was performed on the roots, stems, and leaves, and the expression levels of the SaCHYRs in various tissues were determined (Figure 7a). SaCHYR1, SaCHYR2, SaCHYR4, SaCHYR8, SaCHYR12, SaCHYR14, and SaCHYR16 were expressed at higher levels in the roots than in the stems and leaves; SaCHYR15, SaCHYR17, and SaCHYR18 were highly expressed in the stems; and SaCHYR5, SaCHYR6, and SaCHYR11 were expressed mainly in the leaves. These results demonstrated the spatial-specific expression of the CHYR genes in S. alopecuroides.
To explore the role of the SaCHYR genes in response to abiotic stress, we exposed S. alopecuroides to salt, alkali, and drought stress. Transcriptome sequencing was performed on the root tissues to explore the expression levels of the 18 SaCHYR genes post-treatment. The results showed that SaCHYR4, SaCHYR5, SaCHYR11, and SaCHYR14 were induced significantly by alkali stress, SaCHYR6 was induced significantly by salt stress, and SaCHYR1, SaCHYR2, SaCHYR9, SaCHYR12, and SaCHYR17 were induced significantly by drought stress (Figure 7b). According to the three clades of the CHYR family in S. alopecuroides, we found that the SaCHYR genes in clade I were mainly involved in the drought stress response and those in clade III in the alkali stress response.
A quantitative analysis of the CHYR family genes in S. alopecuroides under alkali and drought stress revealed that the expression trends of eight SaCHYR genes were consistent with those identified via transcriptomic quantitative analysis, ultimately confirming the reliability of our transcriptomic data (Figure 7). Based on the quantitative levels under alkali and drought stress for multiple periods, the expression of SaCHYR1 under alkali and drought stress showed opposite trends (Figure 7c); SaCHYR4 was initially upregulated under alkali stress and then consistently downregulated under drought stress (Figure 7d). Of note, SaCHYR8 was more significantly responsive to drought stress (Figure 7e). SaCHYR9 showed no significant change under alkali stress but was upregulated under drought stress (Figure 7f). SaCHYR11 showed the same expression trend under alkali and drought stress (Figure 7g), while SaCHYR14 showed the highest expression 48 h after alkali and drought stress (Figure 7h). SaCHYR16 was significantly downregulated under alkali and drought stress (Figure 7i), while the expression of SaCHYR17 remained unaltered under alkali and drought stress conditions, but relatively increased under drought stress (Figure 7i). In summary, the expression patterns of the CHYR genes in S. alopecuroides in response to abiotic stress exhibited considerable variation, highlighting the diverse and intricate roles played by the SaCHYR genes in the plant response to abiotic stress.
We further investigated the SaCHYR4 expression patterns under alkali and drought stress at different time points, showing that alkali stress led to the highest SaCHYR4 expression in the roots after 12 h, while drought stress triggered the highest expression in the roots and leaf tissues after 24 h (Supplementary Figure S2).

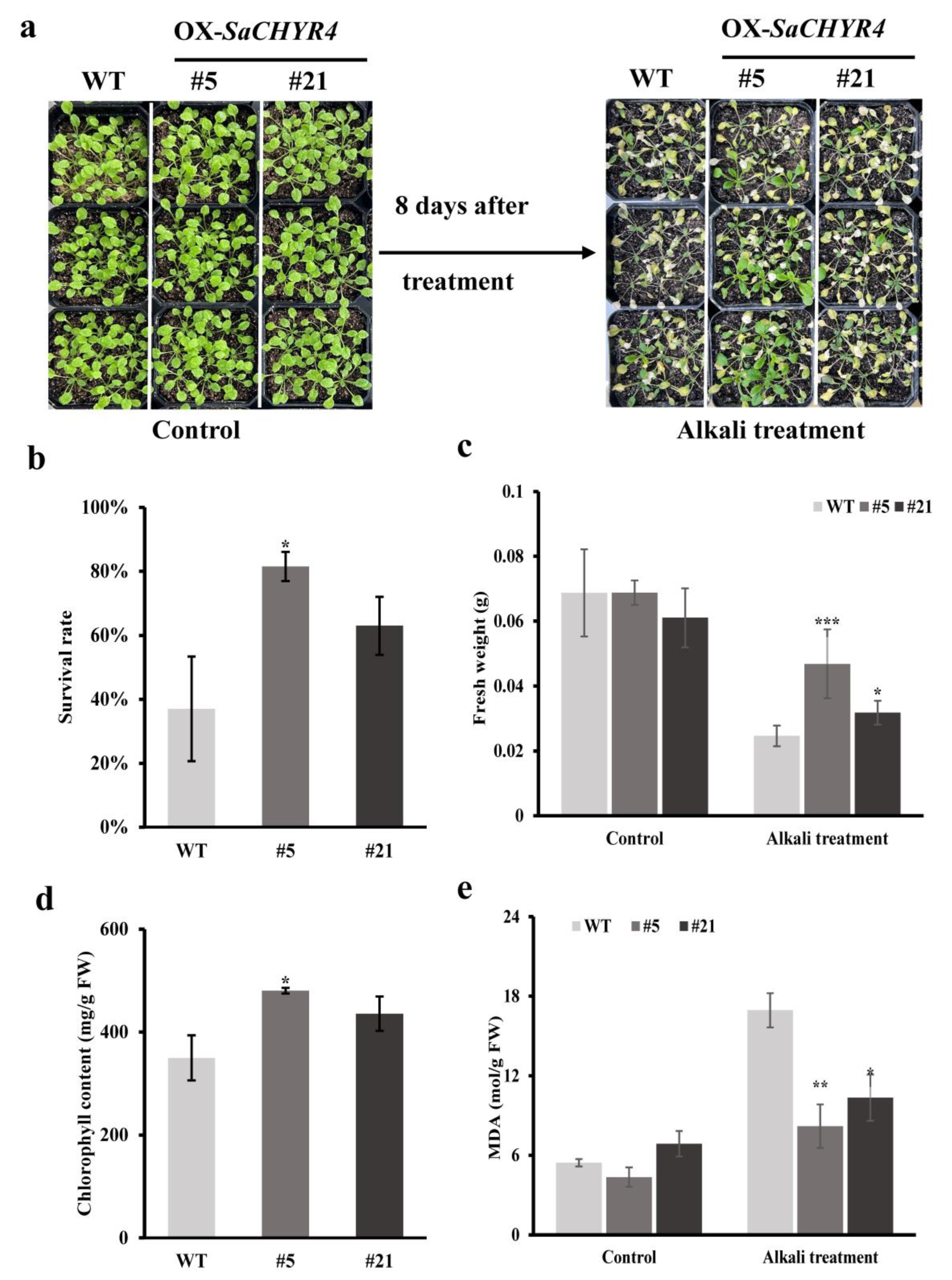

2.8. SaCHYR4 Overexpression Increased Alkaline Tolerance in A. thaliana

To verify the function of the CHYR family genes of S. alopecuroides in the abiotic stress response, we overexpressed SaCHYR4 in A. thaliana. The wild-type (WT) and overexpressed strains (OX, including OE5 and OE21) plants at the germination stage were subjected to salt, alkali, and drought stress. The results showed that SaCHYR4 overexpression increased the germination and green rates of cotyledons in A. thaliana under alkali and drought stress (Supplementary Figures S3 and S4). No significant changes were observed between the OX and WT strains under salt stress. Furthermore, to determine the effects of SaCHYR4 overexpression on the alkali and drought tolerance of A. thaliana, we performed stress treatment and physiological indicator detection at the seedling stage.
In the present study, different NaHCO3 concentrations were used to simulate alkali stress treatments; no significant changes were observed between the OX and WT plants under normal conditions (Supplementary Figure S3A). However, the OX plants germinated significantly earlier than the WT plants, and their root lengths were significantly longer than those of the WT plants under alkaline stress (Supplementary Figure S3B–E). Seedlings were treated with 300 mM NaHCO3-simulated alkali stress, showing that the growth of all strains was similar under normal conditions (Figure 8a). After 8 days of alkali stress exposure, the wilting and yellowing of the WT leaves were more severe than those of the OX leaves, and OX seedlings were less damaged with better growth states (Figure 8a). The survival rates of the OX plants were significantly higher than those of the WT plants under alkaline stress (Figure 8b). The fresh weight, chlorophyll, and malondialdehyde contents in the OX plants were significantly higher, and the malondialdehyde content was significantly lower (reduced by 37–50%) than the levels in the WT plants under alkaline stress (Figure 8c–e). Overall, SaCHYR4 overexpression significantly improved the alkaline tolerance of A. thaliana.

2.9. SaCHYR4 Overexpression Increased Drought Tolerance in A. thaliana

We simulated drought stress using different concentrations of mannitol to treat the OX and WT plants. The germination rate of the OX plants under drought stress did not significantly differ from that of the WT plants; however, the green rate of cotyledons was substantially higher in the OX plants than in the WT plants (Supplementary Figure S4A–G). The root length of the OX plants significantly exceeded that of the WT plants under drought stress, indicating that SaCHYR4 overexpression improved the drought tolerance of A. thaliana (Supplementary Figure S4H,I).
The drought tolerance of the OX plants was determined through water control at the seedling stage. With the extension of drought stress, the wilting and shrinking of the WT leaves were more severe relative to the OX leaves (Figure 9a). After 4 days of rehydration, the OX leaves recovered quickly, whereas most WT plants did not recover, and nearly all were dry (Figure 9a). After drought stress, the survival rates of OX-5 and OX-21 were significantly higher by 78% in the OX plants than in the WT plants, the chlorophyll content was significantly higher in the OX plants than in the WT plants, and the malondialdehyde content was lower in the OX plants than in the WT plants (Figure 9b–d). The water loss rate of the OX plants under drought stress was significantly lower by 5–6% than that of the WT plants, suggesting that SaCHYR4 improved the drought tolerance of OX by regulating the water loss of A. thaliana under drought stress (Figure 9e). Overall, our results showed that SaCHYR4 overexpression in A. thaliana can enhance the drought stress tolerance of OX plants.

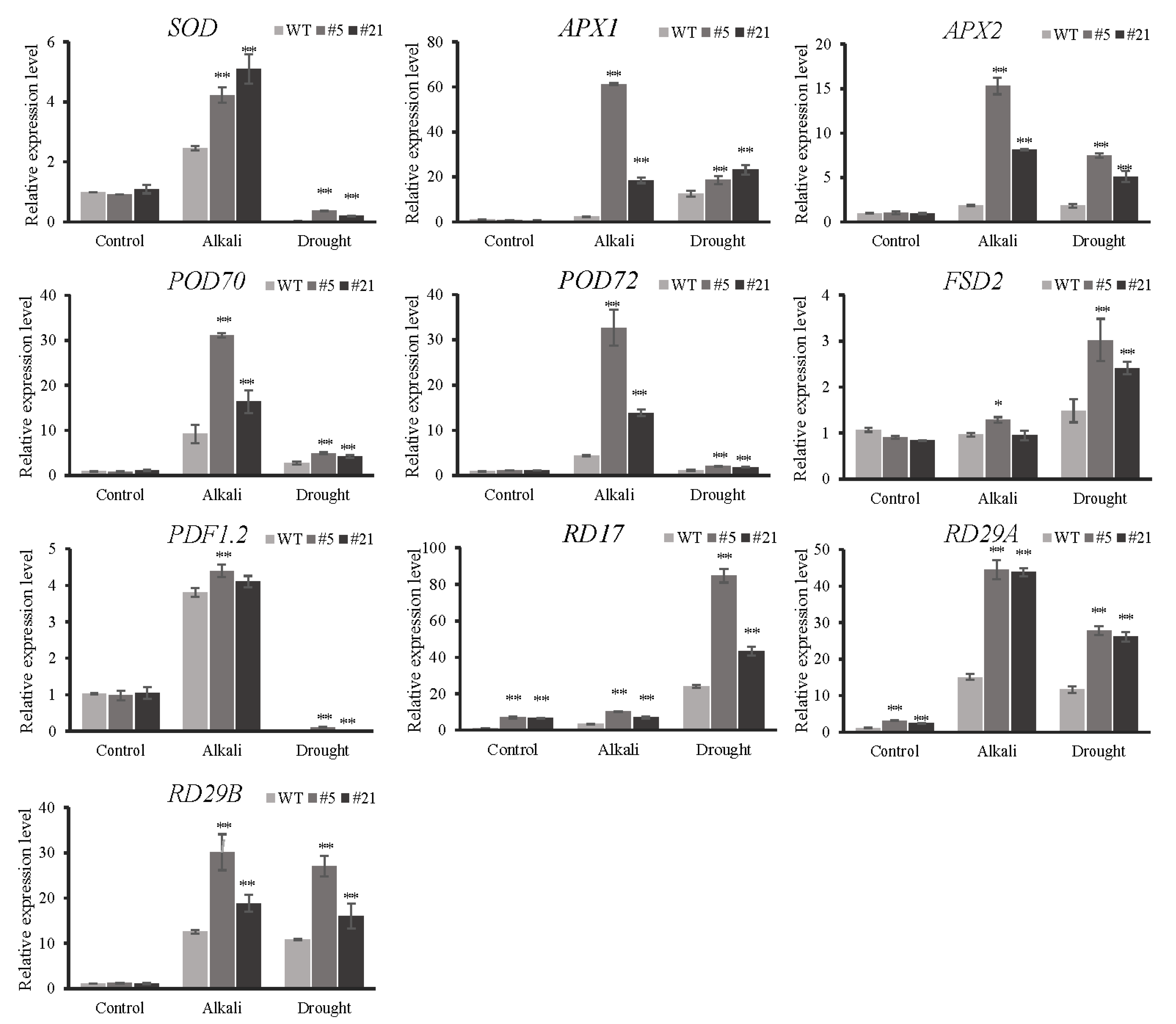

2.10. SaCHYR4 Overexpression Alters the Transcription Levels of Stress Response Genes

To further explore the effect of SaCHYR4 overexpression on the stress response in Arabidopsis, the expression levels of the stress response genes in Arabidopsis were quantitatively analyzed using qRT-PCR. The expression levels of SOD, APX1, APX2, POD70, POD72, PDF1.2, RD17, RD29A, and RD29B in the SaCHYR4 overexpression lines were significantly higher than those in the WT Arabidopsis under alkali and drought stress conditions (Figure 10). This suggests that SaCHYR4 overexpression may respond to alkali and drought stress by regulating the expression of stress response genes. Additionally, the expression levels of RD17 and RD29A were significantly higher in SaCHYR4 overexpression lines than in the WT under control conditions, and the expression dynamics of each stress response gene were different under alkali and drought stress conditions, indicating some differences in the response to alkali and drought stresses and that SaCHYR4 plays an important role in plant abiotic stress response.

3. Discussion

The CHYR gene family member SaCHYR4, which was selected from S. alopecuroides through stress resistance screening, showed a positive response to abiotic stress [1]. To further explore the genetic information of the CHYR family genes in S. alopecuroides and their roles in the plant response to abiotic stress, we analyzed the whole genome of S. alopecuroides. To the best of our knowledge, this is the first study to identify and classify 18 CHYR family genes and validate the function of SaCHYR4. Moreover, the results were verified in transgenic Arabidopsis SaCHYR4 under alkali and drought stress. Our results provide a theoretical reference for the improvement and application of CHYR family genes and a basis for further exploration of the response of SaCHYR genes to abiotic stress, which is of great significance for elucidating the anti-stress mechanism of S. alopecuroides.
In this study, 18 genes of the SaCHYR family were identified based on the CHY-zinc finger, RING-H2 finger, and zinc-ribbon domains of their proteins in S. alopecuroides, consistent with the identification of CHYR family genes in other species. To date, 16 CHYR family genes have been identified in soybean [7], 7 in Arabidopsis, and 18 in wheat [16], suggesting no significant differences in the numbers of CHYR family genes between dicotyledonous and monocotyledonous plants, which might be attributable to similar genome sizes. Moreover, the gene structure of the SaCHYR family in S. alopecuroides was similar to that of the soybean CHYR family, with exon–intron numbers ranging between 10 and 15.
A conserved domain analysis showed a high similarity between SaCHYR family proteins and GmCHYR, and phylogenetic tree clustering showed a consistent gene structure and motif distribution among proteins in the same branch. In this study, we predicted 15 motifs in SaCHYRs, consistent with those for Arabidopsis and soybean [7]. Overall, the CHYR family proteins seemed to be conserved to some extent among species, suggesting that they play crucial roles in plant growth, development, and adaptation to adverse environmental conditions.
The CHYR protein, a Ring-type E3 ubiquitin ligase, participates in regulating plant growth, development, and environmental adaptation through ubiquitination. The expression of all TaCHYRs identified in wheat was induced by drought stress, showing similar expression patterns [16]. In this research, the expression of 14 of the 18 CHYR family genes identified in S. alopecuroides was significantly triggered by salt, alkali, and drought stress. Ring-type E3 ubiquitin ligases contain the RING zinc-finger domain, which plays a key role in abiotic stress responses through the ABA signaling pathway. The Arabidopsis RING finger E3 ubiquitin ligase XBAT35 regulates the accumulation of the ABA receptor PYL4 by inducing the ubiquitination-mediated degradation of VPS23A, thus playing a role in ABA signaling [20]. Moreover, XBAT35.2 and the deubiquitinating enzymes UBP12/13 play the roles of “accelerator” and “brake”, finely regulating the ubiquitination level of VPS23A and affecting the level of the ABA receptor protein in response to external environmental changes [22]. Ubiquitin ligase XBAT35.2 promotes pathogen defense by mediating ACD11 degradation, but weakens plant responses to abiotic stress, suggesting that XBAT35.2 has opposite effects on abiotic and biotic stress [23]. Arabidopsis E3 ubiquitin ligases AIRP3 and UBC27 can interact with the ABA co-receptor ABI1; the function of AIRP3 relies on UBC27 and collaboratively affects the stability of ABI1 to regulate ABA signaling and the mechanism underlying the plant drought stress response [24]. The Ring-type E3 ubiquitin ligase CaAIRF1 interacts with and ubiquitinates class A PP2Cs (CaADIP1 and CaAIPP1), ultimately regulating their stability and mediating ABA signal transduction in plants [25,26]. Here, we found that almost all SaCHYR genes contained CAACTG, a binding site (MBS) of the MYB transcription factor responding to drought stress, and ABRE (ACGTG)-responding elements; this suggests that SaCHYR genes regulate abiotic stress through ABA signaling pathways. The Rice Ring-type E3 ubiquitin ligase OsHTAS controls H2O2 homeostasis through ABA- and DST-dependent pathways, thereby regulating heat tolerance in rice [27]. OsRZF34, a rice gene homologous to Arabidopsis AtCHYR1, increases stomatal opening and transpiration rate when overexpressed in Arabidopsis and rice, thereby enabling the faster cooling of leaves [28]. Populus euphratica overexpressing PeCHYR1 showed reduced stomatal opening due to an increased hydrogen peroxide (H2O2) content. Transgenic poplars showed a high sensitivity to exogenous ABA and drought tolerance [29]. Moreover, the Rice Ring-type E3 ligase OsRINGzf1 enhances the water retention capacity of rice by promoting OsPIP2;1 degradation, thus positively regulating drought resistance [30]. Our results showed that SaCHYR4 overexpression in Arabidopsis significantly improved drought tolerance; the water loss rate of OX was considerably lower than that of WT, suggesting that SaCHYR4 overexpression enhances drought tolerance by increasing the water retention rate of Arabidopsis.
Ring-type E3 ubiquitin ligases not only regulate enzyme activity via ubiquitination, but also the expression of transcription factors (for example, WRKY and MYB) to regulate stress response in plants. CHYR1 controls the binding of WRKY70 mediated by the phosphorylation of various cis-acting elements of SARD1, thereby regulating homeostasis between immunity and growth [31]; this implies that the E3 ubiquitin ligase functions by regulating the stability of its target proteins, and its function is regulated by protein phosphorylation and dephosphorylation. The RING-HC E3 ubiquitin-protein ligase SR1 regulates the expression of RAP2.2, a member of ERF-VII, by regulating the stability of the transcription factor WRKY33, thereby affecting plant hypoxia signal transduction in response to plant tolerance to flooding stress [32]. The Arabidopsis ubiquitin E3 ligases MIEL1 and MYB30 co-regulate the key ABA signaling pathway transcription factor ABI5, which is involved in seed germination [33]. The Ring-type E3 ligase MdMIEL1 in apples can mediate the ubiquitination and degradation of MdBBX7 through the 26S proteasome pathway, negatively regulating the response to drought stress [34]. MdSINA3 inhibits the promoting effects of MdBBX37 on leaf senescence by regulating MdBBX37 degradation. MdBBX37 interacts with MdABI5 in ABA signaling and MdEIL1 in ethylene signaling, affecting ABA- and ethene-mediated leaf senescence, respectively [35]. In this study, we predicted 31 proteins interacting with the SaCHYR protein, including methyltransferase, ubiquitin-like domain-containing protein, and cytochrome P450. Methyltransferase and RING-type domain-containing proteins are reportedly involved in the regulation of plant responses to saline–alkali stress [25]. Hence, Ring-type E3 ubiquitin ligases of the CHYR subclass may be involved in regulating plant responses to environmental stress through multiple pathways, further indicating the functional diversity of CHYR family proteins.
Currently, there is limited research on the alkali stress resistance of CHYR family proteins. In this study, we utilized RNA-seq data to demonstrate that alkaline and drought stress strongly induce the expression of the SaCHYR4 gene in S. alopecuroides. As the genetic transformation system of S. alopecuroides had not been previously established, we examined the function of SaCHYR4 through heterologous expression in Arabidopsis. SaCHYR4 overexpression significantly enhanced the alkaline stress tolerance of Arabidopsis; however, there was no substantial change in the salt stress tolerance of OX plants, implying potential differences in the plant responses to salt and alkali stress. Additionally, the SaCHYR4 protein exhibits unique characteristics in regulating plant stress resistance. The SaCHYR family genes play a crucial role in modulating plant responses to abiotic stresses (such as salt, alkali, and drought). The overexpression of SaCHYR4 in A. thaliana significantly improved the alkaline and drought tolerance in seedlings. The expression levels of SOD, APX1, APX2, POD70, POD72, PDF1.2, RD17, RD29A, and RD29B in the SaCHYR4 overexpression lines were significantly changed under alkali and drought stress. These findings provide a foundation for studying the role of the SaCHYR family genes in crop stress resistance.
CHYR, a key enzyme in the ubiquitination pathway, considerably influences plant responses to abiotic stress. However, to date, studies on the function of the CHYR protein have primarily focused on model plants, such as Arabidopsis and rice. Therefore, it is vital to explore the mechanism of CHYR resistance in resistant plants. Understanding the anti-stress mechanism of S. alopecuroides is crucial, as it serves as a valuable resource for stress resistance.
This study has certain limitations. The specific mechanism of action of the SaCHYR4 gene in the resistance of S. alopecuroides was not thoroughly explored, despite the identification of the CHYR gene family. The role of its analog in the resistance mechanism of Arabidopsis also remains unclear. Considering the complexity of plant responses to environmental stress and the immaturity of the genetic transformation system of S. alopecuroides, studying the function of SaCHYR genes poses significant challenges. Future research should focus on exploring the resistance-related genes of S. alopecuroides, analyzing the response mechanism of each gene in the SaCHYR family to abiotic stress, and investigating the relationship between its medicinal use and resistance. Furthermore, understanding the molecular characteristics of S. alopecuroides will help to maximize its economic value.

4. Materials and Methods

4.1. Plant Materials

Sophora alopecuroides seeds were collected from the Korla region of Xinjiang (N 41.81°, E 86.19°). Full seeds were then selected and placed in triangular bottles; 98% sulfuric acid (H2SO4) was slowly added to soak the seeds at room temperature (18–25 °C) for 10 min, during which, the seeds were slowly shaken. Distilled water was then added four or five times to remove residual H2SO4 from the seed coat. The seeds were soaked for 2 days, and hilum was uncovered and sowed (peat soil:vermiculite = 3:1) under the following culture conditions: day/night 16 h/8 h, temperature 26/22 °C, humidity 65%, light intensity 30,000 lx, Changchun, Jilin, China. At 4 weeks of age, the S. alopecuroides seedlings were selected, grouped, and exposed to 150 mM NaHCO3, 200 mM NaCl, and 8% PEG6000 for 72 h [1]. Fresh root, stem, and leaf tissues were collected from each treatment, frozen, and stored at −80 °C for later use.

4.2. Transcriptome Sequencing and Analysis

RNA was extracted from the root, stem, and leaf tissues of S. alopecuroides using TRIzol [1,36]. A library was constructed using the chain-specific construction method, and the insert size of the library was assessed using an Agilent 2100 bioanalyzer to determine the library quality. Sequencing was then performed using PacBio sequencing technology (BGI Genomics Co., Ltd., Wuhan, China). Clean reads generated by an NGS platform were mapped to the genome sequence of S. alopecuroides using HISAT2 v2.2.1 with default parameters [37]. Gene expression (expressed in transcripts per million, TPM) was calculated using StringTie v2.20 [37].

4.3. Genome-Wide Identification of the CHYR Gene Family of S. alopecuroides

An S. alopecuroides genome database was applied to identify the CHYR family genes. A total of 23 known AtCHYR and GmCHYR protein sequences were collected from The Arabidopsis Information Resource and Soybase. These protein sequences were used as queries to perform BLAST searches against the S. alopecuroides genome database to identify the CHYR genes. The CHY-zinc finger (PF05495), ring-finger domain (PF13639), and zinc-ribbon domain (PF14599) from Pfam (http://pfam.xfam.org, accessed on 25 September 2023) were used to perform HMM searches with HMMER (http://hmmer.org/download.html, accessed on 25 September 2023) and to identify SaCHYR genes [38]. The results from two different methods were verified by analyzing the intact gene domain using Pfam, SMART, and the Conserved Domain Database. Subcellular SaCHYR localization was predicted using Cell-2.0 (http://cello.life.nctu.edu.tw/, accessed on 25 September 2023).

4.4. Multiple Sequence Alignments and Phylogenetic Tree Construction

Multiple sequence alignments were performed for known AtCHYR and GmCHYR proteins, and the full-length SaCHYR protein sequences were predicted using clustalW (https://www.genome.jp/tools-bin/clustalw, accessed on 27 September 2023). A phylogenetic tree was constructed based on 1000 bootstrap samples via the maximum likelihood method using MEGA X [39], and evolview was used to visualize the phylogenetic trees (https://www.evolgenius.info/evolview/, accessed on 29 September 2023) [40].

4.5. Chromosomal Location, Gene Structure, Conserved Domain, and Cis-Regulatory Element Analyses

The chromosomal locations of the SaCHYR family genes were identified based on the genome of S. alopecuroides using TBtools, and all SaCHYR family genes were mapped to chromosomes based on their chromosomal positions using TBtools [41]. The genes were named according to their chromosomal positions. TBtools [41] was used to generate the gene structure map of the gene family. The SaCHYR family genetic structure, conservative structure domain analysis, and visualization were also performed (https://www.ncbi.nlm.nih.gov/Structure/bwrpsb/bwrpsb.cgi, accessed on 2 October 2023). Based on the genome annotation file, TBtools was used to map the exon–intron composition and location of SaCHYR. Conserved motifs in the SaCHYR protein sequences were identified using the MEME program, with 15 being the maximum number of motifs [42]. Protein structure prediction of the SaCHYR genes was performed using the NCBI conserved domains (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi, accessed on 2 October 2023). A cis-regulatory element (CRE) analysis of 18 SaCHYR genes’ promoter regions (2000 bp) was performed using the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html, accessed on 3 October 2023).

4.6. Homology Modeling of 3D SaCHYR Protein Structures

The secondary structure of the SaCHYR protein was predicted using the online tool SOPMA (https://npsa-prabi.ibcp.fr/cgi-bin/npsa_automat.pl?page=npsa%20_sopma.html, accessed on 4 October 2023). The tertiary structure was modeled and visualized using the SWISS-MODEL tool (https://swissmodel.expasy.org/interactive, accessed on 4 October 2023).

4.7. Construction of the Protein–Protein Interaction Network

Protein–protein interactions were predicted using the protein sequences of the S. alopecuroides CHYR family members via https://cn.string-db.org/cgi/input.pl, accessed on 20 December 2023. Soybean was selected as the reference plant. The minimum required interaction score was set to 0.400; active interaction sources, including text mining, experiments, databases, co-expression, neighborhood, gene fusion, and co-occurrence, were used to construct a CHYR protein interaction network.

4.8. Analysis of the Pattern of SaCHYR Family Gene Expression in Response to Abiotic Stress

Using transcriptome data, we analyzed the expression patterns of the SaCHYR gene family in different tissues of S. alopecuroides and assessed the changes in the expressions of these genes under salt, alkali, and drought stress conditions. To further validate the role of the CHYR genes in S. alopecuroides in response to abiotic stress, the expression dynamics of 8 SaCHYR genes were detected using RT-qPCR at different time points after alkali and drought stress exposure. The total RNA was extracted from the root tissues of 150 mM NaHCO3- and 8% PEG-treated S. alopecuroides using TriZol (Genestar, P118-05) (Chiyoda-ku, Tokyo), and reverse transcription was performed using a commercial kit (Genestar, A232-10). After determining the primer specificity using TBtools, RT-qPCR was performed using SGExcel FastSYBR Mixture (Sangon Biotech, B532955) (Shanghai, China) and CFX connect (Bio-Rad) (Hercules, CA, USA). The experiment was performed at 95 °C for 30 s, 95 °C for 5 s, 60 °C for 30 s for 40 cycles, 95 °C for 10 s, and 65 °C for 5 s (with a 0.5 °C gradient increase to 95 °C). Actin served as the internal reference gene, and the relative gene expression was analyzed using the 2−∆∆CT method, with three biological replicates per sample; each experiment was repeated three times (primers are listed in Supplementary Table S1).

4.9. Cloning of the SaCHYR4 Gene

Based on the obtained SaCHYR4 nucleic acid sequence, primers were designed with Primer 6.0 using S. alopecuroides cDNA as a template and a high-fidelity enzyme for SaCHYR4 cloning (Supplementary Table S1). The recovered PCR products were connected to the cloning vector pMD18-T for amplification, and the obtained sequencing results were confirmed to be consistent with the transcriptome sequencing results and used to construct the expression vector.

4.10. Plasmid Construction and Genetic Transformation of A. thaliana

The SaCHYR4 coding sequence was recombined into the plant expression vector pCHF3300 via double-enzyme digestion to construct the expression vector pCHF3300-SaCHYR4. Wild A. thaliana plants were subjected to Agrobacterium EHA105-mediated infection. Seeds were harvested using Basta for screening, and PCR was used to detect positive strains. Seeds were harvested from the T2 generation for further experiments.

4.11. Functional Analysis of SaCHYR4 in A. thaliana

Arabidopsis seeds were disinfected, suspended in 0.1% AGAR solution, planted in 1/2 MS medium, vernalized at 4 °C for 3 days, and placed in a light incubator (day/night 16/8 h, temperature 24/20 °C, humidity 65%, light intensity 30,000 lx). The germination rate was determined after 3 days, whereas the green seedling rate was determined after 5 days. The germination stage was subjected to salt (1/2 MS medium containing 100 mM NaCl), alkaline (1/2 MS medium containing 7, 8, or 9 mM NaHCO3), and drought stress (1/2 MS medium containing 100 or 200 mM mannitol). Arabidopsis was cultured in 1/2 MS medium, and when the four leaves were unfurled, they were transferred to high-temperature sterilized soil for culturing (turf soil:vermiculite = 3:1; soil moisture content was the same). The seedlings were exposed to stress after 2 weeks of cultivation, with 300 mM NaHCO3 added to simulate alkali stress. Drought stress was applied for 10 days, followed by rehydration. The phenotypes were observed and photographed 2 days later. After stress treatment, the survival rates and leaf water loss rates of the Arabidopsis seedlings were evaluated, and the chlorophyll and malondialdehyde content was measured. The selected Arabidopsis stress response genes included SOD, APX1, APX2, POD70, POD72, FSD2, PDF1.2, RD17, RD29A, and RD29B. The NCBI web site (https://www.ncbi.nlm.nih.gov/tools/primer-blast/index.cgi?LINK_LOC=BlastHome, accessed on 22 March 2024) was used to design the RT-qPCR primers, which were synthesized by Comate Bioscience Co., Ltd. (Changchun, China), Jilin Province. The specific methods have been described previously [43].

4.12. Statistical Analysis

One-way analysis of variance was used to analyze differences among the experimental groups. IBM SPSS 19.0 statistical software (IBM, Armonk, NY, USA) and Microsoft Excel 2010 were used for statistical analysis, and GraphPad Prism 8.0 (GraphPad Software, La Jolla, CA, USA) was used for visualization.

5. Conclusions

Using genome-wide data, this study identified 18 S. alopecuroides CHYR family genes and classified them into 3 subfamilies using a phylogenetic analysis. An analysis of the CHYR gene structure, conserved domains, motifs, chromosome distribution, cis-regulatory elements, and 3D protein structure revealed that the CHYR family proteins were relatively conserved. Moreover, an analysis of the expression patterns of the SaCHYR family genes indicated their positive response to abiotic stress in S. alopecuroides. Notably, SaCHYR4 overexpression significantly increased A. thaliana tolerance to alkaline and drought stress. These findings provide a basis for future studies on the stress resistance mechanism of S. alopecuroides and serve as a new genetic resource for breeding stress-resistant crops.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms25116173/s1.

Author Contributions

Conceptualization, Y.Z., Q.W., Y.W. and L.W.; methodology, Y.Z., Z.M. and D.W.; software, D.W.; validation, Y.Z., Q.W., Y.W., Z.M. and L.W.; formal analysis, F.Y., Y.L., J.L. and X.Y.; investigation, Z.G. and X.L.; resources, Q.W. and J.L.; data curation, Y.Z., Q.W., Y.W. and L.W.; writing—original draft preparation, Y.Z.; writing—review and editing, Y.Z. and Q.W.; visualization, Y.Z. and D.W.; supervision, Q.W., Y.W. and L.W.; project administration, Q.W., Y.W., Y.Z. and Y.L.; funding acquisition, Q.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Key R&D projects during the 14th Five Year Plan period (grant number 2022YFD1500503), National Natural Science Foundation of China (grant number 32101689), the National Science Foundation of Jilin Province (grant number 20240101281JC), Graduate Innovation Fund of Jilin University (grant number 2022205), and 2023 Soybean New National Advantage Characteristic Industry Cluster Project.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Raw data were deposited in the NCBI database under SRA accession numbers PRJNA636118 and PRJNA1077624.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Yan, F.; Zhu, Y.; Zhao, Y.; Wang, Y.; Li, J.; Wang, Q.; Liu, Y. De novo transcriptome sequencing and analysis of salt-, alkali-, and drought-responsive genes in Sophora alopecuroides. BMC Genom. 2020, 21, 423. [Google Scholar] [CrossRef]
  2. Zhang, F.; Qiu, F.; Zeng, J.; Xu, Z.; Tang, Y.; Zhao, T.; Gou, Y.; Su, F.; Wang, S.; Sun, X.; et al. Revealing evolution of tropane alkaloid biosynthesis by analyzing two genomes in the Solanaceae family. Nat. Commun. 2023, 14, 1446. [Google Scholar] [CrossRef]
  3. Au Atta-Ur-Rahman, C.; Choudhary, M.I.; Parvez, K.; Ahmed, A.; Akhtar, F.; Nur-e-Alam, M.; Hassan, N.M. Quinolizidine alkaloids from Sophora alopecuroides. J. Nat. Prod. 2000, 63, 190–192. [Google Scholar] [CrossRef]
  4. Huang, X.; Chu, G.M.; Wang, J.; Luo, H.H.; Yang, Z.N.; Sun, L.P.; Rong, W.; Wang, M. Integrated metabolomic and transcriptomic analysis of specialized metabolites and isoflavonoid biosynthesis in Sophora alopecuroides L. under different degrees of drought stress. Ind. Crops Prod. 2023, 197, 116595. [Google Scholar] [CrossRef]
  5. Wang, R.; Deng, X.; Gao, Q.; Wu, X.; Han, L.; Gao, X.; Zhao, S.; Chen, W.; Zhou, R.; Li, Z.; et al. Sophora alopecuroides L.: An ethnopharmacological, phytochemical, and pharmacological review. J. Ethnopharmacol. 2020, 248, 112172. [Google Scholar] [CrossRef]
  6. Zhu, Y.; Wang, Q.; Wang, Y.; Xu, Y.; Li, J.; Zhao, S.; Wang, D.; Ma, Z.; Yan, F.; Liu, Y. Combined transcriptomic and metabolomic analysis reveals the role of phenylpropanoid biosynthesis pathway in the salt tolerance process of Sophora alopecuroides. Int. J. Mol. Sci. 2021, 22, 2399. [Google Scholar] [CrossRef]
  7. Jia, B.; Wang, Y.; Zhang, D.; Li, W.; Cui, H.; Jin, J.; Cai, X.; Shen, Y.; Wu, S.; Guo, Y.; et al. Genome-wide identification, characterization and expression analysis of soybean CHYR gene family. Int. J. Mol. Sci. 2021, 22, 12192. [Google Scholar] [CrossRef]
  8. Cayrol, C.; Lacroix, C.; Mathe, C.; Ecochard, V.; Ceribelli, M.; Loreau, E.; Lazar, V.; Dessen, P.; Mantovani, R.; Aguilar, L.; et al. The THAP-zinc finger protein THAP1 regulates endothelial cell proliferation through modulation of pRB/E2F cell-cycle target genes. Blood 2007, 109, 584–594. [Google Scholar] [CrossRef]
  9. Lee, J.H.; Kim, W.T. Regulation of abiotic stress signal transduction by E3 ubiquitin ligases in Arabidopsis. Mol. Cells 2011, 31, 201–208. [Google Scholar] [CrossRef]
  10. Finn, R.D.; Bateman, A.; Clements, J.; Coggill, P.; Eberhardt, R.Y.; Eddy, S.R.; Heger, A.; Hetherington, K.; Holm, L.; Mistry, J.; et al. Pfam: The protein families database. Nucleic Acids Res. 2014, 42, D222–D230. [Google Scholar] [CrossRef]
  11. Ding, S.; Zhang, B.; Qin, F. Arabidopsis RZFP34/CHYR1, a ubiquitin E3 ligase, regulates stomatal movement and drought tolerance via SnRK2.6-mediated phosphorylation. Plant Cell 2015, 27, 3228–3244. [Google Scholar] [CrossRef]
  12. Hindt, M.N.; Akmakjian, G.Z.; Pivarski, K.L.; Punshon, T.; Baxter, I.; Salt, D.E.; Guerinot, M.L. BRUTUS and its paralogs, BTS LIKE1 and BTS LIKE2, encode important negative regulators of the iron deficiency response in Arabidopsis thaliana. Metallomics 2017, 9, 876–890. [Google Scholar] [CrossRef]
  13. Wirstam, M.; Lippard, S.J.; Friesner, R.A. Reversible dioxygen binding to hemerythrin. J. Am. Chem. Soc. 2003, 125, 3980–3987. [Google Scholar] [CrossRef]
  14. Selote, D.; Matthiadis, A.; Gillikin, J.W.; Sato, M.H.; Long, T.A. The E3 ligase BRUTUS facilitates degradation of VOZ1/2 transcription factors. Plant Cell Environ. 2018, 41, 2463–2474. [Google Scholar] [CrossRef]
  15. Chong, L.; Xu, R.; Huang, P.; Guo, P.; Zhu, M.; Du, H.; Sun, X.; Ku, L.; Zhu, J.K.; Zhu, Y. The tomato OST1-VOZ1 module regulates drought-mediated flowering. Plant Cell 2022, 34, 2001–2018. [Google Scholar] [CrossRef]
  16. Liu, H.; Yang, W.; Zhao, X.; Kang, G.; Li, N.; Xu, H. Genome-wide analysis and functional characterization of CHYR gene family associated with abiotic stress tolerance in bread wheat (Triticum aestivum L.). BMC Plant Biol. 2022, 22, 204. [Google Scholar] [CrossRef]
  17. Marino, D.; Froidure, S.; Canonne, J.; Ben Khaled, S.B.; Khafif, M.; Pouzet, C.; Jauneau, A.; Roby, D.; Rivas, S. Arabidopsis ubiquitin ligase MIEL1 mediates degradation of the transcription factor MYB30 weakening plant defence. Nat. Commun. 2013, 4, 1476. [Google Scholar] [CrossRef]
  18. Rodríguez-Celma, J.; Connorton, J.M.; Kruse, I.; Green, R.T.; Franceschetti, M.; Chen, Y.T.; Cui, Y.; Ling, H.Q.; Yeh, K.C.; Balk, J. Arabidopsis Brutus-LIKE E3 ligases negatively regulate iron uptake by targeting transcription factor FIT for recycling. Proc. Natl Acad. Sci. USA 2019, 116, 17584–17591. [Google Scholar] [CrossRef]
  19. Yu, F.F.; Xie, Q. Ubiquitination modification precisely modulates the ABA signaling pathway in plants. Yi Chuan = Hereditas 2017, 39, 692–706. [Google Scholar] [CrossRef]
  20. Yu, F.; Cao, X.; Liu, G.; Wang, Q.; Xia, R.; Zhang, X.; Xie, Q. ESCRT-I component VPS23A is targeted by E3 ubiquitin ligase XBAT35 for proteasome-mediated degradation in modulating ABA signaling. Mol. Plant. 2020, 13, 1556–1569. [Google Scholar] [CrossRef]
  21. Han, G.; Qiao, Z.; Li, Y.; Yang, Z.; Wang, C.; Zhang, Y.; Liu, L.; Wang, B. RING zinc finger proteins in plant abiotic stress tolerance. Front. Plant Sci. 2022, 13, 877011. [Google Scholar] [CrossRef]
  22. Liu, G.; Liang, J.; Lou, L.; Tian, M.; Zhang, X.; Liu, L.; Zhao, Q.; Xia, R.; Wu, Y.; Xie, Q.; et al. The deubiquitinases UBP12 and UBP13 integrate with the E3 ubiquitin ligase XBAT35.2 to modulate VPS23A stability in ABA signaling. Sci. Adv. 2022, 8, eabl5765. [Google Scholar] [CrossRef]
  23. Li, Q.; Serio, R.J.; Schofield, A.; Liu, H.; Rasmussen, S.R.; Hofius, D.; Stone, S.L. Arabidopsis RING-type E3 ubiquitin ligase XBAT35.2 promotes proteasome-dependent degradation of ACD11 to attenuate abiotic stress tolerance. Plant J. 2020, 104, 1712–1723. [Google Scholar] [CrossRef]
  24. Pan, W.; Lin, B.; Yang, X.; Liu, L.; Xia, R.; Li, J.; Wu, Y.; Xie, Q. The UBC27-AIRP3 ubiquitination complex modulates ABA signaling by promoting the degradation of ABI1 in Arabidopsis. Proc. Natl Acad. Sci. USA 2020, 117, 27694–27702. [Google Scholar] [CrossRef]
  25. Lim, C.W.; Baek, W.; Lee, S.C. The pepper RING-Type E3 ligase CaAIRF1 regulates ABA and drought signaling via CaADIP1 protein phosphatase degradation. Plant Physiol. 2017, 173, 2323–2339. [Google Scholar] [CrossRef]
  26. Baek, W.; Lim, C.W.; Lee, S.C. Functional analysis of the pepper protein phosphatase, CaAIPP1, and its interacting partner CaAIRF1: Modulation of ABA signalling and the drought stress response. Plant Cell Environ. 2017, 40, 2359–2368. [Google Scholar] [CrossRef]
  27. Liu, J.; Zhang, C.; Wei, C.; Liu, X.; Wang, M.; Yu, F.; Xie, Q.; Tu, J. The ring finger ubiquitin E3 ligase OsHTAS enhances heat tolerance by promoting H2O2-induced stomatal closure in rice. Plant Physiol. 2016, 170, 429–443. [Google Scholar] [CrossRef]
  28. Hsu, K.H.; Liu, C.C.; Wu, S.J.; Kuo, Y.Y.; Lu, C.A.; Wu, C.R.; Lian, P.J.; Hong, C.Y.; Ke, Y.T.; Huang, J.H.; et al. Expression of a gene encoding a rice RING zinc-finger protein, OsRZFP34, enhances stomata opening. Plant Mol. Biol. 2014, 86, 125–137. [Google Scholar] [CrossRef]
  29. He, F.; Wang, H.L.; Li, H.G.; Su, Y.; Li, S.; Yang, Y.; Feng, C.H.; Yin, W.; Xia, X. PeCHYR1, a ubiquitin E3 ligase from Populus euphratica, enhances drought tolerance via ABA-induced stomatal closure by ROS production in Populus. Plant Biotechnol. J. 2018, 16, 1514–1528. [Google Scholar] [CrossRef]
  30. Chen, S.; Xu, K.; Kong, D.; Wu, L.; Chen, Q.; Ma, X.; Ma, S.; Li, T.; Xie, Q.; Liu, H.; et al. Ubiquitin ligase OsRINGzf1 regulates drought resistance by controlling the turnover of OsPIP2;1. Plant Biotechnol. J. 2022, 20, 1743–1755. [Google Scholar] [CrossRef]
  31. Liu, H.; Liu, B.; Lou, S.; Bi, H.; Tang, H.; Tong, S.; Song, Y.; Chen, N.; Zhang, H.; Jiang, Y.; et al. CHYR1 ubiquitinates the phosphorylated WRKY70 for degradation to balance immunity in Arabidopsis thaliana. New Phytol. 2021, 230, 1095–1109. [Google Scholar] [CrossRef]
  32. Liu, B.; Jiang, Y.; Tang, H.; Tong, S.; Lou, S.; Shao, C.; Zhang, J.; Song, Y.; Chen, N.; Bi, H.; et al. The ubiquitin E3 ligase SR1 modulates the submergence response by degrading phosphorylated WRKY33 in Arabidopsis. Plant Cell. 2021, 33, 1771–1789. [Google Scholar] [CrossRef]
  33. Nie, K.; Zhao, H.; Wang, X.; Niu, Y.; Zhou, H.; Zheng, Y. The MIEL1-ABI5/MYB30 regulatory module fine tunes abscisic acid signaling during seed germination. J. Integr. Plant Biol. 2022, 64, 930–941. [Google Scholar] [CrossRef]
  34. Chen, P.; Zhi, F.; Li, X.; Shen, W.; Yan, M.; He, J.; Bao, C.; Fan, T.; Zhou, S.; Ma, F.; et al. Zinc-finger protein MdBBX7/MdCOL9, a target of MdMIEL1 E3 ligase, confers drought tolerance in apple. Plant Physiol. 2022, 188, 540–559. [Google Scholar] [CrossRef]
  35. An, J.P.; Zhang, C.L.; Li, H.L.; Wang, G.L.; You, C.X. Apple SINA E3 ligase MdSINA3 negatively mediates JA-triggered leaf senescence by ubiquitinating and degrading the MdBBX37 protein. Plant J. 2022, 111, 457–472. [Google Scholar] [CrossRef]
  36. Rio, D.C.; Ares, M., Jr.; Hannon, G.J.; Nilsen, T.W. Purification of RNA using Trizol (TRI reagent). Cold Spring Harb. Protoc. 2010, 2010, pdb.prot5439. [Google Scholar] [CrossRef]
  37. Pertea, M.; Kim, D.; Pertea, G.M.; Leek, J.T.; Salzberg, S.L. Transcript-level expression analysis of RNA-seq experiments with HISAT, StringTie and Ballgown. Nat. Protoc. 2016, 11, 1650–1667. [Google Scholar] [CrossRef]
  38. Potter, S.C.; Luciani, A.; Eddy, S.R.; Park, Y.; Lopez, R.; Finn, R.D. HMMER web server: 2018 update. Nucleic Acids Res. 2018, 46, W200–W204. [Google Scholar] [CrossRef]
  39. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  40. Subramanian, B.; Gao, S.; Lercher, M.J.; Hu, S.; Chen, W.H. Evolview v3: A webserver for visualization, annotation, and management of phylogenetic trees. Nucleic Acids Res. 2019, 47, W270–W275. [Google Scholar] [CrossRef]
  41. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant. 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  42. Bailey, T.L.; Boden, M.; Buske, F.A.; Frith, M.; Grant, C.E.; Clementi, L.; Ren, J.; Li, W.W.; Noble, W.S. MEME SUITE: Tools for motif discovery and searching. Nucleic Acids Res. 2009, 37, W202–W208. [Google Scholar] [CrossRef] [PubMed]
  43. Zhu, Y.; Wang, Q.; Guo, W.; Gao, Z.; Wang, Y.; Xu, Y.; Liu, Y.; Ma, Z.; Yan, F.; Li, J. Screening and identification of salt-tolerance genes in Sophora alopecuroides and functional verification of SaAQP. Planta 2021, 254, 77. [Google Scholar] [CrossRef] [PubMed]
Ijms 25 06173 g001

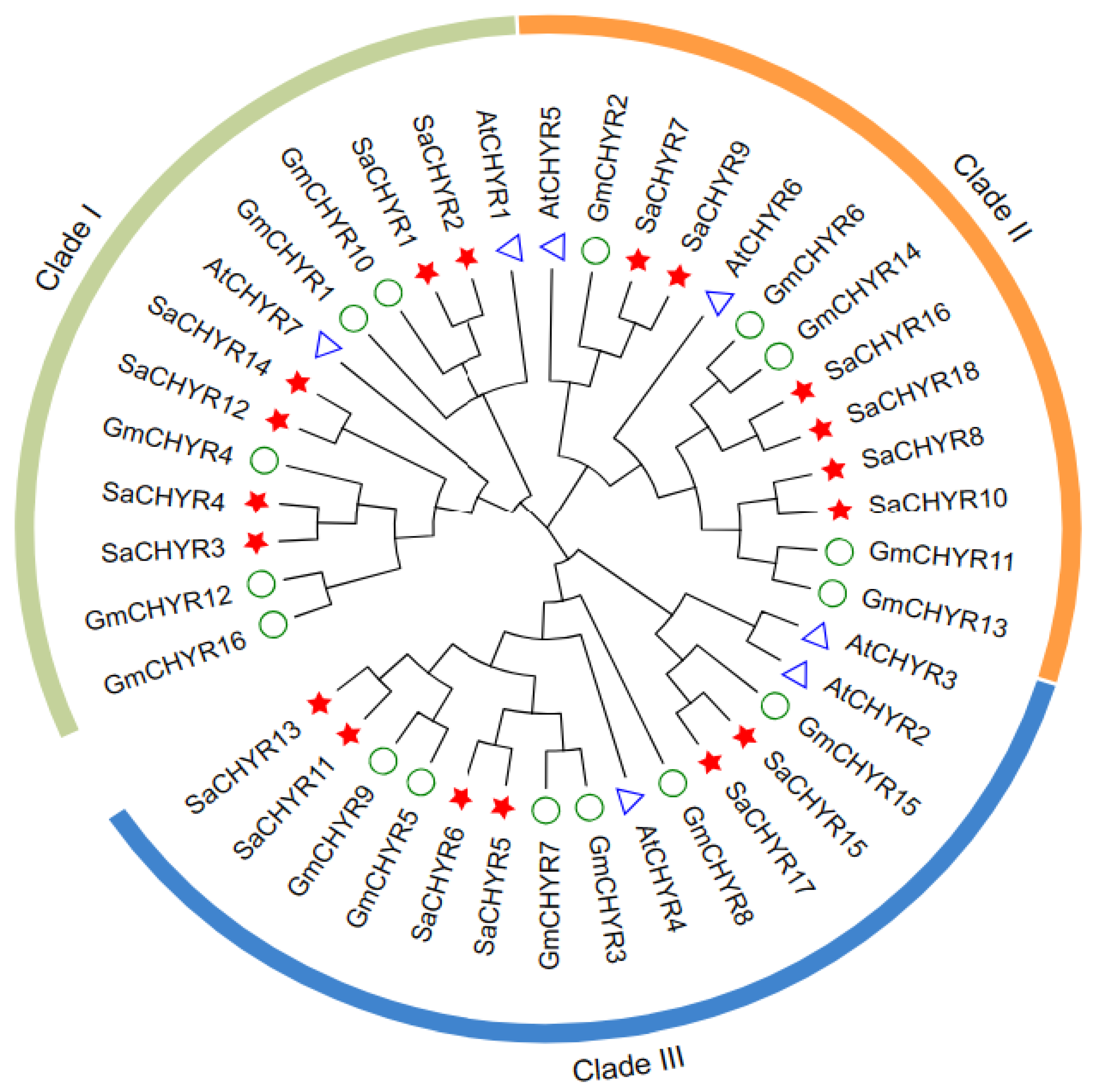

Figure 1. Phylogenetic analysis of CHYR proteins from Sophora alopecuroides, Arabidopsis thaliana, and Glycine max (L.). Circles, triangles, and stars indicate soybean proteins, those of A. thaliana, and those of S. alopecuroides, respectively. Clades I, II, and III are represented by green, orange, and blue, respectively.
Figure 1. Phylogenetic analysis of CHYR proteins from Sophora alopecuroides, Arabidopsis thaliana, and Glycine max (L.). Circles, triangles, and stars indicate soybean proteins, those of A. thaliana, and those of S. alopecuroides, respectively. Clades I, II, and III are represented by green, orange, and blue, respectively.
Ijms 25 06173 g001
Ijms 25 06173 g002
Figure 2. Characterization of Sophora alopecuroides CHYR genes. (a) Phylogenetic analysis of SaCHYR proteins from S. alopecuroides. (b) Exon–intron structural features of 18 SaCHYR genes. (c) Conserved motifs of the amino acid sequences of SaCHYR proteins. (d) Amino acid preference analysis of motifs among SaCHYRs.
Figure 2. Characterization of Sophora alopecuroides CHYR genes. (a) Phylogenetic analysis of SaCHYR proteins from S. alopecuroides. (b) Exon–intron structural features of 18 SaCHYR genes. (c) Conserved motifs of the amino acid sequences of SaCHYR proteins. (d) Amino acid preference analysis of motifs among SaCHYRs.
Ijms 25 06173 g002
Ijms 25 06173 g003
Figure 3. Chromosomal location of SaCHYR genes in Sophora alopecuroides.
Figure 3. Chromosomal location of SaCHYR genes in Sophora alopecuroides.
Ijms 25 06173 g003
Ijms 25 06173 g004
Figure 4. Cis-acting element analysis of SaCHYR promoters. (a) Predicted promoter cis-acting elements. (b) Cis-acting elements in the SaCHYR promoters were divided into five types, and their numbers are shown. (c) Numbers of environmental stress-related factors and hormone response factors.
Figure 4. Cis-acting element analysis of SaCHYR promoters. (a) Predicted promoter cis-acting elements. (b) Cis-acting elements in the SaCHYR promoters were divided into five types, and their numbers are shown. (c) Numbers of environmental stress-related factors and hormone response factors.
Ijms 25 06173 g004
Ijms 25 06173 g005

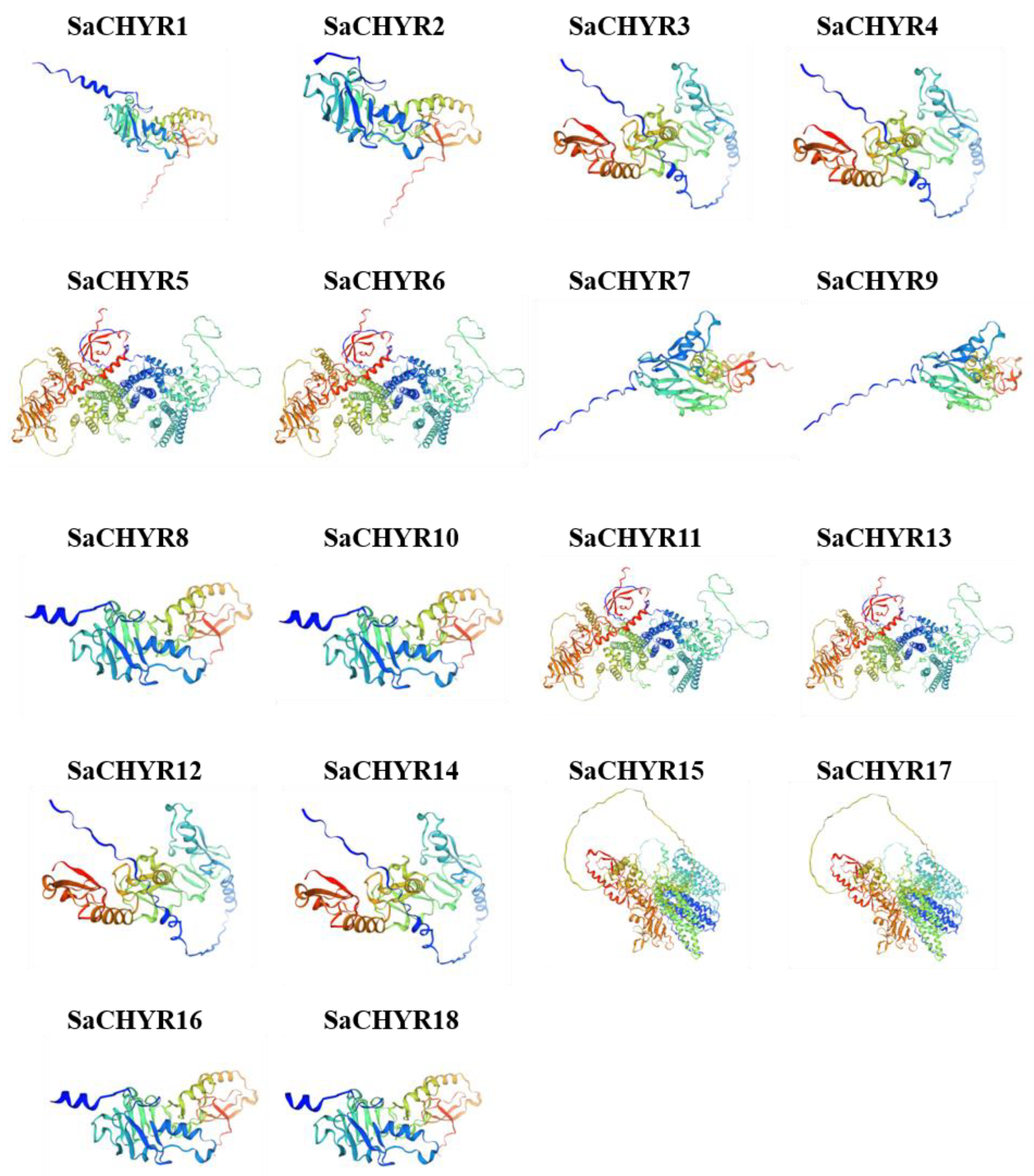

Figure 5. Three-dimensional structural models of 18 SaCHYR proteins.
Figure 5. Three-dimensional structural models of 18 SaCHYR proteins.
Ijms 25 06173 g005
Ijms 25 06173 g006
Figure 6. Prediction of SaCHYR-interacting protein networks in S. alopecuroides.
Figure 6. Prediction of SaCHYR-interacting protein networks in S. alopecuroides.
Ijms 25 06173 g006
Ijms 25 06173 g007

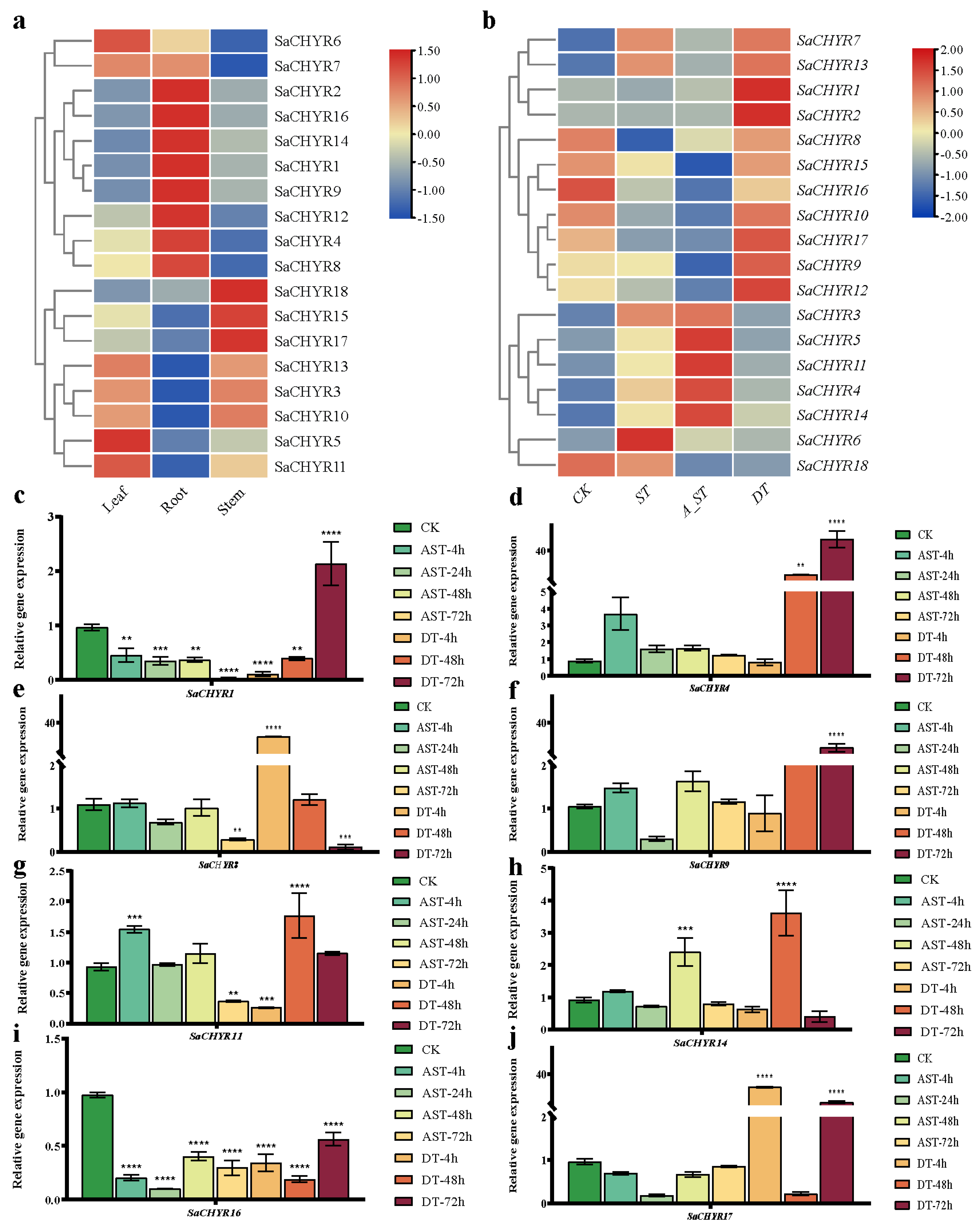

Figure 7. Expression profiles of CHYR genes in Sophora alopecuroides. (a) Expression patterns in leaf, root, and stem tissues. (b) Expression patterns under control (CK), salt (ST), alkali (A_ST), and drought (DT) conditions. Expression levels are indicated by the color scale. (c–j) Relative expression levels of SaCHYRs in S. alopecuroides at different periods under alkali and drought stress. Data represent means ± SD, with three biological replicates. GraphPad was used to calculate significance using one-way ANOVA. **, p < 0.01, ***, p < 0.001, ****, p < 0.0001.
Figure 7. Expression profiles of CHYR genes in Sophora alopecuroides. (a) Expression patterns in leaf, root, and stem tissues. (b) Expression patterns under control (CK), salt (ST), alkali (A_ST), and drought (DT) conditions. Expression levels are indicated by the color scale. (c–j) Relative expression levels of SaCHYRs in S. alopecuroides at different periods under alkali and drought stress. Data represent means ± SD, with three biological replicates. GraphPad was used to calculate significance using one-way ANOVA. **, p < 0.01, ***, p < 0.001, ****, p < 0.0001.
Ijms 25 06173 g007
Ijms 25 06173 g008
Figure 8. Effect of SaCHYR4 overexpression on the seeding stage of A. thaliana under alkali stress. (a) Phenotypic state. (b) Survival statistics. (c) Fresh weight statistics. (d) Chlorophyll content. (e) Malondialdehyde content. Data represent means ± SD, with three biological replicates. GraphPad was used to calculate significance using one-way ANOVA. *, p < 0.05; **, p < 0.01, ***, p < 0.001.
Figure 8. Effect of SaCHYR4 overexpression on the seeding stage of A. thaliana under alkali stress. (a) Phenotypic state. (b) Survival statistics. (c) Fresh weight statistics. (d) Chlorophyll content. (e) Malondialdehyde content. Data represent means ± SD, with three biological replicates. GraphPad was used to calculate significance using one-way ANOVA. *, p < 0.05; **, p < 0.01, ***, p < 0.001.
Ijms 25 06173 g008
Ijms 25 06173 g009
Figure 9. Effect of SaCHYR4 overexpression on the seeding stage of Arabidopsis thaliana under drought stress. (a) Phenotypic state. (b) Survival statistics. (c) Malondialdehyde (MDA) content. (d) Chlorophyll content. (e) Transcriptional water loss. Data represent means ± SD, with three biological replicates. GraphPad was used to calculate significance using one-way ANOVA. *, p < 0.05; **, p < 0.01.
Figure 9. Effect of SaCHYR4 overexpression on the seeding stage of Arabidopsis thaliana under drought stress. (a) Phenotypic state. (b) Survival statistics. (c) Malondialdehyde (MDA) content. (d) Chlorophyll content. (e) Transcriptional water loss. Data represent means ± SD, with three biological replicates. GraphPad was used to calculate significance using one-way ANOVA. *, p < 0.05; **, p < 0.01.
Ijms 25 06173 g009
Ijms 25 06173 g010
Figure 10. Relative expression levels of stress response genes in Arabidopsis thaliana under alkali and drought stress conditions. The relative expression level was calculated using the 2−ΔΔCT method. Data represent means ± SD, with three biological replicates. GraphPad was used to calculate significance using one-way ANOVA. *, p < 0.05; **, p < 0.01.
Figure 10. Relative expression levels of stress response genes in Arabidopsis thaliana under alkali and drought stress conditions. The relative expression level was calculated using the 2−ΔΔCT method. Data represent means ± SD, with three biological replicates. GraphPad was used to calculate significance using one-way ANOVA. *, p < 0.05; **, p < 0.01.
Ijms 25 06173 g010
Table 1. CHYR family genes identified in Sophora alopecuroides (n = 18).
Table 1. CHYR family genes identified in Sophora alopecuroides (n = 18).
No.GeneGene IDSubgroupCDS Length
(bp)		Protein Size
(aa)		Molecular Weight
(kDa)		pIPredicted Localization
1SaCHYR1Sa01G051120Clade Ⅰ102033939.067.83Nucleus
2SaCHYR2Sa02G109750Clade Ⅰ81327031.146.94Chloroplast
3SaCHYR3Sa05G228980Clade Ⅰ93030935.766.58Chloroplast
4SaCHYR4Sa06G275940Clade Ⅰ93030935.696.41Chloroplast
5SaCHYR5Sa07G314120Clade III37441247140.605.52Nucleus
6SaCHYR6Sa08G372170Clade III37441247140.845.63Nucleus
7SaCHYR7Sa09G431320Clade II81627131.156.10Nucleus
8SaCHYR8Sa09G459760Clade II80426730.996.85Chloroplast
9SaCHYR9Sa10G477850Clade II78025929.585.85Nucleus
10SaCHYR10Sa10G510660Clade II80426731.136.87Chloroplast
11SaCHYR11Sa11G521360Clade III37171238139.645.67Nucleus
12SaCHYR12Sa11G534300Clade Ⅰ92730835.466.89Chloroplast
13SaCHYR13Sa12G563780Clade III37171238139.695.67Nucleus
14SaCHYR14Sa12G576360Clade Ⅰ92730835.426.81Extracellular
15SaCHYR15Sa13G635820Clade III38641287148.226.02Chloroplast
16SaCHYR16Sa13G645440Clade II81327031.606.71Chloroplast
17SaCHYR17Sa14G680390Clade III38641287148.566.01Chloroplast
18SaCHYR18Sa14G691080Clade II86428733.466.90Chloroplast
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhu, Y.; Wang, Y.; Ma, Z.; Wang, D.; Yan, F.; Liu, Y.; Li, J.; Yang, X.; Gao, Z.; Liu, X.; et al. Genome-Wide Identification of CHYR Gene Family in Sophora alopecuroides and Functional Analysis of SaCHYR4 in Response to Abiotic Stress. Int. J. Mol. Sci. 2024, 25, 6173. https://doi.org/10.3390/ijms25116173

AMA Style

Zhu Y, Wang Y, Ma Z, Wang D, Yan F, Liu Y, Li J, Yang X, Gao Z, Liu X, et al. Genome-Wide Identification of CHYR Gene Family in Sophora alopecuroides and Functional Analysis of SaCHYR4 in Response to Abiotic Stress. International Journal of Molecular Sciences. 2024; 25(11):6173. https://doi.org/10.3390/ijms25116173

Chicago/Turabian Style

Zhu, Youcheng, Ying Wang, Zhipeng Ma, Di Wang, Fan Yan, Yajing Liu, Jingwen Li, Xuguang Yang, Ziwei Gao, Xu Liu, and et al. 2024. "Genome-Wide Identification of CHYR Gene Family in Sophora alopecuroides and Functional Analysis of SaCHYR4 in Response to Abiotic Stress" International Journal of Molecular Sciences 25, no. 11: 6173. https://doi.org/10.3390/ijms25116173

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
