Local Population Structure and Seasonal Variability of Borrelia garinii Genotypes in Ixodes ricinus Ticks, Slovakia

by
Zuzana Mtierová
1,
Markéta Derdáková
1,
Michal Chvostáč
1,
Yuliya M. Didyk
1,2,
Barbara Mangová
1,
Veronika Rusňáková Tarageľová
1,
Diana Selyemová
1,
Alžbeta Šujanová
1 and
Radovan Václav
1,*
1
Institute of Zoology, Slovak Academy of Sciences, Dúbravská cesta 9, 845 06 Bratislava, Slovakia
2
Schmalhausen Institute of Zoology, NAS of Ukraine, B. Khmelnytskogo 15, 01030 Kyiv, Ukraine
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2020, 17(10), 3607; https://doi.org/10.3390/ijerph17103607
Submission received: 30 March 2020 / Revised: 14 May 2020 / Accepted: 18 May 2020 / Published: 21 May 2020
(This article belongs to the Special Issue Ecology and Spatio-Temporal Patterns of Zoonotic Diseases)
Browse Figures
Versions Notes

Abstract

:
Lyme disease (LD) is the most common tick-borne human disease in Europe, and Borrelia garinii, which is associated with avian reservoirs, is one of the most genetically diverse and widespread human pathogenic genospecies from the B. burgdorferi sensu lato (s.l.) complex. The clinical manifestations of LD are known to vary between regions and depend on the genetic strain even within Borrelia genospecies. It is thus of importance to explore the genetic diversity of such pathogenic borreliae for the wide range of host and ecological contexts. In this study, multilocus sequence typing (MLST) was employed to investigate the local population structure of B. garinii in Ixodes ricinus ticks. The study took place in a natural wetland in Slovakia, temporally encompassing spring and autumn bird migration periods as well as the breeding period of resident birds. In total, we examined 369 and 255 ticks collected from 78 birds and local vegetation, respectively. B. burgdorferi s.l. was detected in 43.4% (160/369) of ticks recovered from birds and in 26.3% (67/255) of questing ticks, respectively. Considering the ticks from bird hosts, the highest prevalence was found for single infections with B. garinii (22.5%). Infection intensity of B. garinii in bird-feeding ticks was significantly higher than that in questing ticks. We identified ten B. garinii sequence types (STs) occurring exclusively in bird-feeding ticks, two STs occurring exclusively in questing ticks, and one ST (ST 244) occurring in both ticks from birds and questing ticks. Four B. garinii STs were detected for the first time herein. With the exception of ST 93, we detected different STs in spring and summer for bird-feeding ticks. Our results are consistent with previous studies of the low geographic structuring of B. garinii genotypes. However, our study reveals some consistency in local ST occurrence and a geographic signal for one of the clonal complexes.

1. Introduction

Lyme disease (LD) is the most common tick-borne human disease in Europe [1,2]. Borrelia burgdorferi sensu lato (s.l.) currently represents a complex of 22 genospecies [3,4], ten of which are present in Europe: B. burgdorferi sensu stricto (s.s.), B. garinii [5], B. afzelii [6], B. lusitaniae [7], B. valaisiana [8], B. bissettii [9], B. spielmanii [10], B. bavariensis [11], B. finlandensis [12], and B. turdi [13]. In Europe, human LD is caused by various genospecies, but B. afzelii and B. garinii are by far the most widespread human pathogenic borreliae [14,15].
Concerning the two main human pathogenic Borrelia genospecies in Europe, there are important differences between B. garinii and B. afzelii. First, B. garinii appears to represent the genetically and phenotypically most polymorphic and heterogenous genospecies [9,16,17]. Second, despite the molecular polymorphism of B. garinii, the genetic differentiation between geographical areas is higher for B. afzelii than for B. garinii [18]. This observation is consistent with the idea that birds, as the main reservoir of B. garinii, are able to mix B. garinii strains between remote areas, while rodents, as the main reservoirs of B. afzelii, keep the spirochete subpopulations separate due to their limited movement [18]. Third, the prevalence of B. afzelii in questing ticks is usually higher than that of B. garinii (e.g., [19]), which is thought to reflect the higher densities of ticks supported by small mammals compared to birds [20]. Fourth, while the prevalence of B. afzelii in human LD patients is higher than that of B. garinii, the severity of Lyme disease is usually higher for the latter genospecies [21]. Additionally, the prevalence of sequence types (STs) detected in human patients for both genospecies is higher than expected based on the prevalence of these STs in questing ticks [21]. These findings indicate that different Borrelia strains can have different invasiveness and/or infectivity properties not only between but also within the genospecies [22,23].
It is accepted that genetic variability within the B. burgdorferi s.l. genospecies complex is associated with different clinical outcomes in LD patients [24] as well as with different reservoir hosts [25,26]. While B. garinii is mainly associated with neuroborreliosis, B. afzelii most often induces erythema migrans and acrodermatitis chronica atrophicans [15]. Yet, clinical features of infections with the same Borrelia genospecies can differ strikingly between regions, as shown by Cerar et al. [27]. Moreover, even though there are rather firm associations between Borrelia genospecies, tick vectors and vertebrate hosts, different reservoir hosts and tick species can be observed between regions even within the same Borrelia genospecies (see [28] for B. garinii.) Consequently, a certain B. burgdorferi s.l. strain can, from the pathogen’s perspective, perform well in one geographical or ecological setting, but this performance may not be representative, due to geographic differences in vector and/or reservoir capacity, across the strain’s distribution range or for the whole genospecies [29]. Thus, it is of importance for epidemiological and evolutionary studies to explore the genetic and phenotypic diversity of pathogenic borreliae for the wide range of host and ecological conditions.
The host community has been hypothesized as one of the main drivers of the intraspecific genetic diversity of B. burgdorferi s.l. via various mechanisms. According to one view, various hosts within a community can act as multiple ecological niches for a subset of strains of a species [30]. With respect to B. garinii, the concept of ecological niches can be rather complex for local avian communities involving migratory or transient bird species, because the niches fluctuate dynamically in space and time. Moreover, the majority of the European bird studies have focused on tick infestations at the time of autumn and spring migration, e.g., [31,32,33], whereas the role of songbirds in the transmission dynamics of borreliae at the breeding or wintering sites, as well as the role of resident birds, remain poorly investigated [34].
The aim of this study is to provide a first snapshot of the local population structure of B. garinii at a model study site in order to unravel the role of the avian community in the local circulation of a spirochete of human importance. Multilocus sequence typing (MLST) is used to reveal the local intraspecific diversity of B. garinii and its temporal within-season variation. Bird-feeding and questing I. ricinus ticks are examined over the period from spring to autumn avian migration in a natural wetland in Slovakia.

2. Materials and Methods

2.1. Study Area, Field Methods and Study Species

Ticks and birds were sampled in south-east Slovakia near the Drienovec village (48°10′11.303″ N; 17°4′2.255″ E; Figure 1). The study site (ca. 7.7 ha) is represented by a mosaic of woody wetland and forest-meadow ecotones at 190 m a.s.l. The Drienovec Bird Ringing Station has operated at the study site from 2006 and is involved in multiple bird-ringing schemes such as Constant Effort Sites (CES) and SE European Bird Migration Network (SEEN) [35]. Birds mist-netted in the framework of multiple ringing schemes were sampled for ticks in 2017. Birds were captured and banded under the permit of the Ministry of the Environment of the Slovak Republic No. 269/132/05-5.1_pil. Sampled birds were carefully examined for feeding ticks, and these were removed with fine forceps in tubes with 70% ethanol. Ring code, species and, if known, age and sex were recorded for each bird sampled. Ticks for each bird were stored in separate tubes. Questing ticks were collected at the study site by the standardized flagging method [36]. Both ticks from birds and questing ticks were collected during the same visits in 22–25 April, 24 June, 18–19 July and 19–21 October 2017. However, it was not possible to collect any questing tick in October due to rainy weather conditions. Totally, we collected 369 bird-feeding Ixodes ricinus ticks as well as 255, 23 and 14 questing I. ricinus, Dermacentor marginatus and Haemaphysalis inermis, respectively.
In addition to birds infested with ticks (Table 1), the following bird species (number of individuals) were examined for ticks with none found: Cyanistes caeruleus (42), Carduelis carduelis (34), Sylvia curruca (14), Ficedula albicollis (6), Hirundo rustica (4), Emberiza citrinella (4), Poecile palustris (4), Pyrrhula pyrrhula (3), Regulus regulus (3), Remiz pendulinus (3), Sitta europaea (2), Linaria cannabina (2), Acrocephalus palustris (2), Aegithalos caudatus (2), Certhia familiaris (2), Phoenicurus ochruros (1), Buteo buteo (1), Dendrocopos major (1), Dryobates minor (1), Ficedula hypoleuca (1), Jynx torquilla (1), P. phoenicurus (1), Poecile montanus (1), Passer montanus (1), Phylloscopus sibilatrix (1), Serinus serinus (1), and Sylvia borin (1).
B. garinii has the widest distribution of all the genospecies within the B. burgdorferi s.l. complex. This spirochete is not only found in wooded areas of Eurasia, where it is transmitted by I. ricinus and I. persulcatus [37], but also in marine areas, where it is transmitted by I. uriae in seabird colonies. Typical avian reservoirs of B. garinii comprise thrushes, pheasants and some seabirds [38,39,40,41]. In Asia, rodents may serve as reservoirs for B. garinii [42]. We only examine I. ricinus for borreliae in this study as this is the only confirmed vector of the spirochete in Europe [43]. Ticks were identified to species and life stages using available taxonomic keys [44].

2.2. DNA Extraction

A total of 369 bird-feeding and 255 questing I. ricinus ticks were examined using molecular techniques. The DNA from individual ticks was extracted by the alkaline-hydrolysis method [45] and eluted in 125 (larvae and unfed nymphs) and 250 (fed nymphs and adults) µL of MilliQ water [18].
DNA samples were stored at −20 °C. A 620-bp fragment of tick mitochondrial gene cytochrome b was amplified in each extracted sample to confirm the presence of the tick DNA [46]. Only positive samples were further analyzed for the presence of tick-borne agents.

2.3. PCR Amplification

HotStarTaq DNA Polymerase kit (Qiagen, Hilden, Germany) and 10 mM dNTP (Thermofisher, Dreieich, Germany) were used for all PCRs. PCR amplification was done in a BIO-RAD T100 Thermal Cycler (BIO-RAD, Hercules, CA, USA). Consequently, electrophoresis in 1.5% agarose gel and visualization on UV transilluminator Vilber-Lourmant (Sigma-Aldrich, St. Louis, MO, USA) was used for the detection of PCR products.

2.3.1. PCR Screening of Borrelia burgdorferi s.l. DNA in Ixodes Ricinus

Each tick was tested for the presence of B. burgdorferi s.l. DNA. PCR amplification of a 222–255-bp fragment of rrfA-rrlB intergenic spacer was carried out using primers IGSA 5′-CGACCTTCTTCGCCTTAAAGC-3′ and IGSB 5′-AGCTCTTATTCGCTGATGGTA-3′ [47]. The PCR reaction was performed in a total reaction mixture of 25 µL. The PCR reaction mixture per each sample contained 2.5 µL of 10× PCR buffer, 1 µL of 25 mM MgCl2, 0.125 µL of HotStartTaq DNA polymerase (Qiagen, Hilden, Germany), 0.5 µL of both IGSA and IGSB primers (10 µM), 0.5 µL 10 mM dNTP (Thermofisher, Dreieich, Germany) and 14.875 µL of nuclease-free water (Promega, Madison, WI, USA). A quantity of 5 µL of tick DNA template was added to the reaction mixture. A touch-down PCR program was set following Derdáková et al. [47]. Positive samples were typed into Borrelial genospecies by Restriction Fragment Length Polymorphism (RFLP) analysis following Derdáková et al. [47]. A quantity of 13 µL of PCR product was mixed with 0.5 µL of Tru1I restriction enzyme (Fermentas, Thermo Scientific, Vilnius, Lithuainia) and 1.5 µL of buffer (Fermentas, Thermo Scientific, Vilnius, Lithuania). Digestion ran at 65 °C for 5 min. Electrophoretic separation was performed in the Origins system (Elchrom Scientific, Cham, Switzerland) using Spreadex EL300 mini gel (Elchrom Scientific, Cham, Switzerland) at 120 V for 150 min. After electrophoresis, the gel was stained with SYBR green (Sigma-Aldrich, St. Louis, MO, USA) for 45 min and visualized by UV transilluminator (Vilber-Lourmant; Sigma-Aldrich, St. Louis, MO, USA).

2.3.2. PCR Amplification of 8 Housekeeping Genes (clpA, clpX, nifS, pepX, pyrG, recG, rplB, uvrA)

Borrelia garinii-positive samples were further analyzed using MLST according to protocol by Margos et al. [48]. PCR mixture for the first run of a nested PCR for all of the 8 housekeeping genes contained 2.5 µL of 10× PCR buffer, 1 µL of 25 mM MgCl2, 0.15 µL of HotStartTaq DNA Polymerase (Qiagen, Hilden, Germany), 1 µL of both outer forward and reverse primers (10 µM), 1 µL 10 mM dNTP (Thermofisher, Dreieich, Germany), 15.85 µL of nuclease-free water (Promega, Madison, WI, USA) and 2.5 µL of DNA template. The volume of PCR mixture in the second run of nested PCR was 30 µL per reaction and contained 3 µL of 10× PCR buffer, 1.5 µL of 25 mM MgCl2, 0.27 µL of HotStartTaq DNA Polymerase (Qiagen, Hilden, Germany), 1.5 µL of both inner forward and reverse primers (10 µM), 1.5 µL of 10 mM dNTP (Thermofisher, Dreieich, Germany) and 17.73 µL of nuclease-free water (Promega, Madison, WI, USA). A quantity of 3 µL of the PCR product amplified in the first run of nested PCR was added to the reaction mixture.

2.3.3. Absolute Quantification of B. garinii by Droplet Digital PCR (ddPCR)

The number of exact DNA copies in selected B. garinii-positive samples from questing and bird-feeding I. ricinus was quantified using a QX200 Droplet digital PCR system (Bio-Rad, Hercules, CA, USA), amplifying a 75-bp fragment of B. burgdorferi 23S rRNA using primers Bb23Sf (5′-CGAGTCTTAAAAGGGCGATTTAGT-3′) and Bb23Sr (5′-GCTTCAGCCTGGCCATAAATAG-3′) with a TaqMan probe Bb23Sp-FAM (5′-AGATGTGGTAGACCCGAAGCCGAGTG) [49]. A quantity of 5 µL of DNA template was added to 10 µL of ddPCR Supermix for Probes (Bio-Rad, Hercules, CA, USA), 4.5 µL of each primer (900 nmol) and 1 µL of probe (250 nmol) to create droplets in droplet generator QX200 (Bio-Rad, Hercules, CA, USA). The droplets were run through a thermal cycler C1000 TouchTM (Bio-Rad, Hercules, CA, USA) and read using a QX200 Droplet Reader (Bio-Rad, Hercules, CA, USA), which analyzed every droplet separately using the detection system set for FAM detection.

2.4. PCR Product Purification, Sanger Sequencing and MLST Analysis

Purification of PCR products intended for Sanger sequencing was done by NucleoSpin Gel and PCR Clean-up (MACHEREY-NAGEL, Düren, Germany). Sanger sequencing of all of the housekeeping genes was performed in Eurofins Genomics (Eurofins Genomics Germany GmbH, Ebersberg, Germany). Sequences obtained in this study were analyzed using the PubMLST database [50], with each allele receiving a number corresponding to an existing identical allele, or a new number in the case that the allele sequence was new to the database. Based on allelic profiles of 8 housekeeping genes, each sample was assigned an existing or new ST number [48]. GenBank accession numbers for the sequences of B. garinii alleles determined in this study are: MT371055 (nifS gene, PubMLST allele 231), MT371056 (recG gene, PubMLST allele 293), MT371057 (nifS gene, PubMLST allele 237), and MT371058 (clpA gene, PubMLST allele 302).

2.5. Phylogenetic Analysis

To examine clonal clustering of B. garinii STs obtained in this study with those from the PubMLST database, we used goeBURST algorithms with the PhyloViz 2 program [51,52]. The analysis was performed with all B. garinii isolates with a complete MLST profile deposited in the PubMLST database as of March 2020. In order to identify clonal clusters (CCs), goeBURST Distance analysis was conducted at the level of single-locus variants (SLVs). In turn, the goeBURST Full MST algorithm was used to generate the minimum-spanning tree. The tree was constructed at the maximal level of locus variants, i.e., level 8. This analysis provides a global perspective on relationships among STs, showing founders (central profiles) and closely related samples based on CCs. CCs from the MLST analysis and clades from the phylogenetic trees often reveal concordant results [53]. Country and tick source were used as auxiliary data for each isolate to aid visualizing accessory data in goeBURST analyses.

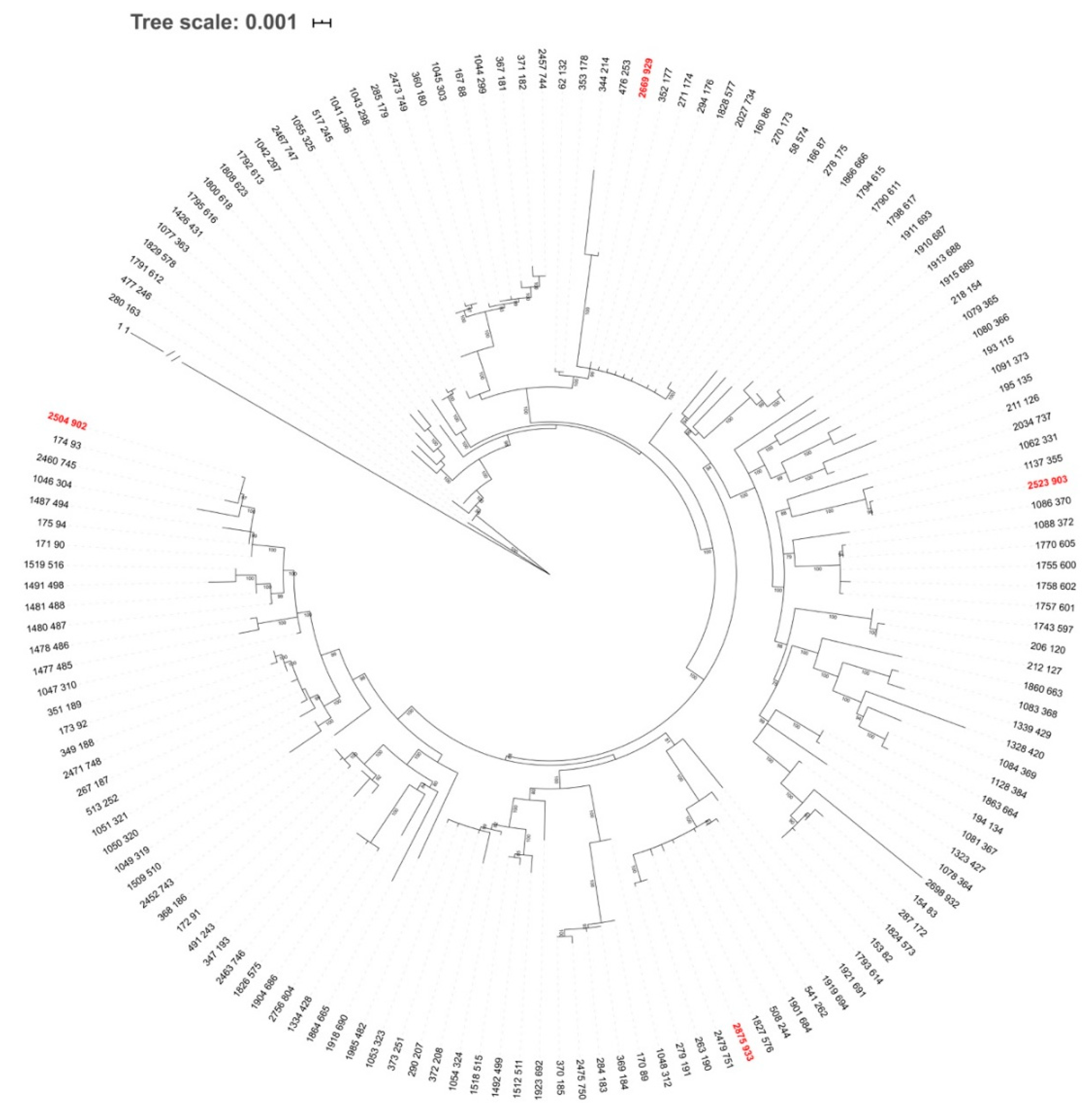

To investigate the phylogenetic relationships among B. garinii STs identified in this work and those deposited in the PubMLST database as of March 2020, we involved sequences for 147 B. garinii STs, whereas B. burgdorferi s.s. for ST 1 was used as an outgroup. Phylogenetic Maximum Likelihood analysis of concatenated sequences was conducted using the IQ-TREE web application [54]. The best-fit substitution model of sequence evolution was selected using the ModelFinder within the IQ-TREE platform [55]. The ModelFinder considers all traditional substitution models included in jModelTest and ProtTest [56,57], but also includes discrete Gamma (+G) [58] and FreeRate (+R) heterogeneity models [59], the latter representing a generalization of the discrete Gamma model. The best-fit model was selected with respect to Bayesian Information Criterion (BIC) scores. The branch support for the tree with the best substitution model was assessed using an aBayes test [60]. The resulting tree was unrooted, even though the outgroup taxon B. burgdorferi s.s. ST 1 was drawn at root. The tree was edited in iTOL v5 [61].

2.6. Statistical Analysis

In order to estimate the competence of bird hosts as reservoirs for borreliae [62], differences in B. garinii infection intensity with respect to two tick sources (bird-feeding vs. questing ticks) and two time periods (April vs. June–July) were analyzed with generalized linear models assuming negative binomial distribution. Since we obtained infection intensity data for two bird-feeding ticks from the same bird individual (i.e., the observations were not statistically independent), we conservatively removed the tick with higher infection intensity. A negative-binomial generalized linear model was run with the MASS package [63] in R [64]. Count data involving infection prevalences was analyzed using Fisher’s exact test with the stats package [64].

3. Results

3.1. B. burgdorferi s.l. in Bird-Feeding and Questing Ticks

In total, 369 feeding I. ricinus ticks were collected from birds over four sampling periods during April, June, July and October 2017. Overall, we sampled 504 birds of 41 species; 78 birds of 15 species were found to carry at least one blood-feeding tick. Of 369 bird-infesting ticks, 91 (24.66%), 277 (75.07%) and 1 (0.27%) ticks were in the larval, nymphal and adult stages, respectively. All of the ticks were examined for B. burgdorferi s.l. genospecies by RFLP analysis (Table 1).
In 29 Borrelia-positive samples, Sanger sequencing was used to confirm Borrelia genospecies determination by RFLP. These results confirmed genospecies determination by RFLP. In total, 160 (43.36%) ticks were B. burgdorferi s.l.-positive: 28/91 (30.77%), 132/277 (47.65%), and 0/1 (0%) of ticks in the larval, nymphal and adult stages, respectively.
Of 255 questing I. ricinus ticks, 16 (6.27%) were female adults, 21 (8.26%) were male adults, and 218 (85.49%) ticks were in the nymphal stage; no tick larva was collected by flagging. B. burgdorferi s.l. was detected in 67 (26.27%) ticks: 3/16 (18.75%) of female adults, 8/21 (38.10%) male adults, and 56/218 (25.69%) of nymphs. B. afzelii was a dominant genospecies for questing ticks (41/67, 61.19%), followed by B. garinii (11/67, 16.42%) and B. valaisiana (10/67, 14.93%). Four (5.97%) of the infected ticks showed mixed infection with B. garinii and B. valaisiana, and a mixed infection of B. afzelii and B. valaisiana was detected for one (1.49%) of the infected ticks.

3.2. B. garinii Infection Prevalence and Intensity in Bird-Feeding and Questing Ticks

By pooling I. ricinus ticks with single and multiple B. burgdorferi s.l. infection that involved B. garinii, the prevalence of ticks infected with B. garinii was significantly higher in bird-feeding than questing ticks (106/160 vs. 15/67; Fisher exact test: p < 0.001). Moreover, B. garinii infection intensity, including only ticks with single B. garinii infection, was significantly higher in terms of the number of DNA copies in fed bird-feeding ticks compared to the intensity in questing ticks (negative binomial generalized linear model: tick source–df = 1, Chi-square = 5.00, p = 0.025; time of season–df = 1, Chi-square = 2.12, p = 0.146; Figure 2). The interaction effect of tick source and time of season was not significant (p = 0.625), and the interaction term was therefore not included in the final model.

3.3. Borrelia garinii STs

MLST analysis was conducted for 38 (45.8%) B. garinii-positive ticks collected from birds, involving the ticks for five bird species and four sampling periods. We were able to resolve ST profile for 18 ticks collected from 13 individual birds of four bird species (13, 2, 1, 1 and 1 ticks from Turdus merula, Erithacus rubecula, Turdus philomelos, Parus major and Fringilla coelebs, respectively) during three sampling periods (seven, six and five ticks from April, June and July, respectively). Identification of ST failed for six ticks due to the inability to amplify DNA templates, whereas mixed infection (different STs of the same genospecies) prevented identification of STs for 14 ticks. Of 18 bird-feeding ticks with ST profile, we detected 10 different B. garinii STs. Three of the STs were identified for the first time herein: STs 902, 929 and 933. The highest ST richness (7 STs) was found for ticks feeding on T. merula: STs 86, 93, 244, 246, 743, 902 and 933. Two STs were detected in ticks feeding on E. rubecula (STs 89 and 902). Single STs were found for ticks from T. philomelos (ST 87) and F. coelebs (ST 929). Considering two T. merula individuals for which we were able to resolve ST profile for multiple ticks, two ticks from one T. merula individual carried B. garinii of the same ST (ST 244), whereas five ticks from the second T. merula individual carried B. garinii of two STs (ST 246 and 902).
With respect to questing ticks, we conducted MLST analysis for all (11) ticks, showing B. garinii single infection. All of these ticks were collected during April (7) and June (4). ST was successfully established for six of the ticks (four from April and two from June); five ticks showed mixed infection, and ST determination was not possible for them. Totally, we have detected three STs for the Borrelia genospecies in questing ticks. Two of these STs—ST 172 and 903—were not detected in our sample of bird-feeding ticks. Conversely, only 1 of 10 STs detected in bird-feeding ticks was detected in questing ticks. In addition to three novel B. garinii STs detected in bird-feeding ticks in this study, we detected one novel ST for the Borrelia genospecies in questing ticks: ST 903. Overall, we detected 12 STs for bird-feeding and questing ticks at our study site over a single year.
Examining the phenology of B. garinii STs detected in bird-feeding and questing ticks, comparable ST richness was recorded during April (7 STs) and June (6 STs), whereas in July we only detected two STs (Figure 3).
There was a seasonal trend in the occurrence of B. garinii STs in bird-feeding ticks: STs 86, 929 and 933 were detected only in spring (April), while STs 87, 89, 246, 743 and 902 were detected only in summer (June–July). Only a single ST (ST 93) was detected in bird-feeding ticks both in spring and summer; ST 244 was detected in ticks during both spring and summer, but it only occurred in questing ticks in summer (Figure 3).

3.4. Phylogenetic and Geographic MLST Analysis

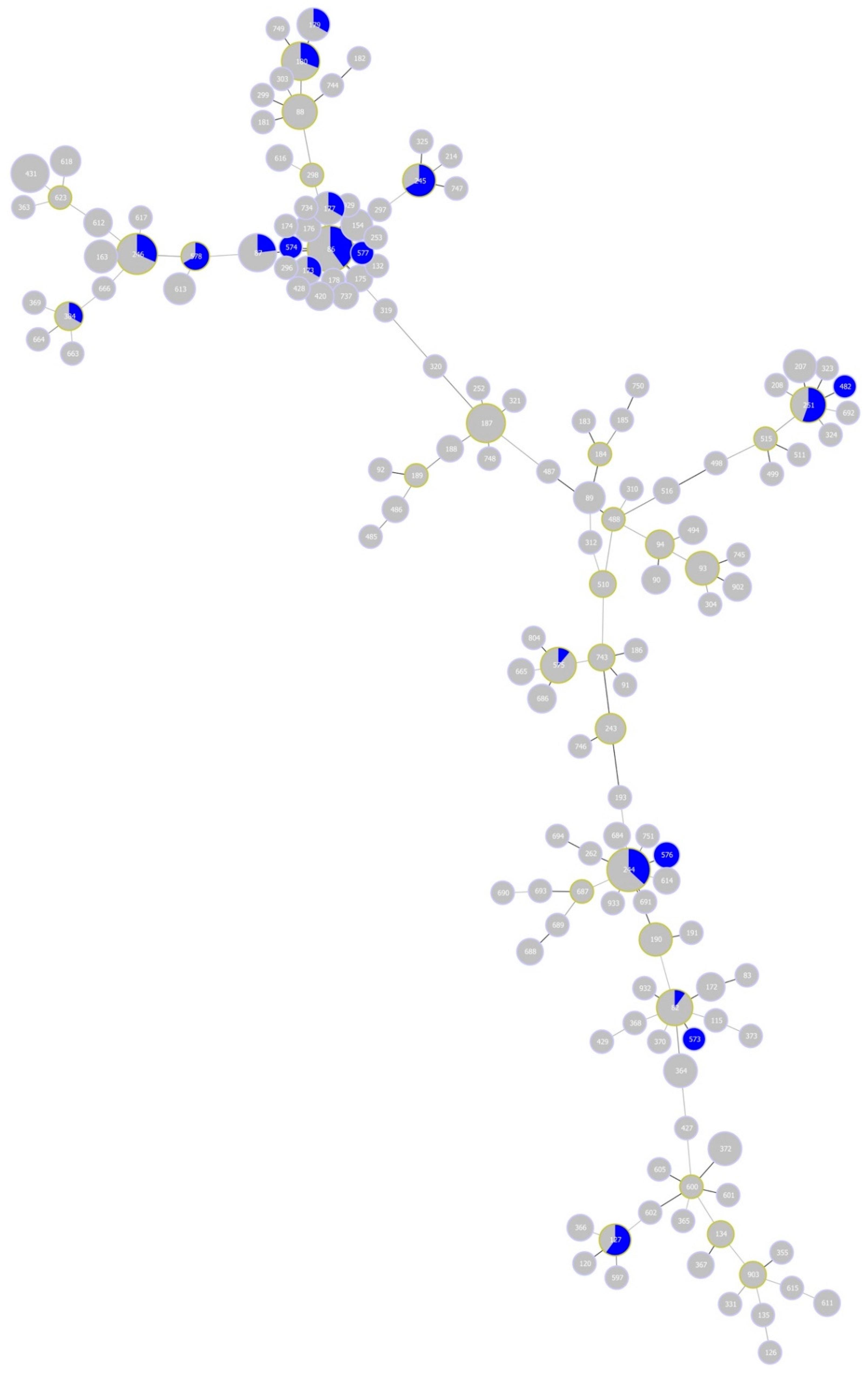

GoeBURST analysis constructed at Single Locus Variant (SLV) level assigned 12 STs occurring at our study site into eight clonal complexes (CCs; Figure 4).
One ST (ST 933) did not belong to any CC and was classified as a singleton. Inspecting the relationships among the twelve STs and those from the PubMLST database [50] reveals the occurrence of STs of diverse phylogenetic origin at our study site (Figure 5 and Figure 6)
The most frequently occurring STs at our study site belong to CC 0, 1, 12 and 16. While STs from CC 0, 1 and 16 tend to be phylogenetically older and show a cosmopolitan distribution, STs from CC 12, but also from CC 2, 3, 8 and 23 for the more sparsely occurring STs, are phylogenetically younger and show a stronger geographic signal (Figure 4; Table 2). In fact, CC 2 displays a particular geographic affinity to the study region, as the inferred founder B. garinii genotypes (ST 243 and 743) for this CC were almost entirely detected in ticks from Slovakia and Czechia (Figure 4; Table 2).

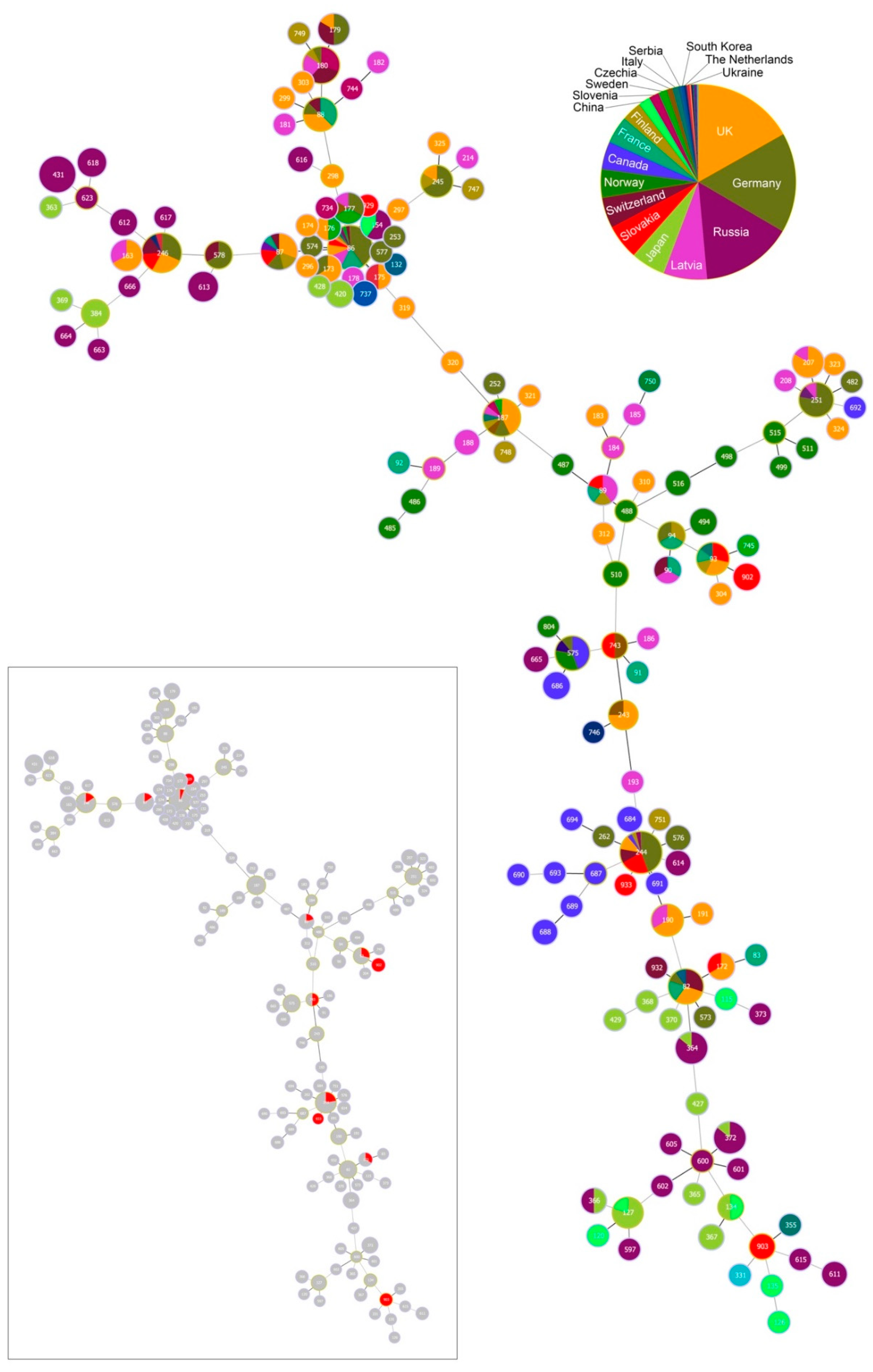

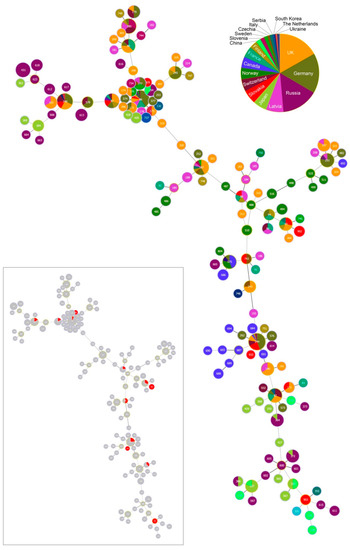

Finally, B. garinii STs for half of the eight CCs associated with the study site, namely, CC 0, 1, 3 and 16, were previously detected in human tissue samples elsewhere (Figure 7). The vast majority (41/42) of these samples were obtained from Germany; one sample was recovered from the former Yugoslavia.

4. Discussion

In this study, intra-seasonal changes in the local population structure of Borrelia garinii spirochetes derived from bird-feeding and questing Ixodes ricinus ticks have been examined for the first time. Over the period of one year, spanning from spring to autumn bird migration, and covering the breeding period of resident birds and the period of tick seasonal activity, a local I. ricinus tick community was examined for intra-specific B. garinii genetic variability in a natural wetland in Slovakia.
Employing MLST, a relatively high richness of B. garinii STs was revealed considering a single site and season. Specifically, we identified 12 STs, one third of which were detected for the first time. In comparison, for countries with most thorough MLST data (Latvia, Germany, Russia, UK), 21 to 35 STs of B. garinii were detected at the country scale over multiple years [50]. Additionally, in a recent study on bird-feeding ticks conducted over multiple years at a European scale, authors were able to resolve 20 B. garinii STs (nine of which were new) for 11 countries [33]. Therefore, we believe that our study is sufficiently representative of a local richness of B. garinii genotypes using MLST.
We found a very small overlap in STs in questing and bird-feeding ticks; only one twelfth of STs (ST 244) were found in both tick sources. Such a result may be attributed to relatively low tick densities feeding on bird hosts, leading to relatively low prevalences of B. garinii-infected questing ticks (e.g., [19]) and a potential dilution of B. garinii STs in the local tick community. It is likely that the ratio in ST richness of bird-feeding to questing ticks would change with more intensive sampling of questing ticks or by examining ticks from unsampled bird species such as pheasants, Phasianus colchicus [65,66]. Yet, the small overlap in STs between the two tick sources could also be due to insufficiently low tick densities feeding on transient birds for the study site or due to lower infection prevalence and/or intensities of specific STs in local birds (c.f. [67]). Finally, differential invasiveness of Borrelia strains could explain differences in the prevalence of different B. garinii genotypes in vertebrate and tick hosts [22,23]. Regardless of the causes, our results suggest that quantification of the risk of B. garinii infection based solely on small-scale questing tick data is incomplete without information about the prevalence of different genotypes in local bird reservoirs. Specifically, this study indicates that the background ST richness based on local reservoir hosts can be much higher than ST richness in questing ticks. That is, even though the prevalence of some invasive B. garinii STs could be temporarily rare or absent in local questing ticks, the risk of human infection with these STs can be underestimated, given the STs regularly circulate in local bird reservoirs.
In addition to revealing largely different B. garinii ST communities for the two tick sources, we found a low seasonal overlap in STs for bird-feeding ticks; only a single ST (ST 93) was detected in bird-feeding ticks both in spring (April) and summer (June–July). It is important to note that we were not able to resolve any B. garinii ST for the autumn (bird migration) period. This could be related to the following two causes. First, in autumn, the prevalence of single B. garinii infection in Borrelia-positive bird-feeding ticks reached only 21.4% (3/14), whereas single B. valaisiana infection was detected for 50% (7/14) of bird-feeding ticks. Second, it was not possible to resolve ST for two B. garinii-positive ticks collected from T. merula in October, in one case due to multiple infection and in the other due to low infection intensity. It remains to be explored in further studies whether B. valaisiana indeed predominates during autumn in bird-feeding ticks at our study site and whether tick infection intensity with B. garinii is lower during autumn compared to spring and summer. Nevertheless, this study lends support to the appeal that the ecology of B. garinii should also be studied outside the period of spring and autumn bird migration [34]. In fact, our data suggest that infection intensity of B. garinii was comparable in bird-feeding ticks during spring and summer periods because the interaction effect of tick source and time of season on infection intensity was not significant. This finding thus challenges the view that in birds B. garinii infection is typically associated with migration (e.g., [26]).
We reveal a regular occurrence of mixed infection with different genotypes of B. garinii in bird-feeding and questing ticks. First, by means of MLST analysis, mixed infection with B. garinii genotypes was detected for 36.8% (14/38) and 45.5% (5/11) of bird-feeding and questing ticks, respectively. Second, being able to resolve STs for multiple ticks feeding on single T. merula individuals, we detected ticks with two STs (ST 246 and 902) in one of the birds. A high infection intensity of these ticks with B. garinii indicates that the bird was a reservoir of B. garinii of both STs. It is notable that the two STs belonged to different clonal complexes as identified by this study (Figure 4). Consequently, our study provides empiric evidence for the opportunity for gene recombination among different Borrelia strains within vertebrate and tick hosts [26,33,68,69]. We propose that the investigation of mixed infections involving different B. garinii genotypes would be fruitful for improving our understanding of the geographic variation in the occurrence of B. garinii of different invasiveness.
Based on our infection prevalence and intensity results, T. merula and T. philomelos appear to be the most important passerine reservoirs of B. garinii at our study site. While B. garinii was also detected in Parus major, Erithacus rubecula and Fringilla coelebs, infection in these species was either of low intensity (Erithacus rubecula and Fringilla coelebs) or prevalence (Parus major). Our study thus accords with previous results on the importance of thrushes in B. garinii occurrence from Slovakia and other European countries [34,40,41]. Nonetheless, our study stresses the epidemiological importance of a single thrush species, T. merula, which was by far most important in terms of species richness of B. garinii STs associated with this species as well as its infestation intensity by I. ricinus ticks. We suggest that this bird species is an ideal model for further research on B. garinii ecology even in the context of bird migration. The ring-recovery data for Europe show that the species’ populations from Scandinavia move for wintering to Britain and Ireland, and birds from Central Europe, including the birds from the study population, move to western Europe, Iberia and Italy, whereas Central Europe can in the same time serve as the wintering quarter for some eastern populations [70,71]. Moreover, the migration patterns of T. merula appear to be age- and sex-dependent, with females and young birds more likely to migrate than adult males. Consequently, there is a strong opportunity to exploit T. merula, but also P. major, by I. ricinus over the whole period of its seasonal activity, but the likelihood of infection with different B. garinii genotypes can vary considerably depending on the bird’s age and sex as well as on the weather conditions during winter. Finally, out of 12 STs detected at our study site, four STs (86, 87, 244 and 246) were previously isolated from samples of human patients with LD [50]. The ST 244 appears to be of the highest epidemiological importance at our study site because it was the only ST that was detected both in bird-feeding and questing ticks. Moreover, STs 86 and 244 belong to the most widespread STs, and their occurrence was detected in several continents [33,39]. Even though ST 244 was only detected in LD human patients from Germany, this may not reflect the ST’s true occurrence across Europe owing to absent or insufficient MLST data for human LD patients outside Germany. Such data are badly needed from more countries if we are to advance our understanding on the epidemiological risk factors for the most severe form of LD, namely, neuroborreliosis.

5. Conclusions

Our results are in accordance with previous studies on low geographic structuring of B. garinii genotypes across its distribution range [33,39,72]. However, our study also implies that it can be premature to generalize these results. First, the research on B. garinii ecology is mostly based on migrating birds [34] and, therefore, relies on methodologically biased data. Given that researchers investigate STs mainly for migrating birds, low geographic structuring of B. garinii genotypes is unsurprising. Second, by studying seasonal variation in the population structure of B. garinii STs, our study reveals that certain STs, such as ST 93, occur consistently in local bird-feeding ticks over spring and summer. Additionally, phylogenetic analysis showed that some of the genotypes, such as STs 243 and 743, appear to display a geographic signal and form inferred founder B. garinii genotypes for one of the clonal complexes. Therefore, some degree of geographical structuring may still occur for B. garinii genotypes in Europe [73]. In order to test this idea, however, it is essential to obtain the data at the appropriate temporal and spatial scale, namely, the wintering and breeding periods/quarters. Finally, we suggest that improved geographic coverage of MLST data involving human patients and avian hosts can turn out to be particularly revealing about the geographical structuring of B. garinii genotypes, the geographical origin of key bird reservoirs, and the geographical risk of infection with different strains of this genospecies.

Author Contributions

R.V. designed the study, collected bird-feeding and questing ticks, performed phylogenetic and statistical analyses, and wrote the manuscript. Z.M. analyzed the ticks for the presence of Borrelia spp. by RFLP, performed multi-locus sequence typing of B. garinii-positive ticks and Sanger sequencing to confirm RFLP results, and contributed to the preparation of the manuscript. V.R.T. and Y.M.D. determined species and life stages of ticks. M.C., Y.M.D., B.M., D.S. and A.Š. participated in Borrelia spp. screening, multi-locus typing and ddPCR analyses. M.D. assisted with RFLP and MLST analyses and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the Slovak Research and Development Agency (grant number APVV-16-0463) and by the Scientific Grant Agency of Ministry of Education and Slovak Academy of Sciences (VEGA grant No. 2/0119/17).

Acknowledgments

We thank Milan Olekšák and the members of the Drienovec Bird Ringing Station for their fieldwork assistance. Tatiana Vaculová and Jasna Kraljik helped with ddPCR analyses. We are indebted to Gabriele Margos for help with establishing the MLST protocol in our lab. Katarína Václavová checked English. Two anonymous reviewers helped to improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hubálek, Z. Epidemiology of Lyme borreliosis. In Lyme Borreliosis; Lipsker, D., Jaulhac, B., Eds.; Karger Publishers: Basel, Switzerland, 2009; Volume 37, pp. 31–50. [Google Scholar]
  2. Stanek, G.; Fingerle, V.; Hunfeld, K.P.; Jaulhac, B.; Kaiser, R.; Krause, A.; Kristoferitsch, W.; O’Connell, S.; Ornstein, K.; Strle, F.; et al. Lyme borreliosis: Clinical case definitions for diagnosis and management in Europe. Clin. Microbiol. Infect. 2011, 17, 69–79. [Google Scholar] [CrossRef] [Green Version]
  3. Pritt, B.S.; Mead, P.S.; Johnson, D.K.; Neitzel, D.F.; Respicio-Kingry, L.B.; Davis, J.P.; Schiffman, E.; Sloan, L.M.; Schriefer, M.E.; Replogle, A.J.; et al. Identification of a novel pathogenic Borrelia species causing Lyme borreliosis with unusually high spirochaetaemia: A descriptive study. Lancet Infect. Dis. 2016, 16, 556–564. [Google Scholar] [CrossRef] [Green Version]
  4. Margos, G.; Fedorova, N.; Kleinjan, J.E.; Hartberger, C.; Schwan, T.G.; Sing, A.; Fingerle, V. Borrelia lanei sp. nov. extends the diversity of Borrelia species in California. Int. J. Syst. Evol. Microbiol. 2017, 67, 3872–3876. [Google Scholar] [CrossRef] [Green Version]
  5. Baranton, G.; Postic, D.; Saint-Girons, I.; Boerlin, P.; Piffaretti, J.C.; Assous, M.; Grimont, P.A. Delineation of Borrelia burgdorferi sensu stricto, Borrelia garinii sp. nov., and group VS461 associated with Lyme borreliosis. Int. J. Syst. Evol. Microbiol. 1992, 42, 378–383. [Google Scholar] [CrossRef] [Green Version]
  6. Canica, M.M.; Nato, F.; Merle, L.D.; Mazie, J.C.; Baranton, G.; Postic, D. Monoclonal antibodies for identification of Borrelia afzelii sp. nov. associated with late cutaneous manifestations of Lyme borreliosis. Scand. J. Infect. Dis. 1993, 25, 441–448. [Google Scholar] [CrossRef]
  7. Le Fleche, A.; Postic, D.; Girardet, K.; Peter, O.; Baranton, G. Characterization of Borrelia lusitaniae sp. nov. by 16S ribosomal DNA sequence analysis. Int. J. Syst. Evol. Microbiol. 1997, 47, 921–925. [Google Scholar] [CrossRef] [Green Version]
  8. Wang, G.; Van Dam, A.P.; Le Fleche, A.; Postic, D.; Peter, O.; Baranton, G.; De Boer, R.; Spanjaard, L.; Dankert, J. Genetic and phenotypic analysis of Borrelia valaisiana sp. nov.(Borrelia genomic groups VS116 and M19). Int. J. Syst. Evol. Microbiol. 1997, 47, 926–932. [Google Scholar] [CrossRef] [Green Version]
  9. Postic, D.; Ras, N.M.; Lane, R.S.; Hendson, M.; Baranton, G. Expanded Diversity among Californian Borrelia Isolates and Description of Borrelia bissettii sp. nov. (Formerly Borrelia Group DN127). J. Clin. Microbiol. 1998, 36, 3497–3504. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Richter, D.; Postic, D.; Sertour, N.; Livey, I.; Matuschka, F.R.; Baranton, G. Delineation of Borrelia burgdorferi sensu lato species by multilocus sequence analysis and confirmation of the delineation of Borrelia spielmanii sp. nov. Int. J. Syst. Evol. Microbiol. 2006, 56, 873–881. [Google Scholar] [CrossRef] [PubMed]
  11. Margos, G.; Vollmer, S.A.; Cornet, M.; Garnier, M.; Fingerle, V.; Wilske, B.; Bormane, A.; Vitorino, L.; Collares-Pereira, M.; Drancourt, M.; et al. A new Borrelia species defined by multilocus sequence analysis of housekeeping genes. Appl. Environ. Microbiol. 2009, 75, 5410–5416. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Casjens, S.R.; Fraser-Liggett, C.M.; Mongodin, E.F.; Qiu, W.G.; Dunn, J.J.; Luft, B.J.; Schutzer, S.E. Whole genome sequence of an unusual Borrelia burgdorferi sensu lato isolate. J. Bacteriol. 2011, 193, 1489–1490. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Fukunaga, M.; Hamase, A.; Okada, K.; Nakao, M. Borrelia tanukii Sp. Nov. and Borrelia turdae Sp. Nov. Found from Ixodid Ticks in Japan. Microbiol. Immunol. 1996, 40, 877–881. [Google Scholar] [CrossRef] [PubMed]
  14. Saint Girons, I.; Gern, L.; Gray, J.S.; Guy, E.C.; Korenberg, E.; Nuttall, P.A.; Rijpkema, S.G.; Schönberg, A.; Stanek, G.; Postic, D. Identification of Borrelia burgdorferi sensu lato species in Europe. Zent. Bakteriol. 1998, 287, 190–195. [Google Scholar] [CrossRef]
  15. Stanek, G.; Wormser, G.P.; Gray, J.; Strle, F. Lyme borreliosis. Lancet 2012, 379, 461–473. [Google Scholar] [CrossRef]
  16. Masuzawa, T.; Iwaki, A.; Sato, Y.; Miyamoto, K.; Korenberg, E.I.; Yanagihara, Y. Genetic diversity of Borrelia burgdorferi sensu lato isolated in far eastern Russia. Microbiol. Immunol. 1997, 41, 595–600. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Will, G.; Jauris-Heipke, S.; Schwab, E.; Busch, U.; Rössler, D.; Soutschek, E.X.; Wilske, B.; Preac-Mursic, V. Sequence analysis of ospA genes shows homogeneity within Borrelia burgdorferi sensu stricto and Borrelia afzelii strains but reveals major subgroups within the Borrelia garinii species. Med. Microbiol. Immunol. 1995, 184, 73–80. [Google Scholar] [CrossRef]
  18. Vollmer, S.A.; Bormane, A.; Dinnis, R.E.; Seelig, F.; Dobson, A.D.; Aanensen, D.M.; James, M.C.; Donaghy, M.; Randolph, S.E.; Feil, E.J.; et al. Host migration impacts on the phylogeography of Lyme Borreliosis spirochaete species in Europe. Environ. Microbiol. 2011, 13, 184–192. [Google Scholar] [CrossRef]
  19. Rauter, C.; Hartung, T. Prevalence of Borrelia burgdorferi sensu lato genospecies in Ixodes ricinus ticks in Europe: A metaanalysis. Appl. Environ. Microbiol. 2005, 71, 7203–7216. [Google Scholar] [CrossRef] [Green Version]
  20. Coipan, E.C.; Sprong, H. Ecology of Borrelia burgdorferi sensu lato. In Ecology and Prevention of Lyme Borreliosis; Braks, M.A.H., van Wieren, S.E., Takken, W., Sprong, H., Eds.; Wageningen Academic Publishers: Wageningen, The Netherlands, 2016; Volume 4, pp. 1358–1364. [Google Scholar]
  21. Coipan, E.C.; Jahfari, S.; Fonville, M.; Oei, G.A.; Spanjaard, L.; Takumi, K.; Hovius, J.W.; Sprong, H. Imbalanced presence of Borrelia burgdorferi sl multilocus sequence types in clinical manifestations of Lyme borreliosis. Infect. Genet. Evol. 2016, 42, 66–76. [Google Scholar] [CrossRef] [Green Version]
  22. Seinost, G.; Dykhuizen, D.E.; Dattwyler, R.J.; Golde, W.T.; Dunn, J.J.; Wang, N.; Wormser, G.P.; Schriefer, M.E.; Luft, B.J. Four clones of Borrelia burgdorferi sensu stricto cause invasive infection in humans. Infect. Immun. 1999, 67, 3518–3524. [Google Scholar] [CrossRef] [Green Version]
  23. Hanincova, K.; Mukherjee, P.; Ogden, N.H.; Margos, G.; Wormser, G.P.; Reed, K.D.; Meece, J.K.; Vandermause, M.F.; Schwartz, I. Multilocus sequence typing of Borrelia burgdorferi suggests existence of lineages with differential pathogenic properties in humans. PLoS ONE 2013, 8, e73066. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Van Dam, A.P.; Kuiper, H.; Vos, K.; Widjojokusumo, A.; de Jongh, B.M.; Spanjaard, L.; Ramselaar, A.C.; Kramer, M.D.; Dankert, J. Different genospecies of Borrelia burgdorferi are associated with distinct clinical manifestations of Lyme borreliosis. Clin. Infect. Dis. 1993, 17, 708–717. [Google Scholar] [CrossRef] [PubMed]
  25. Humair, P.F.; Gern, L. The wild hidden face of Lyme borreliosis in Europe. Microbes Infect. 2000, 2, 915–922. [Google Scholar] [CrossRef]
  26. Kurtenbach, K.; De Michelis, S.; Etti, S.; Schäfer, S.M.; Sewell, H.S.; Brade, V.; Kraiczy, P. Host association of Borrelia burgdorferi sensu lato–the key role of host complement. Trends Microbiol. 2002, 10, 74–79. [Google Scholar] [CrossRef]
  27. Cerar, T.; Strle, F.; Stupica, D.; Ruzic-Sabljic, E.; McHugh, G.; Steere, A.C.; Strle, K. Differences in genotype, clinical features, and inflammatory potential of Borrelia burgdorferi sensu stricto strains from Europe and the United States. Emerg. Infect. Dis. 2016, 22, 818–827. [Google Scholar] [CrossRef] [Green Version]
  28. Miyamoto, K.; Masuzawa, T. Ecology of Borrelia burgdorferi sensu lato in Japan and East Asia. In Lyme Borreliosis: Biology, Epidemiology and Control; Gray, J.S., Kahl, O., Lane, R.S., Stanek, G., Eds.; CAB International: Wallingford, UK, 2002; pp. 201–222. [Google Scholar]
  29. Kahl, O.; Gern, L.; Eisen, L.; Lane, R.S. Ecological research on Borrelia burgdorferi sensu lato: Terminology and some methodological pitfalls. In Lyme Borreliosis: Biology, Epidemiology and Control; Gray, J.S., Kahl, O., Lane, R.S., Stanek, G., Eds.; CAB International: Wallingford, UK, 2002; pp. 29–46. [Google Scholar]
  30. Levene, H. Genetic equilibrium when more than one ecological niche is available. Am. Nat. 1953, 87, 331–333. [Google Scholar] [CrossRef]
  31. Dubska, L.; Literak, I.; Kocianova, E.; Taragelova, V.; Sverakova, V.; Sychra, O.; Hromadko, M. Synanthropic birds influence the distribution of Borrelia species: Analysis of Ixodes ricinus ticks feeding on passerine birds. Appl. Environ. Microbiol. 2011, 77, 1115–1117. [Google Scholar] [CrossRef] [Green Version]
  32. Heylen, D.; Tijsse, E.; Fonville, M.; Matthysen, E.; Sprong, H. Transmission dynamics of Borrelia burgdorferi sl in a bird tick community. Environ. Microbiol. 2013, 15, 663–673. [Google Scholar] [CrossRef]
  33. Norte, A.C.; Margos, G.; Becker, N.S.; Albino Ramos, J.; Núncio, M.S.; Fingerle, V.; Araújo, P.M.; Adamík, P.; Alivizatos, H.; Barba, E.; et al. Host dispersal shapes the population structure of a tick-borne bacterial pathogen. Mol. Ecol. 2020, 29, 485–501. [Google Scholar] [CrossRef]
  34. Heylen, D.J. Ecological interactions between songbirds, ticks, and Borrelia burgdorferi sl in Europe. In Ecology and Prevention of Lyme Borreliosis; Braks, M.A.H., van Wieren, S.E., Takken, W., Sprong, H., Eds.; Wageningen Academic Publishers: Wageningen, The Netherlands, 2016; Volume 4, pp. 338–342. [Google Scholar]
  35. Olekšák, M.; Matis, Š.; Pjenčák, P.; Fulín, M. Spoločenstvo vtákov v hniezdnom období na ornitologickom stacionári Drienovec–použitie metodiky CES. Tichodroma 2007, 19, 41–47. [Google Scholar]
  36. Falco, R.C.; Fish, D. A comparison of methods for sampling the deer tick, Ixodes dammini, in a Lyme disease endemic area. Exp. Appl. Acarol. 1992, 14, 165–173. [Google Scholar] [CrossRef] [PubMed]
  37. Gern, L.; Humair, P.F. Ecology of Borrelia burgdorferi sensu lato in Europe. In Lyme Borreliosis: Biology, Epidemiology and Control; Gray, J.S., Kahl, O., Lane, R.S., Stanek, G., Eds.; CAB International: Wallingford, UK, 2002; pp. 149–174. [Google Scholar]
  38. Comstedt, P.; Bergström, S.; Olsen, B.; Garpmo, U.; Marjavaara, L.; Mejlon, H.; Barbour, A.G.; Bunikis, J. Migratory passerine birds as reservoirs of Lyme borreliosis in Europe. Emerg. Infect. Dis. 2006, 12, 1087–1095. [Google Scholar] [CrossRef] [PubMed]
  39. Munro, H.J.; Ogden, N.H.; Mechai, S.; Lindsay, L.R.; Robertson, G.J.; Whitney, H.; Lang, A.S. Genetic diversity of Borrelia garinii from Ixodes uriae collected in seabird colonies of the northwestern Atlantic Ocean. Ticks Tick Borne Dis. 2019, 10, 101255. [Google Scholar] [CrossRef] [PubMed]
  40. Hanincova, K.; Schäfer, S.M.; Etti, S.; Sewell, H.S.; Taragelova, V.; Ziak, D.; Labuda, M.; Kurtenbach, K. Association of Borrelia afzelii with rodents in Europe. Parasitology 2003, 126, 11–20. [Google Scholar] [CrossRef] [PubMed]
  41. Taragel’ová, V.; Koči, J.; Hanincová, K.; Kurtenbach, K.; Derdáková, M.; Ogden, N.H.; Literák, I.; Kocianová, E.; Labuda, M. Blackbirds and song thrushes constitute a key reservoir of Borrelia garinii, the causative agent of borreliosis in Central Europe. Appl. Environ. Microbiol. 2008, 74, 1289–1293. [Google Scholar] [CrossRef] [Green Version]
  42. Nakao, M.; Miyamoto, K.; Fukunaga, M. Lyme disease spirochetes in Japan: Enzootic transmission cycles in birds, rodents, and Ixodes persulcatus ticks. J. Infect. Dis. 1994, 170, 878–882. [Google Scholar] [CrossRef]
  43. Eisen, L. Vector competence studies with hard ticks and Borrelia burgdorferi sensu lato spirochetes: A review. Ticks Tick Borne Dis. 2020, 11, 101359. [Google Scholar] [CrossRef]
  44. Slovak, M. Pictorial key to the adults of ticks (Acari: Ixodida) of the Slovakia fauna. Entomofauna Carpathica 2010, 22, 8–13. [Google Scholar]
  45. Guy, E.C.; Stanek, G. Detection of Borrelia burgdorferi in patients with Lyme disease by the polymerase chain reaction. J. Clin. Pathol. 1991, 44, 610–611. [Google Scholar] [CrossRef] [Green Version]
  46. Black, W.C.; Roehrdanz, R.L. Mitochondrial gene order is not conserved in arthropods: Prostriate and metastriate tick mitochondrial genomes. Mol. Biol. Evol. 1998, 15, 1772–1785. [Google Scholar] [CrossRef]
  47. Derdakova, M.; Beati, L.; Pet’ko, B.; Stanko, M.; Fish, D. Genetic variability within Borrelia burgdorferi sensu lato genospecies established by PCR-single-strand conformation polymorphism analysis of the rrfA-rrlB intergenic spacer in Ixodes ricinus ticks from the Czech Republic. Appl. Environ. Microbiol. 2003, 69, 509–516. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Margos, G.; Gatewood, A.G.; Aanensen, D.M.; Hanincová, K.; Terekhova, D.; Vollmer, S.A.; Cornet, M.; Piesman, J.; Donaghy, M.; Bormane, A.; et al. MLST of housekeeping genes captures geographic population structure and suggests a European origin of Borrelia burgdorferi. Proc. Natl. Acad. Sci. USA 2008, 105, 8730–8735. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Courtney, J.W.; Dryden, R.L.; Montgomery, J.; Schneider, B.S.; Smith, G.; Massung, R.F. Molecular characterization of Anaplasma phagocytophilum and Borrelia burgdorferi in Ixodes scapularis ticks from Pennsylvania. J. Clin. Microbiol. 2003, 41, 1569–1573. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Borrelia MLST Website. Available online: https://pubmlst.org/borrelia/ (accessed on 30 March 2020).
  51. Feil, E.J.; Li, B.C.; Aanensen, D.M.; Hanage, W.P.; Spratt, B.G. eBURST: Inferring patterns of evolutionary descent among clusters of related bacterial genotypes from multilocus sequence typing data. J. Bacteriol. 2004, 186, 1518–1530. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Francisco, A.P.; Bugalho, M.; Ramirez, M.; Carriço, J.A. Global optimal eBURST analysis of multilocus typing data using a graphic matroid approach. BMC Bioinform. 2009, 10, 152. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Margos, G.; Tsao, J.I.; Castillo-Ramírez, S.; Girard, Y.A.; Hamer, S.A.; Hoen, A.G.; Lane, R.S.; Raper, S.L.; Ogden, N.H. Two boundaries separate Borrelia burgdorferi populations in North America. Appl. Environ. Microbiol. 2012, 78, 6059–6067. [Google Scholar] [CrossRef] [Green Version]
  54. Trifinopoulos, J.; Nguyen, L.T.; von Haeseler, A.; Minh, B.Q. W-IQ-TREE: A fast online phylogenetic tool for maximum likelihood analysis. Nucleic Acids Res. 2016, 44, W232–W235. [Google Scholar] [CrossRef] [Green Version]
  55. Kalyaanamoorthy, S.; Minh, B.Q.; Wong, T.K.; von Haeseler, A.; Jermiin, L.S. ModelFinder: Fast model selection for accurate phylogenetic estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar] [CrossRef] [Green Version]
  56. Darriba, D.; Taboada, G.L.; Doallo, R.; Posada, D. ProtTest 3: Fast selection of best-fit models of protein evolution. Bioinformatics 2011, 27, 1164–1165. [Google Scholar] [CrossRef] [Green Version]
  57. Darriba, D.; Taboada, G.L.; Doallo, R.; Posada, D. jModelTest 2: More models, new heuristics and parallel computing. Nat. Methods 2012, 9, 772. [Google Scholar] [CrossRef] [Green Version]
  58. Yang, Z. Maximum likelihood phylogenetic estimation from DNA sequences with variable rates over sites: Approximate methods. J. Mol. Evol. 1994, 39, 306–314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Soubrier, J.; Steel, M.; Lee, M.S.; Der Sarkissian, C.; Guindon, S.; Ho, S.Y.; Cooper, A. The influence of rate heterogeneity among sites on the time dependence of molecular rates. Mol. Biol. Evol. 2012, 29, 3345–3358. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Anisimova, M.; Gil, M.; Dufayard, J.F.; Dessimoz, C.; Gascuel, O. Survey of branch support methods demonstrates accuracy, power, and robustness of fast likelihood-based approximation schemes. Syst. Biol. 2011, 60, 685–699. [Google Scholar] [CrossRef] [PubMed]
  61. Letunic, I.; Bork, P. Interactive Tree Of Life (iTOL) v4: Recent updates and new developments. Nucleic Acids Res. 2019, 47, W256–W259. [Google Scholar] [CrossRef] [Green Version]
  62. Richter, D.; Spielman, A.; Komar, N.; Matuschka, F.R. Competence of American robins as reservoir hosts for Lyme disease spirochetes. Emerg. Infect. Dis. 2000, 6, 133–138. [Google Scholar] [CrossRef] [Green Version]
  63. Venables, W.N.; Ripley, B.D. Modern Applied Statistics with S, 4th ed.; Springer: New York, NY, USA, 2002. [Google Scholar]
  64. R Core Team. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing. Available online: https://www.R-project.org/ (accessed on 30 March 2020).
  65. Kurtenbach, K.; Carey, D.; Hoodless, A.N.; Nuttall, P.A.; Randolph, S.E. Competence of pheasants as reservoirs for Lyme disease spirochetes. J. Med. Entomol. 1998, 35, 77–81. [Google Scholar] [CrossRef] [Green Version]
  66. Hoodless, A.N.; Kurtenbach, K.; Nuttall, P.A.; Randolph, S.E. Effects of tick Ixodes ricinus infestation on pheasant Phasianus colchicus breeding success and survival. Wildl. Biol. 2003, 9, 171–178. [Google Scholar] [CrossRef]
  67. Hofmeester, T.R. The role of host diversity in Borrelia burgdorferi sl dynamics. In Ecology and Prevention of Lyme borreliosis; Braks, M.A.H., van Wieren, S.E., Takken, W., Sprong, H., Eds.; Wageningen Academic Publishers: Wageningen, The Netherlands, 2016; Volume 4, pp. 452–457. [Google Scholar]
  68. Livey, I.; Gibbs, C.P.; Schuster, R.; Dorner, F. Evidence for lateral transfer and recombination in OspC variation in Lyme disease Borrelia. Mol. Microbiol. 1995, 18, 257–269. [Google Scholar] [CrossRef]
  69. Barbour, A.G.; Travinsky, B. Evolution and distribution of the ospC gene, a transferable serotype determinant of Borrelia burgdorferi. mBio 2010, 1, e00153-10. [Google Scholar] [CrossRef] [Green Version]
  70. Collar, N.; Christie, D.A. Eurasian Blackbird (Turdus merula). In Handbook of the Birds of the World Alive; del Hoyo, J., Elliott, A., Sargatal, J., Christie, D.A., de Juana, E., Eds.; Lynx Edicions: Barcelona, Spain; Available online: https://www.hbw.com/node/58261 (accessed on 30 March 2020).
  71. Olekšák, M.; (The State Conservation Agency of the Slovak Republic, Rožňava, Slovakia). Personal communication, 2020.
  72. Gómez-Díaz, E.; Boulinier, T.; Sertour, N.; Cornet, M.; Ferquel, E.; McCoy, K.D. Genetic structure of marine Borrelia garinii and population admixture with the terrestrial cycle of Lyme borreliosis. Environ. Microbiol. 2011, 13, 2453–2467. [Google Scholar] [CrossRef]
  73. Vollmer, S.A.; Feil, E.J.; Chu, C.Y.; Raper, S.L.; Cao, W.C.; Kurtenbach, K.; Margos, G. Spatial spread and demographic expansion of Lyme borreliosis spirochaetes in Eurasia. Infect. Genet. Evol. 2013, 14, 147–155. [Google Scholar] [CrossRef] [PubMed]
Ijerph 17 03607 g001 550
Figure 1. Study site location in south-east Slovakia. Map was plotted using SimpleMappr.
Figure 1. Study site location in south-east Slovakia. Map was plotted using SimpleMappr.
Ijerph 17 03607 g001
Ijerph 17 03607 g002 550

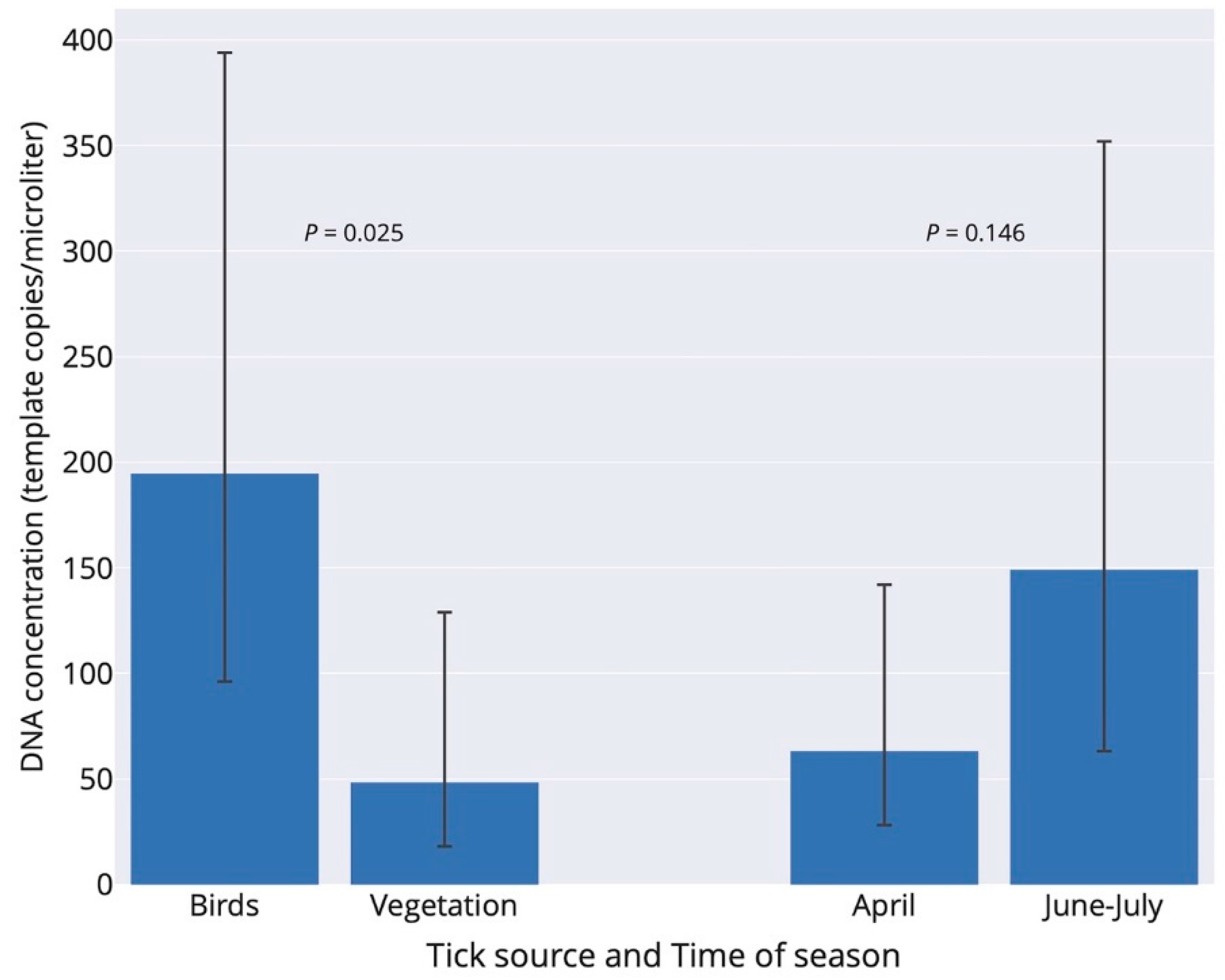

Figure 2. Infection intensity of Borrelia garinii in Ixodes ricinus ticks with respect to tick source (two bars in left) and time of season (two bars in right) in Slovakia. Infection intensities (number of copies/µL) refer to back-transformed estimates from the negative-binomial generalized linear model. Birds (n = 21 ticks) and vegetation (n = 11 ticks) denote bird-feeding and questing ticks, respectively. Bird-feeding ticks comprised 5 larvae and 16 nymphs, whereas questing ticks comprised 10 nymphs and 1 adult. The data for June and July were pooled. Errors are 95% confidence limits.
Figure 2. Infection intensity of Borrelia garinii in Ixodes ricinus ticks with respect to tick source (two bars in left) and time of season (two bars in right) in Slovakia. Infection intensities (number of copies/µL) refer to back-transformed estimates from the negative-binomial generalized linear model. Birds (n = 21 ticks) and vegetation (n = 11 ticks) denote bird-feeding and questing ticks, respectively. Bird-feeding ticks comprised 5 larvae and 16 nymphs, whereas questing ticks comprised 10 nymphs and 1 adult. The data for June and July were pooled. Errors are 95% confidence limits.
Ijerph 17 03607 g002
Ijerph 17 03607 g003 550

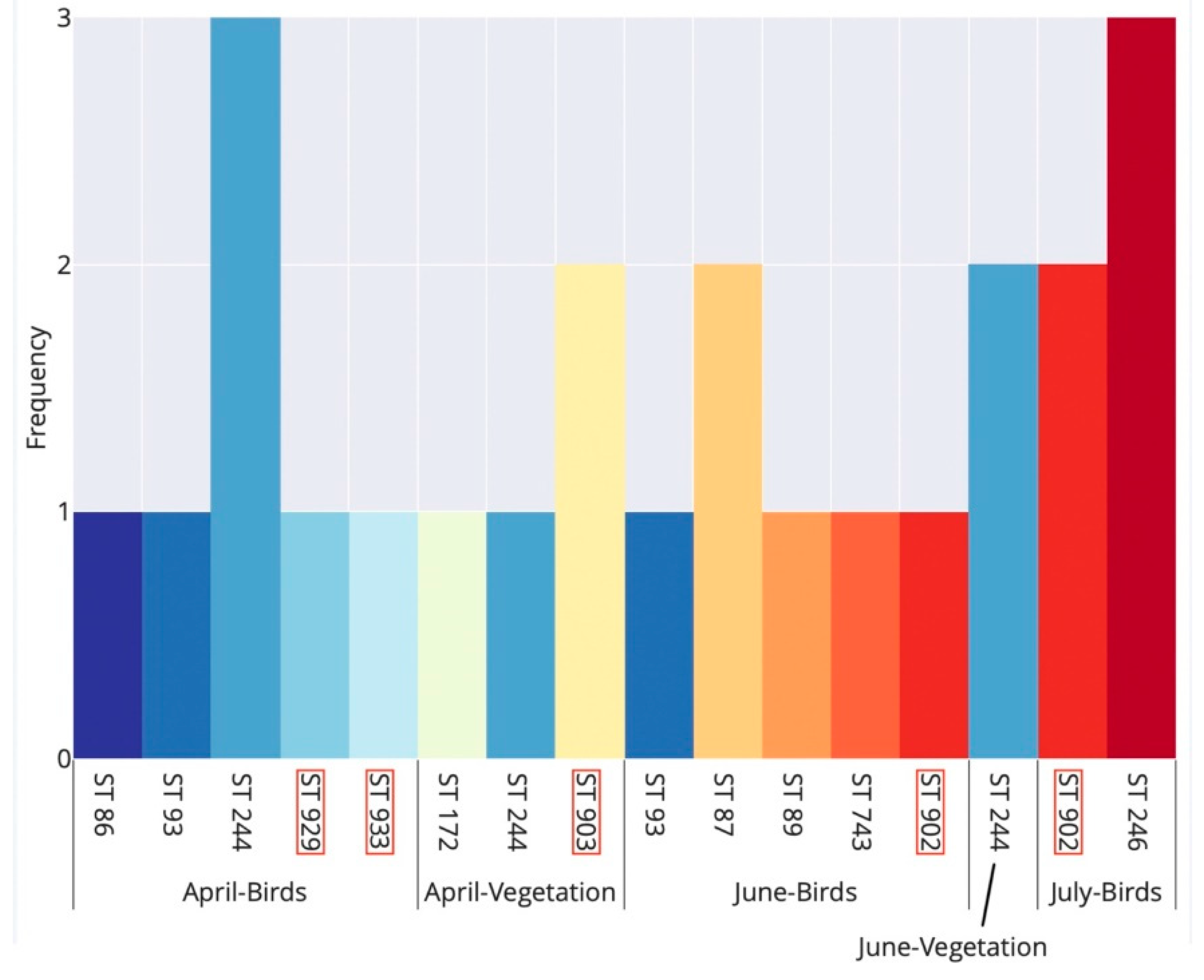

Figure 3. Seasonal occurrence of multi-locus sequence types (STs) of Borrelia garinii detected in bird-feeding and questing Ixodes ricinus ticks in Slovakia. Birds and vegetation denote bird-feeding and questing ticks, respectively. Each ST is denoted by a unique bar colour. ST labels with a red margin indicate novel STs detected for the first time in this study. Note that no ST was resolved for questing ticks in July.
Figure 3. Seasonal occurrence of multi-locus sequence types (STs) of Borrelia garinii detected in bird-feeding and questing Ixodes ricinus ticks in Slovakia. Birds and vegetation denote bird-feeding and questing ticks, respectively. Each ST is denoted by a unique bar colour. ST labels with a red margin indicate novel STs detected for the first time in this study. Note that no ST was resolved for questing ticks in July.
Ijerph 17 03607 g003
Ijerph 17 03607 g004 550

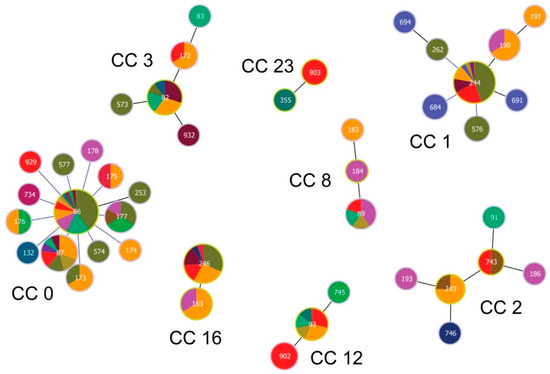

Figure 4. Population structure of Borrelia garinii multi-locus sequence types (STs) involving STs from Slovakia. Population structure for 147 STs deposited in the PubMLST database was constructed by the goeBURST algorithm with PhyloViz 2. Clonal complexes (CCs) were constructed at the level of single-locus variants (SLVs). ST 903 was not assigned into any CC and was classified as a singleton. ST nodes representing inferred CC founders are outlined in light-green color. Node size reflects the number of isolates for the ST. Black lines between nodes refer to links drawn without recourse to tiebreak rules, whereas blue lines show links based on tiebreak rule 1 (number of SLVs). Different colors and their areas within nodes reflect country and the number of isolates for the given ST and country. Red color denotes Slovakia; for country legend please see Figure 5.
Figure 4. Population structure of Borrelia garinii multi-locus sequence types (STs) involving STs from Slovakia. Population structure for 147 STs deposited in the PubMLST database was constructed by the goeBURST algorithm with PhyloViz 2. Clonal complexes (CCs) were constructed at the level of single-locus variants (SLVs). ST 903 was not assigned into any CC and was classified as a singleton. ST nodes representing inferred CC founders are outlined in light-green color. Node size reflects the number of isolates for the ST. Black lines between nodes refer to links drawn without recourse to tiebreak rules, whereas blue lines show links based on tiebreak rule 1 (number of SLVs). Different colors and their areas within nodes reflect country and the number of isolates for the given ST and country. Red color denotes Slovakia; for country legend please see Figure 5.
Ijerph 17 03607 g004
Ijerph 17 03607 g005 550
Figure 5. Minimum-spanning tree of Borrelia garinii multi-locus sequence types (STs). The tree was constructed for 147 STs deposited in the PubMLST database by the goeBURST Full MST algorithm with PhyloViz 2. The tree was constructed at the maximum level of locus variants (level 8). ST nodes representing inferred CC founders are outlined in light-green color. Node size reflects the number of isolates for the ST. The links having less differences between nodes are shown by darker grey color compared to links between more different nodes. Different colors and their area within nodes reflect country and the number of isolates for the given ST and country. The tree miniature highlights STs detected in Slovakia (red colour).
Figure 5. Minimum-spanning tree of Borrelia garinii multi-locus sequence types (STs). The tree was constructed for 147 STs deposited in the PubMLST database by the goeBURST Full MST algorithm with PhyloViz 2. The tree was constructed at the maximum level of locus variants (level 8). ST nodes representing inferred CC founders are outlined in light-green color. Node size reflects the number of isolates for the ST. The links having less differences between nodes are shown by darker grey color compared to links between more different nodes. Different colors and their area within nodes reflect country and the number of isolates for the given ST and country. The tree miniature highlights STs detected in Slovakia (red colour).
Ijerph 17 03607 g005
Ijerph 17 03607 g006 550
Figure 6. Unrooted ML tree of Borrelia garinii based on concatenated sequences of eight MLST genes. The tree involves sequences for 147 B. garinii sequence types (STs) deposited in the PubMLST database. Even though the tree is unrooted, B. burgdorferi s.s. (ST 1) was used as outgroup and was drawn at root. Branch length for B. burgdorferi s.s. is not scaled as indicated by the slashes. ML tree was constructed using IQ-TREE, based on the best-fit substitution model (GTR-F-R5) selected according to ModelFinder. The branch support was assessed using the aBayes test and is shown for branches with >70% support. Taxon labels are isolate and ST IDs according to the PubMLST database. STs detected for the first time in this study are marked in red.
Figure 6. Unrooted ML tree of Borrelia garinii based on concatenated sequences of eight MLST genes. The tree involves sequences for 147 B. garinii sequence types (STs) deposited in the PubMLST database. Even though the tree is unrooted, B. burgdorferi s.s. (ST 1) was used as outgroup and was drawn at root. Branch length for B. burgdorferi s.s. is not scaled as indicated by the slashes. ML tree was constructed using IQ-TREE, based on the best-fit substitution model (GTR-F-R5) selected according to ModelFinder. The branch support was assessed using the aBayes test and is shown for branches with >70% support. Taxon labels are isolate and ST IDs according to the PubMLST database. STs detected for the first time in this study are marked in red.
Ijerph 17 03607 g006
Ijerph 17 03607 g007 550
Figure 7. Minimum-spanning tree of Borrelia garinii multi-locus sequence types (STs). The tree highlights STs detected in samples from Lyme disease human patients (blue colour). Blue area within nodes reflects the number of isolates for the given ST.
Figure 7. Minimum-spanning tree of Borrelia garinii multi-locus sequence types (STs). The tree highlights STs detected in samples from Lyme disease human patients (blue colour). Blue area within nodes reflects the number of isolates for the given ST.
Ijerph 17 03607 g007
Table
Table 1. Prevalence of Borrelia burgdorferi s.l. in Ixodes ricinus ticks feeding on birds at a study site in Slovakia, 2017. L and N refer to larvae and nymphs, respectively. Restriction Fragment Length Polymorphism (RFLP) was used to diagnose the genospecies of borreliae. Since ticks from the same birds were stored in single tubes, the possibility of sample contamination cannot be excluded, and the prevalences reported should be considered as maximum infection rates.
Table 1. Prevalence of Borrelia burgdorferi s.l. in Ixodes ricinus ticks feeding on birds at a study site in Slovakia, 2017. L and N refer to larvae and nymphs, respectively. Restriction Fragment Length Polymorphism (RFLP) was used to diagnose the genospecies of borreliae. Since ticks from the same birds were stored in single tubes, the possibility of sample contamination cannot be excluded, and the prevalences reported should be considered as maximum infection rates.
Bird SpeciesNo. Birds SampledNo. Birds Infested with TicksNo. Birds with Infected TicksNo. TicksNo. (%) B. burgdorferi s.l. Infected TicksNo. B. garinii Infected Ticks (L/N)No. B. valaisiana Infected Ticks (L/N)No. B. garinii + B. valaisiana Infected Ticks (L/N)No. B. afzelii Infected Ticks (L/N)No. B. lusitaniae Infected Ticks (L/N)No. B. spielmanii Infected Ticks (L/N)No. B. garinii/B.b +? Infected Ticks (L/N)No. B. valaisiana +? Infected Ticks (L/N)No. B. afzelii + B. garinii Infected Ticks (L/N)
Turdus merula262521248135 (54.44)67 (13/54)39 (5/34)18 (3/15)3 (0/3)1 (0/1)01 (0/1)3 (1/2)3 (0/3)
Erithacus rubecula78204415 (12.20)2 (0/2)002 (0/2)01 (1/0)000
C. coccothraustes1682222 (9.09)01 (0/1)01 (0/1)00000
Parus major3581121 (8.33)1 (0/1)00000000
Turdus philomelos4411612 (75.00)11 (5/6)01 (0/1)000000
Garrulus glandarius320110000000000
Luscinia megarhynchos62040000000000
C. chloris102121 (50.0)0001 (0/1)00000
Fringilla coelebs81153 (60.0)2 (0/2)001 (0/1)00000
Phylloscopus collybita151010000000000
Phylloscopus trochilus71010000000000
Sylvia atricapilla1091010000000000
Sylvia communis31010000000000
T. troglodytes121030000000000
Prunella modularis311111 (100)0001 (0/1)00000
Total3637832369160 (43.36)834019911133
Table
Table 2. Frequency of Borrelia garinii multi-locus STs detected in Slovakia and other countries based on the PubMLST database [50]. The source of B. garinii involved ticks and human tissue samples of Lyme disease patients. Tick source is split into bird-feeding (tick bird) and questing (tick veg.) ticks for Slovakia. Asterisk denotes a sample from Slovakia unrelated to this study.
Table 2. Frequency of Borrelia garinii multi-locus STs detected in Slovakia and other countries based on the PubMLST database [50]. The source of B. garinii involved ticks and human tissue samples of Lyme disease patients. Tick source is split into bird-feeding (tick bird) and questing (tick veg.) ticks for Slovakia. Asterisk denotes a sample from Slovakia unrelated to this study.
SlovakiaAustriaCanadaCzechiaFinlandFranceGermanyItalyLatviaThe NetherlandsRussiaSwedenSwitzerlandUKUkraineFormer Yugoslavia
STTick BirdTick veg.TickTickTickTickTickTickHumanTickTickTickTickTickTickTickTickHuman
8611 *10016014140111300
87200002102000001401
89100001100020000000
93200001100100000200
172010000000000000200
2443301010210000103300
246300000006001003510
743100010000000000000
902300000000000000000
903020000000000000000
929100000000000000000
933100000000000000000
STs detected for the first time in this study are in bold letters.

Share and Cite

MDPI and ACS Style

Mtierová, Z.; Derdáková, M.; Chvostáč, M.; Didyk, Y.M.; Mangová, B.; Rusňáková Tarageľová, V.; Selyemová, D.; Šujanová, A.; Václav, R. Local Population Structure and Seasonal Variability of Borrelia garinii Genotypes in Ixodes ricinus Ticks, Slovakia. Int. J. Environ. Res. Public Health 2020, 17, 3607. https://doi.org/10.3390/ijerph17103607

AMA Style

Mtierová Z, Derdáková M, Chvostáč M, Didyk YM, Mangová B, Rusňáková Tarageľová V, Selyemová D, Šujanová A, Václav R. Local Population Structure and Seasonal Variability of Borrelia garinii Genotypes in Ixodes ricinus Ticks, Slovakia. International Journal of Environmental Research and Public Health. 2020; 17(10):3607. https://doi.org/10.3390/ijerph17103607

Chicago/Turabian Style

Mtierová, Zuzana, Markéta Derdáková, Michal Chvostáč, Yuliya M. Didyk, Barbara Mangová, Veronika Rusňáková Tarageľová, Diana Selyemová, Alžbeta Šujanová, and Radovan Václav. 2020. "Local Population Structure and Seasonal Variability of Borrelia garinii Genotypes in Ixodes ricinus Ticks, Slovakia" International Journal of Environmental Research and Public Health 17, no. 10: 3607. https://doi.org/10.3390/ijerph17103607

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
