Tubular C₃N₄ Nanotubes as Metal-Free Sulfur Hosts toward Stable Lithium–Sulfur Batteries

Abstract

Lithium–sulfur batteries (LSBs) with high energy density have the potential to replace current commercial lithium-ion batteries. However, the shuttle effect and the low conversion kinetics of lithium polysulfide (LiPS) remain the main challenges in the development of LSBs. In this study, a metal-free and simple-to-prepare carbon nitride with a high surface area and tubular morphology (CN-nt) is used as the sulfur host for LSBs. Due to its unique nanostructure and rich active sites, it not only effectively disperses the active sulfur material and anchors soluble polysulfide species, but it also promotes the nucleation process of Li₂S, thus achieving fast and sustainable Li-S redox reactions. Experimental results show that the obtained S@CN-nt electrodes exhibit a high sulfur utilization of 1296.2 mAh g⁻¹ at 0.1 C and a significant rate capability of 689.4 mAh g⁻¹ at the high current rate of 3C. More importantly, the capacity retention reaches 87.7% after 500 cycles. This simple strategy of engineering unique carbon-based nanostructured hosts can inspire new ideas for developing cost-effective and metal-free host materials for sulfur-based batteries.

1. Introduction

The existence of portable power sources mainly associated with the development of lithium-ion batteries (LIBs) has brought great convenience to our daily life [1,2]. However, after over 30 years of development, LIBs are experiencing a bottleneck in energy density improvement (theoretical value 420 Wh kg⁻¹, based on graphite anodes and LiNi_1/3Mn_1/3Co_1/3O₂ cathodes) [3], and the rising raw material prices are increasing the cost pressure [4]. Lithium–sulfur batteries (LSBs), with high potential energy density (2500 Wh kg⁻¹) and low-cost materials, can meet the rapidly growing demand in the fields of electric vehicles and smart grids [5]. However, the practical application of Li-S batteries is limited by several inherent challenges in the sulfur cathode [6]. Firstly, lithium polysulfides (LiPSs) as intermediate products in the Li-S reaction process dissolve in the electrolyte and cause a shuttle effect, resulting in irreversible sulfur loss and negative electrode corrosion [7]. Secondly, in the lithiation process, up to 80% volume expansion of Li₂S compromises the structural stability, leading to electrode structure collapse and eventual failure [8]. Thirdly, S/Li₂S with electronic/ion insulation characteristics cannot achieve sufficient dispersion to obtain good utilization [9]. At the same time, the slow reaction kinetics in the Li-S multi-electron reaction process also needs to be improved urgently [10].

To overcome the above challenges, a series of strategies have been developed over the past decade, among which the use of sulfur hosts is the most extensively studied strategy [11]. Carbon materials, including mesoporous carbon, graphene, and carbon nanotubes, as the earliest studied hosts, could uniformly disperse sulfur-active materials through their high specific surface area and high electrical conductivity, ultimately improving sulfur utilization and mitigating volume expansion [12]. However, the weak physical interaction between polar LiPSs and non-polar carbon materials cannot suppress the severe shuttle effect of LiPSs. Although a series of transition metal compound materials has been investigated in the past several years to utilize their polar surfaces to suppress shuttle effects, some drawbacks still cannot be avoided, such as lower specific surface area products and a complex preparation process, accompanied by the generation of toxic pollutants. Therefore, employing metal-free host materials through a simple preparation procedure has become a direction worthy of exploration to address the current challenges in LSBs. Efficient chemical adsorption of LiPSs can be achieved by heteroatom doping of carbon materials, which has been extensively studied in recent years [13]. Taking nitrogen as an example, the doped nitrogen atoms work as effective active sites to chemically adsorb Li atoms of LiPS through Lewis acid–base coupling, thereby inhibiting the shuttle effect of LiPS. However, even with various complex procedures, the nitrogen content in current nitrogen-doped carbon materials is still very low (less than 10 wt%). Therefore, further development is needed to achieve high-nitrogen-content carbon-based hosts through a simple method.

Similar to graphene, graphitic carbon nitride (g-C₃N₄) is another representative two-dimensional (2D) layered material [14]. It has attracted widespread attention due to its excellent chemical stability, ease of synthesis, and low cost. Theoretically, g-C₃N₄ has a high nitrogen content of up to 60 wt%, including N-(C)₃ and C=N-C (pyridinic-N) species [15]. Density functional theory (DFT) calculations have shown that pyridinic-N has a much stronger chemical interaction with LiPS compared to other forms of nitrogen [16,17]. However, it is worth noting that although g-C₃N₄ theoretically possesses an ultra-high specific surface area similar to graphene, conventional synthesis methods cannot exploit this advantage. For example, with the most traditional calcination and liquid exfoliation method, the obtained carbon nitride nanosheets (CN-ns) suffer from severe Van der Waals forces-induced restacking, resulting in unsatisfactory specific surface area (even lower than 30 m² g⁻¹) [18]. By designing alternative nanostructures with more rigid architectures, such as nanotubes, the intrinsic structural rigidity can avoid the aggregation of layered materials, while the associated increase in pore volume can contribute to effective buffering of the electrode material volume expansion [19]. Additionally, an interconnected structure is also advantageous for the rapid diffusion of Li⁺. Currently, the template method is an effective means of obtaining unique nanostructured g-C₃N₄ [16]. However, the additional cost of the template material and subsequent removal steps undoubtedly increase the cost pressure, especially in a material-intensive industry such as batteries.

In this paper, a simple one-step method is detailed for the preparation of carbon nitride nanotubes (CN-nt) with high specific surface area and porosity, which are applied as a metal-free sulfur-host material in LSBs. Unlike the conventionally prepared carbon nitride nanosheets (CN-ns), the CN-nt, characterized by higher surface areas and a tubular structure, improve the distribution of sulfur, effectively increasing the utilization of active materials. At the same time, the extensively exposed pyridinic-N active sites provide strong trapping of LiPS and accelerate the conversion process. Therefore, S@CN-nt cathodes exhibit excellent rate performance and cycling stability, demonstrating unique advantages in the application of Li-S batteries from the perspective of nanostructures.

2. Materials and Methods

Preparing CN-nt and CN-ns. The synthesis of CN-nt was achieved via a one-step calcination method. In this process, 10 g of urea (99.5%, ACROS Organics, Geel, Belgium) and 1 g of melamine (99%, ACROS Organics) were thoroughly ground for 15 min using a mortar to create a white precursor mixture. The resulting mixture was then placed in a crucible covered loosely with a lid and annealed at 550 °C for 4 h in a muffle furnace under a standing air atmosphere, with a heating rate of 5 °C min⁻¹. Following natural cooling to room temperature, the resulting 0.72 g light-yellow powder was collected without further treatment (ca. 6.5% yield). CN-ns were also synthesized via the same annealing method, only using melamine as the precursor. Subsequently, the obtained yellow powder was ground into fine particles and subjected to 2 h of ultrasonic treatment to produce the CN-ns (ca. 16.2% yield).

Synthesis of S@CN-nt, S@CN-ns. Typically, CN-nt and CN-ns are mixed with sulfur powder (Sigma Aldrich, Burlington, MA, USA, 99.98%) separately by the weight ratio of 1:3, and then the mixture is heated at 155 °C overnight in an autoclave under Ar protection.

3. Results and Discussion

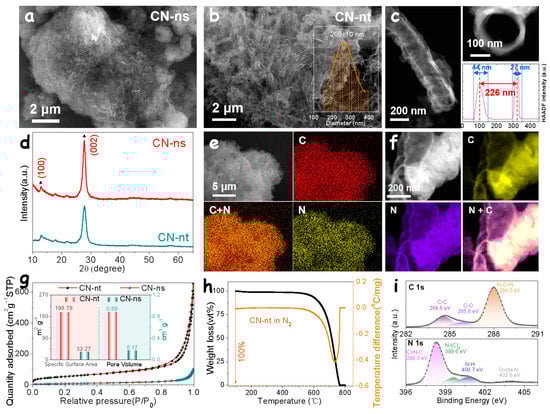

A precursor regulation strategy is used for the preparation of different carbon nitrides. As shown in Figure 1a,b, scanning electron microscope (SEM) images indicate that CN-ns and CN-nt samples have different morphologies. The CN-ns sample is obtained by calcination of melamine precursor, followed by subsequent ultrasonic exfoliation, resulting in a stacked nanosheet morphology. In contrast, the CN-nt sample made by the precursor of urea and melamine mixture and subject to the same calcination step, without any subsequent treatment, resulted in a product with a hollow tube-shape morphology with a diameter of about 200–300 nm and a length of several micrometers. The formation mechanism of hollow g-C₃N₄ nanotubes has been investigated before. In the pyrolysis process, urea is first converted to cyanuric acid at an initial rapid heating process. Then, through hydrogen bonding with melamine, supramolecular rod-shaped melamine–cyanuric acid is formed [20,21]. During the subsequent annealing process, the resulting collapse occurs from the center of the nanorod along the tube wall direction, thus forming hollow tubular CN-nt [22]. Energy dispersive spectrometry (EDS) compositional maps indicate that the C and N elements are evenly distributed both in CN-nt (Figure 1e) and CN-ns (Figure S1) samples. Transmission electron microscopy (TEM) images provide more detailed morphological information, as shown in Figure 1c, where the CN-nt exhibit a wrinkled outer wall. The internal hollow structure can be recognized by the cross-sectional TEM image in Figure 1c, which allows for calculating a tube wall thickness of about 30–40 nm. Furthermore, electron energy loss spectroscopy (EELS) analysis confirmed the homogeneous distribution of C and N (Figure 1f).

X-ray diffraction (XRD) analysis shows that CN-ns and CN-nt samples exhibit identical diffraction peaks at 12.9° and 27.75° corresponding to the characteristic diffraction planes of the (100) and (002) of g-C₃N₄ (Figure 1d) [23]. The nitrogen adsorption–desorption isotherms of CN-ns and CN-nt are displayed in Figure 1g. According to the Barrett–Joyner–Halenda model, CN-nt have a high specific surface area of 198.78 m² g⁻¹, well above that of CN-ns at 33.27 m² g⁻¹. Similarly, a significant difference in pore volume between the two samples can be found, with the CN-nt sample displaying a much larger pore volume of 0.89 cm³ g⁻¹ than CN-ns (0.17 cm³ g⁻¹). These results demonstrate that the unique hollow tubular structure of CN-nt helps to overcome the stacking limitation of CN-ns driven by Van der Waals forces. Table S1 shows the differences in the synthetic method, specific surface area, and pore volume of g-C₃N₄ obtained by different methods. It is clear from the list that this one-step pyrolysis of urea and melamine mixture has unique advantages. The thermal stability of the CN-nt was also verified by conducting and analyzing thermogravimetric analysis (TGA) and derivative thermogravimetry (DTG) results, as illustrated in Figure 1h. The calcination process under N₂ atmosphere showed that CN-nt were thermally stable at temperatures below 550 °C. At this temperature, the weight started to slowly decrease, but the fastest weight loss occurred at around 725 °C. CN-nt were completely decomposed at around 770 °C. This result is consistent with previous reports about g-C₃N₄ [24], proving that the hollow tubular structure does not decrease the thermal stability of g-C₃N₄.

XPS analyses were used to determine the surface composition and chemical states. Figure S2 shows that both CN-ns and CN-nt samples are mainly composed of C and N, with a small amount of O associated with the inevitable exposure to air. The proportion of nitrogen elements in CN-nt and CN-ns is close, at 50.5% and 56.3%, respectively. Figure 1i exhibits the C1s and N1s spectra of CN-nt, and the C1s spectrum can be fitted with three peaks at binding energies of 284.6, 285.8, and 288.0 eV, which are attributed to pure graphitic sites in the carbon nitride matrix (C–C), the sp₂-hybridized carbon atoms bonded to N in an aromatic ring (C–N–C), and the sp₂-hybridized carbon in the aromatic ring attached to the NH₂ group (N-C=N) [25]. The N1s spectrum can be deconvoluted into four peaks, ascribable to pyridinic-N (C=N-C) at 398.3 eV, N–(C)₃ at 399.6 eV, N–H at 400.7 eV, and oxygen-N at 403.8 Ev [26]. Overall, XPS analyses show that CN-nt contain a large number of pyridinic-N species, which are expected to have a favorable effect on the confinement of the LiPS shuttle effect and thus favor stable LSB performance.

To prepare the cathode material, sulfur was introduced into the CN-nt via a melt diffusion method. The XRD diffraction pattern in Figure S3 demonstrates the presence of abundant sulfur crystals in S@CN-nt, while the TGA curve shows a 73.7% mass loss in S@CN-nt before 350 °C, corresponding to the mass fraction of S in the composite. SEM images and the corresponding EDX elemental maps revealed that the tubular structure of CN-nt was preserved in S@CN-nt, and the S element exhibited a homogeneous distribution without independent S particles or major aggregates. This result demonstrates that CN-nt, with their high surface area and hollow tubular structure, serve as a sulfur host to achieve a uniform distribution. The same experimental data obtained for S@CN-ns (Figure S4) showed a less uniform dispersion of S in this sample.

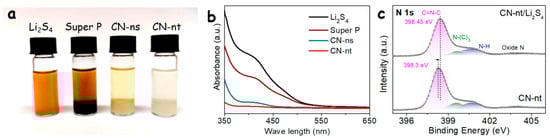

Visualizing the adsorption behavior of soluble LiPS is beneficial for understanding the adsorption capacity of the host material and validating its shuttle effect inhibition. Equal amounts of Super P, CN-ns, and CN-nt were immersed in the same amount of a 5 mM Li₂S₄ solution and left undisturbed overnight. After this time, compared to the brownish-red Li₂S₄ solution, CN-nt showed a clear supernatant, indicating that soluble Li₂S₄ species were adsorbed by the CN-nt material (Figure 2a). This high adsorption is related to the high specific surface area and its polar nature associated with the presence of nitrogen. In particular, the presence of Lewis-base pyridine nitrogen in g-C₃N₄ helps to interact with the strong Lewis-acid of terminal Li atoms in LiPS [27]. In contrast, a slightly yellowish supernatant was observed in the CN-ns vial, demonstrating that the CN-nt with a higher specific surface area have a stronger adsorption capacity. The supernatant color of Super P is similar to that of LiPS, indicating that Super P composed of non-polar graphite surfaces cannot work for LiPS capture [28]. As shown in the UV–vis absorption spectra of the supernatant (Figure 2b), the 400–450 cm⁻¹ band region is the fingerprint of the Li₂S₄ absorption spectra [29], in which CN-nt exhibited the lowest intensity, indicating the lowest content of Li₂S₄ in the supernatant and proving the best adsorption capacity. Furthermore, the XPS N1s spectra of the CN-nt sample were also compared and analyzed, both before and after adsorption of Li₂S₄.(Figure 2c), and it was found that the peak assigned to pyridinic nitrogen shifted from 398.3 eV to 398.45 eV, which is attributed to the fact that LiPS can anchor on active nitrogen sites through dipole–dipole interactions, consistent with previous reports [27].

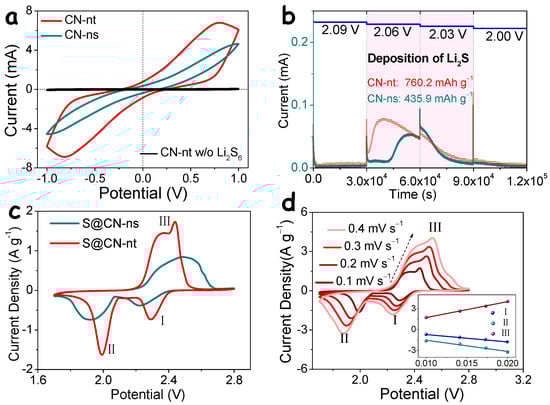

Considering the complexity of the multi-electron transfer process in the Li-S reaction, evaluating the electrocatalytic activity of host materials during the redox process can effectively forecast the performance of LSBs [30,31]. In this direction, symmetric cell tests based on different host materials were assembled and tested. As shown in Figure 3a and Figure S5, in the symmetric cell test without polysulfide, CN-nt show a very low response current and the rectangular CV curve confirms that only double-layer adsorption occurs on their surface [32]. When adding Li₂S₆ into the electrolyte, both CN-ns and CN-nt exhibit polysulfide oxidation-reduction signals in the CV curve. However, CN-nt show significantly higher oxidation-reduction current and more pronounced oxidation-reduction peaks, indicating that CN-nt have higher activity in promoting the Li-S reaction compared to CN-ns.

In the discharge process of an LSB, the theoretical contribution of the transition from liquid Li₂S₄ to solid Li₂S can account for 75% of the capacity. Therefore, the potentiostatic intermittent titration technique (PITT) was used to quantitatively study the promoting effect of host materials in the deposition process [33,34]. During the PITT test, the cathode with an electrolyte containing 0.25 M Li₂S₈ was subjected to pulse discharge at different voltages, and the corresponding response current is shown in Figure 3b. Due to the fast redox kinetics of LiPS in the solution state, a sharp current response was observed in both CN-ns and CN-nt cells during the 2.09 V potentiostatic process, followed by a rapid decline and gradual stabilization. In the subsequent 2.06 V potentiostatic process related to the electrochemical phase transition reaction, both cells showed a response current peak except for the initial rapid response and decay, indicating that the solid products of Li₂S/Li₂S₂ were precipitated from the electrolyte containing LiPS with the prolongation of the constant voltage time at 2.06 V.

The nucleation and growth of Li₂S/Li₂S₂ crystals are closely related to the inherent nucleation sites on the substrate [35,36]. Due to their higher specific surface area and unique tubular structure, CN-nt provide abundant nucleation sites, which effectively accelerates the nucleation kinetics of Li₂S/Li₂S₂. Consequently, compared with CN-ns, the CN-nt host exhibits a higher current response (approximately 50% increase in current density) at 2.06 V, as well as an earlier peak response time (approximately ahead 14,700 s). The insulating nature of Li₂S/Li₂S₂ hinders the capacity to release during the discharge process. Therefore, based on Faraday’s law, the current vs. time curves were integrated for the phase transition discharge process from 2.09 to 2.00 V to quantitatively analyze the liquid–solid phase transformation capacity. The results show that the CN-nt-related cell can release a capacity of 760.2 mAh g⁻¹, while only 435.9 mAh g⁻¹ in the CN-ns cell. These results demonstrate the promoting effect of CN-nt on the Li₂S nucleation process, which is beneficial for the performance of LSBs.

Subsequently, coin-type LSBs were assembled using S@CN-ns and S@CN-nt cathodes. As shown in the cyclic voltammetry (CV) curves (Figure 3c), both S@CN-ns and S@CN-nt electrodes exhibit two reduction peaks, which correspond to the transformation of S8 into long-chain Li₂S_x (4 ≤ x ≤ 8) and subsequent conversion to insoluble Li₂S₂/Li₂S. The anodic peak during the oxidation process corresponded to the conversion of solid Li₂S/Li₂S₂ to long-chain soluble LiPS and finally to S₈. By comparing the CV curves, it was evident that the S@CN-nt electrode exhibited a higher peak voltage than the S@CN-ns electrode during the reduction process. Peak I and II located at 2.290 and 1.992 V, respectively, were significantly higher than the 2.22 V and 1.919 V of S@CN-ns. In addition, compared to the 2.489 V of the S@CN-ns electrode, a significantly lower anodic peak voltage was shown at 2.438 V from the S@CN-nt electrode. Furthermore, the S@CN-nt electrode exhibited excellent current response, with a peak current density much higher than those of S@CN-ns at all three peaks. These results demonstrate that CN-nt, which have a higher specific surface area and porous structure, are more suitable as a sulfur host material than CN-ns and are therefore beneficial for improving the performance of LSBs.

As the scan rate of the CV curve increases, a shift of the redox peaks and the response of the current density is generally observed. In Figure 3d, with the scan rate increasing from 0.1 to 0.4 mV s⁻¹, the reduction peak slightly shifts towards lower potential while the oxidation peak shifts towards higher potential, accompanied by an increasing current density. By fitting the current and square root of the scan rate, it can be found that the results show a good linear relationship, which is consistent with a diffusion limitation during the electrochemical test process [37,38]. Herein, the classical Randles–Sevchik equation for a semi-infinite diffusion can be applied [39,40], as shown below:

$$I_{\mathrm{p}}=(2.69\times {10}^5)n^{1.5}{{\mathit{AD}}_{{\mathit{Li}}^{+}}}^{0.5}{C}_{{\mathit{Li}}^{+}}{\nu }^{0.5}$$

where I_p is the peak current (A), n is the charge-transfer number, S is the geometric area of the electrode (cm²), $D_{{Li}^{+}}$ is the chemical diffusion coefficient (cm² s⁻¹), $C_{{Li}^{+}}$ is the concentration of electrolyte (mol cm⁻³), and ν is the potential scan rate (V s⁻¹). Based on this equation and the slope values from the inset plot of Figure 3d, the apparent diffusion coefficients for the peaks of I, II, and III are 1.55 × 10⁻⁷, 3.52 × 10⁻⁷, and 6.68 × 10⁻⁷ cm² s⁻¹ [41].

Subsequently, the assembled coin cells were subjected to electrochemical impedance spectroscopy (EIS) testing. The Nyquist plot from fresh cells consists of a semicircle in the high-frequency region and an oblique line in the low-frequency region, corresponding to the charge transfer resistance and the Li⁺ diffusion of the electrodes, respectively. It is clear that compared to the S@CN-ns electrode, the S@CN-nt electrode exhibits a smaller semicircle and a more sloping straight line, indicating a smaller charge transfer resistance and a faster Li⁺ diffusion process in the S@CN-nt electrode [42]. The smaller charge transfer resistance is due to the efficient dispersion of insulating sulfur by the high surface area of the CN-nt structure, while the fast Li⁺ diffusion process might be attributed to the fast Li⁺ transport in the tubular and interconnected structure [37,43]. Therefore, the EIS results suggest that the CN-nt host with unique architecture has a promoting effect on the performance of LSBs.

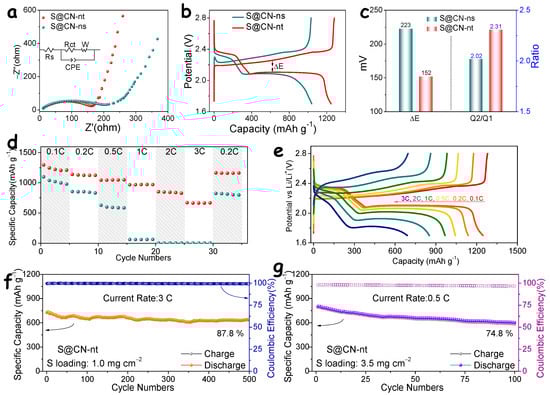

The LSB performance was evaluated in a galvanostatic charge–discharge test at 0.1C. As shown in Figure 4a, both the S@CN-ns and S@CN-nt electrodes presented two discharge plateaus and one long charge plateau in the charge–discharge curves, corresponding to the two reduction peaks and one oxidation peak in the CV curves, respectively. Obviously, the S@CN-nt electrode exhibited a superior charge–discharge capacity, up to 1246 mAh g⁻¹, which was significantly higher than the 1040 mAh g⁻¹ of the S@CN-ns electrode, proving the rationality of CN-nt material as a sulfur host. In addition, polarization voltage can be defined by the voltage difference at 50% discharge capacity to quantitatively evaluate the polarization situation of the cathode in the Li-S reaction [44,45]. The polarization voltage of the S@CN-nt electrode was 152 mV, much lower than the 223 mV of the S@CN-ns electrode, which could be explained by the uniform distribution of sulfur active materials achieved by CN-nt and the abundant active sites provided for the Li₂S conversion process, thus effectively reducing the voltage polarization during the charge–discharge process. Moreover, during the discharge process, according to the electronic transfer theory, the second plateau represented the Li₂S₄→ Li₂S conversion process and released 75% of the capacity. Therefore, considering the inadequacy of the Li₂S nucleation process, the ratio of the second plateau capacity Q2 to the first plateau capacity Q1 can quantitatively describe the conversion ability of LiPS to Li₂S [46,47]. According to the calculation, the value of Q2/Q1 corresponded to 2.31 in the S@CN-nt electrode, which was much higher than the 2.02 of the S@CN-ns electrode, thus verifying the promoting effect of the CN-nt host in the Li₂S nucleation process.

Figure 4d displays the rate performance of the different electrodes. S@CN-nt achieved an initial capacity of 1296.2 mAh g⁻¹ at a current density of 0.1C, much higher than the 1098.9 mAh g⁻¹ of the S@CN-ns electrode. In addition, even at a higher current density of 3C, S@CN-nt still maintained a high discharge capacity, reaching up to 689.4 mAh g⁻¹, while the S@CN-ns electrode could not release any capacity. The polarization situation at different current densities can be understood by analyzing the charge–discharge curves. The S@CN-nt electrode exhibited two plateaus in all discharge curves from 0.1C to 3C, although the voltage polarization increased with the enlarged current rates. This result was still significantly better than that of S@CN-ns. As an example, at a current rate of 1C, the second plateau of S@CN-ns disappeared due to severe polarization, and the capacity could not be released at 2C due to excessively high polarization (Figure S6). Therefore, it can be concluded that the S@CN-nt electrode effectively reduces the polarization voltage during the Li-S reaction, promoting the conversion process of LiPS.

Cycle stability is an important indicator for evaluating the performance of LSB. A 500-cycle stability test was conducted on the CN-nt host under a high current rate of 3C. In addition, S@CN-nt were still able to release a capacity of 636.8 mAh g⁻¹, with a capacity retention of about 87.8% and an average Coulombic efficiency as high as 99.5%. Such excellent cycle stability can be attributed to the tubular hollow structure that cushions the volume expansion during Li-S conversion, as well as the high specific surface area and abundant pyrrolic-N active sites that anchor LiPS and suppress the shuttle effect. Table S2 in the Supporting Information displays a comparison of several parameters of state-of-the-art g-C₃N₄-based materials as cathode hosts for LSBs. It can be found that the CN-nt host presented here is characterized by competitive capacities and stabilities.

To meet the future commercial demands of LSBs, it is necessary to detect the performance under higher areal sulfur loading conditions. Therefore, cathodes with a sulfur loading of up to 3.5 mg cm⁻² were produced and electrochemically tested. As shown in Figure 4g, S@CN-nt exhibited an initial capacity of 805.9 mAh g⁻¹ at a current rate of 0.5 C and achieved a cycle stability of 74.8% after 100 cycles. The charge–discharge curves at 0.5 C with low/high-sulfur loading conditions were compared, as shown in Figure S7. Higher voltage polarization is caused under high-sulfur loading conditions. This is mainly due to the challenge of electron transfer and ion transport caused by thickened electrodes [48,49,50]. At the same time, more polysulfide compounds will be produced on the cathode during the charging and discharging process, while higher current density on the anode side will exacerbate the growth and pulverization of lithium dendrites. Therefore, such a good cyclic stability of the S@CN-nt electrode under high-sulfur loading conditions demonstrates that CN-nt act as a host material that could promote the release of the capacity of sulfur active materials, inhibit shuttle effects, and maintain stability during cycling. Thus, it is a suitable metal-free host material for LSBs.

4. Conclusions

In conclusion, this study presents a one-step method for obtaining tubular CN-nt through precursor modification. In comparison to conventionally obtained CN-ns, CN-nt offer distinct advantages in terms of specific surface area and pore volume. This leads to improved distribution of sulfur, enhancing the utilization of active materials and suppressing volume expansion during the Li-S reaction. The interconnected porous structure also facilitates the diffusion of Li⁺ ions. Additionally, the abundant pyridinic-N active sites play a crucial role in inhibiting the diffusion of LiPS, thereby ensuring a stable battery capacity. Leveraging these advantages, the S@CN-nt electrode exhibits robust performance, including high initial capacity and an ultra-low decay rate, surpassing that of the CN-ns host. This study highlights the effective regulation of g-C₃N₄ nanostructures by controlling precursors, offering insights into the preparation of metal-free host materials for application in LSBs.
