Synthesis and Characterization of Functionalized Chitosan Nanoparticles with Pyrimidine Derivative for Enhancing Ion Sorption and Application for Removal of Contaminants

by
Mohammed F. Hamza
1,2,*,
Yuezhou Wei
1,3,*,
Khalid Althumayri
4,
Amr Fouda
5 and
Nora A. Hamad
6
1
School of Nuclear Science and Technology, University of South China, Hengyang 421001, China
2
Nuclear Materials Authority, P.O. Box 530, El-Maadi, Cairo 11728, Egypt
3
School of Nuclear Science and Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
4
Department of Chemistry, College of Science, Taibah University, Al-Madinah Al-Munawarah 30002, Saudi Arabia
5
Botany and Microbiology Department, Faculty of Science, Al-Azhar University, Nasr City, Cairo 11884, Egypt
6
Chemistry Department, Faculty of Science, Menofia University, Shebin El-Kom 32511, Egypt
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(13), 4676; https://doi.org/10.3390/ma15134676
Submission received: 21 May 2022 / Revised: 24 June 2022 / Accepted: 30 June 2022 / Published: 3 July 2022
(This article belongs to the Collection Manufacturing Engineering and Mechanical Properties of Composite Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Modified chitosan has been widely used for heavy metals removal during the last few decades. In this research, the study was focused on the effect of modified chitosan particles after grafting with heterocyclic constituent for enhancing the sorption of Cr(VI) ions. Chitosan was functionalized by 2-thioxodihydropyrimidine-4,6(1H,5H)-dione, in which the synthesized composite considered as a nanoscale size with average 5–7 nm. This explains the fast kinetics of sorption with large surface area. The prepared sorbent was characterized by Fourier-transform infrared (FTIR), elemental analysis (EA), Brunauer–Emmett–Teller (BET surface area) theory, thermogravimetric analysis (TGA), mass spectroscopy, and scanning electron microscopy (SEM) with energy dispersive X-ray analysis (EDX) analyses. The experimental part of this work involved the application of the synthesized sorbent for the removal of Cr(VI) ions from highly contaminated tannery effluents that are characterized by a high concentration toward chromate ions with other associated toxic elements, i.e., Pb(II) and Cd (II) ions, which underscore the importance of this treatment. Under the selected conditions (K2Cr2O7 salt, Co: 100 mg L−1 and pH: 4), the sorption diagram shows high Cr(VI) sorption and fast uptake kinetics. The sorption was enhanced by functionalization to 5.7 mmol Cr g−1 as well as fast uptake kinetics; 30 min is sufficient for total sorption compared with 1.97 mmol Cr g−1 and 60 min for the non-grafted sorbent. The Langmuir and Sips equations were fitted for the sorption isotherms, while the pseudo-first order rate equation (PFORE) was fitted for the uptake kinetics.

1. Introduction

As result of our current industrialized life, environmental contamination has become an important global problem [1,2]. Among the running contaminants, the pollution of the environment by heavy elements is a critical calamity. Heavy metals generally result from different industries such as mining, batteries, metal lamination, etc. [3,4,5,6]. Heavy metals are elements characterized by their relatively high molecular weights and densities. These elements are non-biodegradable and have more accumulative behavior than other organic pollutants in living organisms. So they are dangerous, toxic and carcinogenic elements [7,8]. The most common heavy element water pollutants are the cadmium, copper, chromium, zinc and lead [9,10]. Chromium in turn is considered one of the most dangerous water pollutants. Because of the toxic properties of chromium and its dangerous environmental problems, there were a persistent need to perform many studies in order to find the best approaches for the removal of Cr(VI) [11].
Chromium is widely used in the electroplating, textile, leather, metallurgy, tanneries, metals industries and metal finishing [12]. Such types of industries involve the emission of huge amounts of outflowing to the outer environment carrying various chromium ions species with high levels. These released ions pollute surface and groundwater as well [13,14,15,16,17]. The treatment of such contaminated water/effluents is a critical point in these industries, to minimize their impact toward water bodies and environment [18]. Various techniques have been used for this mission, including electrochemical reduction [19], precipitation [20] (after reduction of Cr(VI) to Cr(III) [21]) or bio-reduction [22]. The acidic medium enhances the reduction of Cr(VI) to Cr(III) for easily precipitation. Solvent extraction [23,24] and the impregnated process (solvent-impregnated resins) are also used for the recovering and of chromate anions [25,26,27]. Other studies are based on using zero-valent iron, iron oxide, and magnetite sorbents [28,29] for the removal of chromate anions. Chromium also has a dangerous toxic and carcinogenic behavior [30]. The standard allowed limit of chromium ions in drinking water was shown by the WHO in 2008. In case of exceeding that limit (0.05 mg L−1), chromium ions must be removed from wastewater. Recently, researchers have focused on developing eco-friendly and low-cost adsorbents for removing Cr(VI) [31,32,33], in which the efficient uses of the green synthesized nanoparticles in removal of heavy elements and Cr ions [34,35]. In this regard, chitosan modification by various chemical (by grafting of new functional groups) and physical methods (fabrication as beads or gels) has played an important role as an effective technique to remove inorganic and organic contaminant of aqueous intermediates [36,37]. Chitosan is a natural functionalized biodegradable polymer produced from the partial deacetylation of chitin. Having -OH and -NH2 groups gives it a characteristic structure which in turn contributes its unique adsorption properties [38,39,40,41]. The phyco-chemical properties of chitosan particles depends on the deacetylation degree, molecular weight but also the solubility [42,43,44]. Due to the high nitrogen percent in its structure compared with synthetic cellulose derivatives, chitosan has an important commercial interest [45,46]. In recent decades, many studies were performed to improve the solubility of the modified chitosan structures [47]. Cross-linking of chitosan by chemical methods affects its physicochemical properties, and as a result, applications are also affected due to the irreversible gelation process. Covalent cross-linking also increases the stability (chemical and thermal stability) of modified derivatives of chitosan. Thus, chemical cross-linking is widely applied by aldehydes and epoxy such as glutaraldehyde, glyoxal and epichlorohydrin [48,49,50,51,52,53,54].
Glutaraldehyde is a widely used crosslinker in modification of chitosan in adsorption process. Carboxymethyl chitosan (cmc) cross-linked with glutaraldehyde was prepared to modulate the selectivity of modified chitosan derivatives for heavy metals adsorption [55]. Among the most common crosslinkers epichlorohydrin (epi) is widely used to synthesize modified chitosan sorbents, which are mainly applied in removing wastewater pollutants [56,57]. Many studies have been published during the last few years on the different applications of chemically modified chitosan composite, especially in water and wastewater treatment. In this respect, heavy metals removal is considered a big challenge for many scientists all over the world. Cr(VI) removal gained most of the interest among other heavy metals because of its well-known dangerous effect on the total environment [58,59,60].
This work has many tasks: first, synthesis of the grafted moieties through cyclization reaction of diethyl malonate and thiourea to the pyrimidine derivatives; second, synthesis of chitosan nanoparticles and activated chloride spacer arm for possible reaction with the pyrimidine moiety to yield the MC-TDP nanoparticles. Then, sorption properties of the produced grafted composite (compared with the nongrafted chitosan (MCH) as reference material) for optimization of the sorption properties, which indicated an improvement in the sorption behavior, uptake kinetics and also the cycling properties. The final stage concern the application toward nature contaminated effluents from tannery industries, which verify the valorization of the synthesis by removing more than 99% of Cr(VI) using MC-TDP compared to less than 30% by MCH under the same condition of pH, loading time and sorbent dose. The sorbent was characterized by mass spectroscopy (for the TDP particles), FTIR, SEM, SEM EDX, TGA and BET (surface area) through N2 sorption–desorption isotherms. The sorption was performed twice for the reproducibility properties.

2. Materials and Methods

2.1. Materials

Ferrous sulfate, ammonium ferric (III) sulfate dodecahydrate ((FeSO4⋅7H2O; >99.0%) and (NH4)Fe(SO4)2⋅12H2O; >99.0%, respectively), epichlorohydrin (epi; >99.0%), chitosan (Degree of Acetylation (DA): greater than 75%) (CHI), sodium hydroxide pellets (>99.99% for pH adjustment), sodium ethoxide (C2H5ONa) solution (50%), thiourea (CH4N2S; 99%), diethyl malonate (C7H12O4; 99%), glutaraldehyde (C5H8O2; 25% in H2O) and potassium dichromate (K2Cr2O7) were supplied by Sigma Aldrich (Merck, Darmstadt, Germany). Acetone (99.9%) and dimethylformamide (DMF; 99.9%) were purchased from Chron Chemicals (Qionglai, China). Other chemicals were obtained from Prolabo (VWR, Avantor Group, Fontenay-sous-Bois, France), which are used without further purification.

2.2. Preparation of the Sorbent

2.2.1. Synthesis of Thioxodihydropyrimidine Dione Derivative (TDP)

To a warmed sodium ethoxide solution 50% (20 mL), thiourea (0.64 g) and diethyl malonate (1.5 g) were added drop wise. The mixture was kept at reflux temperature (80 °C) for around 10 (±1) h, then poured onto the ice beaker in 0.1 M HCl medium and left overnight. The prepared solid product underwent separation by filtration, dried, and recrystallized from ethanolic solution to give TDP as a white powder (80% yield), m.p. above 300 °C, as shown in Scheme S1 (see the Supplementary Materials).

2.2.2. Synthesis of Nano-Magnetite Activated Spacer Arm Composite

The magnetite nanoparticles was firstly prepared by thermally precipitation procedure [61]. Dissolving of 7.35 g ammonium iron (III) sulfate and 5.0 g of the hydrated iron (II) sulfate in distilled water at 50 °C, the reaction mixture was continued under stirring for 60 min. The pH of the mixture was adjusted to value 11 using NaOH solution, this process for magnetite precipitation, followed by continue heated at 50 °C for 5 h. Then, it was magnetically separated and washed with water, then dried at 50 °C overnight.
The second step of the synthesis is the preparation of chitosan magnetite nanoparticles through dissolving 4 g of chitosan particles in 100 mL of diluted acetic acid solution (7%), then addition of the prepared magnetite (4 g) powder with continuous stirring. The mixture was precipitated by adjusting the pH to 10 using NaOH solution. The precipitated particles were heated to 90 °C for 2 h. After collection of magnetite chitosan particles, the next step concerning with enhancing the stability by crosslinking properties by addition of 0.01 M epi in basic medium of NaOH solution (the pH was adjusted to 10) and reaction maintained stirring for 3 h at 60 °C. After magnetically separation, the further addition of epi was performed in ethanolic solution (1:1 ethanol/water) for creation of activated methylene chloride as a spacer arm through addition of 18 mL of epi and the mixture was refluxed at 70 °C for 3 h. The produced activation moiety was magnetically separated and washed with acetone and water then dried at 60 °C for 12 h, as shown in Scheme S2 (see the Supplementary Materials).

2.2.3. Synthesis of Grafted Pyrimidine on Chitosan Magnetite Nanoparticles (MC-TDP)

To 150 mL of DMF solution, 5 g of TDP was added for dissolution, followed by addition of 6 g of Mg-chitosan with gentle stirring. The pH of the mixture was adjusted to 9.5 using sodium hydroxide solution. The mixture was refluxed for 9 h at 85 °C, followed by stirring for 24 h. The product was filtered and washed with distilled water, then it was dried overnight at 50 °C, Scheme S3. Table S2 reports the cost evaluation of 10 g modified grafted sorbent.

2.3. Characterization of Materials

FT-IR spectra were identified by IRTracer-100 FT-IR, spectrometer, Shimadzu, Tokyo, Japan; the dried samples were mixed and grinded with KBr. The surface area (SA) and porosity of the prepared sorbents were applied under nitrogen atmosphere for adsorption/desorption isotherms through Micromeritics (Norcross, GA, USA), TriStar II-Norcross-GA; USA-system-77-K. The BET equation was applied for adsorption, after sweeping of the sorbent samples in nitrogen for around 7 h at 130 (±10) °C. The morphology structure of the samples was characterized by SEM analysis using Phenom-ProX-SEM (Thermo Fisher Scientific, Eindhoven, The Netherlands). The element contents before and after metal adsorption, was semi-quantitatively determination using EDX-analysis (i.e., energy dispersive X-ray analysis). The pHpzc (zero charge) was measured using the drift method [62]. The thermal determination was studied via TGA-analysis using the Netzsch STA-449F3 Jupiter, NETZSCH-Gerätebau-HGmbh, Selb, Germany. The test was achieved under nitrogen atmosphere media at 10 °C min−1 (described as the temperature ramp). The pH adjustment of the tested solution was performed using a pH-26A, Acculab USA pH-meter (Acculab USA, New York, NY, USA). The collected samples were firstly filtrated (using 1.2-µm filter membranes) before testing for metal content. The chromium ions were measured (before and after adsorption) by ICPS-7510-Shimadzu, Tokyo, Japan. The morphology as well as the particle size measurements were analyzed using TEM analysis (transmission electron microscopy); JEOL, 1010-JEOL Ltd., Tokyo, Japan.

2.4. Sorption Properties

Sorption efficiency was studied in batch closed systems at room temperature, a fixed amount of sorbent (m, g) was mixed with a fixed volume of solution (V, L) under agitation conditions of v: 210–215 rpm. The used dose of sorbent (SD) in most cases was adjusted to 0.6 (±0.1) g L−1. The effect of pH was studied by using a pH-26A Acculab USA pH-meter (Acculab USA, New York, NY, USA). The initial pH values (i.e., pHin) varied between 1 and 6; the pH was not controlled during the sorption, but the final pH (i.e., pHeq) was recorded. The contact time (t) of the experiments (i.e., pH effects test, uptake kinetics, selectivity (equi-polymetallic) test, and sorption isotherms, etc.) were investigated (at fixed period) at 24 h. In the sorption isotherms and the uptake kinetic tests, the pHin was fixed at value 4. The initial concentrations (C0; mmol Cr(VI) L−1) were varied for sorption isotherms (0.01 to 6.1 mmol Cr L−1), while the selectivity tests was investigated with tannery effluents containing high concentration of associated elements with regard to the WHO regulation (as Ni(II), Pb(II), Co(II), and Cd(II)) at pH0: 4.01. The capacity (qeq, mmol g−1) of the bound metal ions was determined from (mass balance) equation: qeq = (C0 − Ceq) × V/m, in which the D, L g−1 (distribution ratio)was calculated by the following equation: D = qeq/Ceq. The desorption kinetics were determined for the chromium-loaded sorbent (collected from the kinetic test) using diluted HCl solution (0.2 M). The models used in the kinetics and isotherms were described with the parameters listed in Table S1a and S1b, respectively (see Supplementary Information).

2.5. Application to the Tannery Waste Effluent

The waste effluent was collected from the Robbiki Leather (10th of Ramadan City) in Cairo, Egypt. The GPS information was assigned as follows: N: 30°17′898″, E: 31°76′840″. Sorption was tested in batch reactor with pHin 4.01 for different sorbent doses (SD; 1–30 g L−1) for 24 h of contact time.

3. Results

3.1. Characterization of Sorbents

3.1.1. FTIR Analysis

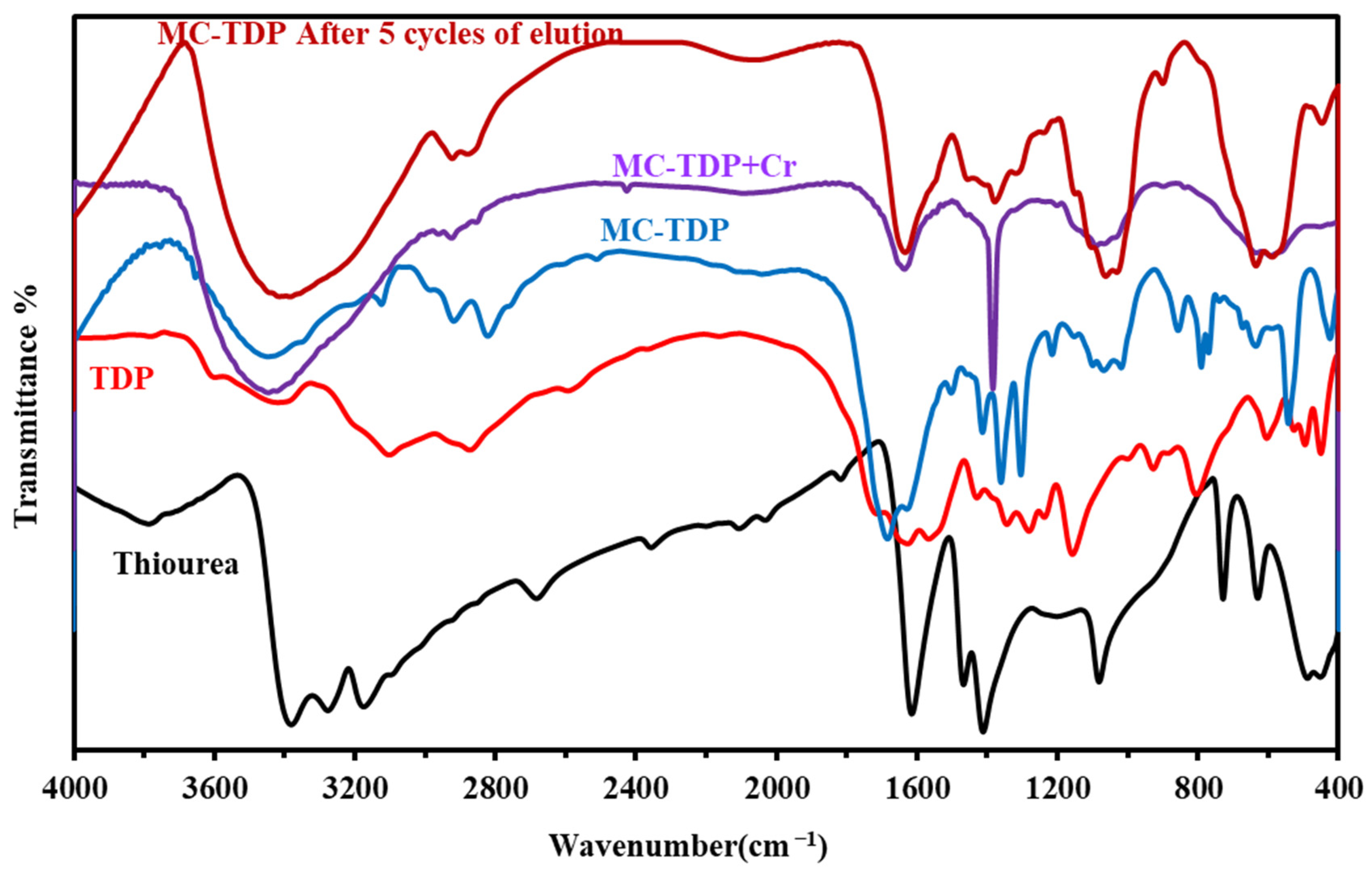

The chemical structure elucidation and the new functional groups of the modified sorbent of the TDP, MC-TDP and the chemical modifications/changes occurred as Cr(VI) sorption, and after 5 cycles of sorption and desorption, they were investigated by the FTIR spectroscopy (Figure 1 and Table S3). The TDP moiety characteristic peaks (cm−1 ν max) were identified as follows: 3463–3382 cm−1 (νNH2 and OH) overlapping stretching band [50], 2871 cm−1 (νCH2) stretching, and 1625–1705 cm−1 (νC=O and C=C) stretching of the heterocyclic ring. This illustrates the cyclization of the heterocyclic moiety after the reaction of thiourea and diethyl malonate. The bands at 2673 cm−1 and 1611 cm−1 are assigned for (νSH) stretching of thiol groups (after tautomerization with amine groups) [5], and the stretching vibration of amide (νC=N) (produced from tautomerization rearrangement), overlapped with N-H bend [63], respectively, and 1524 cm−1 for (νC=S) stretching. Peaks that appeared in the range of 727–627 are related to the (NH2 + CO) wag. vibration [64] and N-C-N bend (in-plane), and this band is overlapped with the magnetite (Fe-O) [65]. As modifications were performed, most of these peaks not only changed in intensity or shifted to new wavenumber but also new peaks appeared related to this modification and the new reactive groups. Decreasing intensity of NH stretching for TDP with two pikes at 3584 and 3392 cm−1 was noticed, and the broadness was increased again as a result of grafting (appearing at 3443 cm−1 for the MC-TDP, which related to the high percent of amine groups). The C-H stretching related the aromatic heterocyclic moiety appeared at 3095 cm−1 and then disappeared (overlapping) with the increasing broadness of OH, NH for the MC-TDP. Peaks at 1155 cm−1 (and 1097 and 1060) for TDP and MC-TDP sorbents are related to the NH2 (rock.), N-C str., C-O str. and C-O-C. (str., asymm) for hydrocarbon backbones [6]. The bands at 923 and 854 cm−1 (for TDP and MC-TDP, respectively) are related to the C-H (aromatic bend) for the pyrimidine ring (in-plane). After the sorption of chromate ions, it is noticed that most of assigned peaks are shifted with decreasing intensities; these changes are specially for groups used in binding with metal ions, i.e., amine (NH), carbonyl(C=O), thion (C=S) and thiols (SH) (resulting by tautomerization) [5,64,66,67], while as desorption processes were performed (5th cycles), these peaks were noticed again with full intensities as in the original sorbent (as shown in Figure 1), while the most important assigned bands are reported in Table S1. The EI-MS shows m/z (C4H4N2O2S) calc. = 144 [M+]. These analysis charts are shown in Figure 2, while Figure S1 shows the completed data of the mass analysis.

3.1.2. Morphology and Textural Properties

SEM and TEM graphs of MCH and MC-TDP are shown in Figure S1. From the SEM micrograph in Figure S2a, the sorbents were prepared as fine flaked particles with irregular shapes, and the average size is around 5–10 µm, while in Figure S2b, the TEM micrograph illustrates the nanoscale size of the magnetite embedded into the polymer chain; these nanoparticles appear as heavy dark round dots with orderly shape. The magnetite clot caused the appearance of dark condensed areas in some parts in the matrix, while the size is ranged between 2–5 nm. Figure S2c shows the attraction of functionalized magnetite chitosan to the external magnet, which verify the effect of magnetism.
The SBET and the Vp, specific surface area and the porous volume, respectively, of the prepared sorbents were measured by using the nitrogen sorption and desorption isotherms. These values are reported for the MCH sorbent to be 22.9 m2 g−1 and 6.8 cm3 STP g−1, respectively, and 24.1 m2 g−1 and 8.2 cm3 STP g−1 for MC-TDP, respectively; these parameters are noticeably affected by the modification procedures.

3.1.3. Thermogravimetric Analysis

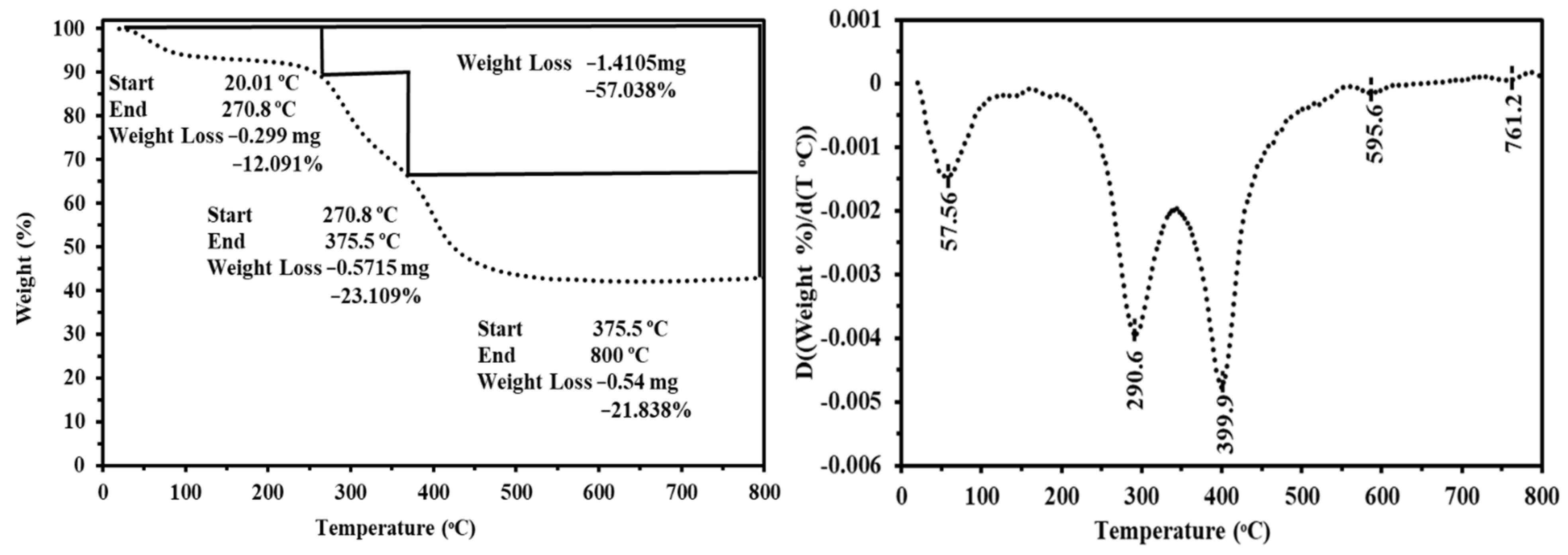

Figure 3 shows the thermally decomposition analysis of MC-TDP sorbent. Three decomposition stages were appeared, the first decomposition stage for the adsorbed water loss (at 270.8 °C); with about 12.09% loss percent, the second loss profile was related to polymer backbone depolymerization, amine degradation, and also for the carbonyl(C=O)/thiocarbonyl(C=S) decompositions; this step ranged to about ~23.1% of total loss and ranged from 270.8 to 375.5 °C. The final profile of decomposition was recorded in the range 375.5 to 496.7 °C, which was assigned to the char formation. The overall loss (totally) of the MC-TDP material is close to 57.038%. On the other hand, the DrTGA has five loss stages (57.56 °C, 290.6 °C, 399.9 °C, 595.6 °C and 761.2 °C) which differ in intensity, as shown in Figure 3. On the other hand, the sorbent was subjected to burning in a vacuum oven, at 900 °C for two hours, and the total loss is around 58.1%, which is close to that obtained from the TGA analysis.

3.1.4. EDX and Elemental Analyses

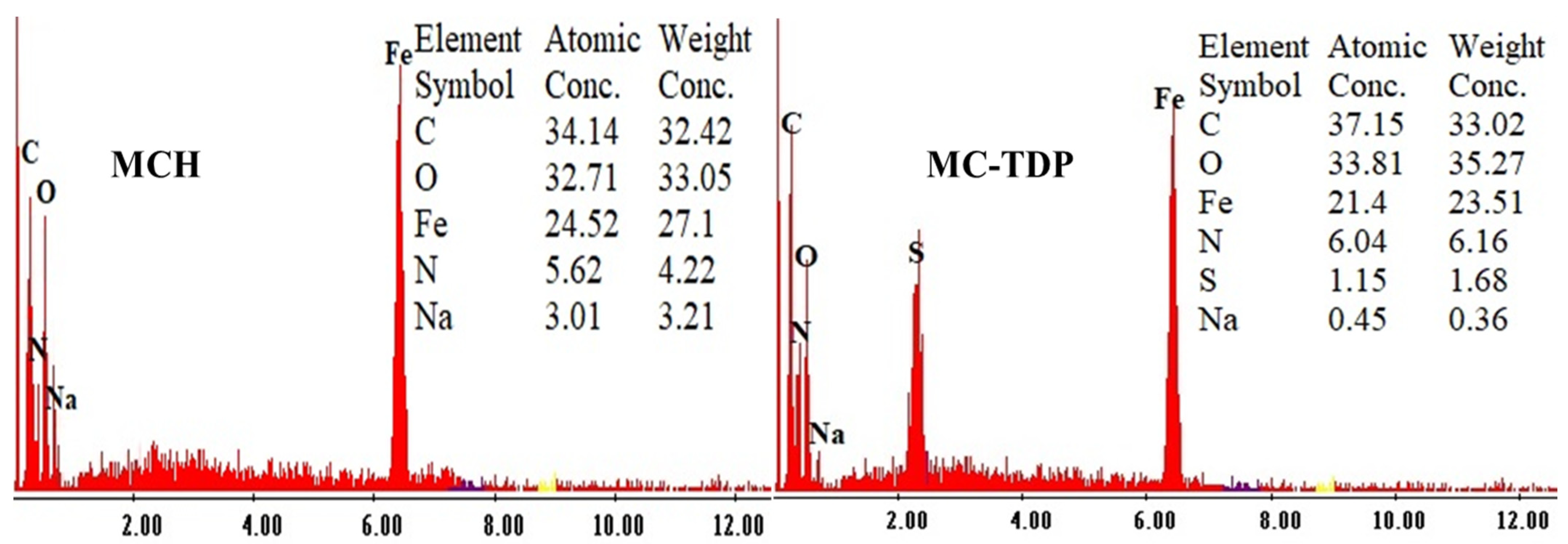

Figure 4 represents the semiquantitative EDX analysis for both sorbents (MCH and MC-TDP). The nonmodified sorbent shows a lower percent of O and N than that of grafted heterocyclic sorbent; on the other hand, the sulfur that appeared in the grafted sorbent confirms the successive grafting of the TDP moiety. It was noteworthy that the presence of Fe ions verifies the stability and nondegradability of magnetite during synthesis, while also decreasing the Fe% in the MC-TDP more than that measured in MCH, which is due to the relative increase in the hydrocarbon constituents. The elemental analysis data is shown in Table 1, which illustrates the increase in N and O contents for the MC-TDP composite (5.63 and 32.96% for MCH-TDP, respectively), compared to the MCH composite (MCH; 3.98 and 27.14%, respectively), while sulfur appeared with 1.11% in MC-TDP, which in turn proves the successive grafting of the TDP substrates.

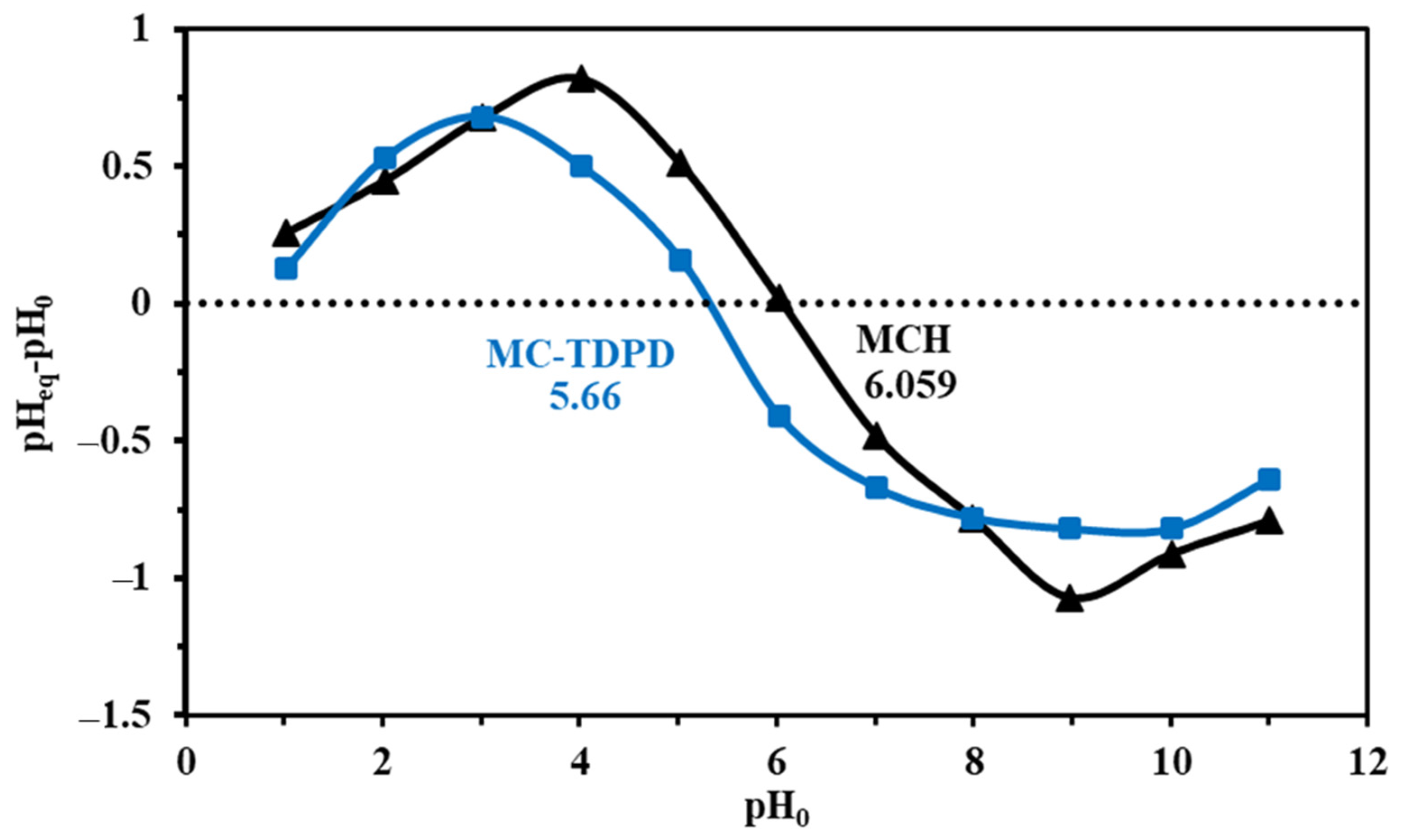

3.1.5. Surface Charge Analysis—pHPZC

As shown in the synthetic procedures (Schemes S1–S3), the combination of heterocyclic moieties at the chitosan surface changes in the amine environment (that used in the grafting procedure, and that derived from the grafted pyrimidine derivative) and creation of sulfur-based materials from the heterocyclic derivatives leads to a change in the acid base characterization. Figure 5 shows the pHpzc results of both sorbents (MCH and MC-TDP) by investigation of the pH (drift method). The pHPZC was apparently changed (from 6.059 to 5.66) with the modification from MCH to MC-TDP, respectively, by successive addition of the TDP substrate. This illustrated the completed deprotonation of the sorbent after these values smarten the electron pairs for chelation to the positively charged metal ions (or complexes) in which the functional groups were bearing a negative charge.

3.2. Sorption Properties in Synthetic Solutions

3.2.1. pH Effect

Figure S3 shows the distribution of chromium species under the selected experimental conditions. The pH values have a significant effects on the dissociation of active groups, which exists at the sorbent surface that is used for metal binding; on the other hand, the pH also affects the metal speciation. At acidic values of pH, CrO3SO42, Cr2O72− and HCrO4− are the most common anionic chromium species that are found in the solution, while at pH > 5, CrO42− appeared and predominates at pH > 6.46.

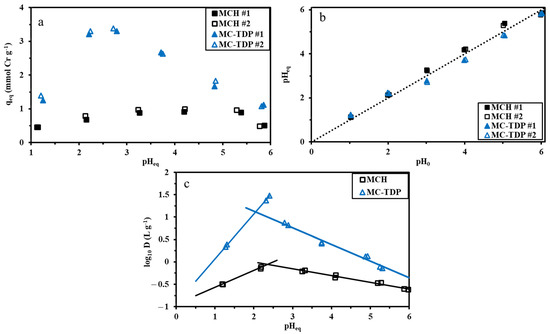

Figure 6a compares the sorption capacities of both duplicated experiments (for reproducibility) as a function of pH equilibrium (pHeq) for both MC-TDP (functionalized chitosan NP) and MCH (reference crosslinked chitosan particles).
From the identification of sorption values of both experiments, it was concluded there was a successive reproducibility of the sorbents. Enhancing sorption as pH increased (maximum values at pH 3–4) is due to increasing the negatively charged chromate complex species with the positively charged functional groups on the sorbent surface. The increase in sorption performance as functionalization was performed, compared to the non-functionalized composite, shows the valorization of the grafting procedure. On the other hand, the sorption capacity raised from 0.9 to 3.34 mmol Cr g−1 for crosslinked chitosan (MCH) and modified sorbent (MC-TDP), respectively, at pH 4 and pH 3 for the two sorbents, respectively; this can be an assisting factor for the recovery of chromate ions in the acidic medium [68,69]. Vieira et al. [70] found efficient reduction results of the chromate ions on various types of membrane of chitosan. Figure 6b shows the pH variation to be higher by around 0.4 and lower by around 0.3 for the MCH (reference material) and MC-TDP (functionalized sorbent), respectively. Figure 6c reports the results of plotting (log10 D units) and pHeq. The results curves are split into two different sections. The determined slope for each section shows the curves with acidic medium +0.35 for MCH and +0.62 for MC-TDP. The slope data were calculated (for the right side) to be close to −0.13 for MCH and −0.35 MC-TDP, which indicates the use of ion exchange in the sorption procedure during Cr adsorption.

3.2.2. Uptake Kinetics

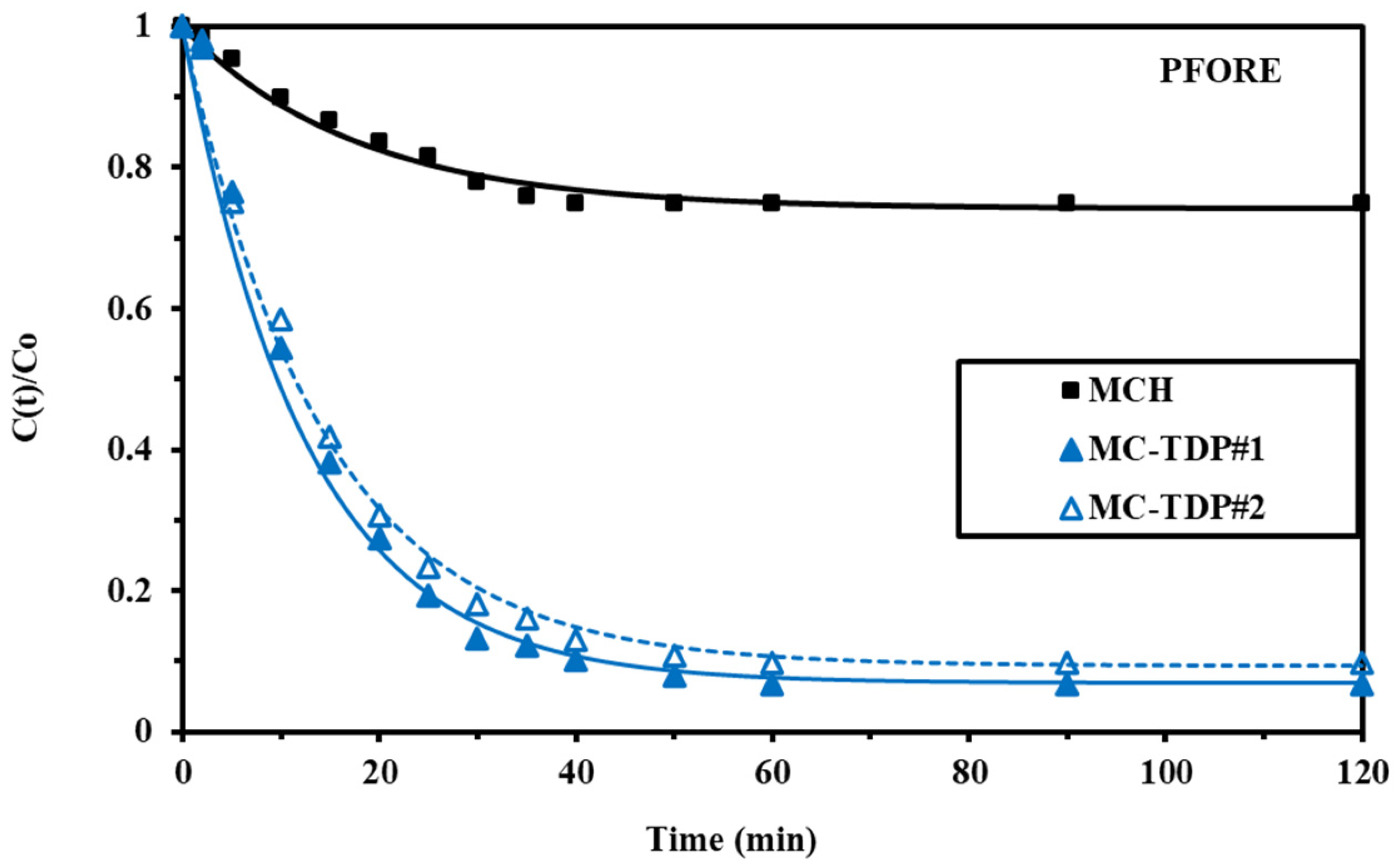

Figure 7 shows the sorption kinetics of both MCH and MC-TDP sorbents at different time periods (pHin 3). It shows that the maximum equilibrium was achieved during the first 60 min and 35 min for the MCH (the reference material) and the functionalized sorbent (MC-TDP), respectively; this time is sufficient for complete saturation, which reflects the fast sorption kinetics of the modified sorbent compared with the reference material, and it reflects the effect of the modification process on improving the kinetic properties as well as the sorption capacity (as discussed in the pH section). The sorbent was synthesized in nanoscale size with a thin organic layer on the magnetite, which limits the intraparticle diffusion for chromate ions in the pores of the sorbent (not highly porous; see the BET data); this is the reason for the fast sorption kinetics. The models were listed with details in Table S1a, while the equilibrium parameters and capacities (calculated and experimental values) were reported in Table 2. Regardless of the sorption equilibrium (experimental vs. calculated), it confirms that the PFORE (pseudo-first order rate equation) is the most fitted model compared to the PSORE (the pseudo-second order rate equation) and RIDE (resistance to the intraparticle diffusion).
Figure 7 shows the MCH sorption kinetics and the two repeated experiments for MC-TDP, while Figure S4 shows the unfitted models (PSORE and RIDE). Interesting interpretations were discussed by Hubbe [71] and also Simonin [72]. The type of mechanism (physical vs. chemical sorption) should depend on the experimental condition, which controls this type of interaction. As expected from the study, the Cr removal was greater via MC-TDP sorbent than via MCH sorbent.

3.2.3. Sorption Isotherms

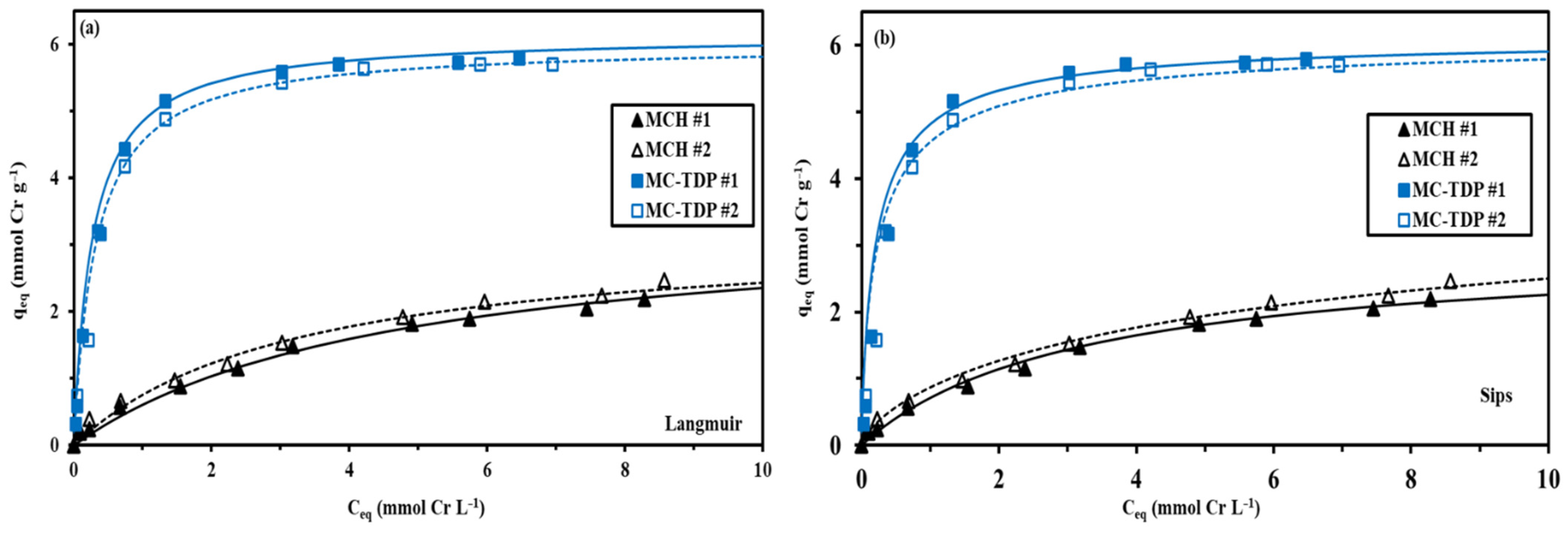

Sorption isotherms are used for evaluation of the process of the sorbent affinities toward metal ion uptake (the residual concentration of chromate) as well as calculating the maximum sorption capacities for each sorbent (MCH and MC-TDP). The parameters which describe the sorption isotherms models are shown in Table S1b. The modified grafted sorbent shows a good steep sorption profile before tendency to saturation plateau. The modified functionalized sorbent (MC-TDP) and the crosslinked chitosan (MCH; the reference material) show a remarkable reproducibility by fitting both sets of experimental data, as represented in Figure 8 of the two repeated experiments. The sorption properties of MC-TDP were compared with the crude material (MCH). The sorption performance is determined, in which it was increased to the maximum and the initial slope is according to MC-TDP > MCH, which follows the same order of the qm as reported in Table 3. The models were fitted by comparing the sorption capacities of the fitted models and the experimental one for evaluation of the sorption isotherms (Langmuir, Freundlich and Sips equations, as reported in Table S1b).
The Langmuir and Sips models were the most fitting of the sorption isotherms, compared to the unfit Freundlich equation (Figure S5). It is noteworthy that the Langmuir equation corresponds to a mechanistic model; in other words, it performed without interaction between sorbent molecules. The Freundlich equation is considered a mathematical equation with the heterogeneous sorption, which has a hypothesis with regard to the possible interactions of the sorbed molecules. The other model (Sips equation) shows the combination between the Freundlich and Langmuir, with the parameter (n) making it easier to fit the data (experimental data).

3.2.4. Interaction Mechanism

From the sorption results (mainly the pH effect, as an example) and the sorbent properties (i.e., the pHpzc, and FTIR analysis) as well as the speciation diagram of chromate ions, it was indicated that the sorbent is completely protonated (check the pHpzc properties) during the optimum sorption properties (pH 4 for the MC-TDP). The interaction was expected to be carried out with the protonated NH and OH (decrease in the intensities of these functional groups as Cr sorption was performed; from the FTIR) and the negatively charged chromate anions. The FTIR also showed the new bands of the protonated ammonium species (1380 cm−1), which emphasized the binding possibility by electrostatic attraction. Scheme S4 shows the binding route of the functionalized chitosan and the chromate ions in the acidic medium, which shows the participation of OH and NH on the sorption mechanism through electrostatic attraction of positively charged functional groups and negatively charged metal species. Equations (1)–(4) show the expected reduction of chromium VI to III for facilitating the sorption properties.
-C-H (org) + Cr(VI) + H2O(aq) = -C-OH(org) + Cr(III) + 2H+
-C=O(org) + Cr(VI) + H2O(aq) = -COOH(org) + Cr (III) + H+
Cr2O72− + 6Fe2+(s) + H2O(aq) + 6H+ = 2Cr3+ + 8OH− + 6Fe3+(s)
Surface C (+) + Cr2O72− = Surface C-Cr2O7 (Surface)
where (s) means solid.

3.2.5. Metal Desorption and Sorbent Recycling

Metal ions desorption and sorbent recycling are the most important parameters for the sorption evaluation process. The recycling process was performed for the both sorbents (MCH and MC-TDP). From previous work [73,74,75], there is limited degradation of magnetic core components (around 1.5%) after 5 cycles by using around 0.5 M HCl solution; herein, 0.2 M HCl is sufficient for complete desorption, so the loss is negligible. Table 4 reports the five cycles of sorption/desorption on the sorbent loading performances. It represents a limited loss in the sorption efficiency: i.e., 3.1 and 2.78% for MCH and MC-TDP, respectively. Thus, the high performance stability of the sorbent was noticeable; this is indicated in the FTIR spectra (Figure 1), which illustrated restoration of the functional groups after being used in the binding to chromate.
Figure S6 compares desorption kinetics of the sorbents collected from the uptake kinetic experiments. It shows the fast desorption process with high performance of desorbing reagent/0.2 M HCl. The complete desorption was reached within 20 min, which is fast compared to the loading processes, thus indicating other advantages of using such sorbents for heavy metal removal and water decontamination.

3.3. Treatment of Tannery Wastewater

The tannery effluents contain a high percent of chromium associated with other elements with the following concentrations: 215.31, 0.117, 0.334, 0.513 and 0.488 mmol M L−1 of Cr(VI), Pb(II), Cd(II), Ni(II) and Co(II), respectively. The chromate ions are in large excess, from 644 times for Cd(II), 1840 times for Pb(II) and around 430 times (±10) for both Co(II) and Ni(II). It is noteworthy that the level of chromate concentration is considered to be too high to create a competitive process for sorption (usually, to make sense of the sorption, the concentration should usually be below around 150 (±50) mg L−1). The chromate is a high concentration to be consumed by the normal sorbent dose (SD: g L−1) as used in the synthetic solutions (around 0.6 g L−1). The high SD was used for efficient removal of chromate ions (around 25 g L−1). Evaluation of the sorption properties was performed by comparing the removal efficiency of grafted sorbent at pH 4. The SC (selectivity coefficients) and the R% (recovering efficiency) are represented in Figure 9 at different SD values. Figure S7 shows the efficient removal of MC-TDP sorbent for the chromium ions.
As expected, as the pH values increased, a high removal efficiency was produced, especially for the modified grafted sorbent. This is due to the protonation of the sorbents at the acidic pH values, which causes a repulsion with chromium (VI) ions (source as sulfate species, which yield a positively charged chromium species (as cations)).

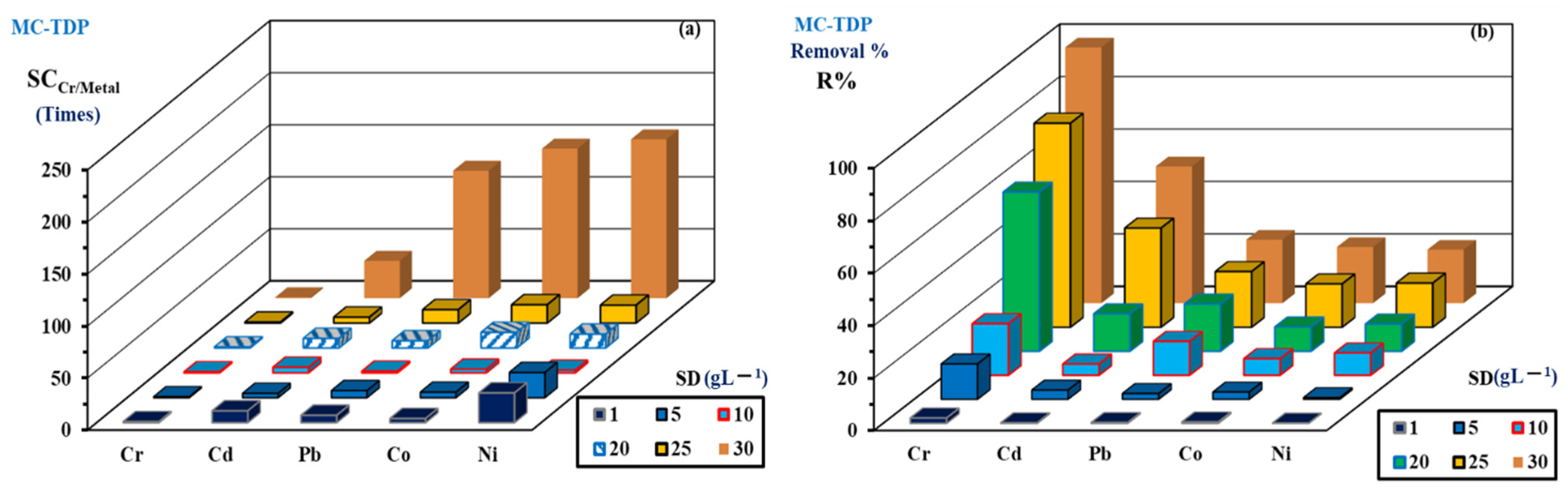

The removal reached 99.57% for MC-TDP at pH 4. In terms of selectivity, it was found that the MC-TDP is around 35–152, and the selectivity (SC) has the order Cd(II), Pb(II), Co(II), and Ni(II), while the recovery has the order Cr(VI), Cd(II), Pb(II), Ni(II), and Co(II).
As expected, the higher SD values of the sorbent with the high complex polymetallic solution made it difficult to reach the standard values for the drinking water, but there was a strong fit with regard to the irrigation and the livestock drinking water levels.

4. Conclusions

This research article shows an itemized overview for biosorption of chromium in a multi-step study, providing in detail the sorption efficiency of Cr ions. The modified chitosan sorbent grafted with synthesized heterocyclic pyrimidine derivative from cyclization reaction of diethyl malonate and thiourea was successfully grafted on activated chitosan to produce MC-TDP sorbent. The synthesized sorbent was investigated by mass spectroscopy, FTIR, BET (surface area), TGA, EA, SEM and SEM-EDX analyses. The effect of sorption parameters (pH effect, uptake kinetics and sorption isotherms) was investigated, and the removal efficiency toward Cr(VI) were evaluated through application on synthetic and nature tannery effluent solution. The biosorption kinetics and the related models of equilibrium were also discussed. The sorption kinetics of MC-TDP is around 45 min with the PFORE fitted model, in which the Langmuir and Sips equations fit the sorption isotherms. The maximum sorption for the MC-TDP is close to 5.7 mmol Cr(VI) g−1 compared to 1.97 mmol Cr(VI) g−1 for the crosslinked chitosan MCH (as reference material, sorbent without functionalization). This sorbent was tested for Cr recovery from a polymetallic contaminated tannery effluent solution. The results showed its good efficiency in the removal process by application of high sorbent doses (SD; around 25–30 g L−1). The sorbent shows promising results for the decontamination of waste water. Overall, researchers can use this article to gain fundamental and valuable knowledge, which in turn will be helpful in their planned related research for Cr removal or water treatment technology.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma15134676/s1, Table S1. (a) Modeling of uptake kinetics [76,77,78]. (b) Modeling of sorption isotherms [79,80]; Table S2: Cost evaluations of 10 g MC-TDP sorbent for treatment of Cr(VI) ions; Table S3: FTIR characterization of thiourea, TDP, MC-TDP, after sorption and after five cycles of sorption–desorption; Scheme S1: Synthesis of 2-thioxodihydropyrimidine-4,6(1H,5H)-dione: TDP; Scheme S2: synthesis of chitosan nanoparticles and activated chitosan (spacer arm); Scheme S3: Synthesis of grafted TDP chitosan nanoparticles; Scheme S4. Expected binding mechanism of chromate ions with MC-TDP sorbent at acidic pH medium; Figure S1: Completed data of the mass spectroscopy for the TDP moiety; Figure S2: SEM (a) and TEM (b) graphs of MCH and MC-TDP sorbents and the effect of external magnet on the modified sorbent (c); Figure S3: Cr(VI) species at pH 1-9; Figure S4: Unfitted uptake Cr(VI) kinetics on MCH, and MC-TDP Modeling with the PSORE (a) and RIDE (b); Figure S5. Freundlich modeling equations of sorption isotherms for Cr(VI) using MCH, MC-TDP; Figure S6; Desorption kinetics of MCH and MC-TDP sorbents; Figure S7: Removal efficient of Cr(VI) using MCH and MC-TDP. References [49,73,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100] are cited in the supplementary materials.

Author Contributions

Conceptualization, methodology, M.F.H., K.A, A.F. and N.A.H.; software, and validation, K.A., A.F., Y.W. and N.A.H.; formal analysis, Y.W. and A.F., resources and investigation, M.F.H., K.A. and N.A.H.; data curation, K.A. and A.F.; writing—original draft preparation, M.F.H., A.F. and N.A.H.; writing—review and editing, M.F.H. and N.A.H.; visualization, M.F.H., K.A. and N.A.H.; project administration, M.F.H., and Y.W. funding acquisition, Y.W. and N.A.H.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hamza, M.F.; Salih, K.A.; Zhou, K.; Wei, Y.; Khoziem, H.A.A.; Alotaibi, S.H.; Guibal, E. Effect of bi-functionalization of algal/polyethyleneimine composite beads on the enhancement of tungstate sorption: Application to metal recovery from ore leachate. Sep. Purif. Technol. 2022, 290, 120893. [Google Scholar] [CrossRef]
  2. Hamza, M.F.; Adel, A.-H.; Hawata, M.A.; El Araby, R.; Guibal, E.; Fouda, A.; Wei, Y.; Hamad, N.A. Functionalization of magnetic chitosan microparticles–Comparison of trione and trithione grafting for enhanced silver sorption and application to metal recovery from waste X-ray photographic films. J. Environ. Chem. Eng. 2022, 10, 107939. [Google Scholar] [CrossRef]
  3. Fu, F.; Wang, Q. Removal of heavy metal ions from wastewaters: A review. J. Environ. Manag. 2011, 92, 407–418. [Google Scholar] [CrossRef]
  4. Orooji, Y.; Nezafat, Z.; Nasrollahzadeh, M.; Kamali, T.A. Polysaccharide-based (nano) materials for Cr (VI) removal. Int. J. Biol. Macromol. 2021, 188, 950–973. [Google Scholar] [CrossRef]
  5. Hamza, M.F.; Mira, H.; Wei, Y.; Aboelenin, S.M.; Guibal, E.; Salem, W.M. Sulfonation of chitosan for enhanced sorption of Li (I) from acidic solutions–Application to metal recovery from waste Li-ion mobile battery. Chem. Eng. J. 2022, 441, 135941. [Google Scholar] [CrossRef]
  6. Hamza, M.F.; Lu, S.; Salih, K.A.; Mira, H.; Dhmees, A.S.; Fujita, T.; Wei, Y.; Vincent, T.; Guibal, E. As (V) sorption from aqueous solutions using quaternized algal/polyethyleneimine composite beads. Sci. Total Environ. 2020, 719, 137396. [Google Scholar] [CrossRef] [PubMed]
  7. Manas, P.; Sajitha, C.M. Synthesis of Various Polymer Membranes and Application in the Removal of Heavy Metals from Waste Water. In Proceedings of the the 2021 International Conference on Emerging Trends in Engineering, Kozhikode, India, 24–26 September 2021. [Google Scholar]
  8. Hamza, M.F.; Hamad, D.M.; Hamad, N.A.; Adel, A.-H.; Fouda, A.; Wei, Y.; Guibal, E.; El-Etrawy, A.-A.S. Functionalization of magnetic chitosan microparticles for high-performance removal of chromate from aqueous solutions and tannery effluent. Chem. Eng. J. 2022, 428, 131775. [Google Scholar] [CrossRef]
  9. Vareda, J.P.; Valente, A.J.; Durães, L. Assessment of heavy metal pollution from anthropogenic activities and remediation strategies: A review. J. Environ. Manag. 2019, 246, 101–118. [Google Scholar] [CrossRef]
  10. Zamora-Ledezma, C.; Negrete-Bolagay, D.; Figueroa, F.; Zamora-Ledezma, E.; Ni, M.; Alexis, F.; Guerrero, V.H. Heavy metal water pollution: A fresh look about hazards, novel and conventional remediation methods. Environ. Technol. Innov. 2021, 22, 101504. [Google Scholar] [CrossRef]
  11. Fernández, P.M.; Fariña, J.I.; Figueroa, L.I. The significance of inoculum standardization and cell density on the Cr (VI) removal by environmental yeast isolates. Water Air Soil Pollut. 2010, 212, 275–279. [Google Scholar] [CrossRef]
  12. Cardinale, A.M.; Carbone, C.; Consani, S.; Fortunato, M.; Parodi, N. Layered double hydroxides for remediation of industrial wastewater from a galvanic plant. Crystals 2020, 10, 443. [Google Scholar] [CrossRef]
  13. Nthumbi, R.M.; Ngila, J.C.; Moodley, B.; Kindness, A.; Petrik, L. Application of chitosan/polyacrylamide nanofibres for removal of chromate and phosphate in water. Phys. Chem. Earth Parts A/B/C 2012, 50, 243–251. [Google Scholar] [CrossRef]
  14. Lee, M.Y.; Hong, K.J.; Shin-Ya, Y.; Kajiuchi, T. Adsorption of hexavalent chromium by chitosan-based polymeric surfactants. J. Appl. Polym. Sci. 2005, 96, 44–50. [Google Scholar] [CrossRef]
  15. Fouda, A.; Hassan, S.E.-D.; Abdel-Rahman, M.A.; Farag, M.M.; Shehal-Deen, A.; Mohamed, A.A.; Alsharif, S.M.; Saied, E.; Moghanim, S.A.; Azab, M.S. Catalytic degradation of wastewater from the textile and tannery industries by green synthesized hematite (α-Fe2O3) and magnesium oxide (MgO) nanoparticles. Curr. Res. Biotechnol. 2021, 3, 29–41. [Google Scholar] [CrossRef]
  16. Fouda, A.; Hassan, S.E.-D.; Saied, E.; Hamza, M.F. Photocatalytic degradation of real textile and tannery effluent using biosynthesized magnesium oxide nanoparticles (MgO-NPs), heavy metal adsorption, phytotoxicity, and antimicrobial activity. J. Environ. Chem. Eng. 2021, 9, 105346. [Google Scholar] [CrossRef]
  17. Hassan, S.E.-D.; Fouda, A.; Saied, E.; Farag, M.; Eid, A.M.; Barghoth, M.G.; Awad, M.A.; Hamza, M.F.; Awad, M.F. Rhizopus Oryzae-mediated green synthesis of magnesium oxide nanoparticles (MgO-NPs): A promising tool for antimicrobial, mosquitocidal action, and tanning effluent treatment. J. Fungi 2021, 7, 372. [Google Scholar] [CrossRef]
  18. Singh, P.; Itankar, N.; Patil, Y. Biomanagement of hexavalent chromium: Current trends and promising perspectives. J. Environ. Manag. 2021, 279, 111547. [Google Scholar] [CrossRef]
  19. Yao, F.; Jia, M.; Yang, Q.; Luo, K.; Chen, F.; Zhong, Y.; He, L.; Pi, Z.; Hou, K.; Wang, D.; et al. Electrochemical Cr(VI) removal from aqueous media using titanium as anode: Simultaneous indirect electrochemical reduction of Cr(VI) and in-situ precipitation of Cr(III). Chemosphere 2020, 260, 127537. [Google Scholar] [CrossRef]
  20. Tang, X.; Wu, H.; Quan, X.; Feng, C.; Li, G.; Qiu, F. Separation of sodium chromate from high alkaline media based on precipitation transformation using barium hydroxide. New J. Chem. 2020, 44, 12048–12057. [Google Scholar] [CrossRef]
  21. Gallios, G.P.; Vaclavikova, M. Removal of chromium (VI) from water streams: A thermodynamic study. Environ. Chem. Lett. 2008, 6, 235–240. [Google Scholar] [CrossRef]
  22. Kumar, V.; Dwivedi, S.K. Hexavalent chromium reduction ability and bioremediation potential of Aspergillus flavus CR500 isolated from electroplating wastewater. Chemosphere 2019, 237, 124567. [Google Scholar] [CrossRef] [PubMed]
  23. Mubeena, K.; Muthuraman, G. Extraction and stripping of Cr(VI) from aqueous solution by solvent extraction. Desalin. Water Treat. 2015, 55, 2201–2208. [Google Scholar] [CrossRef]
  24. Senol, A. Extractive removal, of Cr(VI) from aqueous acidic media by aliquat 336/xylene system: Optimization and modelling of equilibrium. Indian J. Chem. Technol. 2017, 24, 269–283. [Google Scholar]
  25. Kabay, N.; Solak, O.; Arda, M.; Topal, U.; Yuksel, M.; Trochimczuk, A.; Streat, M. Packed column study of the sorption of hexavalent chromium by novel solvent impregnated resins containing aliquat 336: Effect of chloride and sulfate ions. React. Funct. Polym. 2005, 64, 75–82. [Google Scholar] [CrossRef]
  26. El-Hussaini, O.M.; Lasheen, T.A.; Helmy, E.M.; Hady, M.A.; Manaa, A.-S.A. Liquid-liiquid extraction/recovery of chromium(VI) from some industrial waste solutions using Alamine 336 in kerosene. J. Dispers. Sci. Technol. 2012, 33, 1179–1187. [Google Scholar] [CrossRef]
  27. Morales, D.V.; Kusku, O.; Rivas, B.L.; Arda, M.; Kabay, N.; Bryjak, M. Removal of Cr(VI) by stabilized solvent impregnated resin (SIR) prepared by using a hydrophilic polymer adsorbent and Aliquat 336. J. Chil. Chem. Soc. 2019, 64, 4432–4436. [Google Scholar] [CrossRef] [Green Version]
  28. Nogueira, H.P.; Toma, S.H.; Silveira, A.T.; Carvalho, A.A.C.; Fioroto, A.M.; Araki, K. Efficient Cr(VI) removal from wastewater by activated carbon superparamagnetic composites. Microchem. J. 2019, 149, 104025. [Google Scholar] [CrossRef]
  29. Sultana, Q.; Naeem, A.; Mahmood, T.; Din, I.U.; Saeed, T.; Khan, N.; Ahmad, T. Sorption studies of chromate by iron oxide from drinking water. Z. Phys. Chem. 2021, 235, 407–425. [Google Scholar] [CrossRef]
  30. Leung, W.C.; Wong, M.-F.; Chua, H.; Lo, W.; Yu, P.; Leung, C. Removal and recovery of heavy metals by bacteria isolated from activated sludge treating industrial effluents and municipal wastewater. Water Sci. Technol. 2000, 41, 233–240. [Google Scholar] [CrossRef]
  31. Saheed, I.O.; Da Oh, W.; Suah, F.B.M. Chitosan modifications for adsorption of pollutants—A review. J. Hazard. Mater. 2021, 408, 124889. [Google Scholar] [CrossRef]
  32. Wen, R.; Tu, B.; Guo, X.; Hao, X.; Wu, X.; Tao, H. An ion release controlled Cr (VI) treatment agent: Nano zero-valent iron/carbon/alginate composite gel. Int. J. Biol. Macromol. 2020, 146, 692–704. [Google Scholar] [CrossRef] [PubMed]
  33. Hamza, M.F.; Hamad, N.A.; Hamad, D.M.; Khalafalla, M.S.; Abdel-Rahman, A.A.-H.; Zeid, I.F.; Wei, Y.; Hessien, M.M.; Fouda, A.; Salem, W.M. Synthesis of Eco-Friendly Biopolymer, Alginate-Chitosan Composite to Adsorb the Heavy Metals, Cd (II) and Pb (II) from Contaminated Effluents. Materials 2021, 14, 2189. [Google Scholar] [CrossRef] [PubMed]
  34. Saied, E.; Eid, A.M.; Hassan, S.E.-D.; Salem, S.S.; Radwan, A.A.; Halawa, M.; Saleh, F.M.; Saad, H.A.; Saied, E.M.; Fouda, A. The Catalytic Activity of Biosynthesized Magnesium Oxide Nanoparticles (MgO-NPs) for Inhibiting the Growth of Pathogenic Microbes, Tanning Effluent Treatment, and Chromium Ion Removal. Catalysts 2021, 11, 821. [Google Scholar] [CrossRef]
  35. Fouda, A.; Awad, M.A.; AL-Faifi, Z.E.; Gad, M.E.; Al-Khalaf, A.A.; Yahya, R.; Hamza, M.F. Aspergillus flavus-Mediated Green Synthesis of Silver Nanoparticles and Evaluation of Their Antibacterial, Anti-Candida, Acaricides, and Photocatalytic Activities. Catalysts 2022, 12, 462. [Google Scholar] [CrossRef]
  36. Chang, Y.-C.; Chen, D.-H. Preparation and adsorption properties of monodisperse chitosan-bound Fe3O4 magnetic nanoparticles for removal of Cu (II) ions. J. Colloid Interface Sci. 2005, 283, 446–451. [Google Scholar] [CrossRef] [PubMed]
  37. Di Bello, M.P.; Lazzoi, M.R.; Mele, G.; Scorrano, S.; Mergola, L.; Del Sole, R. A new ion-imprinted chitosan-based membrane with an azo-derivative ligand for the efficient removal of Pd (II). Materials 2017, 10, 1133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Knaul, J.Z.; Creber, K.A. Coagulation rate studies of spinnable chitosan solutions. J. Appl. Polym. Sci. 1997, 66, 117–127. [Google Scholar] [CrossRef]
  39. Tseng, H.; Furuhata, K.-i.; Sakamoto, M. Bromination of regenerated chitin with N-bromosuccinimide and triphenylphosphine under homogeneous conditions in lithium bromide-N, N-dimethylacetamide. Carbohydr. Res. 1995, 270, 149–161. [Google Scholar] [CrossRef]
  40. Hamza, M.F.; Ahmed, F.Y.; El-Aassy, I.; Fouda, A.; Guibal, E. Groundwater purification in a polymetallic mining area (SW Sinai, Egypt) using functionalized magnetic chitosan particles. Water Air Soil Pollut. 2018, 229, 1–14. [Google Scholar] [CrossRef]
  41. Hamza, M.F.; Goda, A.E.-S.; Ning, S.; Mira, H.I.; Abdel-Rahman, A.A.-H.; Wei, Y.; Fujita, T.; Amer, H.H.; Alotaibi, S.H.; Fouda, A. Photocatalytic Efficacy of Heterocyclic Base Grafted Chitosan Magnetite Nanoparticles on Sorption of Pb (II); Application on Mining Effluent. Catalysts 2022, 12, 330. [Google Scholar] [CrossRef]
  42. Kyzas, G.Z.; Bikiaris, D.N. Recent modifications of chitosan for adsorption applications: A critical and systematic review. Mar. Drugs 2015, 13, 312–337. [Google Scholar] [CrossRef]
  43. Li, N.; Bai, R. Copper adsorption on chitosan–cellulose hydrogel beads: Behaviors and mechanisms. Sep. Purif. Technol. 2005, 42, 237–247. [Google Scholar] [CrossRef]
  44. Chokradjaroen, C.; Theeramunkong, S.; Yui, H.; Saito, N.; Rujiravanit, R. Cytotoxicity against cancer cells of chitosan oligosaccharides prepared from chitosan powder degraded by electrical discharge plasma. Carbohydr. Polym. 2018, 201, 20–30. [Google Scholar] [CrossRef] [PubMed]
  45. Ibrahim, M.; Osman, O.; Mahmoud, A.A. Spectroscopic analyses of cellulose and chitosan: FTIR and modeling approach. J. Comput. Theor. Nanosci. 2011, 8, 117–123. [Google Scholar] [CrossRef]
  46. Kumar, M.R.; Muzzarelli, R.A.; Muzzarelli, C.; Sashiwa, H.; Domb, A. Chitosan chemistry and pharmaceutical perspectives. Chem. Rev. 2004, 104, 6017–6084. [Google Scholar] [CrossRef]
  47. Mourya, V.; Inamdar, N.N. Chitosan-modifications and applications: Opportunities galore. React. Funct. Polym. 2008, 68, 1013–1051. [Google Scholar] [CrossRef]
  48. Gupta, K.C.; Jabrail, F.H. Glutaraldehyde and glyoxal cross-linked chitosan microspheres for controlled delivery of centchroman. Carbohydr. Res. 2006, 341, 744–756. [Google Scholar] [CrossRef]
  49. Hamza, M.F.; Abdel-Rahman, A.A.-H.; Negm, A.S.; Hamad, D.M.; Khalafalla, M.S.; Fouda, A.; Wei, Y.; Amer, H.H.; Alotaibi, S.H.; Goda, A.E.-S. Grafting of Thiazole Derivative on Chitosan Magnetite Nanoparticles for Cadmium Removal—Application for Groundwater Treatment. Polymers 2022, 14, 1240. [Google Scholar] [CrossRef]
  50. Dai, X.; Nhung, N.T.H.; Hamza, M.F.; Guo, Y.; Chen, L.; He, C.; Ning, S.; Wei, Y.; Dodbiba, G.; Fujita, T. Selective adsorption and recovery of scandium from red mud leachate by using phosphoric acid pre-treated pitaya peel biochar. Sep. Purif. Technol. 2022, 292, 121043. [Google Scholar] [CrossRef]
  51. Hamza, M.F.; Roux, J.-C.; Guibal, E. Uranium and europium sorption on amidoxime-functionalized magnetic chitosan micro-particles. Chem. Eng. J. 2018, 344, 124–137. [Google Scholar] [CrossRef]
  52. Minet, E.P.; O’Carroll, C.; Rooney, D.; Breslin, C.; McCarthy, C.; Gallagher, L.; Richards, K. Slow delivery of a nitrification inhibitor (dicyandiamide) to soil using a biodegradable hydrogel of chitosan. Chemosphere 2013, 93, 2854–2858. [Google Scholar] [CrossRef] [PubMed]
  53. Wang, X.; Deng, W.; Xie, Y.; Wang, C. Selective removal of mercury ions using a chitosan–poly (vinyl alcohol) hydrogel adsorbent with three-dimensional network structure. Chem. Eng. J. 2013, 228, 232–242. [Google Scholar] [CrossRef]
  54. Wang, X.; Zheng, Y.; Wang, A. Fast removal of copper ions from aqueous solution by chitosan-g-poly (acrylic acid)/attapulgite composites. J. Hazard. Mater. 2009, 168, 970–977. [Google Scholar] [CrossRef]
  55. Sun, S.; Wang, L.; Wang, A. Adsorption properties of crosslinked carboxymethyl-chitosan resin with Pb (II) as template ions. J. Hazard. Mater. 2006, 136, 930–937. [Google Scholar] [CrossRef]
  56. Guo, T.; Xia, Y.; Hao, G.; Song, M.; Zhang, B. Adsorptive separation of hemoglobin by molecularly imprinted chitosan beads. Biomaterials 2004, 25, 5905–5912. [Google Scholar] [CrossRef] [PubMed]
  57. Hamza, M.F.; Wei, Y.; Mira, H.; Adel, A.-H.; Guibal, E. Synthesis and adsorption characteristics of grafted hydrazinyl amine magnetite-chitosan for Ni (II) and Pb (II) recovery. Chem. Eng. J. 2019, 362, 310–324. [Google Scholar] [CrossRef] [Green Version]
  58. Hamza, M.F. Grafting of quaternary ammonium groups for uranium (VI) recovery: Application on natural acidic leaching liquor. J. Radioanal. Nucl. Chem. 2019, 322, 519–532. [Google Scholar] [CrossRef]
  59. Hamza, M.F.; Abdel-Rahman, A.A.-H. Extraction studies of some hazardous metal ions using magnetic peptide resins. J. Dispers. Sci. Technol. 2015, 36, 411–422. [Google Scholar] [CrossRef]
  60. Zahra, M.H.; Hamza, M.F.; El-Habibi, G.; Abdel-Rahman, A.A.-H.; Mira, H.I.; Wei, Y.; Alotaibi, S.H.; Amer, H.H.; Goda, A.E.-S.; Hamad, N.A. Synthesis of a Novel Adsorbent Based on Chitosan Magnetite Nanoparticles for the High Sorption of Cr (VI) ions: A Study of Photocatalysis and Recovery on Tannery Effluents. Catalysts 2022, 12, 678. [Google Scholar] [CrossRef]
  61. Massart, R. Preparation of aqueous magnetic liquids in alkaline and acidic media. IEEE Trans. Magn. 1981, 17, 1247–1249. [Google Scholar] [CrossRef]
  62. Lopez-Ramon, M.V.; Stoeckli, F.; Moreno-Castilla, C.; Carrasco-Marin, F. On the characterization of acidic and basic surface sites on carbons by various techniques. Carbon 1999, 37, 1215–1221. [Google Scholar] [CrossRef]
  63. Hamza, M.F.; Khalafalla, M.S.; Wei, Y.; Hamad, N.A. Effect of bi-functionalization silica micro beads on uranium adsorption from synthetic and washing pregnant uranyl solutions. J. Radioanal. Nucl. Chem. 2021, 330, 191–206. [Google Scholar] [CrossRef]
  64. Hamza, M.F.; Wei, Y.; Khalafalla, M.S.; Abed, N.S.; Fouda, A.; Elwakeel, K.Z.; Guibal, E.; Hamad, N.A. U (VI) and Th (IV) recovery using silica beads functionalized with urea-or thiourea-based polymers–Application to ore leachate. Sci. Total Environ. 2022, 821, 153184. [Google Scholar] [CrossRef] [PubMed]
  65. Hamza, M.F.; Gamal, A.; Hussein, G.; Nagar, M.S.; Abdel-Rahman, A.A.H.; Wei, Y.; Guibal, E. Uranium (VI) and zirconium (IV) sorption on magnetic chitosan derivatives–effect of different functional groups on separation properties. J. Chem. Technol. Biotechnol. 2019, 94, 3866–3882. [Google Scholar] [CrossRef]
  66. Hamza, M.F.; Salih, K.A.M.; Abdel-Rahman, A.A.H.; Zayed, Y.E.; Wei, Y.; Liang, J.; Guibal, E. Sulfonic-functionalized algal/PEI beads for scandium, cerium and holmium sorption from aqueous solutions (synthetic and industrial samples). Chem. Eng. J. 2021, 403, 126399. [Google Scholar] [CrossRef]
  67. Hamza, M.F.; Fouda, A.; Wei, Y.; El Aassy, I.E.; Alotaibi, S.H.; Guibal, E.; Mashaal, N.M. Functionalized biobased composite for metal decontamination–Insight on uranium and application to water samples collected from wells in mining areas (Sinai, Egypt). Chem. Eng. J. 2022, 431, 133967. [Google Scholar] [CrossRef]
  68. Kim, J.-H.; Kim, J.-H.; Bokare, V.; Kim, E.-J.; Chang, Y.-Y.; Chang, Y.-S. Enhanced removal of chromate from aqueous solution by sequential adsorption-reduction on mesoporous iron-iron oxide nanocomposites. J. Nanopart. Res. 2012, 14, 1010. [Google Scholar] [CrossRef]
  69. Wojcik, G.; Hubicki, Z. Sorption and reduction of chromate(VI) ions on Purolite A 830. Sep. Sci. Technol. 2016, 51, 2539–2546. [Google Scholar] [CrossRef]
  70. Vieira, R.S.; Meneghetti, E.; Baroni, P.; Guibal, E.; Gonzalez de la Cruz, V.M.; Caballero, A.; Rodriguez-Castellon, E.; Beppu, M.M. Chromium removal on chitosan-based sorbents—An EXAFS/XANES investigation of mechanism. Mater. Chem. Phys. 2014, 146, 412–417. [Google Scholar] [CrossRef]
  71. Hubbe, M.A.; Azizian, S.; Douven, S. Implications of apparent pseudo-second-order adsorption kinetics onto cellulosic materials: A review. BioResources 2019, 14, 7582–7626. [Google Scholar] [CrossRef]
  72. Simonin, J.-P. On the comparison of pseudo-first order and pseudo-second order rate laws in the modeling of adsorption kinetics. Chem. Eng. J. 2016, 300, 254–263. [Google Scholar] [CrossRef] [Green Version]
  73. Hamza, M.F.; Wei, Y.; Benettayeb, A.; Wang, X.; Guibal, E. Efficient removal of uranium, cadmium and mercury from aqueous solutions using grafted hydrazide-micro-magnetite chitosan derivative. J. Mater. Sci. 2020, 55, 4193–4212. [Google Scholar] [CrossRef]
  74. Hamza, M.F.; Aly, M.M.; Abdel-Rahman, A.A.-H.; Ramadan, S.; Raslan, H.; Wang, S.; Vincent, T.; Guibal, E. Functionalization of magnetic chitosan particles for the sorption of U (VI), Cu (II) and Zn (II)—Hydrazide derivative of glycine-grafted chitosan. Materials 2017, 10, 539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Benettayeb, A.; Morsli, A.; Elwakeel, K.Z.; Hamza, M.F.; Guibal, E. Recovery of heavy metal ions using magnetic glycine-modified chitosan—application to aqueous solutions and tailing leachate. Appl. Sci. 2021, 11, 8377. [Google Scholar] [CrossRef]
  76. Crank, J. The Mathematics of Diffusion, 2nd ed.; Oxford University Press: Oxford, UK, 1975; p. 414. [Google Scholar]
  77. Ho, Y.S.; McKay, G. Pseudo-second order model for sorption processes. Process Biochem. 1999, 34, 451–465. [Google Scholar] [CrossRef]
  78. Zhang, R.; Leiviska, T. Surface modification of pine bark with quaternary ammonium groups and its use for vanadium removal. Chem. Eng. J. 2020, 385, 123967. [Google Scholar] [CrossRef]
  79. Freundlich, H.M.F. Uber die adsorption in lasungen. Z. Phys. Chem. 1906, 57, 385–470. [Google Scholar]
  80. Tien, C. Adsorption Calculations and Modeling; Butterworth-Heinemann: Newton, MA, USA, 1994; p. 243. [Google Scholar]
  81. Hamza, M.F.; Abdel-Rahman, A.A.H.; Guibal, E. Magnetic glutamine-grafted polymer for the sorption of U (VI), Nd (III) and Dy (III). J. Chem. Technol. Biotechnol. 2018, 93, 1790–1806. [Google Scholar] [CrossRef]
  82. Hamza, M.F. Uranium recovery from concentrated chloride solution produced from direct acid leaching of calcareous shale, Allouga ore materials, southwestern Sinai, Egypt. J. Radioanal. Nucl. Chem. 2018, 315, 613–626. [Google Scholar] [CrossRef]
  83. Jin, W.; Shen, D.; Liu, Q.; Xiao, R. Evaluation of the co-pyrolysis of lignin with plastic polymers by TG-FTIR and Py-GC/MS. Polym. Degrad. Stab. 2016, 133, 65–74. [Google Scholar] [CrossRef]
  84. Hamza, M.F.; Mahfouz, M.G.; Abdel-Rahman, A.A.-H. Adsorption of uranium (VI) ions on hydrazinyl amine and 1, 3, 4-thiadiazol-2 (3 H)-thion chelating resins. J. Dispers. Sci. Technol. 2012, 33, 1544–1551. [Google Scholar] [CrossRef]
  85. Hamza, M.F.; Wei, Y.; Guibal, E. Quaternization of algal/PEI beads (a new sorbent): Characterization and application to scandium sorption from aqueous solutions. Chem. Eng. J. 2020, 383, 123210. [Google Scholar] [CrossRef]
  86. Coates, J. Interpretation of Infrared Spectra, A Practical Approach. In Encyclopedia of Analytical Chemistry; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2006; pp. 1–23. [Google Scholar]
  87. Piasek, Z.; Urbanski, T. The infra-red absorption spectrum and structure of urea. Bull. Acad. Pol. Sci. 1962, X, 113–120. [Google Scholar]
  88. Manivannan, M.; Rajendran, S. Investigation of inhibitive action of urea-Zn2+ system in the corrosion control of carbon steel in sea water. Int. J. Environ. Sci. Technol. 2011, 3, 8048–8060. [Google Scholar]
  89. Wei, Y.; Salih, K.A.; Rabie, K.; Elwakeel, K.Z.; Zayed, Y.E.; Hamza, M.F.; Guibal, E. Development of phosphoryl-functionalized algal-PEI beads for the sorption of Nd (III) and Mo (VI) from aqueous solutions–Application for rare earth recovery from acid leachates. Chem. Eng. J. 2021, 412, 127399. [Google Scholar] [CrossRef]
  90. Chandra, S.; Saleem, H.; Sundaraganesan, N.; Sebastian, S. Experimental and theoretical vibrational spectroscopic and HOMO, LUMO studies of 1,3-dimethylbarbituric acid. Ind. J. Chem. 2009, 48A, 1219–1227. [Google Scholar]
  91. Corazzari, I.; Nistico, R.; Turci, F.; Faga, M.G.; Franzoso, F.; Tabasso, S.; Magnacca, G. Advanced physico-chemical characterization of chitosan by means of TGA coupled on-line with FTIR and GCMS: Thermal degradation and water adsorption capacity. Polym. Degrad. Stabil. 2015, 112, 1–9. [Google Scholar] [CrossRef]
  92. Lawrie, G.; Keen, I.; Drew, B.; Chandler-Temple, A.; Rintoul, L.; Fredericks, P.; Grondahl, L. Interactions between alginate and chitosan biopolymers characterized using FTIR and XPS. Biomacromolecules 2007, 8, 2533–2541. [Google Scholar] [CrossRef]
  93. Yao, Z.; Zhang, C.; Ping, Q.; Yu, L.L. A series of novel chitosan derivatives: Synthesis, characterization and micellar solubilization of paclitaxel. Carbohydr. Polym. 2007, 68, 781–792. [Google Scholar] [CrossRef]
  94. Wei, Y.; Salih, K.A.; Lu, S.; Hamza, M.F.; Fujita, T.; Vincent, T.; Guibal, E. Amidoxime functionalization of algal/polyethyleneimine beads for the sorption of Sr (II) from aqueous solutions. Molecules 2019, 24, 3893. [Google Scholar] [CrossRef] [Green Version]
  95. Tsai, H.S.; Wang, Y.Z.; Lin, J.J.; Lien, W.F. Preparation and properties of sulfopropyl chitosan derivatives with various sulfonation degree. J. Appl. Polym. Sci. 2010, 116, 1686–1693. [Google Scholar] [CrossRef]
  96. Duarte, M.L.; Ferreira, M.C.; Marvao, M.R.; Rocha, J. An optimised method to determine the degree of acetylation of chitin and chitosan by FTIR spectroscopy. Int. J. Biol. Macromol. 2002, 31, 1–8. [Google Scholar] [CrossRef]
  97. Wei, Y.; Salih, K.A.; Hamza, M.F.; Fujita, T.; Rodríguez-Castellón, E.; Guibal, E. Synthesis of a New Phosphonate-Based Sorbent and Characterization of Its Interactions with Lanthanum (III) and Terbium (III). Polymers 2021, 13, 1513. [Google Scholar] [CrossRef] [PubMed]
  98. Wei, Y.; Rakhatkyzy, M.; Salih, K.A.; Wang, K.; Hamza, M.F.; Guibal, E. Controlled bi-functionalization of silica microbeads through grafting of amidoxime/methacrylic acid for Sr (II) enhanced sorption. Chem. Eng. J. 2020, 402, 125220. [Google Scholar] [CrossRef]
  99. Caetano, C.S.; Caiado, M.; Farinha, J.; Fonseca, I.M.; Ramos, A.M.; Vital, J.; Castanheiro, J.E. Esterification of free fatty acids over chitosan with sulfonic acid groups. Chem. Eng. J. 2013, 230, 567–572. [Google Scholar] [CrossRef]
  100. Xiang, Y.; Yang, M.; Guo, Z.B.; Cui, Z. Alternatively chitosan sulfate blending membrane as methanol-blocking polymer electrolyte membrane for direct methanol fuel cell. J. Membr. Sci. 2009, 337, 318–323. [Google Scholar] [CrossRef]
Materials 15 04676 g001 550
Figure 1. FTIR of thiourea, TDP, functionalized chitosan with TDP (MC-TDP), MC-TDP + Cr and after five cycles of sorption–desorption.
Figure 1. FTIR of thiourea, TDP, functionalized chitosan with TDP (MC-TDP), MC-TDP + Cr and after five cycles of sorption–desorption.
Materials 15 04676 g001
Materials 15 04676 g002 550

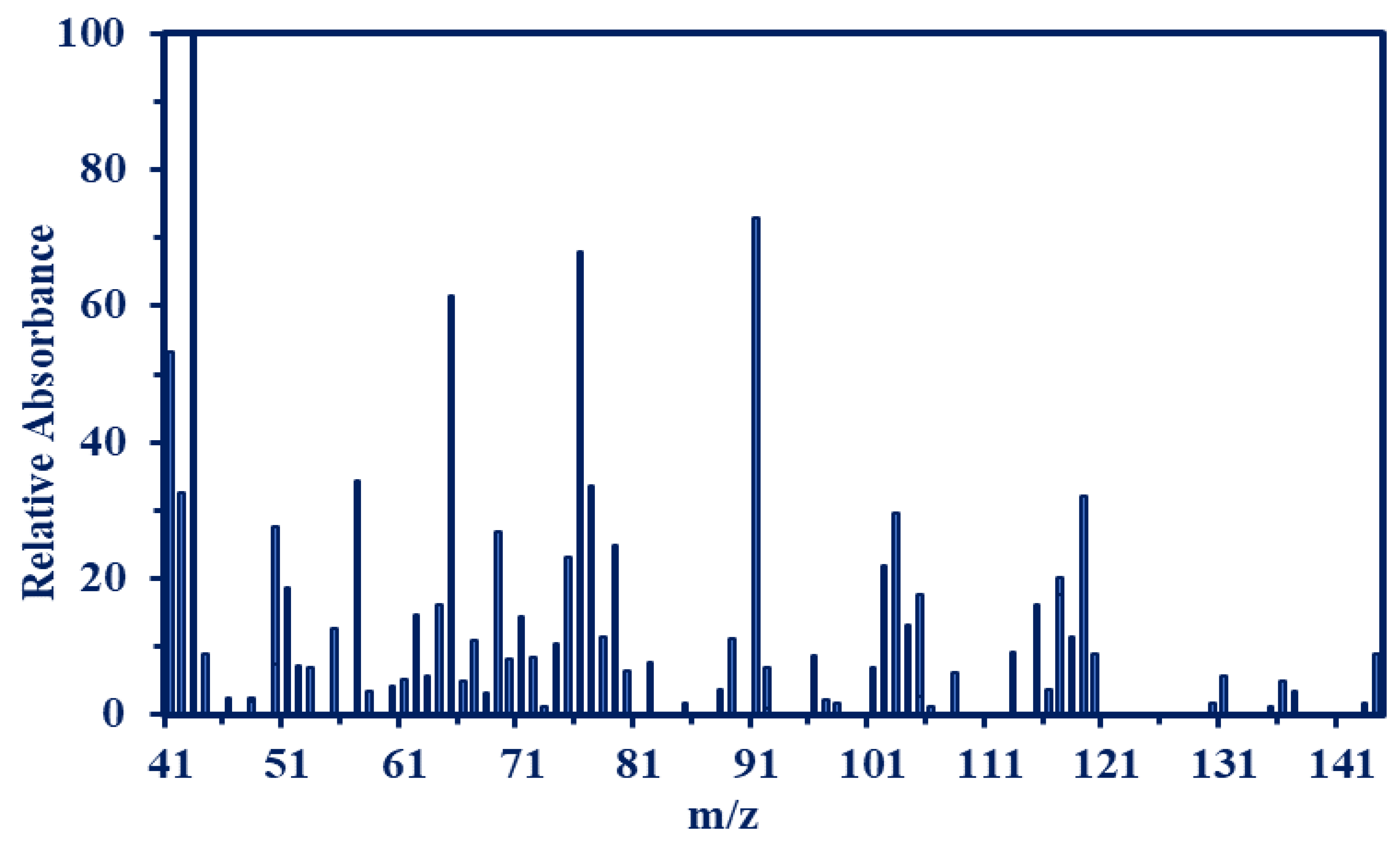

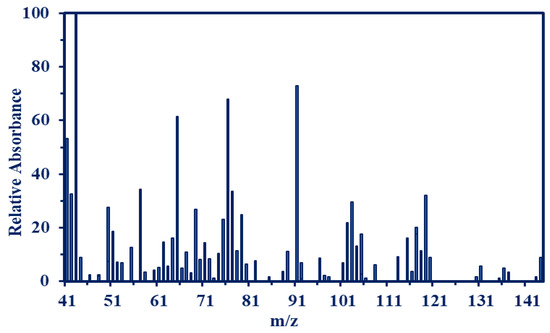

Figure 2. Mass spectroscopy for the synthesized TDP moiety.
Figure 2. Mass spectroscopy for the synthesized TDP moiety.
Materials 15 04676 g002
Materials 15 04676 g003 550
Figure 3. TGA and the DrTGA thermal analyses of modified sorbent (MC-TDP).
Figure 3. TGA and the DrTGA thermal analyses of modified sorbent (MC-TDP).
Materials 15 04676 g003
Materials 15 04676 g004 550
Figure 4. EDX analysis of MCH and MC-TDP.
Figure 4. EDX analysis of MCH and MC-TDP.
Materials 15 04676 g004
Materials 15 04676 g005 550
Figure 5. pHpzc of non-modified MCH and the final modified sorbent MC-TDP (pH range 1–14).
Figure 5. pHpzc of non-modified MCH and the final modified sorbent MC-TDP (pH range 1–14).
Materials 15 04676 g005
Materials 15 04676 g006 550
Figure 6. The pH study of MCH and MC-TDP on adsorption performance for chromate ions (a), pH variation (b), and results of log10 D (c) against pHeq.
Figure 6. The pH study of MCH and MC-TDP on adsorption performance for chromate ions (a), pH variation (b), and results of log10 D (c) against pHeq.
Materials 15 04676 g006
Materials 15 04676 g007 550
Figure 7. Uptake Cr(VI) kinetics on MCH, and MC-TDP modeling with the PFORE.
Figure 7. Uptake Cr(VI) kinetics on MCH, and MC-TDP modeling with the PFORE.
Materials 15 04676 g007
Materials 15 04676 g008 550
Figure 8. Sorption isotherms of Cr(VI) using MCH, MC-TDP; Langmuir (a) and Sips (b) modeling equations.
Figure 8. Sorption isotherms of Cr(VI) using MCH, MC-TDP; Langmuir (a) and Sips (b) modeling equations.
Materials 15 04676 g008
Materials 15 04676 g009 550
Figure 9. SC (selectivity coefficient) (a) and R% (removal %) (b) of chromium ions during treatment of tannery effluents by MC-TDP.
Figure 9. SC (selectivity coefficient) (a) and R% (removal %) (b) of chromium ions during treatment of tannery effluents by MC-TDP.
Materials 15 04676 g009
Table
Table 1. Elemental analysis of MCH and MC-TDP sorbents.
Table 1. Elemental analysis of MCH and MC-TDP sorbents.
SorbentCNHOS
[%][%][%][%][%]
MCH34.653.984.9727.14
MC-TDPD37.09 5.635.1532.961.11
Table
Table 2. Parameters of the PFORE, PSORE and RIDE for chromium(VI) sorption kinetics for the experiments.
Table 2. Parameters of the PFORE, PSORE and RIDE for chromium(VI) sorption kinetics for the experiments.
MCHMC-TDP
ModelParameter112
Exp.qeq (mmol g−1)0.973.323.19
PFOREqeq,1 (mmol Cr g−1)1.013.283.21
k1 × 102 (min−1)4.983.282.77
R20.9970.9890.994
AIC−74.5−126−117
PSOREqeq,2 (mmol Cr g−1)1.393.513.27
k2 × 102 (L mmol−1 min−1)2.872.863.22
R20.8630.7680.733
AIC−15.4−26.5−47.3
RIDEDe × 108 (m2 min−1)9.975.766.48
R20.9250.890.76
AIC−42.1−56.4−61.4
Table
Table 3. Modeling of Cr(VI) sorption isotherms for the MCH and MC-TDP sorbents.
Table 3. Modeling of Cr(VI) sorption isotherms for the MCH and MC-TDP sorbents.
MCHMC-TDP
ModelParameter 1212
Experimentalqm,exp.mmol g−11.972.015.765.69
Langmuirqm,Lmmol g−12.011.975.815.61
bLL mmol−10.9670.8742.182.97
R2-0.98460.99310.99370.9894
AIC-−65.88−84.38−127.27−132.28
FreundlichkFmmol1−1/ng−1 L1/n0.8960.9062.181.86
nF-1.862.1852.183.53
R2-0.89540.79980.79680.8164
AIC-−25.53−31.91−36.182−41.37
Sipsqm,Smmol g−11.231.985.6975.721
bSL mmol−10.7650.88761.121.434
nS-1.321.482.172.65
R2-0.97860.99460.99560.9895
AIC-−123.63−163.94−97.68−117.68
Table
Table 4. Sorption/desorption recycling of MCH and MC-TDP.
Table 4. Sorption/desorption recycling of MCH and MC-TDP.
CyclesMCHMC-TDP
Removal (%)S.D. (R.%)Desorption (%)S.D. (De%)Removal (%)S.D. (R. %)Desorption (%)S.D. (De%)
124.180.211000.278.190.8599.140.95
223.540.9899.310.7377.490.5599.650.5
322.690.941000.6176.860.0499.191.17
422.510.891000.4976.650.5299.650.36
521.71.1399.920.9775.590.8799.440.56
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hamza, M.F.; Wei, Y.; Althumayri, K.; Fouda, A.; Hamad, N.A. Synthesis and Characterization of Functionalized Chitosan Nanoparticles with Pyrimidine Derivative for Enhancing Ion Sorption and Application for Removal of Contaminants. Materials 2022, 15, 4676. https://doi.org/10.3390/ma15134676

AMA Style

Hamza MF, Wei Y, Althumayri K, Fouda A, Hamad NA. Synthesis and Characterization of Functionalized Chitosan Nanoparticles with Pyrimidine Derivative for Enhancing Ion Sorption and Application for Removal of Contaminants. Materials. 2022; 15(13):4676. https://doi.org/10.3390/ma15134676

Chicago/Turabian Style

Hamza, Mohammed F., Yuezhou Wei, Khalid Althumayri, Amr Fouda, and Nora A. Hamad. 2022. "Synthesis and Characterization of Functionalized Chitosan Nanoparticles with Pyrimidine Derivative for Enhancing Ion Sorption and Application for Removal of Contaminants" Materials 15, no. 13: 4676. https://doi.org/10.3390/ma15134676

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
