The Circadian Effect Versus Mesopic Vision Effect in Road Lighting Applications

Featured Application

This work clarifies light sources’ circadian effect and mesopic vision effect in road lighting for the first time, and guides circadian and efficient outdoor lighting application.

Abstract

Several models on the circadian effect have been applied to indoor circadian lighting design, but applications in road lighting have not yet been clarified. Based on existing models and circadian research, we examined equivalent melanopic lux (EML), circadian light (CL_A), and circadian stimulus (CS) representing the circadian effect and the S/P ratio representing the mesopic vision effect, among a dataset of light sources at photopic adaptation illuminance values of 1, 3, 10, 30, and 100 lx. The results show that the S/P ratio correlates with EML and CS (or CL_A) much stronger than it correlates with color temperature. The EMLs of light sources are below 50 EML in mesopic vision, and the CSs of most light sources are below or around the threshold value of 0.05. We conclude that the circadian effect is not a significant issue in mesopic vision under most conditions and that optimization for mesopic efficiency is still a good strategy. There are quite a few light sources that may achieve both ideal mesopic efficiency and low CS. This work clarifies the circadian effect and mesopic vision effect performance of light sources in mesopic vision and will help guide choosing suitable light sources and optimization strategies for road lighting.

1. Introduction

There are two kinds of visual imaging photoreceptors [1], cone and rod cells, and one kind of non-visual imaging photoreceptor, ipRGCs [2,3]. The cones, rods, and ipRGCs relate to the spectral sensitivity of photopic vision, scotopic vision, and melatonin suppression [4,5], respectively. For the visual imaging system, the activation levels of the cones and rods differ at different luminance (or illuminance) ranges. Road lighting is mainly in the mesopic vision stage, where both cones and rods activate. For non-visual imaging systems, melatonin suppression occurs under a large range of illuminance levels, even as low as 1 lx [6]. Most studies focus on indoor circadian lighting applications with illuminance values of about 100 to 1000 lx in photopic vision. Only a few works [7] focused on dim outdoor lighting applications (<30 lx), which might also be in the mesopic vision stage. It is not clear how the circadian effect and mesopic vision effect work for dim road lighting applications.

For road lighting applications, the lighting should meet several needs, including the detection of small objects and safety [8,9]. Generally, luminance for road lighting is about 0.5 to 2 cd/m² for energy-saving concerns in a mesopic vision state. Mesopic vision is a vision state in which both cone and rod cells activate at a luminance level from 0.005 to 5 cd/m² [10]. In road lighting, the empirical rule of E = Lπ/ρ governs transforming luminance to illuminance, where E is the illuminance, L is the luminance, and ρ is the reflectance rate of the road. Roads are mainly paved with two materials, concretes and asphalts. There are several kinds of common concrete road surface materials. The average reflectance rate of concrete’s surface is about 0.18 to 0.32 [11], according to data from the National Aeronautics and Space Administration (NASA) Jet Propulsion Laboratory’s Advanced Spaceborne Thermal Emission Reflection Radiometer (ASTER) library. The average reflectance rate of the asphalt surface varies greatly from several percent to about 70 percent due to the aging process [12]. We adopt a reflectance rate ρ as 0.3 for the road surface. For road lighting luminance measurements, one method is to measure from 83 m ahead of a vehicle at a 1.5-meter height with a 1-degree angle representing the driver’s view. Here, we adopt the above-mentioned empirical formula to calculate road luminance more simply. Therefore, the illuminance levels for mesopic vision can be roughly taken as 0.05 to 50 lx. As is well known, human sensitivity to light shifts to shorter wavelengths from photopic to scotopic vision [13]. The peak wavelengths of photopic and scotopic spectra sensitivity are 555 and 507 nm, respectively. A mesopic vision state is a combination of these two vision states, and the lower the luminance level is, the greater the sensitivity to blue light. Light sources with rich short wavelengths may have high mesopic efficiency. This was a claimed advantage during the transition process from high-pressure sodium to white light-emitting diode (LED) light sources a decade ago. Many works have been dedicated to optimizing high mesopic efficiency light sources [14,15,16]. Although mesopic vision applications in road lighting have been widely accepted, Gibbson et al.’s work showed that there are no significant differences in the detection distances for high and low correlated color temperature (CCT) sources when the speed is over 56 km/h [17]. This might change the optimization strategy under certain conditions.

The circadian rhythm is mainly influenced by distinct photoreceptors in the eye, melanopsin-containing intrinsically photosensitive retinal ganglion cells (ipRGCs) [2,3]. The spectral sensitivity of melanopsin is similarly invariant across species, with peak intensity at approximately 480 nm [18,19,20,21,22]. Melatonin secretion is decided by both intensity and spectrum. In almost all species, including human beings, melatonin levels are high at night and low during the day [23,24]. Human physiology and behavior are influenced by retinal illumination [25]. To better apply the circadian design mechanism, the circadian parameters should be better expressed, similar to illuminance. Therefore, researchers have proposed different metrics for this application. Lucas proposed equivalent melanopic lux (EML) [5] based on melatonin spectral sensitivity. In the nocturnal application, 50 EML is taken as the upper limit [26]. However, the circadian rhythm may be influenced not only by ipRGCs but also by rods and cones. Thus, Rea proposed a comprehensive model expressed as circadian light (CL_A) and circadian stimulus (CS) to describe the circadian impact considering influences from all neuro paths [27,28]. The CS ranges from 0 to 0.7, namely, from 0 to 70% melatonin suppression levels. In the daytime, the CS ≥ 0.3 (equivalent to 30% melatonin suppression) is required for at least 1 h to maintain circadian health [29]. Acosta adopted a CS equal to 0.1 as the threshold [30], and Rea et al. used a CS value of 0.05 as the target threshold [28]. A series of indoor circadian lighting research [31,32] and optimization works [33,34] show that circadian-guided lighting design helps improve light quality for human health. This influence is significant in a brightly lit environment. However, some research also shows that there is likewise significant melatonin suppression under dim light conditions [35]. Wright et al. showed that illuminance as low as 1.5 lx affects circadian rhythms [36]. Under certain conditions, as little as 1 lx or less can suppress melatonin in humans [30]. Andrew et al. [37] showed that a 50% melatonin suppression level corresponds to 13.5 lx for Hour 1, 19.4 lx for Hour 2, and 38.9 lx for Hour 3. These illuminances are mainly in the mesopic vision range.

Exposure time under light is also an important factor that decides the melanopic effect. Most studies adopt ‘hour’ as their measurement scale [27,28,31,37], and a one-hour duration is used in most studies. If the exposure time is much shorter than one hour, the melanopic effect might be minimized.

Recent studies found that ipRGCs, as well as S cones, might enhance scene brightness in the photopic range covering low, moderate, and high illuminance levels (i.e., 2 to 20 lx [38], 6.3 lx, 108 lx [39], and 1000 lx [40]). This might be a good measure, but the relevant mechanism study is currently still in progress. Moreover, mesopic models might already include scene brightness enhancement in the mesopic luminance range, although former researchers might not think that this phenomenon is caused by ipRGC. We thus do not include this part in the research.

The spectral sensitivity of mesopic vision peaks at 507 nm and melanopsin at 484 nm for crystalline lens transmittance. These two action spectra are close to each other and sensitive to blue light. At nighttime, rich blue light sources may improve mesopic efficiency and suppress melatonin secretion. High correlated color temperature (CCT) white LEDs suppress melatonin secretion about 4 to 5 times [41] more strongly than high-pressure sodium (HPS) light sources in humans using a fitted action spectrum of melatonin suppression [42]. Meanwhile, white LEDs may provide mesopic efficiency 2 times higher than HPS [15]. The relation or tradeoff between mesopic efficiency and the circadian (or melatonin suppression) effect requires clarity.

2. Materials and Methods

2.1. Materials

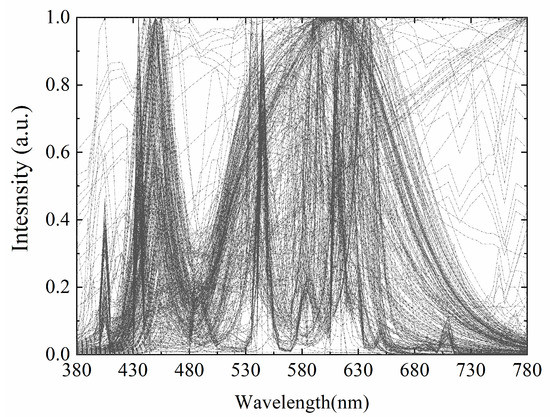

To test the circadian effect and mesopic efficiency under a dim road lighting environment, we calculated the CCT, S/P ratio, EML, CL_A, and CS of a large set light source and analyzed their relationships. We adopted the light source data from IES TM30-15 for 318 light sources [43], as shown in Figure 1, including all kinds of light sources, such as incandescent lamps, fluorescent lamps, high-pressure intensity discharge lamps, and LEDs, to assess EML, CL_A, and CS in mesopic and near photopic vision. We set the photopic adaptation illuminance levels at 1, 3, 10, 30, and 100 lx. These illuminance levels are equal to 0.1, 0.3, 1, 3, and 10 cd/m² for asphalt or concrete roads with a reflectance rate equal to 0.3, covering both mesopic and near photopic vision luminance ranges. In the assessment of the melanopic effect, retinal illuminance is required. For simplicity, we assume that retinal illuminance is equal to mesopic illuminance in mesopic vision and photopic adaptation illuminance in photopic vision.

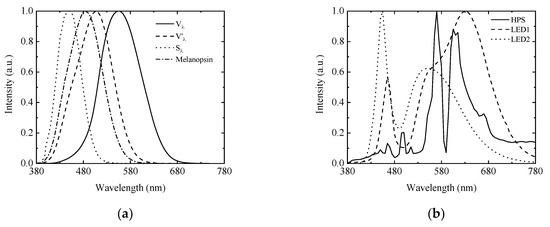

Figure 2a shows the spectral sensitivity curve of the photopic vision V_λ, scotopic vision V’_λ, S-con fundamental S_λ, and melanopsin corrected with the lens, which are used in the calculations. We further adopt typical road lighting sources, an HPS light source, and a low CCT phosphor-converted (PC) LED and high CCT PC LED, as shown in Figure 2b, to test their circadian and mesopic performance.

2.2. S/P Ratio

The S/P ratio is a calculation of the scotopic lumens of a lamp divided by the photopic lumens. The calculation formula is shown in Equation (1), where E_λ represents the light-source’s spectral power distribution, K_m is the maximum photopic luminous efficacy (=683 lm/W at 555 nm), and K_m′ is the maximum scotopic luminous efficacy (=1700 lm/W at 507 nm):

$$S/P\mathit{ratio}=\frac{K_m^{\prime }{\displaystyle {\int }_{380}^{780}{E}_{\lambda }{V}_{\lambda }\prime d\lambda }}{K_m{\displaystyle {\int }_{380}^{780}{E}_{\lambda }{V}_{\lambda }d\lambda }}.$$

(1)

2.3. Equivalent Melanopic Lux

EML is a metric for measuring the biological effects of light on humans and is defined as shown in Equation (2) [5].

$$EML=72983.25{\displaystyle \int E_{\lambda }M{c}_{\lambda }d\lambda }$$

(2)

2.4. Circadian Light and Circadian Stimulus

CL_A mathematically describes the modeled spectral sensitivity of the human circadian system by Rea et al. [28] and is defined as shown in Equation (3), where CL_A is the circadian light, 1548 is the constant setting for the normalization of CL_A such that 2856 K blackbody radiation at 1000 lx has a CL_A value of 1000, E_λ is the spectral power distribution, S_λ is the S-cone fundamental, mp_λ is the macular pigment transmittance, RodSat is the half-saturation constant for bleaching rods = 6.5 W/m², k = 0.2616, a_b−y = 0.7000, and a_rod = 3.3000. CL_A is measured in units of spectrally weighted flux per unit area. CS is a proposed metric based on the CL_A value with a maximum value of 0.7, as shown in Equation (4) [28], and is dimensionless. Due to a blue versus yellow (b-y) mechanism [28], the CL_A is expressed by a piecewise function depending on whether b-y, namely ${\displaystyle \int \frac{S_{\lambda }}{m{p}_{\lambda }}}{E}_{\lambda }d\lambda -k{\displaystyle \int \frac{V_{\lambda }}{m{p}_{\lambda }}}{E}_{\lambda }d\lambda$, >0 or <0. If the yellow stimuli dominate, only the intrinsic sensitivity of the ipRGC contributes to the circadian response; otherwise, all photoreceptors contribute to the circadian response. The default calculations of CL_A and CS correspond to a one-hour duration of exposure.

$$C{L}_A=\{\begin{array}{c}1548\left[{\displaystyle \int M{c}_{\lambda }{E}_{\lambda }d\lambda +(a_{b-y}({\displaystyle \int \frac{S_{\lambda }}{m{p}_{\lambda }}{E}_{\lambda }d\lambda -k{\displaystyle \int \frac{V_{\lambda }}{m{p}_{\lambda }}{E}_{\lambda }d\lambda )-a_{rod}(1-e\frac{-{\displaystyle \int V{\prime }_{\lambda }{E}_{\lambda }d\lambda }}{RodSat}))}}}\right]\hfill \\ \hfill if{\displaystyle \int \frac{S_{\lambda }}{m{p}_{\lambda }}}{E}_{\lambda }d\lambda -k{\displaystyle \int \frac{V_{\lambda }}{m{p}_{\lambda }}}{E}_{\lambda }d\lambda >0\\ 1548{\displaystyle \int M{c}_{\lambda }{E}_{\lambda }d\lambda }\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}if{\displaystyle \int \frac{S_{\lambda }}{m{p}_{\lambda }}}{E}_{\lambda }d\lambda -k{\displaystyle \int \frac{V_{\lambda }}{m{p}_{\lambda }}}{E}_{\lambda }d\lambda \le 0\hfill \end{array}$$

(3)

$$CS=0.7-0.7/[1+{(\frac{C{L}_A}{355.7})}^{1.1026}]$$

(4)

2.5. Analysis Method

We conducted a Shapiro–Wilk normality test of the data and a Spearman correlation analysis between the independent variables (CCT and S/P ratio) and dependent variables (namely EML and CS). We also conducted a curve fitting analysis of the corresponding variables.

3. Results

3.1. EML as a Function of the CCT and S/P Ratio

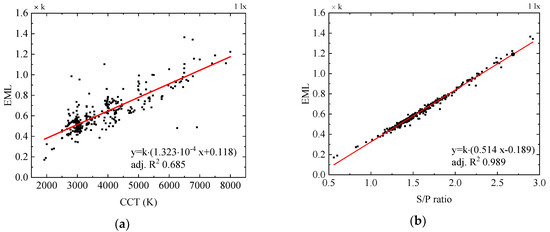

Figure 3 shows EML as functions of the CCT and S/P ratio at a 1 lx level. The EML is linear to the illuminance value, so the EML values at different illuminance levels can be achieved by multiplying by an intensity factor k of 3, 10, 30, and 100. The goodness of fit for EML and CCT reaches a moderate level of 0.685, while the EML and S/P ratio reaches an extremely high level of 0.989. These data do not conform to the normal distribution at a 0.05 significant level. We thus use a Spearman correlation analysis. The Spearman correlation coefficients between EML and CCT and between EML and S/P ratio are about 0.77 and 0.99, respectively.

3.2. CL_A and CS as a Function of the CCT and S/P Ratio

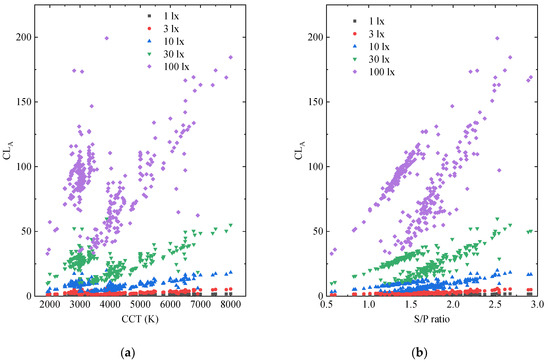

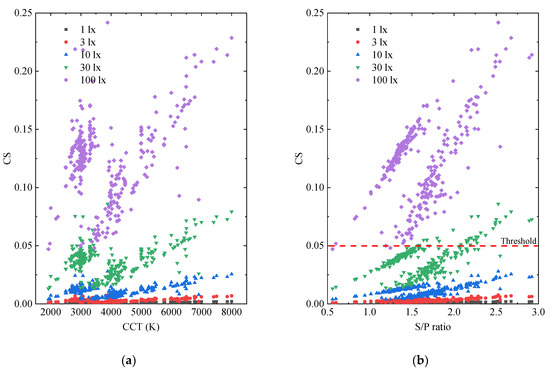

Figure 4 and Figure 5 show CL_A and CS as functions of the CCT and S/P ratio, respectively, at 1, 3, 10, 30, and 100 lx. At each illuminance level, both CL_A and CS increase with the CCT and S/P ratio. However, the CL_A and CS scatters are divided into two clusters. Both CL_A and CS increase with illuminance levels. However, despite presetting a similar trend, they are not simple linear relations.

Table 1. The EML, CL_A, and CS of HPS and the low CCT LED and high CCT LED at different photopic adaptation illuminance levels.

		HPS	LED 1	LED 2
CCT (K)		2238	2497	6060
S/P ratio		0.8417	1.1642	2.0711
EML	1 lx	0.2807	0.4453	0.8781
	3 lx	0.8421	1.3358	2.6342
	10 lx	2.8069	4.4527	8.7808
	30 lx	8.4206	13.3580	26.3424
	100 lx	28.0687	44.5265	87.8080
CLA	1 lx	0.5196	0.8330	1.1096
	3 lx	1.5588	2.4989	3.3293
	10 lx	5.1959	8.3298	11.1040
	30 lx	15.5878	24.9893	33.3659
	100 lx	51.9594	83.2978	111.8434
CS	1 lx	0.0005	0.0009	0.0012
	3 lx	0.0018	0.0029	0.0040
	10 lx	0.0066	0.0110	0.0150
	30 lx	0.0216	0.0355	0.0480
	100 lx	0.0750	0.1175	0.1528

shows the EML, CL_A, and CS of HPS, with low CCT LED and high CCT LED at various photopic adaptation illuminance levels. HPS, with a minimum CCT of 2238 K and an S/P ratio equal to 0.8417 < 1, shows a minimum EML, CL_A, and CS. The low CCT LED shows a moderate level of EML, CL_A, and CS, which are about 1.5 times that of HPS. The high CCT LED has a maximum EML, CL_A, and CS, which are about 2 to 3 times the values of HPS.

4. Discussion

The circadian effect is a non-visual imaging effect, mainly caused by a third photoreceptor. The two types of visual photoreceptors, cones and rods, which are sensitive to luminance and color, also play important roles in circadian responses under specific situations. EML takes the melanopic sensitivity curve as the main influence of the circadian response, while CL_A (CS) is a comprehensive model dedicated to measuring the general circadian response.

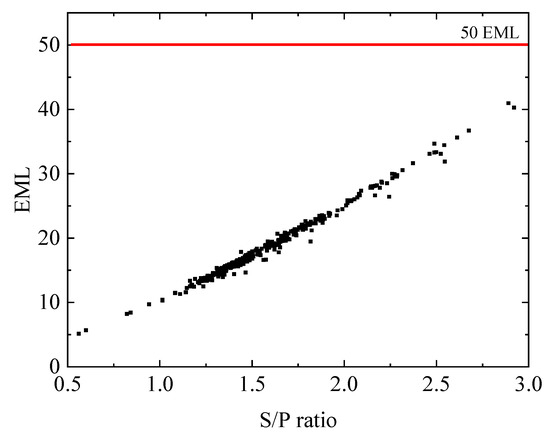

EML includes the melanopic sensitivity curve, which is close to the scotopic sensitivity curve. There is moderate correlation between EML and CCT and extremely high correlation between the EML and S/P ratio due to the similarity of the melanopic and scotopic sensitivity curves. It is practical to predict the EML value using the S/P ratio in road lighting. EML only includes the melatonin sensitivity curve, which might adapt to an ideal situation for the circadian response. However, all photoreceptors contribute to the circadian response. Therefore, EML may not be practical for some situations. At present, the International Well Building Institute [26] recommends the use of EML for circadian lighting evaluations by setting a threshold in various scenes and requires no more than 50 EML under nocturnal lighting. Figure 6 shows EML as a function of the S/P ratio at a 30 lx level, where the maximum EML is below 50. Rea et al. [44] reported that two high CCT LEDs (≥5200 K) might cause a small stimulating effect (namely, 12–15% nocturnal melatonin suppression) in the human circadian system after one hour of exposure at a 95 lx level under outdoor lighting, while low CCT light sources would not. These results are consistent with ours. Thus, in a mesopic vision state, the melanopic suppression level might not be a significant problem.

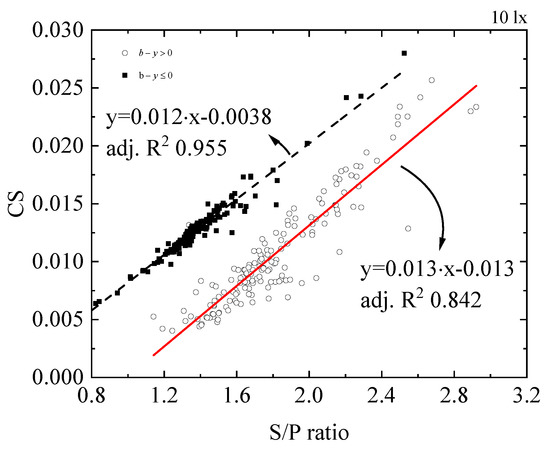

Because CL_A and CS are piecewise functions, there are no significant correlations between the CL_A (or CS) and S/P ratio using the Spearman correlation test. We categorized these points into two groups according to their b–y relation. For example, at a 10 lx illuminance level, there is a high goodness-of-fit between the CS and S/P ratio of 0.955 for b–y < 0 and 0.842 for b–y > 0, as shown in Figure 7. However, in actual applications, this conclusion might be impractical due to the trouble of declaring the b–y value.

A high CCT light source is likely to have high EML and CS. However, there is a moderate correlation between EML and CCT and a weak correlation between CS and CCT. Moreover, due to the divergence of CS caused by the b–y mechanism, at each varying CCT, there are great variations among the CS values. Therefore, CCT is not a good indicator for determining the circadian response levels.

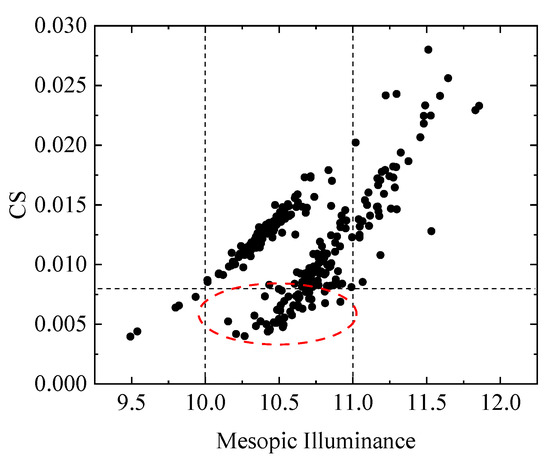

In the mesopic vision range, intensity might reach the threshold of suppressing melatonin. Therefore, although blue light improves mesopic efficiency and suppresses melatonin, this might not be a significant issue according to present knowledge on circadian responses. Improving mesopic efficiency is still a good optimization strategy for road lighting. Previous work on optimizing light sources might still work in road lighting applications. However, some people are sensitive to light, and about 10 to 30 lx may cause 50% melatonin suppression after about one-hour exposure [37]. Thus, choosing light sources with relatively high S/P ratios and moderate EML and CS would be a better strategy. In some roadway activities, such as walking and cycling activities, the duration of exposure to artificial light might be less than one hour, so there might be a smaller suppression effect. By taking the road surface reflection rate as 0.3, we transformed photopic adaptation illuminance to mesopic illuminance for 318 light sources. Figure 8 shows the CS plot against mesopic illuminance at a photopic adaptation illuminance of 10 lx. When mesopic illuminance increases from 10 to 11 lx (i.e., a 10% improvement), although the CSs vary in a large range, there is still a group of light sources with very low CSs, as shown in the red dashed circle. It is possible to find ideal light sources with relatively high mesopic efficiency and low CS in application.

The mesopic vision design of road lighting work is dedicated to providing a good brightness lighting environment for pedestrians and drivers. In the mesopic vision state, peripheral vision, which contains many rod cells, plays an important role and works for most dim light situations. However, Gibbons et al. [17] noted that mesopic vision-designed light may not help improve visibility at night for high driving speeds. For relatively high driving speeds, foveal vision may be the dominant mode of detection. Therefore, for some road lighting that is used for people driving cars, rather than pedestrians or cyclists, road lighting strategy might not focus on mesopic vision design.

There are several situations in which road lighting luminance levels are suitable for photopic vision, and some of the results for EML, CL_A, and CCT may still work. Both EML and CL_A (under the condition of b–y < 0) are linear with illuminance levels, and their characteristics with varying CCTs are quite similar in photopic and mesopic vision. CL_A under the condition b-y > 0 does not have a simple linear relationship with intensity, but the trend along with CCT similarly remains. The low/high CCT PC LED is about 1.5/3 times higher than the HPS in EML, 1.5/2.3 times higher in CS, and 40%/150% higher in the S/P ratio. These results are different from those of previous work [41] showing that high CCT LED suppresses melatonin secretion about 4 to 5 times more strongly than HPS. Therefore, in mesopic vision applications, we recommend using relatively high CCT LED (about 4000 to 5000 K) light sources to achieve high mesopic efficiency because both the EML and CS of light sources are below or around the threshold; in photopic vision applications, we recommend using HPS or low CCT light sources (2000 to 4000 K) in road lighting for low EML and CS levels. In a low-to-moderate photopic range, short-wavelength output enhances scene brightness [39,45], which might indicate a partial contribution of cones and ipRGCs. This brightness mechanism is still being studied and might affect the optimization strategy for light source SPD values in outdoor lighting applications. Although we did not include this scene brightness enhancement mechanism in the present work, it deserves attention and further study.

5. Conclusions

In this article, we focused on light sources’ circadian effects and the mesopic vision effect in road lighting. Based on an examination of the EML, CS, and S/P ratio of over 300 light sources, we conclude that (1) the EMLs and CSs of most light sources in a mesopic vision state are below or around the melatonin suppression threshold according to present research; (2) most light sources can cause a very small circadian response in a mesopic vision state, which might influence a few people who are sensitive to light. Therefore, under most conditions, there is no need to consider the trade-off between the circadian effect and mesopic efficiency. Moreover, reaching high mesopic efficiency is a good optimization strategy under mesopic vision for road lighting. Further, the CCT cannot be used as an accurate indicator for determining the potential circadian effects of light sources.
