Simplified Pushover Analysis for Rapid Assessment of Shear-Type Frames

Abstract

A simplified pushover method for rapidly assessing the seismic capacity of shear-type frames is presented. The frame global force-displacement capacity is described as a trilinear curve passing through three limit states (LS): Damage LS (DLS), Life safety LS (LLS), and Collapse LS (CLS). The global LSs are obtained consequently to the attainment of story-level, element-level, and section-level LSs. All LS capacities are described through closed-form equations. The validity of the proposed method is verified by applying it on several reinforced concrete (RC) frames with a varying number of stories. The results obtained with such an analytical procedure show a good match with those obtained from pushover based on finite element method (FEM) analysis models, in terms of both global force-displacement capacity curves and story displacements at various LSs. The proposed method has the potential to be conveniently applied in large-scale vulnerability/risk assessment studies, where the quality and quantity of the available data call for the use of simplified yet accurate models. More refined models would in fact require significantly heavier computational efforts, not justified by the quality of the results that are usually obtained. The simplicity of the proposed method in such a context is demonstrated through the development of the fragility curves of a five-story shear-type reinforced concrete frame, starting from a predefined set of mechanical and geometrical features characterizing a building typology.

1. Introduction

Seismic risk estimation and mitigation has become increasingly important due to the losses sustained by infrastructure, buildings, and humans in the aftermath of earthquakes around the world. Seismic risk is a composition of hazard, exposure, and vulnerability. The latter is where the efforts of the structural engineering community are focused, since it can be mitigated by retrofitting interventions applied on seismically deficient buildings. Two nonlinear procedures are available for the seismic assessment of structures: (a) nonlinear dynamic analysis (NDA) [1] and (b) nonlinear static analysis, also known as pushover analysis [2,3]. NDA, which allows estimating the structural nonlinear behavior and its evolution over time, is undoubtedly the most accurate and complete analysis procedure. However, some issues limit its application in the professional practice: (a) the selection of the analysis parameters is critical and can significantly influence the outcome; (b) numerous analysis with different accelerograms have to be carried out to obtain a statistically significant description of the structural seismic response; (c) the accuracy of the response depends on the adopted convergence criterion; (d) the interpretation of the analysis results is not straightforward, especially under a combined action in the two main directions; for example, in the Italian construction code [4]. Alternatively, pushover analysis aims to describe the dynamic nonlinear response of a structure through the application of an equivalent static system of forces or displacements. The method is relatively simple to use, and the results obtained are easy to interpret, since the response can be depicted in the form of a curve showing the variation of the total base-shear as a function of the displacement of a certain control point. The profile of the forces distribution along the height can be either fixed or adaptive. The fixed profile is effective in estimating the response of low-to-mid-height structures where the contribution of higher modes is negligible, and the plastic deformations are well distributed throughout the height [5,6,7,8,9,10,11,12]. The adaptive profile is applied in assessment of taller irregular structures where the deformation and inertial forces are not dominated by first mode [13,14,15,16].

Pushover analysis was originally formulated for single degree-of-freedom systems [17,18,19] but is now extensively used for the assessment of regular and irregular multistory buildings and bridge structures [20,21,22]. In the literature, there are currently different formulations suggested for pushover analysis, with a detailed indication of the pros and cons of each formulation presented in [23]. Pushover analysis is now recognized as a reliable assessment procedure, with the capability of guiding towards the identification of critical components in a structure [24]. It is therefore recommended as an effective assessment tool by a number of codes around the world [4,23,25,26].

Despite the recognized advantages of the standard pushover analysis, its application in performing large-scale analyses (for example, territorial risk/vulnerability assessments) is limited because of its extensive computational load, due to the numerous calculation steps needed to follow the entire structural response well into the nonlinear range. For this reason, the development of a non-iterative simplified pushover procedure is essential to provide an acceptable compromise between accuracy and computational effort. An analytical simplified procedure for pushover analysis has already been proposed for the case of existing masonry structures [27] and of masonry building clusters [28,29].

The objective of this study is to adopt an approach similar to those earlier studies and to arrive at proposing a simplified non-iterative analytical model that can be used, both for the preliminary structural assessment of shear-type frames and for performing large-scale territorial studies.

2. Displacement Capacity of a 2D Frame

2.1. Simplified Analytical Model of a 2D Frame

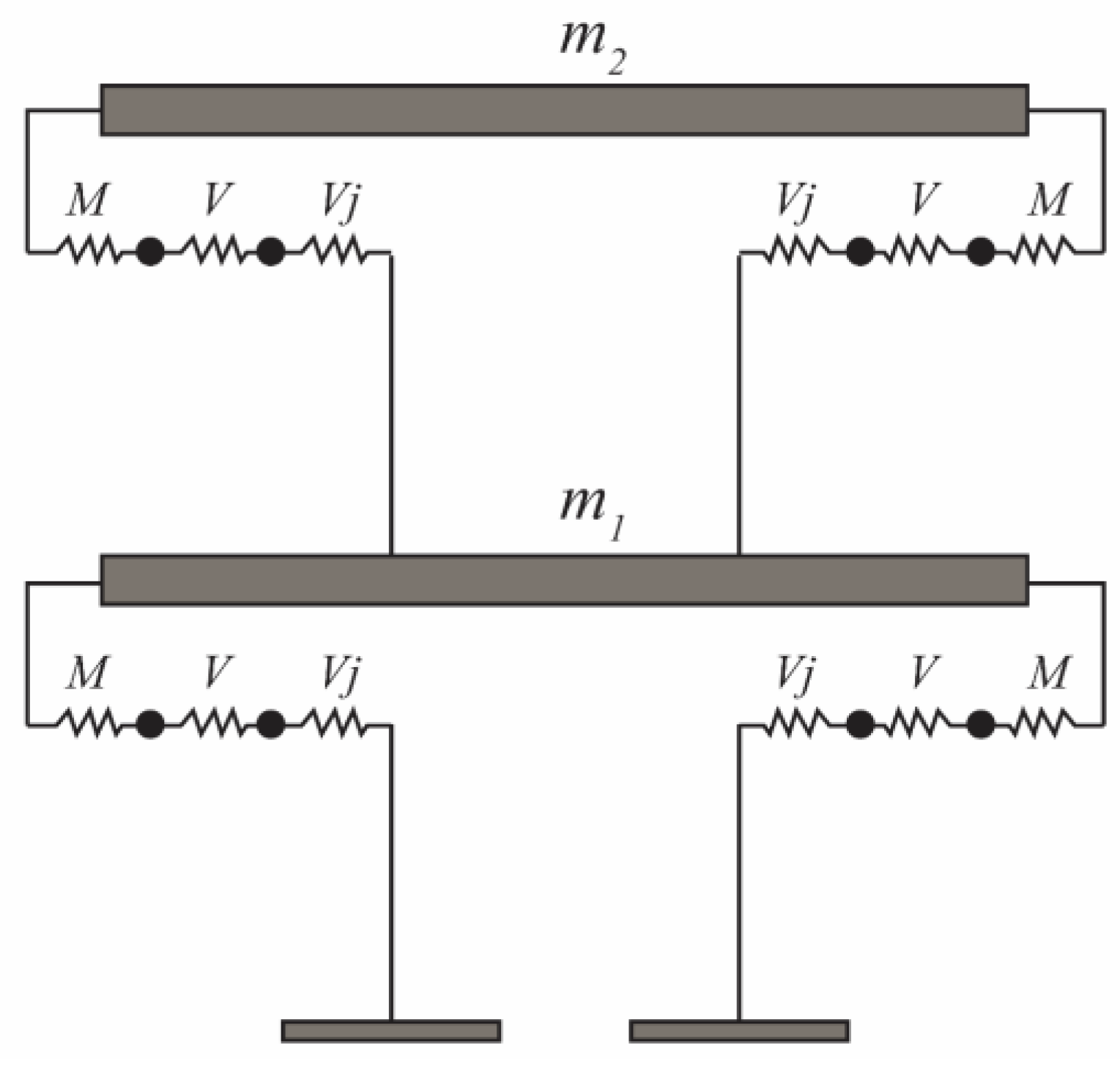

The proposed analytical pushover method is thought to be applied to buildings that can be represented through a 2D frame, which is often the case when studying the response of large building stocks on a territory. A 2D frame is treated as a series system of stories, which are in turn parallel systems of columns, which are in turn series systems of different resisting mechanisms. A mechanical idealization of a two-story 2D frame is depicted in Figure 1, where each column is shown as a series system of flexural (M) and shear capacity, of both column (V) and end joint (V_j). Despite the simplified representation, this (stick-)model provides a good compromise between accuracy and computational effort. It is especially applicable to buildings designed for gravity loads exhibiting a shear-type behavior, which implies that the damage is sustained by the columns only. The beams are assumed to remain elastic, representing the strong-beam/weak-column situation typically found in most existing buildings designed to obsolete codes.

The global capacity of the 2D frame is obtained in terms of total base-shear and top-displacement. This is defined by a trilinear curve, where three objectively measured limit states (LSs) are identified: Damage Limit State (DLS), Life safety Limit State (LLS), and Collapse Limit State (CLS). These global LSs are determined at the attainment of the corresponding LSs at the story levels, which are in turn defined by the attainment of the corresponding LSs of the pertaining columns, which are in turn defined by the attainment of the corresponding LSs of the resisting mechanisms. This implies that global LSs are a direct consequence of local LSs attained at the sectional level. This criterion provides a consistent relationship between local and global LSs, thus avoiding resorting to different metrics for the latter, such as interstorey drifts.

The following sections show the sequential steps of the simplified pushover method, from the definition of the sectional capacity to that of the columns, to that of the stories, and, finally, to that of the entire frame.

2.2. Moment-Curvature Relationship for the Three LSs

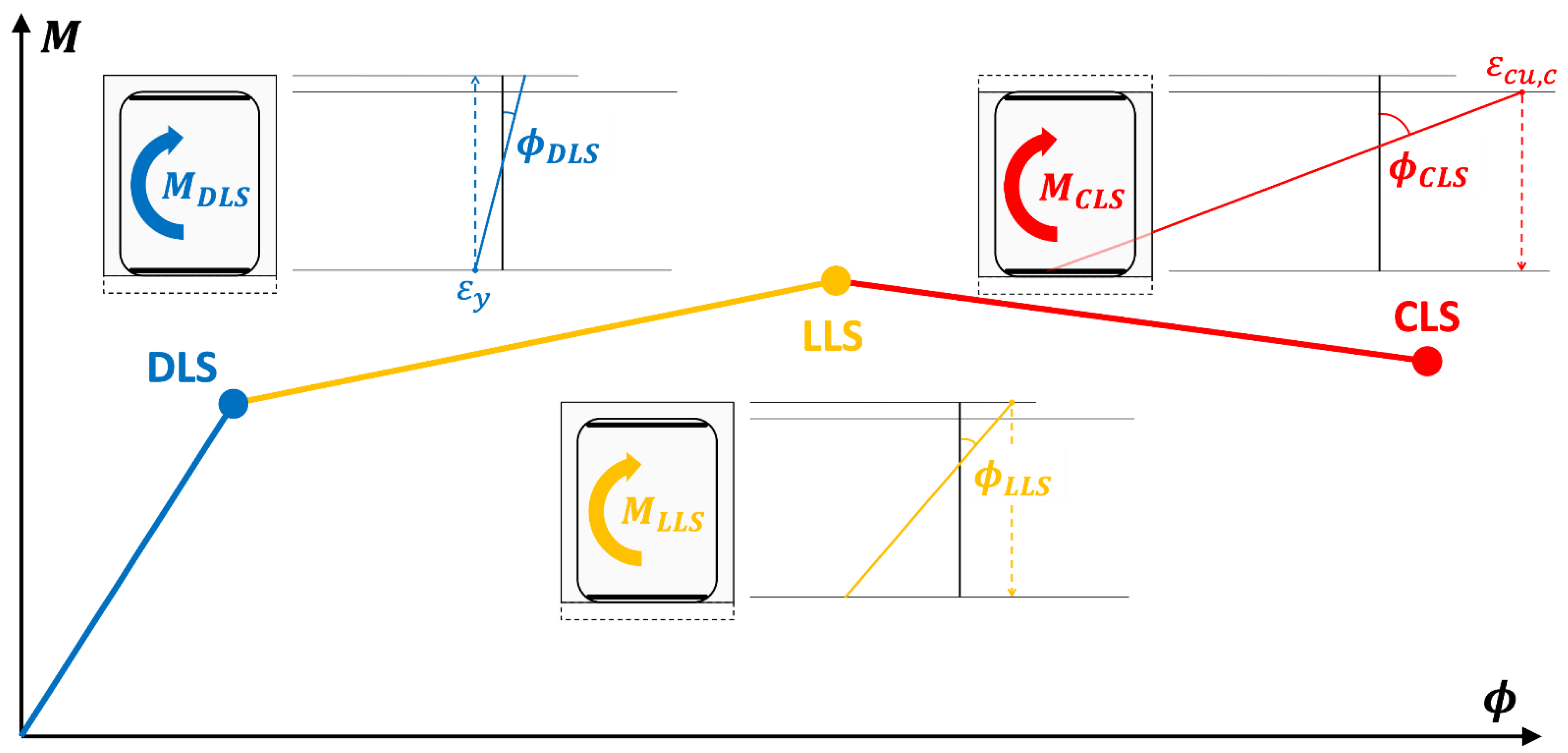

The trilinear curve in Figure 2 describes the three limit states in a sectional moment-curvature diagram. The criteria adopted for defining the sectional LSs are: DLS (Damage Limit State), corresponds to tensile reinforcing bars yielding; LLS (Life safety Limit State), corresponds to concrete cover crushing; and CLS (Collapse prevention Limit State), corresponds to concrete core crushing. The coordinates of these points are given in terms of curvature ${\varphi }_{xLS}$ and moment M_xLS capacity, where x = D, L, C for DLS, LLS, and CLS.

The corresponding equations for rectangular sections with symmetrical reinforcement, extended from [30], are shown in

Table 1. Equations for moment and curvature capacity at three LSs for the case of rectangular sections with symmetric rebars.

Damage Limitation Limit State (DLS)
Moment capacity	$M_{DLS}=\frac{{\epsilon }_y^2}{{\epsilon }_{cu}^2}\left[0.45n_S\left(0.8-n_S\right)+2.4 \left({\omega }_s+0.015\right)\right]b{d}^2{f}_c$
Curvature capacity	${\varphi }_{DLS}=\frac{{\epsilon }_y}{2d}\left(3+\sqrt{n_S}\right)$
Life Safety Limit State (LLS)
Moment capacity	$M_{LLS}=\left[{\omega }_s+\frac{1}{2}{n}_S\left(1-\frac{n_S}{{\eta }_f}\right)\right]b{d}^2{f}_c$
Curvature capacity	${\varphi }_{LLS}=\frac{{\epsilon }_{cu}}{d}\frac{0.8}{n_S}{\eta }_f$
Collapse Prevention Limit State (CLS)
Moment capacity	$M_{CLS}=\left[{\omega }_s+\frac{1}{2}{n}_S\left(1-\frac{n_S}{{\eta }_f}\right)\right]b{d}_c^2{f}_c$
Curvature capacity	${\varphi }_{CLS}={\varphi }_{LLS}\frac{d}{d_c} \left(1+\frac{1}{4}\frac{{\tilde{\sigma }}_2}{{\epsilon }_{cu}}\right)$

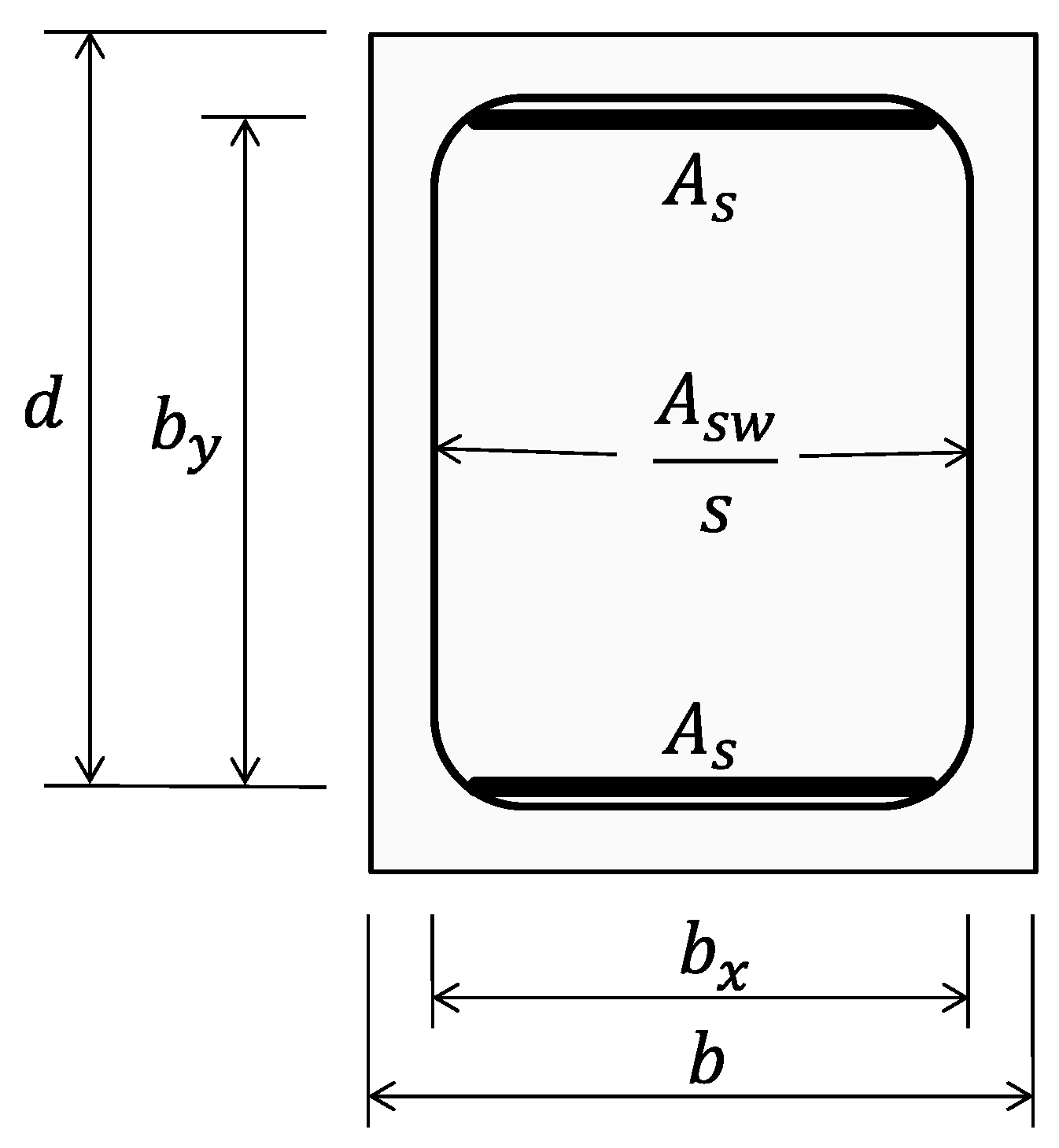

, with the notation in Figure 3, where d is the section depth, b is the section base, d_c = b_y is the section depth at collapse, A_s is the tension steel area, A_sw is the stirrup area, and s is the stirrup spacing. In addition, ε_y is the steel yield strain, ε_cu is the ultimate concrete strain, and f_c is the compressive concrete strength, while ω_s is the longitudinal reinforcement mechanical ratio and n_S is the normalized axial load, given as:

$${\omega }_s=\frac{A_s{f}_y}{bd{f}_c} and n_S=\frac{N_S}{bd{f}_c}$$

(1)

Moreover, ${\tilde{\sigma }}_2$ is the confining stress normalized with respect to the characteristic compressive concrete strength f_ck, which can be computed as follows:

$${\tilde{\sigma }}_2={\alpha }_n\cdot {\alpha }_s\cdot \frac{1}{3}{\omega }_w$$

(2)

where:

$${\alpha }_n=\left(1-\frac{\sum b_i^2}{6b_x{b}_y}\right)\approx 1-\frac{1}{3b_x{b}_y}\left(\frac{b_x^2}{n_{ct,y}+1}+\frac{b_y^2}{n_{ct,x}+1}\right)$$

(3)

$${\alpha }_s=\left(1-\frac{s}{2b_x}\right)\left(1-\frac{s}{2b_y}\right)$$

(4)

$${\omega }_w=\frac{A_{sw,x}{b}_x+A_{sw,y}{b}_y}{b_x{b}_{y}s}\cdot \frac{f_y}{f_c}$$

(5)

where b_i is the distance between consecutive engaged bars, b_x and b_y are the sides of the confined concrete core in the two directions, n_ct,x and n_ct,y are the number of cross-ties in the two directions, and A_sw,x and A_sw,y are the stirrup areas in the two directions (Figure 3). Note that the approximation in Equation (3) applies if the rebars are evenly distributed along the section sides; otherwise, the more general relationship should be used.

Finally, η_f is the compressive concrete strength increase due to confinement, given as:

$${\eta }_f=\{\begin{array}{cc}1.000+5.0{\tilde{\sigma }}_2& {\tilde{\sigma }}_2\le 0.05\\ 1.125+2.5{\tilde{\sigma }}_2& {\tilde{\sigma }}_2>0.05\end{array}$$

(6)

When needed, the sectional curvature ductility at CLS can be calculated as:

$${\mu }_{\varphi ,CLS}=\frac{{\varphi }_{CLS}}{{\varphi }_{DLS}}\approx \frac{1}{2}\frac{{\eta }_f}{{\epsilon }_y n_S}\left({\epsilon }_{cu}+\frac{1}{4}\widetilde{{\sigma }_2}\right)$$

(7)

2.3. Element Capacity for the Three LSs

In those cases where a strong-beam/weak-column situation occurs, the global capacity depends only on the columns. A column is considered as a series system of flexural plastic hinges, column shear, and joints shear.

The force-displacement capacity of a column exhibiting a flexural behavior is determined by considering, both, the rotations of the plastic hinges at the ends, which follow the above-described sectional moment-curvature diagram, and the elastic deformation of the column. The flexural capacity of the column is compared to its shear capacity and to the joint capacity to obtain the actual capacity of the column element.

The analytical expressions for the force capacity $v_{xLS}$ and the corresponding displacement $u_{xLS}$ at the three limit states $x=D, L, C$ are obtained from equilibrium and compatibility conditions as:

$$v_{xLS}=min\left\{\begin{array}{ccc}\frac{2M_{xLS}-N{u}_{xLS}}{H}& V_R& V_{jR}-\left(A_{jt}+\kappa A_{jb}\right)f_y\end{array}\right\}$$

(8)

$$u_{xLS}=Q\left[\frac{2M_{xLS}}{K_{E}H}+{\varphi }_{xLS}{L}_p\left(H-L_p\right)\right]$$

(9)

where $M_{xLS}$ is the flexural capacity at $xLS$ in Table 1; $N$ is the axial load; $H$ is the column height; $V_R$ is the column shear capacity; $V_{jR}$ is the joint shear capacity; $A_{jt}$ and $A_{jb}$ are top and bottom rebars area passing through the joint or anchored in it, respectively, with $\mathsf{\kappa }=1$ for internal joints and $\mathsf{\kappa }=0$ for external joints; $f_y$ is the steel yield tensile strength; and ${\varphi }_{xLS}$ is the curvature capacity at $xLS$ in Table 1. In the above equations, the p-delta factor $Q$, the elastic stiffness $K_E$, and the plastic hinge length $L_p$ are given by:

$$Q={\left(1+\frac{N}{K_{E}H}\right)}^{-1}$$

(10)

$$K_E=\frac{12E_{c}I}{{\left(H-2L_p\right)}^3}$$

(11)

$$L_p=0.1H+0.17\frac{b+d}{2}$$

(12)

where $E_c$ is the concrete elastic modulus and $I$ is the gross section moment of inertia.

The column shear capacity $V_R$ is computed as:

$$V_R=0.9db{f}_c{\omega }_w\sqrt{\frac{{\alpha }_c\nu }{{\omega }_w}-1}$$

(13)

where the term under square root should be within the interval $\left[1, 2.5\right]$ and ${\omega }_w$. is the transverse reinforcement mechanical ratio:

$${\omega }_w=\frac{A_{sw}}{b s}\frac{f_y}{f_c}$$

(14)

with $A_{sw}$ the transverse reinforcement area, while $\mathsf{\nu }=0.5$ is the concrete compressive strength reduction factor and ${\alpha }_c$ depends on the normalized axial load $n_S$, as follows:

$${\alpha }_c=\{\begin{array}{cc}\min \left(1+n_S,1.25\right)& 0.00\le n_S<0.50\\ 2.5\left(1-n_S\right)& 0.50\le n_S<1.00\end{array}$$

(15)

The joint shear capacity $V_{jR}$ is computed as:

$$V_{jR}=\eta d_c{b}_j{f}_c\sqrt{1-\frac{n_S}{\eta }}$$

(16)

where $d_c=b_y$ in Figure 3, $b_j$ is the joint effective width, and $\eta ={\mathsf{\alpha }}_j\left(1-f_c/250\right)$ with $f_c$ in MPa, with ${\mathsf{\alpha }}_j=0.6$ for internal joints and ${\mathsf{\alpha }}_j=0.48$ for external joints.

2.4. Story Capacity for the Three LSs

A story is considered as a parallel system of $j=1\dots m$ columns elements. The $i$-th interstory drift capacity $d_{xLS,i}$ and the resultant force $V_{xLS,i}$ at $x=D, L, C$ are verified when the first column reaches the corresponding limit state:

$$d_{xLS,i}=\underset{j}{\min }{u}_{xLS,j}$$

(17)

$$V_{xLS,i}={\displaystyle \sum }_{j=1}^m{v}_j\left(d_{xLS,i}\right)$$

(18)

where $u_{xLS,j}$ is the $j$-th column displacement at $xLS$ and $v_j\left(d_{xLS,i}\right)$ is the $j$-th column force at $d_{xLS,i}$. The $i$-th interstory secant stiffness is:

$$k_{xLS,i}=\frac{V_{xLS,i}}{d_{xLS,i}}$$

(19)

2.5. Frame Capacity for the Three LSs

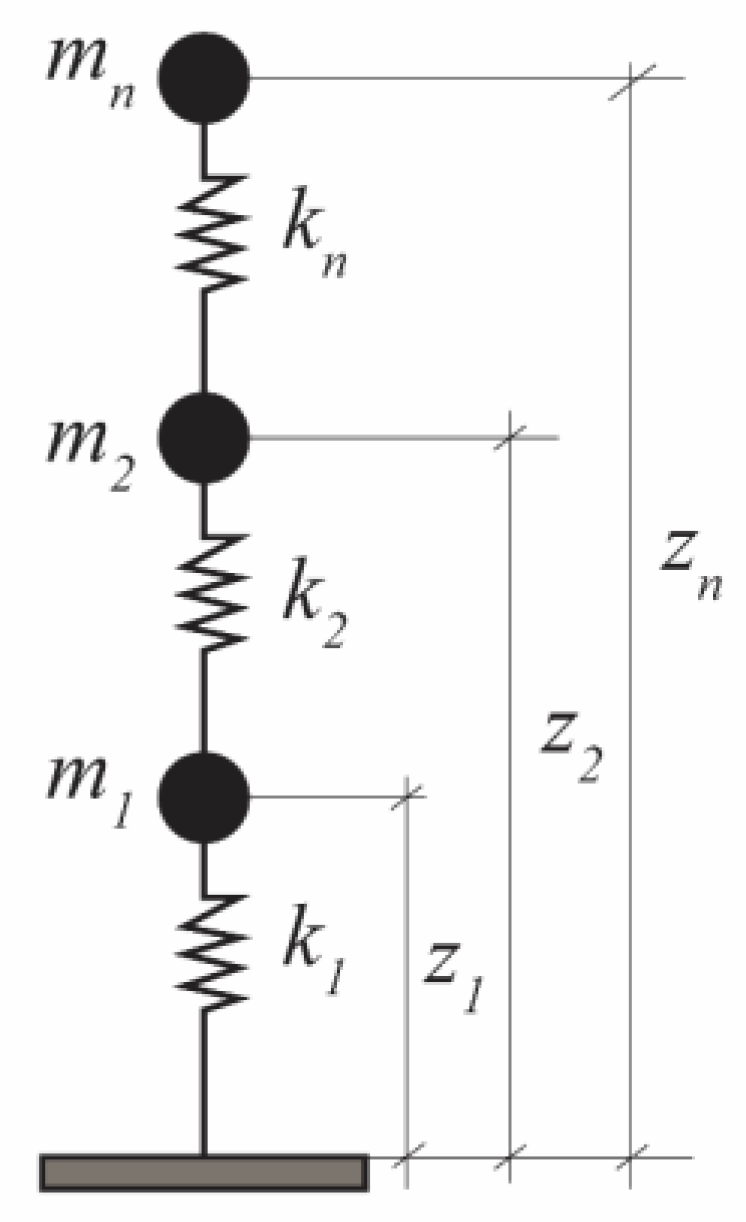

The frame is characterized as a series system (so-called “stick model”) of $i=1\dots n$ stories, where individual story masses $m_i$ are located at height $z_i$ (Figure 4) and where the connecting elements follow the respective trilinear story behavior, achieved from the trilinear columns behavior, in turn determined from the trilinear sectional behavior, as explained in the previous sections. In such a system, the horizontal forces are applied along the frame height having a distribution of the shape ${\psi }_i$, which can be either height-proportional or mass-proportional:

$${\psi }_i=\frac{m_i{z}_i}{\sum m_i{z}_i} \hspace{1em}\hspace{1em}\hspace{1em}or \hspace{1em}\hspace{1em}\hspace{1em}{\psi }_i=\frac{m_i}{\sum m_i}$$

(20)

where it should be observed that $\sum {\psi }_i=1$.

From the applied force shape ${\psi }_i$, the interstorey shear shape ${\tau }_i$ is obtained as:

$${\tau }_i={\displaystyle \sum }_{j=i}^n{\psi }_j$$

(21)

The elastic interstorey displacement shape ${\phi }_i$ can be found as:

$${\phi }_i=\frac{{\tau }_i}{k_{DLS,i}}{\left({\displaystyle \sum }_{j=1}^n\frac{{\tau }_j}{k_{DLS,j}}\right)}^{-1}$$

(22)

with $k_{DLS,i}$ being the $i$-th story elastic stiffness at $DLS$.

The frame displacement capacity $d_{xLS}$ and resulting base-shear $V_{xLS}$ at $x=D, L, C$ are defined when the first story reaches the corresponding limit state:

$$d_{xLS}=\underset{i}{\min }\frac{d_{xLS,i}}{{\phi }_i}$$

(23)

$$V_{xLS}=\underset{i}{\min }\frac{V_{xLS,i}}{{\tau }_i}$$

(24)

where $d_{xLS,i}$ is the $i$-th interstorey drift in Equation (17) at $xLS$, normalized with respect to Equation (22), and $V_{xLS,i}$ is the $i$-th interstorey shear in Equation (18), normalized with respect to Equation (21). Note that the two normalized minima always identify the same story.

3. Determination of Displacement Demand on a 2D Frame

3.1. Simplified Modal Analysis

The first modal shape $\varphi$ can be assumed equal to the displacement shape. In “stick models”, this is a reasonable approximation, because the error is negligible since it is lower than 3% for both the eigenvalue ratio and the eigenvector distance norm. Therefore:

$${\varphi }_i={\displaystyle \sum }_{j=1}^i{\phi }_j$$

(25)

where it should be noted that, by replacing Equation (22), the maximum value at the top ($i=n$) is naturally equal to 1.

The participation factor $\Gamma$ is:

$$\Gamma =\frac{m^{*}}{m_{mod}}$$

(26)

where $m^{*}=\sum m_i{\varphi }_i$ is the effective mass and $m_{mod}=\sum m_i{\varphi }_i^2$ is the modal mass.

3.2. Equivalent SDOF System

The “stick model” of the frame is then transformed into an equivalent single degree-of-freedom (SDOF) system, whose top displacements ($d^{*}$) and base-shears ($V^{*}$) at the three LSs $x=D, L, C$ are determined from Equations (23) and (24), as follows:

$$d_{xLS}^{*}=\frac{d_{xLS}}{\Gamma }$$

(27)

$$V_{xLS}^{*}=\frac{V_{xLS}}{\Gamma }$$

(28)

From which the effective elastic stiffness can be computed as:

$$K_{DLS}^{*}=\frac{V_{DLS}^{*}}{d_{DLS}^{*}}=\frac{V_{DLS}}{d_{DLS}}$$

(29)

3.3. Bilinearization of the Interstorey Capacity Curve

The SDOF system capacity curve is calculated by the equality of the two areas (assuming the same dissipated energy) between the bilinear equivalent curve and the trilinear curve previously defined for the DLS, LLS, and CLS. The yield point and the base-shear for the bilinear equivalent SDOF system is therefore found as:

$$d_y^{*}=\frac{V_y^{*}}{K_{DLS}^{*}}$$

(30)

$$V_y^{*}=V_{DLS}^{*}\left[\frac{d_{CLS}^{*}}{d_{DLS}^{*}}-\sqrt{{\left(\frac{d_{CLS}^{*}}{d_{DLS}^{*}}\right)}^2-\frac{d_{LLS}^{*}}{d_{DLS}^{*}}+\frac{V_{CLS}^{*}}{V_{DLS}^{*}}\left(\frac{d_{LLS}^{*}}{d_{DLS}^{*}}-\frac{d_{CLS}^{*}}{d_{DLS}^{*}}\right)+\frac{V_{LLS}^{*}}{V_{DLS}^{*}}\left(1-\frac{d_{CLS}^{*}}{d_{DLS}^{*}}\right)}\right]$$

(31)

The elastic period of such a bilinearized system is:

$$T^{*}=2\pi \sqrt{\frac{m^{*}}{K_{DLS}^{*}}}=2\pi \sqrt{m^{*}\frac{d_{DLS}}{V_{DLS}}}$$

(32)

where $m^{*}=\sum m_i{\varphi }_i$ and $K_{DLS}^{*}$ is in Equation (29).

3.4. Displacement Demands for the Three LSs

The displacement demands on the frame system corresponding to $x=D, L, C$ are found from the elastic displacement spectral ordinates $S_{De,xLS}\left(T^{*}\right)$ calculated at $T^{*}$ from Equation (32) on the displacement spectra pertaining to $x=D, L, C$, as:

$$d_{xLS,D}=\mathsf{\Gamma }\cdot S_{De,xLS}\left(T^{*}\right)\cdot \{\begin{array}{cc}1& \mathrm{if} T^{*}\ge T_{C,xLS}\\ \frac{1}{q^{*}}\left[1+\left(q^{*}-1\right)\frac{T_{C,xLS}}{T^{*}}\right]& \mathrm{if} T^{*}<T_{C,xLS}\end{array}$$

(33)

where $T_{C,xLS}$ is the period at the onset of the descending branch of the acceleration spectrum and:

$$q^{*}=\frac{m^{*}\cdot S_{e,xLS}\left(T^{*}\right)}{V_y^{*}}\ge 1$$

(34)

where $m^{*}=\sum m_i{\varphi }_i$, $V_y^{*}$ is in Equation (31), and $S_{e,xLS}\left(T^{*}\right)$ are the spectral ordinates calculated at $T^{*}$ on the elastic acceleration spectra pertaining to $x=D, L,C$. It is important to note that the spectral shape varies based on the soil class.

4. Validation of the Proposed Simplified Mechanical Model

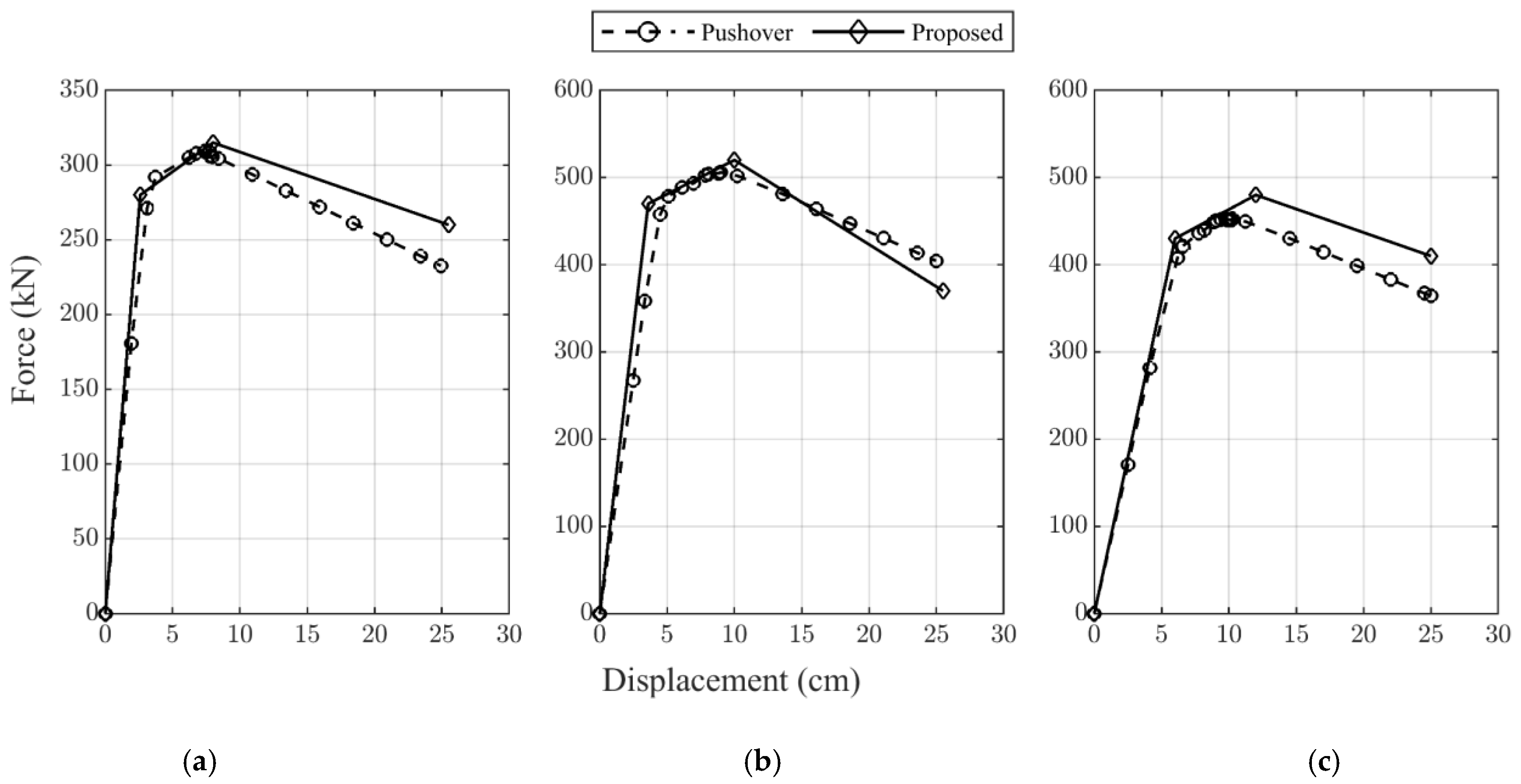

The proposed simplified pushover analysis method is validated through its application on three different RC frames shown in Figure 5 and subsequently comparing the results with rigorous nonlinear static analysis.

Application of the Proposed Model

Three reinforced concrete frames with a varying number of stories are considered for the comparative application of the proposed method. The frames considered are designed for gravity loads only, according to common practice in Italy in the pre-1980s, before the introduction and enforcement of seismic codes and capacity design. A common failure mechanism found in such gravity-load-designed structures is column-swaying, due to the presence of strong beams and weak columns, which results in a shear-type overall behavior.

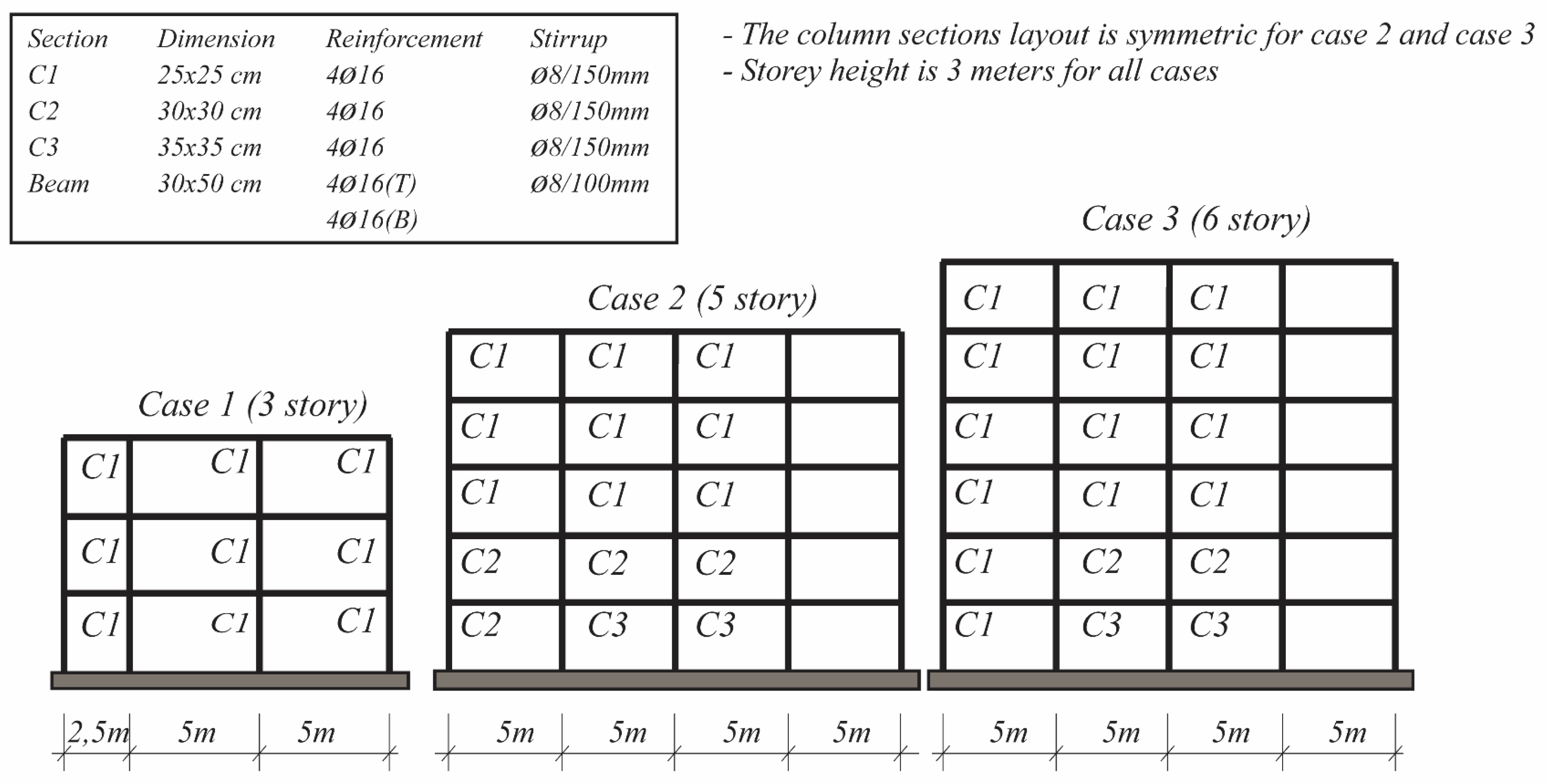

Figure 5 shows various details of the RC frames such as: frames geometry, element cross sections, longitudinal, and shear reinforcement. The concrete and reinforcing steel strength were 18 and 370 MPa, respectively, which were typically used in Italy in the 1970s. Static nonlinear pushover analysis was conducted using SAP2000 software [31] and the displacements at the attainment of three limit states DLS, LLS, and CLS were retrieved for each case, consistent with the criteria adopted for the simplified method. Figure 6 shows the comparison of the displacement quantities at DLS, LLS, and CLS obtained through the accurate pushover analyses and the proposed simplified analytical model. It is evident from the displacement comparison at various limit states that the proposed model provides a satisfactory match with the full pushover analysis. The error in terms of drift at various limit states between the two methods for the three case studies is shown in

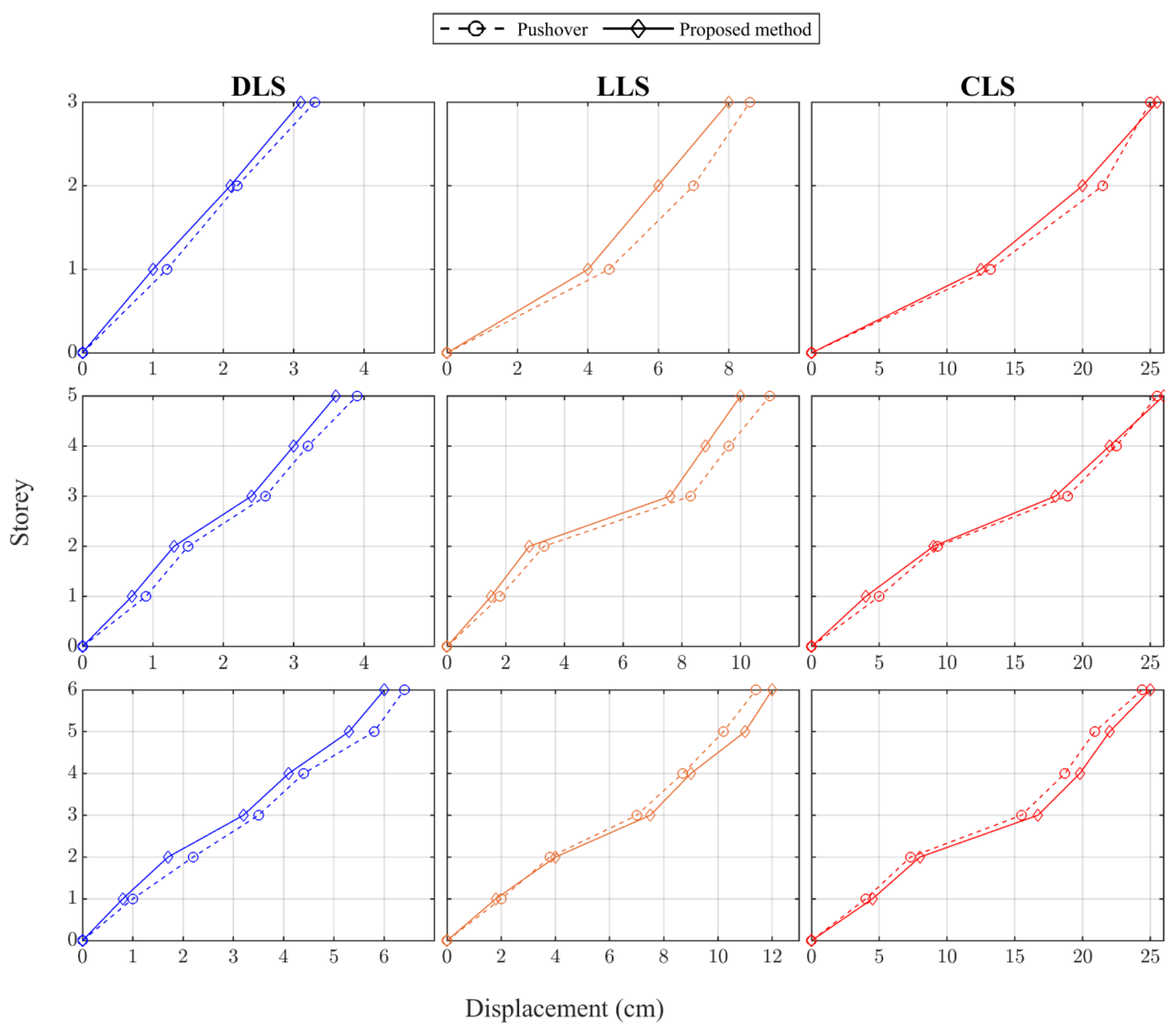

Table 2. Drift error between rigorous pushover and proposed method.

Story	Case 1 (Error %)			Case 2 (Error %)			Case 3 (Error %)
	DLS	LLS	CLS	DLS	LLS	CLS	DLS	LLS	CLS
1	−16.7	−13.0	−5.3	−22.2	−16.7	−20.0	−20.0	−10.0	+12.5
2	−4.5	−14.3	−7.0	−13.3	−15.2	−3.2	−22.7	+5.3	+9.6
3	−6.1	−7.0	2.0	−7.7	−8.4	−4.8	−8.6	+7.1	+7.7
4				−6.3	−8.3	−2.2	−6.8	+3.4	+5.9
5				−7.7	−9.1	2.0	−8.6	+7.8	+5.3
6							−6.3	+5.3	+2.5
Average	−9.1	−11.4	−3.4	−11.4	−11.5	−5.6	−10.4	+2.7	+6.2

, where (+) and (−) signs stand for overestimation and underestimation, respectively. Based on the results, the error is deemed to be acceptable. Moreover, it is observed that in case 1 the damage concentration occurs at the first story, while for cases 2 and 3 the damage is concentrated at the third story. It should also be noted that the stiffness is generally higher using the simplified method, except for LLS and CLS of case 3. The mechanical model performs well to capture the deformed shape at the elastic limit (DLS) and subsequently at the inelastic range (LLS and CLS) and the formation of soft stories. Furthermore, in Figure 7, the pushover curves of the RC frames in terms of base shear–top displacement obtained from the two methods are compared, showing a satisfactory correspondence.

5. Vulnerability Analysis through the Proposed Simplified Method

The proposed analytical pushover analysis on the simplified (stick-)model of a building becomes very useful when studying the impacts of earthquakes and developing risk assessment maps, in order to prioritize regions for structural retrofitting policies. In this study, the aim is to divide the building stock considered into different typologies, based on some macro-features (structure type, number of stories, age of construction, etc.) and then correctly describe the vulnerability of each typology. This is performed through the so-called fragility curves, which may be based on either an observational approach accounting for the damages observed in previous earthquakes, or a mechanical approach based on numerical models. As for the latter approach, in the literature, the fragility curves may be obtained from either incremental dynamic analysis (IDA) or nonlinear static analysis. Despite the accuracy of IDA, researchers are often discouraged to use it, since the computational effort it requires renders the analysis of large-building inventories an onerous task. In this respect, static analyses may be preferred, especially if they make use of simplified mechanical models. Having a small number of basic variables, the computational effort becomes affordable. In that respect, the fully analytical approach proposed in this study is even more effective, since fragility curves can be obtained very straightforwardly by parametrizing the basic variables of interest and by running a large number of analyses on different models in a very short time. It is a very efficient method, especially when dealing with a large inventory of buildings at a territorial scale.

Application of the Proposed Model in Vulnerability Assessment

The potential of the proposed simplified mechanical model is demonstrated by developing, through Monte Carlo analysis, the fragility curves of a five-story building typology, whose geometry is shown in Figure 5. The proposed model allows conducting multiple capacity assessment checks with minimal computational effort, by randomly extracting the input data in each realization of a building sample. The variable data considered were concrete strength, steel strength, and flexural and shear reinforcement amounts. They were extracted from uniform distributions considering the ranges shown in

Table 3. Ranges adopted for material strengths, and for shear and flexural reinforcement.

	Concrete Strength fym (MPa)	Steel Strength fym (MPa)	Flexural Reinforcement ρs (%)	Stirrup Diameter ϕst (mm)	Stirrup Spacing Sst (mm)
	16–28	300–500	0.75–1.25	8–10	150–250
Uniform distribution type	Continuous	Continuous	Continuous	Discrete	Discrete

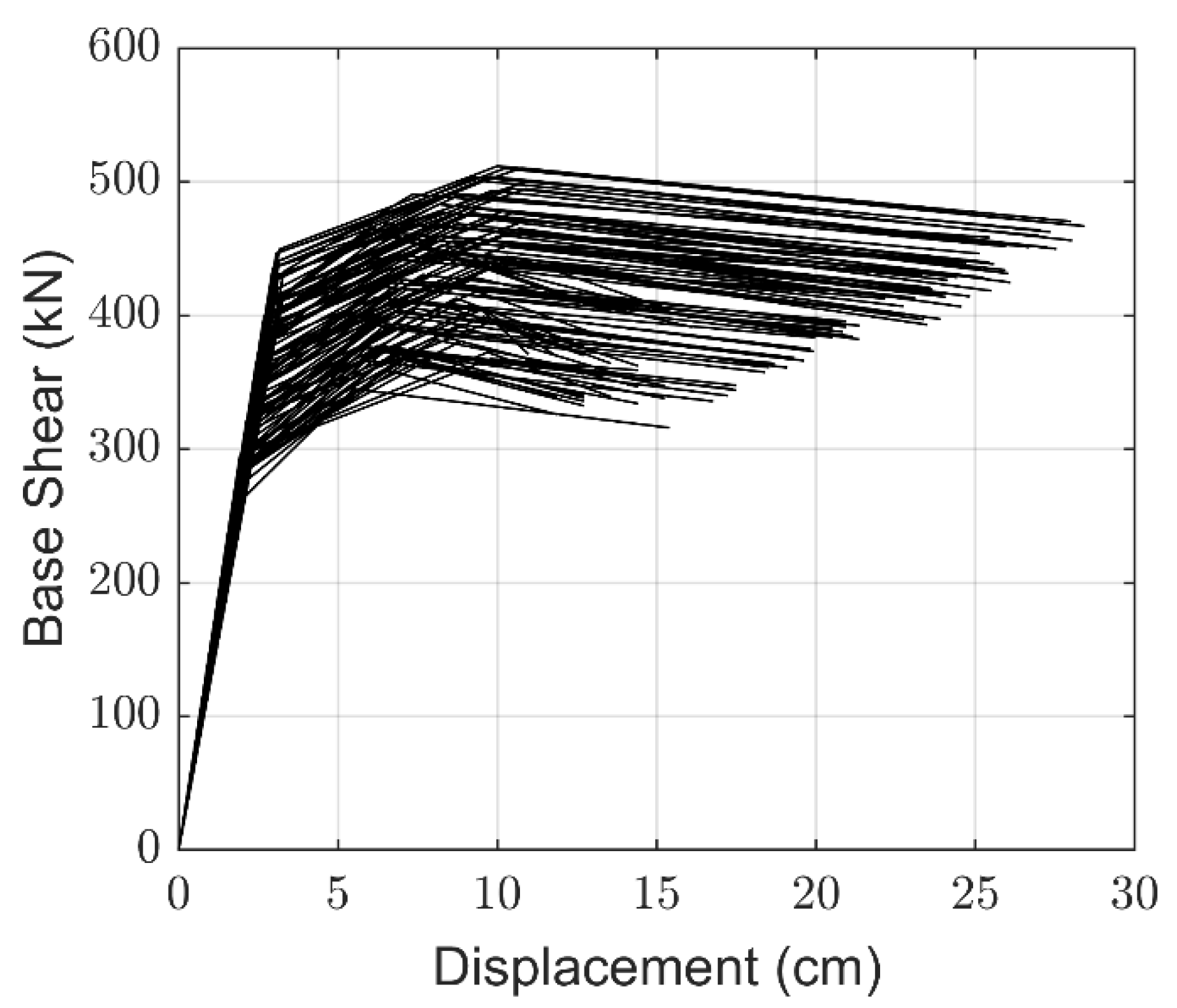

. This results in a data cloud that can be statistically treated to construct fragility curves at predefined limit states.

The cumulative probability of exceedance of a limit state $(xLS$, with $x=D,L,C$) is expressed as function of the horizontal peak ground acceleration, $a_g$. For each LS considered, for a given intensity measure $a_{g,k}$, $N_{it}$ Monte Carlo analyses are performed and a set of displacement-based capacity/demand ratios $\rho =d_{xLS}/d_i\left(a_{g,k}\right)$ is obtained and subsequently statistically elaborated as:

$$P_{xSL}\left(a_{g,k}\right)=P\left[D\left(a_{g,k}\right)\ge d_{xLS}|PGA=a_{g,k}\right]=\frac{1}{N_{it}}{\displaystyle \sum }_{i=1}^{N_{it}}\frac{d_{xLS}}{d_i\left(a_{g,k}\right)}$$

(35)

where $P_{xLS}$ is the exceedance probability of the $xLS$ (with $x=D,L,C$) for the $k^{th}$ seismic intensity $a_{g,k}$, with $N_{it}=1000$ and $k=1,\dots ,52$, corresponding to $a_g=0.01 g,\dots ,1.02 g$.

Once the probability for each $a_{g,k}$ is obtained, LSE nonlinear regression [32,33,34] is carried out to determine the parameters $\mu$ and $V$ of the lognormal cumulative distribution function expressed in terms of $a_g$:

$$P_{xSL}\left(a_g\right)=\Phi \left(\frac{1}{V}ln\frac{a_g}{\mu }\right)$$

(36)

where $\mathsf{\Phi }(\cdot )$ is the standard normal cumulative distribution function, $\mu$ is the median of the capacity, and $V$ is the coefficient of variation, assumed as equal to the log-standard deviation, which is generally accepted up to 0.6.

The numerical simulations were carried out using the @Risk software [35] on a simple spreadsheet. Figure 8 shows multiple capacity curves for the five-story building typology developed by randomly sampling the input data in Table 3 and performing 1000 iterations for each simulation.

Table 4. Fragility curve parameters (mean $\mu$ and coefficient of variation $V$ of the PGA-based capacity) for three Damage/Limit States.

DLS		LLS		CLS
$\mu$	$V$	$\mu$	$V$	$\mu$	$V$
0.128	0.170	0.470	0.205	1.050	0.302

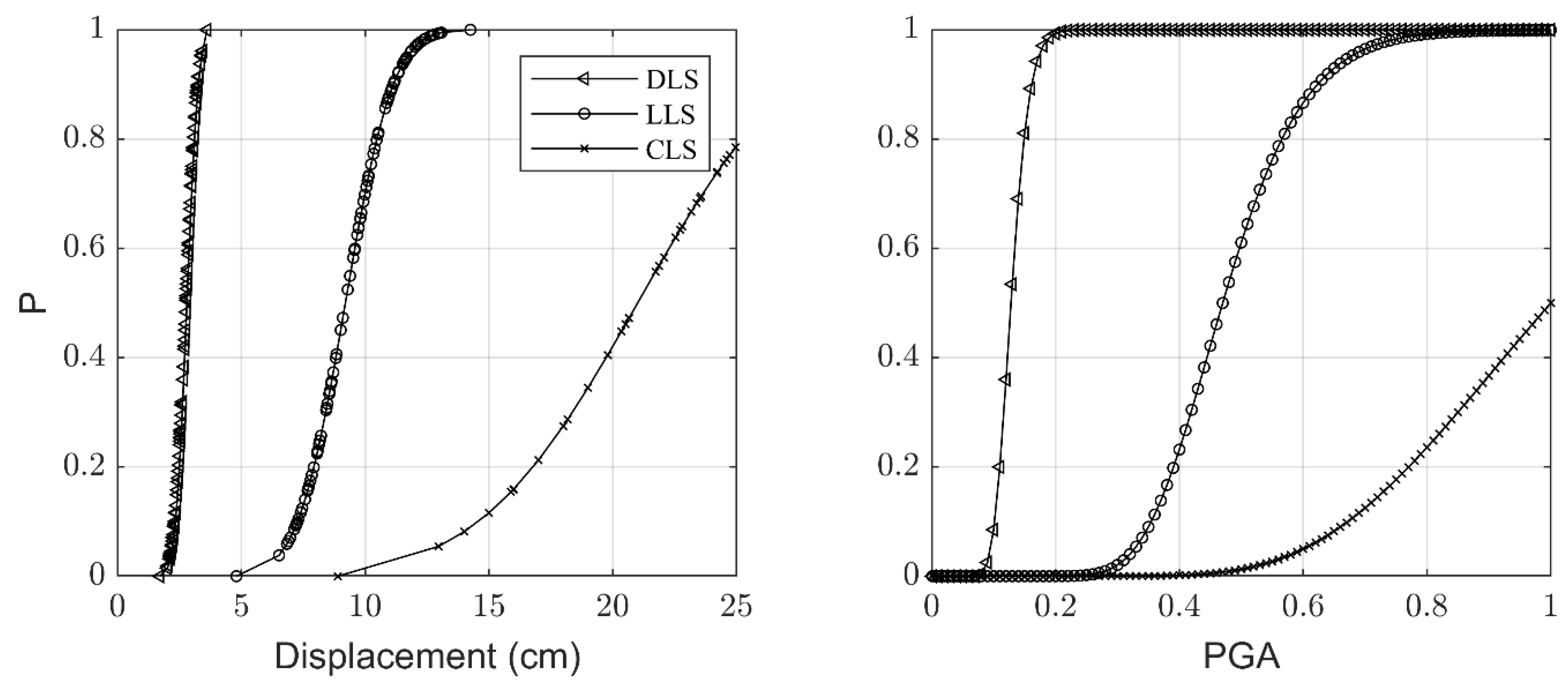

shows the log-normal fragility curve parameters (mean $\mu$ and coefficient of variation $V$) of the PGA-based capacity for three limit states (DLS, LLS, and CLS) of the five-story frame, with the resulting fragility curves at various limit states shown in Figure 9. It should be noted that these fragility curves do not include the record-to-record (R2R) variability, so their dispersion is only that pertaining to the capacity. This is a feature of this analytical approach: to show how to account for the uncertainties in the capacity by running simplified pushover analyses, as opposed to complex numerical pushover analyses, whose computational effort may be significant within a Monte Carlo approach. As for the additional uncertainty due to demand, according to FEMA 695 [36], the R2R variability can be accounted for by SRSS-adding a forfeit log-standard deviation of 0.2 and 0.4 for Serviceability and Ultimate Limit States, respectively. It should be noted that such forfeit values are still the object of further calibrations, which are beyond the scope of this study. In principle, one can obtain the fragility curves with the proposed method and subsequently add the demand variability either through the above (possibly recalibrated) forfeit values or through site-specific analyses. After including such demand dispersion, the shape of the curves will change, and the associated exceedance probability will increase.

6. Conclusions

An analytical method has been proposed to perform pushover analyses on reinforced concrete frames in a simplified yet accurate manner. The method is extremely efficient thanks to mechanics-based closed-form equations describing the capacity of the resisting mechanism, from the local to the global level, and can be readily implemented in a spreadsheet. Concise equations are provided, which are useful in performing rapid section and element capacity assessment. Overall, the procedure is conceived to be applied to existing buildings, under the assumption that their LS-exceedance is column-driven, as observed after significant earthquakes in most buildings designed with obsolete codes.

One merit of the simplified model is that it allows identifying the global capacity, expressed in terms of top-story displacement, by directly deriving it from the local capacities at the section and element level, for the three limit states (LS) of interest: Damage, Life Safety, and Collapse. The advantage is that there is no need to resort to different metrics, such as the largely (ab) used interstorey drift, to define the attainment of a LS.

The accuracy of the proposed analytical model has been validated by applying it to three RC frames with different global geometry. The results have been compared with the results obtained from full pushover analyses using 2D FEM models. The results showed satisfactory accuracy in relation to the determination of the displacement profiles at various LSs, the identification of the weak stories, and especially the pushover curves, which showed a good match in terms of both total base-shear and top displacement. As an additional example, to show the potential of the method, the fragility curves pertaining to a five-story RC building typology have been built. This has been achieved by defining a set of varying mechanical and reinforcement parameters and by performing a Monte Carlo analysis with very limited computational effort.

The examples shown underline the computational effectiveness of the method, which lends itself to be adopted in large-scale risk/vulnerability assessment studies.
