A Centralized–Distributed Joint Routing Algorithm for LEO Satellite Constellations Based on Multi-Agent Reinforcement Learning

Abstract

Designing routing algorithms for Low Earth Orbit (LEO) satellite networks poses a significant challenge due to their high dynamics, frequent link failures, and unevenly distributed traffic. Existing studies predominantly focus on shortest-path solutions, which compute minimum-delay paths using global topology information but often neglect the impact of traffic load on routing performance and struggle to adapt to rapid link-state variations. In this regard, we propose a Multi-Agent Reinforcement Learning-Based Joint Routing (MARL-JR) algorithm, which integrates centralized and distributed routing algorithms. MARL-JR combines the accuracy of centralized methods with the responsiveness of distributed approaches in handling dynamic disruptions. In MARL-JR, ground stations initialize Q-tables and upload them to satellites, reducing onboard computational overhead while enhancing routing performance. Compared to traditional centralized algorithms, MARL-JR achieves faster link-state awareness and adaptation; compared to distributed algorithms, it delivers superior initial performance due to optimized pre-training. Experimental results demonstrate that MARL-JR outperforms both Q-Routing (QR) and DR-BM algorithms in average delay, packet loss rate, and load-balancing efficiency.

1. Introduction

In recent years, LEO satellite constellations such as Starlink (USA), Iridium (USA), OneWeb (UK), and Qianfan have experienced significant advancements. LEO satellites, being closer to the Earth, provide enhanced signal reliability and reduced latency [1]. Satellite communication can address the communication demands of remote areas and maritime users, while also complementing terrestrial networks to enhance services for urban users.

LEO satellites are typically deployed at orbital altitudes ranging from 500 to 2000 km. They are widely employed in communication, remote sensing, and navigation enhancement due to their extensive coverage, low propagation latency, high-resolution observational data, and short revisit cycles. MEO satellites primarily serve global navigation systems, such as the GPS, Galileo, and BeiDou. GEO satellites, synchronized with the Earth’s rotation, offer stable data transmission capabilities and are commonly used in television broadcasting, meteorological observation, and military applications. Satellites at different orbital altitudes exhibit distinct characteristics and ground-to-space transmission delays.

Table 1. Characteristics of satellites in different orbits (LEO, MEO, GEO).

Categories	Advantage	Shortcoming	Delay
LEO	low launch costs, low communication latency, and high-resolution observation capabilities	short coverage duration and large satellite constellation size	10~100 ms
MEO	fixed propagation delay and wider coverage area compared to LEO	antenna design complexities and high-latitude coverage limitations	50~150 ms
GEO	high operational stability and extensive coverage capability	long transmission distances with significant latency, coupled with high launch costs	250~500 ms

summarizes the orbital types, advantages/disadvantages, and transmission delays of these three satellite categories.

Due to significant advantages, like less signal propagation delay, path loss, and cost-effective deployment [2], LEO satellites can enable comprehensive global wireless communication. Therefore, LEO satellite communication has emerged as a critical area of focus in modern communication research. However, unlike terrestrial networks and Geostationary Earth Orbit (GEO) satellite networks, LEO satellite constellations face challenges such as dynamic network topologies because of rapid satellite movement [3], heterogeneous communication demands across diverse coverage regions, instability in inter-satellite links, and constrained onboard computational resources. Consequently, traditional ground-based routing algorithms are not directly applicable to LEO satellite networks. To address these challenges, novel routing algorithms must be developed to enhance network throughput, optimize load distribution, and ensure low-latency data delivery.

Satellite routing algorithms, as a core and critical technology in satellite networks, have been extensively studied in the literature. However, addressing the challenge of rapidly time-varying satellite topology remains a primary issue that requires immediate resolution. To tackle this problem, researchers have proposed innovative approaches, such as virtual topology and virtual node strategy. Among these, Werner [4] introduced the Dynamic Virtual Topology Routing (DV-DVTR) algorithm. As illustrated in Figure 1, the virtual topology strategy method partitions the constellation’s operational timeline into fixed-duration epochs. Within each time slot, topological changes in the satellite network are masked, resulting in a fixed network topology throughout the slot duration. This enables topology-dependent routing computation that significantly reduces algorithmic complexity. In addition to time interval-based partitioning, the snapshot approach [5] is another representative virtual topology scheme. Whenever an inter-satellite link is temporarily disconnected or reconnected, a new snapshot distinct from the previous one is generated, and the satellite topology within each snapshot remains unchanged.

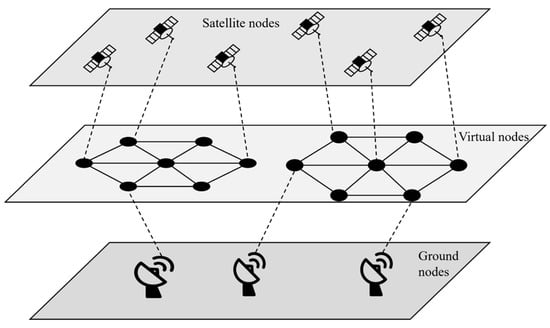

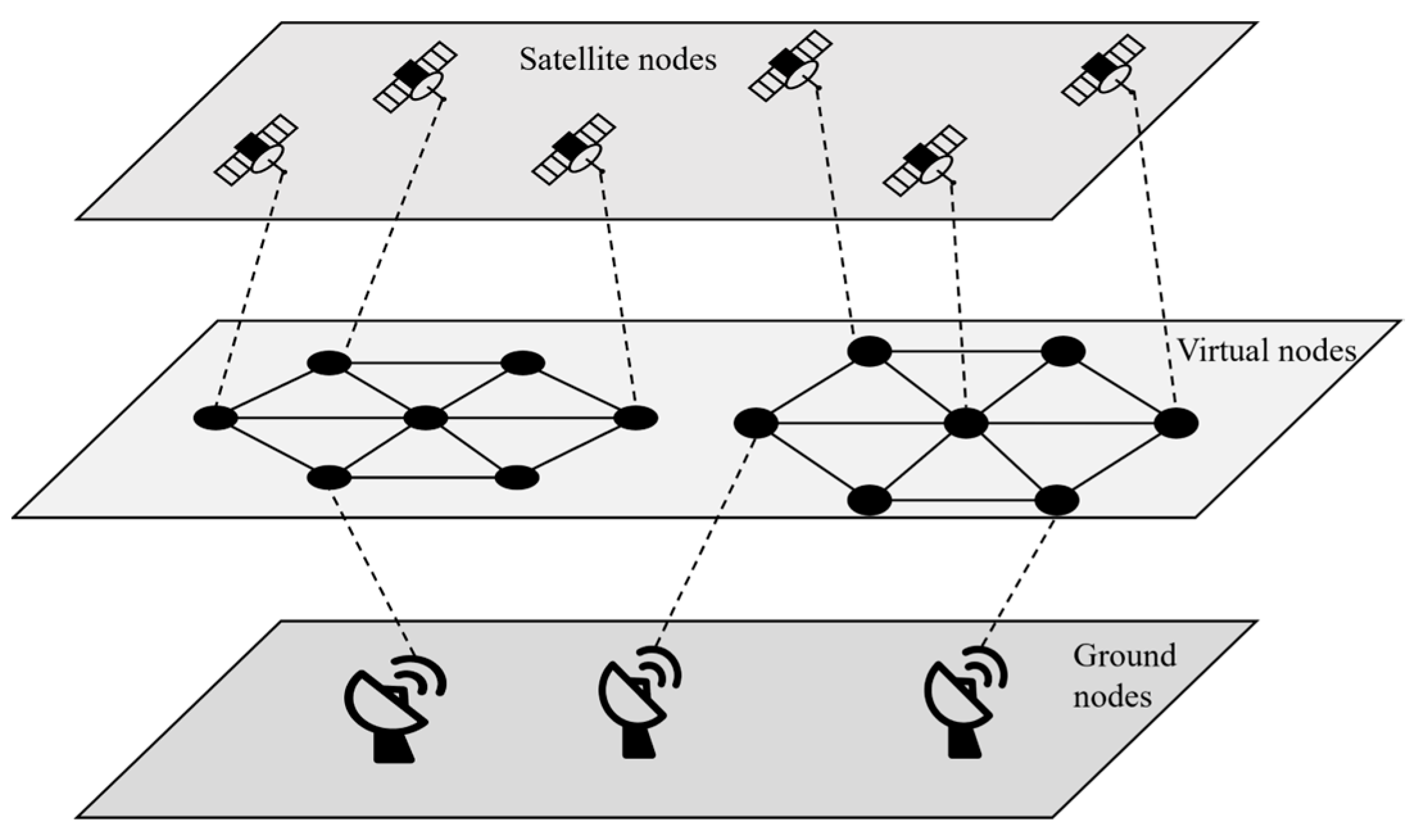

The concept of virtual nodes was first proposed by Mauger and Rosenberg [6], as shown in Figure 2. This strategy uses the concept of the logical positions of satellites to form a globally covered network, where each logical node is associated with the closest satellite in terms of physical proximity. In recent research, Lu [7] proposed the Temporal Netgrid Model (TNM) to optimize the virtual node strategy, replacing the concept of virtual nodes with virtual grids, where each grid is serviced by its corresponding satellite. Thus, satellite positions can be represented by grid coordinates.

Some scholars have proposed distributed satellite routing algorithms based on reinforcement learning, which hold significant value. Wang [8] used Q-routing to determine data packet forwarding routes in LEO satellite networks. Xu [9] employed deep reinforcement learning, replacing Q-tables with neural networks to store Q-values. These methods require global information for training, leading to high loads. Huang [10] proposed a reinforcement learning-based dynamic distributed routing scheme, treating each satellite node as an agent for training and routing. However, this method had relatively slow convergence. Wang [11] proposed a routing strategy for LEO satellite networks based on state information and load conditions within two hops of the satellite. Zuo [12] also proposed a reinforcement learning method, considering factors such as satellite signal-to-noise ratio, transmission rate, and delay, to design a reward function for global optimal routing. Shi [13] proposed an adaptive routing algorithm based on multipath transmission and Q-Learning. This algorithm utilized an improved breadth-first search algorithm to obtain multiple shortest paths and incorporated Q-Learning to optimize path selection in dynamic network environments. Simulation experiments demonstrated that the proposed algorithm effectively enhanced the throughput of inter-satellite networks, reduced transmission latency and packet loss rate, and adaptively selected optimal paths even in the absence of global topology information. Although significant progress has been made in the research on routing algorithms for inter-satellite networks, several challenges remain in practical applications. For instance, as the number of satellites increases and the network scale expands, further optimization of routing decisions in highly dynamic environments, reduction in computational complexity, and effective handling of bursty traffic and link failures are still critical issues that require in-depth investigation.

In this paper, we propose the Multi-Agent Reinforcement Learning-Based Joint Routing (MARL-JR) algorithm, which integrates centralized ground-station training to optimize initial routing performance for satellite networks with distributed in-orbit training to enable real-time link-state awareness and rapid routing decisions. The main contributions of this study are summarized as follows:

• We propose a joint reinforcement learning method named MARL-JR; it has lower end-to-end latency and more balanced network load.
• We propose Q-table Initialization, which allows the routing algorithm to have a better performance during the initial deployment phase of the satellite network.
• We conducted comparative analyses of various algorithms under different link failure rates. Experimental results demonstrate the superior robustness of the MARL-JR algorithm when handling emergent network conditions.

The remainder of this paper is organized as follows: In Section 2, we describe the system model and Multi-Agent Reinforcement Learning algorithm. In Section 3, we provide details on our MARL-JR method. We discuss the experimental results in Section 4. Finally, Section 5 concludes our work.

2. System Model

2.1. LEO Satellite Networks

Currently, most LEO satellites adopt the Walker constellation configuration [14], which is primarily categorized into inclined-orbit constellations (Walker-Delta) and polar-orbit constellations (Walker-Star) [15].

(1)

Inclined-orbit constellations

Inclined-orbit constellations feature orbital inclinations ranging from 0° to 90°, providing uniform satellite coverage with an equal number of satellites in each orbital plane and identical orbital periods for all satellites. The main advantage of inclined-orbit constellations lies in their relatively small satellite population, resulting in lower deployment costs. However, the dynamic nature of inclined-orbit satellites makes inter-satellite link (ISL) connections difficult to predict, posing significant challenges in establishing and maintaining reliable ISLs.

(2)

Polar-orbit constellations

Polar-orbit constellations, with inclinations approaching 90°, can cover both the Arctic and Antarctic regions, enabling global communication coverage including high-latitude areas. These constellations offer advantages such as lower signal transmission latency and higher data transfer rates. As illustrated in Figure 3, in a polar-orbit configuration, each satellite can establish ISLs with four neighboring satellites (two in the same orbital plane and two in adjacent planes) [16], except for satellites in the first and last orbital planes, which can only connect with three neighbors due to the orbital seam [17]. Satellites maintain stable cross-plane ISLs by precisely adjusting the position and orientation of their inter-plane laser terminals [2].

The development of satellite networks has drawn increasing attention in recent years. SpaceX is currently deploying a large-scale constellation comprising thousands of LEO satellites, which includes both inclined- and polar-orbit satellites [18]. Similarly, OneWeb [19] aims to construct a constellation predominantly composed of inclined- and polar-orbit satellites, operating at an altitude of 1200 km. Furthermore, the next-generation Iridium constellation represents a global satellite network that integrates both inclined and polar orbits [20]. As a result, commercial LEO satellite constellations commonly employ a hybrid configuration of inclined and polar orbits, with polar orbits being the predominant choice due to their extensive coverage capabilities. This study adopts a polar orbit model as the basis for routing algorithm research, providing a representative framework for analyzing and optimizing satellite network performance.

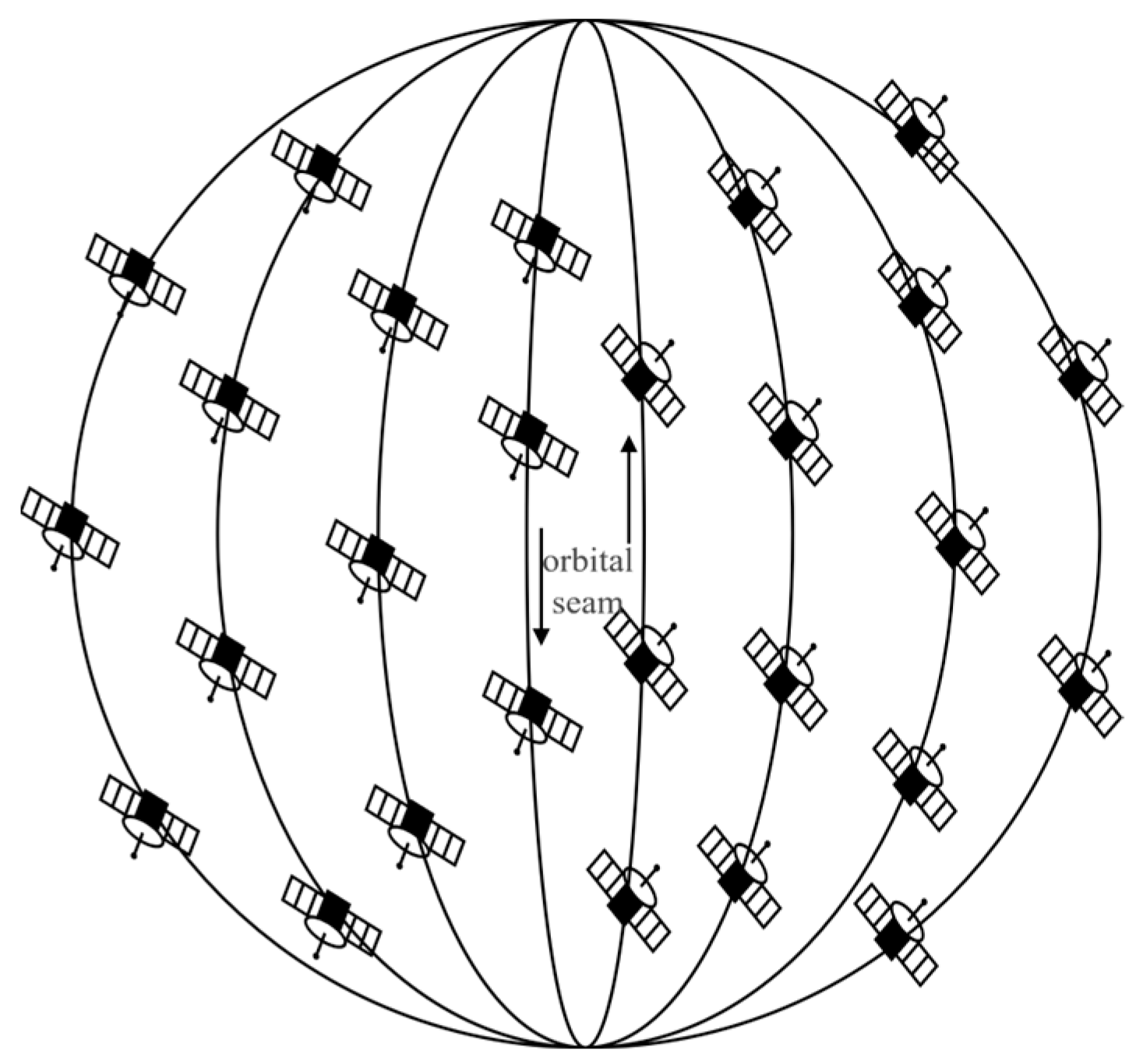

The polar-orbit constellation consists of multiple uniformly distributed satellite orbits with an inclination angle close to 90°, as illustrated in Figure 3.

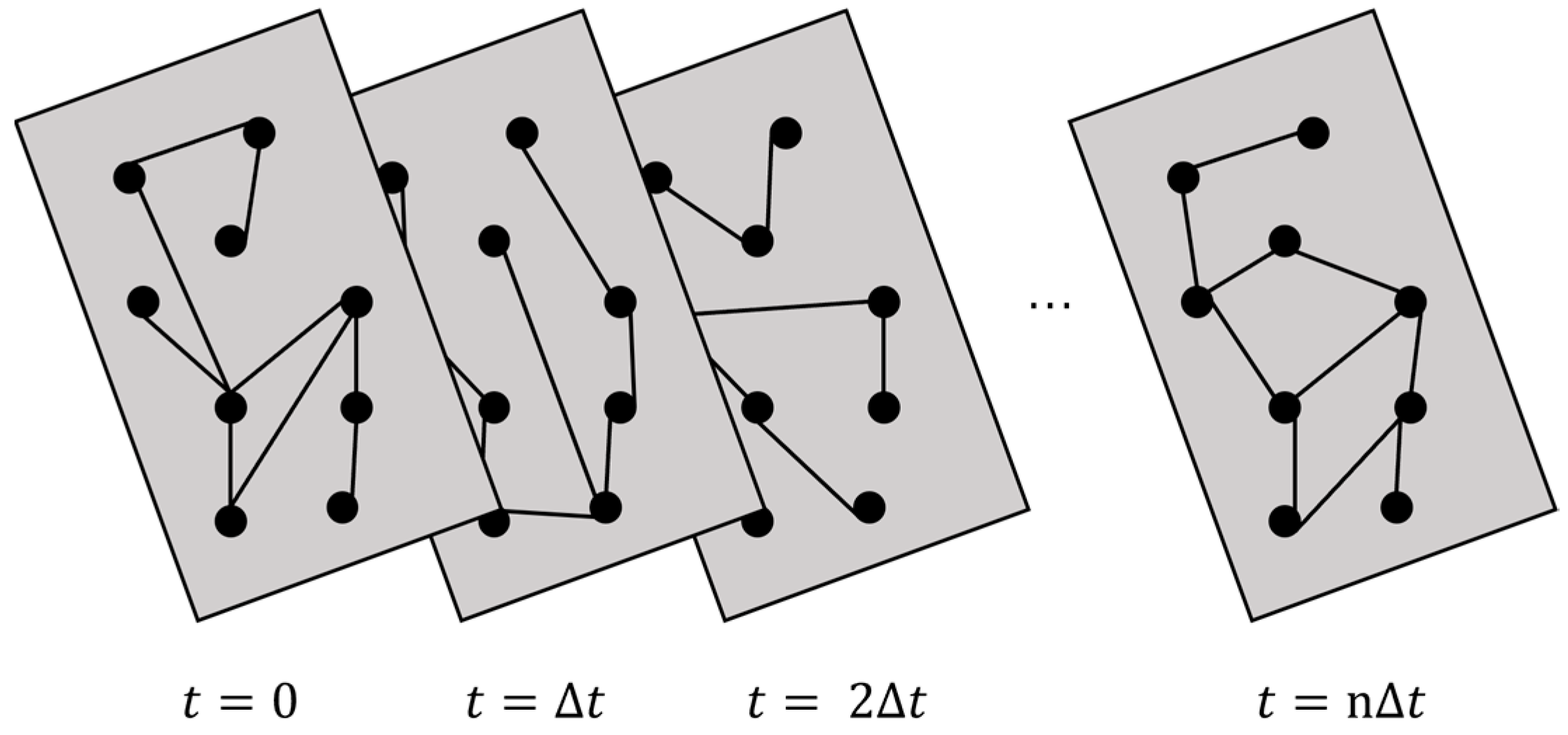

Owing to the continuous variation in satellite positions, the connectivity among satellites is highly dynamic. Links connecting adjacent satellites within the same orbital plane are referred to as intra-orbit links, whereas links between the adjacent satellites in the adjacent orbital planes are termed inter-orbit links [21]. In the Iridium system, each satellite is capable of establishing the following four connections: two intra-orbit links (forward and backward) within the same orbital plane and two inter-orbit links (left and right) with satellites in the adjacent orbital planes. This configuration ensures robust and flexible communication within the constellation, enabling efficient data routing and network resilience.

2.2. Multi-Agent Reinforcement Learning Algorithm

Multi-Agent Reinforcement Learning (MARL) represents a significant subfield of reinforcement learning, characterized by the involvement of multiple agents that interact with a shared environment. These agents may exhibit either cooperative or competitive behaviors, implying that the reward obtained by each agent is influenced not only by its individual actions but also by the actions of other agents in the system. This interdependence among agents introduces additional complexity to the learning process, as agents must adapt their strategies based on the dynamic behaviors of their counterparts. Consequently, MARL is widely applied in scenarios requiring distributed decision-making, such as autonomous systems, multi-robot coordination, and complex network optimization.

In LEO satellite networks, each satellite acts as an agent, capable of independent learning and forwarding state information. Each agent maintains a Q-table, which records the Q-values for forwarding data packets to neighboring nodes.

Table 2. The Q table of node $i$.

$\mathbf{Node} \mathit{i}$ State	Neighbor
	${\mathit{N}}_1$	${\mathit{N}}_2$	${\mathit{N}}_3$	…
$(i,{Des}_1)$	$Q_i(\left(i,{Des}_1\right),N_1)$	$Q_i(\left(i,{Des}_1\right),N_2)$	$Q_i(\left(i,{Des}_1\right),N_3)$	…
$(i,{Des}_2)$	$Q_i(\left(i,{Des}_2\right),N_1)$	$Q_i(\left(i,{Des}_2\right),N_2)$	$Q_i(\left(i,{Des}_2\right),N_3)$	…
$(i,{Des}_3)$	$Q_i(\left(i,{Des}_3\right),N_1)$	$Q_i(\left(i,{Des}_3\right),N_2)$	$Q_i(\left(i,{Des}_3\right),N_3)$	…
…	…	…	…	…

shows the Q-table for node $i$, where $i$ represents the node number, $De{s}_i$ represents the target node of the data packet, and $Q_i\left(\left(i,De{s}_1\right),N_1\right)$ represents the Q-value for forwarding to neighbor node $N_1$. The agent looks up the Q-table based on the destination node of the data packet, selects the node with the highest Q-value, and forwards the packet. Therefore, the update of the Q-value should be influenced by the current Q-value, the Q-value after forwarding, and the reward for the forwarding action. The Q-table update is shown in Equation (1).

$$Q_i\left(s,a\right)=\left(1-\alpha \right)Q_i\left(s,a\right)+\alpha \left[r+\gamma \underset{a^{\prime }\in {\mathrm{A}}_{\mathrm{c}}}{max}{Q}_j\left(s^{\prime },a^{\prime }\right)\right]$$

(1)

where $s$ represents the packet current state, $s^{\prime }$ represents the packet state after forwarding, $a$ is the action to be executed, $\alpha$ is the learning rate determining the degree of impact of action $a$, $r$ is the reward for executing action $a$ in state $s$, $\gamma$ is the discount factor, $i$ represent current node index, $j$ represent the index of node which node $i$ forwards packet to, $A_c$ is the action space in state $s^{\prime }$, and $\gamma \underset{a^{\prime }\in A_c}{max}{Q}_j\left(s^{\prime },a^{\prime }\right)$ predicts the maximum cumulative future rewards from the next state.

3. Algorithm Description

This section elaborates on the design of the multi-agent reinforcement learning (MARL) framework, including the formulation of the state space, reward function, and action space within the reinforcement learning paradigm. Subsequently, it introduces the neighborhood discovery mechanism, a critical component of the reinforcement learning process that enables agents to dynamically adapt to their local environments.

3.1. Model Setup

This paper adopts an Iridium-like LEO satellite network model, with graphical $G=\left(V,E\right)$ representation methodologies. In a graph, $V$ is the set of satellite nodes and $E$ is the set of ISL. The number of nodes in graph G is denoted as $Nu{m}_v=\left(Nu{m}_x,Nu{m}_y\right)$, where $Nu{m}_x$ represents the number of orbital planes and $Nu{m}_y$ represents the number of satellites deployed in each orbital plane. The index $i$ of satellite node $N_i$ can be calculated according to Equation (2).

$$i=Nu{m}_y{X}_i+Y_i$$

(2)

where $X_i\in \left\{0,\dots ,Nu{m}_x-1\right\}$ denotes the orbital index of the satellite node $N_i$, and $Y_i\in \left\{0,\dots ,Nu{m}_y-1\right\}$ represents the sequence number of the satellite node $N_i$ within its orbit plane. The relevant parameters are defined in

Table 3. Parameters and their definitions.

Parameters	Definition
$G$	Satellite network graph
$V$	Set of satellite nodes
$E$	Set of inter-satellite links
$Nu{m}_v$	Number of satellites
$N_i$	Individual satellite nodes
$D_{ij}$	$\mathrm{Delay} \mathrm{between} \mathrm{nodes} N_i$$\mathrm{and} N_j$
$S$	Set of satellite states
$A_c$	Set of forwarding actions
$Q$	Q-value
$q_{max}$	Maximum satellite load
$g_j$	Load condition of node $j$
$N_{b_i}$	$\mathrm{Set} \mathrm{of} \mathrm{neighbor} \mathrm{nodes} \mathrm{for} N_i$

.

When a data packet arrives at satellite node $N_i$, the node $N_i$ will select the most appropriate action $a_t$ from the action set $A_c$ to forward the packet to node $N_j$ on the basis of the current environment state $s{e}_t$.

The data forwarding process between satellites can be modeled as a finite-state Markov chain, where the terminal state corresponds to the successful delivery of the data packet to the destination node. The Markov decision process (MDP) can be defined by $\left(S,A,P,R\right)$. In the context of satellite network routing, S, A, and R can be defined as follows:

• State: The global environmental state of the satellite network at time $t$, denoted as $s{e}_t\in S$, is defined as $s{e}_t=\left\{N_c,N_a,q_1^t,q_2^t,\dots ,q_{Nu{m}_v}^t\right\}$, where $N_c$ and $N_a$ represent the current and destination nodes of the data packet, and $q_i^t\left(1\le i\le Nu{m}_v\right)$ indicates the queue length of $i$ node at time $t$.
• Action: The action $a_t\in Act=\left\{Q_1,Q_2,\dots ,Q_p\right\}$ corresponds to the forwarding decision for the data packet, where $Q_i$ denotes the Q-value associated with forwarding to the $i$ node. In LEO satellite networks, each satellite can establish connections with a maximum of four neighboring satellites [22], thus $\max \left(p\right)=4$.
• Reward: The reward function is influenced by two key factors—propagation delay $D_{ij}$ and the load condition $g_j$. A maximum load threshold $q_{max}$ is defined and, according to Equation (4), $g_j$ is related to the number of received packets $q_{receive}$, sent packets $q_{send}$, and occupied space $q_{occupied}$, which represents the number of packets that the node has stored.

The reward function is formulated in Equation (3), where $w_1,w_2$ are the weighting coefficients that balance the objectives of load balancing and delay minimization. If the neighboring node is the destination node, the reward is set to $q_{max}$ to prioritize rapid data delivery to the destination.

$$rewar{d}_j=\left\{\begin{array}{c}{q}_{max} N_j is the destination\\ q_{max}-w_1\ast g_j-w_2\ast D_{ij} otherwise\end{array}\right.$$

(3)

$$g_j=q_{receive}+q_{send}+q_{occupied}$$

(4)

3.2. Information Exchange

The topology of the satellite network exhibits time-varying characteristics, as the connectivity between the satellites dynamically changes over time. Consequently, agents must periodically update their neighbor’s information to optimize the forwarding strategy upon the arrival of data packets. In practice, satellites employ “hello” packets to acquire and maintain neighbor information [23]. To enhance the efficiency of data exchange for reinforcement learning and optimize the formulation of forwarding strategies, we adopt a periodic broadcasting mechanism for link-state information. At regular time intervals T, the link-state information within the network is updated, and the agents correspondingly update their Q-tables based on the received information. Furthermore, if a satellite fails to receive the ISL state information within a predefined time interval, it is flagged as faulty, and all associated links are deactivated. In contrast to Q-routing algorithms that propagate “hello” packets solely through data packet forwarding, we employ periodic broadcasting to accelerate link-state awareness and neighbor discovery. Furthermore, differing from ground-station-based approaches that disseminate global link information to all nodes, “hello” packets only transmit local neighbor and link-state information from the originating node. It significantly reduces network overhead and decreases nodal computational loads.

3.3. Q-Table Initialization

Due to the constrained computational resources and energy availability on satellites, as well as the potential for packet loss, network congestion, and significant propagation delays during the initial training phase, we employ ground-based pre-training to initialize the Q-table. This approach reduces the computational burden of updating the Q-table during the satellite’s operational phase and ensures the reliability of the routing algorithm in the initial phase of satellite operation. The Q-table Initialization process is illustrated in Figure 4.

Owing to the predictable orbital dynamics of satellites during the deployment phase, and as established in Section 2.1, each satellite node can establish connections with both inter-orbit neighbors (adjacent orbital planes) and intra-orbit neighbors (same orbital plane). For polar-orbit constellations such as Iridium, the system continuously maintains and updates visible satellite Ephemeris Data, enabling each node to form Ka-band connections with its four nearest neighbors according to the real-time orbital data. The Q-table Initialization process is conducted based on the initial topology of the satellite network, denoted as $G_{t_0}$, and the output consists of the Q-tables distributed to each satellite node. To mitigate the effects of randomness and ensure the generalizability of the training outcomes, we will randomly generate the source and destination nodes of the data packets. In order to meet the actual satellite communication scenario, data packets will be generated upon the arrival of the previous packet, with randomly assigned source and destination nodes.

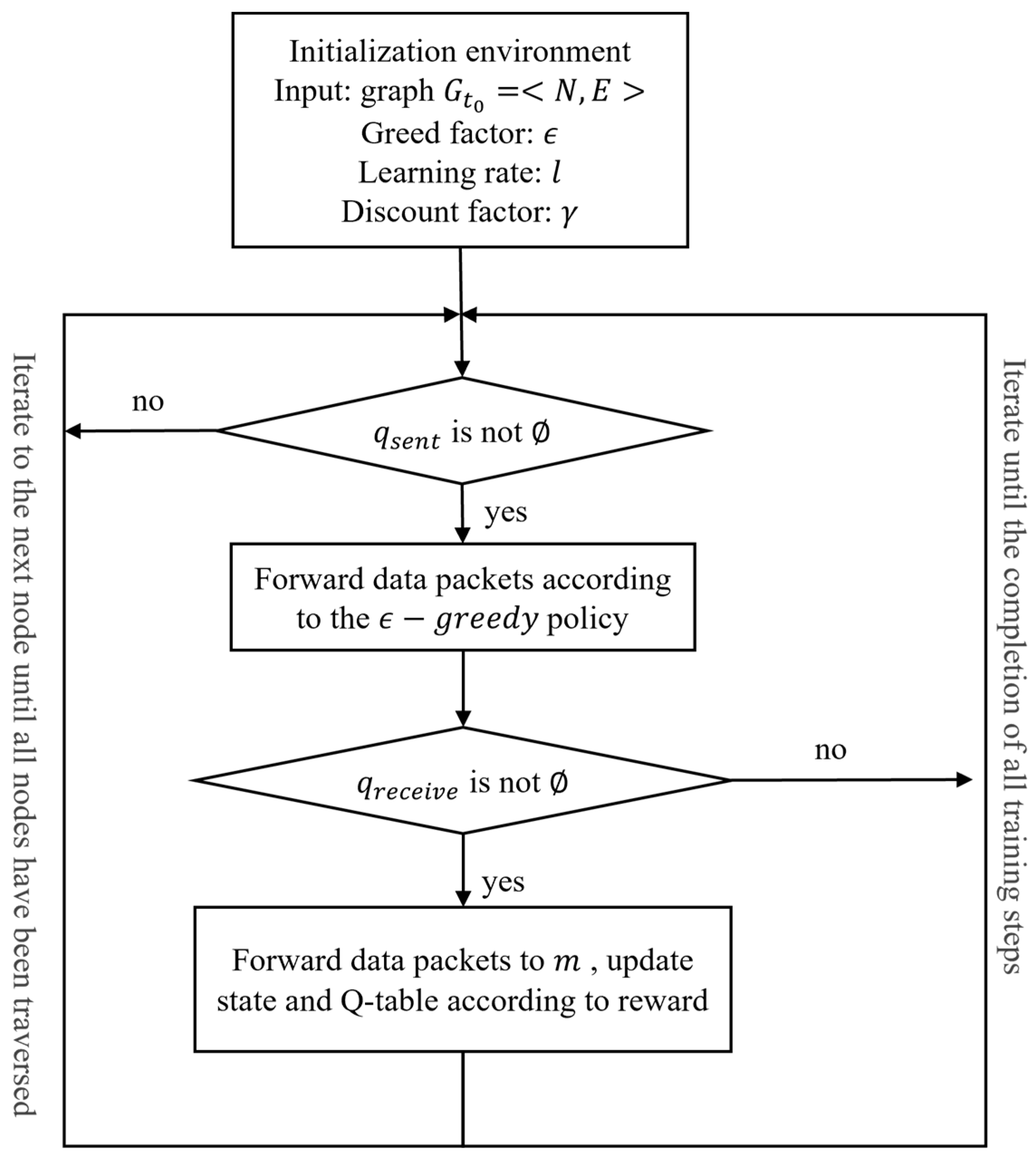

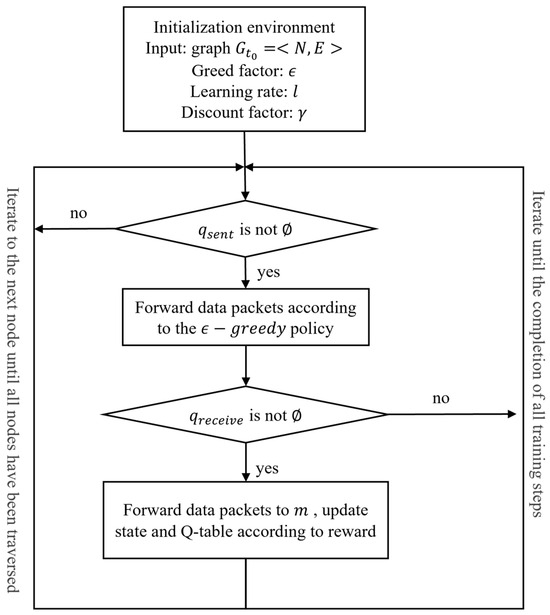

Figure 4 illustrates the Q-table Initialization process. First, input the initialization of network environment and algorithm parameters. Second, each satellite node monitors its transmission queue $q_{send}$. The queue determines the packet forwarding priority when it is not empty, while the node prioritizes transmitting the highest-priority packet first, thereby satisfying differentiated forwarding requirements for data of varying levels of importance. Third, the next-hop node $m$ is selected according to the $\epsilon -greedy$ strategy. If the receiving queue $q_{receive}$ of node m is not full, the packet is forwarded to $m$, and the current node receives both the Q-table and reward value from node $m$ and update state and Q-table according to Equation (1). However, if the receiving queue is full or if node/link failure occurs (resulting in network congestion), the packet enters a waiting state until the next transmission opportunity. Finally, iterate through the above steps.

To prevent convergence to local optima and enhance routing precision, we employ the $\epsilon -greedy$ strategy. To enhance the convergence speed of the algorithm, a $\epsilon$ decay factor $\mathsf{\mu }$ is introduced. As the iterations progress, the probability of randomly selecting the next hop is reduced. As shown in Equation (5), the selection of the next hop will be impacted by ${\mathsf{\mu }}^{\mathrm{t}}\epsilon$. With probability ${\mathsf{\mu }}^{\mathrm{t}}\epsilon$, the next hop will not be an optimal selection. To expedite convergence, a decay factor $\mu$, which progressively decreases $\epsilon$ over time, thereby significantly enhances the convergence rate. This adaptive approach ensures a balance between exploration and exploitation, ultimately improving the efficiency of the routing algorithm.

$$a_t=\left\{\begin{array}{c}\mathrm{random} \mathrm{action} \mathrm{probability}:{\mathsf{\mu }}^{\mathrm{t}}\epsilon \\ \max \left(Q_{t+1}\right) \mathrm{probability}:1-{\mathsf{\mu }}^{\mathrm{t}}\epsilon \end{array}\right.$$

(5)

Furthermore, owing to the predictable nature of satellite networks, the Q-table Initialization scheme conducted via ground stations can be periodically reapplied. This approach mitigates potential inaccuracies in the online-trained Q-table that are caused by significant changes in the satellite network topology, thereby enhancing routing performance.

The centralized approach of periodically acquiring global satellite network information and reinitializing the Q-tables can effectively reduce the computational burden of online training on satellite nodes, while simultaneously improving routing accuracy.

3.4. Operational Phase

Due to the dynamic nature of satellites, the topology and connectivity of the satellite network undergo continuous changes. To effectively address the dynamic characteristics of satellite links, a temporal network model is adopted during the operational phase of the satellites. This approach effectively handles the dynamic nature of the satellite network while reducing the computational burden on the satellites, enabling efficient data routing.

The operational phase strategy is formulated as a problem of maximizing the Q-value. The reinforcement learning Q-value expression is Equation (6), which represents a simplified formulation of the final Q-value and combines the immediate reward with the cumulative rewards of all the subsequent actions following action $a$. Here, $R_{i+1}$ denotes the reward for the next action, while $R_n$ indicates the terminal reward value upon reaching the destination node. Consequently, $Q\left(s,a\right)$ is determined by the reward conditions of traversed nodes rather than all nodes in the network, where $n$ specifies the index of the final destination node, $\gamma$ is the discount factor, and $\alpha$ is the learning rate. A higher Q-value indicates a more optimal forwarding path selection, and a higher total Q-value corresponds to the globally optimal path. Therefore, during the actual operation of the satellite network, it is necessary to select the action with the highest Q-value at each forwarding step. As shown in Equation (7), $Q_{sum}$ represents the total Q-value, which serves as a critical metric for evaluating path optimality, ${\sum }_i^n$ represents the sum of Q, through which the packet is forwarded; and $Q_i\left(s_i,a_i\right)$ represents the Q-value of state $s_i$ and action $a_i$.

$$Q_i\left(s,a\right)=\left(1-\mathsf{\alpha }\right)R_i+\mathsf{\alpha }\gamma \left(R_{i+1}+R_{i+2}+\cdots +R_n\right)$$

(6)

$$Q_{sum}=\sum _i^n{Q}_i\left(s_i,a_i\right)$$

(7)

In traditional Q-routing algorithms, agents can only obtain the Q-tables and link-state information of neighboring nodes when forwarding data packets to them, subsequently updating their own Q-tables. This approach is passive and limited, leading to the incomplete acquisition of network state information. When no data packets are forwarded between nodes, the timely detection of link-state changes becomes impossible. Additionally, this method suffers from low learning efficiency, as only a single entry in the Q-table can be updated at a time. To address these issues, this study proposes a periodic broadcasting mechanism. Upon receiving a data packet, a node actively broadcasts its Q-table and link-state information, enabling receiving nodes to promptly update their own Q-tables and improving learning efficiency. When a satellite’s neighbor nodes change, the affected node updates both its Q-table and link-state information, subsequently propagating these updates to new neighbors to maintain network-wide information consistency. The smaller the broadcasting period T, the more frequently agents can perceive network state changes. This improved mechanism ensures the rapid perception of network states while effectively controlling communication overhead through period adjustment, thereby enhancing the reliability of routing optimization in LEO satellite networks. The operational phase process is illustrated in Figure 5. A shorter broadcast interval enhances the agent’s ability to detect network state changes more rapidly, thereby facilitating the implementation of globally optimal routing strategies.

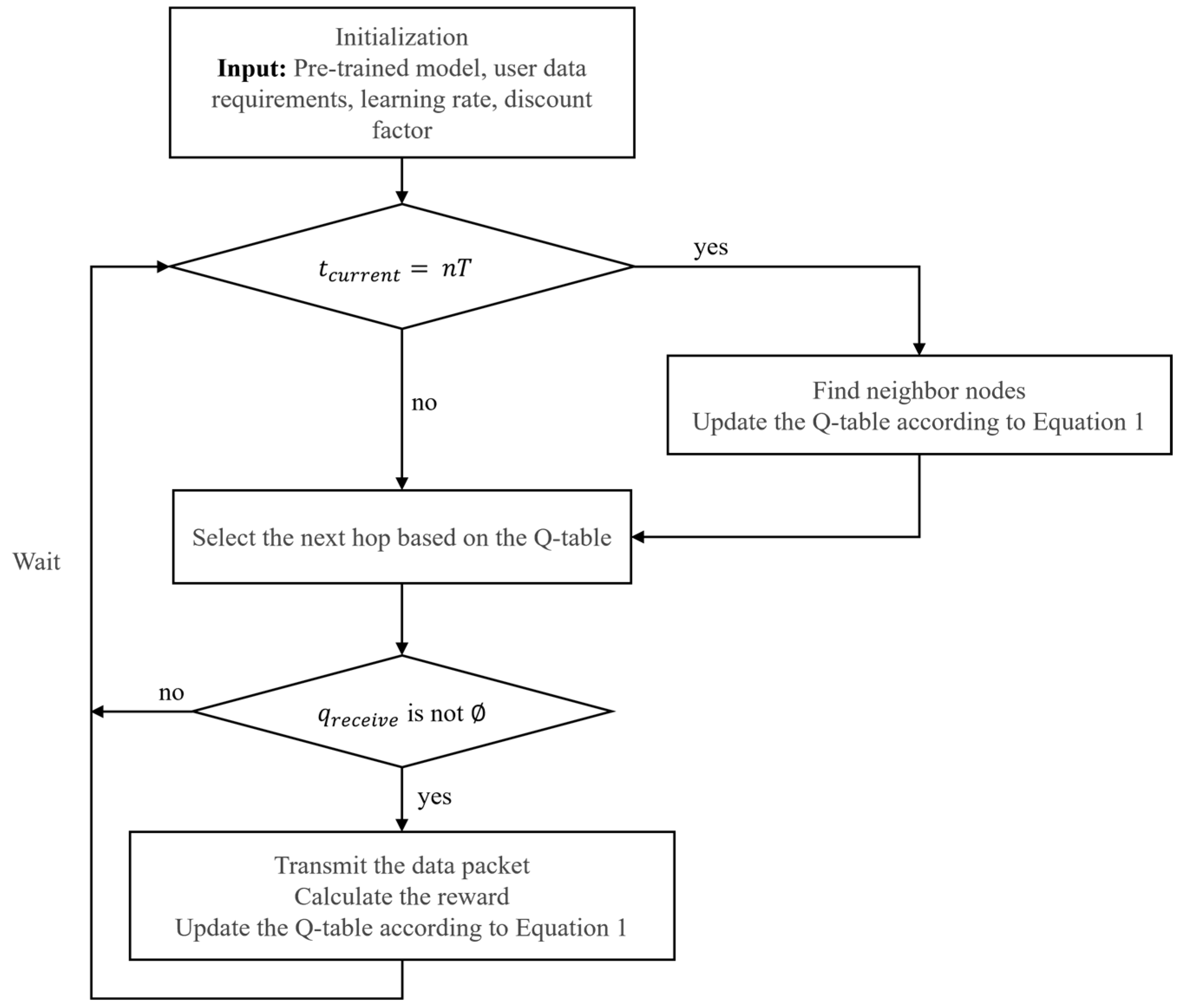

In online training, the routing process initiates by loading the ground-pre-trained routing policy model and ingesting user-specified data packets. At periodic intervals t, the system updates both the satellite link states and Q-tables. When packet forwarding is required, the following will occur: (1) The next-hop node is selected based on Q-table values. (2) The receiving queue $q_{receive}$ status of the target node is verified if available, the packet is forwarded with subsequent Q-table updates using reward feedback; if congested, the packet enters a buffered waiting state. Online training will be continuously implementated, which enables rapid link-state awareness and consequent Q-table updates, thereby enhancing the routing algorithm’s robustness against topological dynamics.

4. Simulation Analysis

4.1. Scenario Setup

This paper adopts an Iridium-like satellite constellation [24] with an orbital altitude of 780 km, an inclination of 86.4°, and seven orbits with seven satellites each. The constellation parameters are shown in

Table 4. Constellation scene parameter setting.

Parameters	Value
Total satellites	49
Number of orbits	7
Number of satellites per orbital plane	7
Orbital altitude	780 km
Orbital inclination	86.4°

.

4.2. Parameter Settings

For the reward function, the load weight is set to five, and the delay weight is set to one to effectively reduce satellite congestion. To avoid local optima, the $\epsilon -greedy$ strategy is used during pre-training with an initial $\epsilon$ of 0.8. To accelerate convergence, a decay factor of 0.998 is introduced, reducing $\epsilon$ after each iteration. To ensure network stability, the learning rate is set to 0.7 during Q-table Initialization and 0.3 during operational phase. The specific parameters are shown in

Table 5. Simulation parameter setting.

Parameters	Value
Maximum queue length $q_{max}$	200
Load weight ${\omega }_1$	5
Delay weight ${\omega }_2$	1
Discount factor $\gamma$	0.9
Greedy factor $\epsilon$	0.8
$\epsilon$ decay factor $\mu$	0.998
Number of episodes	40
Number of steps peer episode	300
Learning rate for Q-table Initialization	0.7
Learning rate for operational phase	0.3

.

4.3. Resource Utilization

To manage large-scale data communication under the constraints of limited satellite resources, the time complexity, space complexity, and network overhead of the algorithm are critical factors. Regarding time complexity, the proposed algorithm employs a Q-table to determine optimal forwarding strategies. The Q-table is updated based on the node’s local link information and the link states of neighboring nodes, which are used to compute rewards and refine the Q-table. In contrast, centralized routing algorithms necessitate global link-state information and employ double-loop traversal to identify the shortest path, leading to a time complexity of $O\left(N^2\right)$. This highlights the efficiency of the proposed approach in reducing computational overhead while maintaining robust routing performance.

In terms of space complexity, the centralized routing algorithm needs to store node and edge information in the network graph, with $O\left(N_E+N\right)$ space complexity. $N_E$ is the number of edges and $N$ is the number of nodes. In the proposed algorithm, each satellite needs to store its local link information. Consequently, the proposed algorithm exhibits superior performance in terms of both time and space complexity when compared to centralized routing algorithms. MARL-JR significantly reduces the computational and storage overhead, making it more suitable for large-scale satellite networks with limited resources.

In centralized routing approaches, each satellite node is required to acquire global network state information, which is propagated to all nodes concurrently with data packet transmission. This process results in significant network overhead and increased computational load on satellites. In contrast, this study employs the periodic broadcasting of link-state information, where each satellite disseminates only its local state information to neighboring nodes and updates its Q-table utilizing the state information received from neighbors. This decentralized strategy significantly reduces the computational load on satellites and enhances the scalability and efficiency of the satellite network.

4.4. Simulation Results Analysis

4.4.1. Comparison Algorithms

This study conducts a comparative analysis of the proposed algorithm against the Data Rate Benchmark (DR-BM) algorithm [25,26] and the Q-routing algorithm [27]. The DR-BM algorithm, a conventional routing approach widely applied in diverse network scenarios, serves as a representative benchmark for performance evaluation. The DR-BM algorithm prioritizes data rate in routing decisions, making it highly relevant to satellite network routing challenges. Utilizing DR-BM as a benchmark enables a comprehensive evaluation of the proposed algorithm’s performance in leveraging link data rates, thereby demonstrating the efficacy and robustness of the proposed algorithm.

The Q-routing algorithm represents a seminal application of reinforcement learning in satellite routing. As one of the pioneering algorithms that introduced reinforcement learning to routing problems, Q-routing has established a substantial research foundation and exerted significant influence in both the academic and industrial domains. Therefore, a comparison with Q-routing enables a comprehensive evaluation of the proposed algorithm’s performance in addressing LEO satellite routing challenges, while also providing valuable insights for future research directions. This comparative analysis highlights the advancements and innovations of the proposed algorithm over traditional reinforcement learning-based routing approaches.

4.4.2. Comparison Results Analysis

This paper employs an Iridium-like satellite constellation architecture for comparative simulation experiments. Leveraging the relatively stable inter-satellite link configuration characteristic of Iridium systems, we primarily simulate link failures and node malfunctions through stochastic edge deletion and restoration in the graph representation. The simulation constrains the maximum number of simultaneous link failures during any single routing process to five, enabling a systematic analysis of routing algorithm performance under inter-satellite link disruption scenarios.

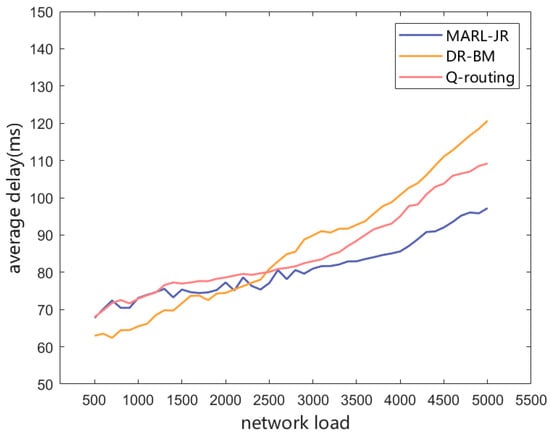

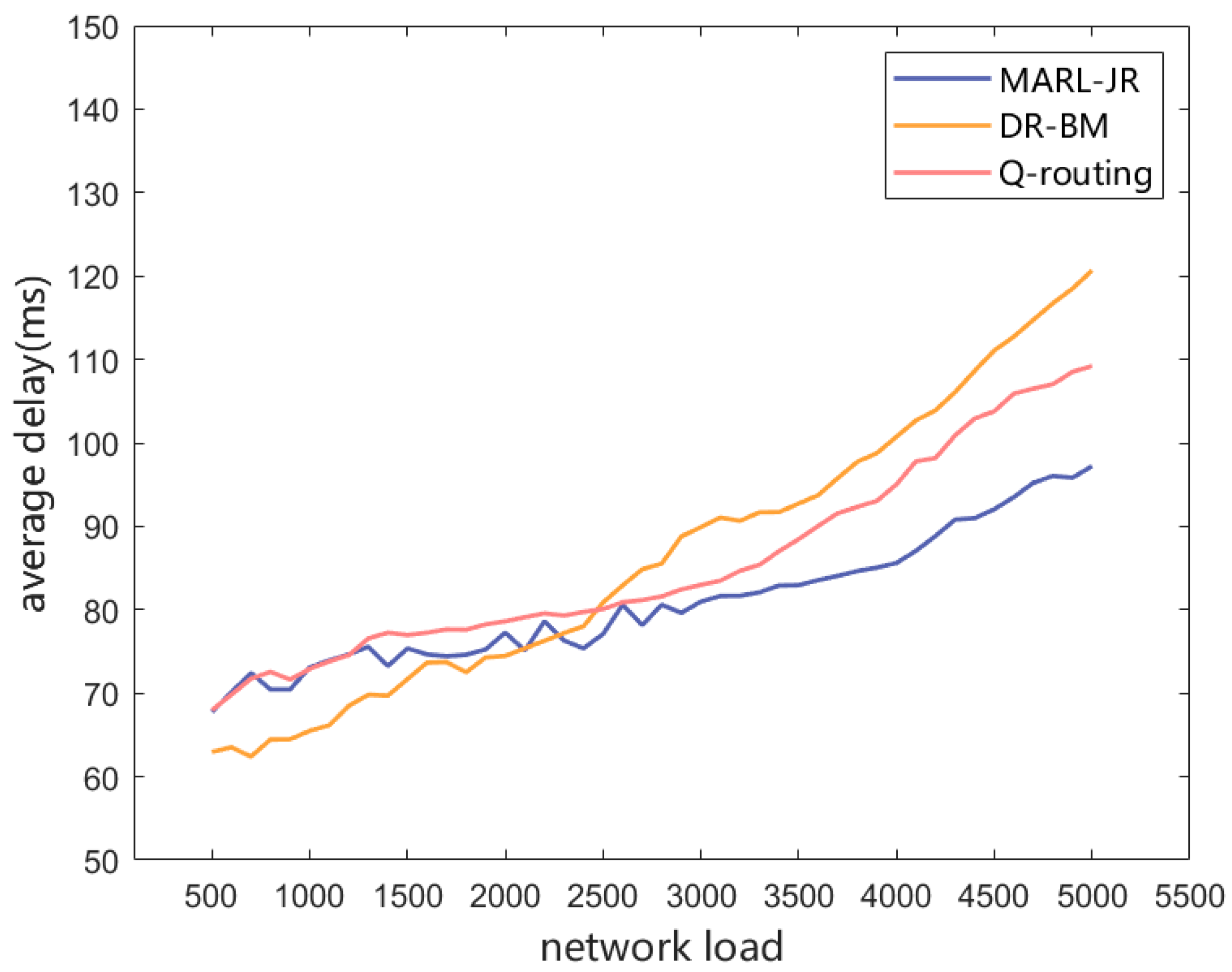

Figure 6 illustrates the average delay performance of the MARL-JR, DR-BM, and Q-routing algorithms under varying traffic load conditions. The total latency is defined as the cumulative time required for all data packets to traverse from the source node to the destination node. By dividing the total latency by the number of transmitted data packets, the average latency can be obtained. As shown by the curves in the figure, under low traffic loads, DR-BM can rapidly acquire global information and select paths with shorter delays due to the small number of data packets. However, as the load of the network increases, the instability of both DR-BM and Q-routing becomes evident. The DR-BM algorithm, which relies on obtaining global information, suffers from inefficient packet forwarding decisions and increased queuing delays, leading to a rise in the overall average delay. Similarly, the Q-routing algorithm demonstrates limitations in handling highly dynamic networks under high traffic loads, resulting in suboptimal performance.

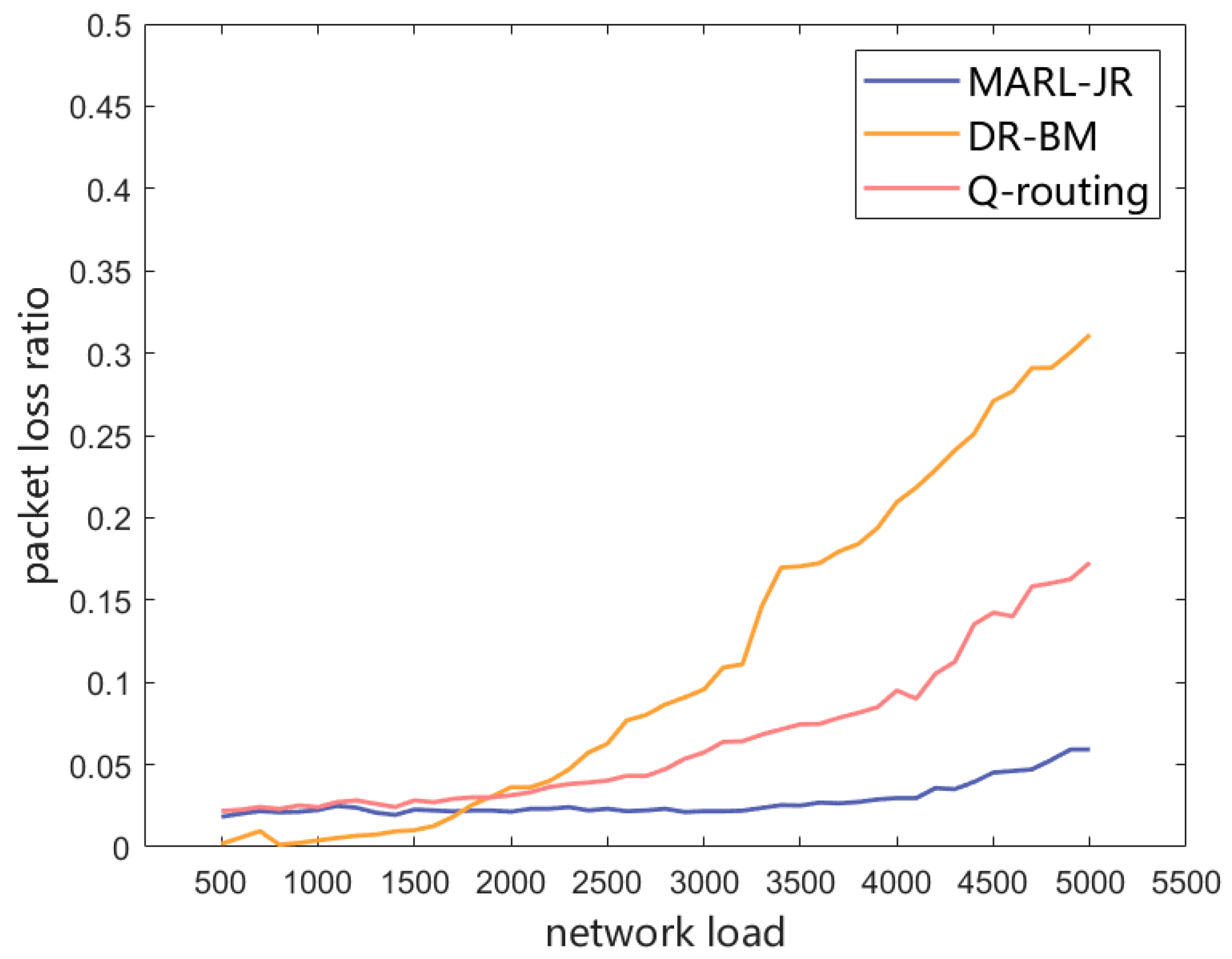

Figure 7 illustrates the packet loss rates under varying traffic load conditions. In the case of the DR-BM algorithm, under high traffic loads, increased queuing delays during packet forwarding can lead to situations where the intended link is no longer available at the time of forwarding, resulting in packet loss. In contrast, the MARL-JR algorithm adopts a distributed approach, leveraging information from neighboring nodes to make forwarding decisions more efficiently. This enables MARL-JR to maintain a significantly lower packet loss rate, demonstrating superior robustness as compared to the Q-routing algorithm.

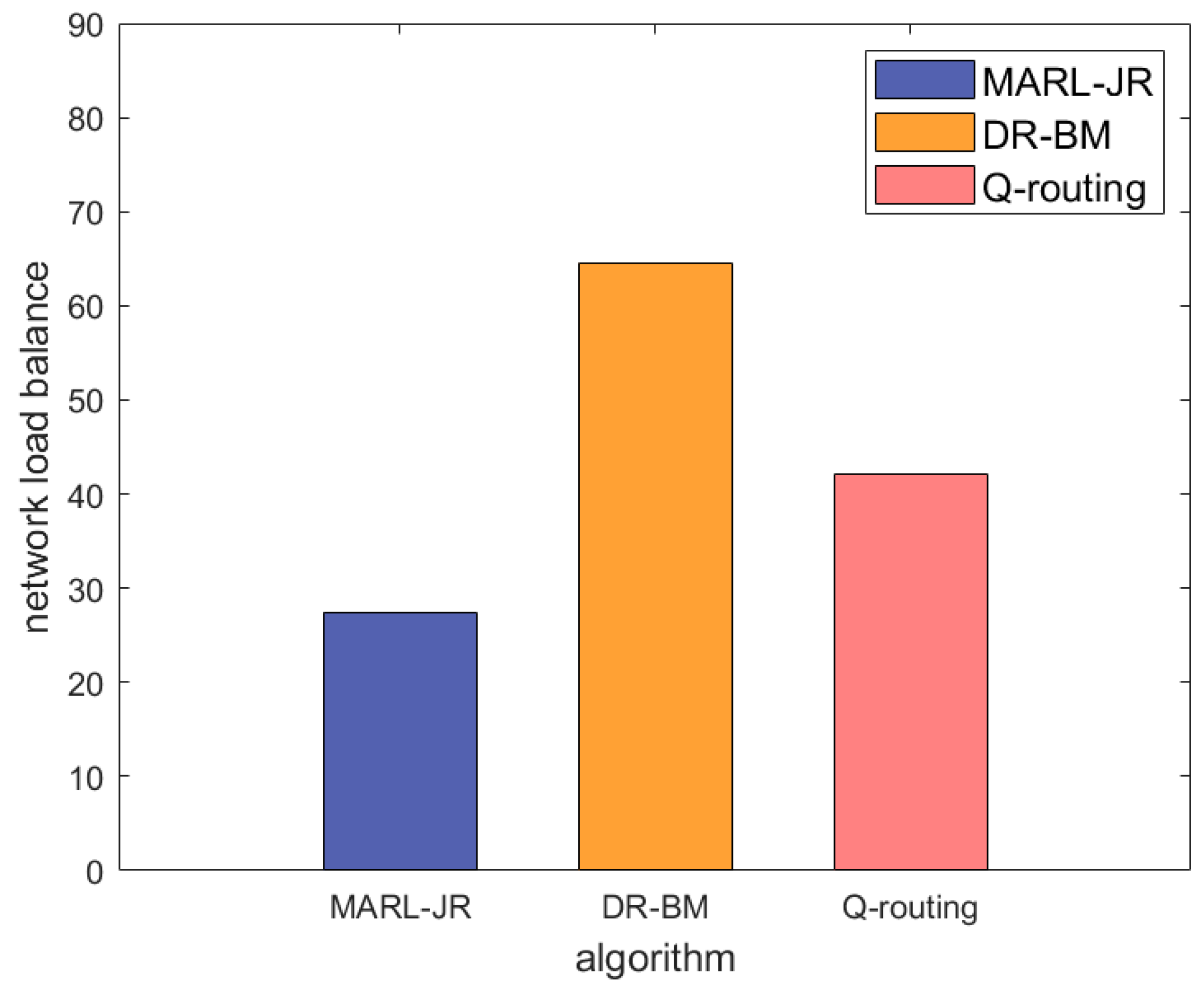

Figure 8 demonstrates the load balancing performance of different algorithms under a traffic load of 3000 packets in the network. In this study, the load balancing condition is represented by the variance of the packet counts across nodes, where a lower variance indicates a more balanced network load, while a higher variance suggests an imbalanced load, potentially leading to congestion. As illustrated in Figure 8, when the network contains 3000 data packets, MARL-JR achieves a more balanced load distribution across satellite nodes, thereby reducing the likelihood of congestion.

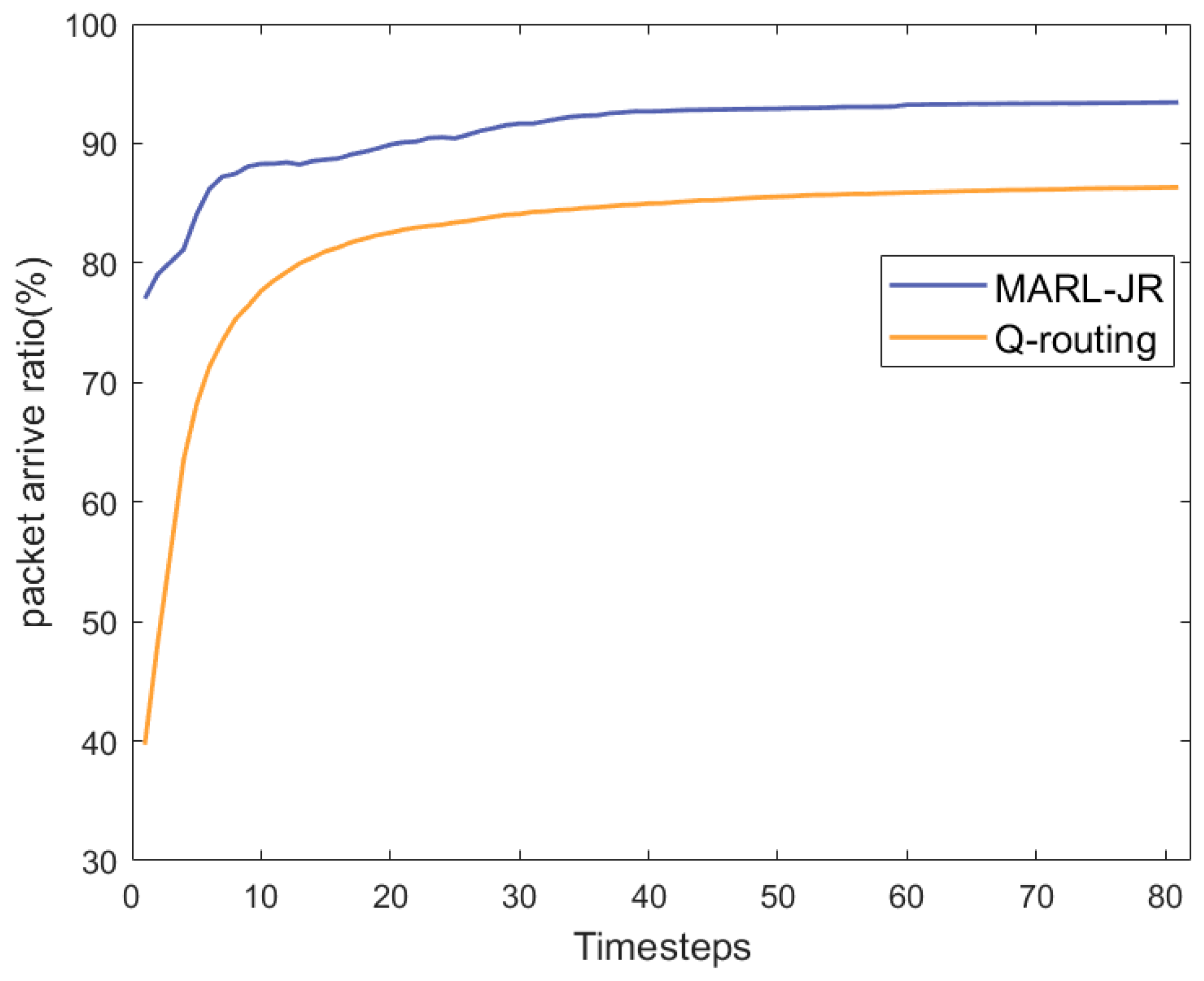

Figure 9 presents a comparison of the packet delivery rates between MARL-JR and the distributed Q-routing algorithm under the condition of 3000 packets circulating in the network. The initial phase corresponds to the commencement of online training. DR-BM utilizes a centralized routing approach where complete routing tables are computed at ground stations and uploaded to satellites, which allows satellite nodes to execute forwarding strategies without undergoing training-based convergence. Therefore, the routing performance of DR-BM during the initial satellite deployment phase need not be considered. By leveraging ground-based pre-training, the MARL-JR algorithm equips satellites with effective packet forwarding strategies from the initial deployment phase, enabling the rapid convergence of the routing algorithm. In contrast, the Q-routing algorithm relies on obtaining link-state information through data packet forwarding, which limits its ability to promptly adapt to changes in link states compared to MARL-JR.

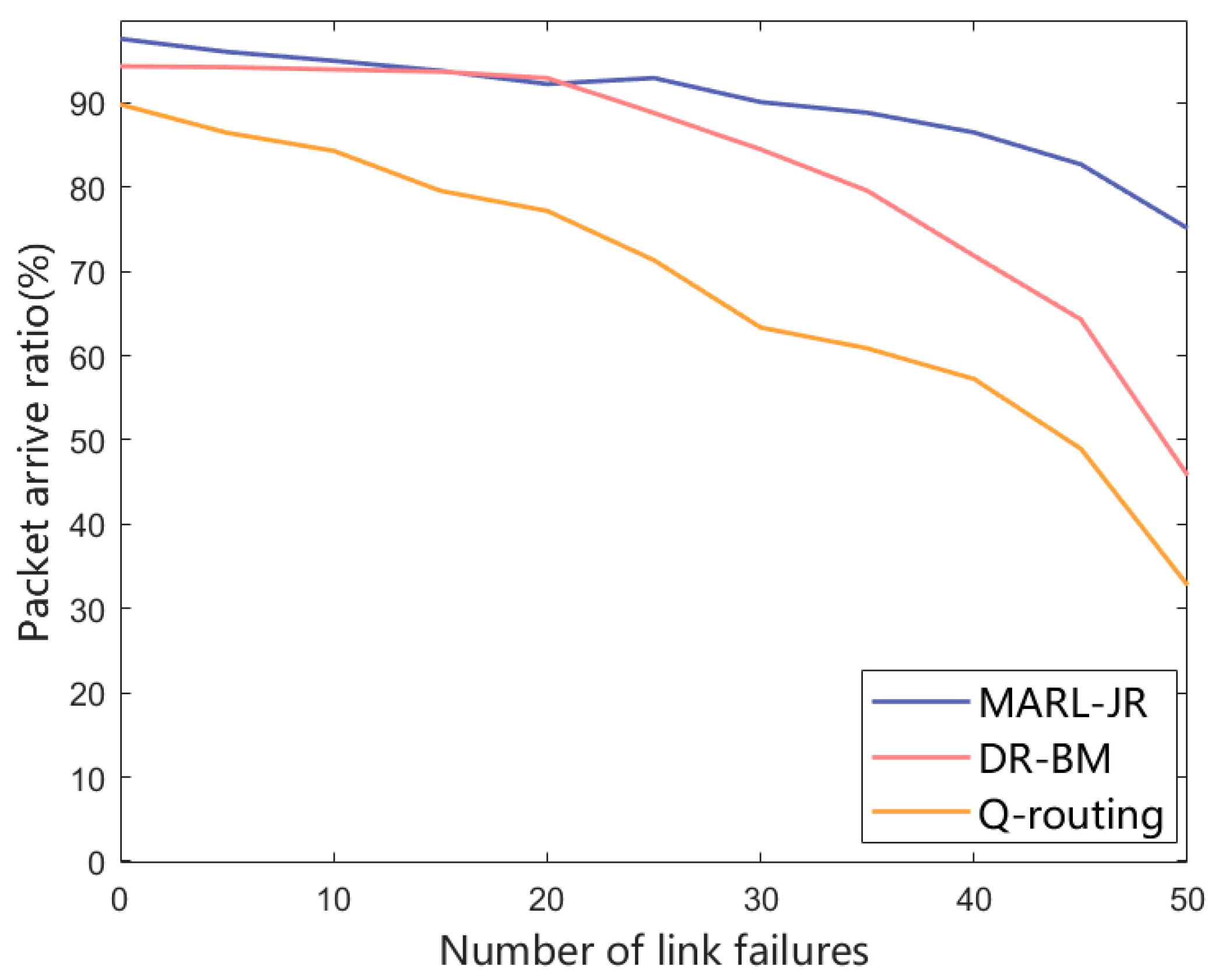

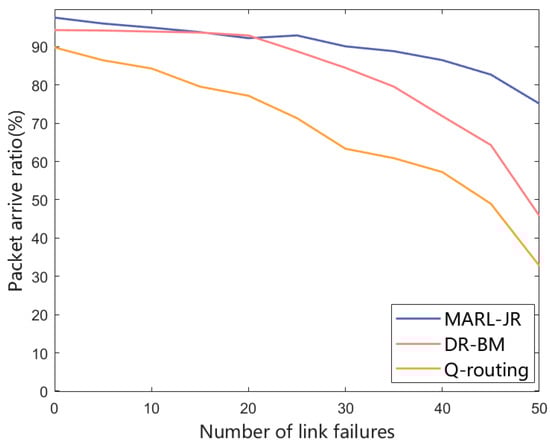

Figure 10 illustrates the variation in packet arrival rates among the three algorithms under different numbers of link failures while maintaining a constant network load of 3000 data packets. As evidenced by the figure, all three algorithms exhibit declining performance trends as the number of link failures increases. The DR-BM algorithm, employing a centralized routing approach, demonstrates more rapid performance degradation with increasing link failures due to its inherent inability to promptly respond to sudden link disruptions. In contrast, both the conventional Q-Routing algorithm and our proposed MARL-JR algorithm, leveraging distributed architectures, enable satellites to adapt routing strategies based on local information, thereby maintaining better routing performance during link failures. Notably, MARL-JR outperforms Q-Routing through the following two key innovations: (1) incorporation of a residual load factor for congestion-aware routing, and (2) periodic link-state broadcasting for timely topology updates. These enhancements enable MARL-JR to achieve superior robustness, as manifested by more stable packet arrival rates under increasing link failure conditions.

5. Conclusions

In this study, we propose a Multi-Agent Reinforcement Learning-Based Joint Centralized–Distributed Routing (MARL-JR) algorithm for Low Earth Orbit (LEO) satellite constellations. To address the highly dynamic network states and link instability inherent in satellite networks, we employ a distributed algorithmic framework with periodic link-state broadcasting. This framework enables the rapid detection of topological changes and timely adjustments to routing strategies, significantly enhancing algorithmic robustness. To mitigate computational overload on satellite nodes and improve initial performance, centralized pre-training is utilized to initialize Q-tables, thereby reducing computational demands and enhancing early-stage performance. Additionally, to tackle uneven traffic distribution in LEO networks, a residual load factor is introduced to prevent congestion and packet loss due to overloaded nodes. The simulation results demonstrate that, compared to conventional centralized (DR-BM) and distributed (QR) algorithms, MARL-JR achieves superior performance in terms of lower average latency, reduced packet loss rate, and a more balanced load distribution.

Furthermore, MARL-JR exhibits exceptional resilience in handling link failures. Future research will focus on extending the reinforcement learning framework to diverse satellite network scenarios and complex link connectivity conditions to further enhance its applicability and performance.
