Article

Evolutionary and Gene Expression Analyses Reveal New Insights into the Role of LSU Gene-Family in Plant Responses to Sulfate-Deficiency

1
Instituto de Bioquímica y Microbiología, Facultad de Ciencias, Universidad Austral de Chile, Valdivia 5110566, Chile
2
ANID-Millennium Science Initiative Program-Millennium Institute for Integrative Biology (iBio), Santiago 8331150, Chile
3
Centro de Biotecnología y Genómica de Plantas, INIA-CSIC-Universidad Politécnica de Madrid, 28223 Madrid, Spain
4
Centro de Genómica y Bioinformática, Facultad de Ciencias, Universidad Mayor, Santiago 8580745, Chile
5
Escuela de Biotecnología, Facultad de Ciencias, Universidad Mayor, Santiago 8580745, Chile
*
Author to whom correspondence should be addressed.
Plants 2022, 11(12), 1526; https://doi.org/10.3390/plants11121526
Submission received: 13 May 2022 / Revised: 30 May 2022 / Accepted: 4 June 2022 / Published: 7 June 2022

Abstract

:
LSU proteins belong to a plant-specific gene family initially characterized by their strong induction in response to sulfate (S) deficiency. In the last few years, LSUs have arisen as relevant hubs in protein–protein interaction networks, in which they play relevant roles in the response to abiotic and biotic stresses. Most of our knowledge on LSU genomic organization, expression and function comes from studies in Arabidopsis and tobacco, while little is known about the LSU gene repertoire and evolution of this family in land plants. In this work, a total of 270 LSU family members were identified using 134 land plant species with whole-genome sequences available. Phylogenetic analysis revealed that LSU genes belong to a Spermatophyta-specific gene family, and their homologs are distributed in three major groups, two for dicotyledons and one group for monocotyledons. Protein sequence analyses showed four new motifs that further support the subgroup classification by phylogenetic analyses. Moreover, we analyzed the expression of LSU genes in one representative species of each phylogenetic group (wheat, tomato and Arabidopsis) and found a conserved response to S deficiency, suggesting that these genes might play a key role in S stress responses. In summary, our results indicate that LSU genes belong to the Spermatophyta-specific gene family and their response to S deficiency is conserved in angiosperms.

1. Introduction

Sulfur is an essential macronutrient for plants and a constituent of relevant biomolecules, such as the amino acids methionine and cysteine, the antioxidant glutathione, glucosinolates, coenzymes and prosthetic groups [1]. As such, the availability of S, the main source of sulfur in soils, is an important determinant of plant growth, yield and quality.
In recent years, S deficiency has become widespread in many regions of the world, mainly due to anthropogenic factors such as the use of fertilizers with a diminished content of S, intensive agriculture, diminished use of sulfur-containing fungicides and the advent of environmental policies that limit the emissions of SO2 [2]. Due to the inability of animals to synthesize S-containing amino acids, plant-derived sulfur-containing compounds are key for the nutrition and survival of humans and livestock [3]. Thus, understanding how plants cope with S deficiency is of relevance for improving S content and the productivity of crops.
Plant responses to S deficiency have been studied both at the physiological and molecular levels. At the physiological level, S deficiency leads to reduced sulfur content and reduced metabolic activity, alters photosynthetic activity and produces oxidative stress due to an accumulation of reactive oxygen species. This leads to plants with stunted growth and leaf chlorosis [4]. At the molecular level, several S deficiency-responsive genes have been identified using omics approaches, indicating a massive reprogramming of gene expression in response to the availability of this nutrient [5,6,7,8,9,10,11,12,13,14]. A meta-analysis of published transcriptomics data of the S response in Arabidopsis identified genes whose expression is consistently controlled by S deficiency [15], including S transporters and enzymes related to S assimilation, as well as genes participating in cell wall organization, regulation of proteolysis and C/N metabolism. Among the consistently induced genes were LSU1 and LSU2, members of the plant-specific “RESPONSE TO LOW SULFUR (LSU)” family, composed of four members in Arabidopsis (LSU1-4). LSU1 and LSU2 were first identified as strongly induced at the transcript level by S deficiency in Arabidopsis [6,16] as well as at the protein level [17]. The analysis of LSU-GFP transgenic lines in Arabidopsis shows that LSU1 is preferentially located in chloroplasts of guard cells and LSU2 in the nucleus of epidermal root cells [17]. Another study showed that LSU2 protein is also localized in chloroplasts [18], and cytosolic localization has also been reported for LSU1 and LSU2 in Arabidopsis [17]. Similar to LSU2, tobacco LSU homolog UP9C is localized in the nucleus of root cells [16]. UP9C has been described as necessary for tobacco response to S deficiency and possesses a 20-nt DNA motif in its promoter, termed UPE-box, that confers S-deficiency responsiveness [19]. This element is also present in the promoters of Arabidopsis LSU1, LSU2 and LSU3, as well as in promoters from other S-responsive genes. such as APS reductase 1 (APR1), APR3 and S-transporter SULTR2;1 [20]. Mutations within this motif affect the binding of the NtEIL2 transcription factor, as well as the binding of its Arabidopsis homolog SLIM1 [19], a key transcription factor mediating the S-deficiency response [21], further supporting a role for LSU proteins in response to this nutrient.
LSUs are small proteins of approximately 90–100 amino acids. Molecular modeling of LSU structures in Arabidopsis shows that these small proteins have a coiled-coil structure [22]. Consistently, circular dichroism analysis of a recombinant LSU protein (UP9C) indicates that this protein is almost fully alpha-helical [16], which suggests that LSUs are flexible and might be able to bind other proteins. Accordingly, LSUs appear as hubs in protein–protein interaction networks in Arabidopsis [22,23,24,25]. A recent study also showed that LSU proteins are able to generate multimers, forming hetero and homodimers [22].
Besides S deficiency, LSU transcript levels change in response to other abiotic stresses, such as H2O2 treatment [26], C-starvation [27], treatment with lincomycin, an inhibitor of chloroplast biogenesis [28], iron deficiency, copper excess, salt stress or high pH [17]. LSUs have also been linked to the plant response to biotic stress. Interactome analysis in Arabidopsis has shown that LSUs are targeted by effectors from different pathogens, including the bacterium Pseudomonas syringae, the oomycete Hyalopernosopora arabidopsidis and the fungus Golovinomyces orontii [24,29]. Furthermore, mutant lsu2 plants present an enhanced susceptibility to infection by these pathogens, while LSU2 overexpression generates a resistant phenotype [24,29]. Consistent with the role of LSUs in plant defense, LSU1 has been shown to bind Fe superoxide dismutase 2 (FSD2), increasing its enzymatic activity and leading to enhanced chloroplastic H2O2 production, an important element of pattern-triggered immunity. The binding of pathogen effectors to LSU1 could interfere with this process, leading to plant susceptibility [17]. On the other hand, infection by Pseudomonas syringae leads to a disruption of the physical interaction between LSU2 and the AtRAP protein in the chloroplast, positively regulating host defense [18]. Interestingly, LSU downregulation results in a higher susceptibility to Pseudomonas syringae infection upon S deficiency, indicating that LSU proteins mediate defense responses during this nutritional stress [17]. Consistently, LSU1–4 are able to interact in vivo with the S assimilation enzyme ATP sulfurylase (APS1) in Arabidopsis [22], suggesting a potential direct regulation of S metabolism by LSUs. Furthermore, evidence points to a possible role of LSU-like proteins as common regulatory elements of the S and ethylene signaling pathways. UPC9 is able to interact with ACC oxidase, and silencing of UP9C leads to a reduction in ethylene biosynthesis during S-deficiency [30]. Additionally, LSU2 is directly regulated by EIN3 [31], a key transcription factor of ethylene signaling.
In terms of genomic organization, LSUs in Arabidopsis are located in pairs of directed gene repeats (LSU1 and LSU3 in chromosome 3 and LSU2 and LSU4 in chromosome 5) [32], indicating a possible gene duplication event. In tobacco, six LSU homologs have been described (UP9A-F). LSU homologs can be found by BLAST search across all higher land plants [17,20], and protein alignment of LSUs from different plants shows a short, conserved region of yet unidentified function [32]. However, no systematic identification and characterization of LSU genes in plants have been performed to date. Therefore, the origin and the evolution of LSU genes in plants remain unknown. On the other hand, studies on the evolutionary history of genes involved in S transport and metabolism [33,34] have shown that all genes of the S assimilation pathway of higher plants can be found in Chlamydomonas reinhardtii, Physcomitrella patens and Selaginella moellendorffii genomes [33,34]. However, significant differences were found in the genomic organization of these genes in basal land plants, showing a reduced complexity in some aspects of sulfur metabolism, such as cysteine synthesis or the synthesis of sulfated metabolites [34].
In this work, we performed a genome-wide identification and evolutionary analysis of LSU genes in plants. Our results suggest that different genes from the S assimilation pathway, the LSU gene family, arose in Spermatophyta. Phylogenetic analysis revealed three major LSU groups in angiosperms, two for dicotyledons and one group for monocotyledons. Moreover, we analyzed the expression of LSUs in one representative species of each phylogenetic group and found a conserved response to S deficiency, suggesting that these genes might play a key role in sulfur-stress responses. Overall, these data indicate that LSU genes are evolutionarily conserved in angiosperms, and members of this family might play a significant role in the regulation of S transport and assimilation.

2. Results

2.1. Genome-Wide Identification of LSU Genes in Plants Reveals That LSUs Are a Spermatophyta-Specific Gene Family

We performed a genome-wide search of LSU genes in the PLAZA 5.0 database [35] as the first step towards a phylogenetic analysis of this gene family in plants. This database contains structural and functional annotations of 134 high-quality plant genomes, including angiosperms, gymnosperms, non-seed plants and microalgae [35] (Figure 1A). We used the LSU genes of Arabidopsis thaliana as a reference to identify 270 genes of this family in the PLAZA 5.0 database (Table S1). Interestingly, all LSU genes belong to angiosperm and gymnosperm species, suggesting that LSUs are a Spermatophyta-specific gene family (Figure 1A). Accordingly, these homolog groups are annotated as an exclusively Spermatophyte family in PLAZA 5.0.
LSU1/LSU3 and LSU2/LSU4 genes in Arabidopsis are localized close to each other in chromosomes 3 and 5, respectively, suggesting that each of these pairs of LSU genes arose from a duplication event [32]. To investigate the potential expansion of the LSU family in plants, we analyzed the number of genes of this family across angiosperm genomes. The number of LSU genes is variable, ranging from 1 to 9 members (Table S1). In general, the species with a higher number of LSU genes were polyploids, so we performed a correlation analysis to verify the statistical significance of this observation. We found a significant positive correlation between the LSU gene number and the total number of coding genes (Figure S1), suggesting that the variation of gene copy number in the LSU family depends on genome size. Considering this correlation, we normalized the LSU copy number by the total number of coding genes to compare major taxonomic groups of angiosperms. As shown in Figure 1B, the distribution of the normalized number of LSU genes is very similar in monocotyledons and eudicotyledons species, with an average number of 2 LSU genes per 34.075 coding genes. Indeed, no significant differences in the number of LSU sequences were obtained between these taxonomic groups (p-value = 0.2; Figure S2). Therefore, these results suggest no evolutionary trend toward expansion or reduction of this family in angiosperm plants.

2.2. Phylogenetics Analysis of the LSU Gene Family

To reveal the evolutionary relationships of the 270 LSU genes identified in the PLAZA 5.0 database [35] among the seed-plant lineages, we constructed a phylogenetic tree using the maximum likelihood method implemented in IQ-TREE 2 [37] with the LSU protein sequences. The tree showed that these LSU members can be divided into three major phylogenetic groups: Group A, including most of the monocotyledon species; Group B, including most of the malvid species and Group C, including most of the rosid species (Figure 2). This organization of LSU genes fits very well with the reported phylogeny of angiosperm plants [38]. One important exception was the case of basal angiosperms, which are clustered together with the species of Group C; however, the bootstrap support for this case is very low (aLRT < 70%).
The phylogenetic analysis also showed that all LSU members of the same species in Groups B and C are clustered very close, suggesting a low intraspecific sequence divergence in the species of these groups. In contrast, most LSU genes of the same species in Group A are separated into two different clusters (Figure 2). To elaborate on this observation, we computed the evolutionary distance between each pair of sequences of the same species using MEGA 11 with the JTT matrix-based model [39]. As shown in Figure 3A, the intraspecific distance of LSU genes in Group A is significantly higher (p-value < 0.0001) than those of Groups B and C. Then, we selected one species per group to visualize these differences more clearly. We selected bread wheat (Triticum aestivum) for Group A, whose LSU genes cluster into two homoeolog groups: three on chromosome 1 (TraesCS1A03G0484600, TraesCS1B03G0587700, TraesCS1D03G0456700) and two on chromosome 6 (TraesCS6A03G0192500, TraesCS6B03G0289700). As shown in Figure 3B, the percent of amino acid identity is approximately 37–39% between the two homoeolog groups, indicating a high degree of divergence between members of this family in wheat. In contrast, for Arabidopsis in Group B, the lower percentage of identity between LSUs is 47–50%, with most of the LSUs sharing 60% or more of identity. The same trend is seen for tomato in Group C, where most LSUs share more than 70% of identity (Figure 3B). These results suggest significant differences in the intraspecific evolution of LSU genes between monocotyledons and eudicotyledons.
Multiple sequence alignment revealed that LSU proteins of the selected species exhibited significant differences in the N-terminal and C-terminal regions (Figure 3C). In contrast, the central region of LSU proteins showed two highly conserved domains, one from the amino acid positions 31 to 49 and the other one from 59 to 95 (Figure 3C). To extend this analysis to the whole 270 LSU proteins and reveal the structural variation of LSU genes in angiosperms, we predicted putative motifs using the MEME tool from the MEME Suite [40]. As shown in Figure 4A, we found a total of five distinct motifs with different degrees of distribution between phylogenetic groups. Motifs 1 and 2 were widely present in most members (>90%) of the three phylogenetic groups, and these conserved motifs were found in the central region of LSU proteins (Figure 4B). It is important to note that motif 1 matches with the only reported motif of the LSU family (A-x-x-x-E-E-x-L-C-x-x-L-x-[E/D]-x-[E/D]) [22]. In contrast, motif 3 was present in the C-terminal regions of LSU proteins and showed a limited distribution in Group A compared to Groups B or C (62% versus 76–89%). The motifs found in the N-terminal regions (motif 4 and motif 5) also showed different degrees of distribution between phylogenetic groups (Figure 4A). These results suggest that the amino acid residues outside of motifs 1 and 2 have significantly changed during plant evolution.

2.3. Expression Analyses of the LSU Family in Wheat, Tomato and Arabidopsis Reveal a Conserved Response to S-Deficiency

To elucidate if the response of LSU genes to S deficiency is conserved in angiosperms, one species of each phylogenetic group was selected for mRNA expression analysis: wheat from Group A, Arabidopsis from Group B and tomato from Group C. We grew plants in liquid medium in a complete medium (control condition) or a medium lacking S (S-deficiency condition), as previously described [14], until the emergence of the second true leaves. In this growth stage, transcript levels in roots and leaves samples were analyzed by reverse transcription-quantitative real-time polymerase chain reaction (RT-qPCR). First, we evaluated the mRNA levels of classical S-responsive genes as a positive control of the nutritional treatment in each species (Figure S3). In Arabidopsis and tomato plants, a significant increase in mRNA levels of SULTR1.2 and APR2 genes, encoding an S transporter and an S assimilation enzyme, respectively, was observed in both organs in response to S deficiency. In the case of wheat, we analyzed the orthologs of Arabidopsis MORE SULPHUR ACCUMULATION1 (MSA1) and APR2, which also showed higher expression levels under S deficiency in both root and leaves (p-value < 0.05; Figure S3). These results indicate that the S-deficiency response is triggered at the selected developmental stage in all species.
In the case of Arabidopsis, all LSU genes showed a significant increase in mRNA levels under S deficiency (p-value < 0.05) in root and leaves, with LSU4 showing a lower expression than the other LSU genes in all conditions (Figure 5). A similar result was observed in tomato plants, in which all LSU genes showed increased mRNA levels under S deficiency in both roots and leaves, with one of them (Solyc03g096770.1) showing a lower expression in all samples (Figure 5).
In the case of wheat, we analyzed the expression of the two homoeolog groups, TaLSU1 corresponding to homoeologs of chromosome 1 and TaLSU2 in the case of homoeologs of chromosome 6. As shown in Figure 5, we found a significant induction of TaLSU1 by S deficiency in both organs. On the other hand, the mRNA levels of TaLSU2 were very low in all analyzed samples; this could be due to a developmental effect since public data from the Wheat eFP Browser [43] shows that the expression of this gene is very low in the seedling stage (Figure S4).
Arabidopsis and tobacco LSU genes contain a cis-regulatory element termed the UPE-box, which is responsible for the S-deficiency response of LSU1 and other S-responsive genes [19,44]. To investigate whether the UPE-box is conserved across promoters of the LSU genes analyzed by RT-qPCR in this study, we searched for this cis-regulatory element in the 2Kb upstream regions of the transcription start site of each gene using the FIMO tool [45]. As shown in Figure 6, all LSU genes showing a significant response to S-deficiency have at least 3 UPE-box elements in their promoter region. In the case of tomato LSUs, the Arabidopsis LSU1 and the wheat TaLSU1 gene, the UPE-box are located near the transcriptional start site. On the other hand, previous reports have shown that the transcription factor SLIM1 binds to the LSU1 promoter through the UPE-box element [19]. To investigate whether ortholog genes of SLIM1 are present in wheat and tomato genomes, we performed a genome-wide search in the PLAZA 5.0 database [35]. We found that SLIM1 belongs to the homologous gene family HOM05D000843 with 35 genes in the three selected species. Phylogenetic analysis showed that tomato has two SLIM1 orthologs genes, similar to wheat, which has two homoeolog groups (Figure 6B).

3. Discussion

3.1. Molecular Evolution of the LSU Family

In this work, we performed an evolutionary analysis of the LSU family in plants using the 134 high-quality genomes available in the PLAZA 5.0 database. We found LSU homolog sequences in gymnosperm and angiosperm species, indicating that LSU genes are a Spermatophyta-specific gene family. However, typical S-responsive genes, such as S transporters, or genes encoding enzymes of S assimilation, such as ATP sulfurylase (ATPS) or APS reductase (APR), are present in all Viridiplantae from microalgae to angiosperms [34], indicating that the evolutionary appearance of the LSU family is recent compared to S assimilation genes. Interestingly, several experimentally verified interactors of LSU genes in Arabidopsis, such as APS1, GAPC1, RAF2, FSD2 and RAP1 [17,18,22], are also present in all analyzed Viridiplantae genomes (HOM05D001870, HOM05D000557, HOM05D002852, HOM05D002348 and HOM05D006787 homologous gene family, respectively, in PLAZA 5.0), suggesting that LSU-target regulatory interactions do not require the same evolutionary history.
A recent study analyzed the evolution of land plants using 208 complete genomes [49] and identified 1432 Spermatophyta-specific genes. GO ontology enrichment analysis revealed that Spermatophyta-specific genes are over-represented in GO terms associated with developmental processes and phytohormone responses. In this regard, several lines of evidence have related LSU genes and phytohormones [30,31]. For instance, it has been proposed that LSU genes may establish a communication between the phytohormone ethylene and S assimilation in response to cadmium stress [31]. Therefore, LSU genes may be related to phytohormone responses, similar to other Spermatophyta-specific genes.
The analysis of LSU sequences across angiosperms also reveals that the evolutionary distance between LSU genes of the same species in monocotyledons is significantly higher than in eudicotyledons, suggesting a potential functional divergence of LSU genes within monocotyledon species, such as wheat. In plants, functional divergence is also reflected in contrasting expression profiles of divergent genes due to the well-known correlation between gene expression and function in plants [50,51,52]. In fact, the expression patterns of the two LSU genes with a lower percentage of sequence identity in wheat (TraesCS1A03G0484600 and TraesCS6A03G0192500) show important differences during development according to the WheatOmics database [53]. TraesCS1A03G0484600 is preferentially expressed in roots and spikes, whereas TraesCS6A03G0192500 shows higher transcript levels in leaves and stems at the flowering stage (Figure S5). Consistent with these expression patterns, we found that the expression of TraesCS1A03G0484600 was significantly higher than TraesCS6A03G0192500 in all analyzed samples of the early seedling stage.
Previous reports have shown that the LSU proteins have a small conserved motif of 16 amino acids (A-x-x-x-E-E-x-L-C-x-x-L-x-[E/D]-x-[E/D]) [32]. However, this motif was deduced from a reduced set of sequences (42 protein sequences from 15 species) and, therefore, other relevant domains in the evolution of these proteins could be identified by expanding this analysis to other plant species. Indeed, our conserved motif analysis identified four new putative motifs based on 270 LSU protein sequences from 112 species (Figure 4). Interestingly, one of these new motifs (motif 2) also showed a high degree of conservation, suggesting that LSU proteins might have two essential domains. Our results also suggest that the known motif is of a much greater extent than previously reported [32] (from 16 to 29 amino acids). The significance of these strongly evolutionarily conserved regions is unknown, but a recent study suggests that particular motifs in LSU proteins are not required for the interaction of LSU with other molecular targets [22].

3.2. Expression Profiling Unveils a Conserved Function in the Control of S Responses

Previous studies have shown that LSU1-3 of Arabidopsis strongly responds to S deficiency as well as the LSU genes of tobacco plants [32]. In this work, we extended these expression analyses to wheat and tomato plants using the same experimental design and similar developmental stages. We found that all LSU genes were induced in response to S deficiency in roots and leaves of Arabidopsis and tomato plants (Figure 3), suggesting a functional redundancy in response to this nutritional stress. Accordingly, a recent study of the interactome of LSU proteins in Arabidopsis showed similar binding properties of LSU1-4 [22]. On the other hand, the fold change and expression levels of LSU4, TaLSU2 and Solyc03g096770.1 were remarkably lower than the other LSU genes in our experimental conditions. These exceptions may be due to a different temporal response to S deficiency or to a developmental effect. This last hypothesis is consistent with the developmental expression pattern of the LSU4 gene in Arabidopsis, which is preferentially expressed in flowers, according to the ePlant database [54]. Furthermore, a mutation in the LSU4 gene is known to affect flower development in Arabidopsis [55]. A similar case of tissue-specific expression of LSU genes occurs with wheat, as discussed below. These findings suggest that some members of the LSU family may have a tissue-specific response to S deficiency.
Cross-species genome-wide expression analysis showed a significant induction by S deficiency of at least one LSU gene member in all analyzed plant species, suggesting that they might play a conserved role in response to S stress conditions in angiosperms. It is important to note that the selected species belong to the three major LSU clades detected in the phylogenetic analysis (Figure 2). Moreover, the induction of LSU genes in tobacco plants has been also reported [16]. This conserved response to S availability strongly suggests a functional role of LSUs in this nutritional response. Interestingly, TAP-MS approaches in Arabidopsis have identified ATP sulfurylase 1 (APS1) is a protein directly interacting with LSU1, and this interaction has also been validated in planta BiFC assays [22].
The conserved response to S deficiency of the LSU genes analyzed in this work also suggests functional conservation of cis-regulatory elements in Arabidopsis, tomato and wheat plants. Consistently, the UPE-box cis-regulatory element was found in the promoter regions of LSU genes of these species (Figure 6A). UPE-box is a cis-regulatory element involved in the S-response that is present in the promoters of several S deficiency-responsive genes, including LSU1 [19,44]. Moreover, it has been demonstrated that the mutation of the UPE box affects the yeast-one-hybrid binding strength of SLIM1 to the promoter of LSU1 [19,44]. Interestingly, we found that wheat and tomato plants have two ortholog genes to the Arabidopsis SLIM1, suggesting a possible conserved regulatory mechanism to the S deficiency. In addition, we previously reported that one of the ortholog genes of SLIM1 in tomato (Solyc01g006650) has a significant response to S deficiency in roots and leaves [14]. The predicted target genes of this TF in tomato include classical S-responsive genes, such as LSUs, and genes involved in S assimilation [14], supporting the idea of a conserved regulatory mechanism for the S deficiency in Arabidopsis, tomato and wheat plants.
In summary, we found that LSU genes belong to a Spermatophyta-specific gene family and their response to S deficiency is conserved in angiosperms. Our analyses also suggest that homolog genes to the Arabidopsis SLIM1 might be involved in this conserved nutritional response. Further research should be undertaken in other angiosperm species, such as wheat or tomato, to verify this potential role of the transcription factor orthologs to SLIM1 in regulating S-deficiency responses.

4. Materials and Methods

4.1. Identification of LSU Genes and Phylogenetic Analysis

The sequence and gene codes of Arabidopsis LSU proteins were retrieved from the Arabidopsis Information Resource (https://www.arabidopsis.org/; accessed on 6 September 2021). LSU genes of other plant species were identified by BLASTP searches across the set of protein sequences obtained from the 134 species publicly available in the PLAZA 5.0 database (http://bioinformatics.psb.ugent.be/plaza/; accessed on 13 September 2021) [35]. In this manner, we found a total of 270 LSU sequences corresponding to the PLAZA homologous gene family HOM05D003381, HOM05M005606 and HOM05M009560 (Table S1).
Multiple sequence alignments were performed using the MAFFT software [41], and the alignments were visualized with Jalview 2 [42]. To identify and retain parsimony-informative sites, the alignments were trimmed using ClipKIT version 1.3.0 with default parameters [56]. IQ-TREE 2 [37] was used to perform phylogenetic analyses for maximum likelihood (ML) trees using the trimmed multiple alignments. The implemented ModelFinder function in IQ-TREE 2 software determined Q.plant + R5 amino acid replacement matrix [57] to be the best substitution model for tree inference. A total of 10,000 bootstrap replicates were performed using aLRT [58] and UFBoot tests [59] implemented in IQ-TREE 2 [37] for support estimation of reconstructed branches. This bioinformatic pipeline was also used for the case of SLIM1 phylogenetic analysis. The evolutionary distance between each pair of LSU sequences was estimated using MEGA 11 with the JTT matrix-based model [39].

4.2. Motif Analysis

Conserved protein motifs of the deduced LSU protein sequences were detected using the MEME tool from the MEME Suite v.5.4.1 [40]. The number of potential motifs was set up to 10 with having an optimum motif width ranging between 11 and 50 residues. The distribution of conserved motifs was visualized using TBtools v.0.665 [60].
The identification of UPE-box motif (AG[G/A]T[T/A]CATTGAA[T/C]CT[A/G]GAC[A/G]) in the promoter regions of LSU genes of Arabidopsis, tomato and wheat were performed using the FIMO tool from the MEME Suite v.5.4.1 [40] with a p-value threshold of 0.001. The promoter region was defined as the 2-kb sequence upstream of the transcription start site (based on Ensembl Plants v52) of each gene.

4.3. Plant Material and Growth Conditions

For the gene expression analysis of LSU gene family in response to S deficiency, we used seeds of the Arabidopsis thaliana ecotype Columbia (Col-0), Solanum lycopersicum (cv. Moneymaker) and Triticum aestivum L. in liquid medium with all nutrients available or lacking S, as we previously described [14], until the emergence of the second set of true leaves, which occurs 3 weeks after sowing for these plants under our experimental conditions.

4.4. RNA Extraction and RT-qPCR

Total RNA extraction was performed from 200 mg of frozen leaves or roots of Arabidopsis, wheat and tomato plants using the Spectrum Plant Total RNA kit (Sigma) and DNAase treatment with TURBO DNase (Invitrogen), according to the manufacturer’s protocols. cDNA was synthesized using 1000 ng of total RNA with All-In-One RT MasterMix 5X (abm). RT-qPCR reactions were performed with 25 ng of cDNA using the PowerUp SYBR Green Master Mix (Thermo Fisher Scientific) and CFX96 Touch Real-Time PCR Detection System (BioRad) according to the manufacturer’s instructions. The expression levels were normalized with reference genes that have proved stable in previous studies: the ADAPTOR PROTEIN-4-MU-ADAPTIN gene (AT4G24550) in the case of Arabidopsis [46], TIP4I-like family protein (TIP4I, SGN-U584254) for tomato [47] and the Ubiquitin-conjugating enzyme gene (TraesCS4A02G414200) for wheat [48]. Raw fluorescence data derived from each RT-qPCR reaction were analyzed using the Real-time PCR Miner 4.0 software to obtain Ct values and gene amplification efficiencies [61]. Sequences of the RT-qPCR primers used in this study are provided in Table S2. In the case of wheat, conserved primers for each homoeolog group were designed (TaLSU1 for TraesCS1A03G0484600, TraesCS1B03G0587700, TraesCS1D03G0456700; TaLSU2 for TraesCS6A03G0192500, TraesCS6B03G0289700) as the sequences of LSU genes of all the respective homoeologs were almost the same in wheat sub-genomes. Moreover, we verified that LSU genes of the same homoeolog group have a significantly high correlation in public RNA-seq datasets (p-value < 0.05, Figure S6), indicating redundant expression profiles within the homoeolog group as previously reported for ~70% of wheat homoeolog triads [43].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11121526/s1, Figure S1: Scatter plot showing the positive correlation between total coding genes and LSU gene number; Figure S2: Comparative analysis of LSU gene number across phylogenetic groups; Figure S3: Expression profiles of S-marker genes in wheat, Arabidopsis and tomato; Figure S4: Expression profiles of TaLSU1 and TaLSU2 in different tissues and growth stages of wheat obtained from Wheat eFP Browser; Figure S5: Comparative expression profiles of TraesCS1A03G0484600 and TraesCS6A03G0192500 in different developmental stages obtained from WheatOmics database; Figure S6: Heatmap of Pearson correlation coefficient matrix of the wheat LSU gene expression levels obtained from Wheat eFP Browser; Table S1: list of LSU genes and corresponding species; Table S2: Primers used in RT-qPCR analysis.

Author Contributions

Conceptualization, F.U., J.M, E.A.V. and J.C.; methodology, F.U., C.H.-V. and A.A.-M.; writing—original draft preparation, J.C.; writing—review and editing, A.A.-M., E.A.V., J.M. and J.C.; funding acquisition, E.A.V., J.M. and J.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Agency for Research and Development (ANID) Chile with Program FONDECYT Regular 1190812 and FONDECYT Regular 1211130 and Spanish Science Ministry (PID2020-114165RR-C21 to J.M). J.C. and E.A.V. were supported by ANID—Millennium Science Initiative Program—ICN17_022. We also want to acknowledge the “Severo Ochoa Program for Centres of Excellence in R&D” (CEX2020-000999-S) supported by MCIN/AEI/10.13039/501100011033.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Zenda, T.; Liu, S.; Dong, A.; Duan, H. Revisiting Sulphur—The Once Neglected Nutrient: It’s Roles in Plant Growth, Metabolism, Stress Tolerance and Crop Production. Agriculture 2021, 11, 626. [Google Scholar] [CrossRef]
  2. Haneklaus, S.; Bloem, E.; Schnug, E. History of Sulfur Deficiency in Crops. In Sulfur: A Missing Link between Soils, Crops, and Nutrition; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2008; pp. 45–58. ISBN 978-0-89118-186-6. [Google Scholar]
  3. Ufaz, S.; Galili, G. Improving the Content of Essential Amino Acids in Crop Plants: Goals and Opportunities. Plant Physiol. 2008, 147, 954–961. [Google Scholar] [CrossRef] [Green Version]
  4. Li, Q.; Gao, Y.; Yang, A. Sulfur Homeostasis in Plants. Int. J. Mol. Sci. 2020, 21, 8926. [Google Scholar] [CrossRef] [PubMed]
  5. Forieri, I.; Sticht, C.; Reichelt, M.; Gretz, N.; Hawkesford, M.J.; Malagoli, M.; Wirtz, M.; Hell, R. System Analysis of Metabolism and the Transcriptome in Arabidopsis Thaliana Roots Reveals Differential Co-Regulation upon Iron, Sulfur and Potassium Deficiency. Plant Cell Environ. 2017, 40, 95–107. [Google Scholar] [CrossRef]
  6. Maruyama-Nakashita, A.; Nakamura, Y.; Watanabe-Takahashi, A.; Inoue, E.; Yamaya, T.; Takahashi, H. Identification of a Novel Cis-Acting Element Conferring Sulfur Deficiency Response in Arabidopsis Roots. Plant J. 2005, 42, 305–314. [Google Scholar] [CrossRef]
  7. Maruyama-Nakashita, A.; Inoue, E.; Watanabe-Takahashi, A.; Yamaya, T.; Takahashi, H. Transcriptome Profiling of Sulfur-Responsive Genes in Arabidopsis Reveals Global Effects of Sulfur Nutrition on Multiple Metabolic Pathways. Plant Physiol. 2003, 132, 597–605. [Google Scholar] [CrossRef] [Green Version]
  8. Bielecka, M.; Watanabe, M.; Morcuende, R.; Scheible, W.-R.; Hawkesford, M.J.; Hesse, H.; Hoefgen, R. Transcriptome and Metabolome Analysis of Plant Sulfate Starvation and Resupply Provides Novel Information on Transcriptional Regulation of Metabolism Associated with Sulfur, Nitrogen and Phosphorus Nutritional Responses in Arabidopsis. Front. Plant Sci. 2015, 5, 805. [Google Scholar] [CrossRef] [Green Version]
  9. Nikiforova, V.; Freitag, J.; Kempa, S.; Adamik, M.; Hesse, H.; Hoefgen, R. Transcriptome Analysis of Sulfur Depletion in Arabidopsis Thaliana: Interlacing of Biosynthetic Pathways Provides Response Specificity. Plant J. Cell Mol. Biol. 2003, 33, 633–650. [Google Scholar] [CrossRef] [PubMed]
  10. Hirai, M.Y.; Fujiwara, T.; Awazuhara, M.; Kimura, T.; Noji, M.; Saito, K. Global Expression Profiling of Sulfur-Starved Arabidopsis by DNA Macroarray Reveals the Role of O-Acetyl-l-Serine as a General Regulator of Gene Expression in Response to Sulfur Nutrition. Plant J. Cell Mol. Biol. 2003, 33, 651–663. [Google Scholar] [CrossRef] [Green Version]
  11. Howarth, J.R.; Parmar, S.; Jones, J.; Shepherd, C.E.; Corol, D.-I.; Galster, A.M.; Hawkins, N.D.; Miller, S.J.; Baker, J.M.; Verrier, P.J.; et al. Co-Ordinated Expression of Amino Acid Metabolism in Response to N and S Deficiency during Wheat Grain Filling. J. Exp. Bot. 2008, 59, 3675–3689. [Google Scholar] [CrossRef] [Green Version]
  12. Gupta, S.; Yadav, B.S.; Raj, U.; Freilich, S.; Varadwaj, P.K. Transcriptomic Analysis of Soil Grown T. Aestivum Cv. Root to Reveal the Changes in Expression of Genes in Response to Multiple Nutrients Deficiency. Front. Plant Sci. 2017, 8, 1025. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Dai, Z.; Plessis, A.; Vincent, J.; Duchateau, N.; Besson, A.; Dardevet, M.; Prodhomme, D.; Gibon, Y.; Hilbert, G.; Pailloux, M.; et al. Transcriptional and Metabolic Alternations Rebalance Wheat Grain Storage Protein Accumulation under Variable Nitrogen and Sulfur Supply. Plant J. Cell Mol. Biol. 2015, 83, 326–343. [Google Scholar] [CrossRef]
  14. Canales, J.; Uribe, F.; Henríquez-Valencia, C.; Lovazzano, C.; Medina, J.; Vidal, E.A. Transcriptomic Analysis at Organ and Time Scale Reveals Gene Regulatory Networks Controlling the Sulfate Starvation Response of Solanum Lycopersicum. BMC Plant Biol. 2020, 20, 385. [Google Scholar] [CrossRef]
  15. Henríquez-Valencia, C.; Arenas-M, A.; Medina, J.; Canales, J. Integrative Transcriptomic Analysis Uncovers Novel Gene Modules That Underlie the Sulfate Response in Arabidopsis Thaliana. Front. Plant Sci. 2018, 9, 470. [Google Scholar] [CrossRef]
  16. Lewandowska, M.; Wawrzyńska, A.; Moniuszko, G.; Łukomska, J.; Zientara, K.; Piecho, M.; Hodurek, P.; Zhukov, I.; Liszewska, F.; Nikiforova, V.; et al. A Contribution to Identification of Novel Regulators of Plant Response to Sulfur Deficiency: Characteristics of a Tobacco Gene UP9C, Its Protein Product and the Effects of UP9C Silencing. Mol. Plant 2010, 3, 347–360. [Google Scholar] [CrossRef] [PubMed]
  17. Garcia-Molina, A.; Altmann, M.; Alkofer, A.; Epple, P.M.; Dangl, J.L.; Falter-Braun, P. LSU Network Hubs Integrate Abiotic and Biotic Stress Responses via Interaction with the Superoxide Dismutase FSD2. J. Exp. Bot. 2017, 68, 1185–1197. [Google Scholar] [CrossRef] [Green Version]
  18. Wang, H.; Seo, J.-K.; Gao, S.; Cui, X.; Jin, H. Silencing of AtRAP, a Target Gene of a Bacteria-Induced Small RNA, Triggers Antibacterial Defense Responses through Activation of LSU2 and down-Regulation of GLK1. New Phytol. 2017, 215, 1144–1155. [Google Scholar] [CrossRef] [Green Version]
  19. Wawrzyńska, A.; Lewandowska, M.; Sirko, A. Nicotiana Tabacum EIL2 Directly Regulates Expression of at Least One Tobacco Gene Induced by Sulphur Starvation. J. Exp. Bot. 2010, 61, 889–900. [Google Scholar] [CrossRef] [Green Version]
  20. Wawrzynska, A.; Moniuszko, G.; Sirko, A. Links Between Ethylene and Sulfur Nutrition—A Regulatory Interplay or Just Metabolite Association? Front. Plant Sci. 2015, 6, 1053. [Google Scholar] [CrossRef] [Green Version]
  21. Maruyama-Nakashita, A.; Nakamura, Y.; Tohge, T.; Saito, K.; Takahashi, H. Arabidopsis SLIM1 Is a Central Transcriptional Regulator of Plant Sulfur Response and Metabolism. Plant Cell 2006, 18, 3235–3251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Niemiro, A.; Cysewski, D.; Brzywczy, J.; Wawrzyńska, A.; Sieńko, M.; Poznański, J.; Sirko, A. Similar but Not Identical—Binding Properties of LSU (Response to Low Sulfur) Proteins From Arabidopsis Thaliana. Front. Plant Sci. 2020, 11, 1246. [Google Scholar] [CrossRef]
  23. Arabidopsis Interactome Mapping Consortium. Evidence for Network Evolution in an Arabidopsis Interactome Map. Science 2011, 333, 601–607. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Mukhtar, M.S.; Carvunis, A.-R.; Dreze, M.; Epple, P.; Steinbrenner, J.; Moore, J.; Tasan, M.; Galli, M.; Hao, T.; Nishimura, M.T.; et al. Independently Evolved Virulence Effectors Converge onto Hubs in a Plant Immune System Network. Science 2011, 333, 596–601. [Google Scholar] [CrossRef] [Green Version]
  25. Vandereyken, K.; Van Leene, J.; De Coninck, B.; Cammue, B.P.A. Hub Protein Controversy: Taking a Closer Look at Plant Stress Response Hubs. Front. Plant Sci. 2018, 9, 694. [Google Scholar] [CrossRef] [Green Version]
  26. Davletova, S.; Rizhsky, L.; Liang, H.; Shengqiang, Z.; Oliver, D.J.; Coutu, J.; Shulaev, V.; Schlauch, K.; Mittler, R. Cytosolic Ascorbate Peroxidase 1 Is a Central Component of the Reactive Oxygen Gene Network of Arabidopsis. Plant Cell 2005, 17, 268–281. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Usadel, B.; Bläsing, O.E.; Gibon, Y.; Retzlaff, K.; Höhne, M.; Günther, M.; Stitt, M. Global Transcript Levels Respond to Small Changes of the Carbon Status during Progressive Exhaustion of Carbohydrates in Arabidopsis Rosettes. Plant Physiol. 2008, 146, 1834–1861. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Ruckle, M.E.; Burgoon, L.D.; Lawrence, L.A.; Sinkler, C.A.; Larkin, R.M. Plastids Are Major Regulators of Light Signaling in Arabidopsis. Plant Physiol. 2012, 159, 366–390. [Google Scholar] [CrossRef] [Green Version]
  29. Weßling, R.; Epple, P.; Altmann, S.; He, Y.; Yang, L.; Henz, S.R.; McDonald, N.; Wiley, K.; Bader, K.C.; Gläßer, C.; et al. Convergent Targeting of a Common Host Protein-Network by Pathogen Effectors from Three Kingdoms of Life. Cell Host Microbe 2014, 16, 364–375. [Google Scholar] [CrossRef] [Green Version]
  30. Moniuszko, G.; Skoneczny, M.; Zientara-Rytter, K.; Wawrzyńska, A.; Głów, D.; Cristescu, S.M.; Harren, F.J.M.; Sirko, A. Tobacco LSU-like Protein Couples Sulphur-Deficiency Response with Ethylene Signalling Pathway. J. Exp. Bot. 2013, 64, 5173–5182. [Google Scholar] [CrossRef] [Green Version]
  31. Kong, X.; Li, C.; Zhang, F.; Yu, Q.; Gao, S.; Zhang, M.; Tian, H.; Zhang, J.; Yuan, X.; Ding, Z. Ethylene Promotes Cadmium-Induced Root Growth Inhibition through EIN3 Controlled XTH33 and LSU1 Expression in Arabidopsis. Plant Cell Environ. 2018, 41, 2449–2462. [Google Scholar] [CrossRef]
  32. Sirko, A.; Wawrzyńska, A.; Rodríguez, M.C.; Sęktas, P. The Family of LSU-like Proteins. Front. Plant Sci. 2014, 5, 774. [Google Scholar] [CrossRef] [Green Version]
  33. Takahashi, H.; Buchner, P.; Yoshimoto, N.; Hawkesford, M.J.; Shiu, S.-H. Evolutionary Relationships and Functional Diversity of Plant Sulfate Transporters. Front. Plant Sci. 2012, 2, 119. [Google Scholar] [CrossRef] [Green Version]
  34. Kopriva, S.; Wiedemann, G.; Reski, R. Sulfate Assimilation in Basal Land Plants—What Does Genomic Sequencing Tell Us? Plant Biol. 2007, 9, 556–564. [Google Scholar] [CrossRef] [Green Version]
  35. Van Bel, M.; Silvestri, F.; Weitz, E.M.; Kreft, L.; Botzki, A.; Coppens, F.; Vandepoele, K. PLAZA 5.0: Extending the Scope and Power of Comparative and Functional Genomics in Plants. Nucleic Acids Res. 2021, 50, gkab1024. [Google Scholar] [CrossRef]
  36. Kumar, S.; Stecher, G.; Suleski, M.; Hedges, S.B. TimeTree: A Resource for Timelines, Timetrees, and Divergence Times. Mol. Biol. Evol. 2017, 34, 1812–1819. [Google Scholar] [CrossRef]
  37. Minh, B.Q.; Schmidt, H.A.; Chernomor, O.; Schrempf, D.; Woodhams, M.D.; von Haeseler, A.; Lanfear, R. IQ-TREE 2: New Models and Efficient Methods for Phylogenetic Inference in the Genomic Era. Mol. Biol. Evol. 2020, 37, 1530–1534. [Google Scholar] [CrossRef] [Green Version]
  38. Li, H.-T.; Luo, Y.; Gan, L.; Ma, P.-F.; Gao, L.-M.; Yang, J.-B.; Cai, J.; Gitzendanner, M.A.; Fritsch, P.W.; Zhang, T.; et al. Plastid Phylogenomic Insights into Relationships of All Flowering Plant Families. BMC Biol. 2021, 19, 232. [Google Scholar] [CrossRef]
  39. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  40. Bailey, T.L.; Johnson, J.; Grant, C.E.; Noble, W.S. The MEME Suite. Nucleic Acids Res. 2015, 43, W39–W49. [Google Scholar] [CrossRef] [Green Version]
  41. Katoh, K.; Rozewicki, J.; Yamada, K.D. MAFFT Online Service: Multiple Sequence Alignment, Interactive Sequence Choice and Visualization. Brief. Bioinform. 2019, 20, 1160–1166. [Google Scholar] [CrossRef] [Green Version]
  42. Waterhouse, A.M.; Procter, J.B.; Martin, D.M.A.; Clamp, M.; Barton, G.J. Jalview Version 2—A Multiple Sequence Alignment Editor and Analysis Workbench. Bioinformatics 2009, 25, 1189–1191. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Ramírez-González, R.H.; Borrill, P.; Lang, D.; Harrington, S.A.; Brinton, J.; Venturini, L.; Davey, M.; Jacobs, J.; van Ex, F.; Pasha, A.; et al. The Transcriptional Landscape of Polyploid Wheat. Science 2018, 361, eaar6089. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Rakpenthai, A.; Apodiakou, A.; Whitcomb, S.J.; Hoefgen, R. In Silico Analysis of Cis-Elements and Identification of Transcription Factors Putatively Involved in the Regulation of the OAS Cluster Genes SDI1 and SDI2. Plant J. 2022, 110, 1286–1304. [Google Scholar] [CrossRef]
  45. Grant, C.E.; Bailey, T.L.; Noble, W.S. FIMO: Scanning for Occurrences of a given Motif. Bioinformatics 2011, 27, 1017–1018. [Google Scholar] [CrossRef] [Green Version]
  46. Czechowski, T.; Stitt, M.; Altmann, T.; Udvardi, M.K.; Scheible, W.-R. Genome-Wide Identification and Testing of Superior Reference Genes for Transcript Normalization in Arabidopsis. Plant Physiol. 2005, 139, 5–17. [Google Scholar] [CrossRef] [Green Version]
  47. Paolacci, A.R.; Celletti, S.; Catarcione, G.; Hawkesford, M.J.; Astolfi, S.; Ciaffi, M. Iron Deprivation Results in a Rapid but Not Sustained Increase of the Expression of Genes Involved in Iron Metabolism and Sulfate Uptake in Tomato (Solanum lycopersicum L.) Seedlings. J. Integr. Plant Biol. 2014, 56, 88–100. [Google Scholar] [CrossRef] [PubMed]
  48. Borrill, P.; Ramirez-Gonzalez, R.; Uauy, C. ExpVIP: A Customizable RNA-Seq Data Analysis and Visualization Platform. Plant Physiol. 2016, 170, 2172–2186. [Google Scholar] [CrossRef] [Green Version]
  49. Bowles, A.M.C.; Bechtold, U.; Paps, J. The Origin of Land Plants Is Rooted in Two Bursts of Genomic Novelty. Curr. Biol. 2020, 30, 530–536.e2. [Google Scholar] [CrossRef] [Green Version]
  50. Niehrs, C.; Pollet, N. Synexpression Groups in Eukaryotes. Nature 1999, 402, 483–487. [Google Scholar] [CrossRef]
  51. Hu, W.; Hua, X.; Zhang, Q.; Wang, J.; Shen, Q.; Zhang, X.; Wang, K.; Yu, Q.; Lin, Y.-R.; Ming, R.; et al. New Insights into the Evolution and Functional Divergence of the SWEET Family in Saccharum Based on Comparative Genomics. BMC Plant Biol. 2018, 18, 270. [Google Scholar] [CrossRef]
  52. Zhong, H.; Zhang, H.; Guo, R.; Wang, Q.; Huang, X.; Liao, J.; Li, Y.; Huang, Y.; Wang, Z. Characterization and Functional Divergence of a Novel DUF668 Gene Family in Rice Based on Comprehensive Expression Patterns. Genes 2019, 10, 980. [Google Scholar] [CrossRef] [Green Version]
  53. Ma, S.; Wang, M.; Wu, J.; Guo, W.; Chen, Y.; Li, G.; Wang, Y.; Shi, W.; Xia, G.; Fu, D.; et al. WheatOmics: A Platform Combining Multiple Omics Data to Accelerate Functional Genomics Studies in Wheat. Mol. Plant 2021, 14, 1965–1968. [Google Scholar] [CrossRef]
  54. Waese, J.; Fan, J.; Pasha, A.; Yu, H.; Fucile, G.; Shi, R.; Cumming, M.; Kelley, L.A.; Sternberg, M.J.; Krishnakumar, V.; et al. EPlant: Visualizing and Exploring Multiple Levels of Data for Hypothesis Generation in Plant Biology. Plant Cell 2017, 29, 1806–1821. [Google Scholar] [CrossRef]
  55. Myakushina, Y.A.; Milyaeva, E.L.; Romanov, G.A.; Nikiforova, V.Y. Mutation in LSU4 Gene Affects Flower Development in Arabidopsis Thaliana. Dokl. Biochem. Biophys. 2009, 428, 257–260. [Google Scholar] [CrossRef] [Green Version]
  56. Steenwyk, J.L.; Buida, T.J.; Li, Y.; Shen, X.-X.; Rokas, A. ClipKIT: A Multiple Sequence Alignment Trimming Software for Accurate Phylogenomic Inference. PLoS Biol. 2020, 18, e3001007. [Google Scholar] [CrossRef]
  57. Minh, B.Q.; Dang, C.C.; Vinh, L.S.; Lanfear, R. QMaker: Fast and Accurate Method to Estimate Empirical Models of Protein Evolution. Syst. Biol. 2021, 70, 1046–1060. [Google Scholar] [CrossRef]
  58. Guindon, S.; Dufayard, J.-F.; Lefort, V.; Anisimova, M.; Hordijk, W.; Gascuel, O. New Algorithms and Methods to Estimate Maximum-Likelihood Phylogenies: Assessing the Performance of PhyML 3.0. Syst. Biol. 2010, 59, 307–321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Minh, B.Q.; Nguyen, M.A.T.; von Haeseler, A. Ultrafast Approximation for Phylogenetic Bootstrap. Mol. Biol. Evol. 2013, 30, 1188–1195. [Google Scholar] [CrossRef]
  60. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  61. Zhao, S.; Fernald, R.D. Comprehensive Algorithm for Quantitative Real-Time Polymerase Chain Reaction. J. Comput. Biol. 2005, 12, 1047–1064. [Google Scholar] [CrossRef] [PubMed]
Figure 1. LSUs belong to a Spermatophyta-specific gene family. (A) The phylogeny of 134 plants from the PLAZA 5.0 database was used in this study. To improve visualization, 73 eudicotyledon and 31 monocotyledon species collapsed in the phylogenetic tree (triangle) and the average number of LSU genes are indicated with an asterisk. The order of tree branches and divergence time were obtained from the TimeTree database (http://timetree.org/; accessed on 13 December 2021) [36]. (B) The normalized number of LSU genes identified in angiosperms plants. The number of LSU genes of each species was divided by 34,075 coding genes, which is the average total number of genes in the analyzed species.
Figure 1. LSUs belong to a Spermatophyta-specific gene family. (A) The phylogeny of 134 plants from the PLAZA 5.0 database was used in this study. To improve visualization, 73 eudicotyledon and 31 monocotyledon species collapsed in the phylogenetic tree (triangle) and the average number of LSU genes are indicated with an asterisk. The order of tree branches and divergence time were obtained from the TimeTree database (http://timetree.org/; accessed on 13 December 2021) [36]. (B) The normalized number of LSU genes identified in angiosperms plants. The number of LSU genes of each species was divided by 34,075 coding genes, which is the average total number of genes in the analyzed species.
Plants 11 01526 g001

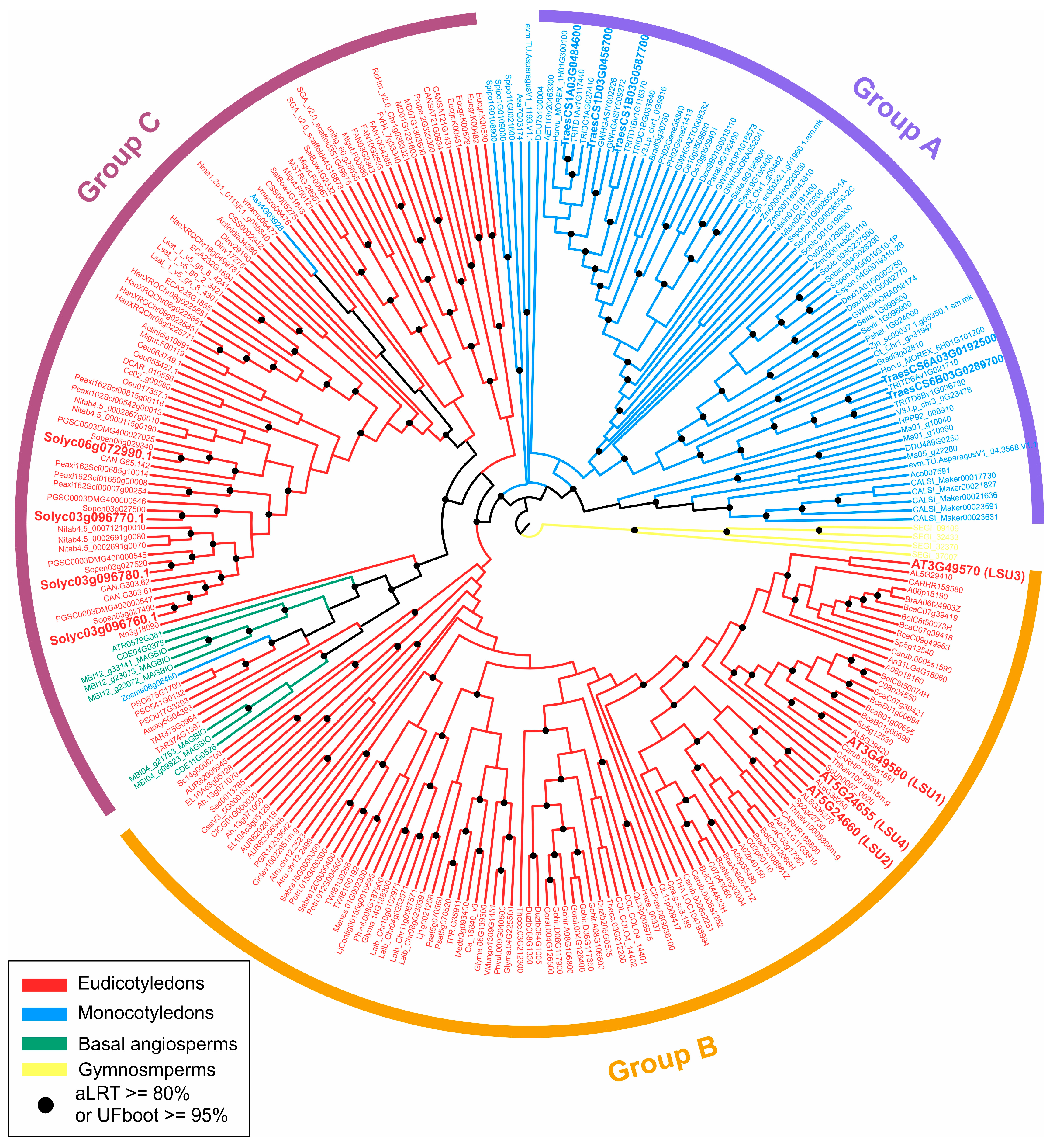

Figure 2. Phylogenetic analysis of LSU genes in angiosperm plant lineages. A phylogenetic tree was constructed using the maximum likelihood method from IQ-TREE 2 [37], supported by 10,000 bootstrap samples. Yellow lines represent gymnosperms, green lines represent basal angiosperms, blue lines represent monocotyledons and red lines represent eudicotyledons. The gene identifiers correspond to the PLAZA 5.0 database [35], and the complete list of LSU genes is shown in Table S1.
Figure 2. Phylogenetic analysis of LSU genes in angiosperm plant lineages. A phylogenetic tree was constructed using the maximum likelihood method from IQ-TREE 2 [37], supported by 10,000 bootstrap samples. Yellow lines represent gymnosperms, green lines represent basal angiosperms, blue lines represent monocotyledons and red lines represent eudicotyledons. The gene identifiers correspond to the PLAZA 5.0 database [35], and the complete list of LSU genes is shown in Table S1.
Plants 11 01526 g002

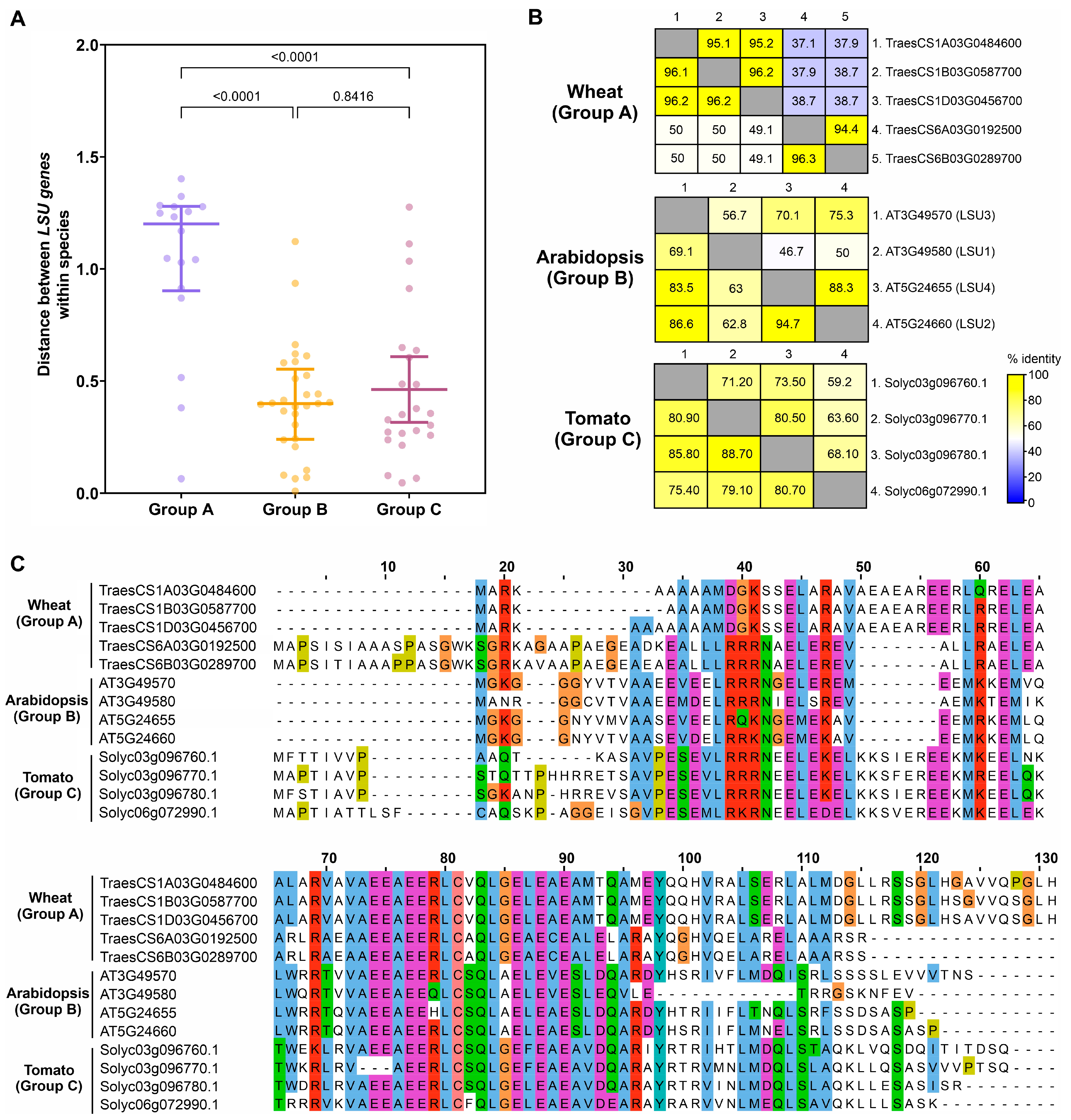

Figure 3. Comparative sequence analysis between representative species of the three phylogenetic groups of the LSU family. (A) The evolutionary distance between each pair of LSU sequences of the same species was obtained using MEGA 11 [39]. (B) The percentage of similarity and identity between every pair of LSU sequences within a representative species of each phylogenetic group. The upper part of the matrix represents the identity, and the lower part is the similarity. (C) Multiple sequence alignment of LSU proteins from wheat, tomato and Arabidopsis. Amino acid sequences were aligned using MAFFT [41] and visualized with Jalview 2 using the Clustal X color scheme [42].
Figure 3. Comparative sequence analysis between representative species of the three phylogenetic groups of the LSU family. (A) The evolutionary distance between each pair of LSU sequences of the same species was obtained using MEGA 11 [39]. (B) The percentage of similarity and identity between every pair of LSU sequences within a representative species of each phylogenetic group. The upper part of the matrix represents the identity, and the lower part is the similarity. (C) Multiple sequence alignment of LSU proteins from wheat, tomato and Arabidopsis. Amino acid sequences were aligned using MAFFT [41] and visualized with Jalview 2 using the Clustal X color scheme [42].
Plants 11 01526 g003
Figure 4. Conserved motif composition of the LSU gene family. (A) The conserved motifs were identified using the MEME tool [40], and the % distribution across the three phylogenetic groups is indicated right to the motif. (B) Five putative motifs are indicated by colored boxes in representative species of each phylogenetic group.
Figure 4. Conserved motif composition of the LSU gene family. (A) The conserved motifs were identified using the MEME tool [40], and the % distribution across the three phylogenetic groups is indicated right to the motif. (B) Five putative motifs are indicated by colored boxes in representative species of each phylogenetic group.
Plants 11 01526 g004
Figure 5. Expression profiles of LSU genes of wheat, Arabidopsis and tomato under S deficiency. The mRNA levels of the LSU gene family were measured by RT-qPCR in leaves (A) and roots (B) of each species grown for 3 weeks in a liquid medium under control and S-deficiency conditions. The expression levels were normalized with the ADAPTOR PROTEIN-4-MU-ADAPTIN gene (AT4G24550) in the case of Arabidopsis [46], TIP4I-like family protein (TIP4I, SGN-U584254) for tomato [47] and the Ubiquitin-conjugating enzyme gene (TraesCS4A02G414200) for wheat [48]. Each treatment was performed using three independent experiments. The bars represent the arithmetic mean, and the asterisks indicate the mean of the measurements that are significantly different according to a Student’s t-test with p < 0.05.
Figure 5. Expression profiles of LSU genes of wheat, Arabidopsis and tomato under S deficiency. The mRNA levels of the LSU gene family were measured by RT-qPCR in leaves (A) and roots (B) of each species grown for 3 weeks in a liquid medium under control and S-deficiency conditions. The expression levels were normalized with the ADAPTOR PROTEIN-4-MU-ADAPTIN gene (AT4G24550) in the case of Arabidopsis [46], TIP4I-like family protein (TIP4I, SGN-U584254) for tomato [47] and the Ubiquitin-conjugating enzyme gene (TraesCS4A02G414200) for wheat [48]. Each treatment was performed using three independent experiments. The bars represent the arithmetic mean, and the asterisks indicate the mean of the measurements that are significantly different according to a Student’s t-test with p < 0.05.
Plants 11 01526 g005

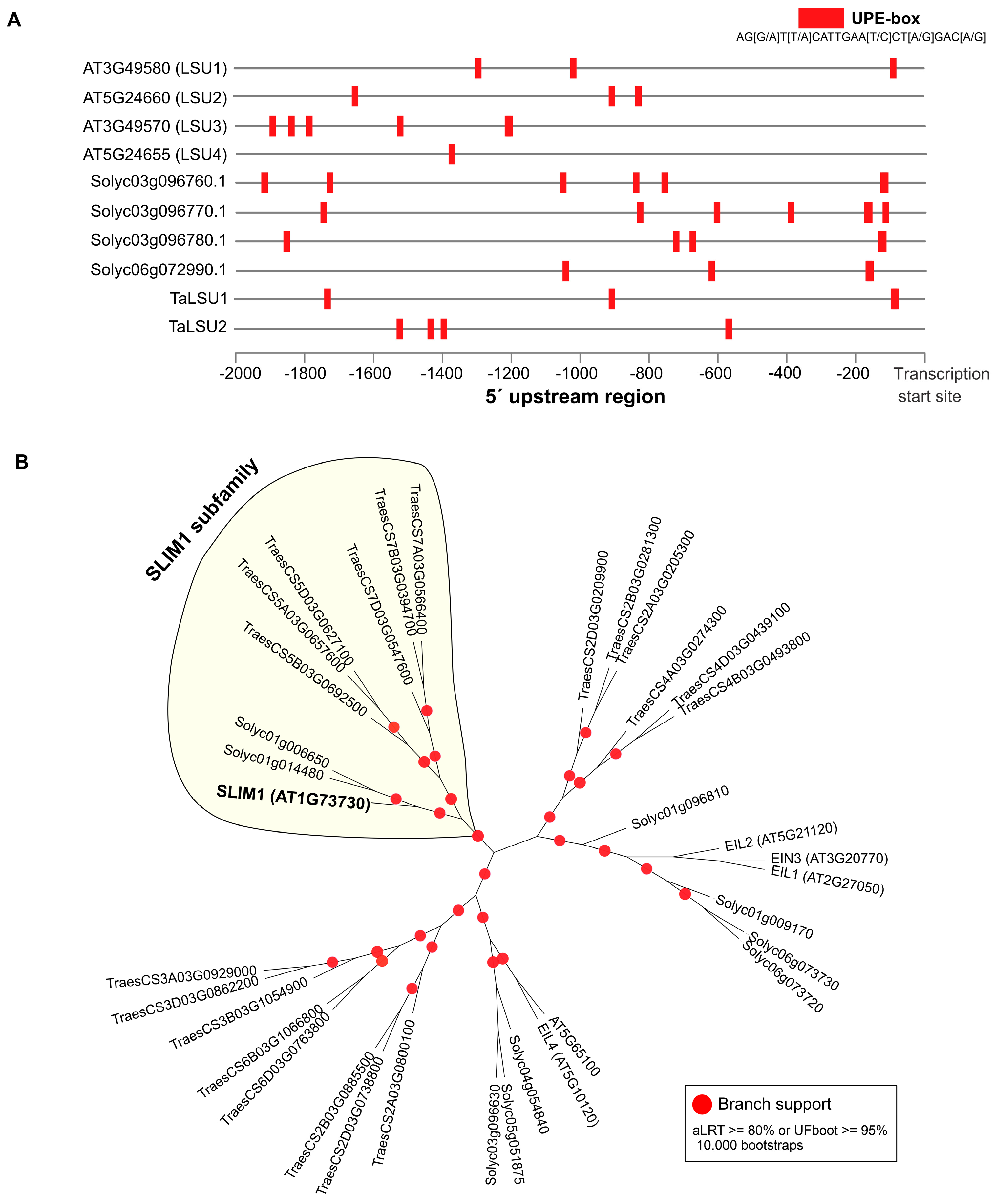

Figure 6. Distribution across promoters of the Arabidopsis, tomato and wheat LSU genes of the UPE-box element involved in S response. The promoter region was defined as the 2-kb sequence upstream of the transcription start site (based on Ensembl Plants v52) of each LSU gene (A). Phylogenetic analysis shows that ortholog genes of the Arabidopsis SLIM1 are present in tomato and wheat genomes (B). SLIM1 is a well-known transcription factor that binds to the UPE-box elements [19,44].
Figure 6. Distribution across promoters of the Arabidopsis, tomato and wheat LSU genes of the UPE-box element involved in S response. The promoter region was defined as the 2-kb sequence upstream of the transcription start site (based on Ensembl Plants v52) of each LSU gene (A). Phylogenetic analysis shows that ortholog genes of the Arabidopsis SLIM1 are present in tomato and wheat genomes (B). SLIM1 is a well-known transcription factor that binds to the UPE-box elements [19,44].
Plants 11 01526 g006
